7-3. Do-it-yourself maintenance

If dust and clogs cannot be com-
pletely removed with the air
intake vent cover installed,
remove the cover and clean the
filter.

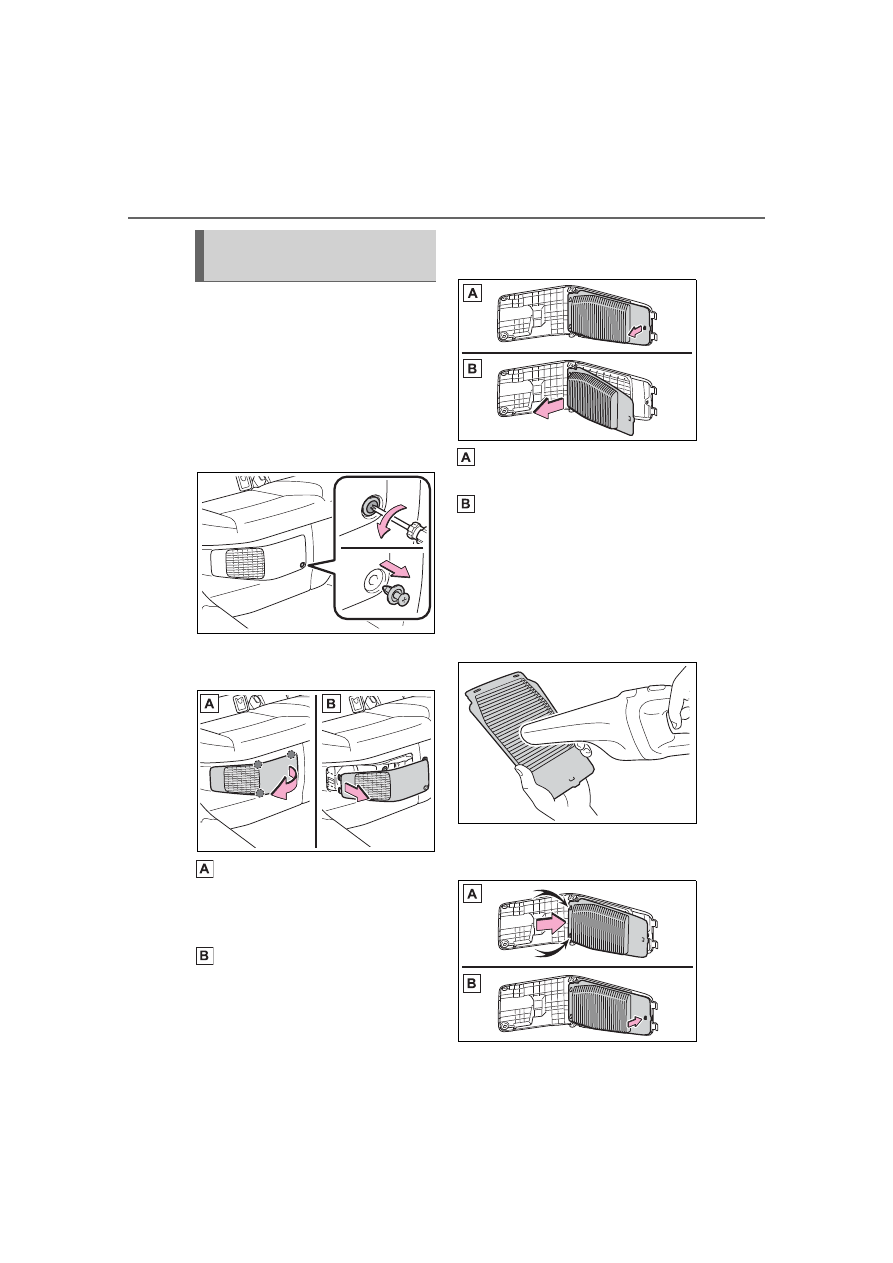

Turn the power switch off.

Using a Phillips screwdriver,
remove the clip.

Remove the air intake vent
cover.

Pull the cover as shown in
the illustration to disengage
the 3 claws, starting from the
claw in the upper right corner.
Pull the cover toward the
front of the vehicle to remove
it.

Remove the air intake vent
filter.

Disengage the claw as
shown in the illustration.
Remove the filter from the
cover.

Remove the dust and clogs
from the filter using a vacuum
cleaner, etc.

Make sure to also remove the dust

and clogs from the inside of the air

intake vent cover.

Reinstall the filter to the
cover.

If dust and clogs cannot
be completely removed

441

7-3. Do-it-yourself maintenance

Maintena

nce
a

nd ca

Engage the filter to the 2
claws as shown in the illus-
tration.
Engage the claw to install the
filter.

Make sure that the filter is not

crooked or deformed when install-

ing it.

Install the air intake vent
cover.

Insert the tab of the cover as
shown in the illustration.
Push the cover to engage the
3 claws.

Using a Phillips screwdriver,
install the clip.

■

Scheduled maintenance of the

air intake vent is necessary

when

In some situations such as when the

vehicle is used frequently or in

heavy traffic or dusty areas, the air

intake vent may need to be cleaned

more regularly. For details, refer to

“Scheduled Maintenance Guide” or

“Owner’s Manual Supplement”.

■

Cleaning the air intake vent

●

Dust in the air intake vent may

interfere with the cooling of the

hybrid battery (traction battery). If

charging/discharging of the hybrid

battery (traction battery) becomes

limited, the distance that the vehi-

cle can be driven using the electric

motor (traction motor) may be

reduced and the fuel economy

may be reduced.

Inspect and clean the air intake

vent periodically.

●

Improper handling of the air intake

vent cover and filter may result in

damage to them. If you have any

concerns about cleaning the filter,

contact your Toyota dealer.

■

If “Maintenance Required for

Traction Battery Cooling Parts

See Owner’s Manual” is dis-

played on the multi-information

display

●

If this warning message is dis-

played on the multi-information

display, remove the air intake vent

cover and clean the filter.

(



P.440)

●

After cleaning the air intake vent,

start the hybrid system and check

that the warning message is no

longer displayed.

After the hybrid system is started,

it may be necessary to drive the

vehicle up to approximately 20

minutes before the warning mes-

sage disappears. If the warning

message does not disappear after

driving for appropriately 20 min-

utes, have the vehicle inspected

by your Toyota dealer.

442

7-3. Do-it-yourself maintenance

WARNING

■

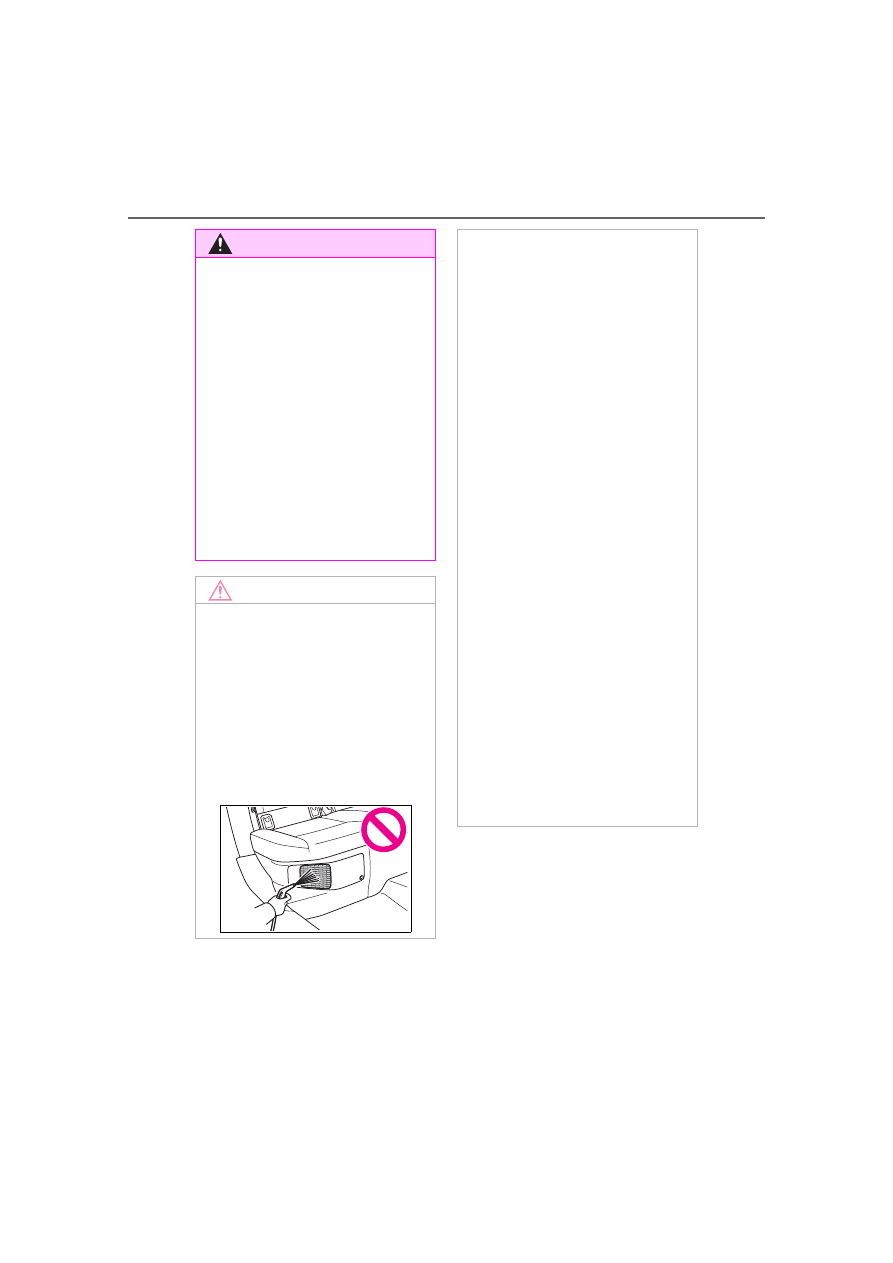

When cleaning the air intake

vent

●

Do not use water or other liq-

uids to clean the air intake vent.

If water is applied to the hybrid

battery (traction battery) or

other components, a malfunc-

tion or fire may occur.

●

Before cleaning the air intake

vent, make sure to turn the

power switch off to stop the

hybrid system.

■

When removing the air intake

vent cover

Do not touch the service plug

located near the air intake vent.

(



P.84)

NOTICE

■

When cleaning the air intake

vent

When cleaning the air intake vent,

make sure to only use a vacuum

to suck out dust and clogs. If a

compressed air blow gun, etc. is

used to blow out dust and clogs,

the dust or clogs may be pushed

into the air intake vent, which may

affect the performance of the

hybrid battery (traction battery)

and cause a malfunction.

■

To prevent damage to the

vehicle

●

Do not allow liquid or foreign

material to enter the air intake

vent when the cover is

removed.

●

Carefully handle the removed

filter so that it will not be dam-

aged.

If the filter is damaged, have it

replaced with a new filter by

your Toyota dealer.

●

Make sure to reinstall the filter

and cover to their original posi-

tions after cleaning.

●

Do not install anything to the air

intake vent other than the exclu-

sive filter for this vehicle or use

the vehicle without the filter

installed.

■

If “Maintenance Required for

Traction Battery Cooling

Parts See Owner’s Manual” is

displayed on the multi-infor-

mation display

If the vehicle is continuously

driven with the warning message

(indicating that charging/discharg-

ing of the hybrid battery [traction

battery] may become limited) dis-

played, the hybrid battery (traction

battery) may malfunction. If the

warning message is displayed,

clean the air intake vent immedi-

ately.

443

7-3. Do-it-yourself maintenance

Maintena

nce
a

nd ca

■

If the electronic key battery is

depleted

The following symptoms may occur:

●

The smart key system and wire-

less remote control will not func-

tion properly.

●

The operational range will be

reduced.



Flathead screwdriver



Small flathead screwdriver



Lithium battery CR2032

■

Use a CR2032 lithium battery

●

Batteries can be purchased at

your Toyota dealer, local electrical

appliance shops or camera stores.

●

Replace only with the same or

equivalent type recommended by

the manufacturer.

●

Dispose of used batteries accord-

ing to local laws.

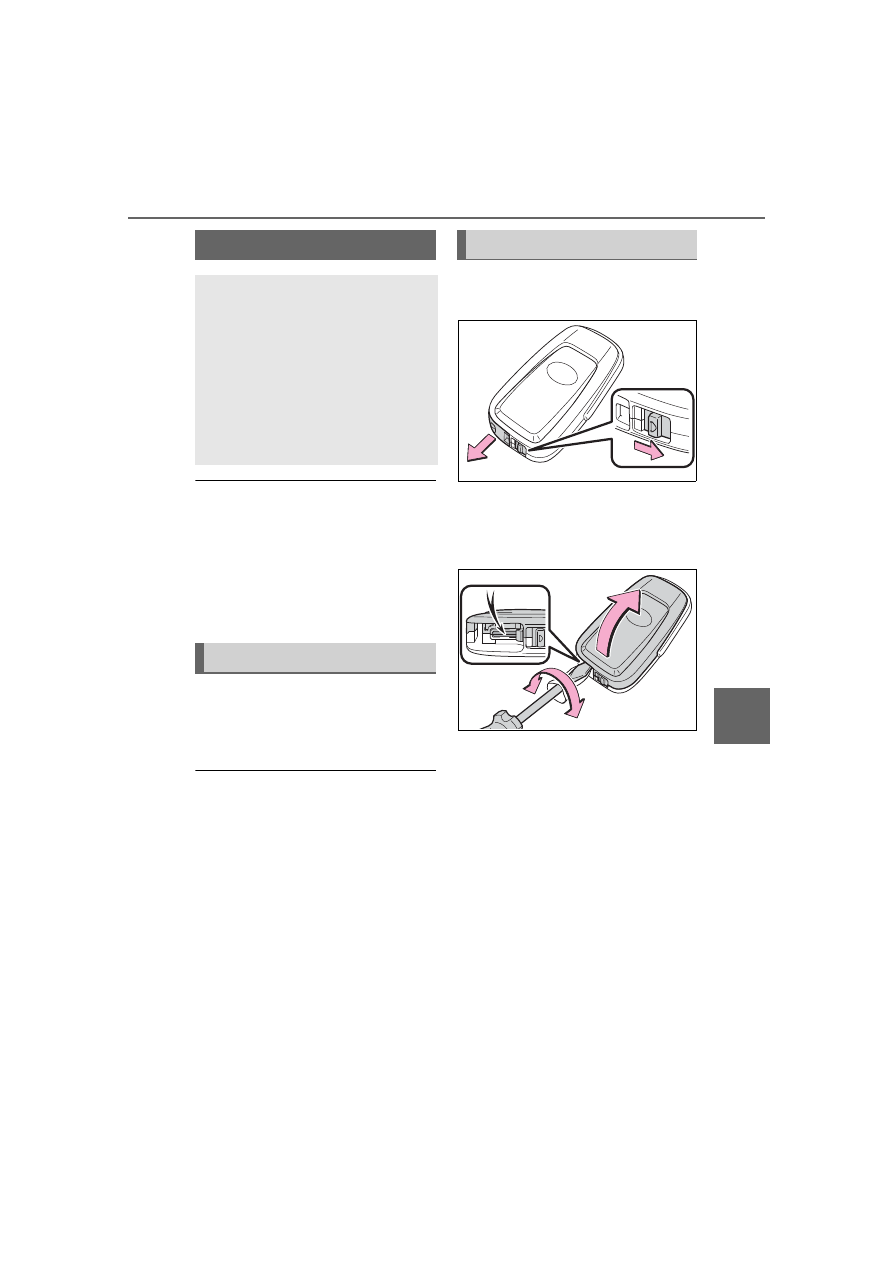

Release the lock and remove
the mechanical key.

Remove the key cover.

To prevent damage to the key,

cover the tip of the flathead screw-

driver with a rag.

Remove the depleted battery
using a small flathead screw-
driver.

When removing the cover, the elec-

tronic key module may stick to the

cover and the battery may not be

visible. In this case, remove the

electronic key module in order to

remove the battery.

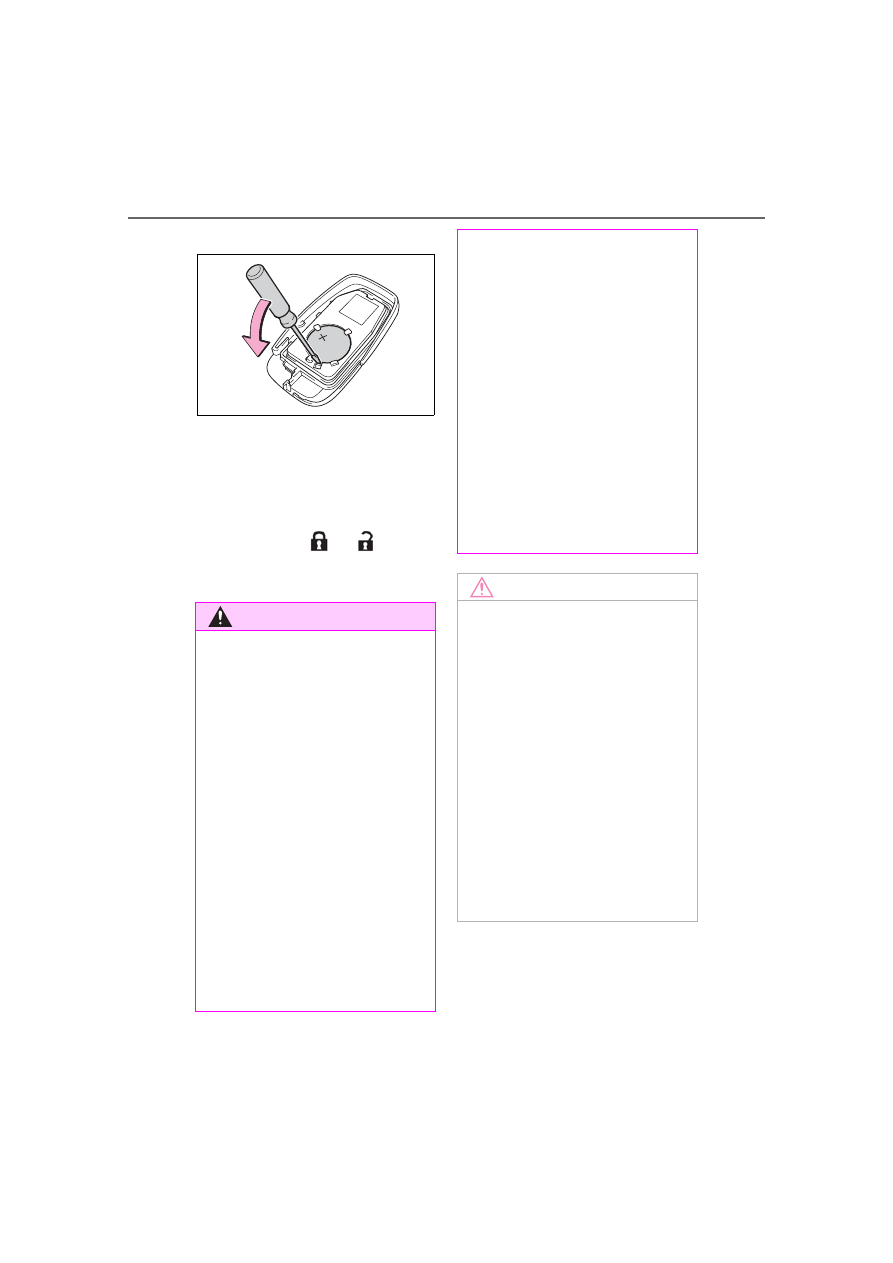

Insert a new battery with the “+” ter-

Electronic key battery

Replace the battery with a
new one if it is depleted.
As the key may be damaged
if the following procedure is
not performed properly, it is
recommended that key bat-
tery replacement be per-
formed by your Toyota
dealer.

Items to prepare

Replacing the battery

444

7-3. Do-it-yourself maintenance

minal facing up.

When installing the key cover
and mechanical key, install
by conducting step

and

step

with the directions

reversed.

Operate the

switch

and check that the doors can
be locked/unlocked.

WARNING

■

Battery precautions

Observe the following precau-

tions. Failure to do so may result

in death or serious injury.

●

Do not swallow the battery.

Doing so may cause chemical

burns.

●

A coin battery or button battery

is used in the electronic key. If a

battery is swallowed, it may

cause severe chemical burns in

as little as 2 hours and may

result in death or serious injury.

●

Keep away new and removed

batteries from children.

●

If the cover cannot be firmly

closed, stop using the electronic

key and stow the key in the

place where children cannot

reach, and then contact your

Toyota dealer.

●

If you accidentally swallow a

battery or put a battery into a

part of your body, get emer-

gency medical attention imme-

diately.

■

To prevent battery explosion

or leakage of flammable liq-

uid or gas

●

Replace the battery with a new

battery of the same type. If a

wrong type of battery is used, it

may explode.

●

Do not expose batteries to

extremely low pressure due to

high altitude or extremely high

temperatures.

●

Do not burn, break or cut a bat-

tery.

NOTICE

■

When replacing the battery

Use a flathead screwdriver of

appropriate size. Applying exces-

sive force may deform or damage

the cover.

■

For normal operation after

replacing the battery

Observe the following precautions

to prevent accidents:

●

Always work with dry hands.

Moisture may cause the battery

to rust.

●

Do not touch or move any other

component inside the remote

control.

●

Do not bend either of the battery

terminals.

445

7-3. Do-it-yourself maintenance

Maintena

nce
a

nd ca

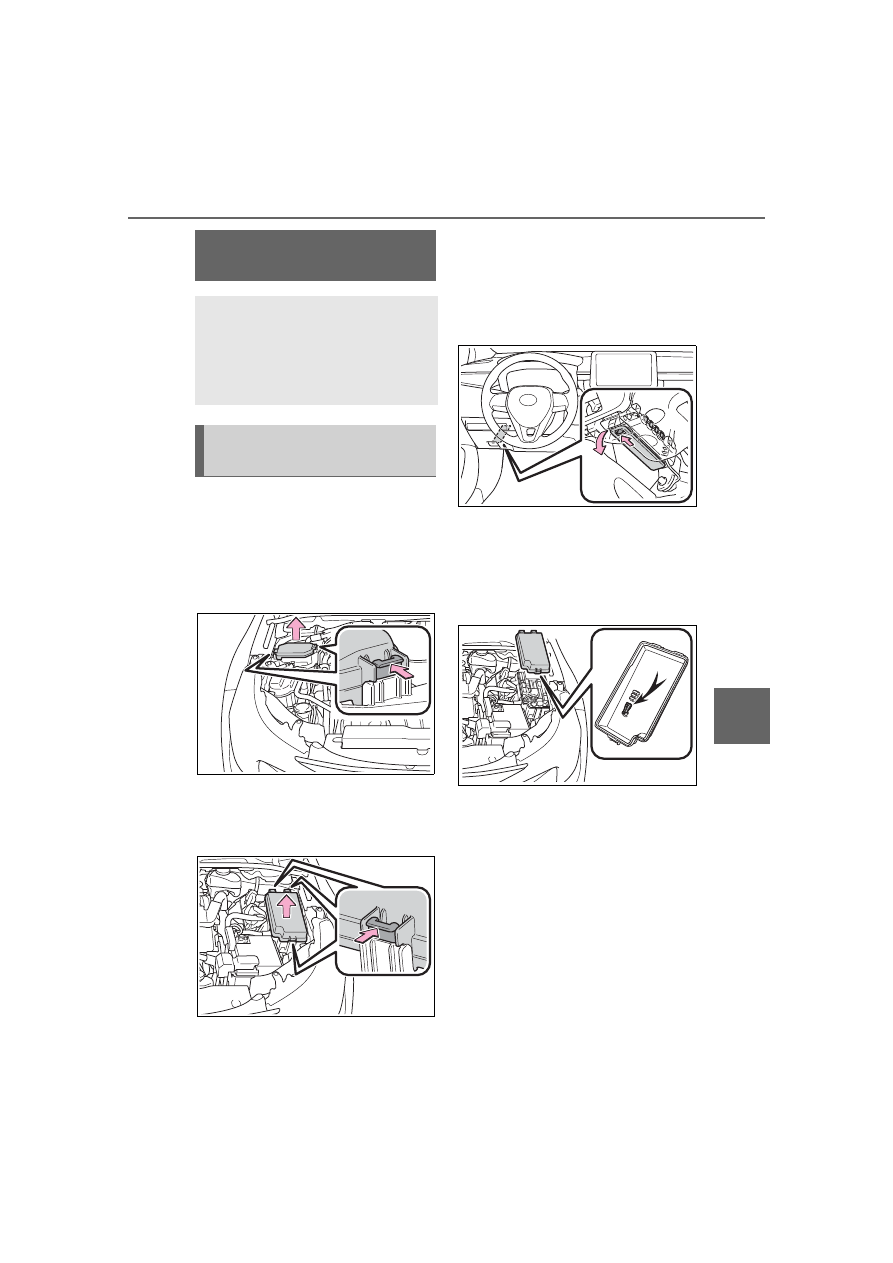

Turn the power switch off.

Open the fuse box cover.



Engine compartment: type A
fuse box

Push the tabs in and lift the lid off.



Engine compartment: type B
fuse box

Push the tabs in and lift the lid off.



Under the driver’s side instru-
ment panel

Remove the lid.
Make sure to push the claw when
removing/installing the lid.

Remove the fuse with the
pullout tool.
Only type A fuse can be
removed using the pullout
tool.

Check if the fuse is blown.

Replace the blown fuse with a new

fuse of an appropriate amperage

rating. The amperage rating can be

found on the fuse box lid.

Checking and replac-

ing fuses

If any of the electrical com-
ponents do not operate, a
fuse may have blown. If this
happens, check and replace
the fuses as necessary.

Checking and replacing
fuses

446

7-3. Do-it-yourself maintenance



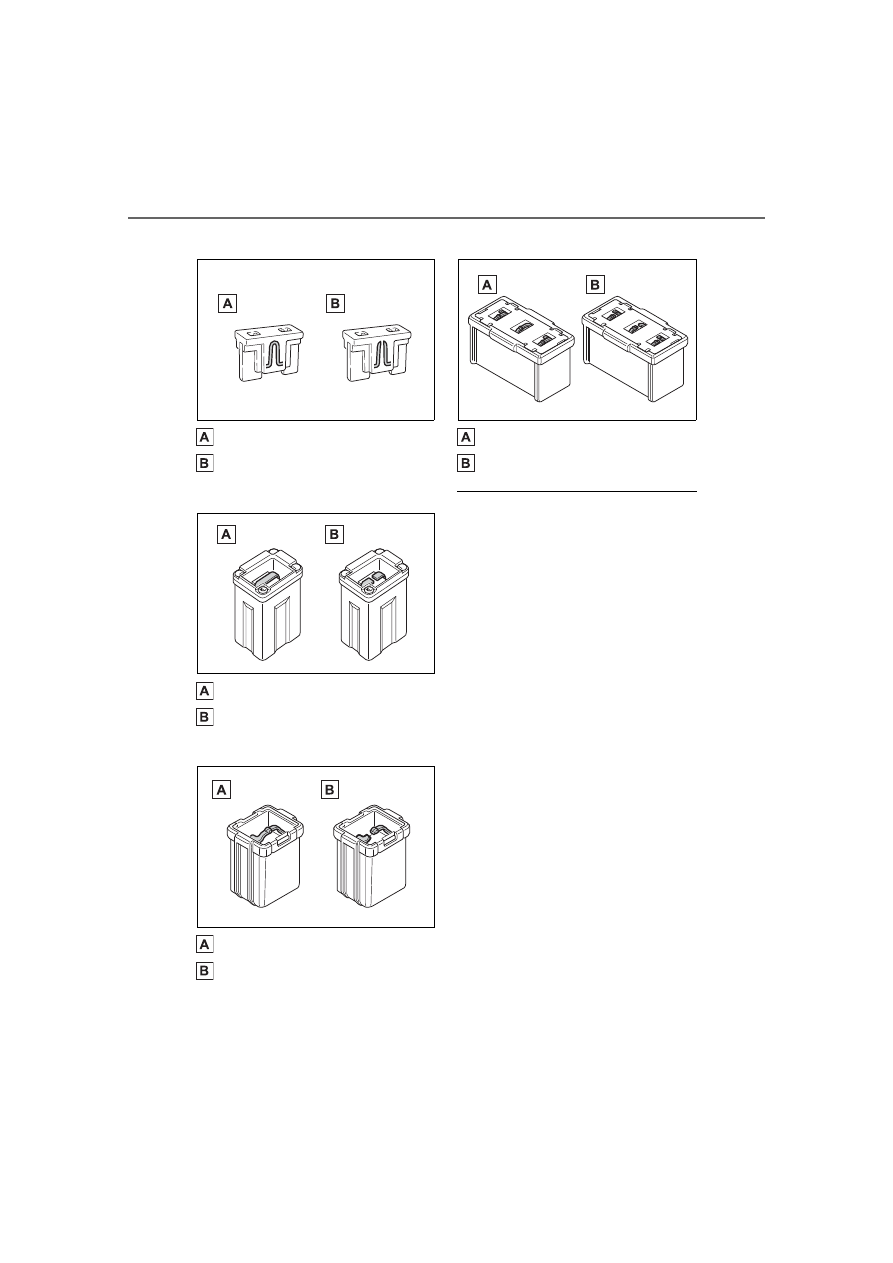

Type A

Normal fuse
Blown fuse



Type B

Normal fuse
Blown fuse



Type C

Normal fuse
Blown fuse



Type D

Normal fuse
Blown fuse

■

After a fuse is replaced

●

When installing the lid, make sure

that the tab is installed securely.

●

If the lights do not turn on even

after the fuse has been replaced,

a bulb may need replacement.

(



P.447)

●

If the replaced fuse blows again,

have the vehicle inspected by

your Toyota dealer.

■

If there is an overload in a cir-

cuit

The fuses are designed to blow, pro-

tecting the wiring harness from

damage.

■

When replacing light bulbs

Toyota recommends that you use

genuine Toyota products designed

for this vehicle.

Because certain bulbs are con-

nected to circuits designed to pre-

vent overload, non-genuine parts or

parts not designed for this vehicle

may be unusable.

447

7-3. Do-it-yourself maintenance

Maintena

nce
a

nd ca

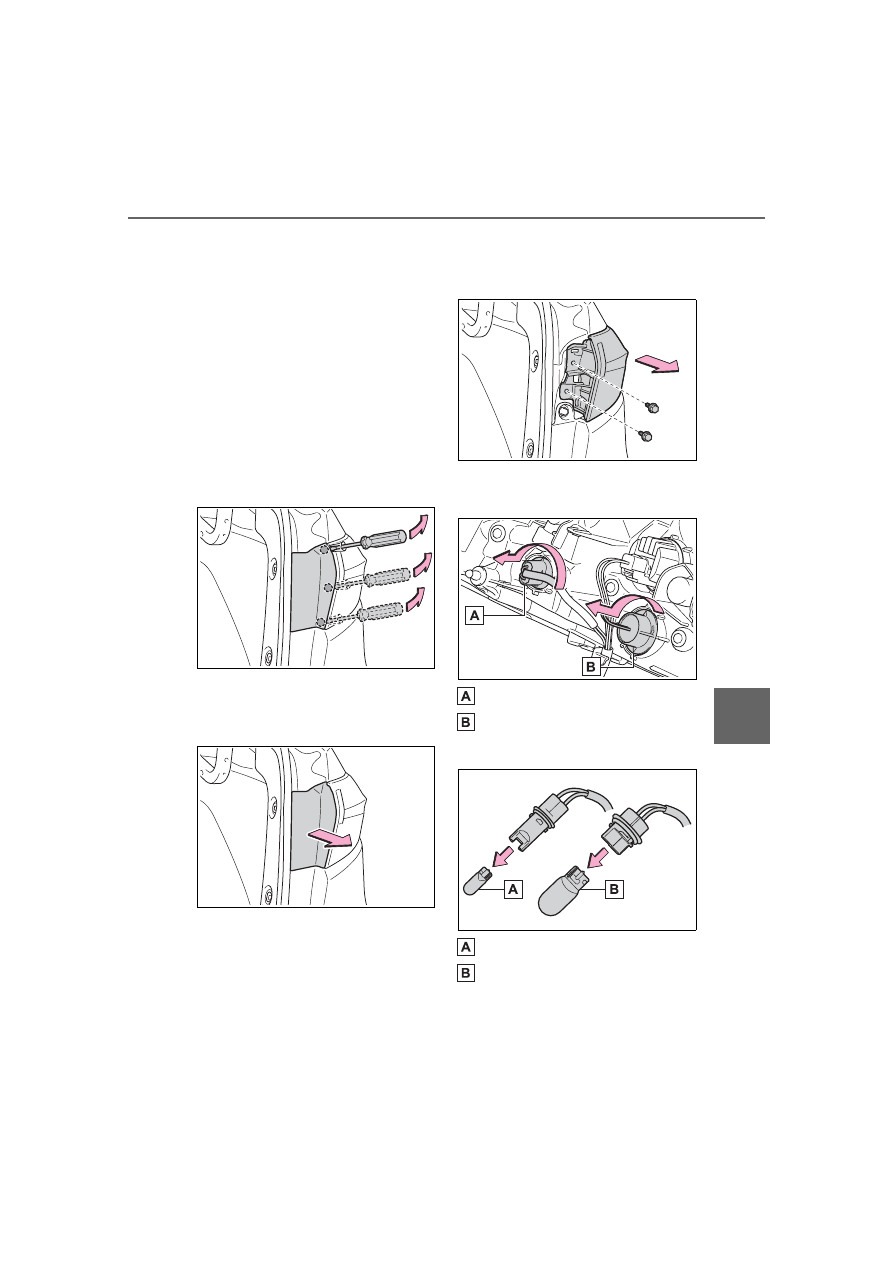

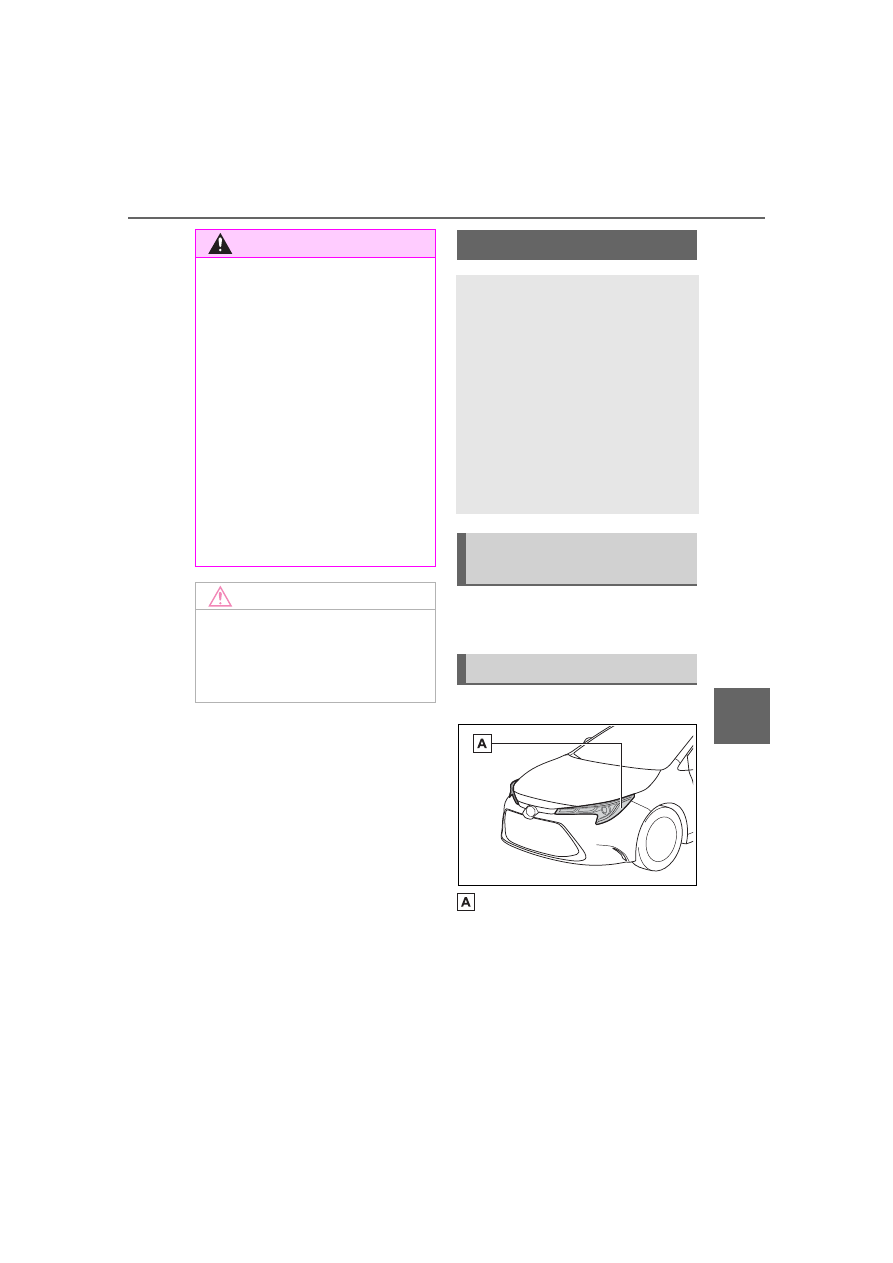

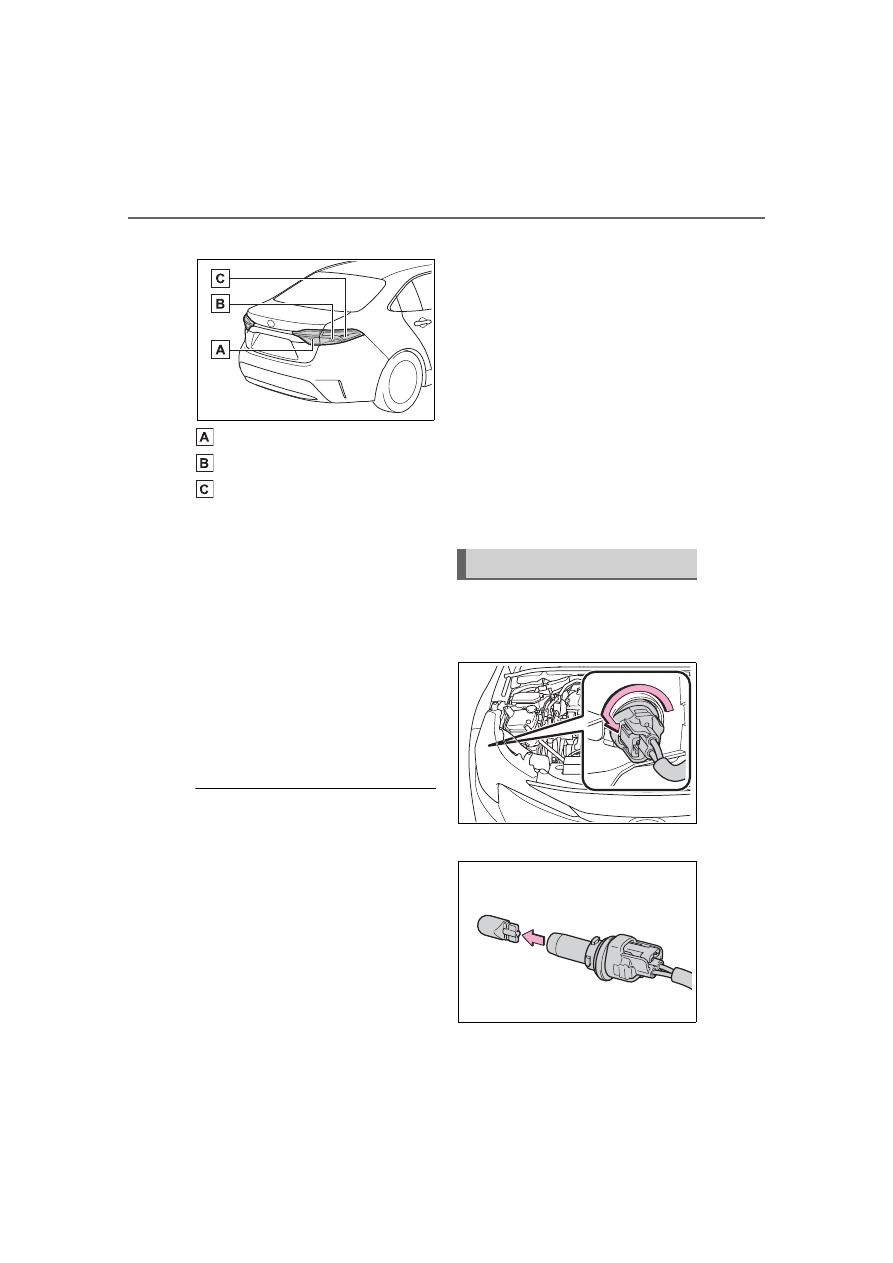

Check the wattage of the light
bulb to be replaced. (



P.514)

■

Front

Front side marker lights

WARNING

■

To prevent system break-

downs and vehicle fire

Observe the following precau-

tions.

Failure to do so may cause dam-

age to the vehicle, and possibly a

fire or injury.

●

Never use a fuse of a higher

amperage rating than that indi-

cated, or use any other object in

place of a fuse.

●

Always use a genuine Toyota

fuse or equivalent.

Never replace a fuse with a

wire, even as a temporary fix.

●

Do not modify the fuses or fuse

boxes.

NOTICE

■

Before replacing fuses

Have the cause of electrical over-

load determined and repaired by

your Toyota dealer as soon as

possible.

Light bulbs

You may replace the follow-
ing bulbs yourself. The diffi-
culty level of replacement
varies depending on the
bulb. If necessary bulb
replacement seems difficult
to perform, contact your
Toyota dealer.

For more information about
replacing other light bulbs,
contact your Toyota dealer.

Preparing for light bulb
replacement

Bulb locations

448

7-3. Do-it-yourself maintenance

■

Rear

Back-up lights
Rear turn signal lights
Rear side marker lights

■

Bulbs that need to be
replaced by your Toyota
dealer



Headlights/daytime running
lights



Parking lights



Front turn signal lights



Tail lights



Stop lights



High mounted stoplight



License plate lights

■

LED light bulbs

The lights other than the front side

marker lights, rear turn signal lights,

rear side marker lights and back-up

lights consist of a number of LEDs.

If any of the LEDs burn out, take

your vehicle to your Toyota dealer to

have the light replaced.

■

Condensation build-up on the

inside of the lens

In certain situations, such as when

driving in the rain or when washing

the vehicle, condensation may form

on the inner side of the headlight

lens and other lights. As each light

has a ventilation hole, moist air may

enter. If the ambient temperature is

low, condensation may form tempo-

rarily, but it will dissipate as the

inside of the light is warmed up. As

the condensation is due to a phe-

nomenon similar to windows fogging

in the rain, it does not indicate a

malfunction.
Contact your Toyota dealer for more

information in the following situa-

tions:

●

Large drops of water have built up

on the inside of the lens.

●

Water has built up inside the

headlight.

■

When replacing light bulbs



P.446

■

Front side marker lights

Turn the bulb base counter-
clockwise.

Remove the light bulb.

Replacing light bulbs

449

7-3. Do-it-yourself maintenance

Maintena

nce
a

nd ca

When installing, reverse the
steps listed.

■

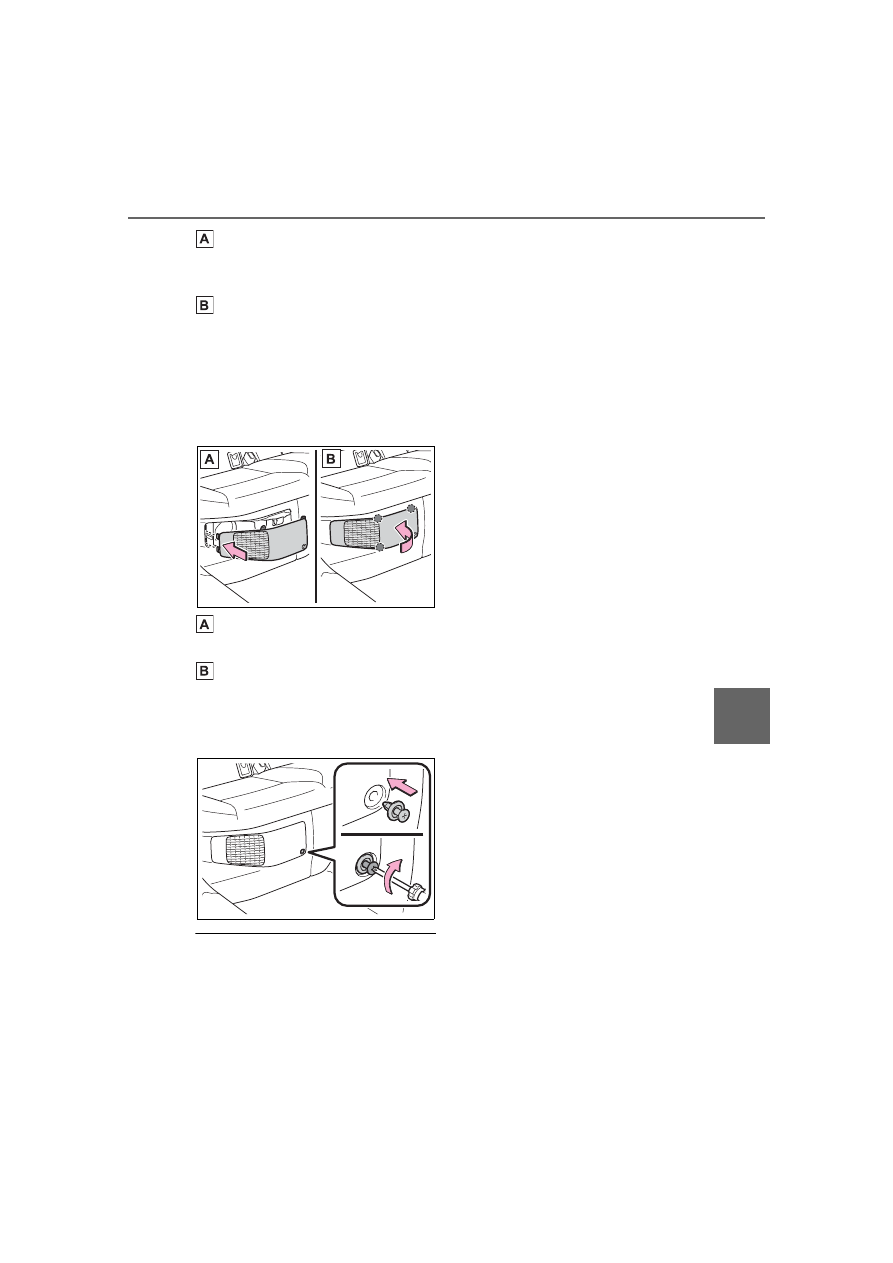

Rear turn signal lights and
rear side marker lights

Open the trunk lid.

Insert a flathead screwdriver
between the cover and the
light assembly and pry up the
cover to disengage the claws
(indicated by a dotted line).

To prevent scratching the vehicle,

wrap the tip of the flathead screw-

driver with a cloth, etc.

Pull the cover toward the rear
of the vehicle and remove the
cover.

Remove the 2 screws and
then remove the light assem-
bly by pulling it straight back.

Turn the bulb base counter-
clockwise.

Rear side marker lights
Rear turn signal lights

Remove the light bulb.

Rear side marker lights
Rear turn signal lights

When installing the light bulb,
install it by conducting steps

450

7-3. Do-it-yourself maintenance

and

with the directions

reversed.

Install the light assembly and
then install the 2 screws.

Align the guide

and pin

the light assembly with the mount-

ing when installing it.

Install the cover.

■

Back-up lights

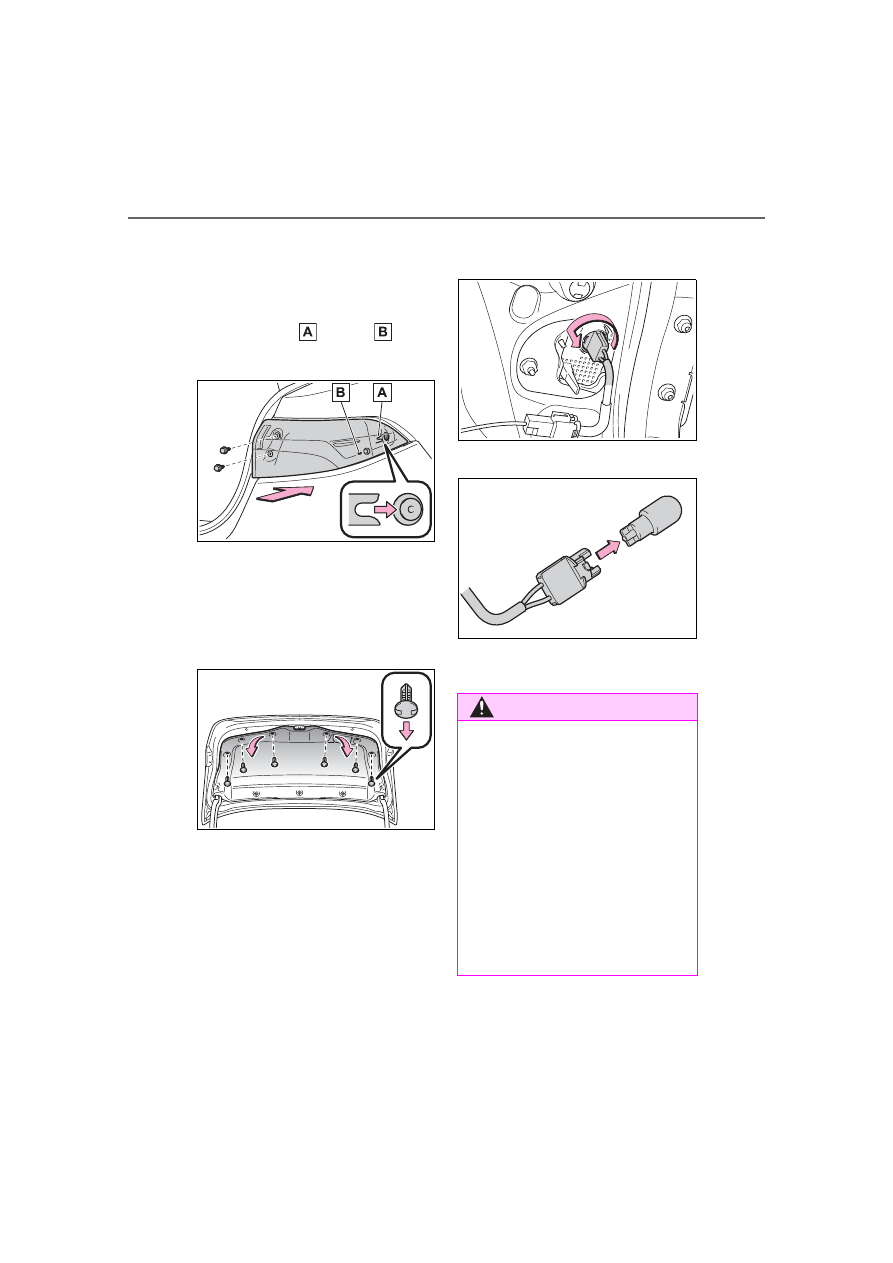

Open the trunk lid, remove
the clips, and pull back the
cover.

Turn the bulb base counter-
clockwise and remove it.

Remove the light bulb.

When installing, reverse the
steps listed.

WARNING

■

Replacing light bulbs

●

Turn off the lights. Do not

attempt to replace the bulb

immediately after turning off the

lights. The bulbs become very

hot and may cause burns.

●

Do not touch the glass portion

of the light bulb with bare

hands. When it is unavoidable

to hold the glass portion, use

and hold with a clean dry cloth

to avoid getting moisture and

oils on the bulb. Also, if the bulb

is scratched or dropped, it may

blow out or crack.

451

7-3. Do-it-yourself maintenance

Maintena

nce
a

nd ca

WARNING

●

Fully install light bulbs and any

parts used to secure them. Fail-

ure to do so may result in heat

damage, fire, or water entering

the light unit. This may damage

the lights or cause condensa-

tion to build up on the lens.

■

To prevent damage or fire

Make sure bulbs are fully seated

and locked.

453

Whe

n tr

ouble

ises

When trouble arises

8-1. Essential information

Emergency flashers ....

454

If your vehicle has to be

stopped in an emergency

..................................

455

If the vehicle is submerged

or water on the road is ris-
ing .............................

456

8-2. Steps to take in an emer-

gency

If your vehicle needs to be

towed.........................

457

If you think something is

wrong ........................

460

If a warning light turns on or

a warning buzzer sounds

..................................

462

If a warning message is dis-

played........................

471

If you have a flat tire (vehi-

cles without spare tire)

..................................

474

If you have a flat tire (vehi-

cles with a spare tire)

..................................

485

If the hybrid system will not

start ...........................

493

If you lose your keys ...

494

If the fuel filler door cannot

be opened .................

495

If the electronic key does

not operate properly ..

495

If the 12-volt battery is dis-

charged .....................

497

If your vehicle overheats

..................................

501

If the vehicle becomes stuck

..................................

504

454

8-1. Essential information

8-1.Essential information

Press the switch.

All the turn signal lights will flash.
To turn them off, press the switch
once again.

■

Emergency flashers

●

If the emergency flashers are

used for a long time while the

hybrid system is not operating

(while the “READY” indicator is

not illuminated), the 12-volt bat-

tery may discharge.

●

If any of the SRS airbags deploy

(inflate) or in the event of a strong

rear impact, the emergency flash-

ers will turn on automatically.

The emergency flashers will turn

off automatically after operating

for approximately 20 minutes. To

manually turn the emergency

flashers off, press the switch

twice.

(The emergency flashers may not

turn on automatically depending

on the force of the impact and

conditions of the collision.)

Emergency flashers

The emergency flashers are
used to warn other drivers
when the vehicle has to be
stopped on the road due to
a breakdown, etc.

Operating instructions

455

8-1. Essential information

tro

Steadily step on the brake
pedal with both feet and
firmly depress it.

Do not pump the brake pedal

repeatedly as this will increase the

effort required to slow the vehicle.

Shift the shift lever to N.



If the shift lever is shifted to N

After slowing down, stop the
vehicle in a safe place by the
road.

Stop the hybrid system.



If the shift lever cannot be
shifted to N

Keep depressing the brake
pedal with both feet to reduce
vehicle speed as much as
possible.

To stop the hybrid system,
press and hold the power
switch for 2 consecutive sec-
onds or more, or press it

briefly 3 times or more in suc-
cession.

Stop the vehicle in a safe
place by the road.

If your vehicle has to

be stopped in an emer-

gency

Only in an emergency, such
as if it becomes impossible
to stop the vehicle in the
normal way, stop the vehicle
using the following proce-
dure:

Stopping the vehicle

WARNING

■

If the hybrid system has to be

turned off while driving

Power assist for the steering

wheel will be lost, making the

steering wheel heavier to turn.

Decelerate as much as possible

before turning off the hybrid sys-

tem.

456

8-1. Essential information



If the door can be opened,
open the door and exit the
vehicle.



If the door can not be opened,
open the window using the
power window switch and
ensure an escape route.



If the window can be opened,
exit the vehicle through the
window.



If the door and window cannot
be opened due to the rising
water, remain calm, wait until
the water level inside the
vehicle rises to the point that
the water pressure inside of
the vehicle equals the water
pressure outside of the vehi-
cle and then open the door
after waiting for the rising
water to enter the vehicle, and
exit the vehicle. When the

outside water level exceeds
half the height of the door, the
door cannot be opened from
the inside due to water pres-
sure.

■

Water level exceeds the floor

When the water level exceeds the

floor and time has passed, the elec-

trical equipment will get damaged,

the power windows will not operate,

the engine and motor stop, and the

vehicle may not be able to get mov-

ing.

■

Using an emergency escape
hammer

Laminated glass is used in the wind-

shield on this vehicle.

Laminated glass cannot be shat-
tered with an emergency hammer

Tempered glass is used in the win-

dows on this vehicle.

: Contact your Toyota dealer or

aftermarket accessory manufac-
turer for futher information about
an emergency hammer.

If the vehicle is sub-

merged or water on

the road is rising

This vehicle is not designed
to be able to drive on roads
that are deeply flooded with
water. Do not drive on roads
where the roads may be
submerged or the water
may be rising. It is danger-
ous to remain in the vehicle,
if it anticipated that the vehi-
cle will be flooded or set a
drift. Remain calm and fol-
low the following.

WARNING

■

Caution while driving

Do not drive on roads where the

roads may be submerged or the

water may be rising. Otherwise

the vehicle may be damaged and

cannot move, as well as become

flooded and set a drift, which may

lead to death.

Toyota Corolla Hybrid (2022 year). Manual in english - page 27
