1-2. Child safety

WARNING

■

When installing a child

restraint system

Observe the following precau-

tions.

Failure to do so may result in

death or serious injury.

●

Firmly attach the top tether

strap and make sure that the

belt is not twisted.

●

Do not attach the top tether

strap to anything other than the

anchor bracket.

●

Follow all installation instruc-

tions provided by the child

restraint system manufacturer.

●

Be sure to have the top tether

strap pass over the top of the

head restraint. If the belt passes

below the head restraint, it is

possible that the child restraint

system may not be securely

fixed.

●

If the seat is adjusted, reconfirm

the security of the child restraint

system.

NOTICE

■

Anchor brackets (for top

tether strap)

When not in use, make certain to

close the lid. If it remains open,

the lid may be damaged.

1-3. Emergency assistance

For
safety and secu

rity

1-3.Emergency assistance

: If equipped

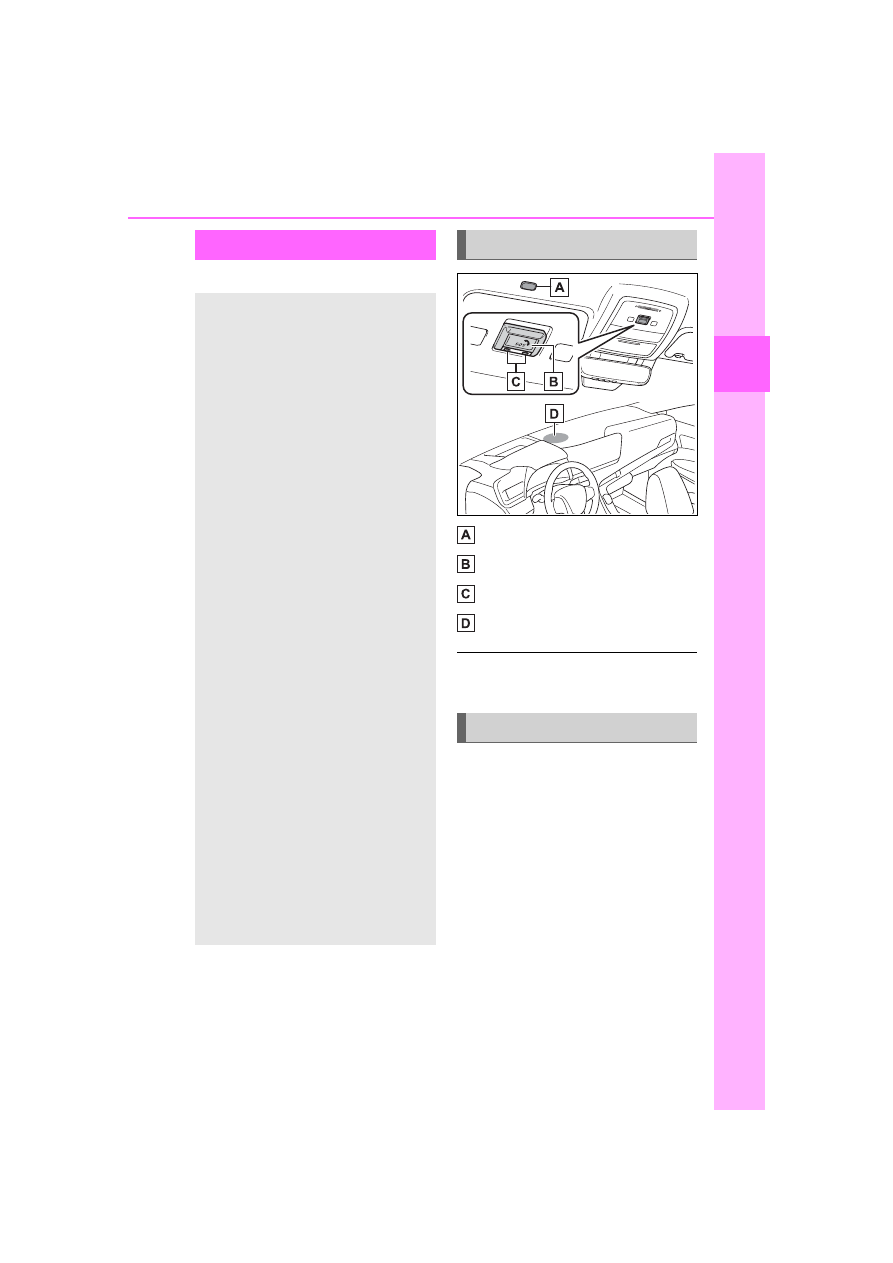

Microphone

“SOS” button

LED light indicators

Speaker

■

Certification for Safety Connect



P.542

Subscribers have the following
Safety Connect services avail-
able:



Automatic Collision Notifica-
tion

Helps drivers receive necessary
response from emergency service
providers. (



P.67)

: U.S. Patent No. 7,508,298 B2



Stolen Vehicle Location

Helps drivers in the event of vehicle
theft. (



P.67)



Emergency Assistance Button

Safety Connect

Safety Connect is a sub-
scription-based telematics
service that uses Global
Positioning System (GPS)
data and embedded cellular
technology to provide
safety and security fea-
tures to subscribers. Safety
Connect is supported by
Toyota’s designated
response center, which
operates 24 hours per day, 7
days per week.

Safety Connect service is
available by subscription on
select, telematics hardware-
equipped vehicles.

By using the Safety Con-
nect service, you are agree-
ing to be bound by the
Telematics Subscription
Service Agreement and its
Terms and Conditions, as in
effect and amended from
time to time, a current copy
of which is available at Toy-
ota.com. All use of the
Safety Connect service is
subject to such then-appli-
cable Terms and Condi-
tions.

System components

Services

1-3. Emergency assistance

(“SOS”)

Connects drivers to response-cen-
ter support. (



P.67)



Enhanced Roadside Assis-
tance

Provides drivers various on-road
assistance. (



P.67)

After you have signed the
Telematics Subscription Service
Agreement and are enrolled,
you can begin receiving ser-
vices.
A variety of subscription terms is
available for purchase. Contact
your Toyota dealer, call the fol-
lowing or push the “SOS” button
in your vehicle for further sub-
scription details.



The United States

1-800-331-4331



Canada

1-888-869-6828



Puerto Rico

1-877-855-8377

■

Safety Connect Services Infor-

mation

●

Phone calls using the vehicles
Bluetooth

technology will not be

possible during Safety Connect.

●

Safety Connect is available begin-

ning Fall 2009 on select Toyota

models (in the contiguous United

States only). Contact with the

Safety Connect response center

is dependent upon the telematics

device being in operative condi-

tion, cellular connection availabil-

ity, and GPS satellite signal

reception, which can limit the abil-

ity to reach the response center or

receive emergency service sup-

port. Enrollment and Telematics

Subscription Service Agreement

required. A variety of subscription

terms is available; charges vary

by subscription term selected and

location.

●

Automatic Collision Notification,

Emergency Assistance and Stolen

Vehicle Location will function in

the United States, including

Hawaii and Alaska, Puerto Rico

and in Canada, and Enhanced

Roadside Assistance will function

in the United States, Puerto Rico

and in Canada.

●

Automatic Collision Notification,

Emergency Assistance, Stolen

Vehicle and Enhanced Road

Assistance will not function in the

United States Virgin Islands.

For vehicles first sold in the USVI,

no Safety Connect services will

function in and outside the United

States Virgin Islands.

●

Safety Connect services are not

subject to section 255 of the Tele-

communications Act and the

device is not TTY compatible.

■

Languages

The Safety Connect response cen-

ter will offer support in multiple lan-

guages. The Safety Connect system

will offer voice prompts in English,

Spanish, and French. Please indi-

cate your language of choice when

enrolling.

■

When contacting the response

center

You may be unable to contact the

response center if the network is

busy.

Subscription

1-3. Emergency assistance

For
safety and secu

rity

When the power switch is turned
to ON, the red indicator light
comes on for 2 seconds then
turns off. Afterward, the green
indicator light comes on, indicat-
ing that the service is active.
The following indicator light pat-
terns indicate specific system
usage conditions:



Green indicator light on =
Active service



Green indicator light flashing
= Safety Connect call in pro-
cess



Red indicator light (except at
vehicle start-up) = System
malfunction (contact your Toy-
ota dealer)



No indicator light (off) =
Safety Connect service not
active

■

Automatic Collision Notifi-
cation

In case of either airbag deploy-
ment or severe rear-end colli-
sion, the system is designed to
automatically call the response
center. The responding agent
receives the vehicle’s location
and attempts to speak with the
vehicle occupants to assess the
level of emergency. If the occu-

pants are unable to communi-
cate, the agent automatically
treats the call as an emergency,
contacts the nearest emer-
gency services provider to
describe the situation, and
requests that assistance be sent
to the location.

■

Stolen Vehicle Location

If your vehicle is stolen, Safety
Connect can work with local
authorities to assist them in
locating and recovering the
vehicle. After filing a police
report, call the Safety Connect
response center at 1-800-331-
4331 in the United States, 1-
877-855-8377 in Puerto Rico or
1-888-869-6828 in Canada, and
follow the prompts for Safety
Connect to initiate this service.
In addition to assisting law
enforcement with recovery of a
stolen vehicle, Safety-Connect-
equipped vehicle location data
may, under certain circum-
stances, be shared with third
parties to locate your vehicle.
Further information is available
at Toyota.com.

■

Emergency Assistance But-
ton (“SOS”)

In the event of an emergency on
the road, push the “SOS” button
to reach the Safety Connect
response center. The answer-
ing agent will determine your
vehicle’s location, assess the
emergency, and dispatch the

Safety Connect LED light
Indicators

Safety Connect services

1-3. Emergency assistance

necessary assistance required.

If you accidentally press the “SOS”
button, tell the response-center
agent that you are not experiencing
an emergency.

■

Enhanced Roadside Assis-
tance

Enhanced Roadside Assistance
adds GPS data to the already
included warranty-based Toyota
roadside service.
Subscribers can press the
“SOS” button to reach a Safety
Connect response-center agent,
who can help with a wide range
of needs, such as: towing, flat
tire, fuel delivery, etc. For a
description of the Roadside
Assistance services and their
limitations, please see the
Safety Connect Terms and Con-
ditions, which are available at
Toyota.com.

Important! Read this informa-
tion about exposure to radio fre-
quency signals before using
Safety Connect;
The Safety Connect system
installed in your vehicle is a low-
power radio transmitter and
receiver. It receives and also
sends out radio frequency (RF)
signals.
In August 1996, the Federal
Communications Commission

(FCC) adopted RF exposure
guidelines with safety levels for
mobile wireless phones. Those
guidelines are consistent with
the safety standards previously
set by the following U.S. and
international standards bodies.



ANSI (American National
Standards Institute) C95.1
[1992]



NCRP (National Council on
Radiation Protection and
Measurement) Report 86
[1986]



ICNIRP (International Com-
mission on Non-Ionizing Radi-
ation Protection) [1996]

Those standards were based on
comprehensive and periodic
evaluations of the relevant sci-
entific literature. Over 120 scien-
tists, engineers, and physicians
from universities, and govern-
ment health agencies and
industries reviewed the avail-
able body of research to
develop the ANSI Standard
(C95.1).
The design of Safety Connect
complies with the FCC guide-
lines in addition to those stan-
dards.

Safety information for
Safety Connect

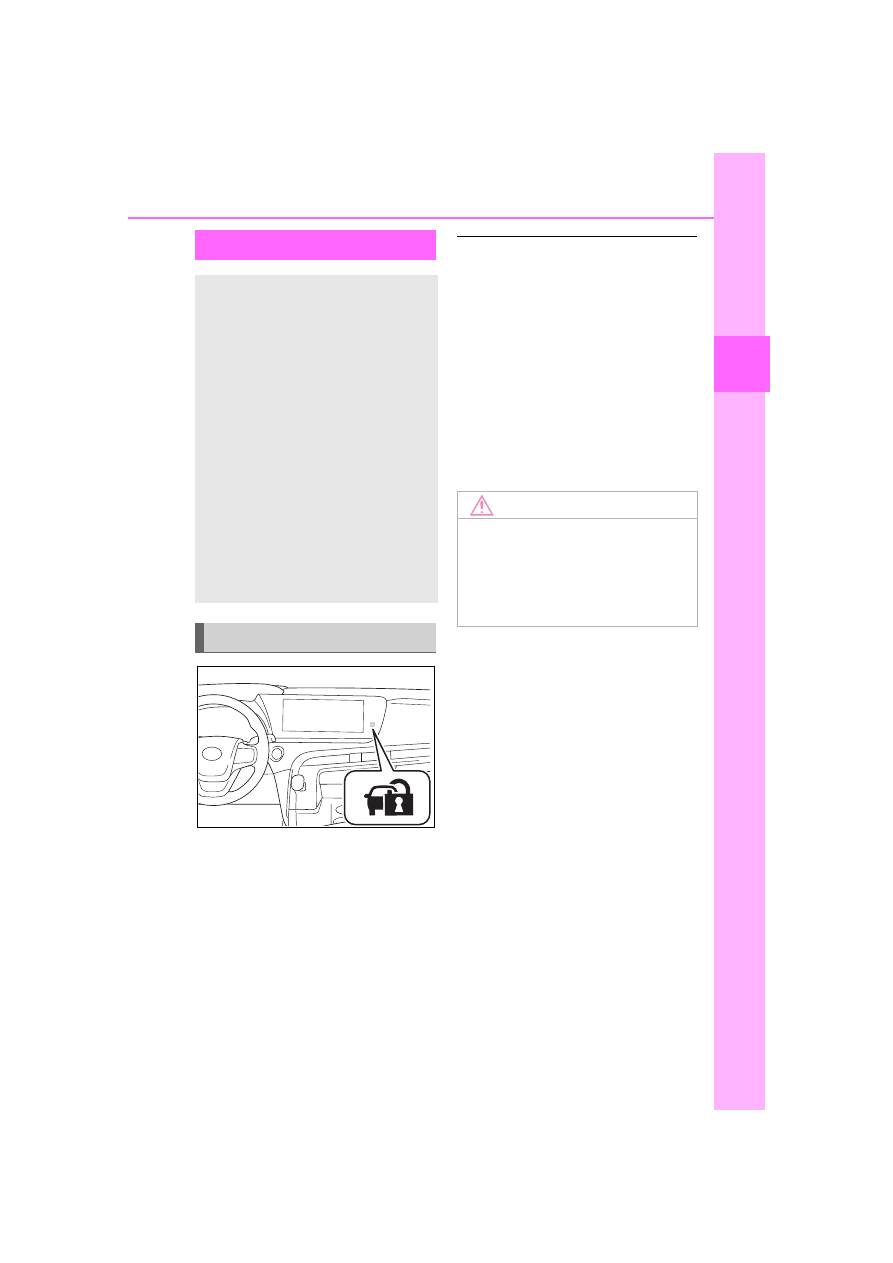

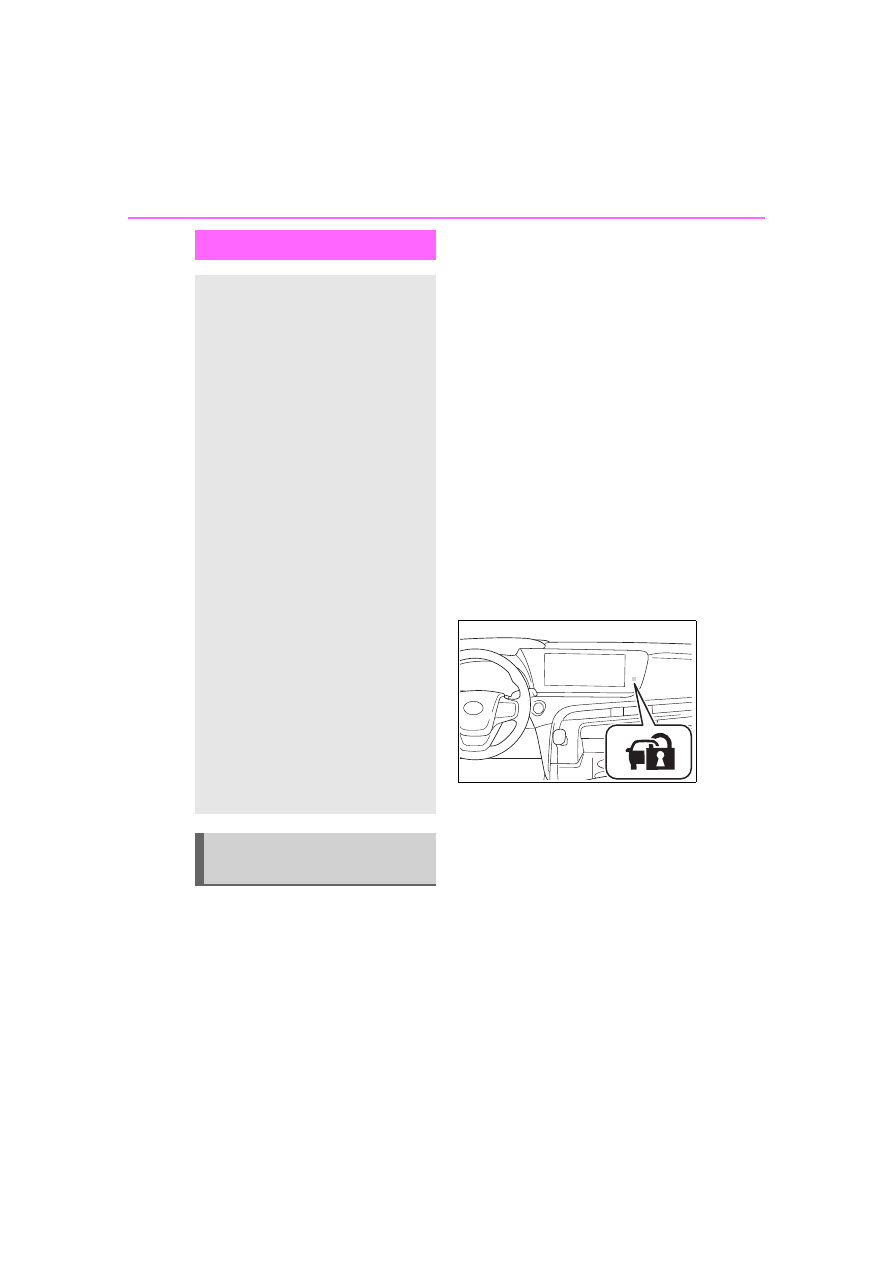

1-4. Theft deterrent system

For
safety and secu

rity

1-4.Theft deterrent system

The indicator light flashes after
the power switch has been
turned off to indicate that the
system is operating.
The indicator light stops flashing
after the power switch has been
turned to ACC or ON to indicate
that the system has been can-
celed.

■

System maintenance

The vehicle has a maintenance-free

type immobilizer system.

■

Conditions that may cause the

system to malfunction

●

If the grip portion of the key is in

contact with a metallic object

●

If the key is in close proximity to or

touching a key to the security sys-

tem (key with a built-in transpon-

der chip) of another vehicle

■

Certification



P.543

Immobilizer system

The vehicle’s keys have
built-in transponder chips
that prevent the fuel cell
system from starting if a key
has not been previously
registered in the vehicle’s
on-board computer.

Never leave the keys inside
the vehicle when you leave
the vehicle.

This system is designed to
help prevent vehicle theft
but does not guarantee
absolute security against all
vehicle thefts.

Operating the system

NOTICE

■

To ensure the system oper-

ates correctly

Do not modify or remove the sys-

tem. If modified or removed, the

proper operation of the system

cannot be guaranteed.

1-4. Theft deterrent system

■

Items to check before lock-
ing the vehicle

To prevent unexpected trigger-
ing of the alarm and vehicle
theft, make sure of the following:



Nobody is in the vehicle.



The windows are closed
before the alarm is set.



No valuables or other per-
sonal items are left in the
vehicle.

■

Setting

Close the doors, trunk and
hood, and lock all the doors
using the entry function or wire-
less remote control. The system
will be set automatically after 30
seconds.
Except for Canada: the alarm
can also be set using the
mechanical key.

The indicator light changes from
being on to flashing when the sys-
tem is set.

■

Deactivating or stopping

Do one of the following to deac-
tivate or stop the alarms:



Except for Canada: Unlock
the doors.



Except for Canada: Unlock
the trunk using the mechani-
cal key.



For Canada: Unlock the doors
or trunk using the entry func-
tion or wireless remote con-

Alarm

The alarm uses light and
sound to give an alert when
an intrusion is detected.
The alarm is triggered in the
following situations when
the alarm is set:



Except for Canada



A locked door or trunk is
unlocked or opened in any
way other than using the
entry function, wireless
remote control or mechani-
cal key. (The doors will lock
again automatically.)



The hood is opened.



For Canada



A locked door or trunk is
unlocked or opened in any
way other than using the
entry function or wireless
remote control. (The doors
will lock again automati-
cally.)



The hood is opened.

Setting/deactivating/stop-
ping the alarm system

1-4. Theft deterrent system

For
safety and secu

rity

trol.



Turn the power switch to ACC
or ON, or start the fuel cell
system. (The alarm will be
deactivated or stopped after a
few seconds.)

■

System maintenance

The vehicle has a maintenance-free

type alarm system.

■

Triggering of the alarm

The alarm may be triggered in the

following situations:

(Stopping the alarm deactivates the

alarm system.)

●

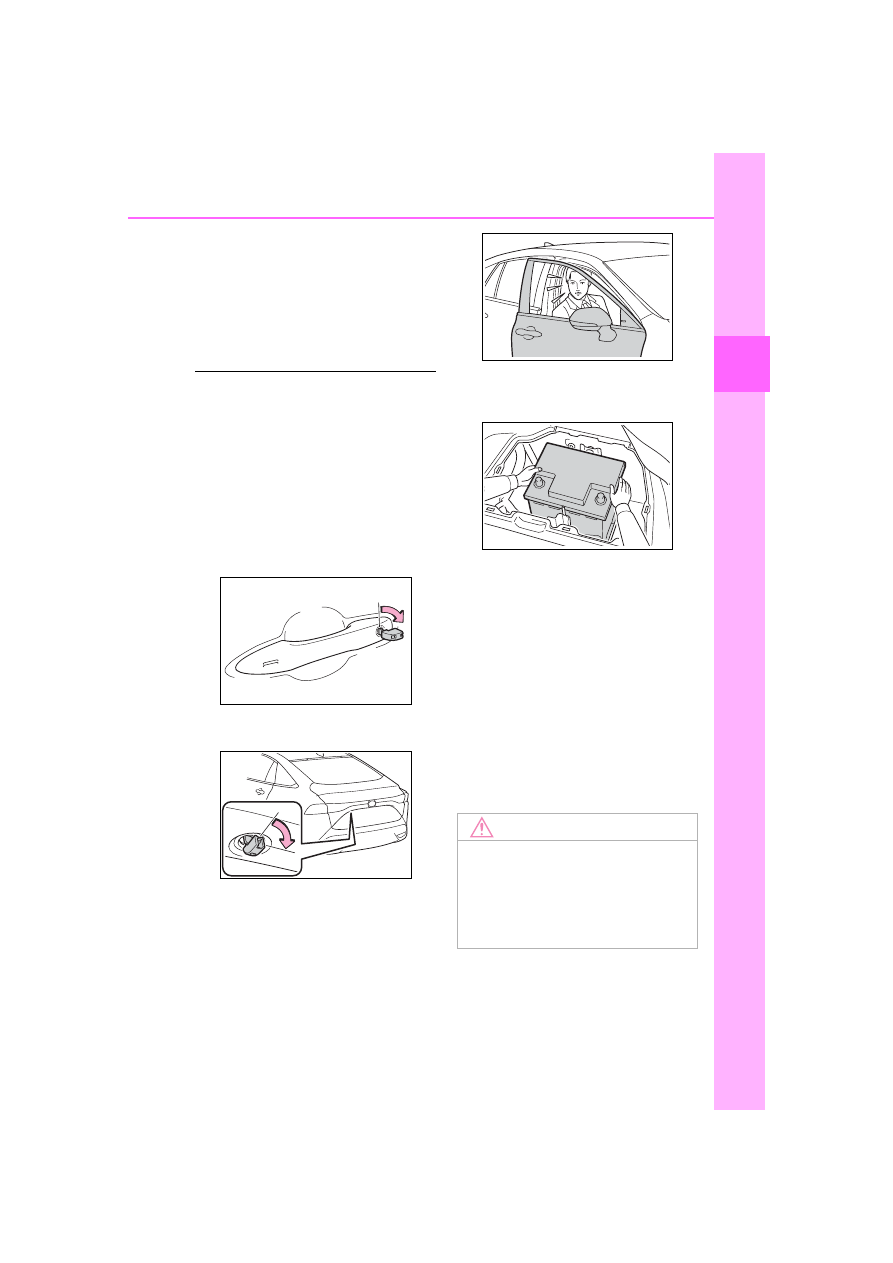

For Canada: The doors are

unlocked using the mechanical

key.

●

For Canada: The trunk is opened

using the mechanical key.

●

A person inside the vehicle opens

a door, the trunk or hood, or

unlocks the vehicle.

●

The 12-volt battery is recharged or

replaced when the vehicle is

locked. (



P.473)

■

Alarm-operated door lock

In the following cases, depending

on the situation, the door may auto-

matically lock to prevent improper

entry into the vehicle:

●

When a person remaining in the

vehicle unlocks the door and the

alarm is activated.

●

While the alarm is activated, a

person remaining in the vehicle

unlocks the door.

■

Customization

Some functions can be customized.

(



P.498)

NOTICE

■

To ensure the system oper-

ates correctly

Do not modify or remove the sys-

tem. If modified or removed, the

proper operation of the system

cannot be guaranteed.

1-4. Theft deterrent system

Theft prevention

labels (U.S.A.)

These labels are attached to
the vehicle to reduce vehi-
cle theft by facilitating the
tracing and recovery of
parts from stolen vehicles.
Do not remove under the
penalty of law.

Fu
el

ell

sy
st

Fuel cell system

2-1. Fuel cell vehicle

Fuel cell vehicle characteris-

tics................................

Fuel cell vehicle precautions

.....................................

Fuel cell vehicle driving tips

.....................................

2-1. Fuel cell vehicle

2-1.Fuel cell vehicle

The illustration is an example for explanation and may differ from the actual
item.

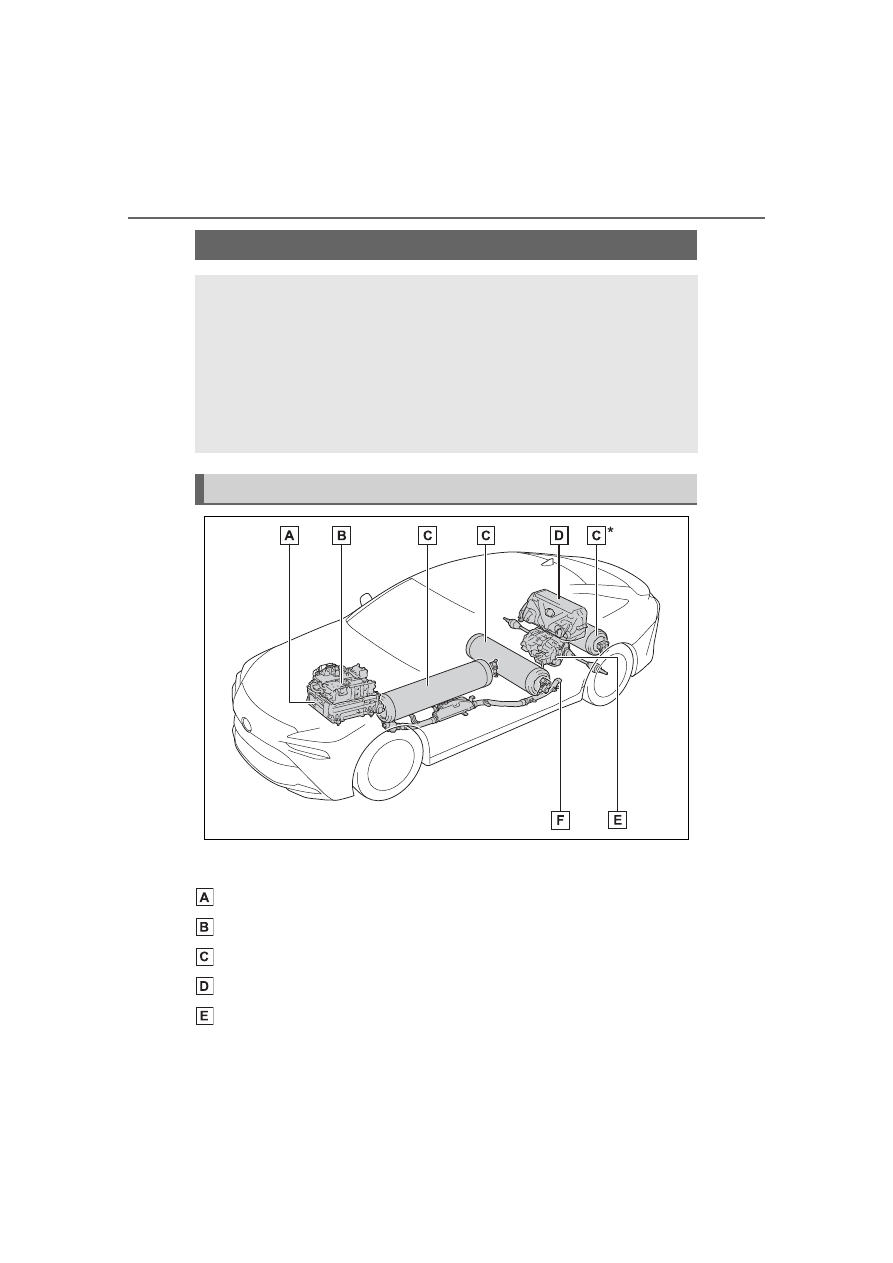

Fuel cell stack

Fuel cell converter and auxiliary inverter

Hydrogen tanks

Traction battery

Electric motor (traction motor)

Fuel cell vehicle characteristics

Fuel cell vehicles efficiently use electricity, which is gener-
ated by a chemical reaction between hydrogen and oxygen in
a fuel cell stack, and electricity charged in a traction battery
to drive the electric motor (traction motor).

The fuel is H

(compressed hydrogen gas), so the exhaust is

only water and water vapor. As they do not release emissions
such as CO

(Carbon Dioxide) and NO

(Nitrogen Oxides),

fuel cell vehicles are environmentally friendly vehicles.

Fuel cell vehicle components

2-1. Fuel cell vehicle

Fu
el

ell

sy
st

Tailpipe

: If equipped

■

Sounds unique to the fuel cell vehicle

Due to the design of your fuel cell vehicle, there are various relays, valves

and pumps which under normal driving conditions will produce sounds. This

is a normal characteristic of the vehicle and does not indicate a malfunction.
Furthermore, these sounds may differ based on usage environment or con-

dition.

■

Maintenance, repair, recycling,

and disposal

Contact your Toyota dealer regard-

ing maintenance, repair, recycling,

and disposal. Do not dispose of the

vehicle or any of its components

Noticeable sounds

Source of the sounds

Clunking, clicking and
clacking

Operation of relays and hydrogen tank valves
(Sounds may be heard when starting or stop-
ping the fuel cell system.)

Knocking

The parking lock is engaged
(Sounds may be heard when pressing the P
position switch or stopping the fuel cell sys-
tem.)

Whooshing, squealing

Gas is flowing through the nozzle and valves
(Sounds may be heard when filling the fuel.)



High pitch sound



Pulsing sound



Whooshing sound

Operation of the pumps
(In particular, sounds may be heard when
starting the fuel cell system, accelerating from
a stop, or pressing the H

O switch. The sound

may be louder when in Br mode or when the
vehicle decelerates during dynamic radar
cruise control.)



Humming sound



High pitch sound

Operation of the motor
(In particular, sounds may be heard when
accelerating or decelerating.)

Blowing and draining
sound

Exhaust water or air is being purged
May also occur periodically while parked when
it is cold to prevent freezing.
(Sounds may be heard when vehicle is
stopped, fuel cell system is stopped or while
parked)

2-1. Fuel cell vehicle

yourself.

The electric motor (traction
motor) allows smooth, powerful
takeoff and acceleration. This
vehicle drives similarly to a gas-
oline vehicle without any special
actions by the driver. (



P.161)

As there are no engine sounds
and the vehicle is quiet, opera-
tion noises unique to fuel cell
vehicle components may be
heard. (



P.75)

■

Regenerative braking

In the following situations, the vehi-

cle generates electricity from the

deceleration of the vehicle while

driving.

●

The accelerator pedal is released

while driving with the shift position

in D.

●

The brake pedal is depressed

while driving with the shift position

in D.

■

Charging the traction battery

Because electricity generated by the

fuel cell stack and regenerative

braking charges the traction battery,

the battery does not need to be

charged from an outside source.

However, if the vehicle is left parked

for a long time, the traction battery

will slowly discharge. For this rea-

son, be sure to drive the vehicle at

least once every few months for at

least 30 minutes or 10 miles (16

km).
If the traction battery becomes fully

discharged and you are unable to

start the fuel cell system, contact

your Toyota dealer.

■

Charging the 12-volt battery



P.473

■

Parking

Because there is no engine sound

or vibration, it is easy to mistake the

fuel cell vehicle for being off when it

is actually still running (“READY”

indicator is illuminated). For safety,

make sure to always shift the shift

position to P and apply the parking

brake when parked.

The system may behave differ-
ently on cold days as it may be
performing a special cold-start
process to improve the start up
performance. (



P.172)

Operation noises (



P.75),

purge process (



P.175), etc.,

may differ from usual. However,
this is not a malfunction.

Compressed hydrogen gas fuel
can be filled at hydrogen sta-
tions.

More information about hydrogen
fuel and fueling can be found in the
“Opening the fuel door” section of
this manual. (



P.203)

Fuel cell vehicles do not have
engine sounds like gasoline
vehicles. Therefore, a sound
that changes in accordance with
the driving speed, will be played

Driving the vehicle

Fuel cell system

Fuel filling

Acoustic vehicle alerting
system

2-1. Fuel cell vehicle

Fu
el

ell

sy
st

in order to warn people nearby
of the vehicle’s approach. The
sound will stop when the vehicle
speed exceeds approximately
23 mph (37 km/h).

■

How to hear the warning

In the following cases, the acoustic

vehicle alerting system may be diffi-

cult for surrounding people to hear.

●

In very noisy areas

●

In the wind or the rain

Also, as the acoustic vehicle alerting

system is installed on the front of the

vehicle, it may be more difficult to

hear from the rear of the vehicle

compared to the front.

: This function can only be used in

the mainland U.S.A. It cannot be
used in other states and territo-
ries, including Alaska and Hawaii.

This system operates based on
the driving situation to enhance
fuel economy. For details about
Predictive efficient drive, refer to
“NAVIGATION AND MULTIME-
DIA SYSTEM OWNER’S MAN-
UAL”.

■

Predictive deceleration sup-
port



When the vehicle approaches
to predictive deceleration sup-
port points registered in the
navigation system, the refer-
ence operation range of

the ECO Accelerator Guid-
ance (



P.102) on the multi-

information display will be
turned off to encourage the
driver to reduce excessive
acceleration.



The regenerative braking
force will be increased
according to the driving condi-
tions to more efficiently
charge the traction battery
after the accelerator pedal is
released.

■

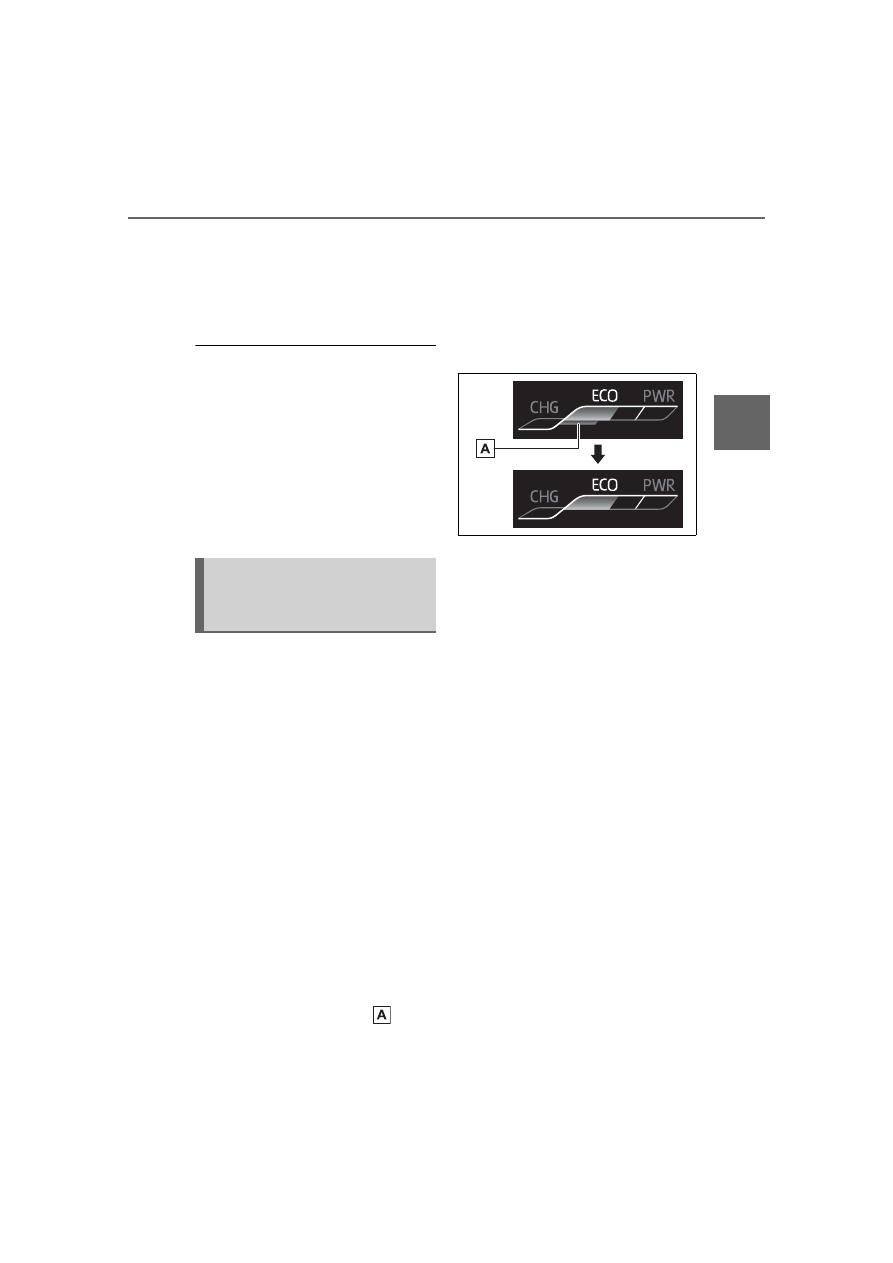

Predictive SOC

control

The following types of controls
are performed based on data
such as road information during
route guidance by the naviga-
tion system to help ensure that
the vehicle efficiently uses elec-
tricity.



When there is a long downhill
slope along the route, the sys-
tem reduces the traction bat-
tery level before reaching the
slope to help ensure charging
capacity for regenerative
braking while traveling down-
hill.

Predictive efficient drive
(vehicles with navigation
system)

2-1. Fuel cell vehicle

Fu
el

ell

sy
st

■

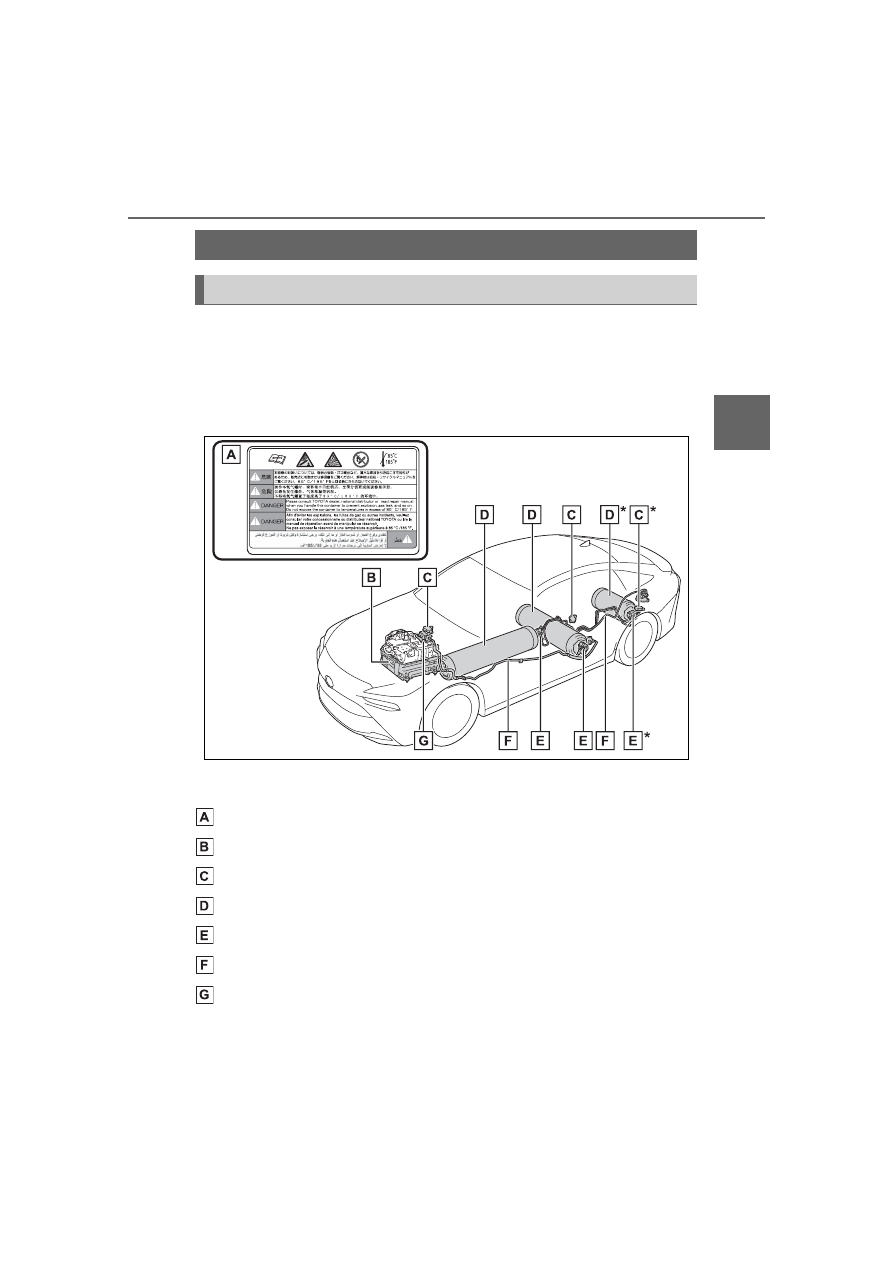

Hydrogen-related components

The fuel cell vehicle has hydrogen tanks (10150 psi [70 MPa, 714
kgf/cm

, 700 bar]), fuel cell stack, and hydrogen pipelines as hydro-

gen-related components. Pay attention to all warning labels attached
to the vehicle.

The illustration is an example for explanation and may differ from the actual
item.

Warning label

Fuel cell stack (fuel cell and hydrogen pump)

Hydrogen detectors

Hydrogen tanks

Hydrogen tank valves

Hydrogen pipelines

Hydrogen supply unit

: If equipped

Fuel cell vehicle precautions

System components

2-1. Fuel cell vehicle

■

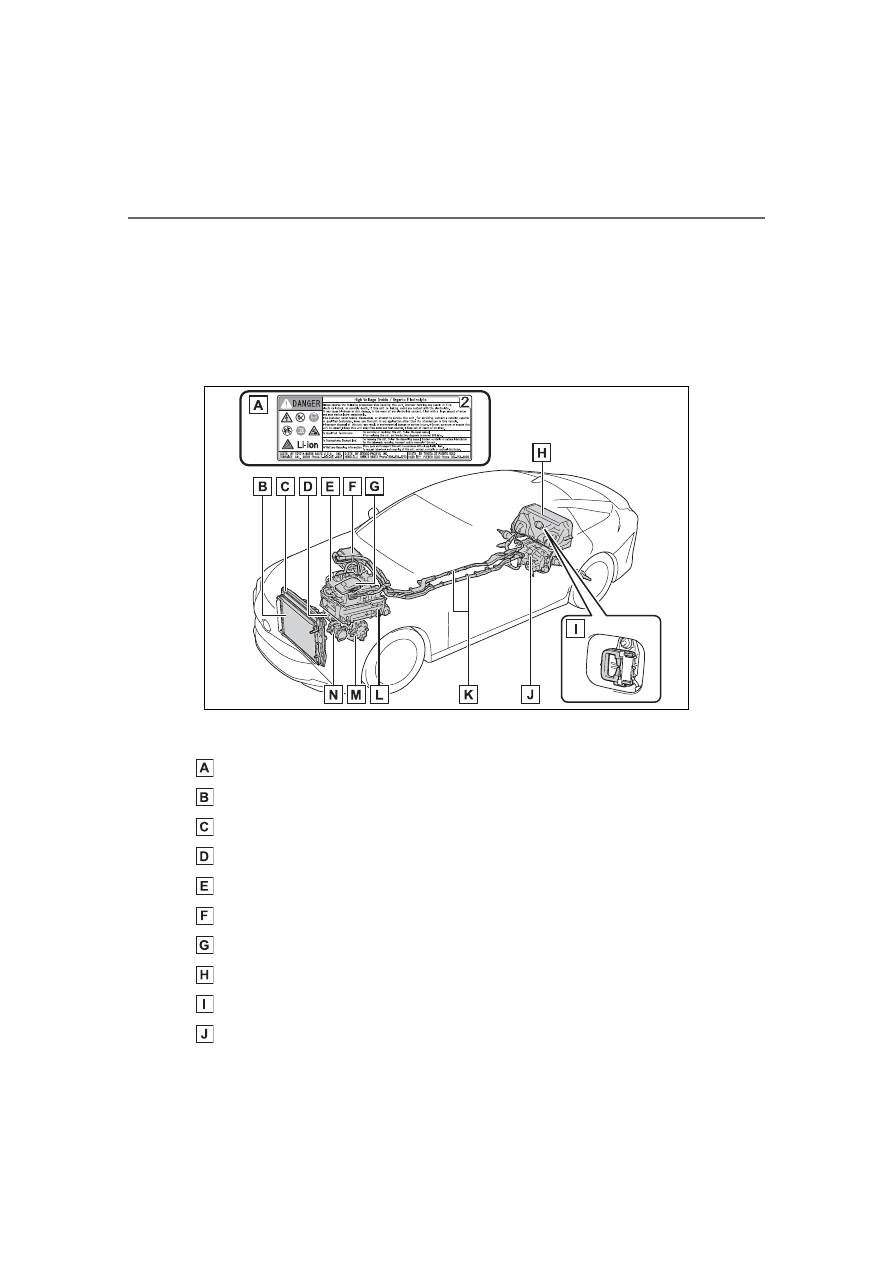

High-voltage and high-temperature components

The fuel cell vehicle has high-voltage components (about 650 V
maximum) such as a fuel cell stack, traction battery, power control
unit, fuel cell converter, high-voltage cables (which are distinguished
from low-voltage cables by their orange covers), electric motor (trac-
tion motor), etc., and high-temperature parts such as the radiator for
cooling. Pay attention to all warning labels attached to the vehicle.

This diagram is for illustrative purposes only and may differ from the actual
vehicle.

Warning label

Radiator for inverter cooling

Radiator for fuel cell stack cooling

Fuel cell water pump

Fuel cell converter and auxiliary inverter

Power control unit

Cabin coolant heater

Traction battery

Service plug

Electric motor (traction motor)

Content .. 2 3 4 5 ..
