7-3. Do-it-yourself maintenance

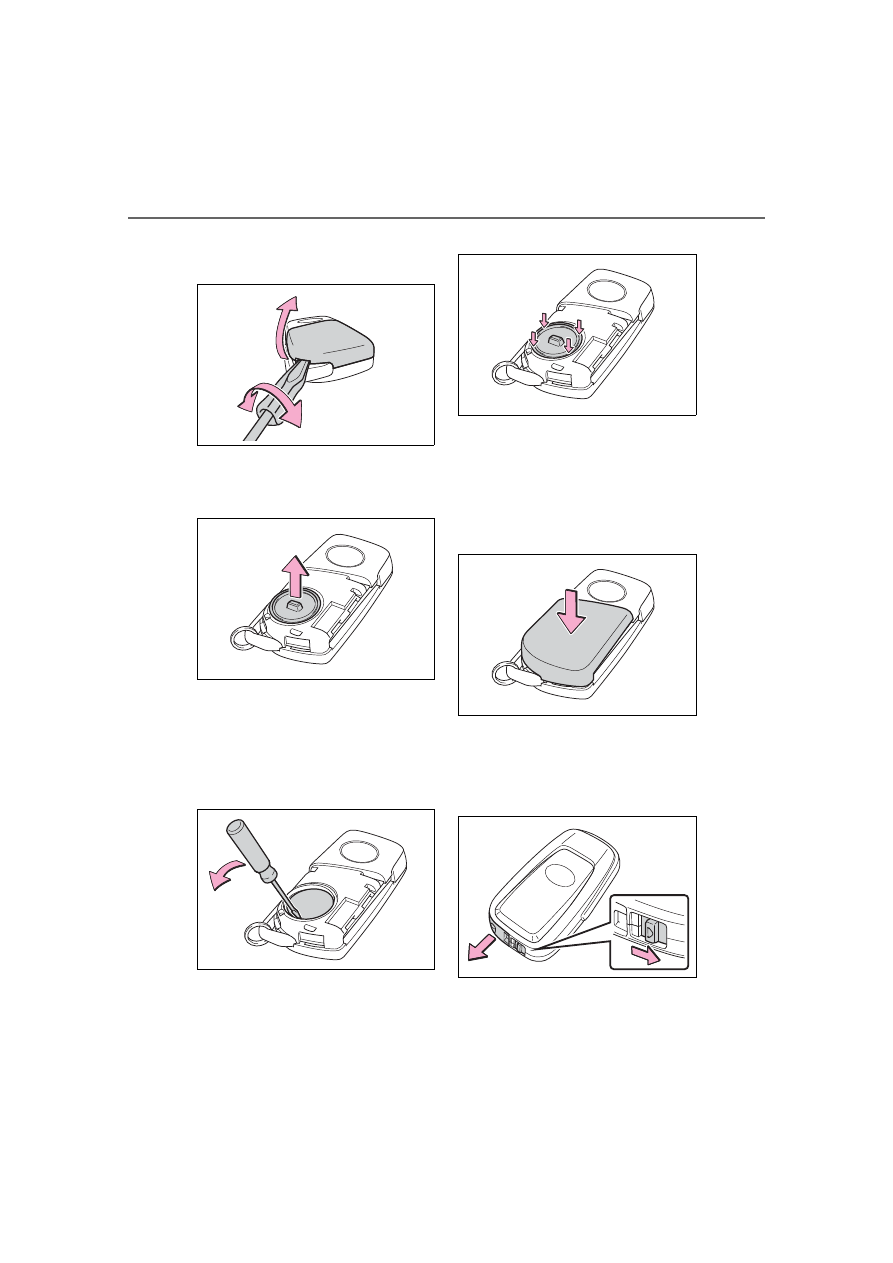

To prevent damage to the key,

cover the tip of the screwdriver with

a rag.

Remove the battery cover.

If the battery cover is difficult to

remove, lift the edge to remove it.

Remove the depleted bat-
tery.

When removing the battery, use a

screwdriver of an appropriate size.
Insert a new battery with the “+” ter-

minal facing up.

Install the battery cover with
the tab facing up.

Push the entire edge of the battery

cover into the key.

Install the key cover.

Align the key cover with the key

and then press it straight into the

key.
Make sure that the key cover is

securely installed without any gaps

between it and the key.



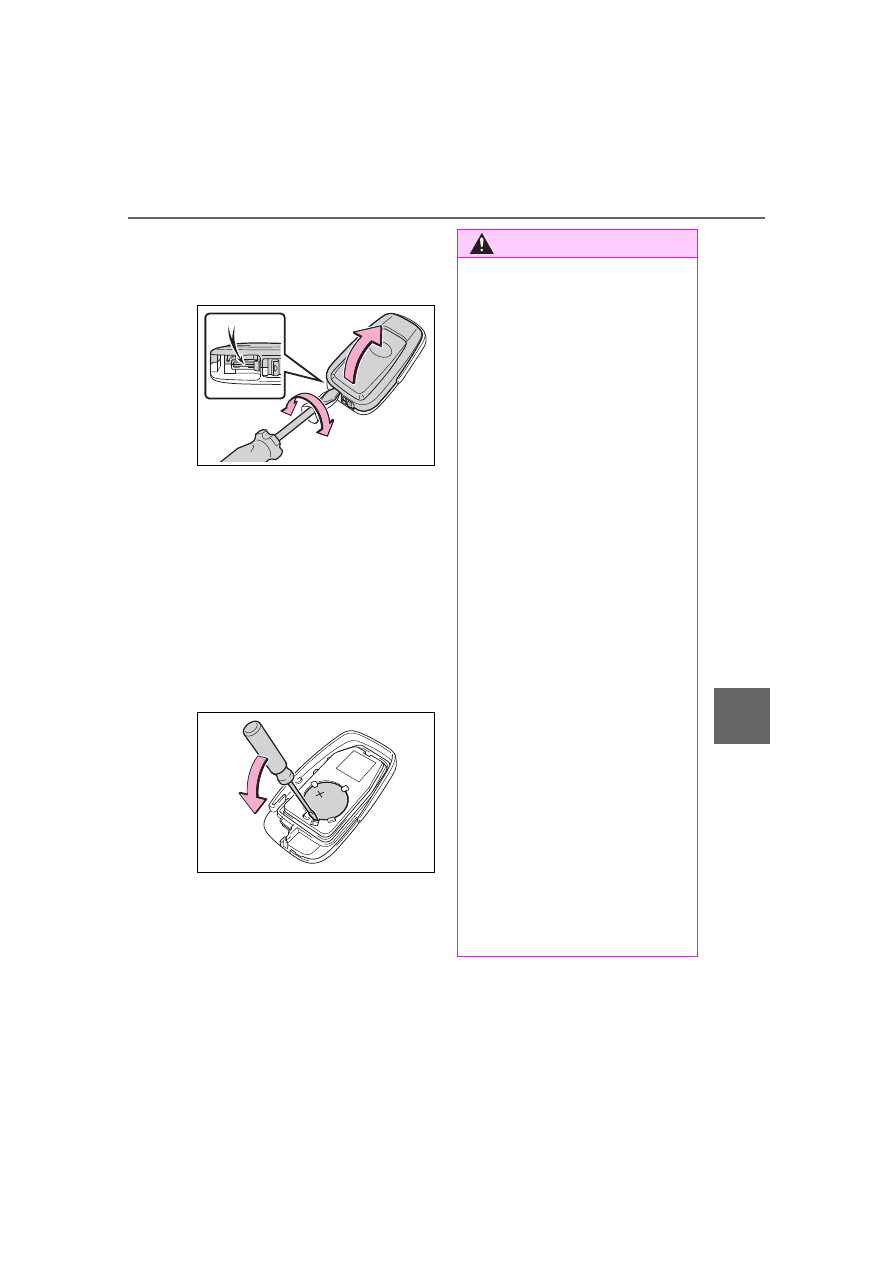

Vehicles with smart key sys-
tem

Release the lock and remove
the mechanical key.

Remove the key cover.

Use a screwdriver of an appropriate

size. Forcedly prying may cause

599

7-3. Do-it-yourself maintenance

Maintena

nce
a

nd ca

the cover damaged.
To prevent damage to the key,

cover the tip of the flathead screw-

driver with a rag.

Remove the depleted battery
using a small flathead screw-
driver.

When removing the cover, the elec-

tronic key module may stick to the

cover and the battery may not be

visible. In this case, remove the

electronic key module in order to

remove the battery.
When removing the battery, use a

screwdriver of an appropriate size.
Insert a new battery with the “+” ter-

minal facing up.

When installing, reverse the
steps listed.

WARNING

■

Battery precautions

Observe the following precau-

tions. Failure to do so may result

in death or serious injury.

●

Do not swallow the battery.

Doing so may cause chemical

burns.

●

A coin battery or button battery

is used in the electronic key. If a

battery is swallowed, it may

cause severe chemical burns in

as little as 2 hours and may

result in death or serious injury.

●

Keep away new and removed

batteries from children.

●

If the cover cannot be firmly

closed, stop using the electronic

key and stow the key in the

place where children cannot

reach, and then contact your

Toyota dealer.

●

If you accidentally swallow a

battery or put a battery into a

part of your body, get emer-

gency medical attention imme-

diately.

■

To prevent battery explosion

or leakage of flammable liq-

uid or gas

●

Replace the battery with a new

battery of the same type. If a

wrong type of battery is used, it

may explode.

●

Do not expose batteries to

extremely low pressure due to

high altitude or extremely high

temperatures.

●

Do not burn, break or cut a bat-

tery.

600

7-3. Do-it-yourself maintenance

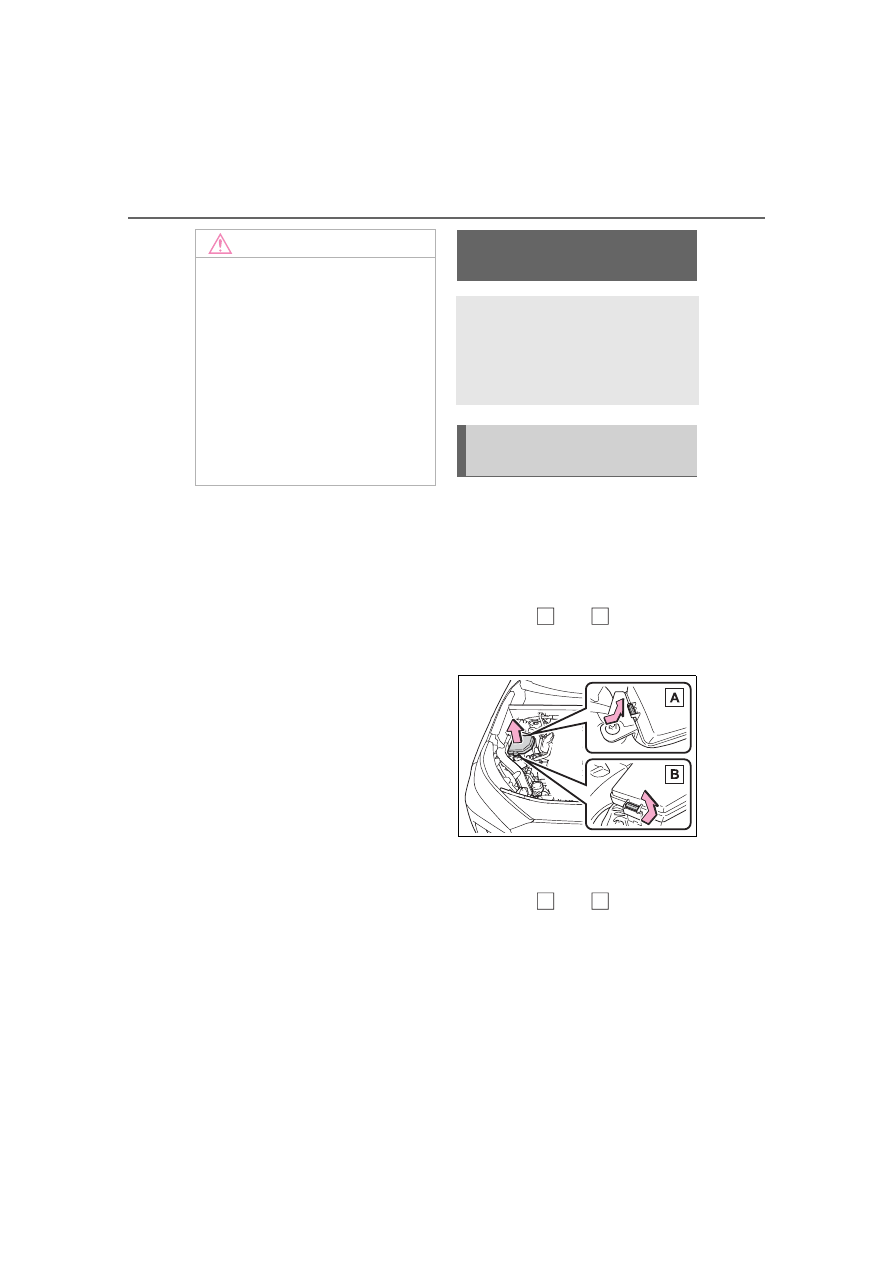

Turn the engine switch to
OFF.

Open the fuse box cover.



Engine compartment: Type A
fuse box (if equipped)

Push claws

and

to com-

pletely release the lock, and then lift
up the cover.



Engine compartment: Type B
fuse box

Push claws

and

to com-

pletely release the lock, and then lift
up the cover.

NOTICE

■

For normal operation after

replacing the battery

Observe the following precautions

to prevent accidents:

●

Always work with dry hands.

Moisture may cause the battery

to rust.

●

Do not touch or move any other

component inside the remote

control.

●

Do not bend either of the battery

terminals.

Checking and replac-

ing fuses

If any of the electrical com-
ponents do not operate, a
fuse may have blown. If this
happens, check and replace
the fuses as necessary.

Checking and replacing
fuses

601

7-3. Do-it-yourself maintenance

Maintena

nce
a

nd ca



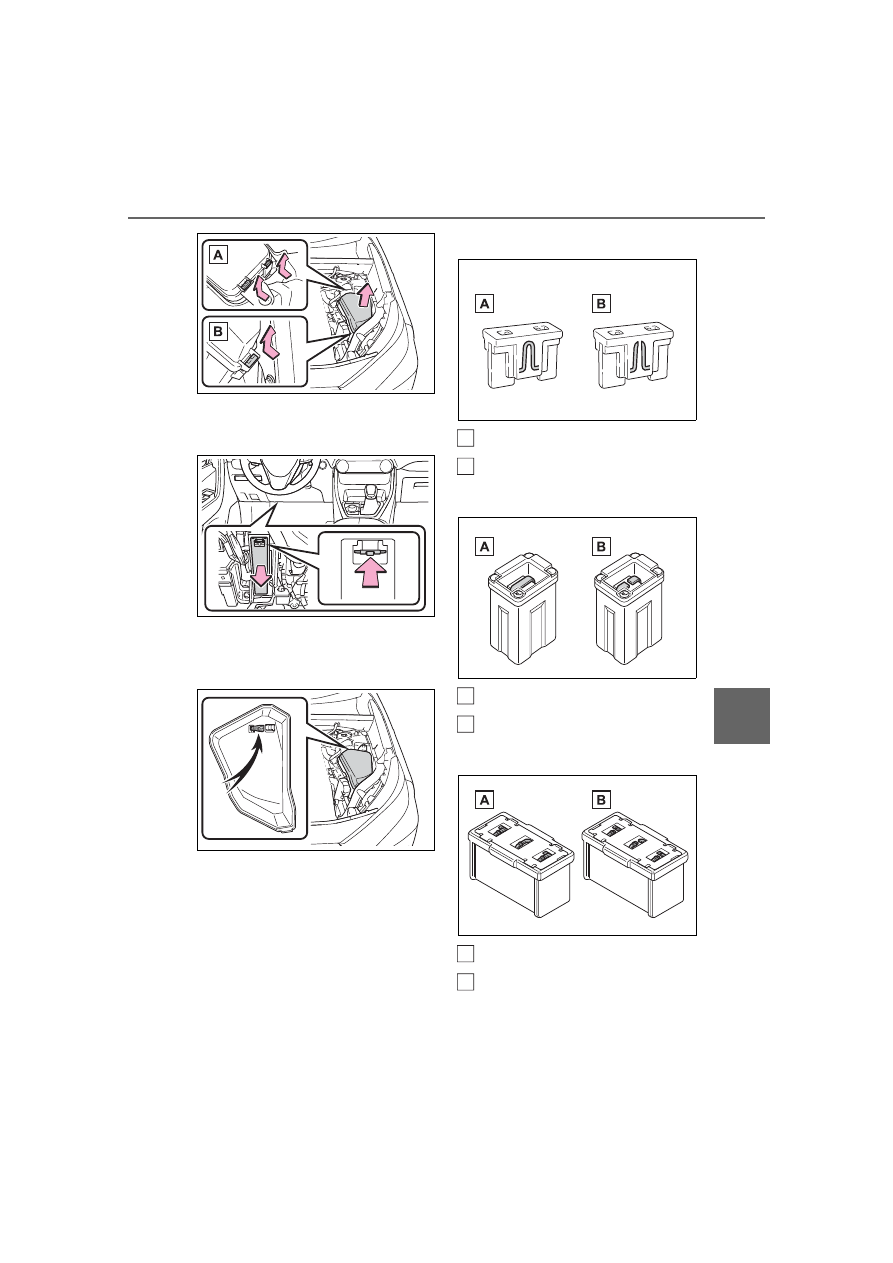

Left side instrument panel

Remove the lid.

Remove the fuse.

Only type A fuse can be removed

using the pullout tool.

Check if the fuse is blown.

Replace the blown fuse with a new

fuse of an appropriate amperage

rating. The amperage rating can be

found on the fuse box lid.



Type A

Normal fuse

Blown fuse



Type B

Normal fuse

Blown fuse



Type C

Normal fuse

Blown fuse

602

7-3. Do-it-yourself maintenance

■

After a fuse is replaced

●

When installing the lid, make sure

that the tab is installed securely.

●

If the lights do not turn on even

after the fuse has been replaced,

a bulb may need replacement.

(



P.604)

●

If the replaced fuse blows again,

have the vehicle inspected by

your Toyota dealer.

■

If there is an overload in a cir-

cuit

The fuses are designed to blow,

protecting the wiring harness from

damage.

WARNING

■

To prevent system break-

downs and vehicle fire

Observe the following precau-

tions.

Failure to do so may cause dam-

age to the vehicle, and possibly a

fire or injury.

●

Never use a fuse of a higher

amperage rating than that indi-

cated, or use any other object in

place of a fuse.

●

Always use a genuine Toyota

fuse or equivalent.

Never replace a fuse with a

wire, even as a temporary fix.

●

Do not modify the fuses or fuse

boxes.

NOTICE

■

Before replacing fuses

Have the cause of electrical over-

load determined and repaired by

your Toyota dealer as soon as

possible.

■

To prevent damage to the

engine compartment fuse box

cover

When opening the fuse box, com-

pletely release the claw locks

before lifting up the cover. Other-

wise, the claws may be damaged.

603

7-3. Do-it-yourself maintenance

Maintena

nce
a

nd ca

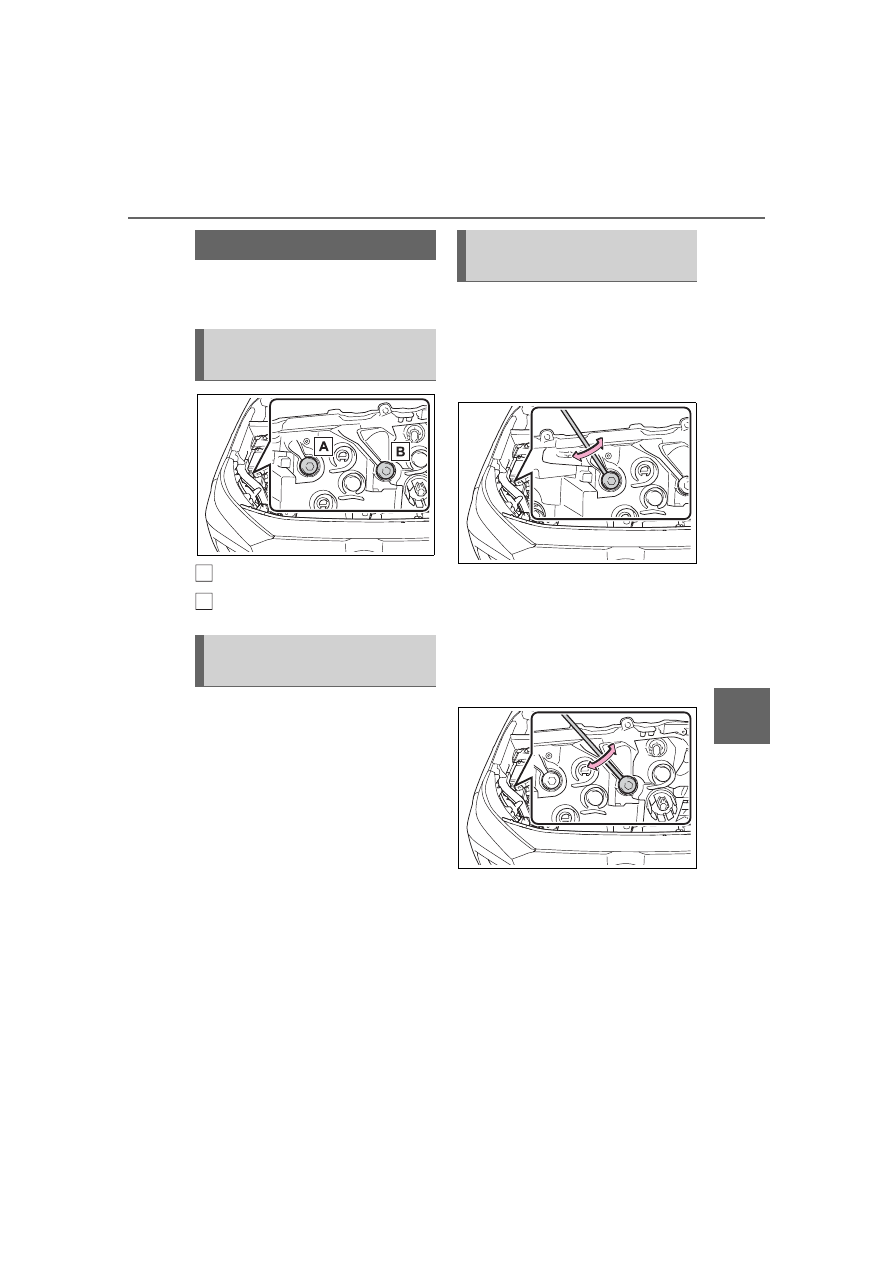

: Vehicles with LED projector

headlights

Adjustment bolt A

Adjustment bolt B



Make sure the vehicle has a
full tank of gasoline and the
area around the headlight is
not deformed.



Park the vehicle on level
ground.



Make sure the tire inflation
pressure is at the specified
level.



Have someone sit in the
driver’s seat.



Bounce the vehicle several
times.

Using a Phillips-head screw-
driver, turn bolt A in either
direction.
Remember the turning direc-
tion and the number of turns.

Turn bolt B the same number
of turns and in the same
direction as step

If the headlight cannot be adjusted

using this procedure, take the vehi-

cle to your Toyota dealer to adjust

the headlight aim.

Headlight aim

Vertical movement adjust-
ing bolts

Before checking the head-
light aim

Adjusting the headlight
aim

604

7-3. Do-it-yourself maintenance

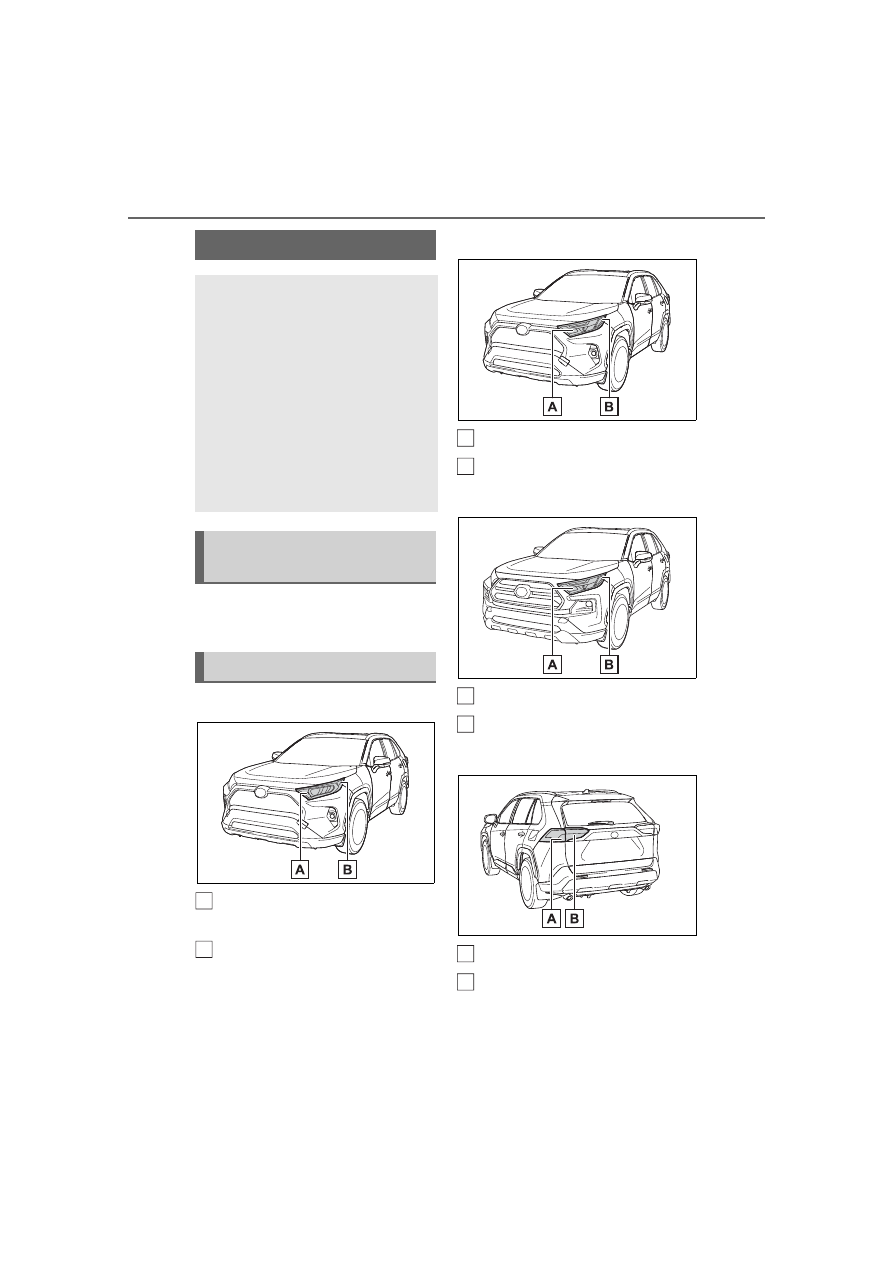

Check the wattage of the light
bulb to be replaced. (



P.670)



Front (type A)

Front turn signal/parking
lights

Front side marker lights



Front (type B)

Front turn signal lights

Front side marker lights



Front (type C)

Front turn signal lights

Front side marker lights



Rear

Rear turn signal lights

Back-up lights

Light bulbs

You may replace the follow-
ing bulbs by yourself. The
difficulty level of replace-
ment varies depending on
the bulb. If necessary bulb
replacement seems difficult
to perform, contact your
Toyota dealer.
For more information about
replacing other light bulbs,
contact your Toyota dealer.

Preparing for light bulb
replacement

Bulb location

605

7-3. Do-it-yourself maintenance

Maintena

nce
a

nd ca

■

Lights that need to be
replaced by your Toyota
dealer



Headlights



Front turn signal lights (LED
type)



Daytime running lights



Parking lights (LED type)



Front side marker lights (LED
type)



Fog lights (if equipped)



Side turn signal lights (if
equipped)



Tail lights



Stop lights



Rear side marker lights



High mounted stoplight



License plate lights



Outer foot lights (if equipped)

■

LED lights

The lights other than the following

lights each consist of a number of

LEDs. If any of the LEDs burn out,

take your vehicle to your Toyota

dealer to have the light replaced.

●

Front turn signal lights (bulb type)

●

Parking lights (type A)

●

Front side marker lights (bulb

type)

●

Rear turn signal lights

●

Back-up lights

●

Outer foot lights (if equipped)

■

Condensation build-up on the

inside of the lens

Temporary condensation build-up

on the inside of the light lens does

not indicate a malfunction. Contact

your Toyota dealer for more infor-

mation in the following situations:

●

Large drops of water have built up

on the inside of the lens.

●

Water has built up inside the light.

■

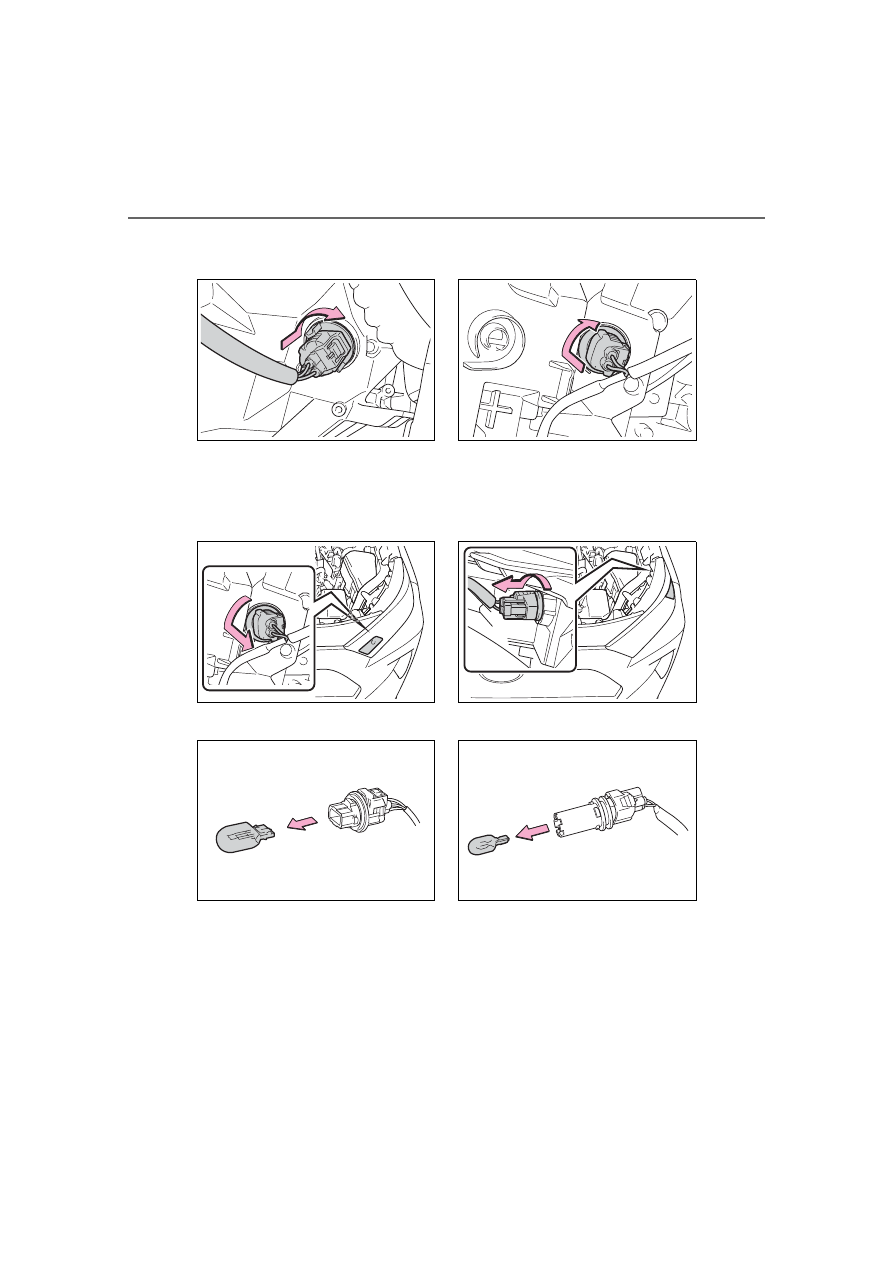

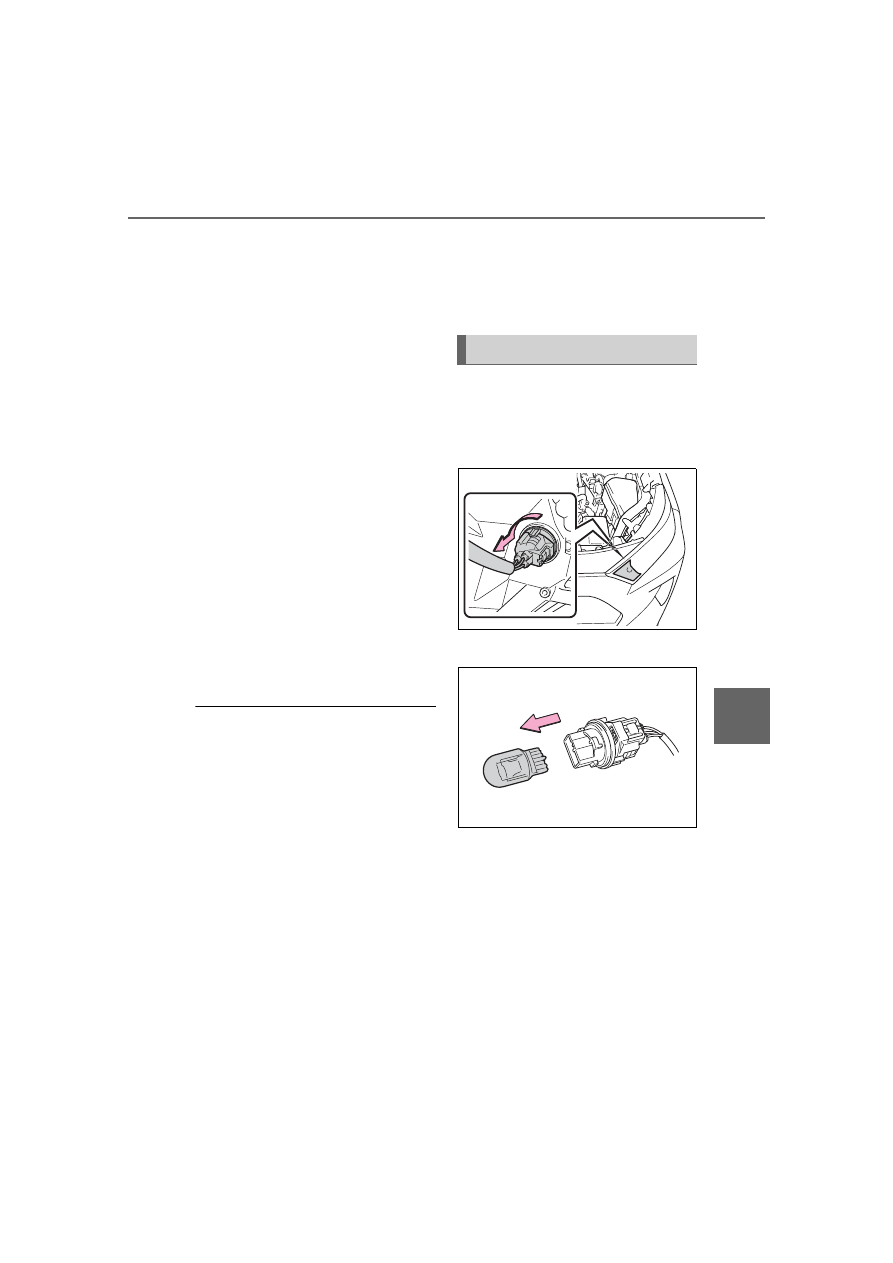

Front turn signal/parking
lights (type A)

Turn the bulb base counter-
clockwise.

Remove the light bulb.

Install a new light bulb then
install the bulb base to the
light unit by inserting it and

Replacing light bulb

606

7-3. Do-it-yourself maintenance

turning the bulb base clock-
wise.

■

Front turn signal lights
(type B and C)

Turn the bulb base counter-
clockwise.

Remove the light bulb.

Install a new light bulb then
install the bulb base to the
light unit by inserting it and

turning the bulb base clock-
wise.

■

Front side marker lights
(type A)

Turn the bulb base counter-
clockwise.

Remove the light bulb.

Install a new light bulb then
install the bulb base to the
light unit by inserting it and

607

7-3. Do-it-yourself maintenance

Maintena

nce
a

nd ca

turning the bulb base clock-
wise.

■

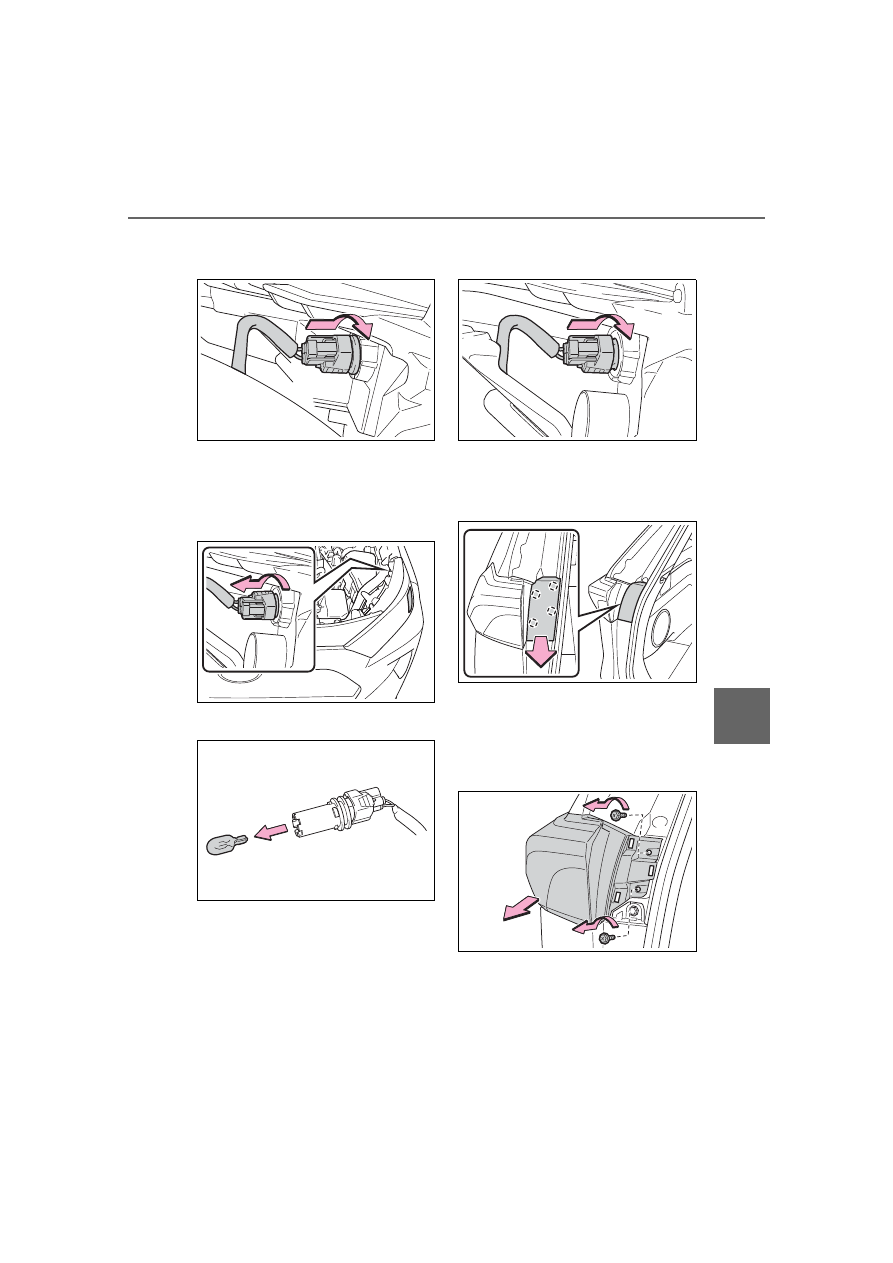

Front side marker lights
(type B and C)

Turn the bulb base counter-
clockwise.

Remove the light bulb.

Install a new light bulb then
install the bulb base to the
light unit by inserting it and

turning the bulb base clock-
wise.

■

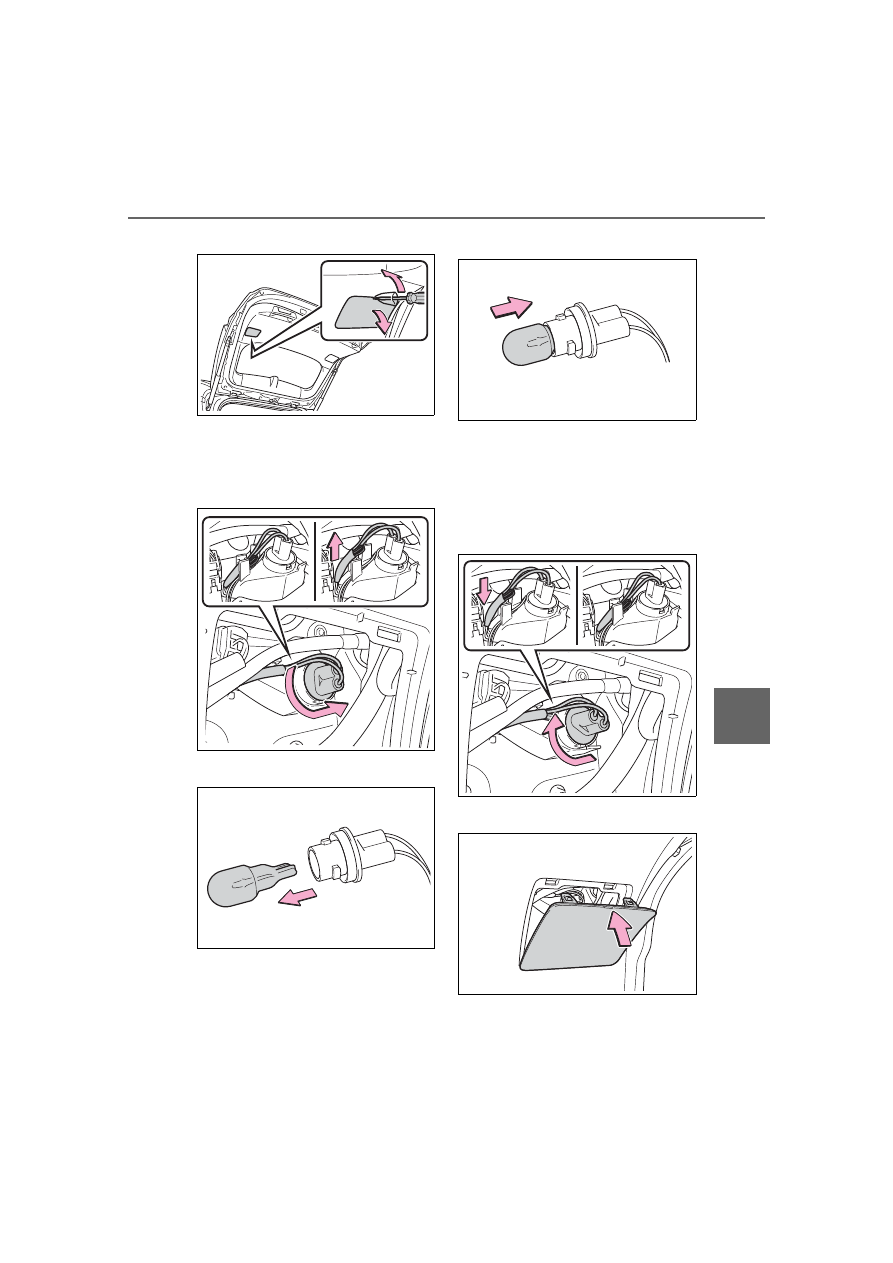

Rear turn signal lights

Open the back door and
remove the cover.

Remove the screws and
remove the unit.

Remove the lamp assembly by pull-

ing it directly backward from the

rear of the vehicle.

608

7-3. Do-it-yourself maintenance

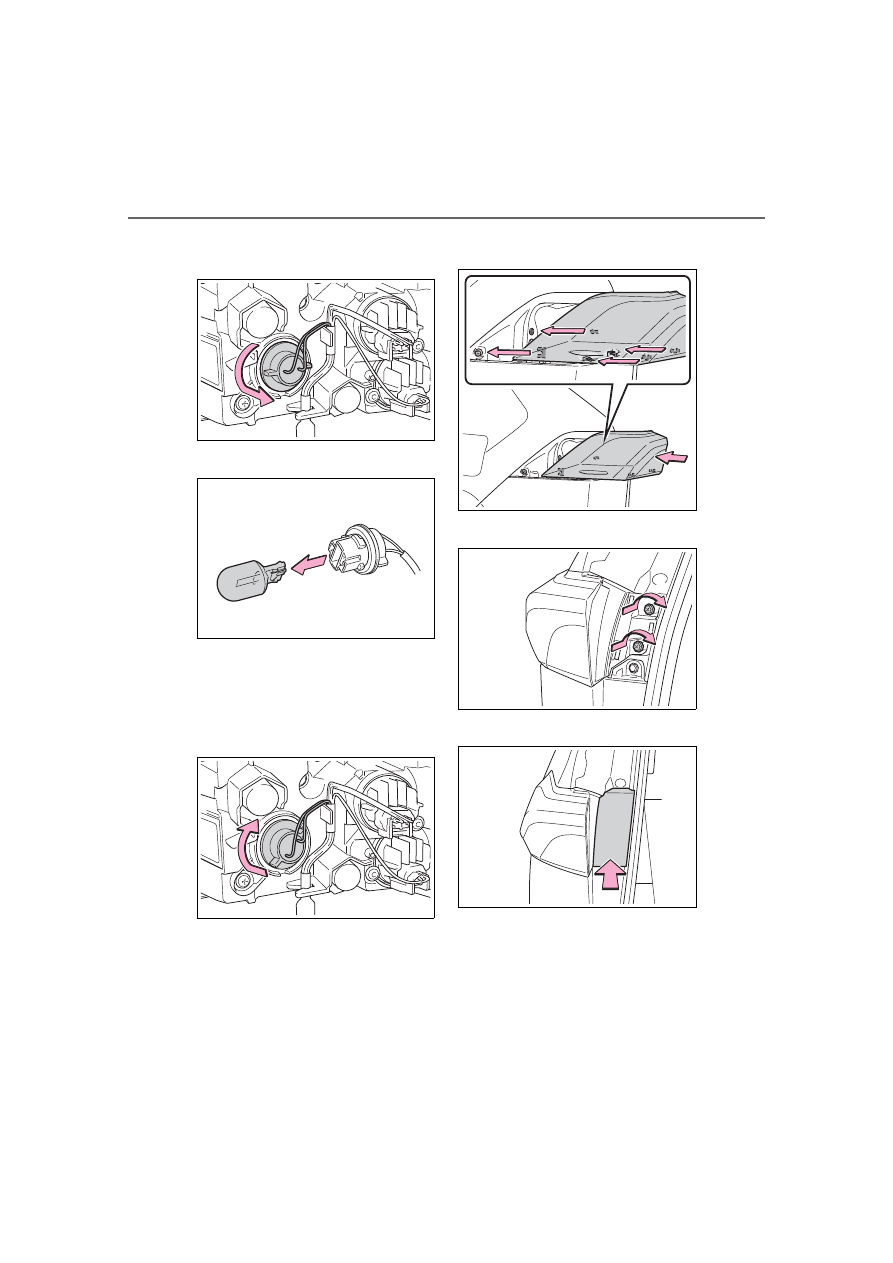

Turn the bulb base counter-
clockwise.

Remove the light bulb.

Install a new light bulb then
install the bulb base to the
light unit by inserting it and
turning the bulb base clock-
wise.

Align the grooves on the light
unit with the claws, and insert
the light unit straight so that
the pin on the light unit fit into
the hole.

Confirm that the light unit is com-

pletely secured.

Reinstall the screws.

Reinstall the cover.

■

Back-up lights

Open the back door and
remove the cover.

To prevent damage to the cover,

protect the tip of the screwdriver

609

7-3. Do-it-yourself maintenance

Maintena

nce
a

nd ca

with a rag.

Turn the bulb base counter-
clockwise.

Remove the cord from the clip

before turning the bulb base.

Remove the light bulb.

Install a new light bulb.

Install the bulb base to the
light unit by inserting it and
turning the bulb base clock-
wise.

Secure the cord with the clip back

again after installing the bulb base.

Reinstall the cover.

610

7-3. Do-it-yourself maintenance

WARNING

■

Replacing light bulb

●

Turn off the light. Do not attempt

to replace the bulb immediately

after turning off the light.

The bulb become very hot and

may cause burns.

●

Do not touch the glass portion

of the light bulb with bare

hands. When it is unavoidable

to hold the glass portion, use

and hold with a clean dry cloth

to avoid getting moisture and

oils on the bulb.

Also, if the bulb is scratched or

dropped, it may blow out or

crack.

●

Fully install light bulb and any

parts used to secure it. Failure

to do so may result in heat dam-

age, fire, or water entering the

light unit. This may damage the

light or cause condensation to

build up on the lens.

●

Do not attempt to repair or dis-

assemble light bulbs, connec-

tors, electric circuits or

component parts.

Doing so may result in death or

serious injury due to electric

shock.

■

To prevent damage or fire

●

Make sure bulb is fully seated

and locked.

●

Check the wattage of the bulb

before installing to prevent heat

damage.

611

Whe

n tr

ouble

rises

When trouble arises

8-1. Essential information

Emergency flashers ....

612

If your vehicle has to be

stopped in an emergency

..................................

612

If the vehicle is submerged

or water on the road is ris-
ing .............................

613

8-2. Steps to take in an emer-

gency

If your vehicle needs to be

towed.........................

615

If you think something is

wrong ........................

620

Fuel pump shut off system

..................................

621

If a warning light turns on or

a warning buzzer sounds

..................................

622

If a warning message is dis-

played........................

633

If you have a flat tire....

637

If the engine will not start

..................................

646

If you lose your keys ...

648

If the electronic key does

not operate properly (vehi-
cles with smart key sys-
tem) ...........................

648

If the vehicle battery is dis-

charged .....................

650

If your vehicle overheats

..................................

654

If the vehicle becomes stuck

..................................

656

612

8-1. Essential information

8-1.Essential information

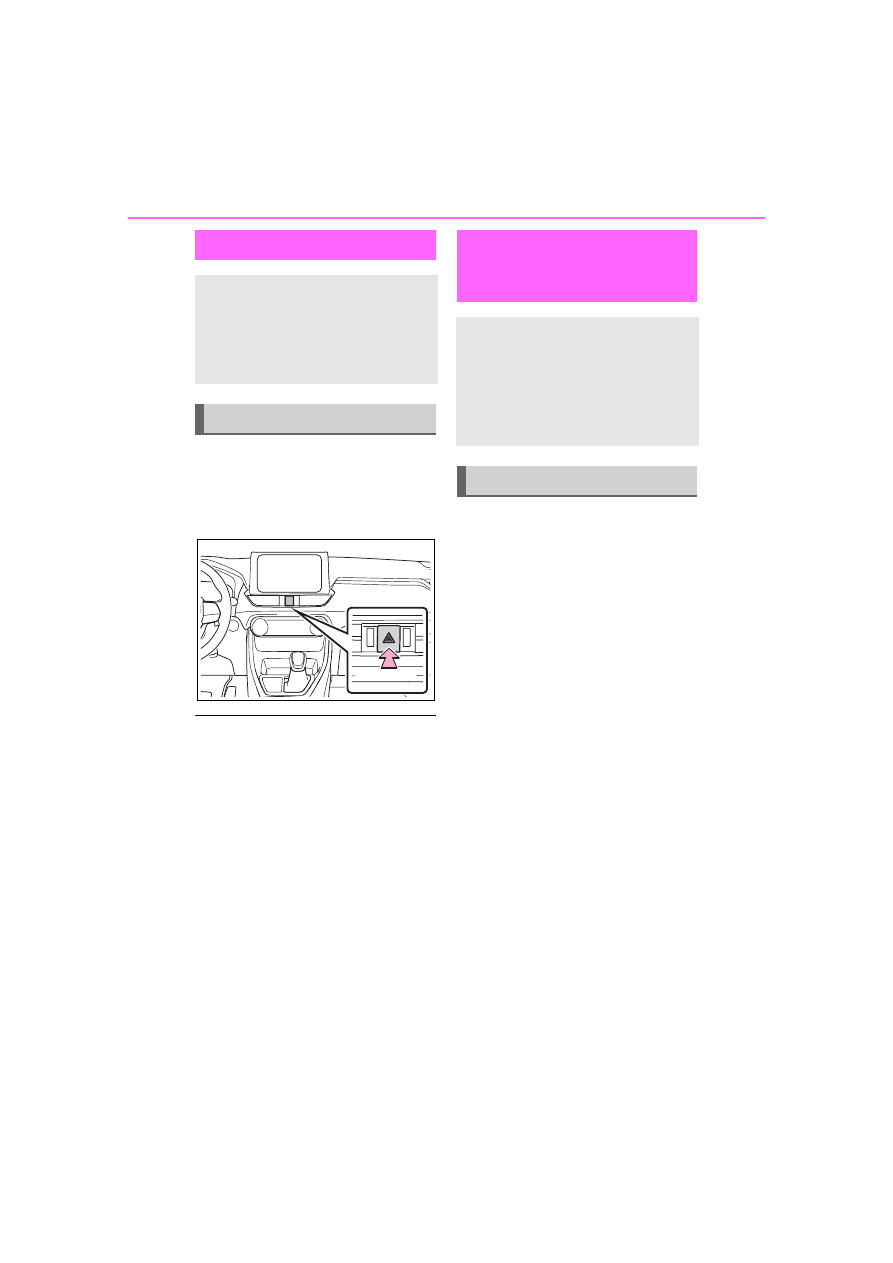

Press the switch.

All the turn signal lights will flash.
To turn them off, press the switch
once again.

■

Emergency flashers

●

If the emergency flashers are

used for a long time while the

engine is not running, the battery

may discharge.

●

If any of the SRS airbags deploy

(inflate) or in the event of a strong

rear impact, the emergency flash-

ers will turn on automatically.

The emergency flashers will turn

off automatically after operating

for approximately 20 minutes. To

manually turn the emergency

flashers off, press the switch

twice. (The emergency flashers

may not turn on automatically

depending on the force of the

impact and conditions of the colli-

sion.)

Steadily step on the brake
pedal with both feet and
firmly depress it.

Do not pump the brake pedal

repeatedly as this will increase the

effort required to slow the vehicle.

Shift the shift lever to N.



If the shift lever is shifted to N

After slowing down, stop the
vehicle in a safe place by the
road.

Stop the engine.



If the shift lever cannot be
shifted to N

Keep depressing the brake
pedal with both feet to reduce
vehicle speed as much as
possible.

Perform the following proce-
dure to stop the engine:



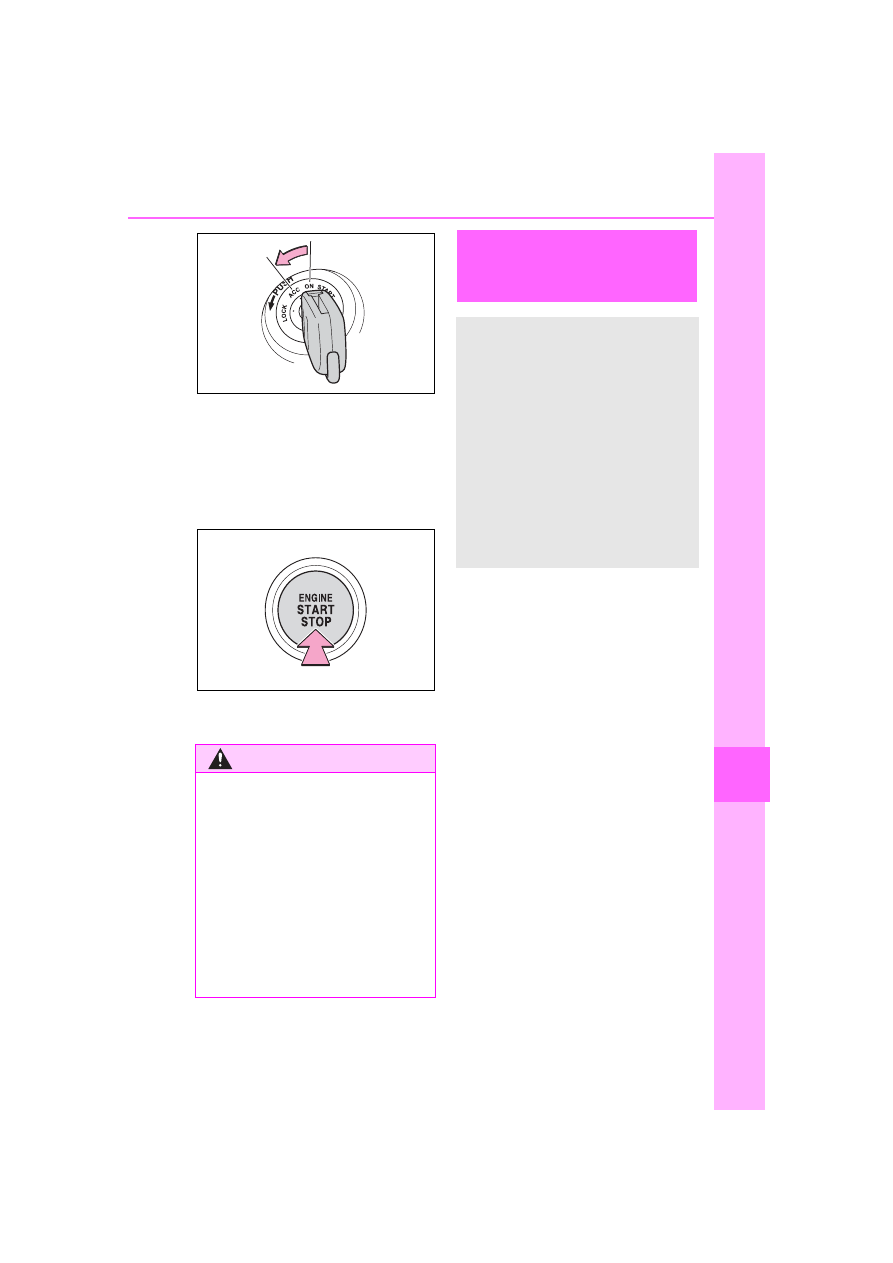

Vehicles without smart key
system

Turn the engine switch to ACC.

Emergency flashers

The emergency flashers are
used to warn other drivers
when the vehicle has to be
stopped in the road due to a
breakdown, etc.

Operating instructions

If your vehicle has to

be stopped in an emer-

gency

Only in an emergency, such
as if it becomes impossible
to stop the vehicle in the
normal way, stop the vehi-
cle using the following pro-
cedure:

Stopping the vehicle

613

8-1. Essential information

Whe

n tr

ouble

rises



Vehicles with smart key sys-
tem

Press and hold the engine switch
for 2 consecutive seconds or more,
or press it briefly 3 times or more in
succession.

Stop the vehicle in a safe
place by the road.



If the door can be opened,
open the door and exit the
vehicle.



If the door can not be opened,
open the window using the
power window switch and
ensure an escape route.



If the window can be opened,
exit the vehicle through the
window.



If the door and window cannot
be opened due to the rising
water, remain calm, wait until
the water level inside the
vehicle rises to the point that
the water pressure inside of
the vehicle equals the water
pressure outside of the vehi-
cle and then open the door
after waiting for the rising
water to enter the vehicle, and
exit the vehicle. When the

WARNING

■

If the engine has to be turned

off while driving

●

Power assist for the brakes and

steering wheel will be lost, mak-

ing the brake pedal harder to

depress and the steering wheel

heavier to turn. Decelerate as

much as possible before turning

off the engine.

●

Vehicles without smart key sys-

tem: Never attempt to remove

the key, as doing so will lock the

steering wheel.

If the vehicle is sub-

merged or water on

the road is rising

This vehicle is not designed
to be able to drive on roads
that are deeply flooded with
water. Do not drive on roads
where the roads may be
submerged or the water
may be rising. It is danger-
ous to remain in the vehicle,
if it anticipated that the vehi-
cle will be flooded or set a
drift. Remain calm and fol-
low the following.

Toyota RAV4 (2022 year). Manual in english - page 37
