2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

by your Toyota dealer.

:This light illuminates on the out-

side rear view mirrors.

:When the outside temperature is

approximately 37°F (3°C) or
lower, the indicator will flash for
approximately 10 seconds, then
stay on.

:This light illuminates on the cen-

ter panel.

■

BSM (Blind Spot Monitor) out-

side rear view mirror indicators

(if equipped)

In order to confirm operation, the

BSM outside rear view mirror indica-

tors illuminate in the following situa-

tions:

●

When the engine switch is turned

to ON while the BSM function is
enabled on the

screen of the

multi-information display.

●

When the BSM function is
enabled on the

screen of the

multi-information display while the

engine switch is in ON.

If the system is functioning correctly,
the BSM outside rear view mirror
indicators will turn off after a few
seconds.
If the BSM outside rear view mirror

indicators do not illuminate or do not

turn off, there may be a malfunction

in the system. If this occurs, have

the vehicle inspected by your

Toyota dealer.

2-1. Instrument cluster

The units used on the meter and display may differ depending on the target
region.

Tachometer

Displays the engine speed in revolutions per minute

Outside temperature (

Clock (

Multi-information display

Presents the driver with a variety of driving-related data (



P.89)

Displays warning messages if a malfunction occurs (



P.633)

Speedometer

Displays the vehicle speed

Fuel gauge

Displays the quantity of fuel remaining in the tank

Odometer and trip meter

Odometer:
Displays the total distance that the vehicle has been driven
Trip meter:
Displays the distance the vehicle has been driven since the meter was last

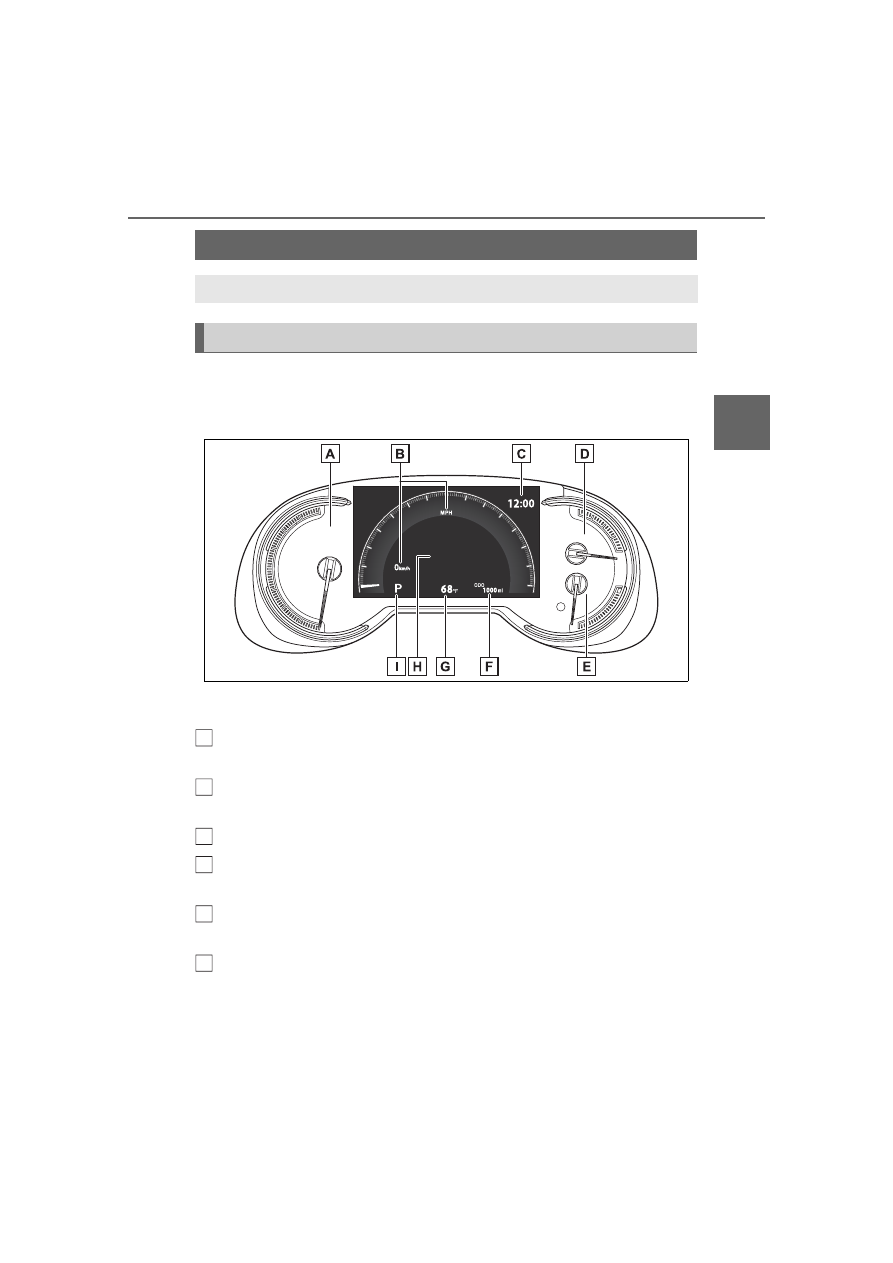

Gauges and meters (with 4.2-inch display)

The meters display various drive information.

Meter display

2-1. Instrument cluster

Vehicle

s information an

d in
dicat

reset. Trip meters “A” and “B” can be used to record and display different
distances independently.

Shift position and shift range indicator

Displays the selected shift position or selected shift range (



P.197)

Engine coolant temperature gauge

Displays the engine coolant temperature

■

The meters and display illumi-

nate when

The engine switch is in ON.

■

Outside temperature display

●

In the following situations, the cor-

rect outside temperature may not

be displayed, or the display may

take longer than normal to

change.

• When stopped, or driving at low

speeds (less than 12 mph [20

km/h])

• When the outside temperature

has changed suddenly (at the

entrance/exit of a garage, tunnel,

etc.)

●

When “--” or “E” is displayed, the

system may be malfunctioning.

Take your vehicle to your Toyota

dealer.

●

Displays the outside temperature

within the range of -40°F (-40°C)

to 122°F (50°C).

●

When the outside temperature is

approximately 37°F (3°C) or
lower, the indicator

will flash

for approximately 10 seconds,

then stay on.

■

Liquid crystal display



P.90

WARNING

■

The information display at

low temperatures

Allow the interior of the vehicle to

warm up before using the liquid

crystal information display. At

extremely low temperatures, the

display monitor may respond

slowly, and display changes may

be delayed.
For example, there is a lag

between the driver’s shifting and

the new gear number appearing

on the display. This lag could

cause the driver to downshift

again, causing rapid and exces-

sive engine braking and possibly

an accident resulting in death or

injury.

NOTICE

■

To prevent damage to the

engine and its components

●

Do not let the indicator needle

of the tachometer enter the red

zone, which indicates the maxi-

mum engine speed.

●

The engine may be overheating

if the engine coolant tempera-

ture gauge is in the red zone

(“H”). In this case, immediately

stop the vehicle in a safe place,

and check the engine after it

has cooled completely.

(



P.654)

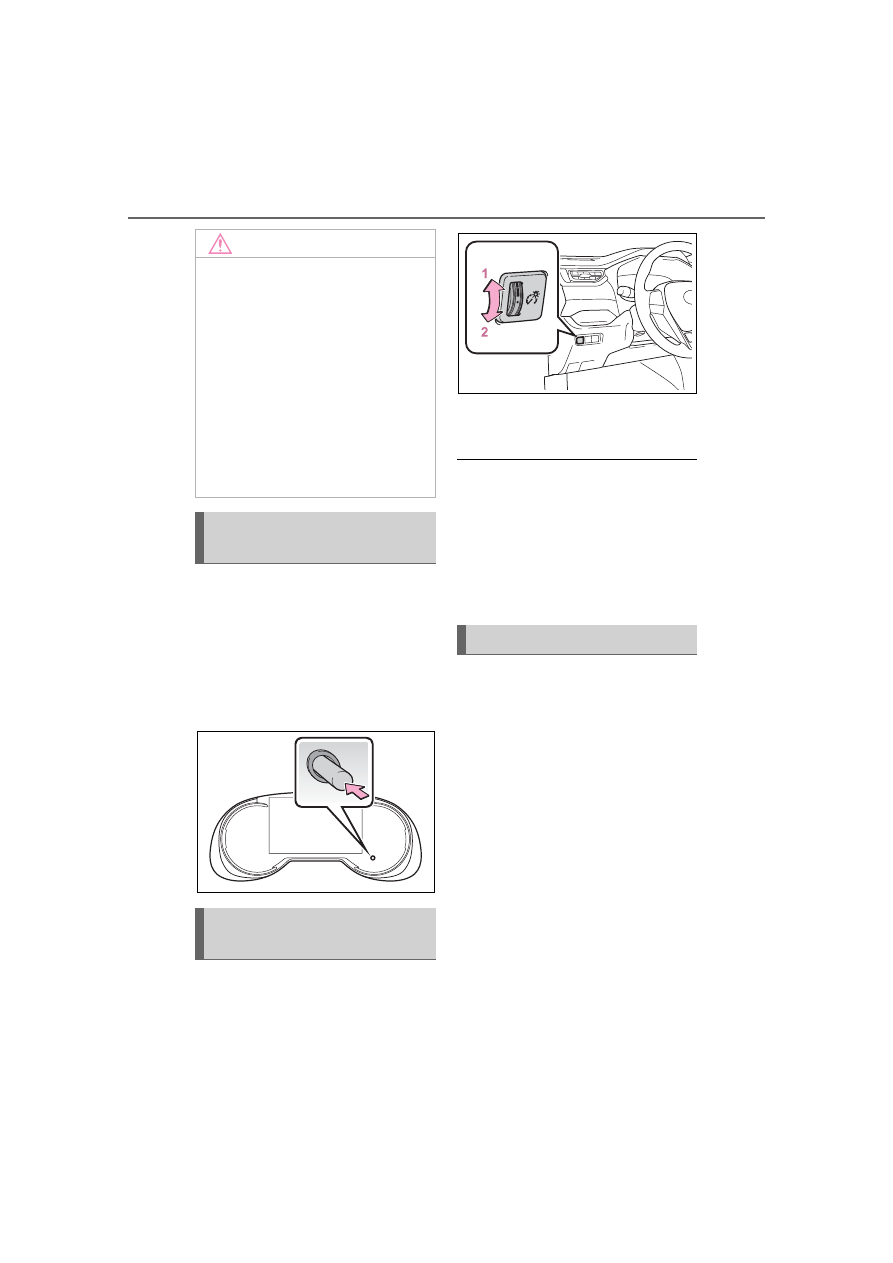

2-1. Instrument cluster

Switches the items of the odom-
eter, trip meter A and trip meter
B by pressing the “ODO TRIP”
switch.
When the trip meter is dis-
played, pressing and holding the
switch will reset the trip meter.

The brightness of the instrument
panel lights can be adjusted by
turning the dial.

Brighter

Darker

■

Instrument panel brightness

adjustment

The instrument panel brightness

levels when the tail lights are on and

off can be adjusted individually.

However, when the surroundings

are bright (daytime, etc.), turning on

the tail lights will not change the

instrument panel brightness.

The clock can be adjusted on
the audio system screen.



Vehicles with Audio



P.411



Vehicles with Audio Plus or
Premium Audio

Refer to “NAVIGATION AND
MULTIMEDIA SYSTEM
OWNER’S MANUAL”.

Using the “ODO TRIP”
switch

Instrument panel light
control

Adjusting the clock

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

The display of the speedometer can be selected from two types,
analog or digital. (



P.94)



Analog speedometer

The units used on the meter and display may differ depending on the target
region.

Tachometer

Displays the engine speed in revolutions per minute

Speedometer

Displays the vehicle speed

Clock (



P.88)

Fuel gauge

Displays the quantity of fuel remaining in the tank

Engine coolant temperature gauge

Displays the engine coolant temperature

Odometer and trip meter

Odometer:
Displays the total distance that the vehicle has been driven
Trip meter:

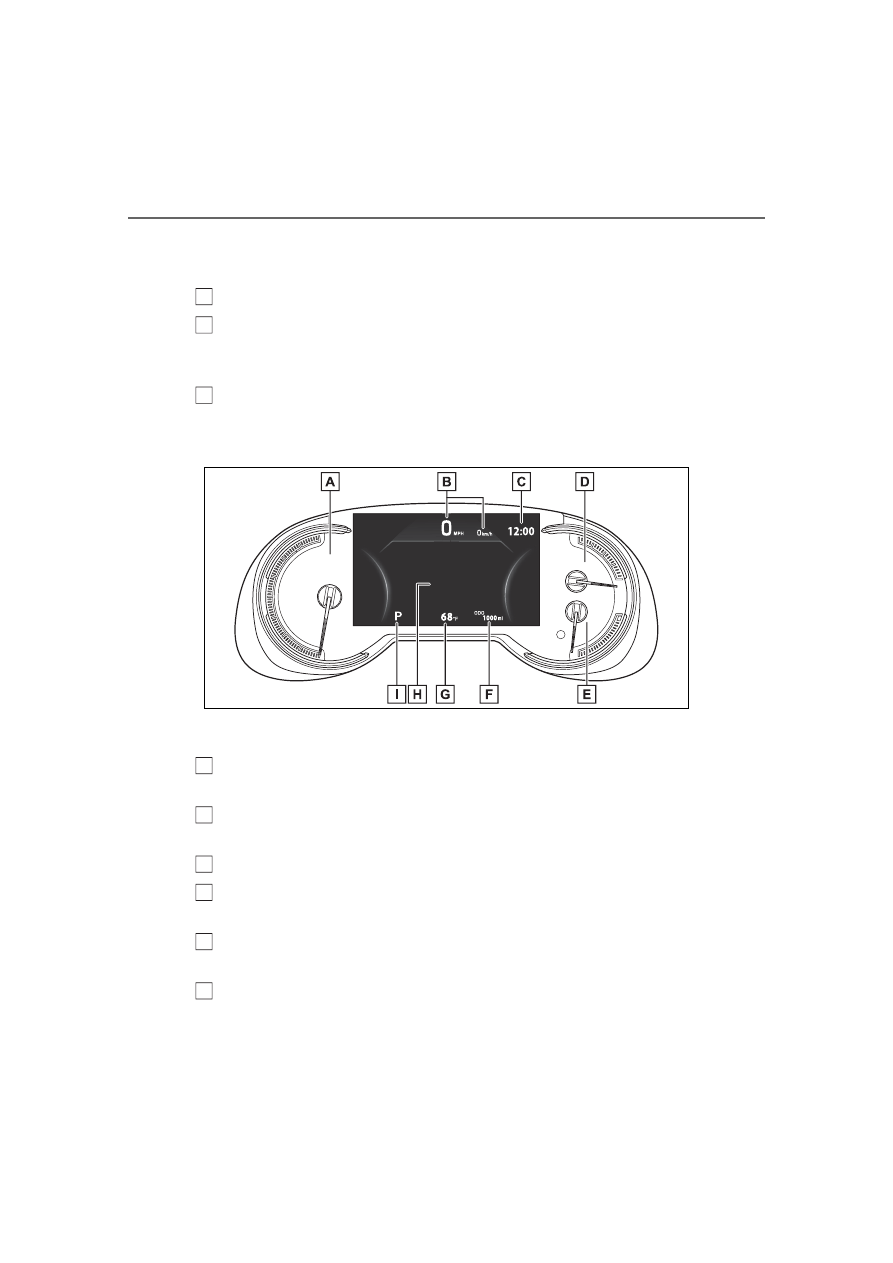

Gauges and meters (with 7-inch display)

The meters display various drive information.

Meter display

2-1. Instrument cluster

Displays the distance the vehicle has been driven since the meter was last
reset. Trip meters “A” and “B” can be used to record and display different
distances independently.

Outside temperature (



P.87)

Multi-information display

Presents the driver with a variety of driving-related data (



P.89)

Displays warning messages if a malfunction occurs (



P.633)

Shift position and shift range indicator

Displays the selected shift position or selected shift range (



P.197)



Digital speedometer

The units used on the meter and display may differ depending on the target
region.

Tachometer

Displays the engine speed in revolutions per minute

Speedometer

Displays the vehicle speed

Clock (



P.88)

Fuel gauge

Displays the quantity of fuel remaining in the tank

Engine coolant temperature gauge

Displays the engine coolant temperature

Odometer and trip meter

Odometer:
Displays the total distance that the vehicle has been driven

2-1. Instrument cluster

Vehicle

s information an

d in
dicat

Trip meter:
Displays the distance the vehicle has been driven since the meter was last
reset. Trip meters “A” and “B” can be used to record and display different
distances independently.

Outside temperature (



P.83)

Multi-information display

Presents the driver with a variety of driving-related data (



P.89)

Displays warning messages if a malfunction occurs (



P.633)

Shift position and shift range indicator

Displays the selected shift position or selected shift range (



P.197)

■

The meters and display illumi-

nate when

The engine switch is in ON.

■

When changing driving mode

●

Speedometer color is changed fol-

lowing the selected driving mode.

(



P.347)

●

AWD models: Speedometer color

is changed following the selected

driving mode or Multi-terrain

Select mode. (



P.347, 349)

■

Outside temperature display

●

In the following situations, the cor-

rect outside temperature may not

be displayed, or the display may

take longer than normal to

change.

• When stopped, or driving at low

speeds (less than 12 mph [20

km/h])

• When the outside temperature

has changed suddenly (at the

entrance/exit of a garage, tunnel,

etc.)

●

When “--” or “E” is displayed, the

system may be malfunctioning.

Take your vehicle to your Toyota

dealer.

●

Displays the outside temperature

within the range of -40°F (-40°C)

to 122°F (50°C).

●

When the outside temperature is

approximately 37°F (3°C) or
lower, the indicator

will flash

for approximately 10 seconds,

then stay on.

■

Liquid crystal display



P.90

■

Customization

Settings (e. g. meter display) can be
changed on the

screen of the

multi-information display. (



P.94)

WARNING

■

The information display at

low temperatures

Allow the interior of the vehicle to

warm up before using the liquid

crystal information display. At

extremely low temperatures, the

display monitor may respond

slowly, and display changes may

be delayed.
For example, there is a lag

between the driver’s shifting and

the new gear number appearing

on the display. This lag could

cause the driver to downshift

again, causing rapid and exces-

sive engine braking and possibly

an accident resulting in death or

injury.

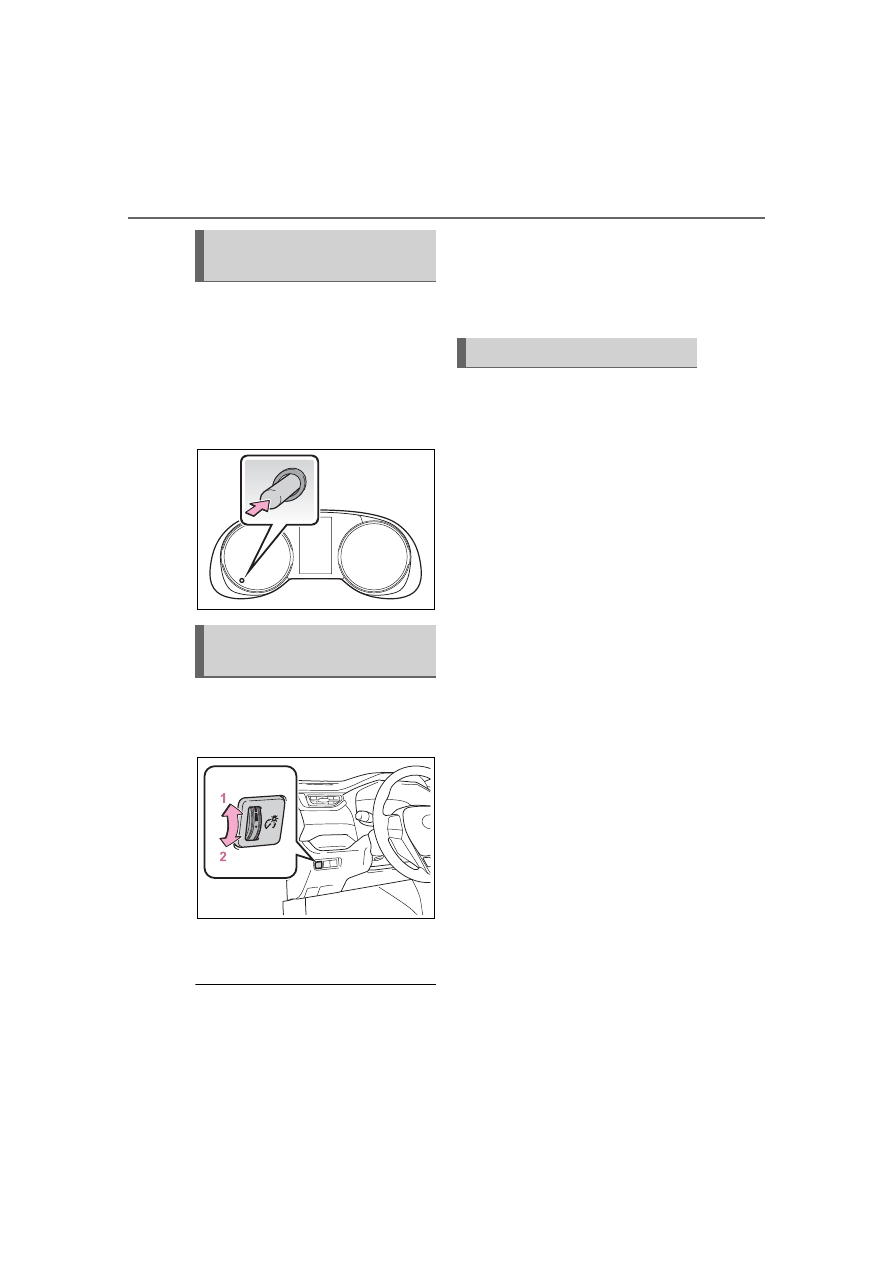

2-1. Instrument cluster

The brightness of the instrument
panel lights can be adjusted by
turning the dial.

Brighter

Darker

■

Instrument panel brightness

adjustment

The instrument panel brightness

levels when the tail lights are on and

off can be adjusted individually.

However, when the surroundings

are bright (daytime, etc.), turning on

the tail lights will not change the

instrument panel brightness.

The clock can be adjusted on
the audio system screen.



Vehicles with Audio



P.411



Vehicles with Audio Plus or
Premium Audio

Refer to “NAVIGATION AND
MULTIMEDIA SYSTEM
OWNER’S MANUAL”.

NOTICE

■

To prevent damage to the

engine and its components

●

Do not let the indicator needle

of the tachometer enter the red

zone, which indicates the maxi-

mum engine speed.

●

The engine may be overheating

if the engine coolant tempera-

ture gauge is in the red zone

(“H”). In this case, immediately

stop the vehicle in a safe place,

and check the engine after it

has cooled completely.

(



P.654)

Using the “ODO TRIP”
switch

Instrument panel light
control

Adjusting the clock

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

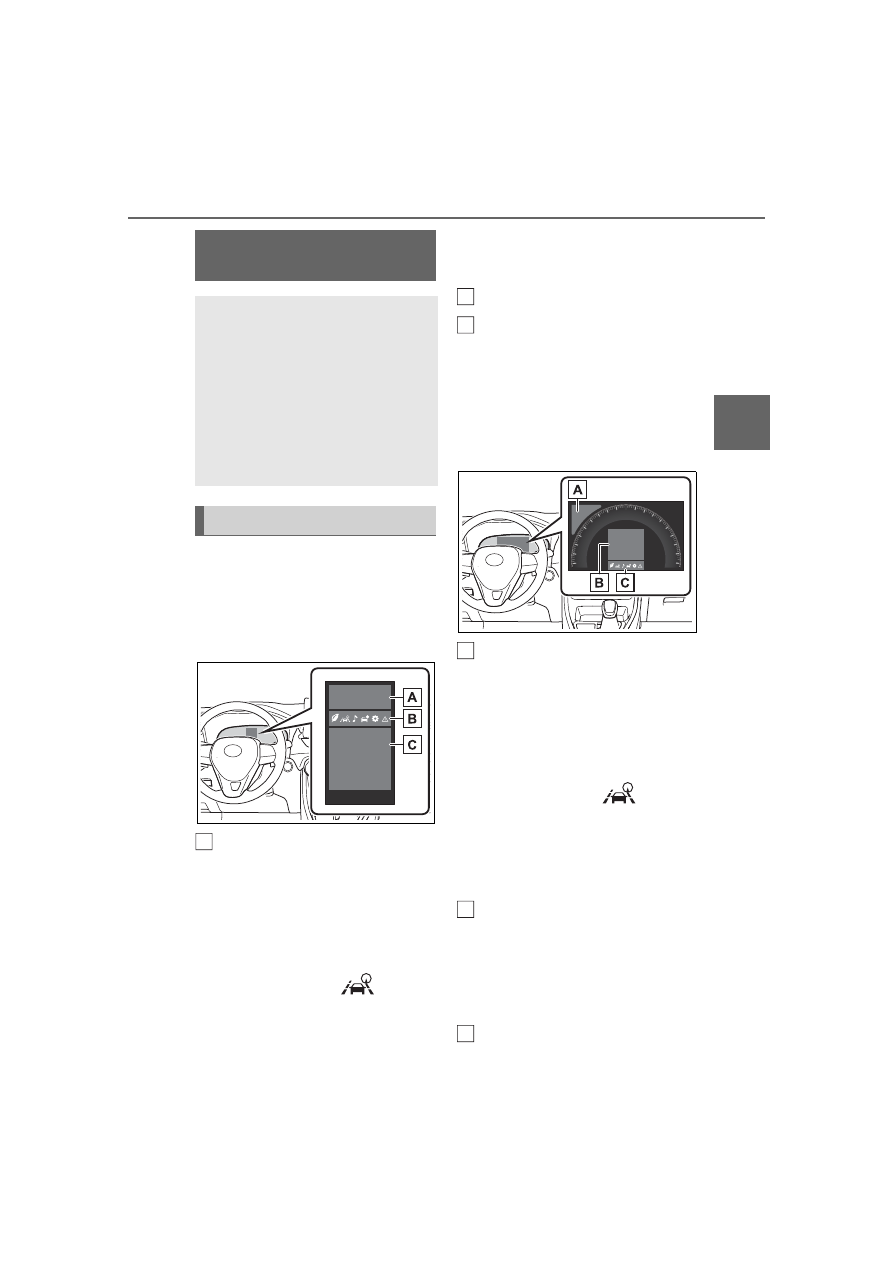

Following information is dis-
played on the multi-information
display.

■

Vehicles with 4.2-inch dis-
play

Driving support system infor-
mation

Displays recognized signs while the
RSA system (if equipped) is operat-
ing. (



P.245)

Displays an image when the follow-
ing systems are operating and a
menu icon other than

selected:
• LTA (Lane Tracing Assist)

(



P.235)

• Dynamic radar cruise control with

full-speed range (



P.248)

Menu icons (



P.90)

Information display area

A variety of information can be dis-
played by selecting a menu icon.
Additionally, warning or sugges-
tion/advice pop-up displays will be
displayed in some situations.

■

Vehicles with 7-inch display

Driving support system infor-
mation

Displays recognized signs while the
RSA system (if equipped) is operat-
ing. (



P.245)

Displays an image when the follow-
ing systems are operating and a
menu icon other than

selected:
• LTA (Lane Tracing Assist)

(



P.235)

• Dynamic radar cruise control with

full-speed range (



P.248)

Information display area

A variety of information can be dis-
played by selecting a menu icon.
Additionally, warning or sugges-
tion/advice pop-up displays will be
displayed in some situations.

Menu icons (



P.90)

Multi-information dis-

play

The multi-information dis-
play is used to display fuel
efficiency related informa-
tion and various types of
driving-related information.
The multi-information dis-
play can also be used to
change the display settings
and other settings.

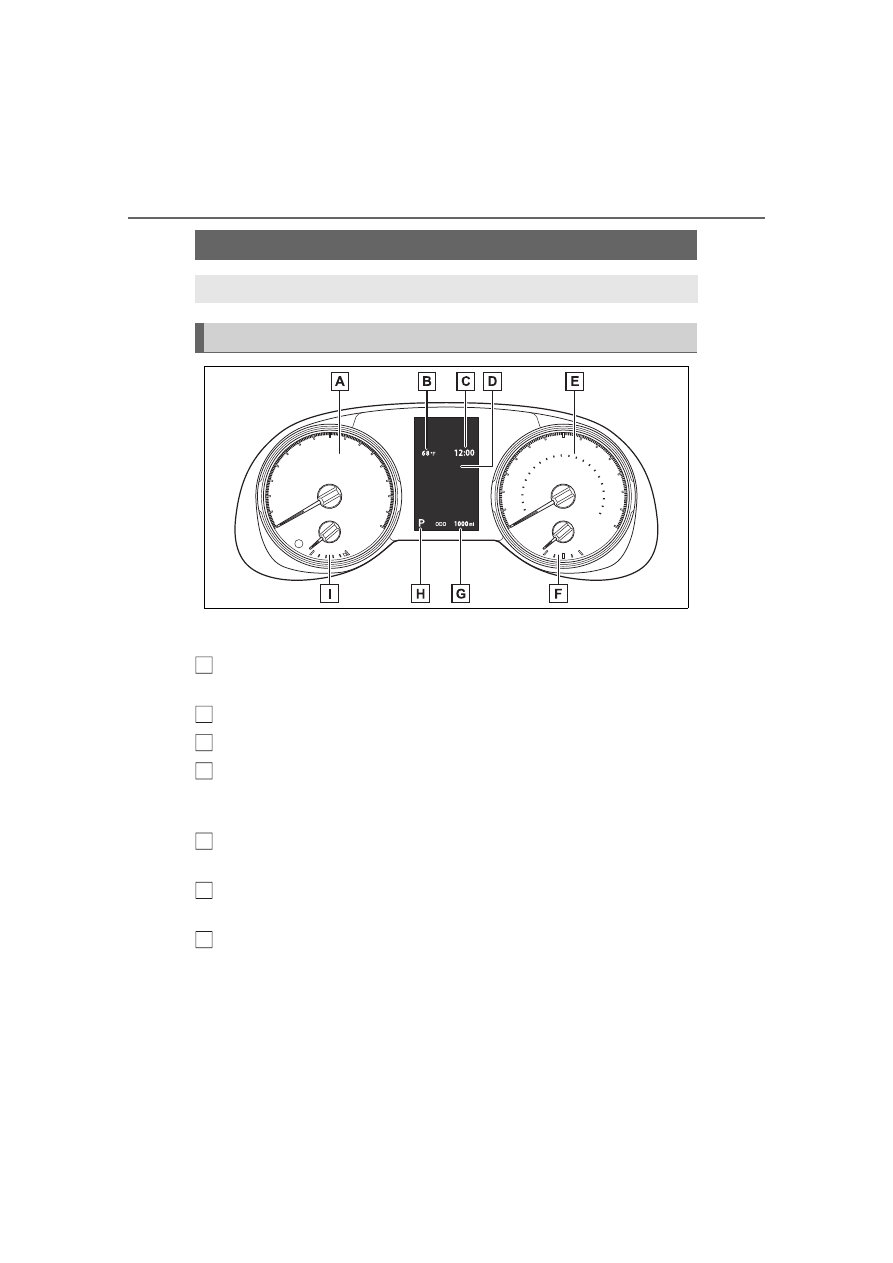

Display contents

2-1. Instrument cluster

■

The multi-information display is

displayed when

The engine switch is in ON.

■

When changing driving mode

●

Background color of the multi-

information display is changed fol-

lowing the selected driving mode.

(



P.347)

●

AWD models: Background color of

the multi-information display is

changed following the selected

driving mode or Multi-terrain

Select mode. (



P.347, 349)

■

Liquid crystal display

Small spots or light spots may

appear on the display. This phe-

nomenon is characteristic of liquid

crystal displays, and there is no

problem continuing to use the dis-

play.

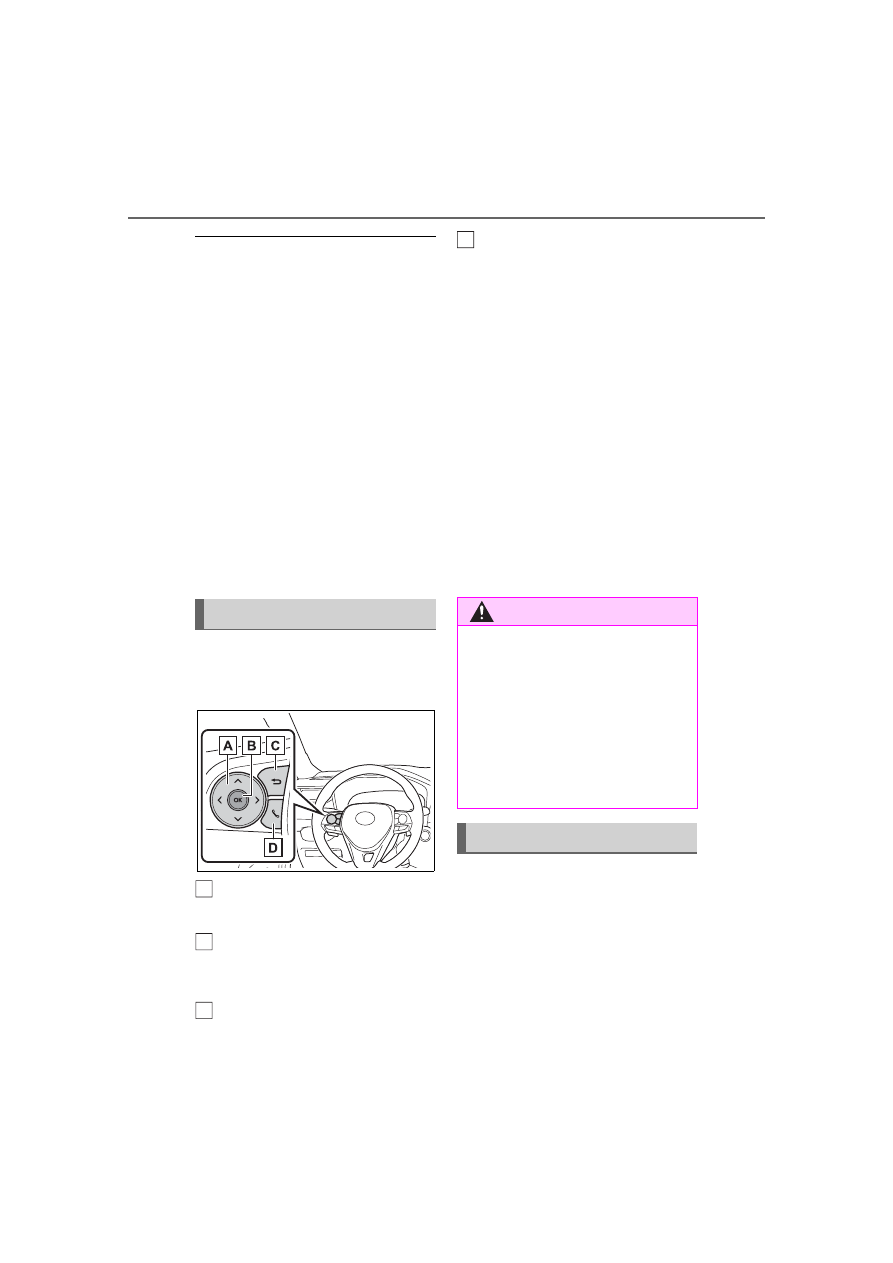

The multi-information display is
operated using the meter control
switches.

Scroll the screen

/switch the

display

/move the cursor

Press: Enter/Set
Press and hold: Reset/Dis-
play customizable items

Return to the previous screen

Call sending/receiving and
history display (if equipped)
Linked with the hands-free
system, sending or receiving
call is displayed. For details
regarding the hands-free sys-
tem, refer to P.463(vehicles
with Audio) or “NAVIGA-
TION AND MULTIMEDIA
SYSTEM OWNER’S MAN-
UAL” (vehicles with Audio
Plus or Premium Audio).

: On screens where the screen can

be scrolled and the display can
be switched, a scroll bar or a
round icon that shows the num-
ber of registered screens is dis-
played.

Information related to each icon
can be displayed by selecting
the icon with the meter control
switches.

Some of the information may be
displayed automatically depending
on the situation.

Changing the display

WARNING

■

Caution for use while driving

For safety, avoid operating the

meter control switch while driving

as much as possible, and do not

look continuously at the multi-

information display while driving.

Stop the vehicle and operate the

meter control switch. Failure to do

so may cause a steering wheel

operation error, resulting in an

unexpected accident.

Menu icons

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

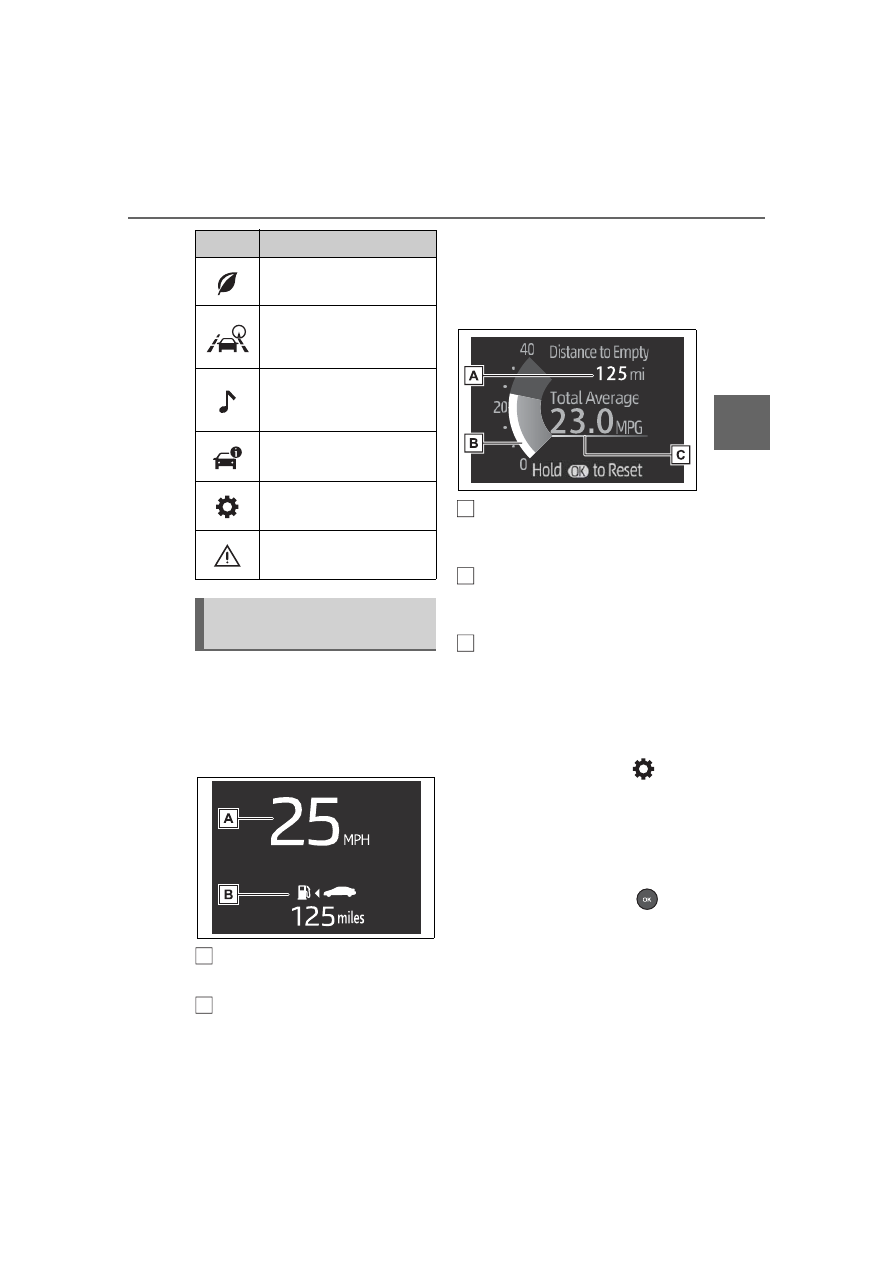

Select to display fuel consump-
tion data in various forms.

■

Speedometer display/Dis-
tance to empty (4.2-inch
display)

Speedometer display

Displays the vehicle speed.

Distance to empty

Displays the driving range with

remaining fuel. (



P.92)

■

Fuel Economy

Following information is dis-
played.

Distance to empty

Displays the driving range with
remaining fuel. (



P.92)

Current fuel economy

Displays the instantaneous current
fuel Economy.

Average fuel economy

Displays the average fuel economy
since the function was reset or the
average fuel economy after starting
or refueling.

*1, 2, 3

The average fuel economy selected
by “Fuel Economy” on the

screen is displayed. (



P.94)

:Use the displayed fuel consump-

tion as a reference only.

:Average fuel economy since the

function was reset can be reset
by pressing and holding

:Average fuel economy after

starting is reset each time the
engine stops.

Icon

Display

Driving information dis-
play (



P.91)

Driving support system
information display
(



P.93)

Audio system-linked dis-
play (if equipped)
(



P.93)

Vehicle information dis-
play (



P.93)

Settings display (



P.94)

Warning message dis-
play (



P.98)

Driving information dis-
play

2-1. Instrument cluster

■

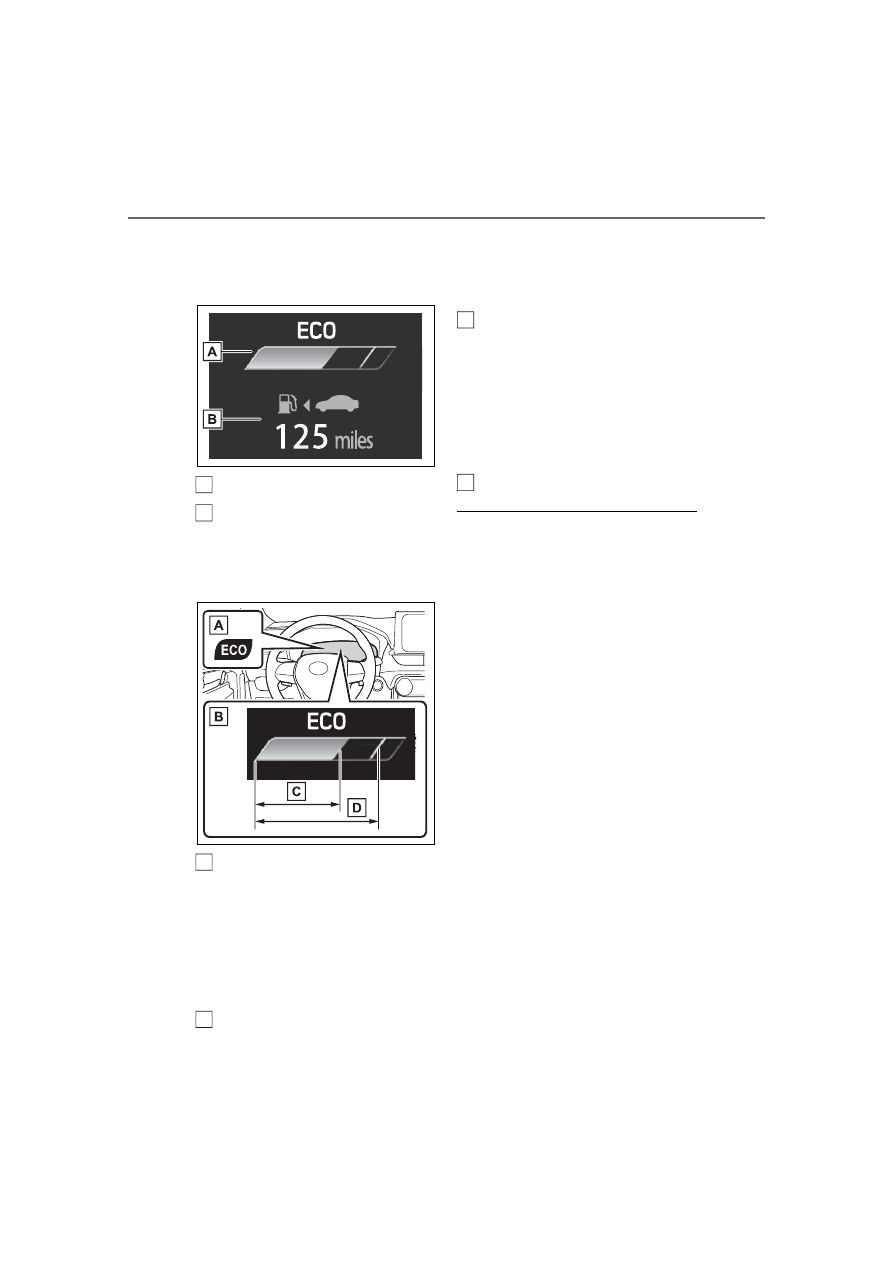

Eco Driving Indicator/Dis-
tance to empty



Display contents

Eco Driving Indicator

Distance to empty

Displays the driving range with
remaining fuel. (



P.92)



Eco Driving Indicator

Eco Driving Indicator Light

During Eco-friendly acceleration
operation (Eco driving), the Eco
Driving Indicator Light will turn on.
When the acceleration exceeds
Zone of Eco driving, or when the
vehicle is stopped, the light turns
off.

Eco Driving Indicator Zone

Display

Suggests the Zone of Eco driving
with current Eco driving ratio based
on acceleration.

Eco driving ratio based on
acceleration

If the acceleration exceeds Zone of
Eco driving, the right side of Eco
Driving Indicator Zone Display will
illuminate.
At this time, the Eco Driving Indica-
tor Light will turn off.

Zone of Eco driving

■

Distance to empty

●

This distance is computed based

on your average fuel consump-

tion. As a result, the actual dis-

tance that can be driven may

differ from that displayed.

●

When only a small amount of fuel

is added to the tank, the display

may not be updated. When refuel-

ing, turn the engine switch to OFF.

If the vehicle is refueled without

turning the engine switch to OFF,

the display may not be updated.

●

When “Refuel” is displayed, the

remaining fuel amount is low and

the distance that can be driven

with the remaining fuel cannot be

calculated.

Refuel immediately.

■

The ECO Driving indicator will

not operate when

Eco Driving Indicator will not oper-

ate in the following conditions:

●

The shift lever is in any position

other than D.

●

Neither normal mode nor Eco

drive mode is selected.

●

The vehicle speed is approxi-

mately 80 mph (130 km/h) or

higher.

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

■

Driving support system
information display

Select to display the operational
status of the following systems:



LTA (Lane Tracing Assist)
(



P.235)



Dynamic radar cruise control
with full-speed range
(



P.248)

■

Navigation system-linked
display (if equipped)

Select to display the following
navigation system-linked infor-
mation.



Route guidance



Compass display

Select to enable selection of an
audio source or track on the dis-
play.

■

Drive information

2 items that are selected using
the “Drive Info Items” setting
(average speed, distance and
total time) can be displayed ver-
tically.
The displayed information
changes according to the “Drive

Info Type” setting (since the sys-
tem was started or between
resets). (



P.94)

Use the displayed information as a
reference only.
Following items will be displayed.



“Trip”

• “Average Speed”: Displays the

average vehicle speed since
engine start

• “Distance”: Displays the distance

driven since engine start

• “Total Time”: Displays the

elapsed time since engine start

: These items are reset each time

the engine stops.



“Total”

• “Average Speed”: Displays the

average vehicle speed since the
display was reset

• “Distance”: Displays the distance

driven since the display was
reset

• “Total Time”: Displays the

elapsed time since the display
was reset

: To reset, display the desired item

and press and hold

Driving support system
information display

Audio system-linked dis-
play (if equipped)

Vehicle information dis-
play

2-1. Instrument cluster

■

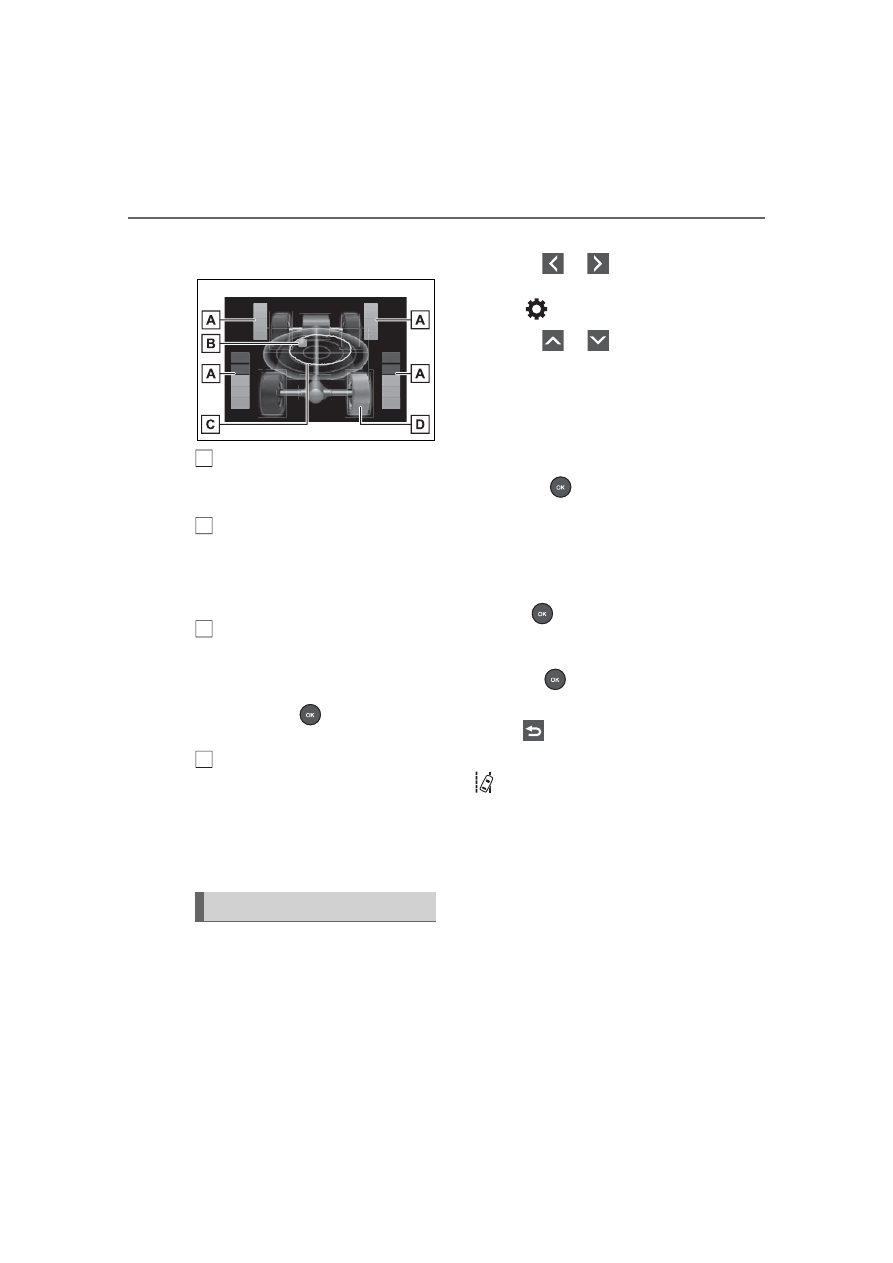

AWD system display (AWD
models)

Torque distribution display

Displays the drive status of each
wheel in 6 steps from 0 to 5.

G-force display

Displays the size and direction of
the G-force applied to the vehicle
via changes to the position of the
ball on the display.

Maximum G-force course

This item is linked with the G-force
display and the course of the past
movement of the ball is displayed.

Press and hold

to reset the

record.

Wheel spin display

When a tire is spinning, its icon on
the display changes its color and
blinks.

: This item is displayed only when

driving mode is set to sport mode.

Vehicle settings and the content
displayed on the screen can be
changed by using the meter
control switches.

■

Setting procedure

Operate

of the

meter control switches and
select

Operate

of the

meter control switches and
select the desired item.

• If the function is turned on and

off or the volume, etc. is
changed on the setting
screen, the setting is changed
each time

is pressed.

• For functions that allow oper-

ation contents, display con-
tents, etc., of function to be
selected, the setting screen is
displayed by pressing and
holding

. When the setting

screen is displayed, select the
setting or desired value (time,
etc.) with

After changing the settings,
press

of the meter control

switches.

■

LTA (Lane Tracing

Assist) (



P.235)

Select to set up the following
items.



“Lane Center”

Select to enable/disable the lane
centering function.



“Steering Assist”

Select to enable/disable steering
wheel assistance.



“Sensitivity”

Settings display

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

Select to set the lane departure
alert sensitivity.



“Sway Warning”

Select to enable/disable the vehicle
sway warning.



“Sway Sensitivity”

Select to set the vehicle sway warn-
ing sensitivity.

■

PCS (Pre-Collision Sys-

tem) (



P.227)

Select to set up the following
items.



PCS on/off

Select to enable/disable the pre-
collision system.



“Sensitivity”

Select to change the pre-collision
warning timing.

■

BSM (Blind Spot Moni-

tor) (if equipped) (



P.259)

Select to set up the following
items.



BSM (Blind Spot Monitor)
on/off

Select to enable/disable the BSM
system.



“Brightness”

Select to switch the brightness of
the outside rear view mirror indica-
tors. (



P.260)



“Sensitivity”

Select to change the alert timing for
an approaching vehicle.

■

(Intuitive parking

assist) (if equipped)
(



P.270)

Select to set up the following
items.



Intuitive parking assist on/off

Select to enable/disable the Intui-
tive parking assist.



“Volume”

Select to set the volume of the
buzzer which sounds when the
Intuitive parking assist is operated.

■

RCTA (Rear Cross Traffic
Alert) (if equipped)
(



P.259)



RCTA (Rear Cross Traffic
Alert) on/off

Select to enable/disable the RCTA
system.



“Volume”

Select to change the RCTA buzzer
volume.

■

PKSB (Parking Sup-

port Brake System) (if
equipped) (



P.278)

Select to enable/disable the
Parking Support Brake function.

■

RSA (Road Sign

Assist) (if equipped)
(



P.245)

Select to set up the following
items.



Road Sign Assist on/off

Select to enable/disable the RSA
system.

2-1. Instrument cluster



“Notification method”

Select to change each notification
method used to notify the driver
when the system recognizes
excess speed and Do Not Enter
sign.



“Notification Level”

Select to change each notification
level used to notify the driver when
the system recognizes a speed limit
sign.

■

Vehicle Settings



PBD (Power Back Door)

(if equipped) (



P.117)

Select to set up the following items.
• System settings
Select to enable/disable the power
back door system.

• “Hands Free”

Select to enable/disable the Hands
Free Power Back Door.
• “Opening Adjustment”
Select the open position when
power back door is fully open.
• “Volume”
Select to set the volume of the
buzzer which sounds when the
power back door system operates.

: Vehicles with Hands Free Power

Back Door



(Stop & Start system) (if

equipped) (



P.341)

Select to set the length of time the
Stop & Start system will operate
when the “A/C” switch of the air
conditioning system is on.



“TPWS” (Tire Pressure Warn-

ing System) (if equipped)
(



P.582)

• “Set Pressure”
Select to initialize the tire pressure
warning system.
• “Change Wheel”
Select to register the ID codes of
the tire pressure sensors to the tire
pressure warning system.



“Rear Seat Reminder”
(



P.110)

Select to enable/disable the rear
seat reminder function.



“Scheduled Maintenance”
(



P.563)

Select to reset the scheduled main-
tenance information (message indi-
cating maintenance is required and
distance until the next mainte-
nance) after all maintenance is per-
formed.

■

Settings



“Language”

Select to change the language on
the multi-information display.



“Units”

Select to change the units of mea-
sure displayed.



“Meter Type” (7-inch display)

Select to change the speedometer
display.



(Eco Driving Indicator

Light) (



P.92)

Select to activate/deactivate the
Eco Driving Indicator Light.



(Driving information dis-

Toyota RAV4 (2022 year). Manual in english - page 5
