Toyota Corolla Hatchback (2022 year). Manual in english - page 30





487

8-2. Steps to take in an emergency

8

Whe

n tr

ouble

 ar

ises

wise as far as possible.

5

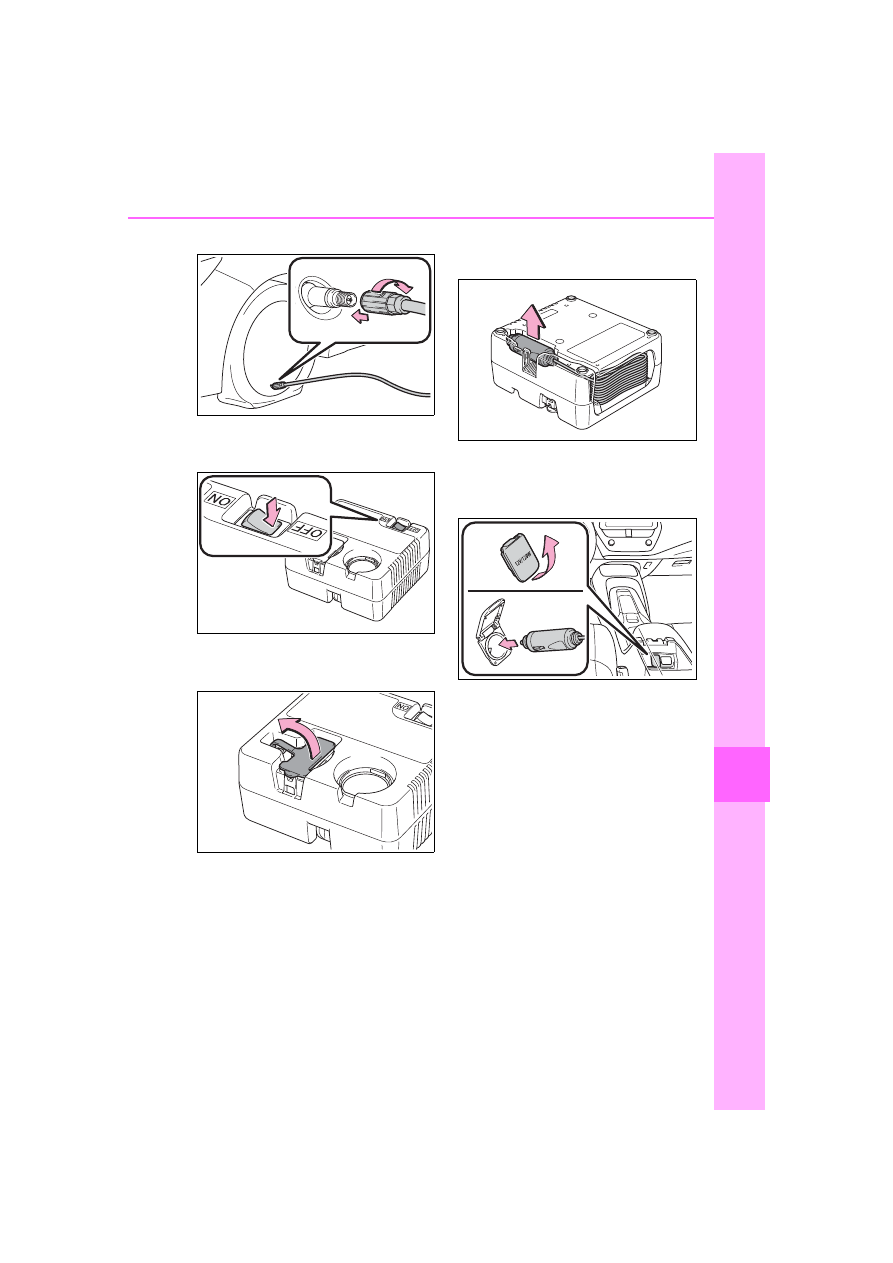

Make sure that the compres-
sor switch is off.

6

Lift the rubber stopper on the
compressor.

7

Remove the power plug from
the compressor.

8

Connect the power plug to
the power outlet socket.
(

P.406)

9

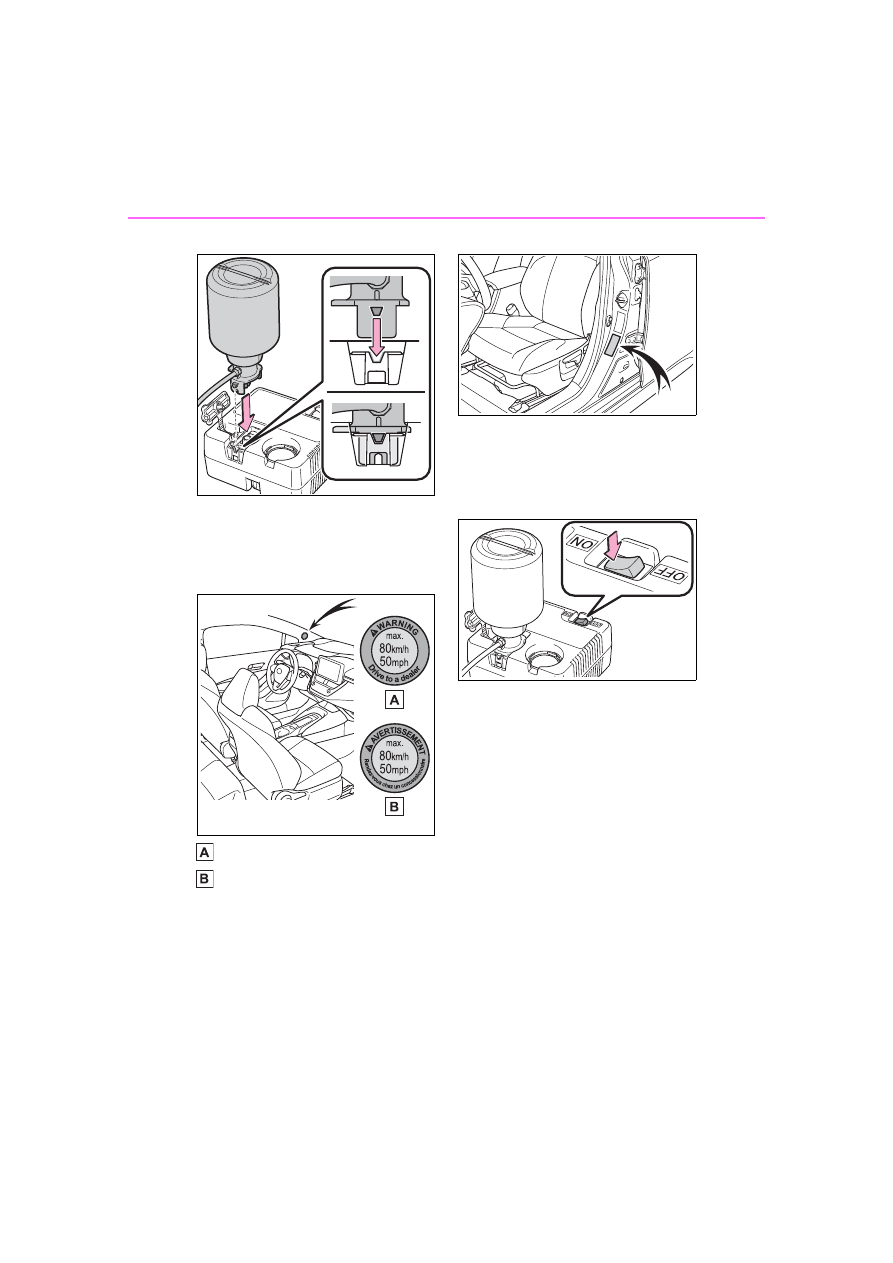

Connect the bottle to the
compressor.

As shown in the illustration, insert

the bottle securely into the com-

pressor until the upper side of the

mark on the bottle is aligned with

488

8-2. Steps to take in an emergency

the upper end of the notch.

10

Attach the sticker provided

with the tire puncture repair
kit to a position easily seen
from the driver’s seat.

U.S.A
Canada

11

Check the specified tire infla-

tion pressure.

Tire inflation pressure is specified

on the label on the driver’s side pil-

lar as shown. (

P.519)

12

Start the engine.

13

To inject the sealant and

inflate the tire, turn the com-
pressor switch on.

489

8-2. Steps to take in an emergency

8

Whe

n tr

ouble

 ar

ises

14

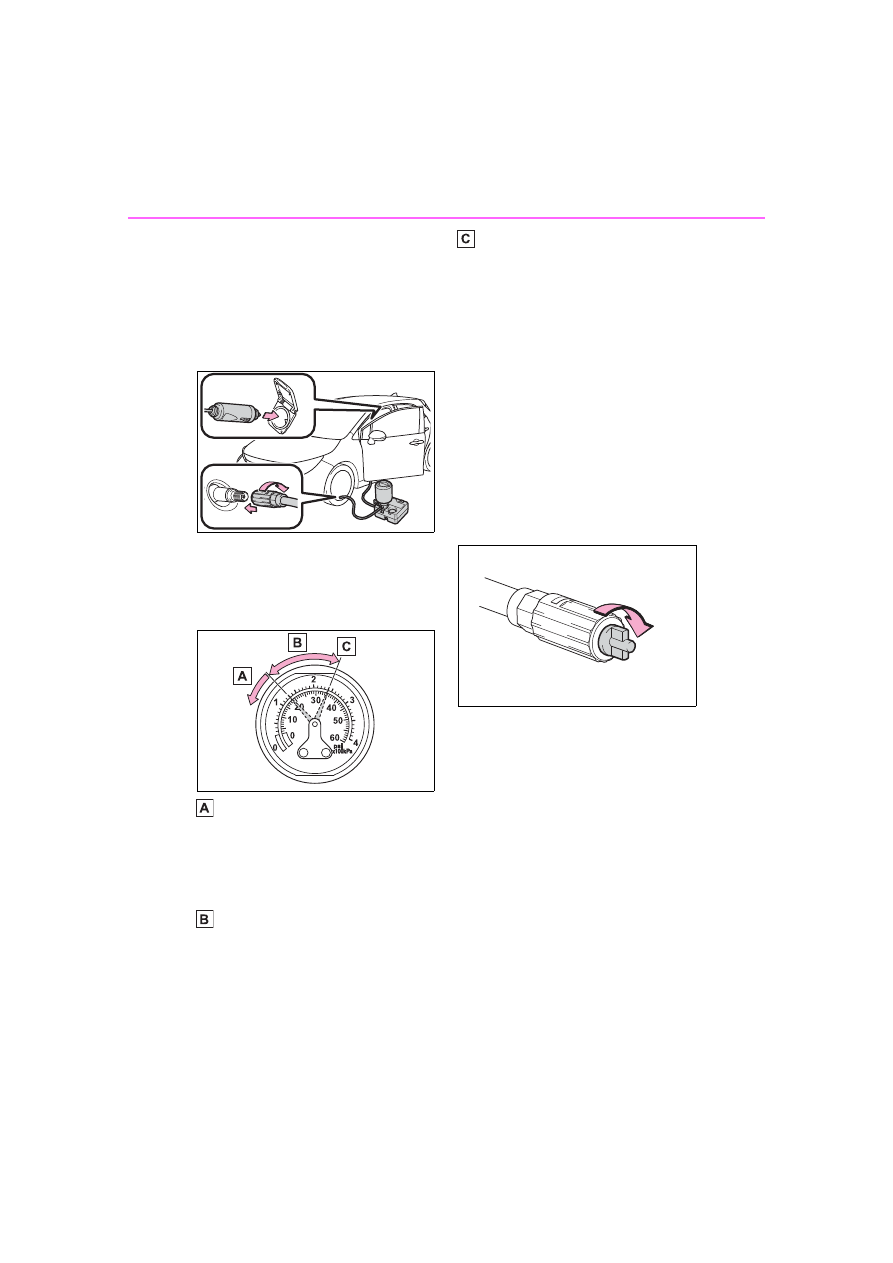

Inflate the tire until the speci-

fied air pressure is reached.

The sealant will be injected
and the pressure will spike to
between 44 psi (300 kPa, 3.0
kgf/cm

2

 or bar) and 58 psi

(400 kPa, 4.0 kgf/cm

2

 or bar),

then gradually decrease.
The air pressure gauge will
display the actual tire inflation
pressure about 1 to 5 min-
utes after the switch is turned
on.

Turn the compressor switch off and

then check the tire inflation pres-

sure. Being careful not to over

inflate, check and repeat the infla-

tion procedure until the specified

tire inflation pressure is reached.
The tire can be inflated for about 5

to 20 minutes (depending on the

outside temperature). If the tire

inflation pressure is still lower than

the specified point after inflation for

25 minutes, the tire is too damaged

to be repaired. Turn the compres-

sor switch off and contact your Toy-

ota dealer.
If the tire inflation pressure exceeds

the specified air pressure, let out

some air to adjust the tire inflation

pressure. (

P.491, 519)

15

With the compressor switch

off, disconnect the hose from
the valve on the tire and then
pull out the power plug from
the power outlet socket.

Some sealant may leak when the

hose is removed.

16

Install the valve cap onto the

valve of the emergency
repaired tire.

17

Attach the air release cap to

the end of the hose.

If the air release cap is not

attached, the sealant may leak and

the vehicle may get dirty.

18

Temporarily store the bottle

in the luggage compartment
while it is connected to the
compressor.

19

To spread the liquid sealant

evenly within the tire, imme-
diately drive safely for about
3 miles (5 km) below 50 mph
(80 km/h).

490

8-2. Steps to take in an emergency

20

After driving, stop your vehi-

cle in a safe place on a hard,
flat surface and reconnect
the repair kit.

Remove the air release cap from

the hose before reconnecting the

hose.

21

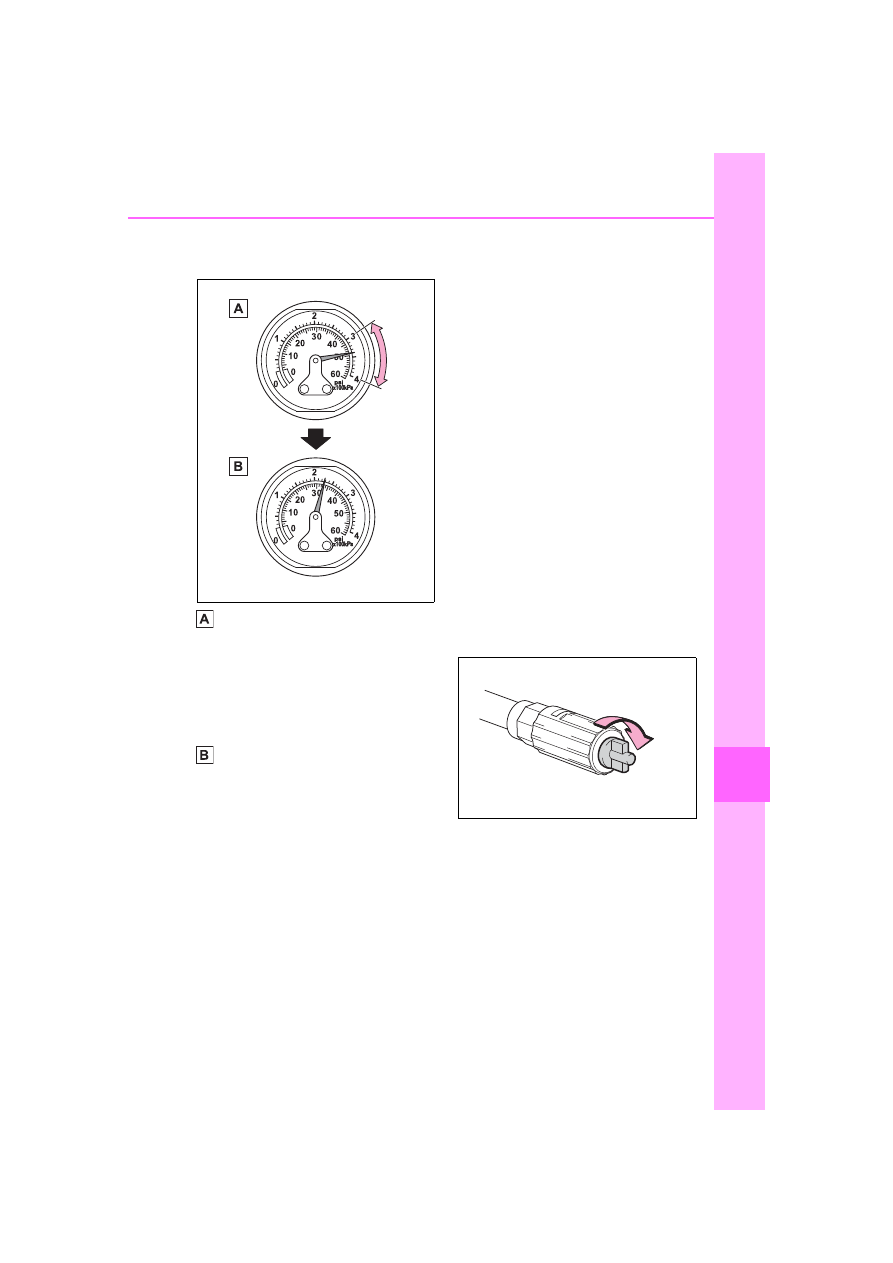

Turn the compressor switch

on and wait for several sec-
onds, then turn it off. Check
the tire inflation pressure.

If the tire inflation pressure is
under 19 psi (130 kPa, 1.3
kgf/cm

2

 or bar): The puncture

cannot be repaired. Contact
your Toyota dealer.
If the tire inflation pressure is
19 psi (130 kPa, 1.3
kgf/cm

2

or bar) or higher, but

less than the specified air
pressure: Proceed to step

22

.

If the tire inflation pressure is
the specified air pressure
(

P.519): Proceed to step

23

.

22

Turn the compressor switch

on to inflate the tire until the
specified air pressure is
reached. Drive for about 3
miles (5 km) and then per-
form step

20

.

23

Attach the air release cap to

the end of the hose.

If the air release cap is not

attached, the sealant may leak and

the vehicle may get dirty.

24

Store the bottle in the lug-

gage compartment while it is
connected to the compres-
sor.

25

Taking precautions to avoid

sudden braking, sudden
acceleration and sharp turns,
drive carefully at under 50
mph (80 km/h) to the nearest
Toyota dealer that is less
than 62 miles (100 km) away
for tire repair or replacement.

When having the tire repaired or

replaced, make sure to tell the Toy-

ota dealer that the sealant is

injected.

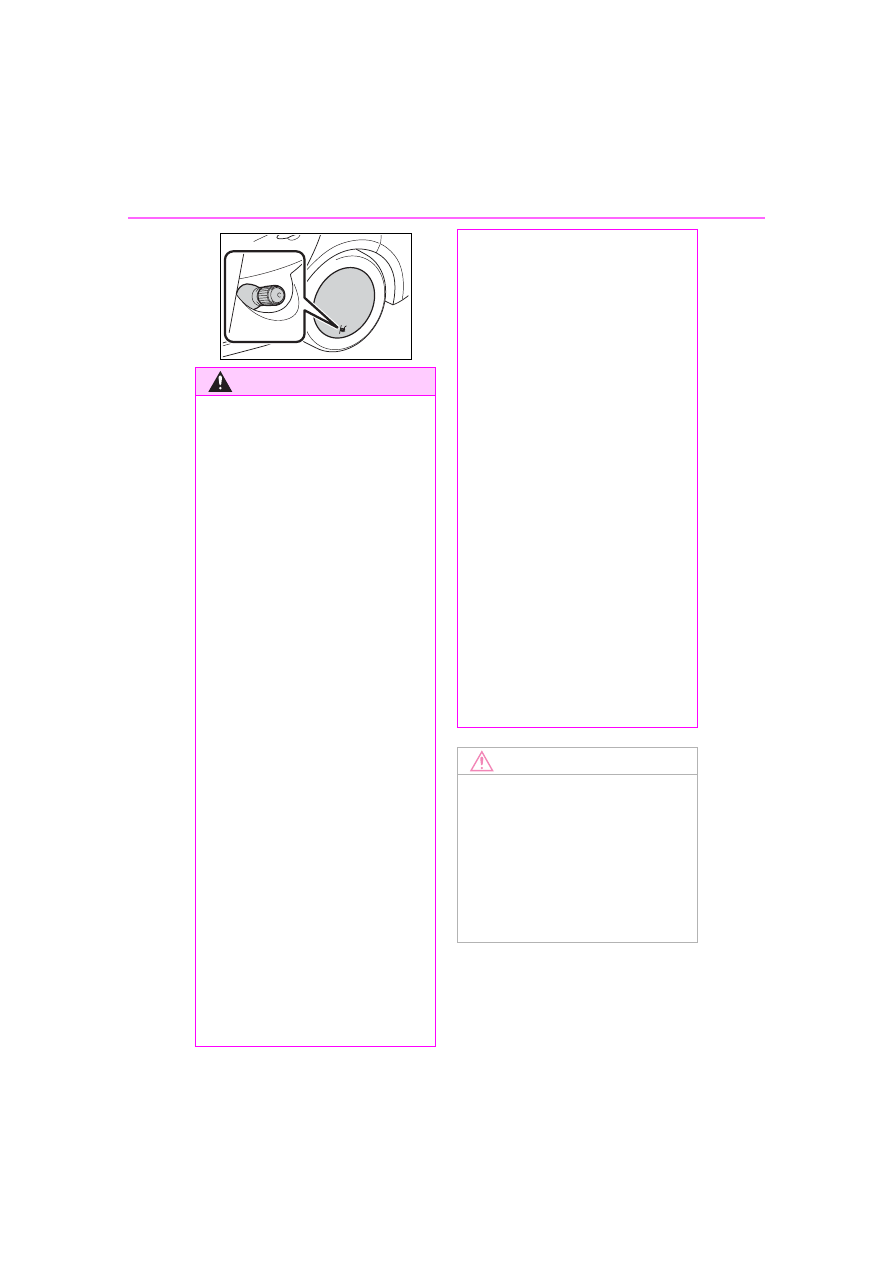

491

8-2. Steps to take in an emergency

8

W

he

tro

ub

le

 ar

is

es

If the tire is inflated to more

than the specified air pressure

1

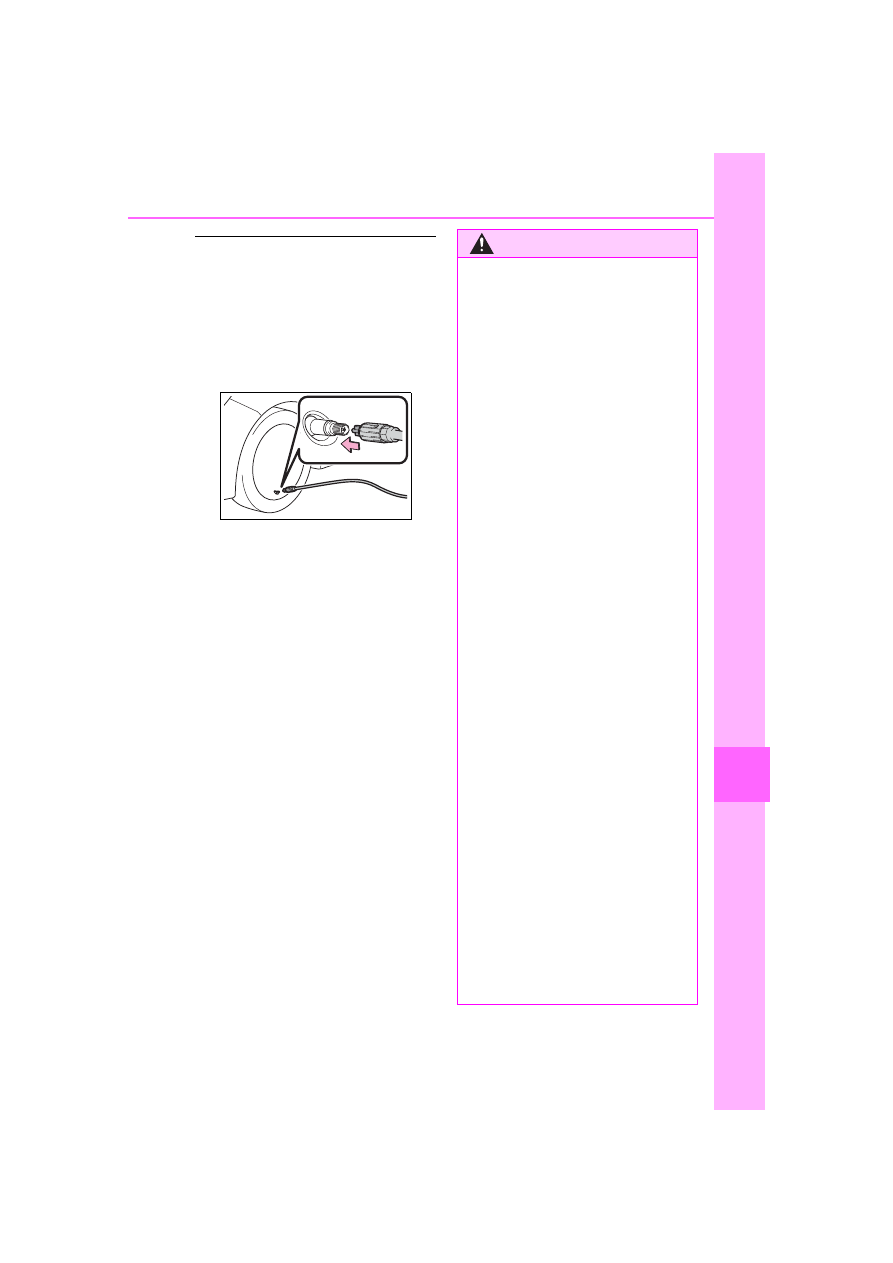

Disconnect the hose from the

valve.

2

Install the air release cap to the

end of the hose and push the

protrusion on the air release cap

into the tire valve to let some air

out.

3

Disconnect the hose from the

valve, remove the air release cap

from the hose and then recon-

nect the hose.

4

Turn the compressor switch on

and wait for several seconds,

and then turn it off. Check that

the air pressure indicator shows

the specified air pressure.

(

P.519)

If the air pressure is under the des-

ignated pressure, turn the compres-

sor switch on again and repeat the

inflation procedure until the speci-

fied air pressure is reached.

After a tire is repaired with the

emergency tire puncture repair

kit

The tire pressure warning valve

and transmitter should be

replaced.

Even if the tire inflation pressure is

at the recommended level, the tire

pressure warning light may come

on/flash.

WARNING

Do not drive the vehicle with

a flat tire

Do not continue driving with a flat

tire.

Driving even a short distance with

a flat tire can damage the tire and

the wheel beyond repair.
Driving with a flat tire may cause a

circumferential groove on the side

wall. In such a case, the tire may

explode when using a repair kit.

When fixing the flat tire

Stop your vehicle in a safe and

flat area.

Do not touch the wheels or the

area around the brakes immedi-

ately after the vehicle has been

driven.

After the vehicle has been

driven, the wheels and the area

around the brakes may be

extremely hot. Touching these

areas with hands, feet or other

body parts may result in burns.

Connect the valve and hose

securely with the tire installed

on the vehicle. If the hose is not

properly connected to the valve,

air leakage may occur as seal-

ant may be sprayed out.

If the hose comes off the valve

while inflating the tire, there is a

risk that the hose will move

abruptly due to air pressure.

After inflation of the tire has

completed, the sealant may

splatter when the hose is dis-

connected or some air is let out

of the tire.

Follow the operation procedure

to repair the tire. If the proce-

dures not followed, the sealant

may spray out.

492

8-2. Steps to take in an emergency

WARNING

Keep back from the tire while it

is being repaired, as there is a

chance of it bursting while the

repair operation is being per-

formed. If you notice any cracks

or deformation of the tire, turn

off the compressor switch and

stop the repair operation imme-

diately.

The repair kit may overheat if

operated for a long period of

time. Do not operate the repair

kit continuously for more than

40 minutes.

Parts of the repair kit become

hot during operation. Be careful

handling the repair kit during

and after operation. Do not

touch the metal part connecting

the bottle and the compressor. It

will be extremely hot.

Do not attach the vehicle speed

warning sticker to an area other

than the one indicated. If the

sticker is attached to an area

where an SRS airbag is located,

such as the pad of the steering

wheel, it may prevent the SRS

airbag from operating properly.

Driving to spread the liquid

sealant evenly

Observe the following precautions

to reduce the risk of accidents.

Failing to do so may result in a

loss of vehicle control and cause

death or serious injury.

Drive the vehicle carefully at a

low speed. Be especially careful

when turning and cornering.

If the vehicle does not drive

straight or you feel a pull

through the steering wheel, stop

the vehicle and check the fol-

lowing.

• Tire condition. The tire may

have separated from the wheel.

• Tire inflation pressure. If the tire

inflation pressure is 19 psi (130
kPa, 1.3 kgf/cm

2

 or bar) or less,

the tire may be severely dam-

aged.

NOTICE

When performing an emer-

gency repair

A tire should only be repaired

with the emergency tire punc-

ture repair kit if the damage is

caused by a sharp object such

as nail or screw passing through

the tire tread.

Do not remove the sharp object

from the tire. Removing the

object may widen the opening

and disenable emergency repair

with the repair kit.

The repair kit is not waterproof.

Make sure that the repair kit is

not exposed to water, such as

when it is being used in the rain.

Do not put the repair kit directly

onto dusty ground such as sand

at the side of the road. If the

repair kit vacuums up dust etc.,

a malfunction may occur.

Precautions for the emer-

gency tire puncture repair kit

The repair kit power source

should be 12 V DC suitable for

vehicle use. Do not connect the

repair kit to any other source.

If fuel splatters on the repair kit,

the repair kit may deteriorate.

Take care not to allow fuel to

contact it.

Place the repair kit in a storage

to prevent it from being exposed

to dirt or water.

Store the repair kit in the lug-

gage compartment out of reach

of children.

493

8-2. Steps to take in an emergency

8

W

he

tro

ub

le

 ar

is

es

Stop the vehicle in a safe
place on a hard, flat surface.

Set the parking brake.

Shift the shift lever to P (con-
tinuously variable transmis-
sion) or R (manual
transmission).

Stop the engine.

Turn on the emergency flash-
ers.

NOTICE

Do not disassemble or modify

the repair kit. Do not subject

parts such as the air pressure

indicator to impacts. This may

cause a malfunction.

To avoid damage to the tire

pressure warning valves and

transmitters

When a tire is repaired with liquid

sealants, the tire pressure warn-

ing valve and transmitter may not

operate properly. If a liquid seal-

ant is used, contact your Toyota

dealer or other qualified service

shop as soon as possible. After

use of liquid sealant, make sure to

replace the tire pressure warning

valve and transmitter when repair-

ing or replacing the tire. (

P.443)

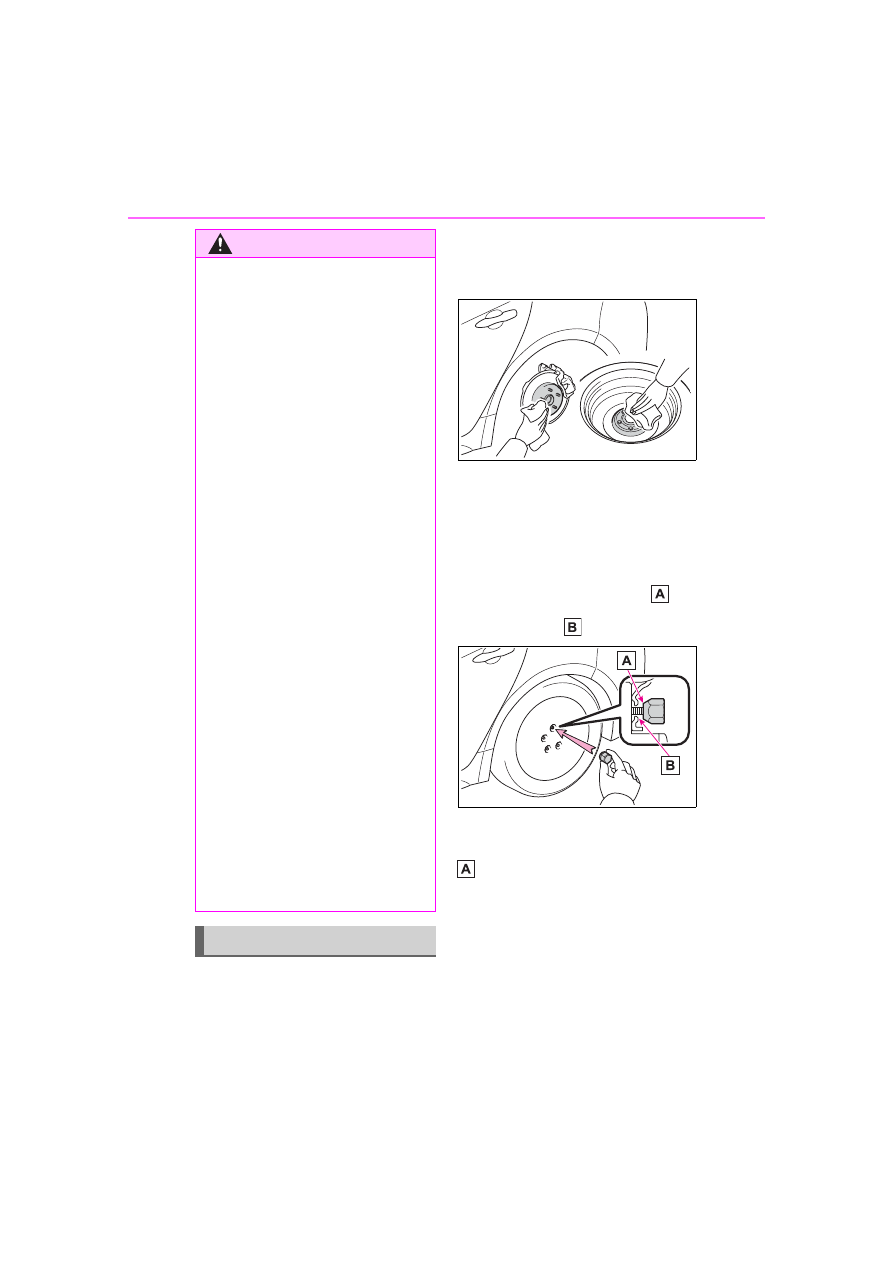

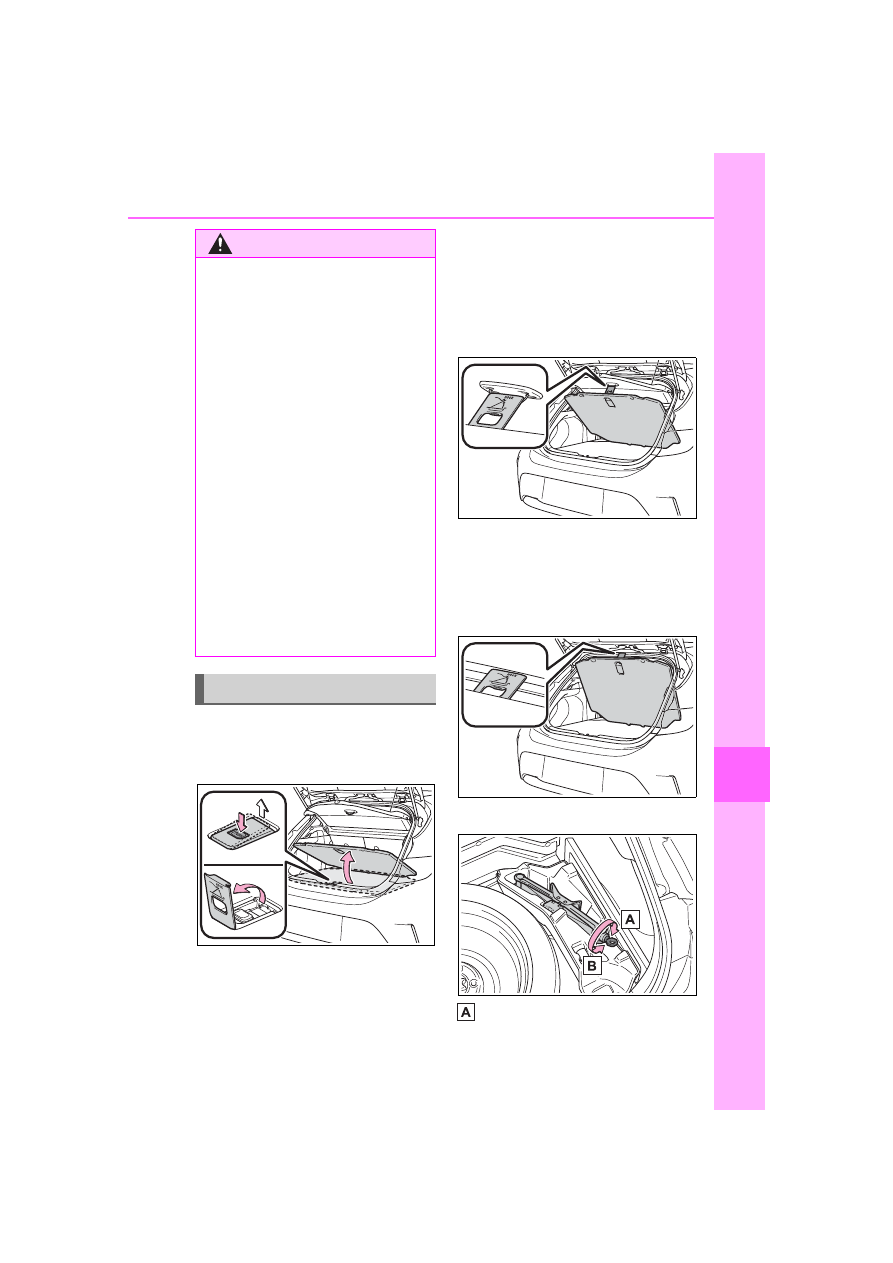

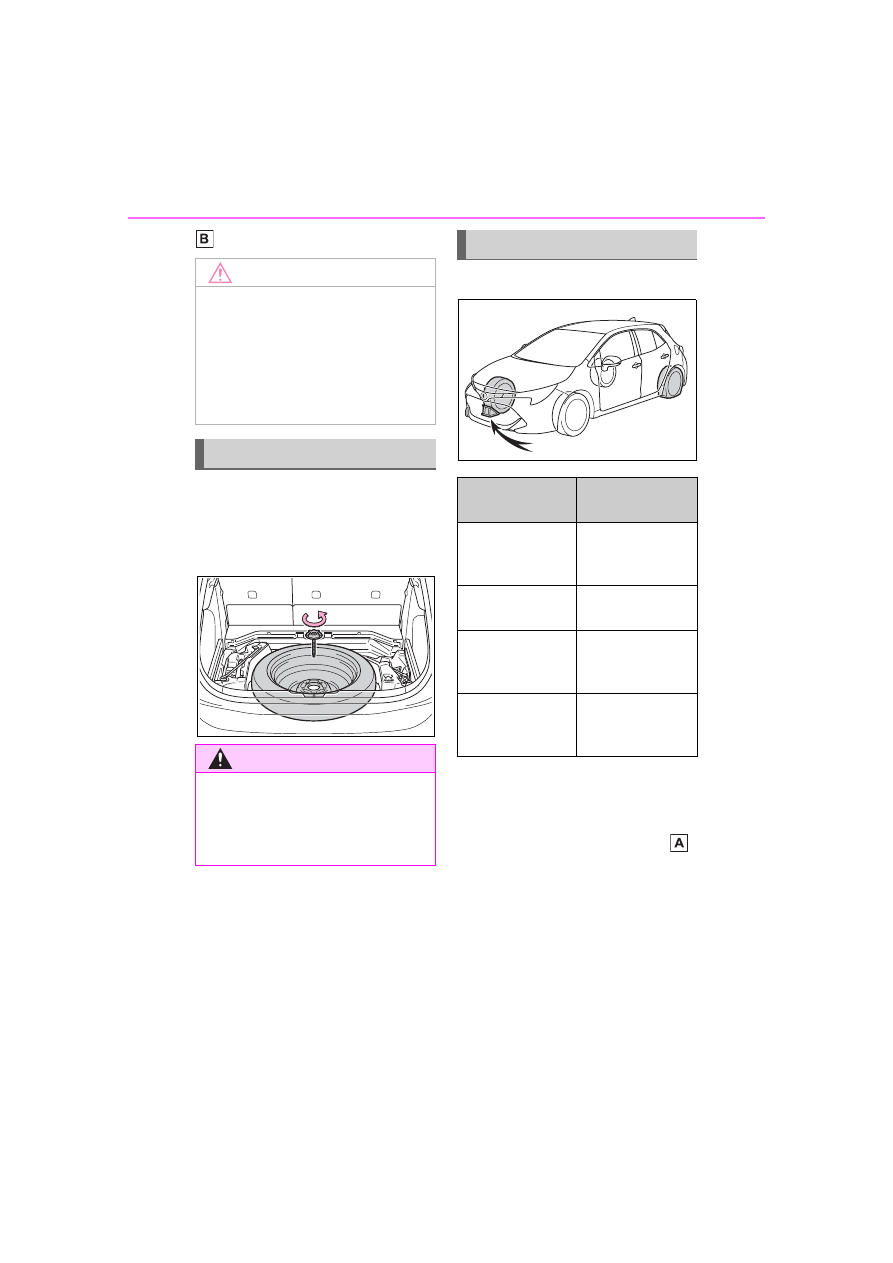

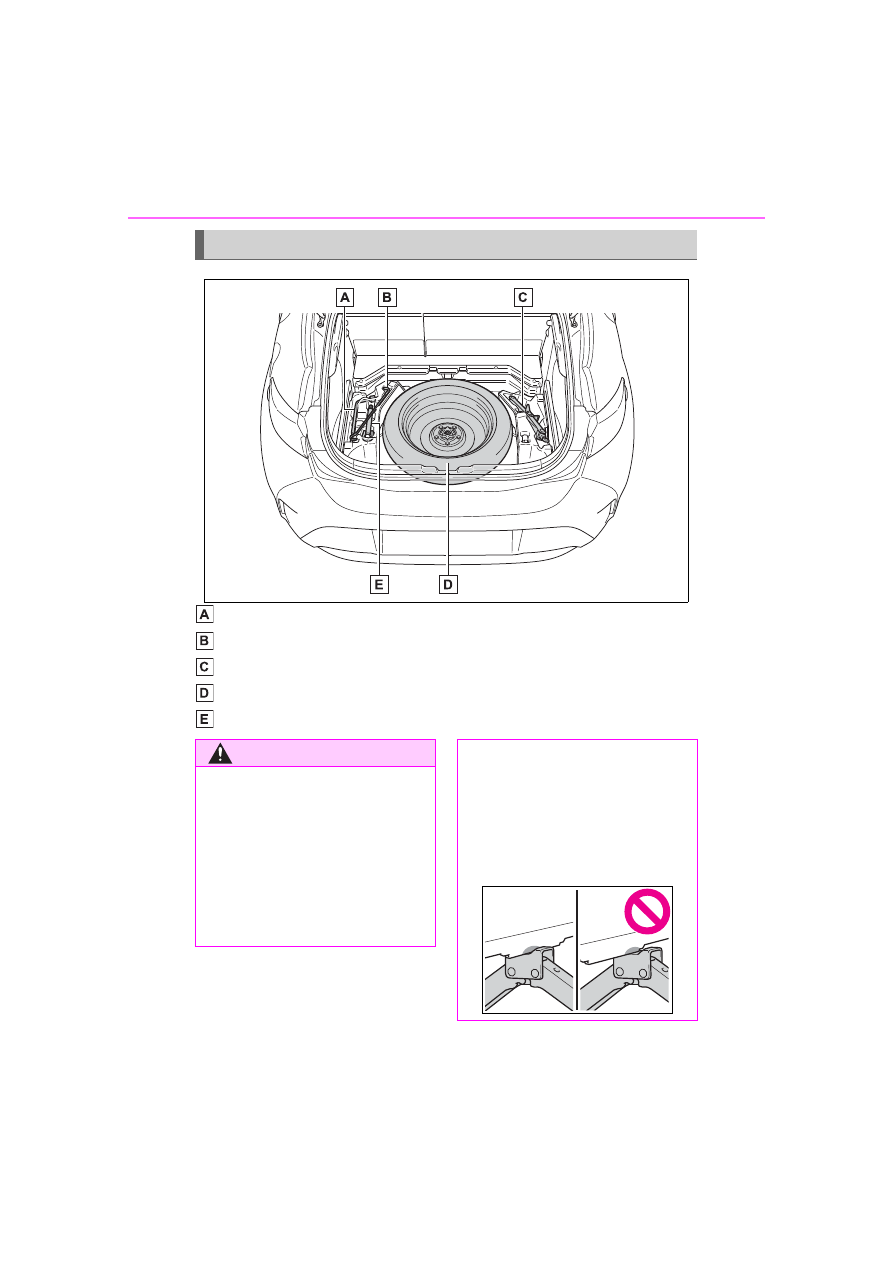

If you have a flat tire

(vehicles with a spare

tire)

Your vehicle is equipped
with a spare tire. The flat tire
can be replaced with the
spare tire.

For details about tires:

P.440

WARNING

If you have a flat tire

Do not continue driving with a flat

tire. Driving even a short distance

with a flat tire can damage the tire

and the wheel beyond repair,

which could result in an accident.

Before jacking up the
vehicle

494

8-2. Steps to take in an emergency

Wheel nut wrench
Jack handle
Jack
Spare tire
Towing eyelet

Location of the spare tire, jack and tools

WARNING

Using the tire jack

Observe the following precau-

tions. Improper use of the tire jack

may cause the vehicle to sud-

denly fall off the jack, leading to

death or serious injury.

Do not use the tire jack for any

purpose other than replacing

tires or installing and removing

tire chains.

Only use the tire jack that

comes with this vehicle for

replacing a flat tire. Do not use it

on other vehicles, and do not

use other tire jacks for replacing

tires on this vehicle.

Put the jack properly in its jack

point.

495

8-2. Steps to take in an emergency

8

W

he

tro

ub

le

 ar

is

es

1

Press the button to raise the
deck board handle and then
lift the deck board.

2

Secure the deck board.

When the luggage cover is
installed

Hook the deck board handle onto
the underside of the luggage cover
as shown in the illustration, to
secure the deck board.

When the luggage cover is
not installed

Hook the deck board handle onto
the upper edge of the back door
opening as shown in the illustration.

3

Take out the jack.

For tightening

WARNING

Do not put any part of your body

under the vehicle while it is sup-

ported by the jack.

Do not start the engine or drive

the vehicle while the vehicle is

supported by the jack.

Do not raise the vehicle while

someone is inside.

When raising the vehicle, do not

put an object on or under the

jack.

Do not raise the vehicle to a

height greater than that required

to replace the tire.

Use a jack stand if it is neces-

sary to get under the vehicle.

When lowering the vehicle,

make sure that there is no-one

near the vehicle. If there are

people nearby, warn them

vocally before lowering.

Taking out the jack

496

8-2. Steps to take in an emergency

For loosening

1

Secure the deck board.
(

P.495)

2

Loosen the center fastener
that secures the spare tire.

1

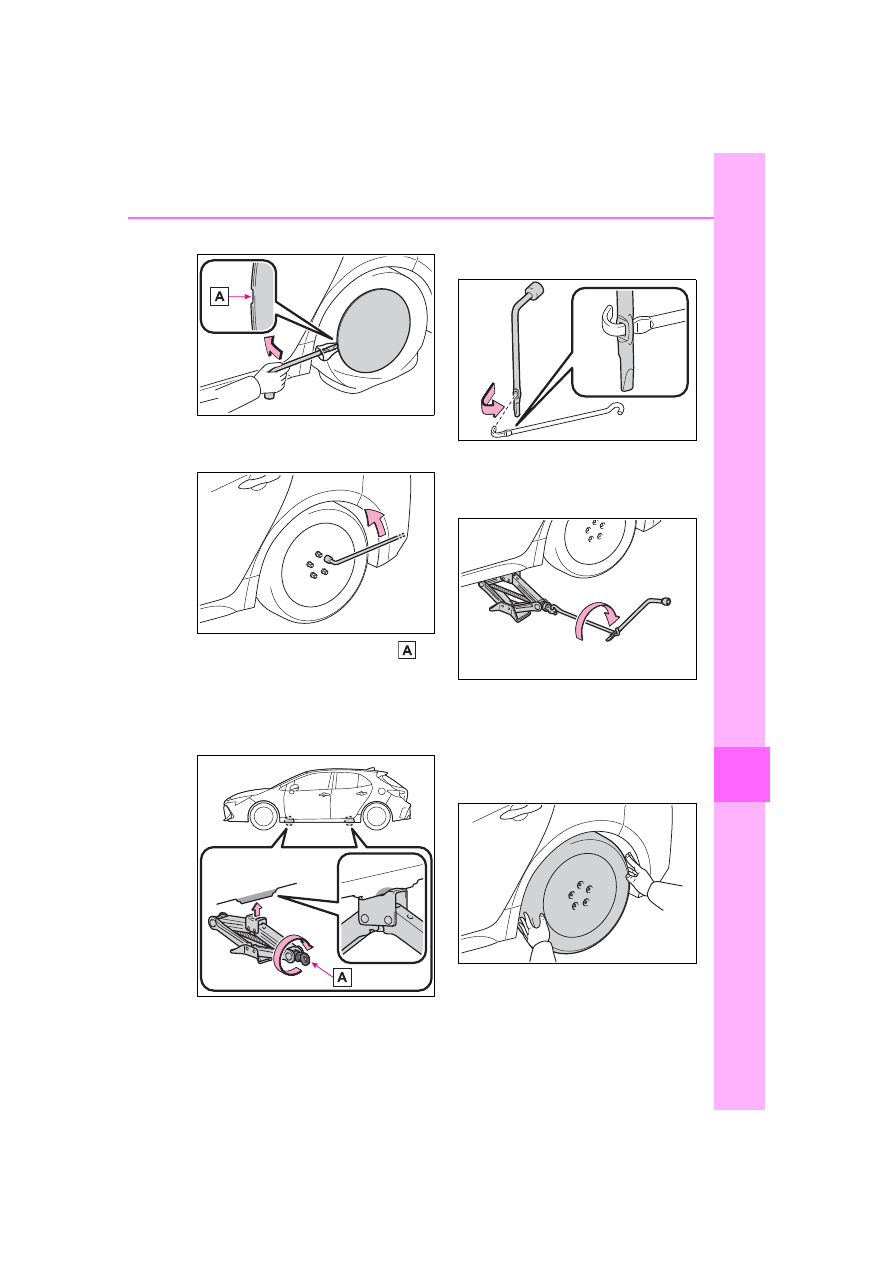

Chock the tires.

2

Vehicles with a steel wheel:
Remove the wheel ornament
using the wrench.

Insert the wrench into the notch



on the wheel cap.

To protect the wheel ornament,

place a rag between the wrench

NOTICE

When the deck board is

secured

Make sure not to close the back

door when the deck board is

hooked onto the luggage cover or

the back door opening. Doing so

may lead to damage to interior

parts.

Taking out the spare tire

WARNING

When storing the spare tire

Be careful not to catch fingers or

other body parts between the

spare tire and the body of the

vehicle.

Replacing a flat tire

Flat tire

Wheel chock

positions

Front left-hand
side

Behind the rear
right-hand side
tire

Front right-hand
side

Behind the rear
left-hand side tire

Rear left-hand
side

In front of the
front right-hand
side tire

Rear right-hand
side

In front of the
front left-hand
side tire

497

8-2. Steps to take in an emergency

8

Whe

n tr

ouble

 ar

ises

and the wheel ornament.

3

Slightly loosen the wheel
nuts (one turn).

4

Turn the tire jack portion
by hand until the center of the
recessed portion of the jack
is in contact with the center of
the jack point.

5

Assemble the jack handle
extension.

6

Raise the vehicle until the tire
is slightly raised off the
ground.

7

Remove all the wheel nuts
and the tire.

When resting the tire on the

ground, place the tire so that the

wheel design faces up to avoid

scratching the wheel surface.

498

8-2. Steps to take in an emergency

1

Remove any dirt or foreign
matter from the wheel con-
tact surface.

If foreign matter is on the wheel

contact surface, the wheel nuts

may loosen while the vehicle is in

motion, causing the tire to come off.

2

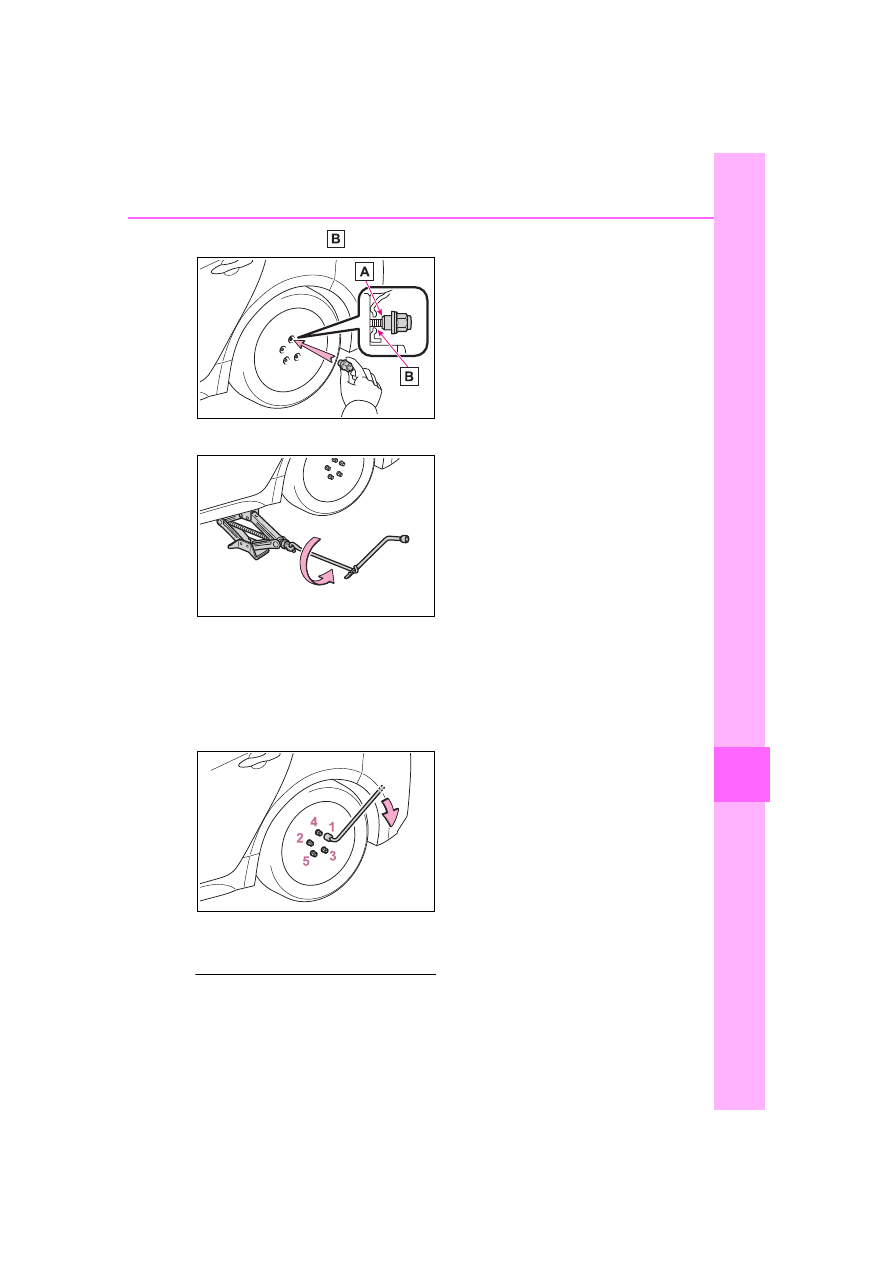

Install the tire and loosely
tighten each wheel nut by
hand by approximately the
same amount.

When replacing a steel wheel with

a steel wheel, tighten the wheel
nuts until the tapered portion



comes into loose contact with the
disc wheel seat

.

When replacing an aluminum wheel

with a steel wheel, tighten the

wheel nuts until the tapered portion

 comes into loose contact with

WARNING

Replacing a flat tire

Do not touch the disc wheels or

the area around the brakes

immediately after the vehicle

has been driven. After the vehi-

cle has been driven the disc

wheels and the area around the

brakes will be extremely hot.

Touching these areas with

hands, feet or other body parts

while changing a tire, etc. may

result in burns.

Failure to follow these precau-

tions could cause the wheel

nuts to loosen and the tire to fall

off, resulting in death or serious

injury.

• Have the wheel nuts tightened

with a torque wrench to 76 ft•lbf

(103 N•m, 10.5 kgf•m) as soon

as possible after changing

wheels.

• Do not attach a heavily dam-

aged wheel ornament, as it may

fly off the wheel while the vehi-

cle is moving.

• When installing a tire, only use

wheel nuts that have been spe-

cifically designed for that wheel.

• If there are any cracks or defor-

mations in the bolt screws, nut

threads or bolt holes of the

wheel, have the vehicle

inspected by your Toyota

dealer.

• When installing the wheel nuts,

be sure to install them with the

tapered ends facing inward.

Installing the spare tire

499

8-2. Steps to take in an emergency

8

Whe

n tr

ouble

 ar

ises

the disc wheel seat

.

3

Lower the vehicle.

4

Firmly tighten each wheel nut
two or three times in the
order shown in the illustra-
tion.

Tightening torque:

76 ft•lbf (103 N•m, 10.5 kgf•m)

5

Stow the flat tire, tire jack and
all tools.

The compact spare tire

The compact spare tire is identi-

fied by the label “TEMPORARY

USE ONLY” on the tire sidewall.

Use the compact spare tire tempo-

rarily, and only in an emergency.

Make sure to check the tire infla-

tion pressure of the compact

spare tire. (

P.519)

When the compact spare tire is

equipped

The vehicle becomes lower when

driving with the compact spare tire

compared to when driving with stan-

dard tires.

After completing the tire

change

The tire pressure warning system

must be reset. (

P.444)

When using the compact spare

tire

As the compact spare tire is not

equipped with a tire pressure warn-

ing valve and transmitter, low infla-

tion pressure of the spare tire will

not be indicated by the tire pressure

warning system. Also, if you replace

the compact spare tire after the tire

pressure warning light comes on,

the light remains on.

If you have a flat front tire on a

road covered with snow or ice

(vehicles with a compact spare

tire)

Install the compact spare tire on one

of the rear wheels of the vehicle.

Perform the following steps and fit

tire chains to the front tires:

1

Replace a rear tire with the com-

pact spare tire.

2

Replace the flat front tire with the

tire removed from the rear of the

vehicle.

3

Fit tire chains to the front tires.

When reinstalling the wheel

ornament (steel wheels except

compact spare tire)

Align the cutout of the wheel orna-

ment with the valve stem as shown

in the illustration.

500

8-2. Steps to take in an emergency

WARNING

When using the compact

spare tire

Remember that the compact

spare tire provided is specifi-

cally designed for use with your

vehicle. Do not use your com-

pact spare tire on another vehi-

cle.

Do not use more than one com-

pact spare tires simultaneously.

Replace the compact spare tire

with a standard tire as soon as

possible.

Avoid sudden acceleration,

abrupt steering, sudden brak-

ing and shifting operations that

cause sudden engine braking.

When the compact spare tire

is attached

The vehicle speed may not be

correctly detected, and the follow-

ing systems may not operate cor-

rectly:

• ABS & Brake assist

• VSC

• TRAC

• Automatic High Beam

• Dynamic radar cruise control

with full-speed range (if

equipped)

• Dynamic radar cruise control (if

equipped)

• EPS

• PCS (Pre-Collision System)

• LDA (Lane Departure Alert with

steering control) (if equipped)

• LTA (Lane Tracing Assist) (if

equipped)

• Tire pressure warning system

• Navigation system

Speed limit when using the

compact spare tire

Do not drive at speeds in excess

of 50 mph (80 km/h) when a com-

pact spare tire is installed on the

vehicle.

The compact spare tire is not

designed for driving at high

speeds. Failure to observe this

precaution may lead to an acci-

dent causing death or serious

injury.

After using the tools and jack

Before driving, make sure all the

tools and jack are securely in

place in their storage location to

reduce the possibility of personal

injury during a collision or sudden

braking.

NOTICE

Be careful when driving over

bumps with the compact

spare tire installed on the

vehicle.

The vehicle becomes lower when

driving with the compact spare tire

compared to when driving with

standard tires. Be careful when

driving over uneven road sur-

faces.

501

8-2. Steps to take in an emergency

8

W

he

tro

ub

le

 ar

is

es

One of the following may be the
cause of the problem:

There may not be sufficient
fuel in the vehicle’s tank.
Refuel the vehicle.

The engine may be flooded.
Try to restart the engine again
following correct starting pro-
cedures. (

P.140)

There may be a malfunction
in the engine immobilizer sys-
tem. (

P.66)

One of the following may be the
cause of the problem:

The battery may be dis-
charged. (

P.505)

NOTICE

Driving with tire chains and

the compact spare tire

Do not fit tire chains to the com-

pact spare tire. Tire chains may

damage the vehicle body and

adversely affect driving perfor-

mance.

When replacing the tires

When removing or fitting the

wheels, tires or the tire pressure

warning valve and transmitter,

contact your Toyota dealer as the

tire pressure warning valve and

transmitter may be damaged if not

handled correctly.

If the engine will not

start

If the engine will not start
even though correct starting
procedures are being fol-
lowed (

P.140), consider

each of the following points:

The engine will not start
even though the starter
motor operates normally.

The starter motor turns
over slowly, the interior
lights and headlights are
dim, or the horn does not
sound or sounds at a low
volume.

502

8-2. Steps to take in an emergency

The battery terminal connec-
tions may be loose or cor-
roded. (

P.437)

The engine starting system may
be malfunctioning due to an
electrical problem such as elec-
tronic key battery depletion or a
blown fuse. However, an interim
measure is available to start the
engine. (

P.502)

One of the following may be the
cause of the problem:

The battery may be dis-
charged. (

P.505)

One or both of the battery ter-
minals may be disconnected.
(

P.437)

There may be a malfunction
in the steering lock system.

Contact your Toyota dealer if the
problem cannot be repaired, or if
repair procedures are unknown.

When the engine does not start,
the following steps can be used
as an interim measure to start

the engine if the engine switch is
functioning normally.
Do not use this starting proce-
dure except in case of emer-
gency.

1

Pull the parking brake switch
to check that the parking
brake is set. (

P.152)

Parking brake indicator will come

on.

2

Check that the shift lever is
set in P (continuously vari-
able transmission) or N
(manual transmission).

3

Turn the engine switch to
ACC.

4

Press and hold the engine
switch for about 15 seconds
while depressing the brake
pedal (continuously variable
transmission) or clutch pedal
(manual transmission) firmly.

Even if the engine can be started
using the above steps, the system
may be malfunctioning. Have the
vehicle inspected by your Toyota
dealer.

The starter motor does
not turn over

The starter motor does
not turn over, the interior
lights and headlights do
not turn on, or the horn
does not sound.

Emergency start function















Content      ..     28      29      30      31     ..
