1-2. Child safety
Rear center seat

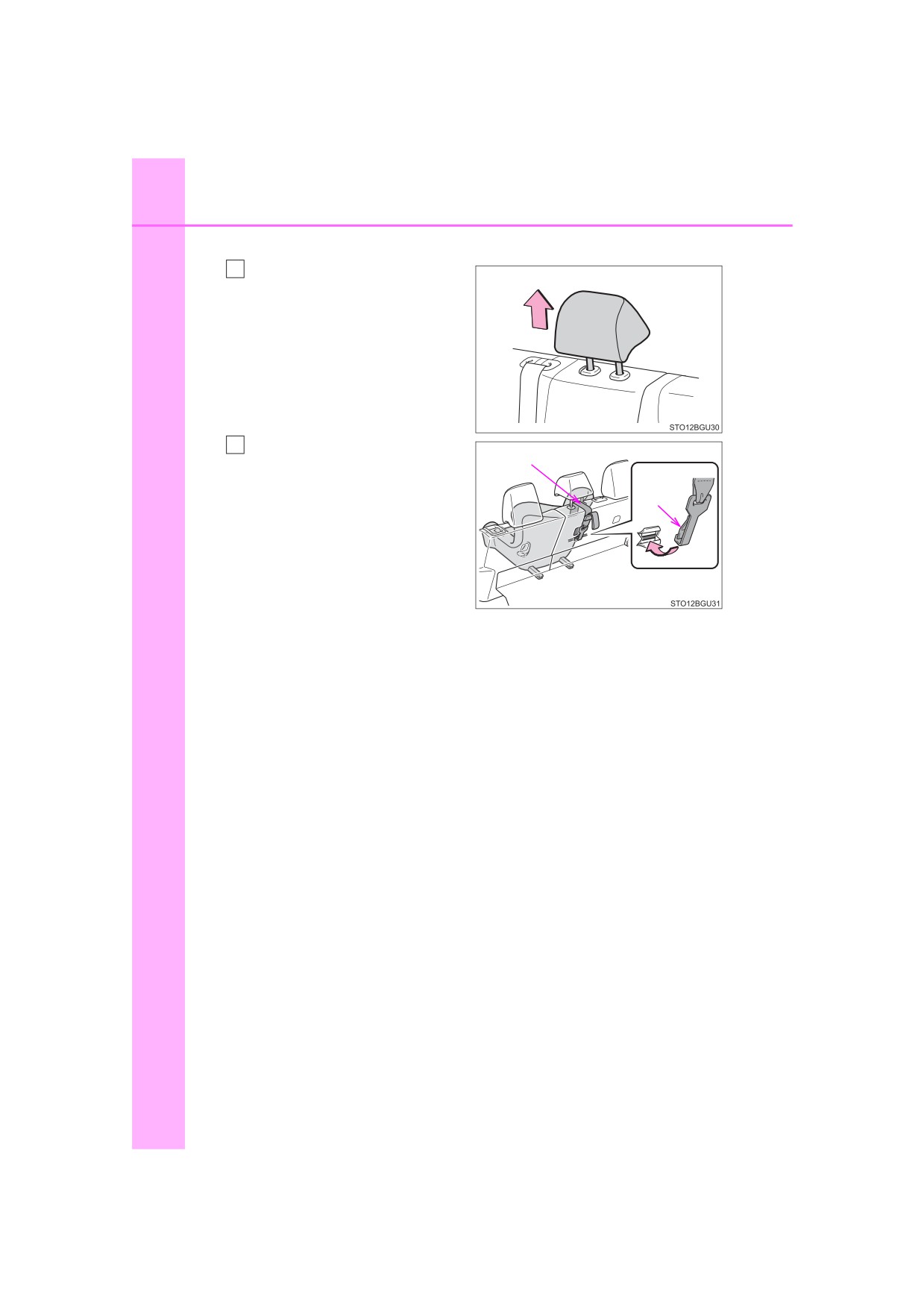

Adjust the head restraint to
1
the upmost position.
If the head restraint interferes
with your child restraint system,
and the head restraint can be
removed, remove the head
restraint. (P. 147)
2
Latch the hook onto the
Top tether strap
anchor bracket and tighten
the top tether strap.
Hook
Make sure the top tether strap is
securely latched.
When installing the child
restraint system with the head
restraint being raised, be sure to
have the top tether strap pass
underneath the head restraint.
1-2. Child safety
75
■Laws and regulations pertaining to anchors
The LATCH system conforms to FMVSS225 or CMVSS210.2.
Child restraint systems conforming to FMVSS213 or CMVSS213 specifica-
tions can be used.
This vehicle is designed to conform to SAE J1819.
WARNING
1
■ When installing a child restraint system
Observe the following precautions.
Failure to do so may result in death or serious injury.
● Firmly attach the top tether strap and make sure that the belt is not twisted.
● Do not attach the top tether strap to anything other than the anchor
bracket.
● After securing a child restraint system, never adjust the seat.
● Follow all installation instructions provided by the child restraint system
manufacturer.
● Rear center seat: When installing the child restraint system with the head
restraint being raised, after the head restraint has been raised and then
the anchor bracket has been fixed, do not lower the head restraint.
76
1-3. Emergency assistance
Safety Connect
Safety Connect is a subscription-based telematics service that
uses Global Positioning System (GPS) data and embedded cel-
lular technology to provide safety and security features to sub-
scribers. Safety Connect is supported by Toyota’s designated
response center, which operates 24 hours per day, 7 days per
week.
Safety Connect service is available by subscription on select,
telematics hardware-equipped vehicles.
By using the Safety Connect service, you are agreeing to be
bound by the Telematics Subscription Service Agreement and
its Terms and Conditions, as in effect and amended from time to
time, a current copy of which is available at Toyota.com in the
United States, Toyotapr.com in Puerto Rico and Toyota.ca in
Canada. All use of the Safety Connect service is subject to such
then-applicable Terms and Conditions.

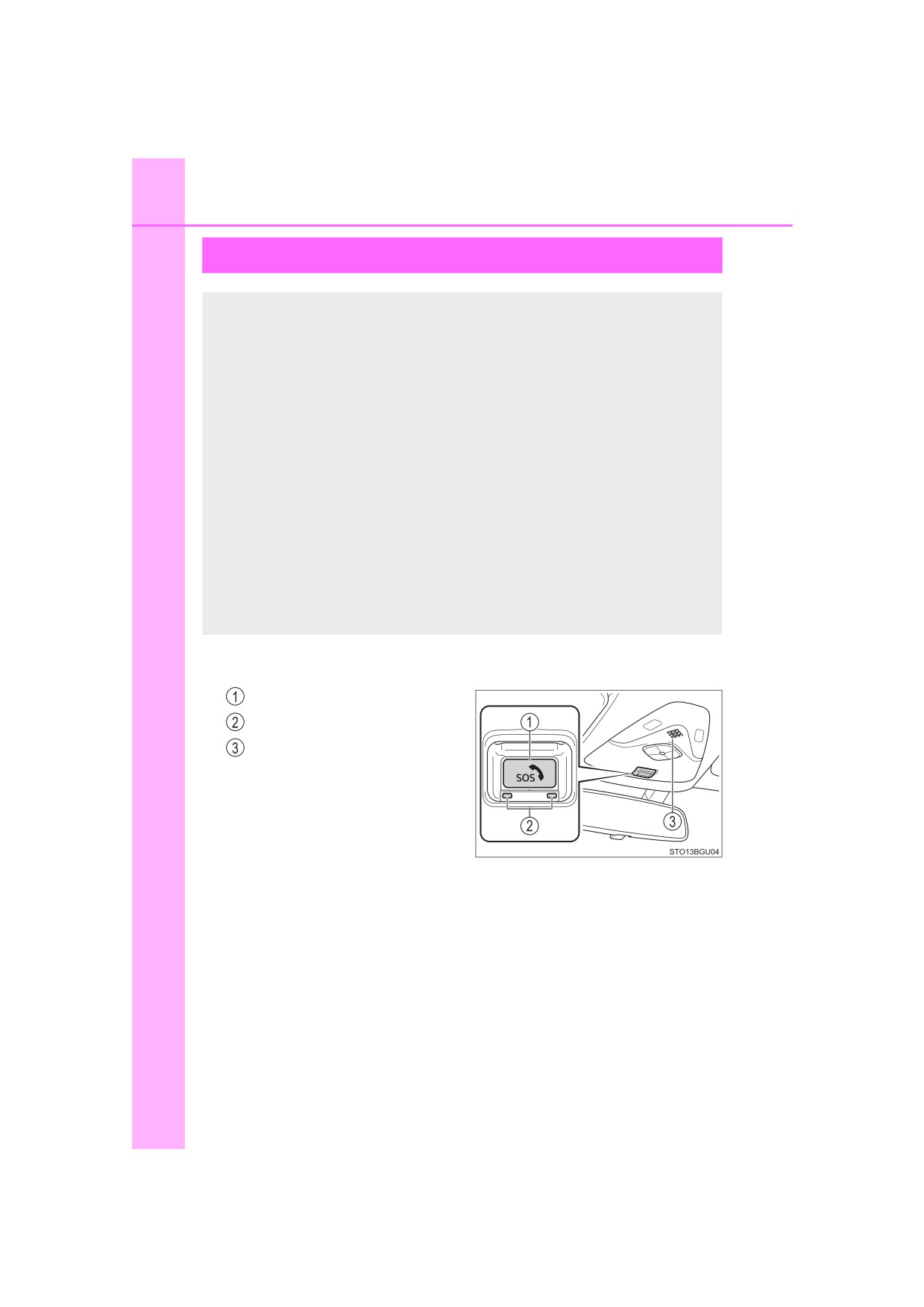

■ System components
“SOS” button
LED light indicators
Microphone
: If equipped
1-3. Emergency assistance
77
■ Services
Subscribers have the following Safety Connect services available:
● Automatic Collision Notification*
Helps drivers receive necessary response from emergency ser-
vice providers. (P. 79)
*: U.S. Patent No. 7,508,298 B2
1
● Stolen Vehicle Location
Helps drivers in the event of vehicle theft. (P. 80)
● Emergency Assistance Button (SOS)
Connects drivers to response-center support. (P. 80)
● Enhanced Roadside Assistance
Provides drivers various on-road assistance. (P. 80)
■ Subscription
After you have signed the Telematics Subscription Service Agree-
ment and are enrolled, you can begin receiving services.
A variety of subscription terms are available for purchase. Contact
your Toyota dealer, call the following appropriate Customer Experi-
ence Center or push the “SOS” button in your vehicle for further
subscription details.
• The United States
1-800-331-4331
• Canada
1-888-869-6828
• Puerto Rico
1-877-855-8377
78
1-3. Emergency assistance
■Safety Connect Services Information
● Phone calls using the vehicle’s Bluetooth® technology will not be possible
when Safety Connect is active and in use.
● Safety Connect is available beginning Fall 2009 on select Toyota models (in
the contiguous United States only). Contact with the Safety Connect
response center is dependent upon the telematics device being in operative
condition, cellular connection availability, and GPS satellite signal reception,
which can limit the ability to reach the response center or receive emer-
gency service support. Enrollment and Telematics Subscription Service
Agreement are required. A variety of subscription terms are available;
charges vary by subscription term selected and location.
● Automatic Collision Notification, Emergency Assistance and Stolen Vehicle
Location are available in the United States, including Hawaii and Alaska,
Puerto Rico and Canada, and Enhanced Roadside Assistance are available
in the United States, Puerto Rico and Canada.
● Automatic Collision Notification, Emergency Assistance, Stolen Vehicle and
Enhanced Road Assistance are not available in the U.S. Virgin Islands.
For vehicles first sold in the U.S. Virgin Islands, no Safety Connect services
will function in or outside the U.S. Virgin Islands.
● Safety Connect services are not subject to section 255 of the Telecommuni-
cations Act and the device is not TTY compatible.
■Languages
The Safety Connect response center will offer support in multiple languages.
The Safety Connect system will offer voice prompts in English, Spanish, and
French. Please indicate your language of choice when enrolling.
■ When contacting the response center
You may be unable to contact the response center if the network is busy.
1-3. Emergency assistance
79
Safety Connect LED light Indicators
When the engine switch is turned to the “ON” position (vehicles with-
out smart key system) or IGNITION ON mode (vehicles with smart
key system), the red indicator light comes on for 2 seconds then turns
off. Afterward, the green indicator light comes on, indicating that the
service is active.
1
The following indicator light patterns indicate specific system usage
conditions:
● Green indicator light on = Active service
● Green indicator light flashing = Safety Connect call in process
● Red indicator light (except at vehicle start-up) = System malfunction
(contact your Toyota dealer)
● No indicator light (off) = Safety Connect service not active
Safety Connect services
■ Automatic Collision Notification
In case of either airbag deployment or severe rear-end collision, the
system is designed to automatically call the response center. The
responding agent receives the vehicle’s location and attempts to
speak with the vehicle occupants to assess the level of emergency.
If the occupants are unable to communicate, the agent automati-
cally treats the call as an emergency, contacts the nearest emer-
gency services provider to describe the situation, and requests that
assistance be sent to the location.
80
1-3. Emergency assistance
■ Stolen Vehicle Location
If your vehicle is stolen, Safety Connect can work with local author-
ities to assist them in locating and recovering the vehicle. After filing
a police report, call the Customer Experience Center at 1-800-331-
4331 in the United States, 1-877-855-8377 in Puerto Rico or 1-888-
869-6828 in Canada, and follow the prompts for Safety Connect to
initiate this service.
In addition to assisting law enforcement with recovery of a stolen
vehicle, Safety-Connect-equipped vehicle location data may, under
certain circumstances, be shared with third parties to locate your
vehicle. Further information is available at Toyota.com in the United
States, Toyotapr.com in Puerto Rico and Toyota.ca in Canada.
■ Emergency Assistance Button (“SOS”)
In the event of an emergency on the road, push the “SOS” button to
reach the Safety Connect response center. The answering agent
will determine your vehicle’s location, assess the emergency, and
dispatch the necessary assistance required.
If you accidentally press the “SOS” button, tell the response-center
agent that you are not experiencing an emergency.
■ Enhanced Roadside Assistance
Enhanced Roadside Assistance adds GPS data to the already
included warranty-based Toyota roadside service.
Subscribers can press the “SOS” button to reach a Safety Connect
response-center agent, who can help with a wide range of needs,
such as: towing, flat tire, fuel delivery, etc. For a description of the
Enhanced Roadside Assistance services and their limitations,
please see the Safety Connect Terms and Conditions, which are
available at Toyota.com in the United States, Toyotapr.com in
Puerto Rico and Toyota.ca in Canada.
1-3. Emergency assistance
81
Safety information for Safety Connect
Important! Read this information before using Safety Connect.
■ Exposure to radio frequency signals
The Safety Connect system installed in your vehicle is a low-power
radio transmitter and receiver. It receives and also sends out radio
frequency (RF) signals.
1
In August 1996, the Federal Communications Commission (FCC)
adopted RF exposure guidelines with safety levels for mobile wire-
less phones. Those guidelines are consistent with the safety stan-
dards previously set by the following U.S. and international
standards bodies.
● ANSI (American National Standards Institute) C95.1 [1992]
● NCRP (National Council on Radiation Protection and Measure-
ment) Report 86 [1986]
● ICNIRP (International Commission on Non-Ionizing Radiation
Protection) [1996]
Those standards were based on comprehensive and periodic eval-
uations of the relevant scientific literature. Over 120 scientists, engi-
neers, and physicians from universities, and government health
agencies and industries reviewed the available body of research to
develop the ANSI Standard (C95.1).
The design of Safety Connect complies with the FCC guidelines in
addition to those standards.
82
1-3. Emergency assistance
■Certification for Safety Connect
1-3. Emergency assistance
83
1
84
1-4. Theft deterrent system
Engine immobilizer system
The vehicle’s keys have built-in transponder chips that prevent
the engine from starting if a key has not been previously regis-
tered in the vehicle’s on-board computer.
Never leave the keys inside the vehicle when you leave the vehi-
cle.
This system is designed to help prevent vehicle theft but does
not guarantee absolute security against all vehicle thefts.
Vehicles without a smart key sys-
tem:
The indicator light flashes after
the key has been removed from
the engine switch to indicate that
the system is operating.
The indicator light stops flashing
after the registered key has been
inserted into the engine switch to
indicate that the system has been
canceled.
Vehicles with a smart key system:
The indicator light flashes after the engine switch has been turned off
to indicate that the system is operating.
The indicator light stops flashing after the engine switch has been
turned to ACCESSORY or IGNITION ON mode to indicate that the
system has been canceled.
1-4. Theft deterrent system
85
■ System maintenance
The vehicle has a maintenance-free type engine immobilizer system.
■ Conditions that may cause the system to malfunction
● If the grip portion of the key is in contact with a metallic object
● If the key is in close proximity to or touching a key to the security system
(key with a built-in transponder chip) of another vehicle
1
■ Certifications for the engine immobilizer system
For vehicles sold in the U.S.A.
86
1-4. Theft deterrent system
For vehicles sold in Canada
NOTICE
■ To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be guaranteed.
87
Instrument cluster
2
2.
Instrument cluster
Warning lights and
indicators
88
Gauges and meters
96
Multi-information display
99
Fuel consumption
information
107
88
2. Instrument cluster
Warning lights and indicators
The warning lights and indicators on the instrument cluster and
center panel inform the driver of the status of the vehicle’s vari-
ous systems.

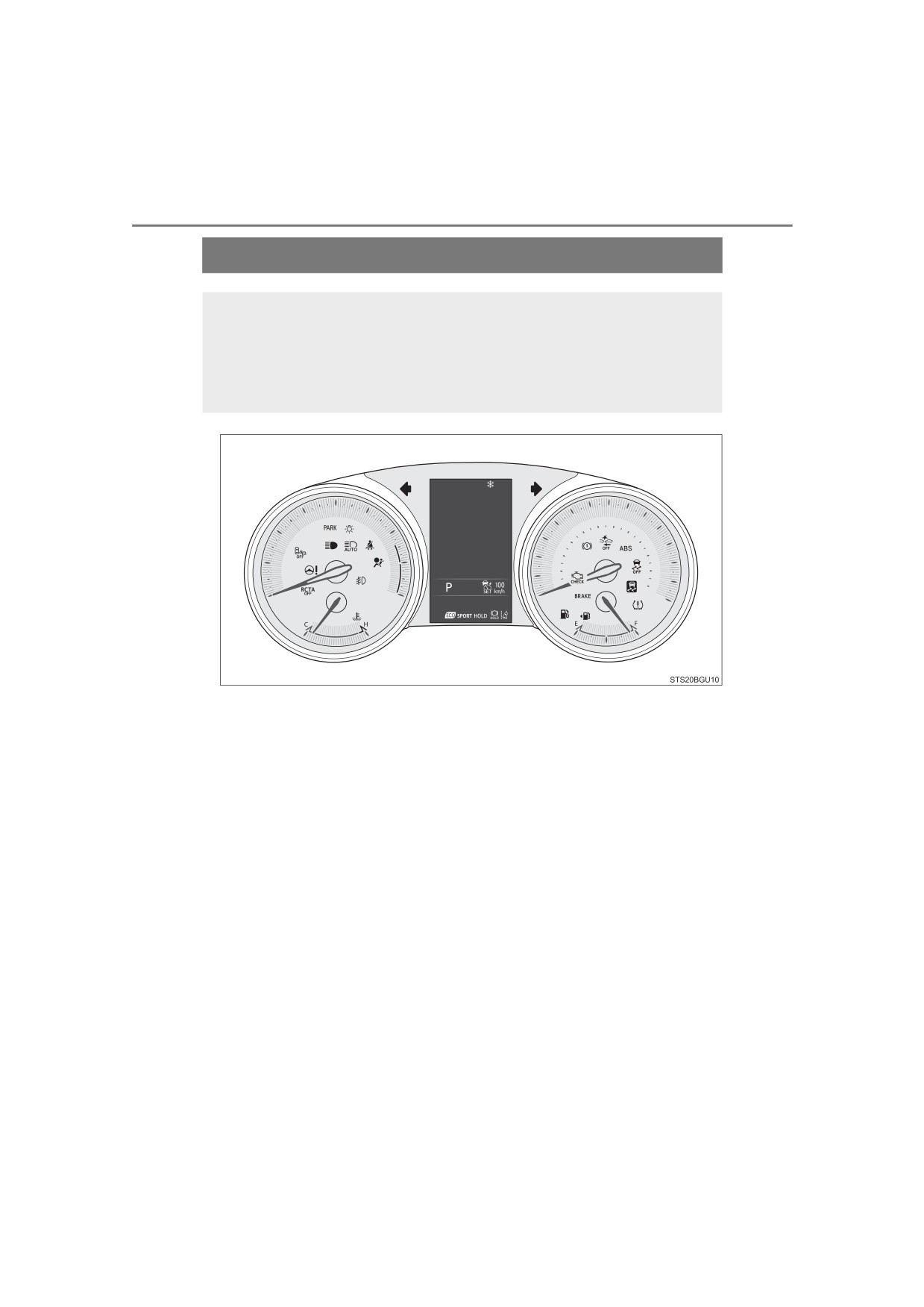

For the purpose of explanation, the following illustration dis-
plays all warning lights and indicators illuminated.
The units used on the meters and some indicators may differ depending on
the target region.
2. Instrument cluster
89
Warning lights
Warning lights inform the driver of malfunctions in the indicated vehi-
cle’s systems.

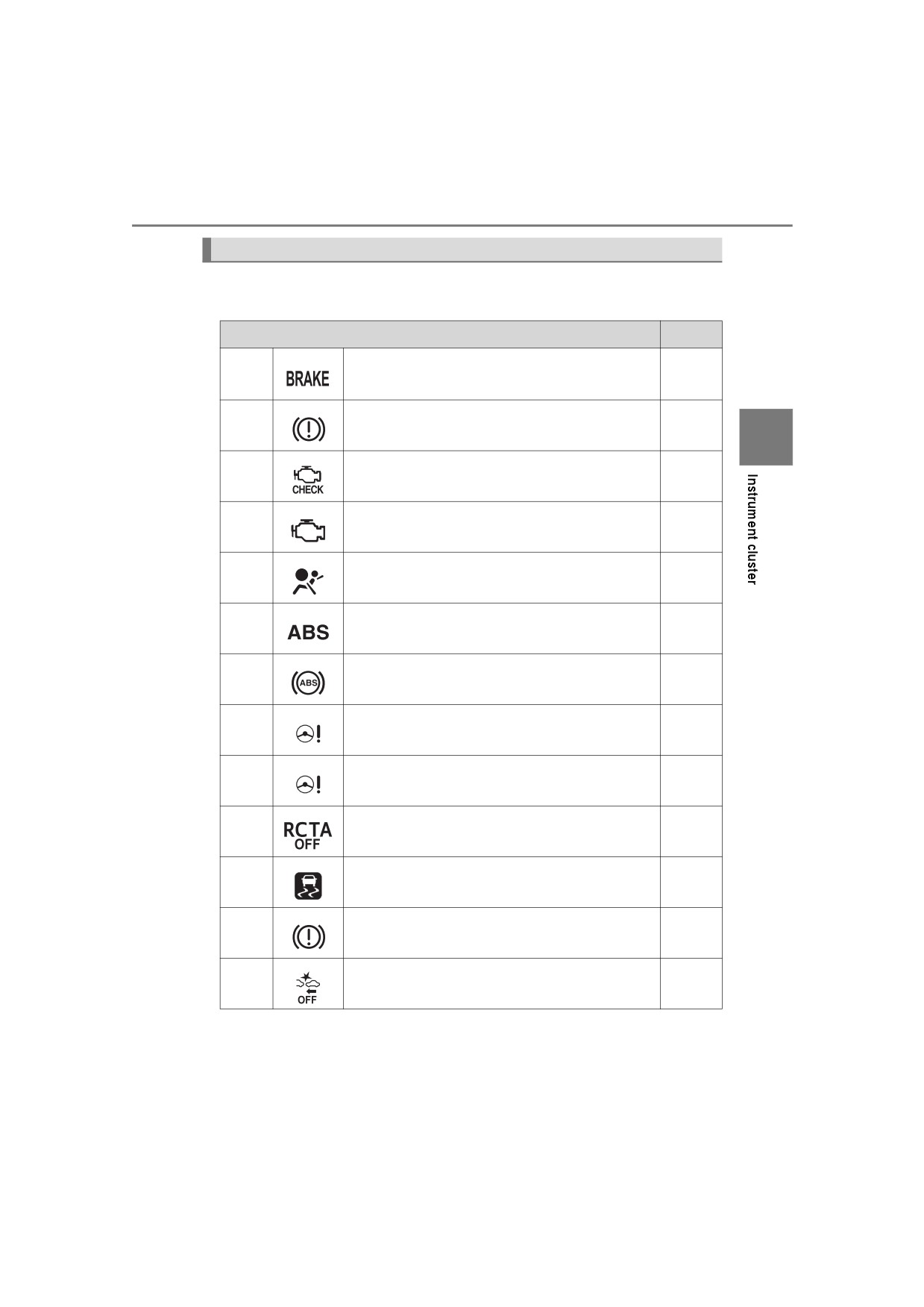

Warning lights
Pages
*1
Brake system warning light (red) (U.S.A.)
P. 434
*1
Brake system warning light (red) (Canada)
P. 434
2
*1
Malfunction indicator lamp (U.S.A.)
P. 435
*1
Malfunction indicator lamp (Canada)
P. 435
*1
SRS warning light
P. 435
*1
ABS warning light (U.S.A.)
P. 435
*1
ABS warning light (Canada)
P. 435
*1
Electric power steering system warning light
P. 435
(red)
*1
Electric power steering system warning light
P. 435
(yellow)
*2
“RCTA OFF” indicator (if equipped)
P. 435
*1, 3
Slip indicator light
P. 436
*1
Brake system warning light (yellow)
P. 436
*1, 4
PCS warning light
P. 436
90
2. Instrument cluster
Warning lights
Pages
*2
Parking brake indicator (U.S.A.)
P. 436
*2
Parking brake indicator (Canada)
P. 436
Low fuel level warning light
P. 437
Driver’s and front passenger’s seat belt
P. 437
reminder light
Rear passengers’ seat belt reminder lights (on
P. 437
the center panel)
*1
Tire pressure warning light
P. 437
*1: These lights turn on when the engine switch is turned to the “ON” position
(vehicles without a smart key system) or IGNITION ON mode (vehicles
with a smart key system) to indicate that a system check is being per-
formed. They will turn off after the engine is started, or after a few seconds.
There may be a malfunction in a system if a light does not come on, or if
the lights do not turn off. Have the vehicle inspected by your Toyota dealer.
*2: The light flashes to indicate a malfunction.
*3: The light comes on to indicate a malfunction.
*4: The light flashes or illuminates to indicate a malfunction.
2. Instrument cluster
91
Indicators
The indicators inform the driver of the operating state of the vehicle’s
various systems.

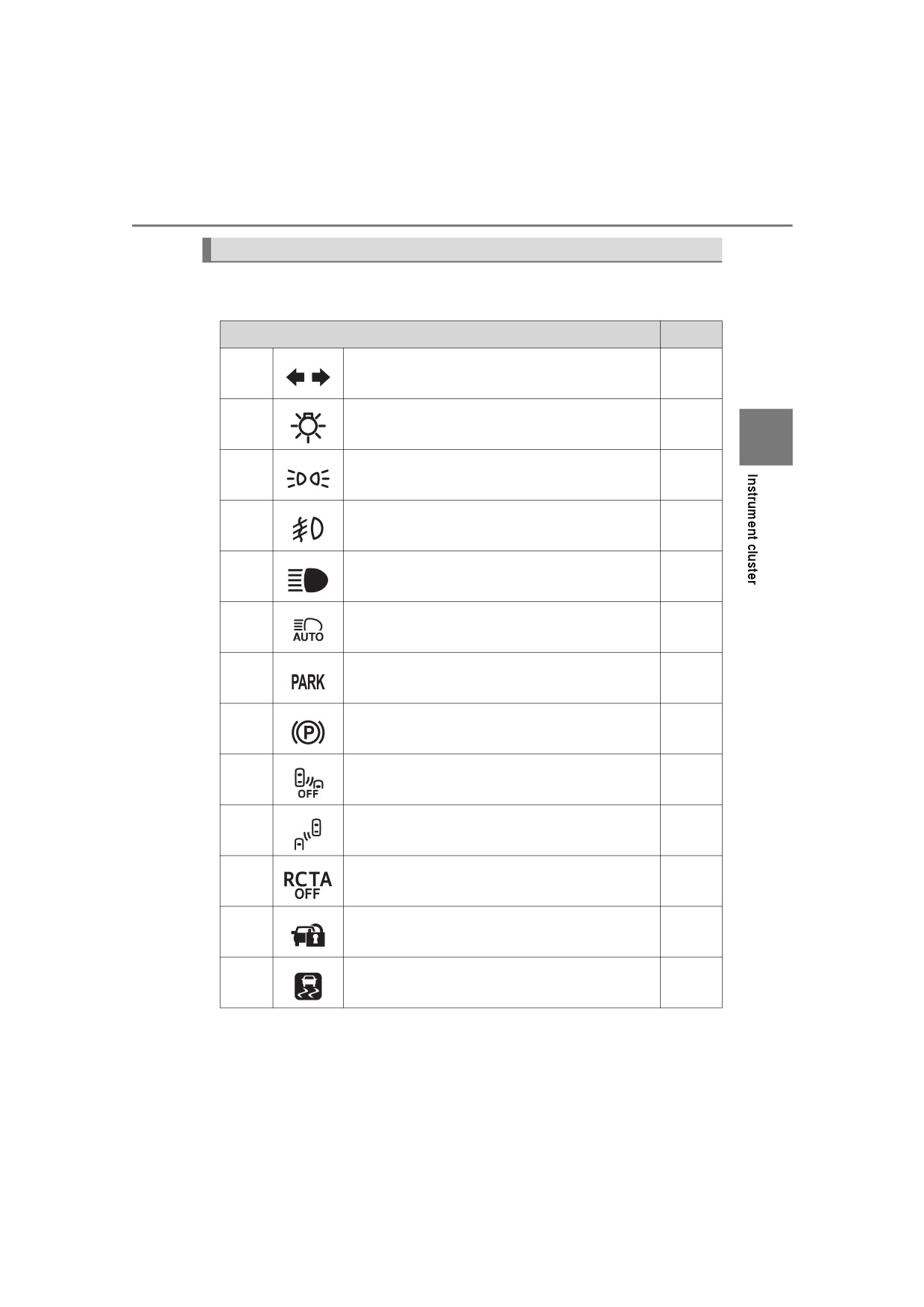

Indicators
Pages
Turn signal indicator
P. 195
Headlight indicator (U.S.A.)
P. 204
2
Tail light indicator (Canada)
P. 204
Front fog light indicator (if equipped)
P. 214
Headlight high beam indicator
P. 205
Automatic High Beam indicator
P. 209
Parking brake indicator (U.S.A.)
P. 196
Parking brake indicator (Canada)
P. 196
*1, 2
BSM OFF indicator (if equipped)
P. 283
*1
BSM outside rear view mirror indicator
P. 283,
(on the outside rear view mirrors) (if equipped)
292
*2
“RCTA OFF” indicator (if equipped)
P. 292
Security indicator (on the center panel)
P. 84
*1, 3
Slip indicator light
P. 302
92
2. Instrument cluster
Indicators
Pages
*1, 2
VSC off indicator
P. 303
*1, 2
PCS warning light
P. 236
*1
“AIR BAG ON/OFF” indicator (U.S.A.)
P. 48
(on the center panel)
*1
“AIR BAG ON/OFF” indicator (Canada)
P. 48
(on the center panel)
*1: These lights turn on when the engine switch is turned to the “ON” position
(vehicles without a smart key system) or IGNITION ON mode (vehicles
with a smart key system) to indicate that a system check is being per-
formed. They will turn off after the engine is started, or after a few seconds.
There may be a malfunction in a system if a light does not come on, or if
the lights do not turn off. Have the vehicle inspected by your Toyota dealer.
*2: The light turns on when the system is off.
*3: The light flashes to indicate that the system is operating.
2. Instrument cluster
93

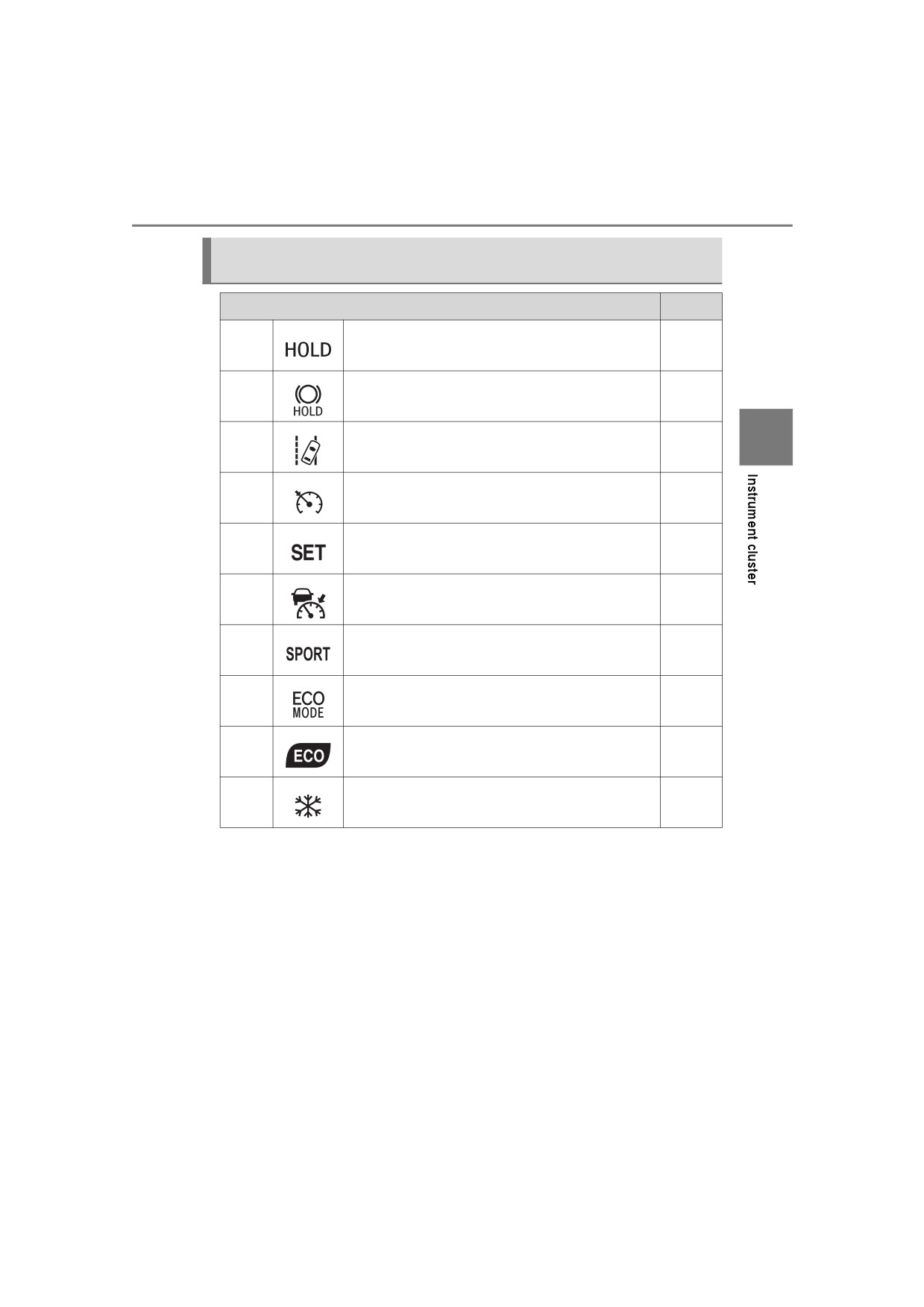

Indicators and symbols displayed on the multi-information dis-
play
Indicators
Pages
*1, 2, 3
P. 201,
Brake hold operated indicator
436
*1
Brake hold standby indicator
P. 201
2
*4
P. 246,
LTA indicator
436
Cruise control indicator
P. 266
Cruise control “SET” indicator
P. 266
Radar cruise control indicator
P. 266
“SPORT” indicator
P. 281
“ECO MODE” indicator
P. 281
Eco Driving Indicator Light
P. 95
Low outside temperature indicator
P. 96
1: These lights turn on when the engine switch is turned to the “ON” position
(vehicles without a smart key system) or IGNITION ON mode (vehicles
with a smart key system) to indicate that a system check is being per-
formed. They will turn off after the engine is started, or after a few seconds.
There may be a malfunction in a system if a light does not come on, or if
the lights do not turn off. Have the vehicle inspected by your Toyota dealer.
*2: The light turns on when the system is operating.
*3: The light flashes to indicate a malfunction.
*4: Depending on the operating condition, the color and illuminating/flashing
state of the light change.
94
2. Instrument cluster
Symbols on multi-information display
Pages
Charging system warning light
P. 434
Low engine oil pressure warning light
P. 434
High engine coolant temperature warning light
P. 437
Smart key system (if equipped)
P. 183
Brake Override System/Drive-Start Control
P. 438
2. Instrument cluster
95
■ Eco Driving Indicator Light
During Eco-Friendly acceleration
(Eco
driving), Eco Driving Indicator Light will
turn on. When the acceleration exceeds
Zone of Eco driving, and when the vehicle
is stopped, the light turns off.
Eco Driving Indicator Light availability can
be customized. The default setting is on.
(P. 502)
Eco Driving Indicator Light will not operate in the following conditions:
2
● The shift lever is in anything other than D.
● The vehicle is being driven in “SPORT” mode (P. 281)
● The vehicle speed is approximately 80 mph (130 km/h) or higher.
WARNING
■ If a safety system warning light does not come on
Should a safety system light such as ABS and SRS airbag warning light not
come on when you start the engine, this could mean that these systems are
not available to help protect you in an accident, which could result in death
or serious injury. Have the vehicle inspected by your Toyota dealer.
96
2. Instrument cluster
Gauges and meters
The units used on the speedometer may differ depending on the tar-
get region.

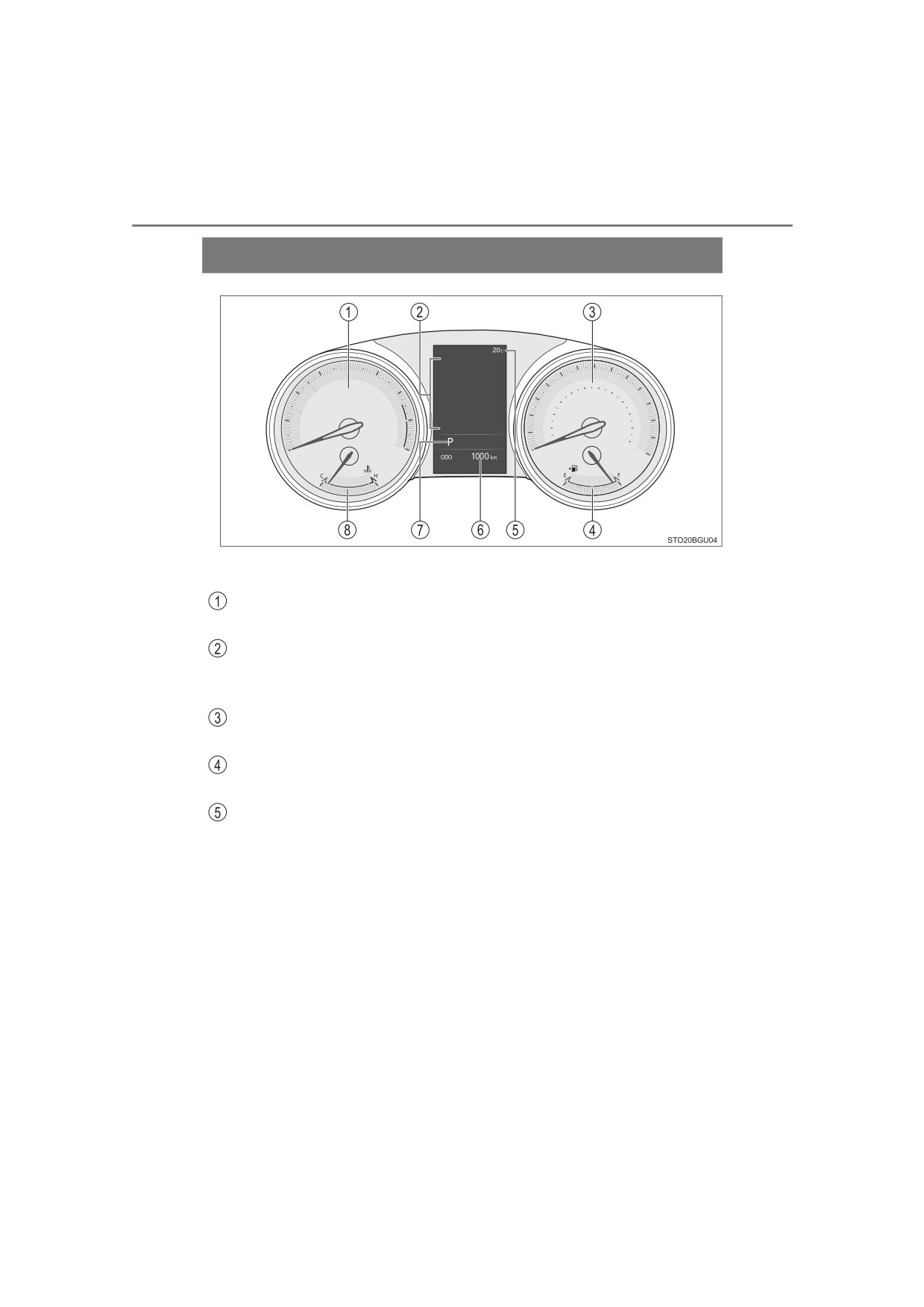

Tachometer
Displays the engine speed in revolutions per minute.
Multi-information display
Presents the driver with a variety of driving-related data. (P. 99)
Displays warning messages in case of a malfunction. (P. 444)
Speedometer
Displays the vehicle speed.
Fuel gauge
Displays the quantity of fuel remaining in the tank.
Outside temperature display
Displays the outside temperature within the range of -40°F (-40°C) to
122°F (50°C). Low outside temperature indicator comes on when the
ambient temperature is 37°F (3°C) or lower.
2. Instrument cluster
97
Odometer and trip meter display
Displays the following items.
Odometer:
Displays the total distance the vehicle has been driven.
Trip meter:
Displays the distance the vehicle has been driven since the meter was last
reset. Trip meters A and B can be used to record and display different dis-
tances independently.
Maintenance required information:
Displays the remaining distance until the engine oil should be changed. If
2
“-” is displayed before distance, it means oil maintenance is overdue. Have
the engine oil changed by your Toyota dealer.
• Displays the maintenance required information when the engine switch
is turned to the “ON” position (vehicles without smart key system) or in
IGNITION ON mode (vehicles with smart key system).
• Maintenance required information reset method (P. 348)
Shift position and shift range display
Displays the selected shift position or selected shift range. (P. 190)
Engine coolant temperature gauge
Displays the engine coolant temperature.

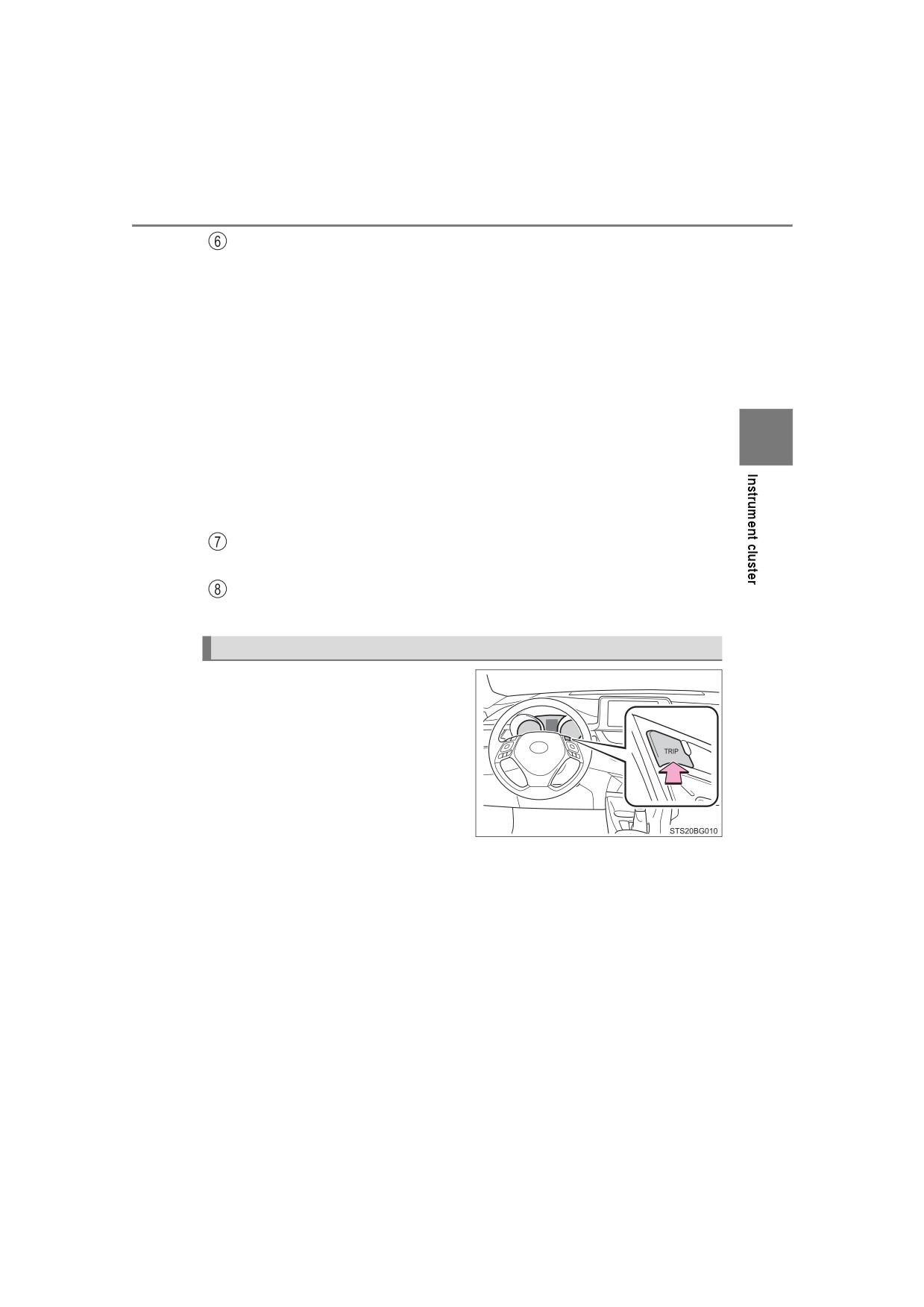

Changing the display
Switches the items of the odome-
ter and trip meter display by
pressing the “TRIP” switch.
When the trip meter is displayed,
pressing and holding the
“TRIP”
switch will reset the trip meter.
98
2. Instrument cluster
Instrument panel light control
The brightness of the instrument panel lights can be adjusted.
Brighter
Darker
■ The meters and display illuminate when
Vehicles without a smart key system:
The engine switch is in the “ON” position.
Vehicles with a smart key system:
The engine switch is in IGNITION ON mode.
■ Outside temperature display
● In the following situations, the correct outside temperature may not be dis-
played, or the display may take longer than normal to change.
• When stopped, or driving at low speeds (less than 16 mph [25 km/h])
• When the outside temperature has changed suddenly (at the entrance/
exit of a garage, tunnel, etc.)
● If “” is displayed continuously, the system may be malfunctioning. Take
your vehicle to your Toyota dealer.
■ Adjusting the clock
The clocks can be adjusted on the audio system screen.
Refer to “MULTIMEDIA OWNER’S MANUAL”.
NOTICE
■ To prevent damage to the engine and its components
● Do not let the indicator needle of the tachometer enter the red zone, which
indicates the maximum engine speed.
● The engine may be overheating if the engine coolant temperature gauge
enters the red zone (“H”). In this case, immediately stop the vehicle in a
safe place, and check the engine after it has cooled completely. (P. 470)
2. Instrument cluster
99
Multi-information display
Display contents
The multi-information display presents the driver with a variety of vehi-
cle data.

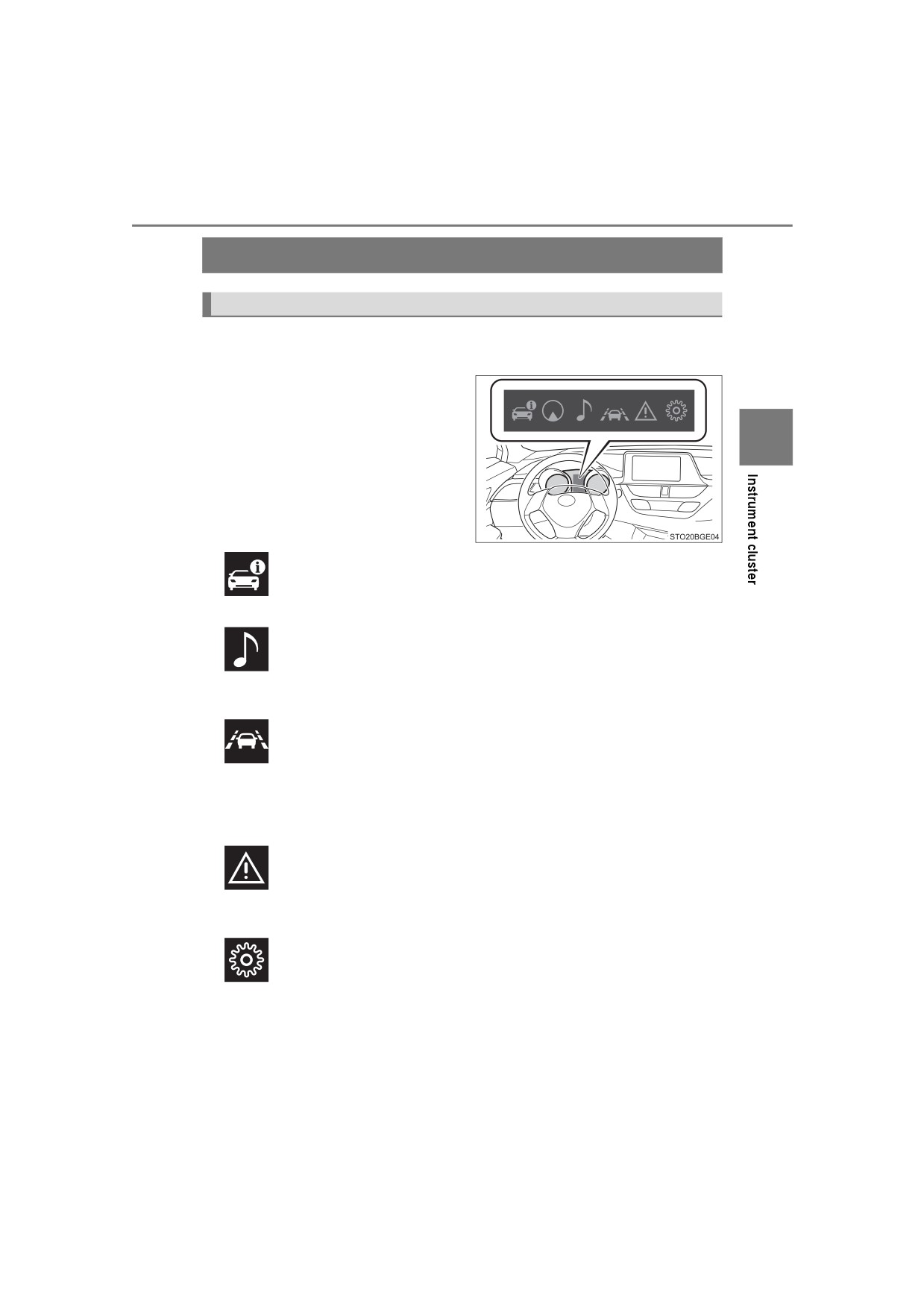

● Menu icons
Displays the following informa-
tion when an icon is selected.
2
(P. 100)
Some of the information may be
displayed
automatically
depending on the situation.
Drive information
Select to display various drive data. (P. 100)
Audio system-linked display
Select to enable selection of an audio source or track on the meter
using the meter control switches.
Driving assist system information
Select to display the operational status of the following systems:
• LTA (Lane Tracing Assist) (P. 246)
• Dynamic radar cruise control with full-speed range (P. 266)
• RSA (Road Sign Assist) (if equipped) (P. 261)
Warning message display
Select to display warning messages and measures to be taken if a
malfunction is detected. (P. 444)
Settings display
Select to change the meter display settings and the operation set-
tings of some vehicle functions. (P. 102)
100
2. Instrument cluster
Operating the meter control switches
The multi-information display is
operated using the meter control
switches.
Return to the previous screen
Enter/set
Select an item/change pages
Drive information
● Current fuel consumption (bar type/numerical value)*1
Displays the current rate of fuel consumption.
● Average fuel consumption (after reset*2/after start/after refuel)*1
Displays the average fuel consumption since the function was reset, the
engine was started, and the vehicle was refueled, respectively
Use the displayed average fuel consumption as a reference.
● Average vehicle speed (after reset*2/after start)*1
Displays the average vehicle speed since the function was reset and the
engine was started, respectively
● Elapsed time (after reset*2/after start)*1
Displays the elapsed time since the function was reset and the engine was
started, respectively
● Distance (range/after start)*1
Displays the estimated maximum distance that can be driven with the
quantity of fuel remaining and the distance driven after the engine was
started, respectively
• This distance is computed based on your average fuel consumption. As
a result, the actual distance that can be driven may differ from that dis-
played.
• When only a small amount of fuel is added to the tank, the display may
not be updated.
When refueling, turn the engine switch off. If the vehicle is refueled with-
out turning the engine switch off, the display may not be updated.
2. Instrument cluster
101
● Eco Driving Indicator Zone Display
P. 104
● Speedometer
Displays the vehicle speed.
● G Monitor
P. 105
● Display off
A blank screen is displayed.
*1: Can be registered to Drive information 1 and 2. (P. 102)
2
*2: Resetting procedures:
• Select a function to be reset using the meter control switches and then
press and hold
to reset.
• If there is more than one function that can be reset, check boxes will be
displayed next to those functions.
102
2. Instrument cluster
Settings display
The settings of the following items can be changed, refer to P. 500.
For functions that can be enabled or disabled, the function switches
between on and off each time
is pressed.
●
LTA (Lane Tracing Assist) (P. 246)
Select to set up the following items.
• Lane centering function on/off
• Alert sensitivity
• Sway Alert on/off
• Sway sensitivity
●
PCS (Pre-Collision System) (P. 231)
Select to set up the following items.
• PCS on/off
• PCS sensitivity
●
BSM (Blind Spot Monitor) (P. 283, 292)*
Select to set up the following items.
• BSM function on/off
• BSM Sensitivity
• BSM Brightness
• RCTA function on/off
● RSA (Road Sign Assist) (P. 261)*
Select to enable/disable the RSA (Road Sign Assist).
● Driving mode select (P. 281)
2. Instrument cluster
103
● Vehicle Settings
Select the menu to set up the following items.
•
RCTA setup (P. 509)*
Select to change the RCTA buzzer volume.
•
(Tire pressure warning system) setup (P. 378)
Select to initialize the tire pressure warning system.
•
RSA (Road Sign Assist) setup (P. 508)*
2
Select to set up RSA (Road Sign Assist).
● Meter settings
Select the menu to set up the following items.
• Language
Select to change the language on the display.
• Units
Select to change the unit of measure for fuel consumption.
•
(Eco Driving Indicator Light) setup
Select to activate/deactivate the Eco Driving Indicator Light
• Drive information 1 and 2
Select to select up to 2 items that will be displayed on a Drive informa-
tion screen, up to 2 Drive information screens can be set.
• Pop-up display
Select to enable/disable pop-up displays for incoming call display of the
hands-free phone system.
• Initialisation
Registered or changed meter settings will be deleted or returned to their
default setting.
*: if equipped
|
|
