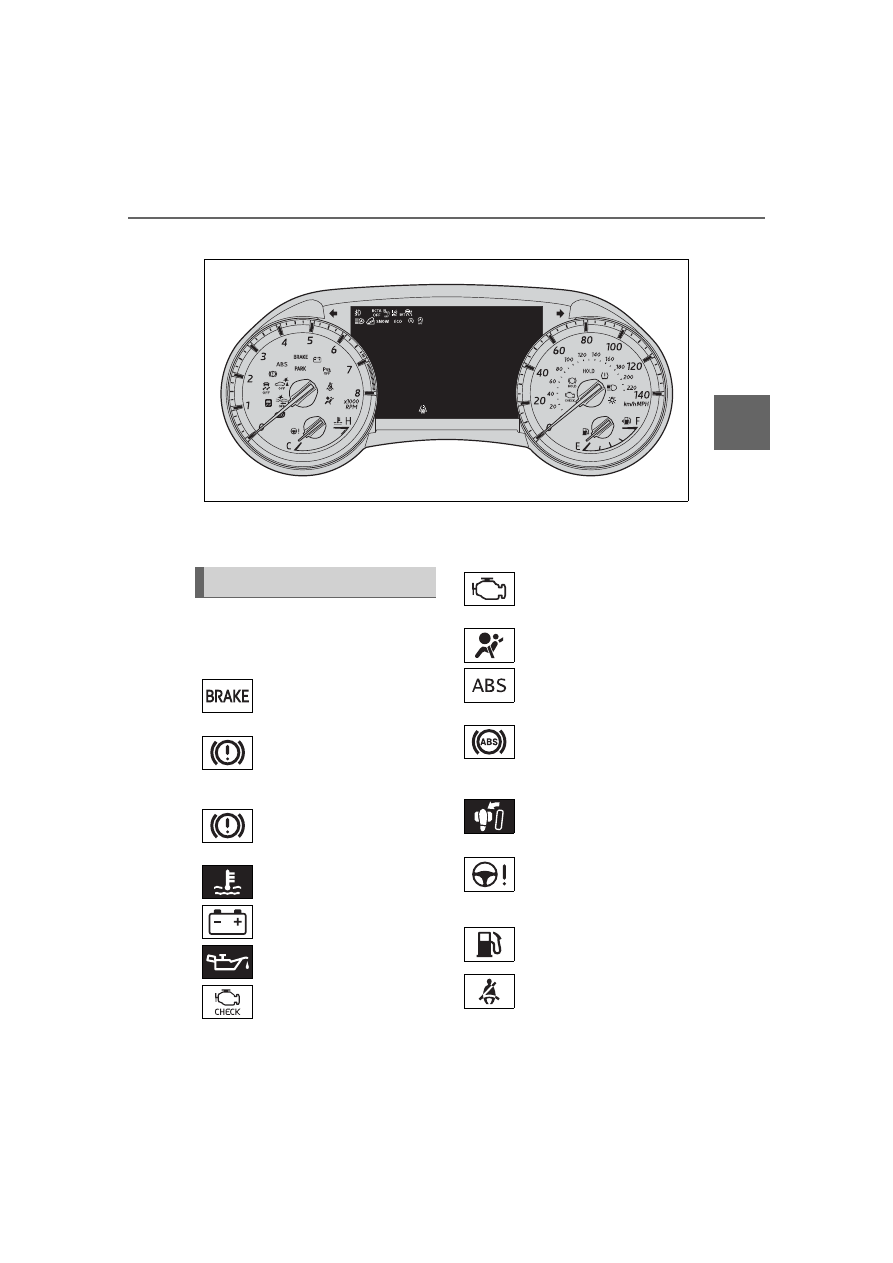

Brake system warning
light

(



(yellow)

Brake system warning
light

(



High coolant temperature
warning light

(

Charging system warning
light

(



Low engine oil pressure
warning light

(

(U.S.A.)

Malfunction indicator
lamp

(



(Canada)

Malfunction indicator
lamp

(



SRS warning light

(



(U.S.A.)

ABS warning light

(



(Canada)

ABS warning light

(



Brake Override System
warning light/Drive-Start
Control warning light

(



(red/yel-

low)

Electric power steering
system warning light
(



Low fuel level warning
light

(



P.459)

Driver’s and front passen-
ger’s seat belt reminder
light (



P.459)

2-1. Instrument cluster

:These lights turn on when the

engine switch is turned to ON to
indicate that a system check is
being performed. They will turn

off after the engine is started, or
after a few seconds. There may
be a malfunction in a system if a
light does not come on, or turn
off. Have the vehicle inspected
by your Toyota dealer.

:This light illuminates on the

multi-information display.

:7-inch display only: This light illu-

minates on the multi-information
display.

:This light comes on when the

system is turned off.

:4.2-inch display only: These

lights turn on when the engine
switch is turned to ON to indicate
that a system check is being per-
formed. They will turn off after
the engine is started, or after a
few seconds. There may be a
malfunction in a system if a light
does not come on, or turn off.
Have the vehicle inspected by
your Toyota dealer.

:7-inch display only

The indicators inform the driver
of the operating state of the

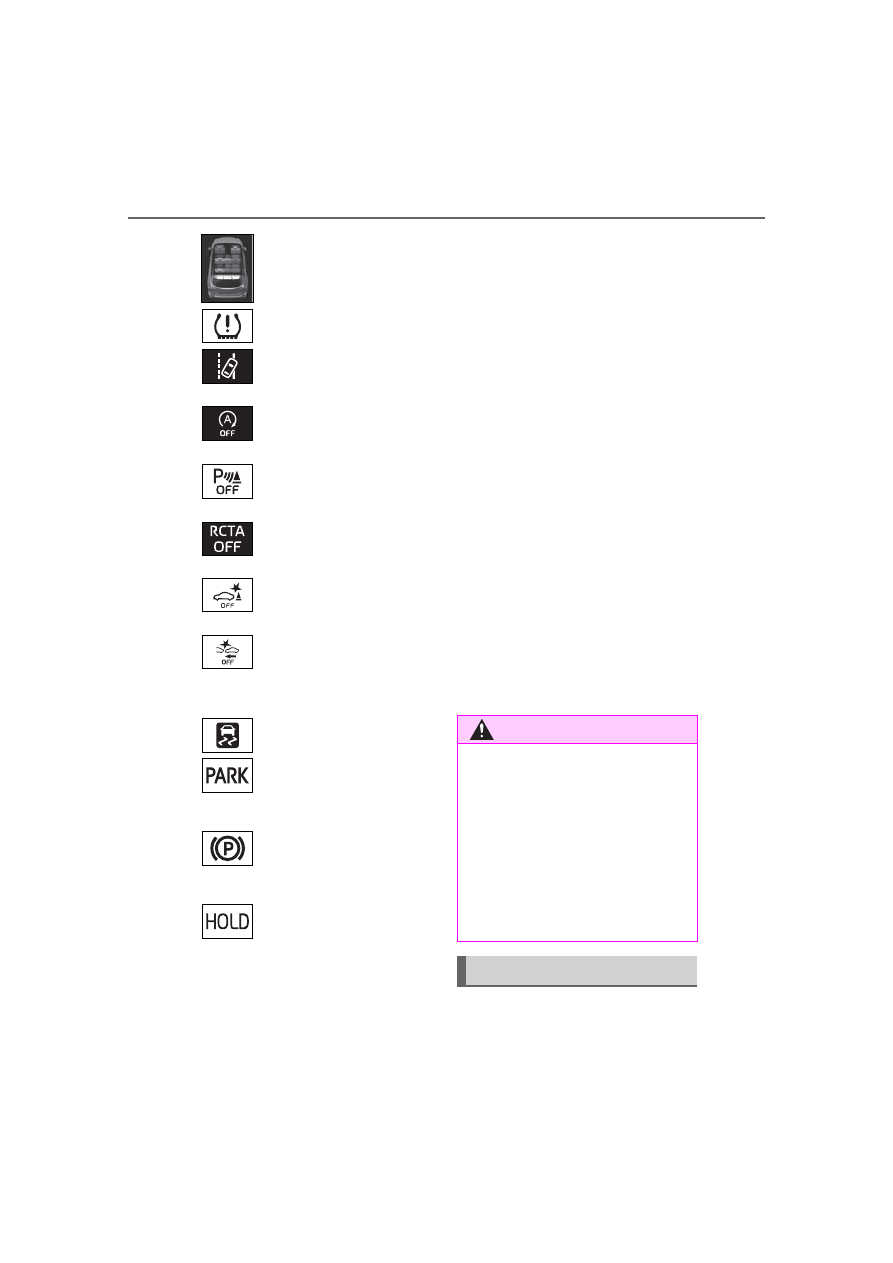

Rear passengers’ seat
belt reminder light

(



P.459)

Tire pressure warning
light

(



P.460)

(orange)

LTA indicator

(

P.460)

(flashes)

Stop & Start cancel indica-
tor

*3, 4, 5

(if equipped)

(



P.460)

(flashes)

Intuitive parking assist
OFF indicator

*1, 4, 6

(if

equipped) (

P.461)

(flashes)

RCTA OFF indicator

*2, 4

(if

equipped) (

P.461)

(flashes)

PKSB OFF indicator

*1, 4, 6

(if equipped) (



P.461)

(flashes or

illumi-

nates)

PCS warning light

(



P.462)

Slip indicator

(



P.462)

(flashes)

(U.S.A.)

Parking brake indicator

(



P.463)

(flashes)

(Canada)

Parking brake indicator

(



P.463)

(flashes)

Brake hold operated indi-
cator

(

P.463)

WARNING

■

If a safety system warning

light does not come on

Should a safety system light such

as the ABS and SRS warning

lights not come on when you start

the engine, this could mean that

these systems are not available to

help protect you in an accident,

which could result in death or seri-

ous injury. Have the vehicle

inspected by your Toyota dealer

immediately if this occurs.

Indicators

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

vehicle’s various systems.

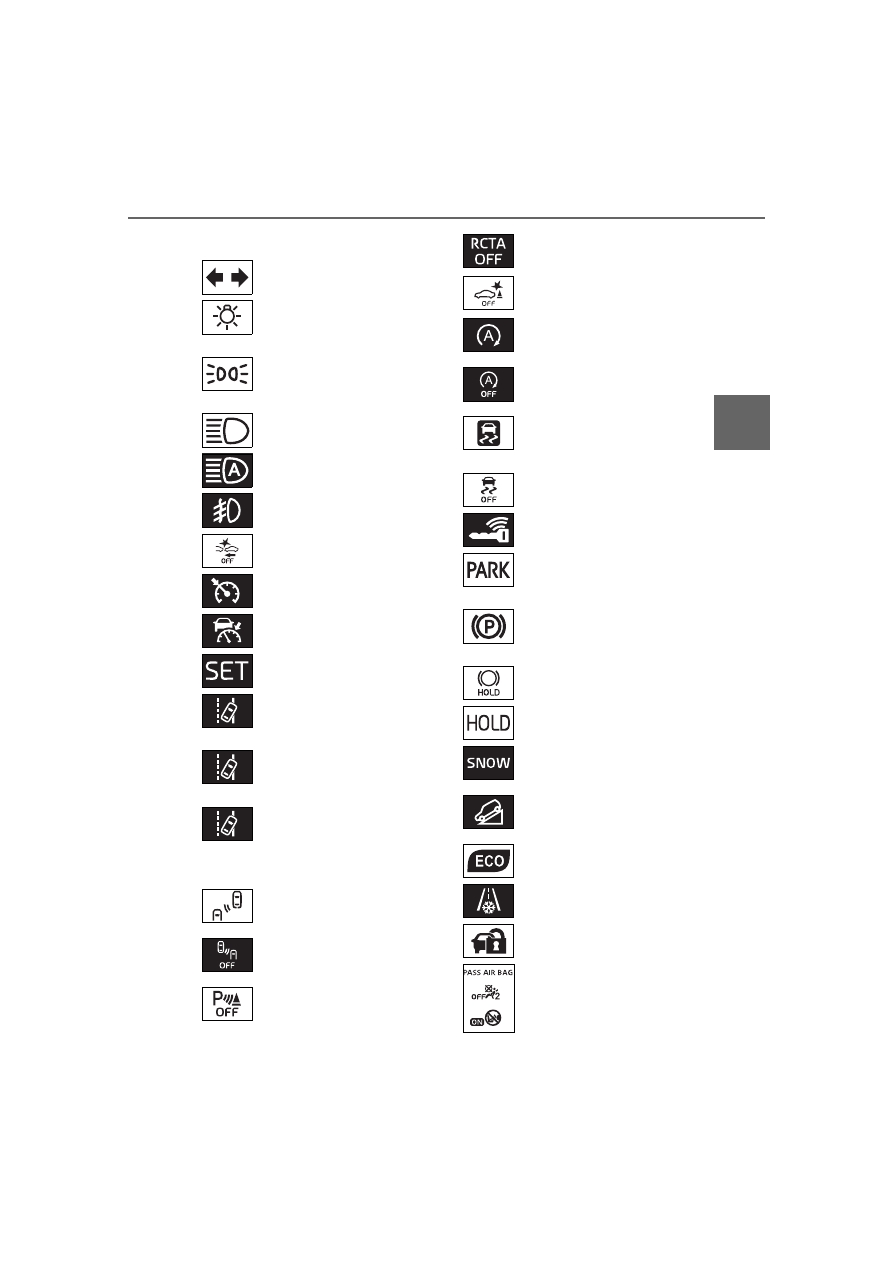

Turn signal indicator
(

P.209)

(U.S.A.)

Headlight indicator
(

P.216)

(Canada)

Tail light indicator
(

P.216)

Headlight high beam indi-
cator (



P.218)

Automatic High Beam indi-
cator

(



P.219)

Front fog light indicator

(if equipped) (



P.222)

PCS warning light

*3, 4

(

P.238)

Cruise control indicator

(

P.265)

Dynamic radar cruise con-
trol indicator

(

Cruise control “SET” indi-
cator

(



(white)

LTA indicator

(



P.252)

(green)

LTA indicator

(



P.235,

252)

(orange)
(flashes)

LTA indicator

(



P.252)

BSM outside rear view
mirror indicators

*5, 6

(if

equipped) (



P.278, 293)

BSM OFF indicator

*2, 3

(if

equipped) (



P.278)

Intuitive parking assist
OFF indicator

*3, 4, 10

(if

equipped) (



P.285)

RCTA OFF indicator

*2, 3

(if

equipped) (

P.293)

PKSB OFF indicator

*3, 4,

(if equipped) (

P.301)

Stop & Start indicator

*1, 9

(if equipped) (

P.272)

Stop & Start cancel indica-
tor

*1, 3, 9

(if equipped)

(



P.273)

(flashes)

Slip indicator

(



P.319)

VSC OFF indicator

*3, 4

(



P.320)

Smart key system indica-
tor

(



P.202)

(U.S.A.)

Parking brake indicator

(



P.210)

(Canada)

Parking brake indicator

(



P.210)

Brake hold standby indica-
tor

(



P.213)

Brake hold operated indi-
cator

(

P.213)

Snow mode indicator

(



P.315)

Downhill assist control
system indicator

*1, 9

(if

equipped) (

P.316)

Eco Driving Indicator
Light

(



P.86, 95)

Low outside temperature
indicator

*2, 7

(

P.81)

Security indicator

(



P.71, 73)

“PASS AIR BAG ON/OFF”
indicator

*4, 8

(

P.43)

2-1. Instrument cluster



Drive mode indicators

:7-inch display only: This light illu-

minates on the multi-information
display.

:This light illuminates on the

multi-information display.

:This light comes on when the

system is turned off.

:These lights turn on when the

engine switch is turned to ON to
indicate that a system check is
being performed. They will turn
off after the engine is started, or
after a few seconds. There may
be a malfunction in a system if a
light does not come on, or turn
off. Have the vehicle inspected
by your Toyota dealer.

:In order to confirm operation, the

BSM outside rear view mirror
indicators illuminate in the follow-
ing situations:



When the BSM function is
enabled on

of the

multi-information display, the
engine switch is turned to ON.



When the engine switch is in
ON, the BSM function is
enabled on

of the

multi-information display.

If the system is functioning cor-
rectly, the BSM outside rear
view mirror indicators will turn
off after a few seconds. If the
BSM outside rear view mirror
indicators do not illuminate or do
not turn off, there may be a mal-
function in the system. If this
occurs, have the vehicle
inspected by your Toyota dealer.

:This light illuminates on the out-

side rear view mirrors.

:When the outside temperature is

approximately 37°F (3°C) or
lower, this indicator will flash for
approximately 10 seconds, then
stay on.

:This light illuminates on the cen-

ter panel.

:4.2-inch display only: These

*10

:7-inch display only

Eco drive mode indicator

(

P.311)

Sport mode indicator

(

P.311)

Mud & sand mode indica-
tor

(if equipped)

(

P.313)

Rock & dirt mode indica-
tor

(if equipped)

(

P.313)

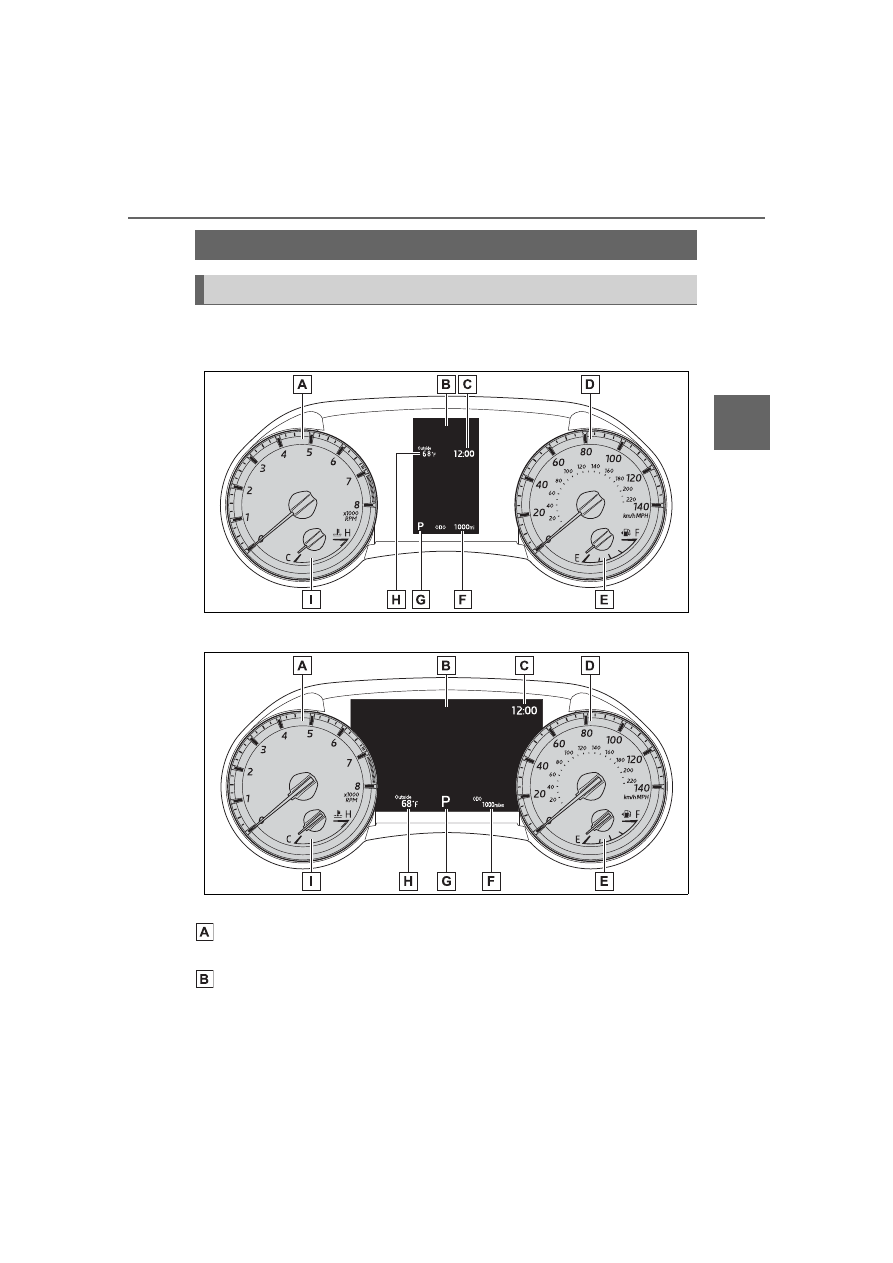

2-1. Instrument cluster

Clock (

P.84)

Speedometer
Fuel gauge

Displays the quantity of fuel remaining in the tank

Odometer and trip meter display (



P.83)

Shift position display (

P.206)

Outside temperature

Displays the outside temperature within the range of -40°F (-40°C) to 122°F
(50°C). Low outside temperature indicator comes on when the ambient
temperature is 37°F (3°C) or lower.

Engine coolant temperature gauge

Displays the engine coolant temperature

■

The meters and display illumi-

nate when

The engine switch is in ON.

■

Outside temperature display

●

In the following situations, the cor-

rect outside temperature may not

be displayed, or the display may

take longer than normal to

change:

• When stopped, or driving at low

speeds (less than 12 mph [20

km/h])

• When the outside temperature

has changed suddenly (at the

entrance/exit of a garage, tunnel,

etc.)

●

When “--” or “E” is displayed, the

system may be malfunctioning.

Take your vehicle to your Toyota

dealer.

■

Liquid crystal display

Small spots or light spots may

appear on the display. This phenom-

enon is characteristic of liquid crys-

tal displays, and there is no problem

continuing to use the display.

■

Customization

The meters can be customized on

of the multi-information display.

(

P.91, 101)

WARNING

■

The information display at

low temperatures

Allow the interior of the vehicle to

warm up before using the liquid

crystal information display. At

extremely low temperatures, the

information display monitor may

respond slowly, and display

changes may be delayed.

For example, there is a lag

between the driver’s shifting and

the new gear number appearing

on the display. This lag could

cause the driver to downshift

again, causing rapid and exces-

sive engine braking and possibly

an accident resulting in death or

injury.

NOTICE

■

To prevent damage to the

engine and its components

●

Do not let the indicator needle

of the tachometer enter the red

zone, which indicates the maxi-

mum engine speed.

2-1. Instrument cluster

Vehicle

s information an

d in
dicat

■

Display items



Odometer

Displays the total distance the vehi-
cle has been driven.



Trip meter A/trip meter B

Displays the distance the vehicle
has been driven since the meter
was last reset. Trip meters A and B
can be used to record and display
different distances independently.



Distance until next engine oil
change

Displays the distance the vehicle
can be driven until an oil change is
necessary.

■

Changing the display

Each time the “ODO TRIP”
switch is pressed, the displayed
item will be changed. When the
trip meter is displayed, pressing
and holding the switch will reset
the trip meter.

■

Pop-up display

In some situations the following
will be temporarily displayed:
Distance until next engine oil
change

Displays the distance until the next
engine oil change. This display will
be displayed in the following situa-
tions:



When the engine switch is
turned to ON.



When a warning message
indicating that oil mainte-
nance should be performed
soon or is required is dis-
played.

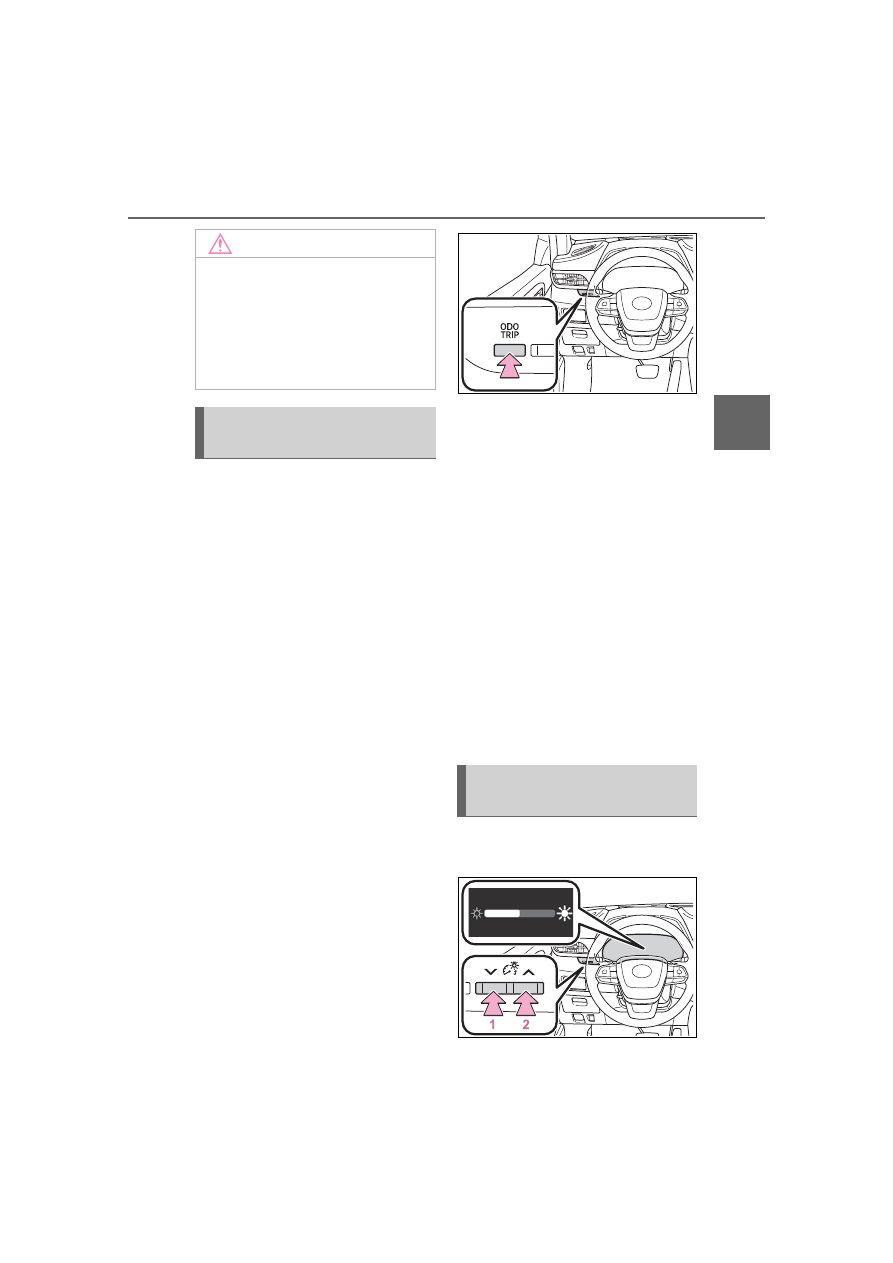

The brightness of the instrument
panel lights can be adjusted.

NOTICE

●

The engine may be overheating

if the engine coolant tempera-

ture gauge is in the red zone

(H). In this case, immediately

stop the vehicle in a safe place,

and check the engine after it

has cooled completely.

(

P.494)

Odometer and trip meter
display

Changing the instrument
panel light brightness

2-1. Instrument cluster

This image is for example only, and
may differ from the actual vehicle.

Darker

Brighter

■

Brightness of the meters (day

mode and night mode)

The brightness of the meters is

changed between day mode and

night mode.

●

Day mode: When the surrounding

area is bright

●

Night mode: When the surround-

ing area is dark

The clocks can be adjusted on
the audio system screen.
Refer to “NAVIGATION AND
MULTIMEDIA SYSTEM
OWNER’S MANUAL”.

■

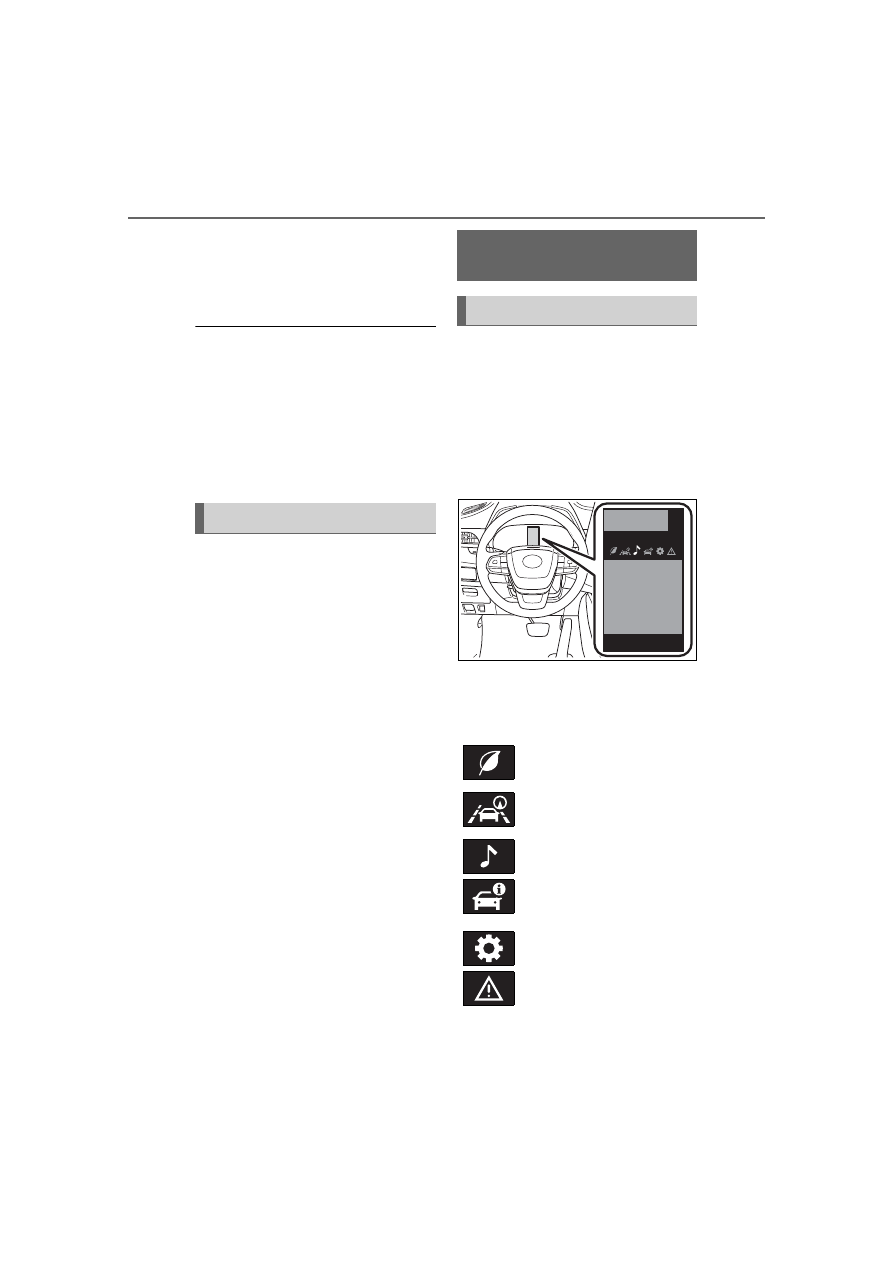

Display

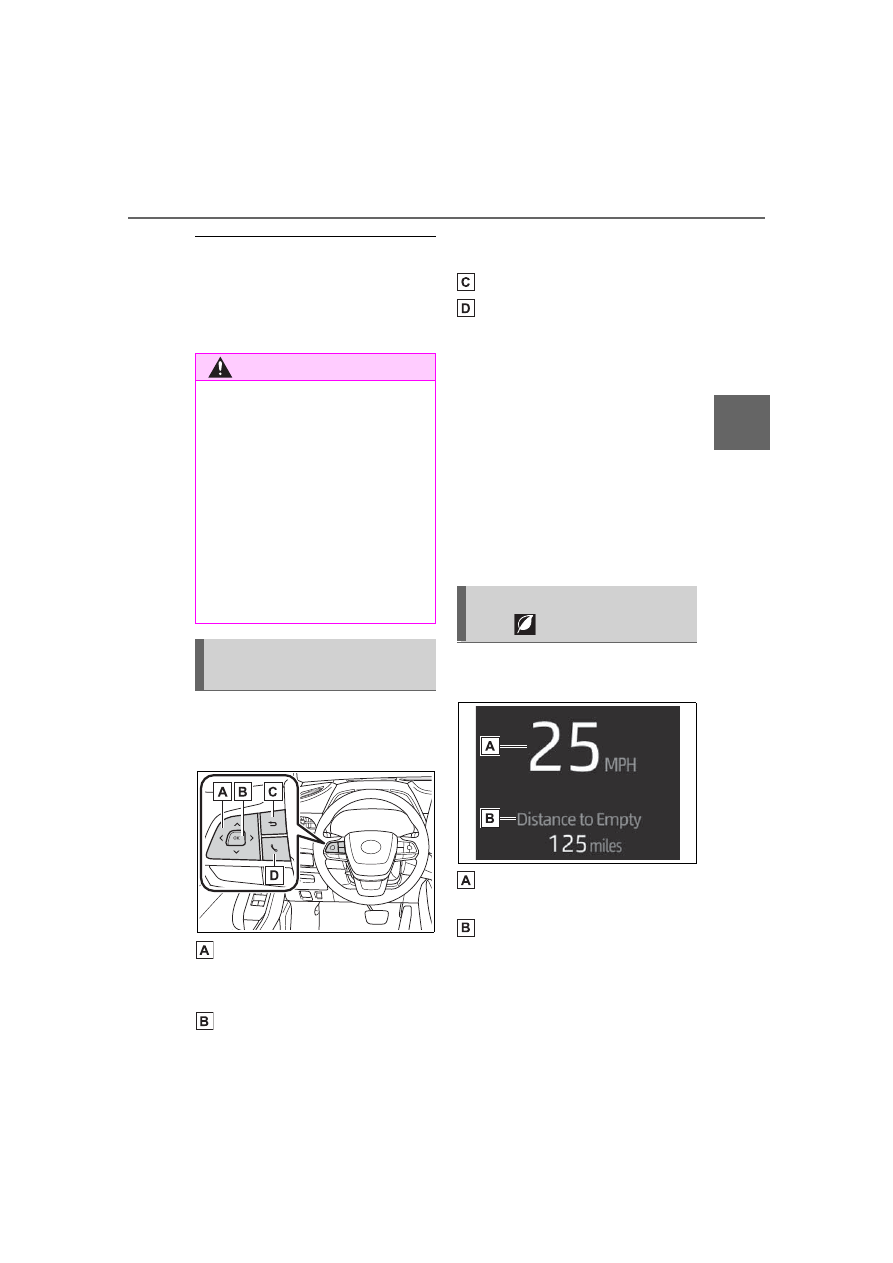

The multi-information display
presents the driver with a variety
of driving-related information.
Warning or suggestion/advice
pop-up displays are also dis-
played in certain situations.

■

Menu icons

Select a menu icon to display its
content.

Adjusting the clock

Multi-information dis-

play (4.2-inch display)

Display and menu icons

Driving information display
(



P.85)

Driving support system
information display
(



P.87)

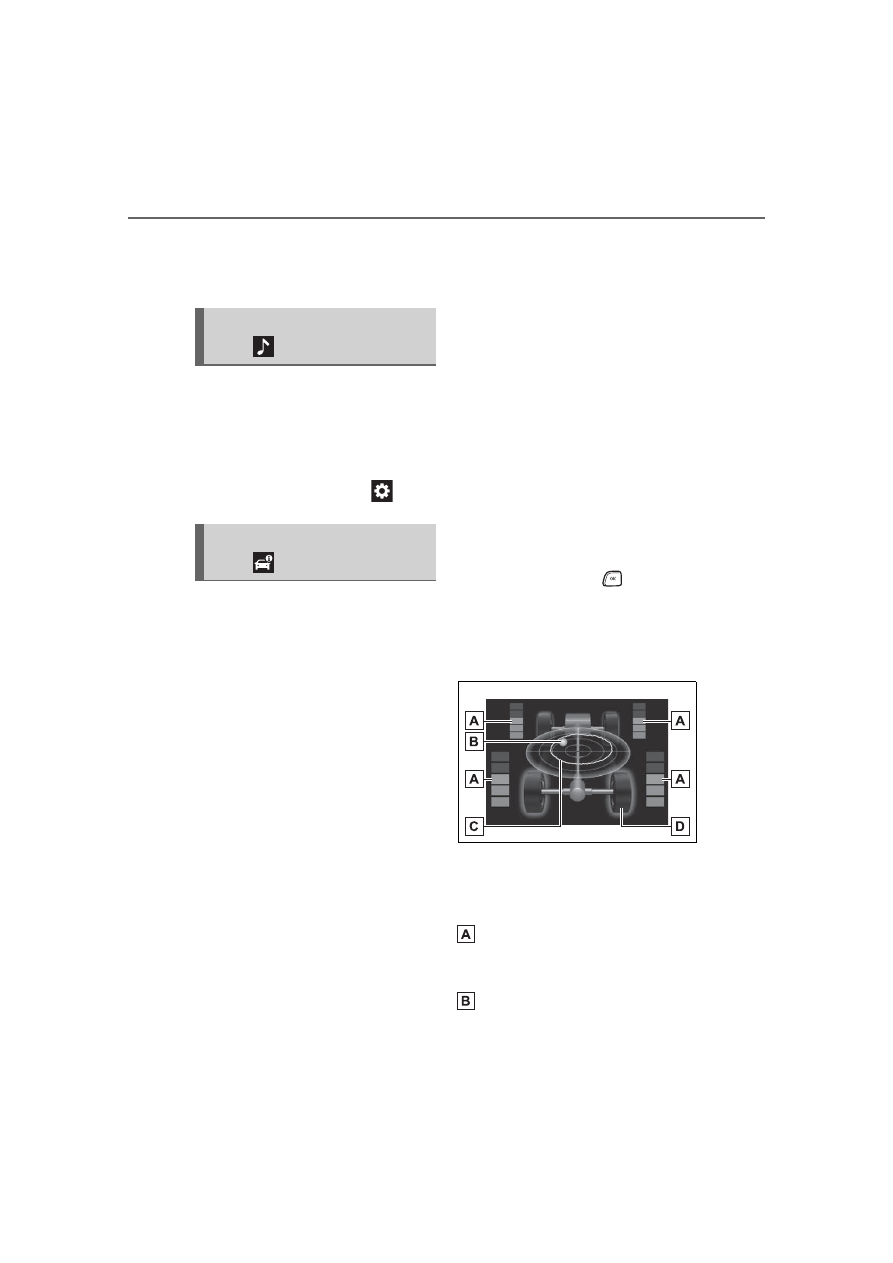

Audio system-linked dis-
play (

P.88)

Vehicle information dis-
play (

P.88)

Settings display (



P.89)

Warning message display
(



P.92)

2-1. Instrument cluster

Vehicle

s information an

d in
dicat

■

Liquid crystal display

Small spots or light spots may

appear on the display. This phenom-

enon is characteristic of liquid crys-

tal displays, and there is no problem

continuing to use the display.

The multi-information display is
operated using the meter control
switches.

Scroll screens

, change the

displayed content

and move

the cursor
Press: Enter/Set

Press and hold: Reset/Dis-
play customizable items
Return to the previous screen
Call sending/receiving and
history display

Linked with the hands-free system,
sending or receiving call is dis-
played. For details regarding the
hands-free system, refer to the
“NAVIGATION AND MULTIMEDIA
SYSTEM OWNER’S MANUAL”.

: On screens where the screen can

be scrolled and the display can
be switched, a scroll bar or a
round icon that shows the num-
ber of registered screens is dis-
played.

■

Speedometer display/Driv-
ing range

Speedometer display

Displays the vehicle speed.

Driving range

Displays driving range with remain-
ing fuel. Use the displayed values
as a reference only.
This distance is computed based
on your average fuel consumption.

WARNING

■

Caution for use while driving

●

When operating the multi-infor-

mation display while driving,

pay extra attention to the safety

of the area around the vehicle.

●

Do not look continuously at the

multi-information display while

driving as you may fail to see

pedestrians, objects on the

road, etc. ahead of the vehicle.

■

The information display at

low temperatures



P.82

Changing the meter dis-
play

Driving information dis-
play (

)

2-1. Instrument cluster

As a result, the actual distance that
can be driven may differ from that
displayed.
When only a small amount of fuel is
added to the tank, the display may
not be updated.
When refueling, turn the engine
switch off. If the vehicle is refueled
without turning the engine switch
off, the display may not be updated.
When “Refuel” is displayed, the
remaining fuel amount is low and
the distance that can be driven with
the remaining fuel cannot be calcu-
lated.
Refuel immediately.

■

Fuel economy

Use the displayed values as a ref-
erence only.

Driving range

Displays driving range with remain-
ing fuel.
This distance is computed based
on your average fuel consumption.
As a result, the actual distance that
can be driven may differ from that
displayed.
When only a small amount of fuel is
added to the tank, the display may
not be updated.
When refueling, turn the engine
switch off. If the vehicle is refueled
without turning the engine switch

off, the display may not be updated.
When “Refuel” is displayed, the
remaining fuel amount is low and
the distance that can be driven with
the remaining fuel cannot be calcu-
lated.
Refuel immediately.

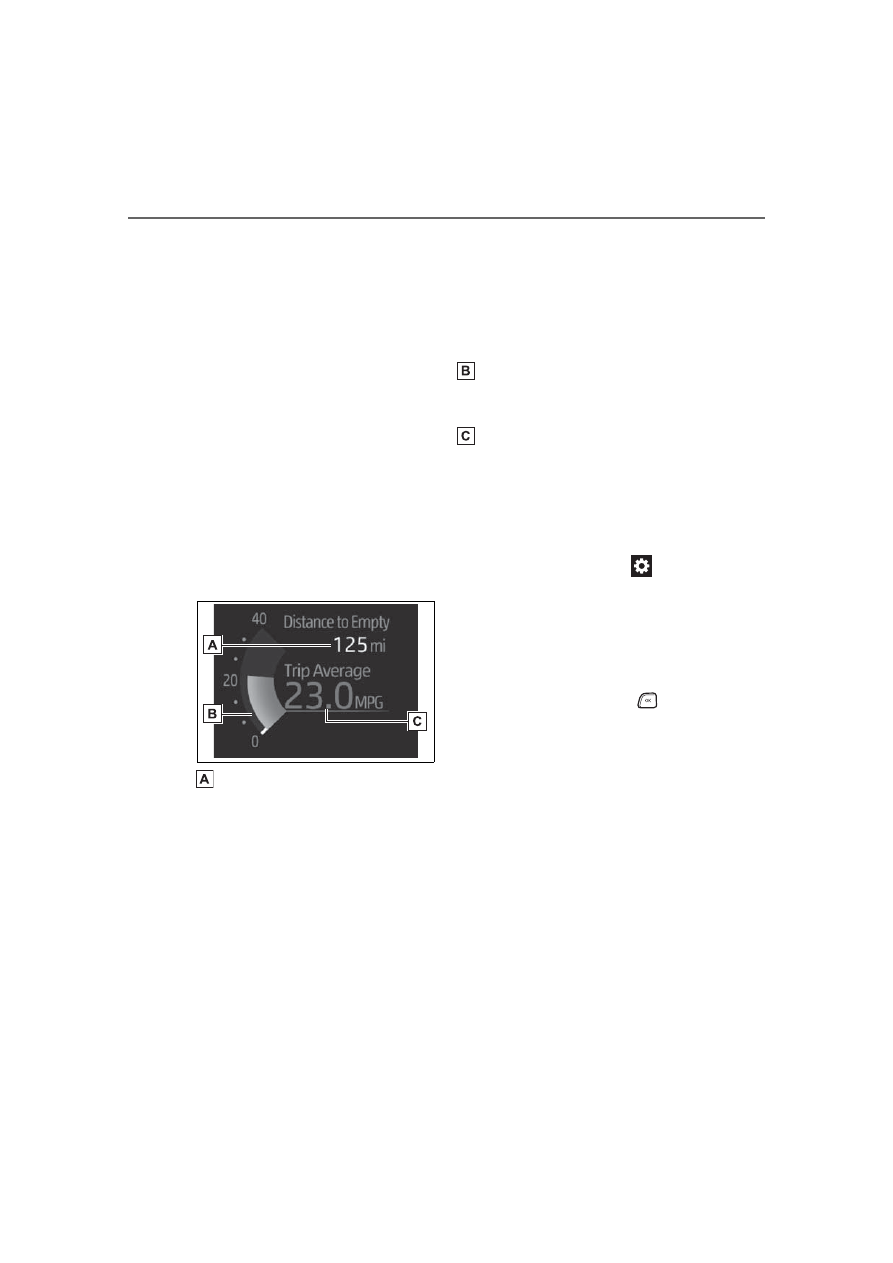

Current fuel economy

Displays the instantaneous current
fuel Economy.

Average fuel economy

Displays the average fuel economy
since the function was reset or the
average fuel economy after starting
or refueling.

*1, 2, 3

The average fuel economy dis-
play can be changed in

(



P.89)

:Use the displayed fuel consump-

tion as a reference only.

:Average fuel economy since the

function was reset can be reset
by pressing and holding

:Average fuel economy after

starting is reset each time the
engine stops.

■

Eco Driving Indicator/Driv-
ing range



Eco Driving Indicator

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

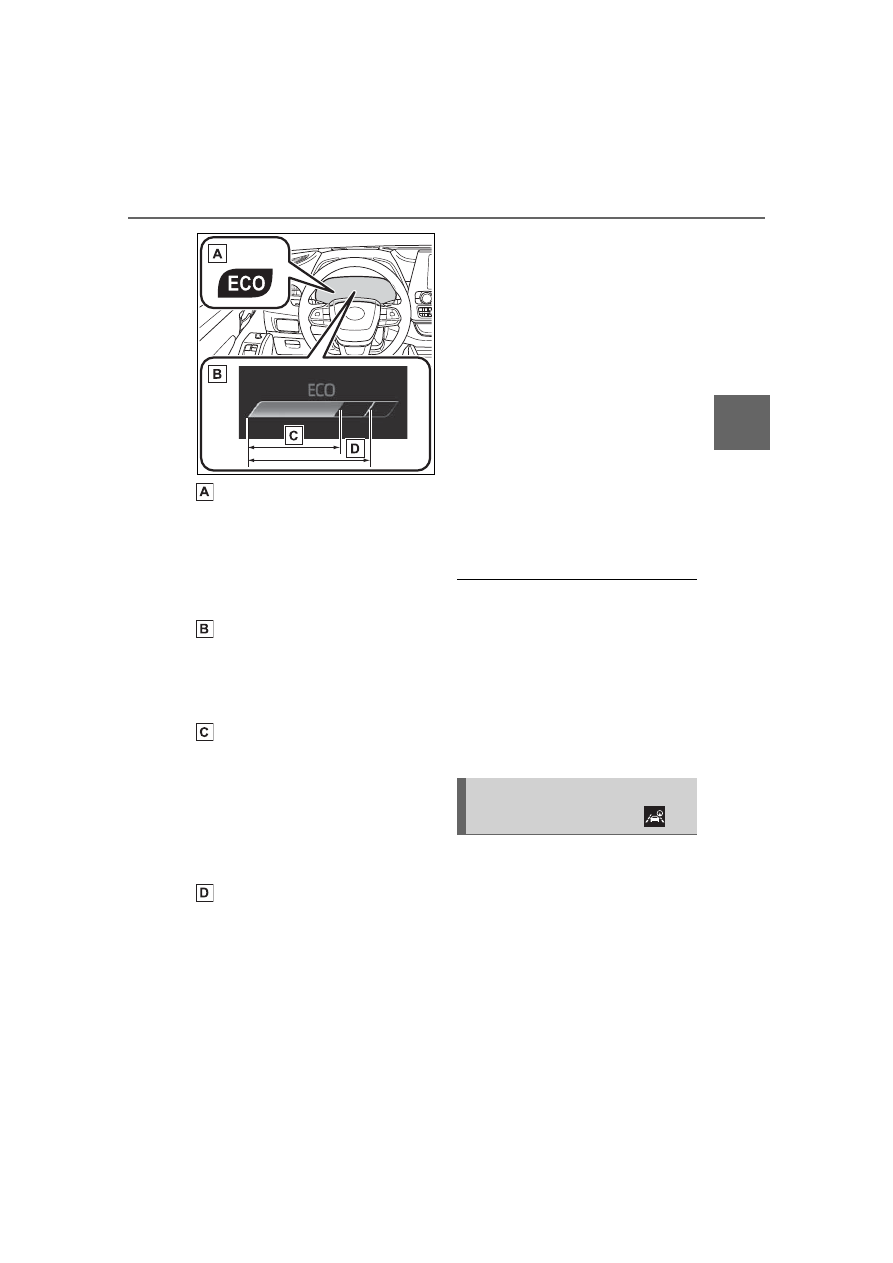

Eco Driving Indicator Light

During Eco-friendly acceleration
(Eco driving), the Eco Driving Indi-
cator Light will turn on. When the
acceleration exceeds the Zone of
Eco driving, or when the vehicle is
stopped, the light turns off.

Eco Driving Indicator Zone
Display

Suggests the Zone of Eco driving
with current Eco driving ratio based
on acceleration.

Eco driving ratio based on
acceleration

If the acceleration exceeds the
Zone of Eco driving, the right side
of the Eco Driving Indicator Zone
Display will illuminate.
At this time, the Eco Driving Indica-
tor Light will turn off.

Zone of Eco driving



Driving range

Displays driving range with remain-
ing fuel. Use the displayed values
as a reference only.

This distance is computed based
on your average fuel consumption.
As a result, the actual distance that
can be driven may differ from that
displayed.
When only a small amount of fuel is
added to the tank, the display may
not be updated.
When refueling, turn the engine
switch off. If the vehicle is refueled
without turning the engine switch
off, the display may not be updated.
When “Refuel” is displayed, the
remaining fuel amount is low and
the distance that can be driven with
the remaining fuel cannot be calcu-
lated.
Refuel immediately.

■

Eco Driving Indicator

Eco Driving Indicator will not oper-

ate under the following conditions:

●

The shift lever is in any position

other than D.

●

The driving mode is set to sport

mode.

●

The vehicle speed is approxi-

mately 80 mph (130 km/h) or

higher.

■

Driving support system
information

Select to display the operational
status of the following systems:



LTA (Lane Tracing Assist)
(



P.246)



RSA (Road Sign Assist) (if
equipped) (



P.269)

Driving support system
information display (

)

2-1. Instrument cluster



Dynamic radar cruise control
with full-speed range
(

Select to enable selection of an
audio source or track on the
meter using the meter control
switches.

This menu icon can be set to be
displayed/not displayed in

■

Drive information

2 items that are selected using
the “Drive Info Items” setting
(average speed, distance and
total time) can be displayed ver-
tically.
The displayed information
changes according to the “Drive
Info Type” setting (since the sys-
tem was started or between
resets). (



P.89)

Use the displayed information
as a reference only.
Following items will be dis-
played.



“Trip”

• “Average Speed”: Displays the

average vehicle speed since
engine start

• “Distance”: Displays the distance

driven since engine start

• “Total Time”: Displays the elapsed

time since engine start

: These items are reset each time

the engine stops.



“Total”

• “Average Speed”: Displays the

average vehicle speed since the
display was reset

• “Distance”: Displays the distance

driven since the display was
reset

• “Total Time”: Displays the elapsed

time since the display was reset

: To reset, display the desired item

and press and hold

■

Tire pressure

P.420

■

AWD Control (if equipped)

The illustration used is intended as
an example, and may differ from the
image that is actually displayed on
the multi-information display.

Torque distribution display

Displays the drive status of each
wheel in 6 steps from 0 to 5.

G-force display

Displays the size and direction of

Audio system-linked dis-
play (

)

Vehicle information dis-
play (

)

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

the G-force applied to the vehicle
via changes to the position of the
ball on the display.

Maximum G-force course

This item is linked with the G-force
display and the course of the past
movement of the ball is displayed.
Press and hold

to reset the

record.

Wheel spin display

When a tire is spinning, its icon on
the display changes its color and
blinks.

: This item is displayed only when

driving mode is set to sport mode.

■

Tire pressure

• It may take a few minutes to dis-

play the tire inflation pressure

after the engine switch is turned to

ON. It may also take a few min-

utes to display the tire inflation

pressure after inflation pressure

has been adjusted.

• “---” may be displayed if the tire

position information cannot be

determined due to unfavorable

radio wave conditions.

• Tire inflation pressure changes

with temperature. The displayed

values may also be different from

the values measured using a tire

pressure gauge.

■

Changing settings

Use the meter control switches
on the steering wheel to change
settings.

Press

of the meter

control switch to select

Press

of the meter

control switch to select the
desired item to be custom-
ized.

Press or press and hold

The available settings will differ
depending on if

is pressed or

pressed and held. Follow the

instructions on the display.

■

Setting items



LTA (Lane Tracing Assist)

(



P.246)

Press and hold

to change the

settings of the following items:
• “Lane Center”
Select to enable/disable the lane
centering function.
• “Sensitivity”
Select to set the warning sensitivity.
• “Sway Warning”
Select to enable/disable the vehicle
sway warning.
• “Sway Sensitivity”
Select to set the vehicle sway warn-
ing sensitivity.



PCS (Pre-Collision Sys-

tem) (

P.235)

Press

to enable/disable the

pre-collision system.
• PCS (Pre-Collision System)

on/off

Select to enable/disable the
pre-collision system.

Press and hold

to change the

settings of the following item:

Settings display (

)

2-1. Instrument cluster

• “Sensitivity”
Select to change the pre-collision
warning timing.



DRCC (Dynamic Radar

Cruise Control with full-speed
range) (

Press and hold

to change the

settings of the following items:
• “Curve Speed Reduction”

(

P.264)

Select to set the curve speed
reduction function strength.



BSM (Blind Spot Monitor)

(if equipped) (

P.278)

Press

to enable/disable the

Blind Spot Monitor function.
• BSM (Blind Spot Monitor) on/off
Select to enable/disable the Blind
Spot Monitor function.

Press and hold

to change the

settings of the following items:
• “Brightness”
Select to switch the brightness of
the outside rear view mirror indica-
tors. (



P.278)

• “Sensitivity”
Select to change the alert timing for
an approaching vehicle.



RCTA (Rear Cross Traffic

Alert) (if equipped) (

P.293)

Press

to enable/disable the

Rear Cross Traffic Alert function.
• RCTA (Rear Cross Traffic Alert)

on/off

Select to enable/disable the Rear

Cross Traffic Alert function.

Press and hold

to change the

settings of the following item:
• “Volume”
Select to change the volume of the
RCTA buzzer.



RSA (Road Sign Assist) (if

equipped) (



P.269)

Press

to enable/disable the

Road Sign Assist.
• RSA (Road Sign Assist) on/off
Select to enable/disable the Road
Sign Assist.

Press and hold

to change the

settings of the following items:
• “Notification Method”
Select to change each notification
method used to notify the driver
when the system recognizes
excess speed and no-entry sign.
• “Notification Level”
Select to change each notification
level used to notify the driver when
the system recognizes a speed limit
sign.

■

Vehicle settings

Press and hold

to change

the settings of the following
items:



PBD (Power Back Door)

(if equipped) (



P.121)

• “System Settings”
Select to enable/disable the power
back door system.
• “Opening Adjustment”

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

Select the open position when
power back door is fully open.
• “Volume”
Select to set the volume of the
buzzer which sounds when the
power back door system operates.



(Stop & Start) (if

equipped) (

P.272)

Select to set the length of time the
Stop & Start system will operate
when the “A/C” switch of the air
conditioning system is on.



“TPWS” (Tire Pressure Warn-
ing System) (



P.420)

• “Set Pressure” (tire pressure

warning system initialization)

Select to initialize the tire pressure
warning system.
• “Change Wheel” (register tire

pressure warning system sensor
ID codes)

Select to register the ID codes of
the tire pressure sensors to the tire
pressure warning system.



“Rear Seat Reminder”
(

P.119)

Select to enable/disable the rear
seat reminder.



“Scheduled Maintenance”
(

P.401)

Select to reset the scheduled main-
tenance information (maintenance
required message and distance
until maintenance necessary) after
all maintenance is performed.



“Oil Maintenance” (



P.410)

Select to reset the oil maintenance
information (maintenance required
message and distance until mainte-

nance necessary) after an oil
change is performed.

■

Meter settings

Press and hold

to change

the settings of the following
items:



Language

Select to change the language dis-
played.



Units

Select to change the units of mea-
sure displayed.



Eco Driving Indicator Light

(



P.86)

Select to enable/disable the Eco
Driving Indicator Light.



Fuel economy display
Select to change the average fuel
consumption display between after
start/after reset. (



P.86)



Select to display/not display the
audio system linked display.



Select to change the displayed con-
tent of the following:
• Display contents
Select to display/not display the
AWD control (if equipped). (

P.88)

• Drive information type
Select to change the drive informa-
tion type display between after
start/after reset.
• Drive information items

2-1. Instrument cluster

Select to set the first and second
items of the drive information dis-
play to any of the following: aver-
age vehicle
speed/distance/elapsed time.



Pop-up display

Select to enable/disable pop-up
displays for each relevant system.



Multi-information display off

Displays a blank screen.



Default setting

Select to reset the meter display
settings to the default setting.

■

Vehicle functions and set-
tings that can be changed



P.521

■

Suspension of the settings dis-

play

●

Some settings cannot be changed

while driving. When changing set-

tings, park the vehicle in a safe

place.

●

If a warning message is displayed,

operation of the settings display

will be suspended.

■

Pop-up displays

Depending on the pop-up display,

the currently displayed item in the

message display area may be tem-

porarily not displayed. The item will

be displayed after the pop-up dis-

play is no longer displayed.

Select to display warning mes-
sages and measures to be
taken if a malfunction is
detected. (
