1-1. For safe use

For safety and secu

rity

To fasten the seat belt, push
the plate into the buckle until
a click sound is heard.

To release the seat belt,
press the release button .

■

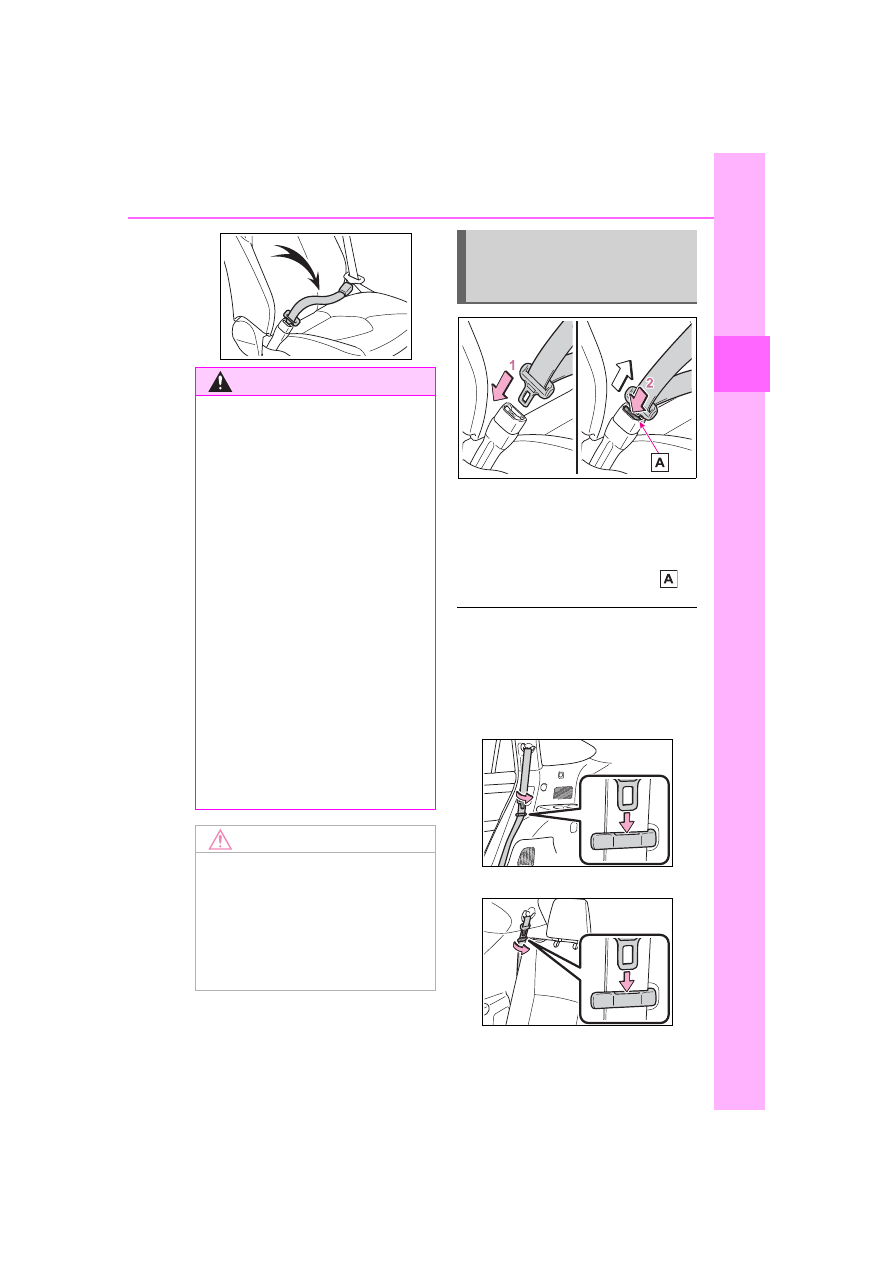

When not using the rear seat

belts

Pass the outer seat belts through

the seat belt hangers and secure

the seat belt plates to prevent the

shoulder belts from being damaged.



Second seat belts



Third seat belts

WARNING

■

Using a seat belt extender

Observe the following precautions

to reduce the risk of injury in the

event of sudden braking, sudden

swerving or an accident. Failure

to do so may cause death or seri-

ous injury.

●

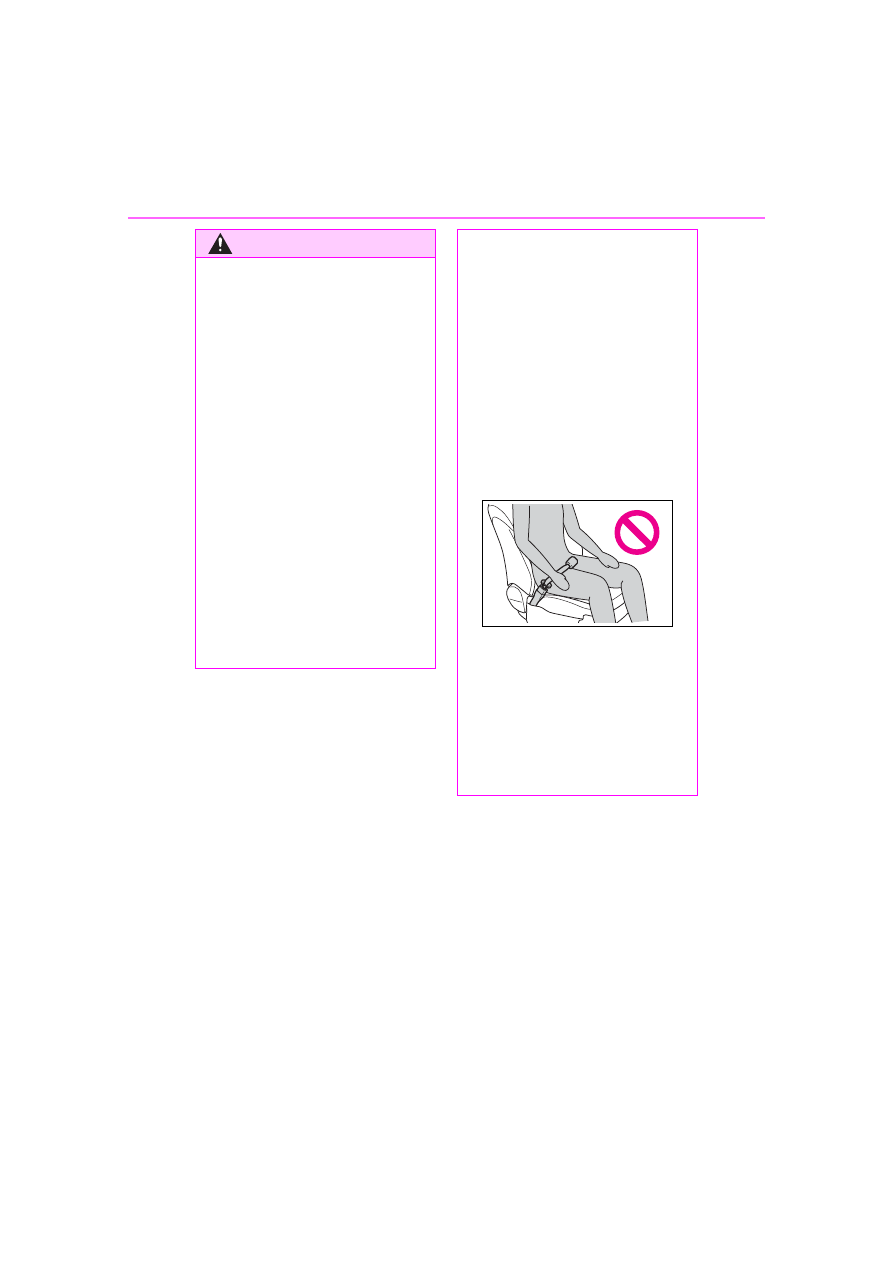

Do not wear the seat belt

extender if you can fasten the

seat belt without the extender.

●

Do not use the seat belt

extender when installing a child

restraint system because the

belt will not securely hold the

child restraint system, increas-

ing the risk of death or serious

injury in the event of an acci-

dent.

●

The personalized extender may

not be safe on another vehicle,

when used by another person,

or at a different seating position

other than the one originally

intended.

NOTICE

■

When using a seat belt

extender

When releasing the seat belt,

press on the buckle release but-

ton on the extender, not on the

seat belt. This helps prevent dam-

age to the vehicle interior and the

extender itself.

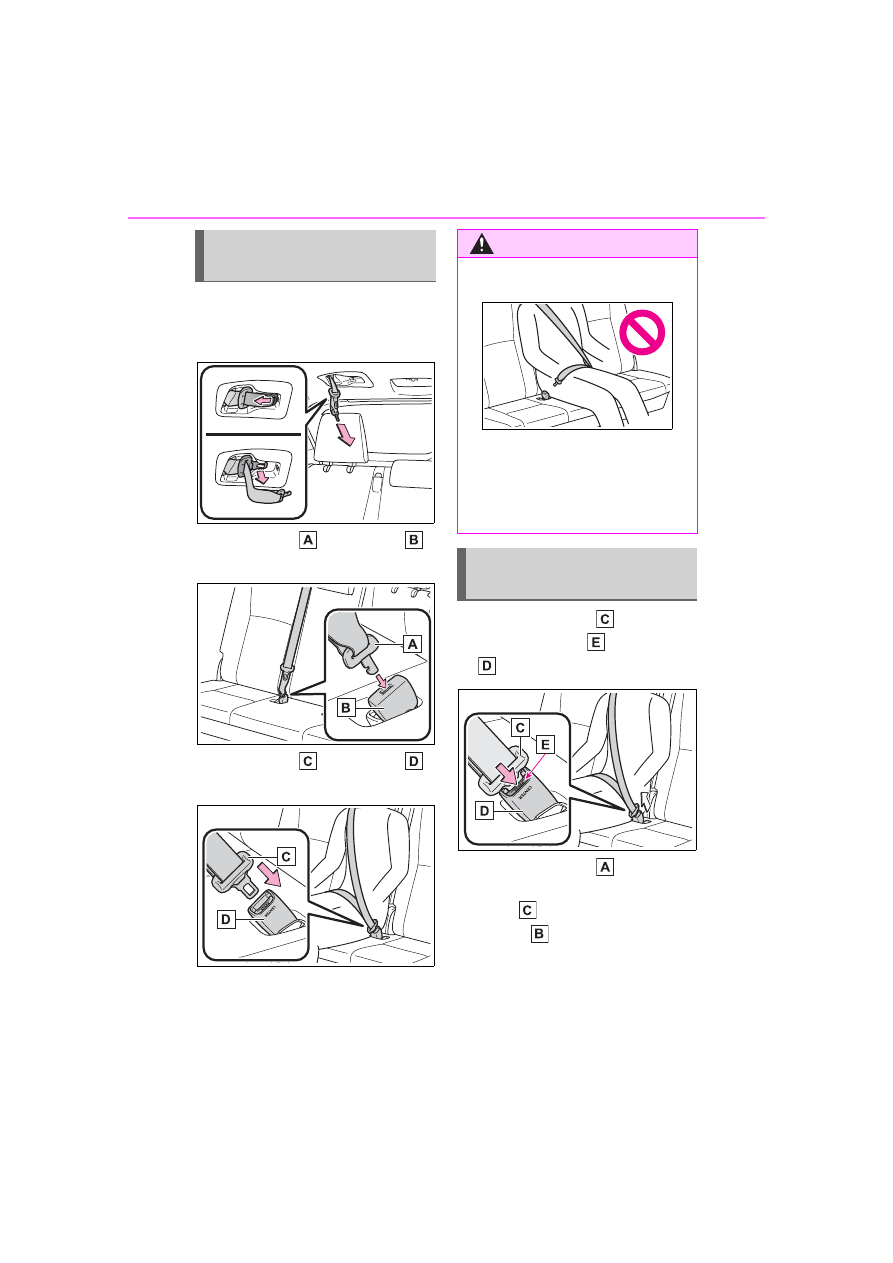

Fastening and releasing
the seat belt (except for
the third center seat)

1-1. For safe use

Take the plate out of the
holder, and then pull down
the seat belt.

Push plate into buckle
until a click sound is heard.

To release plate , press the
release button on buckle

To release plate , insert the
mechanical key (



P.114) or

plate into the hole on
buckle .

Retract the belt slowly when releas-

Fastening the seat belt
(for the third center seat)

WARNING

■

When using the third center

seat belt

Do not use the third center seat

belt with either buckle released.

Fastening only one of the buckles

may result in death or serious

injury in case of sudden braking,

sudden swerving or a collision.

Fastening the seat belt
(for the third center seat)

1-1. For safe use

For safety and secu

rity

ing and stowing the seat belt.

Stow the plate and in
the holder on the roof.

In order to securely stow them,

firmly insert them as far as possi-

ble.

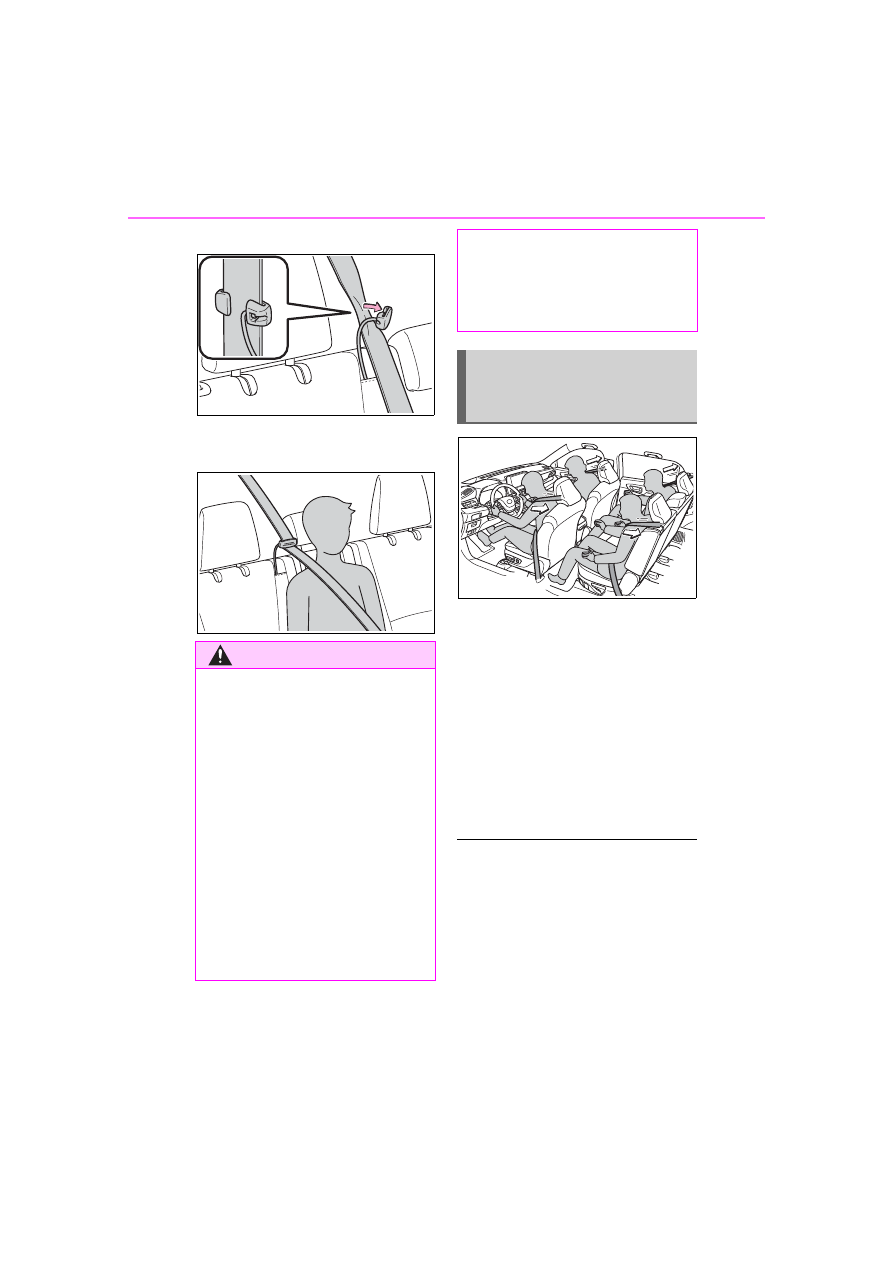

Push the seat belt shoulder
anchor down while pressing
the release button .

Push the seat belt shoulder

anchor up while pressing the
release button .

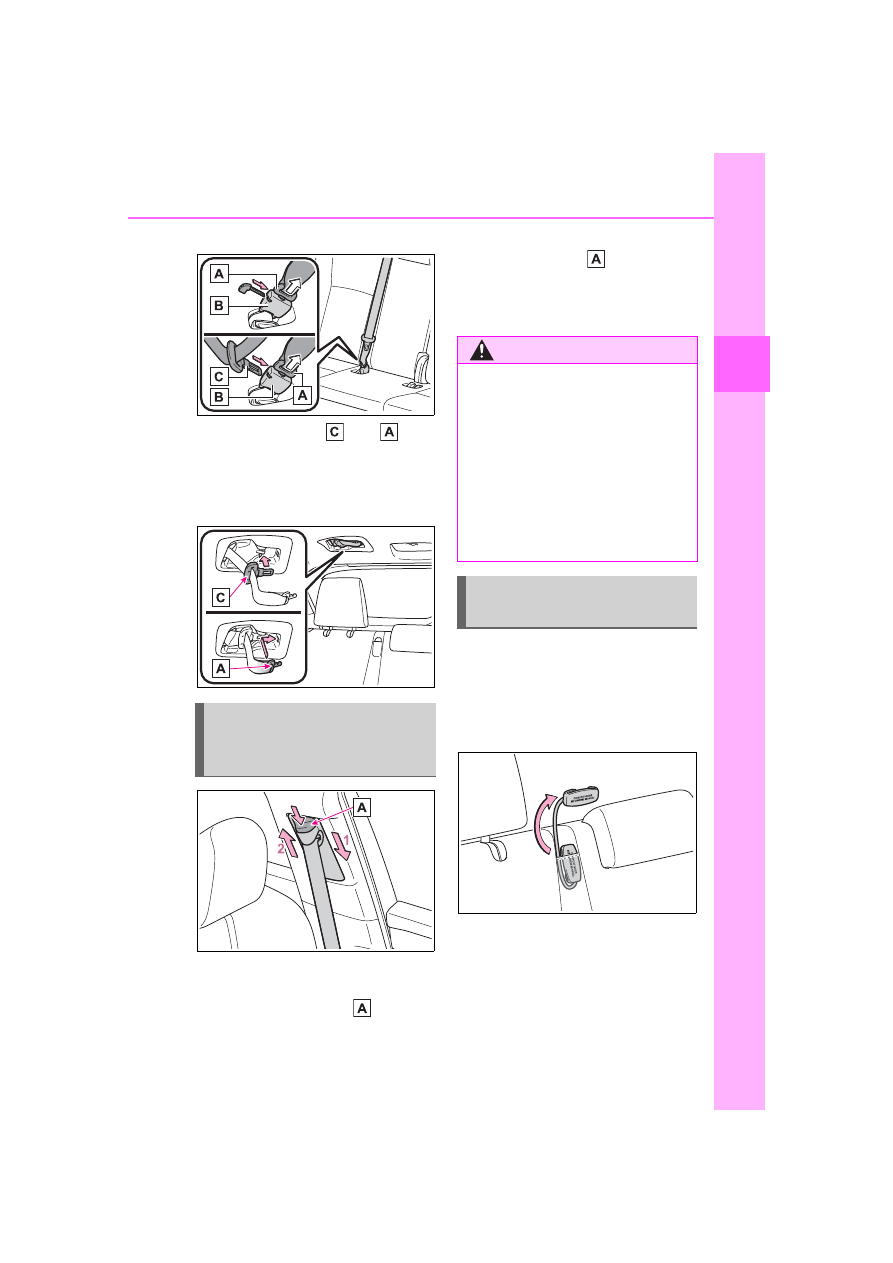

Move the height adjuster up and
down as needed until you hear a
click.

If the shoulder belt sits close to
a person’s neck, use the seat
belt comfort guide.

Pull the comfort guide from
the pocket.

Slide the belt past the slot of
the guide.

The elastic cord must be behind the

Adjusting the seat belt
shoulder anchor height
(front seats)

WARNING

■

Adjustable shoulder anchor

Always make sure the shoulder

belt is positioned across the cen-

ter of your shoulder. The belt

should be kept away from your

neck, but not falling off your shoul-

der. Failure to do so could reduce

the amount of protection in an

accident and cause death or seri-

ous injuries in the event of a sud-

den stop, sudden swerve or

accident.

Seat belt comfort guide
(for the third center seat)

1-1. For safe use

seat belt.

Buckle the seat belt and posi-
tion it comfortably.

The pretensioners help the seat
belts to quickly restrain the
occupants by retracting the seat
belts when the vehicle is sub-
jected to certain types of severe
frontal or side collision or a vehi-
cle rollover.

The pretensioners do not activate
in the event of a minor frontal
impact, a minor side impact or a
rear impact.

■

Replacing the belt after the pre-

tensioner has been activated

If the vehicle is involved in multiple

collisions, the pretensioner will acti-

vate for the first collision, but will not

activate for the second or subse-

quent collisions.

■

PCS-linked seat belt preten-

sioner control

If the PCS (Pre-Collision System)

determines that the possibility of a

collision with a vehicle is high, the

WARNING

■

Using a seat belt comfort

guide

Failure to observe the following

precautions could reduce the

effectiveness of the seat belt in an

accident, causing death or seri-

ous injury.

●

Make sure the belt is not twisted

and that it lies flat. The elastic

cord must be behind the belt

and the guide must be on the

front.

●

To reduce the chance of injury

in case of a sudden stop, sud-

den swerve or accident while

driving, remove and store the

comfort guide in its pocket when

it is not in use.

●

Always make sure the shoulder

belt is positioned across the

center of the shoulder. The belt

should be kept away from the

neck, and should not fall off the

shoulder.

Seat belt pretensioners
(front and outboard sec-
ond seats)

1-1. For safe use

For safety and secu

rity

seat belt pretensioners will be pre-

pared to operate.

WARNING

■

Seat belt pretensioners

Observe the following precautions

to reduce the risk of injury in the

event of sudden braking, sudden

swerving or an accident. Failure

to do so may cause death or seri-

ous injury.

●

Do not place anything, such as

a cushion, on the front passen-

ger’s seat. Doing so will

disperse the passenger’s

weight, which prevents the sen-

sor from detecting the passen-

ger’s weight properly. As a

result, the seat belt pretensioner

for the front passenger’s seat

may not activate in the event of

a collision.

●

If the pretensioner has acti-

vated, the SRS warning light will

come on. In that case, the seat

belt cannot be used again and

must be replaced at your Toyota

dealer.

1-1. For safe use

■

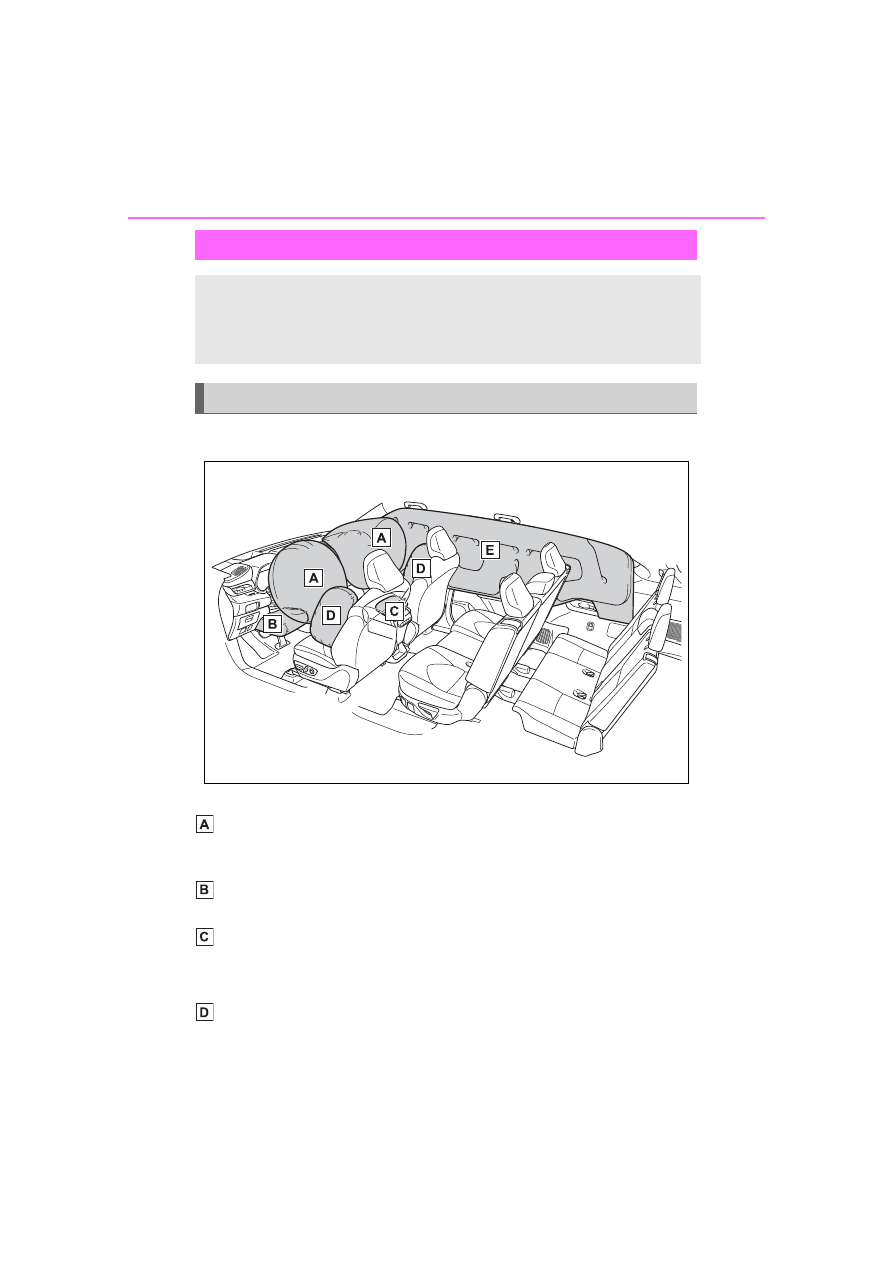

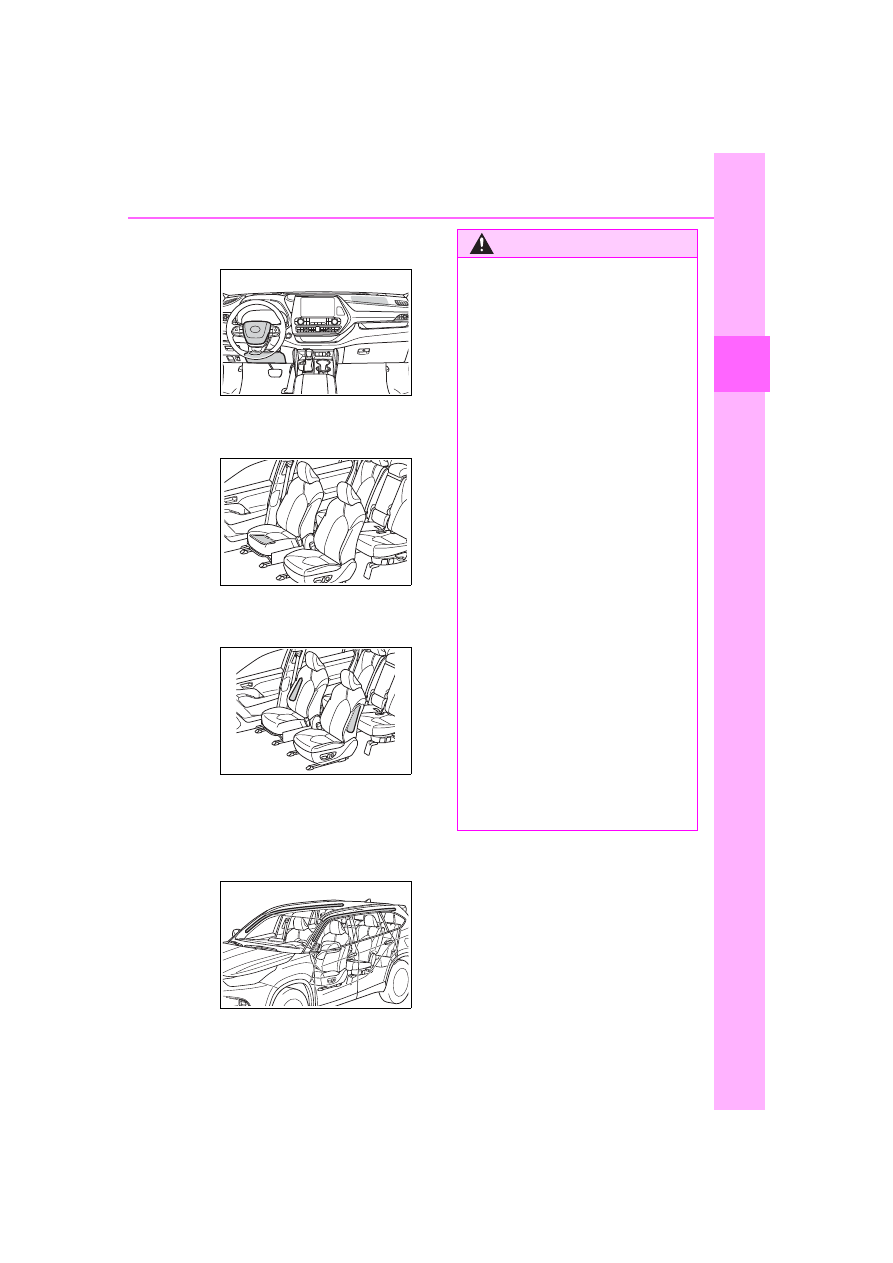

Location of the SRS airbags



SRS front airbags

SRS driver airbag/front passenger airbag

Can help protect the head and chest of the driver and front passenger from
impact with interior components

SRS knee airbag

Can help provide driver protection

SRS seat cushion airbag

Can help restrain the front passenger



SRS side and curtain shield airbags

SRS front side airbags

Can help protect the torso of the front seat occupants

SRS airbags

The SRS airbags inflate when the vehicle is subjected to cer-
tain types of severe impacts that may cause significant injury
to the occupants. They work together with the seat belts to
help reduce the risk of death or serious injury.

SRS airbag system

1-1. For safe use

For safety and secu

rity

SRS curtain shield airbags

• Can help protect primarily the head of occupants in the outer seats
• Can help prevent the occupants from being thrown from the vehicle in the

event of vehicle rollover

■

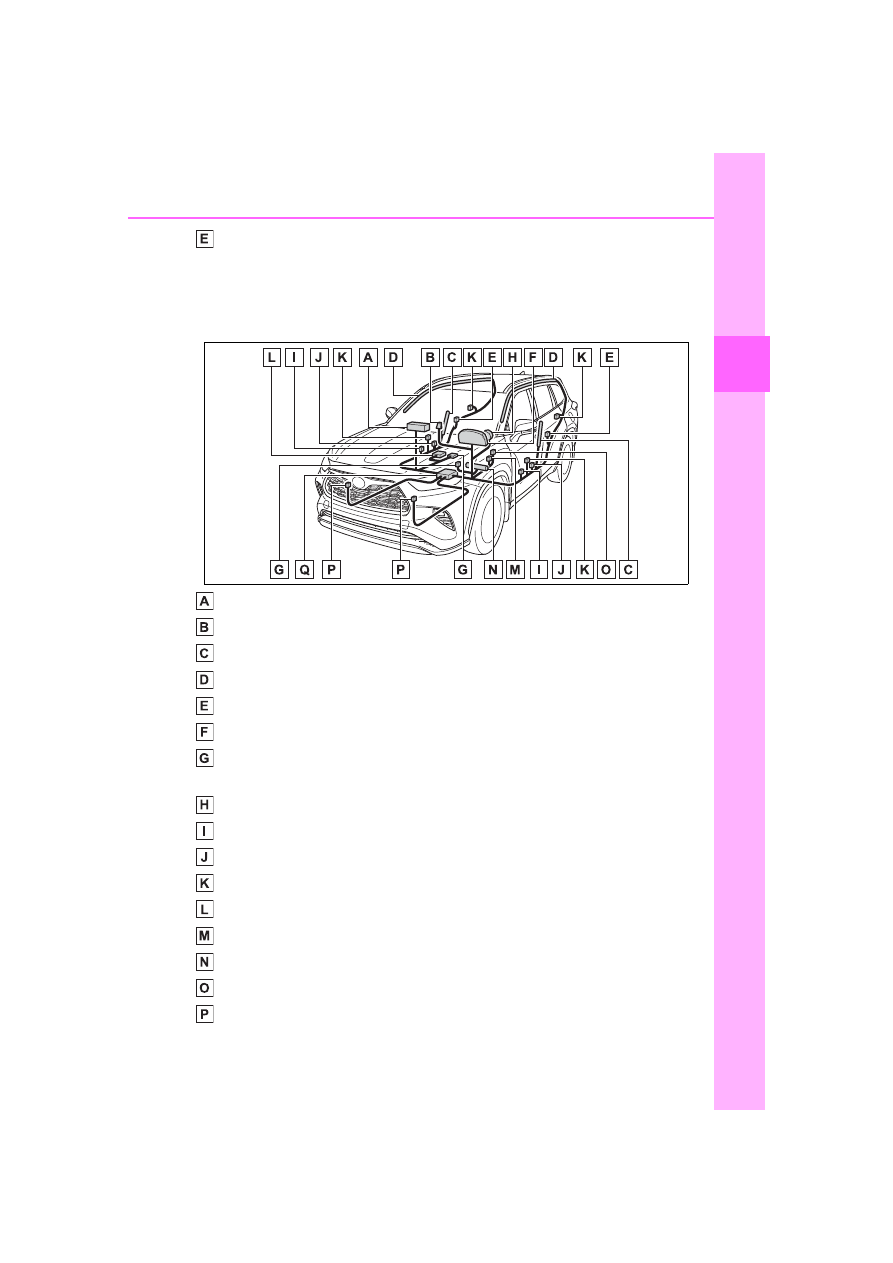

SRS airbag system components

Front passenger airbag
“PASS AIR BAG ON” and “PASS AIR BAG OFF” indicator lights
Front side airbags
Curtain shield airbags
Side impact sensors (rear)
SRS warning light
Front passenger occupant classification system (ECU and sen-
sors)
Driver airbag
Side impact sensors (front door)
Side impact sensors (front)
Seat belt pretensioners and force limiters
Seat cushion airbag
Driver’s seat position sensor
Driver’s knee airbag
Driver’s seat belt buckle switch
Front impact sensors

1-1. For safe use

Airbag sensor assembly

Your vehicle is equipped with ADVANCED AIRBAGS designed
based on the US motor vehicle safety standards (FMVSS208). The
airbag sensor assembly (ECU) controls airbag deployment based on
information obtained from the sensors etc. shown in the system
components diagram above. This information includes crash sever-
ity and occupant information. As the airbags deploy, a chemical
reaction in the inflators quickly fills the airbags with non-toxic gas to
help restrain the motion of the occupants.

■

If the SRS airbags deploy

(inflate)

●

Slight abrasions, burns, bruising

etc., may be sustained from SRS

airbags, due to the extremely high

speed deployment (inflation) by

hot gases.

●

A loud noise and white powder will

be emitted.

●

Parts of the airbag module (steer-

ing wheel hub, airbag cover and

inflator) as well as the front seats,

parts of the front and rear pillars,

and roof side rails, may be hot for

several minutes. The airbag itself

may also be hot.

●

The windshield may crack.

●

All of the doors will be unlocked.

(



P.118)

●

The brakes and stop lights will be

controlled automatically. (



P.319)

●

The interior lights will turn on auto-

matically. (



P.363)

●

The emergency flashers will turn

on automatically. (



P.448)

●

Fuel supply to the engine will be

stopped. (



P.455)

●

For Safety Connect subscribers, if

any of the following situations

occur, the system is designed to

send an emergency call to the

response center, notifying them of

the vehicle’s location (without

needing to push the “SOS” button)

and an agent will attempt to speak

with the occupants to ascertain

the level of emergency and assis-

tance required. If the occupants

are unable to communicate, the

agent automatically treats the call

as an emergency and helps to dis-

patch the necessary emergency

services. (



P.65)

• An SRS airbag is deployed.

• A seat belt pretensioner is acti-

vated.

• The vehicle is involved in a severe

rear-end collision.

■

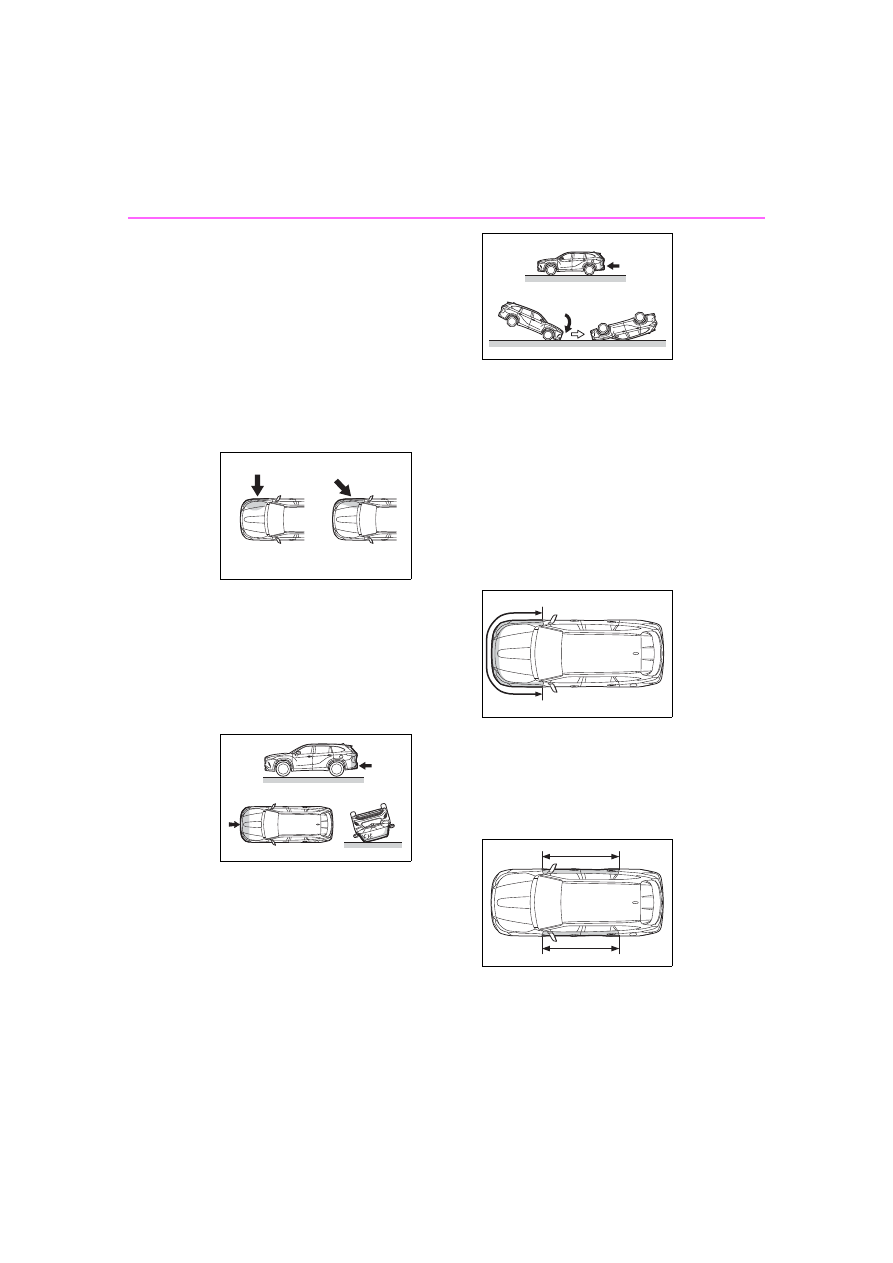

SRS airbag deployment condi-

tions (SRS front airbags)

●

The SRS front airbags will deploy

in the event of an impact that

exceeds the set threshold level

(the level of force corresponding

to an approximately 12 - 18 mph

[20 - 30 km/h] frontal collision with

a fixed wall that does not move or

deform).

However, this threshold velocity will
be considerably higher in the follow-
ing situations:
• If the vehicle strikes an object,

such as a parked vehicle or sign

pole, which can move or deform

on impact

• If the vehicle is involved in an

underride collision, such as a colli-

sion in which the front of the vehi-

cle “underrides”, or goes under,

the bed of a truck

●

Depending on the type of collision,

it is possible that only the seat belt

pretensioners and SRS seat cush-

ion airbag will activate.

1-1. For safe use

For safety and secu

rity

●

The SRS front airbags for the front

passenger will not activate if there

is no passenger sitting in the front

passenger seat. However, the

SRS front airbags for the front

passenger may deploy if luggage

is put in the seat, even if the seat

is unoccupied.

●

The SRS seat cushion airbag on

the front passenger seat will not

operate if the occupant is not

wearing a seat belt.

■

SRS airbag deployment condi-

tions (SRS side and curtain

shield airbags)

●

The SRS side and curtain shield

airbags will deploy in the event of

an impact that exceeds the set

threshold level (the level of force

corresponding to the impact force

produced by an approximately

3300 lb. [1500 kg] vehicle colliding

with the vehicle cabin from a

direction perpendicular to the

vehicle orientation at an approxi-

mate speed of 12 - 18 mph [20 -

30 km/h]).

●

Both SRS curtain shield airbags

may deploy in the event of a

severe side collision.

●

Both SRS curtain shield airbags

will deploy in the event of vehicle

rollover.

●

Both SRS curtain shield airbags

may also deploy in the event of a

severe frontal collision.

■

Conditions under which the

SRS airbags may deploy

(inflate), other than a collision

The SRS front airbags and SRS cur-

tain shield airbags may also deploy

if a serious impact occurs to the

underside of your vehicle. Some

examples are shown in the illustra-

tion.

●

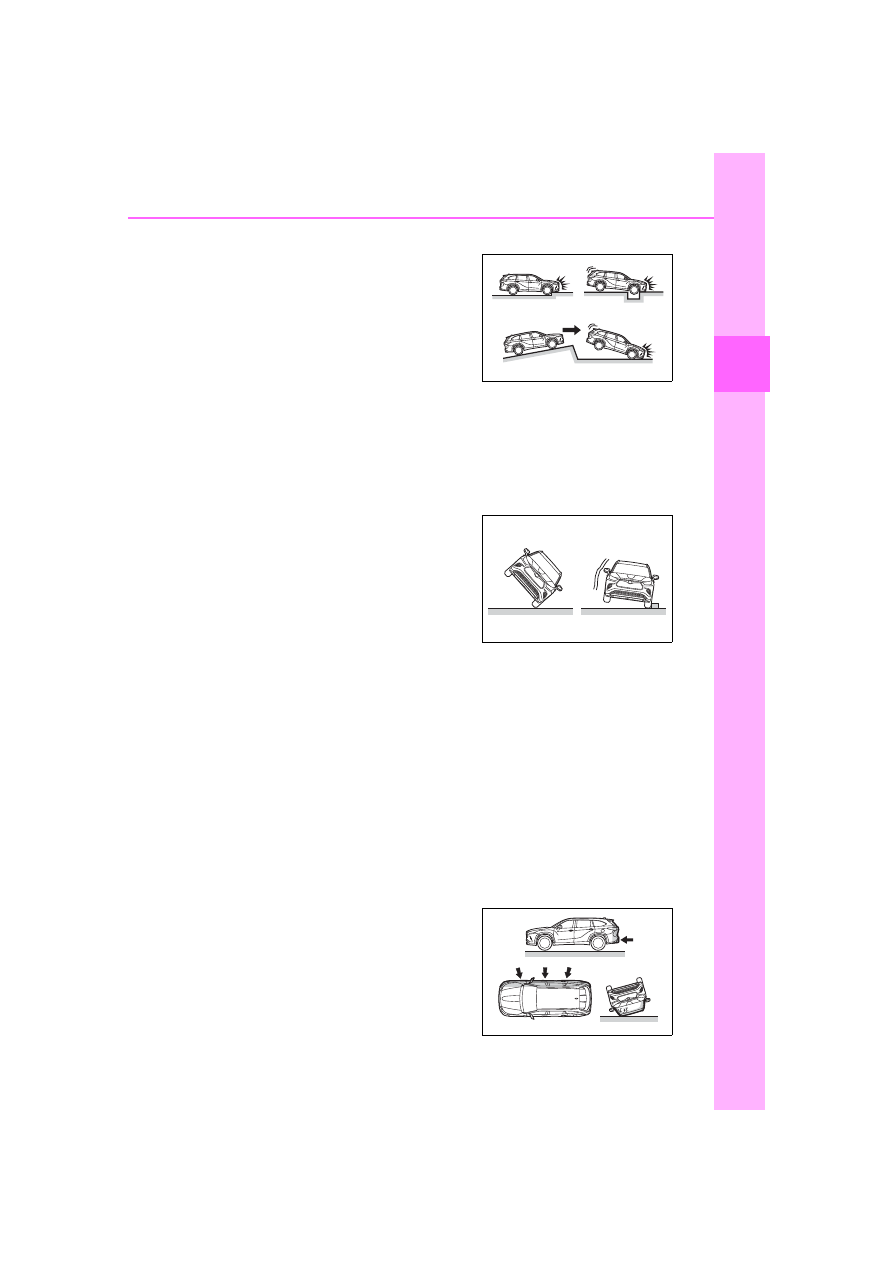

Hitting a curb, edge of pavement

or hard surface

●

Falling into or jumping over a deep

hole

●

Landing hard or falling

The SRS curtain shield airbags may

also deploy under the situations

shown in the illustration.

●

The angle of vehicle tip-up is mar-

ginal.

●

The vehicle skids and hits a curb

stone.

■

Types of collisions that may not

deploy the SRS airbags (SRS

front airbags)

The SRS front airbags do not gener-

ally inflate if the vehicle is involved

in a side or rear collision, if it rolls

over, or if it is involved in a

low-speed frontal collision. But,

whenever a collision of any type

causes sufficient forward decelera-

tion of the vehicle, deployment of

the SRS front airbags may occur.

●

Collision from the side

●

Collision from the rear

●

Vehicle rollover

1-1. For safe use

■

Types of collisions that may not

deploy the SRS airbags (SRS

side and curtain shield airbags)

The SRS side and curtain shield air-

bags may not activate if the vehicle

is subjected to a collision from the

side at certain angles, or a collision

to the side of the vehicle body other

than the passenger compartment.

●

Collision from the side to the vehi-

cle body other than the passenger

compartment

●

Collision from the side at an angle

The SRS side airbags do not gener-

ally inflate if the vehicle is involved

in a frontal or rear collision, if it rolls

over, or if it is involved in a

low-speed side collision.

●

Collision from the front

●

Collision from the rear

●

Vehicle rollover

The SRS curtain shield airbags do

not generally inflate if the vehicle is

involved in a rear collision, if it

pitches end over end, or if it is

involved in a low-speed side or

low-speed frontal collision.

●

Collision from the rear

●

Pitching end over end

■

When to contact your Toyota

dealer

In the following cases, the vehicle

will require inspection and/or repair.

Contact your Toyota dealer as soon

as possible.

●

Any of the SRS airbags have

been inflated.

●

The front of the vehicle is dam-

aged or deformed, or was

involved in an accident that was

not severe enough to cause the

SRS front airbags to inflate.

●

A portion of a door or its surround-

ing area is damaged, deformed or

has had a hole made in it, or the

vehicle was involved in an acci-

dent that was not severe enough

to cause the SRS side and curtain

shield airbags to inflate.

●

The pad section of the steering

wheel, dashboard near the front

passenger airbag or lower portion

of the instrument panel is

1-1. For safe use

For safety and secu

rity

scratched, cracked, or otherwise

damaged.

●

The front passenger’s seat cush-

ion surface is scratched, cracked,

or otherwise damaged.

●

The surface of the seats with the

SRS side airbag is scratched,

cracked, or otherwise damaged.

●

The portion of the front pillars, rear

pillars or roof side rail garnishes

(padding) containing the SRS cur-

tain shield airbags inside is

scratched, cracked, or otherwise

damaged.

WARNING

■

SRS airbag precautions

Observe the following precautions

regarding the SRS airbags.

Failure to do so may cause death

or serious injury.

●

The driver and all passengers in

the vehicle must wear their seat

belts properly.

The SRS airbags are supple-

mental devices to be used with

the seat belts.

●

The SRS driver airbag deploys

with considerable force, and

can cause death or serious

injury especially if the driver is

very close to the airbag. The

National Highway Traffic Safety

Administration (NHTSA)

advises:

Since the risk zone for the

driver’s airbag is the first 2 - 3

in. (50 - 75 mm) of inflation,

placing yourself 10 in. (250 mm)

from your driver airbag provides

you with a clear margin of

safety. This distance is mea-

sured from the center of the

steering wheel to your breast-

bone. If you sit less than 10 in.

(250 mm) away now, you can

change your driving position in

several ways:

• Move your seat to the rear as

far as you can while still reach-

ing the pedals comfortably.

1-1. For safe use

WARNING

• Slightly recline the back of the

seat.

Although vehicle designs vary,

many drivers can achieve the

10 in. (250 mm) distance, even

with the driver seat all the way

forward, simply by reclining the

back of the seat somewhat. If

reclining the back of your seat

makes it hard to see the road,

raise yourself by using a firm,

non-slippery cushion, or raise

the seat if your vehicle has that

feature.

• If your steering wheel is adjust-

able, tilt it downward. This

points the airbag toward your

chest instead of your head and

neck.

The seat should be adjusted as

recommended by NHTSA above,

while still maintaining control of

the foot pedals, steering wheel,

and your view of the instrument

panel controls.

●

If the seat belt extender has

been connected to the front

seat belt buckles but the seat

belt extender has not also been

fastened to the latch plate of the

seat belt, the SRS front airbags

will judge that the driver and

front passenger are wearing the

seat belt even though the seat

belt has not been connected. In

this case, the SRS front airbags

may not activate correctly in a

collision, resulting in death or

serious injury in the event of a

collision. Be sure to wear the

seat belt with the seat belt

extender.

●

The SRS front passenger air-

bag also deploys with consider-

able force, and can cause death

or serious injury especially if the

front passenger is very close to

the airbag. The front passenger

seat should be as far from the

airbag as possible with the seat-

back adjusted, so the front pas-

senger sits upright.

1-1. For safe use

For safety and secu

rity

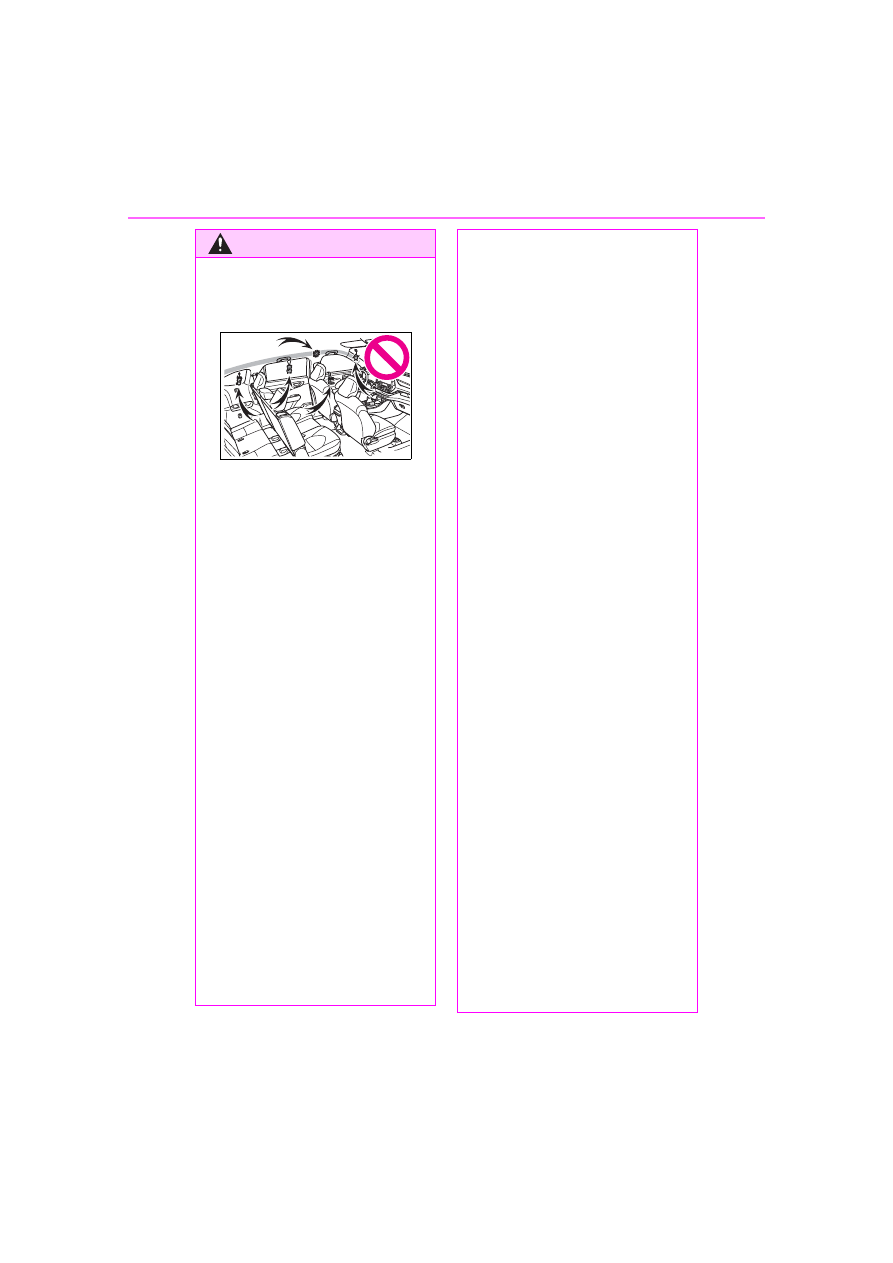

WARNING

●

Improperly seated and/or

restrained infants and children

can be killed or seriously injured

by a deploying airbag. An infant

or child who is too small to use

a seat belt should be properly

secured using a child restraint

system. Toyota strongly recom-

mends that all infants and chil-

dren be placed in the rear seats

of the vehicle and properly

restrained. The rear seats are

safer for infants and children

than the front passenger seat.

(



P.50)

●

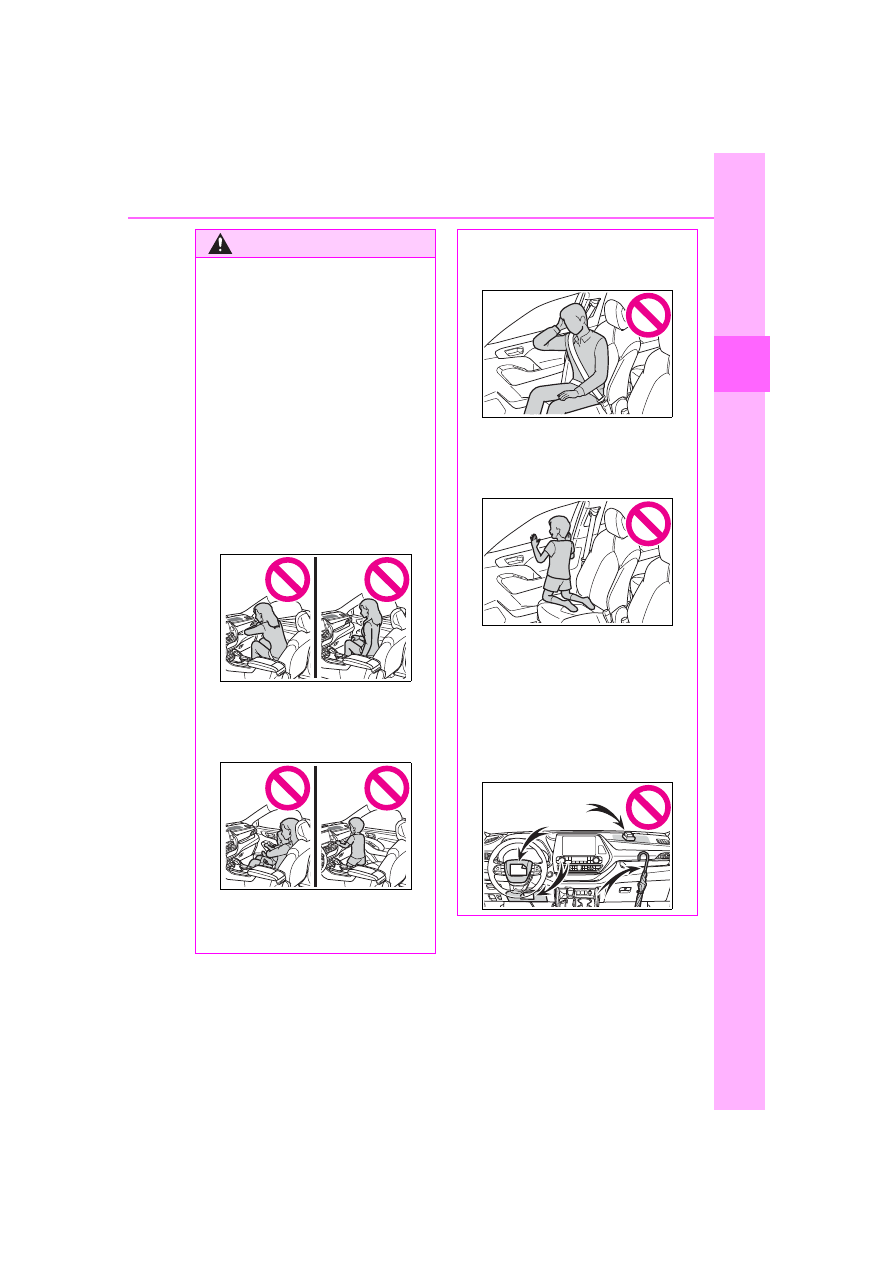

Do not sit on the edge of the

seat or lean against the dash-

board.

●

Do not allow a child to stand in

front of the SRS front passenger

airbag unit or sit on the knees of

a front passenger.

●

Do not allow the front seat occu-

pants to hold items on their

knees.

●

Do not lean against the door,

the roof side rail or the front,

side and rear pillars.

●

Do not allow anyone to kneel on

the passenger seat toward the

door or put their head or hands

outside the vehicle.

●

Do not attach anything to or

lean anything against areas

such as the dashboard, steering

wheel pad and lower portion of

the instrument panel.

These items can become pro-

jectiles when the SRS driver,

front passenger and knee air-

bags deploy.

1-1. For safe use

WARNING

●

Do not attach anything to areas

such as a door, windshield, side

windows, front or rear pillar, roof

side rail and assist grip.

●

Do not hang coat hangers or

other hard objects on the coat

hooks. All of these items could

become projectiles and may

cause death or serious injury,

should the SRS curtain shield

airbags deploy.

●

If a vinyl cover is put on the area

where the SRS knee airbag will

deploy, be sure to remove it.

●

Do not use seat accessories

which cover the parts where the

SRS side airbags and SRS seat

cushion airbag inflate as they

may interfere with inflation of

the SRS airbags. Such acces-

sories may prevent the side air-

bags and seat cushion airbag

from activating correctly, disable

the system or cause the side

airbags and seat cushion airbag

to inflate accidentally, resulting

in death or serious injury.

●

Do not strike or apply significant

levels of force to the area of the

SRS airbag components or the

front doors. Doing so can cause

the SRS airbags to malfunction.

●

Do not touch any of the compo-

nent parts immediately after the

SRS airbags have deployed

(inflated) as they may be hot.

●

If breathing becomes difficult

after the SRS airbags have

deployed, open a door or win-

dow to allow fresh air in, or

leave the vehicle if it is safe to

do so. Wash off any residue as

soon as possible to prevent skin

irritation.

●

If the areas where the SRS air-

bags are stored, such as the

steering wheel pad and front

and rear pillar garnishes, are

damaged or cracked, have

them replaced by your Toyota

dealer.

●

Do not place anything, such as

a cushion, on the front passen-

ger’s seat. Doing so will

disperse the passenger’s

weight, which prevents the sen-

sor from detecting the passen-

ger’s weight properly. As a

result, the SRS front airbags for

the front passenger may not

deploy in the event of a colli-

sion.

■

Modification and disposal of

SRS airbag system compo-

nents

Do not dispose of your vehicle or

perform any of the following modi-

fications without consulting your

Toyota dealer. The SRS airbags

may malfunction or deploy

(inflate) accidentally, causing

death or serious injury.

●

Installation, removal, disassem-

bly and repair of the SRS air-

bags

●

Repairs, modifications, removal

or replacement of the steering

wheel, instrument panel, dash-

board, seats or seat upholstery,

front, side and rear pillars, roof

side rails, front door panels,

front door trims or front door

speakers

1-1. For safe use

For safety and secu

rity



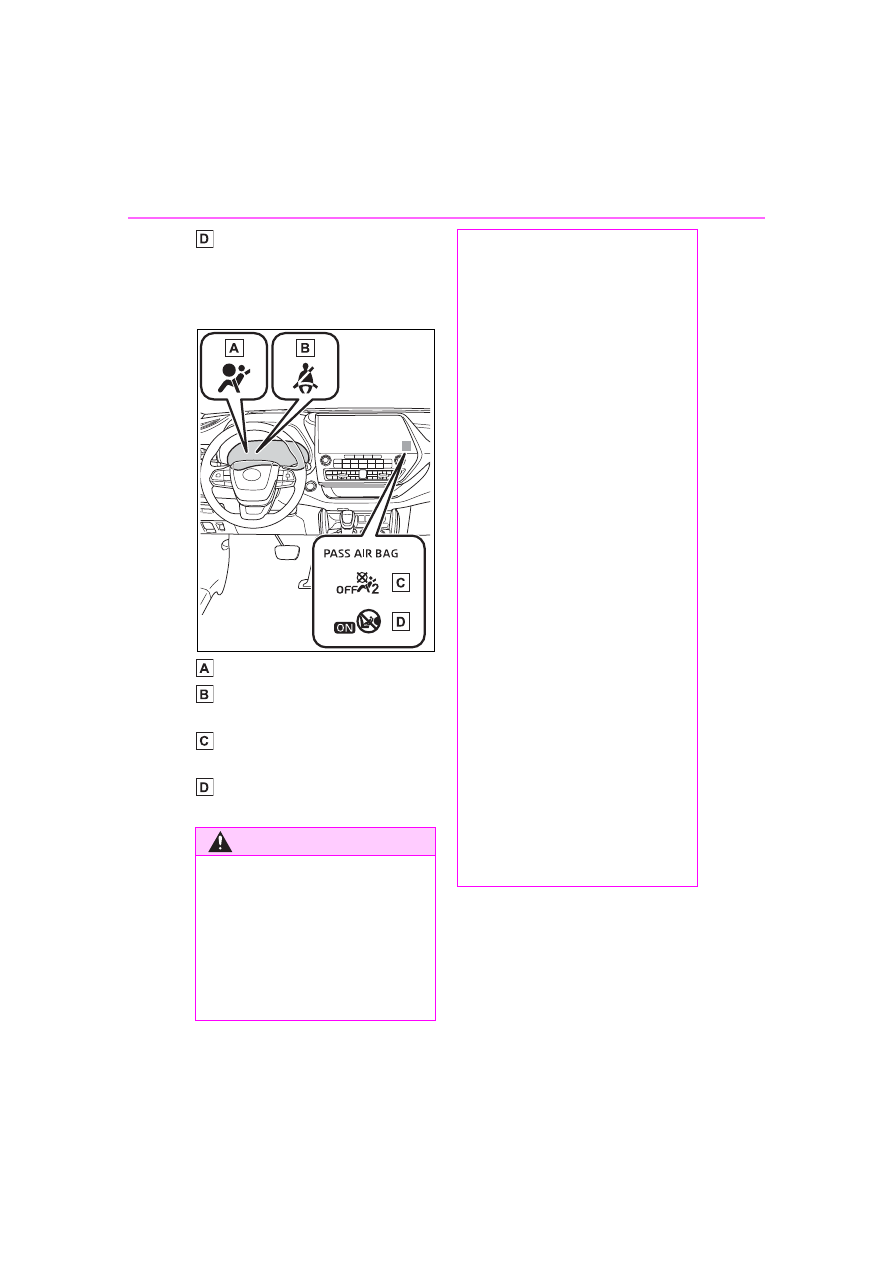

Vehicles with a 8-inch display

SRS warning light
Driver’s and front passen-
ger’s seat belt reminder light
“PASS AIR BAG OFF” indica-
tor light

WARNING

●

Modifications to the front door

panel (such as making a hole in

it)

●

Repairs or modifications of the

front fender, front bumper, or

side of the occupant compart-

ment

●

Installation of a grille guard (bull

bars, kangaroo bar, etc.), snow

plows, winches or roof luggage

carrier

●

Modifications to the vehicle’s

suspension system

●

Installation of electronic devices

such as mobile two-way radios

and CD players

●

Modifications to your vehicle for

a person with a physical disabil-

ity

Front passenger occu-

pant classification

system

Your vehicle is equipped
with a front passenger
occupant classification sys-
tem. This system detects
the conditions of the front
passenger seat and acti-
vates or deactivates the
front passenger airbag and
seat cushion airbag.

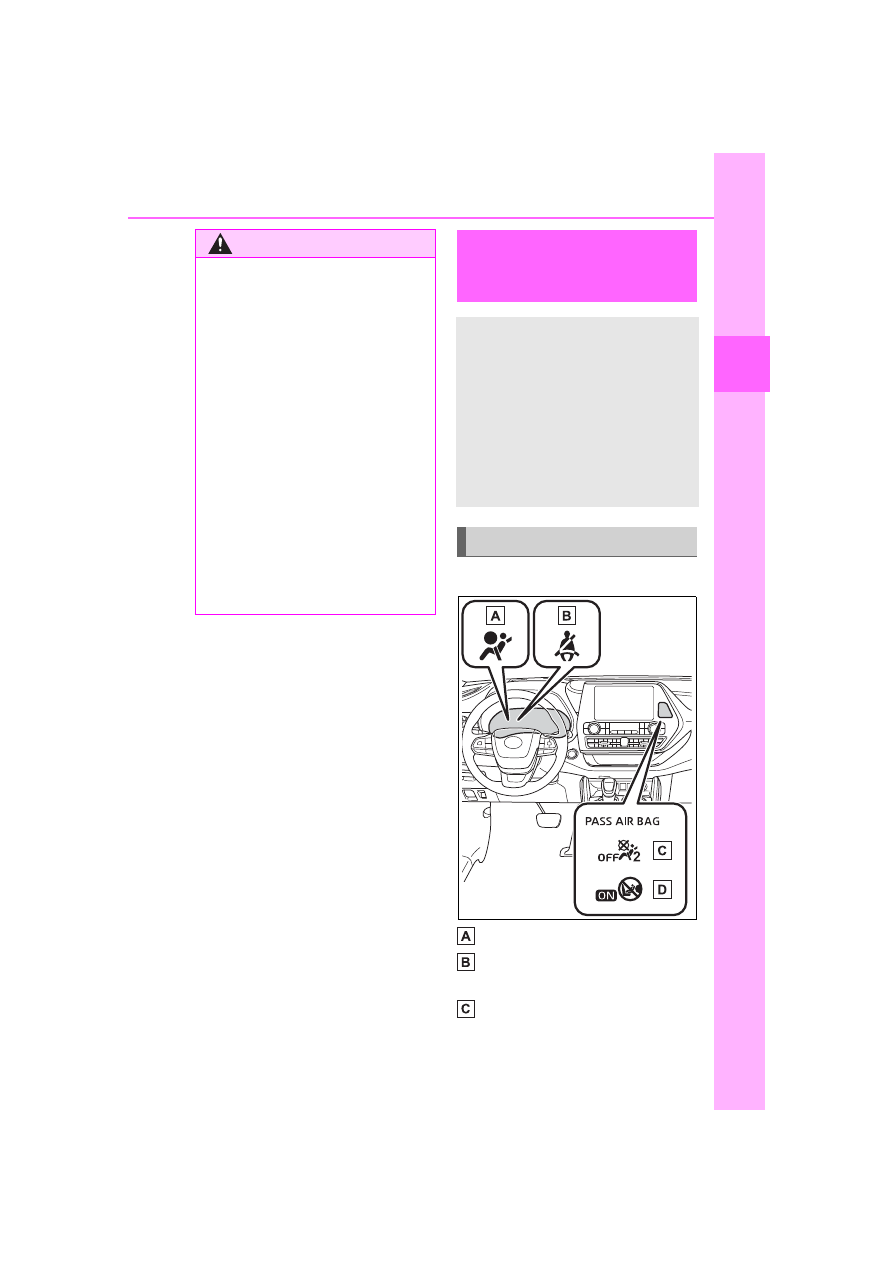

System components

1-1. For safe use

“PASS AIR BAG ON” indica-
tor light



Vehicles with a 12.3-inch dis-
play

SRS warning light
Driver’s and front passen-
ger’s seat belt reminder light
“PASS AIR BAG OFF” indica-
tor light
“PASS AIR BAG ON” indica-
tor light

WARNING

■

Front passenger occupant

classification system precau-

tions

Observe the following precautions

regarding the front passenger

occupant classification system.

Failure to do so may cause death

or serious injury.

●

Wear the seat belt properly.

●

Make sure the front passenger’s

seat belt plate has not been left

inserted into the buckle before

someone sits in the front pas-

senger seat.

●

Make sure the “PASS AIR BAG

OFF” indicator light is not illumi-

nated when using the seat belt

extender for the front passenger

seat. If the “PASS AIR BAG

OFF” indicator light is illumi-

nated, disconnect the extender

tongue from the seat belt

buckle, and reconnect the seat

belt. Reconnect the seat belt

extender after making sure the

“PASS AIR BAG ON” indicator

light is illuminated. If you use

the seat belt extender while the

“PASS AIR BAG OFF” indicator

light is illuminated, the SRS air-

bags for the front passenger will

not activate, which could cause

death or serious injury in the

event of a collision.

●

Do not apply a heavy load to the

front passenger seat or equip-

ment (e.g. seatback pocket).

●

Do not put weight on the front

passenger seat by putting your

hands or feet on the front pas-

senger seat seatback from the

rear passenger seat.

●

Do not let a rear passenger lift

the front passenger seat with

their feet or press on the seat-

back with their legs.

●

Do not put objects under the

front passenger seat.

Content .. 1 2 3 ..
