Toyota Hilux (2022 year). Manual in english - page 2

30

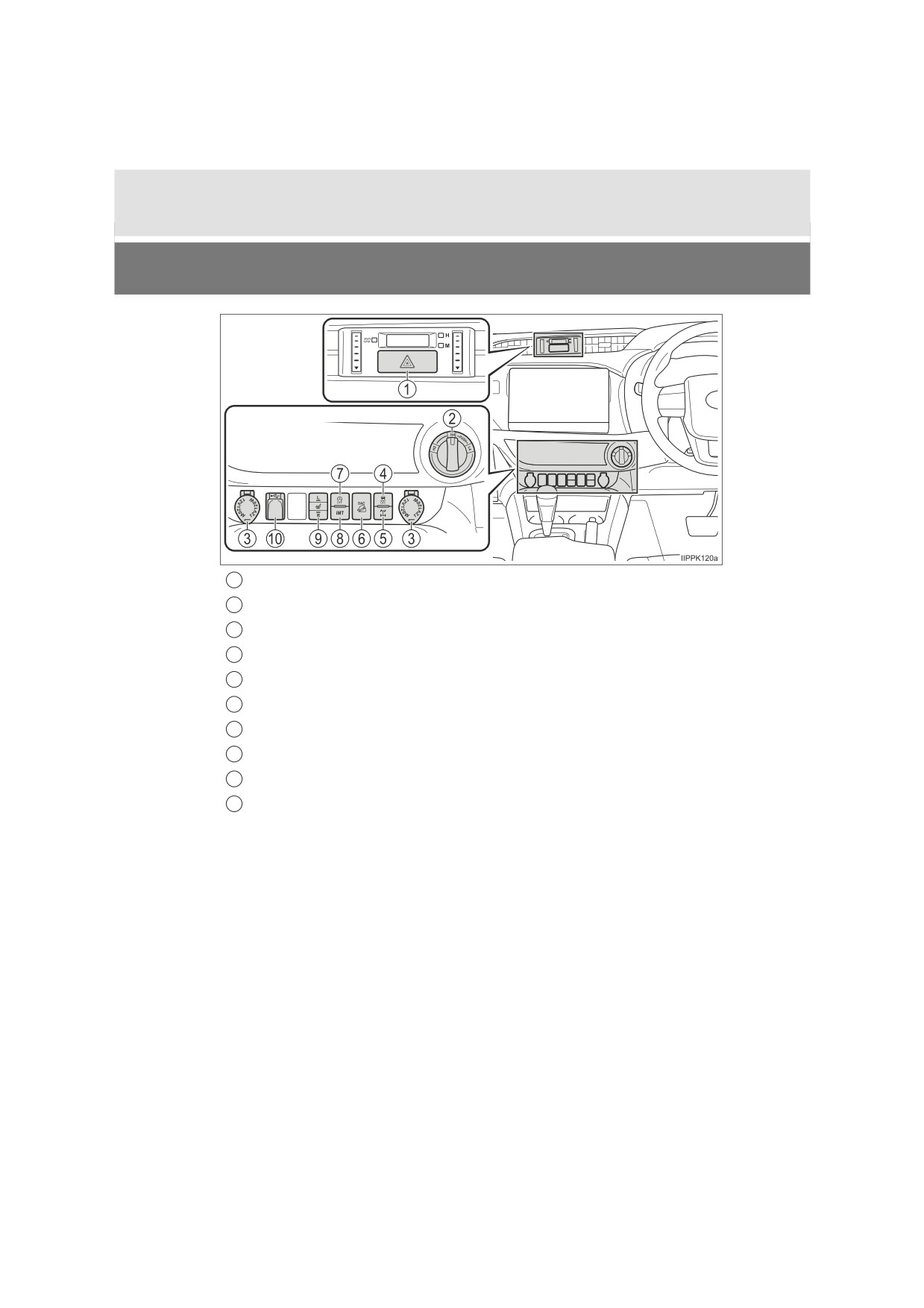

Pictorial index

1

Emergency flasher switch

P. 554

2

Front-wheel drive control switch

P. 331

3

Power outlets*¹

P. 466

4

VSC OFF switch

P. 357

5

Rear differential lock switch*¹

P. 341

6

“DAC” (Downhill Assist Control system) switch*¹

P. 364

7

Stop & Start cancel switch*¹

P. 346

8

“iMT” switch*¹

P. 241

9

Seat heater switches*¹

P. 450

10

USB port*^{1, 2}

Pictorial index

31

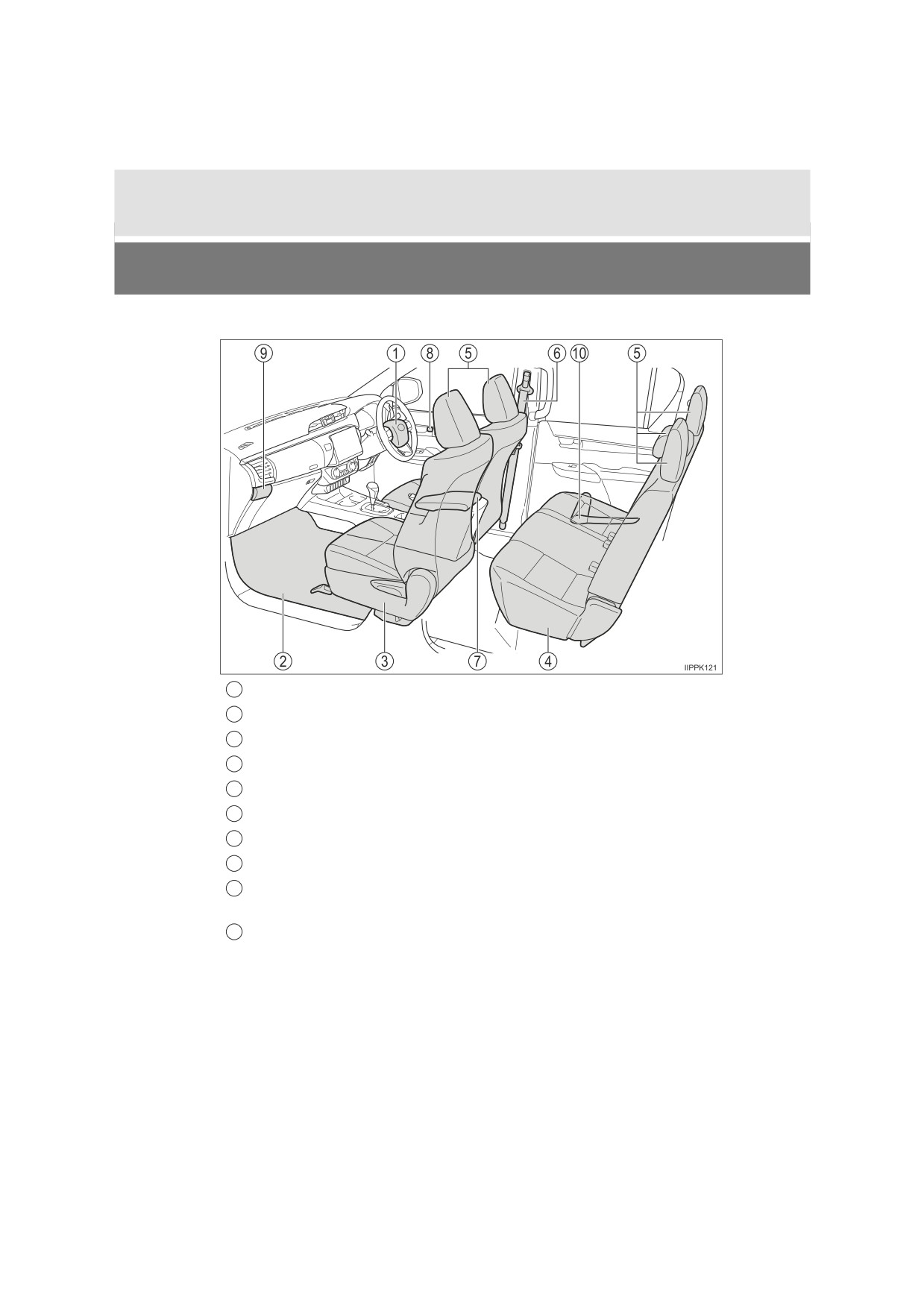

QInterior (Right-hand drive vehicles)

1

SRS airbags

P. 45

2

Floor mats

P. 36

3

Front seats

P. 170

4

Rear seats*¹

P. 172

5

Head restraints

P. 175

6

Seat belts

P. 40

7

Console box*¹

P. 457

8

Inside lock buttons

P. 155

9

Cup holders

P. 458

Auxiliary boxes

P. 460

10

Bottle holders*¹

P. 459

^*1: If equipped

^*2: Refer to “Navigation and multimedia system Owner’s manual” or

“Multimedia Owner’s Manual”.

32

Pictorial index

1

Cup holders*¹

P. 458

2

Auxiliary boxes*¹

P. 460

3

Driving mode select switches

P. 233, 240

Pictorial index

33

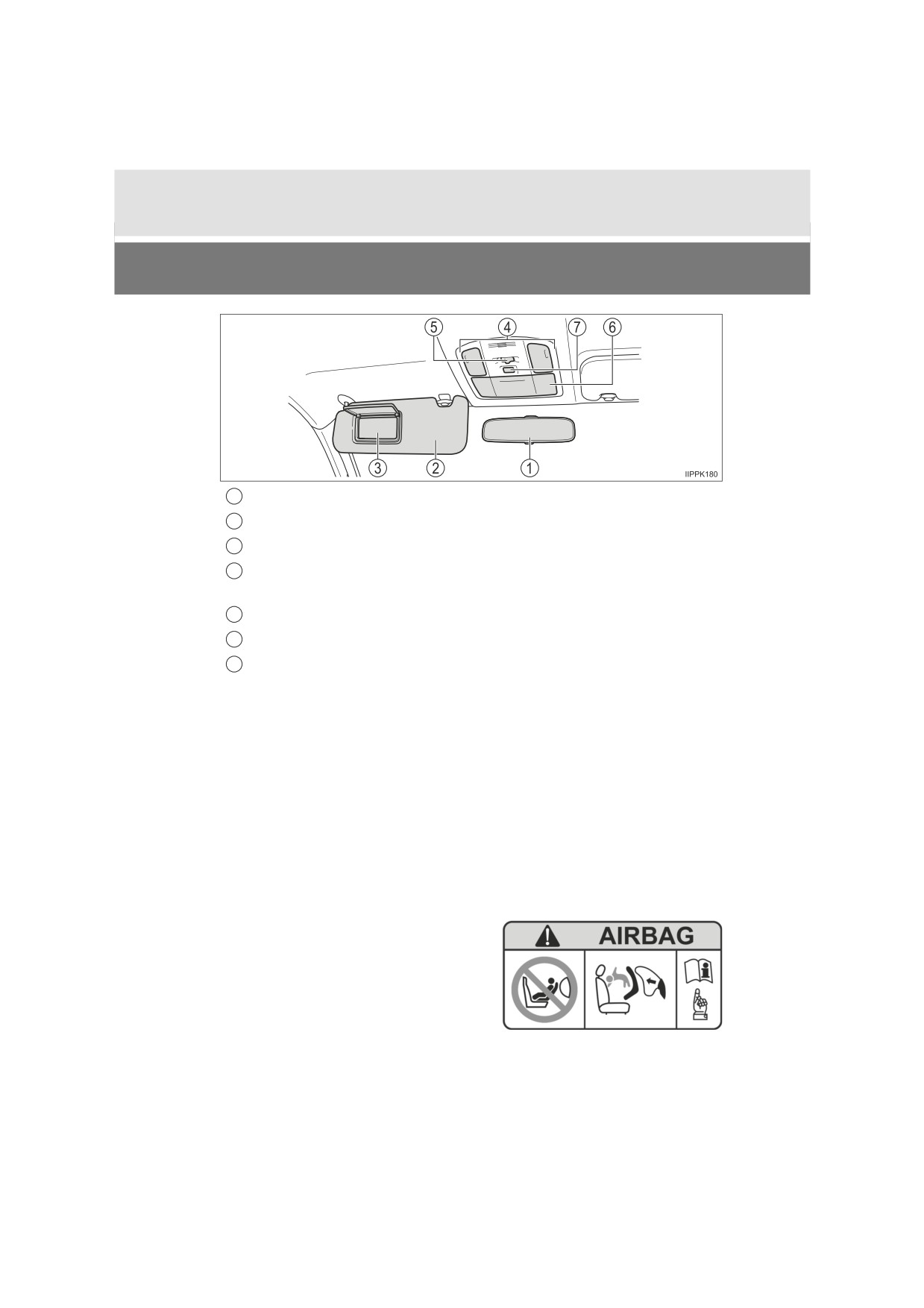

1

Inside rear view mirror

P. 180

2

Sun visors*²

P. 464

3

Vanity mirror*¹

P. 464

4

Personal lights

P. 454

Interior lights*^{1, 3}

P. 454

5

Personal/interior light main switch

P. 454

6

Auxiliary boxes

P. 460

7

“SOS” button*¹

P. 98

^*1: If equipped

^*2: NEVER use a rearward facing child

restraint on a seat protected by an

ACTIVE AIRBAG in front of it, DEATH

or SERIOUS INJURY to the CHILD can

occur. (P. 70)

^*3: The illustration shows the front, but they are also equipped in the rear.

36

1-1. For safe use

Before driving

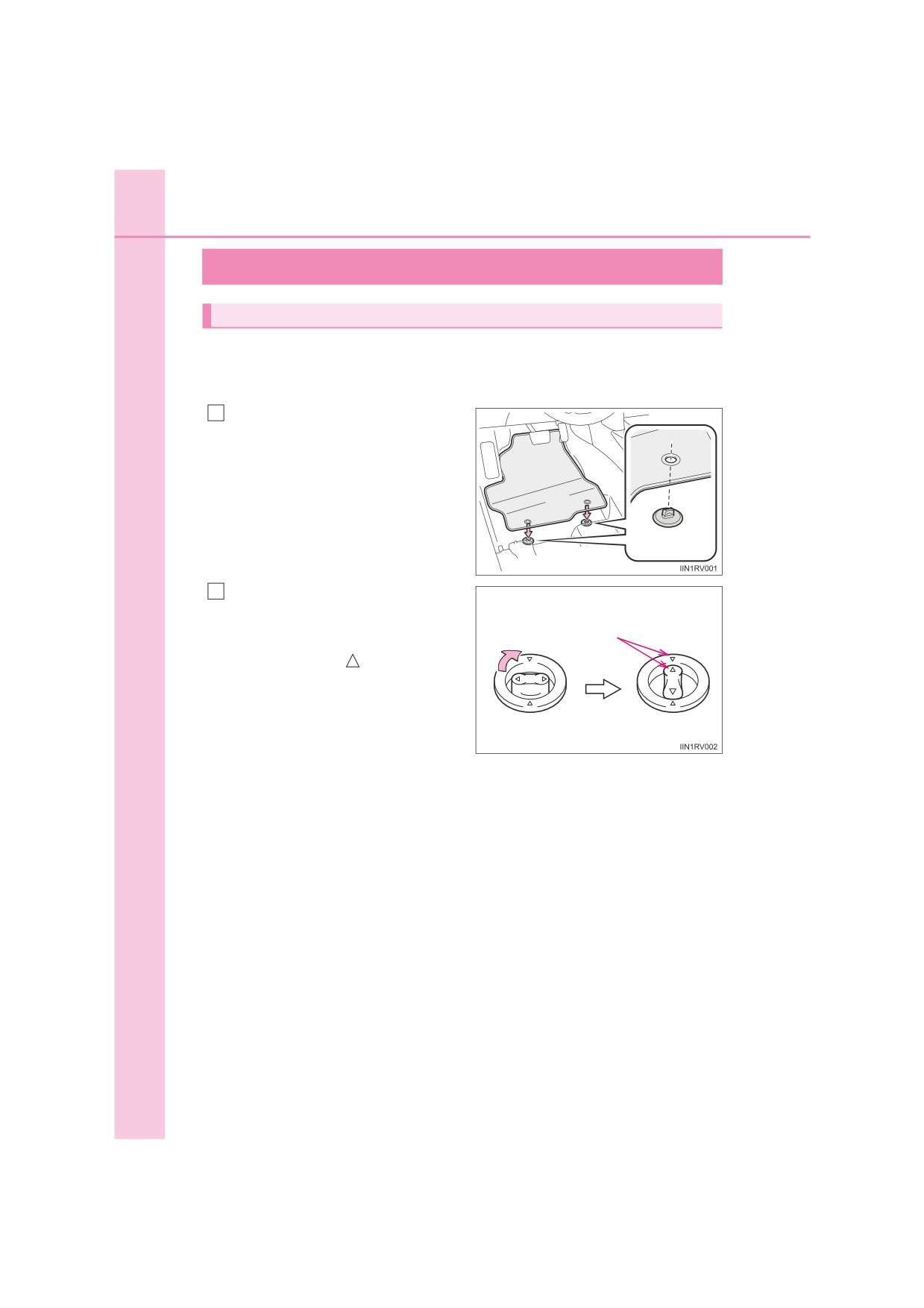

Floor mat

Use only floor mats designed specifically for vehicles of the same

model and model year as your vehicle. Fix them securely in place

onto the carpet.

Insert the retaining hooks (clips)

1

into the floor mat eyelets.

Turn the upper knob of each

2

retaining hook (clip) to secure

the floor mats in place.

*

*: Always align the

marks.

The shape of the retaining hooks (clips) may differ from that shown in the

illustration.

1-1. For safe use

37

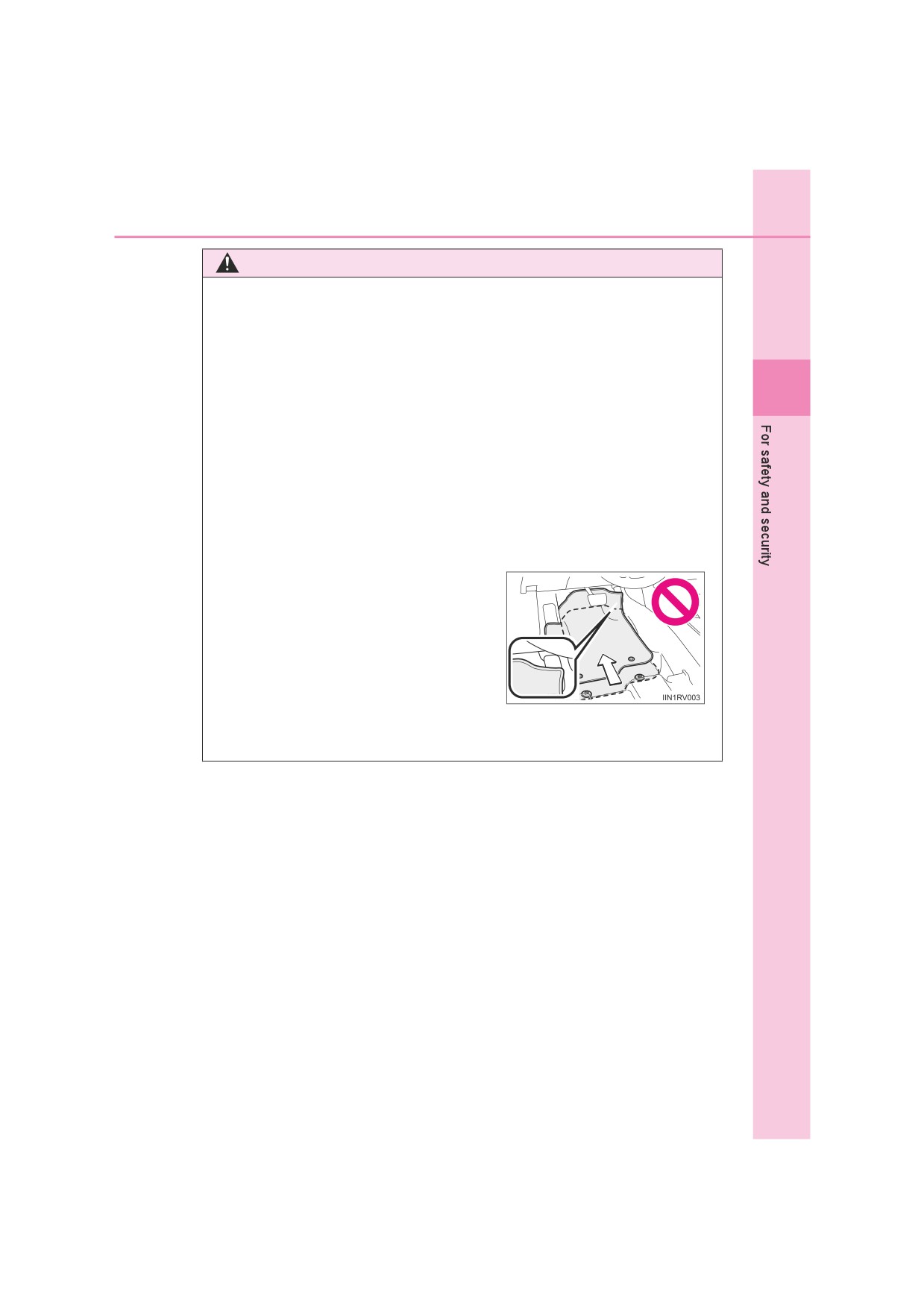

WARNING

Observe the following precautions.

Failure to do so may cause the driver’s floor mat to slip, possibly interfering

with the pedals while driving. An unexpectedly high speed may result or it may

become difficult to stop the vehicle. This could lead to an accident, resulting in

death or serious injury.

1

Q When installing the driver’s floor mat

ODo not use floor mats designed for other models or different model year

vehicles, even if they are Toyota Genuine floor mats.

OOnly use floor mats designed for the driver’s seat.

O Always install the floor mat securely using the retaining hooks (clips) pro-

vided.

ODo not use two or more floor mats on top of each other.

ODo not place the floor mat bottom-side up or upside-down.

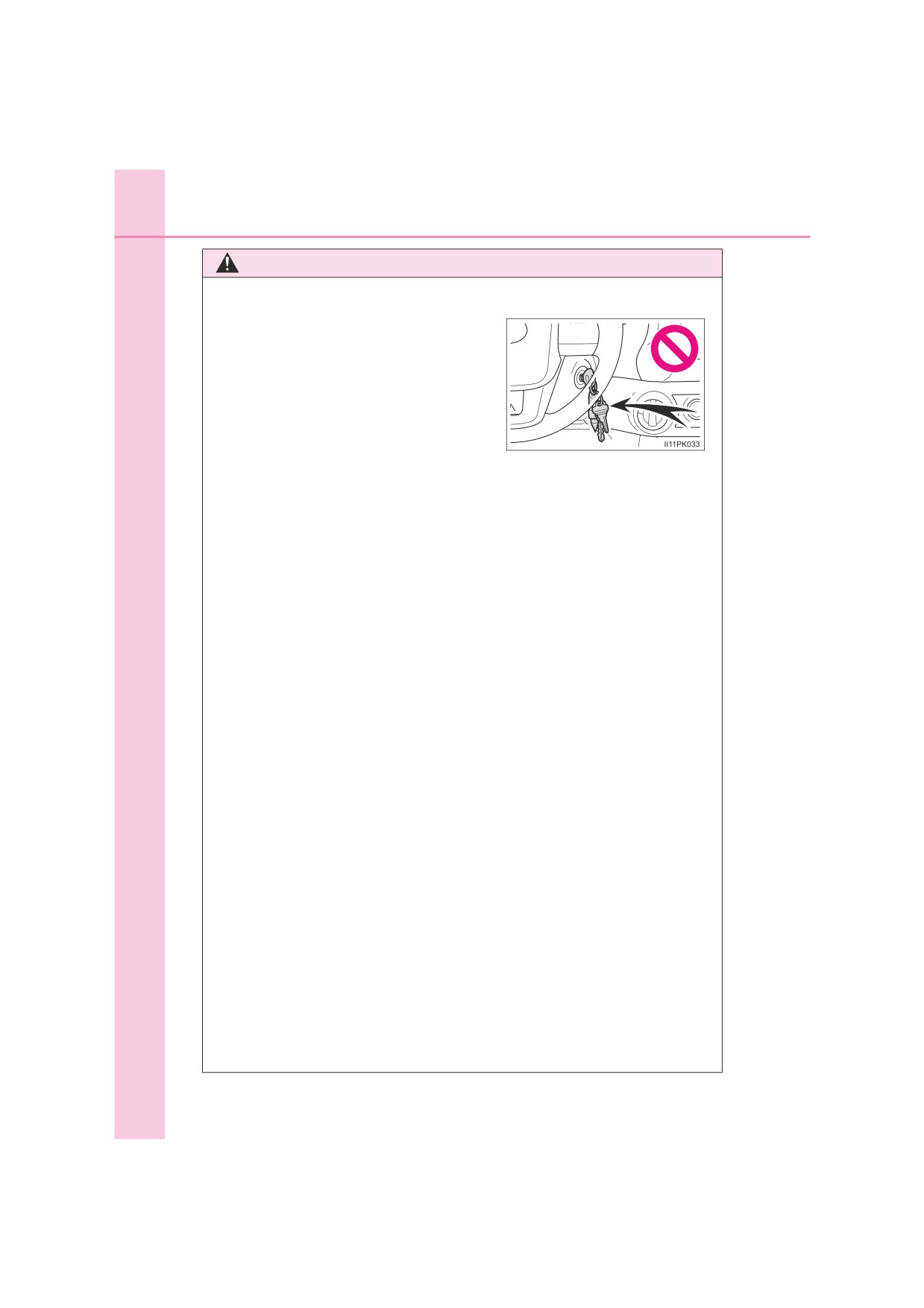

Q Before driving

OCheck that the floor mat is securely

fixed in the correct place with all the

provided retaining hooks

(clips). Be

especially careful to perform this check

after cleaning the floor.

OWith the engine stopped and the shift

lever in P (automatic transmission) or N

(manual transmission), fully depress

each pedal to the floor to make sure it

does not interfere with the floor mat.

38

1-1. For safe use

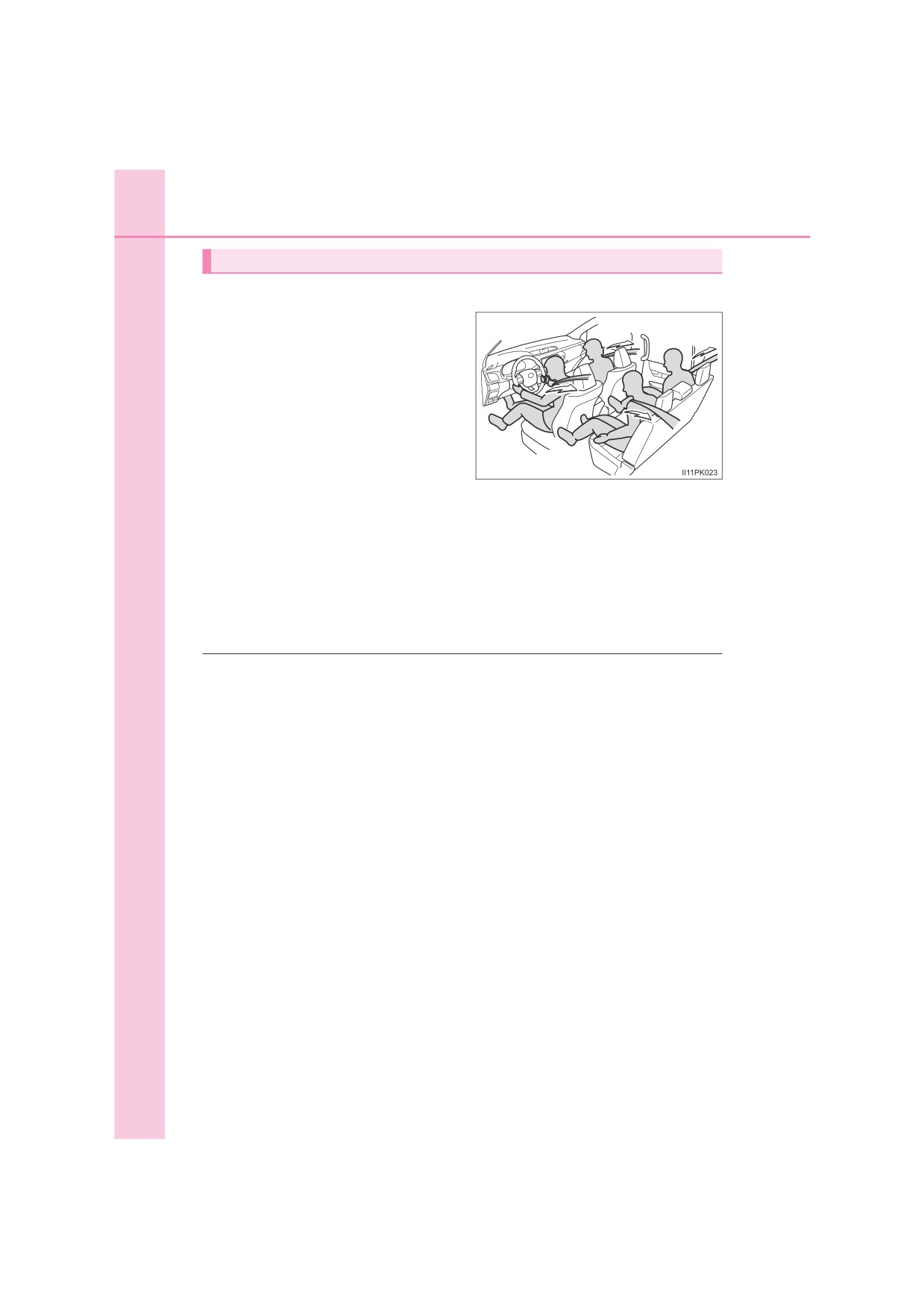

For safe driving

For safe driving, adjust the seat and mirror to an appropriate

position before driving.

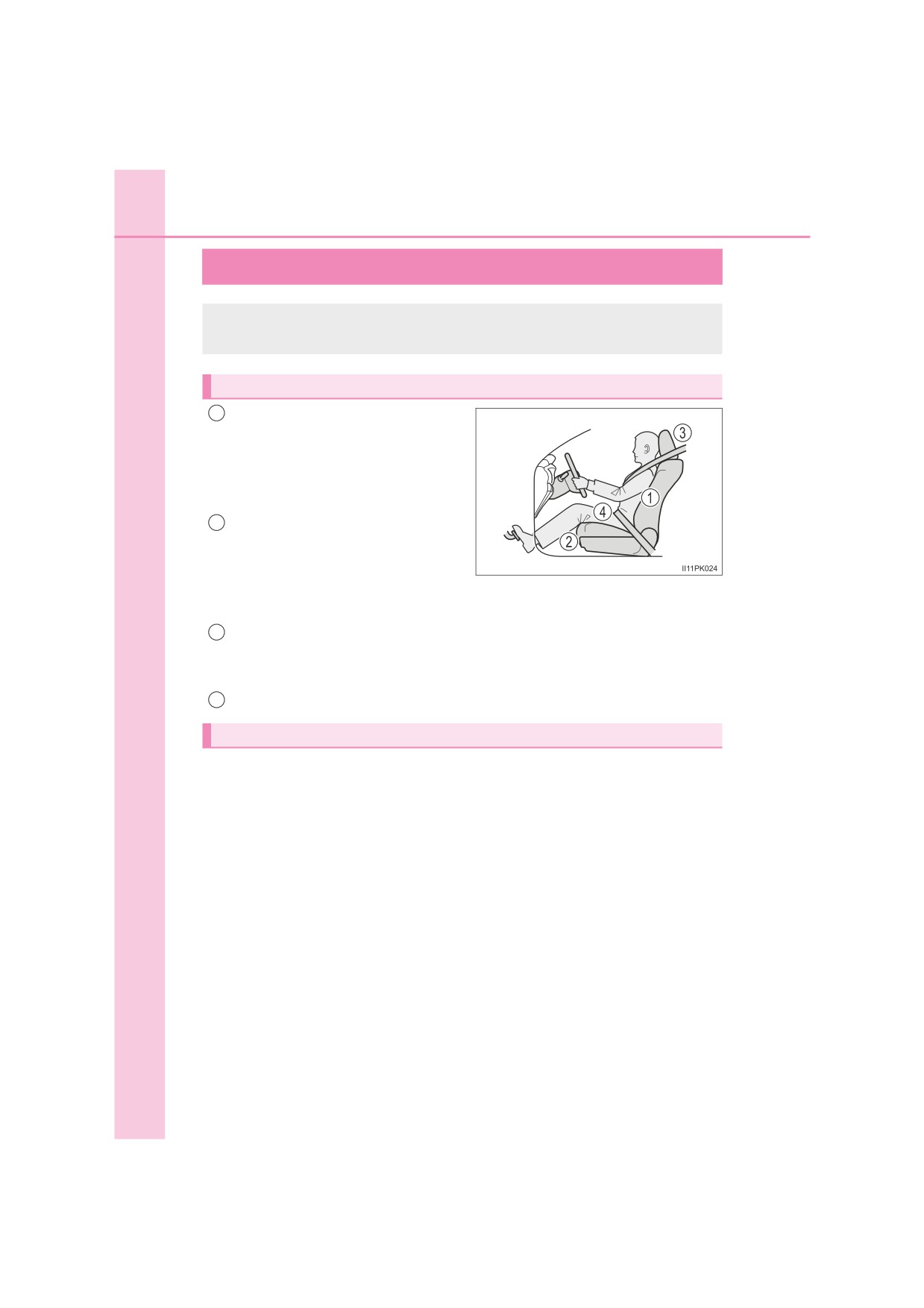

Correct driving posture

Adjust the angle of the seat-

1

back so that you are sitting

straight up and so that you do

not have to lean forward to

steer. (P. 170)

Adjust the seat so that you can

2

depress the pedals fully and so

that your arms bend slightly at

the elbow when gripping the

steering wheel. (P. 170)

Vehicles with adjustable type head restraint: Lock the head restraint

3

in place with the center of the head restraint closest to the top of

your ears. (P. 175)

Wear the seat belt correctly. (P. 40)

4

Correct use of the seat belts

Make sure that all occupants are wearing their seat belts before driv-

ing the vehicle. (P. 40)

Use a child restraint system appropriate for the child until the child

becomes large enough to properly wear the vehicle’s seat belt.

(P. 65)

40

1-1. For safe use

Seat belts

Make sure that all occupants are wearing their seat belts before

driving the vehicle.

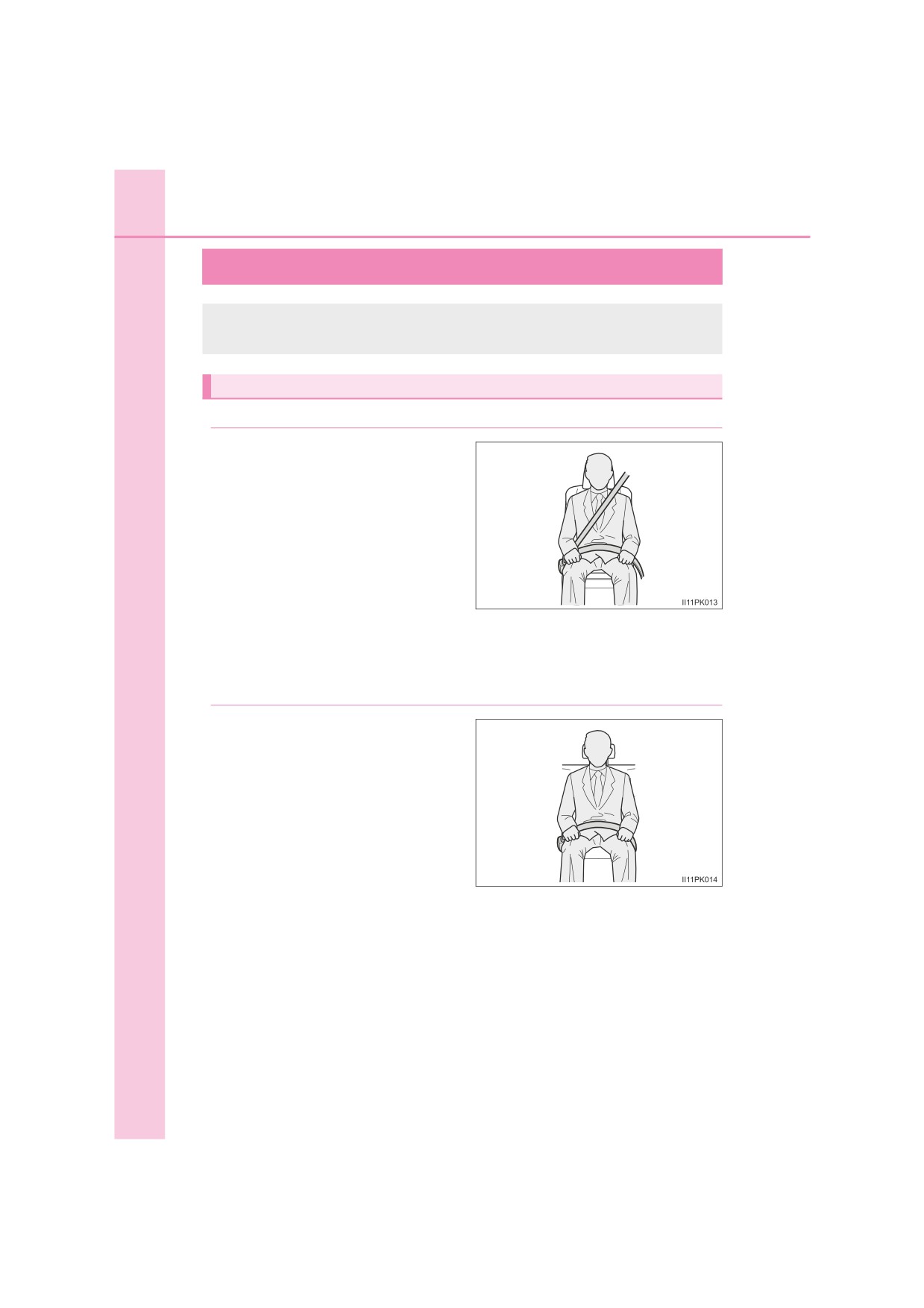

Correct use of the seat belts

X 3-point type

O Extend the shoulder belt so

that it comes fully over the

shoulder, but does not come

into contact with the neck or

slide off the shoulder.

O Position the lap belt as low

as possible over the hips.

O Adjust the position of the

seatback. Sit up straight and

well back in the seat.

O Do not twist the seat belt.

X 2-point type (if equipped)

O Position the lap belt as low

as possible over the hips and

remove excess length of the

belt.

O Do not twist the seat belt.

1-1. For safe use

41

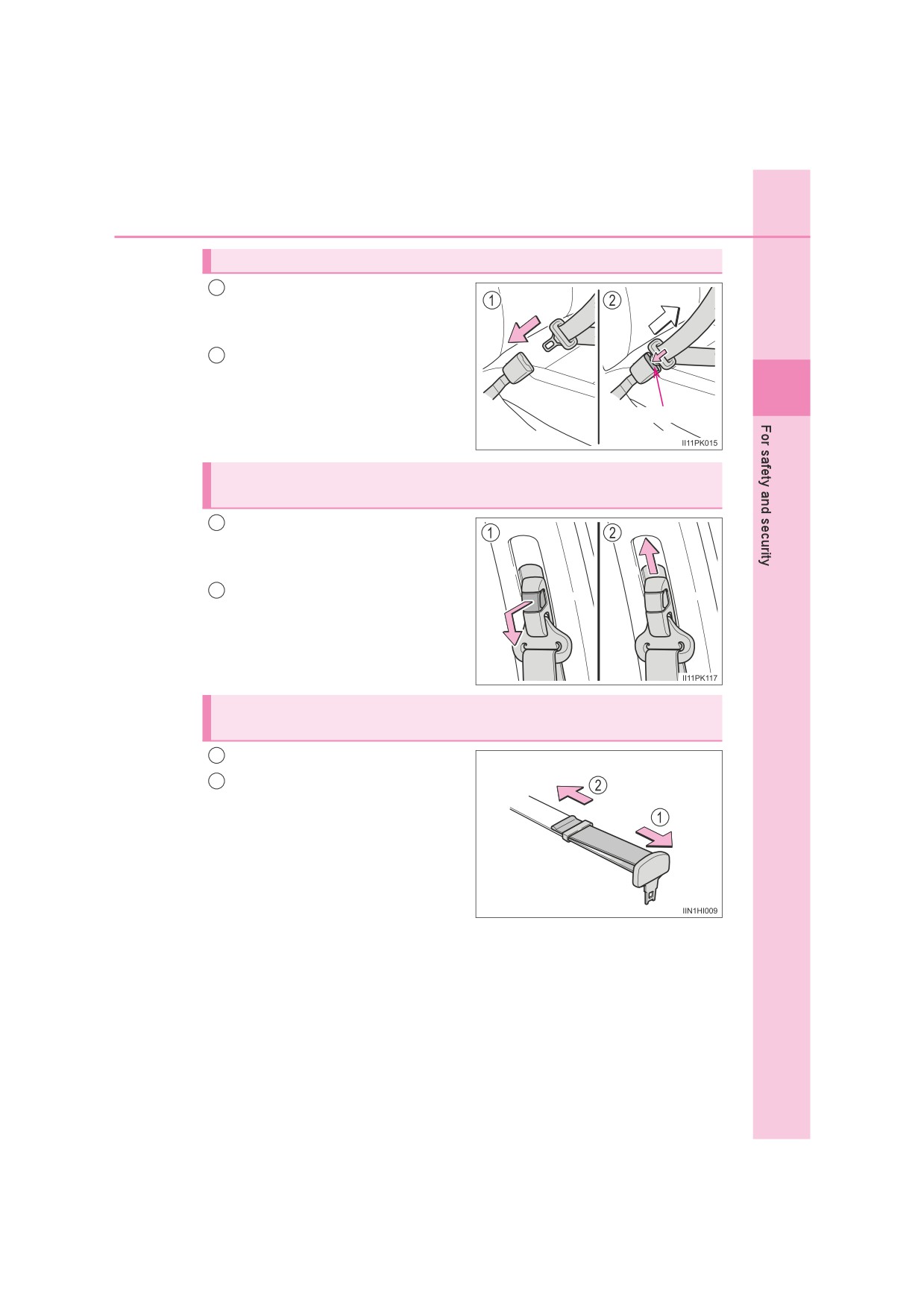

Fastening and releasing the seat belt

To fasten the seat belt, push the

1

plate into the buckle until a click

sound is heard.

2

To release the seat belt, press

the release button.

1

Release button

Adjusting the seat belt shoulder anchor height (if equipped for

front seats)

Push the seat belt shoulder

1

anchor down while pulling the

lock release knob.

2

Push the seat belt shoulder

anchor up.

Move the height adjuster up and

down as needed until you hear a

click.

Adjusting the length of the belt

(2-point type seat belt)

(if

equipped)

1

Lengthen

2

Shorten

42

1-1. For safe use

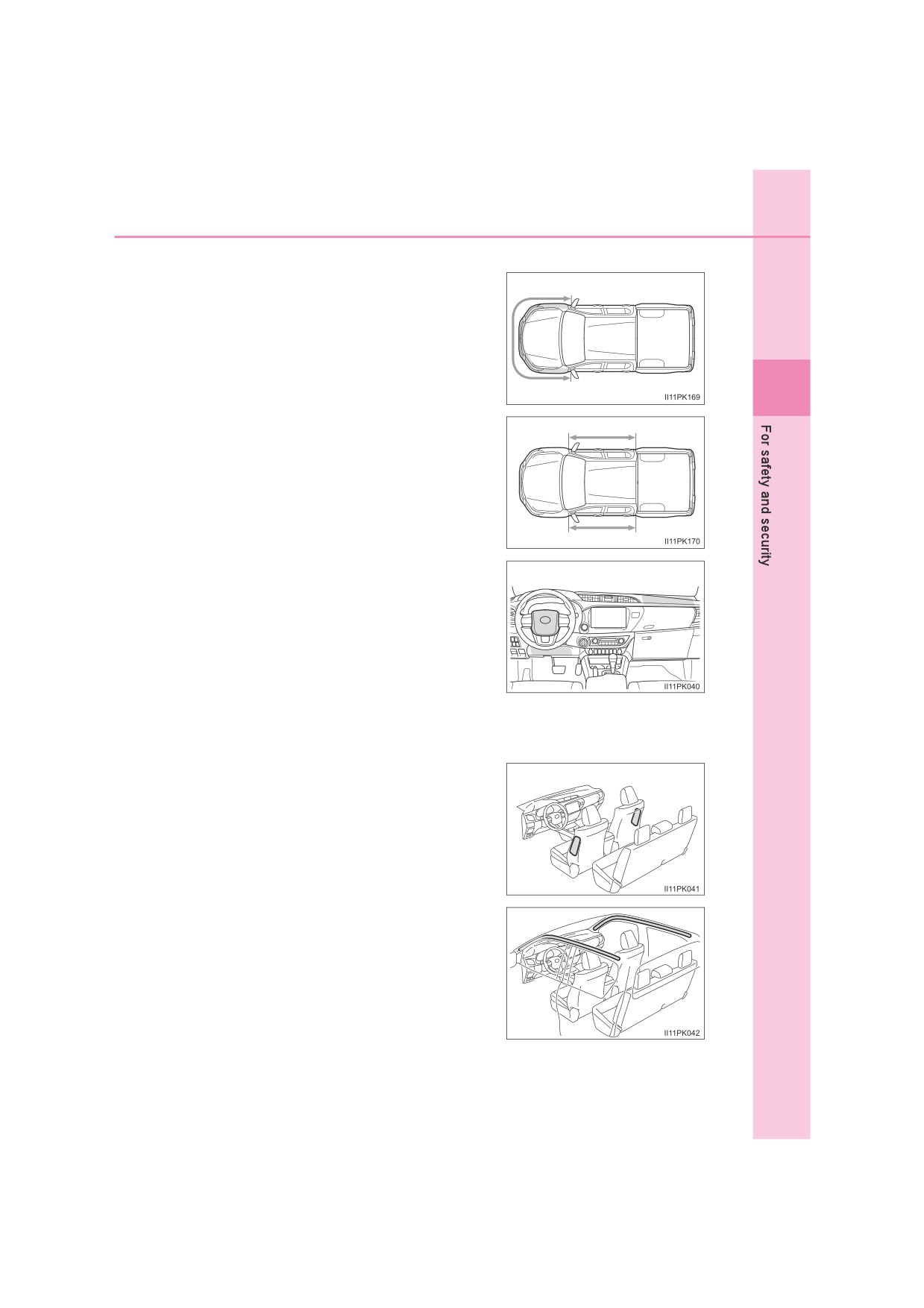

Seat belt pretensioners (if equipped)

 Vehicles without SRS side and curtain shield airbags

The pretensioners help the seat

belts to quickly restrain the occu-

pants by retracting the seat belts

when the vehicle is subjected to

certain types of severe frontal col-

lision.

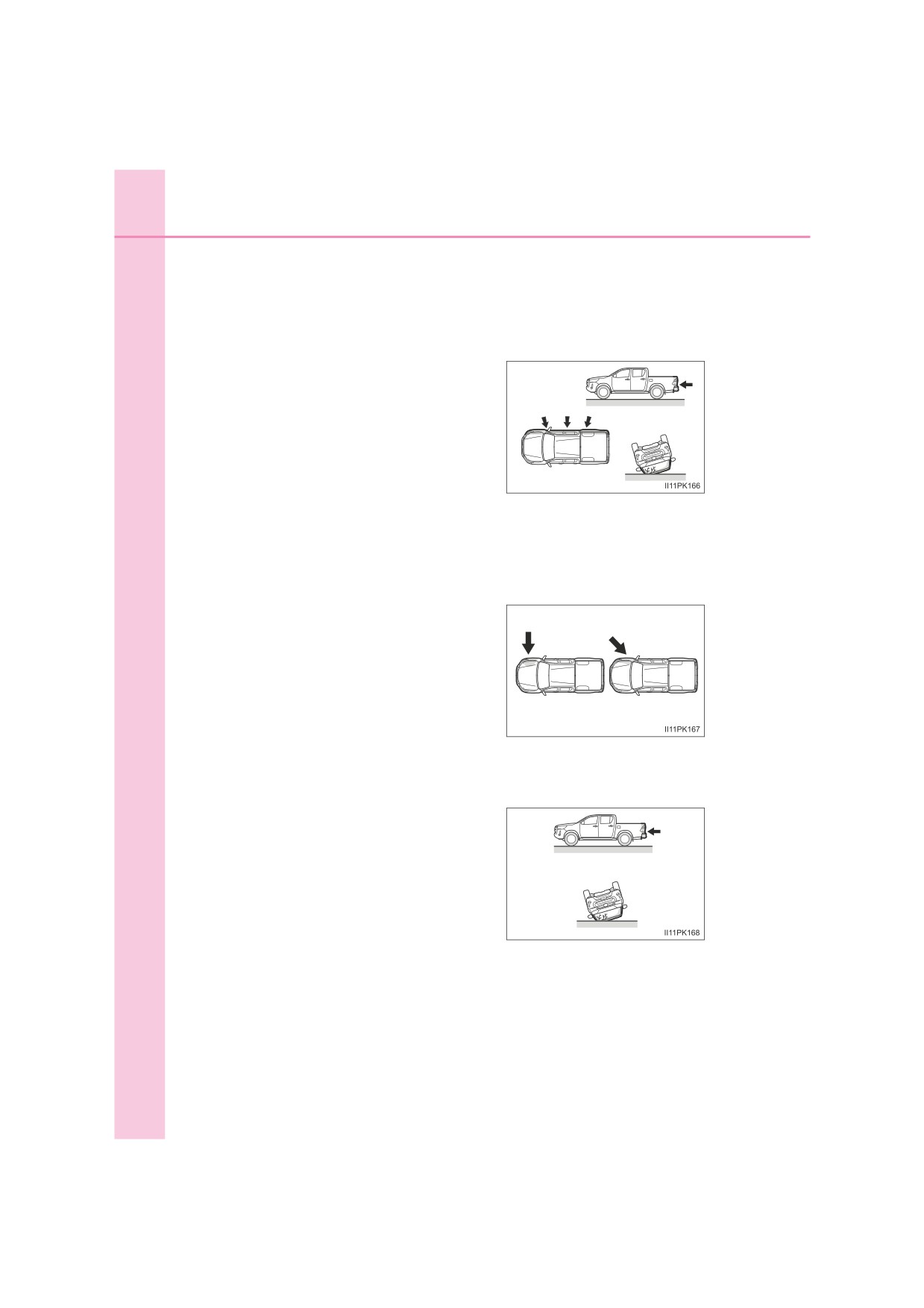

The pretensioners do not activate

in the event of a minor frontal

impact, a side impact, a rear

impact or a vehicle rollover.

 Vehicles with SRS side and curtain shield airbags

The pretensioners help the seat belts to quickly restrain the occupants

by retracting the seat belts when the vehicle is subjected to certain

types of severe frontal or side collision.

The pretensioners do not activate in the event of a minor frontal impact, a

minor side impact, a rear impact or a vehicle rollover.

Q Emergency locking retractor (ELR) (3-point type seat belt)

The retractor will lock the belt during a sudden stop or on impact. It may also

lock if you lean forward too quickly. A slow, easy motion will allow the belt to

extend so that you can move around fully.

Q Child seat belt usage

The seat belts of your vehicle were principally designed for persons of adult

size.

OUse a child restraint system appropriate for the child, until the child

becomes large enough to properly wear the vehicle’s seat belt. ( P. 65)

O When the child becomes large enough to properly wear the vehicle’s seat

belt, follow the instructions regarding seat belt usage. (P. 40)

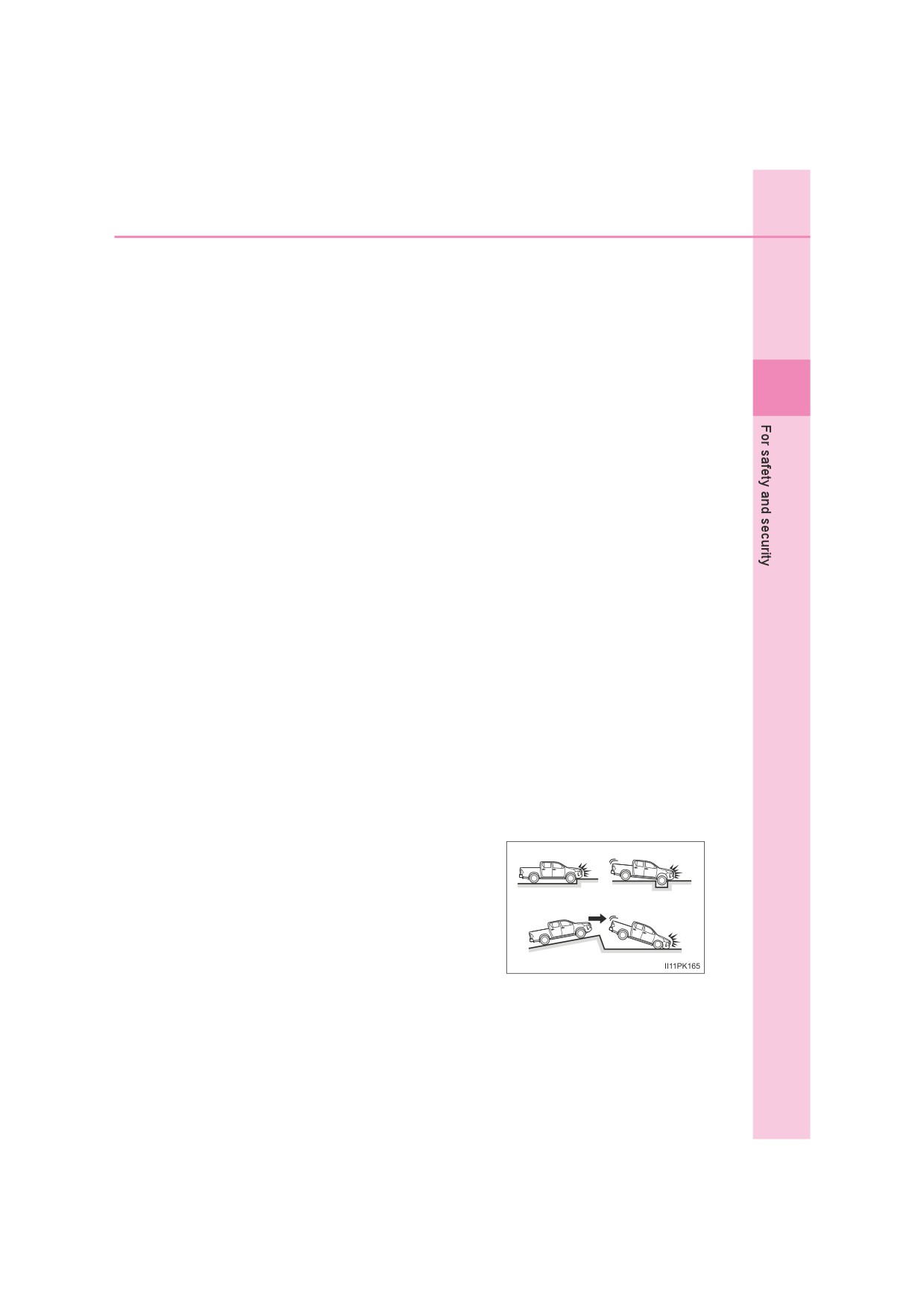

Q Replacing the belt after the pretensioner has been activated

If the vehicle is involved in multiple collisions, the pretensioner will activate for

the first collision, but will not activate for the second or subsequent collisions.

Q Seat belt regulations

If seat belt regulations exist in the country where you reside, please contact

any authorized Toyota retailer or Toyota authorized repairer, or any reliable

repairer for seat belt replacement or installation.

1-1. For safe use

43

WARNING

Observe the following precautions to reduce the risk of injury in the event of

sudden braking, sudden swerving or an accident.

Failure to do so may cause death or serious injury.

Q Wearing a seat belt

O Ensure that all passengers wear a seat belt.

1

O Always wear a seat belt properly.

OEach seat belt should be used by one person only. Do not use a seat belt

for more than one person at once, including children.

O Toyota recommends that children be seated in the rear seat and always

use a seat belt and/or an appropriate child restraint system.

O To achieve a proper seating position, do not recline the seat more than

necessary. The seat belt is most effective when the occupants are sitting

up straight and well back in the seats.

ODo not wear the shoulder belt under your arm.

O Always wear your seat belt low and snug across your hips.

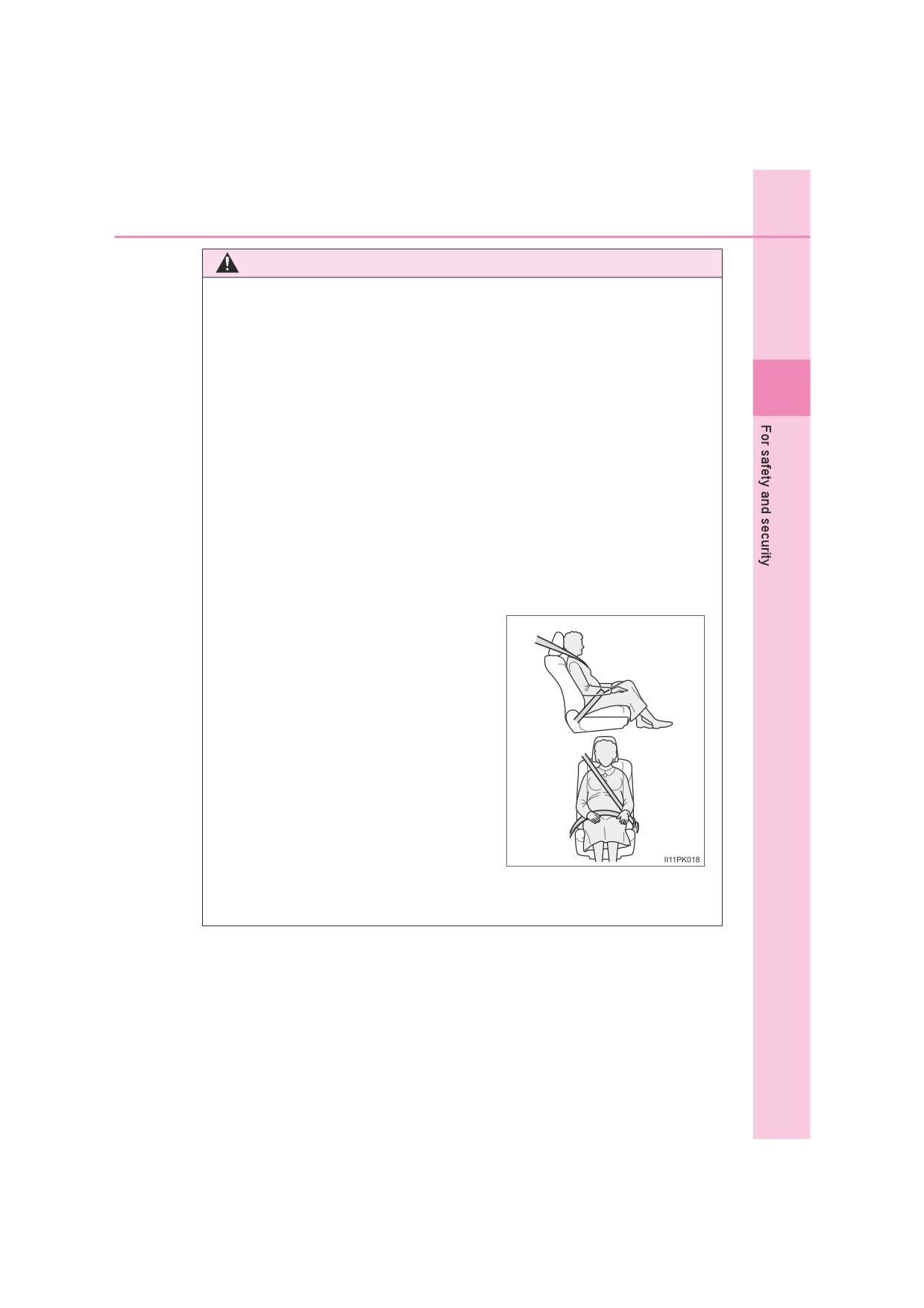

Q Pregnant women

Obtain medical advice and wear the seat

belt in the proper way. (P. 40)

Women who are pregnant should posi-

tion the lap belt as low as possible over

the hips in the same manner as other

occupants, extending the shoulder belt

completely over the shoulder and avoid-

ing belt contact with the rounding of the

abdominal area.

If the seat belt is not worn properly, not

only the pregnant woman, but also the

fetus could suffer death or serious injury

as a result of sudden braking or a colli-

sion.

Q People suffering illness

Obtain medical advice and wear the seat belt in the proper way. (P. 40)

1-1. For safe use

45

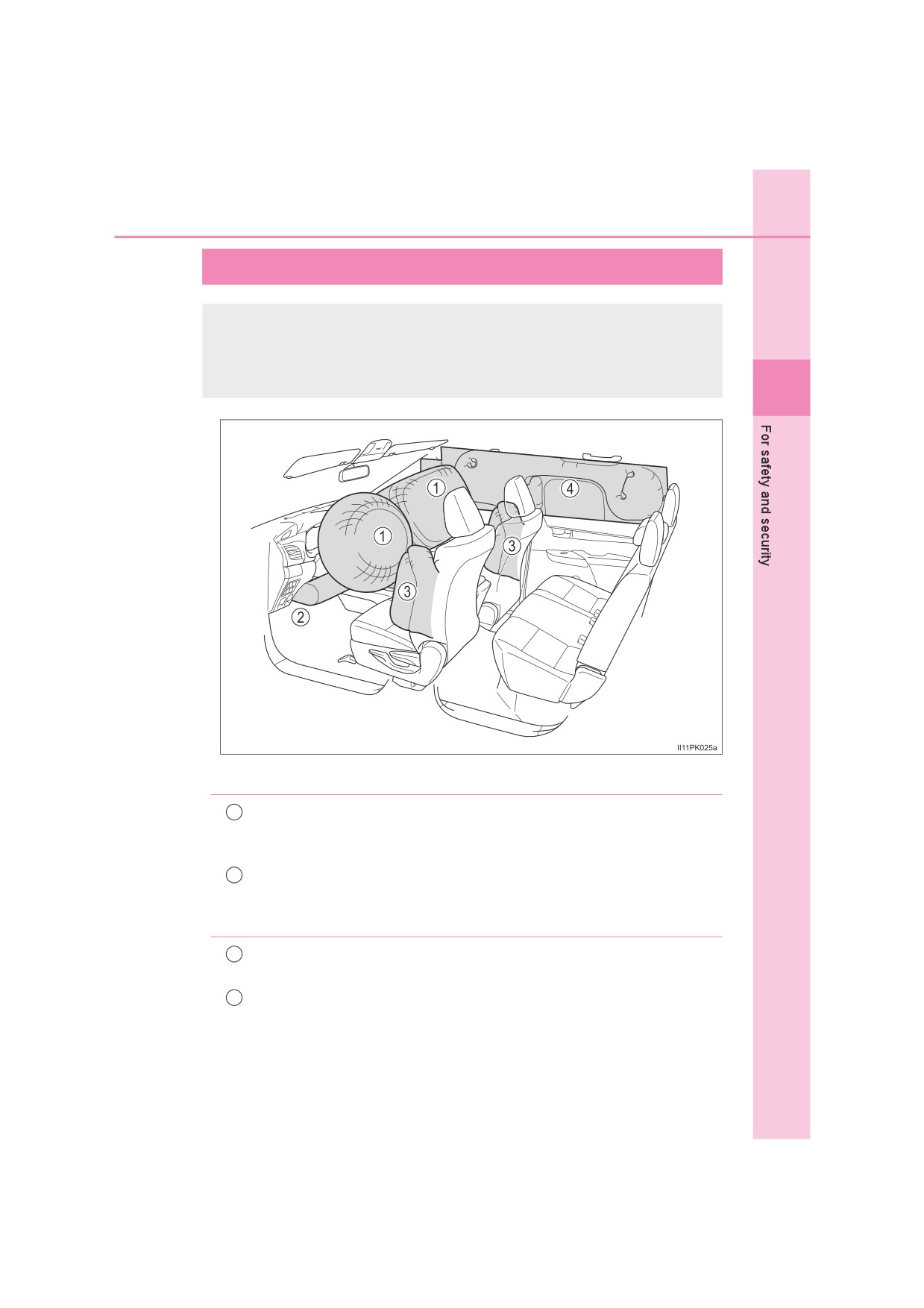

SRS airbags

The SRS airbags inflate when the vehicle is subjected to certain

types of severe impacts that may cause significant injury to the

occupants. They work together with the seat belts to help reduce

the risk of death or serious injury.

1

X SRS front airbags

SRS driver airbag/front passenger airbag

1

Can help protect the head and chest of the driver and front pas-

senger from impact with interior components

SRS driver’s knee airbag (if equipped)

2

Can help provide driver protection

X SRS side and curtain shield airbags

SRS side airbags (if equipped)

3

Can help protect the torso of the front seat occupants

SRS curtain shield airbags (if equipped)

4

Can help protect primarily the head of occupants in the outer

seats

46

1-1. For safe use

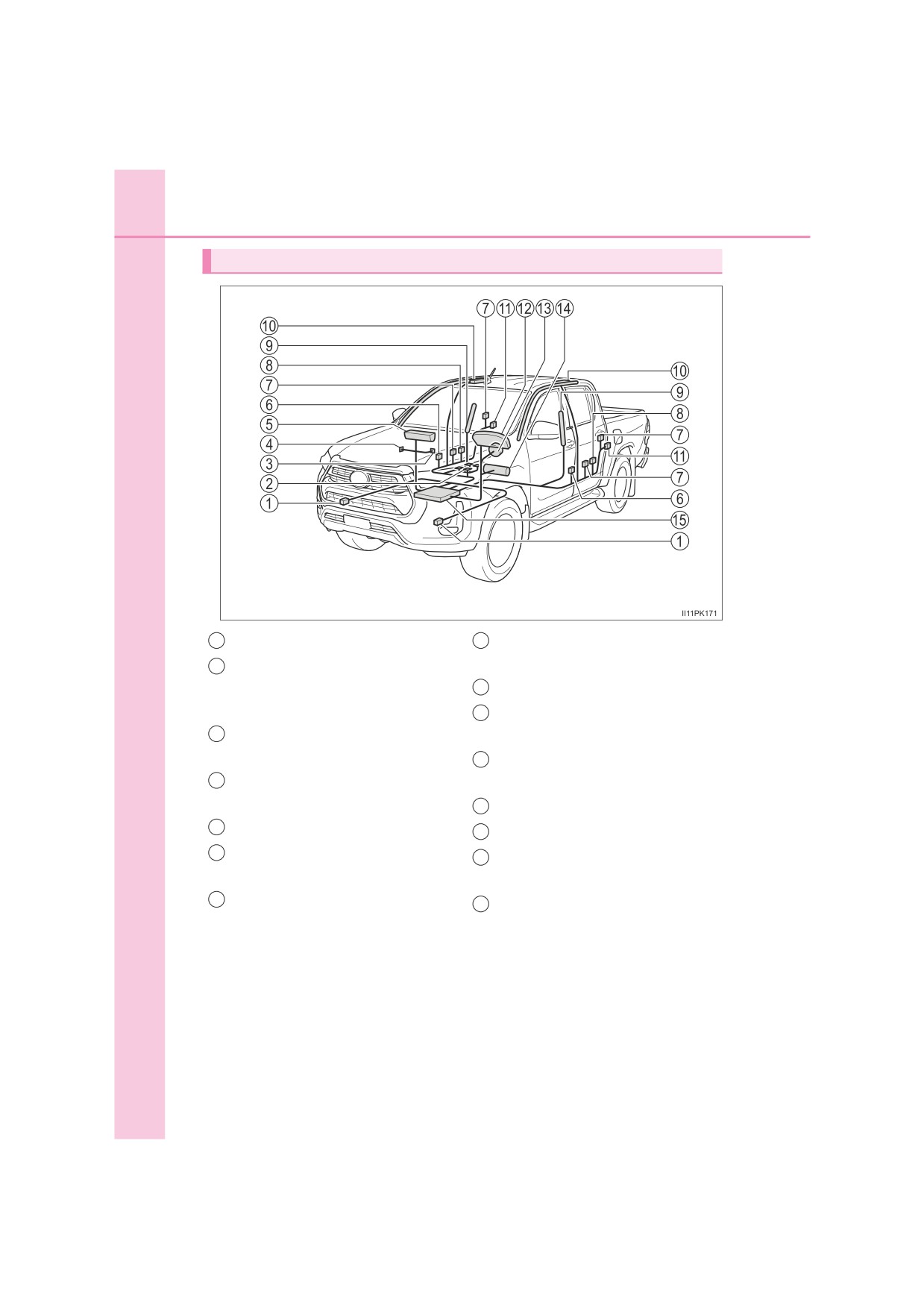

SRS airbag system components

1

Front impact sensors

8

Safing sensor

(front)

(if

2

Front passenger occupant clas-

equipped)

sification system

(ECU and

9

Side airbags (if equipped)

sensors) (if equipped)

10

Curtain shield airbags

3

“PASSENGER AIR BAG” indi-

(if equipped)

cator (if equipped)

11

Side impact sensors (rear)

4

Airbag manual on-off switch

(if equipped)

(if equipped)

12

SRS warning light

5

Front passenger airbag

13

Driver airbag

6

Side impact sensors

(front

14

Driver’s knee airbag

door) (if equipped)

(if equipped)

7

Seat belt pretensioners and

15

Airbag sensor assembly

force limiters (if equipped)

48

1-1. For safe use

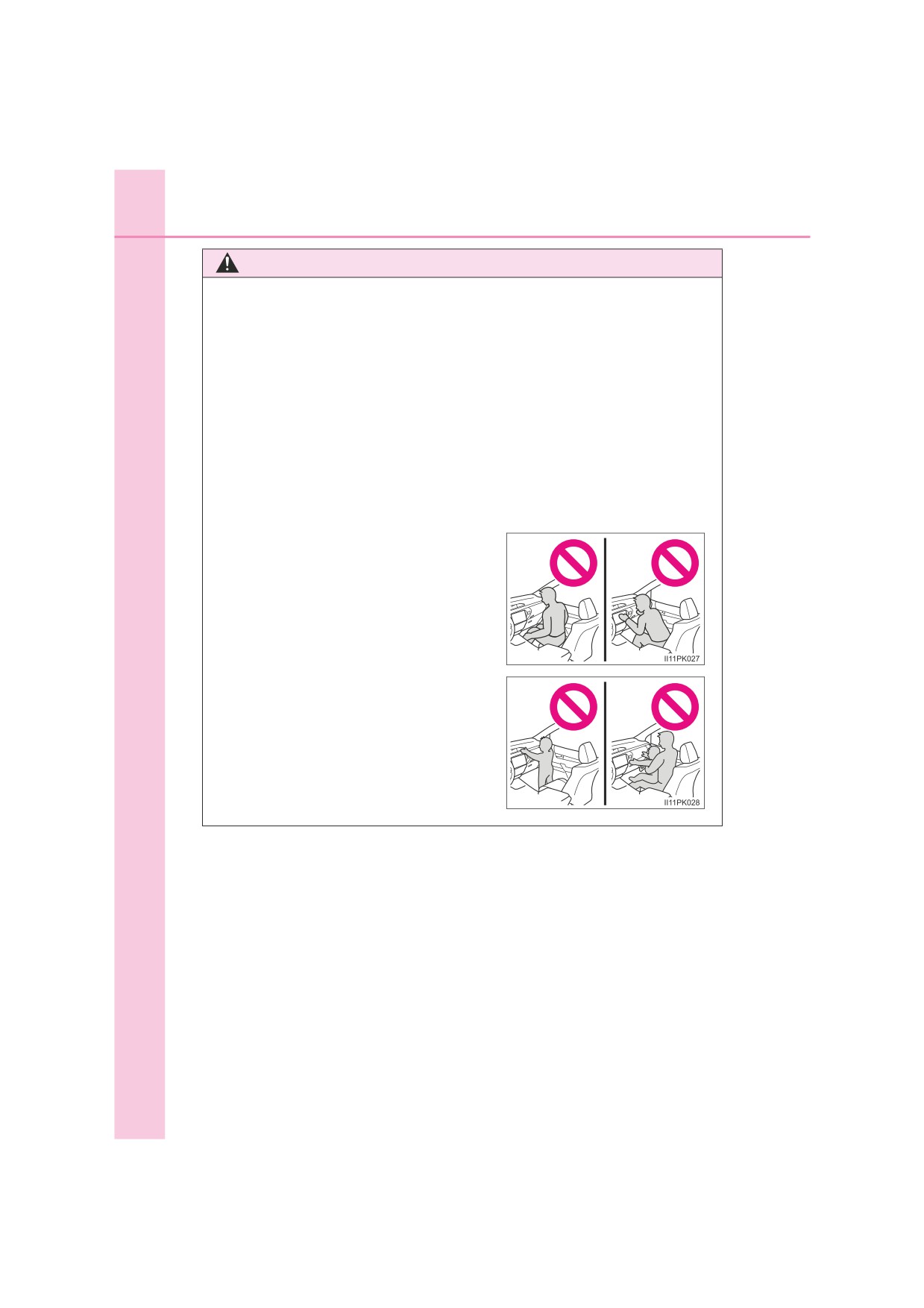

WARNING

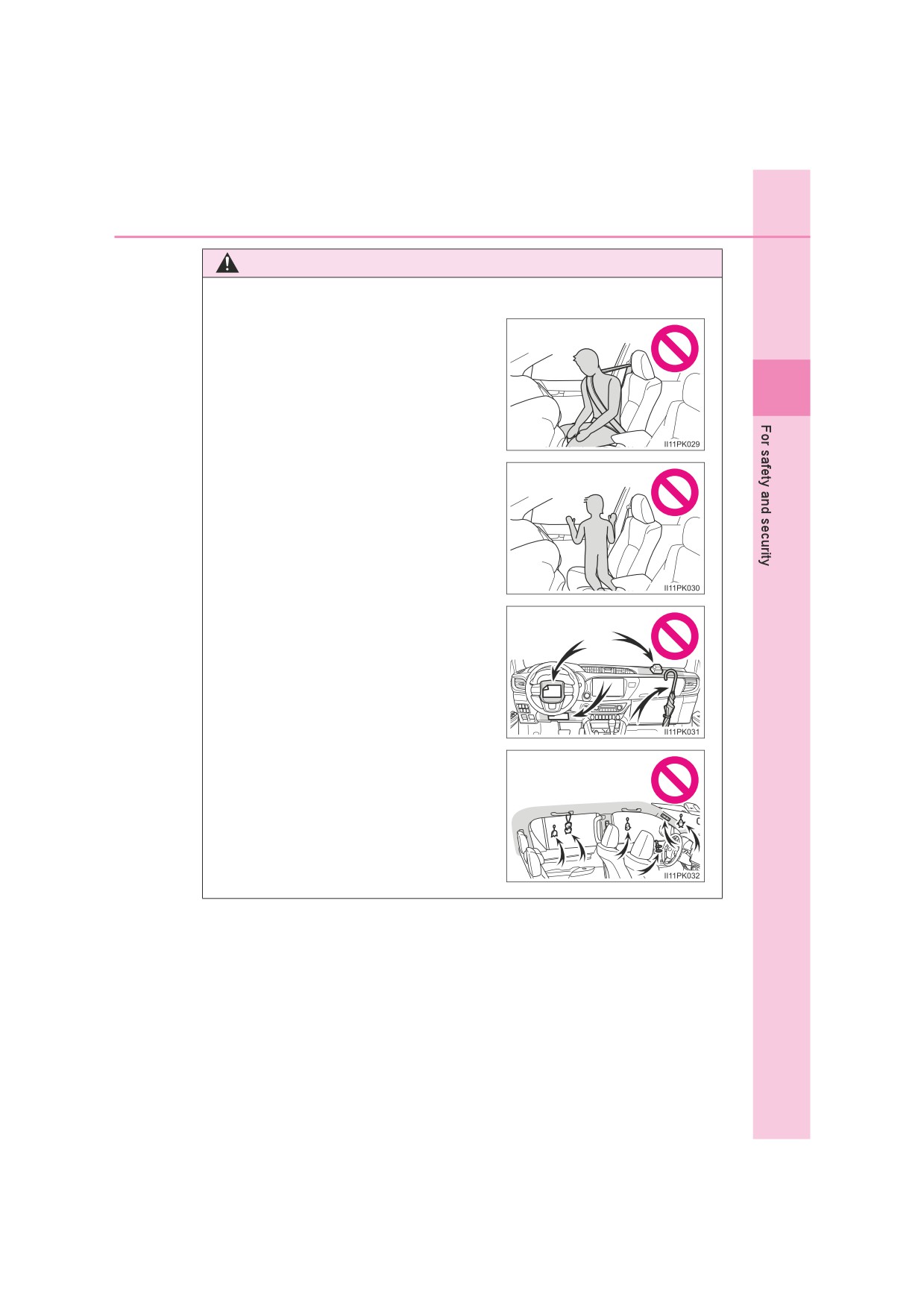

Q SRS airbag precautions

OThe SRS front passenger airbag also deploys with considerable force, and

can cause death or serious injury especially if the front passenger is very

close to the airbag. The front passenger seat should be as far from the air-

bag as possible with the seatback adjusted, so the front passenger sits

upright.

OImproperly seated and/or restrained infants and children can be killed or

seriously injured by a deploying airbag. An infant or child who is too small

to use a seat belt should be properly secured using a child restraint sys-

tem. Toyota strongly recommends that all infants and children be placed in

the rear seats (if equipped) of the vehicle and properly restrained. The rear

seats (if equipped) are safer for infants and children than the front passen-

ger seat. (P. 65)

ODo not sit on the edge of the seat or

lean against the dashboard.

ODo not allow a child to stand in front of

the SRS front passenger airbag unit or

sit on the knees of a front passenger.

ODo not allow the front seat occupants to

hold items on their knees.

1-1. For safe use

49

WARNING

Q SRS airbag precautions

O Vehicles with SRS side and curtain

shield airbags: Do not lean against the

door, the roof side rail or the front, side

and rear pillars.

1

O Vehicles with SRS side and curtain

shield airbags: Do not allow anyone to

kneel on the passenger seat toward the

door or put their head or hands outside

the vehicle.

ODo not attach anything to or lean any-

thing against areas such as the dash-

board, steering wheel pad and lower

portion of the instrument panel.

These items can become projectiles

when the SRS driver, front passenger

and knee airbags (if equipped) deploy.

O Vehicles with SRS side and curtain

shield airbags: Do not attach anything

to areas such as a door, windshield,

side door glass, front or rear pillar, roof

side rail and assist grip.

50

1-1. For safe use

WARNING

Q SRS airbag precautions

O Vehicles without smart entry & start

sys-

tem: Do not attach any heavy, sharp or

hard objects such as keys or accesso-

ries to the key. The objects may restrict

the SRS knee airbag (if equipped) infla-

tion or be thrust into the driver’s seat

area by the force of the deploying air-

bag, thus causing a danger.

O Vehicles with SRS side and curtain shield airbags: Do not hang coat hang-

ers or other hard objects on the coat hooks. All of these items could

become projectiles and may cause death or serious injury, should the SRS

curtain shield airbags deploy.

O Vehicles with SRS driver’s knee airbag: If the vinyl cover is put on the area

where the SRS knee airbag will deploy, be sure to remove it.

O Vehicles with SRS side and curtain shield airbags: Do not use seat acces-

sories which cover the parts where the SRS side airbags inflate as they

may interfere with inflation of the SRS airbags. Such accessories may pre-

vent the side airbags from activating correctly, disable the system or cause

the side airbags to inflate accidentally, resulting in death or serious injury.

ODo not strike or apply significant levels of force to the area of the SRS air-

bag components.

Doing so can cause the SRS airbags to malfunction.

ODo not touch any of the component parts immediately after the SRS air-

bags have deployed (inflated) as they may be hot.

O If breathing becomes difficult after the SRS airbags have deployed, open a

door or window to allow fresh air in, or leave the vehicle if it is safe to do

so. Wash off any residue as soon as possible to prevent skin irritation.

O Vehicles with SRS side and curtain shield airbags: If the areas where the

SRS airbags are stored, such as the steering wheel pad and front and rear

pillar garnishes, are damaged or cracked, have them replaced by any

authorized Toyota retailer or Toyota authorized repairer, or any reliable

repairer.

O Vehicles without SRS side and curtain shield airbags: If the areas where

the SRS airbags are stored, such as the steering wheel pad, are damaged

or cracked, have them replaced by any authorized Toyota retailer or

Toyota authorized repairer, or any reliable repairer.

O Vehicles with front passenger occupant classification system: Do not place

anything, such as a cushion, on the front passenger’s seat. Doing so will

disperse the passenger’s weight, which prevents the sensor from detect-

ing the passenger’s weight properly. As a result, the SRS front airbags for

the front passenger may not deploy in the event of a collision.

1-1. For safe use

53

QSRS airbag deployment conditions (SRS front airbags)

OThe SRS front airbags will deploy in the event of an impact that exceeds the

set threshold level (the level of force corresponding to an approximately 20 -

30 km/h [12 - 18 mph] frontal collision with a fixed wall that does not move or

deform).

However, this threshold velocity will be considerably higher in the following

situations:

• If the vehicle strikes an object, such as a parked vehicle or sign pole,

1

which can move or deform on impact

• If the vehicle is involved in an underride collision, such as a collision in

which the front of the vehicle “underrides”, or goes under, the bed of a

truck

ODepending on the type of collision, it is possible that only the seat belt pre-

tensioners will activate.

O Vehicles with front passenger occupant classification system: The SRS front

airbags for the front passenger will not activate if there is no passenger sit-

ting in the front passenger seat. However, the SRS front airbags for the front

passenger may deploy if luggage is put in the seat, even if the seat is unoc-

cupied.

Q SRS airbag deployment conditions (SRS side and curtain shield airbags)

OThe SRS side and curtain shield airbags will deploy in the event of an

impact that exceeds the set threshold level (the level of force corresponding

to the impact force produced by an approximately 1500 kg [3300 lb.] vehicle

colliding with the vehicle cabin from a direction perpendicular to the vehicle

orientation at an approximate speed of 20 - 30 km/h [12 - 18 mph]).

OAll SRS side and curtain shield airbags will deploy in the event of a severe

frontal collision.

Q Conditions under which the SRS airbags may deploy (inflate), other than

a collision

The SRS front airbags, SRS side and curtain shield airbags may also deploy

if a serious impact occurs to the underside of your vehicle. Some examples

are shown in the illustration.

O Hitting a curb, edge of pavement or hard

surface

OFalling into or jumping over a deep hole

O Landing hard or falling

54

1-1. For safe use

Q Types of collisions that may not deploy the SRS airbags (SRS front air-

bags)

The SRS front airbags do not generally inflate if the vehicle is involved in a

side or rear collision, if it rolls over, or if it is involved in a low-speed frontal

collision. But, whenever a collision of any type causes sufficient forward

deceleration of the vehicle, deployment of the SRS front airbags may occur.

OCollision from the side

OCollision from the rear

O Vehicle rollover

Q Types of collisions that may not deploy the SRS airbags

(SRS side and curtain shield airbags)

The SRS side and curtain shield airbags may not activate if the vehicle is

subjected to a collision from the side at certain angles, or a collision to the

side of the vehicle body other than the passenger compartment.

OCollision from the side to the vehicle

body other than the passenger compart-

ment

OCollision from the side at an angle

The SRS side and curtain shield airbags do not generally inflate if the vehicle

is involved in a rear collision, if it rolls over, or if it is involved in a low-speed

side or low-speed frontal collision.

OCollision from the rear

O Vehicle rollover

Q When to contact any authorized Toyota retailer or Toyota authorized

repairer, or any reliable repairer

In the following cases, the vehicle will require inspection and/or repair. Con-

tact any authorized Toyota retailer or Toyota authorized repairer, or any reli-

able repairer as soon as possible.

1-1. For safe use

55

O Any of the SRS airbags have been inflated.

O The front of the vehicle is damaged or

deformed, or was involved in an acci-

dent that was not severe enough to

cause the SRS airbags to inflate.

1

O Vehicles with SRS side and curtain

shield airbags: A portion of a door or its

surrounding area is damaged or

deformed, or the vehicle was involved in

an accident that was not severe enough

to cause the SRS side and curtain shield

airbags to inflate.

O Vehicles without SRS driver’s knee air-

bag: The pad section of the steering

wheel or dashboard near the front pas-

senger airbag is scratched, cracked, or

otherwise damaged.

Vehicles with SRS driver’s knee airbag:

The pad section of the steering wheel,

dashboard near the front passenger air-

bag cover or lower portion of the instru-

ment panel is scratched, cracked, or

otherwise damaged.

O Vehicles with SRS side airbags: The sur-

face of the seats with the SRS side air-

bag is scratched, cracked, or otherwise

damaged.

O Vehicles with SRS curtain shield air-

bags: The portion of the front pillars, rear

pillars or roof side rail garnishes (pad-

ding) containing the SRS curtain shield

airbags inside is scratched, cracked, or

otherwise damaged.

1-2. Child safety

57

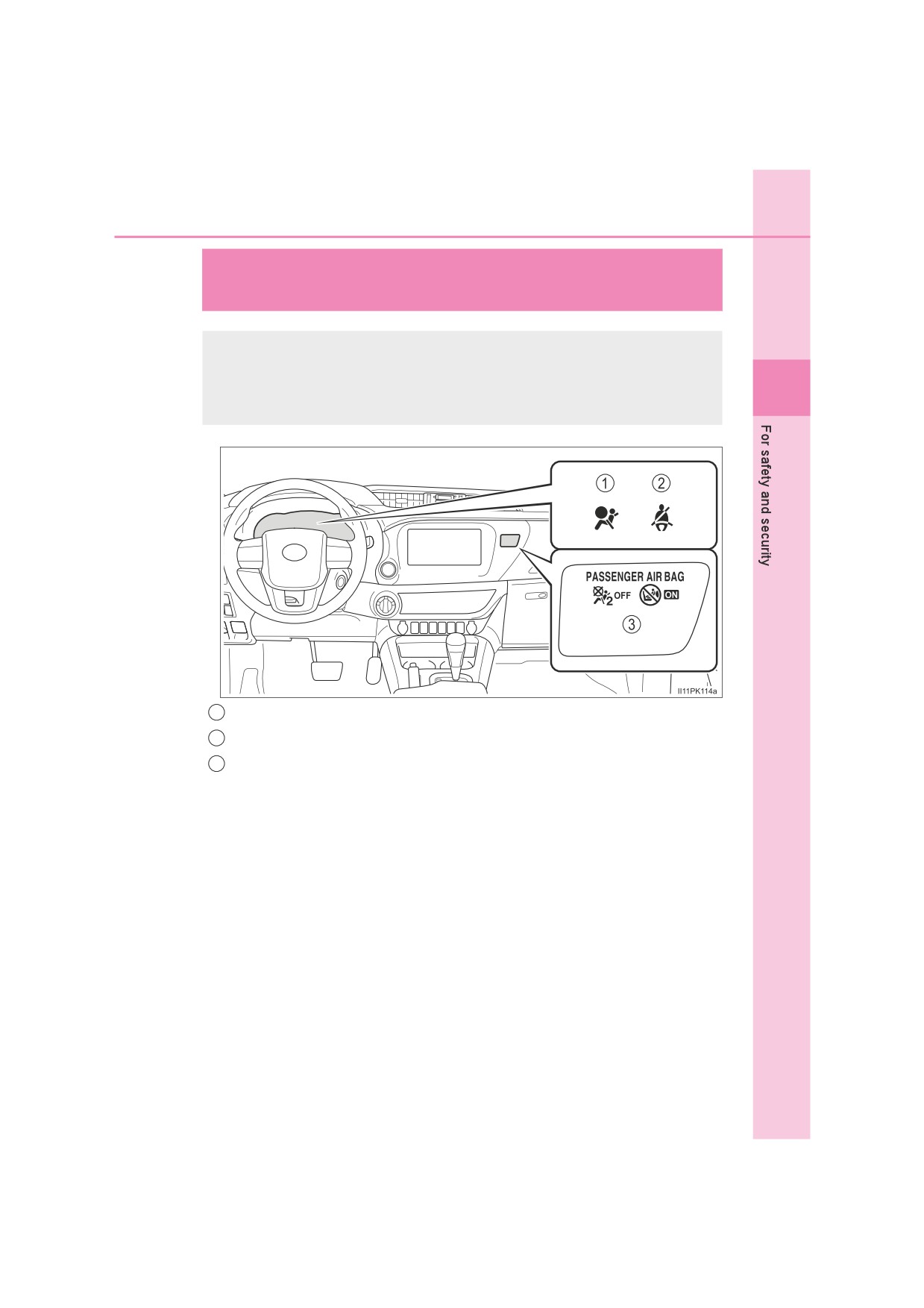

Front passenger occupant classification

system^

Your vehicle is equipped with a front passenger occupant classi-

fication system. This system detects the conditions of the front

passenger seat and activates or deactivates the front passenger

1

airbag and front passenger’s seat belt pretensioner.

1

SRS warning light

2

Seat belt reminder light

3

“PASSENGER AIR BAG” indicator

Vehicles without smart entry & start system: The ON indicator light turns on

when the airbag system is on (only when the engine switch is in the “ON”

position).

Vehicles with smart entry & start system: The ON indicator light turns on

when the airbag system is on (only when the engine switch is in IGNITION

ON mode).

: If equipped

58

1-2. Child safety

Condition and operation in the front passenger occupant classi-

fication system

Q Adult*¹

“PASSENGER AIR BAG” indicator

ON indicator

Indicator/

SRS warning light

Off

warning light

Off*² or

Seat belt reminder light

flashing*³

Front passenger airbag

Devices

Activated

Front passenger’s seat belt pretensioner

Q Child*⁴ or child restraint system*⁵

OFF

“PASSENGER AIR BAG” indicator

indicator*⁶

Indicator/

SRS warning light

Off

warning light

Off*² or

Seat belt reminder light

flashing*³

Front passenger airbag

Deactivated

Devices

Front passenger’s seat belt pretensioner

Activated

Q Unoccupied

“PASSENGER AIR BAG” indicator

OFF indicator

Indicator/

SRS warning light

warning light

Off

Seat belt reminder light

Front passenger airbag

Deactivated

Devices

Activated*⁷

Front passenger’s seat belt pretensioner

or

deactivated*⁸

1-2. Child safety

59

Q There is a malfunction in the system

“PASSENGER AIR BAG” indicator

OFF indicator

Indicator/

SRS warning light

On

warning light

Seat belt reminder light

flashing

Front passenger airbag

Deactivated

Devices

1

Front passenger’s seat belt pretensioner

Activated

^*1: The system judges a person of adult size as an adult. When a smaller

adult sits in the front passenger seat, the system may recognize him/her

as a child depending on his/her physique and posture.

^*2: In the event the front passenger is wearing a seat belt.

^*3: In the event the front passenger does not wear a seat belt.

^*4: When a larger child who has outgrown a child restraint system sits in the

front passenger seat, the system may recognize him/her as an adult

depending on his/her physique or posture.

^*5: For the child’s safety, install the child restraint system to a rear seat.

When it is unavoidable, a child restraint system can be installed on the

front passenger seat. A rear-facing child restraint system should be

installed when “OFF” of the “PASSENGER AIR BAG” indicator is illumi-

nated. (P. 65)

^*6: In case the indicator light is not illuminated, consult this manual on how to

install the child restraint system properly. (P. 65)

^*7: In the event of a side collision.

^*8: In the event of a frontal collision.

Content      ..      1      2      3      ..
