Toyota 4Runner (2022 year). instruction in english - page 9

242

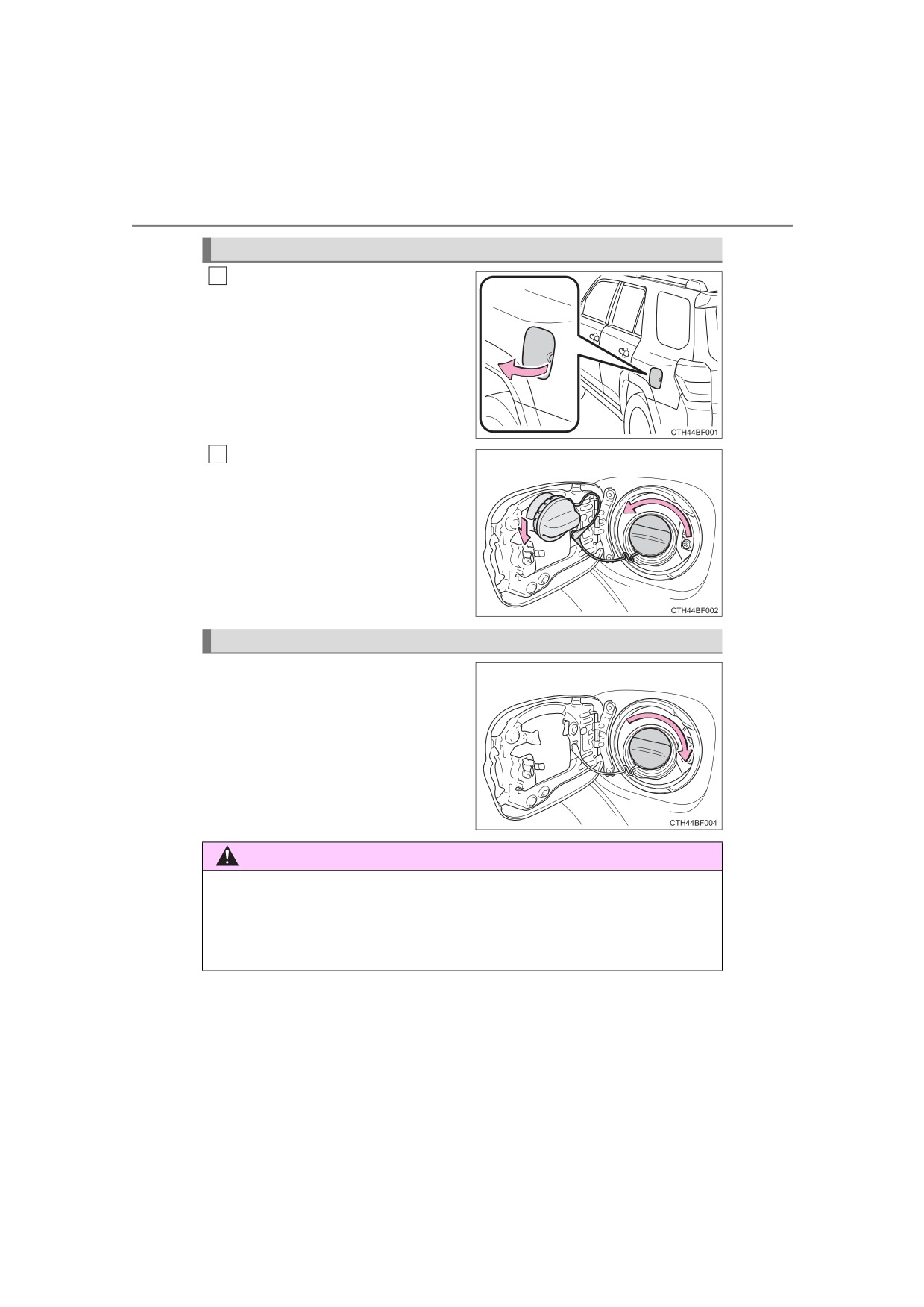

4-4. Refueling

Opening the fuel tank cap

1

Open the fuel filler door.

Turn the fuel tank cap slowly to

2

open. Hang the fuel tank cap on

the back of the fuel filler door.

Closing the fuel tank cap

After refueling, turn the fuel tank

cap until you hear a click. Once

the cap is released, it will turn

slightly in the opposite direction.

WARNING

■ When replacing the fuel tank cap

Do not use anything but a genuine Toyota fuel tank cap designed for your

vehicle. Doing so may cause a fire or other incident which may result in

death or serious injury.

4-5. Using the driving support systems

243

Toyota Safety Sense P

The Toyota Safety Sense P consists of the following drive assist

systems and contributes to a safe and comfortable driving expe-

rience:

Driving assist system

◆ PCS (Pre-Collision System)

P. 250

◆ LDA (Lane Departure Alert)

P. 260

◆ AHB (Automatic High Beam)

4

P. 228

◆ Dynamic radar cruise control

P. 268

WARNING

■ Toyota Safety Sense P

The Toyota Safety Sense P is designed to operate under the assumption

that the driver will drive safely, and is designed to help reduce the impact to

the occupants and the vehicle in the case of a collision or assist the driver in

normal driving conditions.

As there is a limit to the degree of recognition accuracy and control perfor-

mance that this system can provide, do not overly rely on this system. The

driver is always responsible for paying attention to the vehicle's surround-

ings and driving safely.

244

4-5. Using the driving support systems

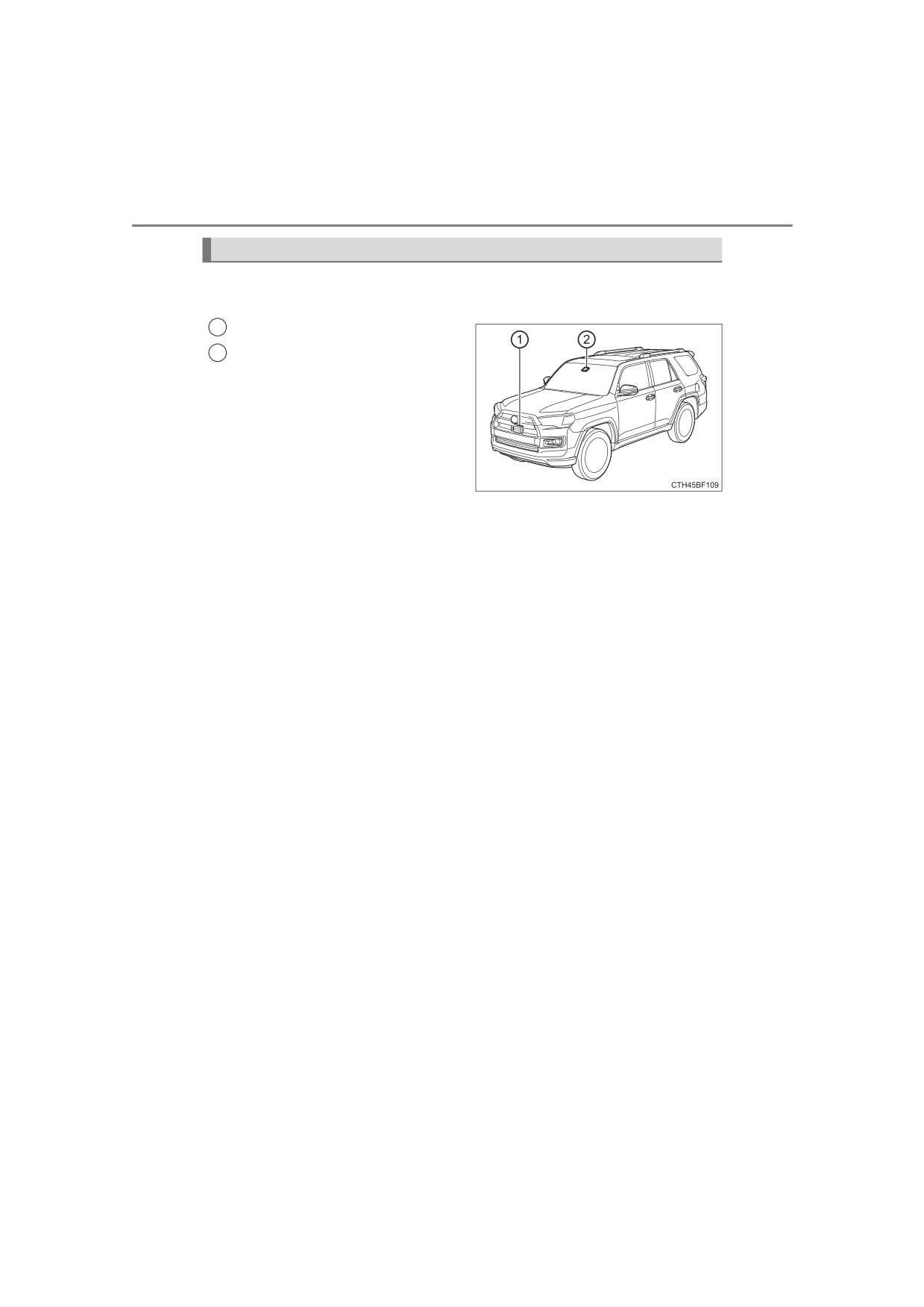

Sensors

Two types of sensors, located behind the front grille and windshield,

detect information necessary to operate the drive assist systems.

1

Radar sensor

2

Front camera

4-5. Using the driving support systems

245

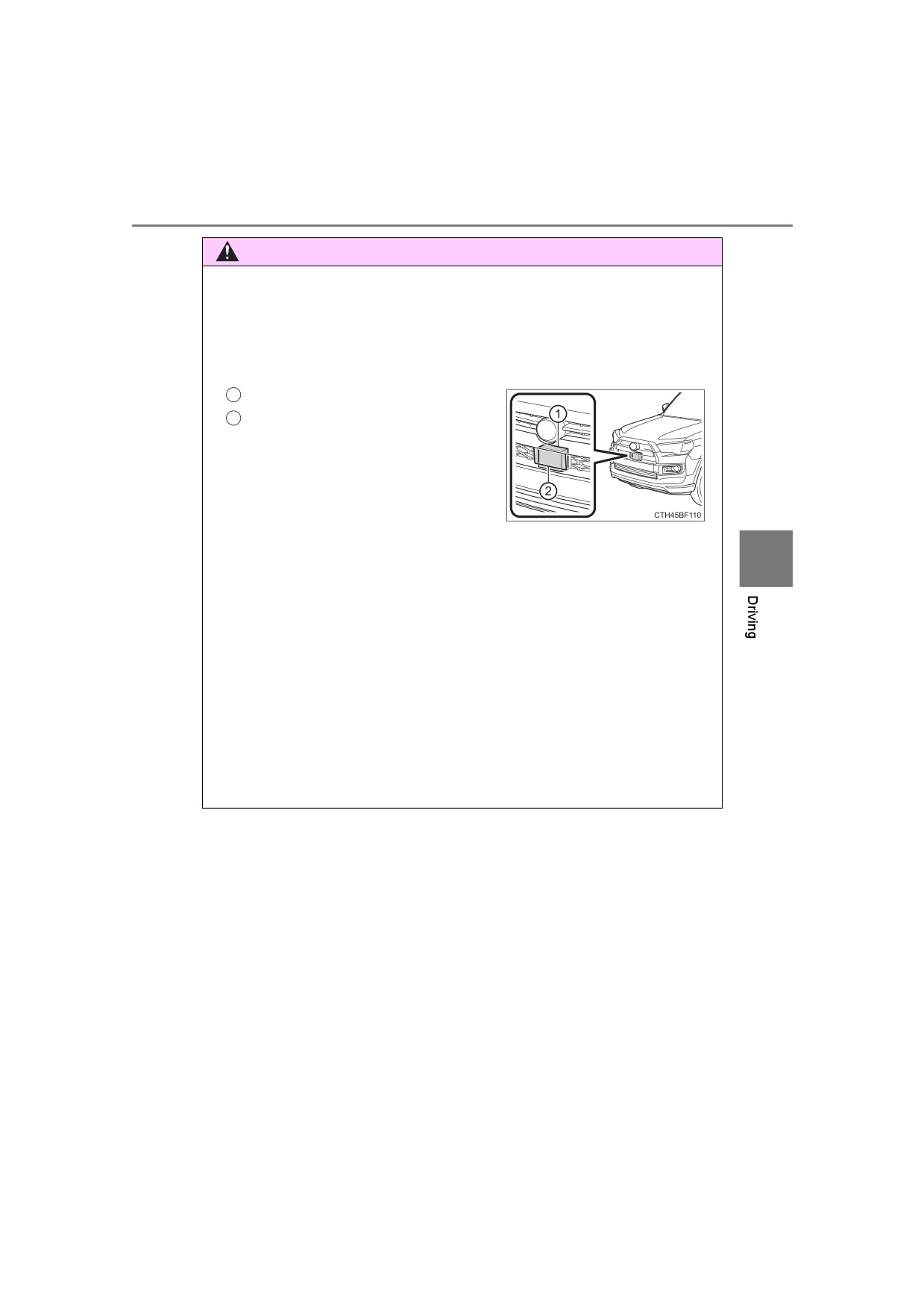

WARNING

■ To avoid malfunction of the radar sensor

Observe the following precautions.

Otherwise, the radar sensor may not operate properly, possibly leading to

an accident resulting in death or serious injury.

● Keep the radar sensor and the radar sensor cover clean at all times.

1

Radar sensor

2

Radar sensor cover

If the front of the radar sensor or the

front or back of the radar sensor cover

is dirty or covered with water droplets,

snow, etc., clean it.

Clean the radar sensor and radar sen-

sor cover with a soft cloth to avoid

damaging them.

4

● Do not attach accessories, stickers (including transparent stickers) or

other items to the radar sensor, radar sensor cover or surrounding area.

● Do not subject the radar sensor or its surrounding area to a strong impact.

If the radar sensor, front grille, or front bumper has been subjected to a

strong impact, have the vehicle inspected by your Toyota dealer.

● Do not disassemble the radar sensor.

● Do not modify or paint the radar sensor or radar sensor cover.

● In the following cases, the radar sensor must be recalibrated. Contact your

Toyota dealer for details.

• When the radar sensor or front grille are removed and installed, or

replaced

• When the front bumper is replaced

246

4-5. Using the driving support systems

WARNING

■ To avoid malfunction of the front camera

Observe the following precautions.

Otherwise, the front camera may not operate properly, possibly leading to

an accident resulting in death or serious injury.

● Keep the windshield clean at all times.

• If the windshield is dirty or covered with an oily film, water droplets,

snow, etc., clean the windshield.

• If a glass coating agent is applied to the windshield, it will still be neces-

sary to use the windshield wipers to remove water droplets, etc. from

the area of the windshield in front of the front camera.

• If the inner side of the windshield where the front camera is installed is

dirty, contact your Toyota dealer.

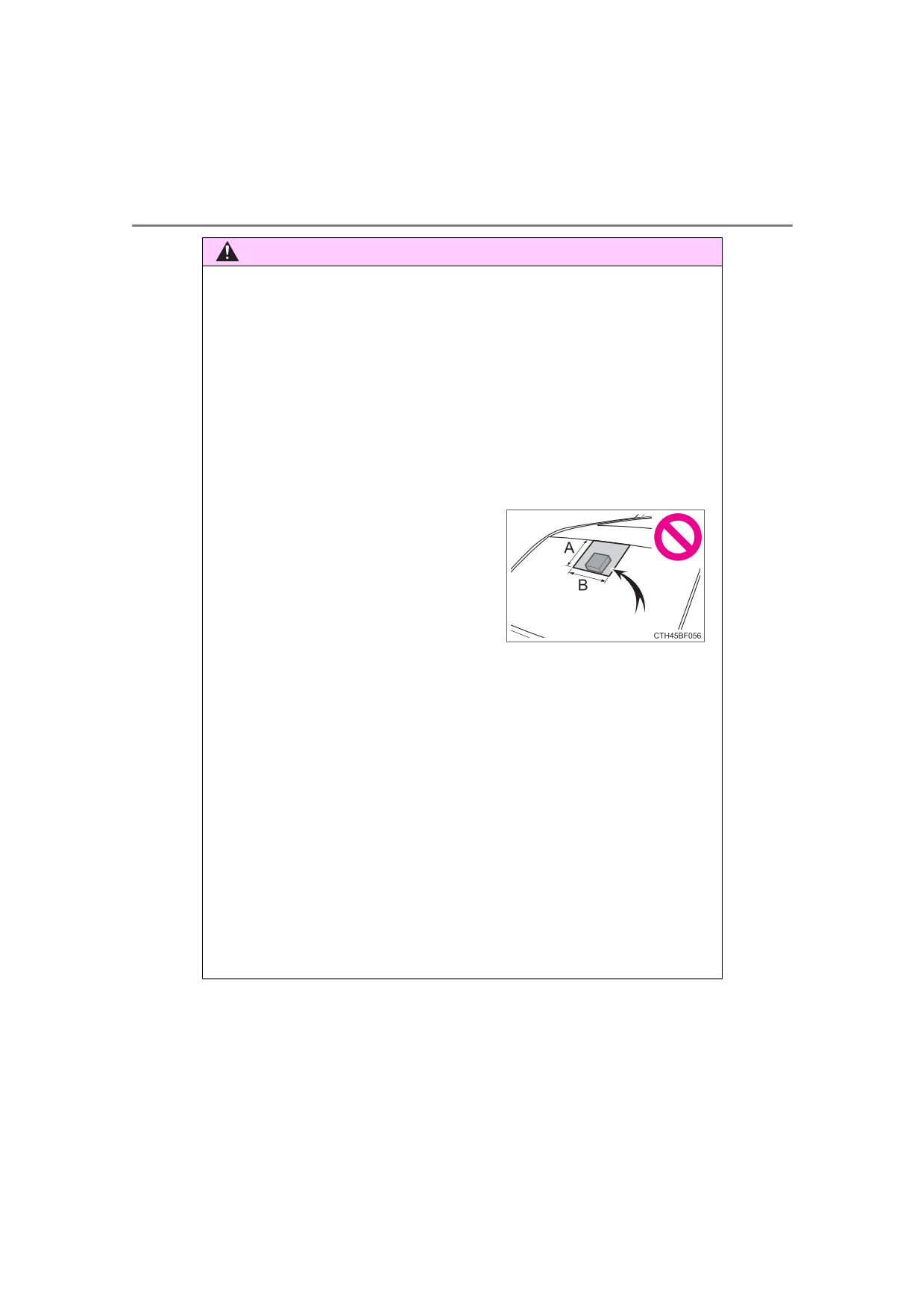

● Do not attach objects, such as stickers,

transparent stickers, etc., to the outer

side of the windshield in front of the

front camera (shaded area in the illus-

tration).

A: From the top of the windshield to

approximately 0.4 in. (1 cm) below the

bottom of the front camera

B: Approximately

7.9 in.

(20 cm)

(Approximately 4.0 in. [10 cm] to the

right and left from the center of the

front camera)

● If the part of the windshield in front of the front camera is fogged up or cov-

ered with condensation or ice, use the windshield defogger to remove the

fog, condensation or ice. (P. 354)

● If water droplets cannot be properly removed from the area of the wind-

shield in front of the front camera by the windshield wipers, replace the

wiper insert or wiper blade.

● Do not attach window tint to the windshield.

● Replace the windshield if it is damaged or cracked.

After replacing the windshield, the front camera must be recalibrated. Con-

tact your Toyota dealer for details.

● Do not allow liquids to contact the front camera.

● Do not allow bright lights to shine into the front camera.

4-5. Using the driving support systems

247

WARNING

● Do not dirty or damage the front camera.

When cleaning the inside of the windshield, do not allow glass cleaner to

contact the lens of the front camera. Also, do not touch the lens.

If the lens is dirty or damaged, contact your Toyota dealer.

● Do not subject the front camera to a strong impact.

● Do not change the installation position or direction of the front camera or

remove it.

● Do not disassemble the front camera.

● Do not modify any components of the vehicle around the front camera

(inside rear view mirror, etc.) or ceiling.

● Do not attach any accessories to the hood, front grille or front bumper that

may obstruct the front camera. Contact your Toyota dealer for details.

● If a surfboard or other long object is to be mounted on the roof, make sure

that it will not obstruct the front camera.

4

● Do not modify the headlights or other lights.

248

4-5. Using the driving support systems

■ If a warning message is displayed on the multi-information display

A system may be temporarily unavailable or there may be a malfunction in

the system.

● In the following situations, perform the actions specified in the table. When

the normal operating conditions are detected, the message will disappear

and the system will become operational.

If the message does not disappear, contact your Toyota dealer.

Situation

Actions

When the area around a cam-

era is covered with dirt, mois-

Using the wiper and A/C function,

ture

(fogged up, covered with

remove the dirt and other attached mat-

condensation, ice, etc.), or

ter. (P. 354, 361)

other foreign matter

If the front camera is hot, such as after

the vehicle had been parked in the sun,

use the air conditioning system to

decrease the temperature around the

front camera.

If a sunshade was used when the vehi-

When the temperature around

cle was parked, depending on its type,

the front camera is outside of

the sunlight reflected from the surface

the operational range, such as

of the sunshade may cause the tem-

when the vehicle is in the sun or

perature of the front camera to become

in an extremely cold environ-

excessively high.

ment

If the front camera is cold, such after the

vehicle is parked in an extremely cold

environment, use the air conditioning

system to increase the temperature

around the front camera.

The area in front of the front

camera is obstructed, such as

when the hood is open or a

Close the hood, remove the sticker, etc.

sticker is attached to the part of

to clear the obstruction.

the windshield in front of the

front camera.

Check whether there is attached materi-

When

“Pre-Collision System

als on the radar sensor and radar sensor

Unavailable” is displayed.

cover, and if there is, remove it.

250

4-5. Using the driving support systems

PCS (Pre-Collision System)

The pre-collision system uses a radar sensor and front camera

to detect vehicles and pedestrians in front of your vehicle. When

the system determines that the possibility of a frontal collision

with a vehicle or pedestrian is high, a warning operates to urge

the driver to take evasive action and the potential brake pres-

sure is increased to help the driver avoid the collision. If the sys-

tem determines that the possibility of a frontal collision with a

vehicle or pedestrian is extremely high, the brakes are automati-

cally applied to help avoid the collision or help reduce the

impact of the collision.

The pre-collision system can be disabled/enabled and the warning

timing can be changed. (P. 253)

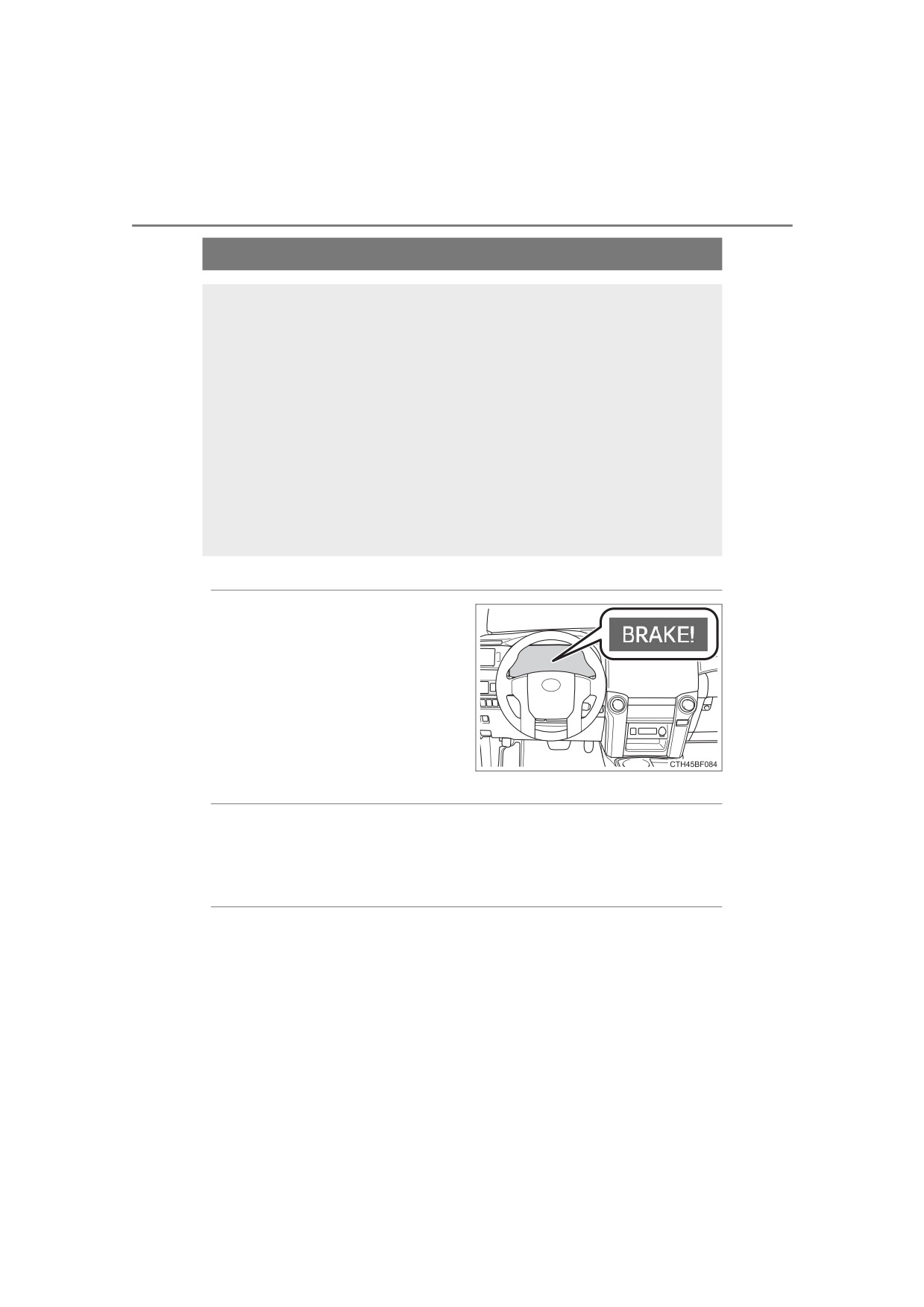

◆ Pre-collision warning

When the system determines

that the possibility of a frontal

collision is high, a buzzer will

sound and a warning message

will be displayed on the multi-

information display to urge the

driver to take evasive action.

◆ Pre-collision brake assist

When the system determines that the possibility of a frontal colli-

sion is high, the system applies greater braking force in relation to

how strongly the brake pedal is depressed.

◆ Pre-collision braking

When the system determines that the possibility of a frontal colli-

sion is high, the system warns the driver. If the system determines

that the possibility of a frontal collision is extremely high, the brakes

are automatically applied to help avoid the collision or reduce the

collision speed.

4-5. Using the driving support systems

253

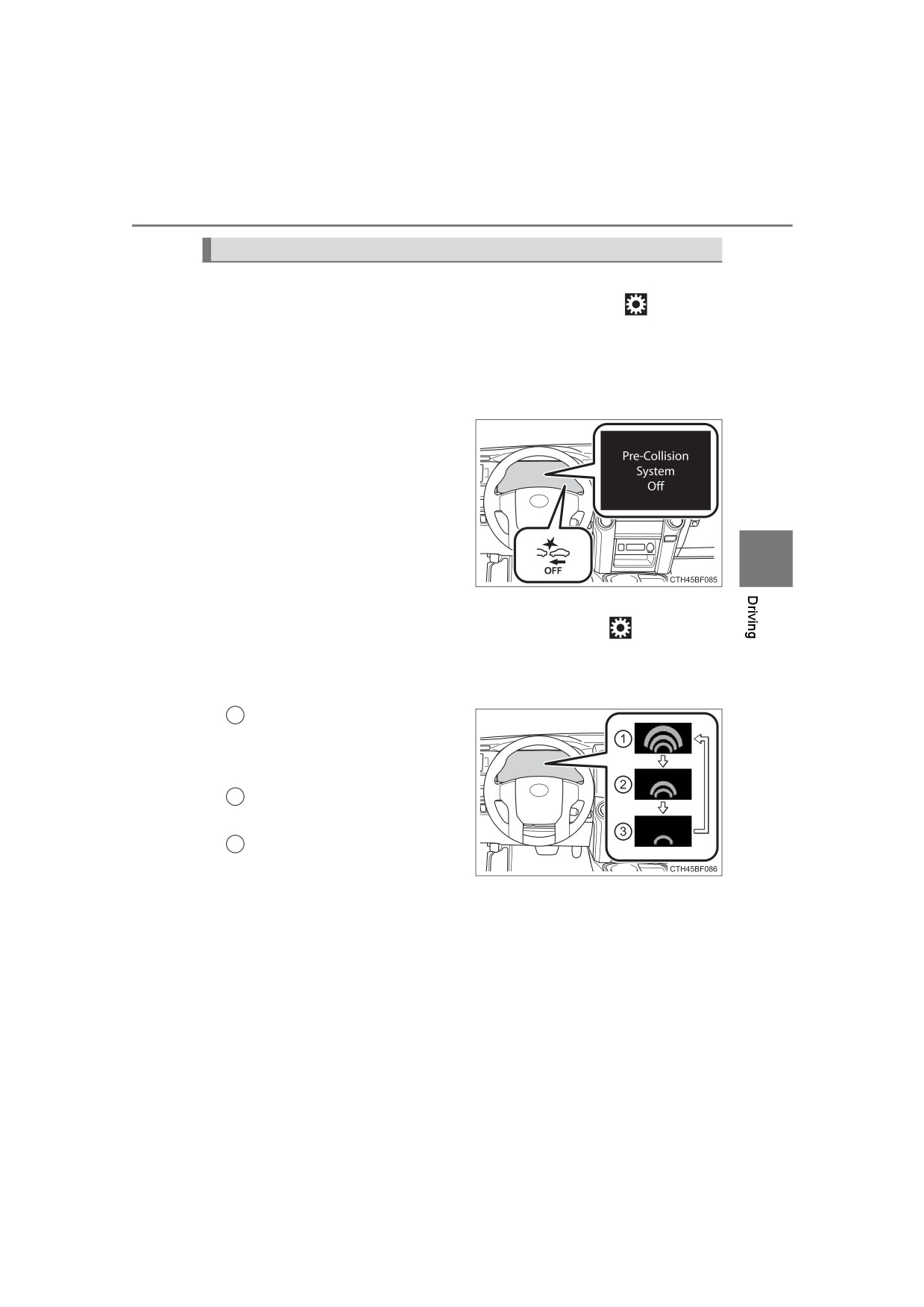

Changing settings of the pre-collision system

■ Enabling/disabling the pre-collision system

The pre-collision system can be enabled/disabled on

(P. 98)

of the multi-information display.

The system is automatically enabled each time the engine switch is

turned to the “ON” position (vehicles without a smart key system) or the

engine switch is turned to IGNITION ON mode (vehicles with a smart

key system).

If the system is disabled, the

PCS warning light will turn on

and a message will be dis-

played on the multi-information

display.

4

■ Changing the pre-collision warning timing

The pre-collision warning timing can be changed on

(P. 98) of

the multi-information display.

The operation timing setting is retained when the engine switch is

turned off.

1

Far

The warning will begin to oper-

ate earlier than with the default

timing.

2

Middle

This is the default setting.

3

Near

The warning will begin to oper-

ate later than with the default

timing.

254

4-5. Using the driving support systems

■ Operational conditions

The pre-collision system is enabled and the system determines that the pos-

sibility of a frontal collision with a vehicle or pedestrian is high.

Each function is operational at the following speeds:

● Pre-collision warning:

• Vehicle speed is between approximately 7 and 110 mph (10 and 180

km/h). (For detecting a pedestrian, vehicle speed is between approxi-

mately 7 and 50 mph [10 and 80 km/h].)

• The relative speed between your vehicle and the vehicle or pedestrian

ahead is approximately 7 mph (10 km/h) or more.

● Pre-collision brake assist:

• Vehicle speed is between approximately 20 and 110 mph (30 and 180

km/h). (For detecting a pedestrian, vehicle speed is between approxi-

mately 20 and 50 mph [30 and 80 km/h].)

• The relative speed between your vehicle and the vehicle or pedestrian

ahead is approximately 20 mph (30 km/h) or more.

● Pre-collision braking:

• Vehicle speed is between approximately 7 and 110 mph (10 and 180

km/h). (For detecting a pedestrian, vehicle speed is between approxi-

mately 7 and 50 mph [10 and 80 km/h].)

• The relative speed between your vehicle and the vehicle or pedestrian

ahead is approximately 7 mph (10 km/h) or more.

The system may not operate in the following situations:

● If a battery terminal has been disconnected and reconnected and then the

vehicle has not been driven for a certain amount of time

● If the shift lever is in R

● If VSC is disabled (only the pre-collision warning function will be opera-

tional)

●If the low speed four-wheel drive indicator is illuminated (only the pre-colli-

sion warning function will be operational)

■ Pedestrian detection function

The pre-collision system detects pedestri-

ans based on the size, profile, and motion

of a detected object. However, a pedes-

trian may not be detected depending on

the surrounding brightness and the

motion, posture, and angle of the

detected object, preventing the system

from operating properly. (P. 259)

4-5. Using the driving support systems

255

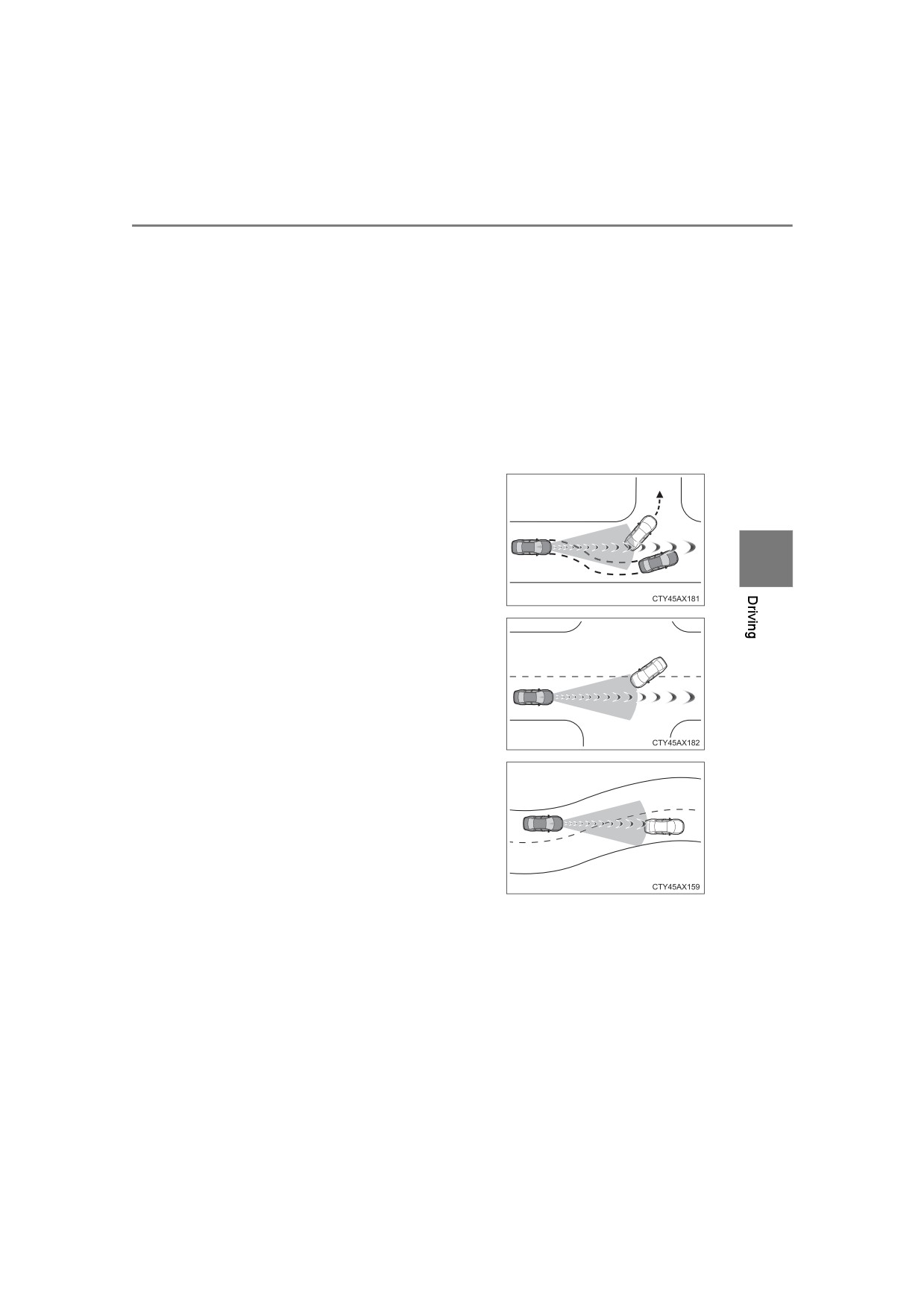

■ Cancelation of the pre-collision braking

If either of the following occur while the pre-collision braking function is oper-

ating, it will be canceled:

● The accelerator pedal is depressed strongly.

● The steering wheel is turned sharply or abruptly.

■ Conditions under which the system may operate even if there is no pos-

sibility of a collision

● In some situations such as the following, the system may determine that

there is a possibility of a frontal collision and operate.

• When passing a vehicle or pedestrian

• When changing lanes while overtaking a preceding vehicle

• When overtaking a preceding vehicle that is changing lanes

• When overtaking a preceding vehicle

that is making a left/right turn

4

• When passing a vehicle in an oncom-

ing lane that is stopped to make a

right/left turn

• When driving on a road where relative

location to vehicle ahead in an adja-

cent lane may change, such as on a

winding road

• When rapidly closing on a vehicle ahead

• If the front of the vehicle is raised or lowered, such as when the road sur-

face is uneven or undulating

• When approaching objects on the roadside, such as guardrails, utility

poles, trees, or walls

256

4-5. Using the driving support systems

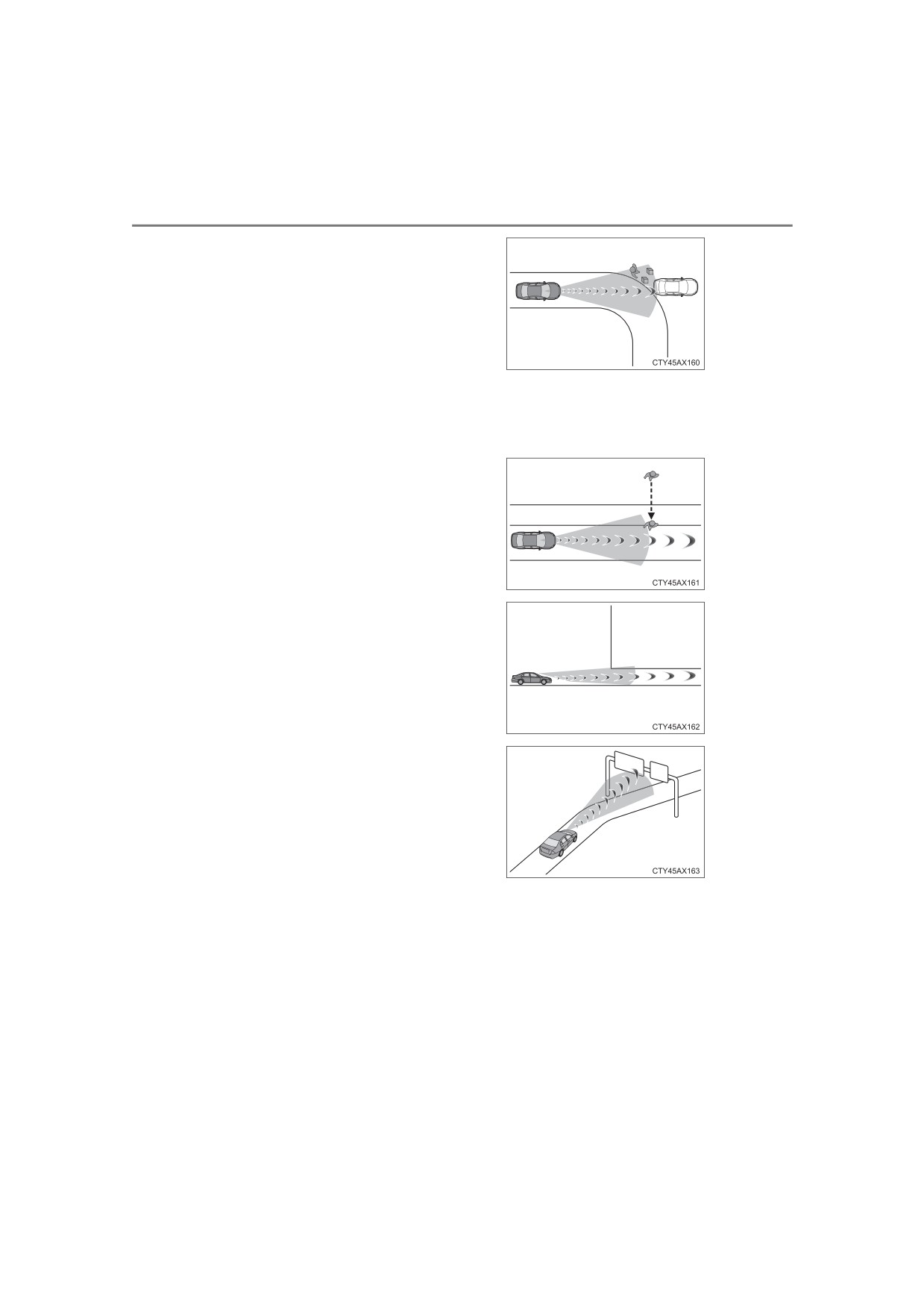

• When there is a vehicle, pedestrian,

or object by the roadside at the

entrance of a curve

• When driving on a narrow path surrounded by a structure, such as in a

tunnel or on an iron bridge

• When there is a metal object (manhole cover, steel plate, etc.), steps, or a

protrusion on the road surface or roadside

• When a crossing pedestrian

approaches very close to the vehicle

• When passing through a place with a

low structure above the road (low ceil-

ing, traffic sign, etc.)

• When passing under an object (bill-

board, etc.) at the top of an uphill road

• When rapidly closing on an electric toll gate barrier, parking area barrier,

or other barrier that opens and closes

• When using an automatic car wash

4-5. Using the driving support systems

257

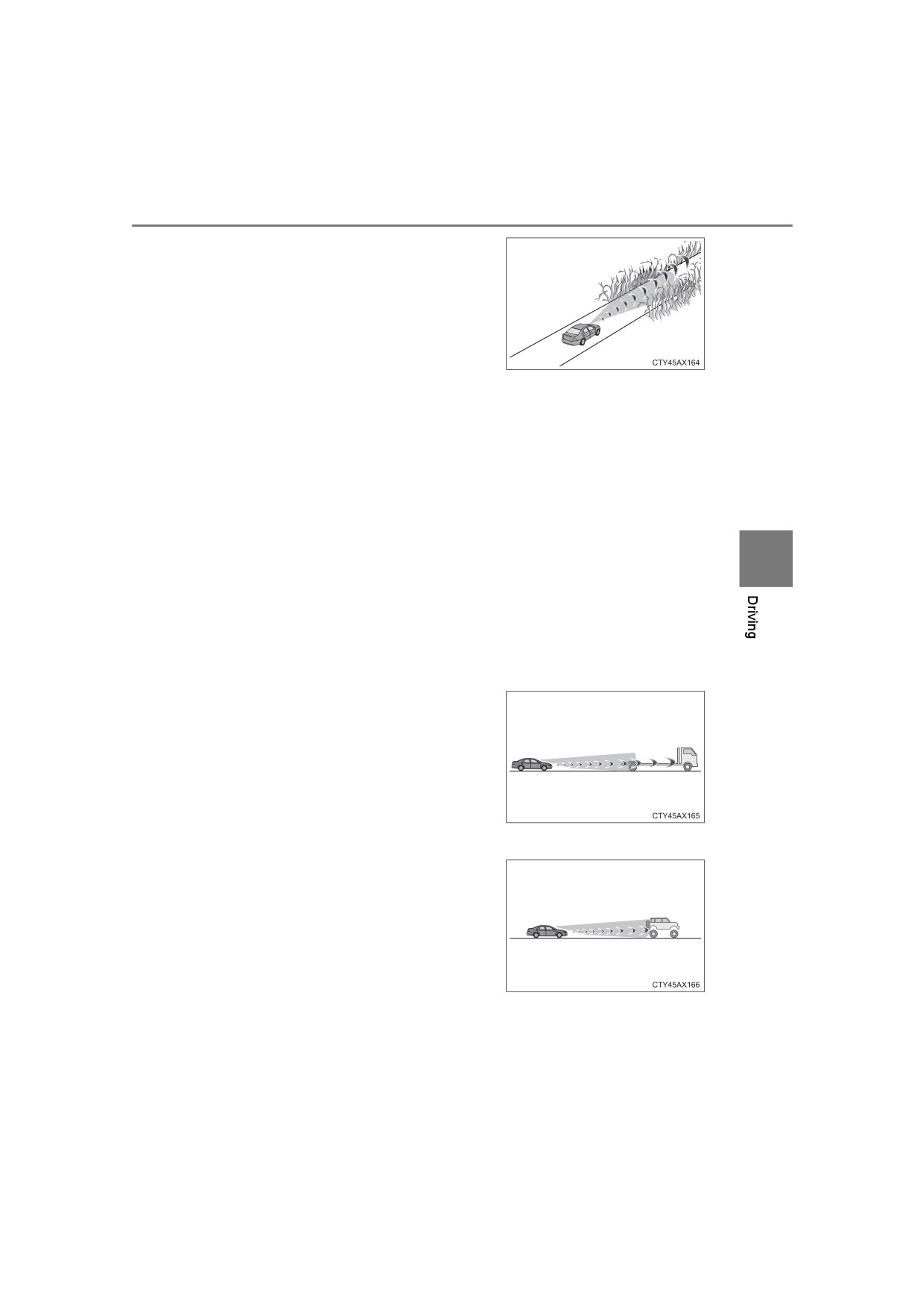

• When driving through or under

objects that may contact the vehicle,

such as thick grass, tree branches, or

a banner

• When the vehicle is hit by water, snow, dust, etc. from a vehicle ahead

• When driving through steam or smoke

• When there are patterns or paint on the road or a wall that may be mis-

taken for a vehicle or pedestrian

• When driving near an object that reflects radio waves, such as a large

truck or guardrail

• When driving near a TV tower, broadcasting station, electric power plant,

or other location where strong radio waves or electrical noise may be

present

■ Situations in which the system may not operate properly

4

● In some situations such as the following, a vehicle may not be detected by

the radar sensor and front camera, preventing the system from operating

properly:

• If an oncoming vehicle is approaching your vehicle

• If a vehicle ahead is a motorcycle or bicycle

• When approaching the side or front of a vehicle

• If a preceding vehicle has a small rear end, such as an unloaded truck

• If a preceding vehicle has a low rear

end, such as a low bed trailer

• If a vehicle ahead is carrying a load which protrudes past its rear bumper

• If a vehicle ahead has extremely high

ground clearance

• If a vehicle ahead is irregularly shaped, such as a tractor or side car

• If the sun or other light is shining directly on a vehicle ahead

• If a vehicle cuts in front of your vehicle or emerges from beside a vehicle

258

4-5. Using the driving support systems

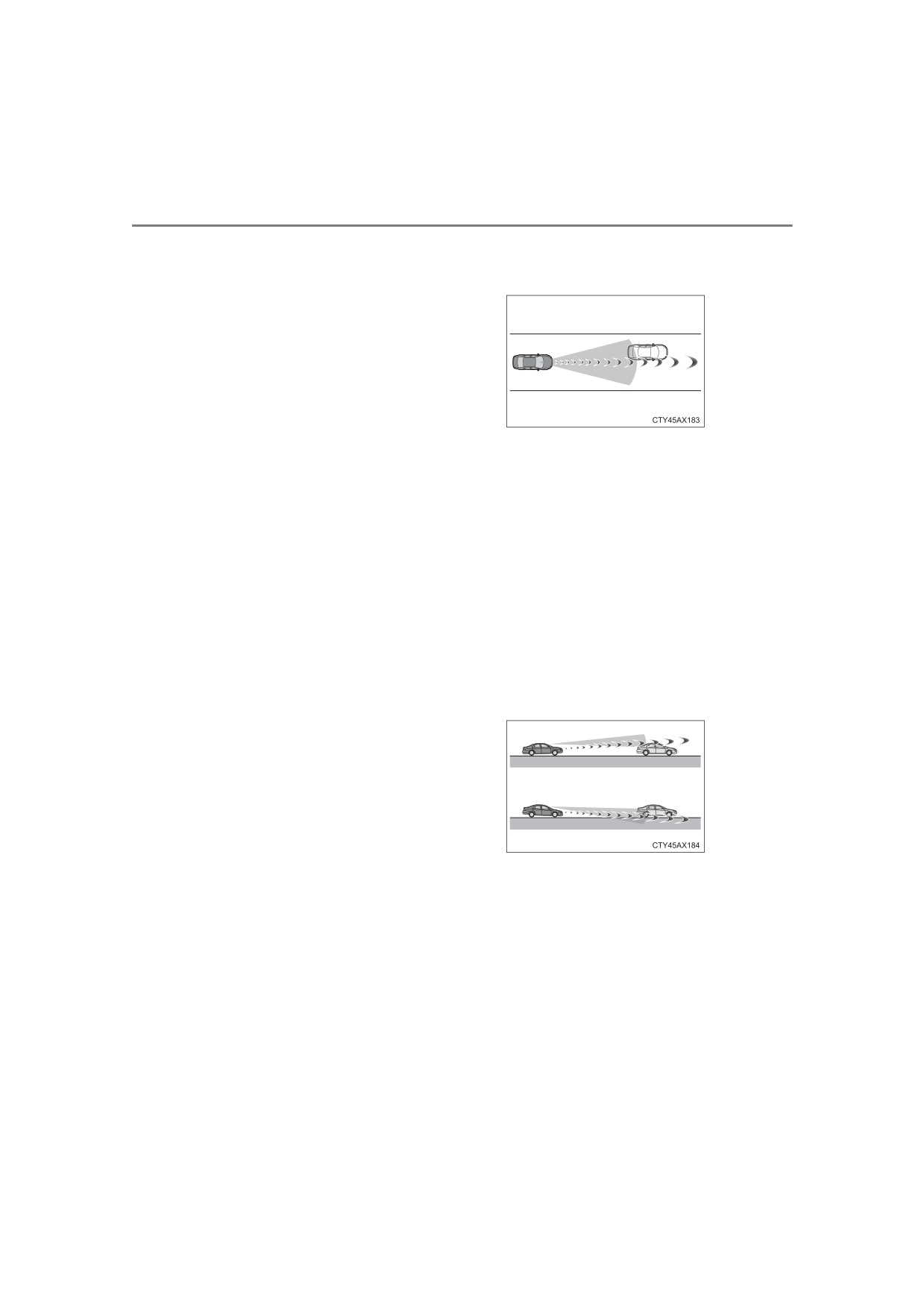

• If a vehicle ahead makes an abrupt maneuver (such as sudden swerving,

acceleration or deceleration)

• When suddenly cutting behind a preceding vehicle

• When a vehicle ahead is not directly

in front of your vehicle

• When driving in inclement weather such as heavy rain, fog, snow or a

sandstorm

• When the vehicle is hit by water, snow, dust, etc. from a vehicle ahead

• When driving through steam or smoke

• When driving in a place where the surrounding brightness changes sud-

denly, such as at the entrance or exit of a tunnel

• When a very bright light, such as the sun or the headlights of oncoming

traffic, shines directly into the front camera

• When the surrounding area is dim, such as at dawn or dusk, or while at

night or in a tunnel

• After the engine has started the vehicle has not been driven for a certain

amount of time

• While making a left/right turn and for a few seconds after making a left/

right turn

• While driving on a curve and for a few seconds after driving on a curve

• If your vehicle is skidding

• If the front of the vehicle is raised or

lowered

• If the wheels are misaligned

• If a wiper blade is blocking the front camera

• The vehicle is wobbling.

• The vehicle is being driven at extremely high speeds.

• When driving on a hill

• If the radar sensor or front camera is misaligned

260

4-5. Using the driving support systems

LDA (Lane Departure Alert)

Summary of functions

When driving on roads with white (yellow) lines, this function alerts the

driver when the vehicle might depart from its lane.

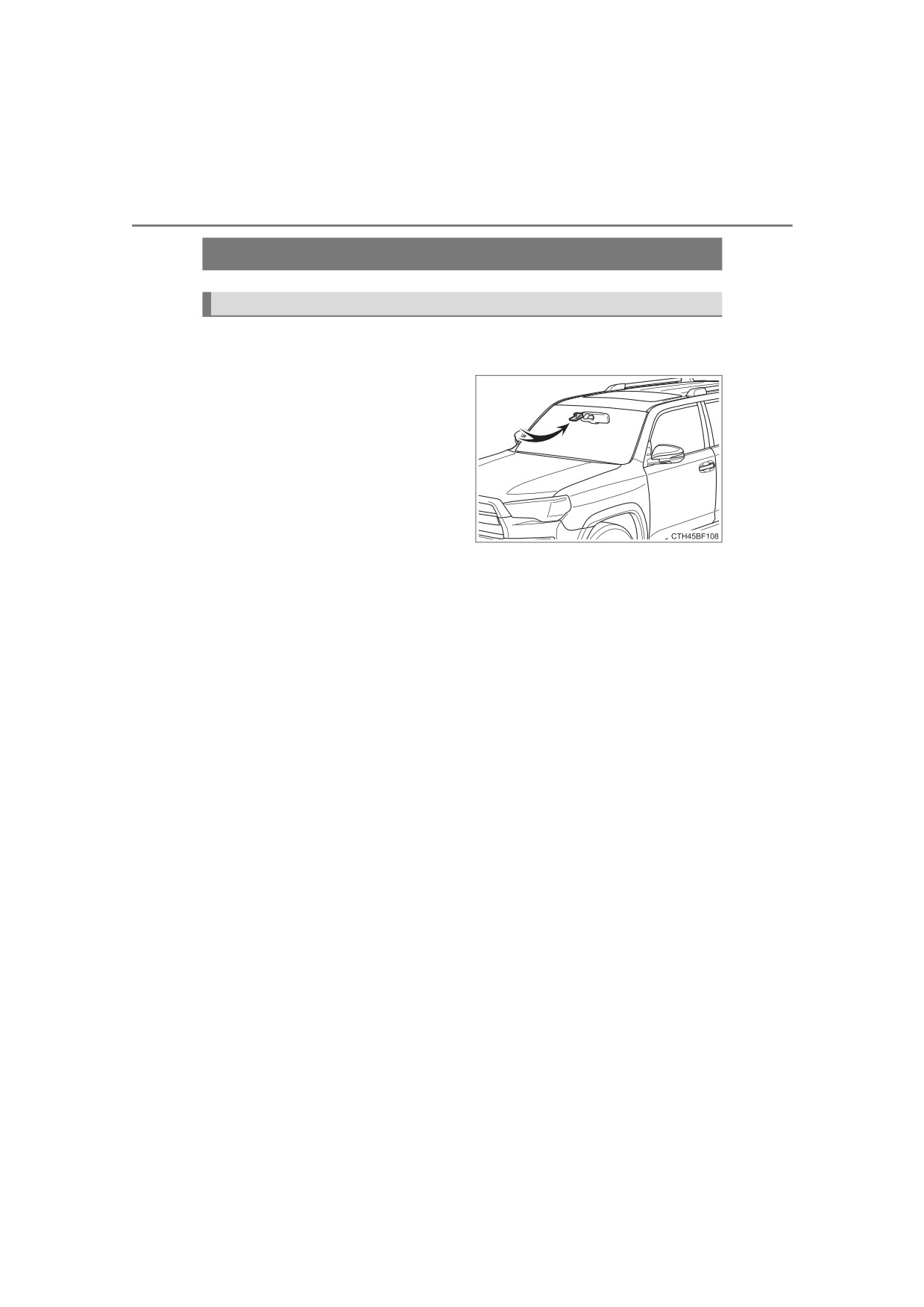

The LDA system recognizes visi-

ble white (yellow) lines with the

camera sensor on the upper por-

tion of the windshield.

4-5. Using the driving support systems

261

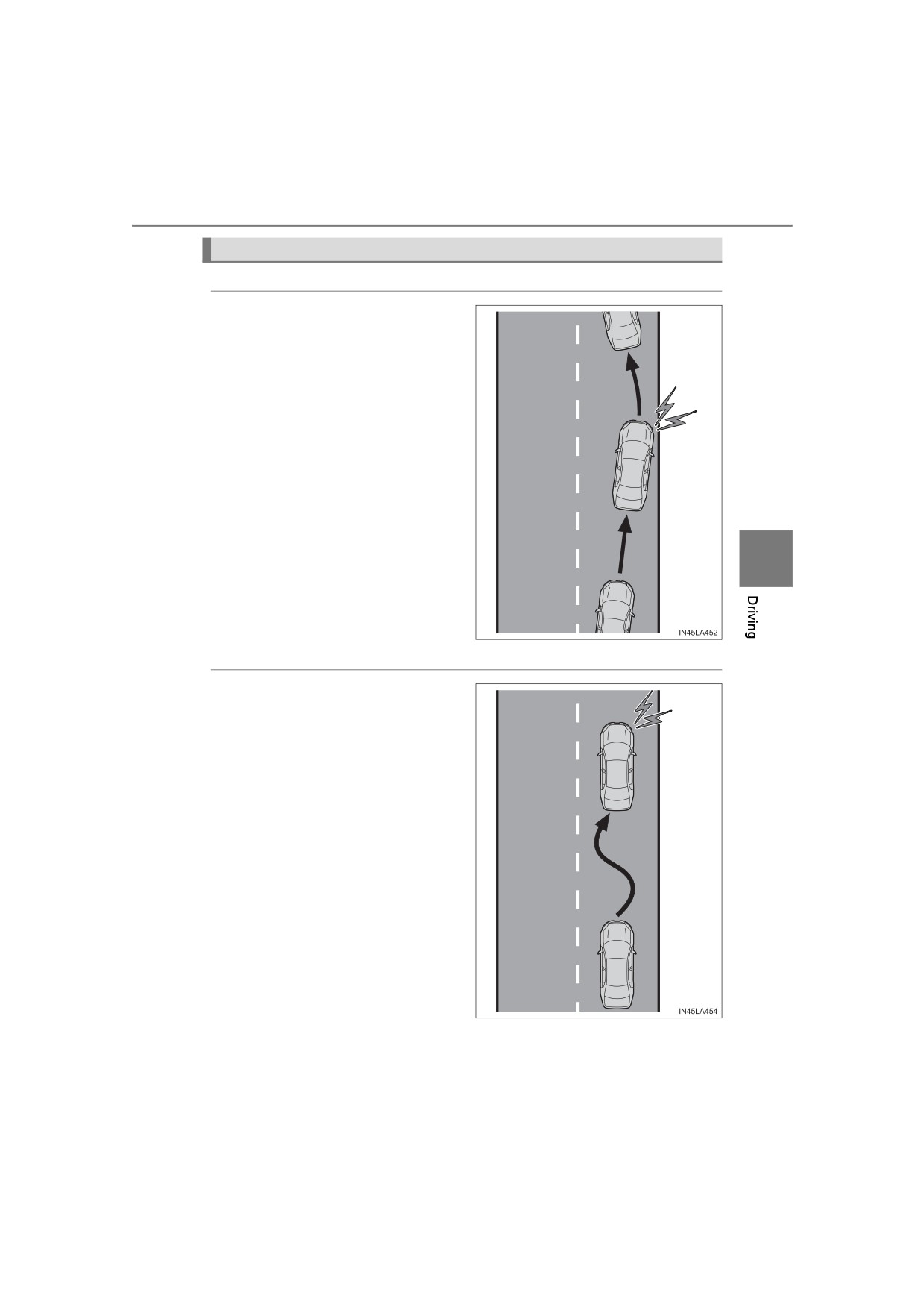

Functions included in LDA system

◆ Lane departure alert function

When the system determines

that the vehicle might depart

from its lane, a warning is dis-

played on the multi-information

display and the warning buzzer

sounds to alert the driver.

When the warning buzzer

sounds, check the surrounding

road situation and carefully

operate the steering wheel to

move the vehicle back to the

center of the lane.

4

◆ Vehicle sway warning function

When the vehicle is swaying or

appears as if it may depart from

its lane multiple times, the

warning buzzer sounds and a

message is displayed on the

multi-information display to alert

the driver.

4-5. Using the driving support systems

263

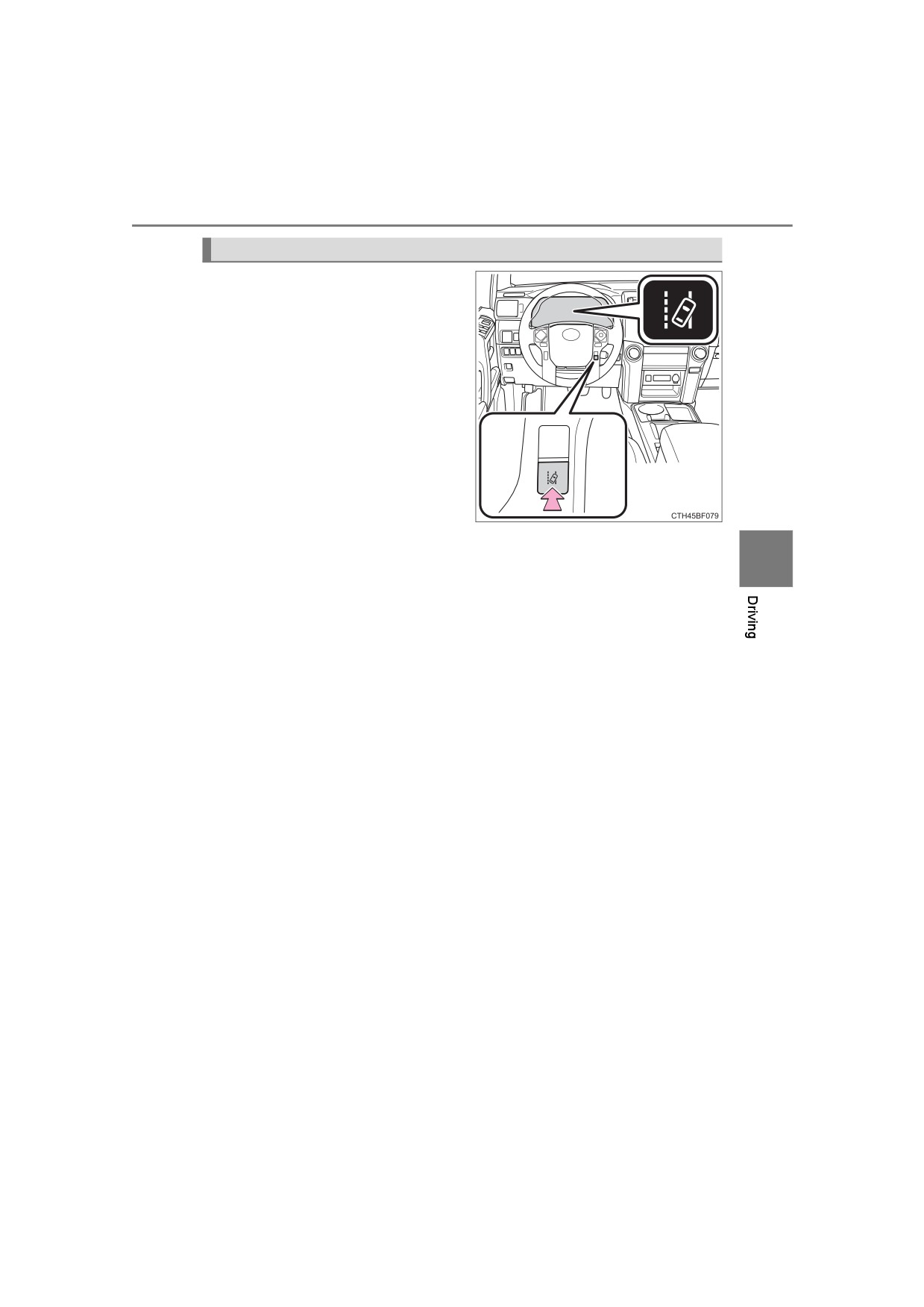

Turning LDA system on

Press the LDA switch to turn the

LDA system on.

The LDA indicator illuminates and

a message is displayed on the

multi-information display.

Press the LDA switch again to turn

the LDA system off.

When the LDA system is turned on

or off, operation of the LDA system

continues in the same condition

the next time the engine is started.

4

264

4-5. Using the driving support systems

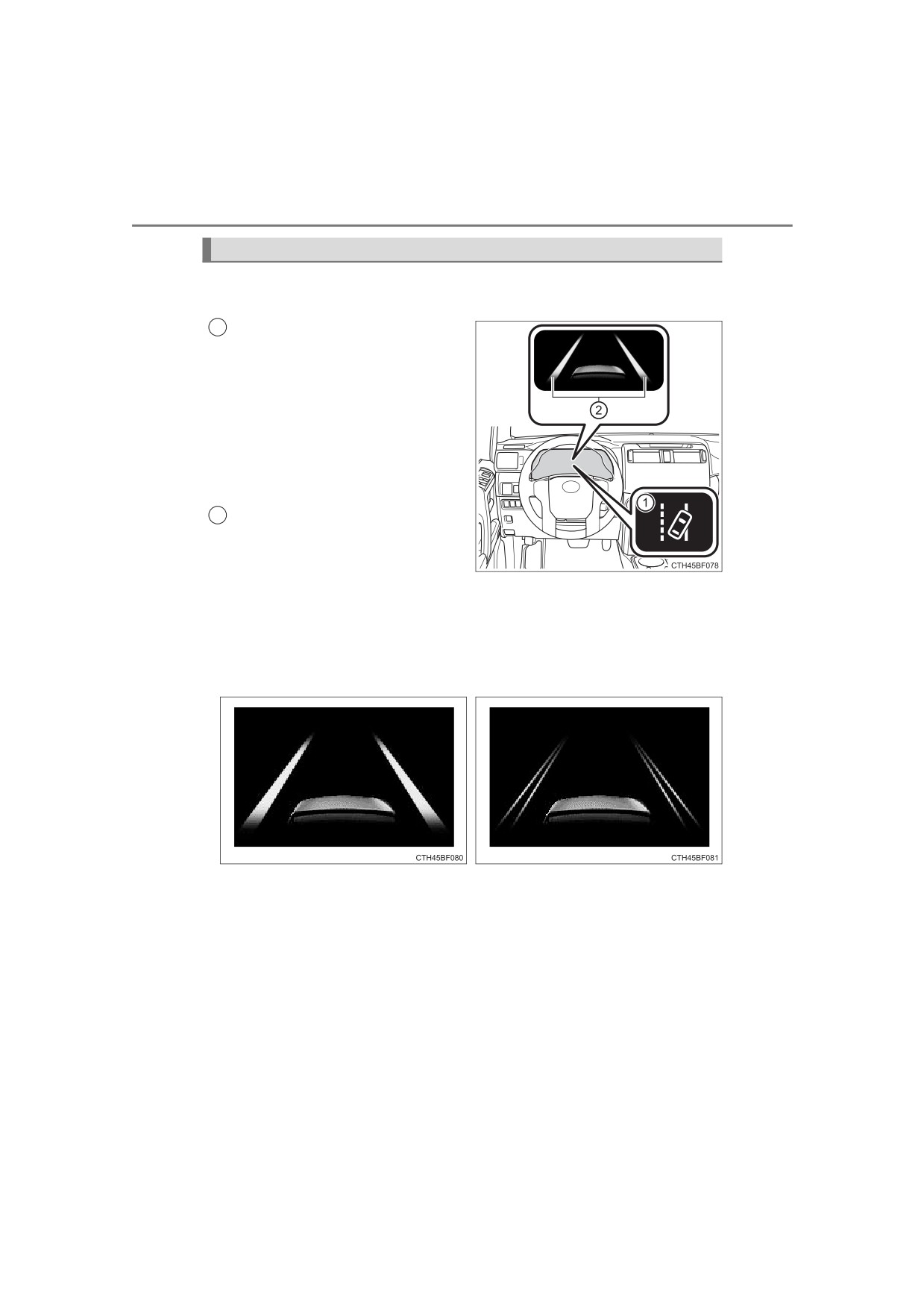

Indications on multi-information display

The illustration used is intended as an example, and may differ from

the image that is actually displayed on the multi-information display.

1

LDA indicator

The illumination condition of the

indicator informs the driver of

the system operation status.

Illuminated in green:

LDA system is operating.

Flashing in Yellow:

Lane departure alert function is

operating.

2

Lane departure alert function

display

Displayed when the multi-infor-

mation display is switched to

the driving assist system infor-

mation screen.

 Inside of displayed white lines

 Inside of displayed white lines

is white

is black

Indicates that the system is recog-

Indicates that the system is not

nizing white (yellow) lines. When

able to recognize white (yellow)

the vehicle departs from its lane,

lines or is temporarily canceled.

the white line displayed on the

side the vehicle departs from

flashes yellow.

4-5. Using the driving support systems

265

■ Operation conditions of each function

● Lane departure alert function

This function operates when all of the following conditions are met.

• LDA is turned on.

• Vehicle speed is approximately 32 mph (50 km/h) or more.

• System recognizes white (yellow) lines.

• Width of traffic lane is approximately 9.8 ft. (3 m) or more.

• Turn signal lever is not operated.

• Vehicle is driven on a straight road or around a gentle curve with a radius

of more than approximately 492 ft. (150 m).

• No system malfunctions are detected. (P. 267)

● Vehicle sway warning function

This function operates when all of the following conditions are met.

• Setting for “Sway Warning” in

of the multi-information display is set to

“On”. (P. 98)

• Vehicle speed is approximately 32 mph (50 km/h) or more.

4

• Width of traffic lane is approximately 9.8 ft. (3 m) or more.

• No system malfunctions are detected. (P. 267)

■ Temporary cancellation of functions

When the operation conditions are no longer met, a function may be tempo-

rarily canceled. However, when the operation conditions are met again, oper-

ation of the function is automatically restored. (P. 265)

■ Lane departure alert function

The warning buzzer may be difficult to hear due to external noise, audio play-

back, etc.

■ Vehicle sway warning function

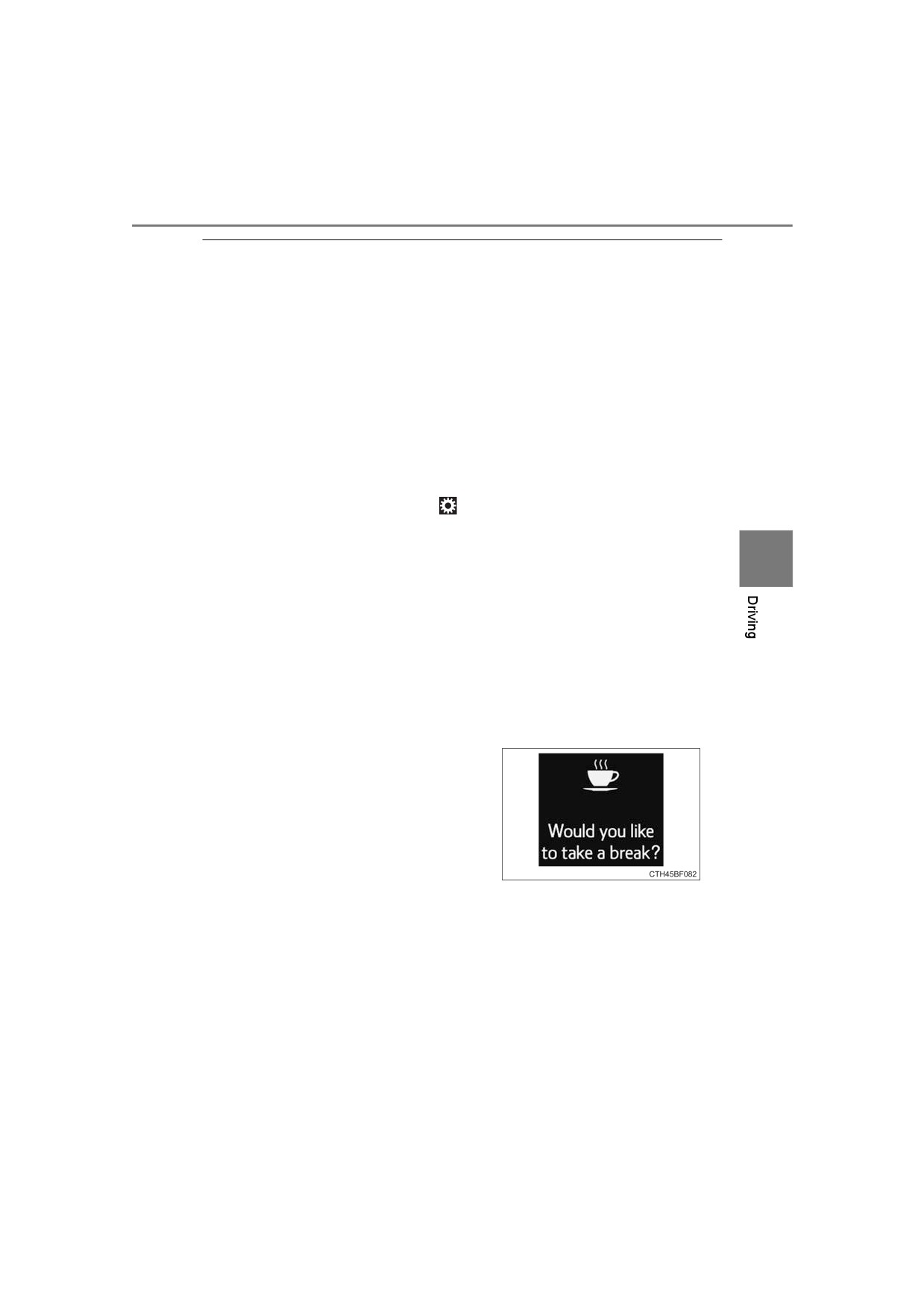

When the system determines that the

vehicle is swaying while the vehicle sway

warning function is operating, a buzzer

sounds and a warning message urging

the driver to rest and the symbol shown

in the illustration are simultaneously dis-

played on the multi-information display.

Depending on the vehicle and road conditions, the warning may not operate.

■ White (yellow) lines are only on one side of road

The LDA system will not operate for the side on which white (yellow) lines

could not be recognized.

4-5. Using the driving support systems

267

■ Warning message

If the following warning message is displayed on the multi-information display

and the LDA indicator illuminates in amber, follow the appropriate trouble-

shooting procedure.

Warning message

Details/Actions

The system may not be operating

“LDA Malfunction

properly.

Visit Your Dealer”

 Have the vehicle inspected at your

Toyota dealer.

The operation conditions of the cam-

era sensor (temperature, etc.) are not

met.

 When the operation conditions of

the camera sensor

(temperature,

“Front Camera Unavailable”

etc.) are met, the LDA system will

become available. Turn the LDA

system off, wait for a little while,

4

and then turn the LDA system back

on.

The LDA system is temporarily can-

celed due to a malfunction in a sensor

other than the camera sensor.

 Turn the LDA system off and follow

“LDA Unavailable”

the appropriate troubleshooting

procedures for the warning mes-

sage. Afterward, wait for a little

while, and then turn the LDA sys-

tem back on.

The LDA system cannot be used as

the vehicle speed is less than approxi-

“LDA Unavailable Below

mately 32 mph (50 km/h).

Approx 32MPH”

 Drive the vehicle at approximately

32 mph (50 km/h) or more.

If a different warning message is displayed, follow the instructions displayed

on the screen.

■ Customization

Some functions can be customized. (P. 557)

268

4-5. Using the driving support systems

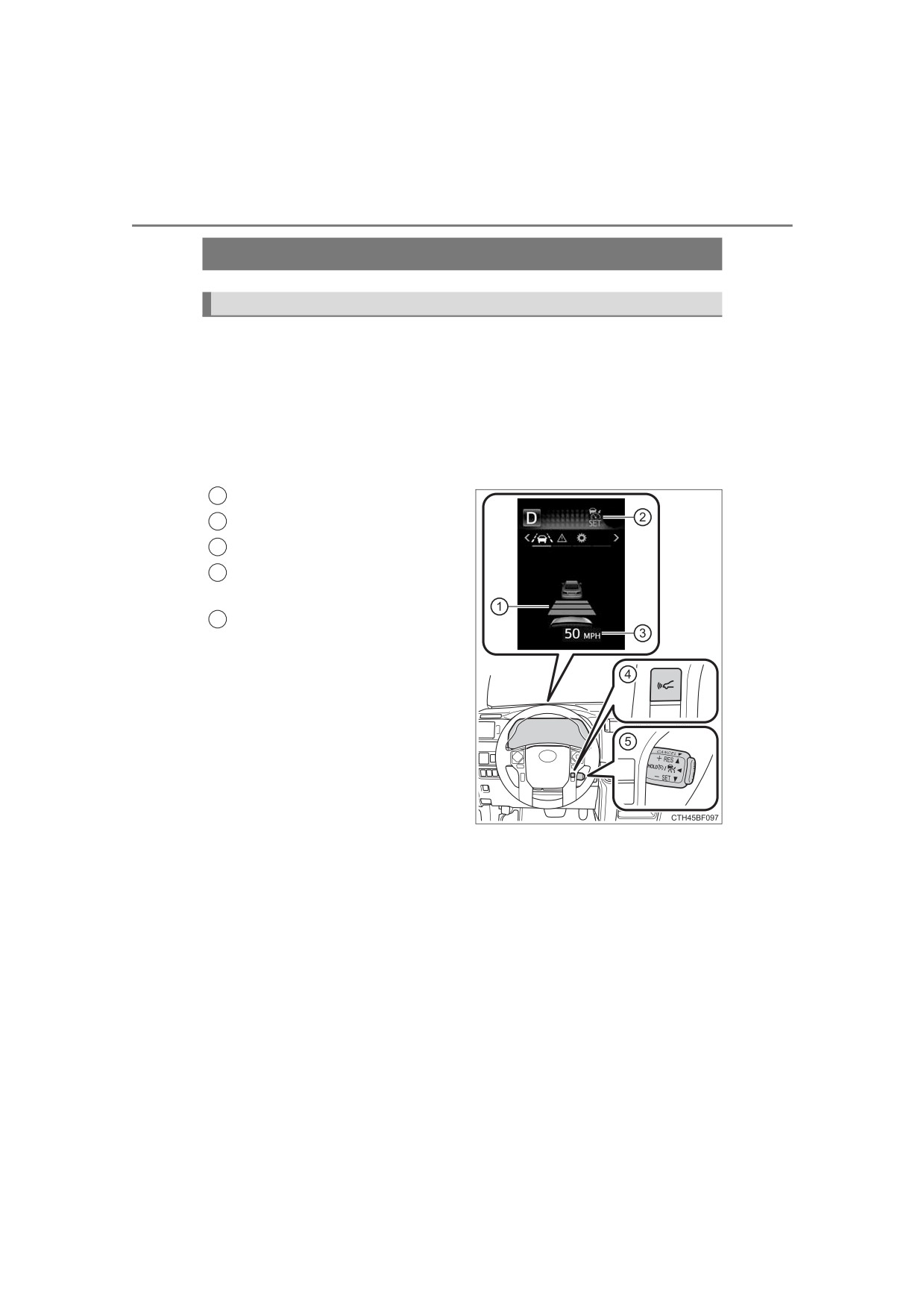

Dynamic radar cruise control

Summary of functions

In vehicle-to-vehicle distance control mode, the vehicle automatically

accelerates and decelerates to match the speed changes of the pre-

ceding vehicle even if the accelerator pedal is not depressed. In con-

stant speed control mode, the vehicle runs at a fixed speed.

Use the dynamic radar cruise control on freeways and highways.

● Vehicle-to-vehicle distance control mode (P. 272)

● Constant speed control mode (P. 277)

1

Display

2

Indicators

3

Set speed

4

Vehicle-to-vehicle

distance

switch

Cruise control switch

5

Content      ..     7      8      9      10     ..
