Conditions in which the gaso-

line engine may not stop

The gasoline engine starts and

stops automatically. However, it

may not stop automatically in the
following conditions

●

During gasoline engine warm-up

●

During hybrid battery (traction bat-

tery) charging

●

When the temperature of the

hybrid battery (traction battery) is

high or low

●

When the heater is switched on

: Depending on the circumstances,

the gasoline engine may also not
stop automatically in other situa-
tions.

■

Charging the hybrid battery

(traction battery)

As the gasoline engine charges the

hybrid battery (traction battery), the

battery does not need to be charged

from an outside source. However, if

the vehicle is left parked for a long

time the hybrid battery (traction bat-

tery) will slowly discharge. For this

reason, be sure to drive the vehicle

at least once every few months for

at least 30 minutes or 10 miles (16

km). If the hybrid battery (traction

battery) becomes fully discharged

and you are unable to start the

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-4. Hybrid system

For
safety and secu

rity

hybrid system, contact your Toyota

dealer.

■

Charging the 12-volt battery

P.508

■

After the 12-volt battery has dis-

charged or when the terminal

has been removed and installed

during exchange, etc.

The gasoline engine may not stop

even if the vehicle is being driven by

the hybrid battery (traction battery).

If this continues for a few days, con-

tact your Toyota dealer.

■

Sounds and vibrations specific

to a hybrid vehicle

There may be no engine sound or

vibration even though the vehicle is

able to move with the “READY” indi-

cator is illuminated. For safety,

make sure to shift the shift lever to P

and apply the parking brake when

parked.
The following sounds or vibrations

may occur when the hybrid system

is operating and are not a malfunc-

tion:

●

Motor sounds may be heard from

the engine compartment.

●

Sounds may be heard from the

hybrid battery (traction battery)

under the front seats when the

hybrid system starts or stops.

●

Relay operating sounds such as a

snap or soft clank will be emitted

from the hybrid battery (traction

battery), under the front seats,

when the hybrid system is started

or stopped.

●

Sounds from the hybrid system

may be heard when the back door

is open.

●

Sounds may be heard from the

transmission when the gasoline

engine starts or stops, when driv-

ing at low speeds, or during idling.

●

Engine sounds may be heard

when accelerating sharply.

●

Sounds may be heard due to

regenerative braking when the

brake pedal is depressed or as

the accelerator pedal is released.

●

Vibration may be felt when the

gasoline engine starts or stops.

●

Cooling fan sounds may be heard

from the air intake vent under the

front seat.

■

Maintenance, repair, recycling,

and disposal

Contact your Toyota dealer regard-

ing maintenance, repair, recycling

and disposal. Do not dispose of the

vehicle yourself.

When driving with the gasoline
engine stopped, a sound, which
changes in accordance with the
driving speed, will be played in
order to warn people nearby of
the vehicle’s approach. The
sound will stop when the vehicle
speed exceeds approximately
22 mph (35 km/h).

■

Acoustic Vehicle Alerting Sys-

tem

In the following cases, the Acoustic

Vehicle Alerting System may be dif-

ficult for surrounding people to hear.

●

In very noisy areas

●

In the wind or the rain

■

If “Acoustic Vehicle Alerting

System Malfunction Visit Your

Dealer” is displayed on the

multi-information display

The system may be malfunctioning.

Have the vehicle inspected by your

Toyota dealer.

Acoustic Vehicle Alerting
System

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-4. Hybrid system

: This function can only be used in

the mainland U.S.A. It cannot be
used in other states and territo-
ries, including Alaska and Hawaii.

This system operates based on
the driving situation and traffic
information to enhance fuel
economy.
For details about Predictive effi-
cient drive, refer to “NAVIGA-
TION AND MULTIMEDIA
SYSTEM OWNER’S MANUAL”.

■

Predictive deceleration sup-
port



When the vehicle approaches
to predictive deceleration sup-
port points registered in the
navigation system, the “Refer-
ence operation range” (

) of

the ECO Accelerator Guid-
ance (



P.108) on the multi-

information display will be
turned off to encourage the
driver to reduce excessive
acceleration.



The engine braking force will

be increased according to the
driving conditions to more effi-
ciently charge the hybrid bat-
tery (traction battery) after the
accelerator pedal is released.

■

Predictive SOC control

The following types of control
are performed based on data
such as road and traffic informa-
tion during route guidance by
the navigation system to help
ensure that the vehicle effi-
ciently uses electricity.



When there is a long downhill
slope along the route, the sys-
tem reduces the hybrid bat-
tery (traction battery) level
before reaching the slope to
help ensure charging capacity
for regenerative braking while
traveling downhill.



When traffic congestion is
predicted along the route, the
system helps ensure a certain
battery level before reaching
congested roads to reduce
the frequency of starting the
engine to charge the hybrid
battery (traction battery) due
to low battery levels.

Predictive efficient drive
(vehicles with navigation
system)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-4. Hybrid system

For
safety and secu

rity

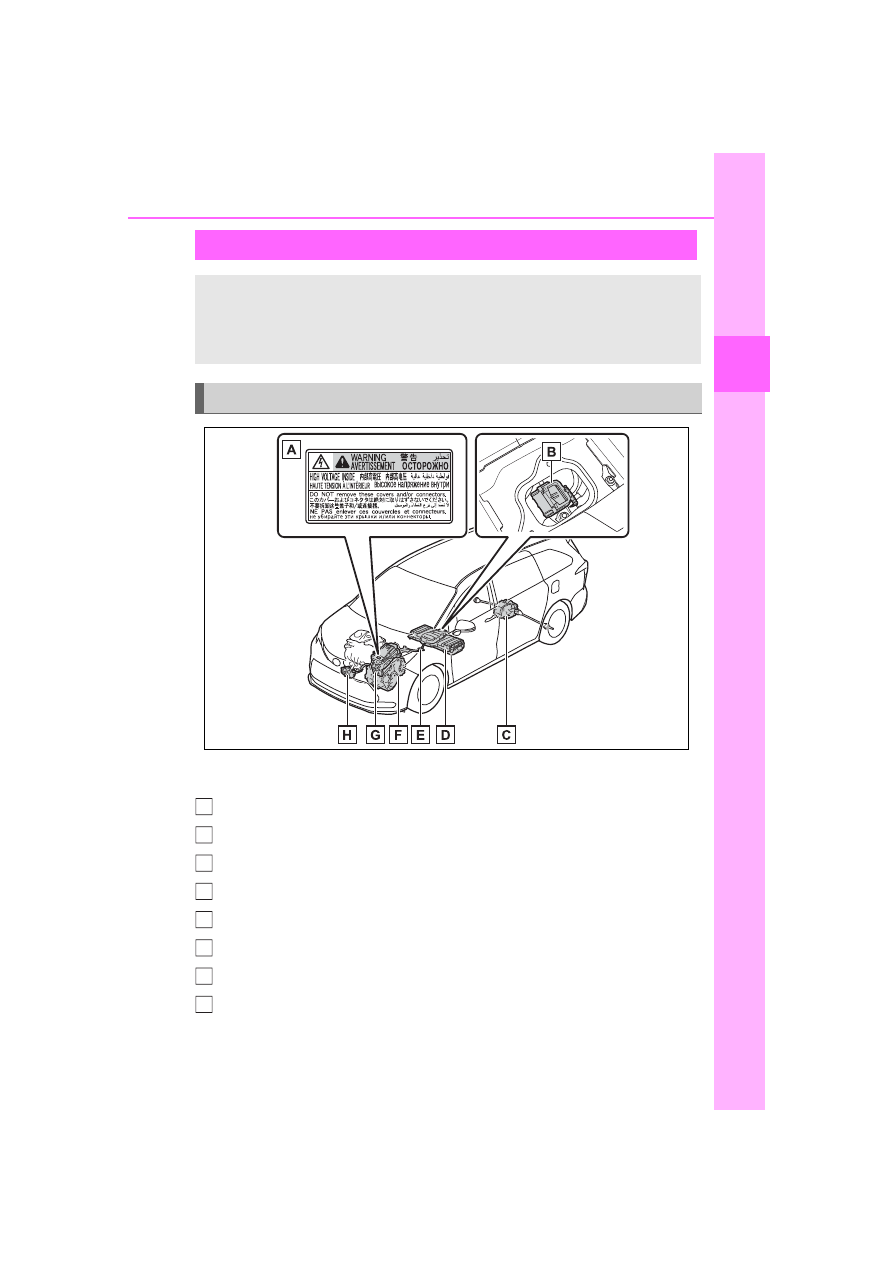

The illustration is an example for explanation and may differ from the actual
item.

Warning label

Service plug

Rear electric motor (traction motor)

Hybrid battery (traction battery)

High voltage cables (orange)

Front electric motor (traction motor)

Power control unit

Air conditioning compressor

: AWD models only

Hybrid system precautions

Take care when handling the hybrid system, as it is a high
voltage system (about 650V at maximum) as well as contains
parts that become extremely hot when the hybrid system is
operating. Obey the warning labels attached to the vehicle.

System components

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-4. Hybrid system

■

Running out of fuel

When the vehicle has run out of fuel

and the hybrid system cannot be

started, refuel the vehicle with at

least enough gasoline to make the

low fuel level warning light (

go off. If there is only a small

amount of fuel, the hybrid system

may not be able to start. (The stan-

dard amount of fuel is about 3.1 gal.

[11.9 L, 2.6 Imp. gal.], when the

vehicle is on a level surface. This

value may vary when the vehicle is

on a slope. Add extra fuel when the

vehicle is inclined.)

■

Electromagnetic waves

●

High voltage parts and cables on

hybrid vehicles incorporate elec-

tromagnetic shielding, and there-

fore emit approximately the same

amount of electromagnetic waves

as conventional gasoline pow-

ered vehicles or home electronic

appliances.

●

Your vehicle may cause sound

interference in some third party-

produced radio parts.

■

Hybrid battery (traction battery)

The hybrid battery (traction battery)

has a limited service life. The lifes-

pan of the hybrid battery (traction

battery) can change in accordance

with driving style and driving condi-

tions.

WARNING

■

High voltage precautions

This vehicle has high voltage DC

and AC systems as well as a 12-

volt system. DC and AC high volt-

age is very dangerous and can

cause severe burns and electric

shock that may result in death or

serious injury.

●

Never touch, disassemble,

remove or replace the high volt-

age parts, cables or their con-

nectors.

●

The hybrid system will become

hot after starting as the system

uses high voltage. Be careful of

both the high voltage and the

high temperature, and always

obey the warning labels

attached to the vehicle.

●

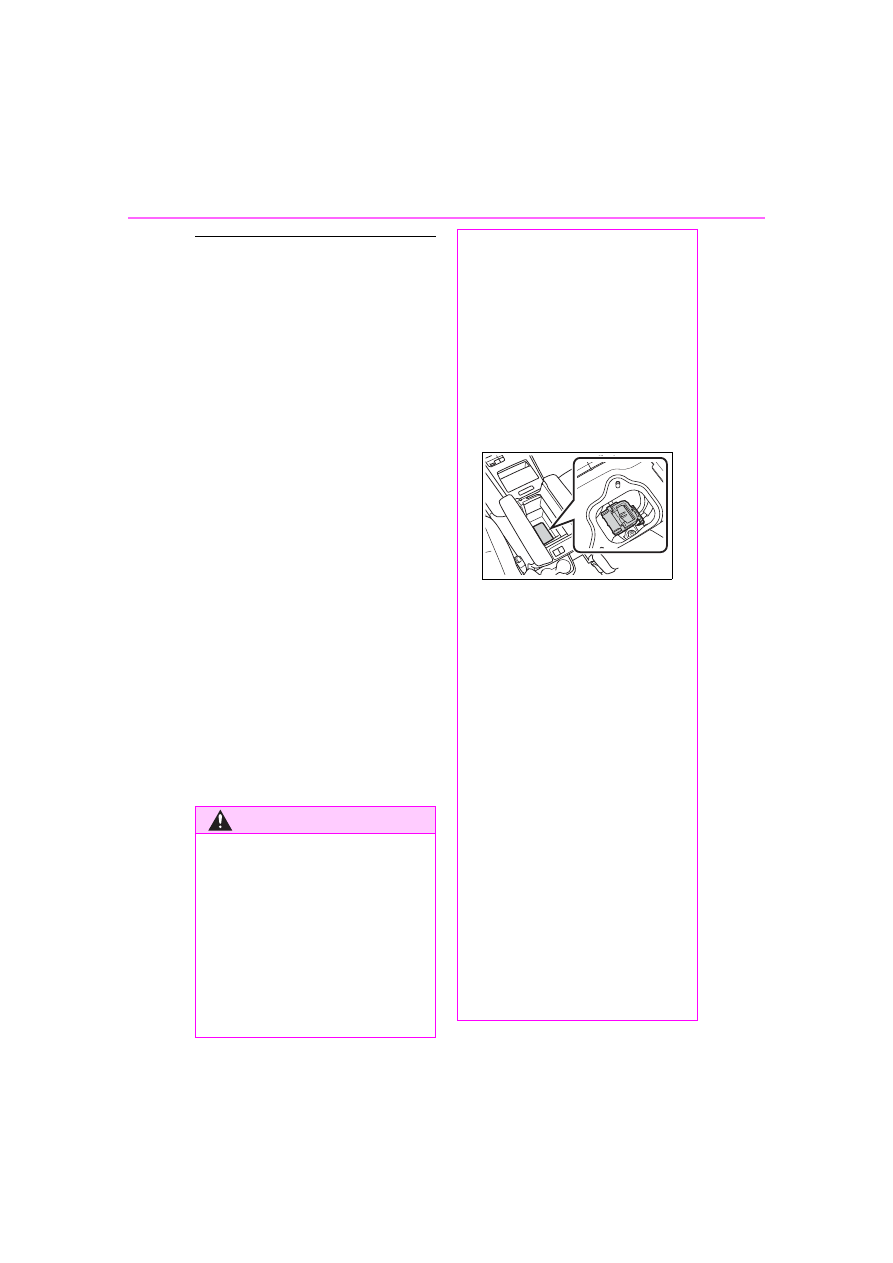

Never try to open the service

plug access hole located under-

neath the console box. The ser-

vice plug is used only when the

vehicle is serviced and is sub-

ject to high voltage.

■

Road accident cautions

Observe the following precautions

to reduce the risk of death or seri-

ous injury:

●

Pull your vehicle off the road,

shift the shift lever to P, apply

the parking brake, and turn the

hybrid system off.

●

Do not touch the high voltage

parts, cables and connectors.

●

If electric wires are exposed

inside or outside your vehicle,

an electric shock may occur.

Never touch exposed electric

wires.

●

If a fluid leak occurs, do not

touch the fluid as it may be

strong alkaline electrolyte from

the hybrid battery (traction bat-

tery). If it comes into contact

with your skin or eyes, wash it

off immediately with a large

amount of water or, if possible,

boric acid solution. Seek imme-

diate medical attention.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-4. Hybrid system

For
safety and secu

rity

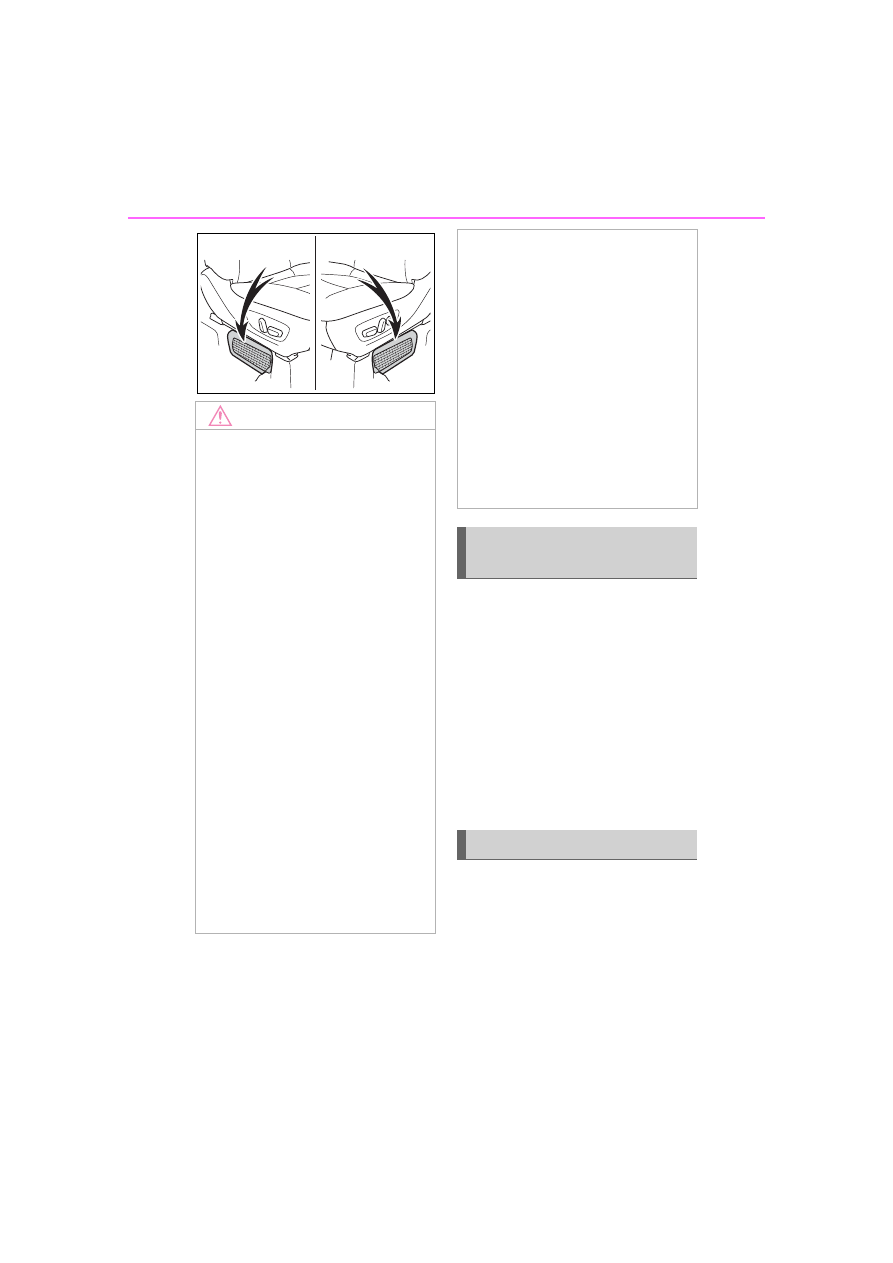

There are air intake vents under
the front seats for the purpose of
cooling the hybrid battery (trac-
tion battery). If the vent
becomes blocked, the hybrid
battery (traction battery) may
overheat, leading to a reduction
in hybrid battery (traction bat-
tery) output.

WARNING

●

If a fire occurs in the hybrid

vehicle, leave the vehicle as

soon as possible. Never use a

fire extinguisher that is not

meant for electric fires. Using

even a small amount of water

may be dangerous.

●

If your vehicle needs to be

towed, do so with four wheels

raised. If the wheels connected

to the electric motor (traction

motor) are on the ground when

towing, the motor may continue

to generate electricity. This may

cause a fire. (

P.462)

●

Carefully inspect the ground

under the vehicle. If you find

that liquid has leaked onto the

ground, the fuel system may

have been damaged. Leave the

vehicle as soon as possible.

■

Hybrid battery (traction bat-

tery)

●

Never resell, hand over or mod-

ify the hybrid battery. To prevent

accidents, hybrid batteries that

have been removed from a dis-

posed vehicle are collected

through Toyota dealer. Do not

dispose of the battery yourself.

Unless the battery is properly col-

lected, the following may occur,

resulting in death or serious

injury:
• The hybrid battery may be ille-

gally disposed of or dumped,

and it is hazardous to the envi-

ronment or someone may touch

a high voltage part, resulting in

an electric shock.

• The hybrid battery is intended to

be used exclusively with your

hybrid vehicle. If the hybrid bat-

tery is used outside of your

vehicle or modified in any way,

accidents such as electric

shock, heat generation, smoke

generation, an explosion and

electrolyte leakage may occur.

When reselling or handing over

your vehicle, the possibility of an

accident is extremely high

because the person receiving the

vehicle may not be aware of these

dangers.

●

If your vehicle is disposed of

without the hybrid battery hav-

ing been removed, there is a

danger of serious electric shock

if high voltage parts, cables and

their connectors are touched. In

the event that your vehicle must

be disposed of, the hybrid bat-

tery must be disposed of by

your Toyota dealer or a qualified

service shop. If the hybrid bat-

tery is not disposed of properly,

it may cause electric shock that

can result in death or serious

injury.

Hybrid battery (traction
battery) air intake vents

-------------------------------------------------------------------------------------------------------------------------------------------------------------

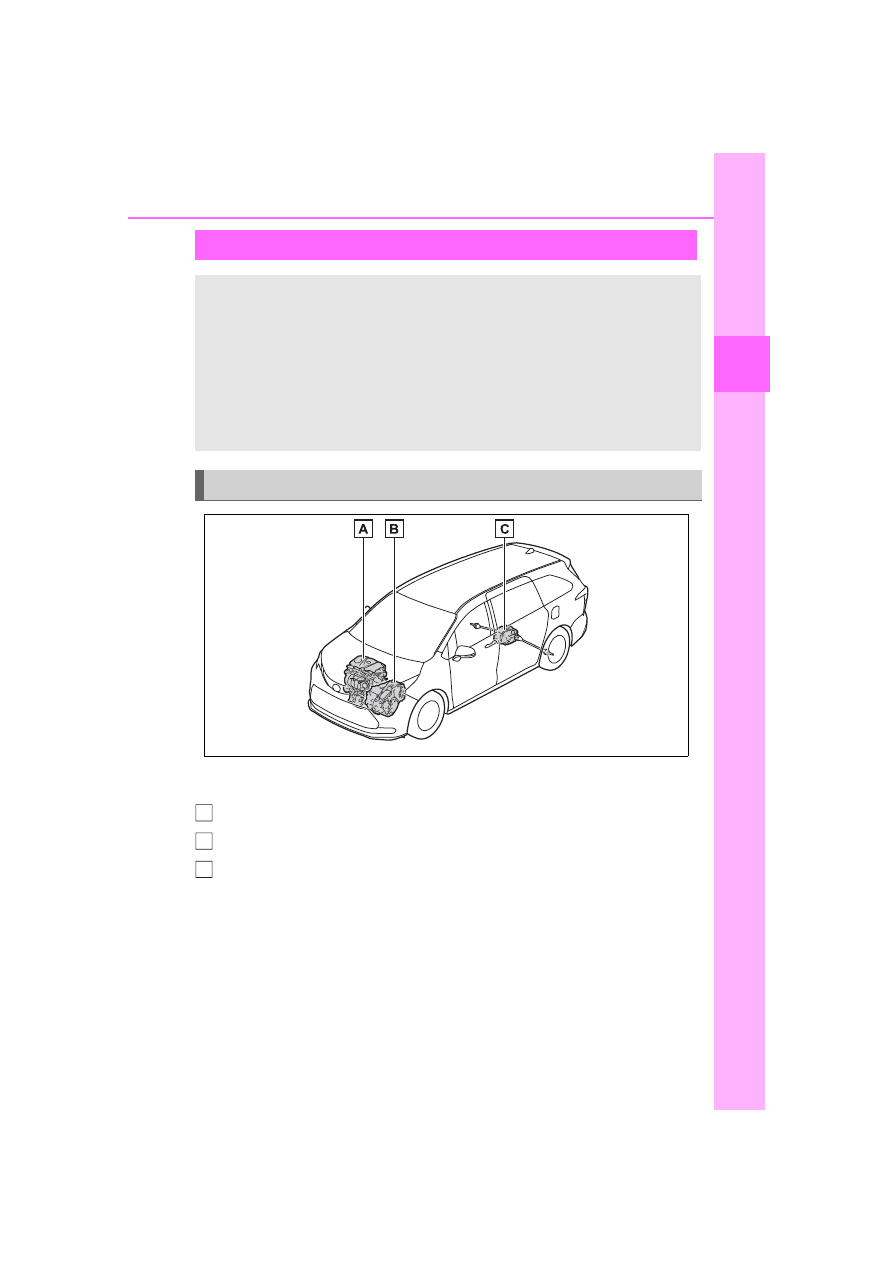

1-4. Hybrid system

When a certain level of impact is
detected by the impact sensor,
the emergency shut off system
blocks the high voltage current
and stops the fuel pump to mini-
mize the risk of electrocution
and fuel leakage. If the emer-
gency shut off system activates,
your vehicle will not restart. To
restart the hybrid system, con-
tact your Toyota dealer.

A message is automatically dis-
played when a malfunction
occurs in the hybrid system or
an improper operation is
attempted.
If a warning message is shown
on the multi-information display,
read the message and follow the

NOTICE

■

Hybrid battery (traction bat-

tery) air intake vents

●

Make sure not to block the air

intake vents with anything, such

as a seat cover, plastic cover, or

luggage. If the vents become

blocked, the hybrid battery

(traction battery) input and out-

put may be restricted, leading to

a reduction in hybrid battery

(traction battery) output and a

malfunction.

●

When dust etc. has accumu-

lated in the air intake vents,

clean them with a vacuum

cleaner to prevent the vents

from clogging.

●

Do not get water or foreign

materials in the air intake vents

as this may cause a short circuit

and damage the hybrid battery

(traction battery).

●

Do not carry large amounts of

water such as water cooler bot-

tles in the vehicle. If water spills

onto the hybrid battery (traction

battery), the battery may be

damaged. Have the vehicle

inspected by your Toyota

dealer.

●

There are filters installed to the

air intake vents. When the filters

remain noticeably dirty even

after cleaning the air intake

vents, filters cleaning or

replacement is recommended.

For information regarding filters

cleaning or replacement, refer

to P.444.

●

If “Maintenance Required for

Traction Battery Cooling Parts

See Owner’s Manual” is shown

on the multi-information dis-

play, the air intake vents and fil-

ters may be clogged. Refer to

P.443for information on how to

clean the air intake vents.

Emergency shut off sys-
tem

Hybrid warning message

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-5. Theft deterrent system

1-5.Theft deterrent system

The indicator light flashes after
the power switch has been
turned to OFF to indicate that
the system is operating.
The indicator light stops flashing
after the power switch has been
turned to ACC or ON to indicate
that the system has been can-
celed.

■

System maintenance

The vehicle has a maintenance-free

type immobilizer system.

■

Conditions that may cause the

system to malfunction

●

If the grip portion of the key is in

contact with a metallic object

●

If the key is in close proximity to or

touching a key to the security sys-

tem (key with a built-in transpon-

der chip) of another vehicle

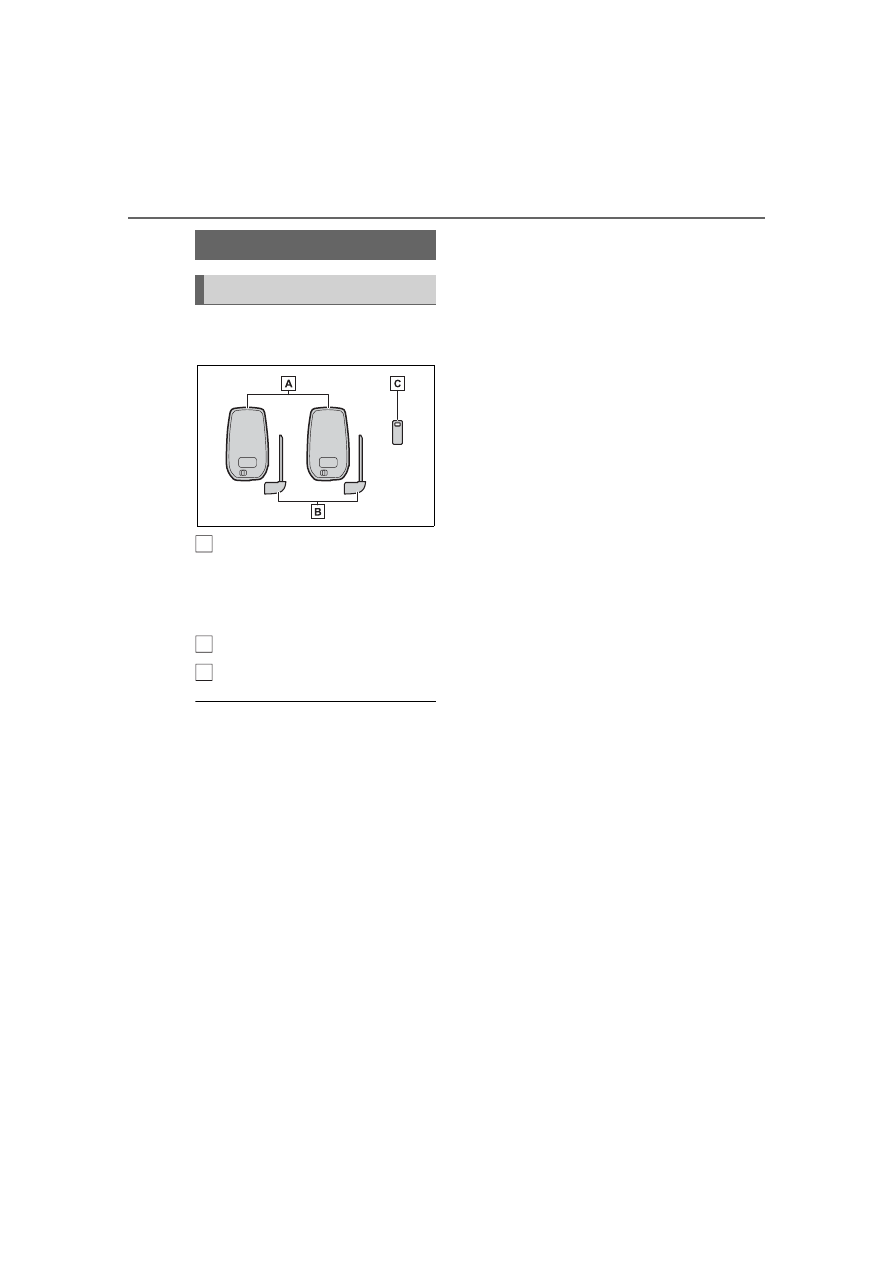

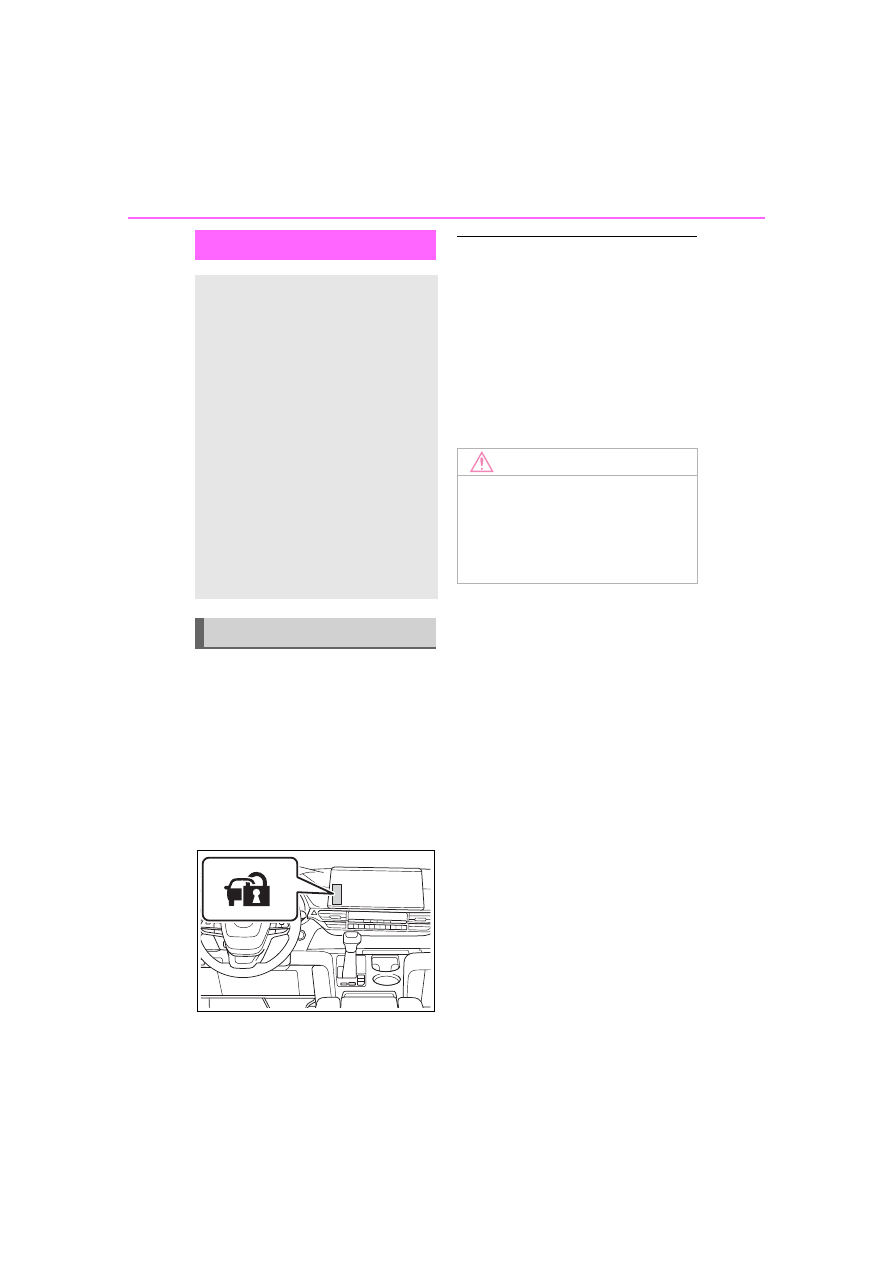

Immobilizer system

The vehicle’s keys have
built-in transponder chips
that prevent the hybrid sys-
tem from starting if a key
has not been previously
registered in the vehicle’s
on-board computer.
Never leave the keys inside
the vehicle when you leave
the vehicle.

This system is designed to
help prevent vehicle theft but
does not guarantee absolute
security against all vehicle
thefts.

Operating the system

NOTICE

■

To ensure the system oper-

ates correctly

Do not modify or remove the sys-

tem. If modified or removed, the

proper operation of the system

cannot be guaranteed.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-5. Theft deterrent system

For
safety and secu

rity

: If equipped

■

Items to check before lock-
ing the vehicle

To prevent unexpected trigger-
ing of the alarm and vehicle
theft, make sure of the following:



Nobody is in the vehicle.



The side windows and moon
roof (if equipped) are closed
before the alarm is set.



No valuables or other per-
sonal items are left in the
vehicle.

■

Setting

Close the doors and hood, and
lock all the doors. The system
will be set automatically after 30

seconds.

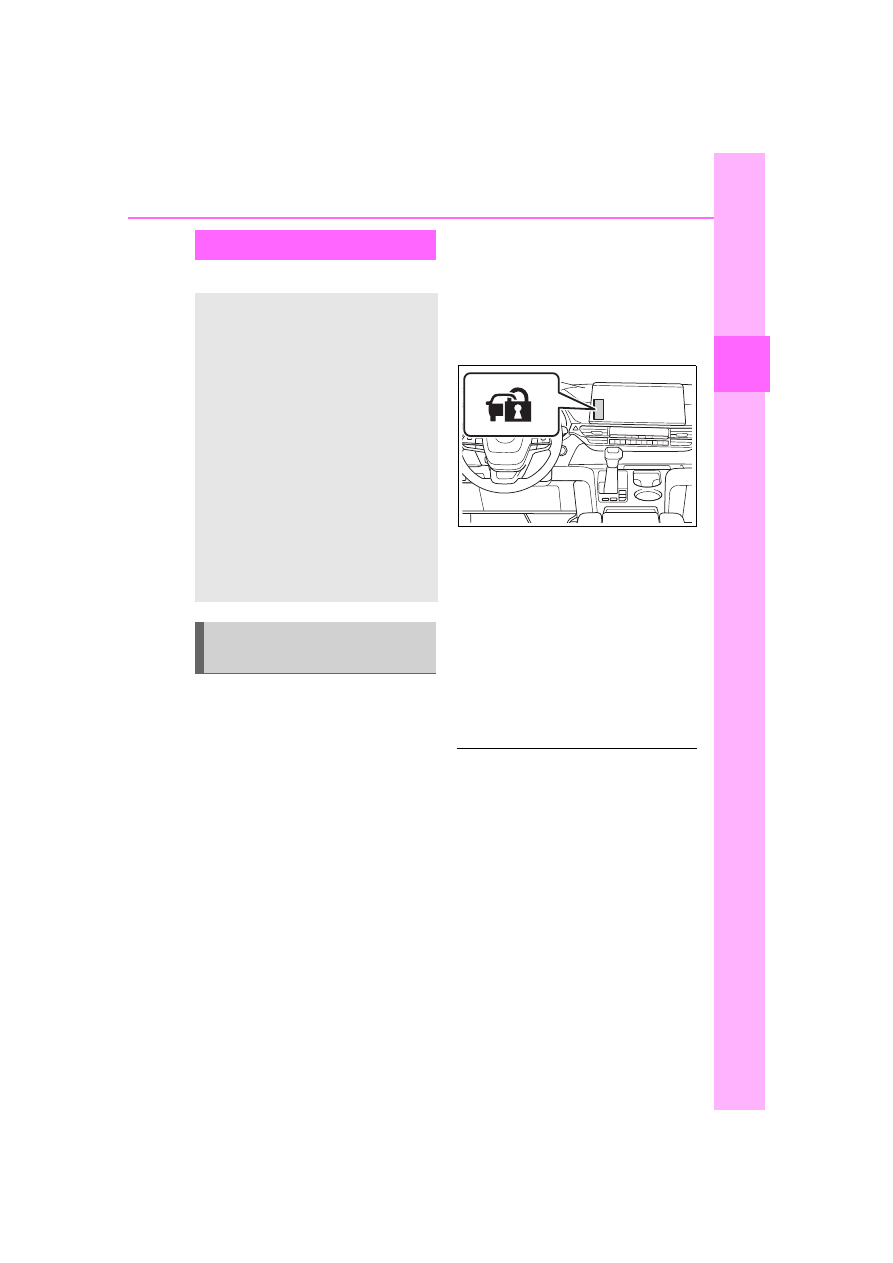

The security indicator changes from
being on to flashing when the sys-
tem is set.

If all doors are closed with hood
open, alarm system can be set.

■

Canceling or stopping

Do one of the following to deac-
tivate or stop the alarm:



Unlock the doors.



Turn the power switch to ACC
or ON, or start the hybrid sys-
tem. (The alarm will be deacti-
vated or stopped after a few
seconds.)

■

System maintenance

The vehicle has a maintenance-free

type alarm system.

■

Triggering of the alarm

The alarm may be triggered in the

following situations:

(Stopping the alarm deactivates the

alarm system.)

●

The doors are unlocked using the

mechanical key.

Alarm

The alarm uses light and
sound to give an alert when
an intrusion is detected.
The alarm is triggered in the
following situations when
the alarm is set:



A locked door is unlocked or
opened in any way other
than using the entry func-
tion (if equipped) or wireless
remote control. (The doors
will lock again automati-
cally.)



The hood is opened.

Setting/canceling/stop-
ping the alarm system

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-5. Theft deterrent system

If a door is unlocked using the

mechanical key while the alarm is

set, a warning will sound intermit-

tently for approximately 10 seconds.

If the alarm is not canceled or

stopped during this time, the warn-

ing pattern changes and the warn-

ing sounds for a certain period of

time.

●

A person inside the vehicle opens

a door or hood, or unlocks the

vehicle using an inside lock but-

ton.

●

The 12-volt battery is recharged or

replaced when the vehicle is

locked. (



P.506)

■

Alarm-operated door lock

In the following cases, depending

on the situation, the door may auto-

matically lock to prevent improper

entry into the vehicle:

●

When a person left in the vehicle

triggers the alarm by unlocking a

door or the back door.

●

When a person left in the vehicle

unlocks a door or the back door

while the alarm is operating.

●

When recharging or replacing the

12-volt battery.

NOTICE

■

To ensure the system oper-

ates correctly

Do not modify or remove the sys-

tem. If modified or removed, the

proper operation of the system

cannot be guaranteed.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

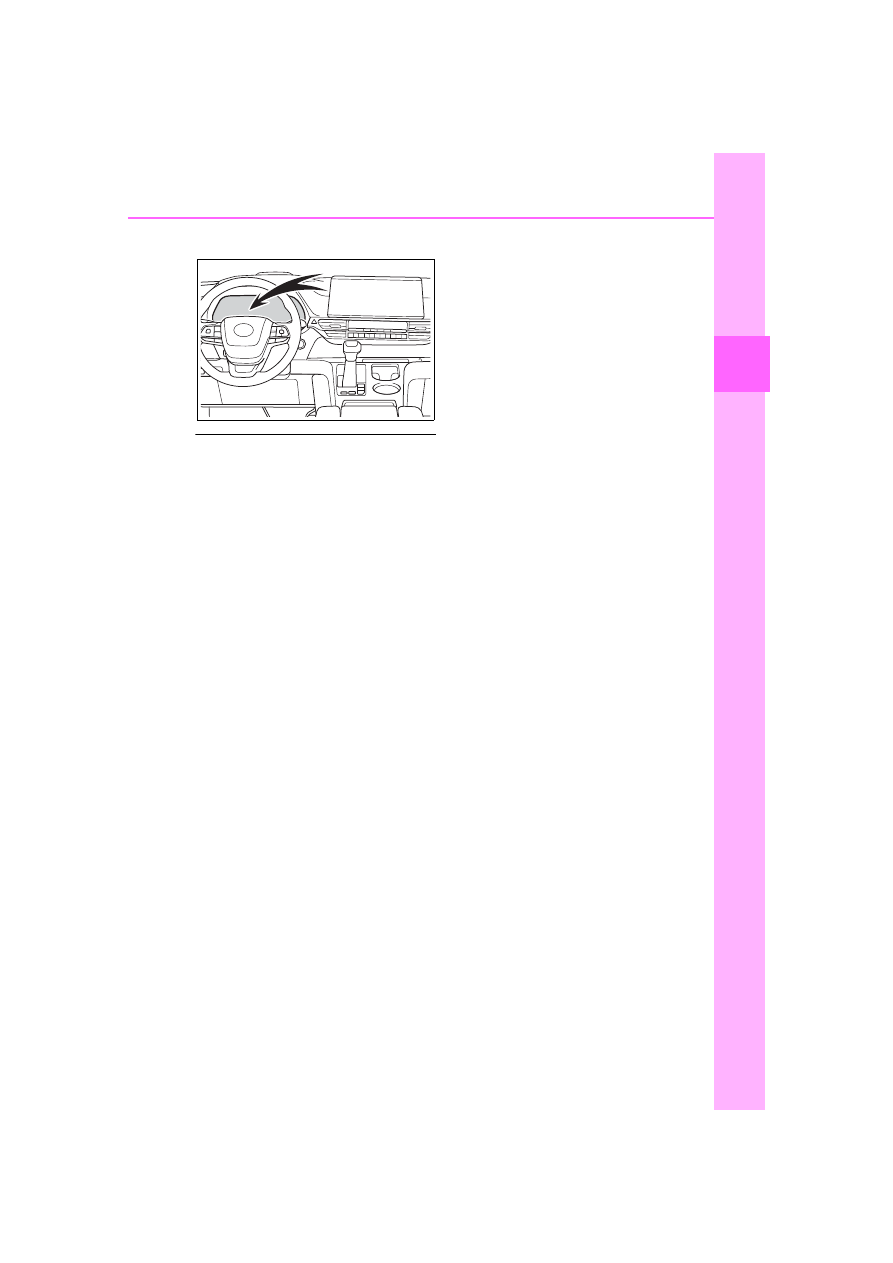

Vehicle

statu

s information an

d in
dicator

Vehicle status informa-

tion and indicators

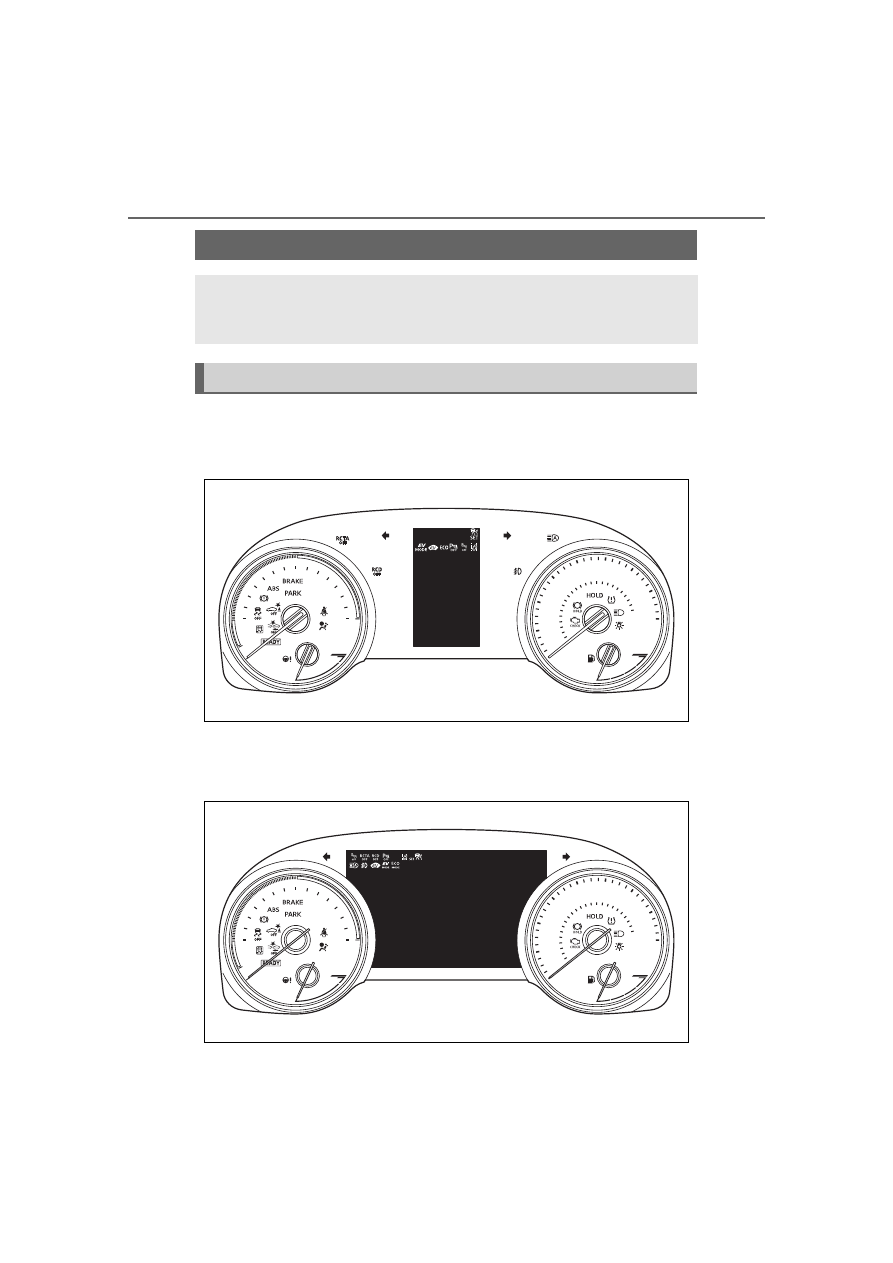

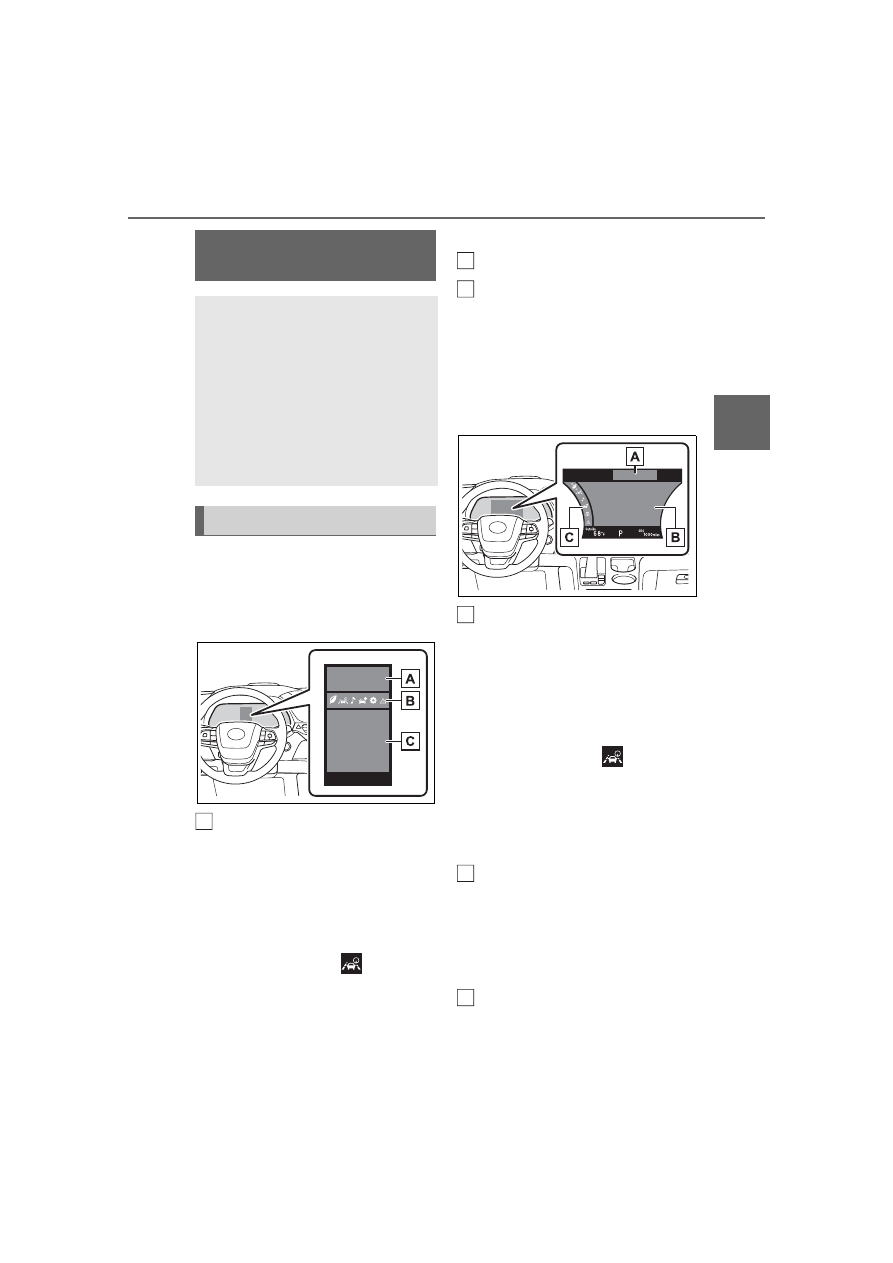

2-1. Instrument cluster

Warning lights and indica-

tors ...............................

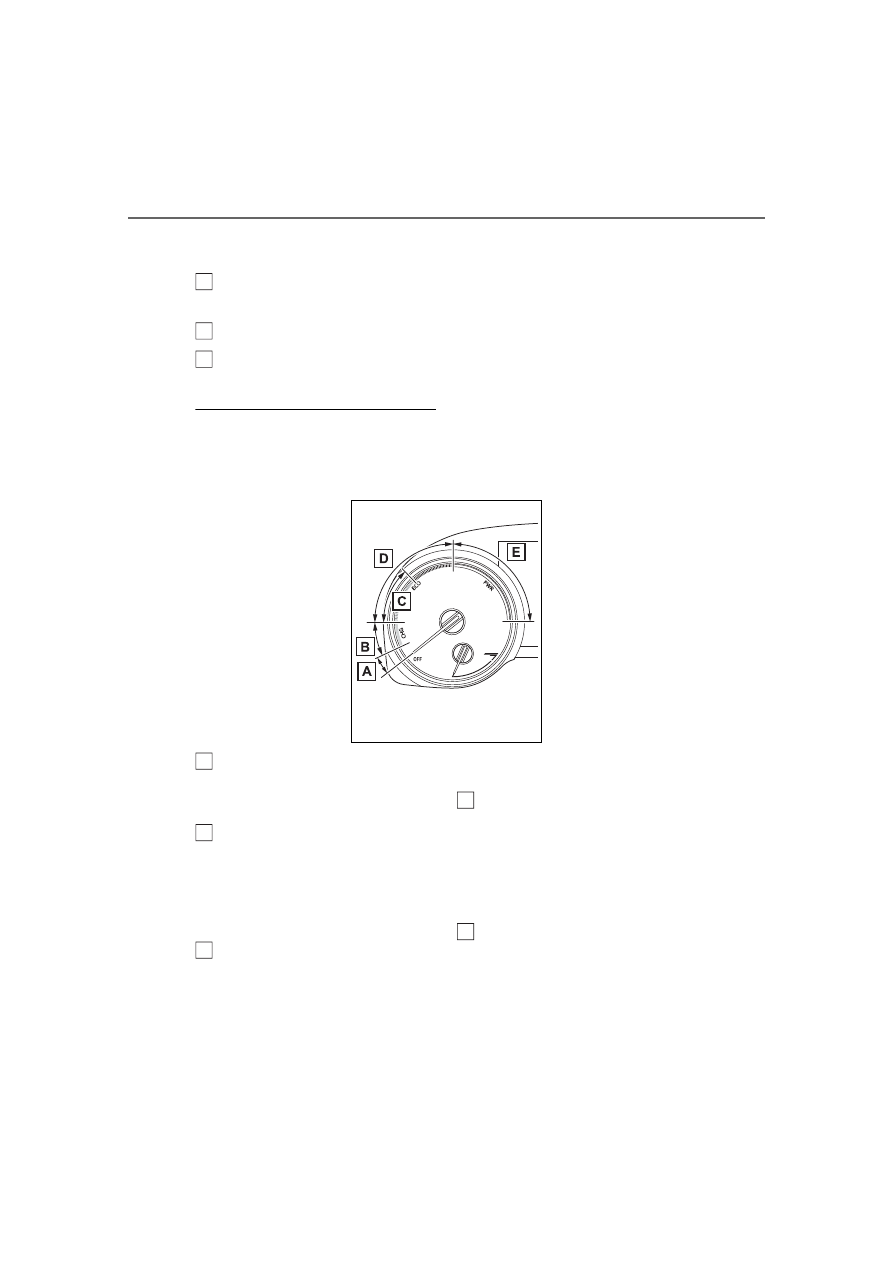

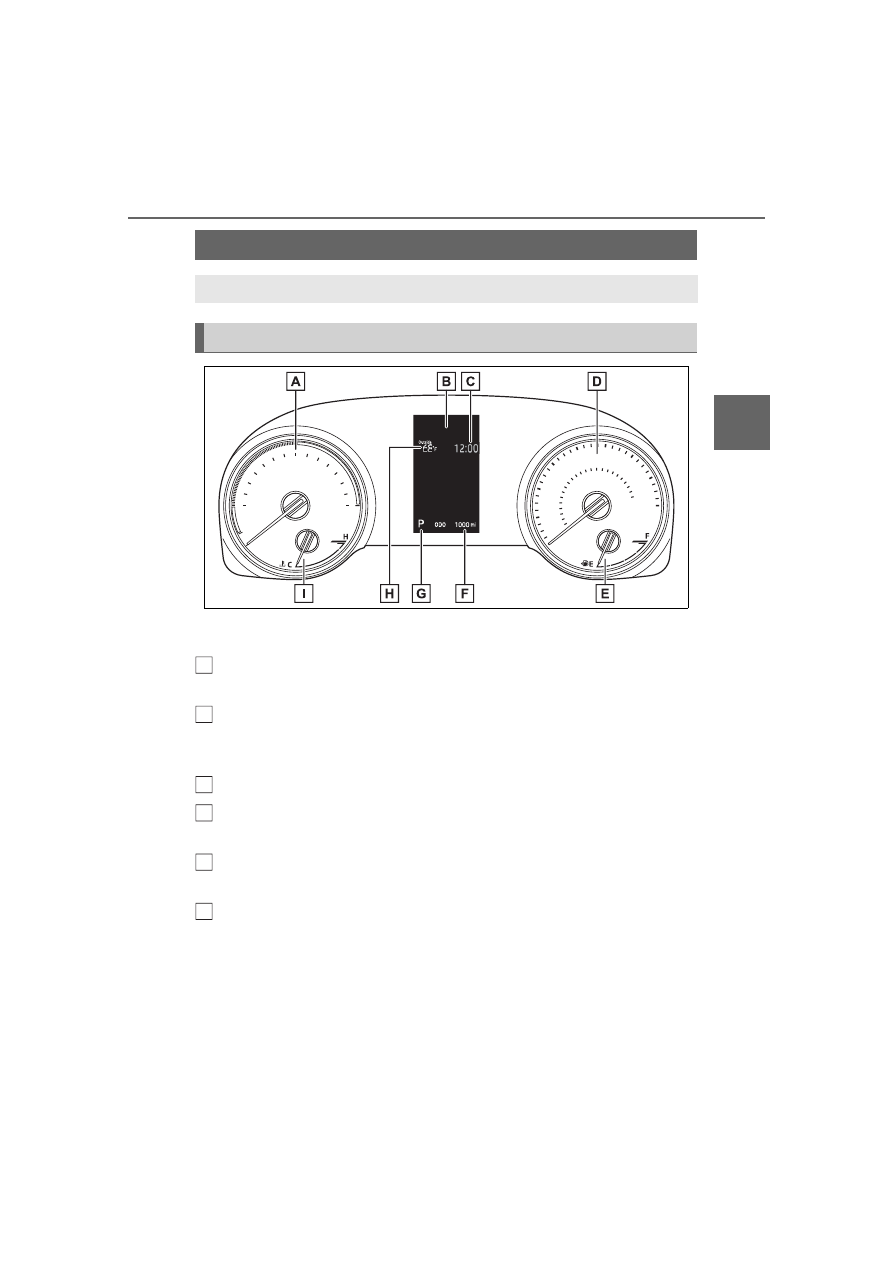

Gauges and meters (with

4.2-inch display) ...........

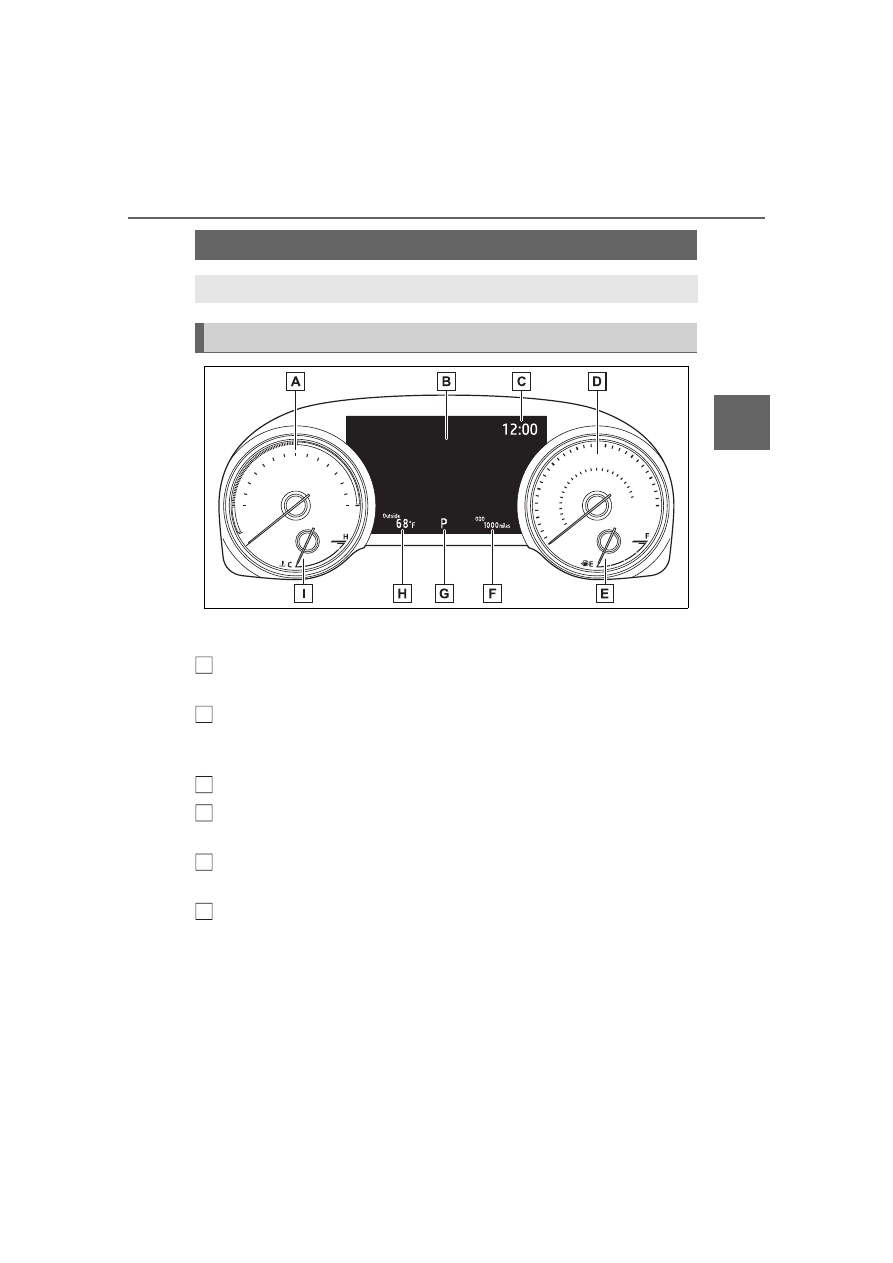

Gauges and meters (with 7-

inch display) ..............

101

Multi-information display

..................................

104

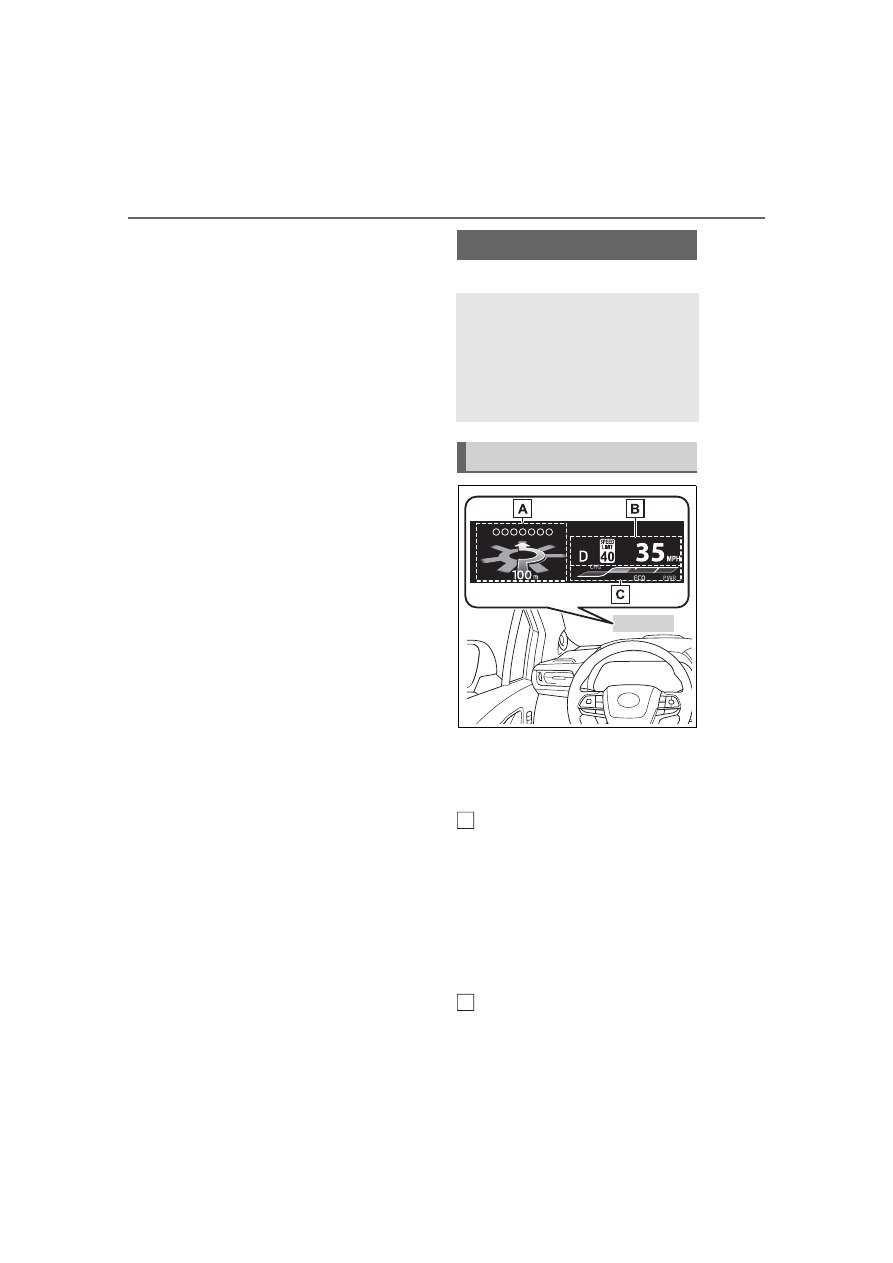

Head-up display ..........

118

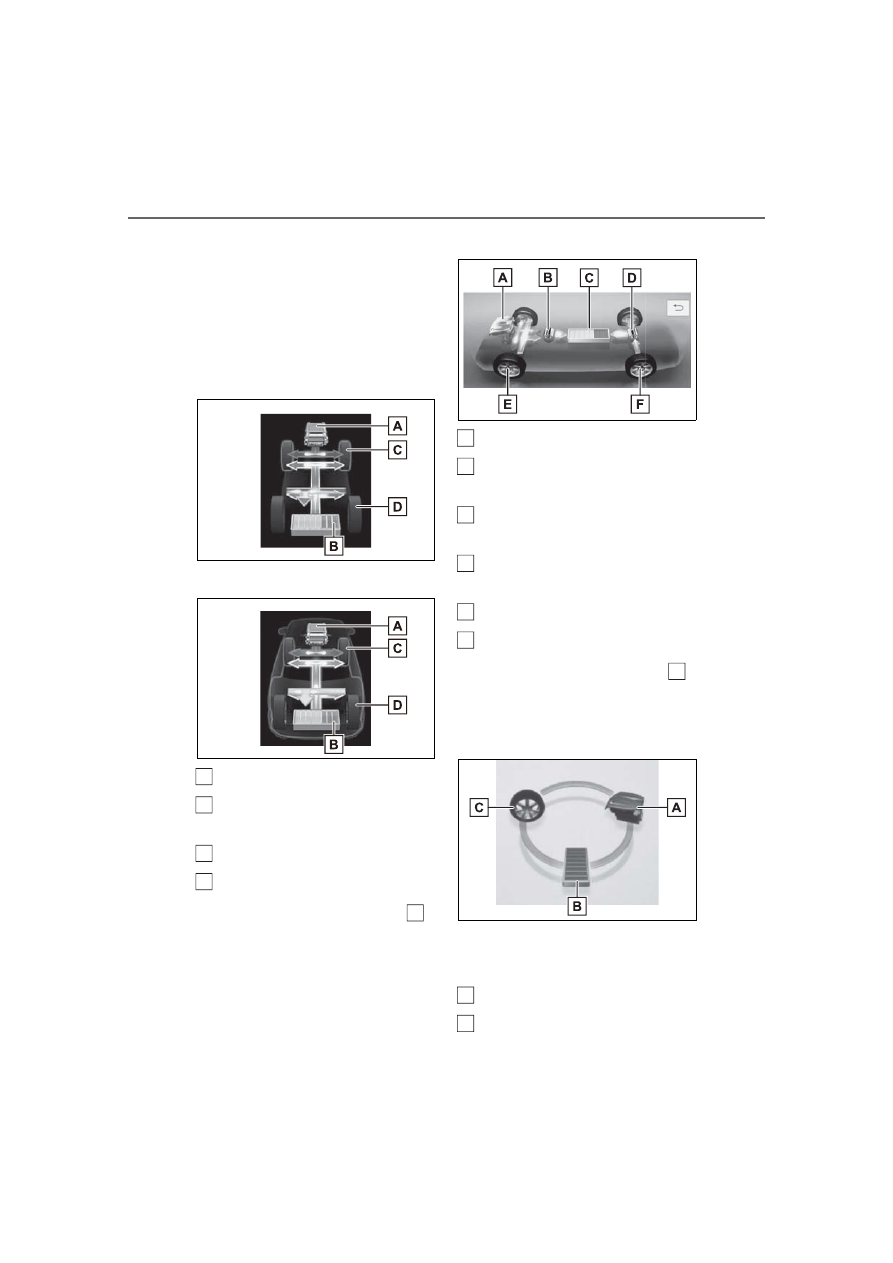

Energy monitor/consump-

tion screen.................

122

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

The units used on the meters and some indicators may differ depending on
the target region.

Warning lights inform the driver
of malfunctions in the indicated
vehicle’s systems.

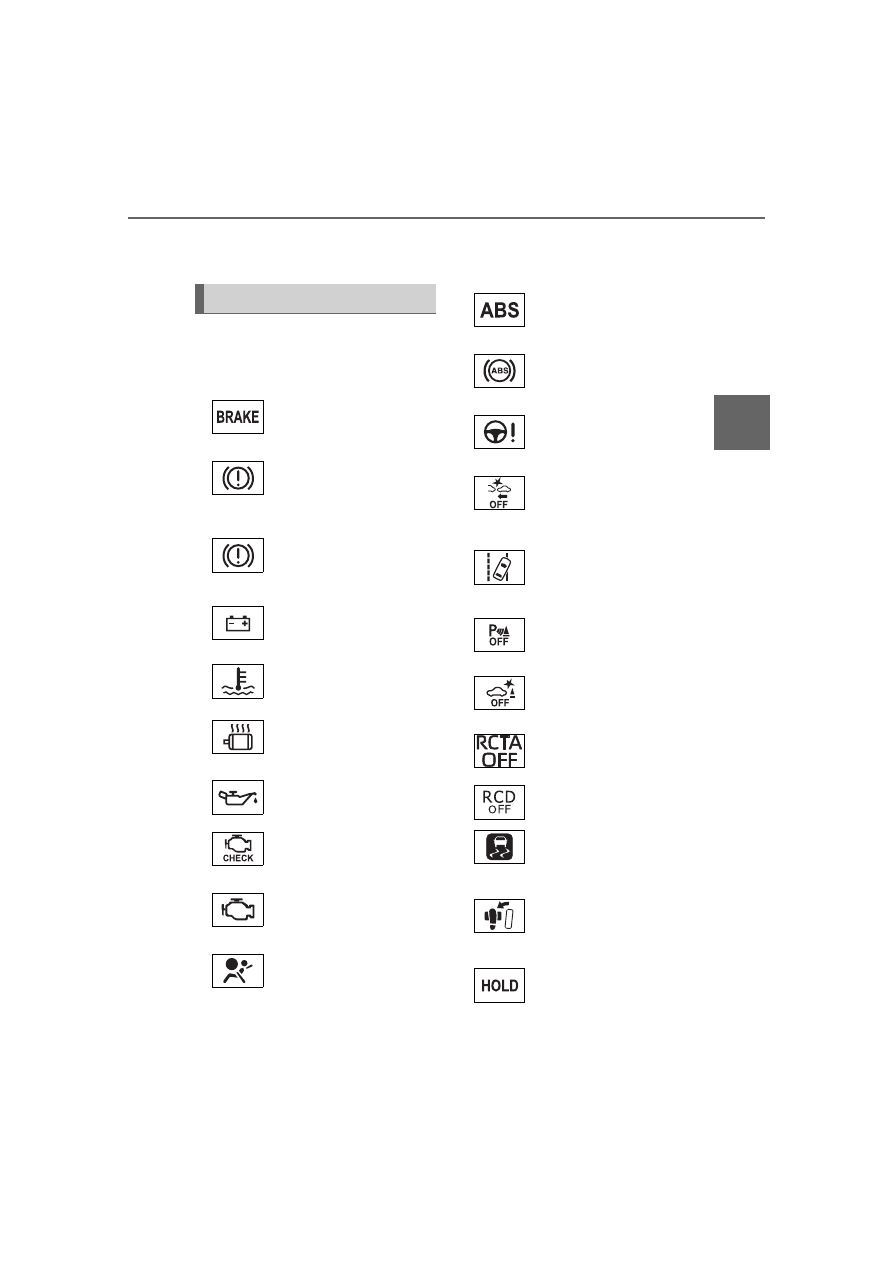

Warning lights

(U.S.A.)

Brake system warn-
ing light

(



(Canada)

(Red)

Brake system warn-
ing light

(



(Yellow)

Brake system warn-
ing light

(



Charging system
warning light

*1, 2

(

High coolant tempera-
ture warning light

(

Hybrid system over-
heat warning light

(

Low engine oil pres-
sure warning light

(

(U.S.A.)

Malfunction indicator
lamp

(

(Canada)

Malfunction indicator
lamp

(

SRS warning light

(

(U.S.A.)

ABS warning light

(



(Canada)

ABS warning light

(



(Red/yellow)

Electric power steer-
ing system warning
light

(



(Flashes or

illuminates)

PCS warning light

(



P.469)

(Orange)

LTA indicator
(



P.469)

Intuitive parking assist
OFF indicator

(if

equipped) (



P.469)

PKSB OFF indica-
tor

(if equipped)

(



P.470)

RCTA OFF indica-
tor

(if equipped)

(



P.470)

RCD OFF indicator (if
equipped) (



P.470)

Slip indicator

(



P.471)

Brake Override Sys-
tem/Drive-Start Con-
trol/PKSB (if
equipped) warning
light

(



P.471)

(Flashes)

Brake hold operated
indicator

(



P.471)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2-1. Instrument cluster

:These lights turn on when the

power switch is turned to ON to
indicate that a system check is
being performed. They will turn
off after the hybrid system is on,
or after a few seconds. There
may be a malfunction in a sys-
tem if the light does not come on,
or turn off. Have the vehicle
inspected by your Toyota dealer.

:This light illuminates on the

multi-information display with a
message.

:Intuitive parking assist OFF indi-

cator turns on when the power
switch is turned to ON while the
Intuitive parking assist function is
on. It will turn off after a few sec-
onds.

:This light illuminates on the cen-

ter panel.

(U.S.A.)

(Flashes)

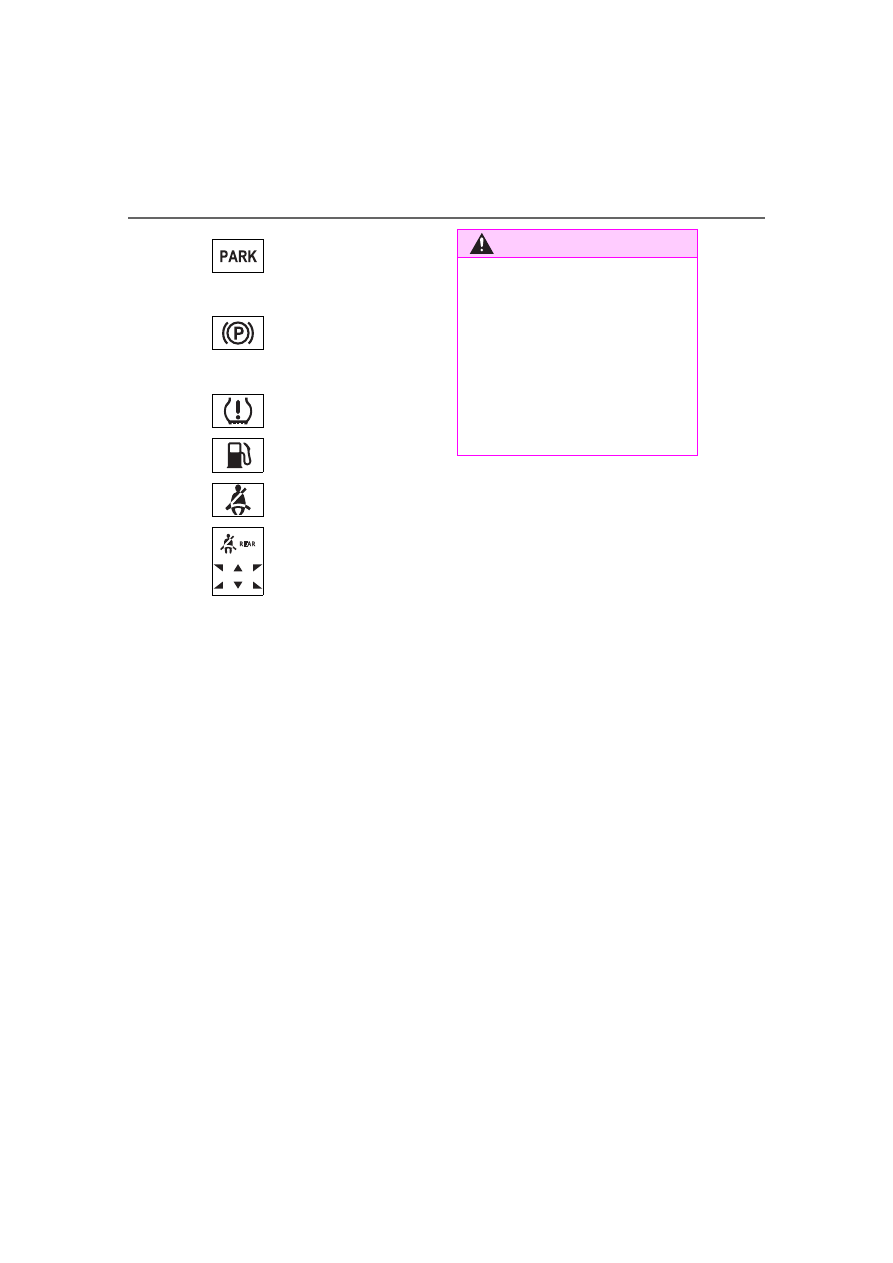

Parking brake indica-
tor (



(Canada)
(Flashes)

Parking brake indica-
tor (



Tire pressure warning
light

(

Low fuel level warn-
ing light (

Seat belt reminder
light (



P.473)

Rear passengers’ seat
belt reminder light

(

P.473)

WARNING

■

If a safety system warning

light does not come on

Should a safety system light such

as the ABS and SRS warning light

not come on when you start the

hybrid system, this could mean

that these systems are not avail-

able to help protect you in an acci-

dent, which could result in death

or serious injury. Have the vehicle

inspected by your Toyota dealer

immediately if this occurs.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

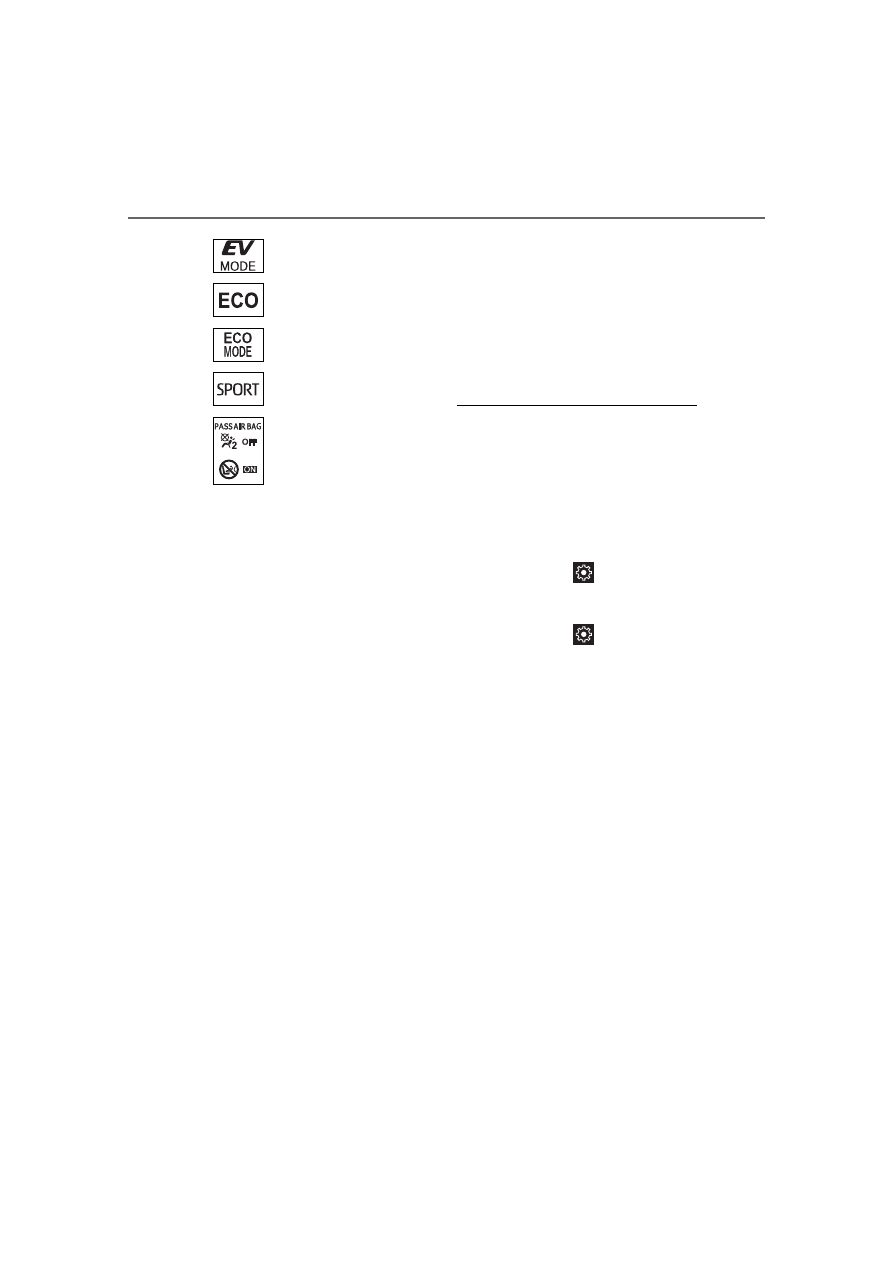

The indicators inform the driver
of the operating state of the
vehicle’s various systems.

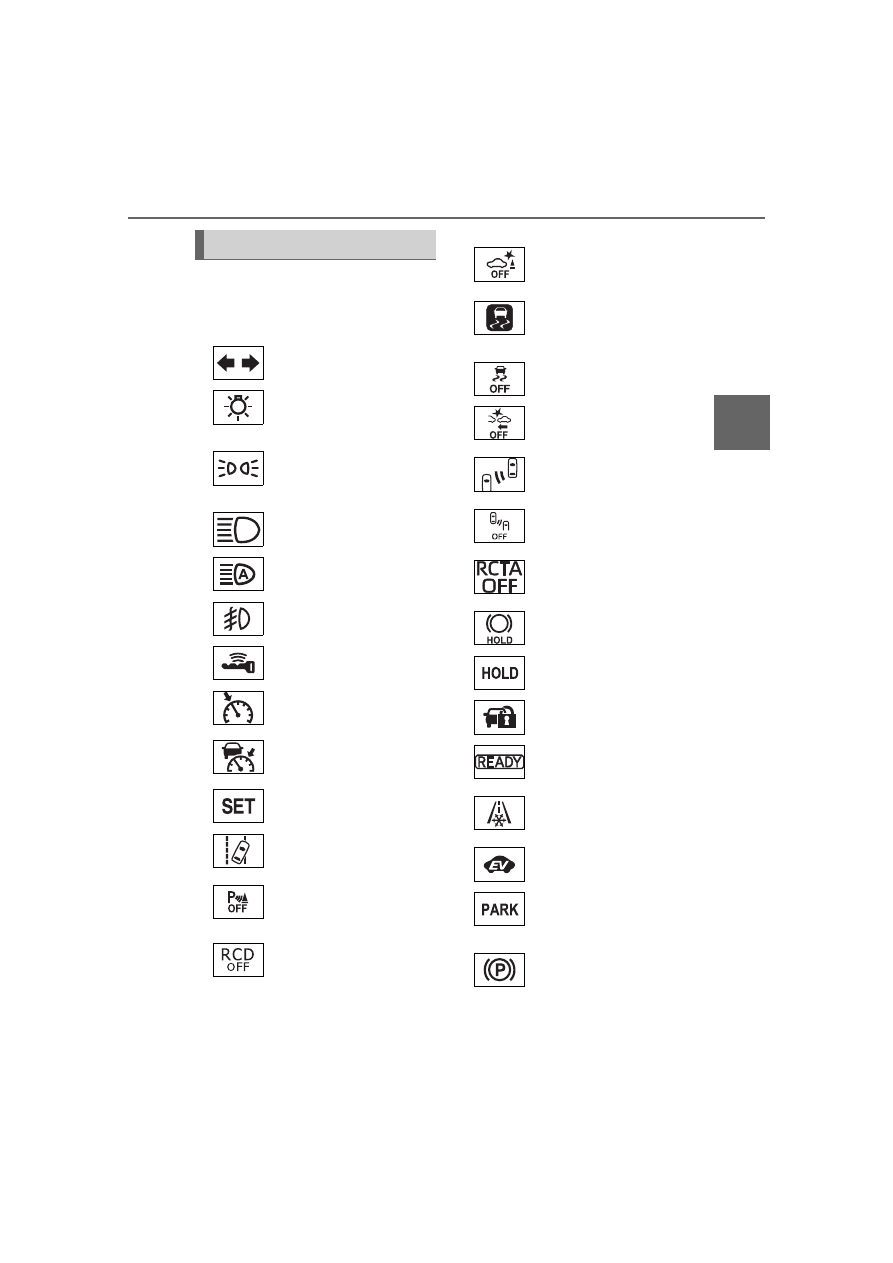

Indicators

Turn signal indicator
(

P.242)

(U.S.A.)

Headlight indicator
(

P.248)

(Canada)

Tail light indicator
(

P.248)

Headlight high beam
indicator (

P.250)

Automatic High Beam
indicator (

P.250)

Fog light indicator (if
equipped) (

P.254)

Smart key system
indicator

(



P.231)

Cruise control indica-
tor (

Dynamic radar cruise
control indicator
(

Cruise control “SET”
indicator (

LTA indicator

(

P.280)

Intuitive parking assist
OFF indicator

*3, 4

(if

equipped) (

P.310)

RCD OFF indicator

(if equipped)
(

P.315)

PKSB OFF indicator

*3,

(if equipped)

(



P.320)

(Flashes)

Slip indicator

(



P.336)

VSC OFF indicator

*3,

(



P.336)

PCS warning light

*3, 5

(



P.269)

BSM outside rear view
mirror indicators

*5, 6

(if

equipped) (



BSM OFF indicator (if
equipped) (



RCTA OFF indica-
tor

*3, 5

(if equipped)

(



Brake hold standby
indicator

(

P.246)

Brake hold operated
indicator

(

P.246)

Security indicator

(



P.88, 89 )

“READY” indicator
(



P.231)

Low outside tempera-
ture indicator

(



P.98, 102)

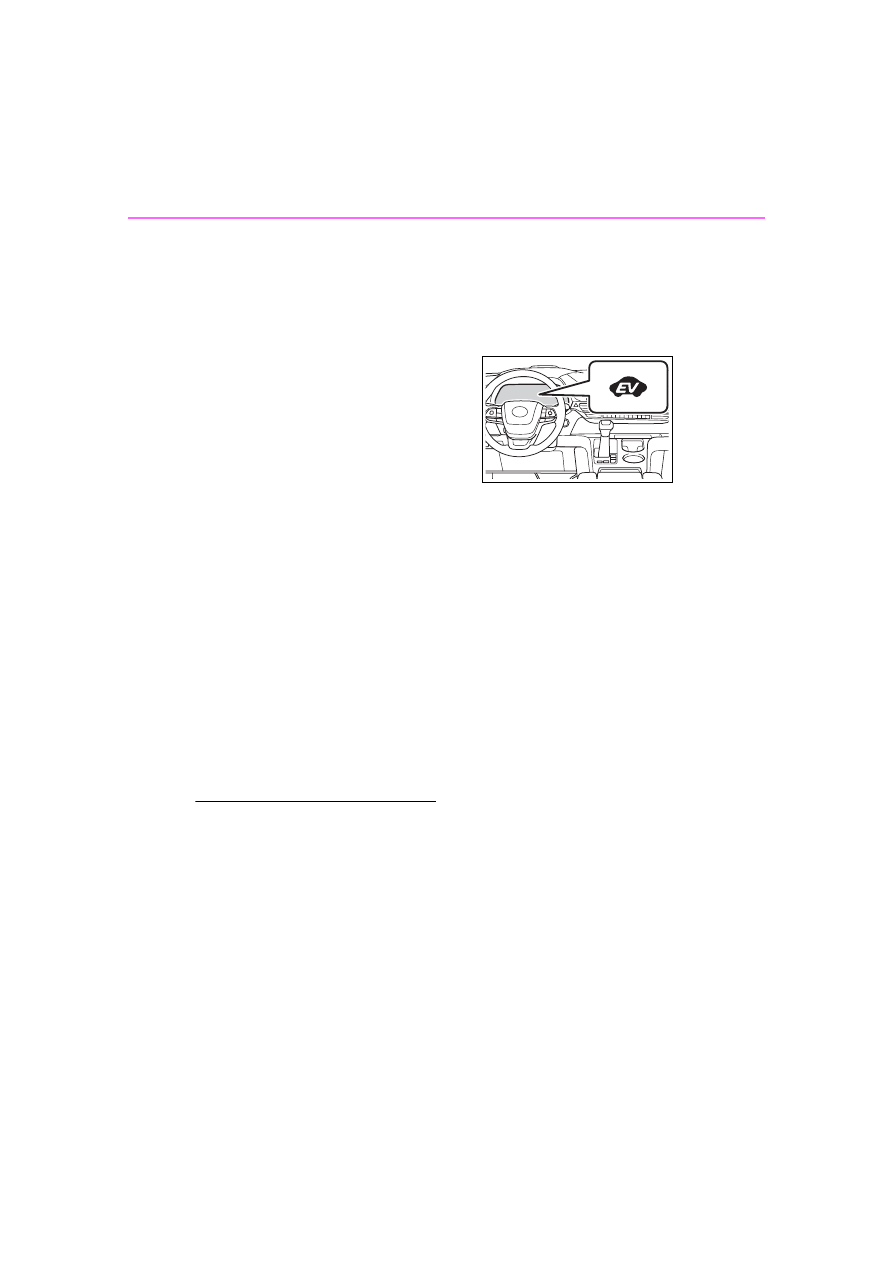

EV indicator (



P.80)

(U.S.A.)

Parking brake indica-
tor (



P.243)

(Canada)

Parking brake indica-
tor (



P.243)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2-1. Instrument cluster

:This light illuminates on the

multi-information display with a
message.

:Depending on the operating con-

ditions, the color and illuminat-
ing/flashing state of the light
change.

:The light comes on when the

system is turned off.

:Intuitive parking assist OFF indi-

cator turns on when the power
switch is turned to ON while the
Intuitive parking assist function is
on. It will turn off after a few sec-
onds.

:These lights turn on when the

power switch is turned to ON to
indicate that a system check is
being performed. They will turn
off after the hybrid system is on,
or after a few seconds. There
may be a malfunction in a sys-
tem if the lights do not turn on, or
turn off. Have the vehicle
inspected by your Toyota dealer.

:This light illuminates on the out-

side rear view mirrors.

:This light illuminates on the cen-

ter panel.

:When the outside temperature is

approximately 37°F (3°C) or
lower, the indicator will flash for
approximately 10 seconds, then
stay on.

:With 4.2-inch display

*10

: With 7-inch display

■

BSM (Blind Spot Monitor) out-

side rear view mirror indicators

(if equipped)

In order to confirm operation, the

BSM outside rear view mirror indica-

tors illuminate in the following situa-

tions:

●

When the power switch is turned

to ON while the BSM function is
enabled on the

screen of the

multi-information display.

●

When the BSM function is
enabled on the

screen of the

multi-information display while the

power switch is in ON.

If the system is functioning correctly,
the BSM outside rear view mirror
indicators will turn off after a few
seconds.
If the BSM outside rear view mirror

indicators do not illuminate or do not

turn off, there may be a malfunction

in the system. If this occurs, have

the vehicle inspected by your

Toyota dealer.

EV drive mode indica-
tor (

P.236)

Eco drive mode indi-
cator

(

Eco drive mode indi-
cator

*10

(



Sport mode indicator
(

“AIR BAG ON/OFF”
indicator

*5, 7

(



P.51)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

The units used on the meter and display may differ depending on the target
region.

Hybrid System Indicator

Displays the Hybrid System Indicator (

P.98)

Multi-information display

Presents the driver with a variety of driving-related data (

P.104)

Displays warning messages if a malfunction occurs (



Clock (

P.100)

Speedometer

Displays the vehicle speed

Fuel gauge

Displays the quantity of fuel remaining in the tank

Odometer, trip meter and oil maintenance

Odometer:
Displays the total distance that the vehicle has been driven
Trip meter:
Displays the distance the vehicle has been driven since the meter was last
reset. Trip meters “A” and “B” can be used to record and display different
distances independently.

Gauges and meters (with 4.2-inch display)

The meters display various drive information.

Meter display

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2-1. Instrument cluster

Oil maintenance:
Displays the distance until the next engine oil change.

Shift position and shift range indicator

Displays the selected shift position or selected shift range (

P.238)

Outside temperature (

P.98)

Engine coolant temperature gauge

Displays the engine coolant temperature

■

The meters and display illumi-

nate when

The power switch is in ON.

■

When changing driving mode

Speedometer color is changed fol-

lowing the selected driving mode.

(



■

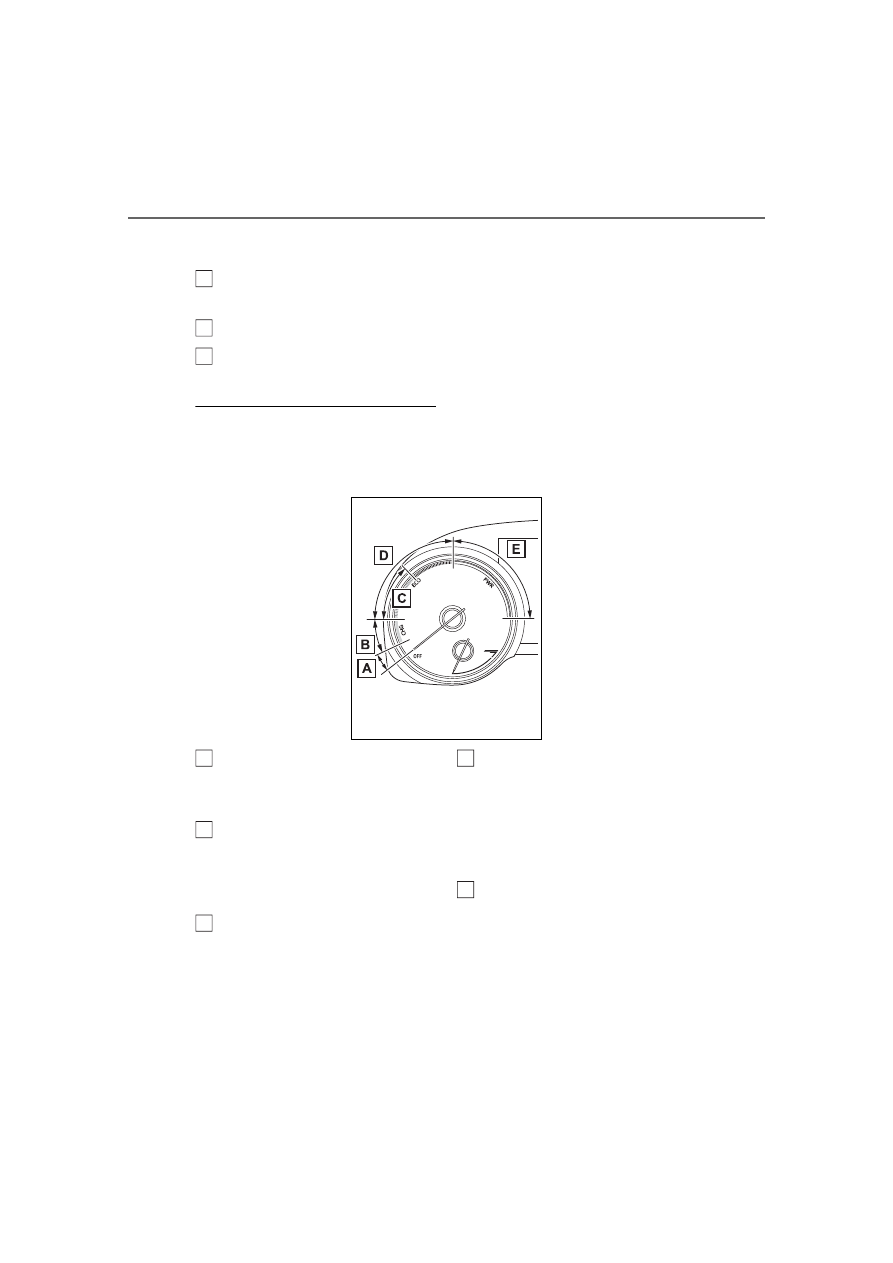

Hybrid System Indicator

READY OFF area

Shows that the hybrid system is not
operating.

Charge area

Shows regeneration

status.

Regenerated energy will be used to
charge the hybrid battery (traction
battery).

Hybrid Eco area

Shows that gasoline engine power
is not being used very often.
The gasoline engine will automati-

cally stop and restart under various
conditions.

Eco area

Shows that the vehicle is being
driven in an Eco-friendly manner.
By keeping the indicator needle
within Eco area, more Eco-friendly
driving can be achieved.

Power area

Shows that an Eco-friendly driving
range is being exceeded (during full
power driving etc.)

: When used in this manual, “regen-

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2-1. Instrument cluster

Vehicle

s information an

d in
dicat

eration” refers to the conversion of
energy created by the movement
of the vehicle into electrical
energy.

In the following situation, the Hybrid

System Indicator does not operate.

●

“READY” indicator is not illumi-

nated.

●

The shift lever is in a range other

than D or S.

■

Outside temperature display

●

In the following situations, the cor-

rect outside temperature may not

be displayed, or the display may

take longer than normal to

change.

• When stopped, or driving at low

speeds (less than 12 mph [20

km/h])

• When the outside temperature

has changed suddenly (at the

entrance/exit of a garage, tunnel,

etc.)

●

When “--” or “E” is displayed, the

system may be malfunctioning.

Take your vehicle to your Toyota

dealer.

●

Displays the outside temperature

within the range of -40°F (-40°C)

to 122°F (50°C).

●

When the outside temperature is

approximately 37°F (3°C) or

lower, the low outside temperature

indicator will flash for approxi-

mately 10 seconds, then stay on.

■

Liquid crystal display

P.105

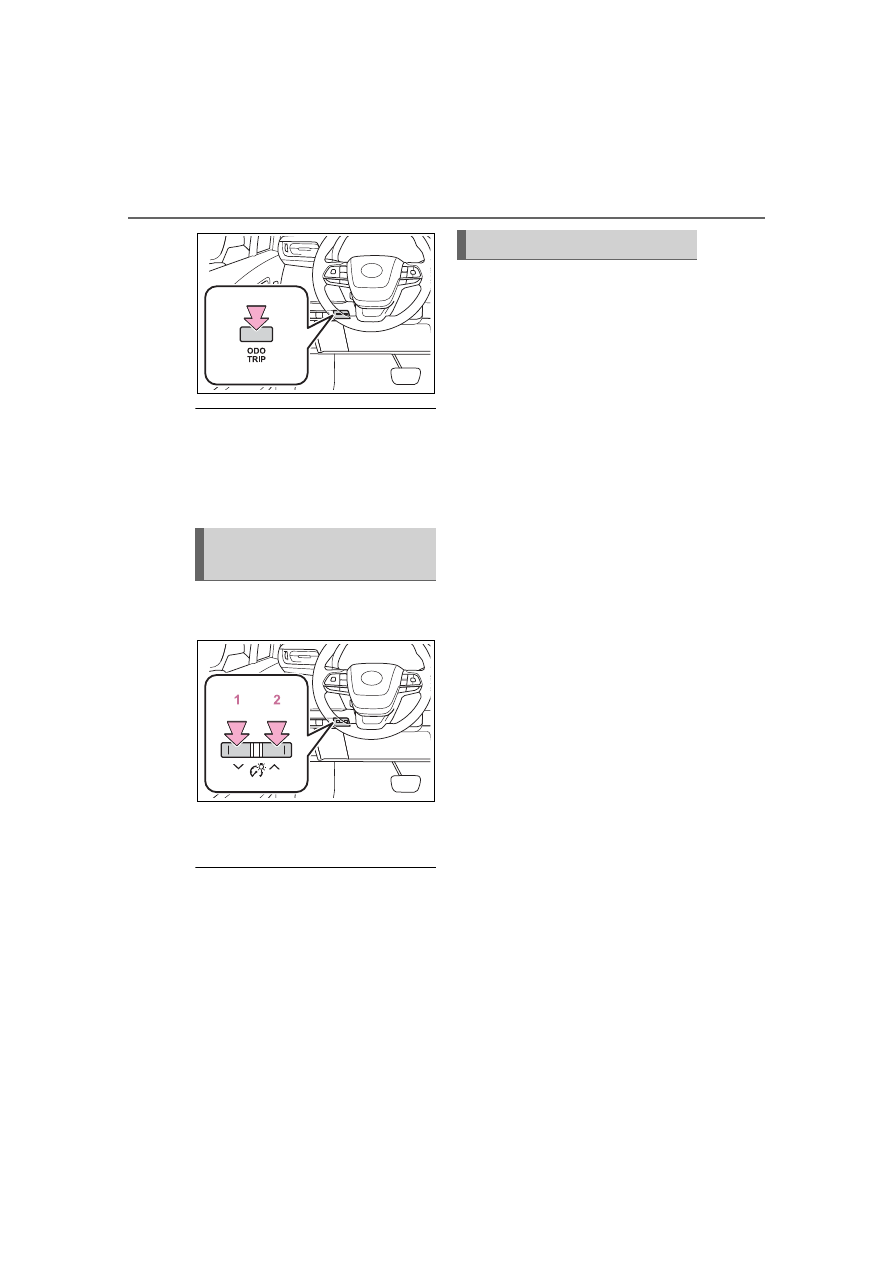

Switches the items of the odom-
eter, trip meter A, trip meter B
and oil maintenance by pressing
the “ODO TRIP” switch.
When the trip meter is dis-
played, pressing and holding the
switch will reset the trip meter.

WARNING

■

The information display at

low temperatures

Allow the interior of the vehicle to

warm up before using the liquid

crystal information display. At

extremely low temperatures, the

display monitor may respond

slowly, and display changes may

be delayed.
For example, there is a lag

between the driver’s shifting and

the new shift range appearing on

the display. This lag could cause

the driver to downshift again,

causing rapid and excessive

engine braking and possibly an

accident resulting in death or

injury.

NOTICE

■

To prevent damage to the

engine and its components

The engine may be overheating if

the engine coolant temperature

gauge is in the red zone (“H”). In

this case, immediately stop the

vehicle in a safe place, and check

the engine after it has cooled

completely. (

P.511)

Changing the trip meter
display

-------------------------------------------------------------------------------------------------------------------------------------------------------------

100

2-1. Instrument cluster

■

Pop-up display

Distance until the next engine oil

change will displayed when a warn-

ing message indicating that oil

maintenance should be performed

soon or is required is displayed.

The brightness of the instrument
panel lights can be adjusted.

Darker

Brighter

■

Instrument panel brightness

adjustment

The instrument panel brightness

levels when the tail lights are on and

off can be adjusted individually.

However, when the surroundings

are bright (daytime, etc.), turning on

the tail lights will not change the

instrument panel brightness.

The clocks can be adjusted on
the audio system screen.
Refer to “NAVIGATION AND
MULTIMEDIA SYSTEM
OWNER’S MANUAL”.

Changing the instrument
panel light brightness

Adjusting the clock

-------------------------------------------------------------------------------------------------------------------------------------------------------------

101

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

The units used on the meter and display may differ depending on the target
region.

Hybrid System Indicator

Displays the Hybrid System Indicator (

P.102)

Multi-information display

Presents the driver with a variety of driving-related data (

P.104)

Displays warning messages if a malfunction occurs (



Clock (

P.104)

Speedometer

Displays the vehicle speed

Fuel gauge

Displays the quantity of fuel remaining in the tank

Odometer, trip meter and oil maintenance

Gauges and meters (with 7-inch display)

The meters display various drive information.

Meter display

-------------------------------------------------------------------------------------------------------------------------------------------------------------

102

2-1. Instrument cluster

Oil maintenance:
Displays the distance until the next engine oil change.

Shift position and shift range indicator

Displays the selected shift position or selected shift range (

P.238)

Outside temperature (

P.102)

Engine coolant temperature gauge

Displays the engine coolant temperature

■

The meters and display illumi-

nate when

The power switch is in ON.

■

When changing driving mode

Speedometer color is changed fol-

lowing the selected driving mode.

(



■

Hybrid System Indicator

READY OFF area

Shows that the hybrid system is not
operating.

Charge area

Shows regeneration

status. Regen-

erated energy will be used to charge
the hybrid battery (traction battery).

Hybrid Eco area

Shows that gasoline engine power
is not being used very often.
The gasoline engine will automati-
cally stop and restart under various
conditions.

Eco area

Shows that the vehicle is being
driven in an Eco-friendly manner.
By keeping the indicator needle
within Eco area, more Eco-friendly
driving can be achieved.

Power area

Shows that an Eco-friendly driving
range is being exceeded (during full
power driving etc.)

: When used in this manual, “regen-

eration” refers to the conversion of
energy created by the movement
of the vehicle into electrical

-------------------------------------------------------------------------------------------------------------------------------------------------------------

103

2-1. Instrument cluster

Vehicle

s information an

d in
dicat

energy.

In the following situation, the Hybrid

System Indicator does not operate.

●

“READY” indicator is not illumi-

nated.

●

The shift lever is in a range other

than D or S.

■

Outside temperature display

●

In the following situations, the cor-

rect outside temperature may not

be displayed, or the display may

take longer than normal to

change.

• When stopped, or driving at low

speeds (less than 12 mph [20

km/h])

• When the outside temperature

has changed suddenly (at the

entrance/exit of a garage, tunnel,

etc.)

●

When “--” or “E” is displayed, the

system may be malfunctioning.

Take your vehicle to your Toyota

dealer.

●

Displays the outside temperature

within the range of -40°F (-40°C)

to 122°F (50°C).

●

When the outside temperature is

approximately 37°F (3°C) or

lower, the low outside temperature

indicator will flash for approxi-

mately 10 seconds, then stay on.

■

Liquid crystal display

P.105

■

Customization

Settings (e. g. meter display) can be
changed on the

screen of the

multi-information display. (

P.541)

WARNING

■

The information display at

low temperatures

Allow the interior of the vehicle to

warm up before using the liquid

crystal information display. At

extremely low temperatures, the

display monitor may respond

slowly, and display changes may

be delayed.
For example, there is a lag

between the driver’s shifting and

the new shift range appearing on

the display. This lag could cause

the driver to downshift again,

causing rapid and excessive

engine braking and possibly an

accident resulting in death or

injury.

NOTICE

■

To prevent damage to the

engine and its components

The engine may be overheating if

the engine coolant temperature

gauge is in the red zone (“H”). In

this case, immediately stop the

vehicle in a safe place, and check

the engine after it has cooled

completely. (

P.511)

Changing the trip meter
display

-------------------------------------------------------------------------------------------------------------------------------------------------------------

104

2-1. Instrument cluster

■

Pop-up display

Distance until the next engine oil

change will displayed when a warn-

ing message indicating that oil

maintenance should be performed

soon or is required is displayed.

The brightness of the instrument
panel lights can be adjusted.

Darker

Brighter

■

Instrument panel brightness

adjustment

The instrument panel brightness

levels when the tail lights are on and

off can be adjusted individually.

However, when the surroundings

are bright (daytime, etc.), turning on

the tail lights will not change the

instrument panel brightness.

The clocks can be adjusted on
the audio system screen.
Refer to “NAVIGATION AND
MULTIMEDIA SYSTEM
OWNER’S MANUAL”.

Changing the instrument
panel light brightness

Adjusting the clock

-------------------------------------------------------------------------------------------------------------------------------------------------------------

105

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

Following information is dis-
played on the multi-information
display.



Vehicles with 4.2-inch display

Driving support system infor-
mation

Displays recognized signs while the
RSA system (if equipped) is operat-
ing. (



Displays an image when the follow-
ing systems are operating and a
menu icon other than

selected:
• LTA (Lane Tracing Assist)

(

• Dynamic radar cruise control with

full-speed range (

Menu icons (



P.106)

Information display area

A variety of information can be dis-
played by selecting a menu icon.
Additionally, warning or sugges-
tion/advice pop-up displays will be
displayed in some situations.



Vehicles with 7-inch display

Driving support system infor-
mation

Displays recognized signs while the
RSA system (if equipped) is operat-
ing. (

Displays an image when the follow-
ing systems are operating and a
menu icon other than

selected:
• LTA (Lane Tracing Assist)

(



• Dynamic radar cruise control with

full-speed range (

Information display area

A variety of information can be dis-
played by selecting a menu icon.
Additionally, warning or sugges-
tion/advice pop-up displays will be
displayed in some situations.

Menu icons (



P.106)

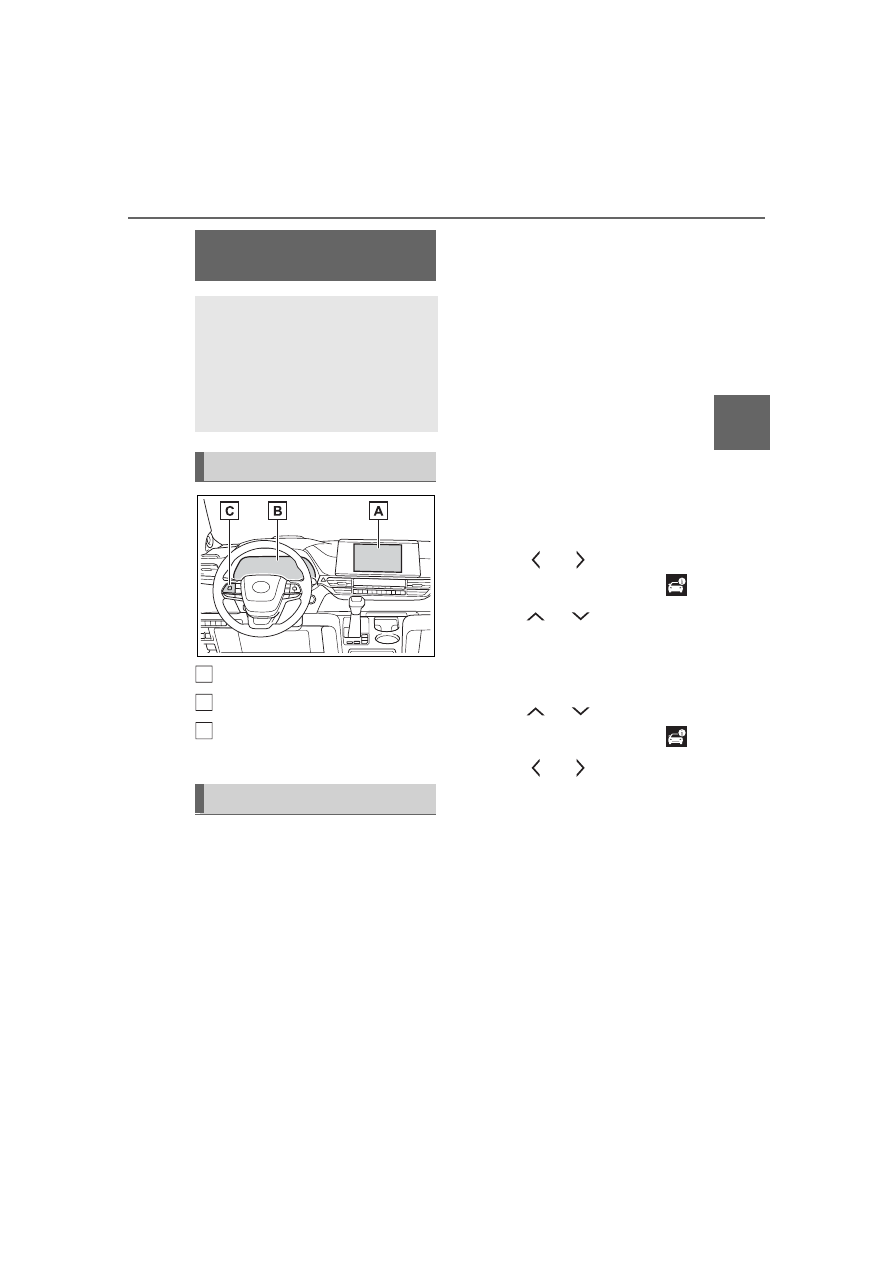

Multi-information dis-

play

The multi-information dis-
play is used to display fuel
efficiency related informa-
tion and various types of
driving-related information.
The multi-information dis-
play can also be used to
change the display settings
and other settings.

Display contents

-------------------------------------------------------------------------------------------------------------------------------------------------------------

106

2-1. Instrument cluster

■

The multi-information display is

displayed when

The power switch is in ON.

■

When changing driving mode

Background color of the multi-infor-

mation display is changed following

the selected driving mode.

(

■

Liquid crystal display

Small spots or light spots may

appear on the display. This phe-

nomenon is characteristic of liquid

crystal displays, and there is no

problem continuing to use the dis-

play.

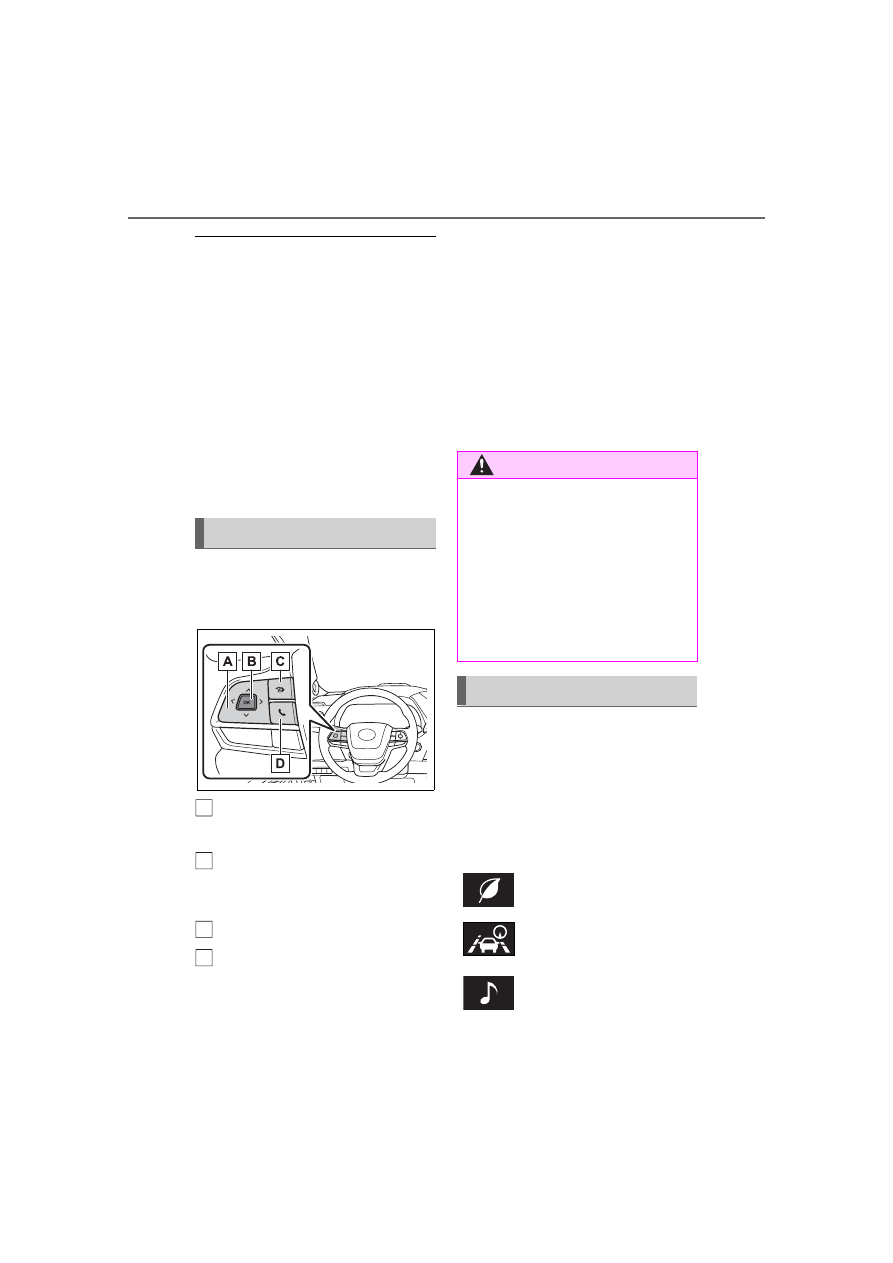

The multi-information display is
operated using the meter control
switches.

Scroll the screen

/switch the

display

/move the cursor

Press: Enter/Set
Press and hold: Reset/Dis-
play customizable items

Return to the previous screen

Call sending/receiving and
history display
Linked with the hands-free
system, sending or receiving

call is displayed. For details
regarding the hands-free sys-
tem, refer to “NAVIGATION
AND MULTIMEDIA SYS-
TEM OWNER’S MANUAL”.

: On screens where the screen can

be scrolled and the display can
be switched, a scroll bar or a
round icon that shows the num-
ber of registered screens is dis-
played.

Information related to each icon
can be displayed by selecting
the icon with the meter control
switches.

Some of the information may be
displayed automatically depending
on the situation.

Changing the display

WARNING

■

Caution for use while driving

For safety, avoid operating the

meter control switches while driv-

ing as much as possible, and do

not look continuously at the multi-

information display while driving.

Stop the vehicle and operate the

meter control switches. Failure to

do so may cause a steering wheel

operation error, resulting in an

unexpected accident.

Menu icons

Driving information dis-
play (

P.106)

Driving support system
information display
(



Audio system-linked dis-
play (if equipped)
(



P.111)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

107

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

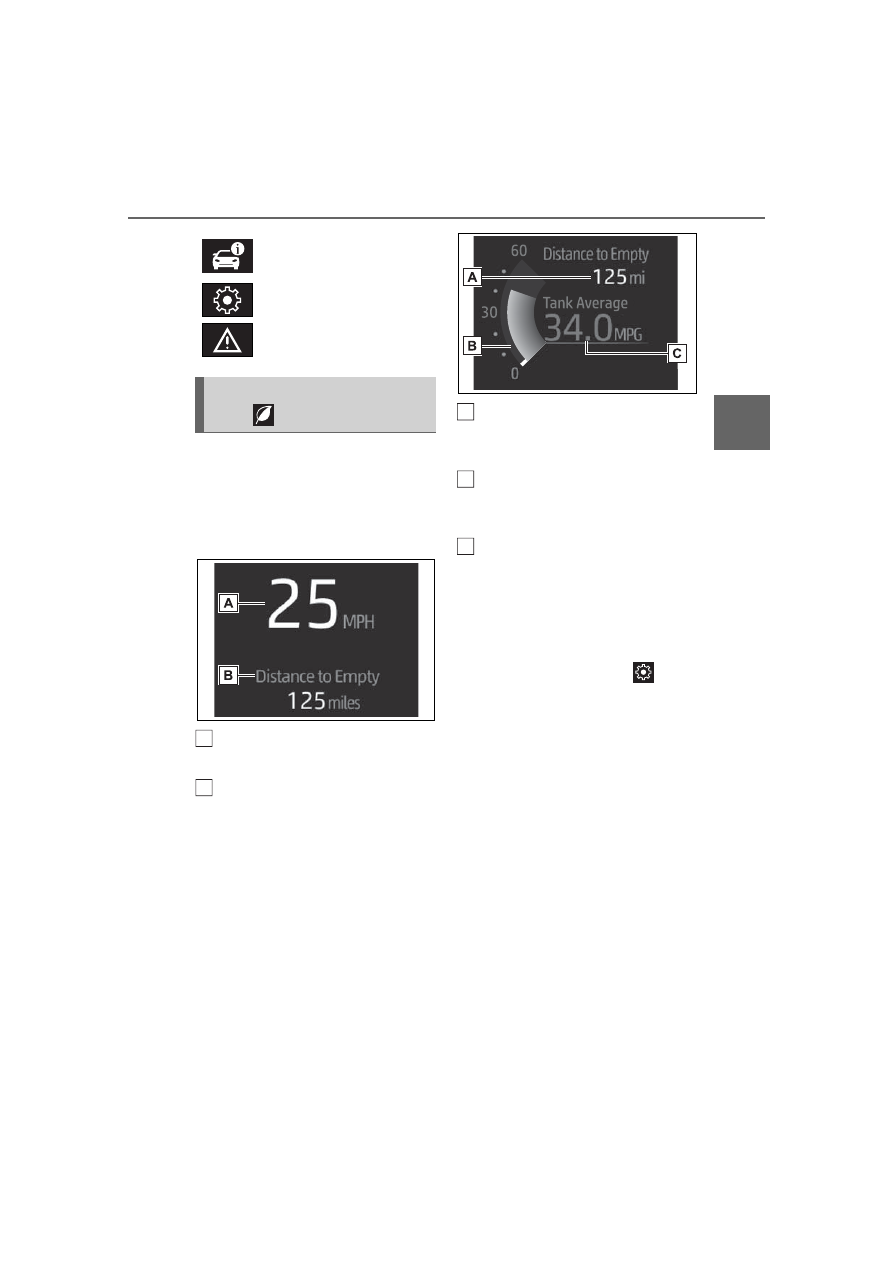

Select to display fuel consump-
tion data in various forms.

■

Speedometer display/Dis-
tance to empty (4.2-inch
display)

Speedometer display

Displays the vehicle speed.

Distance to empty

Displays the driving range with
remaining fuel. (



■

Fuel Economy



4.2-inch display

Following information is dis-
played.

Distance to empty

Displays the driving range with
remaining fuel. (

Current fuel economy

Displays the instantaneous current
fuel economy.

Average fuel economy

Displays the average fuel economy
since the function was reset or the
average fuel economy after starting
or refueling.

*1, 2, 3

The average fuel economy selected
by “Fuel Economy” on the

screen is displayed. (



:Use the displayed fuel consump-

tion as a reference only.

:Average fuel economy since the

function was reset can be reset
by pressing and holding “OK”.

:Average fuel economy after

starting is reset each time the
hybrid system stops.



7-inch display

Following information is displayed.

Vehicle information dis-
play (



P.111)

Settings display
(

Warning message dis-
play (



P.116)

Driving information dis-
play (

)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

108

2-1. Instrument cluster

Current fuel economy

Displays the instantaneous current
fuel economy.

Average fuel economy (after
start)

Displays the average fuel con-
sumption since hybrid system
start.

Distance to empty

Displays the driving range with
remaining fuel. (



Average fuel economy

Displayed item (listed below) can
be changed on the fuel economy
type screen of

. (



Total (after reset)

Displays the average fuel con-
sumption since the display was
reset.

*1, 2



Tank (after refuel)

Displays the average fuel con-
sumption since the vehicle was
refueled.

When only a small amount of fuel is
added to the tank, the display may
not be updated.
When refueling, turn the power
switch off. If the vehicle is refueled
without turning the power switch
off, the display may not be updated.

:Use the displayed fuel consump-

tion as a reference only.

:This display can be reset by

pressing and holding “OK” while
it is displayed.

■

ECO Accelerator Guid-
ance/“Eco Score”

Displays a reference operation
range for using the accelerator
pedal according to driving condi-
tions, and a score result that
evaluates the current driving
status.



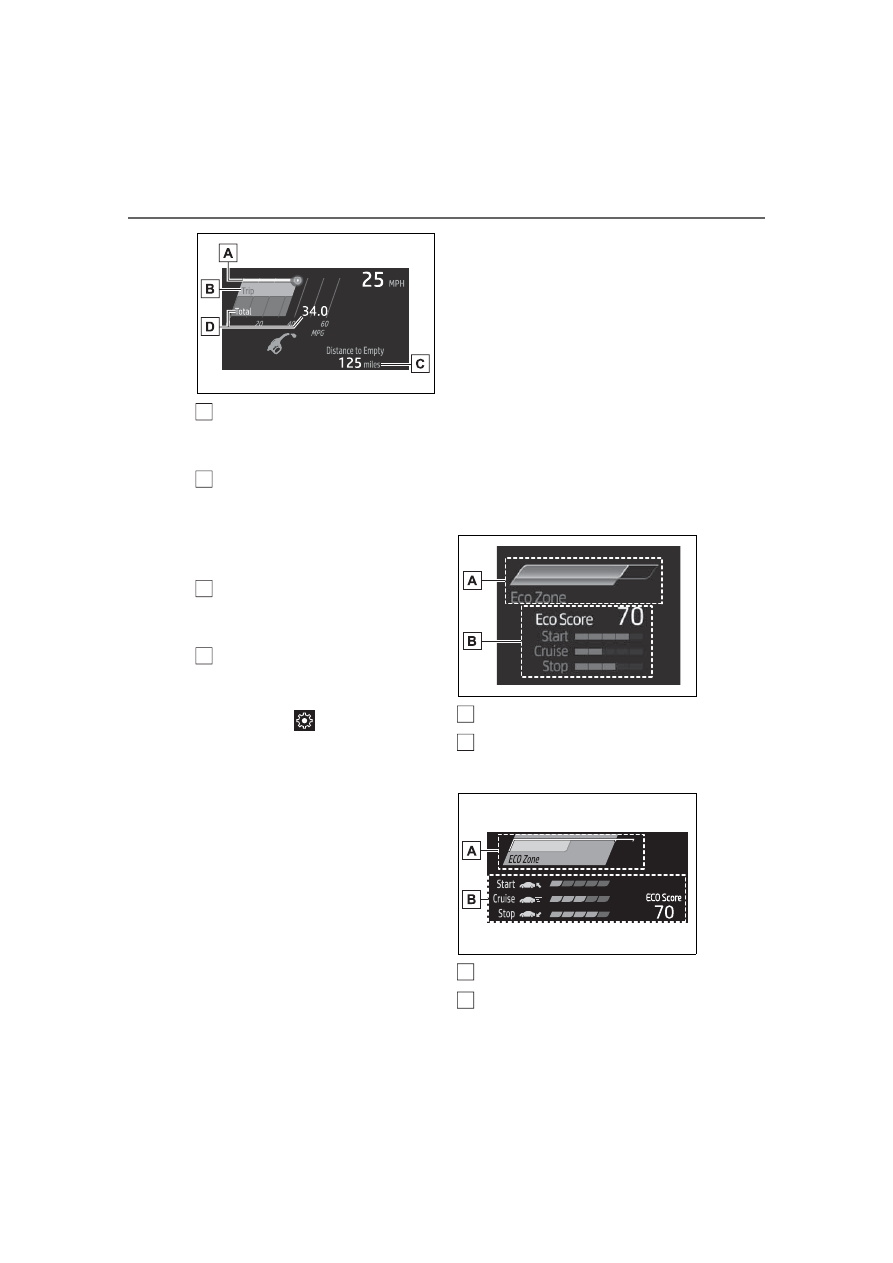

4.2-inch display

ECO Accelerator Guidance

“Eco Score”



7-inch display

ECO Accelerator Guidance

“Eco Score”



ECO Accelerator Guidance

-------------------------------------------------------------------------------------------------------------------------------------------------------------

109

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator



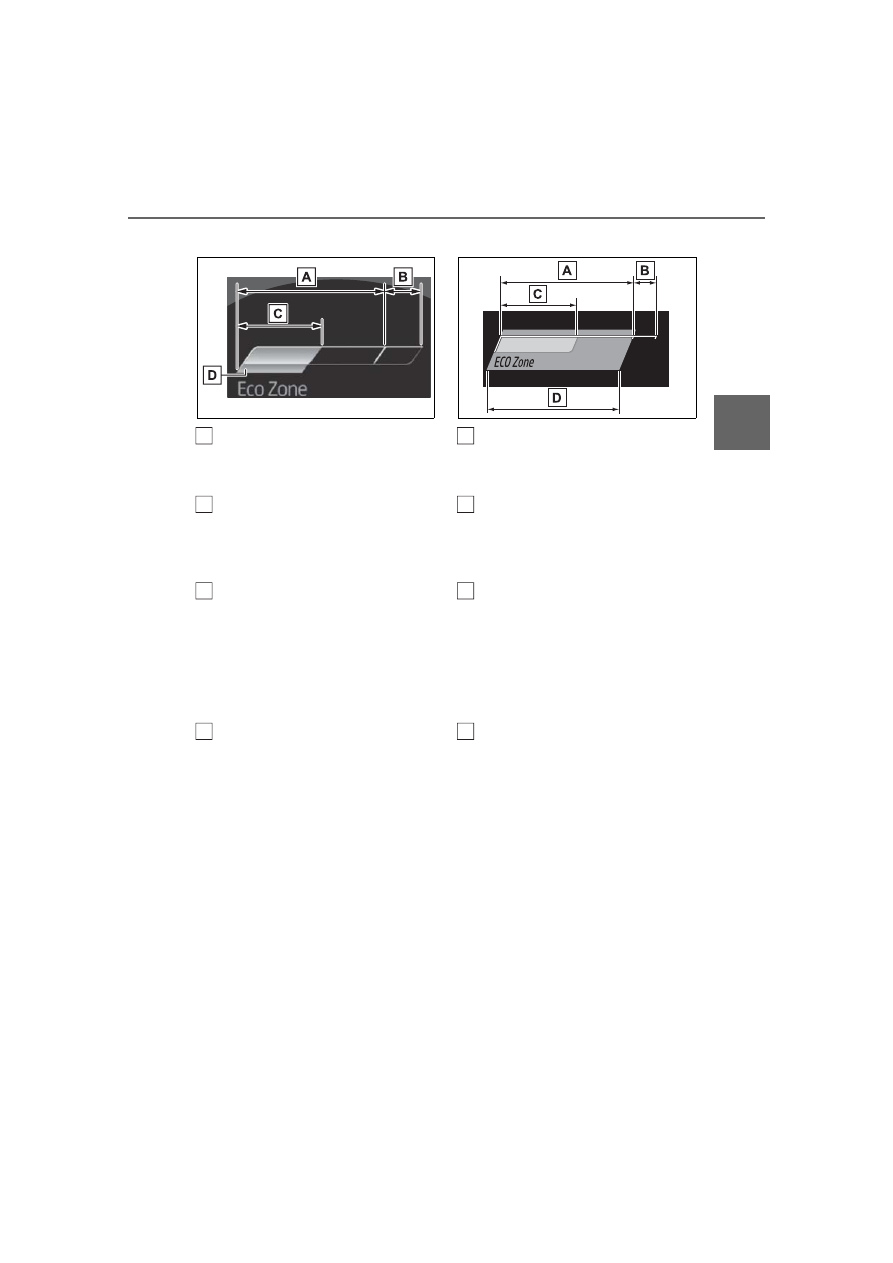

4.2-inch display

ECO area

Shows that the vehicle is being
driven in an Eco-friendly manner.

Power area

Shows that an Eco-friendly driving
range is being exceeded (during full
power driving etc.).

Current acceleration

Displayed as a green bar when
within the Eco area. Eco-friendly
acceleration can be achieved by
keeping the accelerator pedal oper-
ation display within the range indi-
cated by the blue bar. (



Reference operation range

A zone is displayed in blue under
the Eco area which can be used as
a reference operation range for
using the accelerator pedal accord-
ing to driving conditions such as
starting off and cruising.
The ECO Accelerator Guidance
display changes according to the
driving status, such as when start-
ing off or cruising.
It is easier to drive in an Eco-
friendly manner by driving accord-
ing to the display showing the
accelerator pedal operations and
staying within the reference opera-
tion range.



7-inch display

ECO area

Shows that the vehicle is being
driven in an Eco-friendly manner.

Power area

Shows that an Eco-friendly driving
range is being exceeded (during full
power driving etc.).

Current acceleration

Displayed as a green bar when
within the Eco area. Eco-friendly
acceleration can be achieved by
keeping the accelerator pedal oper-
ation display within the range indi-
cated by the blue bar. (

Reference operation range

-------------------------------------------------------------------------------------------------------------------------------------------------------------

110

2-1. Instrument cluster



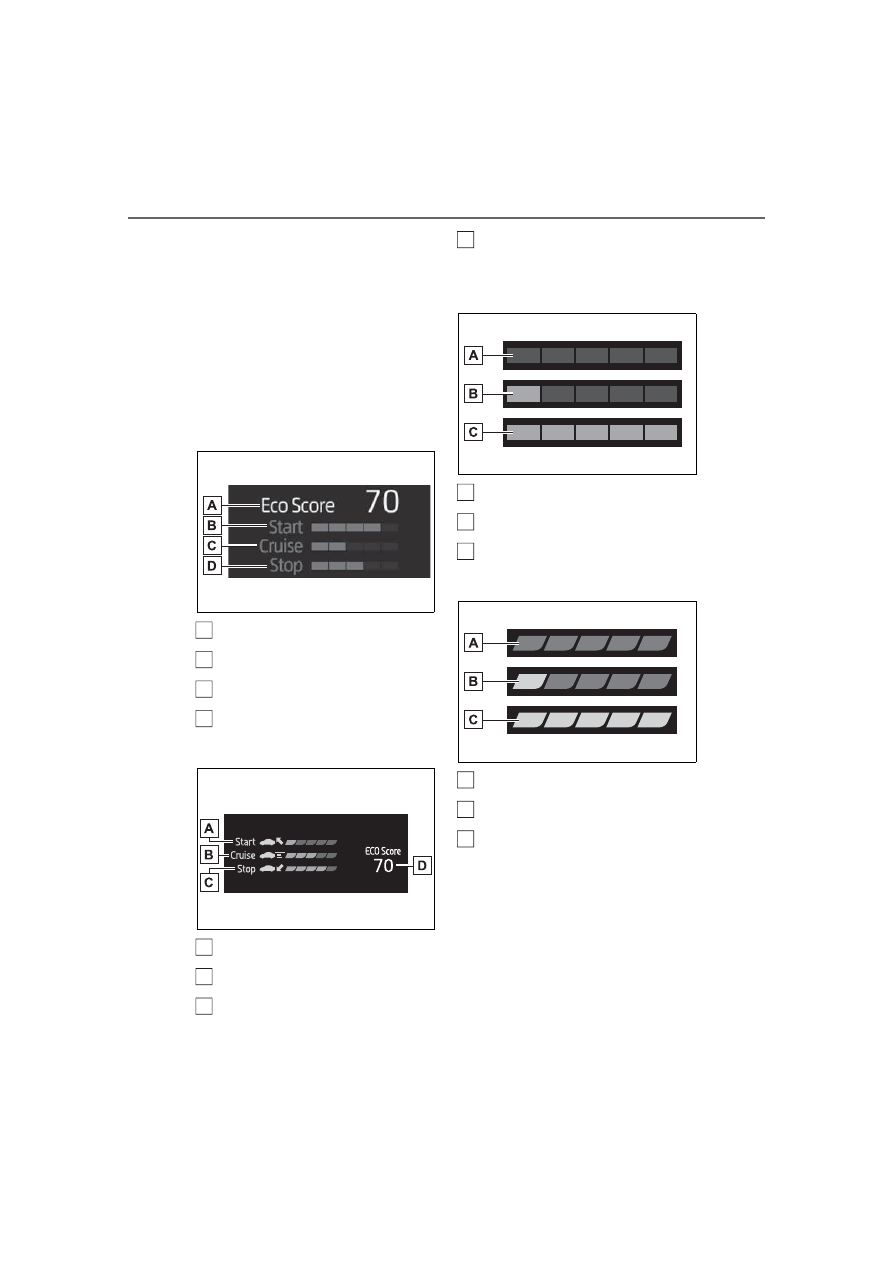

“Eco Score”

The driving status for the following
3 situations are evaluated in 5 lev-
els: Smooth start-off acceleration
(“Start”), driving without sudden
acceleration (“Cruise”) and smooth
stopping (“Stop”). Each time the
vehicle is stopped, a score result is
displayed out of a perfect score of
100 points.



4.2-inch display

Score result

Eco start status

Eco cruise status

Eco stop status



7-inch display

Eco start status

Eco cruise status

Eco stop status

Score result

How to read the bar display:



4.2-inch display

Not yet evaluated

Low

High



7-inch display

Not yet evaluated

Low

High

After starting off, “Eco Score” dis-
play does not start until the vehicle
speed exceeds approximately 12
mph (20 km/h).
The “Eco Score” is reset each time
the vehicle starts off to start a new
evaluation.
When the hybrid system stops, the
current total score result is dis-

-------------------------------------------------------------------------------------------------------------------------------------------------------------

111

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

played.

: The score result is displayed only

when “Eco Score” is selected for
“Trip Summary”. (

■

Change the speedometer
display (7-inch display)



P.115

■

Distance to empty

●

This distance is computed based

on your average fuel consump-

tion. As a result, the actual dis-

tance that can be driven may

differ from that displayed.

●

When only a small amount of fuel

is added to the tank, the display

may not be updated. When refuel-

ing, turn the power switch off. If

the vehicle is refueled without

turning the power switch off, the

display may not be updated.

●

When “Refuel” is displayed, the

remaining fuel amount is low and

the distance that can be driven

with the remaining fuel cannot be

calculated.

Refuel immediately.

■

ECO Accelerator Guid-

ance/“Eco Score” will not oper-

ate when

The ECO Accelerator Guid-

ance/“Eco Score” will not operate in

the following situations:

●

The Hybrid System Indicator is not

operating.

●

The vehicle is being driven using

the dynamic radar cruise control

with full-speed range.

■

Driving support system
information display

Select to display the operational

status of the following systems:



LTA (Lane Tracing Assist)
(





Dynamic radar cruise control
with full-speed range
(





RSA (Road Sign Assist) (if
equipped) (



■

Navigation system-linked
display (if equipped)

Select to display the following
navigation system-linked infor-
mation.



Route guidance



Compass display (north-up
display/heading-up display)

■

Route guidance to destination

display

When the route guidance to destina-

tion display is enabled on the head-

up display, it will not be displayed on

the multi-information display.

(



P.118)

Select to enable selection of an
audio source or track on the dis-
play.

■

Drive information (4.2-inch
display)

2 items that are selected using
the “Drive Info Items” setting

Driving support system
information display (

)

Audio system-linked dis-
play (if equipped) (

)

Vehicle information dis-
play (

)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

112

2-1. Instrument cluster

(average speed, distance and
total time) can be displayed ver-
tically.
The displayed information
changes according to the “Drive
Info Type” setting (since the sys-
tem was started or between
resets). (



Use the displayed information as a
reference only.
Following items will be displayed.



“Trip”

• “Average Speed”: Displays the

average vehicle speed since
hybrid system start

• “Distance”: Displays the distance

driven since hybrid system start

• “Total Time”: Displays the

elapsed time since hybrid system
start

: These items are reset each time

the hybrid system stops.



“Total”

• “Average Speed”: Displays the

average vehicle speed since the
display was reset

• “Distance”: Displays the distance

driven since the display was
reset

• “Total Time”: Displays the

elapsed time since the display
was reset

: To reset, display the desired item

and press and hold “OK”.

■

Energy monitor



P.122

■

Tire pressure

P.427

■

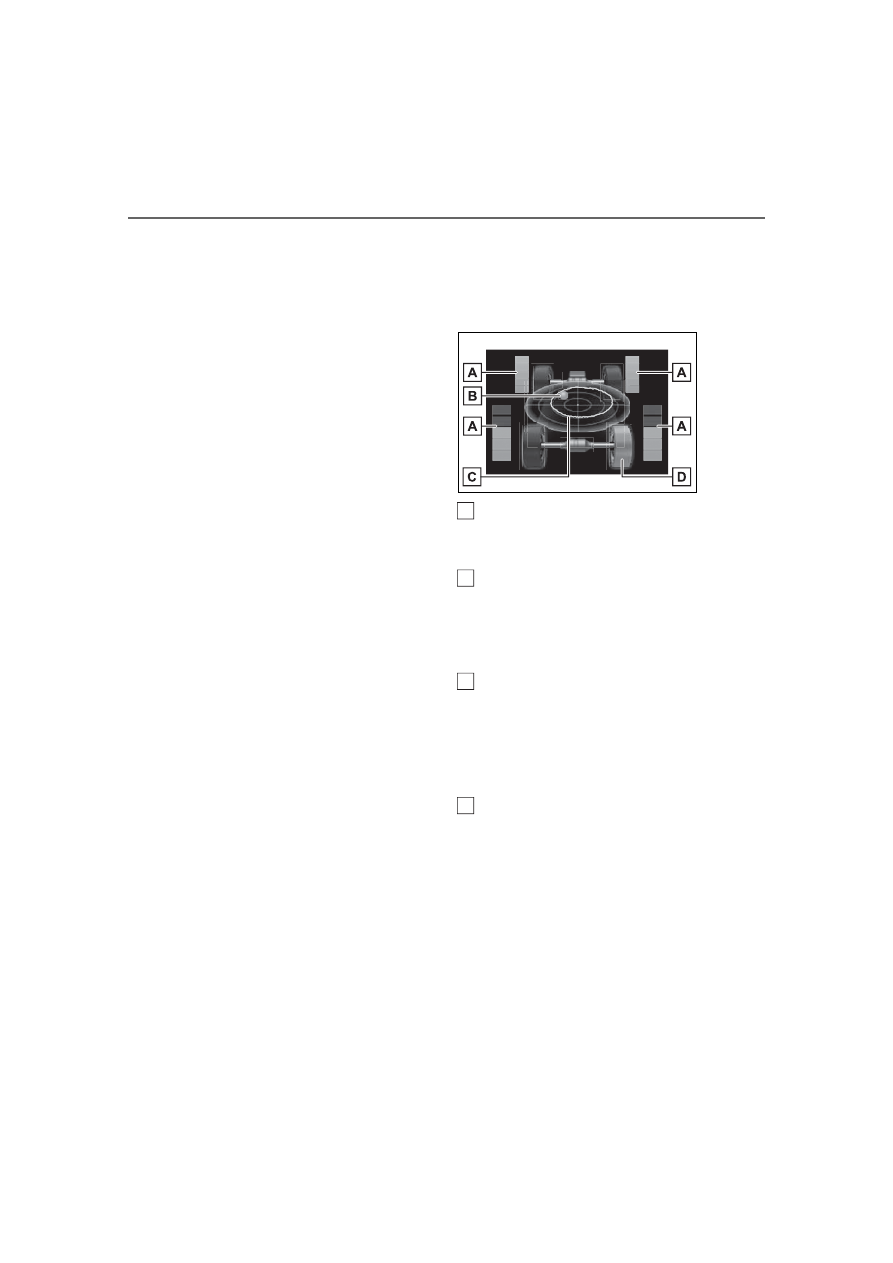

AWD system display (AWD
models)

Torque distribution display

Displays the drive status of each
wheel in 6 steps from 0 to 5.

G-force display

Displays the size and direction of
the G-force applied to the vehicle
via changes to the position of the
ball on the display.

Maximum G-force course

This item is linked with the G-force
display and the course of the past
movement of the ball is displayed.
Press and hold “OK” to reset the
record.

Wheel spin display

When a tire is spinning, its icon on
the display changes its color and
blinks.

: This item is displayed only when

driving mode is set to sport mode.

■

Safety system status (7-
inch display)

Enable/Disable the following
systems:



PCS (Pre-Collision system)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

113

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

(

P.267)



Intuitive parking assist (if
equipped) (

P.308)



BSM (Blind Spot Monitor)
(



RCTA (Rear Cross Traffic
Alert) (

Vehicle settings and the content
displayed on the screen can be
changed by using the meter
control switches.

■

Setting procedure



4.2-inch display

Press

of the meter

control switches and select

Press

of the meter

control switches and select
the desired item.



7-inch display

Press

of the meter

control switches and select

Press

of the meter

control switches and select
the desired item.



If the function is turned on and
off or the volume, etc. is
changed on the setting
screen, the setting is changed
each time “OK” is pressed.



For functions that allow oper-

ation contents, display con-
tents, etc., of function to be
selected, the setting screen is
displayed by pressing and
holding “OK”. When the set-
ting screen is displayed,
select the setting or desired
value (time, etc.) with “OK”.

After changing the settings,
press

of the meter control

switches to return to the pre-
vious screen.

■

Setting items



LTA (Lane Tracing Assist)

(



Select to set up the following items.
• “Lane Center”
Select to enable/disable the lane
centering function.
• “Steering Assist”
Select to enable/disable steering
wheel assistance.



“Alert”

Select to set the alert type.
• “Sensitivity”
Select to set the lane departure
alert sensitivity.
• “Sway Warning”
Select to enable/disable the vehicle
sway warning.
• “Sway Sensitivity”
Select to set the vehicle sway warn-
ing sensitivity.



PCS (Pre-Collision Sys-

tem) (

P.267)

Select to set up the following items.

Settings display

-------------------------------------------------------------------------------------------------------------------------------------------------------------

114

2-1. Instrument cluster

• PCS (Pre-Collision System)

on/off

Select to enable/disable the pre-
collision system.
• “Sensitivity”
Select to change the pre-collision
warning timing.



BSM (Blind Spot Monitor)

(if equipped) (

Select to set up the following items.
• BSM (Blind Spot Monitor) on/off
Select to enable/disable the BSM
function.
• “Brightness”
Select to switch the brightness of
the outside rear view mirror indica-
tors. (



• “Sensitivity”
Select to change the alert timing for
an approaching vehicle.



Intuitive parking assist (if

equipped) (

P.308)

Select to set up the following items.
• Intuitive parking assist on/off
Select to enable/disable the Intui-
tive parking assist.
• “Volume”
Select to set the volume of the
buzzer which sounds when the
Intuitive parking assist is operated.



RCTA (Rear Cross Traffic

Alert) (if equipped) (

• RCTA (Rear Cross Traffic Alert)

on/off

Select to enable/disable the RCTA
function.

• “Volume”
Select to change the RCTA buzzer
volume.



PKSB (Parking Support

Brake System) (if equipped)
(



P.319)

Select to enable/disable the Park-
ing Support Brake function.



HUD (Head-up display) (if

equipped)

Select to enable/disable the head-
up display.
Press and hold “OK” to change the
settings of the following items:
• “HUD Brightness/Position”
Select to adjust the brightness/posi-
tion of the head-up display.
• “HUD Driving Support”
Select to change the displayed
head-up display driving support
item.
• “HUD Rotation”
Select to adjust the angle of the
head-up display.



RSA (Road Sign Assist) (if

equipped) (



Select to set up the following items.
• RSA (Road Sign Assist) on/off
Select to enable/disable the RSA
system.
• “Notification method”
Select to change each notification
method used to warn the driver
when the system recognizes
excess speed, no overtaking and
no-entry sign.
• “Notification Level”

-------------------------------------------------------------------------------------------------------------------------------------------------------------

115

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

Select to change each notification
level used to warn the driver when
the system recognizes a speed limit
sign.



RCD (Rear Camera

Detection) (if equipped)
(

P.315)

• RCD (Rear Camera Detection)

on/off

Select to enable/disable the RCD
function.
• “Volume”
Select to change the RCD buzzer
volume.

■

Vehicle Settings



PSD (Power Sliding

Doors) (

Select to set up the following items.
• “Left Hands Free PSD” (if

equipped)

Select to enable/disable the left-
hand power sliding door kick sen-
sor.
• “Right Hands Free PSD” (if

equipped)

Select to enable/disable the right-
hand power sliding door kick sen-
sor.
• “Left PSD Alert Volume”
Select to set the volume of the
buzzer which sounds when the left-
hand power sliding door system
operates.
• “Right PSD Alert Volume”
Select to set the volume of the
buzzer which sounds when the
right-hand power sliding door sys-
tem operates.



PBD (Power Back Door)

(if equipped) (



P.153)

Select to set up the following items.
• PBD (Power Back Door) on/off
Select to enable/disable the power
back door system.
• “Hands Free”
Select to enable/disable the kick
sensor.
• “PBD Opening Adjustment”
Select the open position when
power back door is fully open.
• “Volume”
Select to set the volume of the
buzzer which sounds when the
power back door system operates.



Rear Seat Reminder
(



P.134)

Select to enable/disable the rear
seat reminder function.



“TPWS Setting” (Tire Pres-
sure Warning System)
(



P.427)

• “Setting Pressure”
Select to initialize the tire pressure
warning system.
• “Identifying Each Wheel & Posi-

tion”

Select to register the ID codes of
the tire pressure sensors to the tire
pressure warning system.
Select to change the tire pressure
warning system sensor ID code set.
To enable this function, a second
set of tire pressure warning system
sensor ID codes must be registered
by a Toyota dealer. For information
regarding changing the registered

-------------------------------------------------------------------------------------------------------------------------------------------------------------

116

2-1. Instrument cluster

ID code set, contact your Toyota
dealer.
• “Setting UNIT”
Select to change the units of the
tire pressure displayed.



“Oil Maintenance” (



P.418)

Select to reset the Oil maintenance.

■

Meter Settings



“Language”

Select to change the language on
the multi-information display.



“Units”

Select to change the units of mea-
sure displayed.



Digital Speed (7-inch display)

Select to enable/disable the speed-
ometer display.



EV indicator (



P.80)

Select to enable/disable the EV
indicator.



Driving information display

settings

Select to set up the following items.
• “Hybrid System”
Select to enable/disable the ECO
Accelerator Guidance (



P.108).

• “Fuel Economy”
Select to change the average fuel
economy display (

P.106).



Audio settings

Select to enable/disable the audio
system-linked display.



Vehicle information dis-

play settings

• “Display Contents”

Select to display the following
items.
“Energy monitor”
Select to enable/disable the Energy
monitor (



P.122)

“AWD” (AWD models)
Select to enable/disable the AWD
system display (

P.112).

• “Drive Info Type” (4.2-inch dis-

play)

Select to change the drive informa-
tion type between trip and total
(



P.111).

• “Drive Info Items” (4.2-inch dis-

play)

Select to set the items on the upper
and lower side of the drive informa-
tion screen. from three items, aver-
age speed, distance and total time.



“Trip Summary” (4.2-inch dis-
play)

Select to set the items displayed
when the power switch is turned off.



“Pop-Up Display”

Select to enable/disable the follow-
ing pop-up displays, which may
appear in some situations.
• TbT Navigation (if equipped)
• Telephone (if equipped)
• Audio operation
• Volume operation
• Voice control (if equipped)
• Brightness



“Multi-Information Display
OFF”

A blank screen is displayed.



“Default Settings”

-------------------------------------------------------------------------------------------------------------------------------------------------------------

117

2-1. Instrument cluster

Vehicle

s information an

d in
dicat

Select to reset the meter display
settings.

■

Suspension of the settings dis-

play

●

In the following situations, opera-

tion of the settings display will be

temporarily suspended.

• When a warning message

appears on the multi-information

display

• When the vehicle begins to move

●

Settings for functions not

equipped to the vehicle are not

displayed.

●

When a function is turned off, the

related settings for that function

are not selectable.

Select to display warning mes-
sages and measures to be
taken if a malfunction is

detected. (

Displays suggestions to the
driver in the following situations.
To select a response to a dis-
played suggestion, use the
meter control switches.

■

Suggestion to turn on the
headlights

If the headlight switch is in other
than

, and the vehicle

speed is 3 mph (5 km/h) or
higher for a certain amount of
time when the surroundings are
dark, a suggestion message will
be displayed.

■

Suggestion to turn off the
headlights

If the headlights are left on for a
certain amount of time after the
power switch has been turned
off, a suggestion message will
be displayed.
When the headlight switch is in
the AUTO position: The mes-
sage asking if you wish to turn
the headlights off is displayed.
To turn the headlights off, select
“Yes”.

If the driver’s door is opened after
the power switch is turned off, this
suggestion message will not be dis-
played.

■

Customization

The suggestion function can be

turned on/off. (Customizable fea-

WARNING

■

Cautions during setting up

the display

As the hybrid system needs to be

operating during setting up the

display, ensure that the vehicle is

parked in a place with adequate

ventilation. In a closed area such

as a garage, exhaust gases

including harmful carbon monox-

ide (CO) may collect and enter

the vehicle. This may lead to

death or a serious health hazard.

NOTICE

■

During setting up the display

To prevent 12-volt battery dis-

charge, ensure that the hybrid

system is operating while setting

up the display features.

Warning message dis-
play (

)

Suggestion function

-------------------------------------------------------------------------------------------------------------------------------------------------------------

119

2-1. Instrument cluster

Vehicle

s information an

d in
dicat

Displays the following items:
• Speed limit of the current road

(linked to the navigation system)
(U.S.A. only)

• RSA (Road Sign Assist) display

(if equipped) (



• Speedometer
• Shift position/shift range

(

P.238)

Hybrid System Indica-
tor/tachometer/outside tem-
perature display area
(



P.121)

■

Head-up display will operate

when

The power switch is in ON.

■

When using the head-up dis-

play

The head-up display may seem

dark or hard to see when viewed

through sunglasses, especially

polarized sunglasses. Adjust the

brightness of the head-up display or

remove your sunglasses.

■

Street name display (vehicles

with navigation system)

Only street names which are

included in the map data will be dis-

played.

■

Outside temperature display

●

In the following situations, the cor-

rect outside temperature may not

be displayed, or the display may

take longer than normal to

change.

• When stopped, or driving at low

speeds (less than 12 mph [20

km/h])

• When the outside temperature

has changed suddenly (at the

entrance/exit of a garage, tunnel,

etc.)

●

When “-” or “E” is displayed, the

system may be malfunctioning.

Take your vehicle to your Toyota

dealer.

●

Displays the outside temperature

within the range of -40°F (-40°C)

to 122°F (50°C).

●

When the outside temperature is

approximately 37°F (3°C) or

lower, the low outside temperature

indicator will flash for approxi-

mately 10 seconds, then stay on.

WARNING

■

When using the head-up dis-

play

●

Check that the position and

brightness of the head-up dis-

play image does not interfere

with safe driving. Incorrect

adjustment of the image’s posi-

tion or brightness may obstruct

the driver’s view and lead to an

accident, resulting in death or

serious injury.

●

Do not continuously look at the

head-up display while driving as

you may fail to see pedestrians,

objects on the road, etc. ahead

of the vehicle.

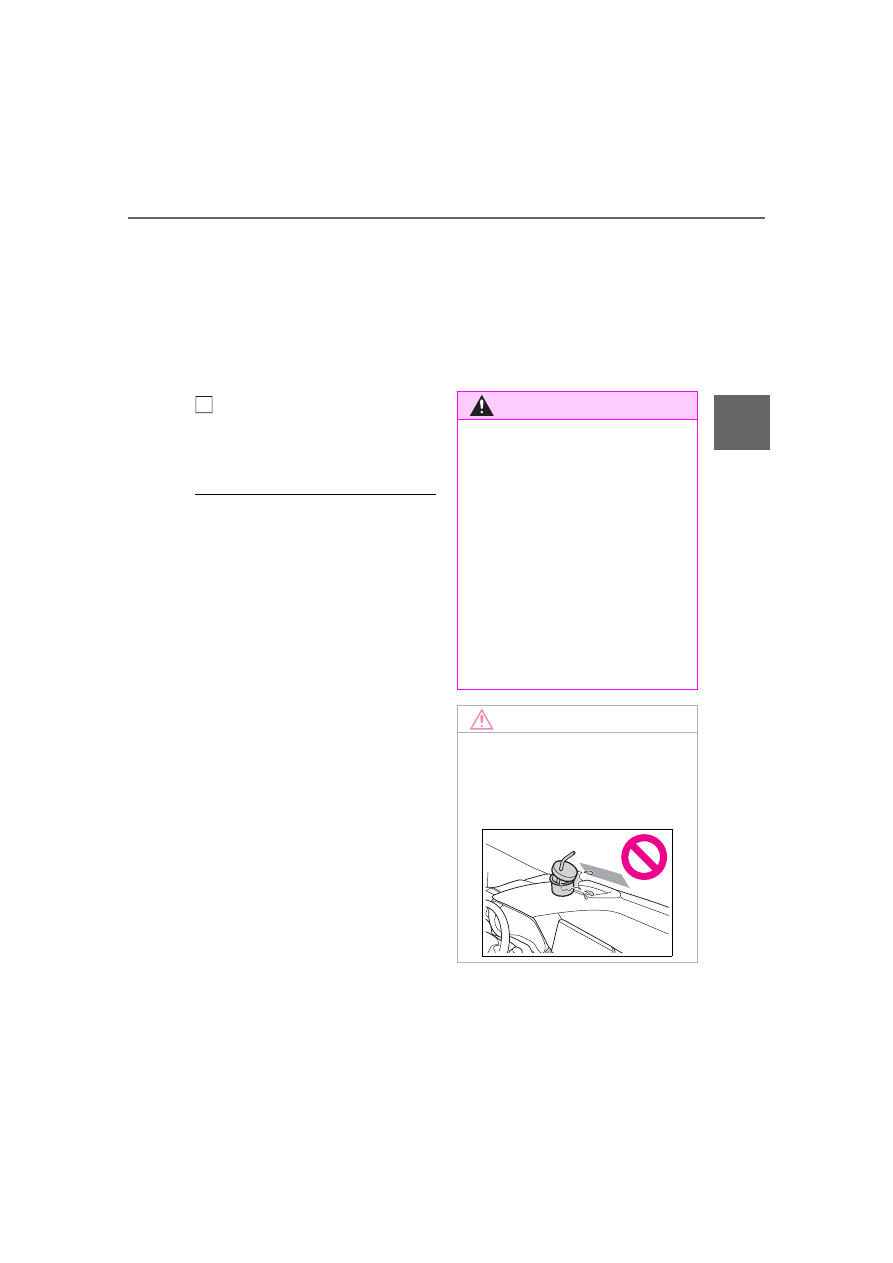

NOTICE

■

Head-up display projector

●

Do not place any drinks near

the head-up display projector. If

the projector gets wet, electrical

malfunctions may result.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

120

2-1. Instrument cluster

■

Enabling/disabling the
head-up display

Select

on the multi-informa-

tion display, select “Vehicle Set-
tings” (4.2-inch) /

(7-inch)

and then select “HUD Main”.
“ON” and “OFF” switches each
time when “OK” is pressed.

■

Changing settings of the
head-up display

The following settings can be
changed on “HUD Main” of the
multi-information display.
(

Press and hold “OK” to display
the following settings:



“HUD Brightness/Position”

Select to adjust the brightness or
vertical position of the head-up dis-
play.



“HUD Driving Support”

• Tachometer Settings
Blank/Hybrid System/Tachometer
Select to change the display to
blank (no display)/Hybrid System

Indicator/tachometer.
Select to enable/disable the follow-
ing items:
• Navigation (if equipped)
• Driving Assist
• Compass (if equipped)
• Audio



“HUD Rotation”

Select to adjust the angle of the
head-up display.

Press the

switch to adjust

the angle of the head-up display.

■

Enabling/disabling of the head-

up display

If the head-up display is disabled, it

will remain disabled when the power

switch is turned off then back to ON.

■

Display brightness

The brightness of the head-up dis-
play can be adjusted on

of the

multi-information display. Also, it is

automatically adjusted according to

the ambient brightness.

■

Head-up display automatic

position adjustment (vehicles

with driving position memory)

If the display position is recorded

into memory, the head-up display

will be automatically adjusted to the

desired position. (

P.178)

■

When the 12-volt battery is dis-

connected

The customize settings of the head-

up display will be reset.

●

Do not place anything on or put

stickers onto the head-up dis-

play projector.

Doing so could interrupt head-

up display indications.

●

Do not touch the inside of the

head-up display projector or

thrust sharp edges or the like

into the projector.

Doing so could cause mechani-

cal malfunctions.

Using the head-up display

-------------------------------------------------------------------------------------------------------------------------------------------------------------

121

2-1. Instrument cluster

Vehicle

s information an

d in
dicat

Displays the operational status
of the following systems:



LTA (Lane Tracing Assist)
(



Dynamic radar cruise control
with full-speed range
(

Details of content displayed on the
head-up display may differ from
that displayed on the multi-informa-
tion display. For details, refer to the
explanation of each system.

Pop-up displays for the following

systems will be displayed when
necessary.

■

Driving support systems

Displays a warning/sugges-
tion/advice message or the
operating state of a relevant
system.



PCS (Pre-Collision System)
(



P.267)



Parking Support Brake func-
tion (for static objects) (if
equipped) (



P.323)



Brake Override System
(





Drive-Start Control (



Details of content displayed on the
head-up display may differ from
that displayed on the multi-informa-
tion display. For details, refer to the
explanation of each system.

■

icons

These icons are linked to the
multi-information display

: Master warning icon

Displayed when a warning mes-
sage is displayed on the multi-infor-
mation display. (



: Information icon

Displayed when a suggestion pop-
up display (

P.104) or advice pop-

up display is displayed on the multi-
information display.

■

Warning message

Some warning messages are
displayed when necessary,
according to certain conditions.

WARNING

■

Caution for changing settings

of the head-up display

As the hybrid system needs to be

operating while changing the set-

tings of the head-up display,

ensure that the vehicle is parked

in a place with adequate ventila-

tion. In a closed area such as a

garage, exhaust gases including

harmful carbon monoxide (CO)

may collect and enter the vehicle.

This may lead to death or a seri-

ous health hazard.

NOTICE

■

When changing the settings

of the head-up display

To prevent 12-volt battery dis-

charge, ensure that the hybrid

system is operating while chang-

ing the settings of the head-up

display.

Driving support system
display area

Pop-up display

-------------------------------------------------------------------------------------------------------------------------------------------------------------

122

2-1. Instrument cluster

Details of content displayed on the
head-up display may differ from
that displayed on the multi-informa-
tion display.

■

Audio system operation
status

Displayed when an audio
remote control switch on the
steering wheel is operated.

■

Hands-free system status

Displayed when the hands-free
system is operated.

■

When a pop-up display is dis-

played

When a pop-up display is displayed,

a current display may no longer be

displayed. In this case, the display

will return after the pop-up display

disappears.

■

Hybrid System Indicator

Charge area

Hybrid Eco area

Eco area

Power area

Displayed content is the same as
that displayed on the meter (Hybrid
System Indicator). For details, refer
to P.98or P.102.

■

Tachometer

Displays the engine speed in
revolutions per minute.

■

Outside temperature

Displayed in the following situa-
tions:



When the power switch is
turned to ON (Displayed for
approximately 10 seconds)



When the low outside tem-
perature indicator is flashing

Displayed content is the same as
that displayed on the multi-informa-
tion display.

Hybrid System Indica-
tor/tachometer/outside
temperature display area

-------------------------------------------------------------------------------------------------------------------------------------------------------------

123

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

Audio system screen

Multi-information display

Meter control switches
(



P.105)

■

Audio system screen



Audio or Audio Plus (vehicles
without Data Communication
Module)

Press the “MENU” button.

Select “Info” on the “Menu”
screen.

If a screen other than “Energy mon-
itor” is displayed, select “Energy”.



Audio or Audio Plus (vehicles
with Data Communication
Module)/Premium Audio

Press the “MENU” button.

Select “Info” on the “Menu”
screen.

Select “ECO” on the “Infor-
mation” screen.

If a screen other than “Energy mon-

itor” is displayed, select “Energy”.
These images are examples only,

and may vary slightly from actual

conditions.

■

Multi-information display



4.2-inch display

Press

of the meter

control switches to select

Press

of the meter

control switches to select the
energy monitor display.



7-inch display

Press

of the meter

control switches to select

Press

of the meter

control switches to select the
energy monitor display.

These images are examples only,

and may vary slightly from actual

conditions.

■

Reading the display

The arrows will appear in accor-
dance with the energy flow.
When there is no energy flow,
arrows will not be displayed.

The color of the arrows will change
as follows.
Green: When the hybrid battery

Energy monitor/con-

sumption screen

You can view the status of
your vehicle on the multi-
information display and the
audio system screen

: For navigation system or multi-

media system

System components

Energy monitor

-------------------------------------------------------------------------------------------------------------------------------------------------------------

124

2-1. Instrument cluster

(traction battery) is regenerated or
charged.
Yellow: When the hybrid battery
(traction battery) is in use.
Red: When the gasoline engine is
in use.



Multi-information display

With 4.2-inch display

With 7-inch display

Gasoline engine

Hybrid battery (traction bat-
tery)

Front tire

Rear tire

: For FF vehicles, the arrows to

are not displayed.



Audio system screen

Gasoline engine

Front electric motor (traction
motor)

Hybrid battery (traction bat-
tery)

Rear electric motor (traction
motor)

Front tire

Rear tire

: For FF vehicles, the arrows to

are not displayed.



Audio system screen (Home
screen)

The image shows all the arrows as
an example. The actual display will
vary depending on conditions.

Gasoline engine

Hybrid battery (traction bat-

-------------------------------------------------------------------------------------------------------------------------------------------------------------

125

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

tery)

Tire

■

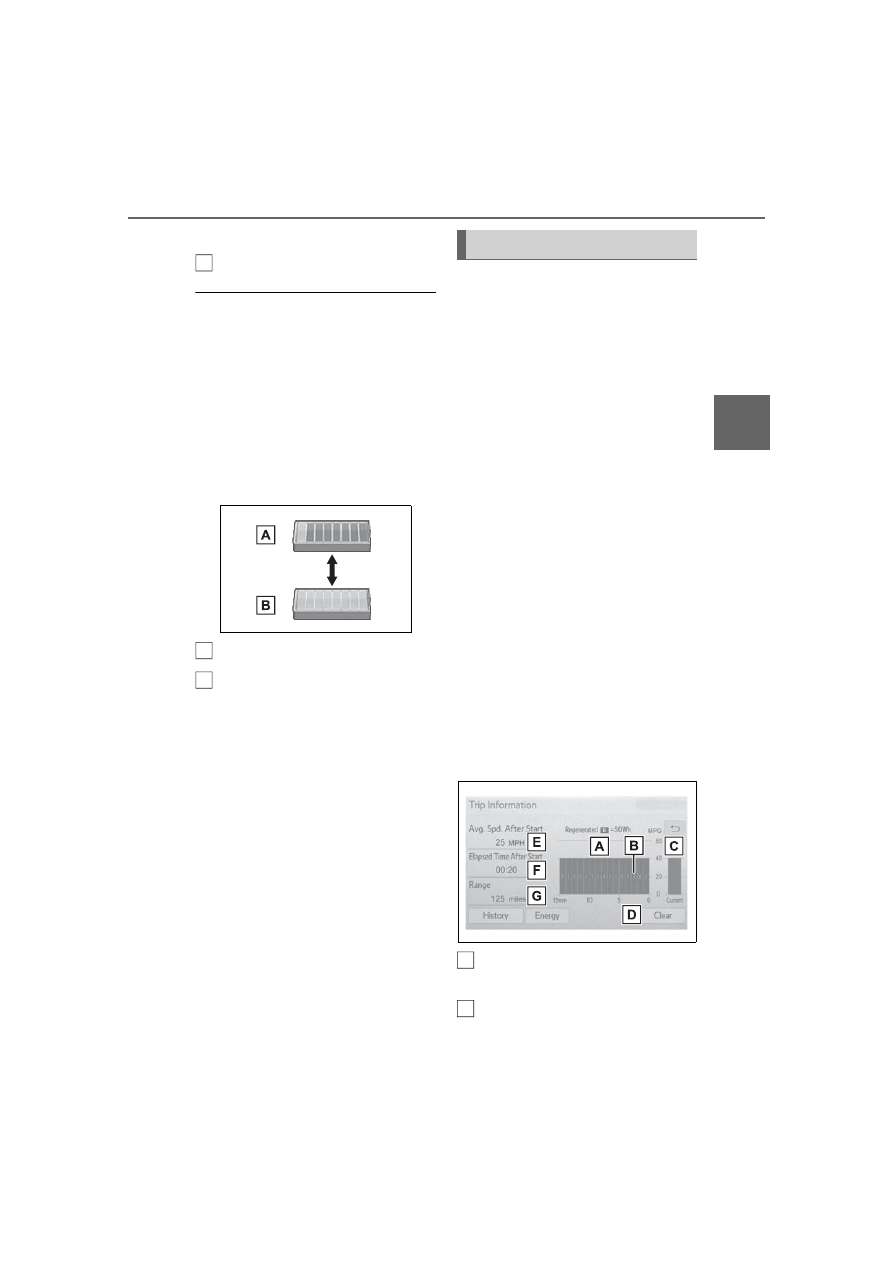

Hybrid battery (traction battery)

status

The display changes in 8 levels

according to the remaining charge

amount of the hybrid battery (trac-

tion battery).

●

The figure shows the multi-infor-

mation display as an example for

explanation.

●

These images are examples only,

and may vary slightly from actual

conditions.

Low

High

■

Remaining charge amount

warning of hybrid battery (trac-

tion battery)

●

The buzzer sounds intermittently

when the hybrid battery (traction

battery) remains without charging

while the shift lever is in N, or the

remaining charge amount drops

below a certain level. If the

remaining charge amount drops

further, the buzzer sounds contin-

uously.

●

When a warning message is

shown on the multi-information

display and the buzzer sounds,

follow the instructions displayed

on the screen to perform trouble-

shooting.

■

Trip information



Audio or Audio Plus (vehicles
without Data Communication
Module)

Press the “MENU” button.

Select “Info” on the “Menu”
screen.

If a screen other than “Trip Informa-
tion” is displayed, select “Trip Infor-
mation”.



Audio or Audio Plus (vehicles
with Data Communication
Module)/Premium Audio

Press the “MENU” button.

Select “Info” on the “Menu”
screen.

Select “ECO” on the “Infor-
mation” screen.

If a screen other than “Trip Informa-

tion” is displayed, select “Trip Infor-

mation”.
The image is an example only, and

may vary slightly from actual condi-

tions.

Fuel consumption in the past
15 minutes

Regenerated energy in the
past 15 minutes

Consumption

-------------------------------------------------------------------------------------------------------------------------------------------------------------

126

2-1. Instrument cluster

One symbol indicates 50 Wh. Up to
5 symbols are shown.

Current fuel consumption

Resetting the consumption
data

Average vehicle speed since
the hybrid system was
started

Elapsed time since the hybrid
system was started

Cruising range (

P.126)

Average fuel consumption for
the past 15 minutes is divided
by color into past averages and
averages attained since the
power switch was last turned to
ON. Use the displayed average
fuel consumption as a refer-
ence.

■

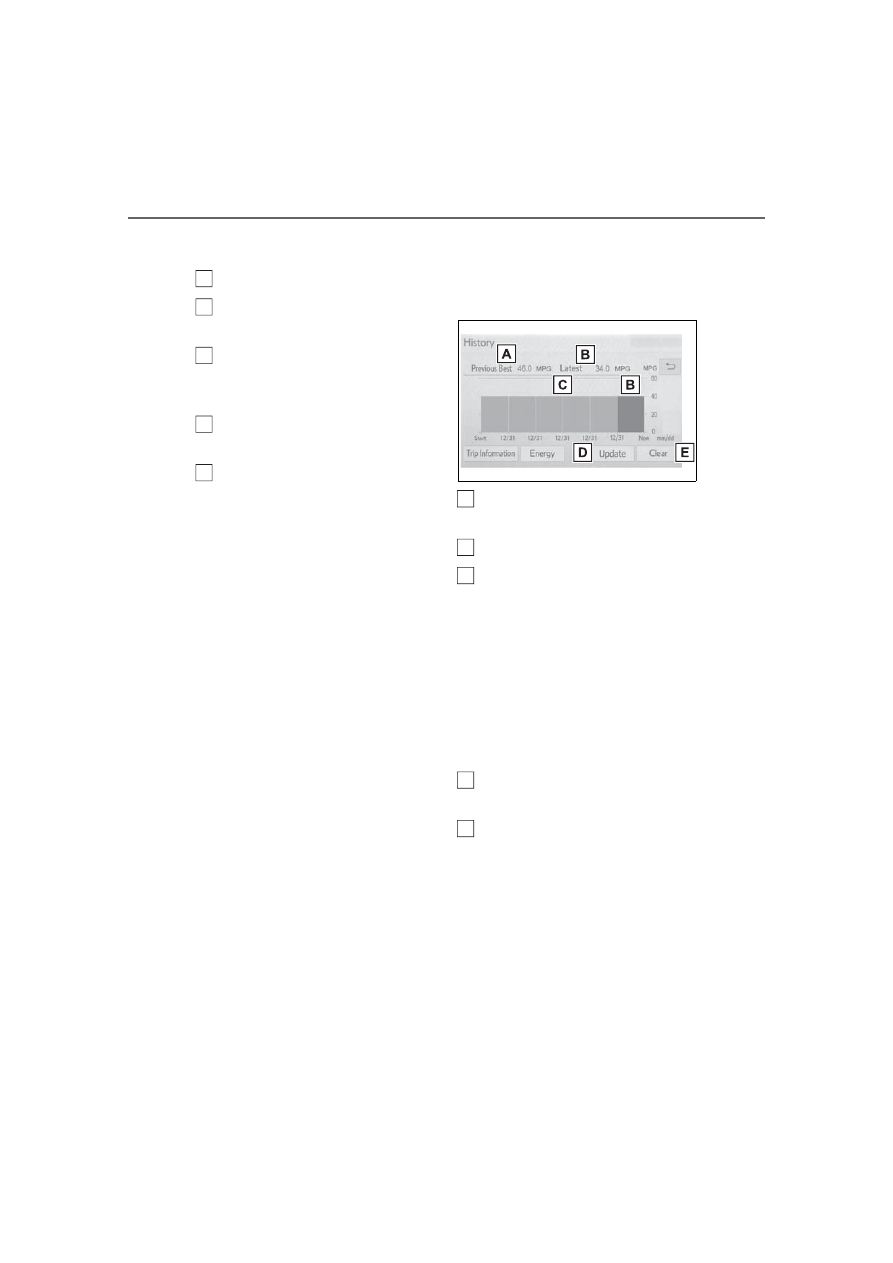

History



Audio or Audio Plus (vehicles
without Data Communication
Module)

Press the “MENU” button.

Select “Info” on the “Menu”
screen.

If a screen other than “History” is
displayed, select “History”.



Audio or Audio Plus (vehicles
with Data Communication
Module)/Premium Audio

Press the “MENU” button.

Select “Info” on the “Menu”
screen.

Select “ECO” on the “Infor-
mation” screen.

If a screen other than “History” is

displayed, select “History”.
The image is an example only, and

may vary slightly from actual condi-

tions.

Best recorded fuel consump-
tion

Latest fuel consumption

Previous fuel consumption
record

• Audio and Audio Plus:
Displays the daily average fuel con-
sumption. (Instead of the date, “Trip
1” through “Trip 5” will be dis-
played.)
• Premium Audio:
Displays the daily average fuel con-
sumption.

Updating the latest fuel con-
sumption data

Resetting the history data

The average fuel consumption
history is divided by color into
past averages and the average
fuel consumption since the last
time updated. Use the displayed
average fuel consumption as a
reference.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

127

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

■

Updating the history data

Update the latest fuel consumption

by selecting “Update” to measure

the current fuel consumption again.

■

Resetting the data

The fuel consumption data can be

deleted by selecting “Clear”.

■

Cruising range

Displays the estimated maximum

distance that can be driven with the

quantity of fuel remaining.
This distance is computed based on

your average fuel consumption. As

a result, the actual distance that can

be driven may differ from that dis-

played.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

127

Before

driving

Before driving

3-1. Key information

Keys ............................

128

3-2. Opening, closing and

locking the doors

Front doors..................

132

Sliding doors ...............

137

Back door....................

150

Smart key system .......

164

3-3. Adjusting the seats

Front seats ..................

169

Rear seats...................

171

Driving position memory

..................................

178

Head restraints............

182

3-4. Adjusting the steering

wheel and mirrors

Steering wheel ............

185

Inside rear view mirror

186

Digital Rear-view Mirror

188

Outside rear view mirrors

..................................

198

3-5. Opening, closing the win-

dows and moon roof

Power windows ...........

201

Moon roof....................

204

-------------------------------------------------------------------------------------------------------------------------------------------------------------

128

3-1. Key information

3-1.Key information

The following keys are provided
with the vehicle.

Electronic keys

• Operating the smart key system

(

P.164)

• Operating the wireless remote

control function (



P.130)

Mechanical keys

Key number plate

■

When riding in an aircraft

When bringing a key with wireless

remote control function onto an air-

craft, make sure you do not press

any buttons on the key while inside

the aircraft cabin. If you are carrying

the key in your bag etc., ensure that

the buttons are not likely to be

pressed accidentally. Pressing a

button may cause the key to emit

radio waves that could interfere with

the operation of the aircraft.

■

Key battery depletion

●

The standard battery life is 1 to 2

years.

●

If the battery becomes low, an

alarm will sound in the cabin and a

message will be displayed on the

multi-information display when the

hybrid system stops.

●

To reduce key battery depletion

when the electronic key is to not

be used for long periods of time,

set the electronic key to the bat-

tery-saving mode. (



P.166)

●

As the electronic key always

receives radio waves, the battery

will become depleted even if the

electronic key is not used. The fol-

lowing symptoms indicate that the

electronic key battery may be

depleted. Replace the battery

when necessary.

• The smart key system or the wire-

less remote control does not oper-

ate.

• The detection area becomes

smaller.

• The LED indicator on the key sur-

face does not turn on.

You can replace the battery by your-
self (

P.447). However, as there is

a danger that the electronic key may
be damaged, it is recommended
that replacement is carried out by
your Toyota dealer.

●

To avoid serious deterioration, do

not leave the electronic key within

3 ft. (1 m) of the following electri-

cal appliances that produce a

magnetic field:

• TVs

• Personal computers

• Cellular phones, cordless phones

and battery chargers

• Table lamps

• Induction cookers

●

If the electronic key is near the

vehicle for longer than necessary,

even if the smart key system is not

used, the key battery may become

depleted faster than normal.

When not using the smart key sys-

tem, it is recommended not to stay

with the electronic key near the

vehicle longer than necessary.

■

If a message regarding the state

of the electronic key or power

switch mode, etc. is shown

To prevent trapping the electronic

Keys

Key types

-------------------------------------------------------------------------------------------------------------------------------------------------------------

129

3-1. Key information

Before

driving

key inside the vehicle, leaving the

vehicle carrying the electronic key

on your person without turning the

power switch to OFF or other pas-

sengers from unintentionally taking

the key out of the vehicle, etc., a

message that prompts the user to

confirm the state of the electronic

key or power switch mode may be

shown on the multi-information dis-

play. In those cases, follow the

instructions on the display immedi-

ately.

■

If “Key Battery Low Replace

Key Battery” is displayed on

the multi-information display

The electronic key has a low bat-

tery. Replace the electronic key bat-

tery. (



P.447)

■

Replacing the battery

P.447

■

Confirmation of the registered

key number

The number of keys already regis-

tered to the vehicle can be con-

firmed. Ask your Toyota dealer for

details.

■

If “A New Key has been Regis-

tered Contact Your Dealer for

Details” is displayed on the

multi-information display

This message will be displayed

each time the driver’s door is

opened when the doors are

unlocked from the outside for

approximately 10 days after a new

electronic key has been registered.

If this message is displayed but you

have not had a new electronic key

registered, ask your Toyota dealer

to check if an unknown electronic

key (other than those in your pos-

session) has been registered.

NOTICE

■

To prevent key damage

●

Do not drop the keys, subject

them to strong shocks or bend

them.

●

Do not expose the keys to high

temperatures for long periods of

time.

●

Do not get the keys wet or wash

them in an ultrasonic washer,

etc.

●

Do not attach metallic or mag-

netic materials to the keys or

place the keys close to such

materials.

●

Do not disassemble the keys.

●

Do not attach a sticker or any-

thing else to the surface of the

keys.

●

Do not place the keys near

objects that produce magnetic

fields, such as TVs, audio sys-

tems and induction cookers.

●

Do not place the keys near

medical electrical equipment

such as low-frequency therapy

equipment or microwave ther-

apy equipment, and do not

receive medical attention with

the keys on your person.

■

Carrying the electronic key

on your person

Carry the electronic key 3.9 in.

(10 cm) or more away from elec-

tric appliances that are turned on.

Radio waves emitted from electric

appliances within 3.9 in. (10 cm)

of the electronic key may interfere

with the key, causing the key to

not function properly.

■

In case of a smart key system

malfunction or other key-

related problems

P.504

-------------------------------------------------------------------------------------------------------------------------------------------------------------

130

3-1. Key information

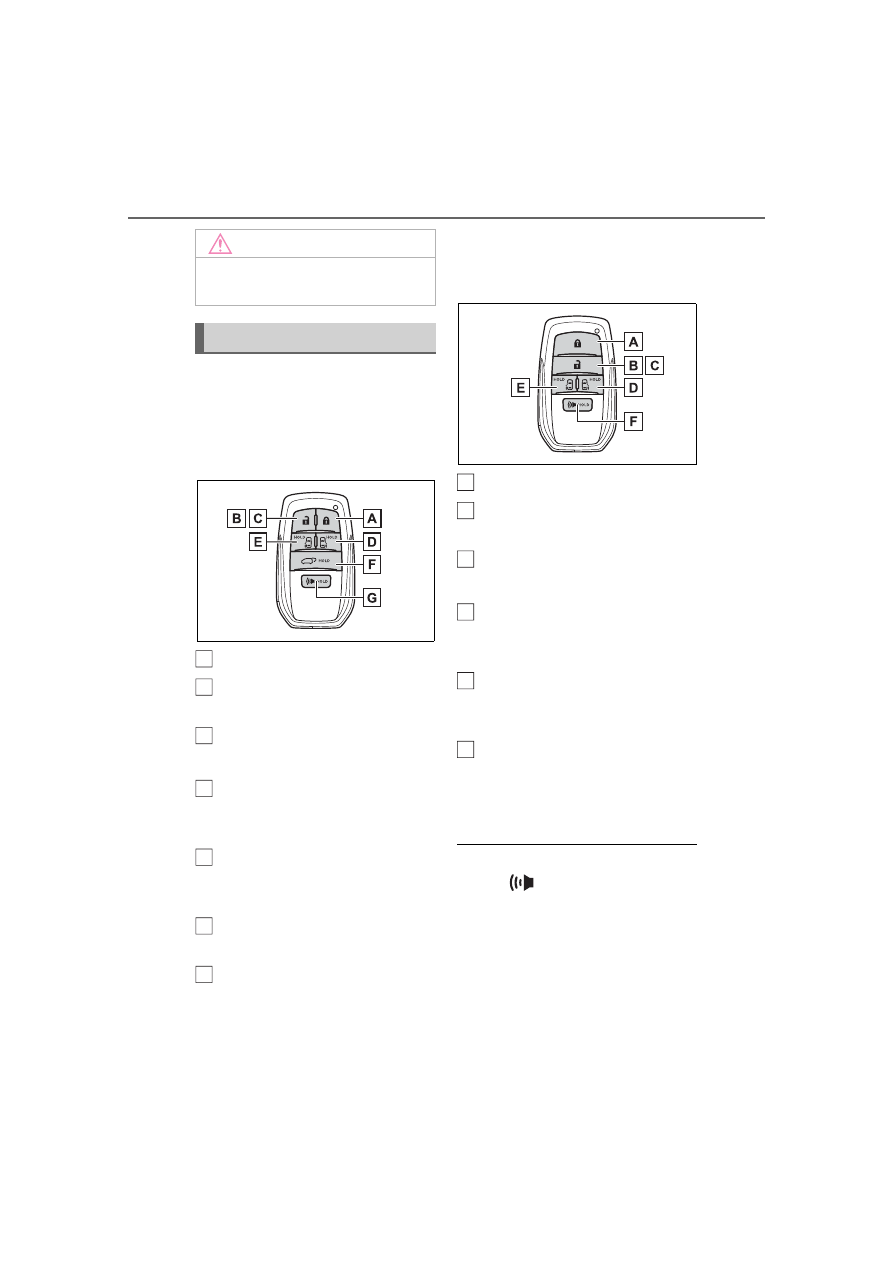

The keys are equipped with the
following wireless remote con-
trol:



Vehicles with power back
door

Locks all the doors (



Unlocks all the doors
(



Opens the windows

and

moon roof

*1, 2

(

Opens and closes the right
side power sliding door
(



Opens and closes the left
side power sliding door
(



Opens and closes the power
back door (

Sounds the alarm (

:These settings must be custom-

ized at your Toyota dealer.

:If equipped



Vehicles without power back
door

Locks all the doors (



Unlocks all the doors
(

Opens the windows

and

moon roof

*1, 2

(



Opens and closes the right
side power sliding door
(

Opens and closes the left
side power sliding door
(

Sounds the alarm (



P.130)

:These settings must be custom-

ized at your Toyota dealer.

:If equipped

■

Theft deterrent panic mode

When

is pressed for longer

than about 1 second, an alarm will

sound intermittently and the vehicle

lights will flash to deter any person

from trying to break into or damage

your vehicle.
To stop the alarm, press any button

on the electronic key.

NOTICE

■

When an electronic key is lost



P.502

Wireless remote control

-------------------------------------------------------------------------------------------------------------------------------------------------------------

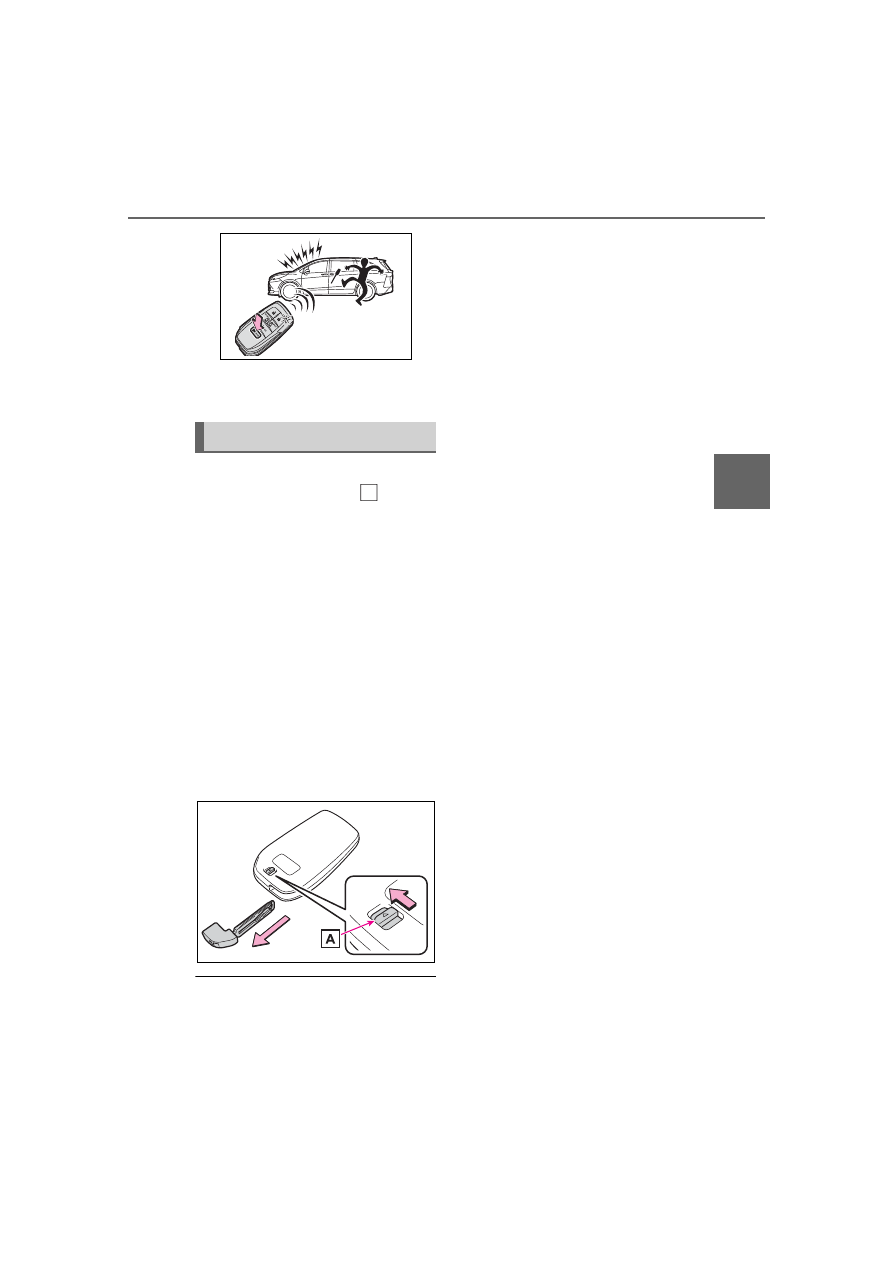

131

3-1. Key information

Before

driving

■

Conditions affecting operation

P.166

To take out the mechanical key,
slide the release lever

and

take the key out.

The mechanical key can only be
inserted in one direction, as the key
only has grooves on one side. If the
key cannot be inserted in a lock cyl-
inder, turn it over and re-attempt to
insert it.
After using the mechanical key,
store it in the electronic key. Carry
the mechanical key together with
the electronic key. If the electronic
key battery is depleted or the entry
function does not operate properly,
you will need the mechanical key.
(

P.504)

■

If you lose your keys

P.502

■

If a wrong key is used

The key cylinder rotates freely to

isolate inside mechanism.

Using the mechanical key

-------------------------------------------------------------------------------------------------------------------------------------------------------------

132

3-2. Opening, closing and locking the doors

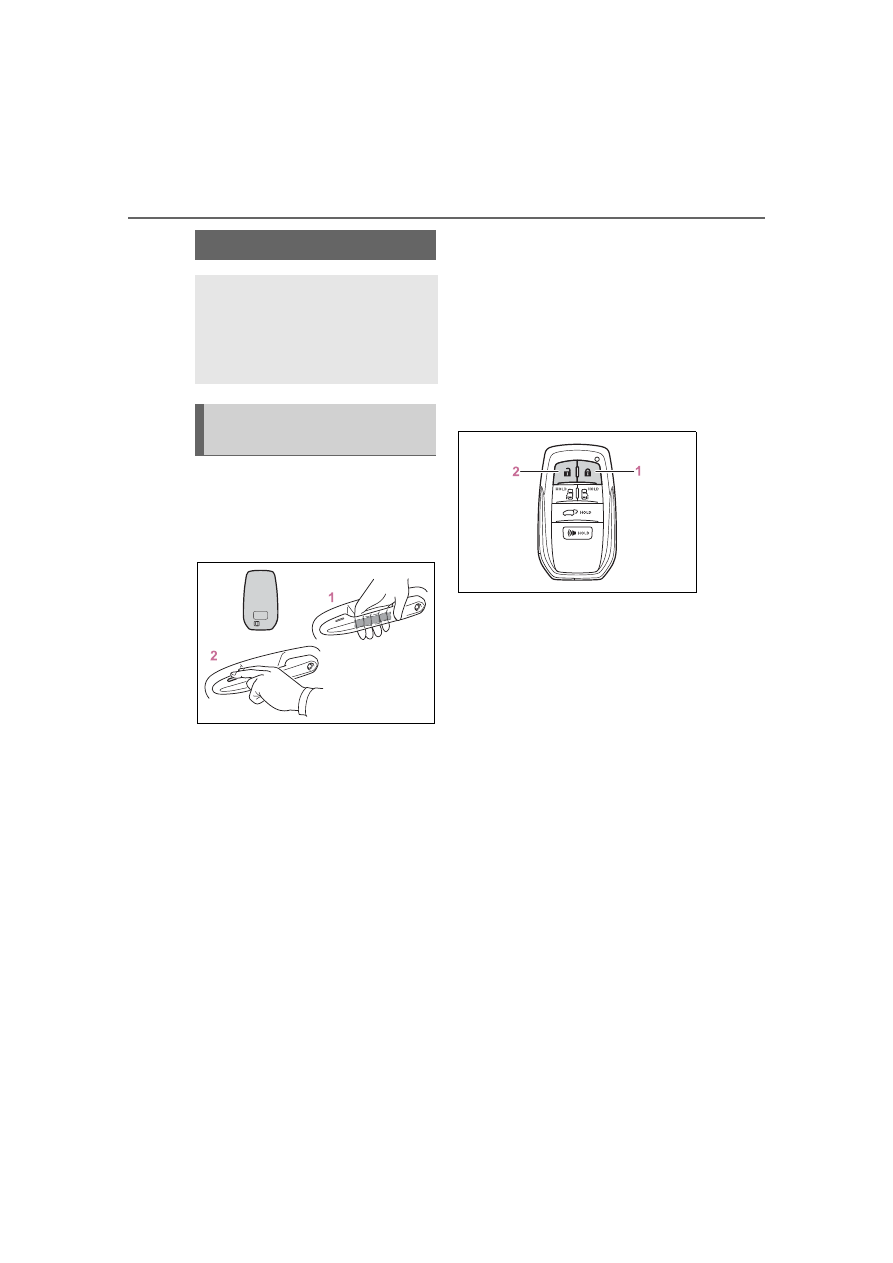

3-2.Opening, closing and locking the doors

■

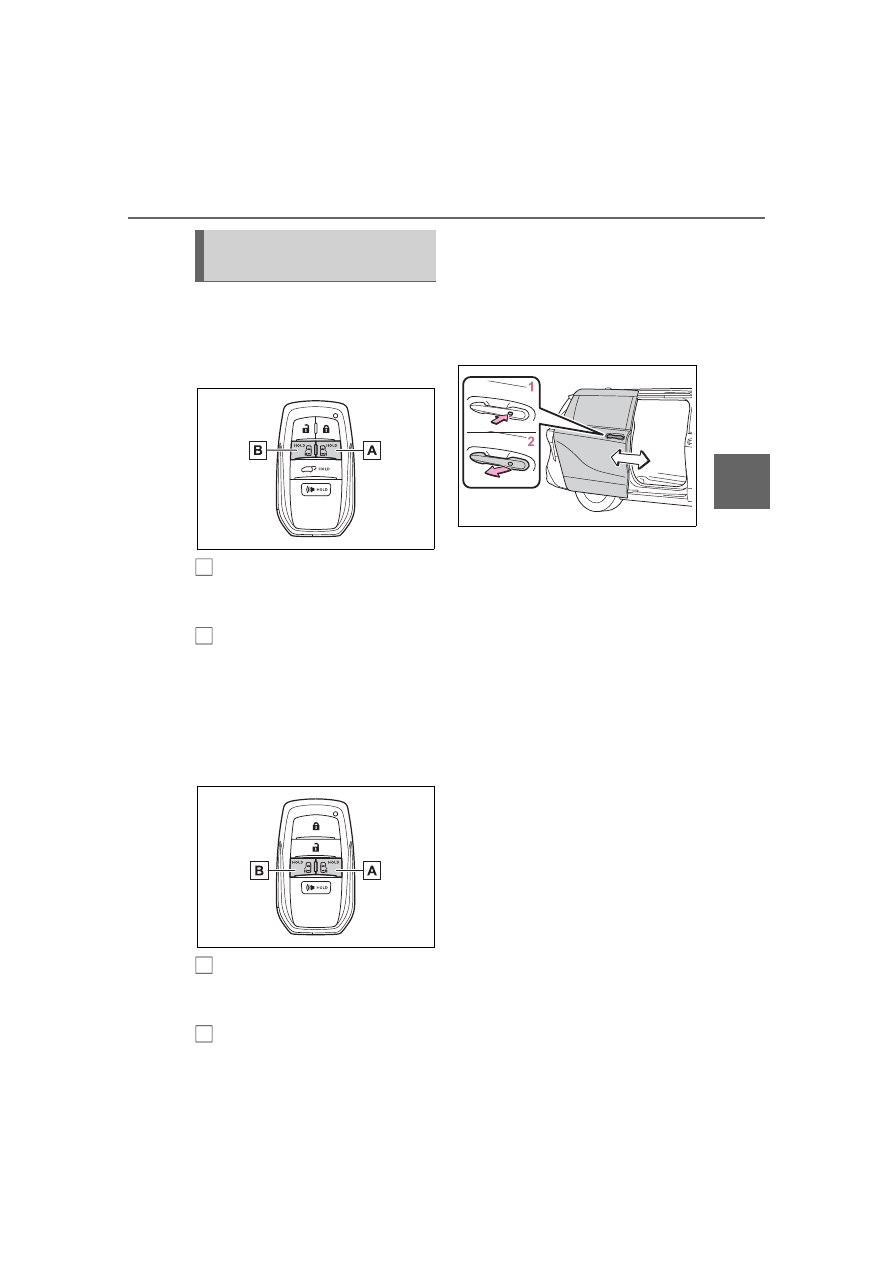

Using the entry function (if
equipped)

Carry the electronic key to
enable this function.

Grip the driver’s door handle
to unlock the door. Holding
the driver’s door handle for
approximately 2 seconds
unlocks all the doors.
Grip the front passenger’s
door handle to unlock all the
doors

Make sure to touch the sensor on
the back of the handle.
The doors cannot be unlocked for 3
seconds after the doors are locked.

: The door unlock settings can be

changed. (



P.133)

Touch the lock sensor (the

indentation on the upper part
of the door handle) to lock
the doors.

Check that the door is securely
locked.

■

Using the wireless remote
control



Vehicles with power back
door

Locks all the doors

Check that the door is securely
locked.

Unlocks all the doors

Pressing the button unlocks the
driver’s door. Pressing the button
again within 5 seconds unlocks the
other doors.
Press and hold to open the win-
dows

and moon roof

*1, 2

:This setting must be customized

at your Toyota dealer.

:If equipped

Front doors

The vehicle can be locked
and unlocked using the
entry function (if equipped),
wireless remote control, key
or door lock switch.

Unlocking and locking the
doors from the outside

-------------------------------------------------------------------------------------------------------------------------------------------------------------

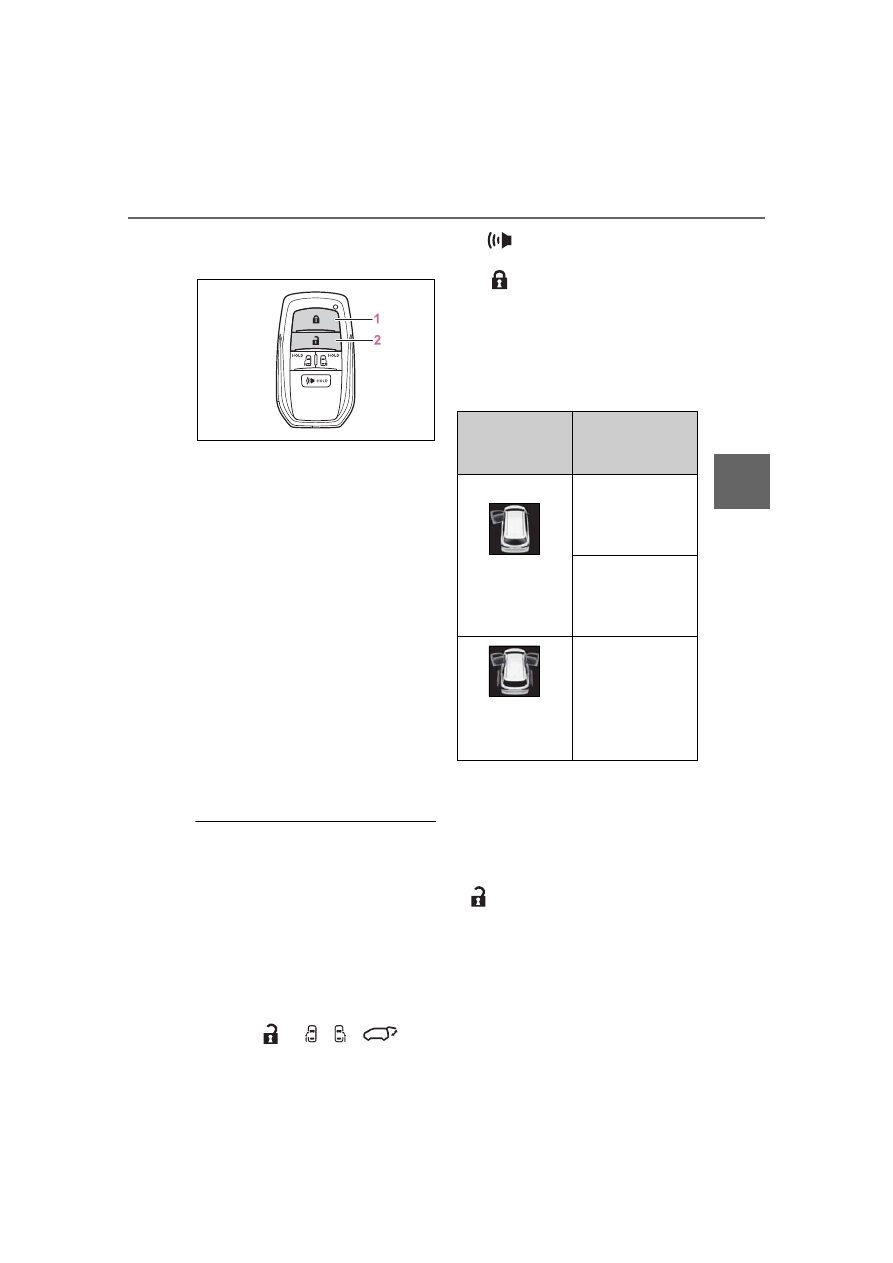

133

3-2. Opening, closing and locking the doors

Before

driving



Vehicles without power back
door

Locks all the doors

Check that the door is securely
locked.

Unlocks all the doors

Pressing the button unlocks the
driver’s door. Pressing the button
again within 5 seconds unlocks the
other doors.
Press and hold to open the win-
dows

and moon roof

*1, 2

:This setting must be customized

at your Toyota dealer.

:If equipped

■

Using the key

The doors can also be locked
and unlocked with the mechani-
cal key. (



P.504)

■

Switching the door unlock func-

tion (vehicles with entry func-

tion)

It is possible to set which doors the

entry function unlocks using the

wireless remote control. Perform the

switching operation in the vehicle or

within approximately 3.2 ft. (1 m) of

the vehicle.

Turn the power switch to OFF.

When the indicator light on the

key surface is not on, press and
hold

for approximately 5 sec-

onds while pressing and holding

The setting changes each time an
operation is performed, as shown
below. (When changing the setting
continuously, release the buttons,
wait for at least 5 seconds, and
repeat step

Vehicles with alarm: To prevent

unintended triggering of the alarm,

unlock the doors using the wireless

remote control and open and close

a door once after the settings have

been changed. (If a door is not

opened within 60 seconds after

is pressed, the doors will be

locked again and the alarm will

automatically be set.)

In a case that the alarm is triggered,

immediately stop the alarm.

(



P.89)

Multi-informa-

tion dis-

play/Beep

Unlocking func-

tion

Exterior: Beeps 3

times

Interior: Pings

once

Holding the
driver’s door han-
dle unlocks only
the driver’s door.

Holding the pas-
senger’s door
handle unlocks all
the doors.

Exterior: Beeps

twice

Interior: Pings

once

Holding a door
handle unlocks all
the doors.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

134

3-2. Opening, closing and locking the doors

■

Impact detection door lock

release system

In the event that the vehicle is sub-

ject to a strong impact, all the doors

are unlocked. Depending on the

force of the impact or the type of

accident, however, the system may

not operate.

■

Operation signals (vehicles

with entry function)

A buzzer sounds and the emer-

gency flashers flash to indicate that

the doors have been

locked/unlocked. (Locked: Once;

Unlocked: Twice)

■

Security feature

If a door is not opened within

approximately 60 seconds after the

vehicle is unlocked, the security fea-

ture automatically locks the vehicle

again. (Vehicles with entry function:

However, depending on the location

of the electronic key, the key may

be detected as being in the vehicle.

In this case, vehicle may be

unlocked.)

■

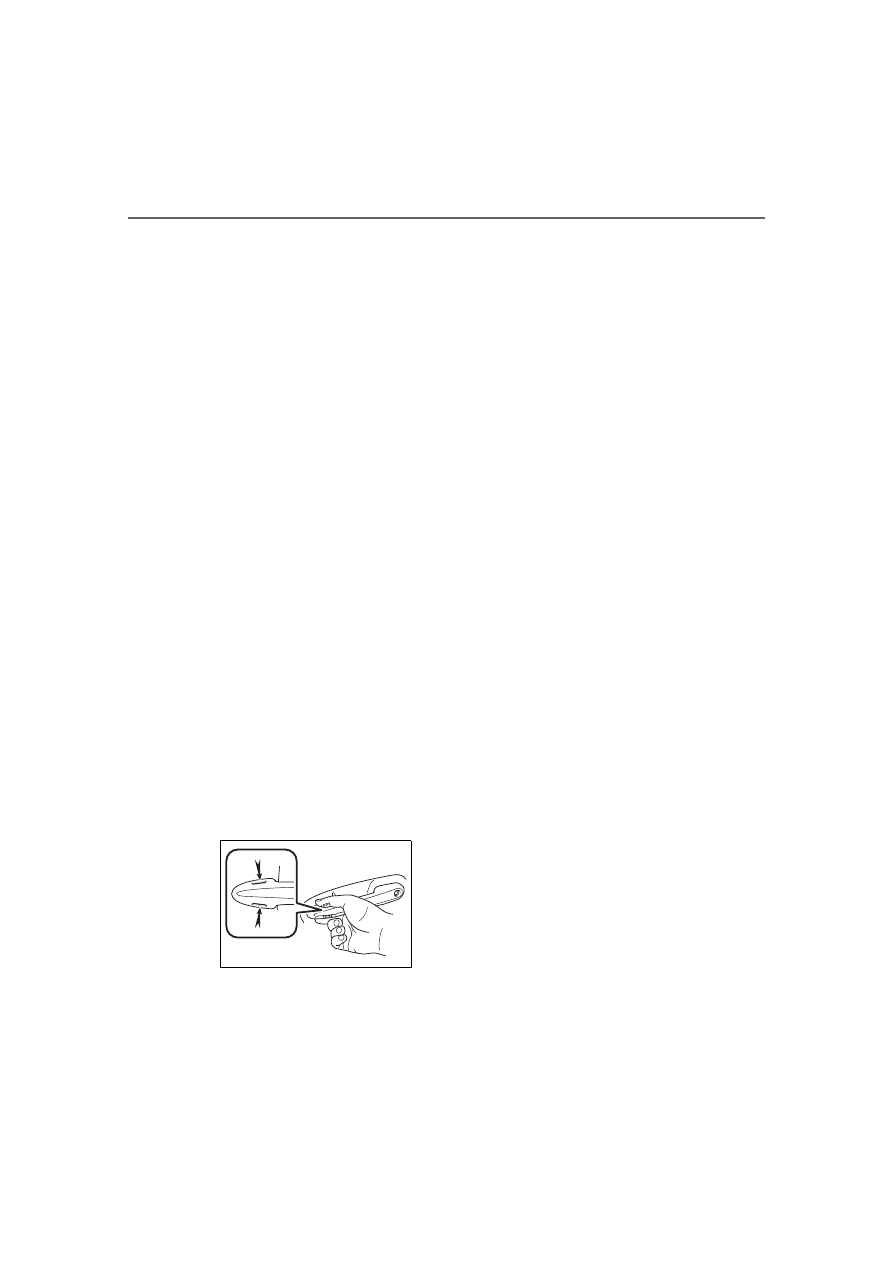

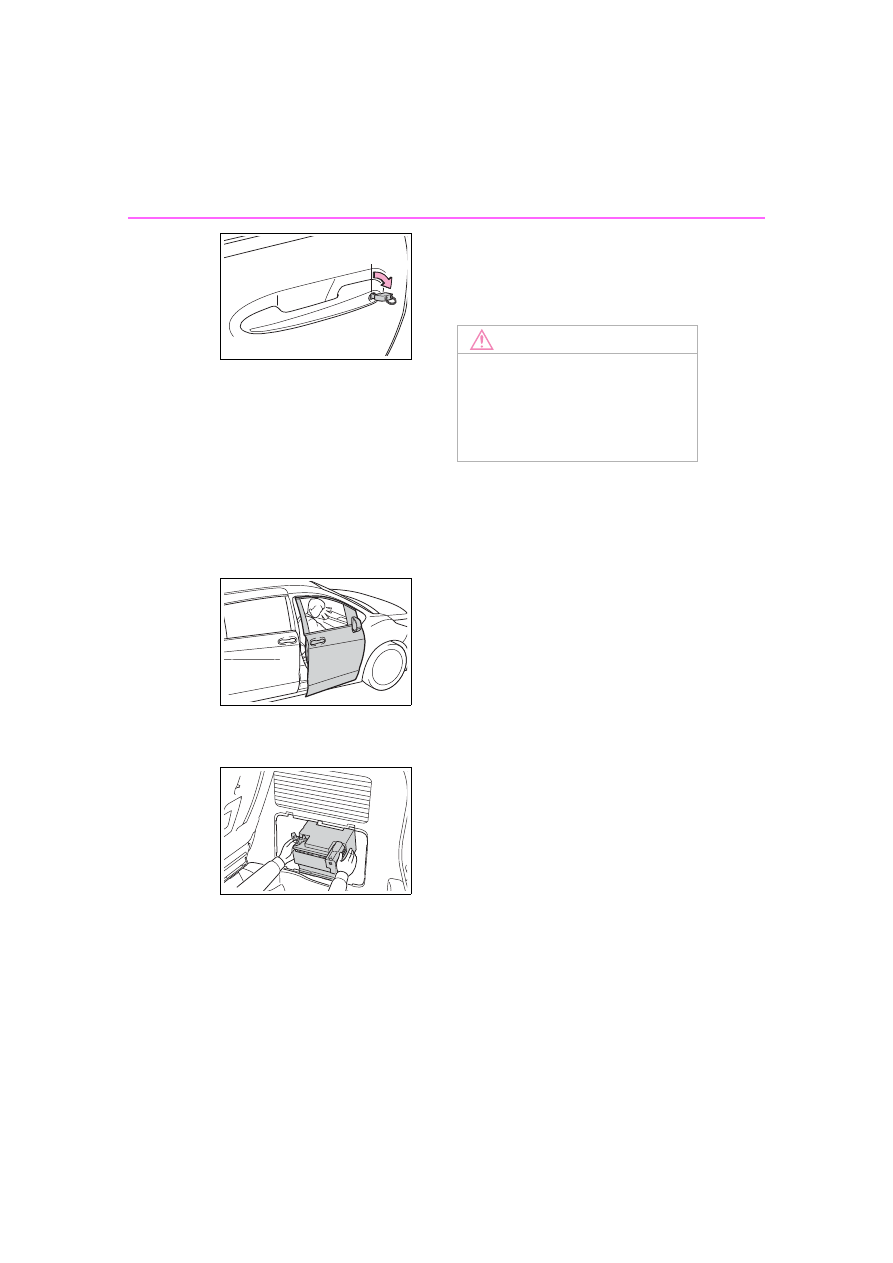

When the door cannot be

locked by the lock sensor on

the upper part of the door han-

dle (vehicles with entry func-

tion)

If the door will not lock even when

the topside sensor area is touched,

try touching both the topside and

underside sensor areas at the same

time. When gloves are being worn,

remove the gloves.

■

Door lock buzzer

If an attempt to lock the doors using

the entry function or wireless remote

control is made when a door is not

fully closed, a buzzer sounds contin-

uously for 5 seconds. Fully close the

door to stop the buzzer, and lock the

vehicle once more.

■

Setting the alarm (if equipped)

Locking the doors will set the alarm

system. (



P.89)

■

Conditions affecting the opera-

tion of the smart key system or

wireless remote control



P.166

■

If the smart key system or the

wireless remote control does

not operate properly

●

Use the mechanical key to lock

and unlock the doors. (

P.504)

●

Replace the key battery with a

new one if it is depleted. (

P.447)

■

If the 12-volt battery is dis-

charged

The doors cannot be locked and

unlocked using the smart key sys-

tem or wireless remote control. Lock

or unlock the doors using the

mechanical key. (



P.133, 504)

■

Rear seat reminder function

●

In order to remind you not to for-

get the luggage, etc. on the rear

seat, when the power switch is

turned to OFF after any of the fol-

lowing conditions are met, a

buzzer will sound and a message

will be displayed on the multi-

information display for approxi-

mately 6 seconds.

• The hybrid system is started

within 10 minutes after opening

and closing a sliding door.

• A sliding door has been opened

and closed after the hybrid system

is started. However, if a sliding

door is opened and then closed

within approximately 2 seconds,

the rear seat reminder function

may not operate.

●

The rear seat reminder function

determines that the luggage, etc.

has been placed on the rear seat

depending on opening and closing

-------------------------------------------------------------------------------------------------------------------------------------------------------------

135

3-2. Opening, closing and locking the doors

Before

driving

of a sliding door. Therefore,

depending on the situation, the

rear seat reminder function may

not operate and you may still for-

get the luggage, etc. on the rear

seat, or it may operate unneces-

sarily.

●

The rear seat reminder function

can be enabled/disabled.

(

P.541)

■

Customization

Settings (e.g. unlocking function

using a key) can be changed.

(Customizable features:



P.543)

■

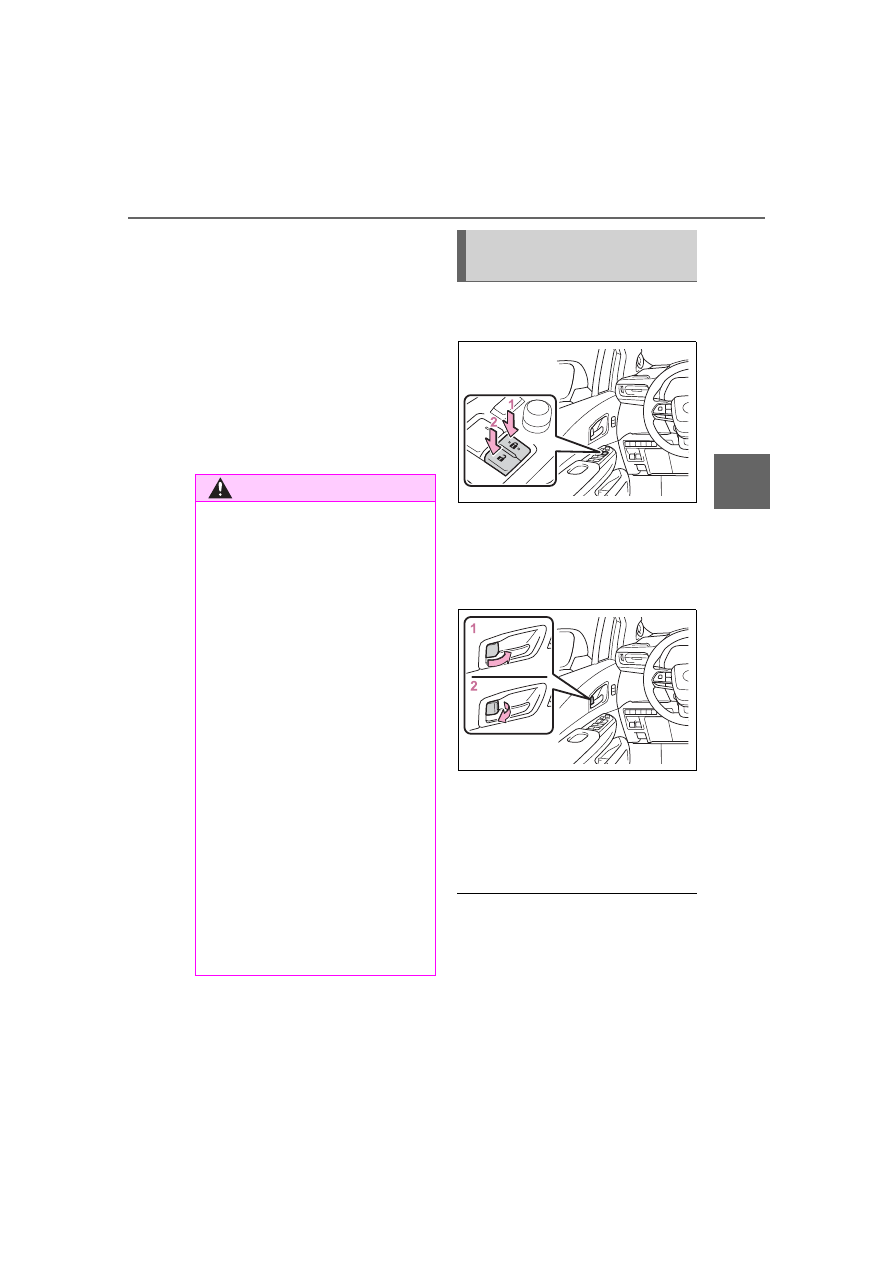

Using the door lock
switches

Locks all the doors

Unlocks all the doors

■

Using the inside lock but-
tons

Locks the door

Unlocks the door

The front doors can be opened by
pulling the inside handle even if the
lock buttons are in the lock position.

■

Locking the front doors from

the outside without a key

Move the inside lock button to

the lock position.

Close the door.

The door cannot be locked if the

power switch is in ACC or ON, or

the electronic key is left inside the

WARNING

■

To prevent an accident

Observe the following precautions

while driving the vehicle.

Failure to do so may result in a

door opening and an occupant

could be thrown out of the vehicle,

resulting in death or serious

injury.

●

Ensure that all doors are prop-

erly closed and locked.

●

Do not pull the inside handle of

the doors while driving.

Be especially careful for the

front doors, as the doors may

be opened even if the inside

lock buttons are in locked posi-

tion.

■

When opening or closing a

door

Check the surroundings of the

vehicle such as whether the vehi-

cle is on an incline, whether there

is enough space for a door to

open and whether a strong wind

is blowing. When opening or clos-

ing the door, hold the door handle

tightly to prepare for any unpre-

dictable movement.

Unlocking and locking the
doors from the inside

-------------------------------------------------------------------------------------------------------------------------------------------------------------

136

3-2. Opening, closing and locking the doors

vehicle.
Depending on the position of the

electronic key, the key may not be

detected correctly and the door may

be locked.

■

Open door warning buzzer

If the vehicle speed reaches 3 mph

(5 km/h), a buzzer sounds to indi-

cate that the door(s) or the hood is

not fully closed.

The open door(s) or hood is dis-

played on the multi-information dis-

play.

■

When all the doors are locked

with the entry function, wireless

remote control or key

●

The doors cannot be unlocked

with the door lock switch.

●

The door lock switch can be reset

by unlocking all the doors with the

entry function, wireless remote

control or key.

The following functions can be
set or canceled:

For instructions on customizing,
refer to P.540.

Automatic door locking
and unlocking systems

Function

Operation

Speed linked
door locking
function

All doors are
automatically
locked when
vehicle speed is
approximately
12mph (20 km/h)
or higher.

Shift position
linked door lock-
ing function

All doors are
automatically
locked when
shifting the shift
lever to position
other than P.

Shift position
linked door
unlocking func-
tion

All doors are
automatically
unlocked when
shifting the shift
lever to P.

Driver’s door
linked door
unlocking func-
tion

All doors are
automatically
unlocked when
driver’s door is
opened within
approximately 45
seconds after
turning the power
switch off.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

137

3-2. Opening, closing and locking the doors

Before

driving

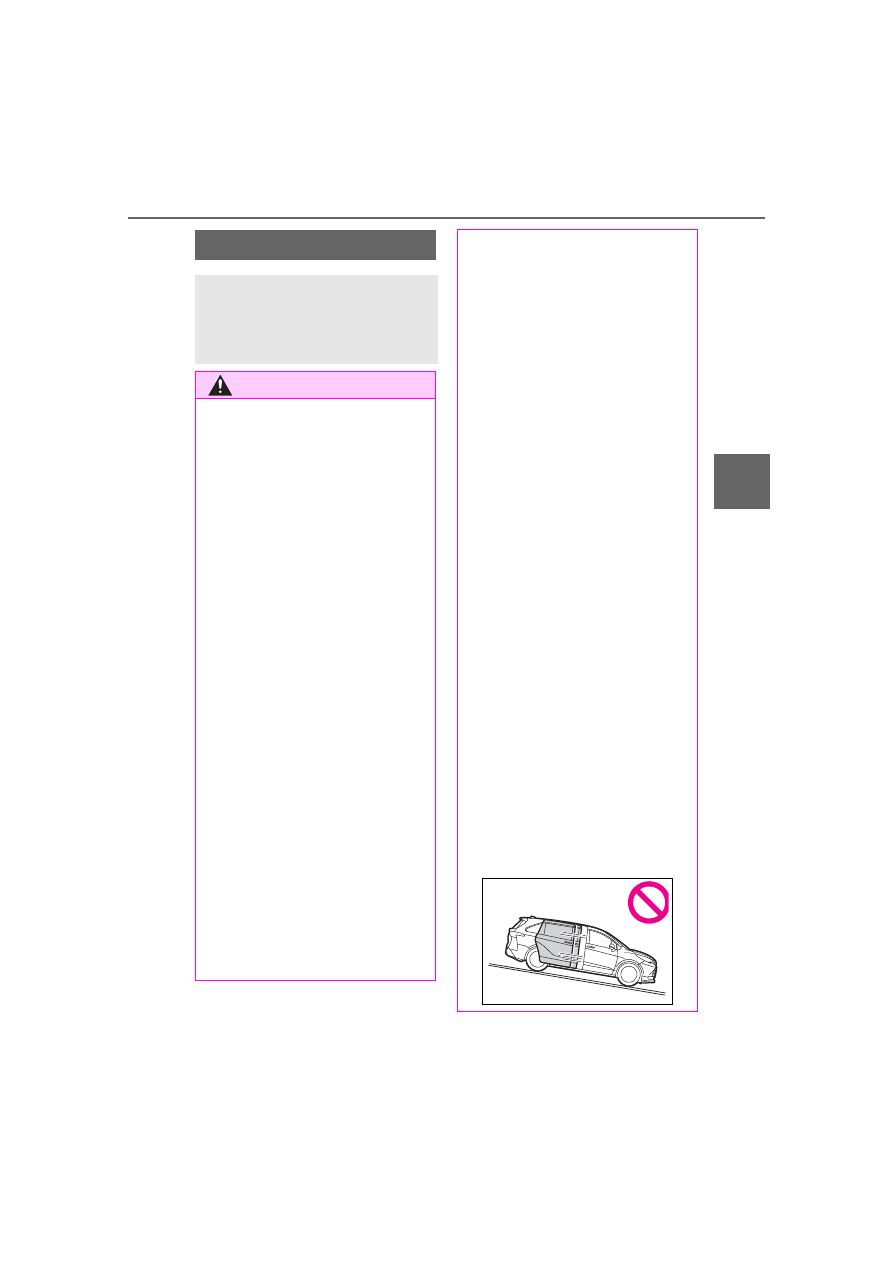

Sliding doors

The sliding doors can be
unlocked/locked and
opened/closed by the fol-
lowing procedures.

WARNING

■

Before driving

Make sure that all doors are prop-

erly closed and locked. If the slid-

ing doors are not fully closed, it

may open unexpectedly while

driving and an occupant to fall out

of the vehicle, resulting in death

or serious injury.

■

Caution while driving

Observe the following precautions

while driving. Failure to do so may

cause a door to open unexpect-

edly and an occupant to fall out of

the vehicle, resulting in death or

serious injury.

●

Make sure that all doors are

properly closed and locked.

●

Set the sliding door child-pro-

tector locks when children are

seated in the vehicle.

●

Do not operate the inside han-

dle of the doors while driving.

■

When children are in the vehi-

cle

Observe the following precau-

tions. Failure to do so may result

in death or serious injury.

●

Do not leave children alone in

the vehicle. If a child is acciden-

tally locked in the vehicle, they

could have heat exhaustion or

other injuries.

●

Do not allow a child to open or

close the sliding door. Doing so

may cause the sliding door to

move unexpectedly, or cause

the child’s hands, head, or neck

to be caught by the moving slid-

ing door.

■

Operating the sliding doors

Observe the following precau-

tions. Failure to do so may cause

parts of the body to be caught,

resulting in death or serious

injury.

●

When opening or closing a slid-

ing door, thoroughly check to

make sure the surrounding area

is safe.

●

When opening or closing the

sliding doors with windows

open, keep all body parts clear

of the windows.

●

If anyone is in the vicinity, make

sure they are safe and let them

know that the sliding door is

about to open or close.

●

Do not leave the sliding door at

half-opened position because

the sliding door is not latched at

this position. The sliding door

may move unexpectedly on an

incline.

●

When the vehicle is stopped on

a slope, the door will slide faster

when opening or closing, so be

especially careful that the pas-

sengers do not get hit or

pinched by the door.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

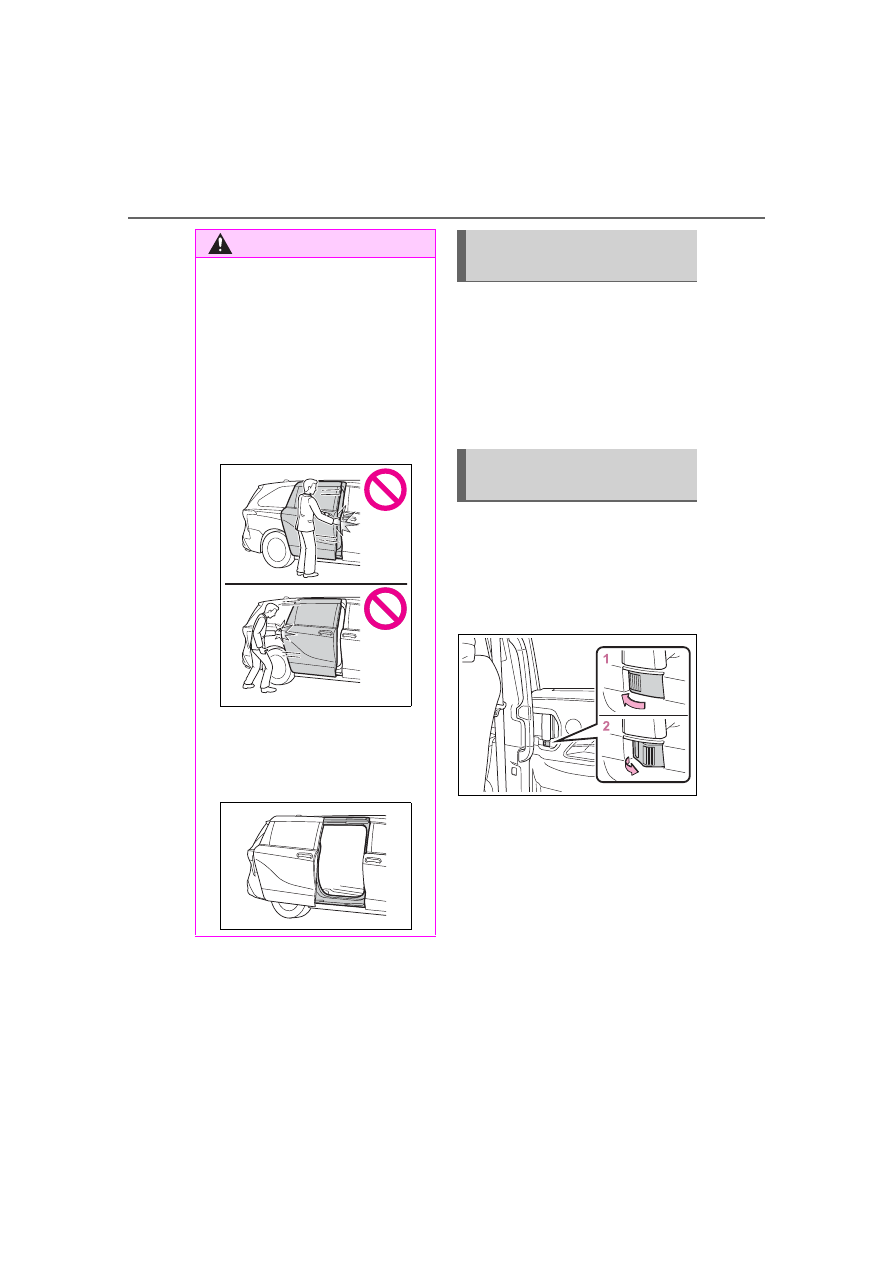

138

3-2. Opening, closing and locking the doors

■

Using the entry function (if
equipped)

P.132

■

Using the wireless remote
control

P.130

■

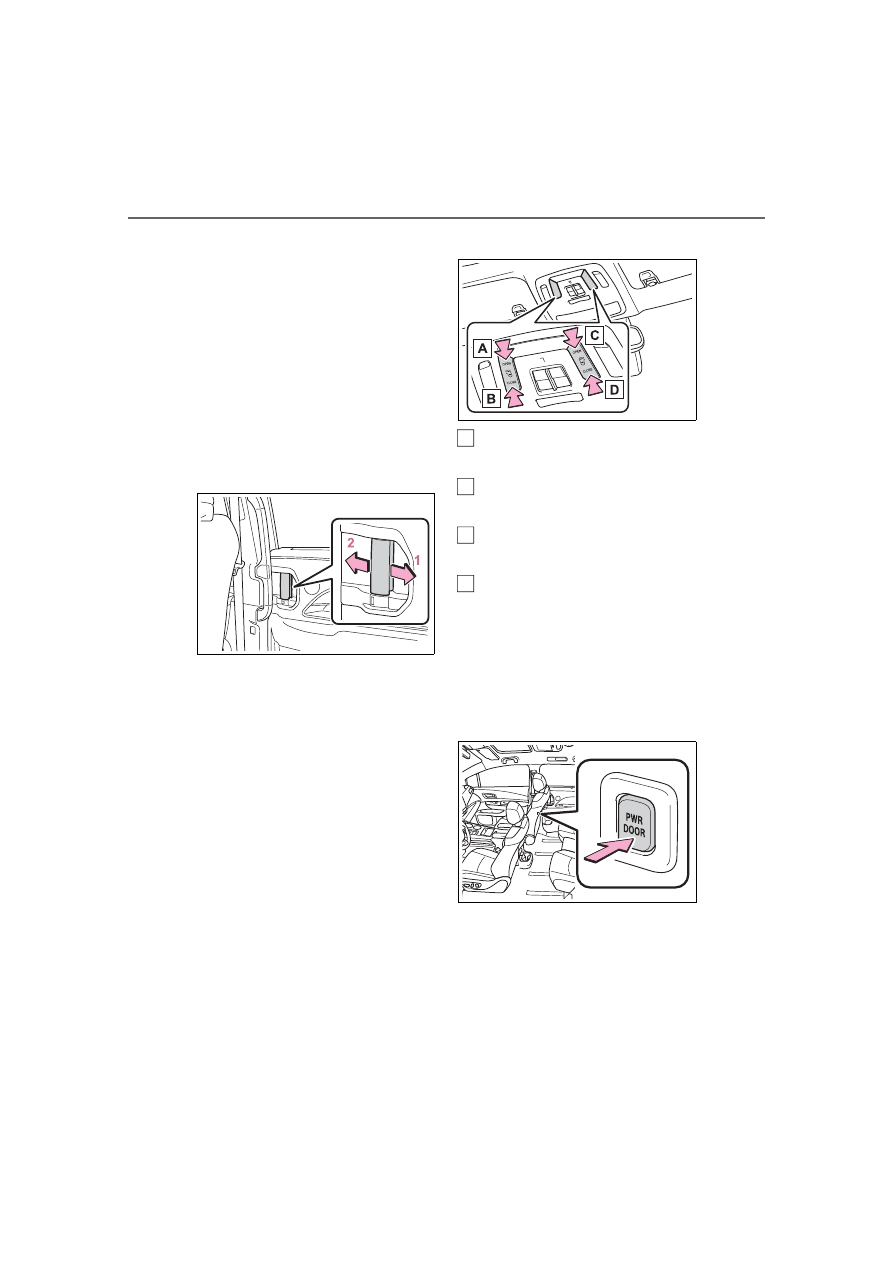

Using the door lock
switches
