656

8-2. Steps to take in an emergency

in the opposite direction to lower

the jack, and then adjust the jack

set position.

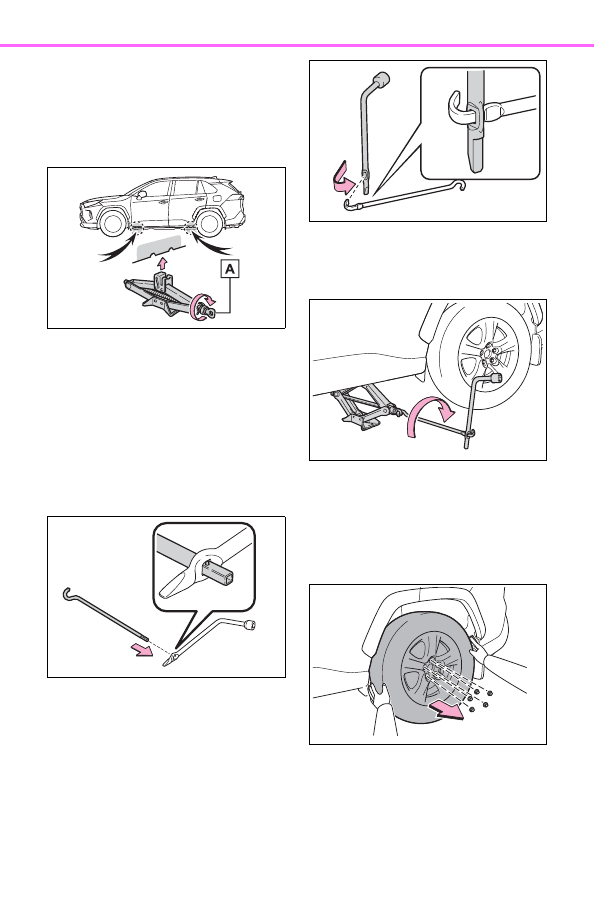

The jack point guides are located

under the rocker panel. They indi-

cate the jack point positions.

4

Assemble the jack handle
and the wheel nut wrench as
shown in the illustration.



Except for models made in
Japan

*

*

: The country of production is writ-

ten on the Certification Regula-
tion Label. (



P.678)



For models made in Japan

*

*

: The country of production is writ-

ten on the Certification Regula-
tion Label. (



P.678)

5

Raise the vehicle until the tire
is slightly raised off the
ground.

6

Remove all the wheel nuts
and the tire.

When resting the tire on the

ground, place the tire so that the

wheel design faces up to avoid

scratching the wheel surface.

657

8-2. Steps to take in an emergency

8

When

 trou

ble arises

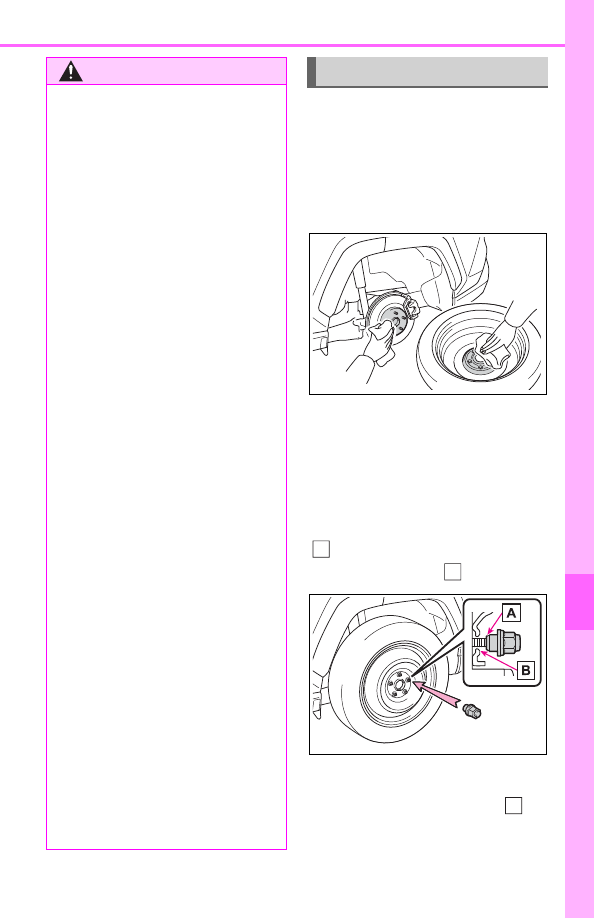

1

Remove any dirt or foreign
matter from the wheel con-
tact surface.

If foreign matter is on the wheel

contact surface, the wheel nuts

may loosen while the vehicle is in

motion, causing the tire to come off.

2

Install the spare tire and
loosely tighten each wheel
nut by hand by approximately
the same amount.

When replacing an aluminum wheel

with a steel wheel, tighten the

wheel nuts until the tapered portion
(

) comes into loose contact with

the disc wheel seat (

).

When replacing an aluminum wheel

with an aluminum wheel, turn the
wheel nuts until the washers (

)

come into contact with the disc

WARNING

■

Replacing a flat tire

●

Do not touch the disc wheels or

the area around the brakes

immediately after the vehicle

has been driven.

After the vehicle has been

driven the disc wheels and the

area around the brakes will be

extremely hot. Touching these

areas with hands, feet or other

body parts while changing a tire,

etc. may result in burns.

●

Failure to follow these precau-

tions could cause the wheel

nuts to loosen and the tire to fall

off, resulting in death or serious

injury.

• Have the wheel nuts tightened

with a torque wrench to 76 ft•lbf

(103 N•m, 10.5 kgf•m) as soon

as possible after changing

wheels.

• When installing a tire, only use

wheel nuts that have been spe-

cifically designed for that wheel.

• If there are any cracks or defor-

mations in the bolt screws, nut

threads or bolt holes of the

wheel, have the vehicle

inspected by your Toyota

dealer.

• When installing the wheel nuts,

be sure to install them with the

tapered ends facing inward.

●

For vehicles with power back

door: In cases such as when

replacing tires, make sure to

turn off the power back door

system (



P.147). Failure to do

so may cause the back door to

operate unintentionally if the

power back door switch is acci-

dentally touched, resulting in

hands and fingers being caught

and injured.

Installing the spare tire

A

B

A

658

8-2. Steps to take in an emergency

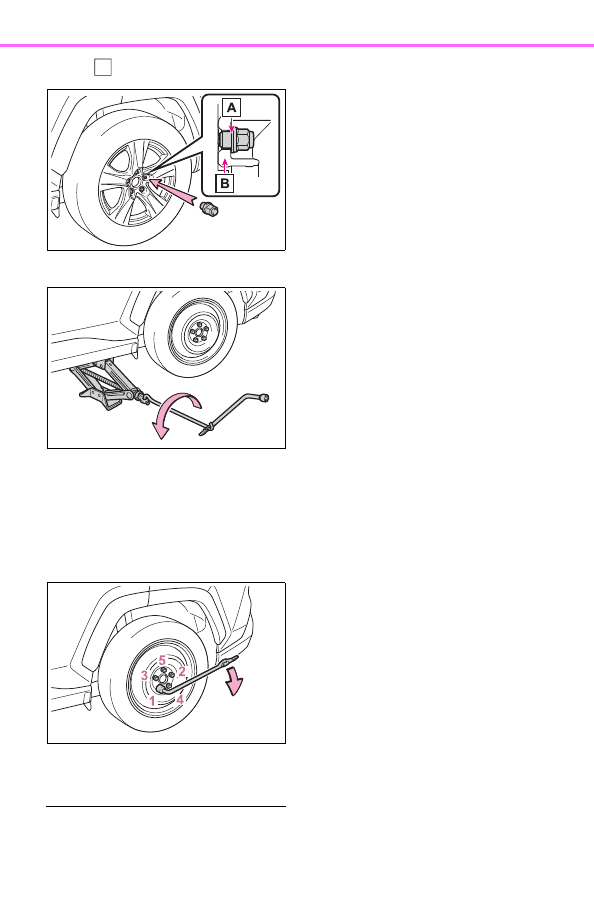

wheel (

).

3

Lower the vehicle.

4

Firmly tighten each wheel nut
two or three times in the
order shown in the illustra-
tion.

Tightening torque:

76 ft•lbf (103 N•m, 10.5 kgf•m)

5

Stow the flat tire, tire jack and
all tools.

■

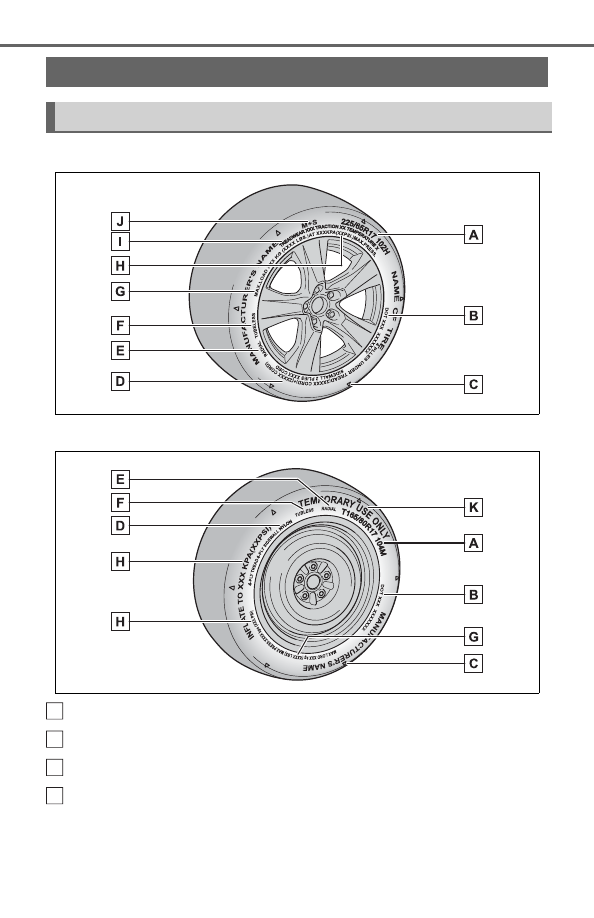

The compact spare tire

●

The compact spare tire is identi-

fied by the label “TEMPORARY

USE ONLY” on the tire sidewall.

Use the compact spare tire tem-

porarily, and only in an emer-

gency.

●

Make sure to check the tire infla-

tion pressure of the compact

spare tire. (



P.684)

■

When using the compact spare

tire

As the compact spare tire is not

equipped with a tire pressure warn-

ing valve and transmitter (if

equipped), low inflation pressure of

the spare tire will not be indicated by

the tire pressure warning system.

Also, if you replace the compact

spare tire after the tire pressure

warning light comes on, the light

remains on.

■

When the compact spare tire is

attached

The vehicle height may become

lower when driving with the compact

spare tire compared to when driving

with standard tires.

■

If you have a flat front tire on a

road covered with snow or ice

Install the compact spare tire on one

of the rear wheels of the vehicle.

Perform the following steps and fit

tire chains to the front tires:

1

Replace a rear tire with the com-

pact spare tire.

2

Replace the flat front tire with the

tire removed from the rear of the

vehicle.

3

Fit tire chains to the front tires.

■

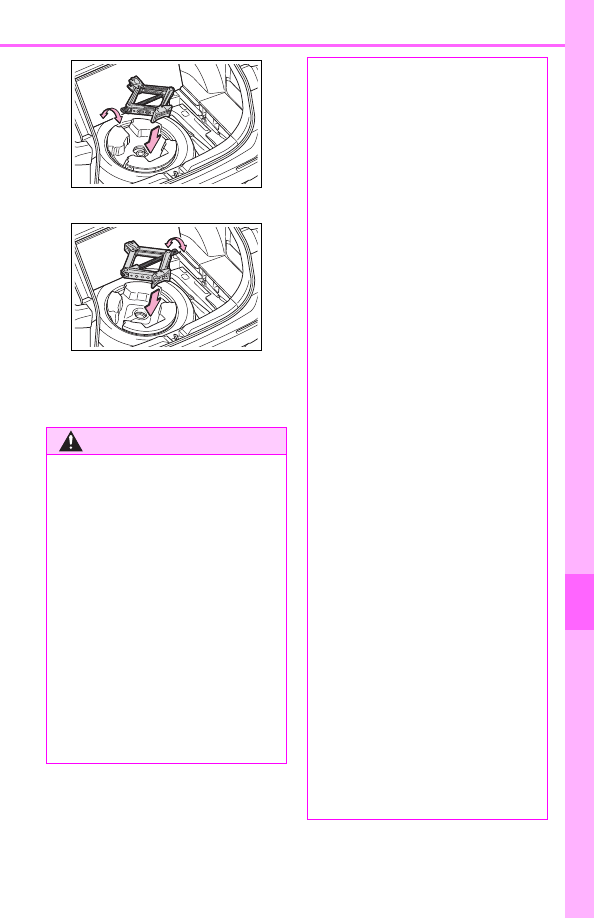

When stowing the jack

Before storing the jack, adjust the

height of the jack to match the

shape of the jack holder.
The storage direction of the jack dif-

fers depending on the type, so make

sure to store the jack in the correct

direction.

Except for models made in Japan

*

:

B

659

8-2. Steps to take in an emergency

8

When

 trou

ble arises

For models made in Japan

*

:

*

: The country of production is writ-

ten on the Certification Regulation
Label. (



P.678)

WARNING

■

When using the compact

spare tire

●

Remember that the compact

spare tire provided is specifi-

cally designed for use with your

vehicle. Do not use your com-

pact spare tire on another vehi-

cle.

●

Do not use more than one com-

pact spare tire simultaneously.

●

Replace the compact spare tire

with a standard tire as soon as

possible.

●

Avoid sudden acceleration,

abrupt steering, sudden brak-

ing and shifting operations that

cause sudden engine braking.

■

When the compact spare tire

is attached

The vehicle speed may not be

correctly detected, and the follow-

ing systems may not operate cor-

rectly:
• ABS & Brake assist

• VSC/Trailer Sway Control

• TRAC

• Dynamic radar cruise control

with full-speed range

• PCS (Pre-Collision System)

• EPS

• LTA (Lane Tracing Assist)

• Tire pressure warning system (if

equipped)

• AHB (Automatic High Beam)

• AFS (Adaptive Front-lighting

System) (if equipped)

• BSM (Blind Spot Monitor) (if

equipped)

• Rear view monitor system (if

equipped)

• Panoramic view monitor (if

equipped)

• Toyota parking assist monitor (if

equipped)

• Intuitive parking assist (if

equipped)

• Navigation system (if equipped)

Also, not only can the following

system not be utilized fully, but it

may actually negatively affect the

drive-train components:
• E-Four (Electronic On-Demand

AWD system)

660

8-2. Steps to take in an emergency

WARNING

■

Speed limit when using the

compact spare tire

Do not drive at speeds in excess

of 50 mph (80 km/h) when a com-

pact spare tire is installed on the

vehicle.
The compact spare tire is not

designed for driving at high

speeds. Failure to observe this

precaution may lead to an acci-

dent causing death or serious

injury.

■

After using the tools and jack

Before driving, make sure all the

tools and jack are securely in

place in their storage location to

reduce the possibility of personal

injury during a collision or sudden

braking.

NOTICE

■

Be careful when driving over

bumps with the compact

spare tire installed on the

vehicle

The vehicle height may become

lower when driving with the com-

pact spare tire compared to when

driving with standard tires. Be

careful when driving over uneven

road surfaces.

■

Driving with tire chains and

the compact spare tire

Do not fit tire chains to the com-

pact spare tire.
Tire chains may damage the vehi-

cle body and adversely affect driv-

ing performance.

■

When replacing the tires

(vehicles with tire pressure

warning system)

When removing or fitting the

wheels, tires or the tire pressure

warning valve and transmitter,

contact your Toyota dealer as the

tire pressure warning valve and

transmitter may be damaged if not

handled correctly.

661

8-2. Steps to take in an emergency

8

When

 trou

ble arises

One of the following may be the
cause of the problem:



The electronic key may not be
functioning properly.
(



P.664)



There may not be sufficient
fuel in the vehicle’s tank.
Refuel the vehicle. (



P.241)



There may be a malfunction
in the immobilizer system.
(



P.81)



There may be a malfunction
in the steering lock system.



The hybrid system may be
malfunctioning due to an elec-
trical problem such as elec-
tronic key battery depletion or
a blown fuse. However,
depending on the type of mal-
function, an interim measure
is available to start the hybrid
system. (



P.662)



There is a possibility that the
temperature of the hybrid bat-
tery (traction battery) is
extremely low (approximately
below -22°F [-30°C]). (



P.77,

210, 213)

One of the following may be the
cause of the problem:



The 12-volt battery may be
discharged. (



P.666)



The 12-volt battery terminal
connections may be loose or
corroded. (



P.587)

One of the following may be the
cause of the problem:



The 12-volt battery may be
discharged. (



P.666)



One or both of the 12-volt bat-
tery terminals may be discon-
nected. (



P.587)

Contact your Toyota dealer if
the problem cannot be repaired,
or if repair procedures are
unknown.

If the hybrid system

will not start

Reasons for the hybrid sys-
tem not starting vary
depending on the situation.
Check the following and
perform the appropriate
procedure:

The hybrid system will not
start even though the cor-
rect starting procedure is
being followed (



P.210,

212)

The interior lights and
headlights are dim, or the
horn does not sound or
sounds at a low volume

The interior lights and
headlights do not turn on,
or the horn does not
sound

662

8-2. Steps to take in an emergency

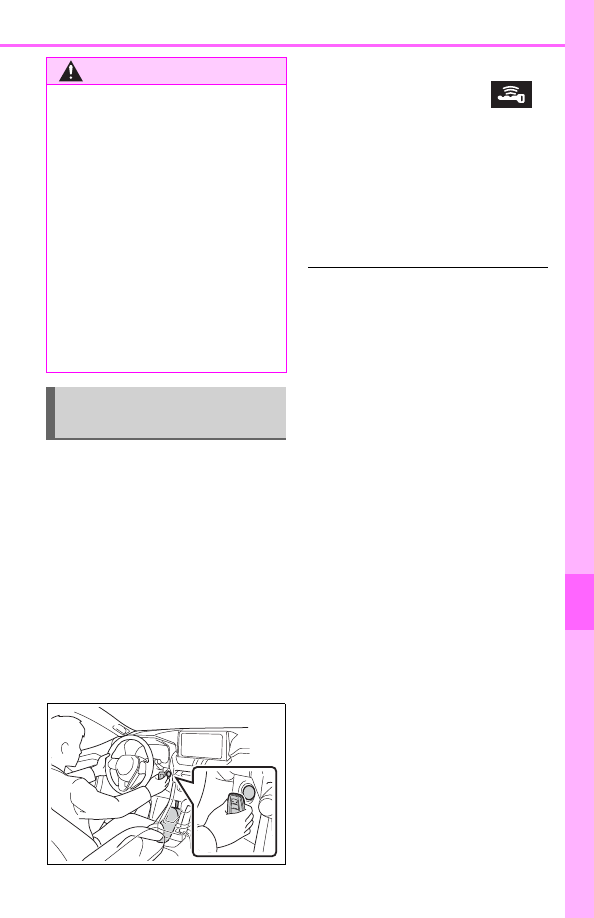

When the hybrid system does
not start, the following steps can
be used as an interim measure
to start the hybrid system if the
power switch is functioning nor-
mally.
Do not use this starting proce-
dure except in cases of emer-
gency.

1

Pull the parking brake switch
to check that the parking
brake is set. (



P.224)

Parking brake indicator will come

on.

2

Shift the shift lever to P.

3

Turn the power switch to
ACC.

4

Press and hold the power
switch for about 15 seconds
while depressing the brake
pedal firmly.

Even if the hybrid system can be
started using the above steps,
the system may be malfunction-
ing. Have the vehicle inspected
by your Toyota dealer.

Starting the hybrid sys-
tem in an emergency

If you lose your keys

New genuine keys can be
made by your Toyota dealer
using the other key and the
key number stamped on
your key number plate.
Keep the plate in a safe
place such as your wallet,
not in the vehicle.

NOTICE

■

When an electronic key is lost

(if equipped)

If the electronic key remains lost,

the risk of vehicle theft increases

significantly. Visit your Toyota

dealer immediately with all

remaining electronic keys that

were provided with your vehicle.

663

8-2. Steps to take in an emergency

8

When

 trou

ble arises

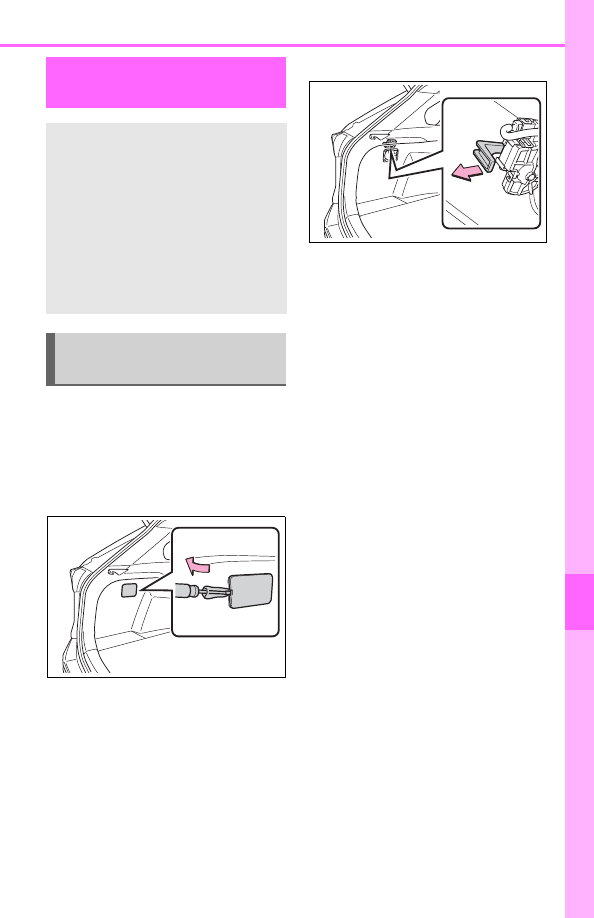

1

Remove the cover inside the
luggage compartment by
inserting a screwdriver.

When removing the cover, to pre-

vent damage, cover the tip of the

screwdriver with a rag.

2

Pull the lever.

Using the lever to open the fuel

filler door may not allow for an ade-

quate reduction in fuel tank pres-

sure before refueling. To prevent

fuel from spilling out, turn the cap

slowly when removing it.
During refueling, fuel may spill out

from the filler opening due to air

being discharged from inside the

fuel tank. Therefore, fill the fuel tank

carefully and slowly.

If the fuel filler door

cannot be opened

If the fuel filler door opener
switch cannot be operated,
contact your Toyota dealer
to service the vehicle. In
case where refueling is
urgently necessary, the fol-
lowing procedure can be
used to open the fuel filler
door.

Opening the fuel filler
door

664

8-2. Steps to take in an emergency

■

When the electronic key does

not work properly

●

Make sure that the smart key sys-

tem has not been deactivated in

the customization setting. If it is

off, turn the function on.

(Customizable features:



P.703)

●

Check if battery-saving mode is

set. If it is set, cancel the function.

(



P.149)

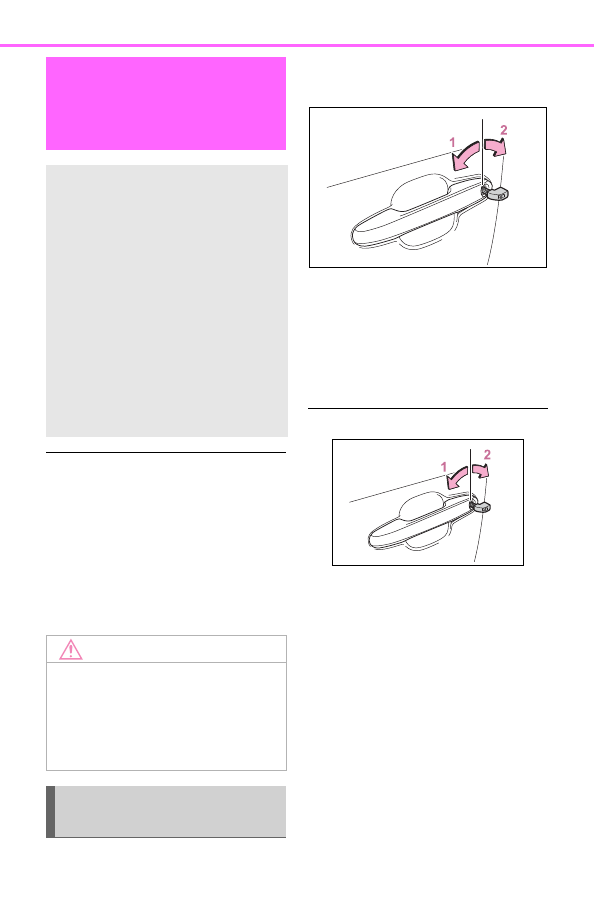

Use the mechanical key

(



P.127) in order to perform the

following operations.

1

Locks all the doors

2

Unlocks the door

Turning the key rearward unlocks
the driver’s door. Turning the key
once again within 5 seconds
unlocks the other doors.

■

Key linked functions

1

Closes the windows and the
moon roof

*1

 or panoramic moon

roof

*1

 (turn and hold)

*2

2

Opens the windows and the
moon roof

*1

 or panoramic moon

roof

*1

 (turn and hold)

*2

*1

:If equipped

*2

:These settings must be custom-

ized at your Toyota dealer.

If the electronic key

does not operate prop-

erly (vehicles with

smart key system)

If communication between
the electronic key and vehi-
cle is interrupted (



P.149)

or the electronic key cannot
be used because the battery
is depleted, the smart key
system and wireless remote
control cannot be used. In
such cases, the doors can
be opened and the hybrid
system can be started by
following the procedure
below.

NOTICE

■

In case of a smart key system

malfunction, or other key

related problems

Take your vehicle with all the

electronic keys provided with your

vehicle to your Toyota dealer.

Locking and unlocking
the doors

665

8-2. Steps to take in an emergency

8

When

 trou

ble arises

1

Ensure that the shift lever is
in P and depress the brake
pedal.

2

Touch the Toyota emblem
side of the electronic key to
the power switch.

When the electronic key is

detected, a buzzer sounds and the

power switch will turn to ON.
When the smart key system is

deactivated in customization set-

ting, the power switch will turn to

ACC.

3

Firmly depress the brake

pedal and check that



is displayed on the multi-
information display.

4

Press the power switch
shortly and firmly.

In the event that the hybrid system

still cannot be started, contact your

Toyota dealer.

■

Stopping the hybrid system

Shift the shift lever to P, set the
parking brake and press the power
switch as you normally do when
stopping the hybrid system.

■

Replacing the key battery

As the above procedure is a tempo-

rary measure, it is recommended

that the electronic key battery be

replaced immediately when the bat-

tery is depleted. (



P.615)

■

Changing power switch modes

Release the brake pedal and press
the power switch in step

3

 above.

The hybrid system does not start
and modes will be changed each
time the switch is pressed.
(



P.216)

WARNING

■

When using the mechanical

key and operating the power

windows or the moon roof (if

equipped) or panoramic

moon roof (if equipped)

Operate the power window or the

moon roof or panoramic moon

roof after checking to make sure

that there is no possibility of any

passenger having any of their

body parts caught in the window

or the moon roof or panoramic

moon roof. Also, do not allow chil-

dren to operate the mechanical

key. It is possible for children and

other passengers to get caught in

the power window or the moon

roof or panoramic moon roof.

Starting the hybrid sys-
tem

666

8-2. Steps to take in an emergency

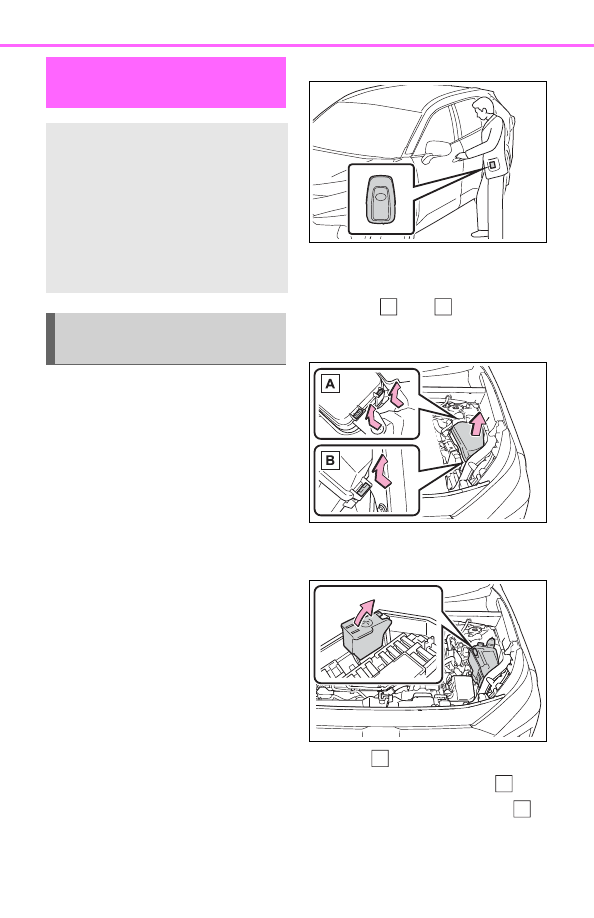

If you have a set of jumper (or
booster) cables and a second
vehicle with a 12-volt battery,
you can jump start your vehicle
by following the steps below.

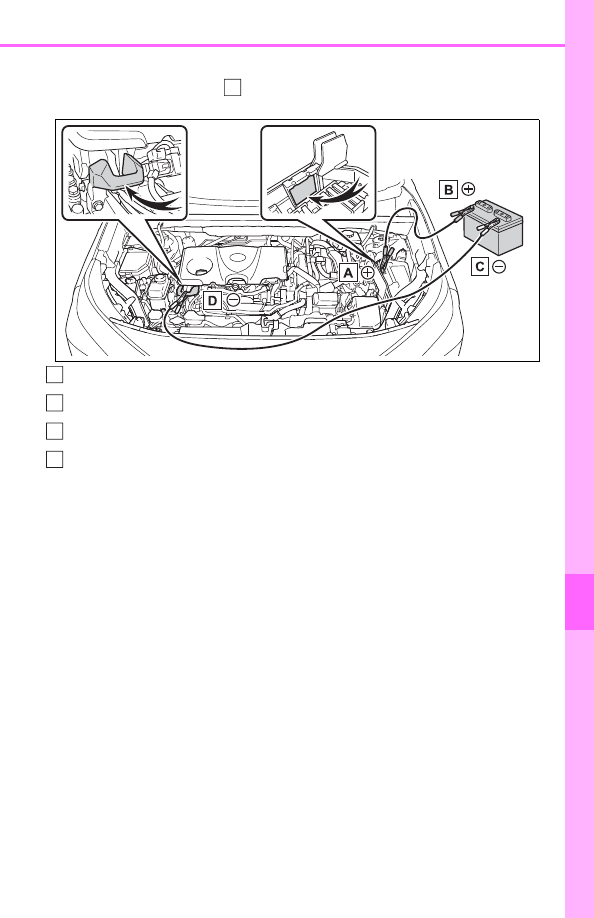

1

Vehicles with alarm: Confirm
that the electronic key is
being carried.

When connecting the jumper (or

booster) cables, depending on the

situation, the alarm may activate

and the doors locked. (



P.85)

2

Open the hood (



P.577) and

fuse box cover.

Push claw

 and

 to com-

pletely release the lock, and then lift

up the cover.

3

Open the exclusive jump
starting terminal cover.

4

Connect a positive jumper cable clamp to

 on your vehicle and

connect the clamp on the other end of the positive cable to

 on

the second vehicle. Then, connect a negative cable clamp to



If the 12-volt battery is

discharged

The following procedures
may be used to start the
hybrid system if the vehi-
cle’s 12-volt battery is dis-
charged.
You can also call your
Toyota dealer or a qualified
repair shop.

Restarting the hybrid sys-
tem

A

B

A

B

C

667

8-2. Steps to take in an emergency

8

When

 trou

ble arises

on the second vehicle and connect the clamp at the other end of
the negative cable to

.

Exclusive jump starting terminal (your vehicle)

Positive (+) battery terminal (second vehicle)

Negative (-) battery terminal (second vehicle)

Solid, stationary, unpainted metallic point away from the exclu-
sive jump starting terminal and any moving parts as shown in the
illustration

5

Start the engine of the sec-
ond vehicle. Increase the
engine speed slightly and
maintain at that level for
approximately 5 minutes to
recharge the 12-volt battery
of your vehicle.

6

Open and close any of the
doors of your vehicle with the
power switch OFF.

7

Maintain the engine speed of
the second vehicle and start
the hybrid system of your
vehicle by turning the power
switch to ON.

8

Make sure the “READY” indi-
cator comes on. If the indica-
tor light does not come on,
contact your Toyota dealer.

9

Once the hybrid system has
started, remove the jumper
cables in the exact reverse
order from which they were
connected.

10

Close the exclusive jump

starting terminal cover, and
reinstall the fuse box cover to
its original position.

Once the hybrid system starts,
have the vehicle inspected at
your Toyota dealer as soon as

D

A

B

C

D

668

8-2. Steps to take in an emergency

possible.

■

Starting the hybrid system

when the 12-volt battery is dis-

charged

The hybrid system cannot be

started by push-starting.

■

To prevent 12-volt battery dis-

charge

●

Turn off the headlights and the

audio system while the hybrid sys-

tem is off.

●

Turn off any unnecessary electri-

cal components when the vehicle

is running at a low speed for an

extended period, such as in heavy

traffic.

■

When the 12-volt battery is

removed or discharged

●

Information stored in the ECU is

cleared. When the 12-volt battery

is depleted, have the vehicle

inspected at your Toyota dealer.

●

Some systems may require initial-

ization. (



P.711)

■

When removing the 12-volt bat-

tery terminals

When the 12-volt battery terminals

are removed, the information stored

in the ECU is cleared. Before

removing the 12-volt battery termi-

nals, contact your Toyota dealer.

■

Charging the 12-volt battery

The electricity stored in the 12-volt

battery will discharge gradually even

when the vehicle is not in use, due

to natural discharge and the drain-

ing effects of certain electrical appli-

ances. If the vehicle is left for a long

time, the 12-volt battery may dis-

charge, and the hybrid system may

be unable to start. (The 12-volt bat-

tery recharges automatically while

the hybrid system is operating.)

■

When recharging or replacing

the 12-volt battery (vehicles

without smart key system)

The hybrid system may not start on

the first attempt after the 12-volt bat-

tery has recharged but will start nor-

mally after the second attempt. This

is not a malfunction.

■

When recharging or replacing

the 12-volt battery (vehicles

with smart key system)

●

In some cases, it may not be pos-

sible to unlock the doors using the

smart key system when the 12-

volt battery is discharged. Use the

wireless remote control or the

mechanical key to lock or unlock

the doors.

●

The hybrid system may not start

on the first attempt after the 12-

volt battery has recharged but will

start normally after the second

attempt. This is not a malfunction.

●

The power switch mode is memo-

rized by the vehicle. When the 12-

volt battery is reconnected, the

system will return to the mode it

was in before the 12-volt battery

was discharged. Before discon-

necting the 12-volt battery, turn

the power switch off.

If you are unsure what mode the

power switch was in before the

12-volt battery discharged, be

especially careful when recon-

necting the 12-volt battery.

●

Some systems may require initial-

ization. (



P.711)

■

When replacing the 12-volt bat-

tery

●

Use a 12-volt battery that con-

forms to European regulations.

●

Type A:

Use a battery that the case size is

same as the previous one (LN1), 20

hours rate capacity (20HR) is equiv-

alent (45Ah) or greater, and perfor-

mance rating (CCA) is equivalent

(285A) or greater.
Type B:
Use a battery that the case size is

same as the previous one (LN1), 20

hours rate capacity (20HR) is equiv-

669

8-2. Steps to take in an emergency

8

When

 trou

ble arises

alent (45Ah) or greater, and perfor-

mance rating (CCA) is equivalent

(286A) or greater.
Type C:
Use a battery that the case size is

same as the previous one (LN2), 20

hours rate capacity (20HR) is equiv-

alent (55Ah) or greater, and perfor-

mance rating (CCA) is equivalent

(345A) or greater.

• If the sizes differ, the 12-volt bat-

tery cannot be properly secured.

• If the 20 hour rate capacity is low,

even if the time period where the

vehicle is not used is a short time,

the 12-volt battery may discharge

and hybrid system may not be

able to start.

●

Use a ventilation type calcium bat-

tery

●

Use a 12-volt battery with a han-

dle. If a 12-volt battery without a

handle is used, removal is more

difficult.

●

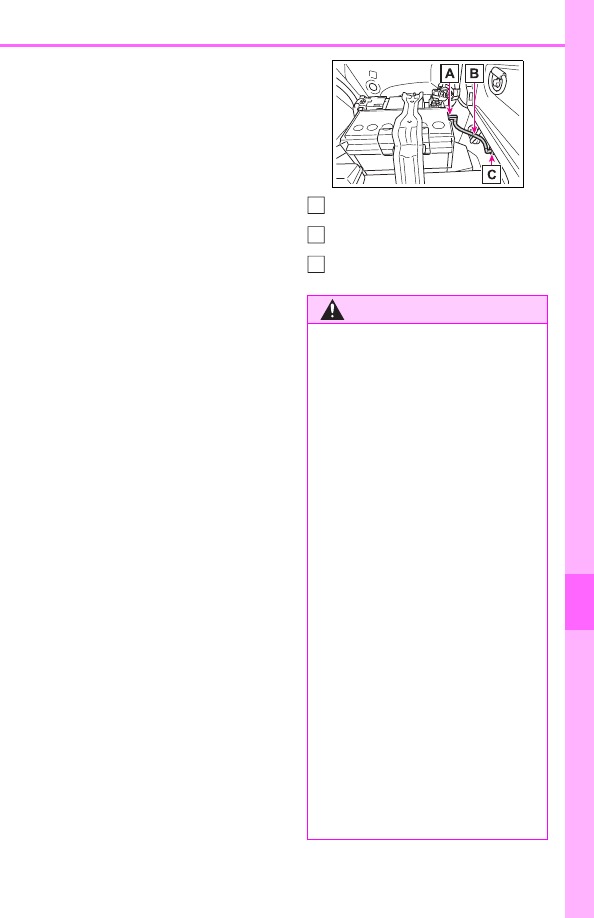

When removing the 12-volt bat-

tery:



P.587

●

After replacing, firmly attach the

following items to the exhaust hole

of the 12-volt battery.

• Use the exhaust hose that was

attached to the 12-volt battery

before replacing and confirm that

it is firmly connected to the hole

section of the vehicle.

• Use the exhaust hole plug

included with the new 12-volt bat-

tery or the one installed on the

battery prior to the replacement.

(Depending on the new 12-volt

battery installed, the exhaust hole

may be plugged.)

For details, consult your Toyota
dealer.

Exhaust hole

Exhaust hose

Hole section of the vehicle

WARNING

■

When removing the battery

terminals

Always remove the negative (-)

terminal first. If the positive (+) ter-

minal contacts any metal in the

surrounding area when the posi-

tive (+) terminal is removed, a

spark may occur, leading to a fire

in addition to electrical shocks

and death or serious injury.

■

Avoiding 12-volt battery fires

or explosions

Observe the following precautions

to prevent accidentally igniting the

flammable gas that may be emit-

ted from the 12-volt battery:

●

Make sure each jumper cable is

connected to the correct termi-

nal and that it is not unintention-

ally in contact with any other

than the intended terminal.

●

Do not allow the other end of

the jumper cable connected to

the “+” terminal to come into

contact with any other parts or

metal surfaces in the area, such

as brackets or unpainted metal.

●

Do not allow the + and - clamps

of the jumper cables to come

into contact with each other.

A

B

C

670

8-2. Steps to take in an emergency

WARNING

●

Do not smoke, use matches,

cigarette lighters or allow open

flame near the 12-volt battery.

■

12-volt battery precautions

The 12-volt battery contains poi-

sonous and corrosive acidic elec-

trolyte, while related parts contain

lead and lead compounds.

Observe the following precautions

when handling the 12-volt battery:

●

When working with the 12-volt

battery, always wear safety

glasses and take care not to

allow any battery fluids (acid) to

come into contact with skin,

clothing or the vehicle body.

●

Do not lean over the 12-volt bat-

tery.

●

In the event that battery fluid

comes into contact with the skin

or eyes, immediately wash the

affected area with water and

seek medical attention.

Place a wet sponge or cloth

over the affected area until

medical attention can be

received.

●

Always wash your hands after

handling the 12-volt battery sup-

port, terminals, and other bat-

tery-related parts.

●

Do not allow children near the

12-volt battery.

■

After recharging the 12-volt

battery

Have the 12-volt battery

inspected at your Toyota dealer

as soon as possible.

If the 12-volt battery is deteriorat-

ing, continued use may cause the

12-volt battery to emit a malodor-

ous gas, which may be detrimen-

tal to the health of passengers.

■

When replacing the 12-volt

battery

●

For information regarding 12-

volt battery replacement, con-

tact your Toyota dealer.

●

After replacing, securely attach

the exhaust hose and exhaust

hole plug to the exhaust hole of

the replaced 12-volt battery. If

not properly installed, gases

(hydrogen) may leak into the

vehicle interior, and there is the

possible danger of the gas ignit-

ing and exploding.

NOTICE

■

When handling jumper cables

When connecting the jumper

cables, ensure that they do not

become entangled in the cooling

fan, etc.

■

To prevent damaging the

vehicle

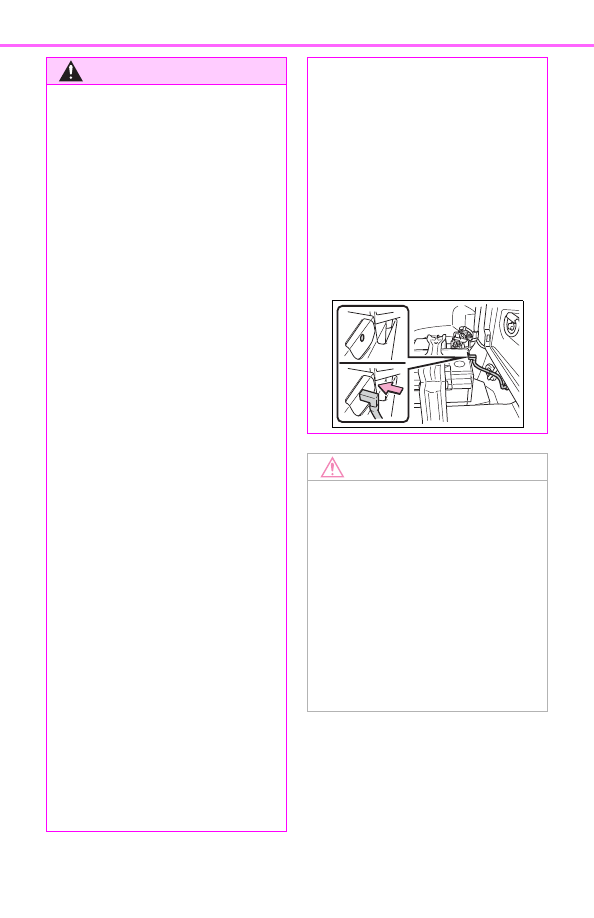

The exclusive jump starting termi-

nal is to be used when charging

the 12-volt battery from another

vehicle in an emergency. It cannot

be used to jump start another

vehicle.

671

8-2. Steps to take in an emergency

8

When

 trou

ble arises

■

If the engine coolant tem-
perature gauge enters the
red zone or “Engine Cool-
ant Temp High Stop in a
Safe Place See Owner’s
Manual” is shown on the
multi-information display

1

Stop the vehicle in a safe
place and turn off the air con-
ditioning system, and then
stop the hybrid system.

2

If you see steam:
Carefully lift the hood after
the steam subsides.
If you do not see steam:
Carefully lift the hood.

3

After the hybrid system has
cooled down sufficiently,
inspect the hoses and radia-
tor core (radiator) for any
leaks.

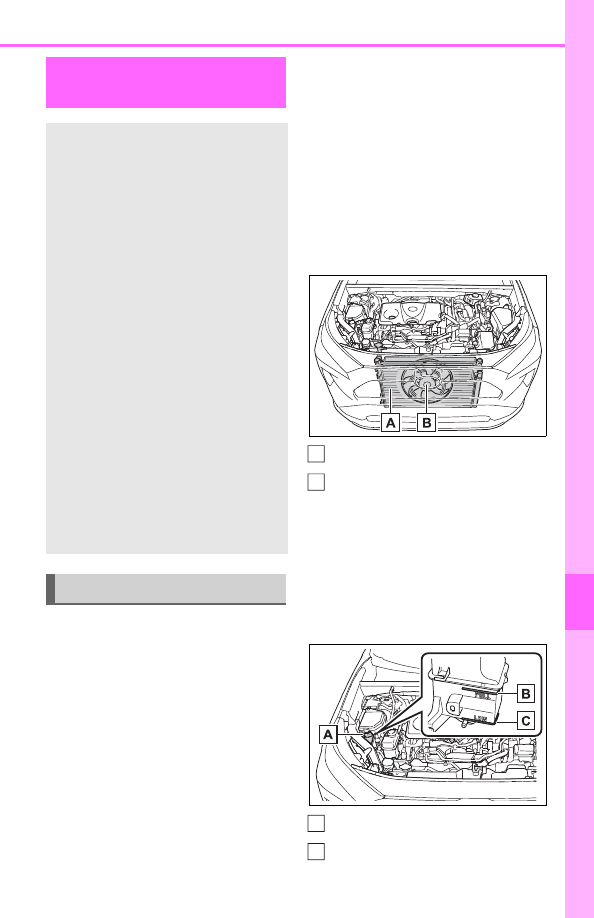

Radiator

Cooling fan

If a large amount of coolant leaks,

immediately contact your Toyota

dealer.

4

The coolant level is satisfac-
tory if it is between the
“FULL” and “LOW” lines on
the reservoir.

Reservoir

“FULL” line

If your vehicle over-

heats

The following may indicate
that your vehicle is over-
heating.



The needle of the engine
coolant temperature gauge
(



P.94, 98) enters the red

zone, or a loss of hybrid
system power is experi-
enced. (For example, the
vehicle speed does not
increase.)



“Engine Coolant Temp High
Stop in a Safe Place See
Owner’s Manual” or “Hybrid
System Overheated Output
Power Reduced” is shown
on the multi-information dis-
play.



Steam comes out from
under the hood.

Correction procedures

A

B

A

B

672

8-2. Steps to take in an emergency

“LOW” line

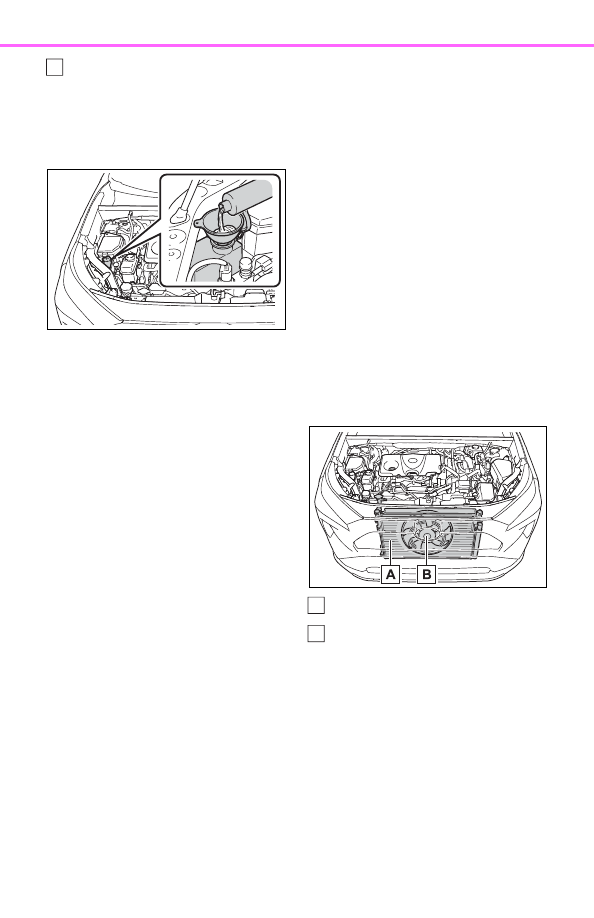

5

Add coolant if necessary.

Water can be used in an emer-

gency if engine coolant is unavail-

able.

6

Start the hybrid system and
turn the air conditioning sys-
tem on to check that the radi-
ator cooling fan operates and
to check for coolant leaks
from the radiator or hoses.

The fan operates when the air con-

ditioning system is turned on imme-

diately after a cold start. Confirm

that the fan is operating by check-

ing the fan sound and air flow. If it is

difficult to check these, turn the air

conditioning system on and off

repeatedly. (The fan may not oper-

ate in freezing temperatures.)

7

If the fan is not operating:
Stop the hybrid system
immediately and contact your
Toyota dealer.
If the fan is operating:
Have the vehicle inspected at
the nearest Toyota dealer.

8

Check if “Engine Coolant
Temp High Stop in a Safe
Place See Owner’s Manual”
is shown on the multi-infor-
mation display.

If the message does not disappear:

Stop the hybrid system and contact

your Toyota dealer.
If the message is not displayed:

Have the vehicle inspected at the

nearest Toyota dealer.

■

If “Hybrid System Over-
heated Output Power
Reduced” is shown on the
multi-information display

1

Stop the vehicle in a safe
place.

2

Stop the hybrid system and
carefully lift the hood.

3

After the hybrid system has
cooled down, inspect the
hoses and radiator core (radi-
ator) for any leaks.

Radiator

Cooling fan

If a large amount of coolant leaks,

immediately contact your Toyota

dealer.

4

The coolant level is satisfac-
tory if it is between the

C

A

B

673

8-2. Steps to take in an emergency

8

When

 trou

ble arises

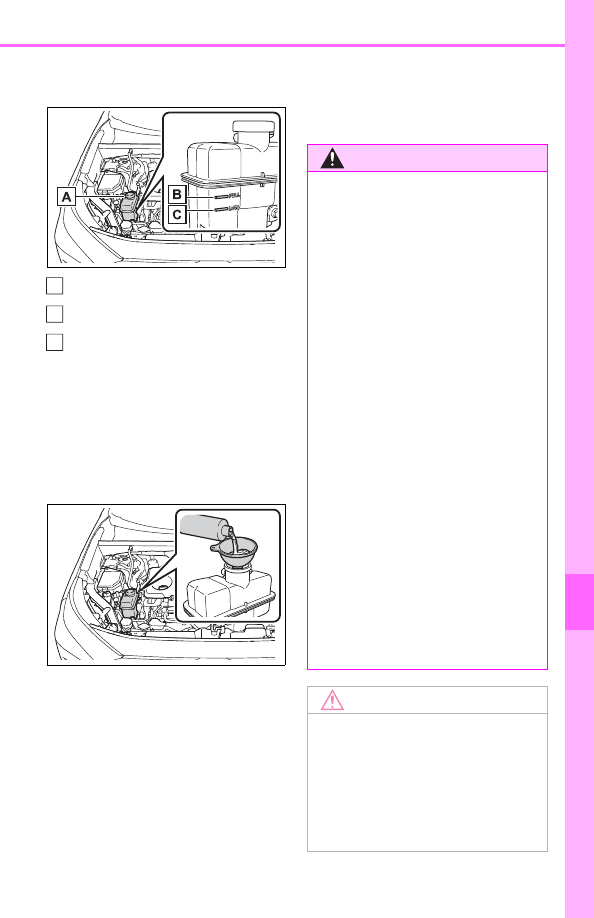

“FULL” and “LOW” lines on
the reservoir.

Reservoir

“FULL” line

“LOW” line

5

Add coolant if necessary.

Water can be used in an emer-

gency if power control unit coolant

is unavailable.

If water was added in an emer-

gency, have the vehicle inspected

at your Toyota dealer as soon as

possible.

6

After stopping the hybrid sys-
tem and waiting for 5 minutes
or more, start the hybrid sys-
tem again and check for the
multi-information display.

If the message does not disappear:

Stop the hybrid system and contact

your Toyota dealer.
If the message is not displayed:

The hybrid system temperature has

dropped and the vehicle may be

driven normally.
However, if the message appears

again frequently, contact your

Toyota dealer.

A

B

C

WARNING

■

When inspecting under the

hood of your vehicle

Observe the following precau-

tions.

Failure to do so may result in seri-

ous injury such as burns.

●

If steam is seen coming from

under the hood, do not open the

hood until the steam has sub-

sided. The engine compart-

ment may be very hot.

●

After the hybrid system has

been turned off, check that the

“READY” indicator is off.

When the hybrid system is oper-

ating, the gasoline engine may

automatically start, or the cool-

ing fan may suddenly operate

even if the gasoline engine

stops. Do not touch or approach

rotating parts such as the fan,

which may lead to fingers or

clothing (especially a tie, a scarf

or a muffler) getting caught,

resulting in serious injury.

●

Do not loosen the coolant reser-

voir cap while the hybrid system

and radiator are hot.

High temperature steam or

coolant could spray out.

NOTICE

■

When adding engine/power

control unit coolant

Add coolant slowly after the

hybrid system has cooled down

sufficiently. Adding cool coolant to

a hot hybrid system too quickly

can cause damage to the hybrid

system.

674

8-2. Steps to take in an emergency

1

Stop the hybrid system. Set
the parking brake and shift
the shift lever to P.

2

Remove the mud, snow or
sand from around the stuck
tire.

3

Place wood, stones or some
other material to help provide
traction under the tires.

4

Restart the hybrid system

5

Shift the shift lever to D or R
and release the parking
brake. Then, while exercising
caution, depress the acceler-
ator pedal.

■

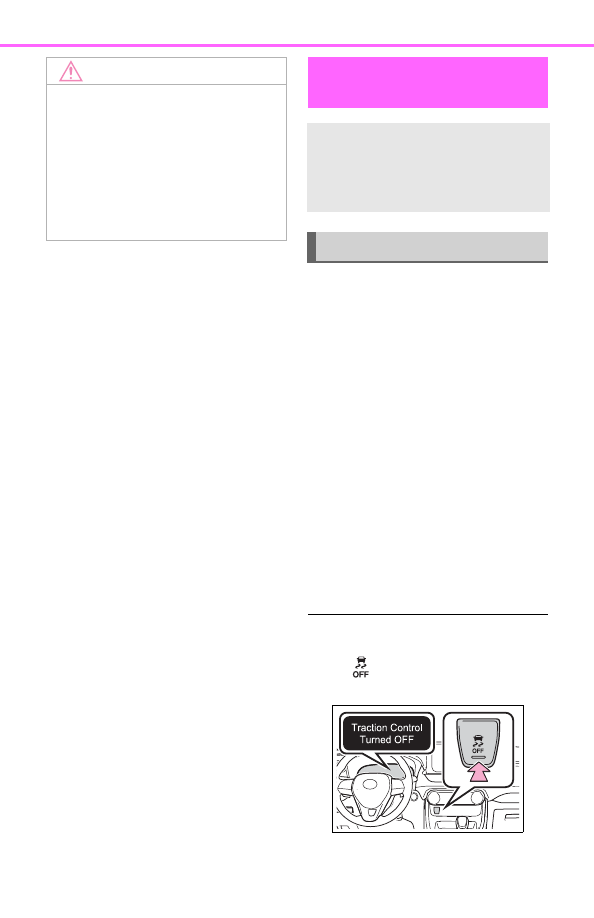

When it is difficult to free the

vehicle

Press

 to turn off TRAC.

(



P.370)

NOTICE

■

To prevent damage to the

cooling system

Observe the following precau-

tions:

●

Avoid contaminating the coolant

with foreign matter (such as

sand or dust, etc.).

●

Do not use any coolant additive.

If the vehicle becomes

stuck

Carry out the following pro-
cedures if the tires spin or
the vehicle becomes stuck
in mud, dirt or snow:

Recovering procedure

675

8-2. Steps to take in an emergency

8

When

 trou

ble arises

WARNING

■

When attempting to free a

stuck vehicle

If you choose to push the vehicle

back and forth to free it, make

sure the surrounding area is clear

to avoid striking other vehicles,

objects or people. The vehicle

may also lunge forward or lunge

back suddenly as it becomes free.

Use extreme caution.

■

When shifting the shift lever

Be careful not to shift the shift

lever with the accelerator pedal

depressed.
This may lead to unexpected

rapid acceleration of the vehicle

that may cause an accident

resulting in death or serious

injury.

NOTICE

■

To avoid damaging the trans-

mission and other compo-

nents

●

Avoid spinning the wheels and

depressing the accelerator

pedal more than necessary.

●

If the vehicle remains stuck

even after these procedures are

performed, the vehicle may

require towing to be freed.

676

8-2. Steps to take in an emergency

677

9

9

Vehicle specifications

Vehicle specifications

9-1. Specifications

Maintenance data (fuel, oil

level, etc.)..................

678

Fuel information ..........

688

Tire information ...........

690

9-2. Customization

Customizable features

700

9-3. Initialization

Items to initialize .........

711

678

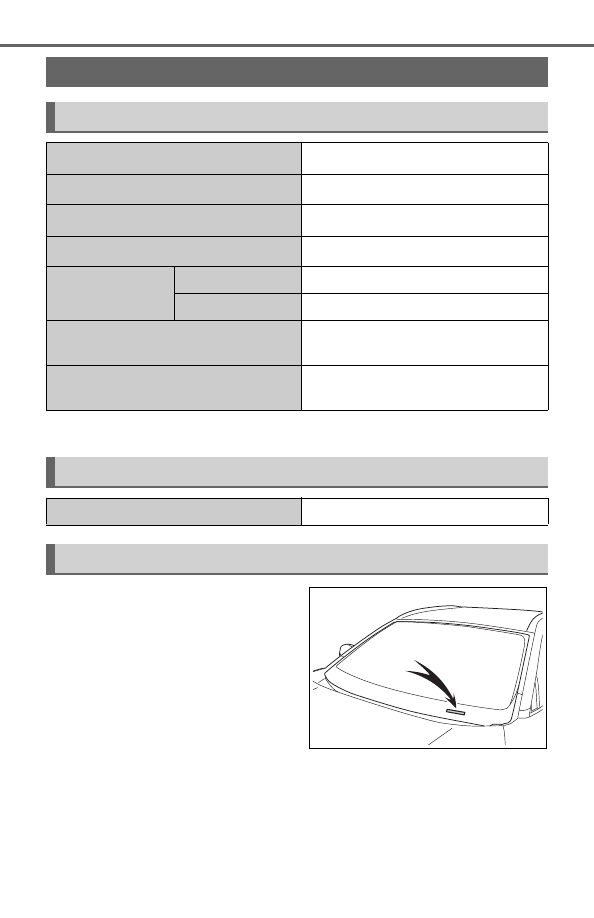

9-1. Specifications

9-1.Specifications

*

: Unladen vehicle

■

Vehicle identification num-
ber

The vehicle identification num-
ber (VIN) is the legal identifier
for your vehicle. This is the pri-
mary identification number for
your Toyota. It is used in regis-
tering the ownership of your
vehicle.
This number is stamped on the
top left of the instrument panel.

On some models, this number is
also stamped under the right-
hand front seat.

Maintenance data (fuel, oil level, etc.)

Dimensions and weights

Overall length

*

180.9 in. (4595 mm)

Overall width

*

73.0 in. (1855 mm)

Overall height

*

67.0 in. (1701 mm)

Wheelbase

*

105.9 in. (2690 mm)

Tread

*

Front

63.0 in. (1600 mm)

Rear

63.7 in. (1619 mm)

Vehicle capacity weight (Occupants +
luggage)

900 lb. (410 kg)

Trailer Weight Rating (Trailer weight
+ cargo weight)

1500 lb. (680 kg)

Seating capacity

Seating capacity

5 (Front 2, Rear 3)

Vehicle identification

679

9-1. Specifications

9

Vehicle specifications

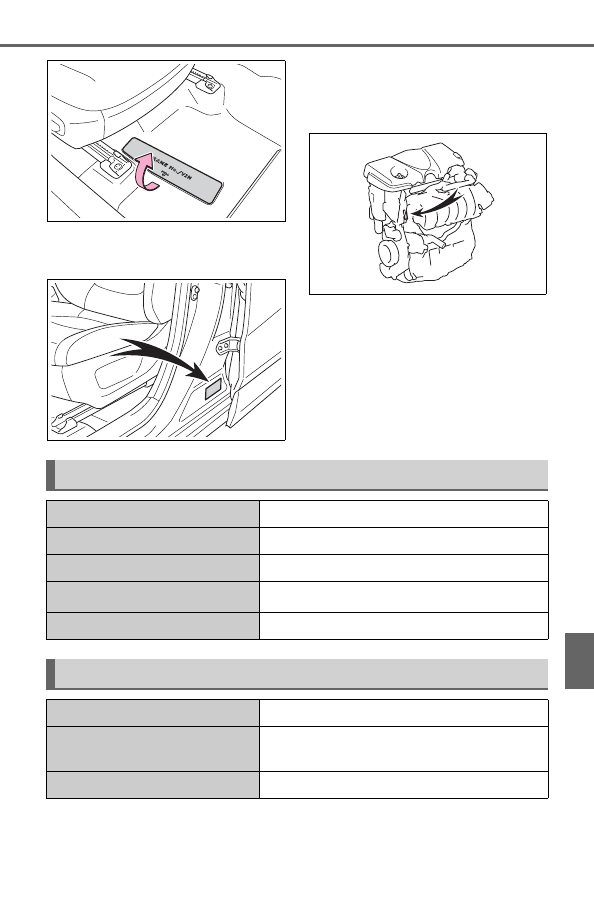

This number is also on the Certi-
fication Regulation Label.

■

Engine number

The engine number is stamped
on the engine block as shown.

Engine

Model

2.5 L 4-cylinder (A25A-FXS)

Type

4-cylinder in line, 4-cycle, gasoline

Bore and stroke

3.44



4.07 in. (87.50



103.48 mm)

Displacement

151.8 cu. in. (2487 cm

3

)

Valve clearance

Automatic adjustment

Fuel

Fuel type

Unleaded gasoline only

Octane Rating

87 (Research Octane Number 91) or
higher

Fuel tank capacity (Reference) 14.5 gal. (55 L, 12.1 Imp.gal.)

680

9-1. Specifications



Front



Rear

*

: The model code is indicated on the Certification Regulation Label.

(



P.678)

■

Oil capacity (Drain and refill



 reference

*

)

*

: The engine oil capacity is a reference quantity to be used when changing

the engine oil. Warm up and turn off the hybrid system, wait more than 5
minutes, and check the oil level on the dipstick.

■

Engine oil selection

“Toyota Genuine Motor Oil” is

used in your Toyota vehicle.
Use Toyota approved “Toyota

Electric motor (traction motor)

Type

Permanent magnet synchronous motor

Maximum output

88 kW

Maximum torque

149 ft•lbf (202 N•m, 20.6 kgf•m)

Type

Permanent magnet synchronous motor

Maximum output

40 kW

Maximum torque

89.2 ft•lbf (121 N•m, 12.3 kgf•m)

Hybrid battery (traction battery)

Model code

*

AXAH54L

AXAL54L

Type

Nickel-Metal hydride
battery

Lithium-ion battery

Voltage

7.2 V/module

3.7 V/cell

Capacity

6.5 Ah (3HR)

4.3 Ah

Quantity

34 modules

70 cells

Nominal voltage

244.8 V

259.0 V

Lubrication system

With filter

4.8 qt. (4.5 L, 4.0 Imp. qt.)

Without filter

4.4 qt. (4.2 L, 3.7 Imp. qt.)

681

9-1. Specifications

9

Vehicle specifications

Genuine Motor Oil” or equiva-
lent to satisfy the following
grade and viscosity.
Oil grade:
API SN/RC multigrade engine
oil
Recommended viscosity:
SAE 0W-16
SAE 0W-16 is the best choice
for good fuel economy and good
starting in cold weather.
If SAE 0W-16 is not available,
SAE 0W-20 oil may be used.
However, it must be replaced
with SAE 0W-16 at the next oil
change.

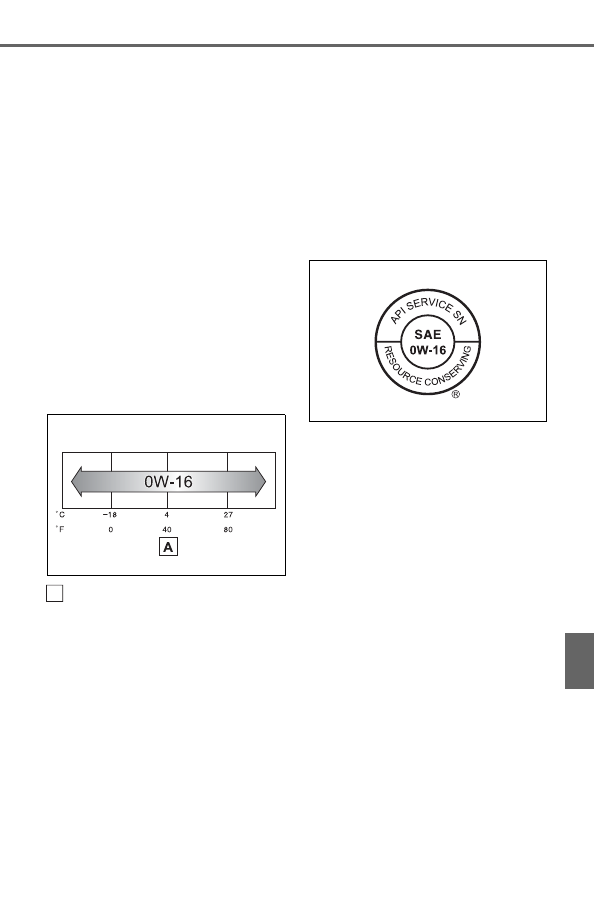

Outside temperature

Oil viscosity (0W-16 is explained
here as an example):
• The 0W in 0W-16 indicates

the characteristic of the oil
which allows cold startability.
Oils with a lower value before
the W allow for easier starting
of the engine in cold weather.

• The 16 in 0W-16 indicates the

viscosity characteristic of the
oil when the oil is at high tem-
perature. An oil with a higher

viscosity (one with a higher
value) may be better suited if
the vehicle is operated at high
speeds, or under extreme
load conditions.

How to read oil container label:
API registered mark is added to
some oil containers to help you
select the oil you should use.

A

682

9-1. Specifications

*

: The coolant capacity is the quantity of reference.

If replacement is necessary, contact your Toyota dealer.

Cooling system

Capacity

*

Gasoline engine

7.1 qt. (6.7 L, 5.9 Imp. qt.)

Power control unit 2.1 qt. (2.0 L, 1.8 Imp. qt.)

Coolant type

Use either of the following:



“Toyota Super Long Life Coolant”



Similar high-quality ethylene gly-
col-based non-silicate, non-amine,
non-nitrite, and non-borate cool-
ant with long-life hybrid organic
acid technology

Do not use plain water alone.

Ignition system (spark plug)

Make

DENSO FC16HR-Q8

Gap

0.031 in. (0.8 mm)

NOTICE

■

Iridium-tipped spark plugs

Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.

Electrical system (12-volt Battery)

Specific voltage reading at
68°F (20°C):

12.0 V or higher
(Turn the power switch to OFF and turn on
the high beam headlights for 30 seconds.)
If the voltage is lower than the standard
value, charge the battery.

Charging rates

Quick charge

15 A max.

Slow charge

5 A max.

683

9-1. Specifications

9

Vehicle specifications

*

: The fluid capacity is the quantity of reference.

If replacement is necessary, contact your Toyota dealer.

*

: The fluid capacity is the quantity of reference.

If replacement is necessary, contact your Toyota dealer.

*

: Minimum pedal clearance when depressed with a force of 67.4 lbf (300 N,

30.5 kgf) while the hybrid system is operating.

Hybrid transmission

Fluid capacity

*

4.1 qt. (3.9 L, 3.4 Imp.qt.)

Fluid type

Toyota Genuine ATF WS

NOTICE

■

Hybrid transmission fluid type

Using transmission fluid other than the above type may cause abnormal

noise or vibration, or ultimately damage the transmission of your vehicle.

Rear differential (rear electric motor)

Fluid capacity

*

1.8 qt. (1.7 L, 1.5 Imp.qt.)

Fluid type

Toyota Genuine ATF WS

NOTICE

■

Rear differential fluid type

Using differential fluid other than the above type may cause abnormal

noise or vibration, or ultimately damage the differential of your vehicle.

Brakes

Pedal clearance

*

4.9 in. (124 mm) Min.

Pedal free play

0.04



 0.24 in. (1.0



 6.0 mm)

Brake pad wear limit

0.04 in. (1.0 mm)

Fluid type

FMVSS No.116 DOT 3 or SAE J1703
FMVSS No.116 DOT 4 or SAE J1704

684

9-1. Specifications



Vehicles with 17-inch wheels (type A)



Vehicles with 17-inch wheels (type B)

Steering

Free play

Less than 1.2 in. (30 mm)

Tires and wheels

Tire size

225/65R17 102H, T165/80R17 104M
(spare)

Tire inflation pressure
(Recommended cold tire infla-
tion pressure)

Front:

36 psi (250 kPa, 2.5 kgf/cm

2

 or bar)

Rear:

36 psi (250 kPa, 2.5 kgf/cm

2

 or bar)

Spare:

60 psi (420 kPa, 4.2 kgf/cm

2

 or bar)

Wheel size

17 x 7J, 17 x 4T (spare)

Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

Tire size

225/65R17 102H, T165/80D17 104M
(spare)

Tire inflation pressure
(Recommended cold tire infla-
tion pressure)

Front:

33 psi (230 kPa, 2.3 kgf/cm

2

 or bar)

Rear

33 psi (230 kPa, 2.3 kgf/cm

2

 or bar)

Spare:

60 psi (420 kPa, 4.2 kgf/cm

2

 or bar)

Wheel size

17 x 7J, 17 x 4T (spare)

Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

685

9-1. Specifications

9

Vehicle specifications



Vehicles with 17-inch wheels (type C)



Vehicles with 18-inch wheels (type A)

Tire size

225/65R17 102H, T165/80D17 104M
(spare)

Tire inflation pressure
(Recommended cold tire infla-
tion pressure)

Front:

36 psi (250 kPa, 2.5 kgf/cm

2

 or bar)

Rear:

36 psi (250 kPa, 2.5 kgf/cm

2

 or bar)

Spare:

60 psi (420 kPa, 4.2 kgf/cm

2

 or bar)

Wheel size

17 x 7J, 17 x 4T (spare)

Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

Tire size

225/60R18 100H, T165/80R17 104M
(spare)

Tire inflation pressure
(Recommended cold tire infla-
tion pressure)

Front:

33 psi (230 kPa, 2.3 kgf/cm

2

 or bar)

Rear:

33 psi (230 kPa, 2.3 kgf/cm

2

 or bar)

Spare:

60 psi (420 kPa, 4.2 kgf/cm

2

 or bar)

Wheel size

18 x 7J, 17 x 4T (spare)

Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

686

9-1. Specifications



Vehicles with 18-inch wheels (type B)

A: Wedge base bulbs (clear)
B: H16 halogen bulbs
C: Wedge base bulbs (amber)

Tire size

225/60R18 100H, T165/80D17 104M
(spare)

Tire inflation pressure
(Recommended cold tire infla-
tion pressure)

Front:

33 psi (230 kPa, 2.3 kgf/cm

2

 or bar)

Rear:

33 psi (230 kPa, 2.3 kgf/cm

2

 or bar)

Spare:

60 psi (420 kPa, 4.2 kgf/cm

2

 or bar)

Wheel size

18 x 7J, 17 x 4T (spare)

Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

Light bulbs

Light bulbs

Bulb No.

W

Type

Exterior

Front side marker lights

W5W

5

A

Fog lights

*1



19

B

Front turn signal/parking lights
(type A:



P.620)

7444NA

28/8

C

Front turn signal lights (type B:



P.620)

7444NA 28/8

*2

C

Rear turn signal lights

WY21W

21

C

Back-up lights

W16W

16

A

Outer foot lights

*1



5

A

Interior

Vanity lights



8

A

Interior lights (front)/personal lights



5

A

Interior light (rear)



8

D

Luggage compartment light



5

A

687

9-1. Specifications

9

Vehicle specifications

D: Double end bulbs (clear)

*1

:If equipped

*2

:The 28/8 W bulb is used. However, only the 28 W filament illuminates.

688

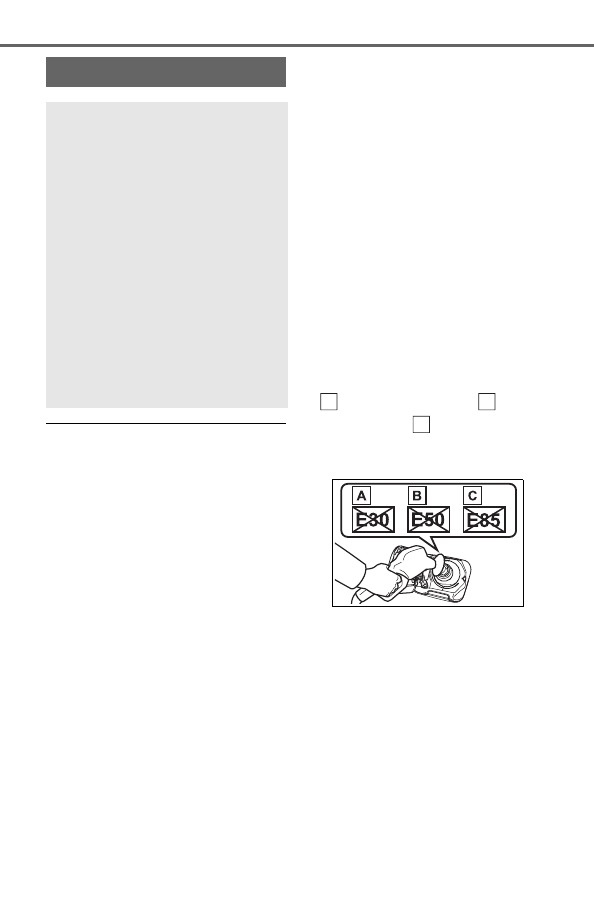

9-1. Specifications

■

Gasoline quality

In very few cases, driveability prob-

lems may be caused by the brand of

gasoline you are using. If driveability

problems persist, try changing the

brand of gasoline. If this does not

correct the problem, consult your

Toyota dealer.

■

Recommendation of the use of

gasoline containing detergent

additives

●

Toyota recommends the use of

gasoline that contains detergent

additives to avoid the build-up of

engine deposits.

●

All gasoline sold in the U.S.A. con-

tains minimum detergent additives

to clean and/or keep clean intake

systems, per EPA’s lowest addi-

tives concentration program.

●

Toyota strongly recommends the

use of Top Tier Detergent Gaso-

line. For more information on Top

Tier Detergent Gasoline and a list

of marketers, please go to the offi-

cial website www.toptiergas.com.

■

Recommendation of the use of

low emissions gasoline

Gasolines containing oxygenates

such as ethers and ethanol, as well

as reformulated gasolines, are avail-

able in some cities. These fuels are

typically acceptable for use, provid-

ing they meet other fuel require-

ments.
Toyota recommends these fuels,

since the formulations allow for

reduced vehicle emissions.

■

Non-recommendation of the

use of blended gasoline

●

Use only gasoline containing up to

15% ethanol.

DO NOT use any flex-fuel or gas-

oline that could contain more than

15% ethanol, including from any

pump labeled E30 (30% ethanol

), E50 (50% ethanol

), E85

(85% ethanol

) (which are only

some examples of fuel containing

more than 15% ethanol).

●

If you use gasohol in your vehicle,

be sure that it has an octane rat-

ing no lower than 87.

●

Toyota does not recommend the

use of gasoline containing metha-

nol.

■

Non-recommendation of the

use of gasoline containing MMT

Some gasoline contains an octane

enhancing additive called MMT

(Methylcyclopentadienyl Manga-

nese Tricarbonyl).
Toyota does not recommend the

use of gasoline that contains MMT.

If fuel containing MMT is used, your

Fuel information

You must only use unleaded
gasoline in your vehicle.

Select octane rating 87
(Research Octane Number
91) or higher. Use of
unleaded gasoline with an
octane rating lower than 87
may result in engine knock-
ing. Persistent knocking
can lead to engine damage.

At minimum, the gasoline you
use should meet the specifica-
tions of ASTM D4814 in the
U.S.A..

A

B

C

689

9-1. Specifications

9

Vehicle specifications

emission control system may be

adversely affected.
The malfunction indicator lamp on

the instrument cluster may come on.

If this happens, contact your Toyota

dealer for service.

■

If your engine knocks

●

Consult your Toyota dealer.

●

You may occasionally notice light

knocking for a short time while

accelerating or driving uphill. This

is normal and there is no need for

concern.

NOTICE

■

Notice on fuel quality

●

Do not use improper fuels. If

improper fuels are used, the

engine will be damaged.

●

Do not use leaded gasoline.

Leaded gasoline can cause

damage to your vehicle’s three-

way catalytic converters caus-

ing the emission control system

to malfunction.

●

Do not use gasohol other than

the type previously stated.

Other gasohol may cause fuel

system damage or vehicle per-

formance problems.

●

Using unleaded gasoline with

an octane number or rating

lower than the level previously

stated will cause persistent

heavy knocking.

At worst, this will lead to engine

damage.

■

Fuel-related poor driveability

If poor driveability (poor hot start-

ing, vaporization, engine knock-

ing, etc.) is encountered after

using a different type of fuel, dis-

continue the use of that type of

fuel.

■

When refueling with gasohol

Take care not to spill gasohol. It

can damage your vehicle’s paint.

690

9-1. Specifications



Full-size tire



Compact spare tire

Tire size (



P.692)

DOT and Tire Identification Number (TIN) (



P.691)

Location of treadwear indicators (



P.588)

Tire ply composition and materials

Plies are layers of rubber-coated parallel cords. Cords are the strands
which form the plies in a tire.

Tire information

Typical tire symbols

A

B

C

D

691

9-1. Specifications

9

Vehicle specifications

Radial tires or bias-ply tires

A radial tire has “RADIAL” on the sidewall. A tire not marked “RADIAL” is a
bias-ply tire.

TUBELESS or TUBE TYPE

A tubeless tire does not have a tube and air is directly put into the tire. A
tube type tire has a tube inside the tire and the tube maintains the air pres-
sure.

Load limit at maximum cold tire inflation pressure (



P.694)

Maximum cold tire inflation pressure (



P.694)

This means the pressure to which a tire may be inflated.

Uniform tire quality grading

For details, see “Uniform Tire Quality Grading” that follows.

Summer tires or all season tires (



P.589)

An all season tire has “M+S” on the sidewall. A tire not marked “M+S” is a
summer tire.

“TEMPORARY USE ONLY”

A compact spare tire is identified by the phrase “TEMPORARY USE ONLY”
molded on its sidewall. This tire is designed for temporary emergency use
only.



Type A

DOT symbol

*

Tire Identification Number
(TIN)

Tire manufacturer’s identifi-
cation mark

Tire size code

Manufacturer’s optional tire
type code (3 or 4 letters)

Manufacturing week

Manufacturing year

*

: The DOT symbol certifies that the

tire conforms to applicable Fed-
eral Motor Vehicle Safety Stan-
dards.

E

F

G

H

I

J

K

Typical DOT and Tire
Identification Number
(TIN)

A

B

C

D

E

F

G

692

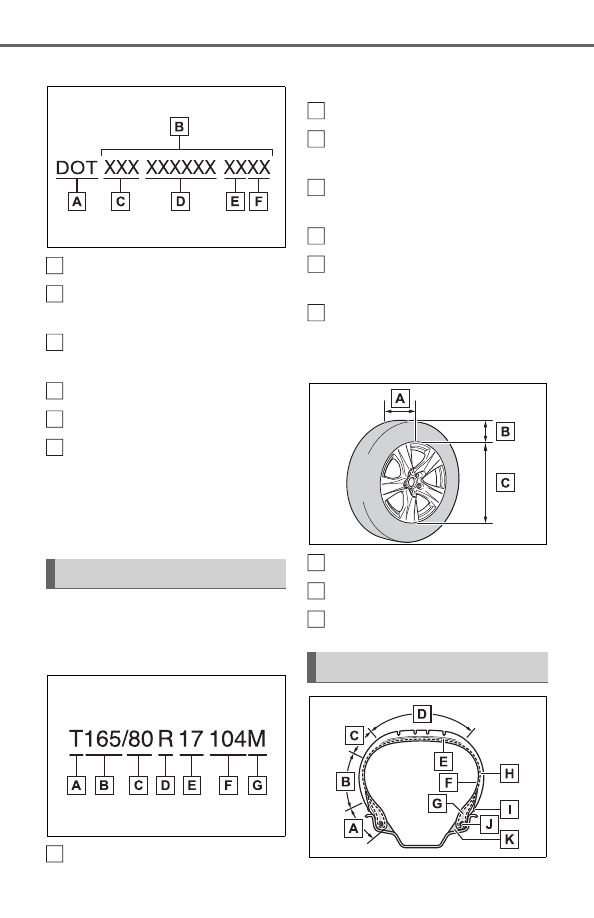

9-1. Specifications



Type B

DOT symbol

*

Tire Identification Number
(TIN)

Tire manufacturer’s identifi-
cation mark

Manufacturer’s code

Manufacturing week

Manufacturing year

*

: The DOT symbol certifies that the

tire conforms to applicable Fed-
eral Motor Vehicle Safety Stan-
dards.

■

Typical tire size information

The illustration indicates typical
tire size.

Tire use

(P = Passenger car,
T = Temporary use)

Section width (millimeters)

Aspect ratio
(tire height to section width)

Tire construction code
(R = Radial, D = Diagonal)

Wheel diameter (inches)

Load index (2 digits or 3 dig-
its)

Speed symbol (alphabet with
one letter)

■

Tire dimensions

Section width

Tire height

Wheel diameter

Tire size

A

B

C

D

E

F

A

Tire section names

B

C

D

E

F

G

A

B

C

693

9-1. Specifications

9

Vehicle specifications

Bead

Sidewall

Shoulder

Tread

Belt

Inner liner

Reinforcing rubber

Carcass

Rim lines

Bead wires

Chafer

This information has been pre-
pared in accordance with regu-
lations issued by the National
Highway Traffic Safety Adminis-
tration of the U.S. Department of
Transportation.
It provides the purchasers
and/or prospective purchasers
of Toyota vehicles with informa-
tion on uniform tire quality grad-
ing.

Your Toyota dealer will help answer
any questions you may have as you
read this information.

■

DOT quality grades

All passenger vehicle tires must
conform to Federal Safety
Requirements in addition to
these grades. Quality grades
can be found where applicable

on the tire sidewall between
tread shoulder and maximum
section width.

For example: Treadwear 200 Trac-
tion AA Temperature A

■

Treadwear

The treadwear grade is a com-
parative rating based on the
wear rate of the tire when tested
under controlled conditions on a
specified government test
course.

For example, a tire graded 150
would wear one and a half (1 - 1/2)
times as well on the government
course as a tire graded 100.
The relative performance of tires
depends upon the actual conditions
of their use. Performance may dif-
fer significantly from the norm due
to variations in driving habits, ser-
vice practices and differences in
road characteristics and climate.

■

Traction AA, A, B, C

The traction grades, from high-
est to lowest, are AA, A, B and
C, and they represent the tire’s
ability to stop on wet pavement
as measured under controlled
conditions on specified govern-
ment test surfaces of asphalt
and concrete.

A tire marked C may have poor
traction performance.
Warning: The traction grade
assigned to this tire is based on
braking (straight ahead) traction
tests and does not include corner-
ing (turning) traction.

Uniform Tire Quality
Grading

A

B

C

D

E

F

G

H

I

J

K

694

9-1. Specifications

■

Temperature A, B, C

The temperature grades are A
(the highest), B, and C, repre-
senting the tire’s resistance to
the generation of heat and its
ability to dissipate heat when
tested under controlled condi-
tions on a specified indoor labo-
ratory test wheel.

Sustained high temperature can
cause the material of the tire to
degenerate and reduce tire life, and
excessive temperature can lead to
sudden tire failure.
Grade C corresponds to a level of

performance which all passenger
car tires must meet under the Fed-
eral Motor Vehicle Safety Standard
No. 109.
Grades B and A represent higher
levels of performance on the labo-
ratory test wheel than the minimum
required by law.
Warning: The temperature grades
of a tire assume that it is properly
inflated and not overloaded.
Excessive speed, underinflation, or
excessive loading, either sepa-
rately or in combination, can cause
heat buildup and possible tire fail-
ure.

Glossary of tire terminology

Tire related term

Meaning

Cold tire inflation pres-
sure

Tire pressure when the vehicle has been parked
for three hours or more, or has not been driven
more than 1 mile or 1.5 km under that condition

Maximum inflation pres-
sure

The maximum cold inflated pressure to which a
tire may be inflated, shown on the sidewall of
the tire

Recommended inflation
pressure

Cold tire inflation pressure recommended by a
manufacturer

Accessory weight

The combined weight (in excess of those stan-
dard items which may be replaced) of transmis-
sion, power steering, power brakes, power
windows, power seats, radio and heater, to the
extent that these items are available as factory-
installed equipment (whether installed or not)

Curb weight

The weight of a motor vehicle with standard
equipment, including the maximum capacity of
fuel, oil and coolant, and if so equipped, air con-
ditioning and additional weight optional engine

695

9-1. Specifications

9

Vehicle specifications

Maximum loaded vehicle
weight

The sum of:
(a) Curb weight
(b) Accessory weight
(c) Vehicle capacity weight
(d) Production options weight

Normal occupant weight

150 lb. (68 kg) times the number of occupants
specified in the second column of Table 1

*

 that

follows

Occupant distribution

Distribution of occupants in a vehicle as speci-
fied in the third column of Table 1

*

 below

Production options weight

The combined weight of installed regular pro-
duction options weighing over 5 lb. (2.3 kg) in
excess of the standard items which they
replace, not previously considered in curb
weight or accessory weight, including heavy
duty brakes, ride levelers, roof rack, heavy duty
battery, and special trim

Rim

A metal support for a tire or a tire and tube
assembly upon which the tire beads are seated

Rim diameter
(Wheel diameter)

Nominal diameter of the bead seat

Rim size designation

Rim diameter and width

Rim type designation

The industry manufacturer’s designation for a
rim by style or code

Rim width

Nominal distance between rim flanges

Vehicle capacity weight
(Total load capacity)

The rated cargo and luggage load plus 150 lb.
(68 kg) times the vehicle’s designated seating
capacity

Vehicle maximum load on
the tire

The load on an individual tire that is determined
by distributing to each axle its share of the max-
imum loaded vehicle weight, and dividing by two

Vehicle normal load on
the tire

The load on an individual tire that is determined
by distributing to each axle its share of curb
weight, accessory weight, and normal occupant
weight (distributed in accordance with Table 1

*



below), and dividing by two

Tire related term

Meaning

696

9-1. Specifications

Weather side

The surface area of the rim not covered by the
inflated tire

Bead

The part of the tire that is made of steel wires,
wrapped or reinforced by ply cords and that is
shaped to fit the rim

Bead separation

A breakdown of the bond between components
in the bead

Bias ply tire

A pneumatic tire in which the ply cords that
extend to the beads are laid at alternate angles
substantially less than 90 degrees to the center-
line of the tread

Carcass

The tire structure, except tread and sidewall
rubber which, when inflated, bears the load

Chunking

The breaking away of pieces of the tread or
sidewall

Cord

The strands forming the plies in the tire

Cord separation

The parting of cords from adjacent rubber com-
pounds

Cracking

Any parting within the tread, sidewall, or inner-
liner of the tire extending to cord material

CT

A pneumatic tire with an inverted flange tire and
rim system in which the rim is designed with rim
flanges pointed radially inward and the tire is
designed to fit on the underside of the rim in a
manner that encloses the rim flanges inside the
air cavity of the tire

Extra load tire

A tire designed to operate at higher loads and at
higher inflation pressures than the correspond-
ing standard tire

Groove

The space between two adjacent tread ribs

Innerliner

The layer(s) forming the inside surface of a
tubeless tire that contains the inflating medium
within the tire

Innerliner separation

The parting of the innerliner from cord material
in the carcass

Tire related term

Meaning

697

9-1. Specifications

9

Vehicle specifications

Intended outboard side-
wall

(a)The sidewall that contains a whitewall, bears
white lettering, or bears manufacturer, brand,
and/or model name molding that is higher or
deeper than the same molding on the other
sidewall of the tire, or
(b)The outward facing sidewall of an asymmetri-
cal tire that has a particular side that must
always face outward when mounted on a vehi-
cle

Light truck (LT) tire

A tire designated by its manufacturer as primar-
ily intended for use on lightweight trucks or mul-
tipurpose passenger vehicles

Load rating

The maximum load that a tire is rated to carry
for a given inflation pressure

Maximum load rating

The load rating for a tire at the maximum per-
missible inflation pressure for that tire

Maximum permissible
inflation pressure

The maximum cold inflation pressure to which a
tire may be inflated

Measuring rim

The rim on which a tire is fitted for physical
dimension requirements

Open splice

Any parting at any junction of tread, sidewall, or
innerliner that extends to cord material

Outer diameter

The overall diameter of an inflated new tire

Overall width

The linear distance between the exteriors of the
sidewalls of an inflated tire, including elevations
due to labeling, decorations, or protective bands
or ribs

Passenger car tire

A tire intended for use on passenger cars, multi-
purpose passenger vehicles, and trucks, that
have a gross vehicle weight rating (GVWR) of
10,000 lb. or less.

Ply

A layer of rubber-coated parallel cords

Ply separation

A parting of rubber compound between adjacent
plies

Tire related term

Meaning

698

9-1. Specifications

Pneumatic tire

A mechanical device made of rubber, chemi-
cals, fabric and steel or other materials, that,
when mounted on an automotive wheel, pro-
vides the traction and contains the gas or fluid
that sustains the load

Radial ply tire

A pneumatic tire in which the ply cords that
extend to the beads are laid at substantially 90
degrees to the centerline of the tread

Reinforced tire

A tire designed to operate at higher loads and at
higher inflation pressures than the correspond-
ing standard tire

Section width

The linear distance between the exteriors of the
sidewalls of an inflated tire, excluding elevations
due to labeling, decoration, or protective bands

Sidewall

That portion of a tire between the tread and
bead

Sidewall separation

The parting of the rubber compound from the
cord material in the sidewall

Snow tire

A tire that attains a traction index equal to or
greater than 110, compared to the ASTM E-
1136 Standard Reference Test Tire, when using
the snow traction test as described in ASTM F-
1805-00, Standard Test Method for Single
Wheel Driving Traction in a Straight Line on
Snow-and Ice-Covered Surfaces, and which is
marked with an Alpine Symbol (

) on at least

one sidewall

Test rim

The rim on which a tire is fitted for testing, and
may be any rim listed as appropriate for use
with that tire

Tread

That portion of a tire that comes into contact
with the road

Tread rib

A tread section running circumferentially around
a tire

Tread separation

Pulling away of the tread from the tire carcass

Tire related term

Meaning

699

9-1. Specifications

9

Vehicle specifications

*

: Table 1



 Occupant loading and distribution for vehicle normal load for

various designated seating capacities

Treadwear indicators
(TWI)

The projections within the principal grooves
designed to give a visual indication of the
degrees of wear of the tread

Wheel-holding fixture

The fixture used to hold the wheel and tire
assembly securely during testing

Designated seating

capacity, Number of

occupants

Vehicle normal load,

Number of occupants

Occupant distribution in

a normally loaded vehi-

cle

2 through 4

2

2 in front

5 through 10

3

2 in front, 1 in second

seat

11 through 15

5

2 in front, 1 in second

seat, 1 in third seat, 1 in

fourth seat

16 through 20

7

2 in front, 2 in second

seat, 2 in third seat, 1 in

fourth seat

Tire related term

Meaning

700

9-2. Customization

9-2.Customization

■

Changing using the naviga-
tion/multimedia system

1

Press the “MENU” button.

2

Select “Setup” on the menu
screen and select “Vehicle”.

3

Select “Vehicle Customiza-
tion”.

Various setting can be changed.

Refer to the list of settings that can

be changed for details.

■

Changing using the multi-
information display

1

Press

 or

 of the meter

control switches and select

.

2

Press

 or

 of the meter

control switches, select the
item.

3

To switch the function on and
off, press

 to switch to the

desired setting.

4

To perform detailed setting of
functions that support
detailed settings, press and
hold

 and display the set-

ting screen.

The method of performing detailed

setting differs for each screen.

Please refer to the advice sentence

displayed on the screen.
To go back to the previous screen

or exit the customize mode, press

.

■

When customizing using the

navigation/multimedia system

or multi-information display

Stop the vehicle in a safe place,

apply the parking brake, and shift

the shift lever to P. Also, to prevent

12-volt battery discharge, leave the

hybrid system operating while cus-

tomizing the features.

Customizable features

Your vehicle includes a vari-
ety of electronic features
that can be personalized to
suit your preferences. The
settings of these features
can be changed using the
multi-information display,
navigation/multimedia sys-
tem, or at your Toyota
dealer.

Customizing vehicle fea-
tures

WARNING

■

During customization

As the hybrid system needs to be

operating during customization,

ensure that the vehicle is parked

in a place with adequate ventila-

tion. In a closed area such as a

garage, exhaust gases including

harmful carbon monoxide (CO)

may collect and enter the vehicle.

This may lead to death or a seri-

ous health hazard.

NOTICE

■

During customization

To prevent 12-volt battery dis-

charge, ensure that the hybrid

system is operating while custom-

izing features.

701

9-2. Customization

9

Vehicle specifications

Some function settings are changed simultaneously with other func-
tions being customized. Contact your Toyota dealer for further
details.

Vehicles with navigation system or multimedia system: Settings

that can be changed using the navigation system or multimedia sys-
tem

Settings that can be changed using the multi-information display
Settings that can be changed by your Toyota dealer

Definition of symbols: O = Available, – =Not available

■

Gauges, meters and multi-information display (



P.94, 98,

103)

Customizable Features

Function

*1

Default setting

Customized

setting

Language

*2

“English”
(English)

“Français can-

adien” (Cana-

dian French)

O

O

–

“Español mexi-

cano” (Mexi-

can Spanish)

Units

*2

miles (MPG

US)

km (km/L)

O

O

–

km (L/100 km)

miles (MPG

Imperial)

Speedometer display

*3

Analog

Digital

–

O

–

EV indicator

On

Off

–

O

–

“Eco Guidance” (ECO Accel-
erator Guidance)

On

Off

–

O

–

“Fuel Economy”

“Total Aver-

age”

“Trip Average”

–

O

–

“Tank Aver-

age”

Audio system linked display

On

Off

–

O

–

Energy monitor

On

Off

–

O

–

A

B

C

A

B

C

702

9-2. Customization

*1

:For details about each function:



P.108

*2

:The default setting varies according to country.

*3

:Vehicles with 7-inch display only

■

Door lock (



P.128, 664)

AWD system display

On

Off

–

O

–

Drive information type

Trip

Total

–

O

–

Drive information items (first
item)

Distance

Average

Speed

–

O

–

Total Time

Drive information items (sec-
ond item)

Total Time

Average

Speed

–

O

–

Distance

“Trip Summary”

“ECO Guid-

ance”

“Drive Info”

–

O

–

Pop-up display

On

Off

–

O

–

Multi-Information display off

Off

On

–

O

–

Suggestion function

On

On (when the

vehicle is

stopped)

O

–

O

Off

Function

Default setting

Customized

setting

Unlocking using a key

Driver’s door

unlocked in

first step, all

doors

unlocked in

second step

All doors

unlocked in

first step

–

–

O

Automatic door locking func-
tion

Shift position

linked door

locking opera-

tion

Off

O

–

O

Speed linked

door locking

operation

Function

*1

Default setting

Customized

setting

A

B

C

A

B

C

703

9-2. Customization

9

Vehicle specifications

■

Smart key system

*

 and wireless remote control (



P.124, 148)

*

: If equipped

■

Smart key system

*1

 (



P.148)

*1

:If equipped

*2

:This setting can be changed when the smart door unlocking setting is set

Automatic door unlocking
function

Shift position

linked door

unlocking
operation

Off

O

–

O

Driver’s door

linked door

unlocking
operation

Function

Default setting

Customized

setting

Operation signal (emer-
gency flashers)

On

Off

O

–

O

Operation buzzer volume

5

Off

O

–

O

1 to 7

Time elapsed before the
automatic door lock function
is activated if a door is not
opened after being unlocked

60 seconds

Off

O

–

O

30 seconds

120 seconds

Open door reminder buzzer
(When locking the vehicle)

On

Off

–

–

O

Function

Default setting

Customized

setting

Smart key system

On

Off

–

–

O

Smart door unlocking

Driver’s door

All the doors

O

–

O

Number of consecutive door
lock operations

2 times

As many as

desired

–

–

O

Time elapsed before unlock-
ing all the door when gripping
and holding the driver’s door
handle

*2

2 seconds

Off

–

–

O

1.5 seconds

2.5 seconds

Function

Default setting

Customized

setting

A

B

C

A

B

C

A

B

C

704

9-2. Customization

to Driver’s door.

■

Wireless remote control (



P.124)

*

: If equipped

■

Power back door

*1

 (



P.138)

Function

Default setting

Customized

setting

Wireless remote control

On

Off

–

–

O

Unlocking operation

Driver’s door

unlocked in

first step, all

doors

unlocked in

second step

All doors

unlocked in

first step

O

–

O

Theft deterrent panic mode

On

Off

–

–

O

Locking operation when door
opened

On

Off

O

–

O

The function that activates
the

 switch of the wire-

less remote control when
locking the door

*

 (



P.138)

On (Unlocking

all the door)

Off

–

–

O

On (Unlocking

back door

only)

Function

Default setting

Customized

setting

Power back door operations

On

Off

–

O

–

Back door opener switch
operations

Press and hold

One short

press

–

–

O

 switch of the wireless

remote control operation

Press and hold

One short

press

–

–

O

Push twice

Off

Operation buzzer volume

3

1

–

O

–

2

Operation buzzer while the
back door is operating

*2

Off

On

–

–

O

A

B

C

A

B

C

705

9-2. Customization

9

Vehicle specifications

*1

:If equipped

*2

:The operation buzzer that sounds when the back door begins to operate

cannot be turned off.

*3

:The open position is set by the power back door switch. (



P.147)

*4

:When the towing hitch is installed, Hands Free Power Back Door does

not work.

■

Driving position memory

*

 (



P.157)

*

: If equipped

■

Power windows, and moon roof

*

 or panoramic moon roof

*



(



P.176, 179, 182)

Opening angle

5

1 to 4

–

O

–

User setting

*3

Power back door open oper-
ation when the back door
opener switch is pressed

On

Off

–

–

O

Back door closing assist

On

Off

–

–

O

Hands Free Power Back
Door

*1, 4

On

Off

–

O

O

Function

Default setting

Customized

setting

Selection the door linking
driving position memory with
door unlock operation

Driver’s door

All doors

–

–

O

Function to prevent contact
between the head restraint
and ceiling (while moving to
memory location)

On

Off

–

–

O

Function

Default setting

Customized

setting

Key linked operation (open)

Off

On

–

–

O

Key linked operation (close)

Off

On

–

–

O

Function

Default setting

Customized

setting

A

B

C

A

B

C

A

B

C

706

9-2. Customization

*

: If equipped

■

Lights (



P.229)

*1

:Except for Canada

*2

:If equipped

■

Automatic light control system

*

 (



P.229)

*

: If equipped

Wireless remote control
linked operation (open)

Off

On

–

–

O

Wireless remote control
linked operation signal
(buzzer)

On

Off

–

–

O

Side windows open warning
function

On

Off

–

–

O

Sliding roof open warning
function

On

Off

–

–

O

Function

Default setting

Customized

setting

Daytime Running Lights

*1

On

Off

O

–

O

Light reminder buzzer

On

Off

–

–

O

AFS (Adaptive Front-lighting
System)

*2

On

Off

–

–

O

Function

Default setting

Customized

setting

Light sensor sensitivity

Standard

–2 to 2

O

–

O

Time elapsed before head-
lights automatically turn off
after doors are closed

30 seconds

Off

O

–

O

60 seconds

90 seconds

Windshield wiper linked
headlight illumination

On

Off

–

–

O

Function

Default setting

Customized

setting

A

B

C

A

B

C

A

B

C

707

9-2. Customization

9

Vehicle specifications

■

Rear window wiper (



P.239)

■

PCS (Pre-Collision System) (



P.250)

■

LTA (Lane Tracing Assist) (



P.258)

■

RSA (Road Sign Assist)

*

 (



P.268)

Function

Default setting

Customized

setting

Back door opening linked
rear window wiper stop func-
tion

Off

On

–

–

O

Washer linked rear window
wiper operation

On

Off

–

–

O

Shift position linked rear win-
dow wiper operation
(



P.239)

Only once

Off

–

–

O

Continuous

Function

Default setting

Customized

setting

PCS (Pre-Collision System)

On

Off

–

O

–

Adjust alert timing

Middle

Early

–

O

–

Late

Function

Default setting

Customized

setting

Lane centering function

On

Off

–

O

–

Steering assist function

On

Off

–

O

–

Alert sensitivity

High

Standard

–

O

–

Vehicle sway warning func-
tion

On

Off

–

O

–

Vehicle sway warning sensi-
tivity

Standard

Low

–

O

–

High

Function

Default setting

Customized

setting

RSA (Road Sign Assist)

On

Off

–

O

–

A

B

C

A

B

C

A

B

C

A

B

C

708

9-2. Customization

*

: If equipped

■

BSM (Blind Spot Monitor)

*

 (



P.282)

*

: If equipped

■

RCTA (Rear cross traffic alert) function

*1

 (



P.282)

*1

:If equipped

Excess speed notification
method

Display only

No notification

–

O

–

Display and

buzzer

Excess speed notification
level

1 mph (2 km/h)

3 mph (5 km/h)

–

O

–

5 mph (10

km/h)

Other notifications method
(No-entry notification)

Display only

No notification

–

O

–

Display and

buzzer

Function

Default setting

Customized

setting

BSM (Blind Spot Monitor)

On

Off

–

O

–

Outside rear view mirror indi-
cator brightness

Bright

Dim

–

O

–

Alert timing for presence of
approaching vehicle (sensi-
tivity)

Intermediate

Early

–

O

–

Late

Only when

vehicle

detected in

blind spot

Function

Default setting

Customized

setting

RCTA (Rear cross traffic
alert) function

On

Off

–

O

–

Buzzer volume

*2

Level 2

Level 1

–

O

–

Level 3

Function

Default setting

Customized

setting

A

B

C

A

B

C

A

B

C

709

9-2. Customization

9

Vehicle specifications

*2

:This setting is linked with the buzzer volume of the intuitive parking

assist.

■

Intuitive parking assist

*1

 (



P.291)

*1

:If equipped

*2

:This setting is linked with the buzzer volume of the RCTA (Rear cross

traffic alert) function.

■

PKSB (Parking Support Brake)

*

 (



P.298)

*

: If equipped

■

Automatic air conditioning system (



P.522)

■

Illumination (



P.532)

Function

Default setting

Customized

setting

Intuitive parking assist

On

Off

–

O

O

Buzzer volume

*2

2

1

–

O

O

3

Function

Default setting

Customized

setting

PKSB (Parking Support
Brake) function

On

Off

–

O

–

Function

Default setting

Customized

setting

A/C Auto switch operation

On

Off

O

–

O

Switching to the outside air
mode when the vehicle is
parked

On

Off

–

–

O

Function

Default setting

Customized

setting

Time elapsed before the inte-
rior lights turn off

15 seconds

Off

O

–

O

7.5 seconds

30 seconds

Operation after the power
switch is turned off

On

Off

–

–

O

A

B

C

A

B

C

A

B

C

A

B

C

710

9-2. Customization

*1

:Vehicles with smart key system only

*2

:If equipped

■

Vehicle customization

●

When the speed linked door locking function and shift position linked door

locking function are both on, the door lock operates as follows.

• If the vehicle is started with all the doors locked, the speed linked door

locking function would not operate.

• If the vehicle is started with any door unlocked, the speed linked door lock-

ing function will operate.

• When shifting the shift lever to any position other than P, all the doors will

be locked.

●

When the smart key system is off, the selecting door to unlock cannot be

customized.

●

When the doors remain closed after unlocking the doors and the auto-

matic door lock function is activated, the signals will be generated in

accordance with the Operation signal (buzzer) and the Operation signal

(emergency flashers) settings.

Operation when the doors
are unlocked

On

Off

–

–

O

Operation when you
approach the vehicle with the
electronic key on your per-
son

*1

On

Off

–

–

O

Footwell lighting

*2

On

Off

–

–

O

Function

Default setting

Customized

setting

A

B

C

711

9-3. Initialization

9

Vehicle specifications

9-3.Initialization

*1

:If equipped

*2

:Vehicles with Audio Plus or Premium Audio, refer to “NAVIGATION AND

MULTIMEDIA SYSTEM OWNER’S MANUAL”.

Items to initialize

The following items must be initialized for normal system
operation after such cases as the battery being reconnected,
or maintenance being performed on the vehicle:

List of the items to initialize

Item

When to initialize

Reference

Power back door

*1

• After reconnecting or chang-

ing the 12-volt battery

• After changing a fuse

P.143

Intuitive parking assist

*1

P.294

Parking Support Brake

*1

P.302

Power windows

• When functioning abnor-

mally

P.176

Moon roof

*1

P.180

Panoramic moon roof

*1

P.183

Maintenance required
reminder message

• After the maintenance is

performed

P.570

Tire pressure warning sys-
tem

*1

• When rotating the tires
• When changing the tire
• After registering the ID

codes

P.597

Toyota parking assist moni-
tor

*1

• After reconnecting or chang-

ing the 12-volt battery

• After changing a fuse

P.331, 363

Panoramic view monitor

*1, 2

712

9-3. Initialization

713

10

10

Fo
r owne

rs

For owners

10-1.For owners

Reporting safety defects for

U.S. owners...............

714

Seat belt instructions for

Canadian owners (in
French)......................

715

SRS airbag instructions for

Canadian owners (in
French)......................

716

714

10-1. For owners

10-1.For owners

Reporting safety

defects for U.S. own-

ers

If you believe that your vehi-
cle has a defect which could
cause a crash or could
cause injury or death, you
should immediately inform
the National Highway Traffic
Safety Administration
(NHTSA) in addition to noti-
fying Toyota Motor Sales,
U.S.A., Inc. (Toll-free: 1-800-
331-4331).

If NHTSA receives similar
complaints, it may open an
investigation, and if it finds
that a safety defect exists in
a group of vehicles, it may
order a recall and remedy
campaign. However, NHTSA
cannot become involved in
individual problems
between you, your dealer, or
Toyota Motor Sales, U.S.A.,
Inc.

To contact NHTSA, you may
call the Vehicle Safety
Hotline toll-free at 1-888-
327-4236 (TTY: 1-800-424-
9153); go to

http://www.safercar.gov

; or

write to: Administrator,
NHTSA, 1200 New Jersey
Ave., S.E., Washington, DC
20590. You can also obtain
other information about
motor vehicle safety from

http://www.safercar.gov

.

715

10-1. For owners

10

Fo
r owne

rs



Tirez sur la ceinture épau-
lière jusqu’à ce qu’elle recou-
vre entièrement l’épaule; elle
ne doit cependant pas
toucher le cou ni glisser de
l’épaule.



Placez la ceinture abdominale
le plus bas possible sur les
hanches.



Réglez la position du dossier.
Tenez-vous assis bien au
fond du siège, le dos droit.



Ne vrillez pas la ceinture de
sécurité.

■

Manipulation des ceintures
de sécurité

Avec un chiffon ou une éponge,
nettoyez à l’aide d’un savon
doux et de l’eau tiède. Vérifiez
aussi les ceintures régulière-
ment pour vous assurer qu’elles
ne présentent pas d’usure
excessive, d’effilochage ou de
coupures.

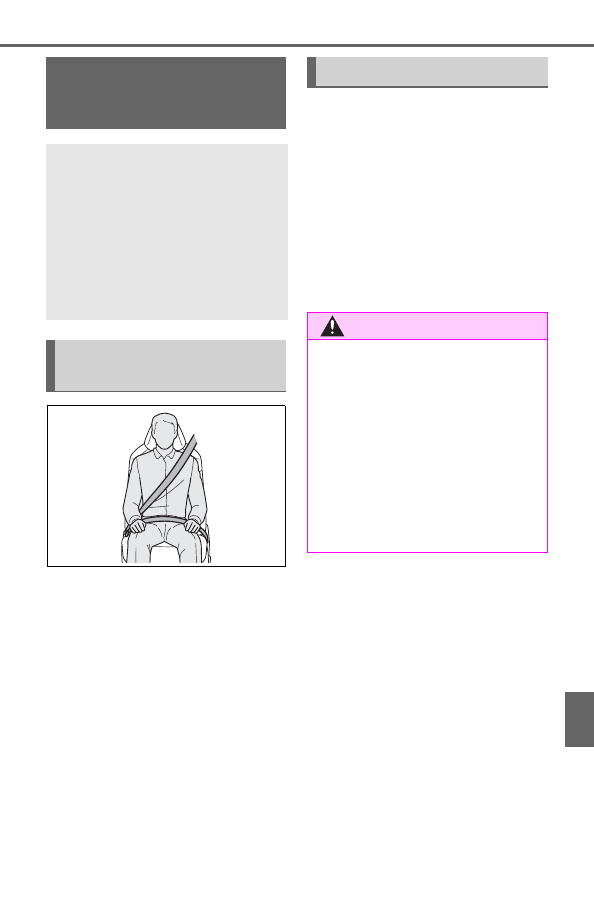

Seat belt instructions

for Canadian owners

(in French)

The following is a French
explanation of seat belt
instructions extracted from
the seat belt section in this
manual.

See the seat belt section for
more detailed seat belt
instructions in English.

Utilisation adéquate des
ceintures de sécurité

Entretien et soin

AVERTISSEMENT

■

Dommages et usure de la

ceinture de sécurité

Vérifiez périodiquement le sys-

tème de ceintures de sécurité.

Vérifiez qu’il n’y a pas de cou-

pures, d’effilochures ni de pièces

desserrées. N’utilisez pas une

ceinture de sécurité endommagée

avant qu’elle ne soit remplacée.

Les ceintures de sécurité endom-

magées ne peuvent pas protéger

les occupants contre les bless-

ures graves, voire mortelles.

716

10-1. For owners

■

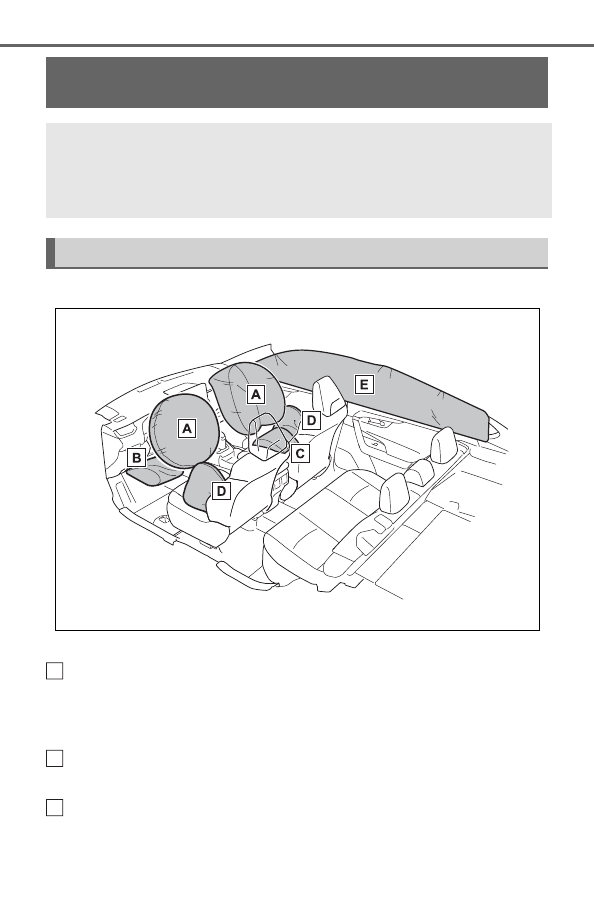

Emplacement des coussins gonflables SRS



Coussins gonflables SRS avant

Coussin gonflable SRS du conducteur/coussin gonflable SRS du
passager avant

Peuvent aider à protéger la tête et la poitrine du conducteur et du passager
avant contre les impacts avec des composants intérieurs

Coussin gonflable SRS de protection des genoux

Peut aider à protéger le conducteur

Coussin gonflable SRS du coussin de siège

Peut aider à retenir le passager avant

SRS airbag instructions for Canadian owners (in

French)

The following is a French explanation of SRS airbag instruc-
tions extracted from the SRS airbag section in this manual.

See the SRS airbag section for more detailed SRS airbag instruc-
tions in English.

Système de coussins gonflables SRS

A

B

C

717

10-1. For owners

10

Fo
r owne

rs



Coussins gonflables SRS latéraux et en rideau

Coussins gonflables SRS latéraux

Peuvent aider à protéger le torse des occupants des sièges avant

Coussins gonflables SRS en rideau

• Peuvent aider à protéger principalement la tête des occupants des sièges

latéraux

• Peuvent aider à empêcher les occupants d’être éjectés du véhicule en

cas de tonneaux

■

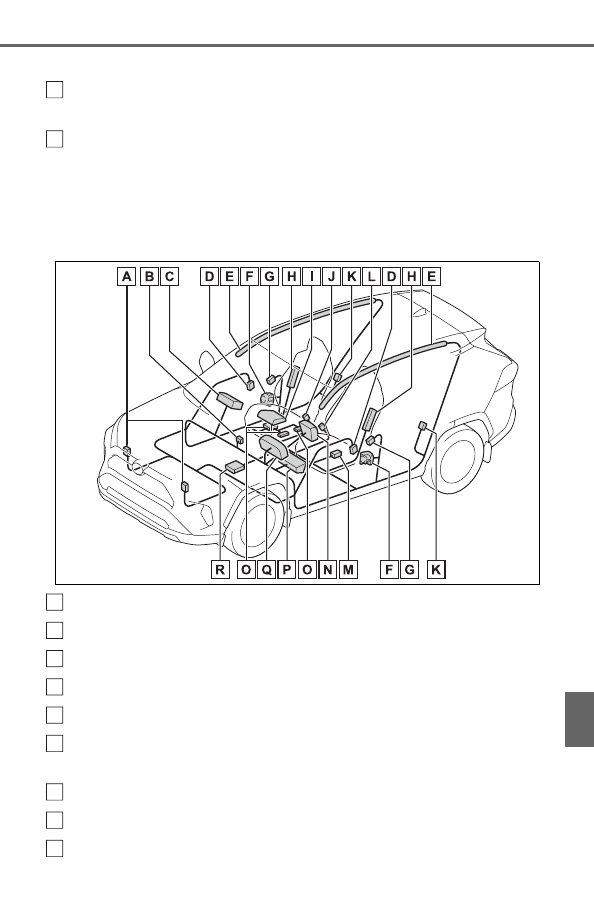

Composants du système de coussins gonflables SRS

Capteurs d’impact avant

Voyants “AIR BAG ON” et “AIR BAG OFF”

Coussin gonflable du passager avant

Capteurs d’impact latéral (portière avant)

Coussins gonflables en rideau

Limiteurs de force et dispositifs de tension des ceintures de sécu-
rité

Capteurs d’impact latéral (avant)

Coussins gonflables latéraux

Coussin gonflable du coussin de siège

D

E

A

B

C

D

E

F

G

H

I

718

10-1. For owners

Contacteur de boucle de ceinture de sécurité du passager avant

Capteurs d’impact latéral (arrière)

Contacteur de boucle de ceinture de sécurité du conducteur

Capteur de position du siège du conducteur

Coussin gonflable du conducteur

Système de classification de l’occupant du siège du passager
avant (ECU et capteurs)

Coussin gonflable de protection des genoux

Lampe témoin SRS

Module de capteur de coussin gonflable

Votre véhicule est doté de COUSSINS GONFLABLES ÉVOLUÉS
dont la conception s’appuie sur les normes de sécurité des véhicules
à moteur américains (FMVSS208). Le module de capteur de coussin
gonflable (ECU) contrôle le déploiement des coussins gonflables en
fonction des informations obtenues des capteurs et d’autres élé-
ments affichés dans le diagramme des composants du système ci-
dessus. Ces informations comprennent des données relatives à la
gravité de l’accident et aux occupants. Au moment du déploiement
des coussins gonflables, une réaction chimique se produit dans les
gonfleurs de coussin gonflable et les coussins gonflables se remplis-
sent rapidement d’un gaz non toxique pour aider à limiter le mouve-
ment des occupants.

J

K

L

M

N

O

P

Q

R

719

10-1. For owners

10

Fo
r owne

rs

AVERTISSEMENT

■

Précautions relatives aux

coussins gonflables SRS

Observez les précautions suiva-

ntes en ce qui concerne les cous-

sins gonflables SRS.

Négliger de le faire pourrait occa-

sionner des blessures graves,

voire mortelles.

●

Le conducteur et tous les pas-

sagers du véhicule doivent por-

ter leur ceinture de sécurité de

la manière appropriée.

Les coussins gonflables SRS

sont des dispositifs supplémen-

taires qui doivent être utilisés

avec les ceintures de sécurité.

●

Le coussin gonflable SRS du

conducteur se déploie avec une

force considérable et peut occa-

sionner des blessures graves,

voire mortelles, notamment lor-

sque le conducteur se trouve

très près du coussin gonflable.

La National Highway Traffic

Safety Administration (NHTSA),

aux États-Unis, fait les recom-

mandations suivantes :

La zone à risque du coussin gon-
flable du conducteur couvre
2 à 3 in. (50 à 75 mm) de la zone
de déploiement du coussin gon-
flable. Pour assurer une marge de
sécurité suffisante, restez à 10 in.
(250 mm) du coussin gonflable.
Cette distance est mesurée
depuis le centre du volant jusqu’à
votre sternum. Si maintenant
vous vous tenez assis à moins de
10 in. (250 mm), vous pouvez
changer votre position de con-
duite de plusieurs manières :

• Reculez votre siège à la posi-

tion maximale vous permettant

d’atteindre encore aisément les

pédales.

• Inclinez légèrement le dossier

du siège.

Bien que les véhicules soient

conçus différemment, la plupart

des conducteurs peuvent main-

tenir une distance de 10 in.

(250 mm), même si leur siège

se trouve complètement vers

l’avant, simplement en inclinant

un peu le dossier du siège vers

l’arrière. Si la visibilité avant est

moindre après avoir incliné le

dossier de votre siège, utilisez

un coussin ferme et non glissant

pour être assis plus haut ou

relevez le siège si cette option

est disponible sur votre

véhicule.

• Si votre volant est réglable en

hauteur, inclinez-le vers le bas.

Cela vous permet d’orienter le

coussin gonflable vers votre

buste plutôt que vers votre tête

et vers votre cou.

Le siège doit être réglé de la

manière recommandée ci-dessus

par la NHTSA, tout en gardant le

contrôle des pédales et du volant,

ainsi que la vue sur les com-

mandes du tableau de bord.
