8-2. Steps to take in an emergency

shown while the driving support sys-
tems such as PCS (Pre-Collision
system) or the dynamic radar cruise
control with full-speed range is oper-
ating. If a warning message is
shown, be sure to decelerate the
vehicle or follow an instruction
shown on the multi-information dis-
play.
A warning message is shown when
Brake Override System, Drive-Start
Control or Parking Support Brake (if
equipped) (



P.172, 281) operates.

Follow the instructions on the multi-
information display.

●

If a message about an operation

of the engine switch is shown (if

equipped)

An instruction for operation of the
engine switch is shown when the
incorrect procedure for starting the
engine is performed or the engine
switch is operated incorrectly. Fol-
low the instructions shown on the
multi-information display to operate
the engine switch again.

●

If a message about a shift lever

operation is shown

To prevent the shift lever from being
operated incorrectly or the vehicle
from moving unexpectedly, a mes-
sage that requires shifting the shift
lever may be shown on the multi-
information display. In that case, fol-
low the instruction of the message
and shift the shift lever.

●

If a message or image about an

open/close state of a part or

replenishment of a consumable is

shown

Confirm the part indicated by the
multi-information display or a warn-
ing light, and then perform the cop-
ing method such as closing the

open door or replenishing a con-
sumable.

■

If a message that indicates the

need for visiting your Toyota

dealer is displayed

The system or part shown on the

multi-information display is malfunc-

tioning. Have the vehicle inspected

by your Toyota dealer immediately.

■

If a message that indicates the

need for referring to Owner’s

Manual is displayed

●

If “Engine Coolant Temp High” is

shown, follow the instructions

(



P.670).

●

If the following messages are

shown, there may be a malfunc-

tion.

Immediately stop the vehicle in a

safe place and contact your

Toyota dealer. Continuing to drive

the vehicle may be dangerous.

• “Charging System Malfunction”

• “High Transmission Fluid Temp”

• “Smart Key System Malfunction”

●

If the following messages are

shown, there may be a malfunc-

tion.

Immediately have the vehicle

inspected by your Toyota dealer.

• “Oil Pressure Low”

• “Braking Power Low”

■

If “Shift to P when Parked” is

shown (if equipped)

Message is displayed when the

driver’s door is opened without turn-

ing the engine switch to OFF with

the shift lever in any position other

than P.
Shift the shift lever to P.

■

If “Auto Power OFF to Conserve

Battery” is shown (if equipped)

Power was turned off due to the

automatic power off function.
Next time when starting the engine,

increase the engine speed slightly

and maintain that level for approxi-

mately 5 minutes to recharge the

651

8-2. Steps to take in an emergency

8

When

 trou

ble arises

battery.

■

If “Engine Oil Level Low Add or

Replace” is displayed

The engine oil level may be low.

Check the level of the engine oil,

and add engine oil if necessary.

This message may be displayed if

the vehicle is stopped on a slope.

Move the vehicle to a level surface

and check if the message disap-

pears.

■

If “Maintenance Required

Soon” is shown

Indicates that all maintenance

according to the driven distance on
the maintenance schedule

*

 should

be performed soon.
Comes on approximately 4500

miles (7200 km) after the message

has been reset.
If necessary, perform maintenance.

Please reset the message after the

maintenance is performed.

(



P.573)

*

: Refer to the separate “Scheduled

Maintenance Guide” or “Owner’
Manual Supplement” for the main-
tenance interval applicable to your
vehicle.

■

If “Maintenance Required Visit

Your Dealer” is shown

Indicates that all maintenance is

required to correspond to the driven

distance on the maintenance sched-
ule

*

.

Comes on approximately 5000

miles (8000 km) after the message

has been reset. (The indicator will

not work properly unless the mes-

sage has been reset.)
Perform the necessary mainte-

nance. Please reset the message

after the maintenance is performed.

(



P.573)

*

: Refer to the separate “Scheduled

Maintenance Guide” or “Owner’
Manual Supplement” for the main-

tenance interval applicable to your
vehicle.

■

If a message that indicates the

malfunction of front camera is

displayed

The following systems may be sus-

pended until the problem shown in

the message is resolved. (



P.449,

640)

●

PCS (Pre-Collision System)

●

LTA (Lane Tracing Assist)

●

Automatic High Beam

●

RSA (Road Sign Assist)

*

●

Dynamic radar cruise control with

full-speed range

*

: If equipped

■

If “Radar Cruise Control

Unavailable See Owner’s Man-

ual” is shown

The dynamic radar cruise control

with full-speed range system is sus-

pended temporarily or until the prob-

lem shown in the message is

resolved. (causes and coping meth-

ods:



P.449)

■

If “Radar Cruise Control

Unavailable” is shown

The dynamic radar cruise control

with full-speed range system cannot

be used temporarily. Use the sys-

tem when it becomes available

again.

■

Warning buzzer



P.645

WARNING

■

If a warning light comes on or

a warning buzzer sounds

when a warning message is

shown on the multi-informa-

tion display



P.647

652

8-2. Steps to take in an emergency

NOTICE

■

“High Power Consumption

Partial Limit On AC/Heater

Operation” is frequently

shown

There is a possible malfunction

relating to the charging system or

the battery may be deteriorating.

Have the vehicle inspected by

your Toyota dealer.

653

8-2. Steps to take in an emergency

8

When

 trou

ble arises



Stop the vehicle in a safe place on a hard, flat surface.



Set the parking brake.



Shift the shift lever to P.



Stop the engine.



Turn on the emergency flashers. (



P.628)



For vehicles with power back door: Turn off the power back door
system. (



P.128)

If you have a flat tire

Your vehicle is equipped with a spare tire. The flat tire can be
replaced with the spare tire.
For details about tires:



P.589

WARNING

■

If you have a flat tire

Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the

wheel beyond repair, which could result in an accident.

Before jacking up the vehicle

654

8-2. Steps to take in an emergency

Jack

Tool bag

Spare tire

Jack handle

*1

Wheel nut wrench

*1

Jack handle

*2

Wheel nut wrench

*2

Towing eyelet

*2

 (if equipped)

*1

:Except for models made in Japan

*3

*2

:For models made in Japan

*3

*3

:The country of production is written on the Certification Regulation Label.

(



P.677)

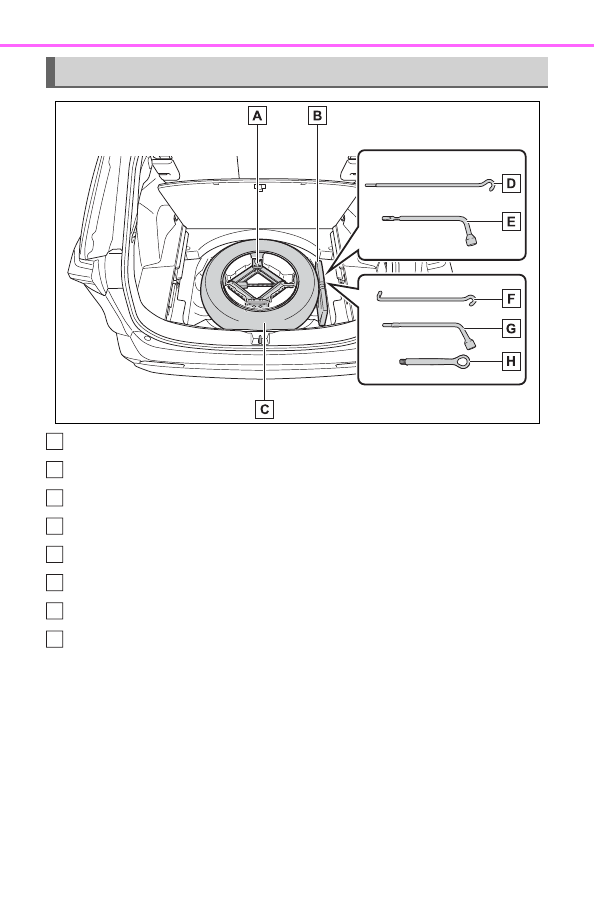

Location of the spare tire, jack and tools

A

B

C

D

E

F

G

H

655

8-2. Steps to take in an emergency

8

When

 trou

ble arises

1

Open the deck board
(



P.539).

2

Take out the jack.

Do not touch the threaded portion

of the jack as it is greased.

Take out the tool bag.

WARNING

■

Using the tire jack

Observe the following precau-

tions.
Improper use of the tire jack may

cause the vehicle to suddenly fall

off the jack, leading to death or

serious injury.

●

Do not use the tire jack for any

purpose other than replacing

tires or installing and removing

tire chains.

●

The equipped jack can only be

used with your vehicle. Do not

use it with other vehicles.

●

And do not use jacks from other

vehicles with your vehicle.

●

Put the jack properly in its jack

point.

●

Do not put any part of your body

under the vehicle while it is sup-

ported by the jack.

●

Do not start the engine or drive

the vehicle while the vehicle is

supported by the jack.

●

Do not raise the vehicle while

someone is inside.

●

When raising the vehicle, do not

put an object on or under the

jack.

●

Do not raise the vehicle to a

height greater than that required

to replace the tire.

●

Use a jack stand if it is neces-

sary to get under the vehicle.

●

Stop the vehicle on firm, flat and

level ground, firmly set the park-

ing brake and shift the shift

lever to P. Block the wheel diag-

onally opposite to the one being

changed if necessary.

●

When lowering the vehicle,

make sure that there is no-one

near the vehicle. If there are

people nearby, warn them

vocally before lowering.

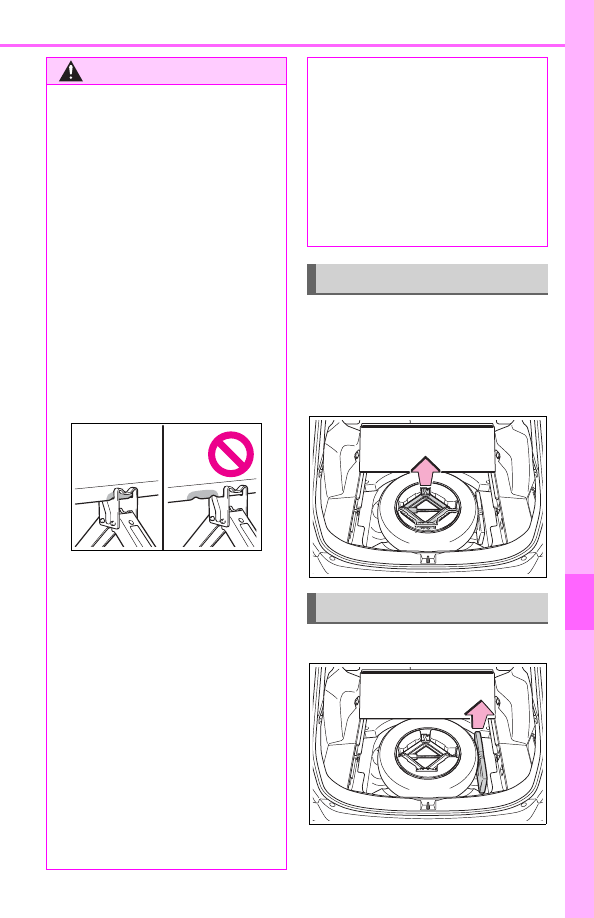

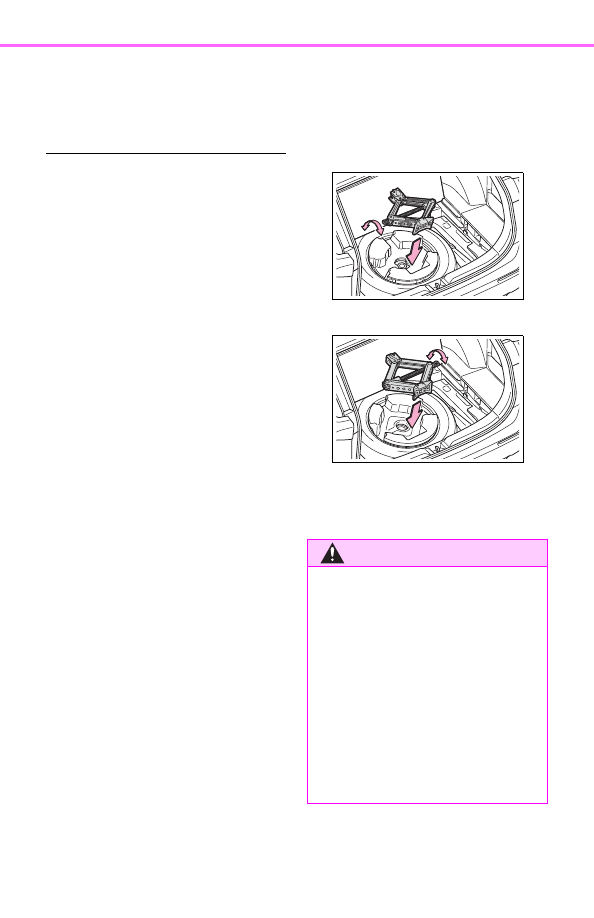

Taking out the jack

Taking out the tool bag

656

8-2. Steps to take in an emergency

1

Take out the jack holder.

2

Loosen the center fastener
that secures the spare tire.

1

Chock the tires.

2

For vehicles with full wheel
ornament: Remove the wheel
ornament using the wrench.

To prevent damage, cover the tip of

the wrench with a rag.

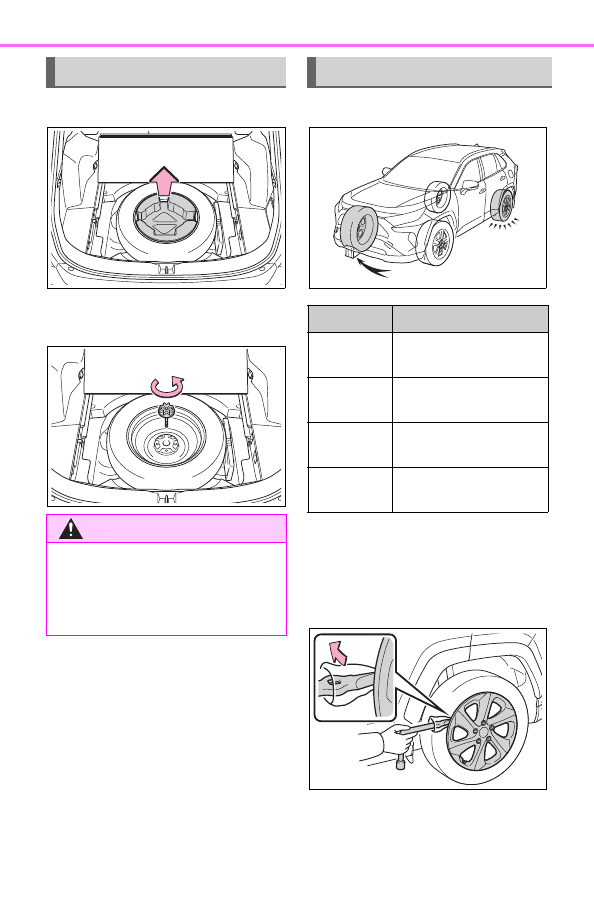

Taking out the spare tire

WARNING

■

When storing the spare tire

Be careful not to catch fingers or

other body parts between the

spare tire and the body of the

vehicle.

Replacing a flat tire

Flat tire

Wheel chock positions

Front left-
hand side

Behind the rear right-
hand side tire

Front right-
hand side

Behind the rear left-
hand side tire

Rear left-
hand side

In front of the front
right-hand side tire

Rear right-
hand side

In front of the front
left-hand side tire

657

8-2. Steps to take in an emergency

8

When

 trou

ble arises

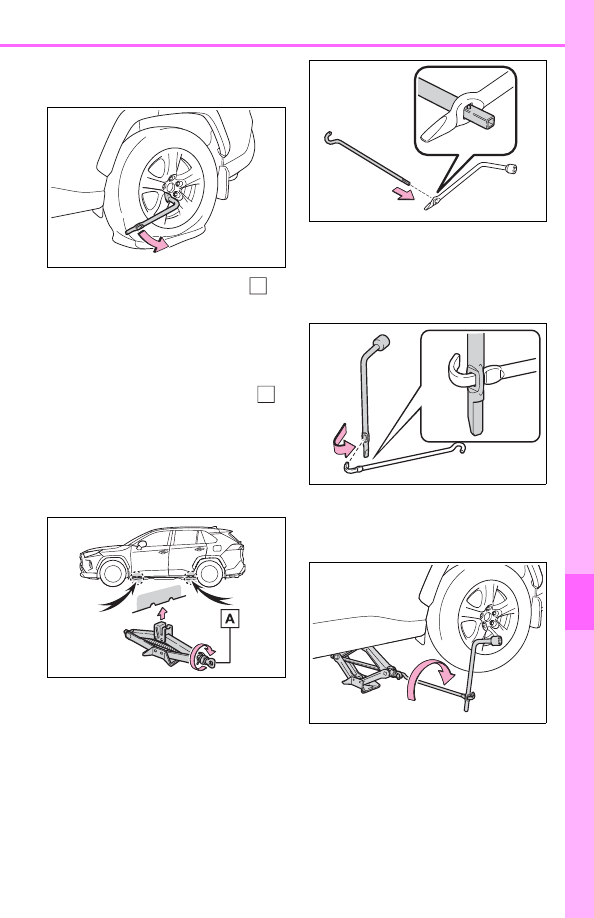

3

Slightly loosen the wheel
nuts (one turn).

4

Turn the tire jack portion



by hand until the notch of the
jack is in contact with the jack
point.

After removing the jack from the
jack holder, turn the jack portion



in the opposite direction to lower

the jack, and then adjust the jack

set position.
The jack point guides are located

under the rocker panel. They indi-

cate the jack point positions.

5

Assemble the jack handle
and the wheel nut wrench as
shown in the illustration.



Except for models made in
Japan

*

*

: The country of production is writ-

ten on the Certification Regula-
tion Label. (



P.677)



For models made in Japan

*

*

: The country of production is writ-

ten on the Certification Regula-
tion Label. (



P.677)

6

Raise the vehicle until the tire
is slightly raised off the
ground.

7

Remove all the wheel nuts
and the tire.

When resting the tire on the

ground, place the tire so that the

wheel design faces up to avoid

A

A

658

8-2. Steps to take in an emergency

scratching the wheel surface.

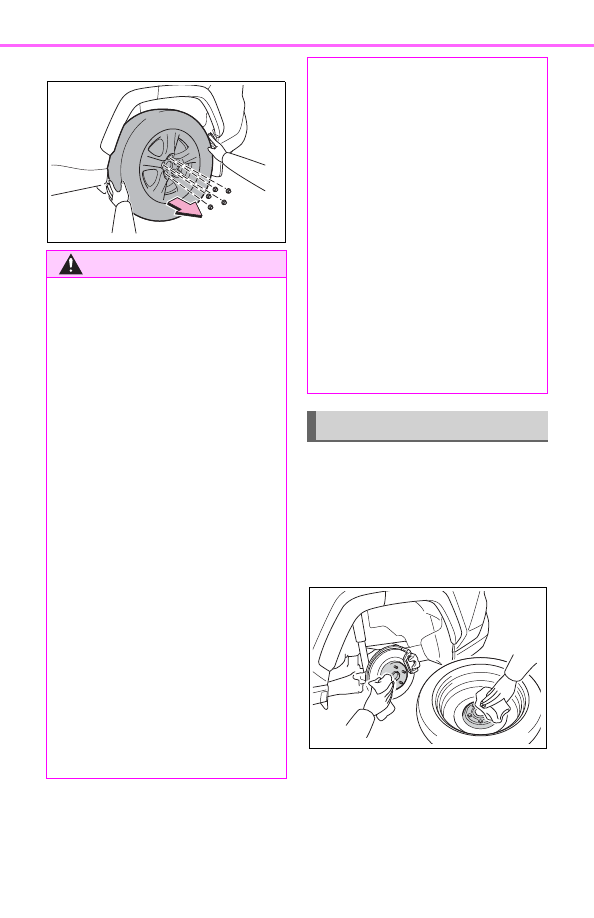

1

Remove any dirt or foreign
matter from the wheel con-
tact surface.

If foreign matter is on the wheel

contact surface, the wheel nuts

may loosen while the vehicle is in

motion, causing the tire to come off.

2

Install the spare tire and
loosely tighten each wheel
nut by hand by approximately
the same amount.

When replacing a steel wheel with

WARNING

■

Replacing a flat tire

●

Do not touch the disc wheels or

the area around the brakes

immediately after the vehicle

has been driven.

After the vehicle has been

driven the disc wheels and the

area around the brakes will be

extremely hot. Touching these

areas with hands, feet or other

body parts while changing a tire,

etc. may result in burns.

●

Failure to follow these precau-

tions could cause the wheel

nuts to loosen and the tire to fall

off, resulting in death or serious

injury.

• Have the wheel nuts tightened

with a torque wrench to 76 ft•lbf

(103 N•m, 10.5 kgf•m) as soon

as possible after changing

wheels.

• Do not attach a heavily dam-

aged wheel ornament, as it may

fly off the wheel while the vehi-

cle is moving.

• When installing a tire, only use

wheel nuts that have been spe-

cifically designed for that wheel.

• If there are any cracks or defor-

mations in the bolt screws, nut

threads or bolt holes of the

wheel, have the vehicle

inspected by your Toyota

dealer.

• When installing the wheel nuts,

be sure to install them with the

tapered ends facing inward.

●

For vehicles with power back

door: In cases such as when

replacing tires, make sure to

turn off the power back door

system (



P.128). Failure to do

so may cause the back door to

operate unintentionally if the

power back door switch is acci-

dentally touched, resulting in

hands and fingers being caught

and injured.

Installing the spare tire

659

8-2. Steps to take in an emergency

8

When

 trou

ble arises

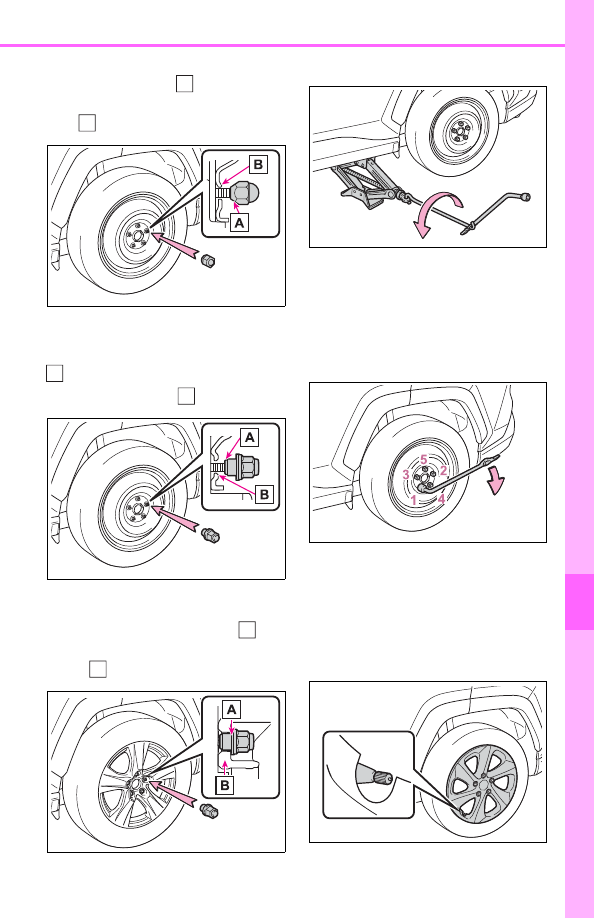

a steel wheel, tighten the nuts until
the tapered portion

 comes into

loose contact with the disc wheel
seat

.

When replacing an aluminum wheel

with a steel wheel, tighten the

wheel nuts until the tapered portion

 comes into loose contact with

the disc wheel seat

.

When replacing an aluminum wheel

with an aluminum wheel, turn the
wheel nuts until the washers



come into contact with the disc
wheel

.

3

Lower the vehicle.

4

Firmly tighten each wheel nut
two or three times in the
order shown in the illustra-
tion.

Tightening torque:

76 ft•lbf (103 N•m, 10.5 kgf•m)

5

For vehicles with full wheel
ornament: When reinstalling
an original wheel, reinstall
the wheel ornament

*

.

Align the cutout of the wheel orna-

ment with the valve stem as shown.

*

: The wheel ornament cannot be

A

B

A

B

A

B

660

8-2. Steps to take in an emergency

installed on the compact spare
tire.

6

Stow the flat tire, tire jack and
all tools.

■

The compact spare tire

●

The compact spare tire is identi-

fied by the label “TEMPORARY

USE ONLY” on the tire sidewall.

Use the compact spare tire tem-

porarily, and only in an emer-

gency.

●

Make sure to check the tire infla-

tion pressure of the compact

spare tire. (



P.683)

■

When using the compact spare

tire

As the compact spare tire is not

equipped with a tire pressure warn-

ing valve and transmitter, low infla-

tion pressure of the spare tire will

not be indicated by the tire pressure

warning system. Also, if you replace

the compact spare tire after the tire

pressure warning light comes on,

the light remains on.

■

When the compact spare tire is

attached

The vehicle height may become

lower when driving with the compact

spare tire compared to when driving

with standard tires.

■

If you have a flat front tire on a

road covered with snow or ice

Install the compact spare tire on one

of the rear wheels of the vehicle.

Perform the following steps and fit

tire chains to the front tires:

1

Replace a rear tire with the com-

pact spare tire.

2

Replace the flat front tire with the

tire removed from the rear of the

vehicle.

3

Fit tire chains to the front tires.

■

When stowing the jack

Before storing the jack, adjust the

height of the jack to match the

shape of the jack holder.
The storage direction of the jack dif-

fers depending on the type, so make

sure to store the jack in the correct

direction.

Except for models made in Japan

*

:

For models made in Japan

*

:

*

: The country of production is writ-

ten on the Certification Regulation
Label. (



P.677)

WARNING

■

When using the compact

spare tire

●

Remember that the compact

spare tire provided is specifi-

cally designed for use with your

vehicle. Do not use your com-

pact spare tire on another vehi-

cle.

●

Do not use more than one com-

pact spare tire simultaneously.

●

Replace the compact spare tire

with a standard tire as soon as

possible.

661

8-2. Steps to take in an emergency

8

When

 trou

ble arises

WARNING

●

Avoid sudden acceleration,

abrupt steering, sudden brak-

ing and shifting operations that

cause sudden engine braking.

■

When the compact spare tire

is attached

The vehicle speed may not be

correctly detected, and the follow-

ing systems may not operate cor-

rectly:
• ABS & Brake assist

• VSC/Trailer Sway Control

• TRAC

• Dynamic radar cruise control

with full-speed range

• PCS (Pre-Collision System)

• EPS

• LTA (Lane Tracing Assist)

• Tire pressure warning system (if

equipped)

• AHB (Automatic High Beam)

• BSM (Blind Spot Monitor) (if

equipped)

• Downhill assist control system

(if equipped)

• Rear view monitor system (if

equipped)

• Panoramic view monitor (if

equipped)

• Toyota parking assist monitor (if

equipped)

• Intuitive parking assist (if

equipped)

• Navigation system (if equipped)

Also, not only can the following

systems not be utilized fully, but

they may actually negatively

affect the drive-train components:
• Dynamic Torque Control AWD

system (if equipped)

• Dynamic Torque Vectoring

AWD system (if equipped)

■

Speed limit when using the

compact spare tire

Do not drive at speeds in excess

of 50 mph (80 km/h) when a com-

pact spare tire is installed on the

vehicle.
The compact spare tire is not

designed for driving at high

speeds. Failure to observe this

precaution may lead to an acci-

dent causing death or serious

injury.

■

After using the tools and jack

Before driving, make sure all the

tools and jack are securely in

place in their storage location to

reduce the possibility of personal

injury during a collision or sudden

braking.

NOTICE

■

Be careful when driving over

bumps with the compact

spare tire installed on the

vehicle

The vehicle height may become

lower when driving with the com-

pact spare tire compared to when

driving with standard tires. Be

careful when driving over uneven

road surfaces.

662

8-2. Steps to take in an emergency

One of the following may be the
cause of the problem:



There may not be sufficient
fuel in the vehicle’s tank.
Refuel the vehicle.



The engine may be flooded.
Try to restart the engine again
following correct starting pro-
cedures. (



P.195, 196)



There may be a malfunction
in the engine immobilizer sys-
tem. (



P.70)

One of the following may be the
cause of the problem:



The battery may be dis-
charged. (



P.666)

NOTICE

■

Driving with tire chains and

the compact spare tire

Do not fit tire chains to the com-

pact spare tire.
Tire chains may damage the vehi-

cle body and adversely affect driv-

ing performance.

■

When replacing the tires

(vehicles with tire pressure

warning system)

When removing or fitting the

wheels, tires or the tire pressure

warning valve and transmitter,

contact your Toyota dealer as the

tire pressure warning valve and

transmitter may be damaged if not

handled correctly.

If the engine will not

start

If the engine will not start
even though correct start-
ing procedures are being
followed (



P.195, 196), con-

sider each of the following
points:

The engine will not start
even though the starter
motor operates normally

The starter motor turns
over slowly, the interior
lights and headlights are
dim, or the horn does not
sound or sounds at a low
volume

663

8-2. Steps to take in an emergency

8

When

 trou

ble arises



The battery terminal connec-
tions may be loose or cor-
roded.

The engine starting system may
be malfunctioning due to an
electrical problem such as elec-
tronic key battery depletion or a
blown fuse. However, an interim
measure is available to start the
engine. (



P.663)

One of the following may be the
cause of the problem:



The battery may be dis-
charged. (



P.666)



One or both of the battery ter-
minals may be disconnected.



There may be a malfunction
in the steering lock system
(vehicles with smart key sys-
tem).

Contact your Toyota dealer if
the problem cannot be repaired,
or if repair procedures are
unknown.

When the engine does not start,
the following steps can be used
as an interim measure to start
the engine if the engine switch is
functioning normally:

1

Pull the parking brake switch
to check that the parking
brake is set. (



P.205)

Parking brake indicator will come

on.

2

Shift the shift lever to P.

3

Turn the engine switch to
ACC.

4

Press and hold the engine
switch for about 15 seconds
while depressing the brake
pedal firmly.

Even if the engine can be
started using the above steps,
the system may be malfunction-
ing. Have the vehicle inspected
by your Toyota dealer.

The starter motor does
not turn over (vehicles
with smart key system)

The starter motor does
not turn over, the interior
lights and headlights do
not turn on, or the horn
does not sound

Emergency start function
(vehicles with smart key
system)

664

8-2. Steps to take in an emergency

■

When the electronic key does

not work properly

●

Make sure that the smart key sys-

tem has not been deactivated in

the customization setting. If it is

off, turn the function on.

(Customizable features:



P.703)

●

Check if battery-saving mode is

set. If it is set, cancel the function.

(



P.130)

Use the mechanical key
(



P.107) in order to perform the

If you lose your keys

New genuine keys can be
made by your Toyota dealer
using the other key and the
key number stamped on
your key number plate.
Keep the plate in a safe
place such as your wallet,
not in the vehicle.

NOTICE

■

When an electronic key is lost

(if equipped)

If the electronic key remains lost,

the risk of vehicle theft increases

significantly. Visit your Toyota

dealer immediately with all

remaining electronic keys that

were provided with your vehicle.

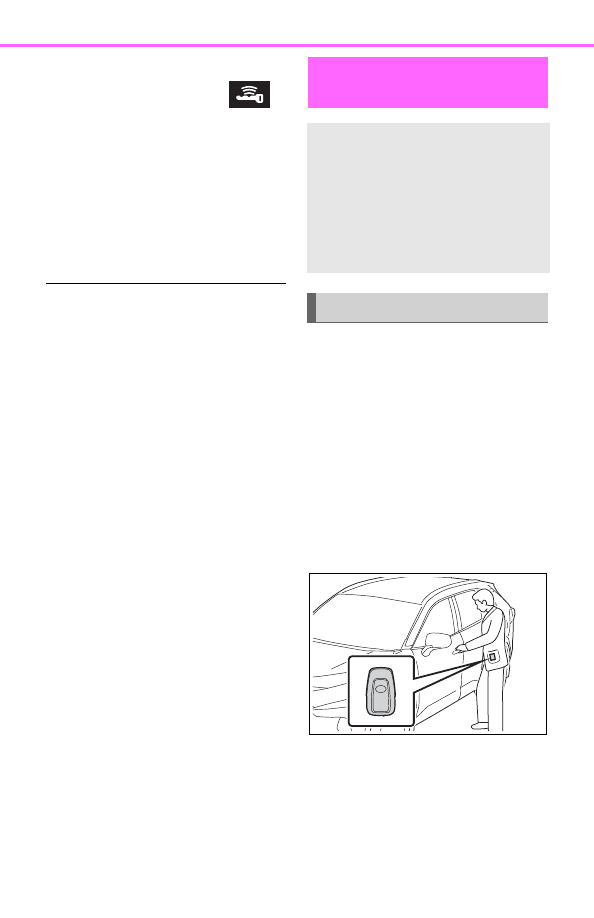

If the electronic key

does not operate prop-

erly (vehicles with

smart key system)

If communication between
the electronic key and vehi-
cle is interrupted (



P.130)

or the electronic key cannot
be used because the battery
is depleted, the smart key
system and wireless remote
control cannot be used. In
such cases, the doors can
be opened and the engine
can be started by following
the procedure below.

NOTICE

■

In case of a smart key system

malfunction, or other key

related problems

Take your vehicle with all the

electronic keys provided with your

vehicle to your Toyota dealer.

Locking and unlocking
the doors

665

8-2. Steps to take in an emergency

8

When

 trou

ble arises

following operations.

1

Locks all the doors

2

Unlocks the door

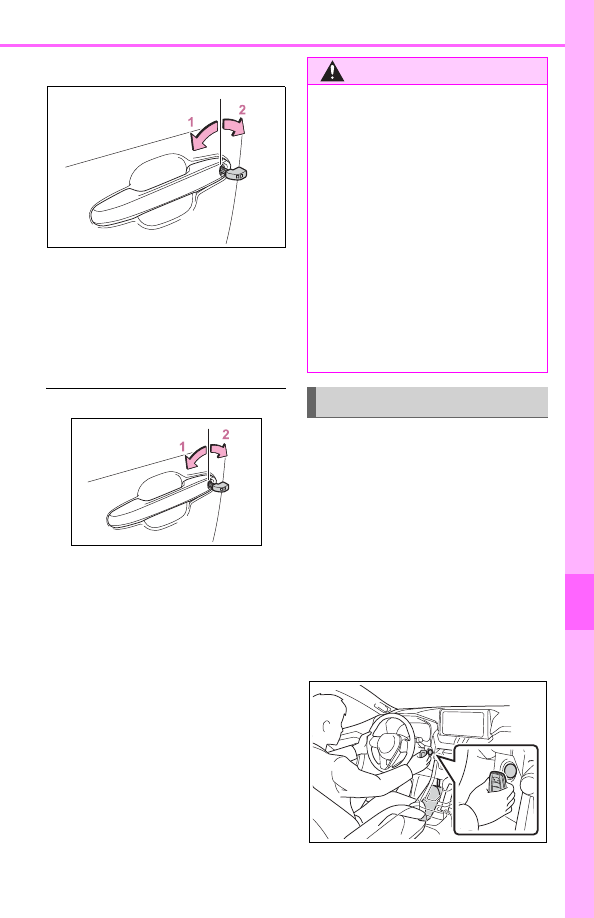

Turning the key rearward unlocks
the driver’s door. Turning the key
once again within 5 seconds
unlocks the other doors.

■

Key linked functions

1

Closes the windows and the
moon roof

*1

 or panoramic moon

roof

*1

 (turn and hold)

*2

2

Opens the windows and the
moon roof

*1

 or panoramic moon

roof

*1

 (turn and hold)

*2

*1

:If equipped

*2

:These settings must be custom-

ized at your Toyota dealer.

1

Ensure that the shift lever is
in P and depress the brake
pedal.

2

Touch the Toyota emblem
side of the electronic key to
the engine switch.

When the electronic key is

detected, a buzzer sounds and the

engine switch will turn to ON.
When the smart key system is

deactivated in customization set-

ting, the engine switch will turn to

ACC.

WARNING

■

When using the mechanical

key and operating the power

windows or the moon roof (if

equipped) or panoramic

moon roof (if equipped)

Operate the power window or the

moon roof or panoramic moon

roof after checking to make sure

that there is no possibility of any

passenger having any of their

body parts caught in the window

or the moon roof or panoramic

moon roof. Also, do not allow chil-

dren to operate the mechanical

key. It is possible for children and

other passengers to get caught in

the power window or the moon

roof or panoramic moon roof.

Starting the engine

666

8-2. Steps to take in an emergency

3

Firmly depress the brake

pedal and check that



is displayed on the multi-
information display.

4

Press the engine switch
shortly and firmly.

In the event that the engine still
cannot be started, contact your
Toyota dealer.

■

Stopping the engine

Shift the shift lever to P, set the

parking brake and press the engine

switch as you normally do when

stopping the engine.

■

Replacing the key battery

As the above procedure is a tempo-

rary measure, it is recommended

that the electronic key battery be

replaced immediately when the bat-

tery is depleted. (



P.613)

■

Alarm (Canada only)

If a door is unlocked using the

mechanical key when the alarm sys-

tem is set, the alarm may be trig-
gered.

*

*

: These settings must be custom-

ized at your Toyota dealer.

■

Changing engine switch modes

Release the brake pedal and press

the engine switch in step

3

 above.

The engine does not start and

modes will be changed each time

the switch is pressed. (



P.199)

If you have a set of jumper (or
booster) cables and a second
vehicle with a 12-volt battery,
you can jump start your vehicle
by following the steps below.

1

Vehicles with alarm: Confirm
that the electronic key is
being carried.

When connecting the jumper (or

booster) cables, depending on the

situation, the alarm may activate

and the doors locked. (



P.74)

2

Open the hood. (



P.579)

If the vehicle battery

is discharged

The following procedures
may be used to start the
engine if the vehicle’s bat-
tery is discharged.
You can also call your
Toyota dealer or a qualified
repair shop.

Restarting the engine

667

8-2. Steps to take in an emergency

8

When

 trou

ble arises

3

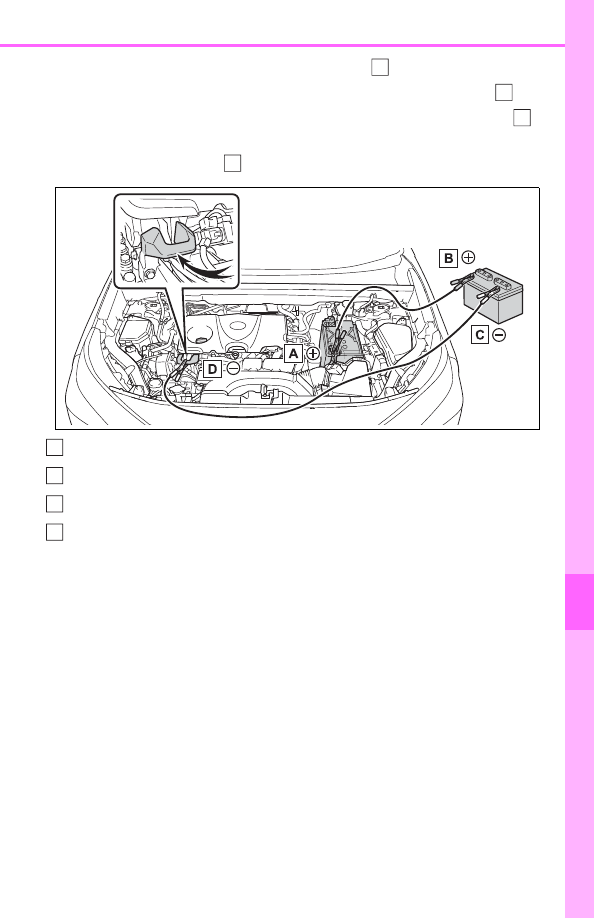

Connect a positive jumper cable clamp to

 on your vehicle and

connect the clamp on the other end of the positive cable to

 on

the second vehicle. Then, connect a negative cable clamp to



on the second vehicle and connect the clamp at the other end of
the negative cable to

.

Positive (+) battery terminal (your vehicle)

Positive (+) battery terminal (second vehicle)

Negative (-) battery terminal (second vehicle)

Solid, stationary, unpainted metallic point away from the battery
and any moving parts as shown in the illustration

4

Start the engine of the sec-
ond vehicle. Increase the
engine speed slightly and
maintain at that level for
approximately 5 minutes to
recharge the battery of your
vehicle.

5

Vehicles with smart key sys-
tem only: Open and close
any of the doors of your vehi-
cle with the engine switch
OFF.

6

Vehicles without smart key
system: Maintain the engine

speed of the second vehicle
and start the engine of your
vehicle.
Vehicles with smart key sys-
tem: Maintain the engine
speed of the second vehicle
and start the engine of your
vehicle by turning the engine
switch to ON.

7

Once the vehicle’s engine
has started, remove the
jumper cables in the exact
reverse order from which
they were connected.

A

B

C

D

A

B

C

D

668

8-2. Steps to take in an emergency

Once the engine starts, have the
vehicle inspected at your Toyota
dealer as soon as possible.

■

Starting the engine when the

battery is discharged

The engine cannot be started by

push-starting.

■

To prevent battery discharge

●

Turn off the headlights and the

audio system while the engine is

stopped.

(Vehicles with Stop & Start system:

Except when the engine is stopped

due to the Stop & Start system)

●

Turn off any unnecessary electri-

cal components when the vehicle

is running at a low speed for an

extended period, such as in heavy

traffic.

■

When the battery is removed or

discharged

●

Information stored in the ECU is

cleared. When the battery is

depleted, have the vehicle

inspected at your Toyota dealer.

●

Some systems may require initial-

ization. (



P.712)

■

When removing the battery ter-

minals

When the battery terminals are

removed, the information stored in

the ECU is cleared. Before remov-

ing the battery terminals, contact

your Toyota dealer.

■

Charging the battery

The electricity stored in the battery

will discharge gradually even when

the vehicle is not in use, due to nat-

ural discharge and the draining

effects of certain electrical appli-

ances. If the vehicle is left for a long

time, the battery may discharge,

and the engine may be unable to

start. (The battery recharges auto-

matically during driving.)

■

When recharging or replacing

the battery (vehicles without

smart key start system)

The engine may not start on the first

attempt after the battery has

recharged but will start normally

after the second attempt. This is not

a malfunction.

■

When recharging or replacing

the battery (vehicles with smart

key system)

●

In some cases, it may not be pos-

sible to unlock the doors using the

smart key system when the bat-

tery is discharged. Use the wire-

less remote control or the

mechanical key to lock or unlock

the doors.

●

The engine may not start on the

first attempt after the battery has

recharged but will start normally

after the second attempt. This is

not a malfunction.

●

The engine switch mode is memo-

rized by the vehicle. When the

battery is reconnected, the system

will return to the mode it was in

before the battery was dis-

charged. Before disconnecting the

battery, turn the engine switch to

OFF.

If you are unsure what mode the

engine switch was in before the

battery discharged, be especially

careful when reconnecting the

battery.

■

When the battery is removed or

discharged (vehicles with Stop

& Start system)

The Stop & Start system may not

automatically stop the engine for up

to an hour.

■

When replacing the battery

●

Vehicles with Stop & Start system:

Use a genuine battery specifically

designed for use with the Stop &

Start system or a battery with equiv-

alent specifications to a genuine

battery. If an unsupported battery is

used, Stop & Start system functions

669

8-2. Steps to take in an emergency

8

When

 trou

ble arises

may be restricted to protect the bat-

tery. Also, battery performance may

decrease and the engine may not

be able to restart. Contact your

Toyota dealer for details.

●

Use a battery that conforms to

European regulations.

●

Type A:

Use a battery that the case size is

same as the previous one (LN3), 20

hours rate capacity (20HR) is equiv-

alent (65Ah) or greater, and perfor-

mance rating (CCA) is equivalent

(603A) or greater.
Type B:
Use a battery that the case size is

same as the previous one (LN2), 20

hours rate capacity (20HR) is equiv-

alent (60Ah) or greater, and perfor-

mance rating (CCA) is equivalent

(360A) or greater.
Type C:
Use a battery that the case size is

same as the previous one (LN2), 20

hours rate capacity (20HR) is equiv-

alent (60Ah) or greater, and perfor-

mance rating (CCA) is equivalent

(563A) or greater.

• If the sizes differ, the battery can-

not be properly secured.

• If the 20 hour rate capacity is low,

even if the time period where the

vehicle is not used is a short time,

the battery may discharge and

engine may not be able to start.

WARNING

■

When removing the battery

terminals

Always remove the negative (-)

terminal first. If the positive (+) ter-

minal contacts any metal in the

surrounding area when the posi-

tive (+) terminal is removed, a

spark may occur, leading to a fire

in addition to electrical shocks

and death or serious injury.

■

Avoiding battery fires or

explosions

Observe the following precautions

to prevent accidentally igniting the

flammable gas that may be emit-

ted from the battery:

●

Make sure each jumper cable is

connected to the correct termi-

nal and that it is not unintention-

ally in contact with any other

than the intended terminal.

●

Do not allow the other end of

the jumper cable connected to

the “+” terminal to come into

contact with any other parts or

metal surfaces in the area, such

as brackets or unpainted metal.

●

Do not allow the + and - clamps

of the jumper cables to come

into contact with each other.

●

Do not smoke, use matches,

cigarette lighters or allow open

flame near the battery.

■

Battery precautions

The battery contains poisonous

and corrosive acidic electrolyte,

while related parts contain lead

and lead compounds. Observe

the following precautions when

handling the battery:

●

When working with the battery,

always wear safety glasses and

take care not to allow any bat-

tery fluids (acid) to come into

contact with skin, clothing or the

vehicle body.

●

Do not lean over the battery.

●

In the event that battery fluid

comes into contact with the skin

or eyes, immediately wash the

affected area with water and

seek medical attention.

Place a wet sponge or cloth

over the affected area until

medical attention can be

received.

670

8-2. Steps to take in an emergency

1

Stop the vehicle in a safe
place and turn off the air con-
ditioning system, and then
stop the engine.

2

If you see steam:
Carefully lift the hood after
the steam subsides.
If you do not see steam:
Carefully lift the hood.

WARNING

●

Always wash your hands after

handling the battery support,

terminals, and other battery-

related parts.

●

Do not allow children near the

battery.

■

When replacing the battery

For information regarding battery

replacement, contact your Toyota

dealer.

NOTICE

■

When handling jumper cables

When connecting the jumper

cables, ensure that they do not

become entangled in the cooling

fan or engine drive belt.

If your vehicle over-

heats

The following may indicate
that your vehicle is over-
heating.



The needle of the engine
coolant temperature gauge
(



P.82, 85) enters the red

zone or a loss of engine
power is experienced. (For
example, the vehicle speed
does not increase.)



“Engine Coolant Temp High
Stop in a Safe Place See
Owner’s Manual” is shown
on the multi-information dis-
play.



Steam comes out from
under the hood.

Correction procedures

671

8-2. Steps to take in an emergency

8

When

 trou

ble arises

3

After the engine has cooled
down sufficiently, inspect the
hoses and radiator core (radi-
ator) for any leaks.

Radiator

Cooling fan

If a large amount of coolant leaks,

immediately contact your Toyota

dealer.

4

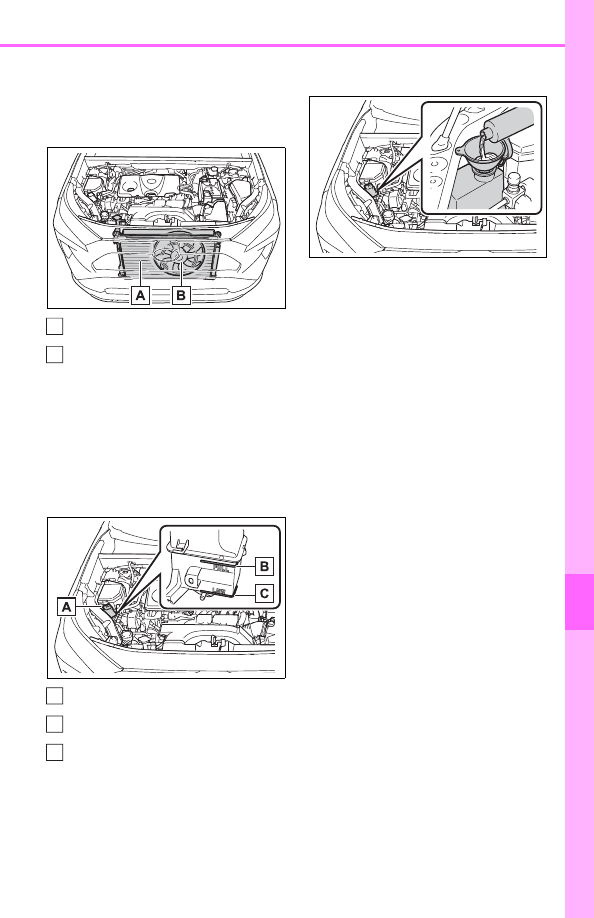

The coolant level is satisfac-
tory if it is between the
“FULL” and “LOW” lines on
the reservoir.

Reservoir

“FULL” line

“LOW” line

5

Add coolant if necessary.

Water can be used in an emer-

gency if coolant is unavailable.

If water was added in an emer-

gency, have the vehicle inspected

at your Toyota dealer as soon as

possible.

6

Start the engine and turn the
air conditioning system on to
check that the radiator cool-
ing fan operates and to check
for coolant leaks from the
radiator or hoses.

The fan operates when the air con-

ditioning system is turned on imme-

diately after a cold start. Confirm

that the fan is operating by check-

ing the fan sound and air flow. If it is

difficult to check these, turn the air

conditioning system on and off

repeatedly. (The fan may not oper-

ate in freezing temperatures.)

7

If the fan is not operating:
Stop the engine immediately
and contact your Toyota
dealer.
If the fan is operating:
Have the vehicle inspected at
the nearest Toyota dealer.

8

Check if “Engine Coolant
Temp High Stop in a Safe
Place See Owner’s Manual”
is shown on the multi-infor-
mation display.

If the message does not disappear:

Stop the engine and contact your

Toyota dealer.
If the message is not displayed:

Have the vehicle inspected at the

A

B

A

B

C

672

8-2. Steps to take in an emergency

nearest Toyota dealer.

1

Stop the engine. Set the
parking brake and shift the
shift lever to P.

2

Remove the mud, snow or
sand from around the stuck
tire.

3

Place wood, stones or some
other material to help provide
traction under the tires.

4

Restart the engine.

5

Shift the shift lever to D or R
and release the parking
brake. Then, while exercising
caution, depress the acceler-
ator pedal.

■

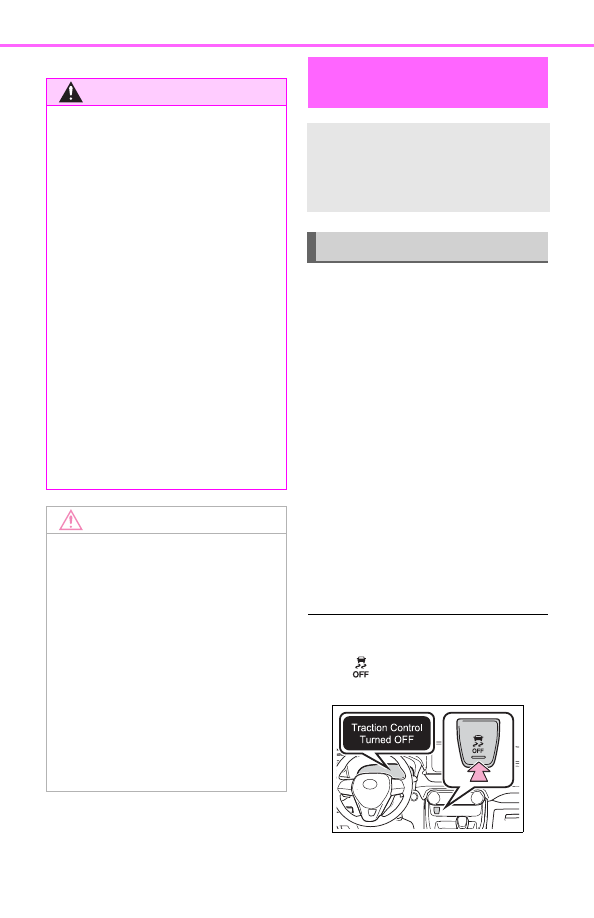

When it is difficult to free the

vehicle

Press

 to turn off TRAC.

(



P.365)

WARNING

■

When inspecting under the

hood of your vehicle

Observe the following precau-

tions.
Failure to do so may result in seri-

ous injury such as burns.

●

If steam is seen coming from

under the hood, do not open the

hood until the steam has sub-

sided. The engine compart-

ment may be very hot.

●

Keep hands and clothing (espe-

cially a tie, a scarf or a muffler)

away from the fan and belts.

Failure to do so may cause the

hands or clothing to be caught,

resulting in serious injury.

●

Do not loosen the coolant reser-

voir cap while the engine and

radiator are hot. High tempera-

ture steam or coolant could

spray out.

NOTICE

■

When adding engine coolant

Add coolant slowly after the

engine has cooled down suffi-

ciently. Adding cool coolant to a

hot engine too quickly can cause

damage to the engine.

■

To prevent damage to the

cooling system

Observe the following precau-

tions:

●

Avoid contaminating the coolant

with foreign matter (such as

sand or dust etc.).

●

Do not use any coolant additive.

If the vehicle becomes

stuck

Carry out the following pro-
cedures if the tires spin or
the vehicle becomes stuck
in mud, dirt or snow:

Recovering procedure

673

8-2. Steps to take in an emergency

8

When

 trou

ble arises

WARNING

■

When attempting to free a

stuck vehicle

If you choose to push the vehicle

back and forth to free it, make

sure the surrounding area is clear

to avoid striking other vehicles,

objects or people. The vehicle

may also lunge forward or lunge

back suddenly as it becomes free.

Use extreme caution.

■

When shifting the shift lever

Be careful not to shift the shift

lever with the accelerator pedal

depressed.
This may lead to unexpected

rapid acceleration of the vehicle

that may cause an accident

resulting in death or serious

injury.

NOTICE

■

To avoid damaging the trans-

mission and other compo-

nents

●

Avoid spinning the wheels and

depressing the accelerator

pedal more than necessary.

●

If the vehicle remains stuck

even after these procedures are

performed, the vehicle may

require towing to be freed.

674

8-2. Steps to take in an emergency

675

9

9

Vehicle specifications

Vehicle specifications

9-1. Specifications

Maintenance data (fuel, oil

level, etc.)..................

676

Fuel information ..........

688

Tire information ...........

690

9-2. Customization

Customizable features

700

9-3. Initialization

Items to initialize .........

712

676

9-1. Specifications

9-1.Specifications

Maintenance data (fuel, oil level, etc.)

Dimensions and weights

Overall length

*1

Except ADVEN-
TURE grade (for
the U.S.A.)/Trail
grade (for Can-
ada)

180.9 in. (4595 mm)

ADVENTURE
grade (for the
U.S.A.)/Trail
grade (for Can-
ada)

181.5 in. (4611 mm)

Overall width

*1

Except ADVEN-
TURE grade (for
the U.S.A.)/Trail
grade (for Can-
ada)

73.0 in. (1855 mm)

ADVENTURE
grade (for the
U.S.A.)/Trail
grade (for Can-
ada)

73.4 in. (1865 mm)

Overall height

*1

Without bridge
type roof rail

67.0 in. (1701 mm)

*2

67.2 in. (1706 mm)

*3

With bridge type
roof rail

68.6 in. (1742 mm)

Wheelbase

*1

105.9 in. (2690 mm)

Tread

*1

Front

63.0 in. (1600 mm)

*2

62.6 in. (1590 mm)

*3

Rear

63.7 in. (1619 mm)

*2

63.3 in. (1609 mm)

*3

677

9-1. Specifications

9

Vehicle specifications

*1

:Unladen vehicle

*2

:Vehicles without 235/55R19 tires

*3

:Vehicles with 235/55R19 tires

*4

:Vehicles without towing package

*5

:Vehicles with towing package

■

Vehicle identification num-
ber

The vehicle identification num-
ber (VIN) is the legal identifier
for your vehicle. This is the pri-
mary identification number for
your Toyota. It is used in regis-
tering the ownership of your
vehicle.

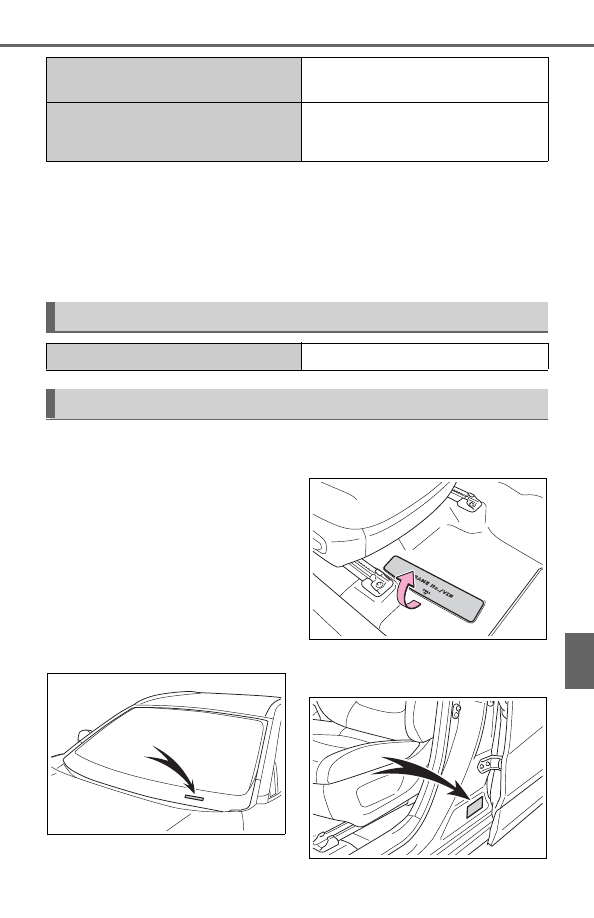

This number is stamped on the
top left of the instrument panel.

On some models, this number is

also stamped under the right-
hand front seat.

This number is also on the Certi-
fication Regulation Label.

Vehicle capacity weight (Occupants +
luggage)

900 lb. (410 kg)

Trailer Weight Rating (Trailer weight
+ cargo weight)

1500 lb. (680 kg)

*4

3500 lb. (1590 kg)

*5

Seating capacity

Seating capacity

5 (Front 2, Rear 3)

Vehicle identification

678

9-1. Specifications

■

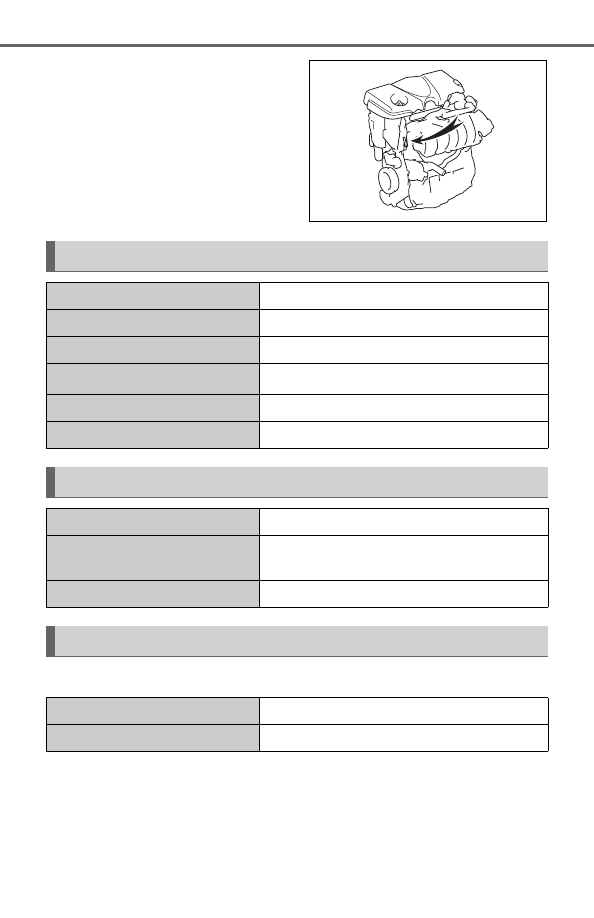

Engine number

The engine number is stamped
on the engine block as shown.

■

Oil capacity (Drain and refill



 reference

*

)

*

: The engine oil capacity is a reference quantity to be used when changing

the engine oil. Warm up and turn off the engine, wait more than 5 min-
utes, and check the oil level on the dipstick.

■

Engine oil selection

“Toyota Genuine Motor Oil” is

used in your Toyota vehicle.
Use Toyota approved “Toyota

Engine

Model

A25A-FKS

Type

4-cylinder in line, 4-cycle, gasoline

Bore and stroke

3.44



 4.07 in. (87.50



 103.48 mm)

Displacement

151.8 cu. in. (2487 cm

3

)

Valve clearance

Automatic adjustment

Drive belt tension

Automatic adjustment

Fuel

Fuel type

Unleaded gasoline only

Octane Rating

87 (Research Octane Number 91) or
higher

Fuel tank capacity (Reference) 14.5 gal. (55 L, 12.1 Imp.gal.)

Lubrication system

With filter

4.8 qt. (4.5 L, 4.0 Imp. qt.)

Without filter

4.4 qt. (4.2 L, 3.7 Imp. qt.)

679

9-1. Specifications

9

Vehicle specifications

Genuine Motor Oil” or equiva-
lent to satisfy the following
grade and viscosity.
Oil grade:
API SN/RC multigrade engine
oil
Recommended viscosity:
SAE 0W-16
SAE 0W-16 is the best choice
for good fuel economy and good
starting in cold weather.
If SAE 0W-16 is not available,
SAE 0W-20 oil may be used.
However, it must be replaced
with SAE 0W-16 at the next oil
change.

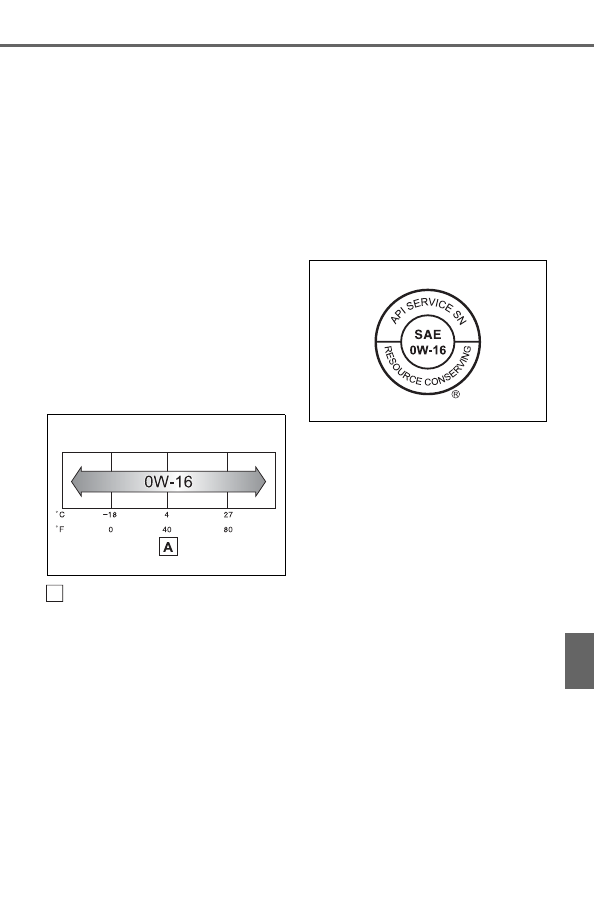

Outside temperature

Oil viscosity (0W-16 is explained
here as an example):
• The 0W in 0W-16 indicates

the characteristic of the oil
which allows cold startability.
Oils with a lower value before
the W allow for easier starting
of the engine in cold weather.

• The 16 in 0W-16 indicates the

viscosity characteristic of the
oil when the oil is at high tem-
perature. An oil with a higher

viscosity (one with a higher
value) may be better suited if
the vehicle is operated at high
speeds, or under extreme
load conditions.

How to read oil container label:
API registered mark is added to
some oil containers to help you
select the oil you should use.

A

680

9-1. Specifications

*

: The coolant capacity is the quantity of reference.

If replacement is necessary, contact your Toyota dealer.

Cooling system

Capacity

*

Without engine oil
cooler

7.3 qt. (6.9 L, 6.1 Imp. qt.)

With engine oil
cooler

7.4 qt. (7.0 L, 6.2 Imp. qt.)

Coolant type

Use either of the following:



“Toyota Super Long Life Coolant”



Similar high-quality ethylene gly-
col-based non-silicate, non-amine,
non-nitrite, and non-borate cool-
ant with long-life hybrid organic
acid technology

Do not use plain water alone.

Ignition system (spark plug)

Make

DENSO FC16HR-Q8

Gap

0.031 in. (0.8 mm)

NOTICE

■

Iridium-tipped spark plugs

Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.

Electrical system (battery)

Specific voltage reading at
68°F (20°C):

12.3 V or higher
(Turn the engine switch to OFF and turn
on the high beam headlights for 30 sec-
onds.)
If the voltage is lower than the standard
value, charge the battery.

Charging rates

Quick charge

15 A max.

Slow charge

5 A max.

681

9-1. Specifications

9

Vehicle specifications

*

: The fluid capacity is the quantity of reference.

If replacement is necessary, contact your Toyota dealer.

Your Toyota vehicle is filled with “Toyota Genuine Differential Gear
Oil” at the factory.
Use Toyota approved “Toyota Genuine Differential Gear Oil” or an
equivalent of matching quality to satisfy the above specification.
Please contact your Toyota dealer for further details.

Automatic transmission

Fluid capacity

*

7.8 qt. (7.4 L, 6.5 Imp.qt.)

Fluid type

Toyota Genuine ATF WS

NOTICE

■

Automatic transmission fluid type

Using transmission fluid other than the above type may cause abnormal

noise or vibration, or damage the transmission of your vehicle.

Transfer (Dynamic Torque Control AWD vehicle)

Oil capacity

0.48 qt. (0.45 L, 0.40 Imp.qt.)

Oil type and viscosity

Toyota Genuine Differential Gear Oil LX
75W-85 GL-5 or equivalent

Transfer (Dynamic Torque Vectoring AWD vehicle)

Oil capacity

0.41 qt. (0.39 L, 0.34 Imp.qt.)

Oil type

Toyota Genuine Differential Gear Oil LX

NOTICE

■

Transfer oil type precaution

Using transfer oil other than the specified oil may cause abnormal noise

or vibration, or damage the transfer of your vehicle.

682

9-1. Specifications

Your Toyota vehicle is filled with “Toyota Genuine Differential Gear
Oil” at the factory.
Use Toyota approved “Toyota Genuine Differential Gear Oil” or an
equivalent of matching quality to satisfy the above specification.
Please contact your Toyota dealer for further details.

*

: Minimum pedal clearance when depressed with a force of 300 N (30.5

kgf, 67.4 lbf) while the engine is running.

Rear differential (Dynamic Torque Control AWD vehicle)

Oil capacity

0.5 qt. (0.5 L, 0.4 Imp.qt.)

Oil type and viscosity

Toyota Genuine Differential Gear Oil LX
75W-85 GL-5 or equivalent

Rear differential (Dynamic Torque Vectoring AWD vehi-
cle)

Oil capacity

0.56 qt. (0.53 L, 0.47 Imp.qt.)

Oil type

Toyota Genuine Differential Gear Oil LX

NOTICE

■

Differential gear oil type precaution

Using differential gear oil other than the specified oil may cause abnormal

noise or vibration, or damage the differential gear of your vehicle.

Brakes

Pedal clearance

*

5.1 in. (129 mm) Min.

Pedal free play

0.04



 0.24 in. (1.0



 6.0 mm)

Brake pad wear limit

0.04 in. (1.0 mm)

Fluid type

FMVSS No.116 DOT 3 or SAE J1703
FMVSS No.116 DOT 4 or SAE J1704

Steering

Free play

Less than 1.2 in. (30 mm)

683

9-1. Specifications

9

Vehicle specifications



Vehicles with 17-inch wheels (type A)



Vehicles with 17-inch wheels (type B)

Tires and wheels

Tire size

225/65R17 102H, T165/80R17 104M
(spare)

Tire inflation pressure (Recom-
mended cold tire inflation pres-
sure)

Front:

35 psi (240 kPa, 2.4 kgf/cm

2

 or bar)

Rear:

35 psi (240 kPa, 2.4 kgf/cm

2

 or bar)

Spare:

60 psi (420 kPa, 4.2 kgf/cm

2

 or bar)

Wheel size

17



 7J, 17



 4T (spare)

Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

Tire size

225/65R17 102H, T165/80R17 104M
(spare)

Tire inflation pressure (Recom-
mended cold tire inflation pres-
sure)

Front:

36 psi (250 kPa, 2.5 kgf/cm

2

 or bar)

Rear:

36 psi (250 kPa, 2.5 kgf/cm

2

 or bar)

Spare:

60 psi (420 kPa, 4.2 kgf/cm

2

 or bar)

Wheel size

17



 7J, 17



 4T (spare)

Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

684

9-1. Specifications



Vehicles with 17-inch wheels (type C)



Vehicles with 17-inch wheels (type D)

Tire size

225/65R17 102H, T165/80D17 104M
(spare)

Tire inflation pressure (Recom-
mended cold tire inflation pres-
sure)

Front:

33 psi (230 kPa, 2.3 kgf/cm

2

 or bar)

Rear:

33 psi (230 kPa, 2.3 kgf/cm

2

 or bar)

Spare:

60 psi (420 kPa, 4.2 kgf/cm

2

 or bar)

Wheel size

17



 7J, 17



 4T (spare)

Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

Tire size

225/65R17 102H, T165/80D17 104M
(spare)

Tire inflation pressure (Recom-
mended cold tire inflation pres-
sure)

Front:

35 psi (240 kPa, 2.4 kgf/cm

2

 or bar)

Rear:

35 psi (240 kPa, 2.4 kgf/cm

2

 or bar)

Spare:

60 psi (420 kPa, 4.2 kgf/cm

2

 or bar)

Wheel size

17



 7J, 17



 4T (spare)

Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

685

9-1. Specifications

9

Vehicle specifications



Vehicles with 17-inch wheels (type E)



Vehicles with 18-inch wheels

Tire size

225/65R17 102H, T165/80D17 104M
(spare)

Tire inflation pressure (Recom-
mended cold tire inflation pres-
sure)

Front:

36 psi (250 kPa, 2.5 kgf/cm

2

 or bar)

Rear:

36 psi (250 kPa, 2.5 kgf/cm

2

 or bar)

Spare:

60 psi (420 kPa, 4.2 kgf/cm

2

 or bar)

Wheel size

17



 7J, 17



 4T (spare)

Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

Tire size

225/60R18 100H, T165/80D17 104M
(spare)

Tire inflation pressure (Recom-
mended cold tire inflation pres-
sure)

Front:

33 psi (230 kPa, 2.3 kgf/cm

2

 or bar)

Rear:

33 psi (230 kPa, 2.3 kgf/cm

2

 or bar)

Spare:

60 psi (420 kPa, 4.2 kgf/cm

2

 or bar)

Wheel size

18



 7J, 18



 4T (spare)

Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

686

9-1. Specifications



Vehicles with 19-inch wheels (type A)



Vehicles with 19-inch wheels (type B)

Tire size

235/55R19 101V, T165/90D18 107M
(spare)

Tire inflation pressure (Recom-
mended cold tire inflation pres-
sure)

Front:

33 psi (230 kPa, 2.3 kgf/cm

2

 or bar)

Rear:

33 psi (230 kPa, 2.3 kgf/cm

2

 or bar)

Spare:

60 psi (420 kPa, 4.2 kgf/cm

2

 or bar)

Wheel size

19



 7 1/2J, 18



 4T (spare)

Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

Tire size

235/55R19 101V, T165/90D18 107M
(spare)

Tire inflation pressure (Recom-
mended cold tire inflation pres-
sure)

Front:

35 psi (240 kPa, 2.4 kgf/cm

2

 or bar)

Rear:

35 psi (240 kPa, 2.4 kgf/cm

2

 or bar)

Spare:

60 psi (420 kPa, 4.2 kgf/cm

2

 or bar)

Wheel size

19



 7 1/2J, 18



 4T (spare)

Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

687

9-1. Specifications

9

Vehicle specifications

A: Wedge base bulbs (clear)
B: H16 halogen bulbs
C: Wedge base bulbs (amber)
D: Double end bulbs (clear)

*

: If equipped

Light bulbs

Light bulbs

Bulb No.

W

Type

Exterior

Front side marker lights

W5W

5

A

Fog lights

*



19

B

Front turn signal/parking lights
(bulb type)

7444NA

28/8

C

Rear turn signal lights

WY21W

21

C

Back-up lights

W16W

16

A

Outer foot lights

*



5

A

Interior

Vanity lights



8

A

Front interior lights/personal lights



5

A

Rear interior light



8

D

Luggage compartment light



5

A

688

9-1. Specifications

■

Gasoline quality

In very few cases, driveability prob-

lems may be caused by the brand of

gasoline you are using. If driveability

problems persist, try changing the

brand of gasoline. If this does not

correct the problem, consult your

Toyota dealer.

■

Recommendation of the use of

gasoline containing detergent

additives

●

Toyota recommends the use of

gasoline that contains detergent

additives to avoid the build-up of

engine deposits.

●

All gasoline sold in the U.S.A. con-

tains minimum detergent additives

to clean and/or keep clean intake

systems, per EPA’s lowest addi-

tives concentration program.

●

Toyota strongly recommends the

use of Top Tier Detergent Gaso-

line. For more information on Top

Tier Detergent Gasoline and a list

of marketers, please go to the offi-

cial website www.toptiergas.com.

■

Recommendation of the use of

low emissions gasoline

Gasolines containing oxygenates

such as ethers and ethanol, as well

as reformulated gasolines, are avail-

able in some cities. These fuels are

typically acceptable for use, provid-

ing they meet other fuel require-

ments.
Toyota recommends these fuels,

since the formulations allow for

reduced vehicle emissions.

■

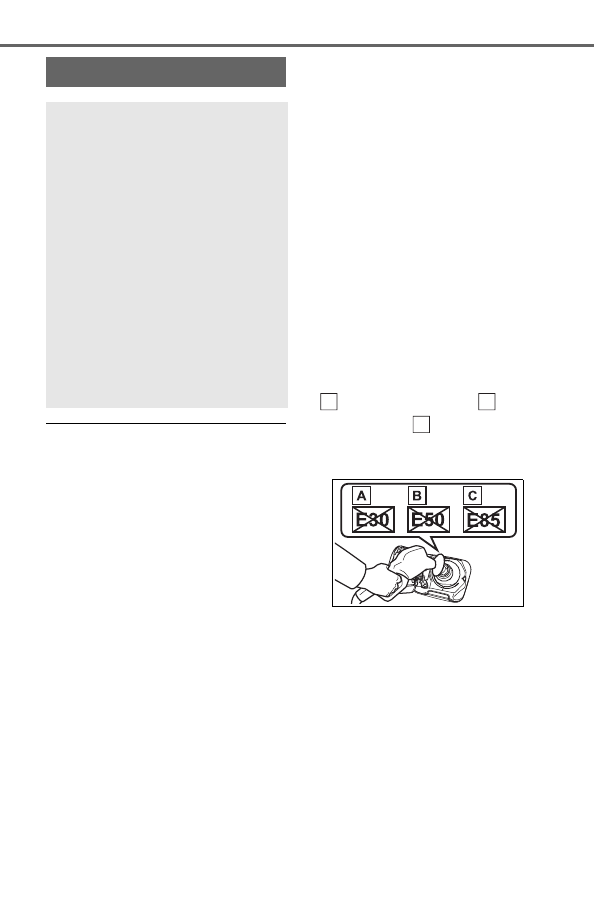

Non-recommendation of the

use of blended gasoline

●

Use only gasoline containing up to

15% ethanol.

DO NOT use any flex-fuel or gas-

oline that could contain more than

15% ethanol, including from any

pump labeled E30 (30% ethanol

), E50 (50% ethanol

), E85

(85% ethanol

) (which are only

some examples of fuel containing

more than 15% ethanol).

●

If you use gasohol in your vehicle,

be sure that it has an octane rat-

ing no lower than 87.

●

Toyota does not recommend the

use of gasoline containing metha-

nol.

■

Non-recommendation of the

use of gasoline containing MMT

Some gasoline contains an octane

enhancing additive called MMT

(Methylcyclopentadienyl Manga-

nese Tricarbonyl).
Toyota does not recommend the

use of gasoline that contains MMT.

If fuel containing MMT is used, your

Fuel information

You must only use unleaded
gasoline in your vehicle.

Select octane rating 87
(Research Octane Number
91) or higher. Use of
unleaded gasoline with an
octane rating lower than 87
may result in engine knock-
ing. Persistent knocking
can lead to engine damage.

At minimum, the gasoline you
use should meet the specifica-
tions of ASTM D4814 in the
U.S.A..

A

B

C

689

9-1. Specifications

9

Vehicle specifications

emission control system may be

adversely affected.
The malfunction indicator lamp on

the instrument cluster may come on.

If this happens, contact your Toyota

dealer for service.

■

If your engine knocks

●

Consult your Toyota dealer.

●

You may occasionally notice light

knocking for a short time while

accelerating or driving uphill. This

is normal and there is no need for

concern.

NOTICE

■

Notice on fuel quality

●

Do not use improper fuels. If

improper fuels are used, the

engine will be damaged.

●

Do not use leaded gasoline.

Leaded gasoline can cause

damage to your vehicle’s three-

way catalytic converters caus-

ing the emission control system

to malfunction.

●

Do not use gasohol other than

the type previously stated.

Other gasohol may cause fuel

system damage or vehicle per-

formance problems.

●

Using unleaded gasoline with

an octane number or rating

lower than the level previously

stated will cause persistent

heavy knocking.

At worst, this will lead to engine

damage.

■

Fuel-related poor driveability

If poor driveability (poor hot start-

ing, vaporization, engine knock-

ing, etc.) is encountered after

using a different type of fuel, dis-

continue the use of that type of

fuel.

■

When refueling with gasohol

Take care not to spill gasohol. It

can damage your vehicle’s paint.

690

9-1. Specifications



Full-size tire



Compact spare tire

Tire size (



P.692)

DOT and Tire Identification Number (TIN) (



P.691)

Location of treadwear indicators (



P.589)

Tire ply composition and materials

Plies are layers of rubber-coated parallel cords. Cords are the strands
which form the plies in a tire.

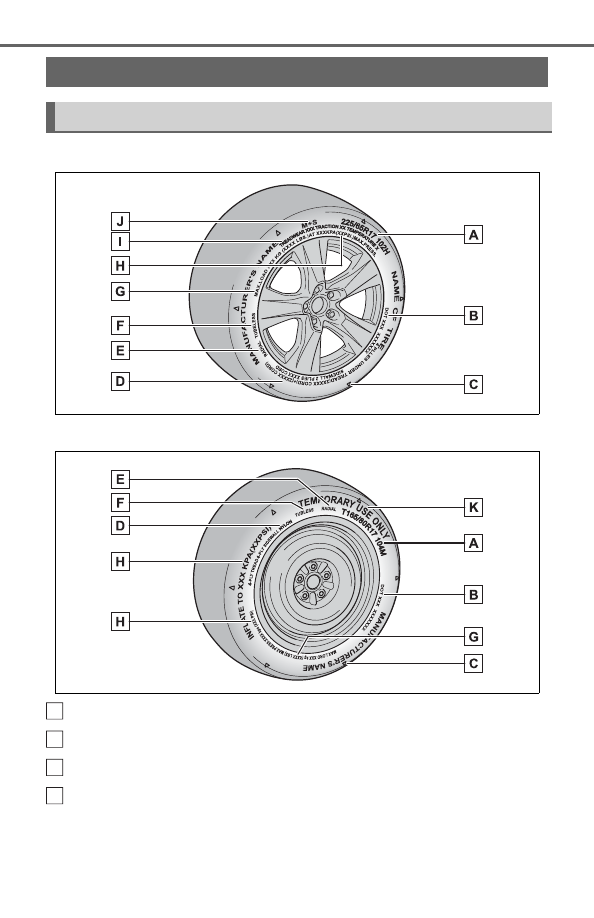

Tire information

Typical tire symbols

A

B

C

D

691

9-1. Specifications

9

Vehicle specifications

Radial tires or bias-ply tires

A radial tire has “RADIAL” on the sidewall. A tire not marked “RADIAL” is a
bias-ply tire.

TUBELESS or TUBE TYPE

A tubeless tire does not have a tube and air is directly put into the tire. A
tube type tire has a tube inside the tire and the tube maintains the air pres-
sure.

Load limit at maximum cold tire inflation pressure (



P.694)

Maximum cold tire inflation pressure (



P.682)

This means the pressure to which a tire may be inflated.

Uniform tire quality grading

For details, see “Uniform Tire Quality Grading” that follows.

Summer tires or all season tires (



P.590)

An all season tire has “M+S” on the sidewall. A tire not marked “M+S” is a
summer tire.

“TEMPORARY USE ONLY”

A compact spare tire is identified by the phrase “TEMPORARY USE ONLY”
molded on its sidewall. This tire is designed for temporary emergency use
only.



Type A

DOT symbol

*

Tire Identification Number
(TIN)

Tire manufacturer’s identifi-
cation mark

Tire size code

Manufacturer’s optional tire
type code (3 or 4 letters)

Manufacturing week

Manufacturing year

*

: The DOT symbol certifies that the

tire conforms to applicable Fed-
eral Motor Vehicle Safety Stan-
dards.

E

F

G

H

I

J

K

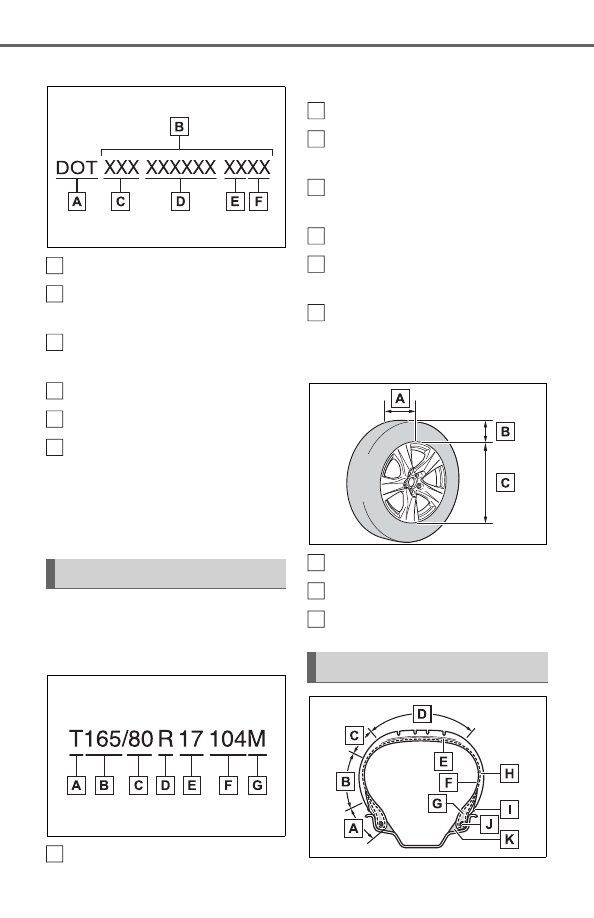

Typical DOT and Tire
Identification Number
(TIN)

A

B

C

D

E

F

G

692

9-1. Specifications



Type B

DOT symbol

*

Tire Identification Number
(TIN)

Tire manufacturer’s identifi-
cation mark

Manufacturer’s code

Manufacturing week

Manufacturing year

*

: The DOT symbol certifies that the

tire conforms to applicable Fed-
eral Motor Vehicle Safety Stan-
dards.

■

Typical tire size information

The illustration indicates typical
tire size.

Tire use

(P = Passenger car,
T = Temporary use)

Section width (millimeters)

Aspect ratio
(tire height to section width)

Tire construction code
(R = Radial, D = Diagonal)

Wheel diameter (inches)

Load index (2 digits or 3 dig-
its)

Speed symbol (alphabet with
one letter)

■

Tire dimensions

Section width

Tire height

Wheel diameter

Tire size

A

B

C

D

E

F

A

Tire section names

B

C

D

E

F

G

A

B

C

693

9-1. Specifications

9

Vehicle specifications

Bead

Sidewall

Shoulder

Tread

Belt

Inner liner

Reinforcing rubber

Carcass

Rim lines

Bead wires

Chafer

This information has been pre-
pared in accordance with regu-
lations issued by the National
Highway Traffic Safety Adminis-
tration of the U.S. Department of
Transportation.
It provides the purchasers
and/or prospective purchasers
of Toyota vehicles with informa-
tion on uniform tire quality grad-
ing.

Your Toyota dealer will help answer
any questions you may have as you
read this information.

■

DOT quality grades

All passenger vehicle tires must
conform to Federal Safety
Requirements in addition to
these grades. Quality grades
can be found where applicable

on the tire sidewall between
tread shoulder and maximum
section width.

For example: Treadwear 200 Trac-
tion AA Temperature A

■

Treadwear

The treadwear grade is a com-
parative rating based on the
wear rate of the tire when tested
under controlled conditions on a
specified government test
course.

For example, a tire graded 150
would wear one and a half (1 - 1/2)
times as well on the government
course as a tire graded 100.
The relative performance of tires
depends upon the actual conditions
of their use. Performance may dif-
fer significantly from the norm due
to variations in driving habits, ser-
vice practices and differences in
road characteristics and climate.

■

Traction AA, A, B, C

The traction grades, from high-
est to lowest, are AA, A, B and
C, and they represent the tire’s
ability to stop on wet pavement
as measured under controlled
conditions on specified govern-
ment test surfaces of asphalt
and concrete.

A tire marked C may have poor
traction performance.
Warning: The traction grade
assigned to this tire is based on
braking (straight ahead) traction
tests and does not include corner-
ing (turning) traction.

Uniform Tire Quality
Grading

A

B

C

D

E

F

G

H

I

J

K

694

9-1. Specifications

■

Temperature A, B, C

The temperature grades are A
(the highest), B, and C, repre-
senting the tire’s resistance to
the generation of heat and its
ability to dissipate heat when
tested under controlled condi-
tions on a specified indoor labo-
ratory test wheel.

Sustained high temperature can
cause the material of the tire to
degenerate and reduce tire life, and
excessive temperature can lead to
sudden tire failure.
Grade C corresponds to a level of

performance which all passenger
car tires must meet under the Fed-
eral Motor Vehicle Safety Standard
No. 109.
Grades B and A represent higher
levels of performance on the labo-
ratory test wheel than the minimum
required by law.
Warning: The temperature grades
of a tire assume that it is properly
inflated and not overloaded.
Excessive speed, underinflation, or
excessive loading, either sepa-
rately or in combination, can cause
heat buildup and possible tire fail-
ure.

Glossary of tire terminology

Tire related term

Meaning

Cold tire inflation pres-
sure

Tire pressure when the vehicle has been parked
for three hours or more, or has not been driven
more than 1 mile or 1.5 km under that condition

Maximum inflation pres-
sure

The maximum cold inflated pressure to which a
tire may be inflated, shown on the sidewall of
the tire

Recommended inflation
pressure

Cold tire inflation pressure recommended by a
manufacturer

Accessory weight

The combined weight (in excess of those stan-
dard items which may be replaced) of transmis-
sion, power steering, power brakes, power
windows, power seats, radio and heater, to the
extent that these items are available as factory-
installed equipment (whether installed or not)

Curb weight

The weight of a motor vehicle with standard
equipment, including the maximum capacity of
fuel, oil and coolant, and if so equipped, air con-
ditioning and additional weight optional engine

695

9-1. Specifications

9

Vehicle specifications

Maximum loaded vehicle
weight

The sum of:
(a) Curb weight
(b) Accessory weight
(c) Vehicle capacity weight
(d) Production options weight

Normal occupant weight

150 lb. (68 kg) times the number of occupants
specified in the second column of Table 1

*

 that

follows

Occupant distribution

Distribution of occupants in a vehicle as speci-
fied in the third column of Table 1

*

 below

Production options weight

The combined weight of installed regular pro-
duction options weighing over 5 lb. (2.3 kg) in
excess of the standard items which they
replace, not previously considered in curb
weight or accessory weight, including heavy
duty brakes, ride levelers, roof rack, heavy duty
battery, and special trim

Rim

A metal support for a tire or a tire and tube
assembly upon which the tire beads are seated

Rim diameter
(Wheel diameter)

Nominal diameter of the bead seat

Rim size designation

Rim diameter and width

Rim type designation

The industry manufacturer’s designation for a
rim by style or code

Rim width

Nominal distance between rim flanges

Vehicle capacity weight
(Total load capacity)

The rated cargo and luggage load plus 150 lb.
(68 kg) times the vehicle’s designated seating
capacity

Vehicle maximum load on
the tire

The load on an individual tire that is determined
by distributing to each axle its share of the max-
imum loaded vehicle weight, and dividing by two

Vehicle normal load on
the tire

The load on an individual tire that is determined
by distributing to each axle its share of curb
weight, accessory weight, and normal occupant
weight (distributed in accordance with Table 1

*



below), and dividing by two

Tire related term

Meaning

696

9-1. Specifications

Weather side

The surface area of the rim not covered by the
inflated tire

Bead

The part of the tire that is made of steel wires,
wrapped or reinforced by ply cords and that is
shaped to fit the rim

Bead separation

A breakdown of the bond between components
in the bead

Bias ply tire

A pneumatic tire in which the ply cords that
extend to the beads are laid at alternate angles
substantially less than 90 degrees to the center-
line of the tread

Carcass

The tire structure, except tread and sidewall
rubber which, when inflated, bears the load

Chunking

The breaking away of pieces of the tread or
sidewall

Cord

The strands forming the plies in the tire

Cord separation

The parting of cords from adjacent rubber com-
pounds

Cracking

Any parting within the tread, sidewall, or inner-
liner of the tire extending to cord material

CT

A pneumatic tire with an inverted flange tire and
rim system in which the rim is designed with rim
flanges pointed radially inward and the tire is
designed to fit on the underside of the rim in a
manner that encloses the rim flanges inside the
air cavity of the tire

Extra load tire

A tire designed to operate at higher loads and at
higher inflation pressures than the correspond-
ing standard tire

Groove

The space between two adjacent tread ribs

Innerliner

The layer(s) forming the inside surface of a
tubeless tire that contains the inflating medium
within the tire

Innerliner separation

The parting of the innerliner from cord material
in the carcass

Tire related term

Meaning

697

9-1. Specifications

9

Vehicle specifications

Intended outboard side-
wall

(a)The sidewall that contains a whitewall, bears
white lettering, or bears manufacturer, brand,
and/or model name molding that is higher or
deeper than the same molding on the other
sidewall of the tire, or
(b)The outward facing sidewall of an asymmetri-
cal tire that has a particular side that must
always face outward when mounted on a vehi-
cle

Light truck (LT) tire

A tire designated by its manufacturer as primar-
ily intended for use on lightweight trucks or mul-
tipurpose passenger vehicles

Load rating

The maximum load that a tire is rated to carry
for a given inflation pressure

Maximum load rating

The load rating for a tire at the maximum per-
missible inflation pressure for that tire

Maximum permissible
inflation pressure

The maximum cold inflation pressure to which a
tire may be inflated

Measuring rim

The rim on which a tire is fitted for physical
dimension requirements

Open splice

Any parting at any junction of tread, sidewall, or
innerliner that extends to cord material

Outer diameter

The overall diameter of an inflated new tire

Overall width

The linear distance between the exteriors of the
sidewalls of an inflated tire, including elevations
due to labeling, decorations, or protective bands
or ribs

Passenger car tire

A tire intended for use on passenger cars, multi-
purpose passenger vehicles, and trucks, that
have a gross vehicle weight rating (GVWR) of
10,000 lb. or less.

Ply

A layer of rubber-coated parallel cords

Ply separation

A parting of rubber compound between adjacent
plies

Tire related term

Meaning

698

9-1. Specifications

Pneumatic tire

A mechanical device made of rubber, chemi-
cals, fabric and steel or other materials, that,
when mounted on an automotive wheel, pro-
vides the traction and contains the gas or fluid
that sustains the load

Radial ply tire

A pneumatic tire in which the ply cords that
extend to the beads are laid at substantially 90
degrees to the centerline of the tread

Reinforced tire

A tire designed to operate at higher loads and at
higher inflation pressures than the correspond-
ing standard tire

Section width

The linear distance between the exteriors of the
sidewalls of an inflated tire, excluding elevations
due to labeling, decoration, or protective bands

Sidewall

That portion of a tire between the tread and
bead

Sidewall separation

The parting of the rubber compound from the
cord material in the sidewall

Snow tire

A tire that attains a traction index equal to or
greater than 110, compared to the ASTM E-
1136 Standard Reference Test Tire, when using
the snow traction test as described in ASTM F-
1805-00, Standard Test Method for Single
Wheel Driving Traction in a Straight Line on
Snow-and Ice-Covered Surfaces, and which is
marked with an Alpine Symbol (

) on at least

one sidewall

Test rim

The rim on which a tire is fitted for testing, and
may be any rim listed as appropriate for use
with that tire

Tread

That portion of a tire that comes into contact
with the road

Tread rib

A tread section running circumferentially around
a tire

Tread separation

Pulling away of the tread from the tire carcass

Tire related term

Meaning

699

9-1. Specifications

9

Vehicle specifications

*

: Table 1



 Occupant loading and distribution for vehicle normal load for

various designated seating capacities

Treadwear indicators
(TWI)

The projections within the principal grooves
designed to give a visual indication of the
degrees of wear of the tread

Wheel-holding fixture

The fixture used to hold the wheel and tire
assembly securely during testing

Designated seating

capacity, Number of

occupants

Vehicle normal load,

Number of occupants

Occupant distribution in

a normally loaded vehi-

cle

2 through 4

2

2 in front

5 through 10

3

2 in front, 1 in second

seat

11 through 15

5

2 in front, 1 in second

seat, 1 in third seat, 1 in

fourth seat

16 through 20

7

2 in front, 2 in second

seat, 2 in third seat, 1 in

fourth seat

Tire related term

Meaning

700

9-2. Customization

9-2.Customization

■

Changing using the naviga-
tion/multimedia system

1

Press the “MENU” button.

2

Select “Setup” on the menu
screen and select “Vehicle”.

3

Select “Vehicle Customiza-
tion”.

Various setting can be changed.
Refer to the list of settings that can
be changed for details.

■

Changing using the multi-
information display

1

Press

 or

 of the meter

control switches and select

.

2

Press

 or

 of the meter

control switches, select the
item.

3

To switch the function on and
off, press

 to switch to the

desired setting.

4

To perform detailed setting of
functions that support
detailed settings, press and
hold

 and display the set-

ting screen.

The method of performing detailed

setting differs for each screen.

Please refer to the advice sentence

displayed on the screen.
To go back to the previous screen

or exit the customize mode, press

.

■

When customizing using the

navigation/multimedia system

or multi-information display

Stop the vehicle in a safe place,

apply the parking brake, and shift

the shift lever to P. Also, to prevent

battery discharge, leave the engine

running while customizing the fea-

tures.

Customizable features

Your vehicle includes a vari-
ety of electronic features
that can be personalized to
suit your preferences. The
settings of these features
can be changed using the
multi-information display,
navigation/multimedia sys-
tem, or at your Toyota
dealer.

Customizing vehicle fea-
tures

WARNING

■

During customization

As the engine needs to be operat-

ing during customization, ensure

that the vehicle is parked in a

place with adequate ventilation. In

a closed area such as a garage,

exhaust gases including harmful

carbon monoxide (CO) may col-

lect and enter the vehicle. This

may lead to death or a serious

health hazard.

NOTICE

■

During customization

To prevent battery discharge,

ensure that the engine is running

while customizing features.

701

9-2. Customization

9

Vehicle specifications

Some function settings are changed simultaneously with other func-
tions being customized. Contact your Toyota dealer for further
details.

Vehicles with navigation system or multimedia system: Settings

that can be changed using the navigation system or multimedia sys-
tem

Settings that can be changed using the multi-information display
Settings that can be changed by your Toyota dealer

Definition of symbols: O = Available, – =Not available

■

Alarm

*

(



P.73)

*

: For vehicles sold in Canada

■

Gauges, meters and multi-information display (



P.82, 85, 89)

Customizable Features

Function

Default setting

Customized

setting

Activates the alarm when the
doors are unlocked using the
mechanical key

Off

On

–

–

O

Function

*1

Default

setting

Customized

setting

Language

*2

“English”
(English)

“Français can-

adien” (Cana-

dian French)

O

O

–

“Español mexi-

cano” (Mexi-

can Spanish)

Units

*2

miles (MPG

US)

km (km/L)

O

O

–

km (L/100 km)

miles (MPG

Imperial)

Speedometer display

*3

Analog

Digital

–

O

–

Eco Driving Indicator Light

On

Off

–

O

–

A

B

C

A

B

C

A

B

C

702

9-2. Customization

*1

:For details about each function:



P.94

*2

:The default setting varies according to country.

*3

:Vehicles with 7-inch display only

*4

:AWD models

■

Door lock (



P.109, 664)

“Fuel Economy”

“Total Aver-

age”

“Trip Average”

–

O

–

“Tank Aver-

age”

Audio system linked display

On

Off

–

O

–

AWD system display

*4

On

Off

–

O

–

Drive information type

Trip

Total

–

O

–

Drive information items (first
item)

Distance

Average

Speed

–

O

–

Total Time

Drive information items (sec-
ond item)

Total Time

Average

Speed

–

O

–

Distance

Pop-up display

On

Off

–

O

–

Multi-Information display off

Off

On

–

O

–

Suggestion function

On

On (when the

vehicle is

stopped)

O

–

O

Off

Function

Default

setting

Customized

setting

Unlocking using a key

Driver’s door

unlocked in

first step, all

doors

unlocked in

second step

All doors

unlocked in

first step

–

–

O

Function

*1

Default

setting

Customized

setting

A

B

C

A

B

C

703

9-2. Customization

9

Vehicle specifications

■

Smart key system

*

 and wireless remote control (



P.104, 129)

*

: If equipped

■

Smart key system

*1

 (



P.129)

Automatic door locking func-
tion

Shift position

linked door

locking opera-

tion

Off

O

–

O

Speed linked

door locking

operation

Automatic door unlocking
function

Shift position

linked door

unlocking
operation

Off

O

–

O

Driver’s door

linked door

unlocking
operation

Function

Default

setting

Customized

setting

Operation signal (emer-
gency flashers)

On

Off

O

–

O

Operation buzzer volume

5

Off

O

–

O

1 to 7

Time elapsed before the
automatic door lock function
is activated if a door is not
opened after being unlocked

60 seconds

Off

O

–

O

30 seconds

120 seconds

Open door reminder buzzer
(When locking the vehicle)

On

Off

–

–

O

Function

Default

setting

Customized

setting

Smart key system

On

Off

–

–

O

Smart door unlocking

Driver’s door

All the doors

O

–

O

Number of consecutive door
lock operations

2 times

As many as

desired

–

–

O

Function

Default

setting

Customized

setting

A

B

C

A

B

C

A

B

C

704

9-2. Customization

*1

:If equipped

*2

:This setting can be changed when the smart door unlocking setting is set

to “Driver’s door”.

■

Wireless remote control (



P.104)

*

: If equipped

■

Power back door

*1

 (



P.119)

Time elapsed before unlock-
ing all the door when gripping
and holding the driver’s door
handle

*2

2 seconds

Off

–

–

O

1.5 seconds

2.5 seconds

Function

Default

setting

Customized

setting

Wireless remote control

On

Off

–

–

O

Unlocking operation

Driver’s door

unlocked in

first step, all

doors

unlocked in

second step

All doors

unlocked in

first step

O

–

O

Theft deterrent panic mode

On

Off

–

–

O

Locking operation when door
opened

On

Off

O

–

O

The function that activates
the

 switch of the wire-

less remote control when
locking the door

*

 (



P.119)

On (Unlocking

all the door)

Off

–

–

O

On (Unlocking

back door

only)

Function

Default

setting

Customized

setting

Power back door operations

On

Off

–

O

–

Back door opener switch
operations

Press and hold

One short

press

–

–

O

Function

Default

setting

Customized

setting

A

B

C

A

B

C

A

B

C

705

9-2. Customization

9

Vehicle specifications

*1

:If equipped

*2

:The operation buzzer that sounds when the back door begins to operate

cannot be turned off.

*3

:The open position is set by the power back door switch. (



P.128)

*4

:When the towing hitch is installed, Hands Free Power Back Door does

not work.

■

Driving position memory

*

 (



P.138)

 switch of the wireless

remote control operation

Press and hold

One short

press

–

–

O

Push twice

Off

Operation buzzer volume

3

1

–

O

–

2

Operation buzzer while the
back door is operating

*2

Off

On

–

–

O

Opening angle

5

1 to 4

–

O

–

User setting

*3

Power back door open oper-
ation when the back door
opener switch is pressed

On

Off

–

–

O

Back door closing assist

On

Off

–

–

O

Hands Free Power Back
Door

*1, 4

On

Off

–

O

O

Function

Default

setting

Customized

setting

Selection the door linking
driving position memory with
door unlock operation

Driver’s door

All doors

–

–

O

Function to prevent contact
between the head restraint
and ceiling (while moving to
memory location)

On

Off

–

–

O

Function

Default

setting

Customized

setting

A

B

C

A

B

C

706

9-2. Customization

*

: If equipped

■

Power windows, and moon roof

*

 or panoramic moon roof

*



(



P.158, 161, 164)

*

: If equipped

■

Moon roof

*

(



P.161)

*

: If equipped

■

Lights (



P.211)

Function

Default

setting

Customized

setting

Key linked operation (open)

Off

On

–

–

O

Key linked operation (close)

Off

On

–

–

O

Wireless remote control
linked operation (open)

Off

On

–

–

O

Wireless remote control
linked operation signal
(buzzer)

On

Off

–

–

O

Side windows open warning
function

On

Off

–

–

O

Sliding roof open warning
function

On

Off

–

–

O

Function

Default

setting

Customized

setting

Automatic mode

On

Off

–

–

O

Opening direction when
using the key linked opera-
tion

Slide

Tilt up

–

–

O

Opening direction when
using the wireless remote
control linked operation

Slide

Tilt up

–

–

O

Function

Default

setting

Customized

setting

Daytime Running Lights

*

On

Off

O

–

O

Light reminder buzzer

On

Off

–

–

O

A

B

C

A

B

C

A

B

C

707

9-2. Customization

9

Vehicle specifications

*

: Except for Canada

■

Automatic light control system

*

 (



P.211)

*

: If equipped

■

Rear window wiper (



P.221)

■

PCS (Pre-Collision System) (



P.232)

Function

Default

setting

Customized

setting

Light sensor sensitivity

Standard

–2 to 2

O

–

O

Time elapsed before head-
lights automatically turn off
after doors are closed

30 seconds

Off

O

–

O

60 seconds

90 seconds

Windshield wiper linked
headlight illumination

On

Off

–

–

O

Function

Default

setting

Customized

setting

Back door opening linked
rear window wiper stop func-
tion

Off

On

–

–

O

Washer linked rear window
wiper operation

On

Off

–

–

O

Shift position linked rear win-
dow wiper operation
(



P.221)

Only once

Off

–

–

O

Continuous

Function

Default

setting

Customized

setting

PCS (Pre-Collision System)

On

Off

–

O

–

Adjust alert timing

Middle

Early

–

O

–

Late

A

B

C

A

B

C

A

B

C

708

9-2. Customization

■

LTA (Lane Tracing Assist) (



P.240)

■

RSA (Road Sign Assist)

*

 (



P.250)

*

: If equipped

■

BSM (Blind Spot Monitor)

*

 (



P.264)

Function

Default

setting

Customized

setting

Lane centering function

On

Off

–

O

–

Steering assist function

On

Off

–

O

–

Alert sensitivity

High

Standard

–

O

–

Vehicle sway warning func-
tion

On

Off

–

O

–

Vehicle sway warning sensi-
tivity

Standard

Low

–

O

–

High

Function

Default

setting

Customized

setting

RSA (Road Sign Assist)

On

Off

–

O

–

Excess speed notification
method

Display only

No notification

–

O

–

Display and

buzzer

Excess speed notification
level

1 mph (2 km/h)

3 mph (5 km/h)

–

O

–

5 mph (10

km/h)

Other notifications method
(No-entry notification)

Display only

No notification

–

O

–

Display and

buzzer

Function

Default

setting

Customized

setting

BSM (Blind Spot Monitor)

On

Off

–

O

–

Outside rear view mirror indi-
cator brightness

Bright

Dim

–

O

–

A

B

C

A

B

C

A

B

C

709

9-2. Customization

9

Vehicle specifications

*

: If equipped

■

RCTA (Rear cross traffic alert) function

*1

 (



P.264)

*1

:If equipped

*2

:This setting is linked with the buzzer volume of the intuitive parking

assist.

■

Intuitive parking assist

*1

 (



P.273)

*1

:If equipped

*2

:This setting is linked with the buzzer volume of the RCTA (Rear cross

traffic alert) function.

Alert timing for presence of
approaching vehicle (sensi-
tivity)

Intermediate

Early

–

O

–

Late

Only when

vehicle

detected in

blind spot

Function

Default

setting

Customized

setting

RCTA (Rear cross traffic
alert) function

On

Off

–

O

–

Buzzer volume

*2

Level 2

Level 1

–

O

–

Level 3

Function

Default

setting

Customized

setting

Intuitive parking assist

On

Off

–

O

O

Buzzer volume

*2

2

1

–

O

O

3

Function

Default

setting

Customized

setting

A

B

C

A

B

C

A

B

C

710

9-2. Customization

■

PKSB (Parking Support Brake)

*

 (



P.281)

*

: If equipped

■

Stop & Start system

*

 (



P.349)

*

: If equipped

■

Automatic air conditioning system

*

 (



P.522)

*

: If equipped

■

Illumination (



P.532)

Function

Default

setting

Customized

setting

PKSB (Parking Support
Brake) function

On

Off

–

O

–

Function

Default

setting

Customized

setting

Change the Stop & Start sys-
tem duration when the A/C is
on

Standard

Extended

–

O

–

Function

Default

setting

Customized

setting

A/C Auto switch operation

On

Off

O

–

O

Switching to the outside air
mode when the vehicle is
parked

On

Off

–

–

O

Function

Default

setting

Customized

setting

Time elapsed before the inte-
rior lights turn off

15 seconds

Off

O

–

O

7.5 seconds

30 seconds

Operation after the engine
switch is turned off

On

Off

–

–

O

Operation when the doors
are unlocked

On

Off

–

–

O

A

B

C

A

B

C

A

B

C

A

B

C

711

9-2. Customization

9

Vehicle specifications

*1

:Vehicles with smart key system only

*2

:If equipped

■

Vehicle customization

●

When the speed linked door locking function and shift position linked door

locking function are both on, the door lock operates as follows.

• If the vehicle is started with all the doors locked, the speed linked door

locking function would not operate.

• If the vehicle is started with any door unlocked, the speed linked door lock-

ing function will operate.

• When shifting the shift lever to any position other than P, all the doors will

be locked.

●

When the smart key system is off, the selecting door to unlock cannot be

customized.

●

When the doors remain closed after unlocking the doors and the auto-

matic door lock function is activated, the signals will be generated in

accordance with the Operation signal (buzzer) and the Operation signal

(emergency flashers) settings.

Operation when you
approach the vehicle with the
electronic key on your per-
son

*1

On

Off

–

–

O

Footwell lighting

*2

On

Off

–

–

O

Function

Default

setting

Customized

setting

A

B

C

712

9-3. Initialization

9-3.Initialization

*1

:If equipped

*2

:Vehicles with Audio Plus or Premium Audio, refer to “NAVIGATION AND

MULTIMEDIA SYSTEM OWNER’S MANUAL”.

Items to initialize

The following items must be initialized for normal system
operation after such cases as the battery being reconnected,
or maintenance being performed on the vehicle:

List of the items to initialize

Item

When to initialize

Reference

Power back door

*1

• After reconnecting or chang-

ing the battery

• After changing a fuse

P.124

Intuitive parking assist

*1

P.277

Parking Support Brake

*1

P.285

Power windows

• When functioning abnor-

mally

P.158

Moon roof

*1

P.162

Panoramic moon roof

*1

P.165

Maintenance required
reminder message

• After the maintenance is

performed

P.572

Tire pressure warning sys-
tem

*1

• When rotating the tires
• When changing the tire
• After registering the ID

codes

P.598

Toyota parking assist moni-
tor

*1

• After reconnecting or chang-

ing the battery

• After changing a fuse

P.314
P.346

Panoramic view monitor

*1, 2

713

10

10

Fo
r owne

rs

For owners

10-1.For owners

Reporting safety defects for

U.S. owners...............

714

Seat belt instructions for

Canadian owners (in
French)......................

715

SRS airbag instructions for

Canadian owners (in
French)......................

716
