5-10. Tips for operating the audio/visual system

COROLLA H/B_U

when using USB memory
containing numerous levels of
folders. For this reason, we
recommend creating USB
memory with no more than 2
levels of folders.



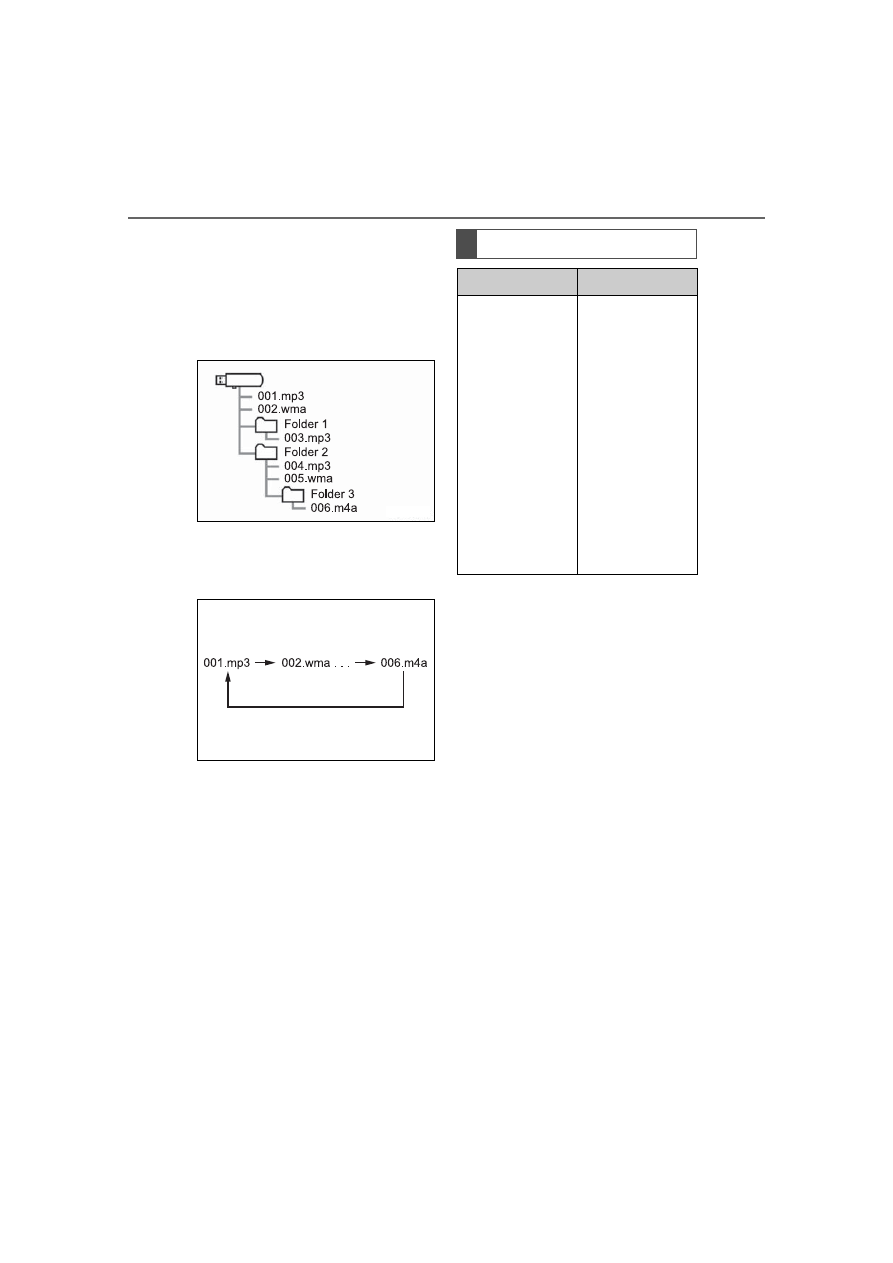

The play order of the USB
memory with the structure
shown above is as follows:



The order changes depending
on the personal computer and
MP3/WMA/AAC encoding
software you use.

Compatible video format

Format

Codec

MPEG-4

Video codec:



H.264/MPEG-4
AVC



MPEG4

Audio codec:



AAC



MP3

Corresponding
screen size:



MAX
1920



1080

Corresponding
frame rate:



MAX 60i/30p

-------------------------------------------------------------------------------------------------------------------------------------------------------------

333

5-10. Tips for operating the audio/visual system

COROLLA H/B_U

Audio

■

ID3 tag



This is a method of embed-

ding track-related information
in an MP3 file. This embed-
ded information can include
the track number, track title,
the artist’s name, the album
title, the music genre, the year
of production, comments,
cover art and other data. The
contents can be freely edited
using software with ID3 tag
editing functions. Although
the tags are restricted to a
number of characters, the
information can be viewed
when the track is played back.

■

WMA tag



WMA files can contain a
WMA tag that is used in the
same way as an ID3 tag.
WMA tags carry information
such as track title and artist
name.

■

MP3



MP3 is an audio compression
standard determined by a
working group (MPEG) of the
ISO (International Standard
Organization). MP3 com-
presses audio data to about
1/10 the size of that on con-
ventional discs.

■

WMA



WMA (Windows Media Audio)
is an audio compression for-

mat developed by Microsoft

It compresses files into a size
smaller than that of MP3 files.
The decoding formats for

AVI Container

Video codec:



H.264/MPEG-4
AVC



MPEG4



WMV9



WMV9
Advanced pro-
file

Audio codec:



AAC



MP3



WMA9.2
(7,8,9.1,9.2)

Corresponding
screen size:



MAX
1920



1080

Corresponding
frame rate:



MAX 60i/30p

Windows Media
Video

Video codec:



WMV9



WMV9
Advanced pro-
file

Audio codec:



WMA9.2
(7,8,9.1,9.2)

Corresponding
screen size:



MAX
1920



1080

Corresponding
frame rate:



MAX 60i/30p

Terms

Format

Codec

-------------------------------------------------------------------------------------------------------------------------------------------------------------

334

5-10. Tips for operating the audio/visual system

COROLLA H/B_U

WMA files are Ver. 7, 8 and 9.



Trademark Acknowledgement
Windows Media is either a
registered trademark or trade-
mark of Microsoft Corpora-
tion in the United States
and/or other countries.
This product includes technol-
ogy owned by Microsoft Cor-
poration and cannot be used
or distributed without a
license from Microsoft Licens-
ing, Inc.

■

AAC



AAC is short for Advanced
Audio Coding and refers to an
audio compression technol-
ogy standard used with
MPEG2 and MPEG4.

■

USB

■

iPod

■

Bluetooth

audio

●

If the malfunction is not rectified:
Take your vehicle to your Toyota
dealer.

Error messages

Message

Explanation

“USB Error”

This indicates a
problem in the
USB memory or
its connection.

“No music files
found.”

This indicates
that no
MP3/WMA/AAC
files are included
in the USB mem-
ory.

“No video files
found.”

This indicates
that no video
files are included
in the USB mem-
ory.

Message

Explanation

“iPod Error.”

This indicates a
problem in the
iPod or its con-
nection.

“No music files
found.”

This indicates
that there is no
music data in the
iPod.

“Please check
the iPod firm-
ware version.”

This indicates
that the software
version is not
compatible. Per-
form the iPod
firmware
updates and try
again.

“Unable to
authorize the
iPod.”

This indicates
that it failed to
authorize the
iPod.

Please check
your iPod.

Message

Explanation

“Music tracks not
supported.
Please check
your portable
player.”

This indicates a
problem in the

Bluetooth

device.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

339

5-11. Voice command system operation

COROLLA H/B_U

Audio

5-11.Voice command system operation

■

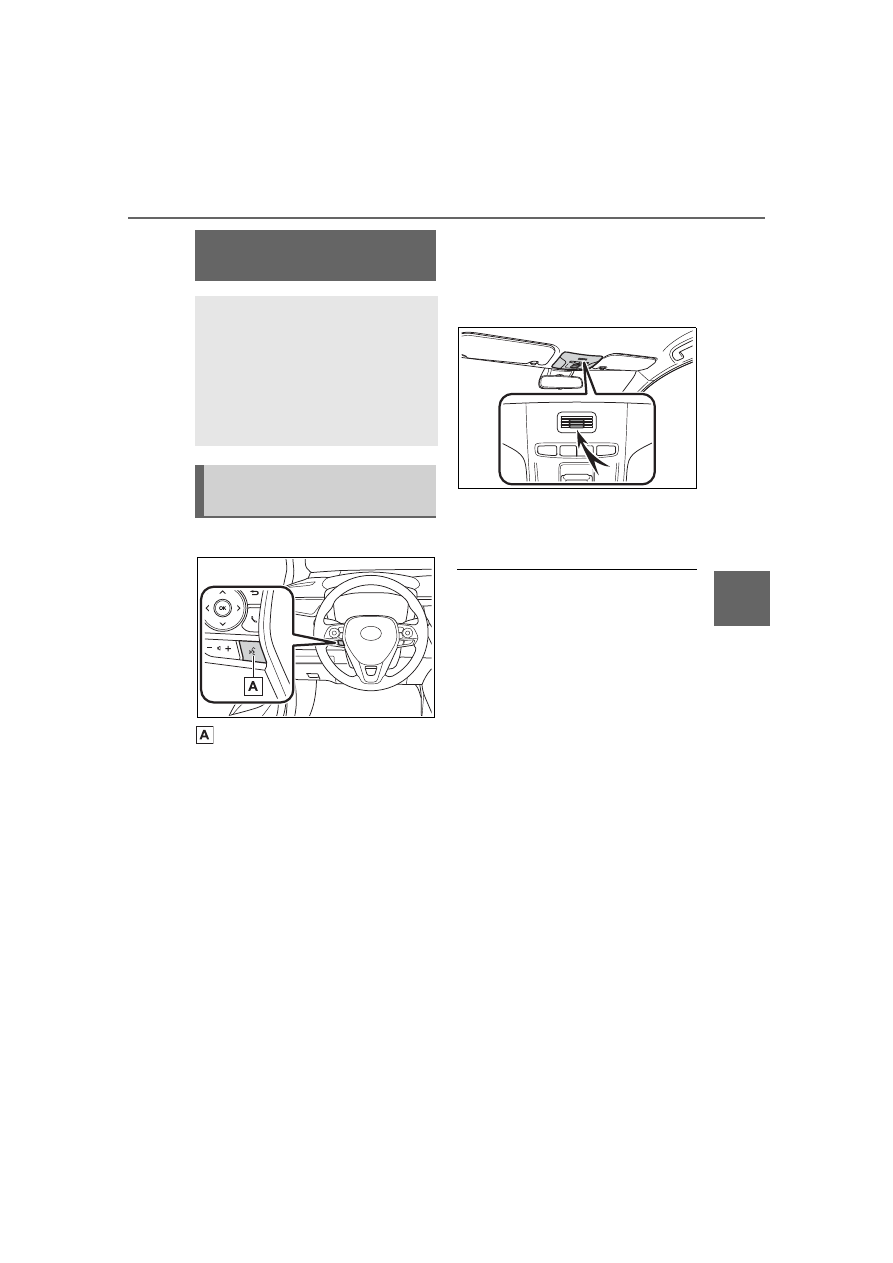

Steering switch

Talk switch



Voice command system



Press the talk switch to start
the voice command system.
To cancel voice command,
press and hold the talk switch.



When an Apple Car-
Play/Android Auto connec-

tion is established:



Press and hold the talk switch
to start Siri/Google Assistant.
To cancel Siri/Google Assis-
tant, press the talk switch.



Press the talk switch to start

the voice command system.

: This function is not made avail-

able in some countries or areas.

■

Microphone



It is unnecessary to speak
directly into the microphone
when giving a command.

●

Voice commands may not be rec-
ognized if:

• Spoken too quickly.
• Spoken at a low or high volume.
• The windows are open.
• Passengers are talking while

voice commands are spoken.

• The fan speed of the air condition-

ing system is set at high.

• The air conditioning vents are

turned towards the microphone.

●

In the following conditions, the
system may not recognize the
command properly and using
voice commands may not be pos-
sible:

• The command is incorrect or

unclear. Note that certain words,
accents or speech patterns may
be difficult for the system to recog-
nize.

• There is excessive background

noise, such as wind noise.

●

Normally, it is necessary to wait
for a beep before saying a com-
mand. To enable the ability to talk
over prompts and say commands
before the beep, enable the voice
prompt interrupt function.
(



P.300)

Voice command sys-

tem

The voice command sys-
tem enables the radio,
phone dialing, etc. to be
operated using voice com-
mands. Refer to the com-
mand list for samples of
voice commands. (



P.342)

Using the voice command
system

-------------------------------------------------------------------------------------------------------------------------------------------------------------

340

5-11. Voice command system operation

COROLLA H/B_U

●

This system may not operate

immediately after the engine

switch is in ACC or ON.

The voice command system is

operated by saying commands

which correspond to a sup-

ported function. To display

examples of commands for sup-

ported functions, select a func-

tion button on the screen after

starting the voice command sys-

tem.

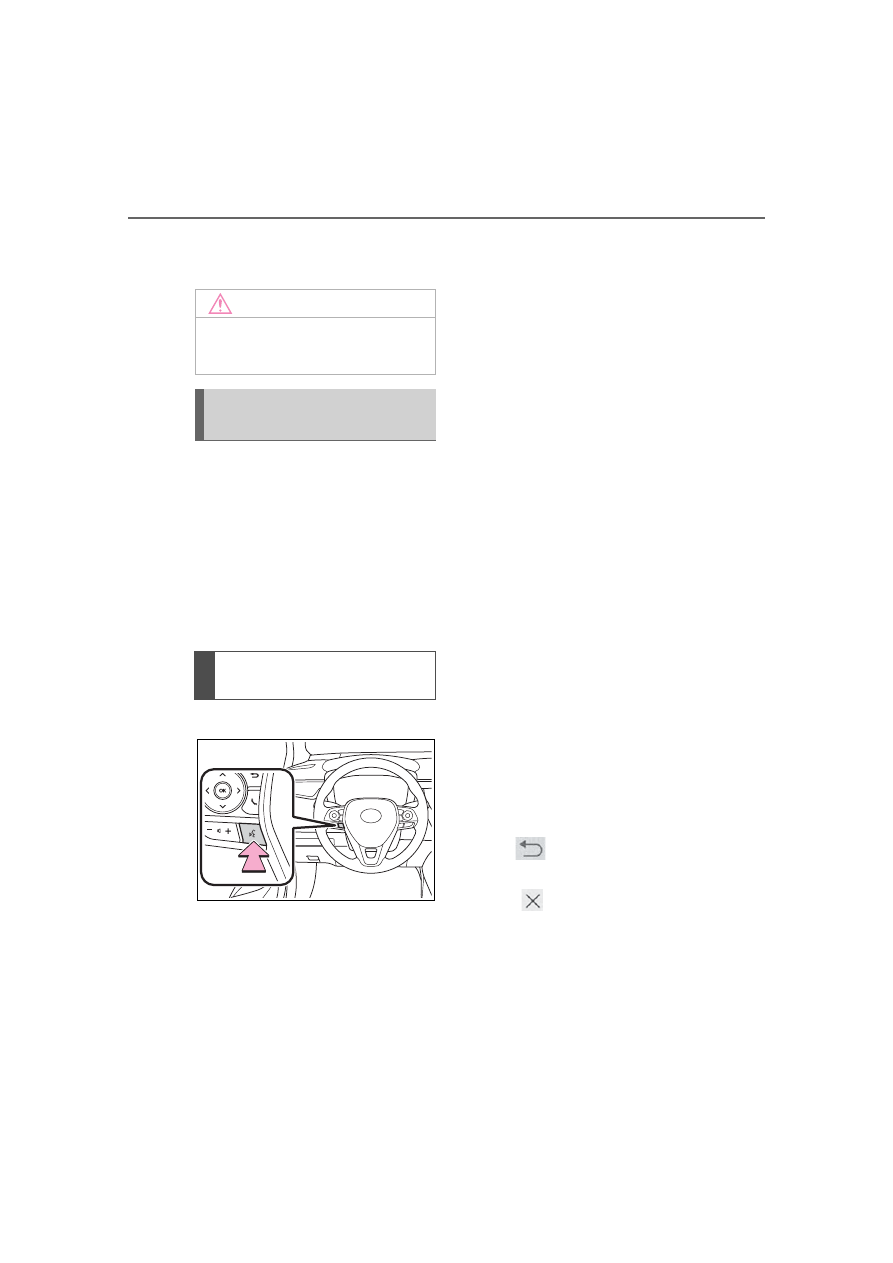

Press the talk switch.



Voice guidance for the voice

command system can be

skipped by pressing the talk

switch.

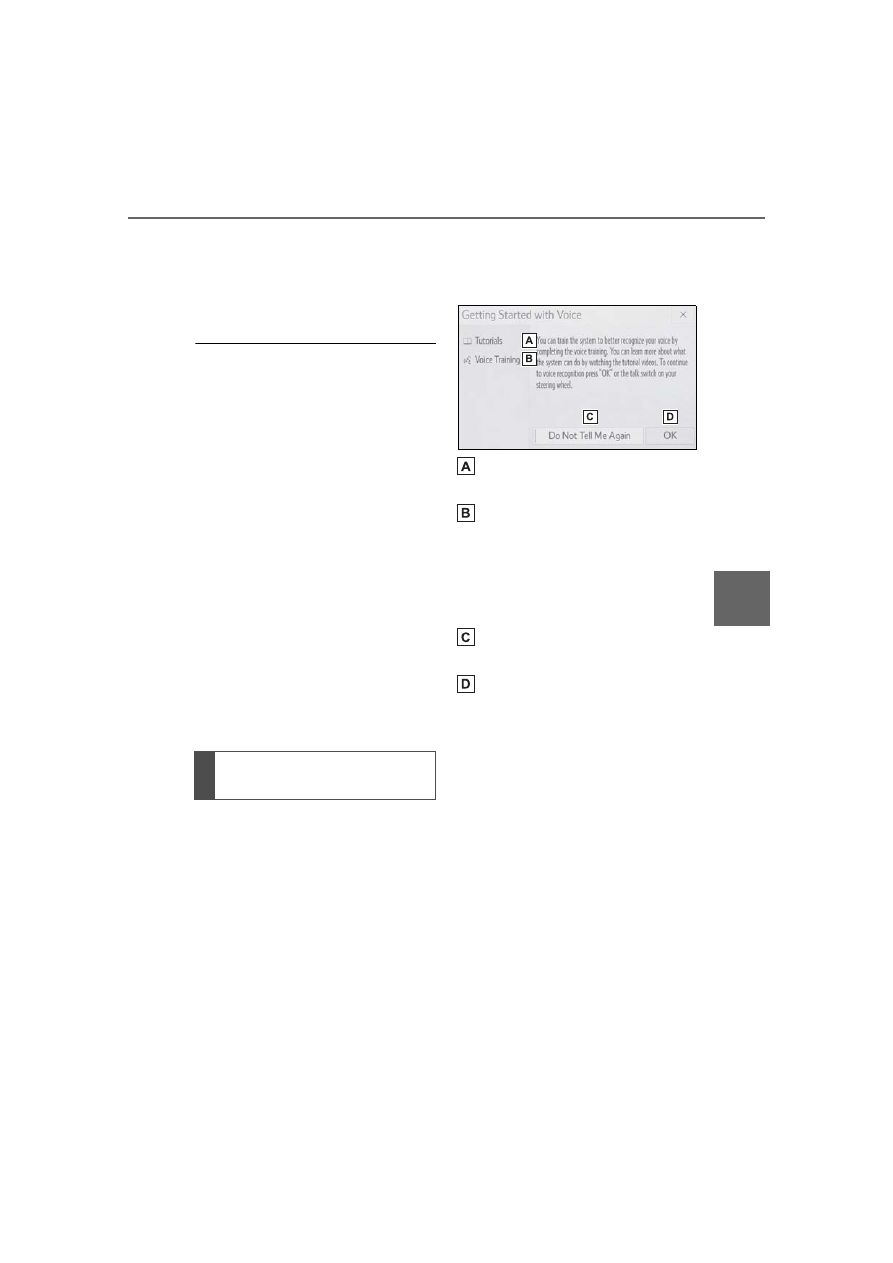

If “Getting Started with Voice”

screen is displayed, select

“OK” or press the talk switch.

(



P.341)

After hearing a beep, say a

supported command.



To display sample commands

of the desired function, say

the desired function or select

the desired function button. To

display more commands,

select “More Commands”.



Selecting “Help” or saying

“Help” prompts the voice com-

mand system to offer exam-

ples of commands and

operation methods.



Registered POIs, registered

names in the contacts list etc.,

can be said in the place of the

“<>” next to the commands.

(



P.342)

For example: Say “Find a restau-

rant”, “Call John Smith” etc.



If a desired outcome is not

shown, or if no selections are

available, perform one of the

following to return to the pre-

vious screen:

• Say “Go back”.
• Select .



To cancel voice recognition,
select , say “Cancel”, or

press and hold the talk switch.



To perform the voice com-

mand operation again, select

“Start Over” or say “Start

over”.



To suspend voice command

NOTICE

●

Do not touch and put a sharp

object to the microphone. It may

cause failure.

Voice command system

operation

Operation from the main

menu

-------------------------------------------------------------------------------------------------------------------------------------------------------------

341

5-11. Voice command system operation

COROLLA H/B_U

Audio

operation, select “Pause” or
say “Pause”. To resume the
voice command operation,
select “Resume” or press the
talk switch.

●

If the system does not respond or
the confirmation screen does not
disappear, press the talk switch
and try again.

●

If a voice command cannot be rec-
ognized, voice guidance will say
“Sorry, could you repeat that?”
and voice command reception will
restart.

●

If a voice command cannot be rec-
ognized 3 consecutive times,
voice recognition will be canceled.

●

The amount of spoken feedback
received from the system while
using the voice command system
(voice recognition prompts) can
be changed on the voice settings
screen. (



P.300)

●

Some voice guidance can be can-
celed by setting voice prompts to
off. Use this setting when it is
desirable to say a command
immediately after pressing the talk
switch and hearing a beep.

To increase voice recognition
performance, use the “Tutori-
als” and “Voice Training” func-
tions on the “Getting Started
with Voice” screen. These func-
tions are only available when
the vehicle is not moving.

The “Tutorials” and “Voice Train-
ing” functions can also be
started on the voice settings
screen. (



P.300)

Press the talk switch.

Select the desired item to be
set.

Select to display the voice
command tutorials.

Select to train the voice com-
mand system.

The user will be asked to say 10
sample phrases. This will help the
voice command system adapt to
the user’s accent.

Select to prevent the screen
from being displayed again.

Select to proceed to the
voice command screen.

Increasing the voice rec-
ognition performance

-------------------------------------------------------------------------------------------------------------------------------------------------------------

342

5-11. Voice command system operation

COROLLA H/B_U

Recognizable voice commands
and their actions are shown
below.



Frequently used commands
are listed in the following
tables.



For devices that are not
installed to the vehicle, com-
mands relating to that device
may not be displayed on the
screen. Also, depending on
other conditions, such as
compatibility, some com-
mands may not be displayed
on the screen.



The functions available may
vary according to the system
installed.



When an Apple Car-
Play/Android Auto connec-
tion is established, some
commands will become
unavailable.



Voice recognition language
can be changed. (



P.296)

■

Common

■

Top menu

: Vehicle must be parked

Command list

Command list overview

Command list

Command

Action

“Help”

Displays exam-
ples of some of
the available
commands

“Go back”

Returns to the
previous screen

“Cancel”

Cancels the
voice command
system

“Start over”

Returns to top
menu screen

“Pause”

Temporarily
pauses a voice
session until it is
resumed by
pressing the talk
switch again.

Command

Action

“Show com-
mand examples
for <menu>”

Displays the
command list of
the selected
menu

“More com-
mands”

Displays more
commonly used
commands

“Voice settings”

Displays Voice
Setting screen

“Train my voice”

Displays Train
Voice Recogni-

tion screen

-------------------------------------------------------------------------------------------------------------------------------------------------------------

343

5-11. Voice command system operation

COROLLA H/B_U

Audio

■

Phone

: If the system does not recognize

the name of a contact, create a
voice tag. (



P.366) The name of

a contact can also be recognized
by adding a voice tag.

■

While in a phone call

■

While incoming message

notification is displayed

: Full screen message notification

must be turned on within the
phone settings (



P.364)

Command

Action

“Call <contact>”

Places a call to
the specified
contact from the
phone book

“Call <contact>

<phone type>”

Places a call to
the specified
phone type of
the contact from
the phone book

“Dial <phone
number>”

Places a call to
the specified
phone number

“Redial”

Places a call to
the phone num-
ber of the latest
outgoing call

“Call back”

Places a call to
the phone num-
ber of latest
incoming call

“Show recent
calls”

Displays the call
history screen

“Send a mes-
sage to <con-
tact>”

Sends a text
message to
specified con-
tact from the
phone book

Command

Action

“Send <digits>”

Sends DTMF
tones has speci-
fied

“Mute”

Mutes the micro-
phone (far side
cannot hear the
conversation)

“Unmute”

Unmutes the
microphone

Command

Action

“Read message”

Reads the
incoming mes-
sage over the
vehicle speakers

“Ignore”

Ignores the
incoming mes-
sage notification

“Reply”

Initiates sending
a reply to the
incoming mes-
sage

“Call”

Places a call to
the phone num-
ber of incoming
message

-------------------------------------------------------------------------------------------------------------------------------------------------------------

344

5-11. Voice command system operation

COROLLA H/B_U

■

Radio

: A station list must be built first

using the radio screen (



P.308)

: Requires a satellite radio sub-

scription

■

Audio

: The audio device must be con-

nected via a USB cable to use the
functionality in this section

Command

Action

“Tune to <fre-
quency> AM”

Changes the
radio to the
specified AM fre-
quency

“Tune to <fre-
quency> FM”

Changes the
radio to the
specified FM fre-
quency

“Play a <genre>
station”

Changes the
radio to an FM
station of the
specified genre

“Tune to preset
<1-36>”

Changes the
radio to the
specified preset
radio station

“Tune to a
<genre> satel-
lite station”

Changes the
radio to a satel-
lite radio channel
of the specified

genre

“Tune to <satel-
lite channel
name>”

Changes the
radio to the sat-
ellite radio chan-
nel with the

specified name

“Tune to chan-
nel <number> on
XM”

Changes the
radio to a satel-
lite radio channel
of the specified

number

Command

Action

“Play Playlist
<name>”

Plays tracks
from the
selected playlist

“Play Artist
<name>”

Plays tracks
from the
selected artist

“Play Song
<name>”

Plays the
selected track

“Play Album
<name>”

Plays tracks
from the
selected album

“Play Genre
<name>”

Plays tracks
from the
selected genre

“Play Composer
<name>”

Plays tracks
from the
selected com-
poser

“Play Podcast
<name>”

Plays tracks
from the
selected podcast

“Play Audiobook
<name>”

Plays tracks
from the
selected audio-
book

“Audio On”

Turns the audio
system on

“Audio Off”

Turns the audio
system off

“Change the
audio source to
<source name>”

Sets the source
to the specified
audio mode

-------------------------------------------------------------------------------------------------------------------------------------------------------------

346

5-12. Mobile Assistant operation

COROLLA H/B_U

5-12.Mobile Assistant operation

Mobile Assist supports the Siri
Eyes Free Mode and Google
App. The available features and
functions may vary based on the
iOS/Android version installed on
the connected device.



Type A

Press and hold the talk
switch on the steering wheel
until Mobile Assistant screen
is displayed.



Type B

Press and hold the

switch

on the steering wheel until
Mobile Assistant screen is
displayed.

Mobile Assistant

The Mobile Assistant func-
tion is a voice input assist
function. Mobile Assist sup-
ports the Siri Eyes Free
Mode and Google App.
(Google App can be used
only the corresponding
device.) Instructions can be
spoken into the vehicle
microphone as if speaking a
command to the phone. The
content of the request is
then interpreted by the
phone and the result is out-
put from the vehicle speak-
ers. To operate the Mobile
Assistant, a compatible
device must be registered
and connected to this sys-

tem via Bluetooth

(



P.272)

When an Apple CarPlay
connection is established,
this function will be unavail-
able.

Connectable devices and
available functions

Mobile Assistant opera-
tion

-------------------------------------------------------------------------------------------------------------------------------------------------------------

347

5-12. Mobile Assistant operation

COROLLA H/B_U

Audio

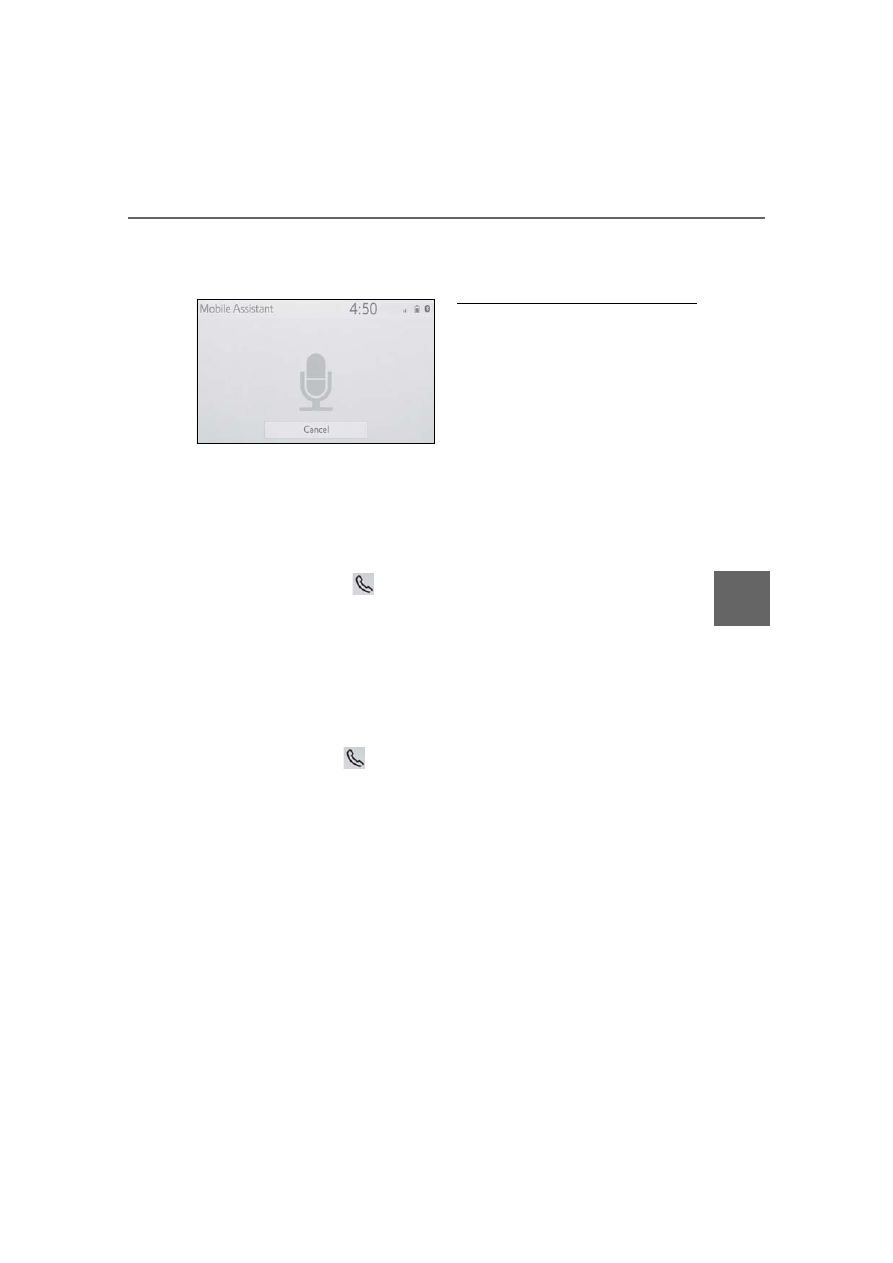

The Mobile Assistant can be
used only when the following
screen is displayed.



Type A: To cancel the Mobile
Assistant, select “Cancel” or
press and hold the talk switch
on the steering wheel.
Type B: To cancel the Mobile
Assistant, select “Cancel” or

press and hold the

switch

on the steering wheel.



Type A: To restart the Mobile
Assistant for additional com-
mands, press the talk switch
on the steering wheel.
Type B: To restart the Mobile
Assistant for additional com-

mands, press the

switch

on the steering wheel.

• Mobile Assistant can only be

restarted after the system
responds to a voice command.

• After some phone and music

commands, the Mobile Assistant
feature will automatically end to
complete the requested action.



The volume of the Mobile
Assistant can be adjusted
using the “POWER VOLUME”
knob or steering wheel vol-
ume control switches. The

Mobile Assistant and phone
call volumes are synchro-
nized.

●

While a phone call is active, the
Mobile Assistant cannot be used.

●

If using the navigation feature of
the cellular phone, ensure the
active audio source is Bluetooth

audio or iPod in order to hear turn
by turn direction prompts.

●

Wait for the listening beeps before
using the Mobile Assistant.

●

The Mobile Assistant may not rec-
ognize commands in the following
situations:

• Spoken too quickly.
• Spoken at a low or high volume.
• The windows are open.
• Passengers are talking while the

Mobile Assistant is being used.

• The fan speed of the air condition-

ing system is set at high.

• The air conditioning vents are

turned toward the microphone.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

348

5-13. Phone operation (Hands-free system for cellular phones)

COROLLA H/B_U

5-13.Phone operation (Hands-free system for cellular phones)

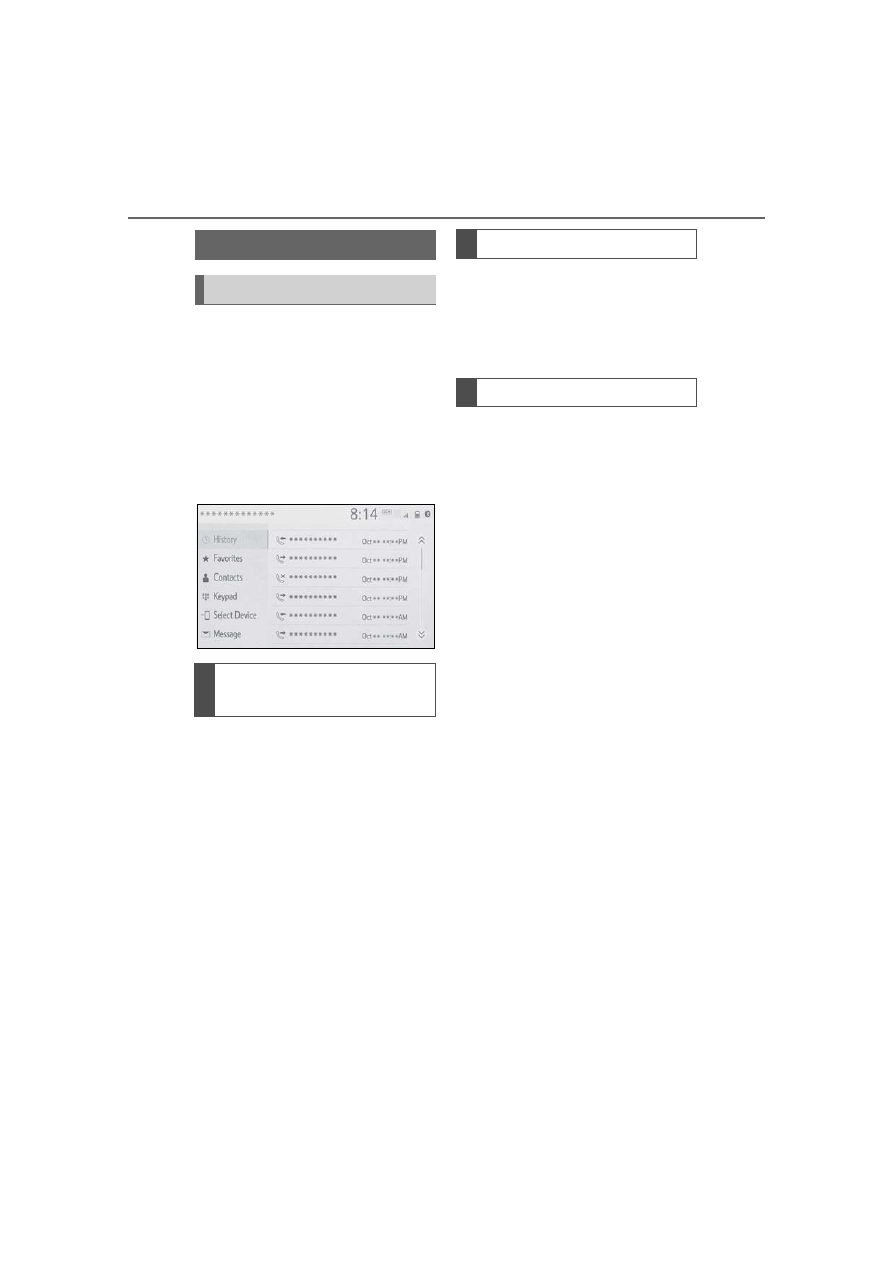

The phone screen can be
reached by the following meth-
ods:



From the “PHONE” button

Press the “PHONE” button.



From the “MENU” button

Press the “MENU” button,
then select “Phone”.

The following functions can be
used on phone operation:



Registering/connecting a

Bluetooth

device (



P.272)



Placing a call using the Blue-

tooth

hands-free system

(



P.353)



Receiving a call using the

Bluetooth

hands-free system

(



P.356)



Talking on the Bluetooth

hands-free system (



P.357)

The following function can be
used on message function:



Using the Bluetooth

phone

message function (



P.359)

The following functions can be
made in the system:



Phone settings (



P.364)



Bluetooth

settings (



P.277)

Quick reference

Phone screen operation

Bluetooth

hands-free

system operation

Message function

Setting up a phone

-------------------------------------------------------------------------------------------------------------------------------------------------------------

349

5-13. Phone operation (Hands-free system for cellular phones)

COROLLA H/B_U

dio

●

This system is not guaranteed to

operate with all Bluetooth

devices.

●

If your cellular phone does not

support Bluetooth

, this system

cannot function.

●

In the following conditions, the

system may not function:

• The cellular phone is turned off.

• The current position is outside the

communication area.

• The cellular phone is not con-

nected.

• The cellular phone has a low bat-

tery.

●

Depending on the type of Blue-

tooth

phone, some function is

not available.

●

When using the hands-free sys-

tem or Bluetooth

audio and

Wi-Fi

Hotspot functions at the

same time, the following problems

may occur:

• The Bluetooth

connection may

be cut.

• Noise may be heard on the Blue-

tooth

audio playback.

• A noise may be heard during

phone calls.

●

Bluetooth

uses the 2.4 GHz fre-

quency band. If both a Wi-Fi

con-

nection and Bluetooth

connection are being used simul-

taneously, each connection may

be affected.

●

If a Bluetooth

device is attempt-

ing to connect to the vehicle while

another device is connected as a

Bluetooth

audio device or con-

nected using the hands-free sys-

tem or Wi-Fi

Hotspot function,

the communication speed may

decrease or malfunctions may

occur, such as image distortion or

audio skipping. If a Bluetooth

device is connected to the system,

the interference it may cause will

be reduced. When carrying a

device with its Bluetooth

connec-

tion enabled, make sure to regis-

ter it to the system and connect it

or disable its Bluetooth

function.

●

When a device is connected via

Bluetooth

, the Bluetooth

icon

on the status bar will be displayed

in blue. (



P.260)

Some basics

The hands-free system

enables calls to be made

and received without having

to take your hands off the

steering wheel.
This system supports Blue-
tooth

. Bluetooth

is a wire-

less data system that

enables cellular phones to

be used without being con-

nected by a cable or placed

in a cradle.
The operating procedure of

the phone is explained here.
When an Apple CarPlay

connection is established,

phone functions will be per-

formed by Apple CarPlay

instead of the hands-free

system.

WARNING

●

While driving, do not operate a

cellular phone.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

350

5-13. Phone operation (Hands-free system for cellular phones)

COROLLA H/B_U

To use the hands-free system

for cellular phones, it is neces-

sary to register a cellular phone

with the system. (



P.272)

■

Connecting a Bluetooth

device



Registering an additional

device

Display the phone top

screen. (



P.348)

Select “Select Device”.

Select “Add Device”.



When another Bluetooth

device is connected, a confir-

mation screen will be dis-

played. To disconnect the
Bluetooth

device, select

“Yes”.

Follow the steps in “Register-
ing a Bluetooth

phone for

the first time” from step

(



P.272)



Selecting a registered device

Display the phone top

screen. (



P.348)

Select “Select Device”.

Select the desired device to

be connected.

Check that a confirmation

screen is displayed when the

connection is complete.



If an error message is dis-

played, follow the guidance

on the screen to try again.

■

Bluetooth

phone condition

display

The condition of the Bluetooth

phone appears on the upper

right side of the screen.

WARNING

●

Your audio unit is fitted with

Bluetooth

antennas. People

with implantable cardiac pace-

makers, cardiac resynchroniza-

tion therapy-pacemakers or

implantable cardioverter defibril-

lators should maintain a reason-

able distance between

themselves and the Bluetooth

antennas. The radio waves may

affect the operation of such

devices.

●

Before using Bluetooth

devices, users of any electrical

medical device other than

implantable cardiac pacemak-

ers, cardiac resynchronization

therapy-pacemakers or implant-

able cardioverter defibrillators

should consult the manufacturer

of the device for information

about its operation under the

influence of radio waves. Radio

waves could have unexpected

effects on the operation of such

medical devices.

NOTICE

●

Do not leave your cellular phone

in the vehicle. The temperature

inside may rise to a level that

could damage the phone.

Registering/Connecting a

Bluetooth

phone

-------------------------------------------------------------------------------------------------------------------------------------------------------------

351

5-13. Phone operation (Hands-free system for cellular phones)

COROLLA H/B_U

dio

(



P.261)

■

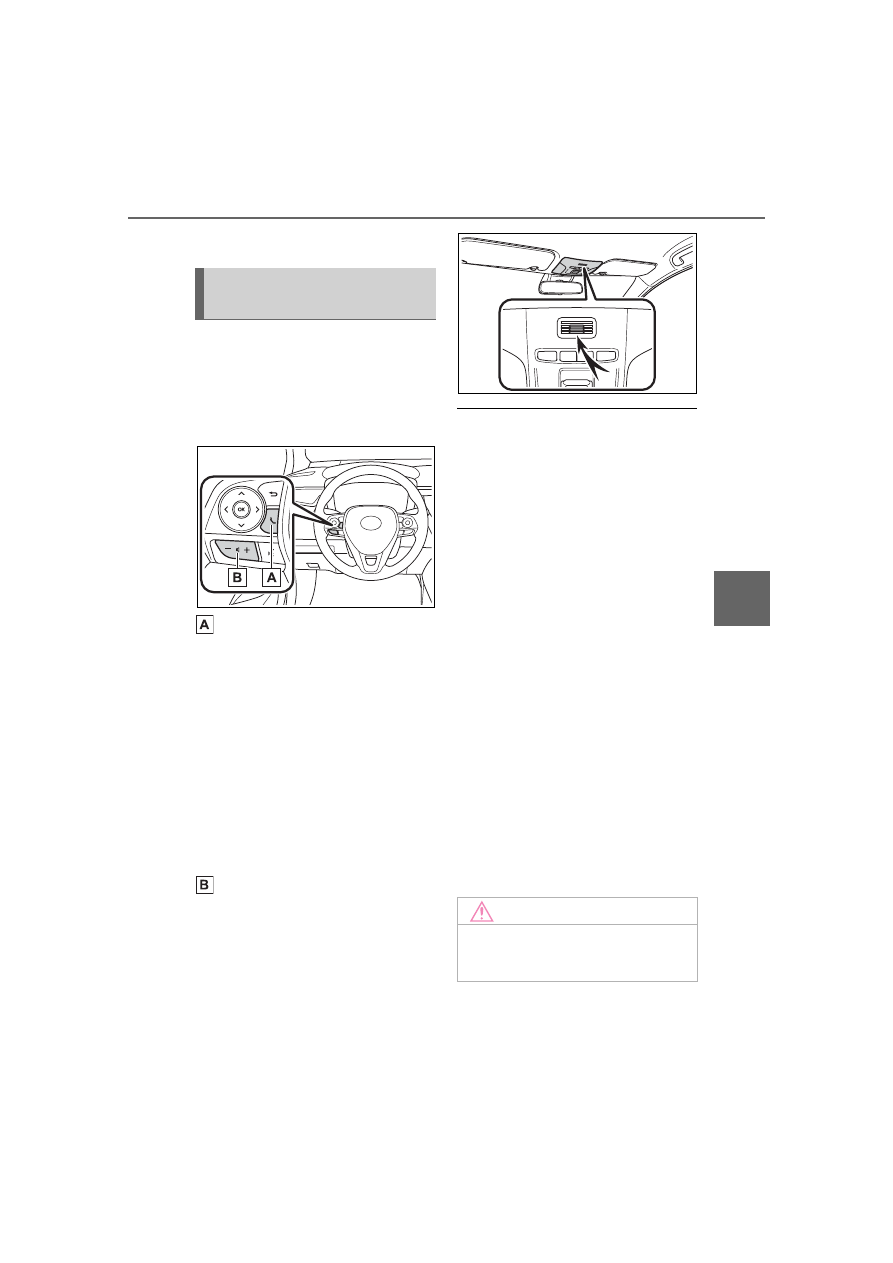

Steering switch

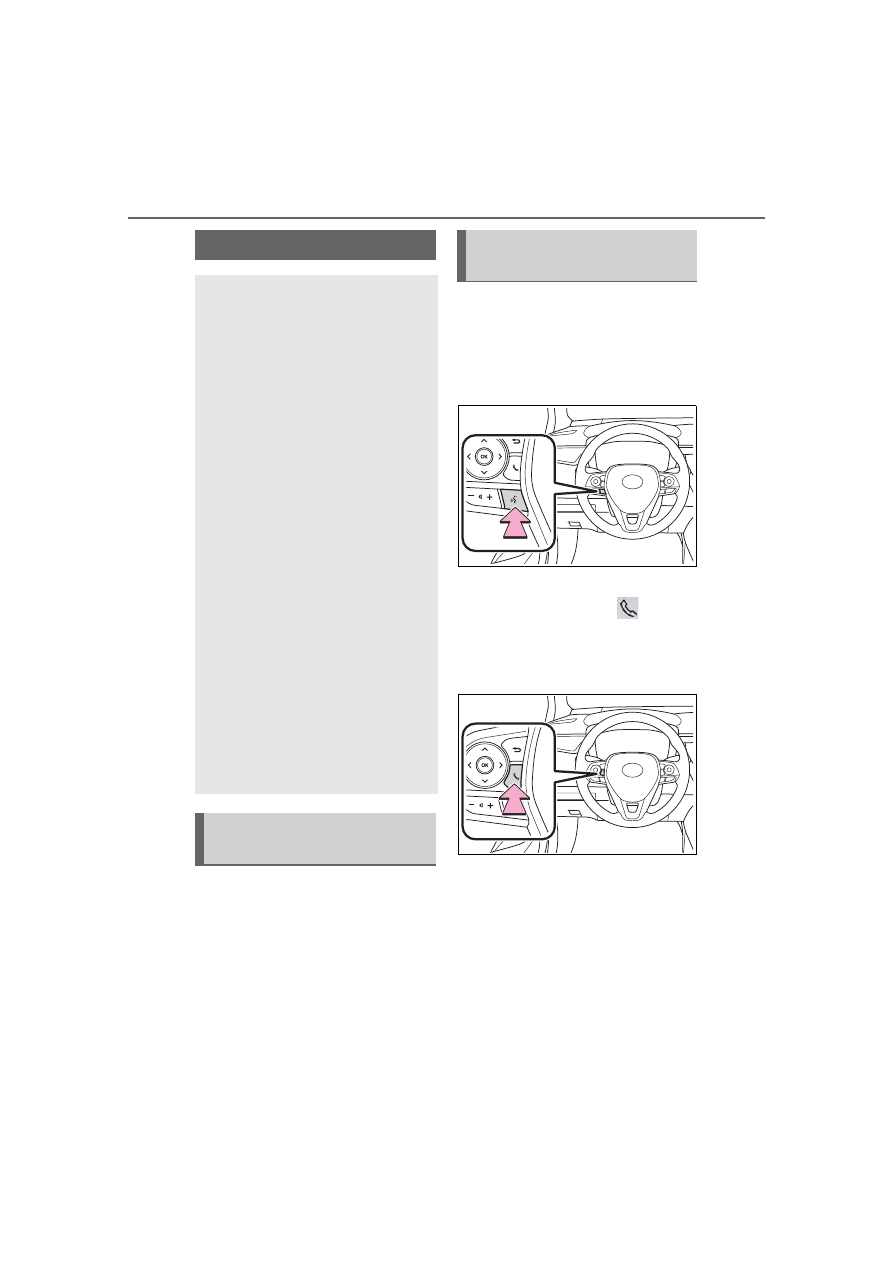

By pressing the phone switch, a

call can be received or ended

without taking your hands off the

steering wheel.

Phone switch

• If the switch is pressed during a

call, the call will end.

• If the switch is pressed when an

incoming call is received, the call

will be answered.

• If the switch is pressed when a

call waiting call is received, the

waiting call will be answered.

• If the switch is pressed when an

Apple CarPlay connection is

established, the Apple CarPlay

phone application will be dis-

played on the system screen.

Volume control switch

• Press the “+” side to increase the

volume.

• Press the “-” side to decrease the

volume.

■

Microphone

The microphone is used when

talking on the phone.

●

The other party’s voice will be

heard from the front speakers.

The audio/visual system will be

muted during phone calls or when

hands-free voice commands are

used.

●

Talk alternately with the other

party on the phone. If both parties

speak at the same time, the other

party may not hear what has been

said. (This is not a malfunction.)

●

Keep call volume down. Other-

wise, the other party’s voice may

be audible outside the vehicle and

voice echo may increase. When

talking on the phone, speak

clearly towards the microphone.

●

The other party may not hear you

clearly when:

• Driving on an unpaved road.

(Making excessive traffic noise.)

• Driving at high speeds.

• The windows are open.

• The air conditioning vents are

pointed towards the microphone.

• The sound of the air conditioning

fan is loud.

• There is a negative effect on

sound quality due to the phone

and/or network being used.

Using the phone

switch/microphone

NOTICE

●

Do not touch and put a sharp

object to the microphone. It may

cause failure.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

352

5-13. Phone operation (Hands-free system for cellular phones)

COROLLA H/B_U

Press this switch to operate the
voice command system.



The voice command system
and its list of commands can
be operated. (



P.339)



The following data is stored
for every registered phone.
When another phone is con-
nected, the following regis-
tered data cannot be read:

• Contact data

• Call history data

• Favorites data

• Image data

• All phone settings

• Message settings

●

When a phone’s registration is
deleted, the above-mentioned
data is also deleted.

A lot of personal data is regis-

tered when the hands-free sys-
tem is used. When selling or
disposing of the vehicle, initial-
ize the data. (



P.299)



The following data in the sys-
tem can be initialized:

• Contact data

• Call history data

• Favorites data

• Image data

• All phone settings

• Message settings

●

Once initialized, the data and set-
tings will be erased. Pay much
attention when initializing the data.

Voice command system

About the contacts in the
contact list

When selling or disposing
of the vehicle

-------------------------------------------------------------------------------------------------------------------------------------------------------------

353

5-13. Phone operation (Hands-free system for cellular phones)

COROLLA H/B_U

Audio

Display the phone top
screen. (



P.348)

Select the desired method to
call from.

■

Calling methods from
phone screen



By call history (



P.353)



By favorites (



P.354)



By contacts (



P.354)



By keypad

(



P.355)



By message (



P.362)

■

Also the following lists are
available from each func-
tion’s screen



By voice command system
(



P.340)



By home screen (



P.356)

: The operation cannot be per-

formed while driving.

Up to 30 of the latest call history
items (missed, incoming and
outgoing) can be selected.

Display the phone top
screen. (



P.348)

Select “History” and select
the desired contact.



If the contact which is not reg-
istered on the contact list is
selected, the name is dis-
played as “Unknown Con-
tact”. In this case, select the
number to make a call prop-
erly.

Check that the dialing screen
is displayed.

●

The icons of call type are dis-
played.

: Missed call

: Incoming call

: Outgoing call

●

When making a call to the same
number continuously, only the
most recent call is listed in call his-
tory.

●

When a phone number registered
in the contact list is received, the
name is displayed.

●

Number-withheld calls are also
memorized in the system.

●

International phone calls may not
be made depending on the type of
Bluetooth

phone you have.

●

The list should group together
consecutive entries with the same
phone number and same call
type. For example, two calls from
John’s mobile would be displayed

Placing a call using

the Bluetooth

hands-free system

After a Bluetooth

phone

has been registered, a call
can be made using the
hands-free system. There
are several methods by
which a call can be made, as
described below.

Calling methods on the

Bluetooth

phone

By call history

-------------------------------------------------------------------------------------------------------------------------------------------------------------

354

5-13. Phone operation (Hands-free system for cellular phones)

COROLLA H/B_U

as follows: John (2)

●

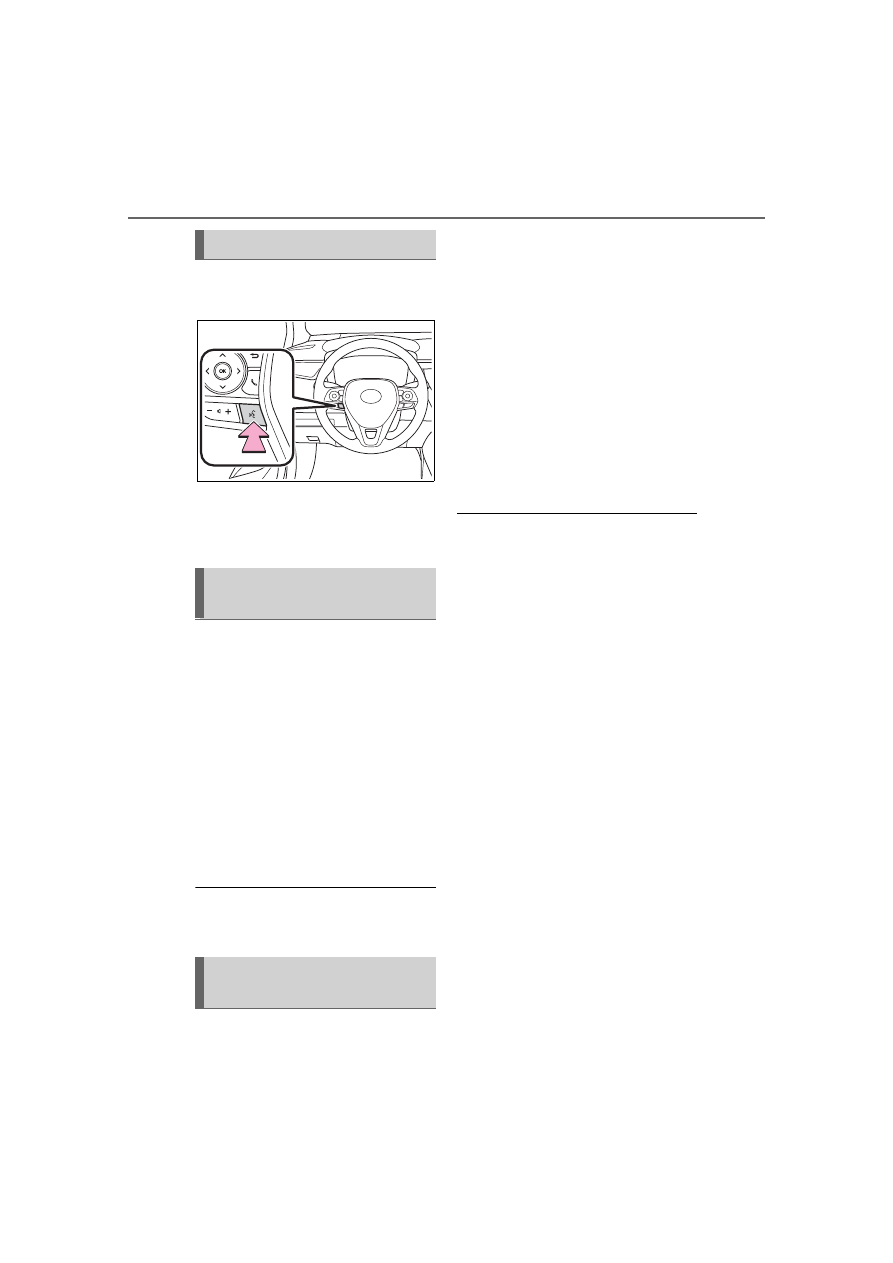

By pressing the

switch on the

steering wheel, a call to the latest
history item can be made.

Calls can be made using regis-
tered contacts which can be
selected from a contact list.
(



P.354)

Display the phone top
screen. (



P.348)

Select “Favorites” and select
the desired contact.

Select the desired number.

Check that the dialing screen
is displayed.

Calls can be made by using
contact data which is transferred
from a registered cellular phone.
(



P.366)

Up to 5000 contacts (maximum
of 4 phone numbers, e-mail
addresses and addresses per
contact) can be registered in the
contact list.

Display the phone top
screen. (



P.348)

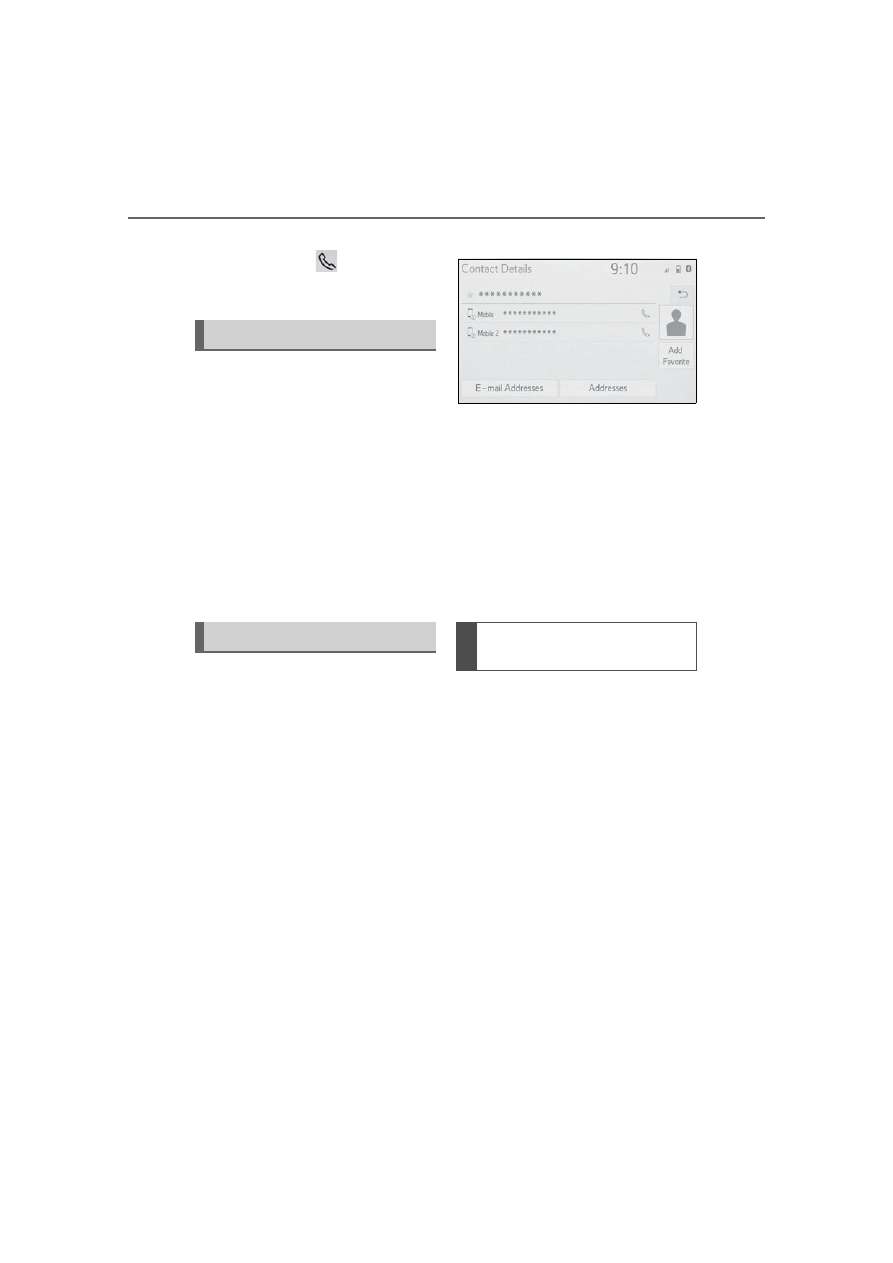

Select “Contacts” and select
the desired contact.

Select the desired number.

“Add Favorite”/“Remove Favorite”:
Select to register/remove the con-
tact in the favorites list. (



P.370)

“E-mail Addresses”: Select to dis-
play all registered e-mail addresses
for the contact.

“Addresses”: Select to display all
registered addresses for the con-
tact.

Check that the dialing screen
is displayed.

■

For PBAP compatible Blue-

tooth

phones when “Auto-

matic Transfer” is set to on
(



P.366)



Contacts are transferred auto-
matically.

By favorites list

By contacts list

When the contact list is
empty

-------------------------------------------------------------------------------------------------------------------------------------------------------------

355

5-13. Phone operation (Hands-free system for cellular phones)

COROLLA H/B_U

Audio

■

For PBAP compatible Blue-

tooth

phones when “Auto-

matic Transfer” is set to off
(



P.366)

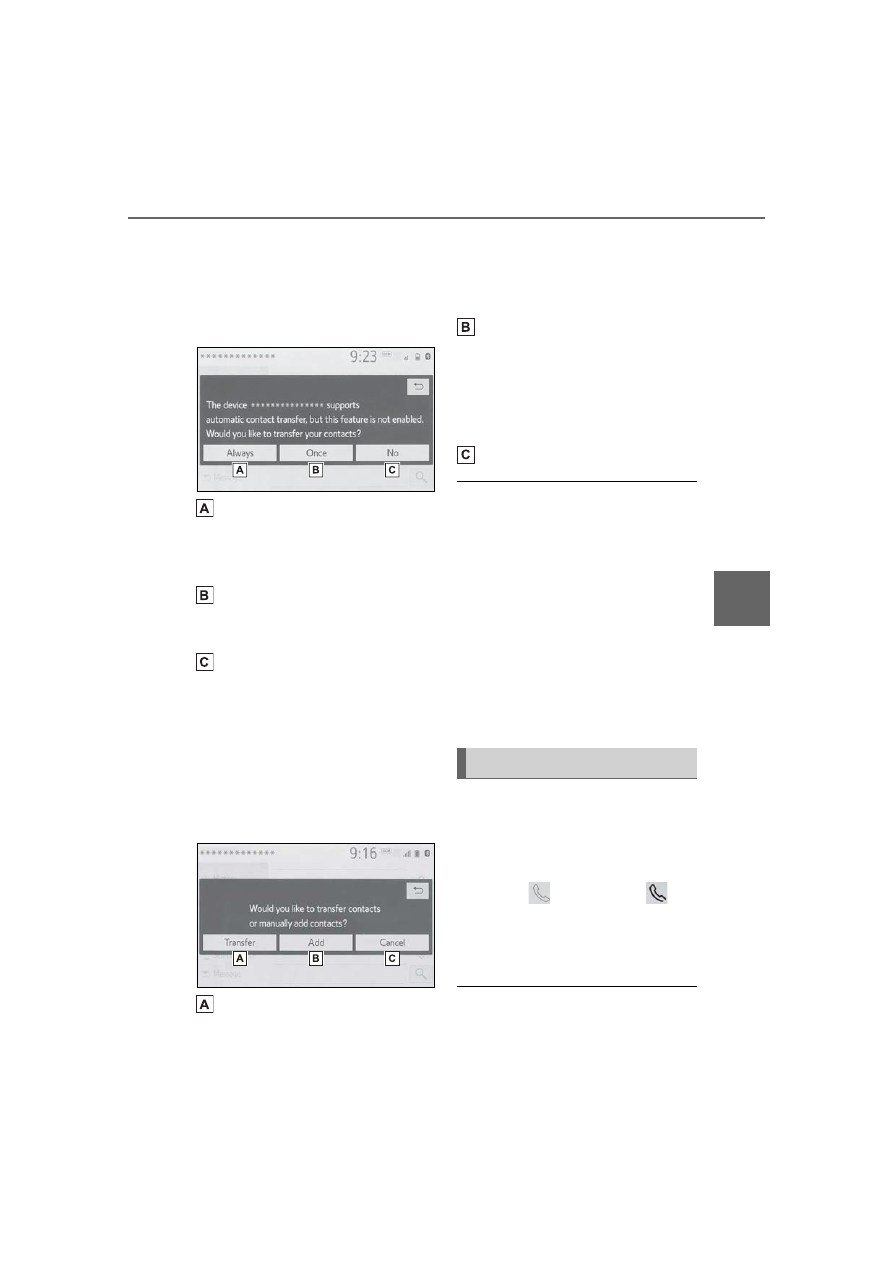

Select the desired item.

Select to always transfer all
the contacts from a con-
nected cellular phone auto-
matically.

Select to transfer all the con-
tacts from a connected cellu-
lar phone only once.

Select to cancel transferring.

Check that a confirmation
screen is displayed when the
operation is complete.

■

For PBAP incompatible but
OPP compatible Blue-

tooth

phones

Select the desired item.

Select to transfer the con-
tacts from the connected cel-

lular phone.
Transfer the contact data to
the system using a Blue-

tooth

phone.

Select to add a new contact
manually.
Follow the steps in “Register-
ing a new contact to the con-
tacts list” from step

(



P.369)

Select to cancel transferring.

●

If your cellular phone is neither
PBAP nor OPP compatible, the
contacts cannot be transferred
using Bluetooth

. But the contacts

can be transferred from USB
device. (



P.369)

●

Depending on the type of Blue-
tooth

phone:

• It may be necessary to perform

additional steps on the phone
when transferring contact data.

• The registered image in the con-

tact list may not transfer depend-
ing on the type of Bluetooth

phone connected.

Display the phone top
screen. (



P.348)

Select “Keypad” and enter
the phone number.

Select

or press the

switch on the steering wheel.

Check that the dialing screen
is displayed.

●

Depending on the type of Blue-
tooth

phone being connected, it

may be necessary to perform

By keypad

-------------------------------------------------------------------------------------------------------------------------------------------------------------

356

5-13. Phone operation (Hands-free system for cellular phones)

COROLLA H/B_U

additional steps on the phone.

Display the home screen.
(



P.266)

Select the desired contact.

Check that the dialing screen
is displayed.

■

Registering a new contact

Select and hold the screen
button to add a contact.

Select the desired contact.

Select the desired number.

●

If there is no contact in the con-
tacts list, the contacts cannot be
registered at the home screen.

●

The contact cannot be registered
at the home screen while driving.

Select “Answer” or press the

switch on the steering

wheel to talk on the phone.

“Decline”: Select to refuse to
receive the call.

To adjust the volume of a received
call: Turn the “POWER VOLUME”
knob, or use the volume control
switch on the steering wheel.

●

The contact image picture can be
displayed only when the vehicle is
not moving.

●

During international phone calls,
the other party’s name or number
may not be displayed correctly
depending on the type of Blue-
tooth

phone you have.

●

The incoming call display mode
can be set. (



P.365)

●

The ringtone that has been set in
the sound settings screen can be
heard when there is an incoming
call. Depending on the type of

By home screen

Receiving a call using

the Bluetooth

hands-free system

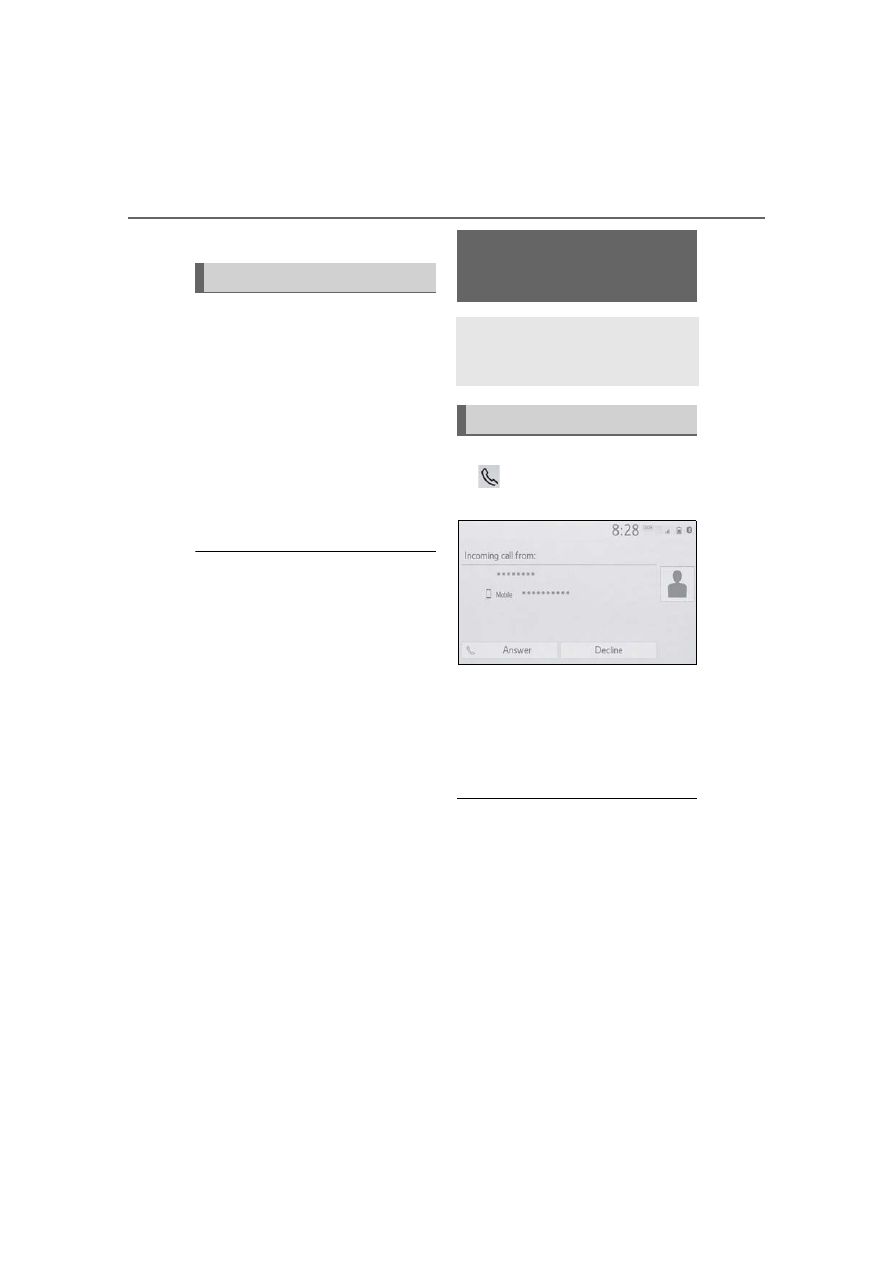

When a call is received, the
following screen is dis-
played with a sound.

Incoming calls

-------------------------------------------------------------------------------------------------------------------------------------------------------------

357

5-13. Phone operation (Hands-free system for cellular phones)

COROLLA H/B_U

Audio

Bluetooth

phone, both the sys-

tem and Bluetooth

phone may

ring simultaneously when there is
an incoming call. (



P.364)

Select to display the keypad
to send tones. (



P.358)

Select to send tones. This
button only appears when a
number that contains a (w) is
dialed in hands-free mode.
(



P.358)

Select to adjust your voice
volume that the other party
hears from their speaker.
(



P.358)

Select to mute your voice to
the other party.

Select to change handset
modes between hands-free
and cellular phone.

Select to put a call on hold.
To cancel this function, select

Talking on the Blue-

tooth

hands-free sys-

tem

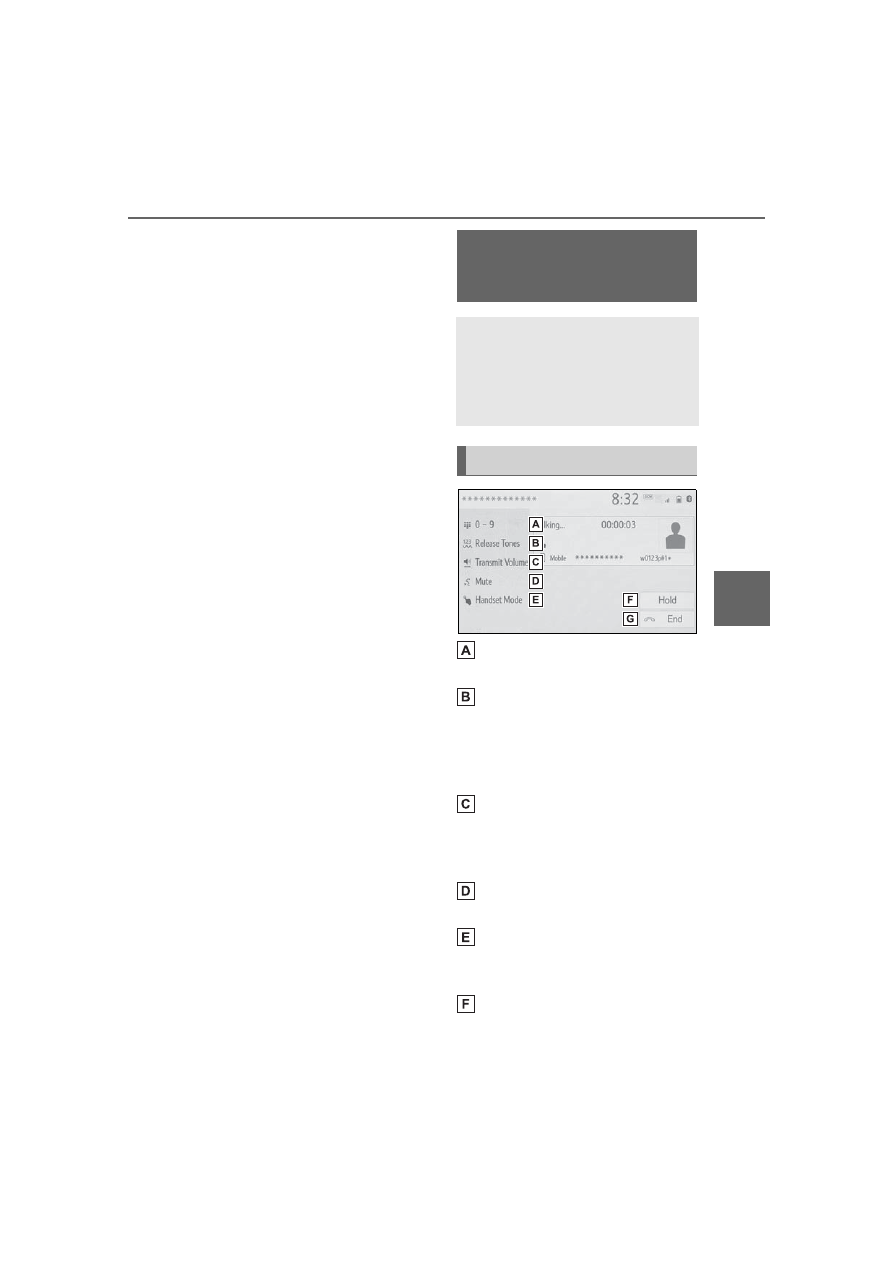

While talking on the phone,
the following screen is dis-
played. The operations out-
lined below can be
performed on this screen.

Call screen operation

-------------------------------------------------------------------------------------------------------------------------------------------------------------

358

5-13. Phone operation (Hands-free system for cellular phones)

COROLLA H/B_U

“Activate”.

Select to hang up the phone.

●

Changing from hands-free call to
cellular phone call is not possible
while driving.

●

Only when the vehicle is not mov-
ing, the contact image can be dis-
played.

●

When cellular phone call is
changed to hands-free call, the
hands-free screen will be dis-
played and its functions can be
operated on the screen.

●

Changing between cellular phone
call and hands-free call can be
performed by operating the cellu-
lar phone directly.

●

Transferring methods and opera-
tions will be different depending
on the type of cellular phone you
have.

●

For the operation of the cellular
phone, see the manual that
comes with it.

■

By keypad

This operation cannot be per-
formed while driving.

Select “0-9”.

Enter the desired number.

■

By selecting “Release
Tones”

“Release Tones” appear when a
continuous tone signal (s) con-
taining a (w) is registered in the
contact list.
This operation can be per-
formed while driving.

Select “Release Tones”.

●

A continuous tone signal is a char-
acter string that consists of num-
bers and the characters “p” or “w”.
(e.g. 056133w0123p#1)

●

When the “p” pause tone is used,
the tone data up until the next
pause tone will be automatically
sent after 2 seconds have
elapsed. When the “w” pause tone
is used, the tone data up until the
next pause tone will be automati-
cally sent after a user operation is
performed.

●

Release tones can be used when
automated operation of a phone
based service such as an answer-
ing machine or bank phone ser-
vice is desired. A phone number
with continuous tone signals can
be registered in the contact list.

●

Tone data after a “w” pause tone
can be operated by voice com-
mand during a call.

Select “Transmit Volume”.

Select the desired level for
the transmit volume.

Press the

button to dis-

play previous screen.

●

The sound quality of the voice
heard from the other party’s
speaker may be negatively
impacted.

●

“Transmit Volume” is dimmed
when mute is on.



When there are no calls on
hold during a call: “Hold” is
displayed. When selected, the

Sending tones

Transmit volume setting

Switching calls while a
call is in progress

-------------------------------------------------------------------------------------------------------------------------------------------------------------

359

5-13. Phone operation (Hands-free system for cellular phones)

COROLLA H/B_U

Audio

current call is placed on hold.



When there is no current call,
but there is a call on hold:
“Activate” is displayed. When
selected, the system switches
to the call that was on hold.



When there is another call on
hold during a call: “Swap
Calls” is displayed. When
selected, the current call is
placed on hold, and the sys-
tem switches to the call that
was on hold.

●

This function may not be available
depending on the type of cellular
phone.

When a call is interrupted by a
third party while talking, the
incoming screen is displayed.

Select “Answer” or press the

switch on the steering

wheel to start talking with the
other party.



To refuse to receive the call:
Select “Decline”.



Each time “Swap Calls” is
selected, the party who is on
hold will be switched.

●

This function may not be available
depending on the type of Blue-
tooth

phone.

Display the phone top
screen. (



P.348)

Select “Message”.



A confirmation message
appears when the “Automatic
Message Transfer” function is
set to off (



P.372), select

“Yes”.

Check that the message
screen is displayed.

“Phone”: Select to change to phone
mode.



The account name is dis-
played on the left side of

Incoming call waiting

Bluetooth

phone

message function

Received messages can be
forwarded from the con-

nected Bluetooth

phone,

enabling checking and
replying using the system.

Depending on the type of

Bluetooth

phone con-

nected, received messages
may not be transferred to
the system.

If the phone does not sup-
port the message function,
this function cannot be
used. Even when the sup-
ported phone is used, reply
function may not be used.

Displaying the message
screen

-------------------------------------------------------------------------------------------------------------------------------------------------------------

360

5-13. Phone operation (Hands-free system for cellular phones)

COROLLA H/B_U

screen.



Account names are the
names of the accounts that
exist on the currently con-
nected phone.



The following functions can
be used on message function:

• Receiving a message

(



P.360)

• Checking messages

(



P.360)

• Replying to a message (dicta-

tion reply) (



P.361)

• Replying to a message (quick

reply) (



P.362)

• Calling the message sender

(

• Message settings (

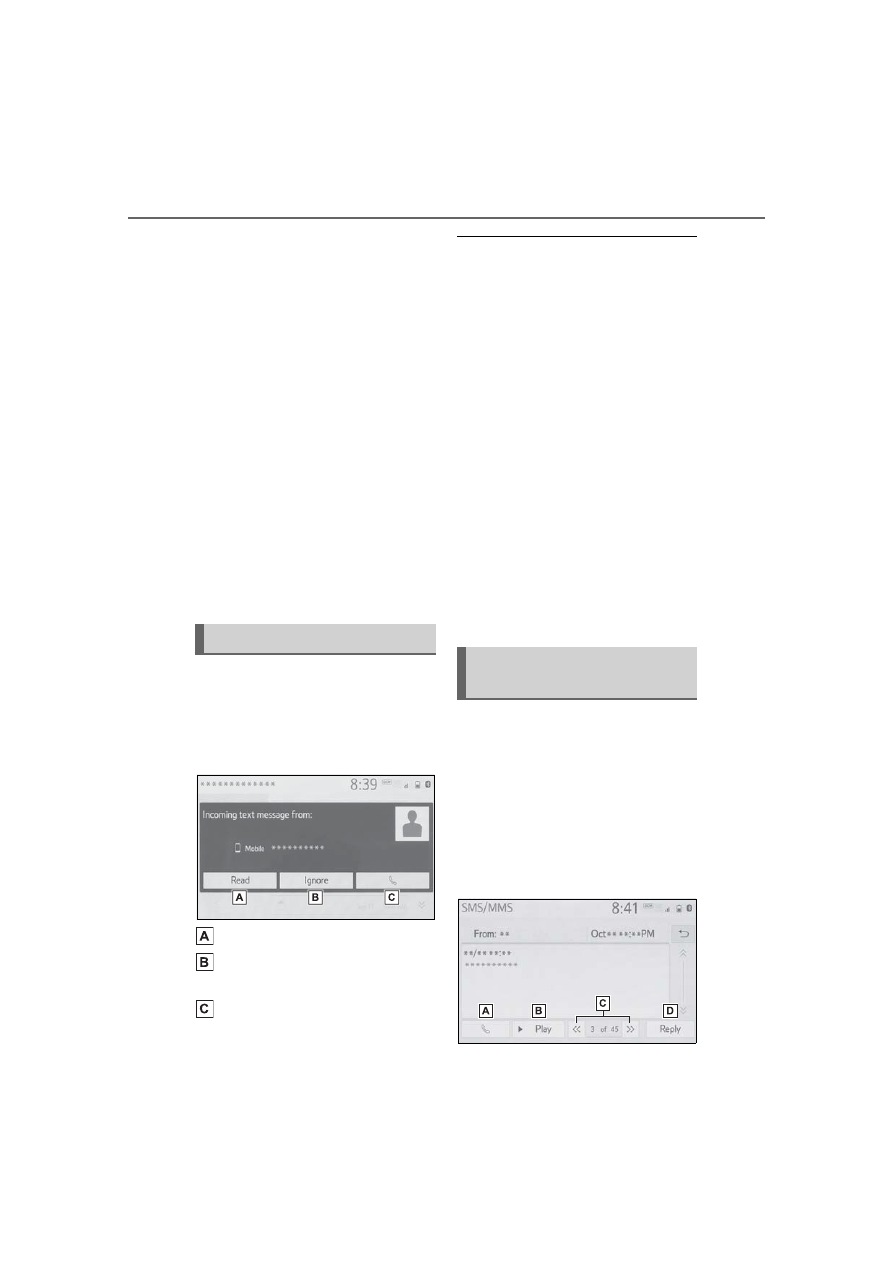

When an e-mail/SMS/MMS is
received, the incoming message
screen pops up with sound and
is ready to be operated on the
screen.

Select to check the message.

Select to not open the mes-
sage.

Select to call the message
sender.

●

Depending on the type of Blue-
tooth

phone used for receiving

messages, or its registration sta-
tus with the system, some infor-
mation may not be displayed.

●

The pop-up screen is separately
available for incoming e-mail and
SMS/MMS messages under the
following conditions:

E-mail:
• “Incoming E-mail Display” is set to

“Full Screen”. (



P.365)

• “E-mail Notification Pop-up” is set

to on. (



P.365)

SMS/MMS:
• “Incoming SMS/MMS Display” is

set to “Full Screen”. (



P.365)

• “SMS/MMS Notification Pop-up” is

set to on. (



P.365)

●

Depending on the type of Blue-
tooth

phone being connected,

E-Mail function cannot be used via
Bluetooth

Display the message screen.
(



P.359)

Select a desired account
name.

Select the desired message
from the list.

Check that the message is
displayed.

Receiving a message

Checking received mes-
sages

-------------------------------------------------------------------------------------------------------------------------------------------------------------

361

5-13. Phone operation (Hands-free system for cellular phones)

COROLLA H/B_U

Audio

Select to call the message
sender.

Select to have messages
read out.
To cancel this function, select
“Stop”.
When “Automatic Message
Readout” is set to on, mes-
sages will be automatically
read out. (



P.372)

Select to display the previous
or next message.

This function can be chosen
the method to reply mes-
sage with “Dictation” or
“Quick Message”.

●

Reading a text message is not
available while driving.

●

Depending on the type of Blue-
tooth

phone being connected,

this function cannot be used.

●

Depending on the type of Blue-
tooth

phone being connected, it

may be necessary to perform
additional steps on the phone.

●

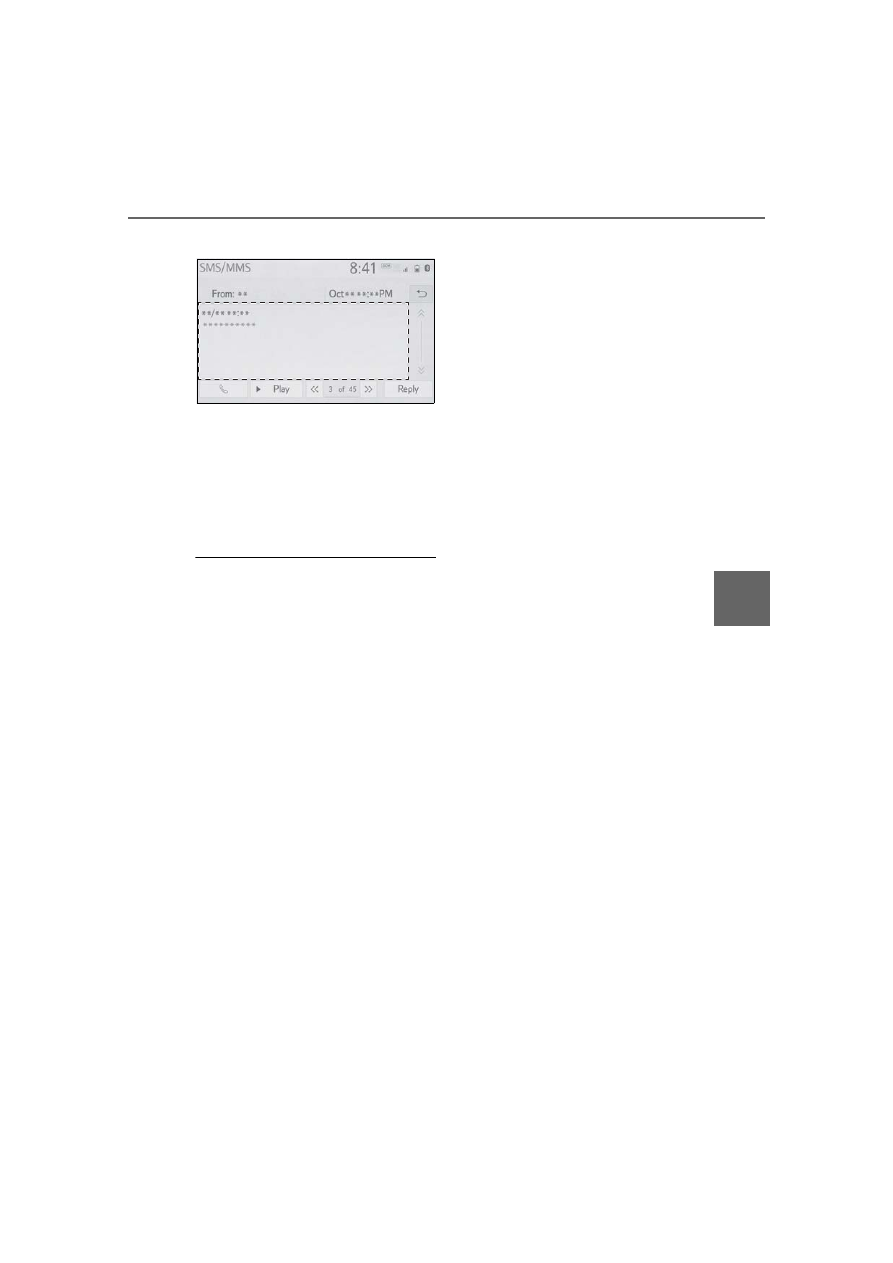

Messages are displayed in the
appropriate connected Blue-
tooth

phone’s registered mail

address folder. Select the desired
folder to be displayed.

●

Only received messages on the
connected Bluetooth

phone can

be displayed.

●

The text of the message is not dis-
played while driving.

●

Turn the “POWER VOLUME”
knob, or use the volume control
switch on the steering wheel to
adjust the message read out vol-
ume.

●

“Subject:” field is not shown on
SMS case.

●

E-mail only: Select “Mark Unread”
or “Mark Read” to mark mail
unread or read on the message
screen.
This function is available when
“Update Message Read Status on
Phone” is set to on. (



P.372)

: If equipped

Display the message screen.
(



P.359)

Select the desired message
from the list.

Select “Reply”.

Select “Dictation”.

When the “Say Your Mes-
sage” screen is displayed,
speak message that you
want to send.

Select “Send” to send mes-
sage.

“Cancel”: Select to cancel sending
the message.

“Retry”: Select to retry speaking
message that you want to send.



While the message is being
sent, a sending message
screen is displayed.

Check that a confirmation
screen is displayed when the
operation is complete.



If an error message is dis-
played, follow the guidance
on the screen to try again.

Replying to a message
(dictation reply)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

362

5-13. Phone operation (Hands-free system for cellular phones)

COROLLA H/B_U

15 messages have already
been stored.

Display the message screen.
(



P.359)

Select the desired message
from the list.

Select “Reply”.

Select “Quick Message”.

Select the desired message.

: Select to edit the message.

(



P.362)

Select “Send”.

“Cancel”: Select to cancel sending
the message.



While the message is being
sent, a sending message
screen is displayed.

Check that a confirmation
screen is displayed when the
operation is complete.



If an error message is dis-
played, follow the guidance
on the screen to try again.

●

Depending on the type of Blue-
tooth

phone, reply function is not

available.

■

Editing quick reply mes-
sages

This operation cannot be per-
formed while driving.

Select

corresponding to

the desired message to edit.

Select “OK” when editing is
completed.

●

To reset the edited quick reply
messages, select “Default”.

Calls can be made to an
e-mail/SMS/MMS message
sender’s phone number.

This operation can be per-
formed while driving.

■

Calling from
e-mail/SMS/MMS message
display

Display the message screen.
(



P.359)

Select the desired message.

Select

, or press the

switch on the steering wheel.



If there are 2 or more phone
numbers, select the desired
number.

Check that the dialing screen
is displayed.

■

Calling from a number
within a message

Calls can be made to a number
identified in a message’s text
area.

This operation cannot be per-
formed while driving.

Display the message screen.
(



P.359)

Select the desired message.

Replying to a message
(quick reply)

Calling the message
sender

-------------------------------------------------------------------------------------------------------------------------------------------------------------

364

5-14. Phone settings

COROLLA H/B_U

5-14.Phone settings

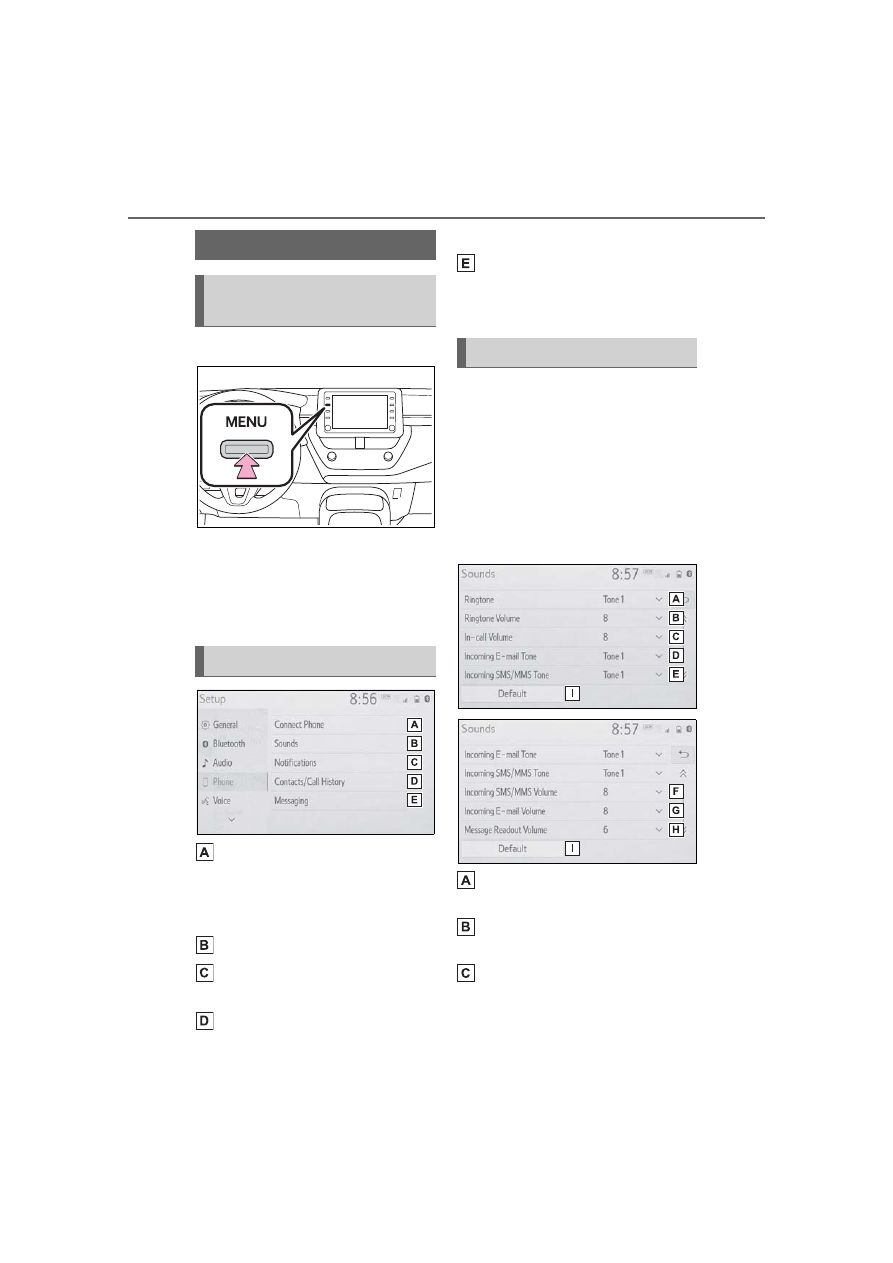

Press the “MENU” button.

Select “Setup”.

Select “Phone”.

Select the desired item to be
set.

Connecting a Bluetooth

device and editing the Blue-

tooth

device information

(



P.277, 280)

Sound settings

(



P.364)

Notification settings

(



P.365)

Contact/call history settings

(



P.366)

Message settings

(



P.372)

: This operation cannot be per-

formed while driving.

The call and ringtone volume
can be adjusted. A ringtone can
be selected.

Display the phone settings
screen. (



P.364)

Select “Sounds”.

Select the desired item to be
set.

Select to set the desired ring-
tone.

Select “-” or “+” to adjust the
ringtone volume.

Select “-” or “+” to adjust the
default volume of the other
party’s voice.

Setup

Displaying the phone set-
tings screen

Phone settings screen

Sounds settings screen

-------------------------------------------------------------------------------------------------------------------------------------------------------------

365

5-14. Phone settings

COROLLA H/B_U

Audio

Select to set the desired
incoming e-mail tone.

Select to set the desired
incoming SMS/MMS tone.

Select “-” or “+” to adjust the
incoming SMS/MMS tone
volume.

Select “-” or “+” to adjust the
incoming e-mail tone volume.

Select “-” or “+” to adjust the
message readout volume.

Select to reset all setup
items.

●

Depending on the type of Blue-
tooth

phone, certain functions

may not be available.

Display the phone settings
screen. (



P.364)

Select “Notifications”.

Select the desired item to be
set.

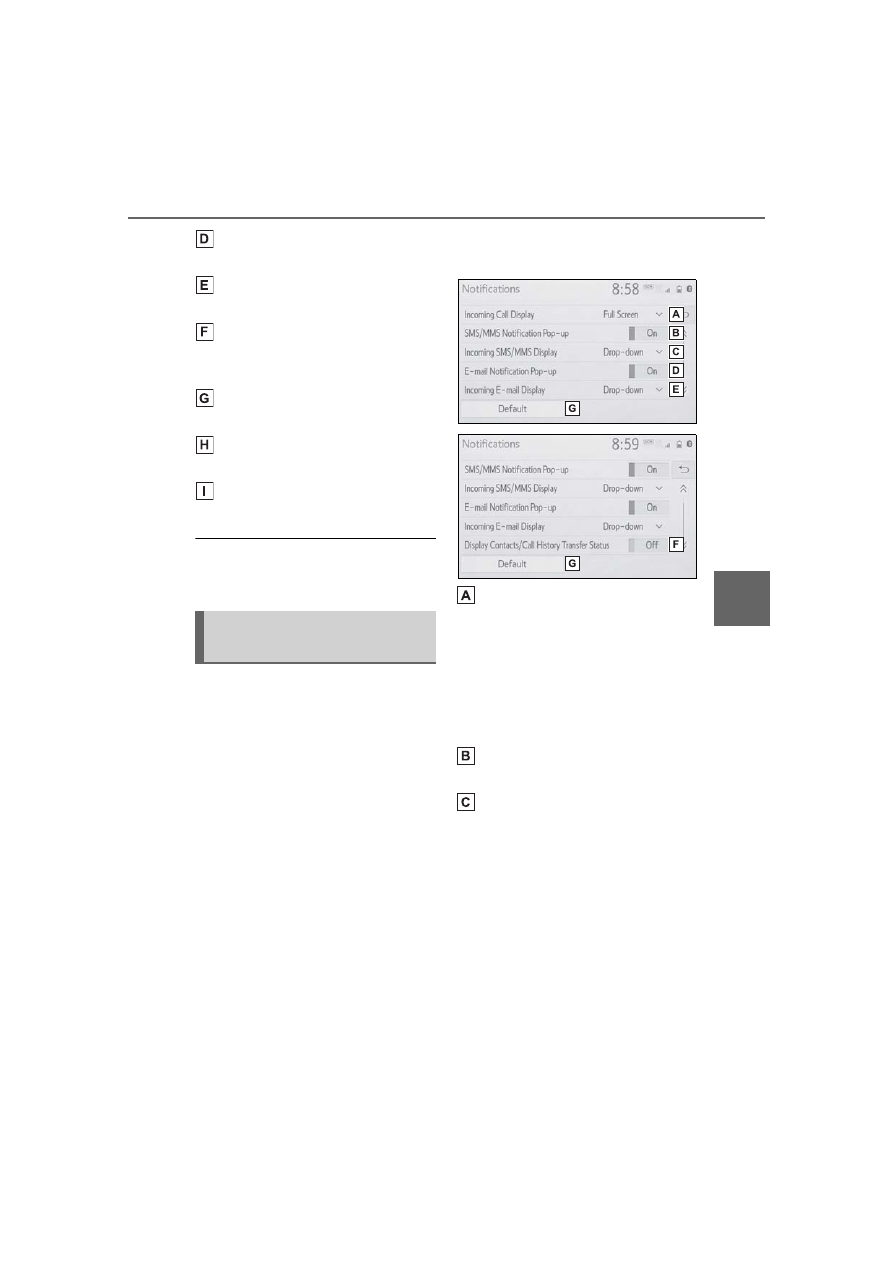

Select to change the incom-
ing call display.

“Full Screen”: When a call is
received, the incoming call screen
is displayed and can be operated
on the screen.
“Drop-down”: A message is dis-
played at the top of the screen.

Select to set the SMS/MMS
notification pop-up on/off.

Select to change the incom-
ing SMS/MMS display.
“Full Screen”: When an
SMS/MMS message is
received, the incoming
SMS/MMS display screen is
displayed and can be oper-
ated on the screen.
“Drop-down”: When an
SMS/MMS message is
received, a message is dis-
played at the top of the

Notifications settings
screen

-------------------------------------------------------------------------------------------------------------------------------------------------------------

366

5-14. Phone settings

COROLLA H/B_U

screen.

Select to set the e-mail notifi-
cation pop-up on/off.

Select to change the incom-
ing e-mail display.
“Full Screen”: When an
e-mail is received, the incom-
ing e-mail display screen is
displayed and can be oper-
ated on the screen.
“Drop-down”: When an
e-mail is received, a mes-
sage is displayed at the top
of the screen.

Select to set display of the
contact/history transfer com-
pletion message on/off.

Select to reset all setup
items.

●

Depending on the type of Blue-
tooth

phone, these functions

may not be available.

Contacts can be transferred

from a Bluetooth

phone to this

system. Contacts and favorites
can be added, edited and
deleted. Also, the call history
can be deleted.

Display the phone settings
screen. (



P.364)

Select “Contacts/Call His-
tory”.

Select the desired item to be
set.

For PBAP compatible Blue-

tooth

phones: Select to

change the contact/history
transfer settings. (



P.367)

Select to update contacts
from the connected device.
(



P.367)

Select to sort contacts by the
first name or last name field.

Select to add contacts to the
favorites list. (



P.370)

Select to delete contacts
from the favorites list.
(



P.370)

Select to clear the call his-

tory.

Select to add new contacts to

the contact list.

(



P.369)

Select to edit contacts in the

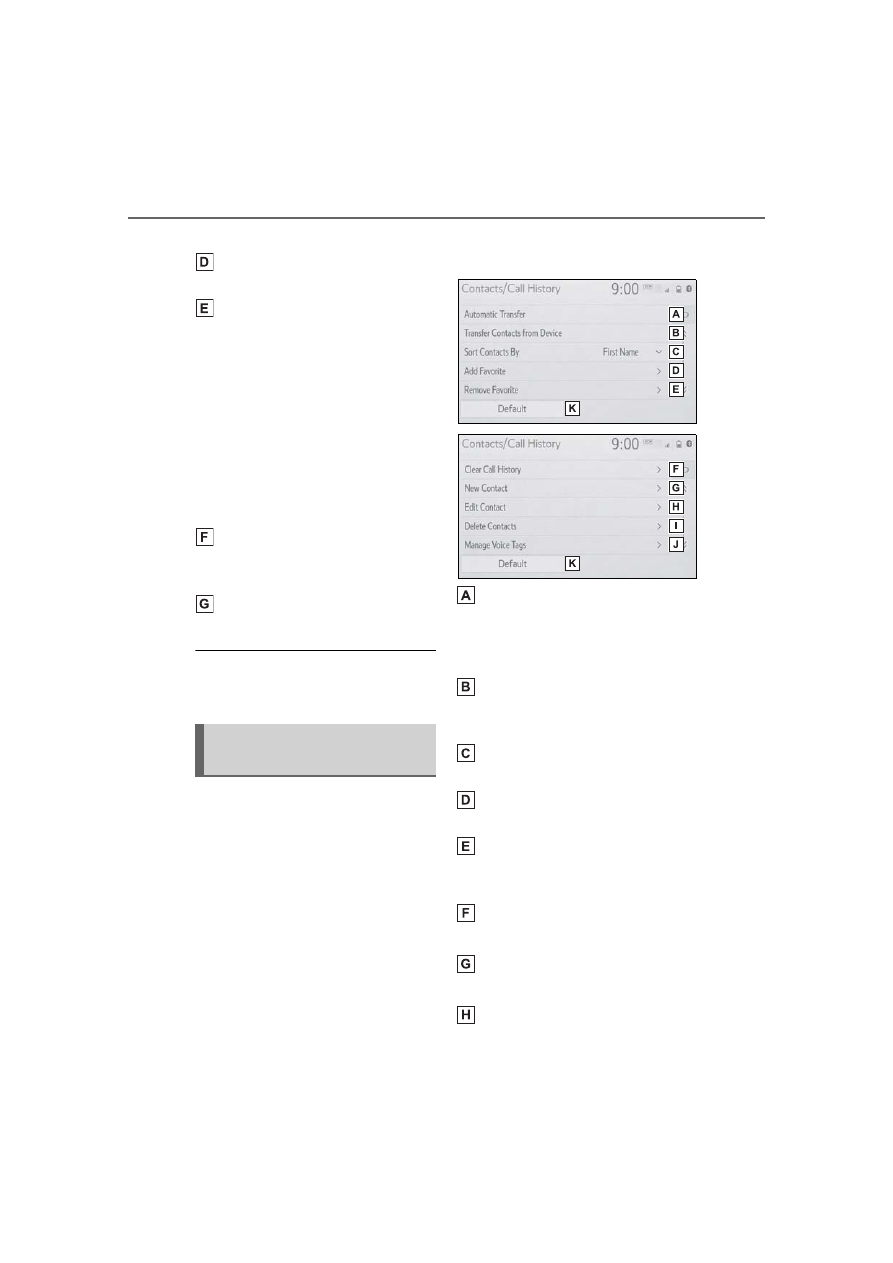

Contacts/Call history set-
tings screen

-------------------------------------------------------------------------------------------------------------------------------------------------------------

367

5-14. Phone settings

COROLLA H/B_U

Audio

contact list.

(



P.370)

Select to delete contacts

from the contact list.

(



P.370)

Select to set the voice tags.
(



P.371)

Select to reset all setup
items.

: For PBAP compatible Bluetooth

phones, this function is available
when “Automatic Transfer” is set
to off. (



P.367)

●

Depending on the type of Blue-
tooth

phone, certain functions

may not be available.

●

Contact data is managed inde-
pendently for every registered
phone. When one phone is con-
nected, another phone’s regis-
tered data cannot be read.

The automatic contact/history
function is available for PBAP

compatible Bluetooth

phones

only.

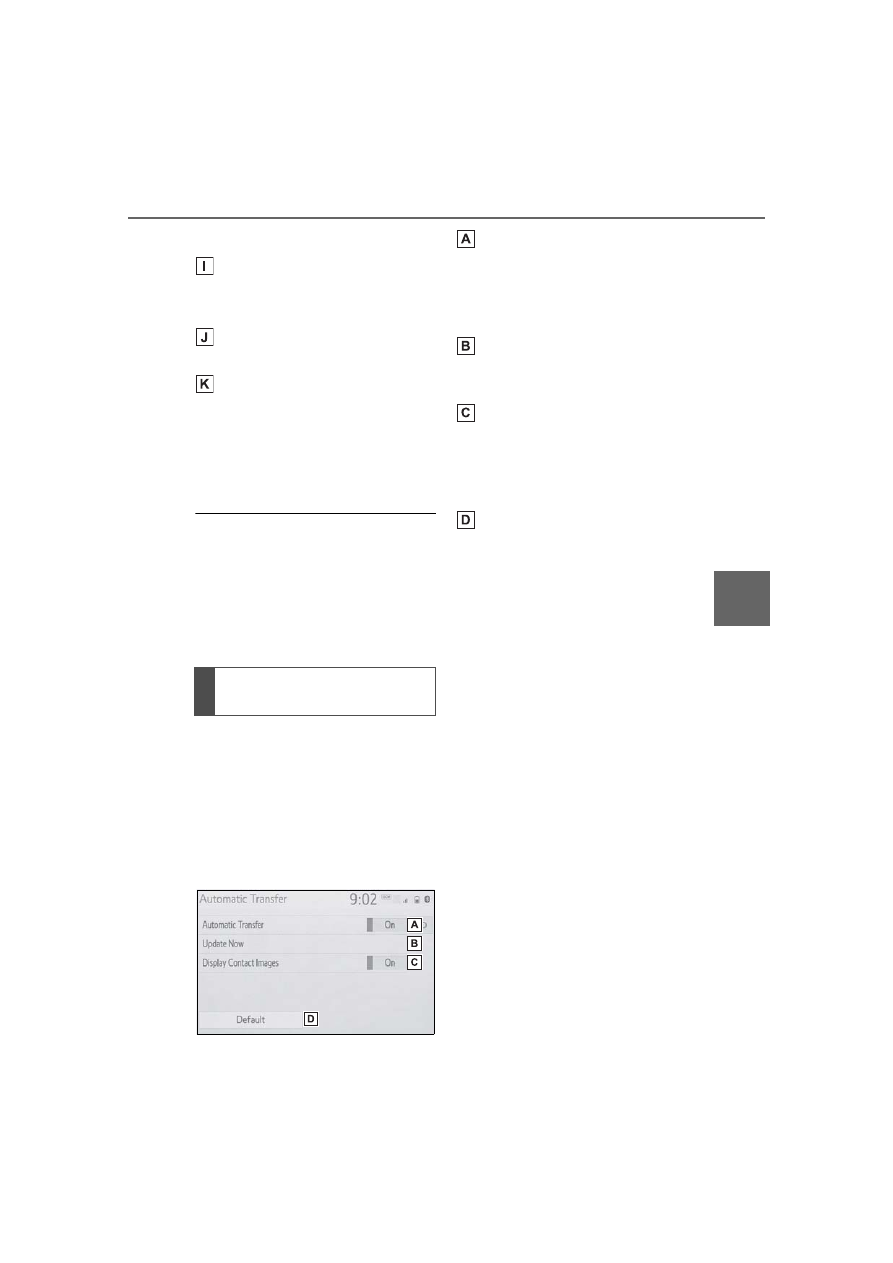

Select “Automatic Transfer”.

Select the desired item to be
set.

Select to set automatic con-
tact/history transfer on/off.
When set to on, the phone’s
contact data and history are
automatically transferred.

Select to update contacts
from the connected phone.
(



P.367)

Select to set the transferred
contact image display on/off.
Only when the vehicle is not
moving, the contact image
can be displayed.

Select to reset all setup
items.

■

Updating contacts from
phone

Select “Update Now”.



Contacts are transferred auto-
matically.

Check that a confirmation
screen is displayed when the
operation is complete.



This operation may be unnec-
essary depending on the type

of Bluetooth

phone.



If another Bluetooth

device

is connected when transfer-
ring contact data, depending
on the phone, the connected

Bluetooth

device may need

to be disconnected.



Depending on the type of

Bluetooth

phone being con-

nected, it may be necessary
to perform additional steps on

Setting automatic con-
tact/history transfer

-------------------------------------------------------------------------------------------------------------------------------------------------------------

368

5-14. Phone settings

COROLLA H/B_U

the phone.

■

Updating the contacts in a
different way (from the call

history screen)

Display the phone top
screen. (



P.348)

Select “History” and select a
contact not yet registered in
the contact list.

Select “Update Contact”.

Select the desired contact.

Select a phone type for the
phone number.

: For PBAP compatible Bluetooth

phones, this function is available
when “Automatic Transfer” is set
to off. (



P.366)

When an Android Auto connec-
tion is established, this function

will be unavailable.

: This function is not made avail-

able in some countries or areas.



When the contact is not regis-
tered

Select “Transfer Contacts
from Device”.

Select “From Phone (Blue-
tooth)”.

Transfer the contact data to
the system using a Blue-

tooth

phone.



This operation may be unnec-
essary depending on the type

of Bluetooth

phone.



To cancel this function, select
“Cancel”.

Check that a confirmation
screen is displayed when the
operation is complete.



When the contact is regis-
tered

Select “Transfer Contacts
from Device”.

Select “From Phone (Blue-
tooth)”.

Select “Replace Contacts” or
“Add Contact”.

“Replace Contacts”: Select to trans-
fer the contact from the connected
cellular phone and replace the cur-
rent one.

“Add Contact”: Select to transfer
the desired contact data from the
connected cellular phone to add to
the current one.

Transfer the contact data to
the system using a Blue-

tooth

phone.



This operation may be unnec-
essary depending on the type

of Bluetooth

phone.



To cancel this function, select
“Cancel”.

Check that a confirmation
screen is displayed when the
operation is complete.

Transfer contacts from
device

From phone (OPP compati-

ble Bluetooth

phones only)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

369

5-14. Phone settings

COROLLA H/B_U

Audio

Backed-up contact data
(“vCard” formatted) can be
transferred from USB device or

Bluetooth

phone to this sys-

tem.

Connect a USB device.
(



P.305)

Select “Transfer Contacts
from Device”.

Select “From USB”.

Select “USB 1” or “USB 2”
when the multiple USB
devices are connected. If a
USB device is connected,
skip this procedure.

Select “Replace Contacts” or
“Add Contact”. If the contact
is already registered, skip
this procedure.

“Replace Contacts”: Select to trans-
fer the contact from the connected
USB device or Bluetooth

phone

and replace the current one.

“Add Contact”: Select to transfer
the desired contact data from the
connected USB device or Blue-
tooth

phone to add to the current

one.

Select a desired file from
vCard file list.

Check that a confirmation
screen is displayed when the
operation is complete.

●

Depending on the type of Blue-
tooth

phone used and number of

files, it may take time to display
vCard file lists and download con-

tacts.

●

Downloading may not complete
correctly in the following cases:

• If the engine switch is turned off

during downloading.

• If the USB device or Bluetooth

phone is removed before down-
loading is complete.

New contact data can be regis-
tered.

Up to 4 numbers per person can
be registered. For PBAP com-

patible Bluetooth

phones, this

function is available when “Auto-
matic Transfer” is set to off.
(



P.366)

Select “New Contact”.

Enter the name and select
“OK”.

Enter the phone number and
select “OK”.

Select the phone type for the
phone number.

To add another number to
this contact, select “Yes”.

■

Registering a new contact
in a different way (from the
call history screen)

Display the phone top
screen. (



P.348)

Select “History” and select a
contact not yet registered in
the contact list.

Select “Add to Contacts”.

From USB device

Registering a new contact
to the contacts list

-------------------------------------------------------------------------------------------------------------------------------------------------------------

370

5-14. Phone settings

COROLLA H/B_U

Follow the steps in “Register-
ing a new contact to the con-
tacts list” from step

(



P.369)

For PBAP compatible Blue-

tooth

phones, this function is

available when “Automatic
Transfer” is set to off. (



P.366)

Select “Edit Contact”.

Select the desired contact.

Select

next to the name

or desired number.

Enter the name or the phone
number and select “OK”.

For PBAP compatible Blue-

tooth

phones, this function is

available when “Automatic
Transfer” is set to off. (



P.366)

Select “Delete Contacts”.

Select the desired contact
and select “Delete”.

Select “Yes” when the confir-
mation screen appears.

●

Multiple data can be selected and
deleted at the same time.

●

When a Bluetooth

phone is

deleted, the contact data will be
deleted at the same time.

Up to 15 contacts (maximum of

4 numbers per contact) can be
registered in the favorites list.

■

Registering the contacts in
the favorites list

Select “Add Favorite”.

Select the desired contact to
add to the favorites list.



Dimmed contacts are already
stored as a favorite.

Check that a confirmation
screen is displayed when the
operation is complete.



When 15 contacts have
already been registered to the
favorites list

When 15 contacts have
already been registered to
the favorites list, a registered
contact needs to be replaced.
Select “Yes” when the confir-
mation screen appears to
replace a contact.

Select the contact to be
replaced.

Check that a confirmation
screen is displayed when the
operation is complete.

■

Registering contacts in the
favorites list in a different
way (from the contact
details screen)

Display the phone top
screen. (



P.348)

Select “Contacts” and select
the desired contact.

Select “Add Favorite”.

Editing the contact data

Deleting the contact data

Favorites list setting

-------------------------------------------------------------------------------------------------------------------------------------------------------------

371

5-14. Phone settings

COROLLA H/B_U

Audio

Check that a confirmation
screen is displayed when the
operation is complete.

■

Deleting the contacts in the
favorites list

Select “Remove Favorite”.

Select the desired contacts
and select “Remove”.

Select “Yes” when the confir-
mation screen appears.

Check that a confirmation
screen is displayed when the
operation is complete.

■

Deleting contacts in the
favorites list in a different
way (from the contact
details screen)

Display the phone top
screen. (



P.348)

Select “Favorites” or “Con-
tacts” and select the desired
contact to delete.

Select “Remove Favorite”.

Select “Yes” when the confir-
mation screen appears.

Check that a confirmation
screen is displayed when the
operation is complete.

Calls can be made by saying the
voice tag of a registered contact
in the contact list. (



P.339)

Select “Manage Voice Tags”.

Select the desired item to be
set.

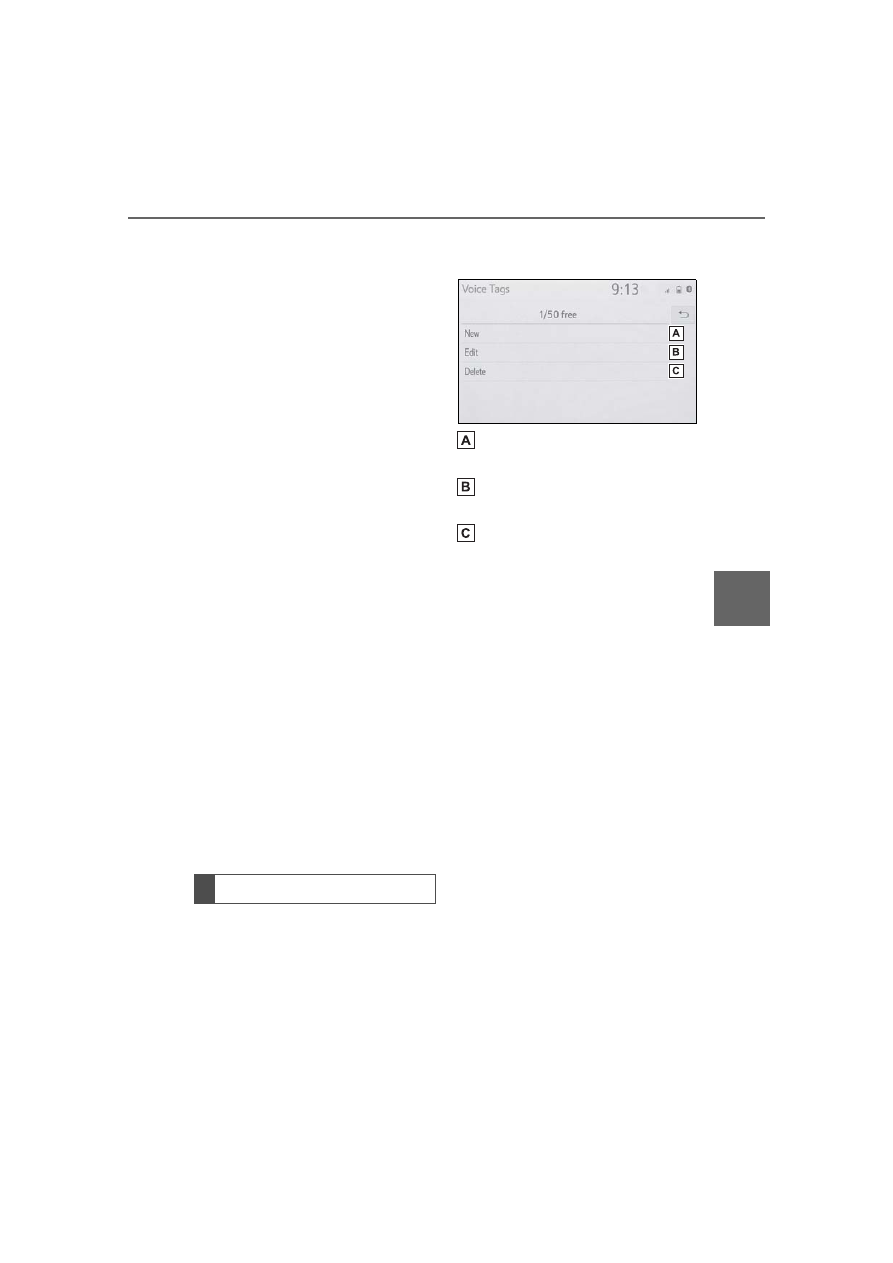

Select to register a new voice
tag. (



P.371)

Select to edit a voice tag.
(



P.371)

Select to delete a voice tag.
(



P.372)

■

Registering a voice tag

Up to 50 voice tags can be reg-
istered.

Select “New”.

Select the desired contact to
register a voice tag for.

Select “Rec” and record a
voice tag.



When recording a voice tag,
do so in a quiet area.

“Play”: Select to play the voice tag.

Select “OK” when voice tag
registration is complete.

■

Editing a voice tag

Select “Edit”.

Select the desired contact to
edit.

Follow the steps in “Register-
ing a voice tag” from step

(



P.371)

Setting voice tags

-------------------------------------------------------------------------------------------------------------------------------------------------------------

372

5-14. Phone settings

COROLLA H/B_U

■

Deleting the voice tag

Select “Delete”.

Select the desired contact
and select “Delete”.

Select “Yes” when the confir-
mation screen appears.

●

Multiple data can be selected and
deleted at the same time.

●

Voice tags are deleted when the
set language of the system is
changed. (



P.296)

Display the phone settings
screen. (



P.364)

Select “Messaging”.

Select the desired item to be
set.

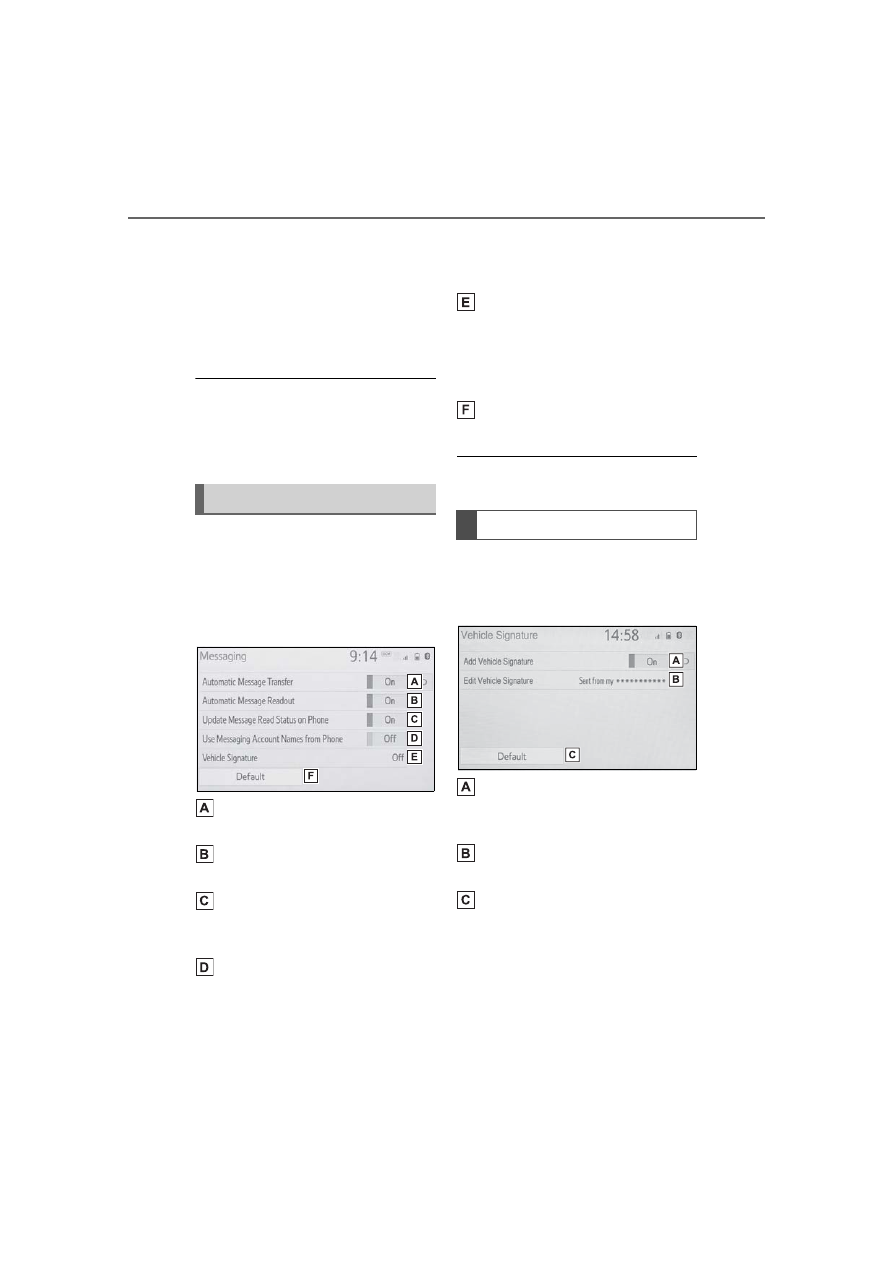

Select to set automatic mes-
sage transfer on/off.

Select to set automatic mes-
sage readout on/off.

Select to set updating mes-
sage read status on phone
on/off.

Select to set display of mes-
saging account names on the
message screen on/off.
When set to on, messaging

account names used on the
cellular phone will be dis-
played.

Select to set adding the vehi-
cle signature to outgoing
messages on/off.
The vehicle signature can be
edited. (



P.372)

Select to reset all setup
items.

●

Depending on the phone, these
functions may not be available.

Select “Vehicle Signature”.

Select the desired item to be
set.

Select to set adding the vehi-
cle signature to outgoing
messages on/off.

Select to edit the vehicle sig-
nature. (



P.372)

Select to reset all setup
items.

■

Editing vehicle signature

Select “Edit Vehicle Signa-
ture”.

Message settings screen

Vehicle signature settings

-------------------------------------------------------------------------------------------------------------------------------------------------------------

374

5-15. What to do if... (Bluetooth

)

COROLLA H/B_U

5-15.What to do if... (Bluetooth®)

■

The connected device may
not be a compatible Blue-

tooth

cellular phone.

For a list of specific devices
which operation has been con-
firmed on this system, check
with your Toyota dealer or the
following website:
https://www.toyota.com/
audio-multimedia in the United
States,
https://www.toyota.ca/
connected in
Canada, and
http://www.toyotapr.com/
audio-multimedia in Puerto Rico

■

The Bluetooth

version of

the connected cellular
phone may be older than
the specified version.

Use a cellular phone with Blue-

tooth

version 2.0 or higher

(recommended: Ver. 4.1 +EDR
or higher). (



P.275)

■

An incorrect passcode was
entered on the cellular
phone.

Enter the correct passcode on
the cellular phone.

■

The registration operation
has not been completed on
the cellular phone side.

Complete the registration opera-
tion on the cellular phone
(approve registration on the
phone).

■

Old registration informa-
tion remains on either this
system or the cellular
phone.

Delete the existing registration
information from both this sys-
tem and the cellular phone, then
register the cellular phone you
wish to connect to this system.
(



P.279)

Troubleshooting

If there is a problem with the
hands-free system or a

Bluetooth

device, first

check the table below.

Troubleshooting

When using the
hands-free system with a

Bluetooth

device

The hands-free system or

Bluetooth

device does not

work.

When registering/connect-
ing a cellular phone

A cellular phone cannot be
registered.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

375

5-15. What to do if... (Bluetooth

)

COROLLA H/B_U

Audio

■

Another Bluetooth

device

is already connected.

Manually connect the cellular
phone you wish to use to this
system. (



P.277)

■

Bluetooth

function is not

enabled on the cellular
phone.

Enable the Bluetooth

function

on the cellular phone.

■

Automatic Bluetooth

con-

nection on this system is
set to off.

Set automatic Bluetooth

con-

nection on this system to on
when the engine switch is in
ACC or ON mode. (



P.281)

■

Preferred device settings
function on this system is
set to on.

Set preferred device settings
function on this system to off.
(



P.282)

Set the desired cellular phone to
the highest automatic connec-
tion priority. (



P.282)

■

Bluetooth

function is not

enabled on the cellular
phone.

Enable the Bluetooth

function

on the cellular phone.

■

Old registration informa-
tion remains on either this
system or the cellular
phone.

Delete the existing registration
information from both this sys-
tem and the cellular phone, then
register the cellular phone you
wish to connect to this system.
(



P.280)

■

Your vehicle is in a

area.

Move to where

no longer

appears on the display.

A Bluetooth

connection

cannot be made.

A cellular phone cannot be
connected.

When making/receiving a
call

A call cannot be
made/received.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

376

5-15. What to do if... (Bluetooth

)

COROLLA H/B_U

■

The profile version of the
connected cellular phone
may not be compatible with
transferring phonebook
data.

■

Automatic contact transfer
function on this system is
set to off.

Set automatic contact transfer
function on this system to on.
(



P.367)

■

Passcode has not been
entered on the cellular
phone.

Enter the passcode on the cellu-
lar phone if requested (default
passcode: 1234).

■

Transfer operation on the
cellular phone has not com-
pleted.

Complete transfer operation on
the cellular phone (approve
transfer operation on the
phone).

■

Automatic contact transfer
function on this system is
set to on.

Set automatic contact transfer
function on this system to off.
(



P.367)

■

Message transfer is not
enabled on the cellular
phone.

Enable message transfer on the
cellular phone (approve mes-
sage transfer on the phone).

■

Automatic transfer func-
tion on this system is set to
off.

Set automatic transfer function
on this system to on. (



P.367)

When using the phone-
book

Phonebook data cannot be
transferred manually/auto-
matically.

Phonebook data cannot be
edited.

When using the Blue-

tooth

message function

Messages cannot be viewed.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

377

5-15. What to do if... (Bluetooth

)

COROLLA H/B_U

Audio

■

Notification of
SMS/MMS/E-mail reception
on this system is set to off.

Set notification of
SMS/MMS/E-mail reception on
this system to on. (



P.365)

■

Automatic message trans-
fer function is not enabled
on the cellular phone.

Enable automatic transfer func-
tion on the cellular phone.

■

Connection confirmation
display on this system is
set to on.

To turn off the display, set con-
nection confirmation display on
this system to off. (



P.282)

: The engine switch is in ACC or

ON mode.

■

The cellular phone is not
close enough to this sys-
tem.

Bring the cellular phone closer
to this system.

■

Radio interference has
occurred.

Turn off Wi-Fi

devices or other

devices that may emit radio
waves.

■

The cellular phone is the
most likely cause of the
symptom.

Turn the cellular phone off,
remove and reinstall the battery
pack, and then restart the cellu-
lar phone.

Enable the cellular phone’s

Bluetooth

connection.

Disable the Wi-Fi

connection of

the cellular phone.

Stop the cellular phone’s secu-
rity software and close all appli-
cations.

Before using an application
installed on the cellular phone,
carefully check its source and
how its operation might affect
this system.

●

For details, refer to the owner’s
manual that came with the cellular
phone.

New message notifications
are not displayed.

In other situations

The Bluetooth

connection

status is displayed at the top
of the screen each time the

system is activated

Even though all conceivable
measures have been taken,
the symptom status does not
change.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

378

5-16. Connected Services Overview

COROLLA H/B_U

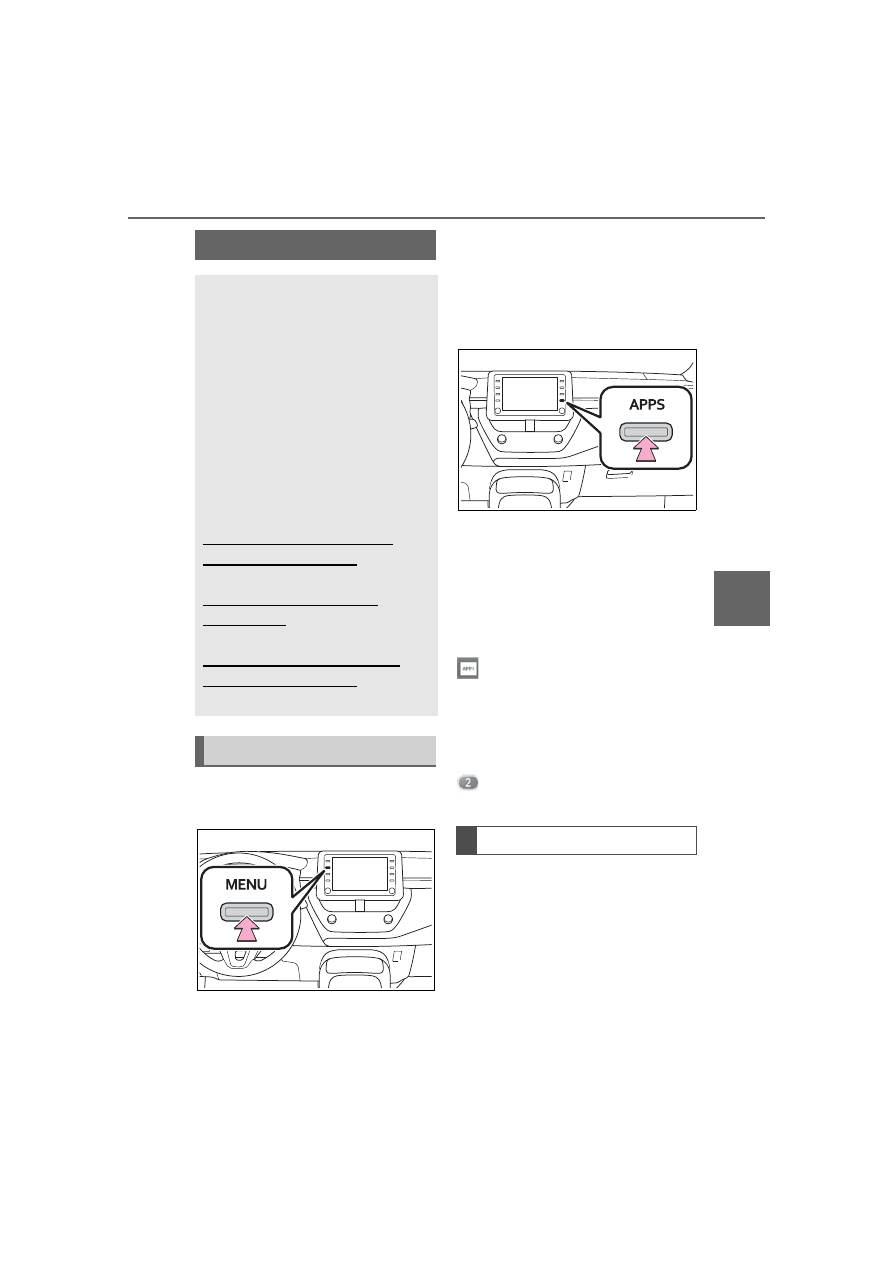

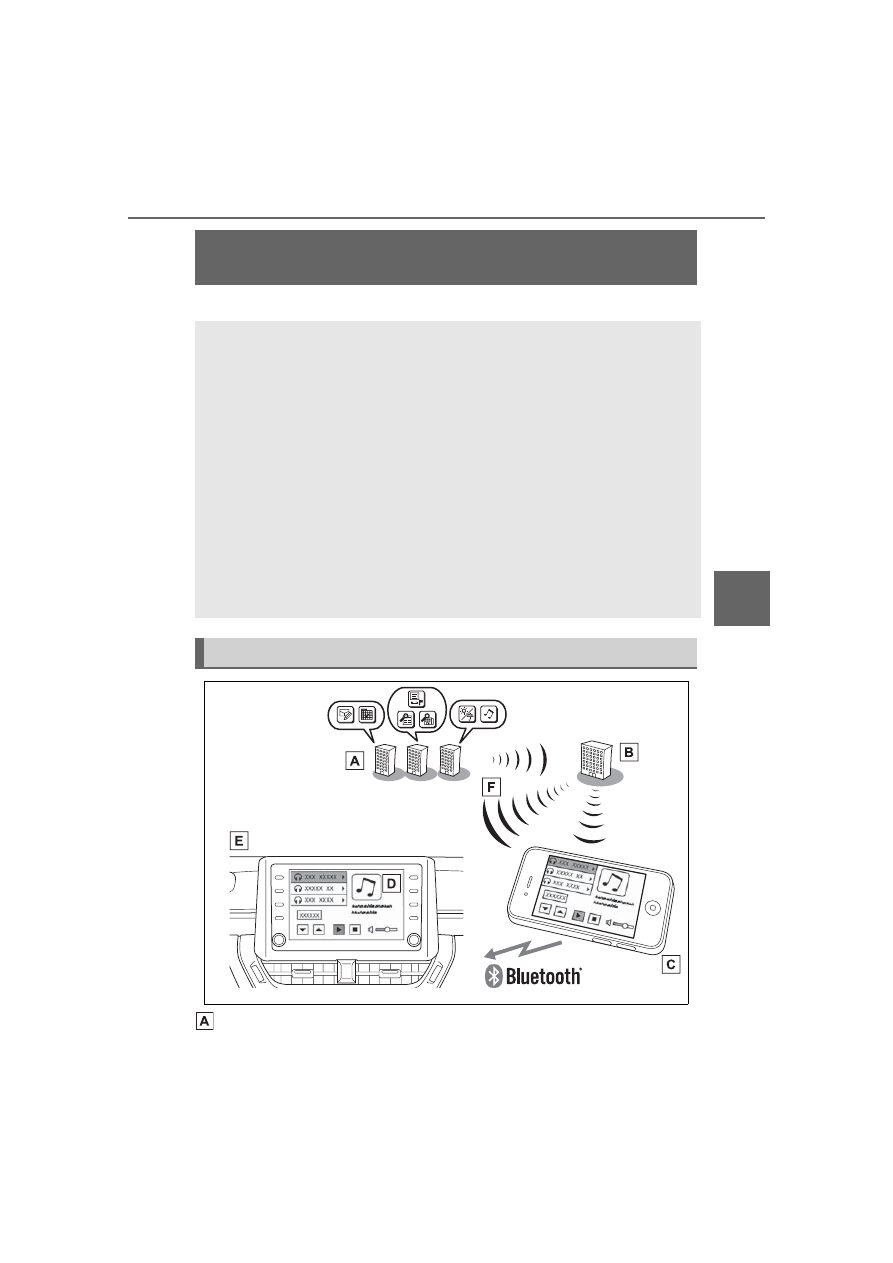

5-16.Connected Services Overview



Audio Plus/Premium Audio

Owners of this system should
refer to the “NAVIGATION AND
MULTIMEDIA SYSTEM
OWNER’S MANUAL”.



The functions included are
classified into the following
four types.

• Type A: Function achieved by

using a smart phone or an
embedded cellular device in the
vehicle (DCM: Data Communica-
tion Module) and the system

• Type B: Function achieved by

using DCM and the system

• Type C: Function achieved by

using DCM

• Type D: Function achieved by

using DCM and a smartphone

●

Each function is available in the
following areas:

• Toyota apps is available in the

contiguous United States, Wash-
ington D.C., Alaska, Hawaii,
Puerto Rico and Canada.

• Toyota apps is not available in the

United States Virgin Islands.

• Wi-Fi

Hotspot is available in the

contiguous United States, Wash-
ington D.C.,Alaska and Hawaii.

• Wi-Fi

Hotspot is not available in

Puerto Rico, Canada, and in the
United States Virgin Islands.

• Safety Connect features include:

Automatic Collision Notification,
Emergency Assistance, S.O.S,
Stolen Vehicle Location (available
in the contiguous United States,
Washington D.C., Hawaii, Alaska,
Puerto Rico and Canada) and
Enhanced Roadside Assistance
(available in the contiguous
United States, Washington D.C.,
Alaska, Puerto Rico and Canada).

• Safety Connect is not available in

the United States Virgin Islands.

• Service Connect is available in the

contiguous United States, Wash-
ington D.C., Alaska, Hawaii, the
United States Virgin Islands,
Puerto Rico and Canada.

●

Connected services functionality
is dependent upon network recep-
tion level and signal strength.

Functional overview

Toyota Connected hotspot
includes Toyota apps,

Wi-Fi

Hotspot, Safety Con-

nect and Service Connect.

Functional overview

Function

Type

Toyota apps

Type A

Wi-Fi

Hotspot

Type B

Safety Connect

Type C

Service Connect

Type D

-------------------------------------------------------------------------------------------------------------------------------------------------------------

379

5-16. Connected Services Overview

COROLLA H/B_U

Audio

: If equipped

Content provider

Type A: Function achieved by using a smart
phone or DCM

Of the functions included with Connected Services, the Toyota
apps relies on the use of a smart phone or DCM.



Using a smart phone

• Toyota audio multimedia system enables applicable apps

installed on a smart phone to be displayed on and operated from

the screen via a Bluetooth



Via DCM

• Toyota audio multimedia system enables applicable apps

installed on the system to be displayed on and operated from the
screen.

A few settings must be performed before Toyota apps can be
used. (



P.385)

By using a smart phone or DCM

-------------------------------------------------------------------------------------------------------------------------------------------------------------

380

5-16. Connected Services Overview

COROLLA H/B_U

Provides contents to the application server.

Application server
Provides applications to the system or a smart phone.

Smart phone

Using the Toyota mobile application, communication is relayed
between the system, application server and contents provider.
The smart phone cannot be operated while communicating.

Applications
Display usable content from the content providers on the screen
using the data connection of the connected smart phone or DCM.

System
Content received, via a smart phone or DCM, from content pro-
vider servers is displayed on the screen. The system is equipped
with an application player to run applications.

Via DCM

: For known compatible phones, refer to

https://www.toyota.com/connected-services in the United States,
https://www.toyota.ca/connected in Canada, and
http://www.toyotapr.com/connected-services in Puerto Rico.

The required operations to acti-
vate applications and connect a
smart phone to the system, and
the registration steps for the
connected services are
explained in this section.

■

Subscription



User registration is required to
start using the Toyota apps
function. (



P.381)



Toyota apps does not require
an activation fee or monthly
recurring fees.



Services requiring a separate

contract can also be used.

: For details, refer to

https://www.toyota.com/
connected-services
or call 1-800-331-4331 in the
United States,
https://www.toyota.ca/connected
or call 1-888-869-6828 in Can-
ada, and
http://www.toyotapr.com/
connected-services
or call 1-877-855-8377 in Puerto
Rico.

■

Availability of function



Toyota apps is available in the
contiguous United States,
Washington D.C., Alaska,
Hawaii, Puerto Rico and Can-
ada.



Toyota apps is not available in

Before using the function

-------------------------------------------------------------------------------------------------------------------------------------------------------------

381

5-16. Connected Services Overview

COROLLA H/B_U

Audio

the United States Virgin
Islands.

●

Data usage fees may apply while
using Toyota apps function. Con-
firm data usage fees before using
this function.

●

For details regarding operation of
the Toyota apps, refer to
https://www.toyota.com/
connected-services
in the United States,
https://www.toyota.ca/connected
in Canada, and
http://www.toyotapr.com/
connected-services
in Puerto Rico.

●

These functions are not made
available in some countries or
areas. Availability of functions of
the Toyota apps is dependent on
network reception level.

■

Initializing personal data

The personal data used in appli-
cations can be reset. (



P.299)



The following personal data
can be deleted and returned
to their default settings:

• Downloaded contents

• Radio stations that were listened

●

Once initialized, the data and set-
tings will be erased. Pay much
attention when initializing the data.

■

Settings required to use
Toyota mobile application

Perform the settings in the fol-
lowing order.

Download the Toyota mobile
application to your smart
phone or the system.

In order to use Toyota mobile appli-
cation, the following must first be
performed:



Download the Toyota mobile
application onto your smart
phone or the system, and
login to the application.
(



P.381)





P.381)



phone

with the hands-free system.
(



P.381)

■

Registering the Toyota
mobile application applica-
tion



Registration is optional.

Download the Toyota mobile
application to your smart
phone or the system.

Run the Toyota mobile appli-
cation on your smart phone
or the system.

Enter the information
required into the Toyota
mobile application. Login to
the application.

●

Applications can only be used
when the Toyota mobile applica-
tion has been downloaded to your
smart phone or the system, and

Preparation before using
Toyota mobile application

-------------------------------------------------------------------------------------------------------------------------------------------------------------

382

5-16. Connected Services Overview

COROLLA H/B_U

the application is running.

●

Toyota mobile application opera-
tional procedures can also be con-
firmed by visiting
https://www.toyota.com/
connected-services
in the United States,
https://www.toyota.ca/connected
in Canada, and
http://www.toyotapr.com/
connected-services
in Puerto Rico.

●

If a Toyota mobile application is
used while iPod audio/video is
being played back, system opera-
tion may become unstable.

: If equipped

■

Subscription



After you have signed the
Telematics Subscription Ser-
vice Agreement and are
enrolled, you can begin
receiving services. A variety
of subscription terms are
available. Contact your Toyota
dealer, or call 1-800-331-4331
in the United States,
1-888-869-6828 in Canada,
and 1-877-855-8377 in Puerto
Rico, for further subscription
details. (



P.380)

■

Availability of functions



Wi-Fi

Hotspot is available in

the contiguous United States,
Washington D.C., Alaska and

Type B: Function

achieved by using

DCM and the system

The functionality of Wi-Fi

Hotspot is made possible
through the shared work of
the DCM and the system.

This service is available by
subscription and supported
by the Toyota response cen-
ter, which operates 24 hours
a day, 7 days a week.

For details about Wi-Fi

Hotspot:



P.284

Before using the function

-------------------------------------------------------------------------------------------------------------------------------------------------------------

384

5-16. Connected Services Overview

COROLLA H/B_U

: If equipped

Service Connect uses DCM to
collect and transmit vehicle data
that allows Toyota to provide:



Vehicle Health Report (VHR)
(Safety Recalls, Service Cam-
paigns, Current Vehicle
Alerts, Required Mainte-
nance, and Vehicle Condition
Status)



Maintenance Notifications



Vehicle Alert Notifications

■

Availability of function



Service Connect is available
in the contiguous United
States, Washington D.C.,
Alaska, Hawaii, the United
States Virgin Islands, Puerto
Rico and Canada.

●

Availability of functions of the Ser-
vice Connect is dependent on net-
work reception level.

Type D: Function

achieved by using

DCM and a smart-

phone

The functionality of Service
Connect is made possible
by the use of a DCM and a
smartphone.

For details about these ser-
vices, refer to
https://www.toyota.com/
connected-services.

Service Connect

-------------------------------------------------------------------------------------------------------------------------------------------------------------

385

5-17. Connected Services Operation

COROLLA H/B_U

Audio

5-17.Connected Services Operation



From the “MENU” button

Press the “MENU” button.

Select “Apps”.

Follow the steps in “From the
“APPS” button” from step

(



P.385)



From the “APPS” button

Press the “APPS” button.

Select “Apps”.



If a specific application screen
is displayed, select “Apps”
again.

Select the desired application
screen button.

: Select to activate an applica-

tion.

“Update”: Select to update the
applications. (



P.385)

“App Catalog”: Select to change the
order of the applications. (



P.386)

: Displays the number of new

notifications for the application

When the Toyota apps is acti-
vated, an application may need
to be updated. To update an
application, it is necessary to
download update data and
install it.

■

Downloading update

If an update is available,

Toyota apps

Toyota apps is a function
that enables certain apps
installed on a smart phone
or the system to be dis-
played on and operated
from the system screen.
Before the Toyota apps can
be used, some setup needs
to be performed. (



P.381)

For details about the func-
tions and services provided
by each application, refer to
https://www.toyota.com/
connected-services
in the United States,
https://www.toyota.ca/
connected
in Canada, and
http://www.toyotapr.com/
connected-services
in Puerto Rico.

Using Toyota apps

Updating an application

-------------------------------------------------------------------------------------------------------------------------------------------------------------

386

5-17. Connected Services Operation

COROLLA H/B_U

“Update” can be selected.

Select “Update” on the appli-
cation screen. (



P.385)

Check that downloading
starts.

“Download in Background”: Select
to operate other functions while
downloading.

“Cancel”: Select to cancel updating.

Check that downloading is
complete.

“Later”: Select to install later. When
this screen button is selected, the
screen will return to the last dis-
played screen. To install the update
data: (



P.386)

“See Detail”: Select to display
detailed information on the update
data.

“Install”: Select to install the update
data. Follow the steps “Installing
the update data” from step

(



P.386)

■

Installing the update data

After the downloading is com-
plete, “Update” will be changed
to “Install”.

Select “Install” on the appli-
cation screen. (



P.385)

Select “Continue”.

“Later”: Select to postpone the
installation of the update data and
go back to the previous screen.

Check that installing is
started.

“Install in Background”: Select to
operate other functions while
installing.

Select “OK” after the install-
ing is complete.

●

The Toyota apps cannot be oper-
ated while installing.

Order of the applications can be
changed.

Display the application
screen. (



P.385)

Select “App Catalog”.

Select the desired application
to be moved.

Select “<<” or “>>” to move
the application, and then
select the done button.

When problems occur with start-
ing the application player, a
message will appear on the
screen. Referring to the follow-
ing items, identify the problem
and take the suggested correc-
tive action.



“When it is safe and legal to
do so, please ensure your
mobile application is running
and logged in on your phone.”

The Toyota mobile application can-

not be connected to Bluetooth

SPP.

Refer to
https://www.toyota.com/
connected-services
in the United States,
https://www.toyota.ca/connected

Reordering the applica-
tions

If a message appears on
the screen

-------------------------------------------------------------------------------------------------------------------------------------------------------------

387

5-17. Connected Services Operation

COROLLA H/B_U

Audio

in Canada, and
http://www.toyotapr.com/
connected-services
in Puerto Rico, to confirm if the

phone is Bluetooth

SPP compati-

ble or not, and then activate the
Toyota mobile application.



“Installation failed, please try
again”

Installation can be attempted again
by changing to the application
screen and pressing the “Install”
switch.



“Application download error.
Please try again later.”

Downloading can be attempted
again by checking the communica-
tion status, changing to the applica-
tion screen and pressing the
“Download” switch again.



“Download error, some mobile
application functions may not
work as expected. Please
reinitiate the download pro-
cess.”

The Toyota mobile application can-

not be connected to Bluetooth

SPP.

Refer to
https://www.toyota.com/
connected-services
in the United States,
https://www.toyota.ca/connected
in Canada, and
http://www.toyotapr.com/
connected-services
in Puerto Rico, to confirm if the

phone is Bluetooth

SPP compati-

ble or not, and then activate the
Toyota mobile application.

Please ensure your Toyota mobile

application is running and logged in
on your phone while vehicle is not
moving.



“To use the services, mobile
application needs to be run-
ning on your phone. For more
information, please visit toy-
ota.com or call
1-800-331-4331 in the United
States, 1-888-869-6828 in
Canada, and 1-877-855-8377
in Puerto Rico.”

The Toyota mobile application can-

not be connected to Bluetooth

SPP.

Refer to
https://www.toyota.com/
connected-services
in the United States,
https://www.toyota.ca/connected
in Canada, and
http://www.toyotapr.com/
connected-services
in Puerto Rico, to confirm if the

phone is Bluetooth

SPP compati-

ble or not, and then activate the
Toyota mobile application.



“Communication unsuccess-
ful. Please try again.”

Communication was disconnected.

After a few moments, retry the
operation.

A keyword can be entered to an
application by the software key-
board or voice recognition func-
tion. For details about the

Entering keyword opera-
tion

-------------------------------------------------------------------------------------------------------------------------------------------------------------

388

5-17. Connected Services Operation

COROLLA H/B_U

functions and services provided
by each application, refer to
https://www.toyota.com/
connected-services
in the United States,
https://www.toyota.ca/connected
in Canada, and
http://www.toyotapr.com/
connected-services
in Puerto Rico.



The keyboard layout can be
changed. (



P.296)

Display the application
screen. (



P.385)

Select the desired application
screen button.

Select the character entering
space.

Enter a search term, and
then select “OK”.

Entering characters will be
reflected on the character
entering space.



For details on operating the
keyboard:



P.267

Display the application
screen. (



P.385)

Select the desired application
screen button.

Press the talk switch.
(



P.339)

Say the desired keyword.



Completion of the keyword
will be detected automatically.

Search results will be dis-
played on the screen.

Entering a keyword using
the software keyboard

Entering a keyword using
the voice recognition func-
tion

-------------------------------------------------------------------------------------------------------------------------------------------------------------

389

5-18. Toyota apps settings

COROLLA H/B_U

Audio

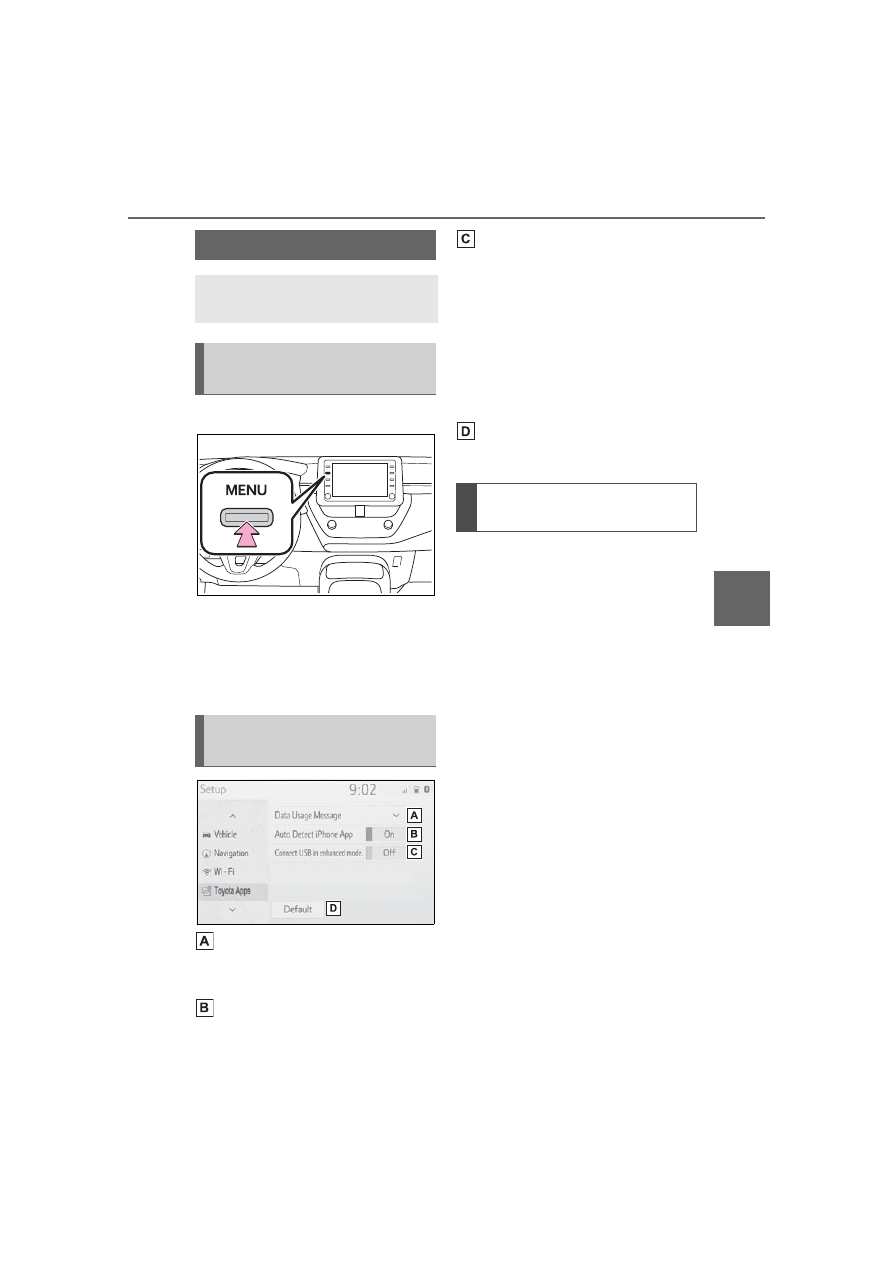

5-18.Toyota apps settings

Press the “MENU” button.

Select “Setup”.

Select “Toyota Apps”.

Select the desired items to
be set.

Select to set the pop up
reminder for smart phone
data usage. (



P.387)

Select to detect iPhone app
automatically on/off.

Select to set the enhanced
mode with connecting USB
device on/off.

• When an iPhone is connected

while this setting is set to “On”,
communication with devices con-
nected to other USB ports may
not be possible. Also, depending
on the device, charging may not
be possible.

Select to reset all setup
items.

The data use notification
pop-up, which indicates that the
system will use an internet con-
nection, can be enabled/dis-
abled.

Display the Toyota apps set-
tings screen. (



P.389)

Select “Data Usage Mes-
sage”.

Change the setting as
desired.

Setup

The settings of Toyota apps
can be changed.

Displaying the Toyota
apps settings screen

Toyota apps settings
screen

Data use notification
pop-up settings

-------------------------------------------------------------------------------------------------------------------------------------------------------------

391

COROLLA H/B_U

Interior

featur

Interior features

6-1. Using the air conditioning

system and defogger

Automatic air conditioning

system.......................

392

Heated steering wheel/seat

heaters ......................

399

6-2. Using the interior lights

Interior lights list ..........

401

6-3. Using the storage features

List of storage features

..................................

403

Luggage compartment fea-

tures ..........................

406

6-4. Other interior features

Other interior features .

408

-------------------------------------------------------------------------------------------------------------------------------------------------------------

393

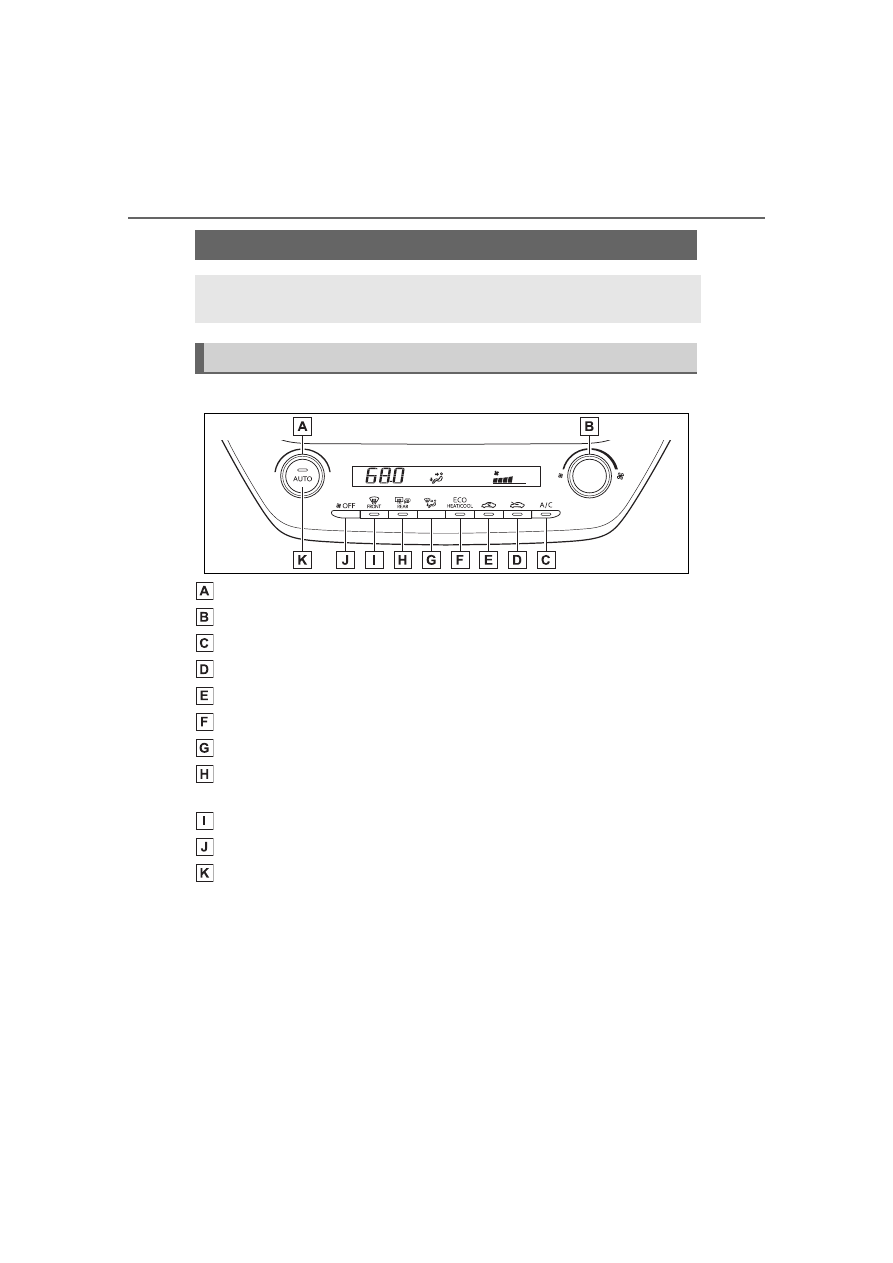

6-1. Using the air conditioning system and defogger

COROLLA H/B_U

Interior

featur



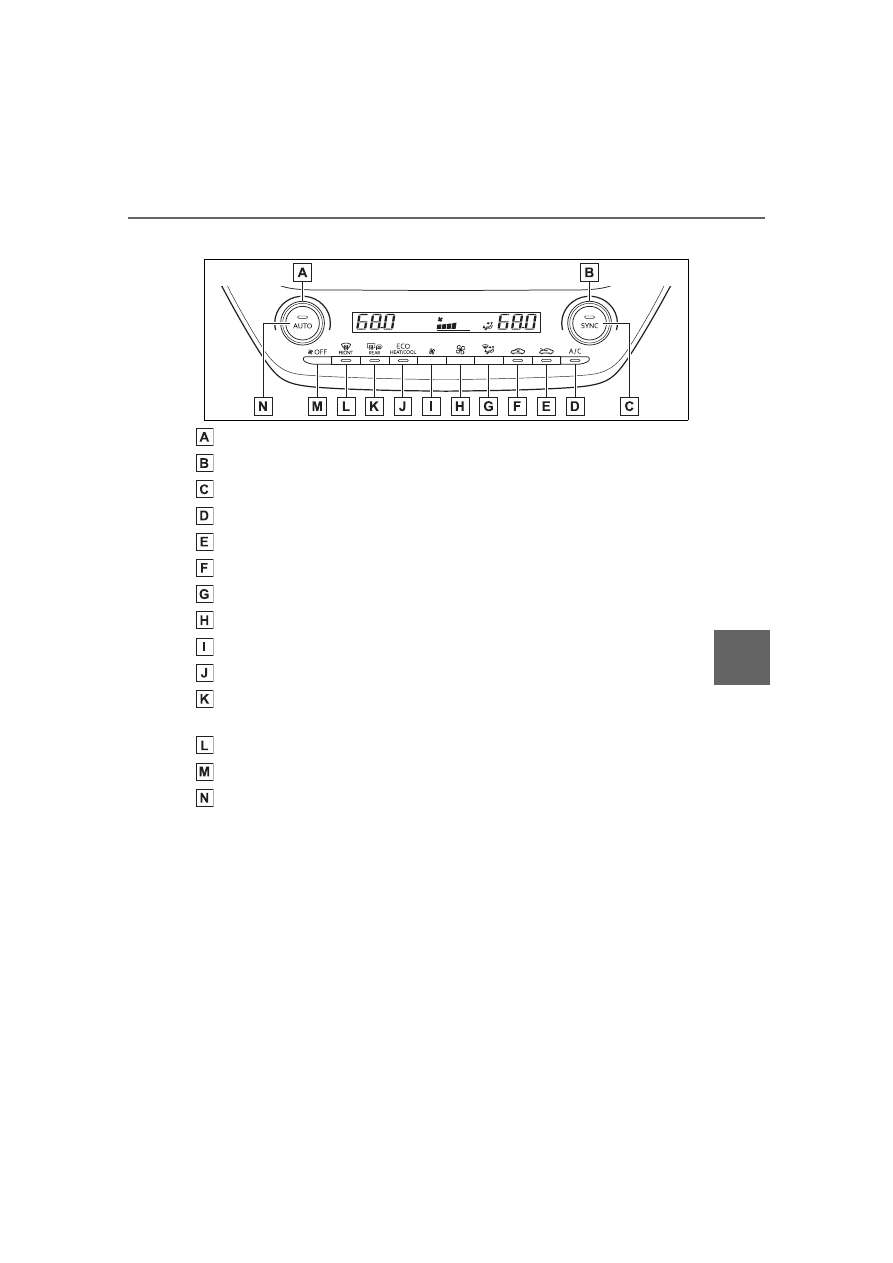

Vehicles with DUAL mode air conditioning system

Left-hand side temperature control switch

Right-hand side temperature control switch

“SYNC” switch

“A/C” switch

Outside air mode switch

Recirculated air mode switch

Airflow mode control switch

Fan speed increases switch

Fan speed decreases switch

Eco air conditioning mode switch

Rear window defogger and outside rear view mirror defoggers
switch

Windshield defogger switch

Off switch

Automatic mode switch

■

Adjusting the temperature
setting

To adjust the temperature set-
ting, turn the temperature con-
trol switch clockwise (warm) or
counterclockwise (cool).

If “A/C” switch is not pressed, the
system will blow ambient tempera-
ture air or heated air.

The air conditioning system
switches between individual and

synchronized modes each time
“SYNC” switch is pressed.

Synchronized modes (indicator on):

The left-hand side temperature
control switch can be used to adjust
the temperature for the driver’s and
front passenger’s side. At this time,
operate the right-hand side tem-
perature control switch to enter
individual mode.

Individual modes (indicator off):

-------------------------------------------------------------------------------------------------------------------------------------------------------------

394

6-1. Using the air conditioning system and defogger

COROLLA H/B_U

The temperature for the driver’s
and front passenger’s side can be
adjusted separately.

■

Setting the fan speed



Vehicles without DUAL mode
air conditioning system

To adjust the fan speed, turn the
fan speed control switch clock-
wise (increase) or counterclock-
wise (decrease).

Pressing the off switch to turns off
the fan.



Vehicles with DUAL mode air
conditioning system

Operate the fan speed
increases switch to increase the
fan speed and the fan speed
decrease switch to decrease the
fan speed.

Pressing the off switch to turns off
the fan.

■

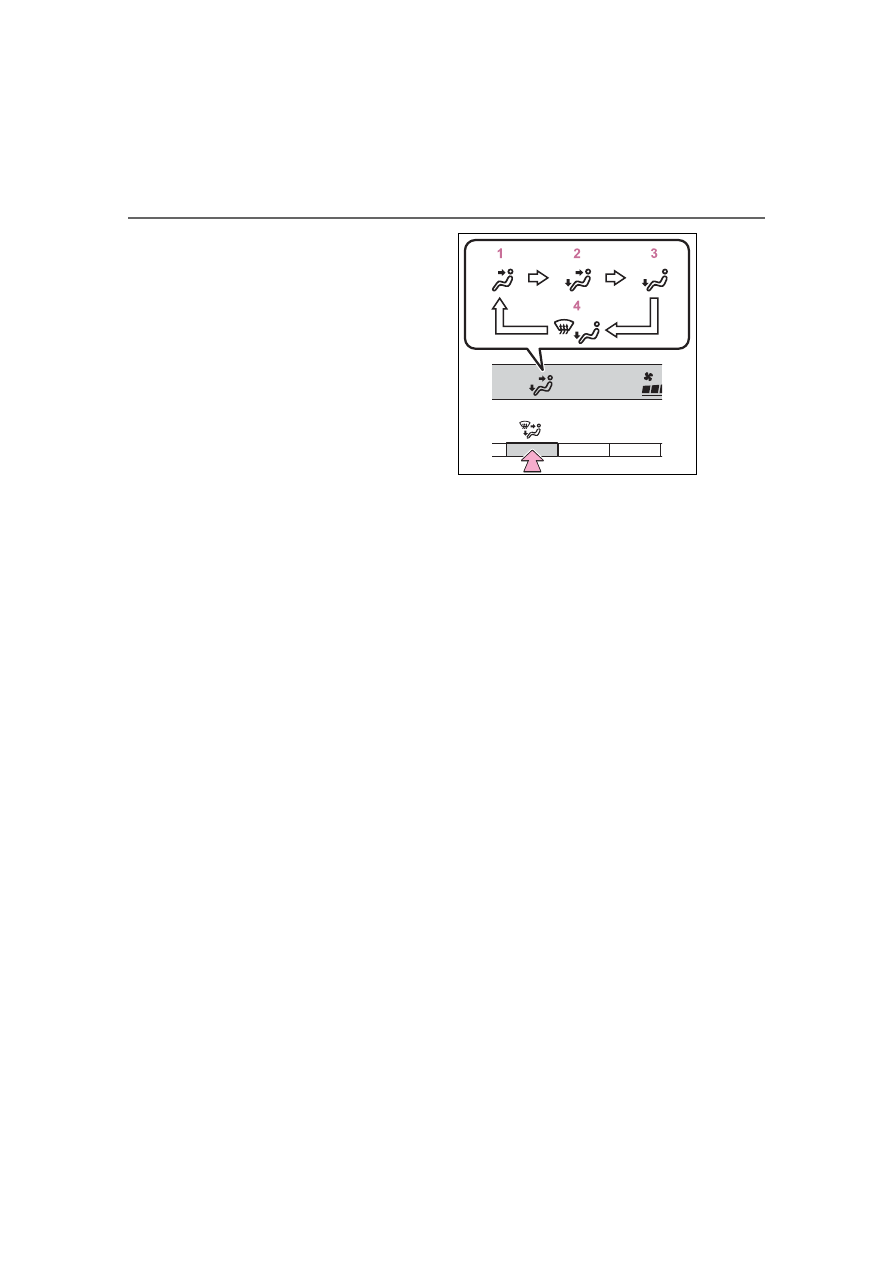

Change the airflow mode

Press the airflow mode control
switch.

The airflow mode changes as fol-
lows each time the switch is
pressed.

Upper body

Upper body and feet

Feet

Feet and the windshield
defogger operates

■

Switching between outside
air and recirculated air
modes



To change to recirculated air
mode, press the recirculated
air mode switch.

The indicator illuminates on the
recirculated air mode switch.



To change to outside air
mode, press the outside air
mode switch.

The indicator illuminates on the out-
side air mode switch.

■

Set cooling and dehumidifi-
cation function

Press the “A/C” switch.

When the function is on, the indica-
tor illuminates on the “A/C” switch.

■

Defogging the windshield

Defoggers are used to defog the

-------------------------------------------------------------------------------------------------------------------------------------------------------------

395

6-1. Using the air conditioning system and defogger

COROLLA H/B_U

Interior

featur

windshield and front side win-
dows.

Press the windshield defogger
switch.

Set the outside/recirculated air
mode switch to outside air mode if
the recirculated air mode is used. (It
may switch automatically.)

To defog the windshield and the
side windows quickly, turn the air
flow and temperature up.

To return to the previous mode,
press the windshield defogger
switch again when the windshield is
defogged.

When the windshield defogger
switch is on, the indicator illumi-
nates on the windshield defogger
switch.

■

Defogging the rear window
and outside rear view mir-
rors

Defoggers are used to defog the
rear window, and to remove
raindrops, dew and frost from
the outside rear view mirrors.

Press the rear window and out-
side rear view mirror defoggers
switch.

The defoggers will automatically
turn off after a while.

When the rear window and outside
rear view mirror defoggers switch is
on, the indicator illuminates on the
rear window and outside rear view
mirror defoggers switch.

■

Eco air conditioning mode

The air conditioning is controlled
with low fuel consumption priori-

tized such as reducing fan
speed, etc.

Press the eco air conditioning
mode switch.

When the eco air conditioning
mode is on, the indicator illumi-
nates on the eco air conditioning
mode switch.

■

When the outside temperature
exceeds 75°F (24°C) and the air
conditioning system is on

●

In order to reduce the air condi-
tioning power consumption, the air
conditioning system may switch to
recirculated air mode automati-
cally. This may also reduce fuel
consumption.

●

Recirculated air mode is selected
as a default mode when the
engine switch is turned to ON.

●

It is possible to switch to outside
air mode at any time by pressing
the outside air mode switch.

■

Fogging up of the windows

●

The windows will easily fog up
when the humidity in the vehicle is
high. Turning “A/C” on will dehu-
midify the air from the outlets and
defog the windshield effectively.

●

If you turn “A/C” off, the windows
may fog up more easily.

●

The windows may fog up if the
recirculated air mode is used.

■

When driving on dusty roads

Close all windows. If dust thrown up
by the vehicle is still drawn into the
vehicle after closing the windows, it
is recommended that the air intake
mode be set to outside air mode and
the fan speed to any setting except
off.

■

Outside/recirculated air mode

●

Setting to the recirculated air
mode temporarily is recom-
mended in preventing dirty air

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Toyota Corolla Hatchback (2021 year). Manual in english - part 6
