Pictorial index

Pictorial index

■

Exterior

Doors  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 158

Locking/unlocking  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 158
Opening/closing the door windows  . . . . . . . . . . . . . . . . . . . . . P. 189
Locking/unlocking by using the mechanical key  . . . . . . . . . . . P. 539

Trunk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 164

Opening from inside. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 164
Opening from outside  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 164

Outside rear view mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 187

Adjusting the mirror angle . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 187
Folding the mirrors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 187
Defogging the mirrors

*

1

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 382

*

2

*

3

1

2

3

15

Pictorial index

Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 244

Precautions for winter season . . . . . . . . . . . . . . . . . . . . . . . . . P. 373

Fuel filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 248

Refueling method. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 248
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 558

Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 455

Tire size/inflation pressure  . . . . . . . . . . . . . . . . . . . . . . . . . P. 562

Winter tires/tire chains  . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 373

Checking/rotation/tire pressure warning system . . . . . . . . . P. 455

Coping with flat tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 525

Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 440

Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 440
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 559
Coping with overheat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 549

Front turn signal lights/
parking lights/daytime running lights

*

2

 . . . . . . . . . . . . . . . P. 236

Headlights/daytime running lights

*

3

. . . . . . . . . . . . . . . . . . P. 236

Front side marker lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 236

Side turn signal lights

*

1

 . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 228

Rear turn signal lights/rear side marker lights/
tail lights/stoplights. . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 228, 236

Tail lights

*

1

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 236

Back-up lights

Shifting the shift lever to R. . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 222

License plate lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 236

4

5

6

7

Light bulbs of the exterior lights for driving



(Replacing method: P. 488, Watts: P. 564)

8

9

10

11

12

13

14

*

1

: If equipped

*

2

: Vehicles with LED type front side marker lights

*

3

: Vehicles with bulb type front side marker lights

16

Pictorial index

■

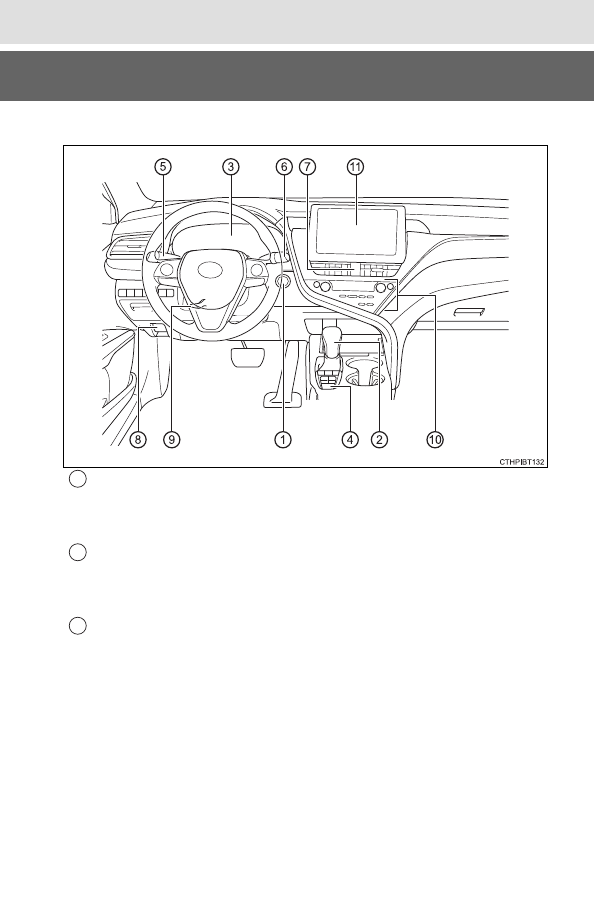

Instrument panel

Power switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 212

Starting the hybrid system/changing the modes . . . . . . . . . . . P. 212
Emergency stop of the hybrid system . . . . . . . . . . . . . . . . . . . P. 503
When the hybrid system will not start  . . . . . . . . . . . . . . . . . . . P. 537

Shift lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 222

Changing the shift position  . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 222
Precautions for towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 505
When the shift lever does not move  . . . . . . . . . . . . . . . . . . . . P. 226

Meters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 102

Reading the meters/adjusting the instrument panel lights . . . . P. 102
Warning lights/indicator lights  . . . . . . . . . . . . . . . . . . . . . . . . . . P. 96
When a warning light comes on. . . . . . . . . . . . . . . . . . . . . . . . P. 509

Multi-information display  . . . . . . . . . . . . . . . . . . . . . . .  P. 106, 119

Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  P. 106, 119
When the warning messages are displayed  . . . . . . . . . . . . . . P. 519

1

2

3

17

Pictorial index

Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 229

Applying/releasing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 229, 230
Precautions for winter season . . . . . . . . . . . . . . . . . . . . . . . . . P. 374
Warning light/warning buzzer/
warning message. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 232, 509

Turn signal lever  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 228
Headlight switch  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 236

Headlights/side marker lights/parking lights/tail lights/
license plate lights/daytime running lights . . . . . . . . . . . . . . . . P. 236

Windshield wiper and washer switch  . . . . . . . . . . . . . . . . . P. 244

Usage  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 244
Adding washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 450

Emergency flasher switch  . . . . . . . . . . . . . . . . . . . . . . . . . . P. 502

Hood lock release lever. . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 440

Tilt and telescopic steering lock release lever . . . . . . . . . . P. 183

Air conditioning system . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 378

Usage  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 378
Rear window defogger. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 382

Audio

*

1, 2

Audio Plus

*

1, 2

Premium Audio

*

1, 2

Clock

*

2

4

5

6

7

8

9

10

11

*

1

: If equipped

*

2

: Refer to “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.

18

Pictorial index

■

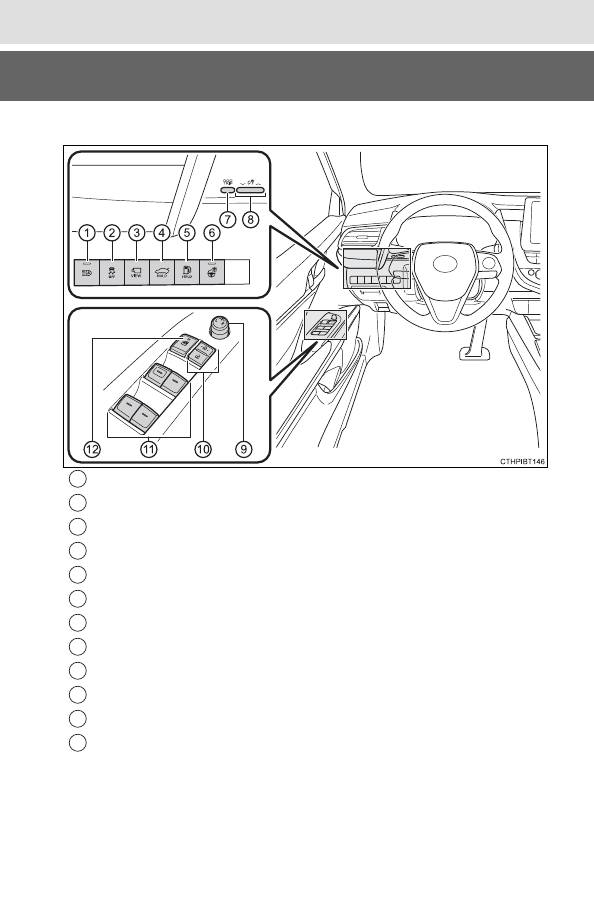

Switches

Automatic High Beam switch . . . . . . . . . . . . . . . . . . . . . . . . P. 240

VSC OFF switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 312

Camera switch

*

1, 2

Trunk opener switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 164

Fuel filler door opener switch. . . . . . . . . . . . . . . . . . . . . . . . P. 250

Heated steering wheel switch

*

1

. . . . . . . . . . . . . . . . . . . . . . P. 388

“ODO/TRIP” switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 107, 121

Instrument panel light control switch  . . . . . . . . . . . . . . . . . P. 103

Outside rear view mirror switch . . . . . . . . . . . . . . . . . . . . . . P. 187

Door lock switches  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 160

Power window switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 189

Window lock switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 189

1

2

3

4

5

6

7

8

9

10

11

12

19

Pictorial index

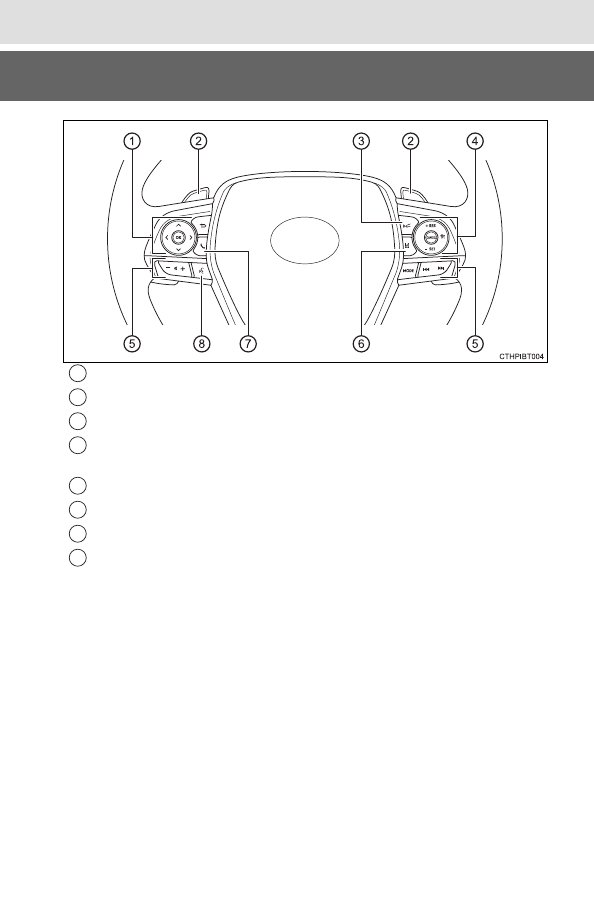

Meter control switches . . . . . . . . . . . . . . . . . . . . . . . . . P. 107, 121

Paddle shift switches

*

1

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 222

Vehicle-to-vehicle distance button. . . . . . . . . . . . . . . . . . . . P. 302

Cruise control switches

Dynamic radar cruise control with full-speed range. . . . . . . . . P. 295

Audio remote control switches

*

2

LTA (Lane Tracing Assist) switch . . . . . . . . . . . . . . . . . . . . . P. 275

Phone switch

*

2

Talk switch

*

2

1

2

3

4

5

6

7

8

*

1

: If equipped

*

2

: Refer to “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.

20

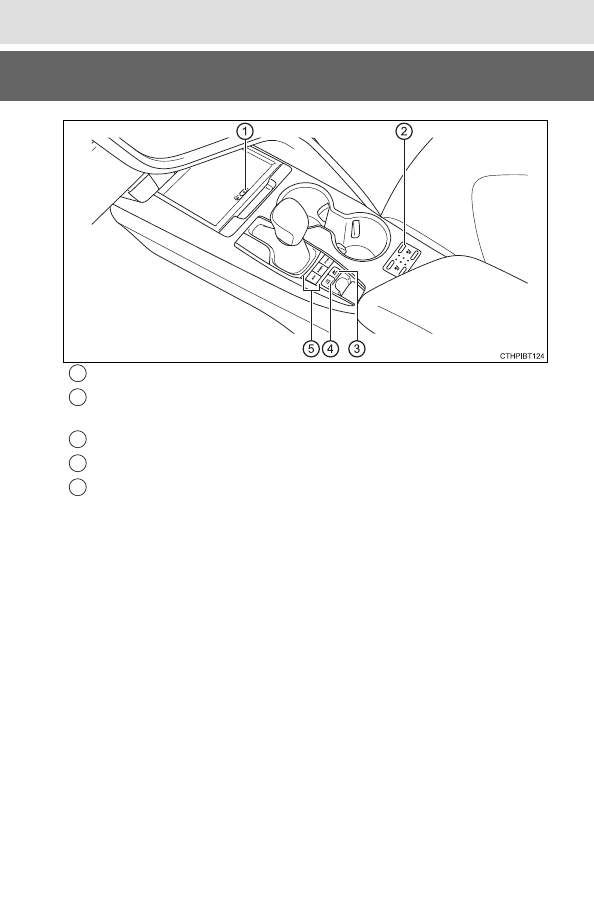

Pictorial index

Wireless charger switch

*

 . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 404

Seat heater switches

*

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 387

Seat ventilator switches

*

 . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 387

EV drive mode switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 219

Brake hold switch  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 233

Driving mode select switches  . . . . . . . . . . . . . . . . . . . . . . . P. 368

1

2

3

4

5

*

: If equipped

21

Pictorial index

■

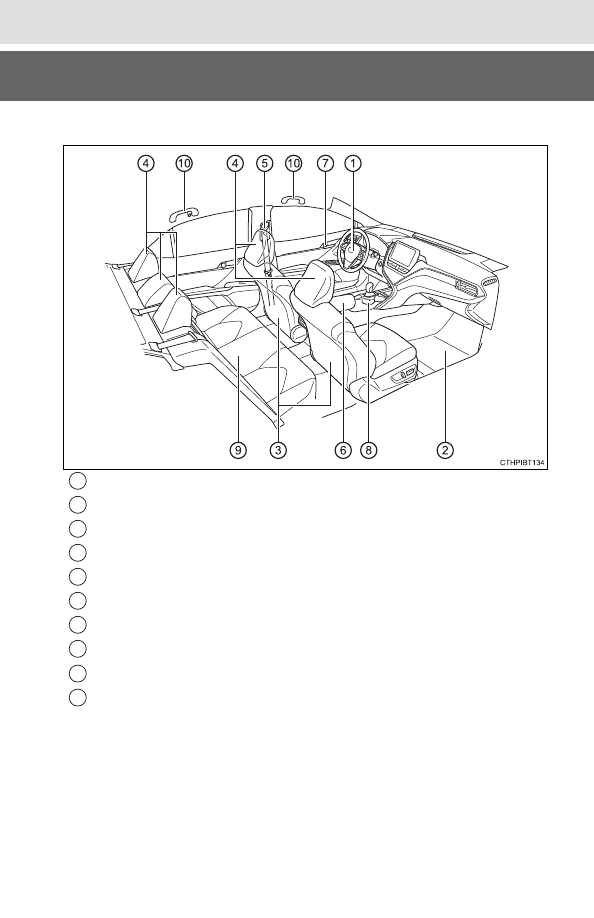

Interior

SRS airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 34

Floor mats  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 24

Front seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 177

Head restraints. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 181

Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 28

Console box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 394

Inside lock buttons  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 160

Cup holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 396

Rear seats. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 179

Assist grips  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 413

1

2

3

4

5

6

7

8

9

10

22

Pictorial index

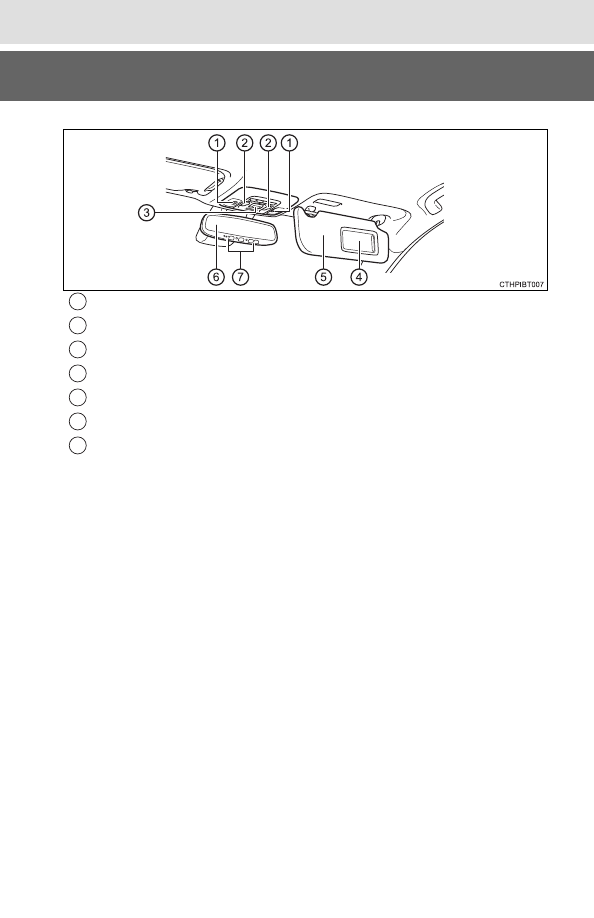

Interior lights/personal lights

*

1

 . . . . . . . . . . . . . . . . . . . . . . P. 390

Moon roof switches

*

2

 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 192

“SOS” button

*

2

 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 73

Vanity mirrors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 400

Sun visors  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 400

Inside rear view mirror  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 185

Garage door opener switches

*

2

. . . . . . . . . . . . . . . . . . . . . . P. 415

1

2

3

4

5

6

7

*

1

: The illustration shows the front, but they may also be equipped in the rear.

*

2

: If equipped

23

For safety and security

1

1-1.  For safe use

Before driving...................... 24
For safe driving ................... 26
Seat belts ............................ 28
SRS airbags........................ 34
Front passenger occupant

classification system ......... 47

Exhaust gas precautions..... 52

1-2.  Child safety

Riding with children............. 53
Child restraint systems........ 54

1-3.  Emergency assistance

Safety Connect ................... 73

1-4.  Hybrid system

Hybrid system features ....... 79
Hybrid system

precautions ....................... 83

1-5.  Theft deterrent system

Immobilizer system ............. 90
Alarm................................... 92

24

1-1. For safe use

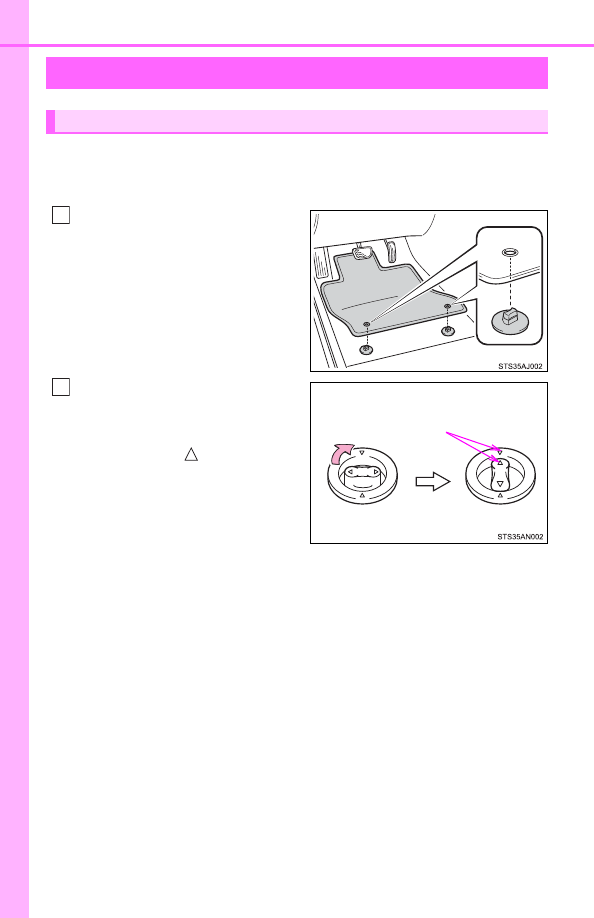

Use  only  floor  mats  designed  specifically  for  vehicles  of  the  same
model  and  model  year  as  your  vehicle.  Fix  them  securely  in  place
onto the carpet.

Insert the retaining hooks (clips)
into the floor mat eyelets.

Turn  the  upper  knob  of  each
retaining  hook  (clip)  to  secure
the floor mats in place.

*

: Always align the

 marks.

The shape of the retaining hooks (clips) may differ from that shown in the
illustration.

Before driving

Floor mat

1

*

2

25

1-1. For safe use

1

For safet

y and s

ecurity

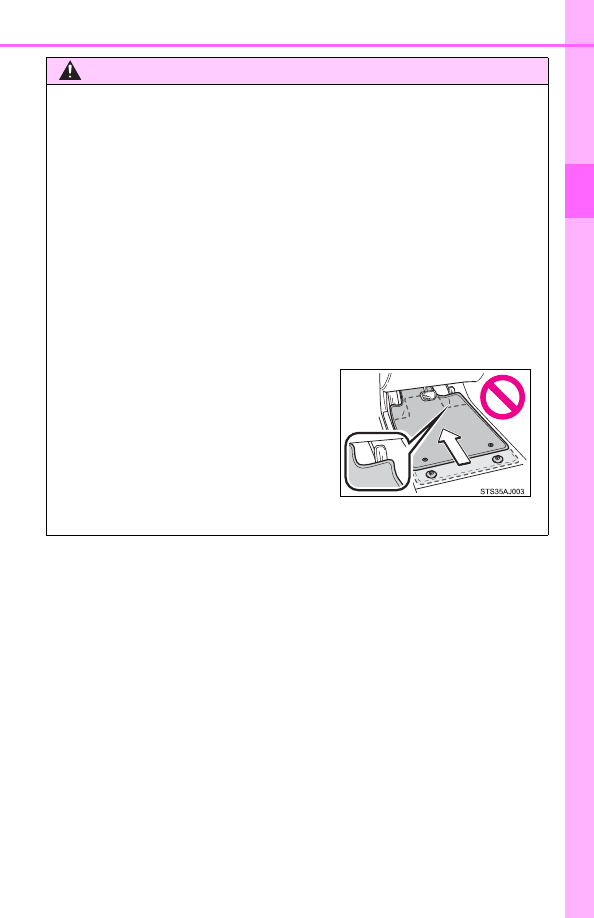

WARNING

Observe the following precautions.
Failure to do so may cause the driver’s floor mat to slip, possibly interfering
with the pedals while driving. An unexpectedly high speed may result or it may
become difficult to stop the vehicle. This could lead to an accident, resulting in
death or serious injury.

■

When installing the driver’s floor mat

●

Do not use floor mats designed for other models or different model year
vehicles, even if they are Toyota Genuine floor mats.

●

Only use floor mats designed for the driver’s seat.

●

Always install the floor mat securely using the retaining hooks (clips) pro-
vided.

●

Do not use two or more floor mats on top of each other.

●

Do not place the floor mat bottom-side up or upside-down.

■

Before driving

●

Check  that  the  floor  mat  is  securely
fixed  in  the  correct  place  with  all  the
provided  retaining  hooks  (clips).  Be
especially careful to perform this check
after cleaning the floor.

●

With the hybrid system stopped and the
shift lever in P, fully depress each pedal
to  the  floor  to  make  sure  it  does  not
interfere with the floor mat.

26

1-1. For safe use

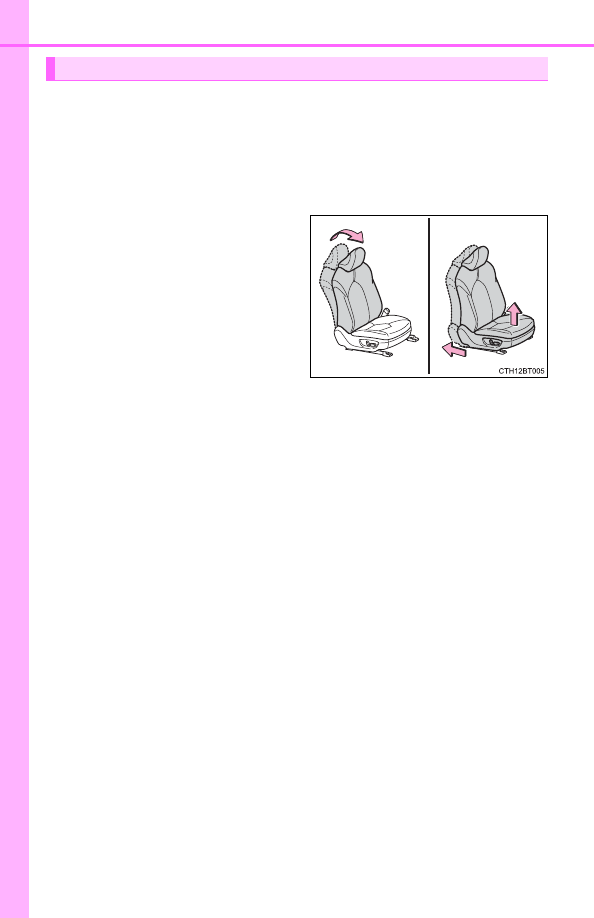

Adjust  the  angle  of  the  seat-
back  so  that  you  are  sitting
straight  up  and  so  that  you  do
not  have  to  lean  forward  to
steer. (



P. 177)

Adjust the seat so that you can
depress the pedals fully and so
that  your  arms  bend  slightly  at
the  elbow  when  gripping  the
steering wheel. (



P. 177)

Lock the head restraint in place with the center of the head restraint
closest to the top of your ears. (



P. 181)

Wear the seat belt correctly. (



P. 28)

Make sure that all occupants are wearing their seat belts before driv-
ing the vehicle. (



P. 28)

Use  a  child  restraint  system  appropriate  for  the  child  until  the  child
becomes large enough to properly wear the vehicle’s seat belt.
(



P. 54)

For safe driving

For  safe  driving,  adjust  the  seat  and  mirror  to  an  appropriate
position before driving.

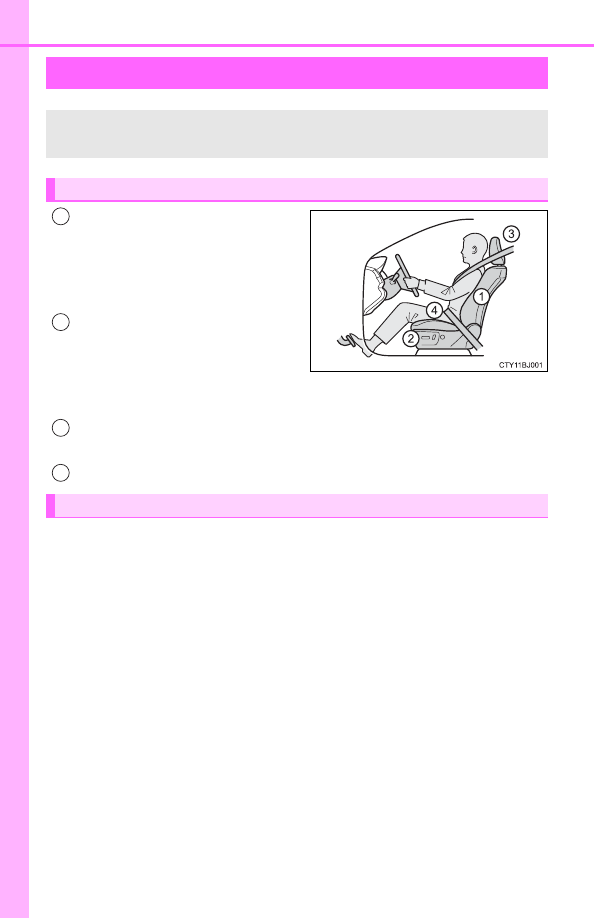

Correct driving posture

1

2

Correct use of the seat belts

3

4

27

1-1. For safe use

1

For safet

y and s

ecurity

Make sure that you can see backward clearly by adjusting the inside
and outside rear view mirrors properly. (



P. 185, 187)

Adjusting the mirrors

WARNING

Observe the following precautions.
Failure to do so may result in death or serious injury.

●

Do not adjust the position of the driver’s seat while driving.
Doing so could cause the driver to lose control of the vehicle.

●

Do not place a cushion between the driver or passenger and the seatback.
A cushion may prevent correct posture from being achieved, and reduce
the effectiveness of the seat belt and head restraint.

●

Do not place anything under the front seats.
Objects  placed  under  the  front  seats  may  become  jammed  in  the  seat
tracks and stop the seat from locking in place. This may lead to an acci-
dent and the adjustment mechanism may also be damaged.

●

Always observe the legal speed limit when driving on public roads.

●

When driving over long distances, take regular breaks before you start to
feel tired.
Also, if you feel tired or sleepy while driving, do not force yourself to con-
tinue driving and take a break immediately.

28

1-1. For safe use

●

Extend the shoulder belt so that
it comes fully over the shoulder,
but does not come into contact
with  the  neck  or  slide  off  the
shoulder.

●

Position  the  lap  belt  as  low  as
possible over the hips.

●

Adjust  the  position  of  the  seat-
back.  Sit  up  straight  and  well
back in the seat.

●

Do not twist the seat belt.

To fasten the seat belt, push the
plate into the buckle until a click
sound is heard.
To  release  the  seat  belt,  press
the release button.

Seat belts

Make sure that all occupants are wearing their seat belts before
driving the vehicle.

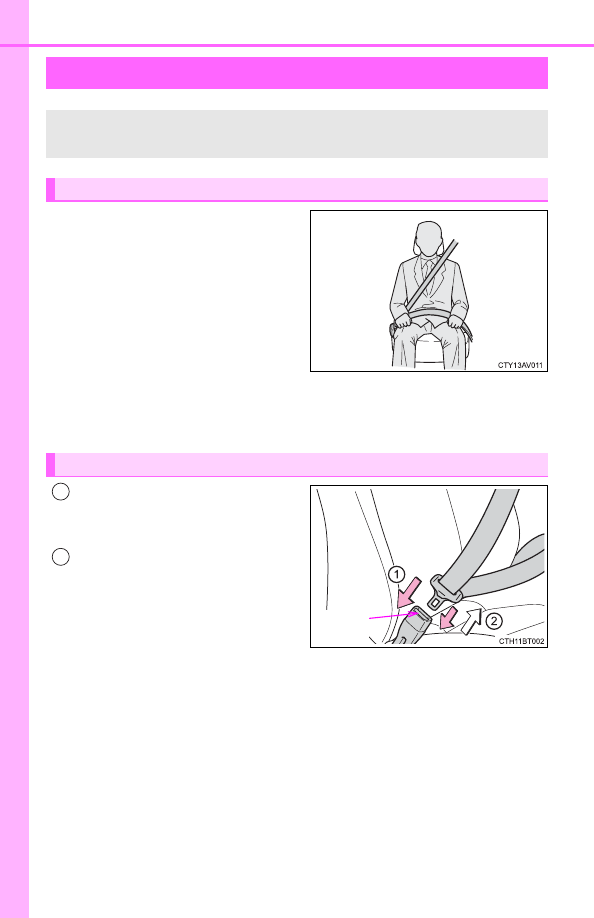

Correct use of the seat belts

Fastening and releasing the seat belt

Release
button

1

2

29

1-1. For safe use

1

For safet

y and s

ecurity

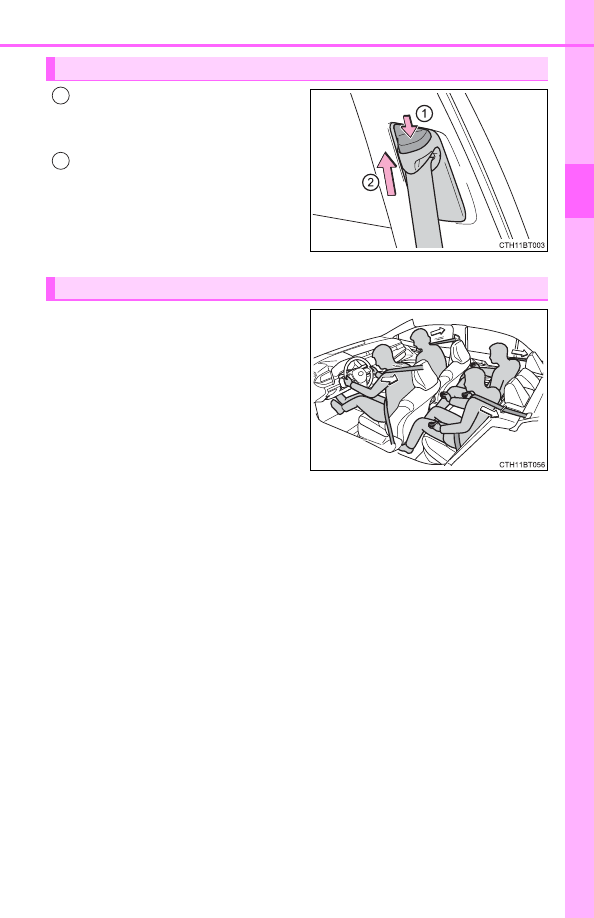

Push  the  seat  belt  shoulder
anchor down while pressing the
release button.
Push  the  seat  belt  shoulder
anchor  up  while  pressing  the
release button.

Move  the  height  adjuster  up  and
down  as  needed  until  you  hear  a
click.

The  pretensioners  help  the  seat
belts to quickly restrain  the occu-
pants  by  retracting  the  seat  belts
when  the  vehicle  is  subjected  to
certain  types  of  severe  frontal  or
side collision or a vehicle rollover.

The  pretensioners  do  not  activate
in  the  event  of  a  minor  frontal
impact,  a  minor  side  impact  or  a
rear impact.

Adjusting the seat belt shoulder anchor height (front seats)

1

2

Seat belt pretensioners (front and outboard rear seats)

30

1-1. For safe use

■

Emergency locking retractor (ELR)

The retractor will lock the belt during a sudden stop or on impact. It may also
lock if you lean forward too quickly. A slow, easy motion will allow the belt to
extend so that you can move around fully.

■

Automatic locking retractor (ALR)

When a passenger's shoulder belt is completely extended and then retracted
even slightly, the belt is locked in that position and cannot be extended. This
feature is used to hold the child restraint system (CRS) firmly. To free the belt
again, fully retract the belt and then pull the belt out once more. (



P. 56)

■

Child seat belt usage

The seat belts of your vehicle were principally designed for persons of adult
size.

●

Use  a  child  restraint  system  appropriate  for  the  child,  until  the  child
becomes large enough to properly wear the vehicle’s seat belt. (



P. 54)

●

When the child becomes large enough to properly wear the vehicle’s seat
belt, follow the instructions regarding seat belt usage. (



P. 28)

■

Replacing the belt after the pretensioner has been activated

If the vehicle is involved in multiple collisions, the pretensioner will activate for
the first collision, but will not activate for the second or subsequent collisions.

■

Seat belt extender

■

Rear seat belt

If  your  seat  belts  cannot  be  fastened
securely  because  they  are  not  long
enough,  a  personalized  seat  belt
extender  is  available  from  your  Toyota
dealer free of charge.

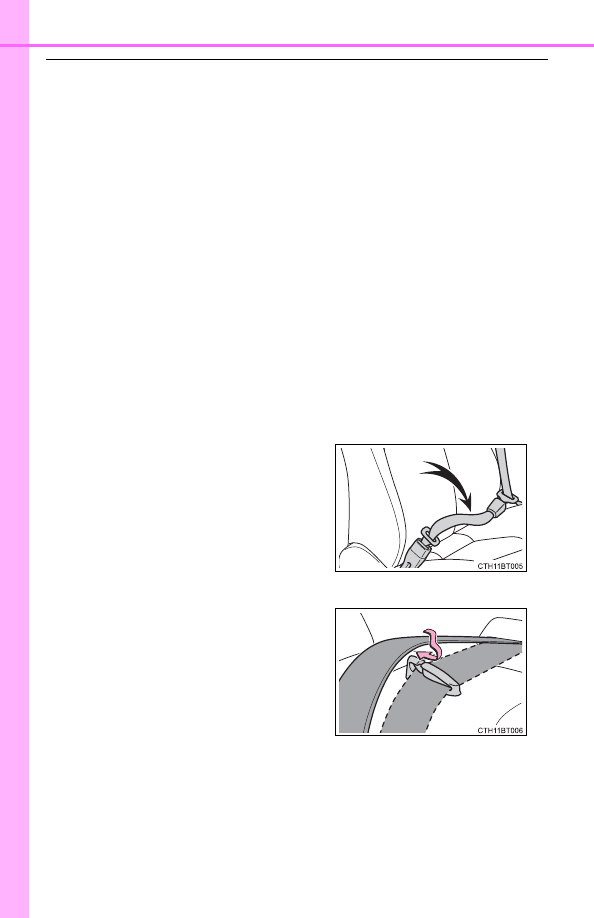

Use the seat belt after passing it through
the guide if the seat belt comes free from
the guide.

31

1-1. For safe use

1

For safet

y and s

ecurity

WARNING

Observe the following precautions to reduce the risk of injury in the event of
sudden braking, sudden swerving or an accident.
Failure to do so may cause death or serious injury.

■

Wearing a seat belt

●

Ensure that all passengers wear a seat belt.

●

Always wear a seat belt properly.

●

Each seat belt should be used by one person only. Do not use a seat belt
for more than one person at once, including children.

●

Toyota recommends that children be seated in the rear seat and always
use a seat belt and/or an appropriate child restraint system.

●

To  achieve  a  proper  seating  position,  do  not  recline  the  seat  more  than
necessary. The seat belt is most effective when the occupants are sitting
up straight and well back in the seats.

●

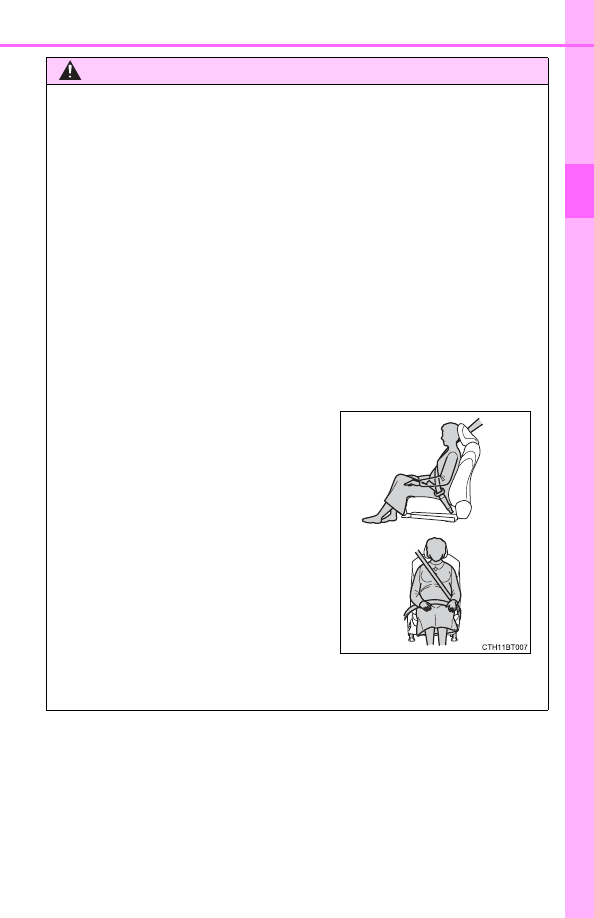

Do not wear the shoulder belt under your arm.

●

Always wear your seat belt low and snug across your hips.

■

Pregnant women

■

People suffering illness

Obtain medical advice and wear the seat belt in the proper way. (



P. 28)

Obtain medical advice and wear the seat
belt in the proper way. (



P. 28)

Women  who  are  pregnant  should  posi-
tion the lap belt as low as possible over
the  hips  in  the  same  manner  as  other
occupants,  extending  the  shoulder  belt
completely over the shoulder and avoid-
ing  belt  contact  with  the  rounding  of  the
abdominal area.
If  the  seat  belt  is  not  worn  properly,  not
only  the  pregnant  woman,  but  also  the
fetus could suffer death or serious injury
as  a  result  of  sudden  braking  or  a  colli-
sion.

32

1-1. For safe use

WARNING

■

When children are in the vehicle



P. 66

■

Seat belt pretensioners

●

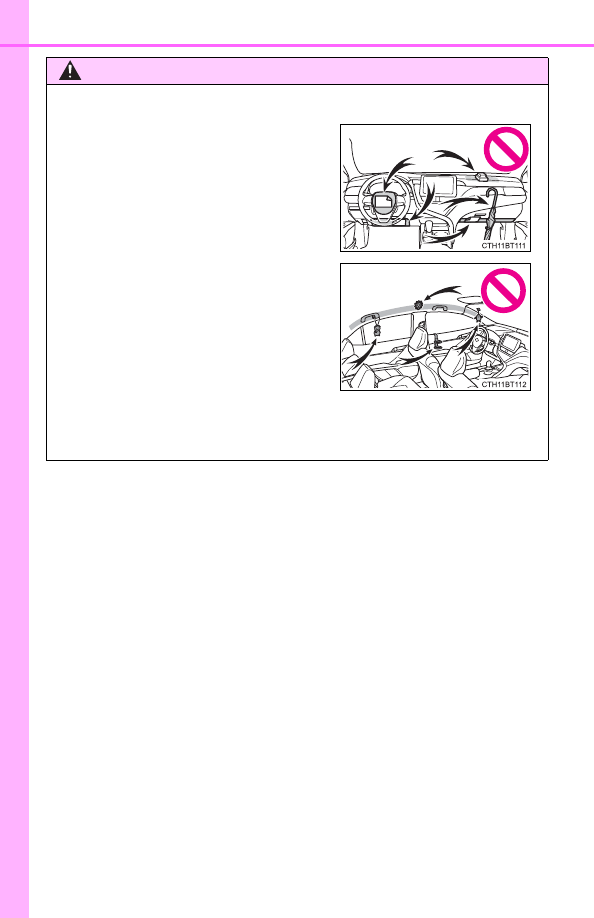

Do not place anything, such as a cushion, on the front passenger's seat.
Doing so will disperse the passenger's weight, which prevents the sensor
from detecting the passenger's weight properly. As a result, the seat belt
pretensioner for the front passenger's seat may not activate in the event of
a collision.

●

If the pretensioner has activated, the SRS warning light will come on. In
that  case,  the  seat  belt  cannot  be  used  again  and  must  be  replaced  at
your Toyota dealer.

■

Adjustable shoulder anchor

Always make sure the shoulder belt is positioned across the center of your
shoulder. The belt should be kept away from your neck, but not falling off
your shoulder. Failure to do so could reduce the amount of protection in an
accident and cause death or serious injuries in the event of a sudden stop,
sudden swerve or accident. (



P. 29)

■

Seat belt damage and wear

●

Do not damage the seat belts by allowing the belt, plate, or buckle to be
jammed in the door.

●

Inspect the seat belt system periodically. Check for cuts, fraying, and loose
parts. Do not use a damaged seat belt until it is replaced. Damaged seat
belts cannot protect an occupant from death or serious injury.

●

Ensure that the belt and plate are locked and the belt is not twisted.
If the seat belt does not function correctly, immediately contact your Toyota
dealer.

●

Replace the seat assembly, including the belts, if your vehicle has been
involved in a serious accident, even if there is no obvious damage.

●

Do not attempt to install, remove, modify, disassemble or dispose of the
seat belts. Have any necessary repairs carried out by your Toyota dealer.
Inappropriate handling may lead to incorrect operation.

●

Always make sure the shoulder belt passes through the guide when using
the seat belt. Failure to properly position the belt may reduce the amount
of protection in an accident and could lead to death or serious injury in a
collision or sudden stop.

●

Always make sure that the seat belt is not twisted, does not get caught in
the guide or the seatback and is arranged in the proper position.

33

1-1. For safe use

1

For safet

y and s

ecurity

WARNING

■

Using a seat belt extender

●

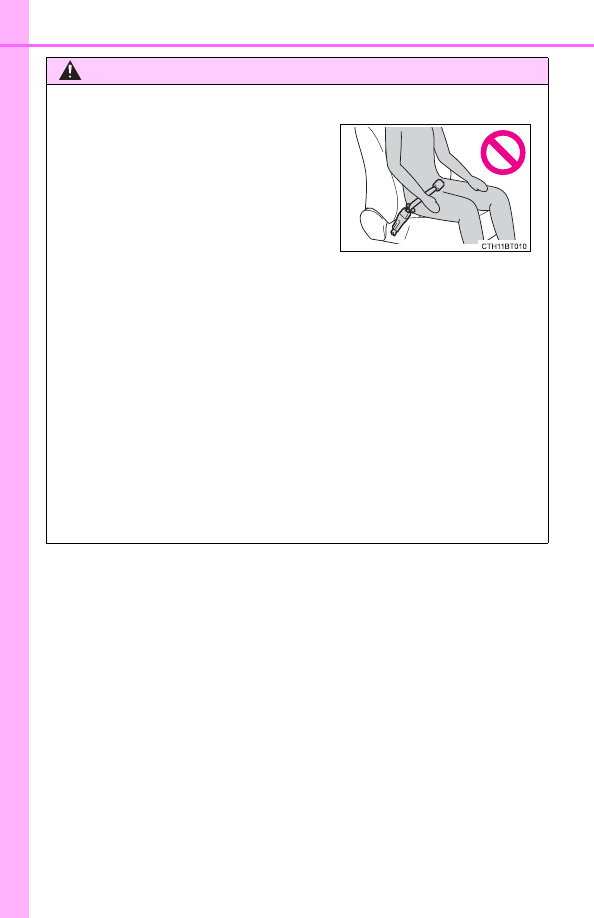

Do not wear the seat belt extender if you can fasten the seat belt without
the extender.

●

Do not use the seat belt extender when installing a child restraint system
because the belt will not securely hold the child restraint system, increas-
ing the risk of death or serious injury in the event of an accident.

●

The  personalized  extender  may  not  be  safe  on  another  vehicle,  when
used by another person, or at a different seating position other than the
one originally intended.

NOTICE

■

When using a seat belt extender

When  releasing  the  seat  belt,  press  on  the  buckle  release  button  on  the
extender, not on the seat belt.
This helps prevent damage to the vehicle interior and the extender itself.

34

1-1. For safe use

◆

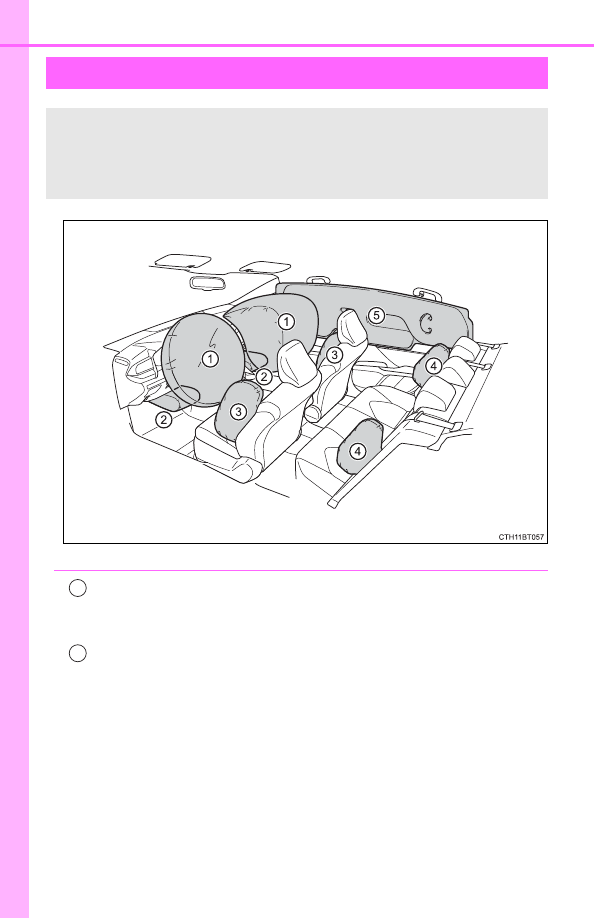

SRS front airbags

SRS driver airbag/front passenger airbag
Can help protect the head and chest of the driver and front pas-
senger from impact with interior components
SRS knee airbags
Can help provide driver and front passenger protection

SRS airbags

The SRS airbags inflate when the vehicle is subjected to certain
types of severe impacts that may cause significant injury to the
occupants. They work together with the seat belts to help reduce
the risk of death or serious injury.

1

2

35

1-1. For safe use

1

For safet

y and s

ecurity

◆

SRS side and curtain shield airbags

SRS front side airbags
Can help protect the torso of the front seat occupants
SRS rear side airbags
Can help protect the torso of occupants in the rear outer seats
SRS curtain shield airbags

●

Can help protect primarily the head of occupants in the outer
seats

●

Can  help  prevent  the  occupants  from  being  thrown  from  the
vehicle in the event of vehicle rollover

3

4

5

36

1-1. For safe use

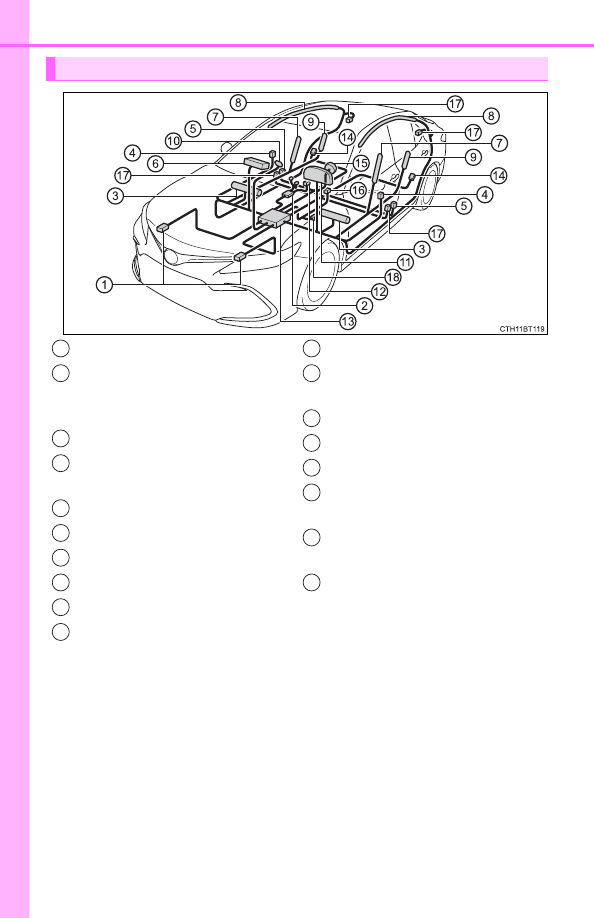

Your vehicle is equipped with ADVANCED AIRBAGS designed based
on  the  US  motor  vehicle  safety  standards  (FMVSS208). The  airbag
sensor  assembly  (ECU)  controls  airbag  deployment  based  on  infor-
mation obtained from the sensors  etc. shown in the system compo-
nents  diagram  above.  This  information  includes  crash  severity  and
occupant  information. As  the  airbags  deploy,  a  chemical  reaction  in
the inflators quickly fills the airbags with non-toxic gas to help restrain
the motion of the occupants.

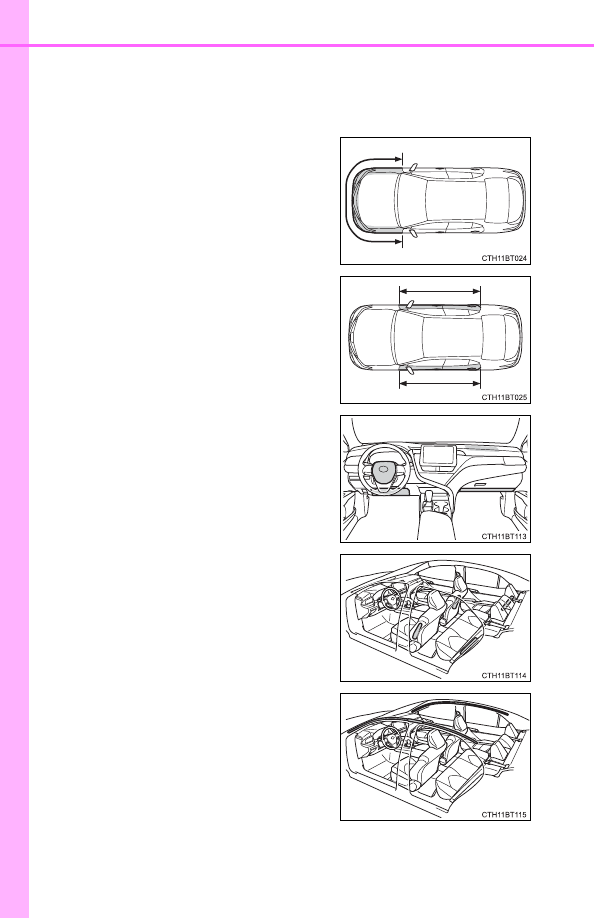

SRS airbag system components

Front impact sensors
Front  passenger  occupant
classification  system  (ECU
and sensors)
Knee airbags
Side  impact  sensors  (front
doors)
Side impact sensors (front)
Front passenger airbag
Front side airbags
Curtain shield airbags
Rear side airbags

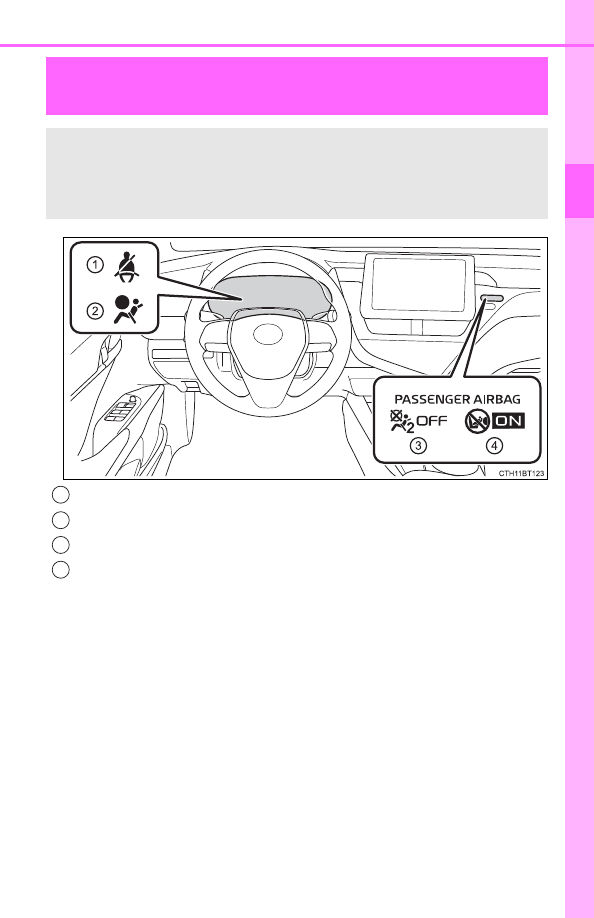

“AIRBAG  ON”  and  “AIRBAG
OFF” indicator lights

SRS warning light
Front  passenger’s  seat  belt
buckle switch
Airbag sensor assembly
Side impact sensors (rear)
Driver airbag
Driver’s  seat  belt  buckle
switch
Seat  belt  pretensioners  and
force limiters
Driver’s seat position sensor

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

37

1-1. For safe use

1

For safet

y and s

ecurity

WARNING

■

SRS airbag precautions

Observe the following precautions regarding the SRS airbags.
Failure to do so may cause death or serious injury.

●

The  driver  and  all  passengers  in  the  vehicle  must  wear  their  seat  belts
properly.
The SRS airbags are supplemental devices to be used with the seat belts.

●

The  SRS  driver  airbag  deploys  with  considerable  force,  and  can  cause
death or serious injury especially if the driver is very close to the airbag.
The National Highway Traffic Safety Administration (NHTSA) advises:
Since the risk zone for the driver’s airbag is the first 2 - 3 in. (50 - 75 mm)
of inflation, placing yourself 10 in. (250 mm) from your driver airbag pro-
vides you with a clear margin of safety. This distance is measured from
the center of the steering wheel to your breastbone. If you sit less than 10
in. (250 mm) away now, you can change your driving position in several
ways:
• Move your seat to the rear as far as you can while still reaching the ped-

als comfortably.

• Slightly recline the back of the seat.

Although vehicle designs vary, many drivers can achieve the 10 in. (250
mm) distance, even with the driver seat all the way forward, simply by
reclining  the  back  of  the  seat  somewhat.  If  reclining  the  back  of  your
seat makes it hard to see the road, raise yourself by using a firm, non-
slippery cushion, or raise the seat if your vehicle has that feature.

• If your steering wheel is adjustable, tilt it downward. This points the air-

bag toward your chest instead of your head and neck.

The seat should be adjusted as recommended  by NHTSA above, while
still maintaining control of the foot pedals, steering wheel, and your view
of the instrument panel controls.

38

1-1. For safe use

WARNING

■

SRS airbag precautions

●

The SRS front passenger airbag also deploys with considerable force, and
can cause death or serious injury especially if the front passenger is very
close to the airbag. The front passenger seat should be as far from the air-
bag  as  possible  with  the  seatback  adjusted,  so  the  front  passenger  sits
upright.

●

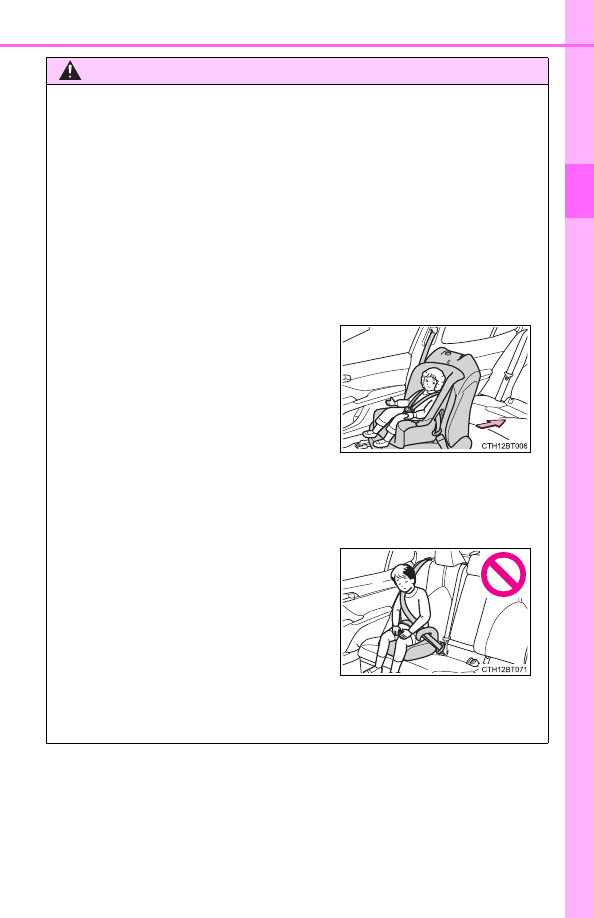

Improperly seated and/or restrained infants and children can be killed or
seriously injured by a deploying airbag. An infant or child who is too small
to use a seat belt should be properly secured using a child restraint sys-
tem. Toyota strongly recommends that all infants and children be placed in
the rear seats of the vehicle and properly restrained. The rear seats are
safer for infants and children than the front passenger seat. (



P. 54)

●

If the seat belt extender has been con-
nected to the front seat belt buckles but
the seat belt extender has not also been
fastened  to  the  latch  plate  of  the  seat
belt,  the  SRS  front  airbags  will  judge
that the driver and front passenger are
wearing  the  seat  belt  even  though  the
seat  belt  has  not  been  connected.  In
this  case,  the  SRS  front  airbags  may
not  activate  correctly  in  a  collision,
resulting in death or serious injury in the
event of a collision. Be sure to wear the
seat belt with the seat belt extender.

39

1-1. For safe use

1

For safet

y and s

ecurity

WARNING

■

SRS airbag precautions

●

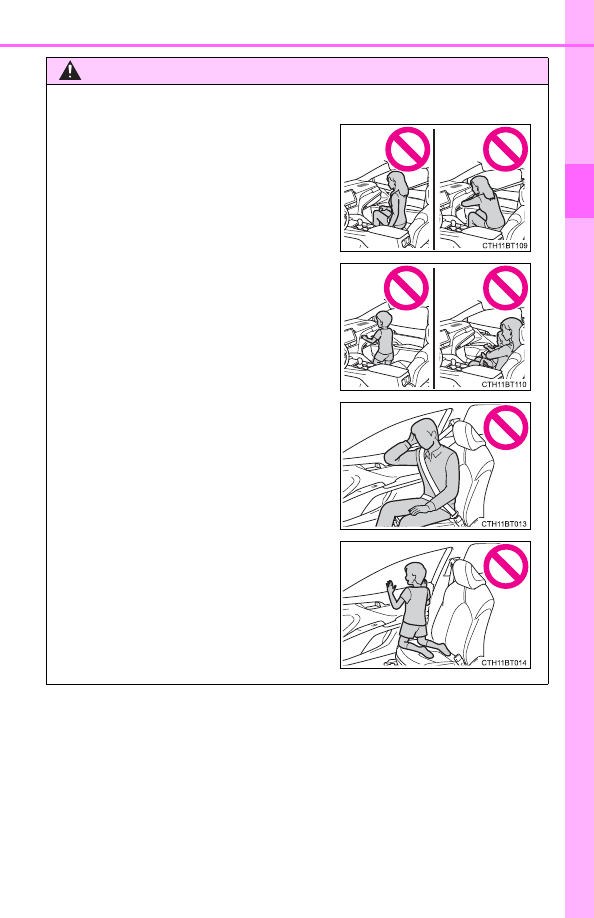

Do  not  sit  on  the  edge  of  the  seat  or
lean against the dashboard.

●

Do not allow a child to stand in front of
the SRS front passenger airbag unit or
sit on the knees of a front passenger.

●

Do not allow the front seat occupants to
hold items on their knees.

●

Do  not  lean  against  the  door,  the  roof
side  rail  or  the  front,  side  and  rear  pil-
lars.

●

Do  not  allow  anyone  to  kneel  on  the
passenger seats toward the door or put
their head or hands outside the vehicle.

40

1-1. For safe use

WARNING

■

SRS airbag precautions

●

Do not hang coat hangers or other hard objects on the coat hooks. All of
these  items  could  become  projectiles  and  may  cause  death  or  serious
injury, should the SRS curtain shield airbags deploy.

●

Do  not  attach  anything  to  or  lean  any-
thing  against  areas  such  as  the  dash-
board,  steering  wheel  pad  and  lower
portion of the instrument panel.
These  items  can  become  projectiles
when  the  SRS  driver,  front  passenger
and knee airbags deploy.

●

Do not attach anything to areas such as
a  door,  windshield,  windows,  front  or
rear pillar, roof side rail and assist grip.

41

1-1. For safe use

1

For safet

y and s

ecurity

WARNING

■

SRS airbag precautions

●

If a vinyl cover is put on the area where the SRS knee airbag will deploy,
be sure to remove it.

●

Do  not use  seat accessories  which  cover  the parts where  the  SRS  side
airbags  inflate  as  they  may  interfere  with  inflation  of  the  airbags.  Such
accessories may prevent the side airbags from activating correctly, disable
the  system  or  cause  the  side  airbags  to  inflate  accidentally,  resulting  in
death or serious injury.

●

Do not strike or apply significant levels of force to the area of the SRS air-
bag components or the front doors.
Doing so can cause the SRS airbags to malfunction.

●

Do not touch any of the component parts immediately after the SRS air-
bags have deployed (inflated) as they may be hot.

●

If breathing becomes difficult after the SRS airbags have deployed, open a
door or window to allow fresh air in, or leave the vehicle if it is safe to do
so. Wash off any residue as soon as possible to prevent skin irritation.

●

If the areas where the SRS airbags are stored, such as the steering wheel
pad  and  front  and  rear  pillar  garnishes,  are  damaged  or  cracked,  have
them replaced by your Toyota dealer.

●

Do not place anything, such as a cushion, on the front passenger's seat.
Doing so will disperse the passenger's weight, which prevents the sensor
from detecting the passenger's weight properly. As a result, the SRS front
airbags for the front passenger may not deploy in the event of a collision.

42

1-1. For safe use

■

If the SRS airbags deploy (inflate)

●

Slight abrasions, burns, bruising etc., may be sustained from SRS airbags,
due to the extremely high speed deployment (inflation) by hot gases.

●

A loud noise and white powder will be emitted.

●

Parts of the airbag module (steering wheel hub, airbag cover and inflator) as
well as the front seats, parts of the front and rear pillars, and roof side rails,
may be hot for several minutes. The airbag itself may also be hot.

●

The windshield may crack.

●

The  hybrid  system  will  be  stopped  and  fuel  supply  to  the  engine  will  be
stopped. (



P. 84)

●

All of the doors will be unlocked. (



P. 162)

●

The brakes and stop lights will be controlled automatically. (



P. 311)

●

The interior lights will turn on automatically. (



P. 392)

●

The emergency flashers will turn on automatically. (



P. 502)

WARNING

■

Modification and disposal of SRS airbag system components

Do not dispose of your vehicle or perform any of the following modifications
without consulting your Toyota dealer. The SRS airbags may malfunction or
deploy (inflate) accidentally, causing death or serious injury.

●

Installation, removal, disassembly and repair of the SRS airbags

●

Repairs,  modifications,  removal  or  replacement  of  the  steering  wheel,
instrument panel, dashboard, seats or seat upholstery, front, side and rear
pillars,  roof  side  rails,  front  door  panels,  front  door  trims  or  front  door
speakers

●

Modifications to the front door panel (such as making a hole in it)

●

Repairs  or  modifications  of  the  front  fender,  front  bumper,  or  side  of  the
occupant compartment

●

Installation  of  a  grille  guard  (bull  bars,  kangaroo  bar,  etc.),  snow  plows,
winches or roof luggage carrier

●

Modifications to the vehicle’s suspension system

●

Installation of electronic devices such as mobile two-way radios and CD
players

●

Modifications to your vehicle for a person with a physical disability

43

1-1. For safe use

1

For safet

y and s

ecurity

●

For Safety Connect subscribers, if any of the following situations occur, the
system is designed to send an emergency call to the response center, noti-
fying them of the vehicle’s location (without needing to push the “SOS” but-
ton) and an agent will attempt to speak with the occupants to ascertain the
level of emergency and assistance required. If the occupants are unable to
communicate, the agent automatically treats the call as an emergency and
helps to dispatch the necessary emergency services. (



P. 73)

• An SRS airbag is deployed.
• A seat belt pretensioner is activated.
• The vehicle is involved in a severe rearend collision.

■

SRS airbag deployment conditions (SRS front airbags)

●

The SRS front airbags will deploy in the event of an impact that exceeds the
set threshold level (the level of force corresponding to an approximately 12 -
18 mph [20 - 30 km/h] frontal collision with a fixed wall that does not move or
deform).
However, this threshold velocity will be considerably higher in the following
situations:
• If  the  vehicle  strikes  an  object,  such  as  a  parked  vehicle  or  sign  pole,

which can move or deform on impact

• If the vehicle is involved in an underride collision, such as a collision in

which the front of the vehicle “underrides”, or goes under, the bed of a
truck

●

Depending on the type of collision, it is possible that only the seat belt pre-
tensioners will activate.

●

The SRS front airbags for the front passenger will not activate if there is no
passenger sitting in the front passenger seat. However, the SRS front air-
bags for the front passenger may deploy if luggage is put in the seat, even if
the seat is unoccupied.

■

SRS airbag deployment conditions (SRS side and curtain shield airbags)

●

The  SRS  side  and  curtain  shield  airbags  will  deploy  in  the  event  of  an
impact that exceeds the set threshold level (the level of force corresponding
to the impact force produced by an approximately 3300 lb. [1500 kg] vehicle
colliding with the vehicle cabin from a direction perpendicular to the vehicle
orientation at an approximate speed of 12 - 18 mph [20 - 30 km/h]).

●

Both SRS curtain shield airbags may deploy in the event of a severe side
collision.

●

Both SRS curtain shield airbags will deploy in the event of vehicle rollover.

●

Both SRS curtain shield airbags may also deploy in the event of a severe
frontal collision.

44

1-1. For safe use

■

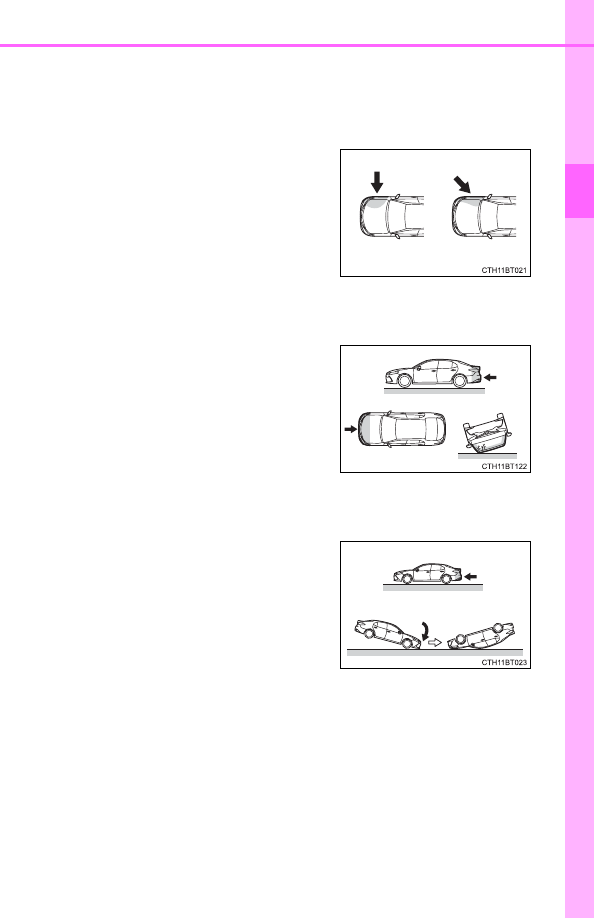

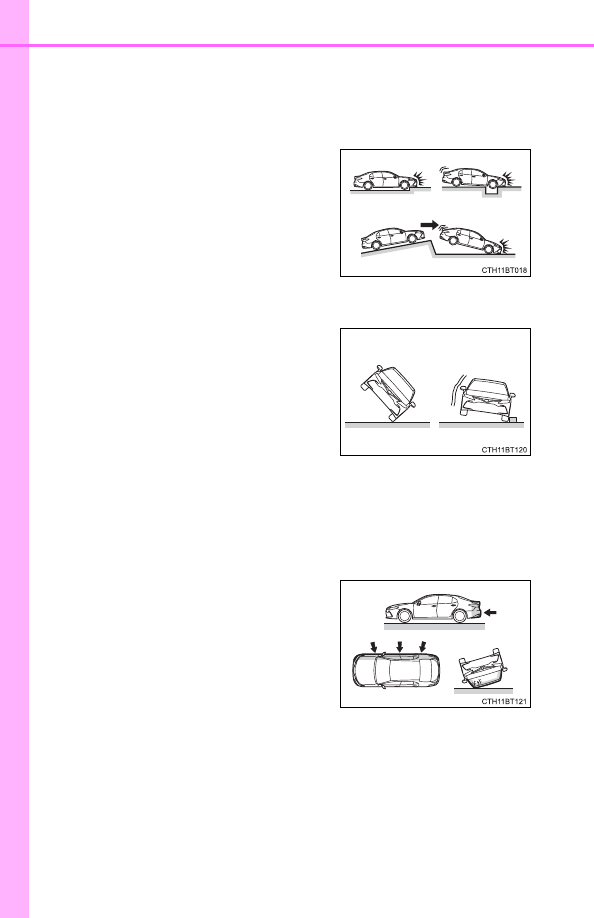

Conditions under which the SRS airbags may deploy (inflate), other than
a collision

The SRS front airbags and SRS curtain shield airbags may also deploy if a
serious impact occurs to the underside of your vehicle. Some examples are
shown in the illustration.

The SRS curtain shield airbags may also deploy under the situations shown
in the illustration.

■

Types of collisions that may not deploy the SRS airbags (SRS front air-
bags)

The SRS front airbags do not generally inflate if the vehicle is involved in a
side or rear collision, if it rolls over, or if it is involved in a low-speed frontal
collision.  But,  whenever  a  collision  of  any  type  causes  sufficient  forward
deceleration of the vehicle, deployment of the SRS front airbags may occur.

●

Hitting a curb, edge of pavement or hard
surface

●

Falling into or jumping over a deep hole

●

Landing hard or falling

●

The angle of vehicle tip-up is marginal.

●

The vehicle skids and hits a curb stone.

●

Collision from the side

●

Collision from the rear

●

Vehicle rollover

45

1-1. For safe use

1

For safet

y and s

ecurity

■

Types of collisions that may not deploy the SRS airbags (SRS side and
curtain shield airbags)

The  SRS  side  and  curtain  shield  airbags  may  not  activate  if  the  vehicle  is
subjected to a collision from the side at certain angles, or a collision to the
side of the vehicle body other than the passenger compartment.

The SRS side airbags do not generally inflate if the vehicle is involved in a
frontal or rear collision, if it rolls over, or if it is involved in a low-speed side
collision.

The  SRS  curtain  shield  airbags  do  not  generally  inflate  if  the  vehicle  is
involved in a rear collision, if it pitches end over end, or if it is involved in a
low-speed side or low-speed frontal collision.

●

Collision  from  the  side  to  the  vehicle
body other than the passenger compart-
ment

●

Collision from the side at an angle

●

Collision from the front

●

Collision from the rear

●

Vehicle rollover

●

Collision from the rear

●

Pitching end over end

46

1-1. For safe use

■

When to contact your Toyota dealer

In the following cases, the vehicle will require inspection and/or repair. Con-
tact your Toyota dealer as soon as possible.

●

Any of the SRS airbags have been inflated.

●

The  front  of  the  vehicle  is  damaged  or
deformed,  or  was  involved  in  an  acci-
dent  that  was  not  severe  enough  to
cause the SRS front airbags to inflate.

●

A  portion  of  a  door  or  its  surrounding
area is damaged, deformed or has had a
hole  made  in  it,  or  the  vehicle  was
involved  in  an  accident  that  was  not
severe  enough  to  cause  the  SRS  side
and curtain shield airbags to inflate.

●

The  pad  section  of  the  steering  wheel,
dashboard near the front passenger air-
bag  or  lower  portion  of  the  instrument
panel  is  scratched,  cracked,  or  other-
wise damaged.

●

The  surface  of  the  seats  with  the  SRS
side airbag is scratched, cracked, or oth-
erwise damaged.

●

The  portion  of  the  front  pillars,  rear  pil-
lars or roof side rail garnishes (padding)
containing  the  SRS  curtain  shield  air-
bags  inside  is  scratched,  cracked,  or
otherwise damaged.

47

1-1. For safe use

1

For safet

y and s

ecurity

Driver’s and front passenger’s seat belt reminder light
SRS warning light
“AIRBAG OFF” indicator light
“AIRBAG ON” indicator light

Front passenger occupant classification

system

Your vehicle is equipped with a front passenger occupant classi-
fication system. This system detects the conditions of the front
passenger seat and activates or deactivates the front passenger
airbag and front passenger knee airbag.

1

2

3

4

48

1-1. For safe use

■

Adult

*

1

■

Child

*

4

■

Child restraint system with infant

*

5

Condition and operation in the front passenger occupant classi-
fication system

Indicator/

warning light

“AIRBAG ON” and “AIRBAG OFF”

indicator lights

“AIRBAG ON”

SRS warning light

Off

Driver’s and front passenger’s seat belt

reminder light

Off

*

2

 or

flashing

*

3

Devices

Front passenger airbag

Activated

Front passenger knee airbag

Indicator/

warning light

“AIRBAG ON” and “AIRBAG OFF”

indicator lights

“AIRBAG

OFF” or

“AIRBAG ON”

*

4

SRS warning light

Off

Driver’s and front passenger’s seat belt

reminder light

Off

*

2

 or

flashing

*

3

Devices

Front passenger airbag

Deactivated or

activated

*

4

Front passenger knee airbag

Indicator/

warning light

“AIRBAG ON” and “AIRBAG OFF”

indicator lights

“AIRBAG

OFF”

*

6

SRS warning light

Off

Driver’s and front passenger’s seat belt

reminder light

Off

*

2

 or

flashing

*

3

Devices

Front passenger airbag

Deactivated

Front passenger knee airbag

49

1-1. For safe use

1

For safet

y and s

ecurity

■

Unoccupied

■

There is a malfunction in the system

*

1

: The system judges a person of adult size as an adult. When a smaller

adult  sits  in  the  front  passenger  seat,  the  system  may  not  recognize
him/her as an adult depending on his/her physique and posture.

*

2

: In the event the front passenger is wearing a seat belt.

*

3

: In the event the front passenger does not wear a seat belt.

*

4

: For some children, child in seat, child in booster seat or child in convert-

ible  seat,  the  system  may  not  recognize  him/her  as  a  child.  Factors
which may affect this can be the physique or posture.

*

5

: Never install a rear-facing child restraint system on the front passenger

seat. A forward-facing child restraint system should only be installed on
the front passenger seat when it is unavoidable. (



P. 54)

*

6

: In case the indicator light is not illuminated, consult this manual on how

to install the child restraint system properly. (



P. 56)

Indicator/

warning light

“AIRBAG ON” and “AIRBAG OFF”

indicator lights

“AIRBAG

OFF”

SRS warning light

Off

Driver’s and front passenger’s seat belt

reminder light

Devices

Front passenger airbag

Deactivated

Front passenger knee airbag

Indicator/

warning light

“AIRBAG ON” and “AIRBAG OFF”

indicator lights

“AIRBAG OFF”

SRS warning light

On

Driver’s and front passenger’s seat belt

reminder light

Devices

Front passenger airbag

Deactivated

Front passenger knee airbag

50

1-1. For safe use

WARNING

■

Front passenger occupant classification system precautions

Observe the following precautions regarding the front passenger occupant
classification system.
Failure to do so may cause death or serious injury.

●

Wear the seat belt properly.

●

Make sure the front passenger’s seat belt plate has not been left inserted
into the buckle before someone sits in the front passenger seat.

●

Make sure the “AIRBAG OFF” indicator light is not illuminated when using
the seat belt extender for the front passenger seat. If the “AIRBAG OFF”
indicator light is illuminated, disconnect the extender tongue from the seat
belt buckle, and reconnect the seat belt. Reconnect the seat belt extender
after making sure the “AIRBAG ON” indicator light is illuminated. If you use
the  seat  belt  extender  while  the  “AIRBAG  OFF”  indicator  light  is  illumi-
nated,  the  SRS  airbags  for  the  front  passenger  will  not  activate,  which
could cause death or serious injury in the event of a collision.

●

Do not apply a heavy load to the front passenger seat or equipment (e.g.
seatback pocket).

●

Do  not  put  weight  on  the  front  passenger  seat  by  putting  your  hands  or
feet on the front passenger seat seatback from the rear passenger seat.

●

Do not let a rear passenger lift the front passenger seat with their feet or
press on the seatback with their legs.

●

Do not put objects under the front passenger seat.

51

1-1. For safe use

1

For safet

y and s

ecurity

WARNING

■

Front passenger occupant classification system precautions

●

Do not recline the front passenger seatback so far that it touches a rear
seat. This may cause the “AIRBAG OFF” indicator light to be illuminated,
which indicates that the SRS airbags for the front passenger will not acti-
vate  in  the  event  of  a  severe  accident.  If  the  seatback  touches  the  rear
seat,  return  the  seatback  to  a  position  where  it  does  not  touch  the  rear
seat. Keep the front passenger seatback as upright as possible when the
vehicle  is  moving.  Reclining  the  seatback  excessively  may  lessen  the
effectiveness of the seat belt system.

●

If an adult sits in the front passenger seat, the “AIRBAG ON” indicator light
is illuminated. If the “AIRBAG OFF” indicator is illuminated, ask the pas-
senger to sit up straight, well back in the seat, feet on the floor, and with
the  seat  belt  worn  correctly.  If  the  “AIRBAG  OFF”  indicator  still  remains
illuminated, either ask the passenger to move to the rear seat, or if that is
not possible, move the front passenger seat fully rearward.

●

When it is unavoidable to install a forward-facing child restraint system on
the front passenger seat, install the child restraint system on the front pas-
senger seat in the proper order. (



P. 58)

●

Do not modify or remove the front seats.

●

Do not kick the front passenger seat or subject it to severe impact. Other-
wise, the SRS warning light may come on to indicate a malfunction of the
front passenger occupant classification system. In this case, contact your
Toyota dealer immediately.

●

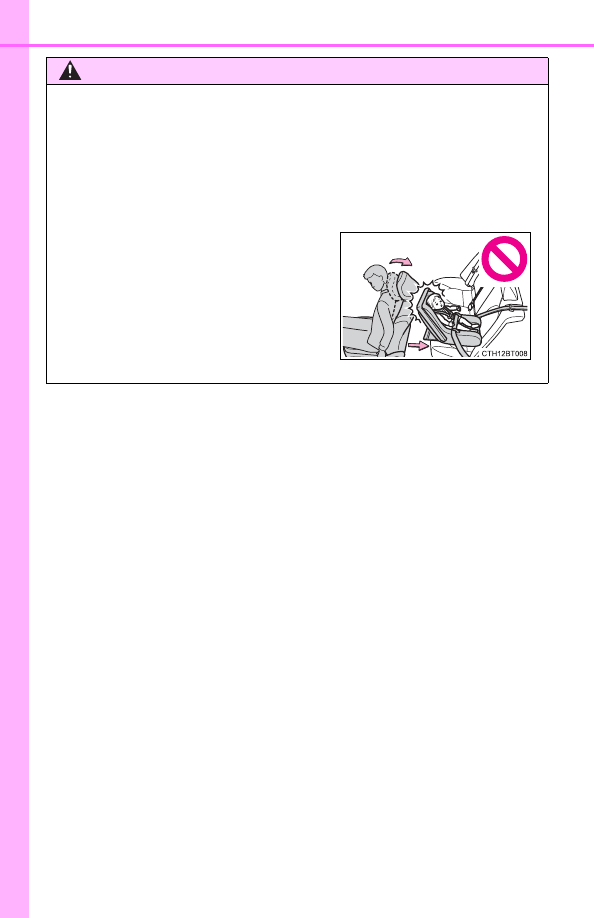

Child  restraint  systems  installed  on  the  rear  seat  should  not  contact  the
front seatbacks.

●

Do not use a seat accessory, such as a cushion and seat cover, that cov-
ers the seat cushion surface.

●

Do not modify or replace the upholstery of the front seat.

●

Do not place anything between the console box and front passenger seat.
Otherwise, the system may not detect the front passenger properly, lead-
ing to improper operation of the airbags.

●

Adjust the front passenger seat so that the head restraint does not touch
the ceiling. If the head restraint is left in contact with the ceiling, the system
may not detect the front passenger properly, leading to improper operation
of the airbags.

52

1-1. For safe use

Exhaust gas precautions

Harmful  substance  to  the  human  body  is  included  in  exhaust
gases if inhaled.

WARNING

Exhaust gases include harmful carbon monoxide (CO), which is colorless and
odorless. Observe the following precautions.
Failure to do so may cause exhaust gases enter the vehicle and may lead to
an accident caused by light-headedness, or may lead to death or a serious
health hazard.

■

Important points while driving

●

Keep the trunk lid closed.

●

If you smell exhaust gases in the vehicle even when the trunk lid is closed,
open the windows and have the vehicle inspected at your Toyota dealer as
soon as possible.

■

When parking

●

If  the  vehicle  is  in  a  poorly  ventilated  area  or  a  closed  area,  such  as  a
garage, stop the hybrid system.

●

Do not leave the vehicle with the hybrid system on for a long time.
If such a situation cannot be avoided, park the vehicle in an open space
and ensure that exhaust fumes do not enter the vehicle interior.

●

Do not leave the hybrid system operating in an area with snow build-up, or
where  it  is  snowing.  If  snowbanks  build  up  around  the  vehicle  while  the
hybrid system is operating, exhaust gases may collect and enter the vehi-
cle.

■

Exhaust pipe

The exhaust system needs to be checked periodically. If there is a hole or
crack caused by corrosion, damage to a joint or abnormal exhaust noise, be
sure to have the vehicle inspected and repaired by your Toyota dealer.

53

1

For safet

y and s

ecurity

1-2. Child safety

●

It is recommended that children sit in the rear seats to avoid acci-
dental contact with the shift lever, wiper switch etc.

●

Use the rear door child-protector lock or the window lock switch to
avoid  children  opening  the  door  while  driving  or  operating  the
power window accidentally.

●

Do  not  let  small  children  operate  equipment  which  may  catch  or
pinch body parts, such as the power window, hood, trunk, seats etc.

Riding with children

Observe the following precautions when children are in the vehi-
cle.
Use a child restraint system appropriate for the child, until the
child becomes large enough to properly wear the vehicle’s seat
belt.

WARNING

Never leave children unattended in the vehicle, and never allow children to
have or use the key.
Children  may  be  able  to  start  the  vehicle  or  shift  the  vehicle  into  neutral.
There is also a danger that children may injure themselves by playing with
the windows, the moon roof or other features of the vehicle. In addition, heat
build-up or extremely cold  temperatures  inside the vehicle can be fatal  to
children.

54

1-2. Child safety

Points to remember...................................................................... P. 54
Child restraint system .................................................................. P. 56
When using a child restraint system ............................................ P. 58
Child restraint system installation method

• Fixed with a seat belt ............................................................... P. 61
• Fixed with a child restraint LATCH anchor ............................... P. 67
• Using an anchor bracket (for top tether strap) ......................... P. 70

The laws of all 50 states of the U.S.A. as well as Canada now require
the use of child restraint systems.

●

Prioritize and observe the warnings, as well as the laws and regula-
tions for child restraint systems.

●

Use a child restraint system until the child becomes large enough to
properly wear the vehicle’s seat belt.

●

Choose a child restraint system that suits your vehicle and is appro-
priate to the age and size of the child.

Child restraint systems

Before installing a child restraint system in the vehicle, there are
precautions  that  need  to  be  observed,  different  types  of  child
restraint systems, as well as installation methods, etc., written in
this manual.

Use a child restraint system when riding with a small child that can-
not properly use a seat belt. For the child’s safety, install the child
restraint  system  to  a  rear  seat.  Be  sure  to  follow  the  installation
method  that  is in the operation  manual enclosed with the  restraint
system.

Table of contents

Points to remember

55

1-2. Child safety

1

For safet

y and s

ecurity

WARNING

■

When a child is riding

Observe the following precautions.
Failure to do so may result in death or serious injury.

●

For effective protection in automobile accidents and sudden stops, a child
must  be  properly  restrained,  using  a  seat  belt  or  child  restraint  system
which is  correctly  installed.  For installation details,  refer to  the operation
manual  enclosed  with  the  child  restraint  system.  General  installation
instruction is provided in this manual.

●

Toyota strongly urges the use of a proper child restraint system that con-
forms to the weight and size of the child, installed on the rear seat. Accord-
ing to accident statistics, the child is safer when properly restrained in the
rear seat than in the front seat.

●

Holding  a  child  in  your  or  someone  else’s  arms  is  not  a  substitute  for  a
child restraint system. In an accident, the child can be crushed against the
windshield or between the holder and the interior of the vehicle.

■

Handling the child restraint system

If the child restraint system is not properly fixed in place, the child or other
passengers may be seriously injured or even killed in the event of sudden
braking, sudden swerving, or an accident.

●

If the vehicle were to receive a strong impact from an accident, etc., it is
possible that the child restraint system has damage that is not readily visi-
ble. In such cases, do not reuse the restraint system.

●

Make  sure  you  have  complied  with  all  installation  instructions  provided
with the child restraint system manufacturer and that the system is prop-
erly secured.

●

Keep the child restraint system properly secured on the seat even if it is
not in use. Do not store the child restraint system unsecured in the pas-
senger compartment.

●

If it is necessary to detach the child restraint system, remove it from the
vehicle or store it securely in the trunk.

56

1-2. Child safety

■

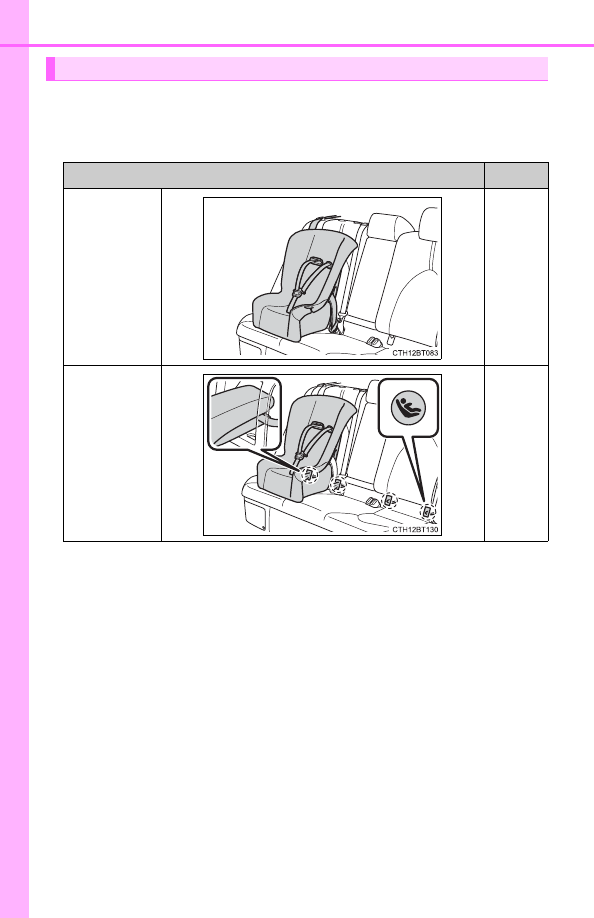

Types of child restraint system installation methods

Confirm with the operation manual enclosed with the child restraint
system about the installation of the child restraint system.

Child restraint system

Installation method

Page

Seat belt
attachment

P. 61

Child
restraint
LATCH
anchors
attachment

P. 67

57

1-2. Child safety

1

For safet

y and s

ecurity

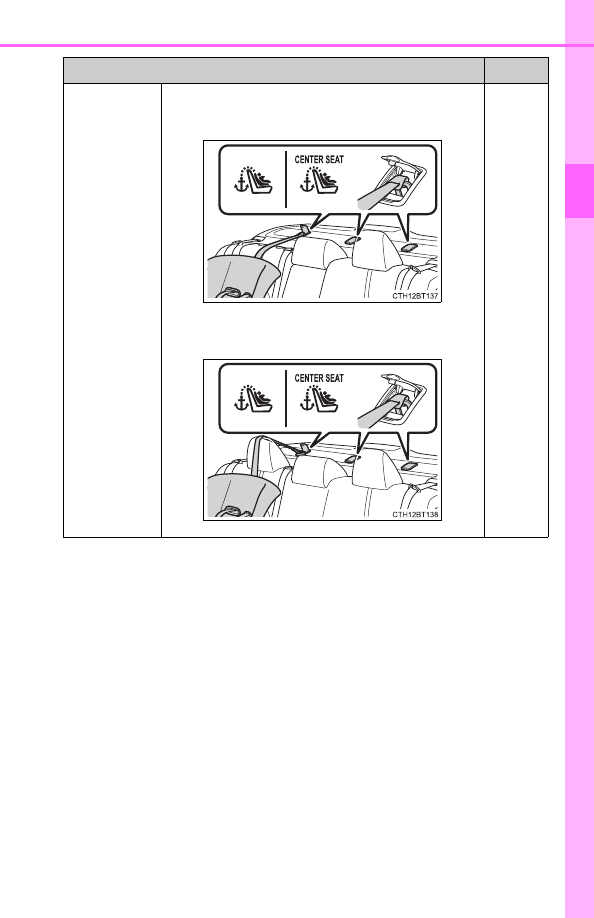

Anchor
brackets  (for
top

tether

strap) attach-
ment



Seats  with  an  adjustable  type  head
restraint



Seats  with  an  integrated  type  head
restraint

P. 70

Installation method

Page

58

1-2. Child safety

■

When installing a child restraint system to a front passenger
seat

For  the  safety  of  a  child,  install  child  restraint  systems  to  a  rear
seats.  When  installing  child  restraint  system  to  a  front  passenger
seat is unavoidable, adjust the seat as follows and install the child
restraint system.

●

Raise the seatback as much
as possible

●

Move  the  seat  to  the  rear-
most position

●

Raise the seat to the highest
position

●

If the head restraint interferes
with  the  child  restraint  sys-
tem installation and the head
restraint  can  be  removed,
remove the head restraint

When using a child restraint system

59

1-2. Child safety

1

For safet

y and s

ecurity

WARNING

■

When using a child restraint system

Observe the following precautions.
Failure to do so may result in death or serious injury.

●

Never  install  a  rear-facing  child  restraint  system  on  the  front  passenger
seat even if the “AIRBAG OFF” indicator light is illuminated. In the event of
an accident, the force of the rapid inflation of the front passenger airbag
can  cause  death  or  serious  injury  to  the  child  if  the  rear-facing  child
restraint system is installed on the front passenger seat.

●

A forward-facing child restraint system may be installed on the front pas-
senger  seat  only  when  it  is  unavoidable.  A  child  restraint  system  that
requires a top tether strap should not be used in the front passenger seat
since there is no top tether strap anchor for the front passenger seat.

●

A  forward-facing  child  restraint  system
may be installed on the front passenger
seat only when it is unavoidable. When
installing a forward-facing child restraint
system  on  the  front  passenger  seat,
move the seat as far back as possible,
and  raise  the  seat  to  the  upper  most
position, even if the “AIRBAG OFF” indi-
cator light is illuminated.
If  the  head  restraint  interferes  with  the
child  restraint  system  installation  and
the  head  restraint  can  be  removed,
remove the head restraint.

●

Do  not  allow  the  child  to  lean  his/her
head or any part of his/her body against
the door or the area of the seat, front or
rear pillars, or roof side rails from which
the  SRS  side  airbags  or  SRS  curtain
shield airbags deploy even if the child is
seated in the child restraint system. It is
dangerous if the SRS side airbags and
curtain  shield  airbags  inflate,  and  the
impact  could  cause  death  or  serious
injury to the child.

60

1-2. Child safety

WARNING

■

When using a child restraint system

●

When a booster seat is installed, always ensure that the shoulder belt is
positioned  across  the  center  of  the  child’s  shoulder.  The  belt  should  be
kept away from the child’s neck, but not so that it could fall off the child’s
shoulder.

●

Use  child  restraint  system  suitable  to  the  age  and  size  of  the  child  and
install it to the rear seat.

●

If  the  driver’s  seat  interferes  with  the
child  restraint  system  and  prevents  it
from being attached correctly, attach the
child  restraint  system  to  the  right-hand
rear seat.

●

Adjust the front passenger seat so that
it  does  not  interfere  with  the  child
restraint system.

61

1-2. Child safety

1

For safet

y and s

ecurity

A child restraint system for a small child or baby must itself be prop-
erly restrained on the seat with the lap portion of the lap/shoulder belt.

◆

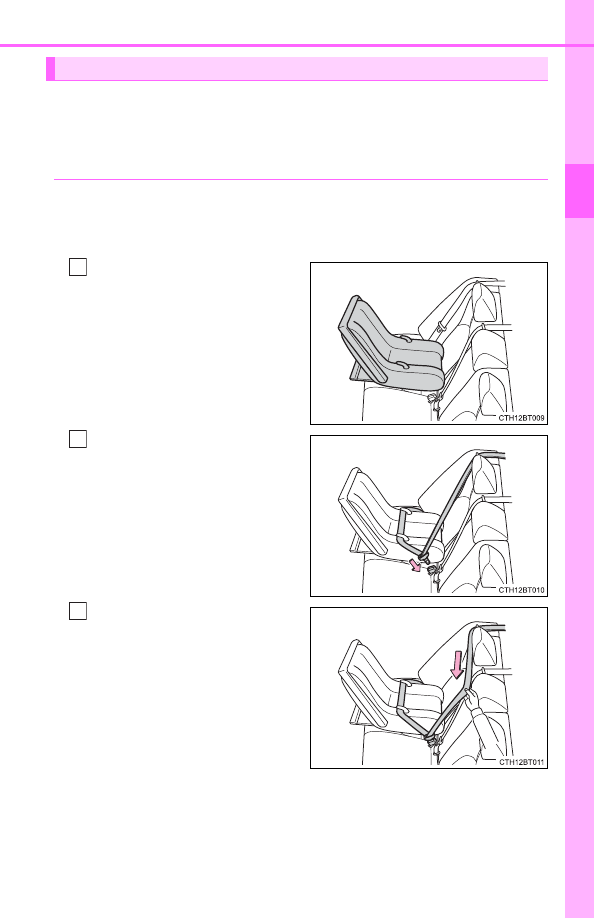

Installing  child  restraint  system  using  a  seat  belt  (child
restraint lock function belt)

Install  the  child  restraint  system  in  accordance  to  the  operation
manual enclosed with the child restraint system.

■

Rear-facing — Infant seat/convertible seat

Place the child  restraint sys-
tem  on  the  rear  seat  facing
the rear of the vehicle.

Run the seat belt through the
child  restraint  system  and
insert  the  plate  into  the
buckle.  Make  sure  that  the
belt is not twisted.

Fully extend the shoulder belt
and allow it to retract to put it
in  lock  mode.  In  lock  mode,
the belt cannot be extended.

Child restraint system fixed with a seat belt

1

2

3

62

1-2. Child safety



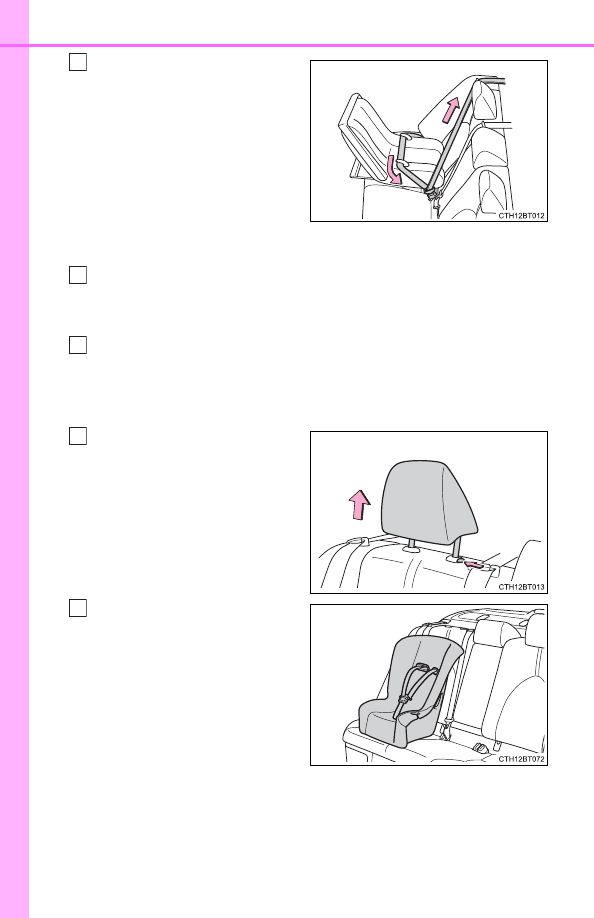

While  pushing  the  child
restraint  system  down  into
the  rear  seat,  allow  the
shoulder  belt  to  retract  until
the  child  restraint  system  is
securely in place.

After  the  shoulder  belt  has
retracted to a point where there
is  no  slack  in  the  belt,  pull  the
belt  to  check  that  it  cannot  be
extended.

After installing the child restraint system, rock it back and forth to
ensure that it is installed securely. (



P. 66)

■

Forward-facing — Convertible seat

When using the front passenger seat: Adjust the seatback
If installing the child restraint system to the front passenger seat
is unavoidable, refer to P. 58 for the front passenger seat adjust-
ment.
If the head restraint interferes
with  the  child  restraint  sys-
tem installation and the head
restraint  can  be  removed,
remove  the  head  restraint.
(



P. 181)

Place the child  restraint sys-
tem  on  the  seat  facing  the
front of the vehicle.

4

5

1

2

3

63

1-2. Child safety

1

For safet

y and s

ecurity

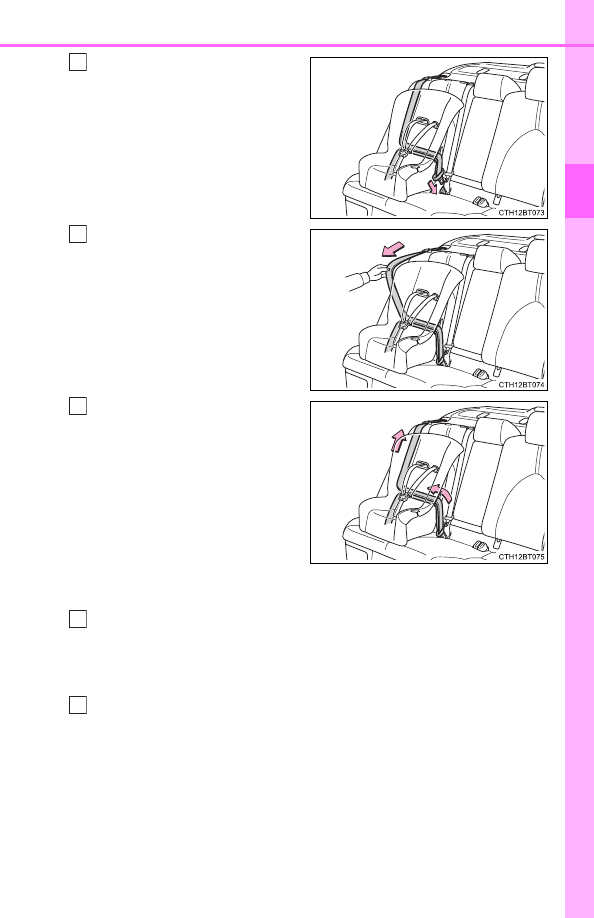

Run the seat belt through the
child  restraint  system  and
insert  the  plate  into  the
buckle.  Make  sure  that  the
belt is not twisted.

Fully extend the shoulder belt
and allow it to retract to put it
in  lock  mode.  In  lock  mode,
the belt cannot be extended.

While  pushing  the  child
restraint system into the rear
seat,  allow  the  shoulder  belt
to  retract  until  the  child
restraint  system  is  securely
in place.

After  the  shoulder  belt  has
retracted to a point where there
is  no  slack  in  the  belt,  pull  the
belt  to  check  that  it  cannot  be
extended.

If  the  child  restraint  has  a  top  tether  strap,  follow  the  child
restraint manufacturer’s operation manual regarding the installa-
tion, using the top tether strap to latch onto the top tether strap
anchor. (



P. 70)

After installing the child restraint system, rock it back and forth to
ensure that it is installed securely. (



P. 66)

4

5

6

7

8

64

1-2. Child safety

■

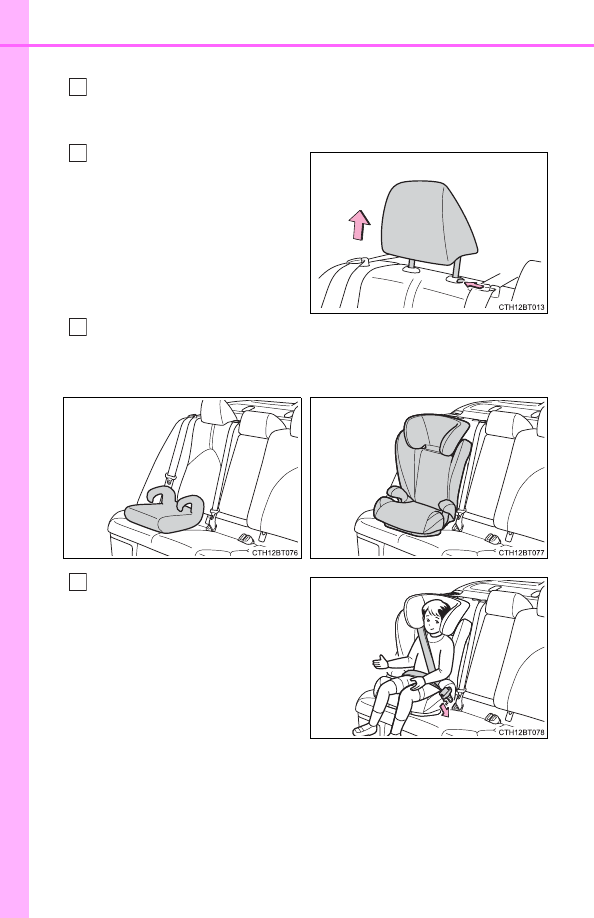

Booster seat

If installing the child restraint system to the front passenger seat
is unavoidable, refer to P. 58 for the front passenger seat adjust-
ment.
High  back  type:  If  the  head
restraint  interferes  with  your
child  restraint  system,  and
the  head  restraint  can  be
removed,  remove  the  head
restraint. (



P. 181)

Place the child restraint system on the seat facing the front of the
vehicle.

Sit  the  child  in  the  child
restraint system. Fit the seat
belt to the child restraint sys-
tem  according  to  the  manu-
facturer’s  instructions  and
insert  the  plate  into  the
buckle.  Make  sure  that  the
belt is not twisted.

Check  that  the  shoulder  belt  is  correctly  positioned  over  the  child’s
shoulder and that the lap belt is as low as possible. (



P. 28)

1

2

3



Booster type



High back type

4

65

1-2. Child safety

1

For safet

y and s

ecurity

◆

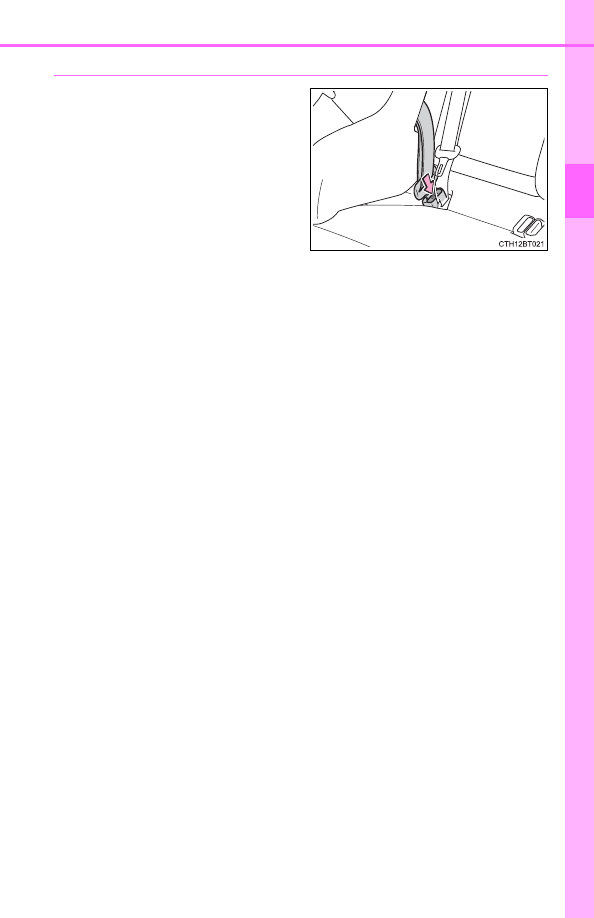

Removing a child restraint system installed with a seat belt

Press the buckle release button
and fully retract the seat belt.

When  releasing  the  buckle,  the
child  restraint  system  may
spring up due to the rebound of
the  seat  cushion.  Release  the
buckle  while  holding  down  the
child restraint system.
Since the seat belt automatically
reels itself, slowly return it to the
stowing position.

66

1-2. Child safety

WARNING

■

When installing a child restraint system

Observe the following precautions.
Failure to do so may result in death or serious injury.

●

Do not allow children to play with the seat belt. If the seat belt becomes
twisted around a child’s neck, it may lead to choking or other serious inju-
ries that could result in death.
If  this  occurs  and  the  buckle  cannot  be  unfastened,  scissors  should  be
used to cut the belt.

●

Ensure that the belt and plate are securely locked and the seat belt is not
twisted.

●

Shake the child restraint system left and right, and forward and backward
to ensure that it has been securely installed.

●

After securing a child restraint system, never adjust the seat.

●

When a booster seat is installed, always ensure that the shoulder belt is
positioned  across  the  center  of  the  child’s  shoulder.  The  belt  should  be
kept away from the child’s neck, but not so that it could fall off the child’s
shoulder.

●

Follow  all  installation  instructions  provided  by  the  child  restraint  system
manufacturer.

●

When securing some types of child restraint systems in rear seats, it may
not be possible to properly use the seat belts in positions next to the child
restraint without interfering with it or affecting seat belt effectiveness. Be
sure your seat belt fits snugly across your shoulder and low on your hips. If
it  does  not,  or  if  it  interferes  with  the  child  restraint,  move  to  a  different
position. Failure to do so may result in death or serious injury.

■

When installing a booster seat

To prevent the belt from going into ALR lock mode, do not fully extend the
shoulder belt. ALR mode causes the belt to tighten only. This could cause
injury or discomfort to the child. (



P. 30)

■

Do not use a seat belt extender

If a seat belt extender is used when installing a child restraint system, the
seat belt will not securely hold the child restraint system, which could cause
death or serious injury to the child or other passengers in the event of sud-
den braking, sudden swerving or an accident.

67

1-2. Child safety

1

For safet

y and s

ecurity

■

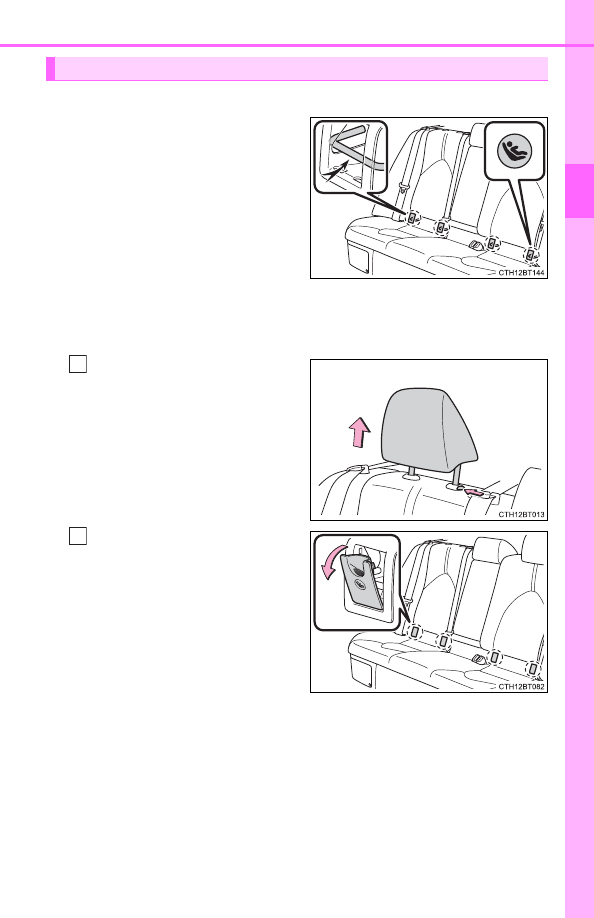

Child restraint LATCH anchors

LATCH  anchors  are  provided
for  the  outboard  rear  seats.
(Marks  displaying  the  location
of  the  anchors  are  attached  to
the seats.)

■

When installing in the rear outboard seats

Install  the  child  restraint  system  in  accordance  to  the  operation
manual enclosed with the child restraint system.

If the head restraint interferes
with  the  child  restraint  sys-
tem installation and the head
restraint  can  be  removed,
remove  the  head  restraint.
(



P. 181)

Remove the cover.

Child restraint system fixed with a child restraint LATCH anchor

1

2

68

1-2. Child safety



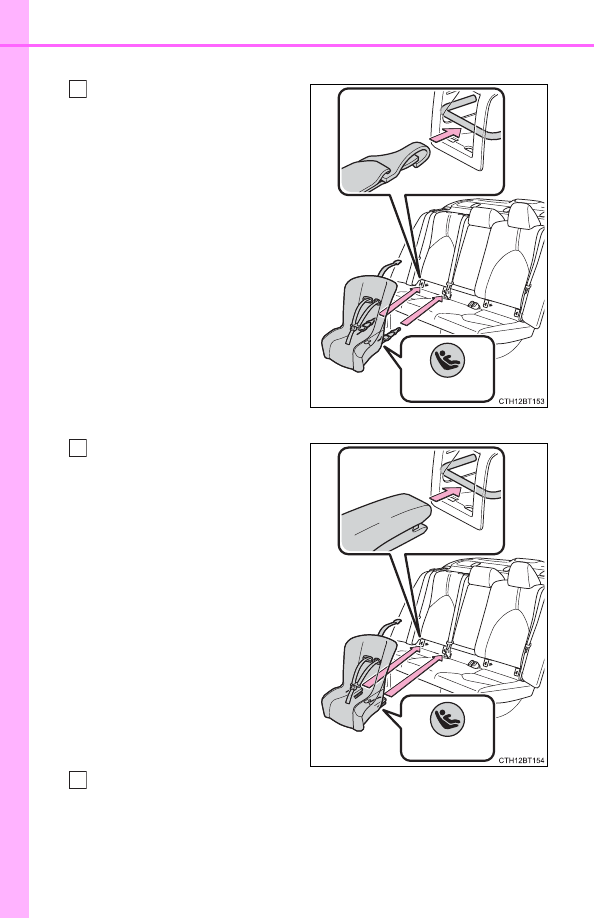

With flexible lower attachments

Latch the hooks of the lower
attachments onto the LATCH
anchors.
For owners in Canada:
The  symbol  on  a  child
restraint system indicates the
presence of a lower connec-
tor system.



With rigid lower attachments

Latch  the  buckles  onto  the
LATCH anchors.
For owners in Canada:
The  symbol  on  a  child
restraint system indicates the
presence of a lower connec-
tor system.

If  the  child  restraint  has  a  top  tether  strap,  follow  the  child
restraint manufacturer’s operation manual regarding the installa-
tion, using the top tether strap to latch onto the top tether strap
anchor. (



P. 70)

Canada only

3

Canada only

3

4

69

1-2. Child safety

1

For safet

y and s

ecurity

After installing the child restraint system, rock it back and forth to
ensure that it is installed securely. (



P. 66)

■

When installing in the rear center seat

There  are  no  LATCH  anchors  behind  the  rear  center  seat.  How-
ever, the inboard LATCH anchors of the outboard seats, which are
16.1 in. (410 mm) apart, can be used if the child restraint system
manufacturer’s  instructions  permit  use  of  those  anchors  with  the
anchor spacing stated.
Child  restraint  systems  with  rigid  lower  attachments  cannot  be
installed in the center seat. This type of child restraint system can
only be installed in the outboard seat.

■

Laws and regulations pertaining to anchors

The LATCH system conforms to FMVSS225 or CMVSS210.2.
Child  restraint  systems  conforming  to  FMVSS213  or  CMVSS213  specifica-
tions can be used.
This vehicle is designed to conform to SAE J1819.

WARNING

■

When installing a child restraint system

Observe the following precautions.
Failure to do so may result in death or serious injury.

●

When using the LATCH anchors, be sure that there are no foreign objects
around the anchors and that the seat belt is not caught behind the child
restraint system.

●

Follow  all  installation  instructions  provided  by  the  child  restraint  system
manufacturer.

●

Never attach two child restraint system attachments to the same anchor. In
a  collision,  one  anchor  may  not  be  strong  enough  to  hold  two  child
restraint system attachments and may break.
If the LATCH anchors are already in use, use the seat belt to install a child
restraint system in the center seat.

●

When securing some types of child restraint systems in rear seats, it may
not be possible to properly use the seat belts in positions next to the child
restraint without interfering with it or affecting seat belt effectiveness. Be
sure your seat belt fits snugly across your shoulder and low on your hips. If
it  does  not,  or  if  it  interferes  with  the  child  restraint,  move  to  a  different
position. Failure to do so may result in death or serious injury.

●

If the seat is adjusted, reconfirm the security of the child restraint system.

5

70

1-2. Child safety

■

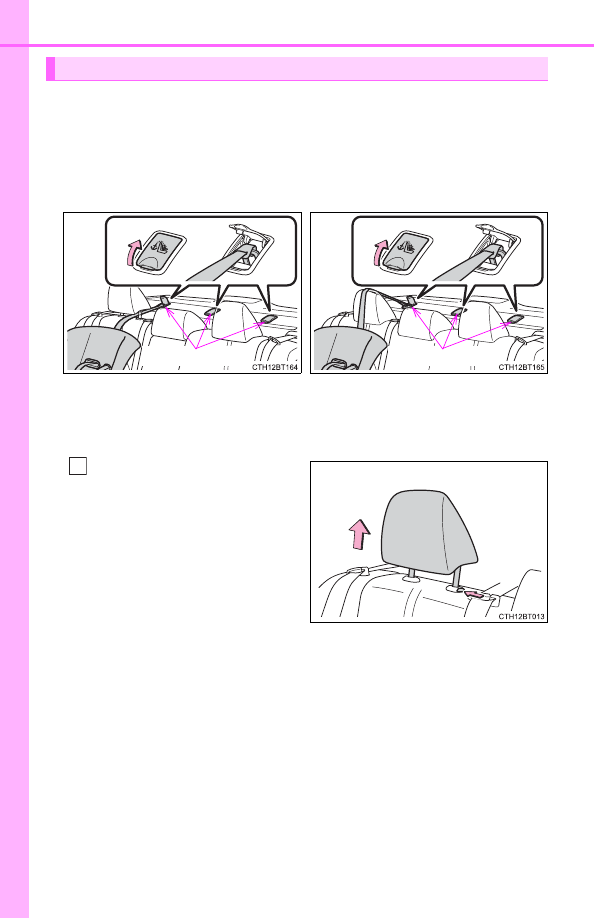

Anchor brackets (for top tether strap)

Anchor brackets are provided for each rear seat.
Use anchor brackets when fixing the top tether strap.

■

Fixing the top tether strap to the anchor bracket

Install  the  child  restraint  system  in  accordance  to  the  operation
manual enclosed with the child restraint system.

Adjust  the  head  restraint  to
the upmost position.

If  the  head  restraint  interferes
with  the  child  restraint  system
installation

and

the

head

restraint  can  be  removed,
remove the head restraint.
(



P. 181)

Using an anchor bracket (for top tether strap)



Seats with an adjustable type
head restraint



Seats  with  an  integrated  type
head restraint

Anchor brackets

Anchor brackets

1

71

1-2. Child safety

1

For safet

y and s

ecurity

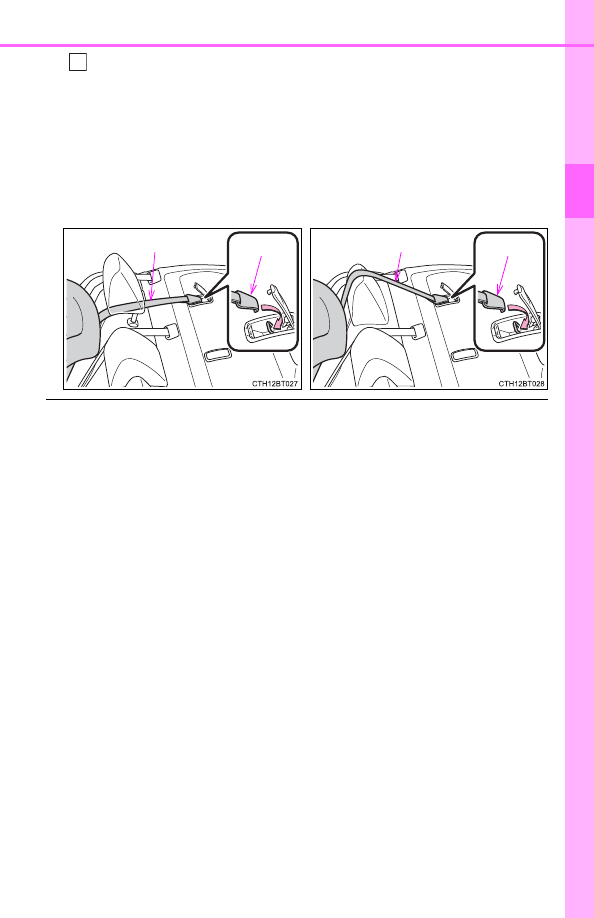

Open the anchor bracket cover, latch the hook onto the anchor
bracket and tighten the top tether strap.

Make sure the top tether strap is securely latched. (



P. 66)

When installing the child restraint system with the head restraint being
raised, be sure to have the top tether strap pass underneath the head
restraint.

■

Laws and regulations pertaining to anchors

The LATCH system conforms to FMVSS225 or CMVSS210.2.
Child  restraint  systems  conforming  to  FMVSS213  or  CMVSS213  specifica-
tions can be used.
This vehicle is designed to conform to SAE J1819.

2



Seats with an adjustable type
head restraint



Seats  with  an  integrated  type
head restraint

Hook

Top tether strap

Hook

Top tether strap

72

1-2. Child safety

WARNING

■

When installing a child restraint system

Observe the following precautions.
Failure to do so may result in death or serious injury.

●

Firmly attach the top tether strap and make sure that the belt is not twisted.

●

Do  not  attach  the  top  tether  strap  to  anything  other  than  the  anchor
bracket.

●

After securing a child restraint system, never adjust the seat.

●

Follow  all  installation  instructions  provided  by  the  child  restraint  system
manufacturer.

●

When  installing  the  child  restraint  system  with  the  head  restraint  being
raised,  after  the  head  restraint  has  been  raised  and  then  the  anchor
bracket has been fixed, do not lower the head restraint.

NOTICE

■

Anchor brackets (for top tether strap)

When  not  in  use,  make  certain  to close  the  lid.  If  it  remains  open,  the  lid
may be damaged.

73

1

For safet

y and s

ecurity

1-3. Emergency assistance

■

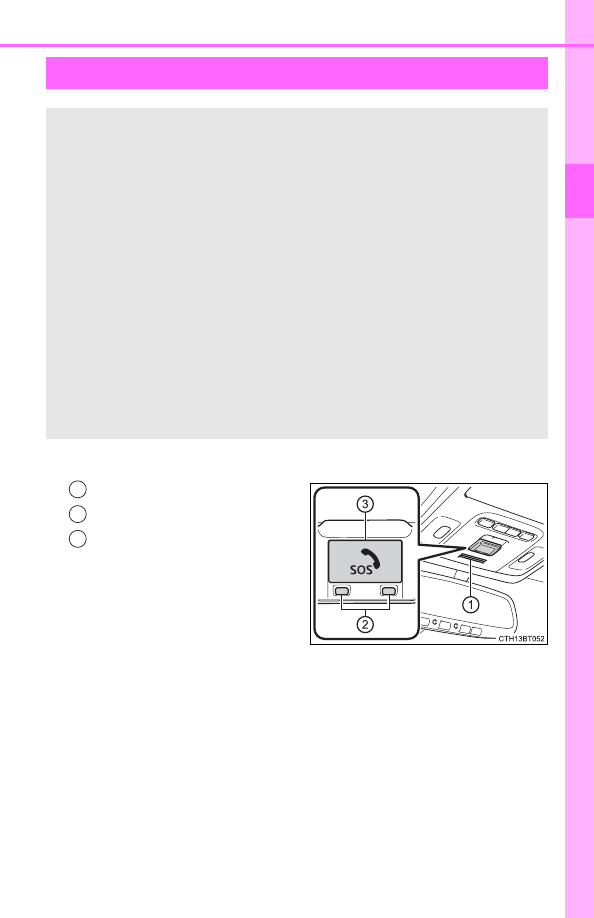

System components

Microphone
LED light indicators
“SOS” button

Safety Connect





: If equipped

Safety  Connect  is  a  subscription-based  telematics  service  that
uses Global Positioning System (GPS) data and embedded cel-
lular technology to provide safety and security features to sub-
scribers.  Safety  Connect  is  supported  by  Toyota’s  designated
response  center,  which  operates  24  hours  per  day,  7  days  per
week.
Safety  Connect  service  is  available  by  subscription  on  select,
telematics hardware-equipped vehicles.
By  using  the  Safety  Connect  service,  you  are  agreeing  to  be
bound  by  the  Telematics  Subscription  Service Agreement  and
its Terms and Conditions, as in effect and amended from time to
time, a current copy of which is available at Toyota.com in the
United  States,  Toyotapr.com  in  Puerto  Rico  and  Toyota.ca  in
Canada. All use of the Safety Connect service is subject to such
then-applicable Terms and Conditions.

1

2

3

74

1-3. Emergency assistance

■

Services

Subscribers have the following Safety Connect services available:

●

Automatic Collision Notification

*

Helps drivers receive necessary response from emergency ser-
vice providers. (



P. 76)

*

: U.S. Patent No. 7,508,298 B2

●

Stolen Vehicle Location
Helps drivers in the event of vehicle theft. (



P. 76)

●

Emergency Assistance Button (“SOS”)
Connects drivers to response-center support. (



P. 76)

●

Enhanced Roadside Assistance
Provides drivers various on-road assistance. (



P. 77)

■

Subscription

After you have signed the Telematics Subscription Service Agree-
ment and are enrolled, you can begin receiving services.
A variety of subscription terms are available for purchase. Contact
your Toyota dealer, call the following appropriate Customer Experi-
ence  Center  or  push  the  “SOS”  button  in  your  vehicle  for  further
subscription details.

• The United States

1-800-331-4331

• Canada

1-888-869-6828

• Puerto Rico

1-877-855-8377

75

1-3. Emergency assistance

1

For safet

y and s

ecurity

■

Safety Connect Services Information

●

Phone calls using the vehicle’s Bluetooth

®

 technology will not be possible

when Safety Connect is active and in use.

●

Safety Connect is available beginning Fall 2009 on select Toyota models (in
the  contiguous  United  States  only).  Contact  with  the  Safety  Connect
response center is dependent upon the telematics device being in operative
condition, cellular connection availability, and GPS satellite signal reception,
which  can  limit  the  ability  to  reach  the  response  center  or  receive  emer-
gency  service  support.  Enrollment  and  Telematics  Subscription  Service
Agreement  are  required.  A  variety  of  subscription  terms  are  available;
charges vary by subscription term selected and location.

●

Automatic Collision Notification, Emergency Assistance and Stolen Vehicle
Location  are  available  in  the  United  States,  including  Hawaii  and Alaska,
Puerto Rico and Canada, and Enhanced Roadside Assistance are available
in the United States, Puerto Rico and Canada.

●

Automatic Collision Notification, Emergency Assistance, Stolen Vehicle and
Enhanced Road Assistance are not available in the U.S. Virgin Islands.
For vehicles first sold in the U.S. Virgin Islands, no Safety Connect services
will function in or outside the U.S. Virgin Islands.

●

Safety Connect services are not subject to section 255 of the Telecommuni-
cations Act and the device is not TTY compatible.

■

Languages

The Safety Connect response center will offer support in multiple languages.
The Safety Connect system will offer voice prompts in English, Spanish, and
French. Please indicate your language of choice when enrolling.

■

When contacting the response center

You may be unable to contact the response center if the network is busy.

When the power switch is turned to ON mode, the red indicator light
comes on for 2 seconds then turns off. Afterward, the green indicator
light comes on, indicating that the service is active.
The  following  indicator  light  patterns  indicate  specific  system  usage
conditions:

●

Green indicator light on = Active service

●

Green indicator light flashing = Safety Connect call in process

●

Red indicator light (except at vehicle start-up) = System malfunction
(contact your Toyota dealer)

●

No indicator light (off) = Safety Connect service not active

Safety Connect LED light Indicators

76

1-3. Emergency assistance

■

Automatic Collision Notification

In case of either airbag deployment or severe rear-end collision, the
system is designed to automatically call the response center. The
responding  agent  receives  the  vehicle’s  location  and  attempts  to
speak with the vehicle occupants to assess the level of emergency.
If  the  occupants  are  unable  to  communicate,  the  agent  automati-
cally  treats the call  as  an  emergency,  contacts  the  nearest emer-
gency services provider to describe the situation, and requests that
assistance be sent to the location.

■

Stolen Vehicle Location

If your vehicle is stolen, Safety Connect can work with local author-
ities to assist them in locating and recovering the vehicle. After filing
a police report, call the Customer Experience Center at 1-800-331-
4331 in the United States, 1-877-855-8377 in Puerto Rico or 1-888-
869-6828 in Canada, and follow the prompts for Safety Connect to
initiate this service.
In  addition  to assisting law enforcement with  recovery of  a stolen
vehicle, Safety-Connect-equipped vehicle location data may, under
certain  circumstances,  be  shared  with  third  parties  to  locate  your
vehicle. Further information is available at Toyota.com in the United
States, Toyotapr.com in Puerto Rico and Toyota.ca in Canada.

■

Emergency Assistance Button (“SOS”)

In the event of an emergency on the road, push the “SOS” button to
reach  the  Safety  Connect  response  center.  The  answering  agent
will determine your vehicle’s location, assess the emergency, and
dispatch the necessary assistance required.

If  you  accidentally  press  the  “SOS”  button,  tell  the  response-center
agent that you are not experiencing an emergency.

Safety Connect services

77

1-3. Emergency assistance

1

For safet

y and s

ecurity

■

Enhanced Roadside Assistance

Enhanced  Roadside  Assistance  adds  GPS  data  to  the  already
included warranty-based Toyota roadside service.
Subscribers can press the “SOS” button to reach a Safety Connect
response-center agent, who can help with a wide range of needs,
such as: towing, flat tire, fuel delivery, etc. For a description of the
Enhanced  Roadside  Assistance  services  and  their  limitations,
please  see  the  Safety  Connect  Terms  and  Conditions,  which  are
available  at  Toyota.com  in  the  United  States,  Toyotapr.com  in
Puerto Rico and Toyota.ca in Canada.

Important! Read this information before using Safety Connect.

■

Exposure to radio frequency signals

The Safety Connect system installed in your vehicle is a low-power
radio transmitter and receiver. It receives and also sends out radio
frequency (RF) signals.
In August  1996,  the  Federal  Communications  Commission  (FCC)
adopted RF exposure guidelines with safety levels for mobile wire-
less phones. Those guidelines are consistent with the safety stan-
dards  previously  set  by  the  following  U.S.  and  international
standards bodies.

●

ANSI (American National Standards Institute) C95.1 [1992]

●

NCRP (National  Council  on  Radiation  Protection  and Measure-
ment) Report 86 [1986]

●

ICNIRP  (International  Commission  on  Non-Ionizing  Radiation
Protection) [1996]

Those standards were based on comprehensive and periodic eval-
uations of the relevant scientific literature. Over 120 scientists, engi-
neers,  and  physicians  from  universities,  and  government  health
agencies and industries reviewed the available body of research to
develop the ANSI Standard (C95.1).
The design of Safety Connect complies with the FCC guidelines in
addition to those standards.

Safety information for Safety Connect
