Toyota Camry Hybrid (2020 year). Manual in english - part 6

334

4-5. Using the driving support systems

■

Re-enabling the Rear Cross Traffic Auto Brake function

To re-enable the Rear Cross Traffic Auto Brake function when it is disabled
while  it  is  operating,  either  enable  the  Intelligent  Clearance  Sonar  system
again  (



P.  320),  or  turn  the  power  switch  off  and  then  back  to  ON  mode.

When the function is disabled, the ICS OFF indicator will illuminate. (



P. 99)

If there is no longer a vehicle approaching from the right or left at the rear of
the  vehicle  when  backing  up,  or  if  the  traveling  direction  of  the  vehicle
changes (such as changing from backing up to moving forward), the system
will  be  re-enabled  automatically.  When  the  function  is  re-enabled,  the  ICS
OFF indicator will turn off.

■

Conditions under which the Rear Cross Traffic Auto Brake function will
not detect a vehicle

The Rear Cross Traffic Auto Brake function is not designed to detect the fol-
lowing types of vehicles and/or objects:

●

Vehicles approaching from directly behind

●

Vehicles backing up in a parking space next to your vehicle

●

Guardrails, walls, signs, parked vehicles and similar stationary objects

*

●

Small motorcycles, bicycles, pedestrians, etc.

*

●

Vehicles moving away from your vehicle

●

Vehicles approaching from the parking spaces next to your vehicle

*

*

: Depending  on  the  conditions,  detection  of  a  vehicle  and/or  object  may

occur.

■

RCTA function buzzer

Regardless of whether the RCTA function is enabled or not (



P. 296), if the

Rear Cross Traffic Auto Brake function is enabled and brake control is per-
formed, a buzzer will sound to notify the driver.

●

Vehicles that the sensors cannot detect
due to obstructions

●

Vehicles  which  suddenly  accelerate  or
decelerate near your vehicle

335

4-5. Using the driving support systems

4

Dr

ivi

ng

■

Situations  in  which  the  system  may  operate  even  though  there  is  no
possibility of a collision

In some situations such as the following, the Rear Cross Traffic Auto Brake
function may operate even though there is no possibility of a collision.

●

When water is splashed or sprayed toward the rear bumper, such as from a
sprinkler

●

When  the  parking  space  faces  a  street
and  vehicles  are  being  driven  on  the
street

●

When  a  detected  vehicle  turns  while
approaching the vehicle

●

When  a  vehicle  passes  by  the  side  of
your vehicle

●

When the distance between your vehicle
and  metal  objects,  such  as  a  guardrail,
wall, sign, or parked vehicle, which may
reflect  electrical  waves  toward  the  rear
of the vehicle, is short

336

4-5. Using the driving support systems

■

Situations in which the Rear Cross Traffic Auto Brake function may not
operate properly

In some situations such as the following, this function may not operate prop-
erly.

●

Objects and vehicles which the radar sensors are not designed to detect
• Stationary objects
• Vehicles which are moving away from your vehicle
• Pedestrians, motorcycles, bicycles, etc.

*

• Objects which are extremely close to a radar sensor
• Vehicles  which  are  approaching  from  the  right  or  left  at  the  rear  of  the

vehicle at a traveling speed of less than approximately 5 mph (8 km/h)

• Vehicles  which  are  approaching  from  the  right  or  left  at  the  rear  of  the

vehicle at a traveling speed of more than approximately 15 mph (24 km/h)

*

: Depending on conditions, detection of a vehicle and/or object may occur.

●

Situations in which the radar sensors may not be able to detect an object
• When a sensor or the area around a sensor is extremely hot or cold
• If the rear bumper is covered with ice, snow, dirt, etc.
• If heavy rain or water strikes the vehicle
• When the detection area of a radar sensor is obstructed by an adjacent

vehicle

• If the vehicle is significantly tilted
• When equipment that may obstruct a sensor is installed, such as a towing

eyelet, bumper protector (an additional trim strip, etc.), bicycle carrier, or
snow plow

• If the suspension has been modified or tires of a size other than specified

are installed

• If the front of the vehicle is raised or lowered due to the carried load
• If  a  sticker  or  an  electronic  component,  such  as  a  backlit  license  plate

(especially fluorescent type), fog lights, a fender pole or wireless antenna
is installed near a radar sensor

• If the orientation of a radar sensor has been changed due to a collision or

other impact or removal and installation

• When multiple vehicles are approaching with only a small gap between

each vehicle

• When a vehicle is approaching at high speed

●

Situations in which the radar sensor may not detect a vehicle
• When a vehicle approaches from the

right  or  left  at  the  rear  of  the  vehicle
while  you  are  turning  while  backing
up

• When turning while backing up

337

4-5. Using the driving support systems

4

Dr

ivi

ng

■

Handling the radar sensors



P. 298

• When backing out of a shallow angle

parking spot

• Vehicles  that  the  sensors  cannot

detect due to obstructions

• When  backing  up  on  a  slope  with  a

sharp change in grade

• When  a  vehicle  turns  into  the  detec-

tion area

338

4-5. Using the driving support systems

Normal mode
Use for normal driving.

While  in  Eco  drive  mode  or  sport  mode,  press  the  switch  to  change  the
driving mode to normal mode.

Eco drive mode
Use Eco drive mode to help achieve low fuel consumption during
trips that involve frequent accelerating.

When the “ECO” switch is pressed, the “ECO MODE” indicator comes on
in the instrument cluster.

Sport mode
Use sport mode when increased acceleration response and precise
handling is desired, for example, when driving on mountain roads.

When the “SPORT” switch is pressed, the “SPORT” indicator comes on in
the instrument cluster.

Driving mode select switches

The driving modes can be selected to suit driving condition.

1

2

3

339

4-5. Using the driving support systems

4

Dr

ivi

ng

■

Operation of the air conditioning system in Eco drive mode

Eco drive mode controls the heating/cooling operations and fan speed of the
air conditioning system to enhance fuel efficiency (



P. 348). To improve air

conditioning performance, adjust the fan speed or turn off Eco drive mode.

■

Auto Glide Control

When Auto Glide Control operates, the AGC indicator light will illuminate.

●

Auto Glide Control may not operate in the following situations:
• When the brake pedal is depressed
• When a shift position other than D is selected
• When the vehicle speed is approximately 10 mph (15 km/h) or lower
• When the vehicle is accelerating on a downward slope
• When the PCS (Pre-Collision System) is operating
• When the dynamic radar cruise control with full-speed range is operating
• When the Intelligent Clearance Sonar system is operating
• When the TRAC or VSC system is operating
• When  the TRAC  or  VSC  system  is  disabled  by  pressing  the  VSC  OFF

switch

■

Sport mode automatic deactivation

Sport mode is automatically deactivated if the power switch is turned off after
driving in sport mode.

●

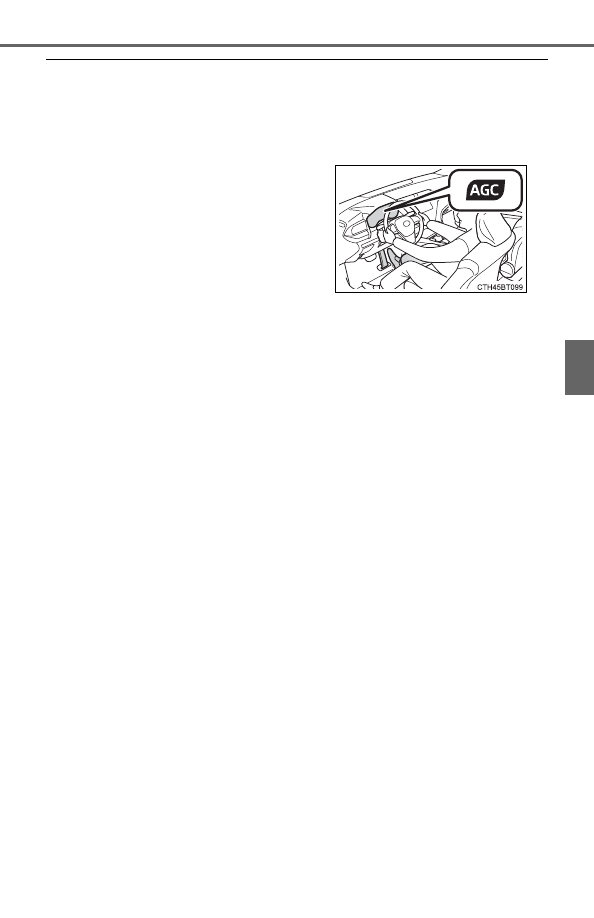

While driving in Eco drive mode with D
selected,  releasing  the  accelerator
pedal  will  activate  Auto  Glide  Control
under  certain  conditions.  (Auto  Glide
Control may activate before the acceler-
ator pedal is fully released.)
When Auto Glide Control operates, the
electric  motor  (traction  motor)  will  be
controlled,  reducing  the  deceleration
force and allowing the vehicle to coast,
enhancing fuel economy.

340

4-6. Driving tips

◆

Using Eco drive mode

When using Eco drive mode, the torque corresponding to the accel-
erator pedal depression amount can be generated more smoothly
than it is in normal conditions. In addition, the operation of the air
conditioning system (heating/cooling) will be minimized, improving
the fuel economy. (



P. 338)

◆

Use of Hybrid System Indicator

The Eco-friendly driving is possible by keeping the needle of Hybrid
System Indicator within Eco area. (



P. 104)

◆

Shift lever operation

Shift the shift lever to D when stopped at a traffic light, or driving in
heavy traffic etc. Shift the shift lever to P when parking. When using
the N, there is no positive effect on fuel consumption. In the N, the
gasoline engine operates but electricity cannot be generated. Also,
when  using  the  air  conditioning  system,  etc.,  the  hybrid  battery
(traction battery) power is consumed.

◆

Accelerator pedal/brake pedal operation

●

Drive  your  vehicle  smoothly.  Avoid  abrupt  acceleration  and
deceleration.  Gradual  acceleration  and  deceleration  will  make
more effective use of the electric motor (traction motor) without
having to use gasoline engine power.

●

Avoid  repeated  acceleration.  Repeated  acceleration  consumes
hybrid battery (traction battery) power, resulting in poor fuel con-
sumption.  Battery  power  can  be  restored  by  driving  with  the
accelerator pedal slightly released.

Hybrid vehicle driving tips

For economical and ecological driving, pay attention to the fol-
lowing points:

341

4-6. Driving tips

4

Dr

ivi

ng

◆

When braking

Make sure to operate the brakes gently and in a timely manner. A
greater amount of electrical energy can be regenerated when slow-
ing down.

◆

Delays

Repeated  acceleration  and  deceleration,  as  well  as  long  waits  at
traffic  lights,  will  lead  to  bad  fuel  economy.  Check  traffic  reports
before leaving and avoid delays as much as possible. When driving
in a traffic jam, gently release the brake pedal to allow the vehicle to
move  forward  slightly  while  avoiding  overuse  of  the  accelerator
pedal. Doing so can help control excessive gasoline consumption.

◆

Highway driving

Control and maintain the vehicle at a constant speed. Before stop-
ping  at  a  toll  booth  or  similar,  allow  plenty  of  time  to  release  the
accelerator and gently apply the brakes. A greater amount of elec-
trical energy can be regenerated when slowing down.

◆

Air conditioning

Use  the  air  conditioning  only when necessary.  Doing  so  can  help
reduce excessive gasoline consumption.
In summer: When the ambient temperature is high, use the recircu-
lated air mode. Doing so will help to reduce the burden on the air
conditioning system and reduce fuel consumption as well.
In winter: Because the gasoline engine will not automatically cut out
until it and the interior of the vehicle are warm, it will consume fuel.
Also, fuel consumption can be improved by avoiding overuse of the
heater.

◆

Checking tire inflation pressure

Make sure to check the tire inflation pressure frequently. Improper
tire inflation pressure can cause poor fuel economy.
Also, as snow tires can cause large amounts of friction, their use on
dry roads can lead to poor fuel economy. Use tires that are appro-
priate for the season.

342

4-6. Driving tips

◆

Luggage

Carrying heavy luggage will lead to poor fuel economy. Avoid carry-
ing unnecessary luggage. Installing a large roof rack will also cause
poor fuel economy.

◆

Warming up before driving

Since  the  gasoline  engine  starts  up  and  cuts  out  automatically
when cold, warming up the engine is unnecessary. Moreover, fre-
quently driving short distances will cause the engine to repeatedly
warm up, which can lead to excess fuel consumption.

343

4-6. Driving tips

4

Dr

ivi

ng

●

Use  fluids  that  are  appropriate  to  the  prevailing  outside  tempera-
tures.

• Engine oil
• Engine/power control unit coolant
• Washer fluid

●

Have a service technician inspect the condition of the 12-volt bat-
tery.

●

Have the vehicle fitted with four snow tires or purchase a set of tire
chains for the front tires.

Ensure  that  all tires are the specified  size and brand, and that chains
match the size of the tires.

Perform the following according to the driving conditions:

●

Do not try to forcibly open a window or move a wiper that is frozen.
Pour warm water over the frozen area to melt the ice. Wipe away
the water immediately to prevent it from freezing.

●

To  ensure  proper  operation  of  the  climate  control  system  fan,
remove  any  snow  that  has  accumulated  on  the  air  inlet  vents  in
front of the windshield.

●

Check for and remove any excess ice or snow that may have accu-
mulated  on  the  exterior  lights,  vehicle’s  roof,  chassis,  around  the
tires or on the brakes.

●

Remove  any  snow  or  mud  from  the  bottom  of  your  shoes  before
getting in the vehicle.

Winter driving tips

Carry  out  the  necessary  preparations  and  inspections  before
driving the vehicle in winter. Always drive the vehicle in a man-
ner appropriate to the prevailing weather conditions.

Preparation for winter

Before driving the vehicle

344

4-6. Driving tips

Accelerate the vehicle slowly, keep a safe distance between you and
the vehicle ahead, and drive at a reduced speed suitable to road con-
ditions.

●

Park the vehicle and move the shift lever to P without setting  the
parking brake. The parking brake may freeze up, preventing it from
being released. If the vehicle is parked without setting the parking
brake, make sure to block the wheels.
Failure to do so may be dangerous because it may cause the vehi-
cle to move unexpectedly, possibly leading to an accident.

●

If  the  vehicle  is  parked  without  setting  the  parking  brake,  confirm
that the shift lever cannot be moved out of P

*

.

*

: The shift lever will be locked if it is attempted to be shifted from P to any

other position without depressing the brake pedal. If the shift lever can be
shifted from P, there may be a problem with the shift lock system. Have the
vehicle inspected by your Toyota dealer immediately.



Vehicles with 16 and 17-inch tires

Use the correct tire chain size when mounting the snow chains.
Chain size is regulated for each tire size.

Side chain:

0.12 in. (3 mm) in diameter
0.39 in. (10 mm) in width
1.18 in. (30 mm) in length

Cross chain:

0.16 in. (4 mm) in diameter
0.55 in. (14 mm) in width
0.98 in. (25 mm) in length



Vehicles with 18-inch tires

Tire chains cannot be mounted.

Snow tires should be used instead.

When driving the vehicle

When parking the vehicle

Selecting tire chains

1

2

3

4

5

6

345

4-6. Driving tips

4

Dr

ivi

ng

Regulations regarding the use of tire chains vary depending on loca-
tion and type of road. Always check local regulations before installing
chains.

■

Tire chain installation

Observe the following precautions when installing and removing chains:

●

Install and remove tire chains in a safe location.

●

Install tire chains on the front tires. Do not install tire chains on the rear tires.

●

Install tire chains on front tires as tightly as possible. Retighten chains after
driving 1/4



 1/2 mile (0.5



 1.0 km).

●

Install tire chains following the instructions provided with the tire chains.

Regulations on the use of tire chains

WARNING

■

Driving with snow tires

Observe the following precautions to reduce the risk of accidents.
Failure to do so may result in a loss of vehicle control and cause death or
serious injury.

●

Use tires of the specified size.

●

Maintain the recommended level of air pressure.

●

Do  not  drive  in  excess  of  75  mph  (120  km/h),  regardless  of  the  type  of
snow tires being used.

●

Use snow tires on all, not just some wheels.

■

Driving with tire chains (vehicles with 16 and 17-inch tires)

Observe the following precautions to reduce the risk of accidents.
Failure to do so may result in the vehicle being unable to be driven safely,
and may cause death or serious injury.

●

Do not drive in excess of the speed limit specified for the tire chains being
used, or 30 mph (50 km/h), whichever is lower.

●

Avoid driving on bumpy road surfaces or over potholes.

●

Avoid  sudden  acceleration,  abrupt  steering,  sudden  braking  and  shifting
operations that cause sudden engine braking.

●

Slow down sufficiently before entering a curve to ensure that vehicle con-
trol is maintained.

●

Do not use LDA (Lane Departure Alert with steering control) system.

346

4-6. Driving tips

NOTICE

■

Repairing or replacing snow tires

Request repairs or replacement of snow tires from Toyota dealers or legiti-
mate tire retailers.
This is because the removal and attachment of snow tires affects the opera-
tion of the tire pressure warning valves and transmitters.

■

Fitting tire chains (vehicles with 16 and 17-inch tires)

The tire pressure warning valves and transmitters may not function correctly
when tire chains are fitted.

347

5

Interior features

5-1.  Using the

air conditioning system
and defogger

Automatic air conditioning

system............................. 348

Seat heaters/

seat ventilators................ 357

5-2.  Using the interior lights

Interior lights list ................ 359

• Interior lights ................. 360
• Personal lights .............. 361

5-3.  Using the storage

features

List of storage features ..... 362

• Glove box...................... 363
• Console box.................. 363
• Coin holder ................... 363
• Bottle holders................ 364
• Cup holders .................. 365
• Auxiliary boxes.............. 366
• Open tray ...................... 367

Trunk features ................... 368

5-4.  Other interior features

Other interior features ....... 369

• Sun visors ..................... 369
• Vanity mirrors................ 369
• Power outlet.................. 370
• USB charging ports....... 371
• Wireless charger........... 373
• Armrest ......................... 382
• Assist grips ................... 382
• Coat hooks.................... 383

Garage door opener.......... 384

348

5-1. Using the air conditioning system and defogger



Type A



Type B

Automatic air conditioning system

Air outlets and fan speed are automatically adjusted according
to the temperature setting.

Air conditioning controls

349

5-1. Using the air conditioning system and defogger

5

Interio

r features

■

Adjusting the temperature setting

To adjust the temperature setting, turn

 clockwise to increase

the  temperature  and  counterclockwise  to  decrease  the  tempera-
ture.

If

 is not pressed, the system will blow ambient temperature air or

heated air.
The air conditioning system switches between individual and synchro-

nized modes each time

 is pressed.

Synchronized modes (indicator on):

The driver’s side



dial can be used to adjust the temperature for

the  driver’s  and  front  passenger’s  side. At  this  time,  operate  the  front

passenger’s side



dial to enter individual mode.

Individual modes (indicator off):
The  temperature  for  the  driver’s  and  front  passenger’s  side  can  be
adjusted separately.

■

Fan speed setting

To  adjust  the  fan  speed,  press

  to  increase  the  fan  speed

and

 to decrease the fan speed.

Press

 to turn the fan off.

350

5-1. Using the air conditioning system and defogger

■

Change the airflow mode

To  change  the  airflow  mode,

press

.

The  air  outlets  used  are
switched each time the button is
pressed.

Air flows to the upper body.
Air  flows  to  the  upper  body
and feet.
Air flows to the feet.
Air  flows  to  the  feet  and  the
windshield  defogger  oper-
ates.

■

S-FLOW mode

In S-FLOW mode, priority for the airflow is given to the front seats,
reducing the airflow and air conditioning effect on the rear seats.
The system determines whether or not a front passenger is in the
vehicle  by  the  opening  and  closing  of  the  front  passenger’s  door.
When a front passenger is determined not to be in the vehicle, the
temperature  indicator  for  the  front  passenger  side  will  turn  off.  In
this case, depending on the set temperature and ambient tempera-
ture, priority for the airflow will be given to the driver's seat only.
The following S-FLOW modes are available:



Automatic S-FLOW mode

In this mode, the system determines whether or not a rear passen-
ger  is  in  the  vehicle  by  the  opening  and  closing  of  a  rear  door.
When a rear passenger is determined to be in the vehicle, S-FLOW
mode will be automatically disabled. (



P. 354)

The

 indicator will illuminate when S-FLOW mode is enabled.

To  enable/disable  S-FLOW  mode  and  enter  manual  S-FLOW  mode,

press

. (



P. 354)

1

2

3

4

351

5-1. Using the air conditioning system and defogger

5

Interio

r features



Manual S-FLOW mode

When

 is pressed, S-FLOW mode will be manually enabled/

disabled.

The

 indicator will illuminate when S-FLOW mode is enabled.

Press

 .

The dehumidification function begins to operate. Air outlets and fan
speed are automatically adjusted according to the temperature set-
ting.
Adjust the temperature setting.

To stop the operation, press

.

■

Automatic mode indicator

If the fan speed setting or air flow modes are operated, the auto-
matic mode indicator goes off. However, automatic mode for func-
tions other than that operated is maintained.

Using automatic mode

1

2

3

352

5-1. Using the air conditioning system and defogger

■

Switching between outside air and recirculated air modes

Press

.

The mode switches between outside air mode (indicator off) and recir-

culated air mode (indicator on) each time

 is pressed.

■

Defogging the windshield

Defoggers  are  used  to  defog  the  windshield  and  front  side  win-
dows.

Press

.

The dehumidification function operates and fan speed increases.
Set the outside/recirculated air mode button to the outside air mode if
the recirculated air mode is used. (It may switch automatically.)
To defog the windshield and the side windows early, turn the air flow and
temperature up.

To return to the previous mode, press

 again when the windshield

is defogged.

■

Defogging the rear window and outside rear view mirrors



Vehicles without outside rear view mirror defoggers

A defogger is used to defog the rear window.

Press

.

The defogger will automatically turn off after a period of time.



Vehicles with outside rear view mirror defoggers

Defoggers are used to defog the rear window, and to remove rain-
drops, dew and frost from the outside rear view mirrors.

Press

.

The defoggers will automatically turn off after a period of time.

Other functions

353

5-1. Using the air conditioning system and defogger

5

Interio

r features

■

Location of air outlets

The  air  outlets  and  air  volume
change

according

to

the

selected airflow mode.

*

: If equipped

■

Adjusting the position of and opening and closing the air out-
lets

Direct air flow to the left or right, up or down.
Turn the knob to open or close the vent.

Air outlets

*



Front



Rear (if equipped)

1

2

354

5-1. Using the air conditioning system and defogger

■

Using automatic mode

Fan speed is adjusted automatically according to the temperature setting and
the ambient conditions.
Therefore, the fan may stop for a while until warm or cool air is ready to flow

immediately after

 is pressed.

■

Operation of the air conditioning system in S-FLOW mode

If the front passenger’s door or a rear door is opened then closed, the air con-
ditioning system determines that a passenger is in the vehicle. In this case,
priority for the airflow will be changed from the driver’s seat only to the front
seats  only  or  all  seats,  respectively.  (Depending  on  the  set  temperature  or
ambient temperature, priority for the airflow may not be given to the driver’s
seat only.)
If a passenger is judged to be in the vehicle, the system will retain the judge-
ment for a certain amount of time after the power switch is turned off.

■

Operation of automatic S-FLOW mode

When the system is operating in automatic S-FLOW mode, if a rear door is
opened and then closed, S-FLOW mode will be disabled. To enable S-FLOW

mode, press

.

■

Changing from manual S-FLOW mode to automatic S-FLOW mode

Press



to disable S-FLOW mode.

Turn the power switch off.
After 60 minutes have elapsed, change the power switch to ON mode.

■

Fogging up of the windows

●

The  windows  will  easily  fog  up  when  the  humidity  in  the  vehicle  is  high.

Turning

  on  will  dehumidify  the  air  from  the  outlets  and  defog  the

windshield effectively.

●

If you turn

 off, the windows may fog up more easily.

●

The windows may fog up if the recirculated air mode is used.

■

Windshield fog detection function

When automatic mode is set, the humidity sensor (



P. 356) detects fog on

the windshield and controls the air conditioning system to prevent fog.

■

When driving on dusty roads

Close all windows. If dust thrown up by the vehicle is still drawn into the vehi-
cle after closing the windows, it is recommended that the air intake mode be
set to outside air mode and the fan speed to any setting except off.

1

2

3

355

5-1. Using the air conditioning system and defogger

5

Interio

r features

■

Outside/recirculated air mode

●

Setting to the recirculated air mode temporarily is recommended in prevent-
ing dirty air from entering the vehicle interior and helping to cool the vehicle
when the outside air temperature is high.

●

Outside/recirculated  air  mode  may  automatically  switch  depending  on  the
temperature setting or the inside temperature.

■

When the outside temperature exceeds 75°F (24°C) and the air condition-
ing system is on

●

In order to reduce the air conditioning power consumption, the air condition-
ing system may switch to recirculated air mode automatically. This may also
reduce fuel consumption.

●

Recirculated air mode is selected as a default mode when the power switch
is turned to ON mode.

●

It is possible to switch to outside air mode at any time by pressing

.

■

When the outside temperature is low

The dehumidification function may not operate even when

 is pressed.

■

Operation of the air conditioning system in Eco drive mode

●

In  the  Eco  drive  mode,  “ECO”  is  displayed  on  the  air  conditioning  screen
and the air conditioning system is controlled as follows to prioritize fuel effi-
ciency:
• Engine  speed  and  compressor  operation  controlled  to  restrict  heating/

cooling capacity

• Fan speed restricted when automatic mode is selected

●

To improve air conditioning performance, perform the following operations:
• Adjust the fan speed
• Turn off Eco drive mode

■

Ventilation and air conditioning odors

●

To let fresh air in, set the air conditioning system to the outside air mode.

●

During use, various odors from inside and outside the vehicle may enter into
and accumulate in the air conditioning system. This may then cause odor to
be emitted from the vents.

●

To reduce potential odors from occurring:
• It is recommended that the air conditioning system be set to outside air

mode prior to turning the vehicle off.

• The start timing of the blower may be delayed for a short period of time

immediately  after  the  air  conditioning  system  is  started  in  automatic
mode.

356

5-1. Using the air conditioning system and defogger

■

Air conditioning filter



P. 442

■

Customization

Some functions can be customized. (



P. 553)

WARNING

■

To prevent the windshield from fogging up

●

Do  not  use

  during  cool  air  operation  in  extremely  humid  weather.

The difference between the temperature of the outside air and that of the
windshield can cause the outer surface of the windshield to fog up, block-
ing your vision.

■

To prevent burns (vehicles with outside rear view mirror defoggers)

Do not touch the rear view mirror surfaces when the outside rear view mirror
defoggers are on.

NOTICE

■

Humidity sensor

■

To prevent 12-volt battery discharge

Do not leave the air conditioning system on longer than necessary when the
hybrid system is stopped.

●

Do not place anything on the instrument
panel  which  may  cover  the  air  outlets.
Otherwise,  air  flow  may  be  obstructed,
preventing  the  windshield  defoggers
from defogging.

In order to detect fog on the windshield, a
sensor  which  monitors  the  temperature
of the windshield, the surround humidity,
etc. is installed. (



P. 354)

Follow  these  points  to  avoid  damaging
the sensor:

●

Do not disassemble the sensor

●

Do  not  spray  the  glass  cleaner  on  the
sensor or subject it to strong impacts

●

Do not stick anything on the sensor

357

5-1. Using the air conditioning system and defogger

5

Interio

r features

Seat heaters



/seat ventilators





: If equipped

Seat heaters heat the seats and seat ventilators maintain good
ventilation by pulling air through the seat upholstery.

WARNING

●

Care should be taken to prevent injury if anyone in the following categories
comes in contact with the seats when the heater is on:
• Babies,  small  children,  the  elderly,  the  sick  and  the  physically  chal-

lenged

• Persons with sensitive skin
• Persons who are fatigued
• Persons who have taken alcohol or drugs that induce sleep (sleeping

drugs, cold remedies, etc.)

●

Observe the following precautions to prevent the minor burns or overheat-
ing
• Do  not  cover  the  seat  with  a  blanket  or  cushion  when  using  the  seat

heater.

• Do not use seat heater more than necessary.

NOTICE

●

Do not put heavy objects that have an uneven surface on the seat and do
not stick sharp objects (needles, nails, etc.) into the seat.

●

To  prevent  12-volt  battery  discharge,  do  not  use  the  functions  when  the
hybrid system is off.

358

5-1. Using the air conditioning system and defogger

Each time the switch is pressed, the operation condition changes as
follows.
Hi (3 segments lit)



 Mid (2 segments lit)



 Lo (1 segment lit)



 Off

The level indicator (amber) lights up during operation.

The seat heaters can be used when the power switch is in ON mode.

Each  time  the  switch  is  pressed,
the  operation  condition  changes
as follows.
Hi (3 segments lit)



 Mid (2 seg-

ments lit)



 Lo (1 segment lit)



Off

The level indicator (green) lights up
during operation.

■

The seat ventilators can be used when

The power switch is in ON mode.

■

Air conditioning system-linked control mode

When a seat ventilator is set to Hi, the fan speed of the seat ventilator may
increase according to the fan speed of the air conditioning system

Seat heaters



Without seat ventilators



With seat ventilators

Seat ventilators

*

359

5

Interio

r features

5-2. Using the interior lights

Front interior/personal lights (



P. 360, 361)

Shift lever light (if equipped)
Inside door handle lights (if equipped)
Rear interior light (if equipped) (



P. 360)

Rear personal lights (if equipped) (



P. 361)

Door courtesy lights (if equipped)
Instrument panel ornament light (if equipped)
Front center console light (if equipped)
Footwell lights (if equipped)

Interior lights list

1

2

3

4

5

6

7

8

9

360

5-2. Using the interior lights

■

Front (if equipped)

The rear personal lights (if equipped) turn on/off together with the
front interior light.

Turns  the  lights  on/off  linked
to door positions
Turns the lights on/off

■

Rear (if equipped)

Turns the light off
Turns the light on/off linked to
door positions
Turns the light on

Interior lights

1

2

1

2

3

361

5-2. Using the interior lights

5

Interio

r features

■

Front

Turns the lights on/off

■

Rear (if equipped)

Turns the lights on/off

■

Illuminated entry system

The lights automatically turn on/off according to the power switch mode, the
presence of the electronic key, whether the doors are locked/unlocked, and
whether the doors are open/closed.

■

To prevent the 12-volt battery from being discharged

If the interior lights remain on when the power switch is turned off, the lights
will go off automatically after 20 minutes.

■

The interior lights may turn on automatically when

If  any  of  the  SRS  airbags  deploy  (inflate)  or  in  the  event  of  a  strong  rear
impact, the interior lights will turn on automatically.
The interior lights will turn off automatically after approximately 20 minutes.
The interior lights can be turned off manually. However, in order to help pre-
vent further collisions, it is recommended that they be left on until safety can
be ensured.
(The interior lights may not turn on automatically depending on the force of
the impact and conditions of the collision.)

■

Customization

Some functions can be customized. (



P. 553)

Personal lights

362

5-3. Using the storage features

List of storage features

Auxiliary boxes

(



P. 366)

Glove box

(



P. 363)

Bottle holders/door pockets

(



P. 364)

Cup holders

(



P. 365)

Console box

(



P. 363)

Auxiliary box/open tray

(



P. 366, 367)

Coin holder

(



P. 363)

WARNING

●

Do not leave glasses, lighters or spray cans in the storage spaces, as this
may cause the following when cabin temperature becomes high:
• Glasses may be deformed by heat or cracked if they come into contact

with other stored items.

• Lighters or spray cans may explode. If they come into contact with other

stored  items,  the  lighter  may  catch  fire  or  the  spray  can  may  release
gas, causing a fire hazard.

●

When driving or when the storage compartments are not in use, keep the
lids closed.
In the event of sudden braking or sudden swerving, an accident may occur
due to an occupant being struck by an open lid or the items stored inside.

1

2

3

4

5

6

7

363

5-3. Using the storage features

5

Interio

r features

Unlock with the mechanical key
Lock with the mechanical key
Open (pull lever)

The glove box light turns on when the tail lights are on.

Push the knob.

Pull the lever to open.

Glove box

1

2

3

Console box

Coin holder

364

5-3. Using the storage features

●

When storing a bottle, close the cap.

●

The bottle may not be stored depending on its size or shape.

Bottle holders



Front



Rear

WARNING

Do not place anything other than a bottle in the bottle holders.
Other items may be thrown out of the holders in the event of an accident or
sudden braking and cause injury.

NOTICE

Put the cap on before stowing a bottle. Do not place open bottles in the bot-
tle holders, or glass or paper cups containing liquid. The contents may spill
and glass cups may break.

365

5-3. Using the storage features

5

Interio

r features

Cup holders



Front



Rear

Pull the armrest down.

WARNING

■

Items unsuitable for the cup holder

Do not place anything other than cups or aluminum cans in the cup holders.
Other items may be thrown out of the holders in the event of an accident or
sudden braking, causing injury.

■

To prevent burns

To prevent burns, cover hot drinks when placed in the cup holders.

366

5-3. Using the storage features

Opening:
Push the tray forward until it locks.
Closing:
Push the tray forward to release the lock and the tray will automati-
cally close.

■

When small items are placed on top of the tray (type C)

Auxiliary boxes



Type A (if equipped)



Type B (if equipped)

Push the lid.



Type C

The tray can be opened while small items
are placed on it.

367

5-3. Using the storage features

5

Interio

r features

■

When using wireless charger (if equipped)



P. 373

WARNING

■

Items unsuitable for storing (type A)

Do not store items heavier than 0.4 lb. (0.2 kg).
Doing so may cause the auxiliary box to open and the items inside may fall
out, resulting in an accident.

NOTICE

■

When opening or closing the tray (type C)

●

To prevent damaging small items, when opening the tray while small items
are placed on it, make sure the items will not get caught.

●

To prevent damaging the tray, do not pull the tray to close it. Doing so may
damage the tray.

Open tray

WARNING

Observe the following precautions when putting items in the open tray. Fail-
ure to do so may cause items to be thrown out of the tray in the event of
sudden  braking  or  steering.  In  these  cases,  the  items  may  interfere  with
pedal operation or cause driver distraction, resulting in an accident.

●

Do not store items in the tray that can easily shift or roll out.

●

Do not stack items in the tray higher than the tray’s edge.

●

Do not put items in the tray that may protrude over the tray’s edge.

368

5-3. Using the storage features

Trunk features

Grocery bag hooks

NOTICE

To prevent damage to the hooks, do not apply too much load to the hooks.

369

5

Interio

r features

5-4. Other interior features

To  set  the  visor  in  the  forward
position, flip it down.
To set the visor in the side posi-
tion,  flip  down,  unhook,  and
swing it to the side.
To use the side extender, place
the  visor  in  the  side  position,
then slide it backward.

Slide the cover to open.

Vehicles with vanity lights: The light
turns on when the cover is opened.

Vehicles with vanity lights: If the vanity lights remain on for 20 minutes while
the hybrid system is off, the lights will turn off automatically.

Other interior features

Sun visors

1

2

3

Vanity mirrors

370

5-4. Other interior features

Please use as a power supply for electronic goods that use less than
12 VDC/10 A (power consumption of 120 W).
Open the lid.

■

The power outlet can be used when

The power switch is in ACCESSORY or ON mode.

■

When stopping the hybrid system

Disconnect electrical devices with charging functions, such as mobile battery
packs.
If such devices are left connected, the hybrid system may not stop normally.

Power outlet

NOTICE

●

To avoid damaging the power outlet, close the power outlet lid when it is
not in use.
Foreign objects or liquids that enter the power outlet may cause a short
circuit.

●

To prevent 12-volt battery discharge, do not use the power outlet longer
than necessary when the hybrid system is off.

371

5-4. Other interior features

5

Interio

r features

The USB charging ports are used to supply 2.1 A of electricity at 5 V
to external devices.
The USB charging ports are for charging only. They are not designed
for data transfer or other purposes.
Depending on the external device, it may not charge properly. Refer to
the  manual  included  with  the  device  before  using  a  USB  charging
port.

■

Using the USB charging ports

Open  the  console  box  lid  and
open the lid.

■

The USB charging ports can be used when

The power switch is in ACCESSORY or ON mode.

■

Situations in which the USB charging ports may not operate correctly

●

If a device which consumes more than 2.1 A at 5 V is connected

●

If a device designed to communicate with a personal computer, such as a
USB memory device, is connected

●

If the connected external device is turned off (depending on device)

●

If the temperature inside the vehicle is high, such as after the vehicle has
been parked in the sun

■

About connected external devices

Depending on the connected external device, charging may occasionally be
suspended and then start again. This is not a malfunction.

■

Cable pass through

USB charging ports

The shape of the console box rim allows
power cables to be passed through when
the console box lid is closed.

372

5-4. Other interior features

NOTICE

■

To prevent damage to the USB charging ports

●

Do not insert foreign objects into the ports.

●

Do not spill water or other liquids into the ports.

●

When  the USB  charging ports are not  in use,  close the  lids. If  a foreign
object or liquid enters a port may cause a short circuit.

●

Do not apply excessive force to or impact the USB charging ports.

●

Do not disassemble or modify the USB charging ports.

■

To prevent damage to external devices

●

Do not leave external devices in the vehicle. The temperature inside the
vehicle may become high, resulting in damage to an external device.

●

Do not push down on or apply unnecessary force to an external device or
the cable of an external device while it is connected.

■

To prevent 12-volt battery discharge

Do not use the USB charging ports for a long period of time with the hybrid
system stopped.

373

5-4. Other interior features

5

Interio

r features

A  portable  device,  such  as  a  smartphone  or  mobile  battery,  can  be
charged by just placing it on the charging area, provided the device is
compatible  with  the  Qi  wireless  charging  standard  created  by  the
Wireless Power Consortium.
The  wireless  charger  cannot  be  used  with  a  portable  device  that  is
larger than the charging area. Additionally, depending on the portable
device,  the  wireless  charger  may  not  operate  properly.  Refer  to  the
operation manual of the portable device.

■

The “Qi” symbol

The “Qi” symbol is a trademark of the Wireless Power Consortium.

■

Name for all parts

Power supply switch
Operation indicator light
Charge area

Wireless charger (if equipped)

1

2

3

374

5-4. Other interior features

■

Using the wireless charger

Press  the  power  supply
switch  of  the  wireless  char-
ger.

Pressing  the  switch  again  turns
the wireless charger off.
When  turned  on,  the  operation
indicator light (green) comes on.
When the power switch is turned
off,  the  on/off  state  of  the  wire-
less charger will be memorized.

Place  a  portable  device  on
the  charging  area  with  its
charging

surface

facing

down.

While  charging,  the  operation
indicator  light  (orange)  will  be
illuminated.
If  charging  does  not  begin,
move  the  portable  device  as
close  to  the  center  of  the
charging area as possible.
When charging is complete, the operation indicator light (green) will illu-
minate.

●

Recharging function

• If a certain amount of time has elapsed since charging com-

pleted and the portable device has not been moved, the wire-
less charger will restart charging.

• If  the  portable  device  is  moved  within  the  charging  area,

charging will stop temporarily then restart.

1

2

375

5-4. Other interior features

5

Interio

r features

■

Operation indicator light status

*

: Depending on the portable device, the operation indicator light may stay

illuminated (orange) after charging has completed.

●

If the operation indicator light blinks
If  an  error  is  detected,  the  operation  indicator  light  will  blink
(orange).  Take  the  appropriate  measures  according  to  the  table
below.

Operation indicator light

State

Off

The Wireless charger is off

Green (illuminated)

Standby (charging is possible)

Charging is complete

*

Orange (illuminated)

A  portable  device  has  been  placed  on  the
charging  area  (identifying  the  portable
device)

Charging in progress

Operation indicator light

Suspected causes

Measure

Blinks  (orange)  at  a
one  second  interval
continuously

Vehicle to charger com-
munication failure.

Contact  your  Toyota
dealer.

Blinks (orange) 3 times
repeatedly

A  foreign  object  exists
between  the  portable
device  and  charging
area.

Remove  the  foreign
object.

Portable  device  is  not
positioned  properly  on
the charging area.

Move

the

portable

device  toward  the  cen-
ter  of  the  charging
area.

Blinks (orange) 4 times
repeatedly

The temperature of the
wireless  charger  is
excessively high.

Stop  charging  immedi-
ately

and

continue

charging after a while.

376

5-4. Other interior features

■

The wireless charger can be operated when

The power switch is in ACCESSORY or ON mode.

■

Portable devices that can be charged

●

Portable devices compatible with the Qi wireless charging standard can be
charged  by  the  wireless  charger.  However,  compatibility  with  all  devices
which meet the Qi wireless charging standard is not guaranteed.

●

The  wireless  charger  is  designed  to  supply  low  power  electricity  (5  W  or
less) to a cellular phone, smartphone, or other portable device.

■

If a cover or accessory is attached to the portable device

Do not charge a portable device if a cover or accessory which is not Qi com-
patible  is  attached.  Depending  on  the  type  of  cover  and/or  accessory
attached, it may not be possible to charge the portable device. If the portable
device is placed on the charging area and does not charge, remove the cover
and/or accessories.

■

If interference is heard in AM radio broadcasts while charging

Turn  off  the  wireless  charger  and  check  if  the  noise  is  reduced.  If  noise  is
reduced, press and hold the power supply switch of the wireless charger for 2
seconds. The frequency of the wireless charger is changed and noise may be
reduced.  When  the  frequency  is  changed,  the  operation  indicator  light  will
blink (orange) 2 times.

■

Charging precautions

●

If  the  electronic  key  cannot  be  detected  in  the  cabin,  charging  cannot  be
performed. When a door is opened and closed, charging may be temporarily
suspended.

●

While  charging,  the  wireless  charger  and  the  portable  device  will  become
warm. This is not a malfunction.
If a portable device becomes warm while charging and charging stops due
to  the  protection  function  of  the  portable  device,  wait  until  the  portable
device cools down and charge it again.

■

Sound generated during operation

When the power supply switch is turned on or while a portable device is being
identified, operation sounds may be heard. This is not a malfunction.

■

Cleaning the wireless charger



P. 396

377

5-4. Other interior features

5

Interio

r features

■

Certification for the wireless charger

378

5-4. Other interior features

379

5-4. Other interior features

5

Interio

r features

380

5-4. Other interior features

WARNING

■

Caution while driving

When charging a portable device while driving, for safety reasons, the driver
should not operate the portable device.

■

Caution regarding interference with electronic devices

People  with  implantable  cardiac  pacemakers,  cardiac  resynchronization
therapy  pacemakers  or  implantable  cardioverter  defibrillators,  as  well  as
any other electrical medical device, should consult their physician about the
usage of the wireless charger.
Operations of the wireless charger may have an affect on medical devices.

■

To prevent damage or burns

Observe the following precautions.
Failure  to  do  so  may  result  in  the  possibility  of  fire,  equipment  failure  or
damage, or burns due to heat.

●

Do not put any metallic objects between the charging area and the porta-
ble device while charging.

●

Do not attach metallic objects, such as aluminum stickers, to the charging
area.

●

Do  not  cover  the  wireless  charger  with  a  cloth  or  other  object  while
charging.

●

Do not attempt to charge portable devices which are not compatible with
the Qi wireless charging standard.

●

Do not disassemble, modify or remove the wireless charger.

●

Do not apply force or impact to the wireless charger.

381

5-4. Other interior features

5

Interio

r features

NOTICE

■

Conditions in which the wireless charger may not operate correctly

In the following situations, the wireless charger may not operate correctly:

●

When a portable device is fully charged

●

When  there  is  a  foreign  object  between  the  charging  area  and  portable
device

●

When a portable device becomes hot while charging

●

When  a portable device  is  placed on  the  wireless  area  with its charging
surface facing up

●

When a portable device is not centered on the charging area

●

When  the  vehicle  is  near  a  TV  tower,  electric  power  plant,  gas  station,
radio  station,  large  display,  airport  or  other  facility  that  generates  strong
radio waves or electrical noise

●

When the portable device is in contact with, or is covered by any of the fol-
lowing metallic objects:
• Cards to which aluminum foil is attached
• Cigarette boxes that have aluminum foil inside
• Metallic wallets or bags
• Coins
• Metal hand warmers
• Media such as CDs and DVDs

●

When wireless keys (that emit radio waves) other than those of your vehi-
cle are being used nearby.

If in situations other than above the wireless charger does not operate prop-
erly or the operation indicator light is blinking, the wireless charger may be
malfunctioning. Contact your Toyota dealer.

■

To prevent failure or damage to data

●

Do not bring magnetic cards, such as a credit card, or magnetic recording
media, close to the wireless charger while charging. Otherwise, data may
be erased due to the influence of magnetism.
Additionally,  do  not  bring  precision  instruments  such  as  wrist  watches,
close to the wireless charger, as such objects may malfunction.

●

Do  not  leave  portable  devices  in  the  cabin.  The  temperature  inside  the
cabin may become high when parked in the sun, and cause damage to the
device.

■

To prevent 12-volt battery discharge

Do not use the wireless charger for a long period of time with the hybrid sys-
tem stopped.

382

5-4. Other interior features

Fold down the armrest for use.

An assist grip installed on the ceil-
ing  can  be  used  to  support  your
body while sitting on the seat.

Armrest

NOTICE

To prevent damage to the armrest, do not apply too much load on the arm-
rest.

Assist grips

WARNING

Do not use the assist grip when getting in or out of the vehicle or rising from
your seat.

NOTICE

To prevent damage to the assist grip, do not put a heavy load on the assist
grip.

383

5-4. Other interior features

5

Interio

r features

Coat  hooks  are  provided  on  the
rear assist grips.

Coat hooks

WARNING

Do not hang coat hangers or other hard or sharp objects on the hook. If the
SRS  curtain  shield  airbags  deploy,  these  items  may  become  projectiles,
causing death or serious injury.

384

5-4. Other interior features

The HomeLink

®

 wireless control system in your vehicle has 3 buttons

which can be programmed to operate 3 different devices. Refer to the
programming  methods  on  the  following  pages  to  determine  the
method which is appropriate for the device.

HomeLink

®

 indicator light

Garage  door  operation  indica-
tors
Buttons

■

Before programming the HomeLink

®

●

During programming, it is possible that garage doors, gates, or
other devices may operate. For this reason, make sure that peo-
ple and objects are clear of the garage door or other devices to
prevent injury or other potential harm.

●

It  is  recommended  that  a  new  battery  be  placed  in  the  remote
control transmitter for more accurate programming.

●

Garage  door  opener  motors  manufactured  after  1995  may  be
equipped with rolling code protection. If this is the case, you may
need  a  stepladder  or  other  sturdy,  safe  device  to  reach  the
“Learn” or “Smart” button on the garage door opener motor.

Garage door opener





: If equipped

The garage door opener can be programmed to operate garage
doors,  gates,  entry  doors,  door  locks,  home  lighting  systems,
security systems, and other devices.

HomeLink

®

1

2

3

385

5-4. Other interior features

5

Interio

r features

■

Programming the HomeLink

®

Steps

 through

 must be performed within 60 seconds, other-

wise the indicator light will stop flashing and programming will not
be able to be completed.

Press  and  release  the  HomeLink

®

  button  you  want  to  program

and check that the HomeLink

®

 indicator light flashes orange.

Point  the  remote  control
transmitter  for  the  device  at
the rear view mirror, 1 to 3 in.
(25  to  75  mm)  from  the
HomeLink

®

 buttons.

Keep  the  HomeLink

®

  indicator

light in view while programming.

Program a device.



Programming  a  device  other  than  an  entry  gate  (for  U.S.A.
owners)

Press  and  hold  the  remote  control  transmitter  button  until  the
HomeLink

®

 indicator light changes from slowly flashing orange to

rapidly  flashing  green  (rolling  code)  or  continuously  lit  green
(fixed code), then release the button.



Programming an entry gate (for U.S.A. owners)/Programming
a device in the Canadian market

Press and release the remote control transmitter button at 2 sec-
ond  intervals,  repeatedly,  until  the  HomeLink

®

  indicator  light

changes  from  slowly  flashing  orange  to  rapidly  flashing  green
(rolling code) or continuously lit green (fixed code).

1

3

1

2

3

386

5-4. Other interior features

Test  the  HomeLink

®

  operation  by  pressing  the  newly  pro-

grammed button and observing the indicator light:

●

Indicator  light  illuminates:  Programming  of  a  fixed  code  device
has completed. The garage door or other device should operate
when a HomeLink

®

 button is pressed and released.

●

Indicator light flashes rapidly: The garage door opener motor or
other  device  is  equipped  with  a  rolling  code.  To  complete  pro-
gramming, firmly press and hold the HomeLink

®

 button for 2 sec-

onds then release it.

●

If the garage door or other device does not operate, proceed to
“Programming a rolling code system”.
Repeat the steps above to program another device for any of the
remaining HomeLink

®

 buttons.

■

Programming a rolling code system

2 or more people may be necessary to complete rolling code pro-
gramming.

Locate the “Learn” or “Smart”
button  on  the  garage  door
opener motor in the garage.

This button can usually be found
where the hanging antenna wire
is  attached  to  the  unit.  The
name  and  color  of  the  button
may  vary  by  manufacturer.
Refer  to  the  Owner’s  manual
supplied  with  the  garage  door
opener motor for details.

Press  and  release  the
“Learn” or “Smart” button.
Perform

  within  30  sec-

onds after performing

.

4

5

1

2

3

2

387

5-4. Other interior features

5

Interio

r features

Press  and  hold  the  desired
HomeLink

®

 button (inside the

vehicle)  for  2  seconds  and
release  it.  Repeat  this
sequence

(press/hold/

release)  up  to  3  times  to
complete programming.
If  the  garage  door  opener
motor  operates  when  the
HomeLink

®



button

is

pressed,  the  garage  door
opener motor recognizes the
HomeLink

®

 signal.

■

Enabling 2-way communication with a garage door (only avail-
able for compatible devices)

When enabled, 2-way communication allows you to check the sta-
tus of the opening and closing of a garage door through indicators
in your vehicle.
2-way  communication  is  only  available  if  the  garage  door  opener
motor used is a compatible device. (To check device compatibility,
refer to www.HomeLink.com.)

Within 5 seconds after programming the garage door opener has
been  completed,  if  the  garage  door  opener  motor  is  trained  to
HomeLink

®

, both garage door operation indicators will flash rap-

idly  green  and  the  light  on  the  garage  door  opener  motor  will
blink twice, indicating that 2-way communication is enabled.

If the indicators do not flash, perform

 and

 within the first 10

presses  of  the  HomeLink

®

  button  after  programming  has  been

completed.

Press  a  programmed  HomeLink

®

  button  to  operate  a  garage

door.
Within  1  minute  of  pressing  the  HomeLink

®

  button,  after  the

garage door operation has stopped, press the “Learn” or “Smart”
button on the garage door opener motor. Within 5 seconds of the
establishment  of  2-way  communication  with  the  garage  door
opener, both garage door operation indicators in the vehicle will
flash rapidly green and the light on the garage door opener motor
will blink twice, indicating that 2-way communication is enabled.

3

1

2

3

2

3

388

5-4. Other interior features

■

Reprogramming a single HomeLink

®

 button

When the following procedure is performed, buttons which already
have devices registered to them can be overwritten:

With one hand, press and hold the desired HomeLink

®

 button.

When the HomeLink

®

 indicator starts flashing orange, continue

to  hold  the  HomeLink

®

  button  and  perform  “Programming  the

HomeLink

®

”

 (it takes 20 seconds for the HomeLink

®

 indicator

to start flashing).

Press  the  appropriate  HomeLink

®

  button.  The  HomeLink

®

  indicator

light should turn on.

The  status  of  the  opening  and
closing of a garage door is shown
by the indicators.

Opening
Closing

This function is only available if the
garage door opener motor used is
a  compatible  device.  (To  check
device  compatibility,  refer  to
www.HomeLink.com.)

The indicators can operate within approximately 820 ft. (250 m) of
the  garage  door.  However,  if  there  are  obstructions  between  the
garage door and the vehicle, such as houses and trees, feedback
signals from the garage door may not be received. To recall the pre-
vious  door  operation  status,  press  and  release  either  HomeLink

®

buttons

  and

  or

  and

  simultane-

ously. The last recorded status will be displayed for 3 seconds.

Operating the HomeLink

®

Garage door operation indicators

1

2

1

1

2

Color

Status

Orange (flashing)

Currently opening/closing

Green

Opening/closing has completed

Red (flashing)

Feedback signals cannot be received

389

5-4. Other interior features

5

Interio

r features

Press and hold the 2 outside but-
tons  for  10  seconds  until  the
HomeLink

®



indicator

light

changes  from  continuously  lit
orange to rapidly flashing green.

If you sell your vehicle, be sure to
erase  the  programs  stored  in  the
HomeLink

®

 memory.

■

Codes stored in the HomeLink

®

 memory

●

The registered codes are not erased even if the 12-volt battery cable is dis-
connected.

●

If  learning  failed  when  registering  a  different  code  to  a  HomeLink

®

  button

that already has a code registered to it, the already registered code will not
be erased.

■

Before programming

●

Install a new battery in the transmitter.

●

The battery side of the transmitter must be pointed away from the Home-
Link

®

.

■

Certification for the garage door opener



For vehicles sold in the U.S.A.



For vehicles sold in Canada

Erasing the entire HomeLink

®

 memory (all three codes)

390

5-4. Other interior features

■

When support is necessary

Visit on the web at www.homelink.com/toyota or call 1-800-355-3515.

WARNING

■

When programming a garage door or other remote control device

The  garage  door  or  other  device  may  operate,  so  ensure  people  and
objects are out of danger to prevent potential harm.

■

Conforming to federal safety standards

Do  not  use  the  HomeLink

®

  compatible  transceiver  with  any  garage  door

opener or device that lacks safety stop and reverse features as required by
federal safety standards. This includes any garage door that cannot detect
an interfering object. A door or device without these features increases the
risk of death or serious injury.

■

When operating or programming HomeLink

®

Never allow a child to operate or play with the HomeLink

®

 buttons.

391

6

Maintenance and care

6-1.  Maintenance and care

Cleaning and protecting

the vehicle exterior.......... 392

Cleaning and protecting

the vehicle interior........... 395

6-2.  Maintenance

Maintenance

requirements................... 398

General maintenance........ 401
Emission inspection and

maintenance (I/M)
programs......................... 405

6-3.  Do-it-yourself

maintenance

Do-it-yourself service

precautions ..................... 406

Hood ................................. 408
Positioning a floor jack ...... 409
Engine compartment......... 410
12-volt battery ................... 418
Tires .................................. 422
Tire inflation pressure ....... 437
Wheels .............................. 440
Air conditioning filter.......... 442
Cleaning the hybrid battery

(traction battery) air intake
vent and filter .................. 444

Electronic key battery........ 449
Checking and replacing

fuses ............................... 451

Light bulbs......................... 454

392

6-1. Maintenance and care

●

Working  from  top  to  bottom,  liberally  apply  water  to  the  vehicle
body, wheel wells and underside of the vehicle to remove any dirt
and dust.

●

Wash  the  vehicle  body  using  a  sponge  or  soft  cloth,  such  as  a
chamois.

●

For hard-to-remove marks, use car wash soap and rinse thoroughly
with water.

●

Wipe away any water.

●

Wax the vehicle when the waterproof coating deteriorates.

If  water  does  not  bead  on  a  clean  surface,  apply  wax  when  the  vehicle
body is cool.

■

Automatic car washes

●

Fold the mirrors before washing the vehicle. Start washing from the front of
the vehicle. Make sure to extend the mirrors before driving.

●

Brushes used in automatic car washes may scratch the vehicle surface and
harm your vehicle's paint.

●

Vehicles with a rear spoiler: In certain automatic car washes, the rear spoiler
may  interfere  with  machine  operation.  This  may  prevent  the  vehicle  from
being cleaned properly or result in damage to the rear spoiler.

■

High pressure car washes

As  water  may  enter  the  cabin,  do  not  bring  the  nozzle  tip  near  the  gaps
around the doors or perimeter of the windows, or spray these areas continu-
ously.

Cleaning and protecting the vehicle

exterior

Perform  the  following  to  protect  the  vehicle  and  maintain  it  in
prime condition:

393

6-1. Maintenance and care

6

Mai
ntenan

ce and care

■

When using a car wash

If the door handle becomes wet while the electronic key is within the effective
range, the door may lock and unlock repeatedly. In that case, follow the fol-
lowing correction procedures to wash the vehicle:

●

Place  the  key  in  a  position  6  ft.  (2  m)  or  more  separate  from  the  vehicle
while the vehicle is being washed. (Take care to ensure that the key is not
stolen.)

●

Set the electronic key to battery-saving mode to disable the smart key sys-
tem. (



P. 166)

■

Aluminum wheels (if equipped)

●

Remove any dirt immediately by using a neutral detergent.

●

Wash detergent off with water immediately after use.

●

To protect the paint from damage, make sure to observe the following pre-
cautions.
• Do not use acidic, alkaline or abrasive detergent
• Do not use hard brushes
• Do not use detergent on the wheels when they are hot, such as after driv-

ing or parking in hot weather

■

Bumpers

Do not scrub with abrasive cleaners.

■

Plated portions

If dirt cannot be removed, clean the parts as follows:

●

Use  a  soft  cloth  dampened  with  an  approximately  5%  solution  of  neutral
detergent and water to clean the dirt off.

●

Wipe the surface with a dry, soft cloth to remove any remaining moisture.

●

To remove oily deposits, use alcohol wet wipes or a similar product.

WARNING

■

When washing the vehicle

Do not apply water to the inside of the engine compartment. Doing so may
cause the electrical components, etc. to catch fire.

■

Precautions regarding the exhaust pipes

Exhaust gasses cause the exhaust pipes to become quite hot.
When  washing  the  vehicle,  be  careful  not  to  touch  the  pipes  until  it  has
cooled sufficiently, as touching a hot exhaust pipes can cause burns.

■

Precaution  regarding  the  rear  bumper  with  Blind  Spot  Monitor  (if
equipped)

If the paint of the rear bumper is chipped or scratched, the system may mal-
function.  If  this  occurs,  avoid  using  the  system  and  consult  your  Toyota
dealer.

394

6-1. Maintenance and care

NOTICE

■

To prevent paint deterioration and corrosion on the body and compo-
nents (aluminum wheels, etc.)

●

Wash the vehicle immediately in the following cases:
• After driving near the sea coast
• After driving on salted roads
• If coal tar or tree sap is present on the paint surface
• If dead insects, insect droppings or bird droppings are present on the

paint surface

• After driving in an area contaminated with soot, oily smoke, mine dust,

iron powder or chemical substances

• If the vehicle becomes heavily soiled with dust or mud
• If liquids such as benzene and gasoline are spilled on the paint surface

●

If the paint is chipped or scratched, have it repaired immediately.

●

To prevent the wheels from corroding, remove any dirt and store in a place
with low humidity when storing the wheels.

■

Cleaning the exterior lights

●

Wash carefully. Do not use organic substances or scrub with a hard brush.
This may damage the surfaces of the lights.

●

Do not apply wax to the surfaces of the lights.
Wax may cause damage to the lenses.

■

When using a high pressure car wash

●

Do not bring the nozzle tip close to boots (rubber or resin manufactured
cover),  connectors  or  the  following  parts. The  parts  may  be  damaged  if
they come into contact with high-pressure water.
• Traction related parts
• Steering parts
• Suspension parts
• Brake parts

●

Keep the cleaning nozzle at least 11.9 in. (30 cm) away from the vehicle
body.  Otherwise  resin  section,  such  as  moldings  and  bumpers,  may  be
deformed and damaged. Also, do not continuously hold the nozzle in the
same place.

●

Do not spray the lower part of the windshield continuously.
If  water  enters  the air  conditioning system  intake located  near  the  lower
part  of  the  windshield,  the  air  conditioning  system  may  not  operate  cor-
rectly.

●

Do  not  wash  the  underside  of  the  vehicle  using  a  high-pressure  car
washer.

395

6-1. Maintenance and care

6

Mai
ntenan

ce and care

●

Remove dirt and dust using a vacuum cleaner. Wipe dirty surfaces
with a cloth dampened with lukewarm water.

●

If dirt cannot be removed, wipe it off with a soft cloth dampened with
neutral detergent diluted to approximately 1%.
Wring out any excess water from the cloth and thoroughly wipe off
remaining traces of detergent and water.

●

Remove dirt using a soft cloth or synthetic chamois dampened in a
baking soda (sodium bicarbonate) solution.

Use a solution of approximately 9% baking soda dissolved in water.

●

Wipe  the  surface  with  a  dry,  soft  cloth  to  remove  any  remaining
moisture.

●

Remove dirt and dust using a vacuum cleaner.

●

Wipe off any excess dirt and dust with a soft cloth dampened with
diluted detergent.

Use a diluted water solution of approximately 5% neutral wool detergent.

●

Wring out any excess water from the cloth and thoroughly wipe off
all remaining traces of detergent.

●

Wipe  the  surface  with  a  dry,  soft  cloth  to  remove  any  remaining
moisture. Allow the leather to dry in a shaded and ventilated area.

●

Remove dirt and dust using a vacuum cleaner.

●

Wipe it off with a soft cloth dampened with neutral detergent diluted
to approximately 1%.

●

Wring out any excess water from the cloth and thoroughly wipe off
remaining traces of detergent and water.

Cleaning and protecting the vehicle

interior

The following procedures will help protect your vehicle’s interior
and keep it in top condition:

Protecting the vehicle interior

Cleaning the areas with satin-finish metal accents

Cleaning the leather areas

Cleaning the synthetic leather areas

396

6-1. Maintenance and care

■

Caring for leather areas

Toyota recommends cleaning the interior of the vehicle at least twice a year to
maintain the quality of the vehicle's interior.

■

Shampooing the carpets

There are several commercial foaming-type cleaners available. Use a sponge
or  brush  to  apply  the  foam.  Rub  in  overlapping  circles.  Do  not  use  water.
Wipe dirty surfaces and let them dry. Excellent results are obtained by keep-
ing the carpet as dry as possible.

■

Seat belts

Clean  with  mild  soap  and  lukewarm  water  using  a  cloth  or  sponge.  Also
check the belts periodically for excessive wear, fraying or cuts.

WARNING

■

Water in the vehicle

●

Do  not  splash  or  spill  liquid  in  the  vehicle,  such  as  on  the  floor,  in  the
hybrid battery (traction battery) air vent, and in the trunk.
Doing so may cause the hybrid battery, electrical components, etc. to mal-
function or catch fire.

●

Do not get any of the SRS components or wiring in the vehicle interior wet.
(



P. 36)

An electrical malfunction may cause the airbags to deploy or not function
properly, resulting in death or serious injury.

●

Vehicles with wireless charger:
Do not let the wireless charger (



P. 373) get wet. Failure to do so may

cause the charger to become hot and cause burns or could cause electric
shock resulting in death or serious injury.

■

Cleaning the interior (especially instrument panel)

Do not use polish wax or polish cleaner. The instrument panel may reflect
off the windshield, obstructing the driver’s view and leading to an accident,
resulting in death or serious injury.

397

6-1. Maintenance and care

6

Mai
ntenan

ce and care

NOTICE

■

Cleaning detergents

●

Do not use the following types of detergent, as they may discolor the vehi-
cle interior or cause streaks or damage to painted surfaces:
• Areas  other  than  the  seats  and  steering  wheel:  Organic  substances

such  as  benzene  or  gasoline,  alkaline  or  acidic  solutions,  dye,  and
bleach

• Seats: Alkaline or acidic solutions, such as thinner, benzene, and alco-

hol

• Steering wheel: Organic substances, such as thinner, and cleaner that

contains alcohol

●

Do not use polish wax or polish cleaner. The instrument panel’s or other
interior part’s painted surface may be damaged.

■

Preventing damage to leather surfaces

Observe the following precautions to avoid damage to and deterioration of
leather surfaces:

●

Remove any dust or dirt from leather surfaces immediately.

●

Do not expose the vehicle to direct sunlight for extended periods of time.
Park the vehicle in the shade, especially during summer.

●

Do not place items made of vinyl, plastic, or containing wax on the uphol-
stery, as they may stick to the leather surface if the vehicle interior heats
up significantly.

■

Water on the floor

Do not wash the vehicle floor with water.
Vehicle systems such as the audio system may be damaged if water comes
into contact with electrical components such as the audio system above or
under the floor of the vehicle. Water may also cause the body to rust.

■

When cleaning the inside of the windshield

Do not allow glass cleaner to contact the lens. Also, do not touch the lens.
(



P. 249)

■

Cleaning the inside of the rear window

●

Do  not  use  glass  cleaner  to  clean  the  rear  window,  as  this  may  cause
damage to the rear window defogger heater wires or antenna. Use a cloth
dampened with lukewarm water to gently wipe the window clean. Wipe the
window in strokes running parallel to the heater wires or antenna.

●

Be careful not to scratch or damage the heater wires or antenna.
