Toyota Camry Hybrid (2020 year). Manual in english - part 2

78

1-3. Emergency assistance

■

Certification for Safety Connect

FCC ID: BEJTL19BNN
IC: 2703H-TL19BNN

79

1

For safet

y and s

ecurity

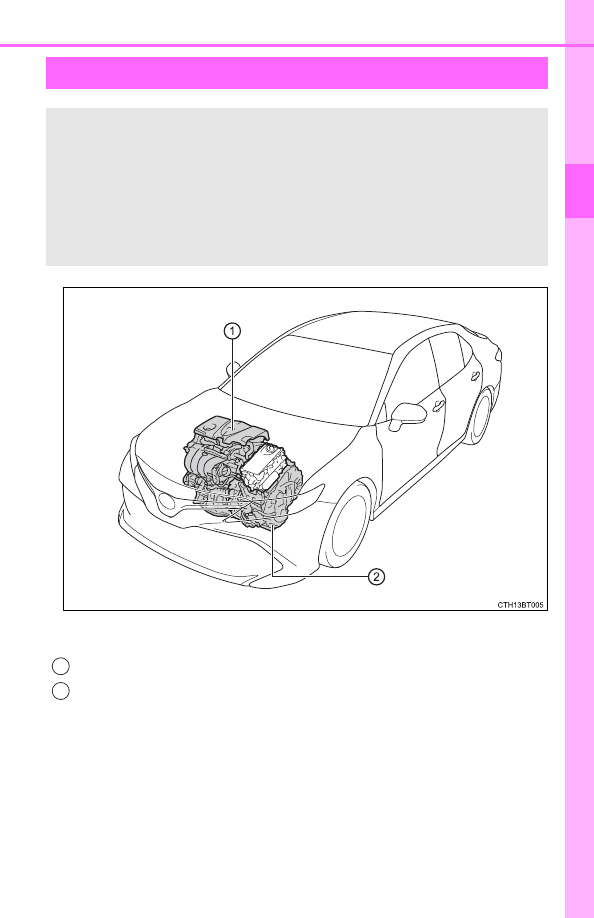

1-4. Hybrid system

The illustration is an example for explanation and may differ from the
actual item.

Gasoline engine
Electric motor (traction motor)

Hybrid system features

Your vehicle is a hybrid vehicle. It has characteristics different
from conventional vehicles. Be sure you are closely familiar with
the characteristics of your vehicle, and operate it with care.
The hybrid system combines the use of a gasoline engine and
an  electric  motor  (traction  motor)  according  to  driving  condi-
tions,  improving  fuel  efficiency  and  reducing  exhaust  emis-
sions.

1

2

80

1-4. Hybrid system

◆

When stopped/during start off

The  gasoline  engine  stops

*

  when  the  vehicle  is  stopped.  During

start  off,  the  electric  motor  (traction  motor)  drives  the  vehicle. At
slow speeds or when traveling down a gentle slope, the engine is
stopped

*

 and the electric motor (traction motor) is used.

When the shift lever is in N, the hybrid battery (traction battery) is
not being charged.

*

: When  the  hybrid  battery  (traction  battery)  requires  charging  or  the

engine  is  warming  up,  etc.,  the  gasoline  engine  will  not  automatically
stop. (



P. 81)

◆

During normal driving

The  gasoline  engine  is  predominantly  used.  The  electric  motor
(traction motor) charges the hybrid battery (traction battery) as nec-
essary.

◆

When accelerating sharply

When the accelerator pedal is depressed heavily, the power of the
hybrid  battery  (traction  battery)  is  added  to  that  of  the  gasoline
engine via the electric motor (traction motor).

◆

When braking (regenerative braking)

The wheels operate the electric motor (traction motor) as a power
generator, and the hybrid battery (traction battery) is charged.

When  driving  with  the  gasoline  engine  stopped,  a  sound,  which
changes in accordance with the driving speed, will be played in order
to warn people nearby of the vehicle’s approach. The sound will stop
when the vehicle speed exceeds approximately 22 mph (35 km/h).

Vehicle proximity notification system

81

1-4. Hybrid system

1

For safet

y and s

ecurity

■

Regenerative braking

In the following situations, kinetic energy is converted to electric energy and
deceleration force can be obtained in conjunction with the recharging of the
hybrid battery (traction battery).

●

The accelerator pedal is released while driving with the shift lever in D or S.

●

The brake pedal is depressed while driving with the shift lever in D or S.

■

EV indicator

■

Conditions in which the gasoline engine may not stop

The gasoline engine starts and stops automatically. However, it may not stop
automatically in the following conditions:

●

During gasoline engine warm-up

●

During hybrid battery (traction battery) charging

●

When the temperature of the hybrid battery (traction battery) is high or low

●

When the heater is switched on

■

Charging the hybrid battery (traction battery)

As the gasoline engine charges the hybrid battery (traction battery), the bat-
tery  does  not  need  to  be  charged  from  an  outside  source.  However,  if  the
vehicle is left parked for a long time the hybrid battery (traction battery) will
slowly discharge. For this reason, be sure to drive the vehicle at least once
every few months for at least 30 minutes or 10 miles (16 km). If the hybrid
battery (traction battery) becomes fully discharged and you are unable to start
the hybrid system, contact your Toyota dealer.

■

Charging the 12-volt battery



P. 510

■

After the 12-volt battery has discharged or when the terminal has been
removed and installed during exchange, etc.

The gasoline engine may not stop even if the vehicle is being driven by the
hybrid battery (traction battery). If this continues for a few days, contact your
Toyota dealer.

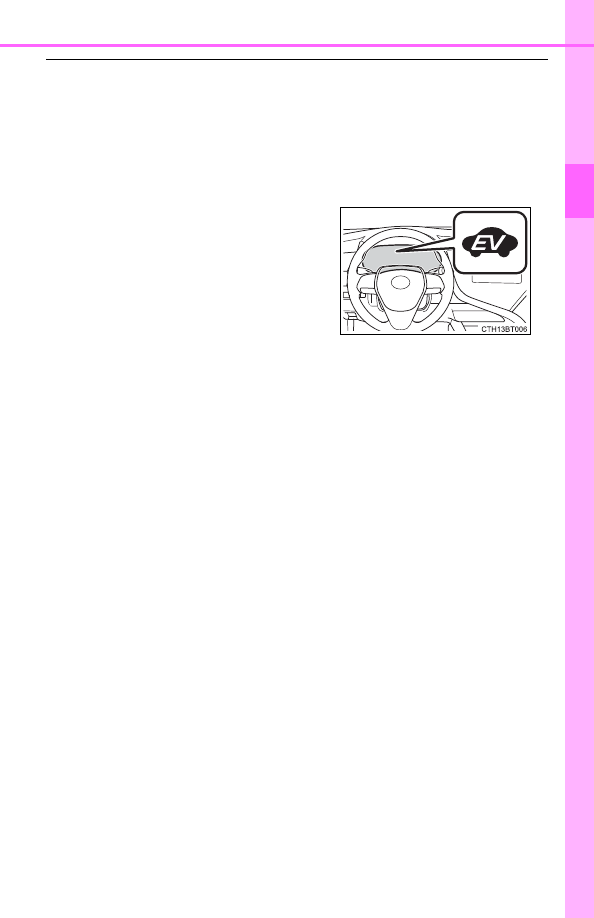

The  EV  indicator  comes  on  when  the
vehicle  is  driven  using  only  the  electric
motor  (traction  motor)  or  the  gasoline
engine is stopped.

82

1-4. Hybrid system

■

Sounds and vibrations specific to a hybrid vehicle

There may be no engine sound or vibration even though the vehicle is able to
move with the “READY” indicator is illuminated. For safety, apply the parking
brake and make sure to shift the shift lever to P when parked.
The  following  sounds  or  vibrations  may  occur  when  the  hybrid  system  is
operating and are not a malfunction:

●

Motor sounds may be heard from the engine compartment.

●

Sounds  may  be  heard  from  the  hybrid  battery  (traction  battery)  under  the
rear seats when the hybrid system starts or stops.

●

Relay operating sounds such as a snap or soft clank will be emitted from the
hybrid battery (traction battery), under the rear seats, when the hybrid sys-
tem is started or stopped.

●

Sounds from the hybrid system may be heard when the trunk lid is open.

●

Sounds  may  be  heard  from  the  transmission  when  the  gasoline  engine
starts or stops, when driving at low speeds, or during idling.

●

Engine sounds may be heard when accelerating sharply.

●

Sounds may be heard due to regenerative braking when the brake pedal is
depressed or as the accelerator pedal is released.

●

Vibration may be felt when the gasoline engine starts or stops.

●

Cooling fan sounds may be heard from the air intake vent. (



P. 84)

■

Vehicle proximity notification system

In the following cases, the vehicle proximity notification system may be diffi-
cult for surrounding people to hear.

●

In very noisy areas

●

In the wind or the rain

Also, as the vehicle proximity notification system is installed on the front of
the vehicle, it may be more difficult to hear from the rear of the vehicle com-
pared to the front.

■

Maintenance, repair, recycling, and disposal

Contact your Toyota dealer regarding maintenance, repair, recycling and dis-
posal. Do not dispose of the vehicle yourself.

■

Customization

Some functions can be customized. (



P. 547)

83

1-4. Hybrid system

1

For safet

y and s

ecurity

The illustration is an example for explanation and may differ from the
actual item.

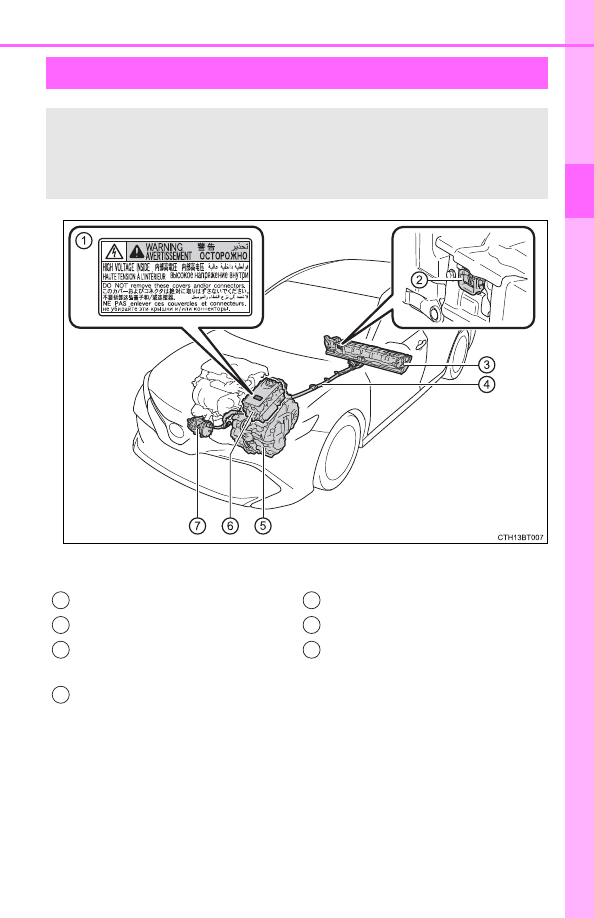

Hybrid system precautions

Take care when handling the hybrid system, as it is a high volt-
age system (about 650 V at maximum) as well as contains parts
that become extremely hot when the hybrid system is operating.
Obey the warning labels attached to the vehicle.

Warning label
Service plug
Hybrid  battery  (traction  bat-
tery)
High voltage cables (orange)

Electric motor (traction motor)
Power control unit
Air conditioning compressor

1

2

3

4

5

6

7

84

1-4. Hybrid system

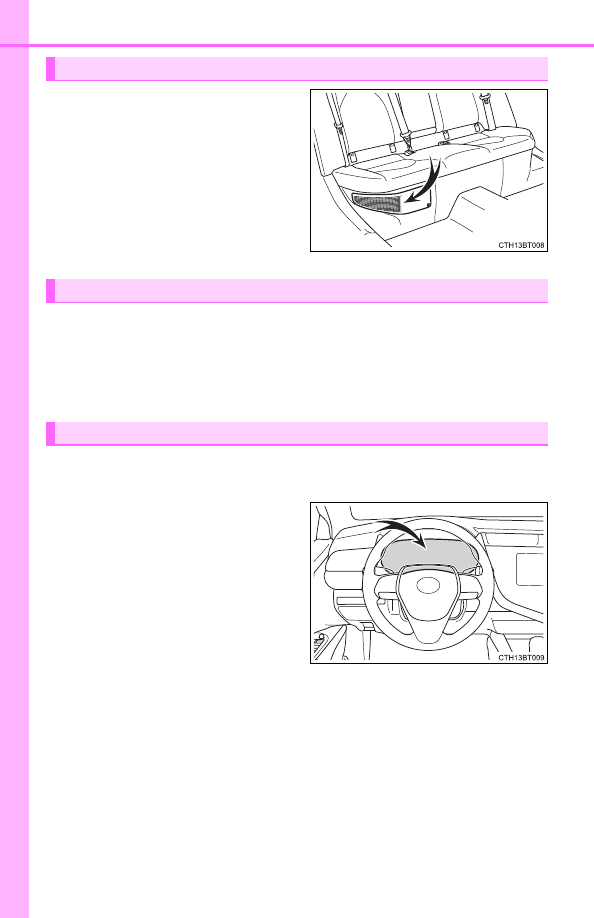

There  is  an  air  intake  vent  under
the  right  side  of  the  rear  seat  for
the  purpose  of  cooling  the  hybrid
battery  (traction  battery).  If  the
vent becomes blocked, the hybrid
battery  (traction  battery)  may
overheat, leading to a reduction in
the  hybrid  battery  (traction  bat-
tery) output.

When a certain level of impact is detected by the impact sensor, the
emergency shut off system blocks the high voltage current and stops
the fuel pump to minimize the risk of electrocution and fuel leakage. If
the emergency shut off system activates, your vehicle will not restart.
To restart the hybrid system, contact your Toyota dealer.

A  message  is  automatically  displayed  when  a  malfunction  occurs  in
the hybrid system or an improper operation is attempted.
If a warning message is shown on
the multi-information display, read
the  message  and  follow  the
instructions. (



P. 485)

Hybrid battery (traction battery) air intake vent

Emergency shut off system

Hybrid warning message

85

1-4. Hybrid system

1

For safet

y and s

ecurity

■

If a warning light comes on, a warning message is displayed, or the 12-
volt battery is disconnected

The hybrid system may not start. In this case, try to start the system again. If
the “READY” indicator does not come on, contact your Toyota dealer.

■

Running out of fuel

When the vehicle has run out of fuel and the hybrid system cannot be started,
refuel  the  vehicle  with  at  least  enough  gasoline  to  make  the  low  fuel  level
warning  light  (



P.  478)  go  off.  If  there  is  only  a  small  amount  of  fuel,  the

hybrid system may not be able to start. (The standard amount of fuel is about
2.3 gal. [8.8 L, 1.9 Imp. gal.] when the vehicle is on a level surface. This value
may vary when the vehicle is on a slope. Add extra fuel when the vehicle is
inclined.)

■

Electromagnetic waves

●

High  voltage  parts  and  cables  on  hybrid  vehicles  incorporate  electromag-
netic shielding, and therefore emit approximately the same amount of elec-
tromagnetic  waves  as  conventional  gasoline  powered  vehicles  or  home
electronic appliances.

●

Your  vehicle  may  cause  sound  interference  in  some  third  party-produced
radio parts.

■

Hybrid battery (traction battery)

The hybrid battery (traction battery) has a limited service life. The lifespan of
the  hybrid  battery  (traction  battery)  can  change  in  accordance  with  driving
style and driving conditions.

■

Starting  the  hybrid  system  in  an  extremely  cold  environment  (AXVH70
model

*

)

When the hybrid battery (traction battery) is extremely cold (below approxi-
mately -22°F [-30°C]) under the influence of the outside temperature, it may
not be possible to start the hybrid system. In this case, try to start the hybrid
system  again  after  the  temperature  of  the  hybrid  battery  (traction  battery)
increases due to the outside temperature increase etc.

*

: The model code is indicated on the Certification Label. (



P. 523)

86

1-4. Hybrid system

WARNING

■

High voltage precautions

This vehicle has high voltage DC and AC systems as well as a 12-volt sys-
tem.  DC  and AC  high  voltage  is  very  dangerous  and  can  cause  severe
burns and electric shock that may result in death or serious injury.

●

Never  touch,  disassemble,  remove  or  replace  the  high  voltage  parts,
cables or their connectors.

●

The hybrid system will become hot after starting as the system uses high
voltage. Be careful of both the high voltage and the high temperature, and
always obey the warning labels attached to the vehicle.

●

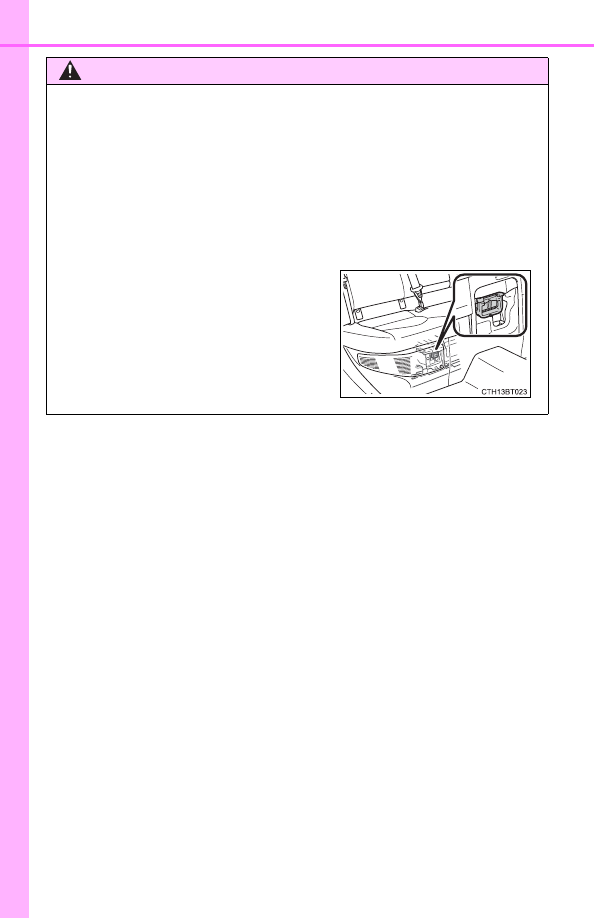

Do  not  touch  the  service  plug  located
under the right side of the rear seat. The
service plug is used only when the vehi-
cle  is  serviced  and  is  subject  to  high
voltage.

87

1-4. Hybrid system

1

For safet

y and s

ecurity

WARNING

■

Road accident cautions

Observe  the  following  precautions  to  reduce  the  risk  of  death  or  serious
injury:

●

Pull your vehicle off the road, apply the parking brake, shift the shift lever
to P, and turn the hybrid system off.

●

Do not touch the high voltage parts, cables and connectors.

●

If  electric  wires  are  exposed  inside  or  outside  your  vehicle,  an  electric
shock may occur. Never touch exposed electric wires.

●

If a fire occurs in the hybrid vehicle, leave the vehicle as soon as possible.
Never use a fire extinguisher that is not meant for electric fires. Using even
a small amount of water may be dangerous.

●

If  your  vehicle  needs  to  be  towed,  do  so  with  front  wheels  raised.  If  the
wheels connected to the electric motor (traction motor) are on the ground
when  towing,  the  motor  may  continue  to  generate  electricity.  This  may
cause a fire. (



P. 471)

●

Carefully inspect the ground under the vehicle. If you find that liquid has
leaked onto the ground, the fuel system may have been damaged. Leave
the vehicle as soon as possible.

●

If  electrolyte  is  leaking  from  the  hybrid  battery  (traction  battery),  do  not
approach the vehicle.
Even in the unlikely event that the hybrid battery (traction battery) is dam-
aged, the internal construction of the battery will prevent a large amount
of electrolyte from leaking out. However, any electrolyte that does leak out
will give off a vapor. This vapor is an irritant to skin and eyes and could
cause acute poisoning if inhaled.



AXVH70 model

*

●

Do not touch the hybrid battery (traction battery) if liquid is leaking from or
adhering to it. If electrolyte (carbonic-based organic electrolyte) from the
hybrid battery (traction battery) comes into contact with the eyes or skin, it
could cause blindness or skin wounds. In the unlikely event that it comes
into  contact  with  the  eyes  or  skin,  wash  it  off  immediately  with  a  large
amount of water, and seek immediate medical attention.

●

Do not bring burning or high-temperature items close to the electrolyte.
The electrolyte may ignite and cause a fire.

*

: The model code is indicated on the Certification Label. (



P. 523)



AXVH71 models

*

●

If  a fluid  leak occurs,  do  not touch  the fluid  as it  may be strong  alkaline
electrolyte from the hybrid battery (traction battery). If it comes into contact
with your skin or eyes, wash it off immediately with a large amount of water
or, if possible, boric acid solution. Seek immediate medical attention.

*

: The model code is indicated on the Certification Label. (



P. 523)

88

1-4. Hybrid system

WARNING

■

Hybrid battery (traction battery)

●

AXVH70 model

*

: Your vehicle contains a sealed lithium-ion battery.

●

Never resell, hand over or modify the hybrid battery. To prevent accidents,
hybrid batteries that have been removed from a disposed vehicle are col-
lected through Toyota dealer. Do not dispose of the battery yourself.
Unless the battery is properly collected, the following may occur, resulting
in death or serious injury:
• The hybrid battery may be illegally disposed of or dumped, and it is haz-

ardous to the environment or someone may touch a high voltage part,
resulting in an electric shock.

• The hybrid battery is intended to be used exclusively with your hybrid

vehicle. If the hybrid battery is used outside of your vehicle or modified
in any way, accidents such as electric shock, heat generation,  smoke
generation, an explosion and electrolyte leakage may occur.

When reselling or handing over your vehicle, the possibility of an accident
is  extremely  high  because  the  person  receiving  the  vehicle  may  not  be
aware of these dangers.

●

If  your  vehicle  is  disposed  of  without  the  hybrid  battery  having  been
removed, there is a danger of serious electric shock if high voltage parts,
cables  and  their  connectors  are  touched.  In  the  event  that  your  vehicle
must  be  disposed  of,  the  hybrid  battery  must  be  disposed  of  by  your
Toyota dealer or a qualified service shop. If the hybrid battery is not dis-
posed of properly, it may cause electric shock that can result in death or
serious injury.

*

: The model code is indicated on the Certification Label. (



P. 523)

89

1-4. Hybrid system

1

For safet

y and s

ecurity

NOTICE

■

Hybrid battery (traction battery) air intake vent

●

Make sure not to block the air intake vent with anything, such as a seat
cover, plastic cover, or luggage. The hybrid battery (traction battery) may
overheat and be damaged.

●

When dust etc. has accumulated in the air intake vent, clean it with a vac-
uum cleaner to prevent the vent from clogging.

●

Do  not  get  water  or  foreign  materials  in  the  air  intake  vent  as  this  may
cause a short circuit and damage the hybrid battery (traction battery).

●

Do  not carry large amounts of  water such  as water  cooler  bottles in  the
vehicle. If water spills onto the hybrid battery (traction battery), the battery
may be damaged. Have the vehicle inspected by your Toyota dealer.

●

There  is  a  filter  installed  to  the  air  intake  vent.  When  the  filter  remains
noticeably  dirty  even  after  cleaning  the  air  intake  vent,  filter  cleaning  or
replacement is recommended. When cleaning the filter, refer to P. 444.

90

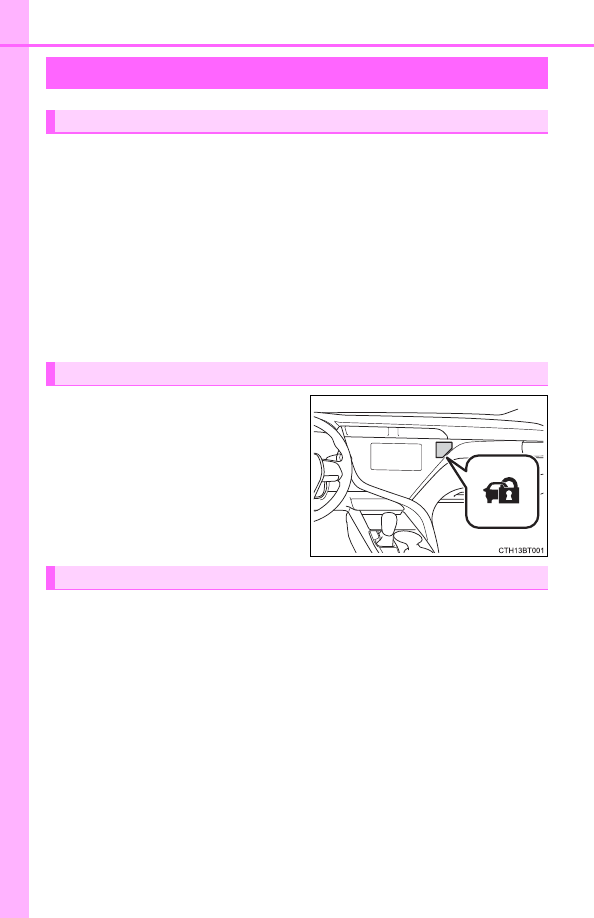

1-5. Theft deterrent system

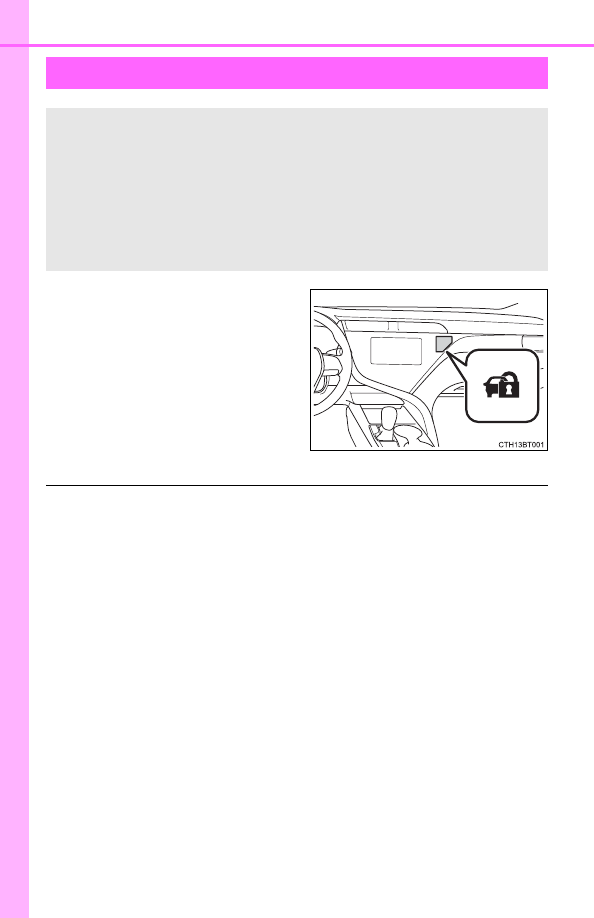

The  indicator  light  flashes  after
the power switch has been turned
off  to  indicate  that  the  system  is
operating.
The  indicator  light  stops  flashing
after  the  power  switch  has  been
turned  to  ACCESSORY  or  ON
mode  to  indicate  that  the  system
has been canceled.

■

System maintenance

The vehicle has a maintenance-free type immobilizer system.

■

Conditions that may cause the system to malfunction

●

If the grip portion of the key is in contact with a metallic object

●

If the key is in close proximity to or touching a key to the security system
(key with a built-in transponder chip) of another vehicle

Immobilizer system

The vehicle’s keys have built-in transponder chips that prevent
the hybrid system from starting if a key has not been previously
registered in the vehicle’s on-board computer.
Never leave the keys inside the vehicle when you leave the vehi-
cle.
This system is designed to help prevent vehicle theft but does
not guarantee absolute security against all vehicle thefts.

91

1-5. Theft deterrent system

1

For safet

y and s

ecurity

■

Certifications for the immobilizer system



For vehicles sold in the U.S.A.



For vehicles sold in Canada

NOTICE

■

To ensure the system operates correctly

Do  not  modify  or  remove  the  system.  If  modified  or  removed,  the  proper
operation of the system cannot be guaranteed.

92

1-5. Theft deterrent system

The alarm uses light and sound to give an alert when an intrusion is
detected.
The  alarm  is  triggered  in  the  following  situations  when  the  alarm  is
set:

●

A locked door is unlocked or opened in any way other than using
the entry function, wireless remote control or mechanical key.
(The doors will lock again automatically.)

●

The trunk is opened in any way other than using the entry function
or wireless remote control.

●

The hood is opened.

Close  the  doors,  trunk  and  hood,
and lock all the doors. The system
will  be  set  automatically  after  30
seconds.

The  indicator  light  changes  from
being on to flashing when the sys-
tem is set.

Do one of the following to deactivate or stop the alarm:

●

Unlock the doors.

●

Open the trunk using the entry function or wireless remote control.

●

Turn  the  power  switch  to ACCESSORY  or  ON  mode,  or  start  the
hybrid system. (The alarm will be deactivated or stopped after a few
seconds.)

Alarm

The alarm

Setting the alarm system

Deactivating or stopping the alarm

93

1-5. Theft deterrent system

1

For safet

y and s

ecurity

■

System maintenance

The vehicle has a maintenance-free type alarm system.

■

Items to check before locking the vehicle

To prevent unexpected triggering of the alarm and vehicle theft, make sure of
the following:

●

Nobody is in the vehicle.

●

The windows and moon roof are closed before the alarm is set.

●

No valuables or other personal items are left in the vehicle.

■

Triggering of the alarm

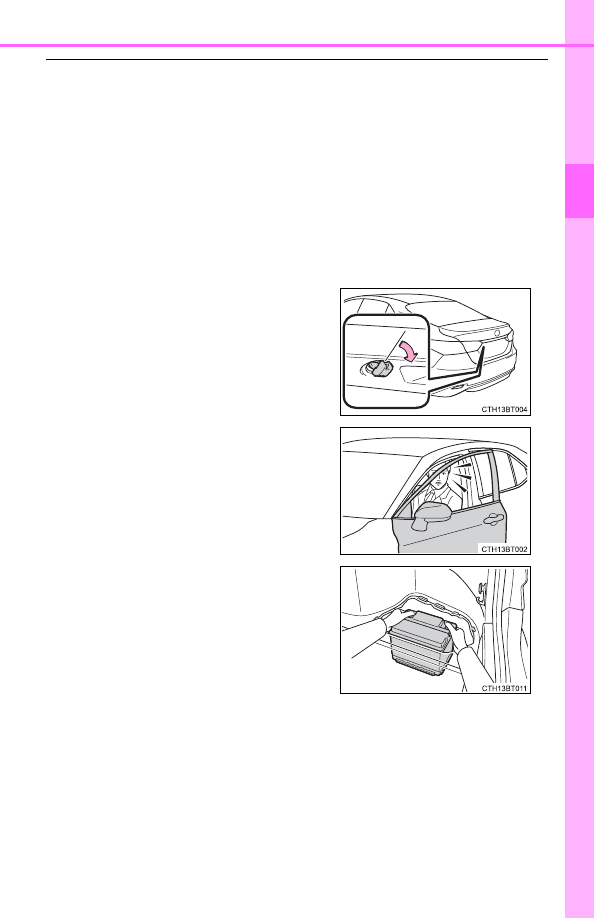

The alarm may be triggered in the following situations:
(Stopping the alarm deactivates the alarm system.)

■

Alarm-operated door lock

In the following cases, depending on the situation, the door may automatically
lock to prevent improper entry into the vehicle:

●

When a person remaining in the vehicle unlocks the door and the alarm is
activated.

●

While the alarm is activated, a person remaining in the vehicle unlocks the
door.

●

When recharging or replacing the 12-volt battery

●

The trunk is opened using the mechani-
cal key.

●

A person inside the vehicle opens a door
or the trunk or hood, or unlocks the vehi-
cle.

●

The  12-volt  battery  is  recharged  or
replaced  when  the  vehicle  is  locked.
(



P. 510)

94

1-5. Theft deterrent system

NOTICE

■

To ensure the system operates correctly

Do  not  modify  or  remove  the  system.  If  modified  or  removed,  the  proper
operation of the system cannot be guaranteed.

95

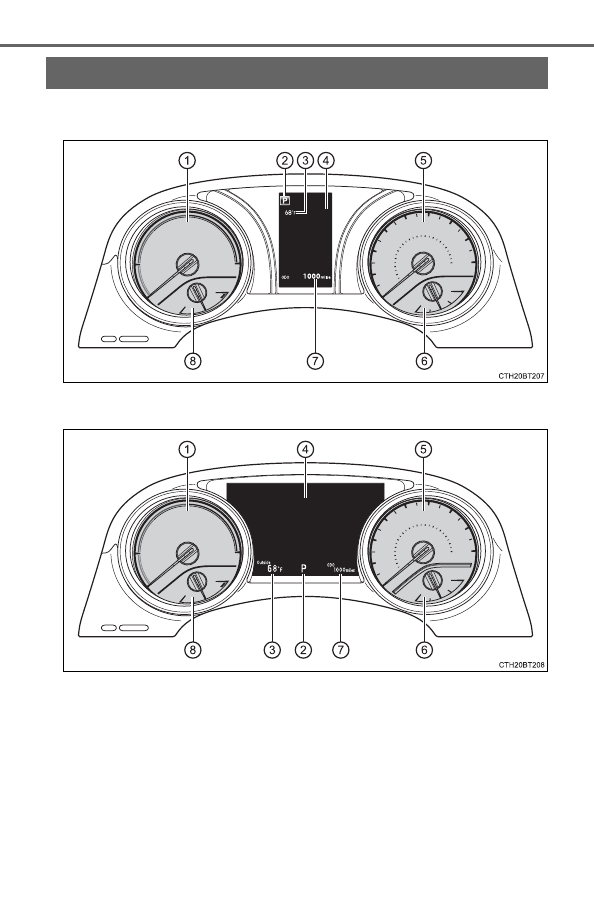

Instrument cluster

2

2.

Instrument cluster

Warning lights and

indicators .......................... 96

Gauges and meters .......... 102
Multi-information display

(4.2-inch display) ............ 106

Multi-information display

(7-inch display) ............... 118

Head-up display ................ 134
Energy monitor/

consumption screen........ 140

96

2. Instrument cluster



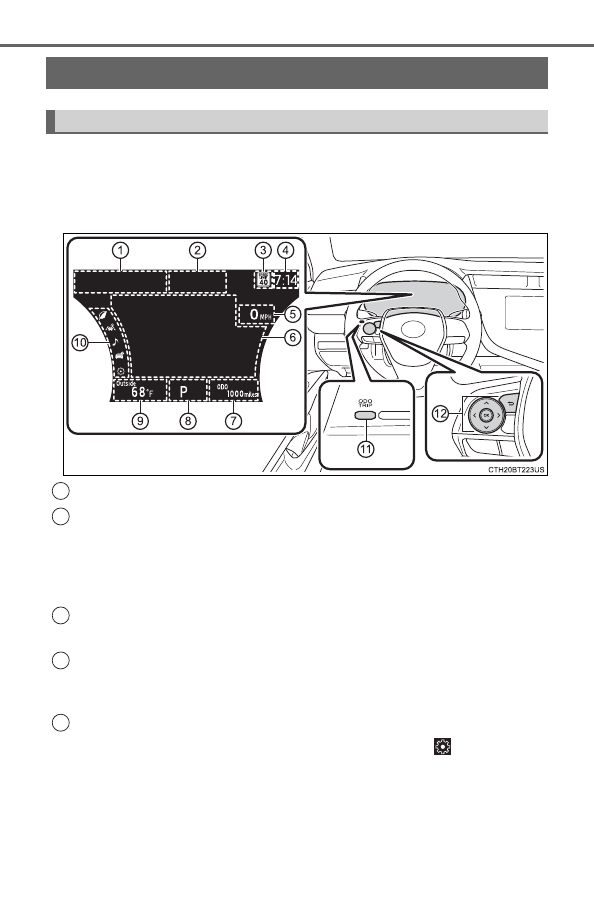

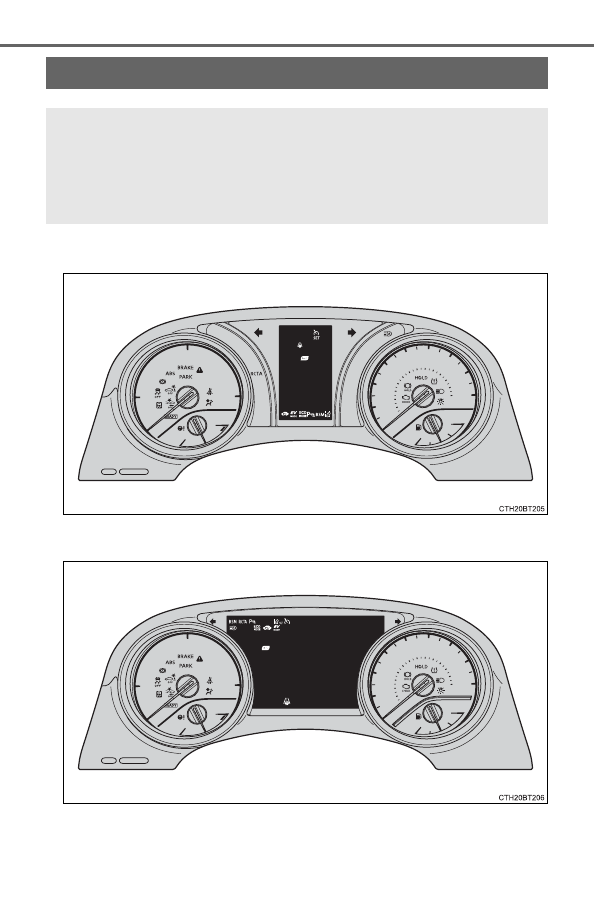

4.2-inch display



7-inch display

The units used on the meters and some indicators may differ depending on
the target region.

Warning lights and indicators

The warning lights and indicators on the instrument cluster, cen-
ter panel and outside rear view mirrors inform the driver of the
status of the vehicle’s various systems.
For  the  purpose  of  explanation,  the  following  illustrations  dis-
play all warning lights and indicators illuminated.

97

2. Instrument cluster

2

Instrument cluster

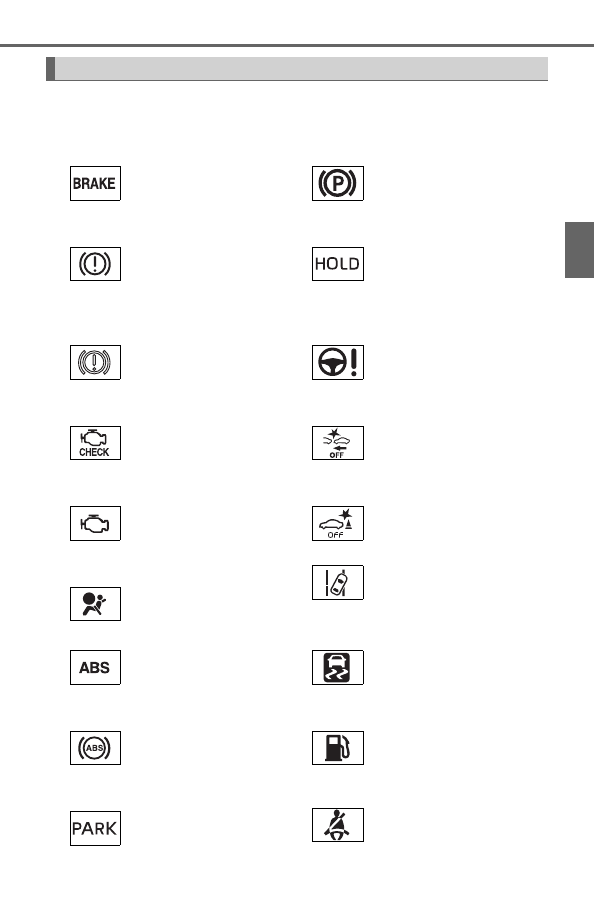

Warning lights inform the driver of malfunctions in any of the vehicle’s
systems.

Warning lights

*

1

(U.S.A.)

Brake system warning
light (



P. 475)

*

2

(Canada)

Parking brake indicator
(



P. 476)

*

1

(Canada)

(Red)

Brake system warning
light (



P. 475)

*

1, 2

Brake hold operated
indicator (



P. 476)

*

1

(Yellow)

Brake  system  warning
light (



P. 475)

*

1

(Red/yellow)

Electric power steering
system warning light
(



P. 476)

*

1

(U.S.A.)

Malfunction indicator
lamp (



P. 475)

*

1, 2

PCS warning light
(



P. 477)

*

1

(Canada)

Malfunction indicator
lamp (



P. 475)

*

1, 2

(if equipped)

ICS OFF indicator
(



P. 477)

*

1

SRS warning light
(



P. 475)

(Yellow)

LDA (Lane Departure
Alert) indicator
(



P. 476)

*

1

(U.S.A.)

ABS warning light
(



P. 476)

*

1

Slip indicator (



P. 477)

*

1

(Canada)

ABS warning light
(



P. 476)

Low fuel level warning
light (



P. 478)

*

2

(U.S.A.)

Parking brake indicator
(



P. 476)

Driver’s and front
passenger’s seat belt
reminder light
(



P. 478)

98

2. Instrument cluster

*

1

: These lights turn on when the power switch is turned to ON mode to indi-

cate  that  a  system  check  is  being  performed. They  will  turn  off  after  the
hybrid system is on, or after a few seconds. There may be a malfunction in
a  system  if  a  light  does  not  come  on,  or  turn  off.  Have  the  vehicle
inspected by your Toyota dealer.

*

2

: This light flashes to indicate a malfunction.

*

3

: This light illuminates on the center panel.

*

3

(Type A)

Rear passengers’ seat
belt reminder lights
(



P. 478)

*

1

Master warning light
(



P. 478)

*

3

(Type B)

Rear passengers’ seat
belt reminder lights
(



P. 478)

*

1

Tire pressure warning
light (



P. 478)

99

2. Instrument cluster

2

Instrument cluster

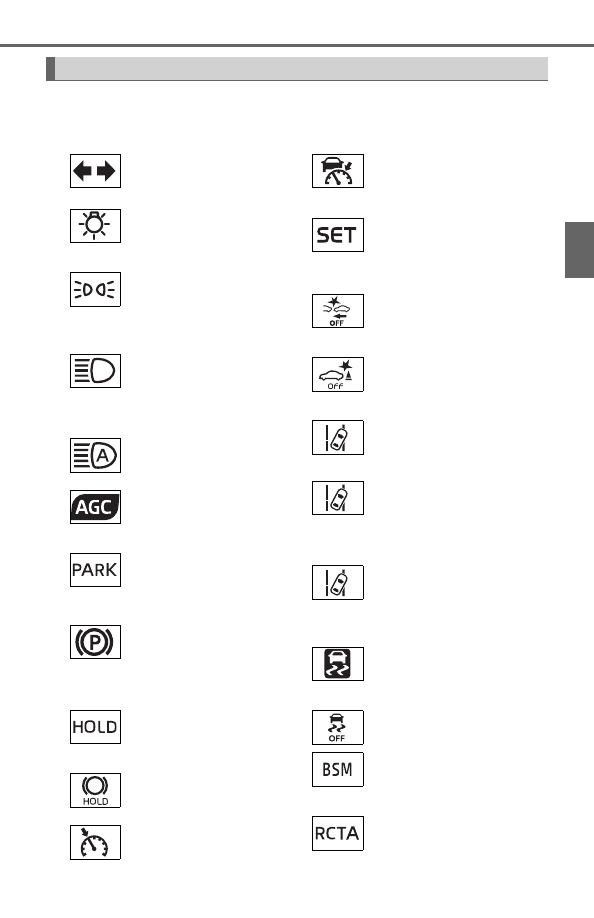

The indicators inform the driver of the operating state of the vehicle’s
various systems.

Indicators

Turn signal indicator
(



P. 224)

Dynamic  radar  cruise
control indicator
(



P. 274)

(U.S.A.)

Headlight indicator
(



P. 232)

Cruise control “SET”
indicator
(



P. 274)

(Canada)

Tail light indicator
(



P. 232)

*

1, 2

PCS warning light
(



P. 256)

Headlight high beam
indicator (



P. 232)

*

1, 2

(if equipped)

ICS OFF indicator
(



P. 320)

*

1

Automatic High Beam
indicator (



P. 235)

(White)

LDA (Lane Departure
Alert) indicator
(



P. 264)

AGC  (Auto  Glide  Con-
trol) indicator (



P. 339)

(Green)

LDA (Lane Departure
Alert) indicator
(



P. 264)

(U.S.A.)

Parking brake indicator
(



P. 225)

*

3

(Yellow)

LDA (Lane Departure
Alert) indicator
(



P. 264)

(Canada)

Parking brake indicator
(



P. 225)

*

1, 3

Slip indicator (



P. 289)

*

1

Brake hold operated
indicator (



P. 229)

*

1, 2

VSC OFF indicator
(



P. 290)

*

1

Brake hold standby
indicator (



P. 229)

(if equipped)

“BSM” indicator
(



P. 295)

Cruise control indicator
(



P. 274)

(if equipped)

“RCTA” indicator
(



P. 295)

100

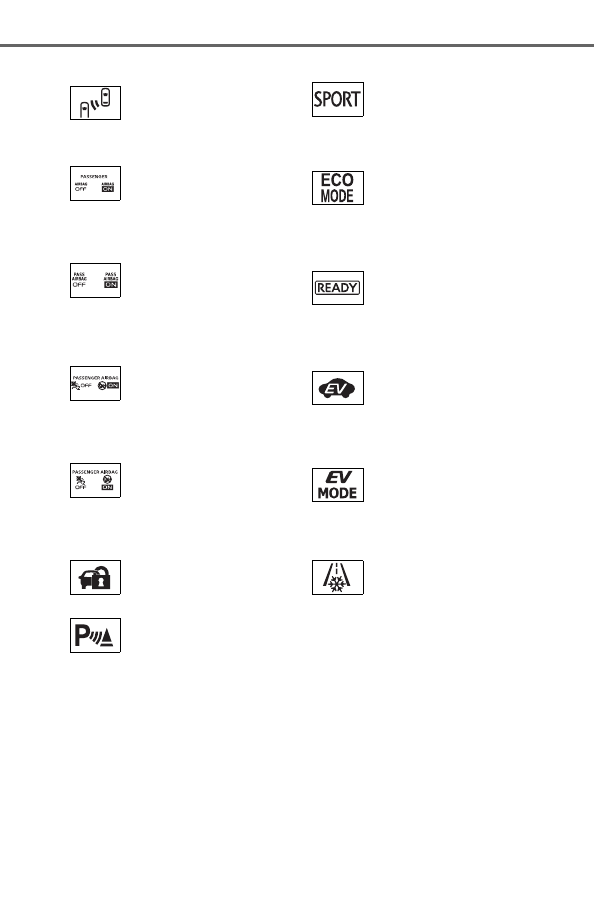

2. Instrument cluster

*

1

: These lights turn on when the power switch is turned to ON mode to indi-

cate  that  a  system  check  is  being  performed. They  will  turn  off  after  the
hybrid system is on, or after a few seconds. There may be a malfunction in
a  system  if  a  light  does  not  come  on,  or  turn  off.  Have  the  vehicle
inspected by your Toyota dealer.

*

2

: This light turns on when the system is off.

*

3

: This light flashes to indicate that the system is operating.

*

4, 5

(if equipped)

BSM  (Blind  Spot  Moni-
tor)  outside  rear  view
mirror indicators
(



P. 295)

“SPORT” indicator
(



P. 338)

*

1, 6

(Type A for

U.S.A.)

“AIRBAG ON/OFF”
indicator (



P. 47)

“ECO MODE” indicator
(



P. 338)

*

1, 6

(Type B for

U.S.A.)

“AIRBAG ON/OFF”
indicator (



P. 47)

“READY” indicator
(



P. 208)

*

1, 6

(Type A for

Canada)

“AIRBAG ON/OFF”
indicator (



P. 47)

EV indicator (



P. 81)

*

1, 6

(Type B for

Canada)

“AIRBAG ON/OFF”
indicator (



P. 47)

EV drive mode indicator
(



P. 215)

*

6

Security indicator
(



P. 90, 92)

*

7

Low  outside  tempera-
ture indicator (



P. 102)

(if equipped)

Intuitive  parking  assist
indicator (



P. 309)

101

2. Instrument cluster

2

Instrument cluster

*

4

: These  indicators  will  illuminate  in  the  following  situations  to  indicate  that

the system initial check is being performed:

• When  the  BSM  function  or  RCTA  function  is  enabled  and  the  power

switch is turned to ON mode.

• When the power switch is ON mode and the BSM function is enabled.
• When the power switch is ON mode and the RCTA function is enabled.

(At this time, a buzzer will also sound).
The indicators will turn off after a few seconds. If the indicators do not
illuminate or turn off, or if a buzzer does not sound when the RCTA func-
tion  is  enabled,  the  system  may  be  malfunctioning.  Have  the  vehicle
inspected by your Toyota dealer.

*

5

: This light illuminates on the outside rear view mirrors.

*

6

: This light illuminates on the center panel.

*

7

: When the outside temperature is approximately 37°F (3°C) or lower, this

indicator will flash for approximately 10 seconds, then stay on.

WARNING

■

If a safety system warning light does not come on

Should a safety system light such as the ABS and SRS warning lights not
come on when you start the hybrid system, this could mean that these sys-
tems are not available to help protect you in an accident, which could result
in death or serious injury. Have the vehicle inspected by your Toyota dealer
immediately if this occurs.

102

2. Instrument cluster



4.2-inch display



7-inch display

Gauges and meters

103

2. Instrument cluster

2

Instrument cluster

Hybrid System Indicator

Displays hybrid system output or regeneration level (



P. 104)

Shift position (



P. 218)

Outside temperature

Displays  the  outside  temperature  within  the  range  of  -40°F  (-40°C)  to
122°F  (50°C).  Low  outside  temperature  indicator  comes  on  when  the
ambient temperature is 37°F (3°C) or lower.

Multi-information display

Presents the driver with a variety of vehicle data (



P. 106, 118)

Displays warning messages in case of a malfunction (



P. 485)

Speedometer
Fuel gauge
Odometer and trip meter (



P. 115, 131)

Engine coolant temperature gauge

Displays the engine coolant temperature

The brightness of the instrument panel lights can be adjusted.

Darker
Brighter

• The brightness of the instrument

panel  lights  can  be  adjusted
individually  for  day  mode  and
night mode

*

.

• If  the  brightness  is  adjusted

when  the  surroundings  are
bright  and  the  tail  lights  are  on
(day  mode  brightness  adjust-
ment),  the  brightness  level  of
night  mode  will  be  adjusted  at
the same time.

*

: Day mode and night mode:



P. 104

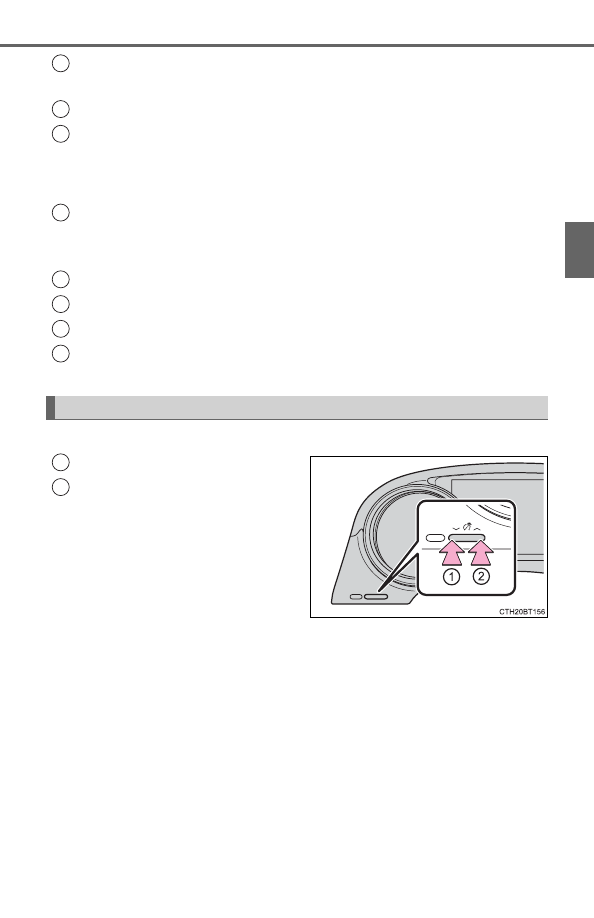

Instrument panel light control

1

2

3

4

5

6

7

8

1

2

104

2. Instrument cluster

■

The meters and display illuminate when

The power switch is in ON mode.

■

Brightness of the meters (day mode and night mode)

●

The  brightness  of  the  meters  is  changed  between  day  mode  and  night
mode.
• Day mode: When the tail lights are off or when the tail lights are on but

the surrounding area is bright

• Night mode: When the tail lights are on and the surrounding area is dark

●

When  in  night  mode,  the  brightness  will  be  reduced  slightly  unless  the
meters are set to the maximum brightness level.

■

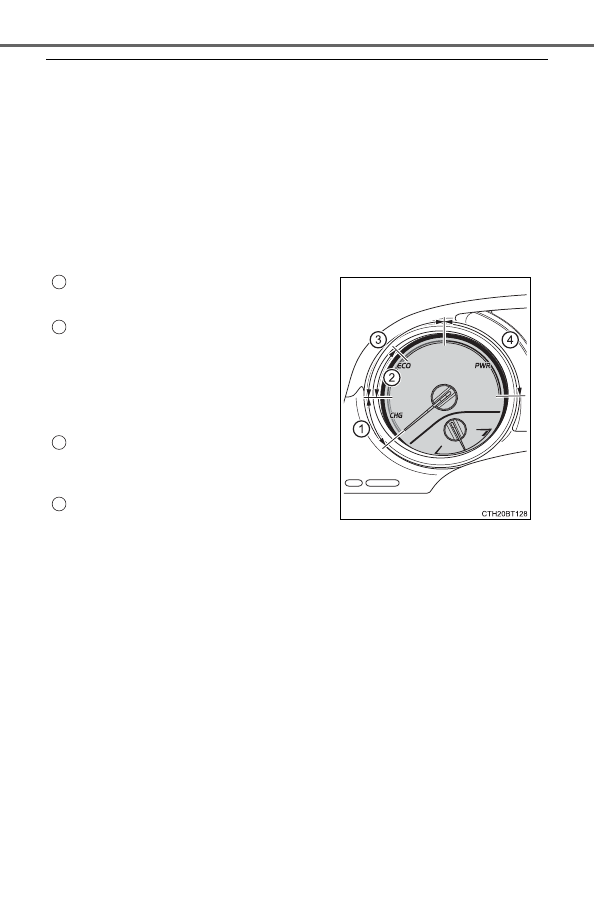

Hybrid System Indicator

●

By keeping the indicator needle within Eco area, more Eco-friendly driving
can be achieved.

●

Charge area  indicates  “regeneration”

*

 status.  Regenerated  energy  will  be

used to charge the battery.

*

: When  used  in  this  manual,  “regeneration”  refers  to  the  conversion  of

energy created by the movement of the vehicle into electrical energy.

The Hybrid System Indicator will not operate in the following situations:

●

The “READY” indicator is not illuminated.

●

The shift lever is in any position other than D.

Charge area
Shows regenerative charging.
Hybrid Eco area
Shows  that  gasoline  engine  power  is
not being used very often.
The  gasoline  engine  will  automatically
stop  and  restart  under  various  condi-
tions.
Eco area
Shows that the vehicle is being driven in
an Eco-friendly manner.
Power area
Shows  that  an  Eco-friendly  driving
range  is  being  exceeded  (during  full
power driving etc.)

1

2

3

4

105

2. Instrument cluster

2

Instrument cluster

■

Engine speed

On  hybrid  vehicles,  engine  speed  is  precisely  controlled  in  order  to  help
improve fuel efficiency and reduce exhaust emissions etc.
There  are  times  when  the  engine  speed  that  is  displayed  may  differ  even
when vehicle operation and driving conditions are the same.

■

Outside temperature display

In  the  following  situations,  the  correct  outside  temperature  may  not  be  dis-
played, or the display may take longer than normal to change:

●

When stopped, or driving at low speeds (less than 16 mph [25 km/h])

●

When the outside temperature has changed suddenly (at the entrance/exit
of a garage, tunnel, etc.)

●

When “



” or “E” is displayed, the system may be malfunctioning.

Take your vehicle to your Toyota dealer.

NOTICE

■

To prevent damage to the engine and its components

The engine may be overheating if the engine coolant temperature gauge is
in  the  red  zone  (H).  In  this  case,  immediately  stop  the  vehicle  in  a  safe
place, and check the engine after it has cooled completely. (



P. 514)

106

2. Instrument cluster

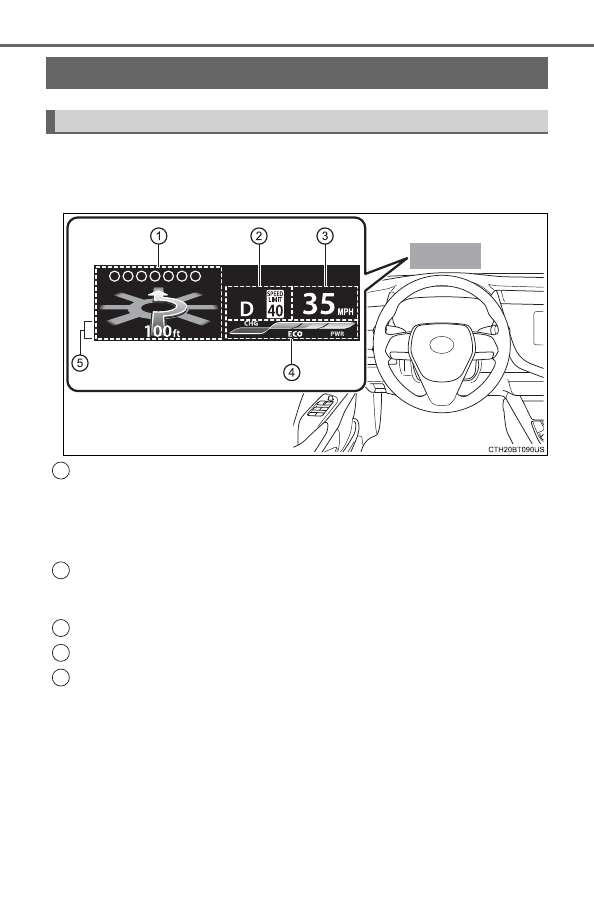

The multi-information display presents the driver with a variety of driv-
ing-related data, such as the current outside temperature. The multi-
information display  can  also  be  used  to  change  the  display  settings
and other settings.

Shift position (



P. 218)

Menu icon display area

Displays the following items.
When a menu icon is not selected, the outside temperature and clock are
displayed.

• Menu icons (



P. 108)

• Outside temperature (



P. 102)

• Clock

*

*

: For clock settings, refer to “NAVIGATION AND MULTIMEDIA SYSTEM

OWNER’S MANUAL”.

Content display area

A variety of information can be displayed by selecting a menu icon. Addi-
tionally, warning or suggestion/advice pop-up displays will be displayed in
some situations.

• Menu icon content (



P. 108)

• Suggestion function (



P. 115)

• Warning message (



P. 485)

Odometer/trip meter (



P. 115)

Indicators (



P. 96)

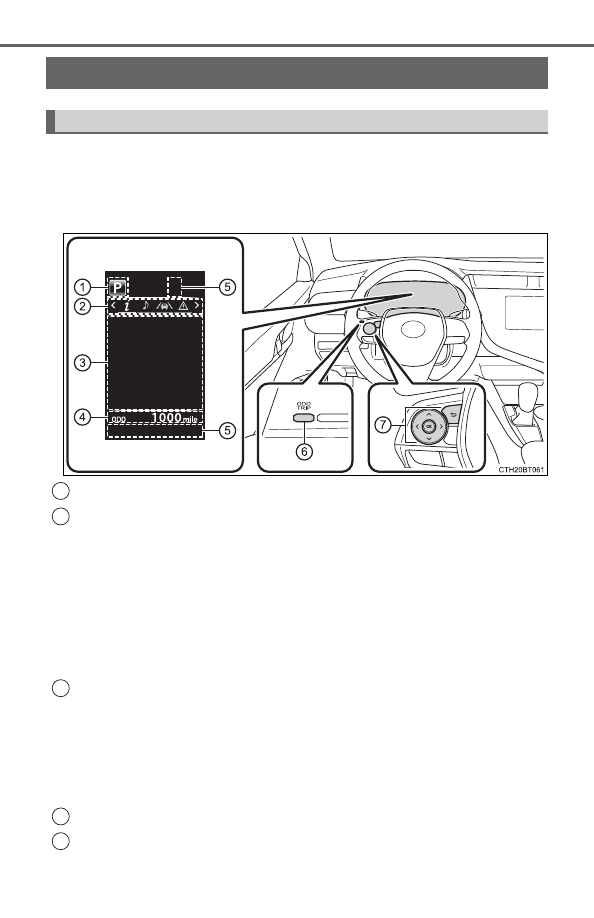

Multi-information display (4.2-inch display)

Summary of functions

1

2

3

4

5

107

2. Instrument cluster

2

Instrument cluster

“ODO/TRIP” switch (



P. 107)

Meter control switches (



P. 107)

◆

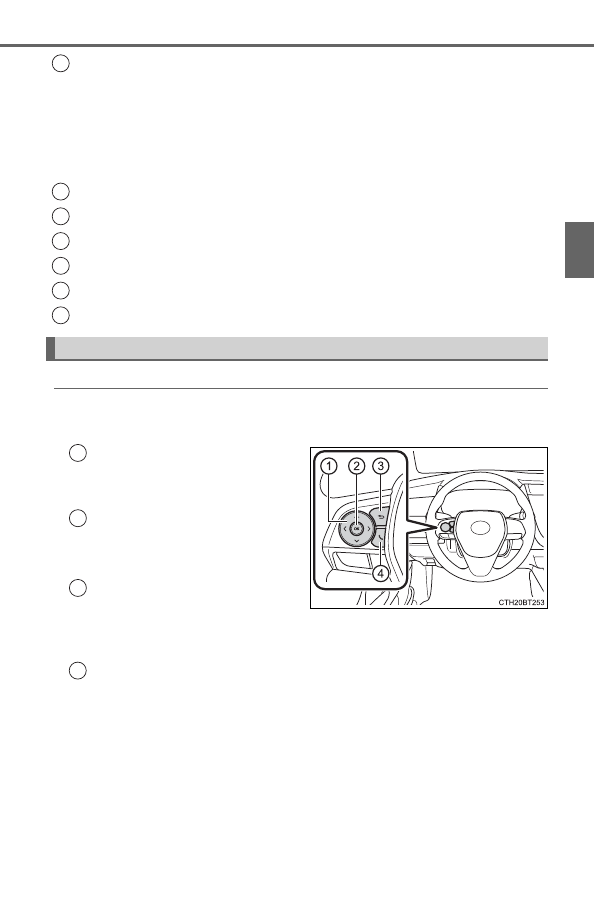

Using the content display area

The  content  display  area  is  operated  using  the  meter  control
switches.

Scroll  screens

*

,  change  the

displayed content

*

 and move

the cursor
Press: Enter/Set
Press and hold: Reset
Return  to  the  previous
screen

Pressing and holding the switch
will display the first screen of the
selected menu icon.

Call sending/receiving and history display

Linked  with  the  hands-free  system,  sending  or  receiving  call  is  dis-
played. For details regarding the hands-free system, refer to “NAVIGA-
TION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.

*

: When the screen can be scrolled or different content can be displayed,

a mark, such as an arrow, will be displayed to suggest which switch to
operate.

◆

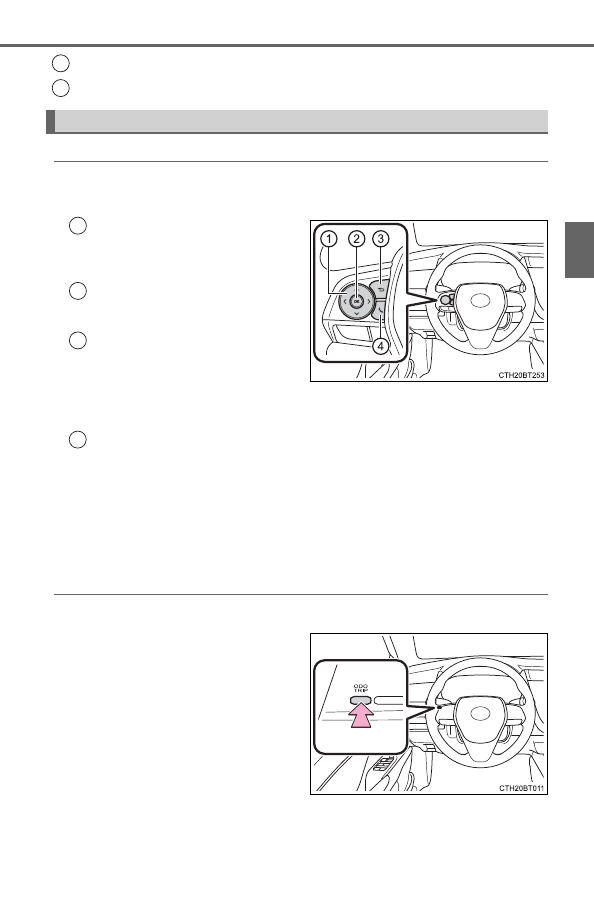

Using the odometer/trip meter

Items in this area are operated using the “ODO/TRIP” switch.
Press: Change displayed item

Each time the switch is pressed,
the  displayed  item  will  be
changed.

Press and hold: Reset

Display  the  desired  trip  meter
and press and hold the switch to
reset the trip meter.

Using the multi-information display

6

7

1

2

3

4

108

2. Instrument cluster

Select a menu icon to display its content.

Drive information (



P. 109)

Select to display various drive data.

Audio system-linked display

Select  to  enable  selection  of  an  audio  source  or  track  on  the  meter
using the meter control switches.

Driving assist system information

Select to display the operational status of the following systems:

• Dynamic radar cruise control with full-speed range (



P. 274)

• LDA (Lane Departure Alert with steering control) (



P. 264)

Warning message display (



P. 485)

Select to display warning messages and measures to be taken if a mal-
function is detected.

Settings display (



P. 111)

Select to change the meter display settings and other settings.

Menu icons

109

2. Instrument cluster

2

Instrument cluster

■

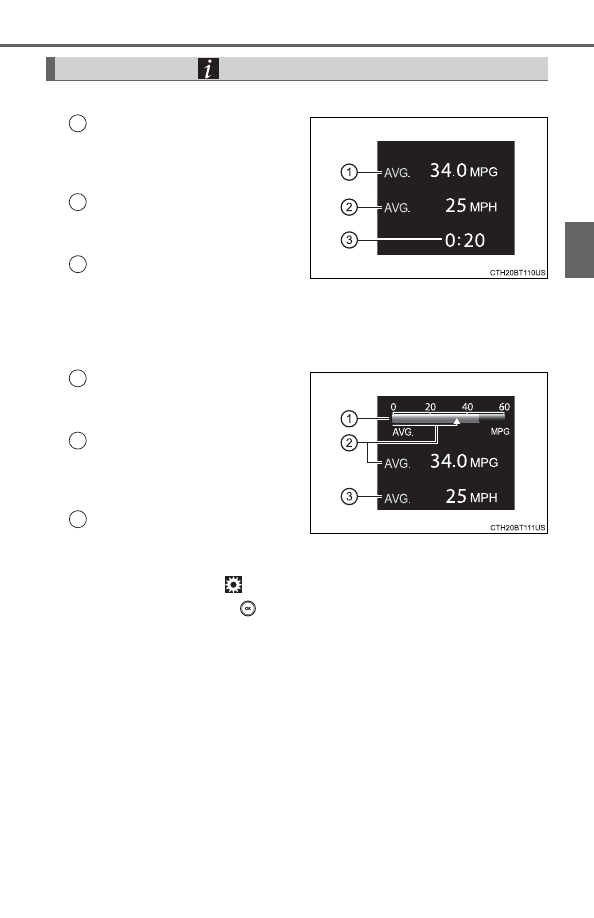

Trip (after start)

Average fuel economy

*

Displays  the  average  fuel  con-
sumption  since  hybrid  system
start.

Average vehicle speed

Displays  the  average  vehicle
speed since hybrid system start.

Elapsed time

Displays the time elapsed since
hybrid system start.

*

: Use the displayed fuel consumption as a reference only.

■

Total (after reset)

Current fuel consumption

Displays  the  instantaneous  cur-
rent fuel consumption.

Average fuel economy

*

1, 2

Displays  the  average  fuel  con-
sumption  since  the  display  was
reset.

Average

vehicle

speed/

Elapsed time

*

1

Displays the average vehicle speed  since reset or elapsed time  since
reset, as selected in

. (



P. 111)

*

1

: Pressing and holding

 will reset the average fuel consumption and

average vehicle speed/elapsed time.

*

2

: Use the displayed fuel consumption as a reference only.

Drive information (

)

1

2

3

1

2

3

110

2. Instrument cluster

■

Tank (after refuel)

Driving range

*

1, 2

Displays  the  driving  range  with
remaining fuel.

Average fuel economy

*

1, 3

Displays  the  average  fuel  con-
sumption  since  the  vehicle  was
refueled.

*

1

: When only a small amount of fuel is added to the tank, the display may

not be updated.
When refueling, turn the power switch off. If the vehicle is refueled with-
out turning the power switch off, the display may not be updated.

*

2

: This distance is computed based on your average fuel consumption. As

a result, the actual distance that can be driven may differ from that dis-
played.

*

3

: Use the displayed fuel consumption as a reference only.

■

Energy monitor



P. 140

■

Speedometer

Displays the vehicle speed.

■

Tire  pressure  (vehicles  with  a  tire  inflation  pressure  display
function)



P. 423

■

Blank (No items)

Displays no drive information contents.

1

2

111

2. Instrument cluster

2

Instrument cluster

◆

Changing settings

Use  the  meter  control  switches  on  the  steering  wheel  to  change
settings.

Press

 or

 to select

.

Operate the switches to select a desired item.
Change the setting by referring to the message displayed on the
screen.

◆

Setting items

■

 LDA (Lane Departure Alert with steering control) (



P. 264)

The following LDA system settings can be changed:

Settings display (

)

1

2

3

Item

Settings

Details

Steering assist

On

Select to enable/disable steering
wheel assistance.

Off

Alert sensitivity

High

Select  to  set  the  warning  sensi-
tivity.

Normal

Sway warning

On

Select to enable/disable the vehi-
cle sway warning.

Off

Sway sensitivity

High

Select  to  set  the  vehicle  sway
warning sensitivity.

Medium

Low

112

2. Instrument cluster

■

 PCS (Pre-Collision System) (



P. 253)

The following pre-collision system settings can be changed:

■

 BSM (Blind Spot Monitor) function (if equipped) (



P. 295)

■

RCTA (Rear Cross Traffic Alert) function (if equipped)
(



P. 295)

Item

Settings

Details

PCS

On

Select to enable/disable the pre-
collision system.

Off

Warning sensitivity

Select  to  change  the  warning
timing.

Item

Settings

Details

BSM

On

Select  to  enable/disable  the
Blind Spot Monitor function.

Off

Item

Settings

Details

RCTA

On

Select to enable/disable the Rear
Cross Traffic Alert function.

Off

113

2. Instrument cluster

2

Instrument cluster

■

Vehicle settings

Item

Settings

Details

 BSM (Blind Spot Monitor) (if equipped) (



P. 295)

Outside  rear  view
mirror

indicator

brightness

Bright

Select  to  change  the  brightness
of  the  outside  rear  view  mirror
indicators.

Dim

RCTA (Rear Cross Traffic Alert) (if equipped) (



P. 295)

RCTA  buzzer  vol-
ume

1 (Low)

Select  to  change  the  volume  of
the RCTA buzzer.

2 (Medium)

3 (Loud)

TPWS (Tire pressure warning system) (



P. 423)

Set pressure (tire pressure warning sys-
tem initialization)

Select  to  initialize  the  tire  pres-
sure  warning  system.  To  per-
form initialization, press and hold
the

 switch.

Before  performing  initialization,
make sure to adjust the inflation
pressure of each tire to the spec-
ified level. (



P. 424)

Change  wheel  (change  the  tire  pres-
sure  warning  system  sensor  ID  code
set)
(vehicles  without  a  tire  inflation  pres-
sure display function)

Select  to  change  the  tire  pres-
sure  warning  system  sensor  ID
code set.
To enable this function, a second
set of tire pressure warning sys-
tem  sensor  ID  codes  must  be
registered  by  a  Toyota  dealer.
For information regarding chang-
ing  the  registered  ID  code  set,
contact your Toyota dealer.
(



P. 426)

Change  wheel  (register  tire  pressure
warning system sensor ID codes)
(vehicles  with  a  tire  inflation  pressure
display function)

Select to register the ID codes of
the  tire  pressure  sensors  to  the
tire pressure warning system. To
register the ID codes, press and
hold the

 switch.

(



P. 426)

114

2. Instrument cluster

■

Meter settings

Scheduled maintenance display

Maintenance data reset

Select to reset the message indi-
cating  maintenance  is  required,
after the required maintenance is
performed. (



P. 399)

Item

Settings

Details

Item

Settings

Details

Language

Select  to  change  the  language
displayed.

Units

Select  to  change  the  units  of
measure displayed.

 (EV indicator)

On

Select  to  enable/disable  the  EV
indicator. (



P. 81)

Off

Drive  information
(total [after reset])

Average  vehicle
speed

Select  to  change  the  display
between average speed/elapsed
time.

Elapsed time

Pop-up display

Incoming calls

Select to enable/disable the pop-
up display.

Brightness adjust-
ment

Default setting

Select to reset the meter display
settings to the default setting.

115

2. Instrument cluster

2

Instrument cluster

■

Odometer

Displays the total distance the vehicle has been driven.

■

Trip meter A/trip meter B

Displays the distance the vehicle has been driven since the meter
was last reset. Trip meters A and B can be used to record and dis-
play different distances independently.

To reset, display the desired trip meter and press and hold the “ODO/
TRIP” switch.

Displays suggestions to the driver in the following situations. To select
a response to a displayed suggestion, use the meter control switches.

The suggestion function can be turned on/off.
(Customizable features:



P. 547)

■

Suggestion to turn off the headlights

If  the  headlights  are  left  on  for  a  certain  amount  of  time  after  the
power switch has been turned off, if the headlight switch is in the
“AUTO” position, a suggestion message will be displayed asking if
you wish to turn the headlights off. To turn the headlights off, select
“Yes”.

If a front door is opened after the power switch is turned off, this sugges-
tion message will not be displayed.

Odometer/trip meter

Suggestion function

116

2. Instrument cluster

■

Suspension of the settings display

●

Some  settings  cannot  be  changed  while  driving.  When  changing  settings,
park the vehicle in a safe place.

●

If a warning message is displayed, operation of the settings display will be
suspended.

■

Tire pressure (vehicles with a tire inflation pressure display function)

●

It  may  take  a  few  minutes  to  display  the  tire  inflation  pressure  after  the
power switch is turned to ON mode. It may also take a few minutes to dis-
play the tire inflation pressure after inflation pressure has been adjusted.

●

“---” may be displayed if the tire position information cannot be determined
due to unfavorable radio wave conditions.

●

Tire inflation pressure changes with temperature. The displayed values may
also be different from the values measured using a tire pressure gauge.

■

Liquid crystal display

Small  spots  or  light  spots  may  appear  on  the  display. This  phenomenon  is
characteristic of liquid crystal displays, and there is no problem continuing to
use the display.

■

Customization

Some functions can be customized. (



P. 111, 547)

117

2. Instrument cluster

2

Instrument cluster

WARNING

■

Caution for use while driving

●

When  operating  the  multi-information  display  while  driving,  pay  extra
attention to the safety of the area around the vehicle.

●

Do not look continuously at the multi-information display while driving as
you  may  fail  to  see  pedestrians,  objects  on  the  road,  etc.  ahead  of  the
vehicle.

■

The information display at low temperatures

Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information display
monitor may respond slowly, and display changes may be delayed.
For example, there is a lag between the driver’s shifting and the new gear
number appearing on the display. This lag could cause the driver to down-
shift  again,  causing  rapid  and  excessive  engine  braking  and  possibly  an
accident resulting in death or injury.

■

Cautions during setting up the display

As the hybrid system needs to be operating during setting up the display,
ensure that the vehicle is parked in a place with adequate ventilation. In a
closed  area  such  as  a  garage,  exhaust  gases  including  harmful  carbon
monoxide (CO) may collect and enter the vehicle. This may lead to death or
a serious health hazard.

NOTICE

■

While setting up the display

To prevent 12-volt battery discharge, ensure that the hybrid system is oper-
ating while setting up the display features.

118

2. Instrument cluster

The multi-information display presents the driver with a variety of driv-
ing-related data, such as the current outside temperature. The multi-
information display  can  also  be  used  to  change  the  display  settings
and other settings.

Indicators (



P. 96)

Dynamic  radar  cruise  control  with  full-speed  range/LDA  (Lane
Departure Alert with steering control) display area

Displays the operational status of the following systems:

• Dynamic radar cruise control with full-speed range (



P. 274)

• LDA (Lane Departure Alert with steering control) (



P. 264)

Speed limit display (vehicles with a navigation system)
(U.S.A. only)
Clock

For  clock  settings,  refer  to  “NAVIGATION  AND  MULTIMEDIA  SYSTEM
OWNER’S MANUAL”.

Speedometer

The  speedometer  display  can  be  enabled/disabled  in

  on  the  multi-

information display. (



P. 125)

Multi-information display (7-inch display)

Summary of functions

1

2

3

4

5

119

2. Instrument cluster

2

Instrument cluster

Content display area

A variety of information can be displayed by selecting a menu icon. Addi-
tionally, warning or suggestion/advice pop-up displays will be displayed in
some situations.

• Menu icon content (



P. 120)

• Suggestion function (



P. 131)

• Warning message (



P. 485)

Odometer/trip meter (



P. 131)

Shift position (



P. 218)

Outside temperature (



P. 102)

Menu icons (



P. 120)

“ODO/TRIP” switch (



P. 120)

Meter control switches (



P. 119)

◆

Using the content display area

The  content  display  area  is  operated  using  the  meter  control
switches.

Scroll  screens

*

,  change  the

displayed content

*

 and move

the cursor
Press: Enter/Set
Press  and  hold:  Reset/Dis-
play the next screen
Return  to  the  previous
screen

Pressing  and  holding  the  switch  will  display  the  first  screen  of  the
selected menu icon.

Call sending/receiving and history display

Linked  with  the  hands-free  system,  sending  or  receiving  call  is  dis-
played. For details regarding the hands-free system, refer to “NAVIGA-
TION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.

*

: When the screen can be scrolled or different content can be displayed,

a mark, such as an arrow, will be displayed to suggest which switch to
operate.

Using the multi-information display

6

7

8

9

10

11

12

1

2

3

4

120

2. Instrument cluster

◆

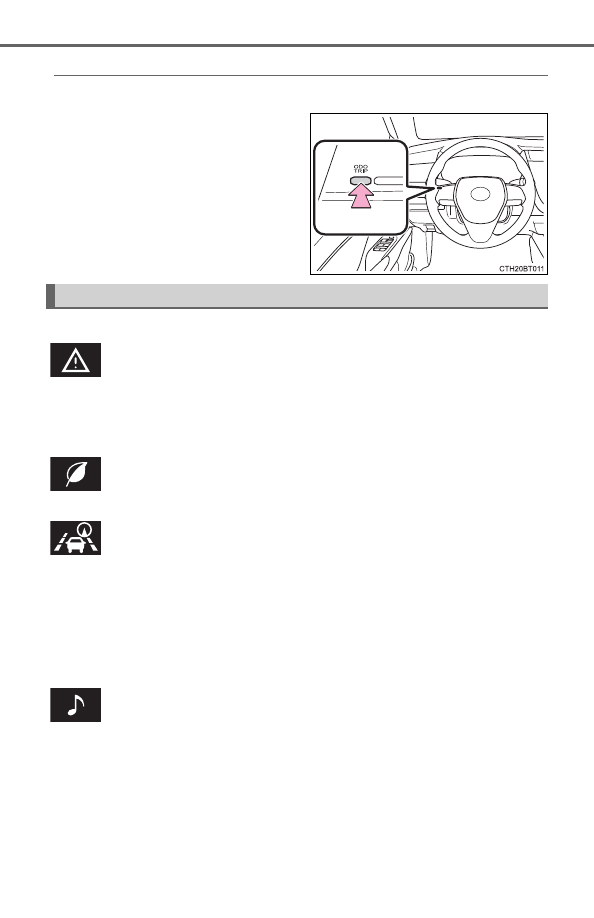

Using the odometer/trip meter

Items in this area are operated using the “ODO/TRIP” switch.
Press: Change displayed item

Each time the switch is pressed,
the  displayed  item  will  be
changed.

Press and hold: Reset

Display  the  desired  trip  meter
and press and hold the switch to
reset the trip meter.

Select a menu icon to display its content.

Warning message display (



P. 485)

This menu icon will be displayed only when a warning message can be
displayed.
Select to display warning messages and measures to be taken if a mal-
function is detected.

Eco-friendly driving information (



P. 121)

Select to display fuel consumption data in various forms.

Driving assist system information

Select to perform the following:
Display the operational status of the following systems:

• Dynamic radar cruise control with full-speed range (



P. 274)

• LDA (Lane Departure Alert with steering control) (



P. 264)

Display the following navigation system-linked information (if equipped):

• Route guidance
• Compass display (heading-up display)

Audio system-linked display

Select  to  enable  selection  of  an  audio  source  or  track  on  the  meter
using the meter control switches.

Menu icons

121

2. Instrument cluster

2

Instrument cluster

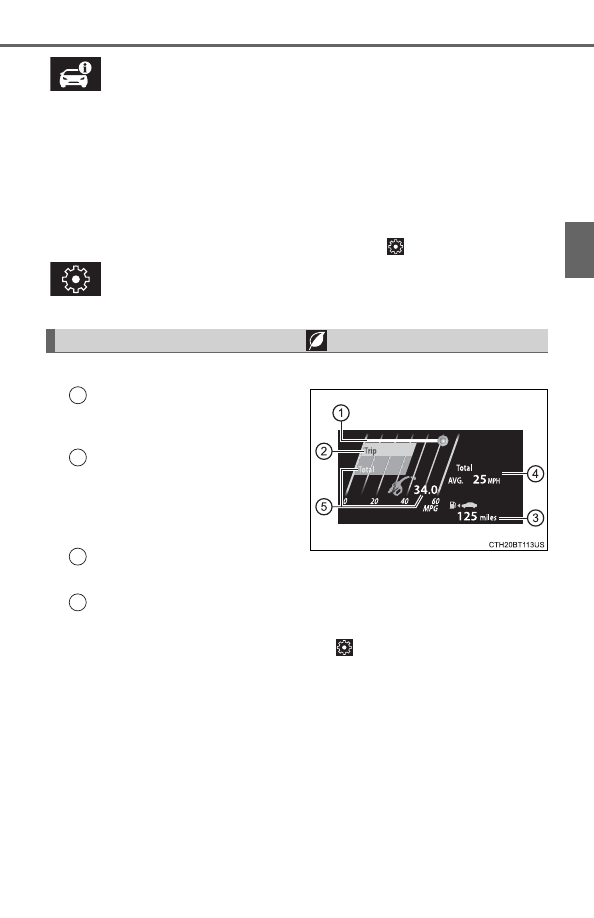

Vehicle information

Select to perform the following:
Display the following information:

• Energy monitor (



P. 140)

• Tire inflation pressure (



P. 423)

Enable/Disable the following systems:

• Intuitive parking assist (if equipped) (



P. 309)

• BSM (Blind Spot Monitor) function (if equipped) (



P. 295)

• RCTA (Rear Cross Traffic Alert) function (if equipped) (



P. 295)

This function can also be enabled/disabled on

.

Settings display (



P. 125)

Select to change the meter display settings and other settings.

■

Fuel consumption

Current fuel consumption

Displays  the  instantaneous  cur-
rent fuel consumption.

Average  fuel  economy  (after
start)

Displays  the  average  fuel  con-
sumption  since  hybrid  system
start.

*

1

Driving range

Displays the driving range with remaining fuel.

*

2, 3

Gadget

*

4

The following items can be displayed by changing the settings for gad-
get content and fuel economy type on

. (



P. 125)

Eco-friendly driving information (

)

1

2

3

4

122

2. Instrument cluster

Average fuel economy

Displayed item (listed below) can be changed on the fuel economy type
screen of

. (



P. 125)

●

Total (after reset)

Displays the average fuel consumption since the display was reset.

*

1, 5

●

Tank (after refuel)

Displays  the  average  fuel  consumption  since  the  vehicle  was  refu-
eled.

*

1, 2

*

1

: Use the displayed fuel consumption as a reference only.

*

2

: When only a small amount of fuel is added to the tank, the display may

not be updated.
When refueling, turn the power switch off. If the vehicle is refueled with-
out turning the power switch off, the display may not be updated.

*

3

: This distance is computed based on your average fuel consumption. As

a result, the actual distance that can be driven may differ from that dis-
played.

*

4

: The default setting is no display.

*

5

: This display can be reset by pressing and holding

 while it is dis-

played.

Displayable item

Content

Gadget
content

Fuel economy

type

Average
vehicle
speed

Trip
(after start)

Displays  the  average  vehicle  speed  since
hybrid system start.

Total
(after reset)

Displays the average vehicle speed since the
display was reset.

*

5

Distance

Trip
(after start)

Displays  the  distance  driven  since  vehicle
start.

Total
(after reset)

Displays the distance driven since the display
was reset.

*

5

Elapsed
time

Trip
(after start)

Displays the elapsed time since hybrid system
start.

Total
(after reset)

Displays  the  elapsed  time  since  the  display
was reset.

*

5

5

123

2. Instrument cluster

2

Instrument cluster

■

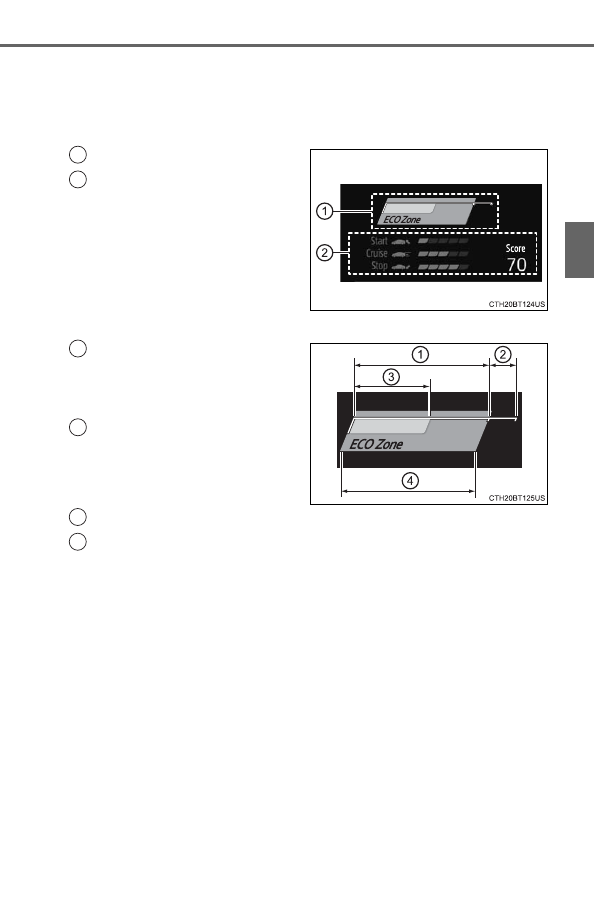

Eco guide

The  Eco  guide  displays  a  guide  for  eco-friendly  acceleration  and
scores which represent an evaluation of how the vehicle has been
driven ecologically in different states.

ECO Accelerator Guidance
Eco score

●

ECO Accelerator Guidance
Eco area

Indicates  that  the  vehicle  is
being  driven  in  an  Eco-friendly
manner.

Power area

Indicates  that  the  Eco-friendly
driving range is being exceeded
(during full power driving, etc.)

Eco driving ratio based on acceleration
Zone of Eco acceleration

Suggests a range in which Eco-friendly acceleration can be performed.
The zone of Eco acceleration changes according to situations, such as
starting off or cruising.
Eco-friendly  acceleration  can  be  achieved  by  keeping  the  Eco  driving
ratio  based  on  acceleration  bar  within  the  zone  of  Eco  acceleration.
(



P. 195)

1

2

1

2

3

4

124

2. Instrument cluster

●

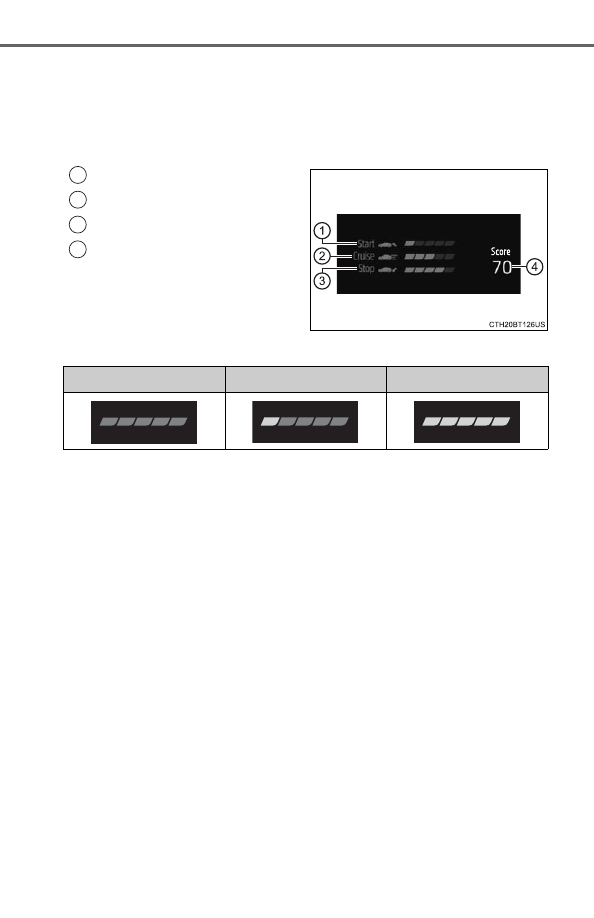

Eco score

The  following  3  Eco  driving  methods  are  evaluated  in  5  levels:
Smooth start-off acceleration, driving without sudden acceleration,
and smooth stopping. When the vehicle is stopped, an Eco score
out of 100 points will be displayed.

Eco start status
Eco cruise status
Eco stop status
Score result

 How to read the bar display:

• After the hybrid system is started, the Eco score will not be dis-

played  until  the  vehicle  speed  exceeds  approximately  12  mph
(20 km/h).

• The  Eco  score  will  be  reset  each  time  the  hybrid  system  is

started.

• When the hybrid system is stopped, the total score of the current

trip will be displayed.

1

2

3

4

Not yet evaluated

Low

High

125

2. Instrument cluster

2

Instrument cluster

◆

Changing settings

Use  the  meter  control  switches  on  the  steering  wheel  to  change
settings.

Press

 or

 to select

.

Operate the switches to select a desired item.
Press or press and hold

.

The  available  settings  will  differ  depending  on  if

  is  pressed  or

pressed and held. Follow the instructions on the display.

◆

Setting items

■

 LDA (Lane Departure Alert with steering control) (



P. 264)

Press and hold

 to change the settings of the following items:

Settings display (

)

1

2

3

Item

Settings

Details

Steering assist

On

Select to enable/disable steering
wheel assistance.

Off

Alert sensitivity

High

Select  to  set  the  warning  sensi-
tivity.

Normal

Sway warning

On

Select to enable/disable the vehi-
cle sway warning.

Off

Sway sensitivity

High

Select  to  set  the  vehicle  sway
warning sensitivity.

Medium

Low

126

2. Instrument cluster

■

 PCS (Pre-Collision System) (



P. 253)

Press and hold

 to change the settings of the following items:

■

 BSM (Blind Spot Monitor) (if equipped) (



P. 295)

Press

 to enable/disable the Blind Spot Monitor function.

Press and hold

 to change the settings of the following item:

Item

Settings

Details

PCS

On

Select to enable/disable the pre-
collision system.

Off

Warning sensitivity

Select  to  change  the  warning
timing.

Item

Settings

Details

BSM

On

Select  to  enable/disable  the
Blind Spot Monitor function.

Off

Item

Settings

Details

Outside  rear  view
mirror

indicator

brightness

Bright

Select  to  change  the  brightness
of  the  outside  rear  view  mirror
indicators.

Dim

127

2. Instrument cluster

2

Instrument cluster

■

 RCTA (Rear Cross Traffic Alert) (if equipped) (



P. 295)

Press

 to enable/disable the Rear Cross Traffic Alert function.

Press and hold

 to change the settings of the following item:

■

 ICS (Intelligent Clearance Sonar) (if equipped) (



P. 317)

Press

 to enable/disable the Intelligent Clearance Sonar.

■

 Intuitive parking assist (if equipped) (



P. 309)

Press

 to enable/disable the Intuitive parking assist.

Press and hold

 to change the settings of the following item:

Item

Settings

Details

RCTA

On

Select to enable/disable the Rear
Cross Traffic Alert function.

Off

Item

Settings

Details

RCTA  buzzer  vol-
ume

1 (Low)

Select  to  change  the  volume  of
the RCTA buzzer.

2 (Medium)

3 (Loud)

Item

Settings

Details

ICS

On

Select  to  enable/disable  the
Intelligent  Clearance  Sonar  sys-
tem.

Off

Item

Settings

Details

Intuitive

parking

assist

On

Select to enable/disable the intui-
tive parking assist.

Off

Item

Settings

Details

Volume

1 (Low)

Select  to  change  the  volume  of
the  intuitive  parking  assist
buzzer.

2 (Medium)

3 (Loud)

128

2. Instrument cluster

■

 HUD (Head-up display) (



P. 134)

Press

 to enable/disable the head-up display.

Press and hold

 to change the settings of the following items:

Item

Settings

Details

HUD

On

Select  to  enable/disable  the
head-up display.

Off

Item

Settings

Details

HUD Brightness/Position

Select  to  adjust  the  brightness/
position of the head-up display.
• Press  the

/

  switch  to

adjust the display brightness.

• Press  the

/

  switch  to

adjust the display position.

HUD  Driving  sup-
port

Tachometer  set-
tings

Select  to  change  the  display
between the following:
• Hybrid System Indicator
• Tachometer
• No content

Navigation

sys-

tem (if equipped)

Select to enable/disable head-up
display content.

Driving Assist

Compass
(if equipped)

Audio system

Rotation

Select to adjust the angle of the
head-up display.
Press  the

/

  switch  to

adjust the display angle.

129

2. Instrument cluster

2

Instrument cluster

■



Vehicle settings

Press and hold

 to change the settings of the following items:

Item

Settings

Details

TPWS (Tire pressure warning system) (



P. 423)

Set pressure (tire pressure warning sys-
tem initialization)

Select  to  initialize  the  tire  pres-
sure  warning  system.  To  per-
form initialization, press and hold
the

 switch.

Before  performing  initialization,
make sure to adjust the inflation
pressure of each tire to the spec-
ified level. (



P. 424)

Change  wheel  (register  tire  pressure
warning system sensor ID codes)

Select to register the ID codes of
the  tire  pressure  sensors  to  the
tire pressure warning system. To
register the ID codes, press and
hold the

 switch.

(



P. 426)

Scheduled maintenance display

Maintenance data reset

Select to reset the message indi-
cating  maintenance  is  required,
after the required maintenance is
performed. (



P. 399)

130

2. Instrument cluster

■



Meter settings

Press and hold

 to change the settings of the following items:

*

1

: Selecting this item will only change the gadget.

*

2

: Selecting this item will turn the display of the gadget off.

Item

Settings

Details

Language

Select  to  change  the  language
displayed.

Units

Select  to  change  the  units  of
measure displayed.

 (EV indicator)

On

Select  to  enable/disable  the  EV
indicator. (



P. 81)

Off

Speedometer

On

Select  to  enable/disable  the
speedometer display.

Off

Gadget content

Off

No display

Average  vehicle
speed

Select  to  turn  the  display  of  a
gadget.

Distance

Elapsed time

Fuel economy type

Trip (after start)

*

1

Select  to  change  the  average
fuel consumption display and an
item to be displayed as gadget.

Total (after reset)

Tank
(after refuel)

*

2

Multi-information display off

Select  to  turn  the  multi-informa-
tion display off.
To turn the multi-information dis-
play  on  again,  press  any  direc-
tion switch (

/

/

/

).

Pop-up display

Intersection  guid-
ance (if equipped)

Select to enable/disable the pop-
up display.

Incoming calls

Brightness adjust-
ment

Default setting

Select to reset the meter display
settings to the default setting.

131

2. Instrument cluster

2

Instrument cluster

■

Odometer

Displays the total distance the vehicle has been driven.

■

Trip meter A/trip meter B

Displays the distance the vehicle has been driven since the meter
was last reset. Trip meters A and B can be used to record and dis-
play different distances independently.

To reset, display the desired trip meter and press and hold the “ODO/
TRIP” switch.

Displays suggestions to the driver in the following situations. To select
a response to a displayed suggestion, use the meter control switches.

The suggestion function can be turned on/off.
(Customizable features:



P. 547)

■

Suggestion to turn off the headlights

If  the  headlights  are  left  on  for  a  certain  amount  of  time  after  the
power switch has been turned off, if the headlight switch is in the
“AUTO” position, a suggestion message will be displayed asking if
you wish to turn the headlights off. To turn the headlights off, select
“Yes”.

If a front door is opened after the power switch is turned off, this sugges-
tion message will not be displayed.

Odometer/trip meter

Suggestion function

132

2. Instrument cluster

■

The Eco guide will not operate when

The Eco guide will not operate in the following situations:

●

The Hybrid System Indicator is not operating.

●

The vehicle is being driven using the dynamic radar cruise control with full-
speed range.

■

Suspension of the settings display

●

Some  settings  cannot  be  changed  while  driving.  When  changing  settings,
park the vehicle in a safe place.

●

If a warning message is displayed, operation of the settings display will be
suspended.

■

Tire pressure

●

It  may  take  a  few  minutes  to  display  the  tire  inflation  pressure  after  the
power switch is turned to ON mode. It may also take a few minutes to dis-
play the tire inflation pressure after inflation pressure has been adjusted.

●

“---” may be displayed if the tire position information cannot be determined
due to unfavorable radio wave conditions.

●

Tire inflation pressure changes with temperature. The displayed values may
also be different from the values measured using a tire pressure gauge.

■

Liquid crystal display

Small  spots  or  light  spots  may  appear  on  the  display. This  phenomenon  is
characteristic of liquid crystal displays, and there is no problem continuing to
use the display.

■

Customization

Some functions can be customized. (



P. 125, 547)

133

2. Instrument cluster

2

Instrument cluster

WARNING

■

Caution for use while driving

●

When  operating  the  multi-information  display  while  driving,  pay  extra
attention to the safety of the area around the vehicle.

●

Do not look continuously at the multi-information display while driving as
you  may  fail  to  see  pedestrians,  objects  on  the  road,  etc.  ahead  of  the
vehicle.

■

The information display at low temperatures

Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information display
monitor may respond slowly, and display changes may be delayed.
For example, there is a lag between the driver’s shifting and the new gear
number appearing on the display. This lag could cause the driver to down-
shift  again,  causing  rapid  and  excessive  engine  braking  and  possibly  an
accident resulting in death or injury.

■

Cautions during setting up the display

As the hybrid system needs to be operating during setting up the display,
ensure that the vehicle is parked in a place with adequate ventilation. In a
closed  area  such  as  a  garage,  exhaust  gases  including  harmful  carbon
monoxide (CO) may collect and enter the vehicle. This may lead to death or
a serious health hazard.

NOTICE

■

While setting up the display

To prevent 12-volt battery discharge, ensure that the hybrid system is oper-
ating while setting up the display features.

134

2. Instrument cluster

The head-up display is linked to the meters and navigation system (if
equipped) and projects a variety of information in front of the driver,
such as the current vehicle speed.

Driving assist system status/navigation system-linked display area
(if equipped) (



P. 136)

The following pop-up displays will be displayed in certain situations:

• Pre-collision warning (pre-collision system)
• Alert from the Intelligent Clearance Sonar system (if equipped)

Shift position/speed limit display area

• Shift position (



P. 218)

• Speed limit (vehicles with a navigation system) (U.S.A. only)

Vehicle speed display
Hybrid System Indicator/Tachometer (



P. 136)

Information display area (



P. 137)

The following pop-up displays will be displayed in certain situations:

• Warning/message
• Hands-free system status
• Audio system operation status

Head-up display





: If equipped

Summary of functions

1

2

3

4

5

135

2. Instrument cluster

2

Instrument cluster

Select

 on the multi-information display (



P. 125) and then

.

◆

Enabling/disabling the head-up display

Press

 to enable/disable the head-up display.

◆

Changing the head-up display settings

Press and hold

 to change the following settings:

■

Hybrid System Indicator/Tachometer

Select to display Hybrid System Indicator/tachometer/no content.

■

Display brightness/position

Select to adjust the brightness and position of the head-up display.

■

Display content

Select to enable/disable the following items:

• Route guidance to destination (if equipped)
• Driving assist system status
• Compass (if equipped)
• Audio system operation status

■

Display angle

Select to adjust the angle of the head-up display.

Using the head-up display

136

2. Instrument cluster

◆

Driving assist system status display

Displays the operational status of the following systems:

• Dynamic radar cruise control with full-speed range (



P. 274)

• LDA (Lane Departure Alert with steering control) (



P. 264)

• Intuitive parking assist (if equipped) (



P. 309)

◆

Navigation system-linked display area (if equipped)

Displays the following items, which are linked to the navigation sys-
tem:

■

Street name

When  the  navigation  system  is  performing  route  guidance,  the
name of the next street will be displayed on the top of the display
area.

■

Route guidance to destination

Displayed  when  the  navigation  system  is  performing  route  guid-
ance. When approaching an intersection, an arrow will be displayed
to indicate the suggested direction of travel.

■

Compass

Displays the direction of travel.

■

Hybrid System Indicator

Charge area
Hybrid Eco area
Eco area
Power area

Displayed  content  is  the  same
as  that  displayed  on  the  meter
(Hybrid  System  Indicator).  For
details, refer to P. 104.

■

Tachometer

Displays the engine speed in revolutions per minute.

Driving  assist  system  status/navigation  system-linked  display
area (if equipped)

Hybrid System Indicator/Tachometer

1

2

3

4

137

2. Instrument cluster

2

Instrument cluster

Displays the following items in the appropriate situation:

■

Warning/Message

●

Alert from the LDA (Lane Departure Alert with steering control)

●

Dynamic radar cruise control with full-speed range

●

 message

Displayed when a suggestion/advice pop-up display is displayed on the
multi-information display. (



P. 131)

●

 message

Displayed when a warning message is displayed on the multi-informa-
tion display. (



P. 485)

●

Outside temperature

Displayed in the following situations:

• When the power switch is turned to ON mode
• When the low outside temperature indicator is flashing

Displayed content is the same as that displayed on the multi-information
display. For details, refer to the explanation of the outside temperature
display on the multi-information display. (



P. 102)

■

Hands-free system status

Displayed when the hands-free system is operated.

■

Audio system operation status

Displayed when the audio system is operated.

Information display area

138

2. Instrument cluster

■

Head-up display

The  head-up  display  may  seem  dark  or  hard  to  see  when  viewed  through
sunglasses, especially polarized sunglasses.
Adjust the brightness of the head-up display or remove your sunglasses.

■

Display brightness

The brightness of the head-up display can  be adjusted on

 of the  multi-

information display. Also, it is automatically adjusted according to the ambient
brightness.

■

Enabling/disabling of the head-up display

If  the  head-up  display  is  disabled,  it  will  remain  disabled  when  the  power
switch is turned off then back to ON mode.

■

Street name display (vehicles with a navigation system)

Only street names which are included in the map data will be displayed.

WARNING

■

Before using the head-up display

●

Check that the position and brightness of the head-up display image does
not interfere with safe driving. Incorrect adjustment of the image’s position
or  brightness  may  obstruct  the  driver’s  view  and  lead  to  an  accident,
resulting in death or serious injury.

●

Do not continuously look at the head-up display while driving as you may
fail to see pedestrians, objects on the road, etc. ahead of the vehicle.

■

Caution for changing settings of the head-up display

As the hybrid system needs to be operating while changing the settings of
the head-up display, ensure that the vehicle is parked in a place with ade-
quate ventilation. In a closed area such as a garage, exhaust gases includ-
ing harmful carbon monoxide (CO) may collect and enter the vehicle. This
may lead to death or a serious health hazard.

139

2. Instrument cluster

2

Instrument cluster

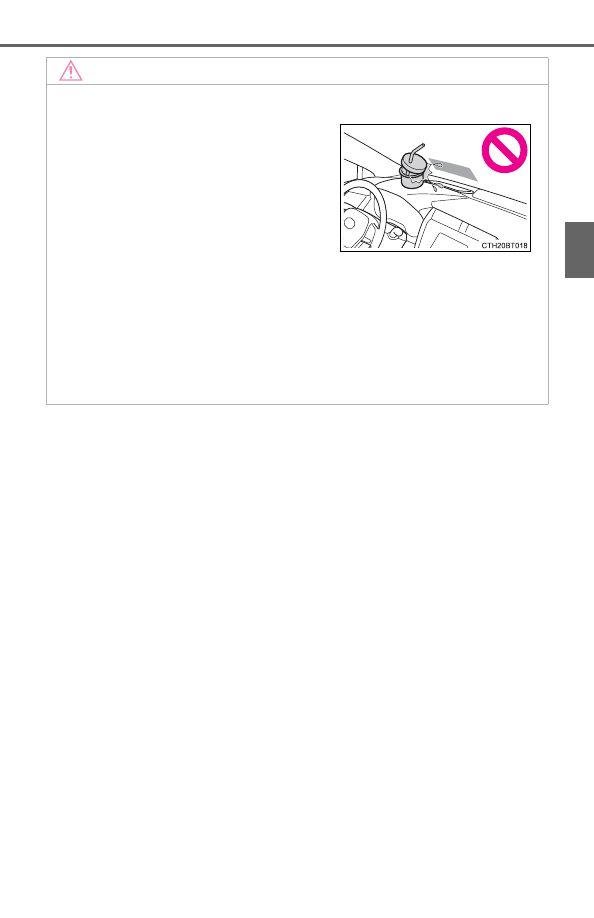

NOTICE

■

To prevent damage to components

■

When changing the settings of the head-up display

To prevent 12-volt battery discharge, ensure that the hybrid system is oper-
ating while the changing the settings of the head-up display.

●

Do not place any drinks near the head-
up display projector. If the projector gets
wet, electrical malfunctions may result.

●

Do not place anything on or put stickers
onto the head-up display projector.
Doing  so  could  interrupt  head-up  dis-
play indications.

●

Do not touch the inside of the head-up
display  projector  or  thrust  sharp  edges
or the like into the projector.
Doing so could cause mechanical mal-
functions.

140

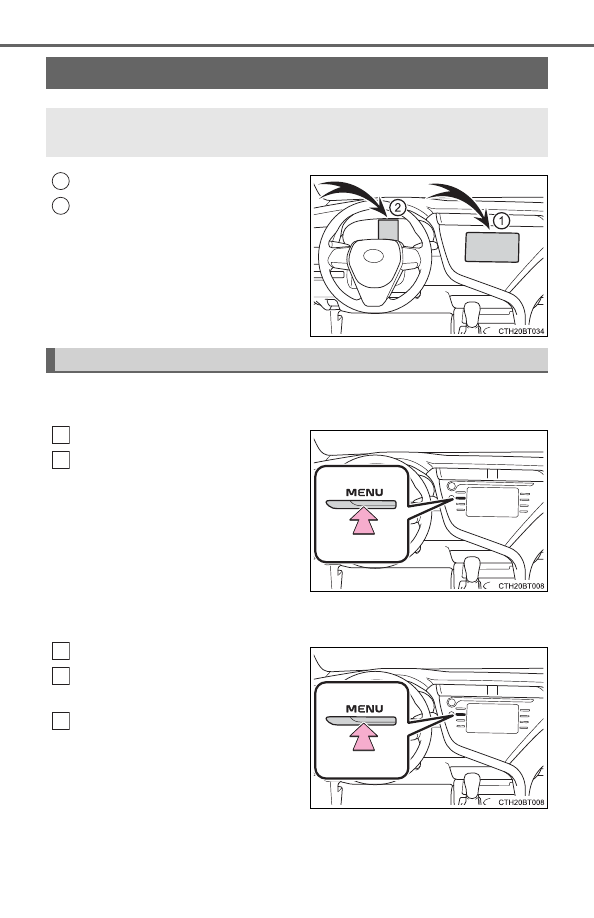

2. Instrument cluster

Audio system screen
Multi-information display



Audio  (vehicles  without  Data  Communication  Module)  or  Audio
Plus (vehicles without Data Communication Module)

Press the “MENU” button.
Select  “Info”  on  the  “Menu”
screen.

If the “Trip Information” or “History”
screen

is

displayed,

select

“Energy”.



Audio  (vehicles  with  Data  Communication  Module),  Audio  Plus
(vehicles with Data Communication Module) and Premium Audio

Press the “MENU” button.
Select  “Info”  on  the  “Menu”
screen.
Select  “ECO”  on  the  “Informa-
tion” screen.

If the “Trip Information” or “History”
screen

is

displayed,

select

“Energy”.

Energy monitor/consumption screen

You can view the status of your hybrid system on the multi-infor-
mation display, the audio system screen.

1

2

Energy monitor

1

2

1

2

3

141

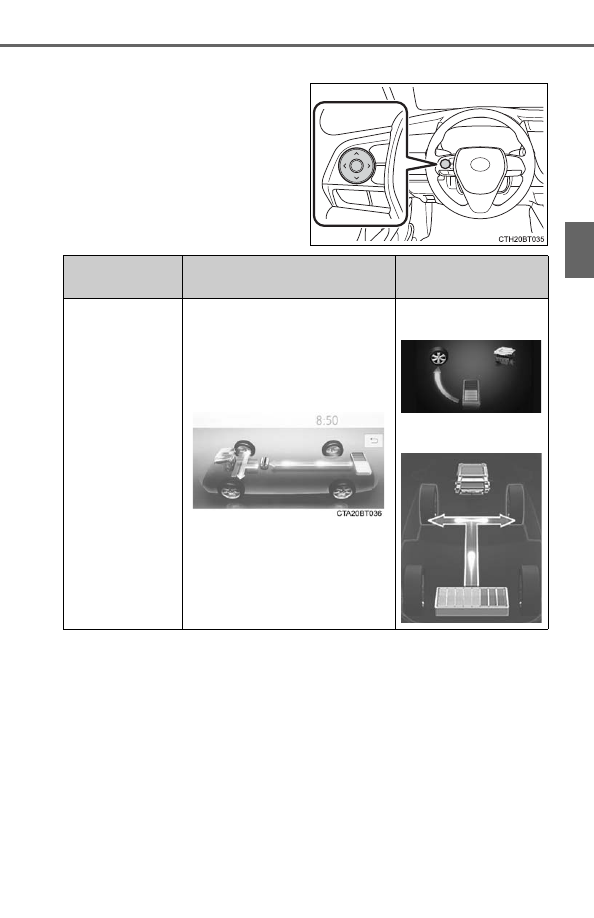

2. Instrument cluster

2

Instrument cluster

■

Multi-information display

Press

the

meter

control

switches on the steering wheel
several  times  to  select  the
energy monitor display.

Audio system screen

Multi-information

display

When  the  vehi-
cle  is  powered
by  the  electric
motor  (traction
motor)

Vehicles  with  4.2-inch
display:

Vehicles  with  7-inch
display:
