Toyota Camry (2020 year). Manual in english - part 9

520

7-2. Steps to take in an emergency

CAMRY_U

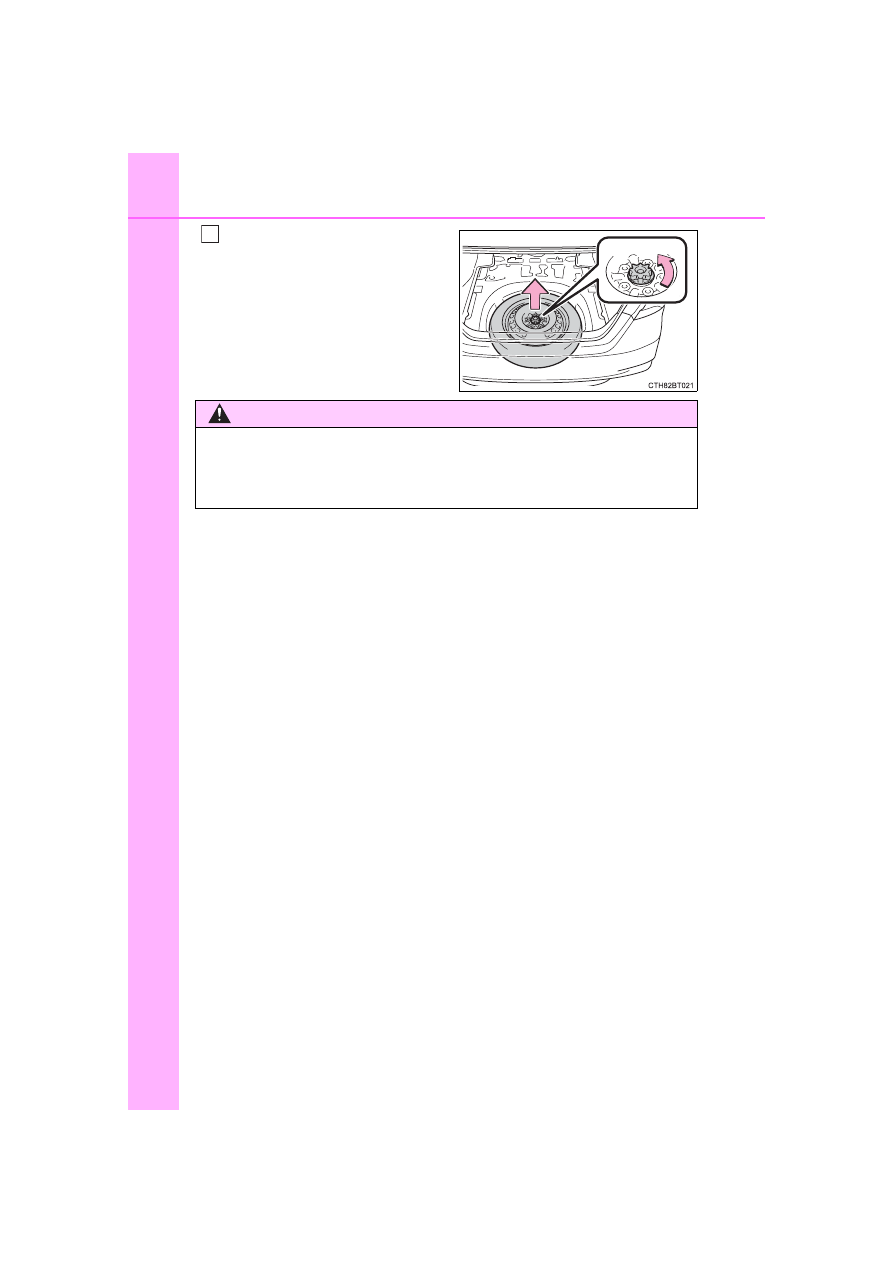

Loosen the center fastener that
secures the spare tire.

When  taking  out  or  stowing  the

spare  tire,  make  sure  to  firmly

hold opposite end of the tire.

4

WARNING

■

When storing the spare tire

Be careful not to catch fingers or other body parts between the spare

tire and the body of the vehicle.

521

7-2. Steps to take in an emergency

CAMRY_U

7

Wh
en tro

uble

 a

ris

es

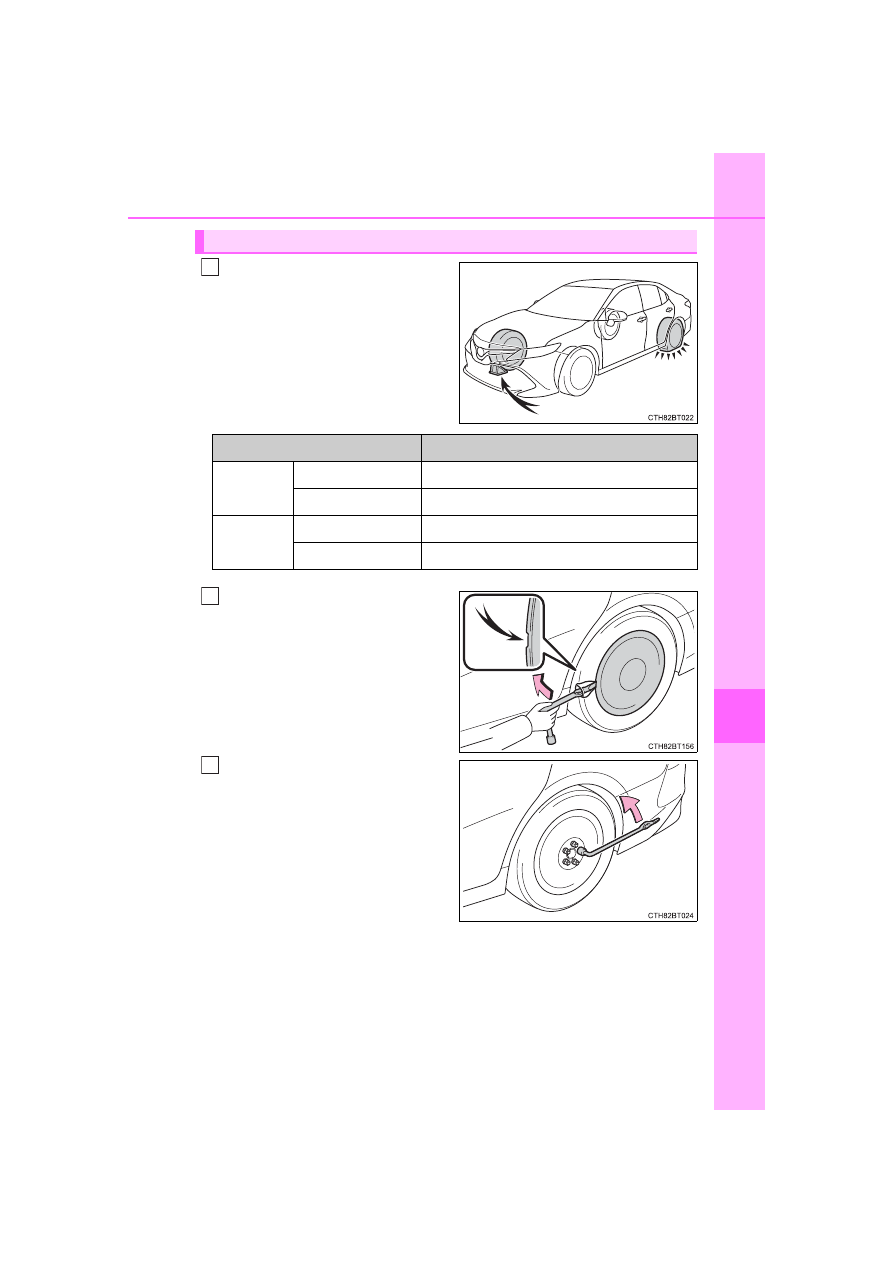

Chock the tires.

For  vehicles  with  steel  wheels,
remove  the  wheel  ornament
using the wrench.

To  protect  the  wheel  ornament,

place  a  rag  between  the  wrench

and  the  wheel  ornament,  as

shown in the illustration.

Slightly  loosen  the  wheel  nuts
(one turn).

Replacing a flat tire

1

Flat tire

Wheel chock positions

Front

Left-hand side

Behind the rear right-hand side tire

Right-hand side

Behind the rear left-hand side tire

Rear

Left-hand side

In front of the front right-hand side tire

Right-hand side

In front of the front left-hand side tire

2

3

522

7-2. Steps to take in an emergency

CAMRY_U

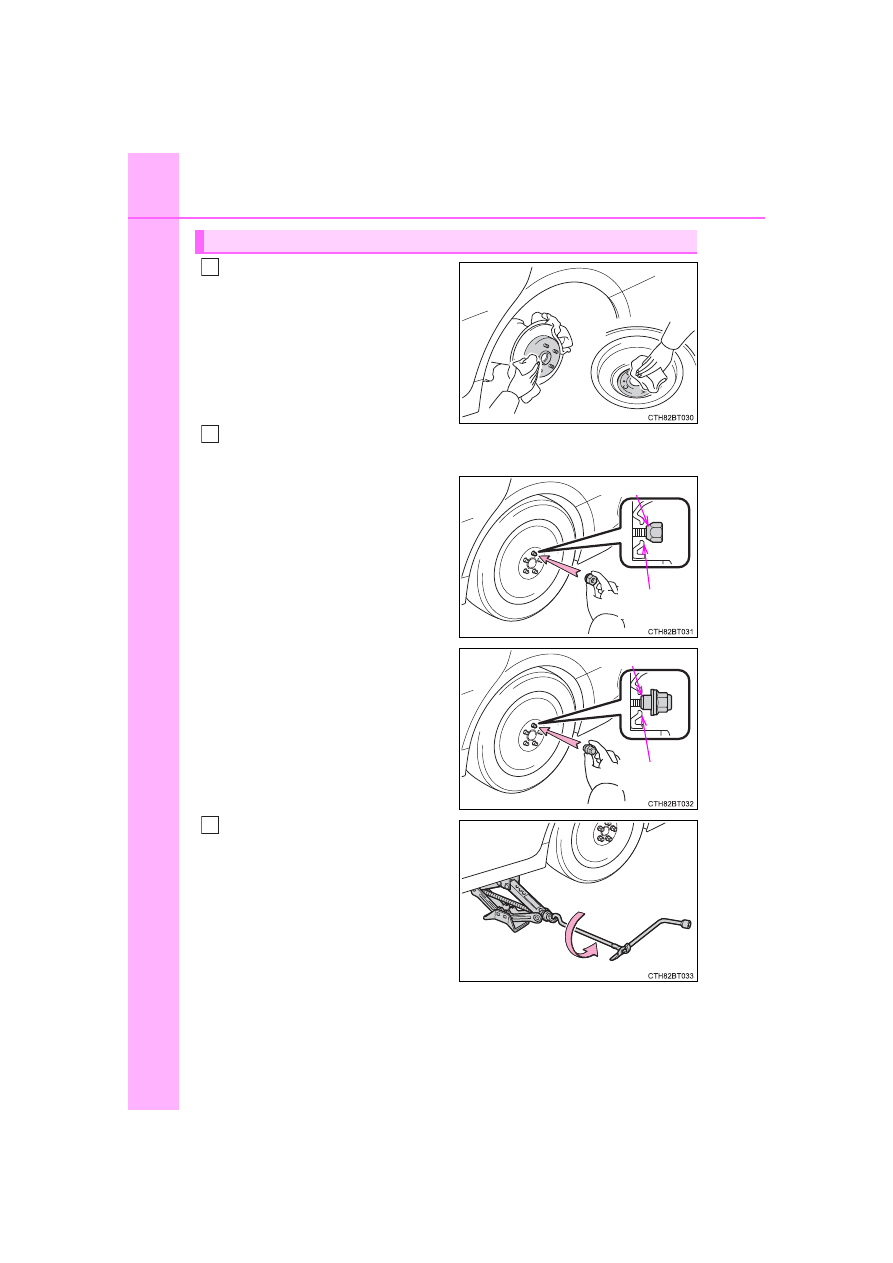

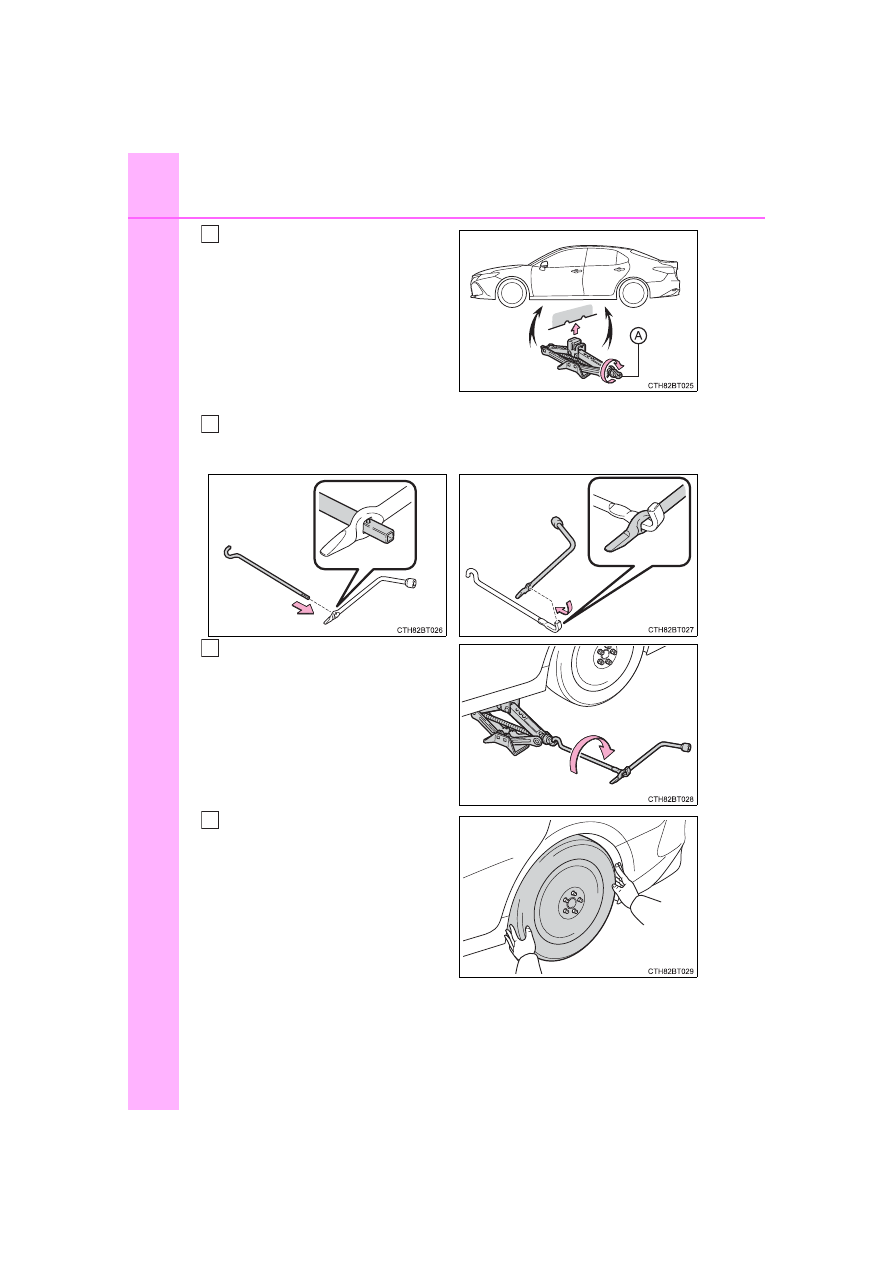

Turn the tire jack portion “A” by
hand until the notch of the jack
is in contact with the jack point.

To prevent damage to the vehicle

when using the jack, position the

jack in the correct location.

(



P. 517)

The jack point guides are located

under  the  rocker  panel.  They

indicate the jack point positions.

Assemble the jack handle.

Raise the vehicle until the tire is
slightly raised off the ground.

Remove all the wheel nuts and
the tire.

When  resting  the  tire  on  the

ground, place the tire so that the

wheel  design  faces  up  to  avoid

scratching the wheel surface.

4

5



Type A



Type B

6

7

523

7-2. Steps to take in an emergency

CAMRY_U

7

Wh
en tro

uble

 a

ris

es

WARNING

■

Replacing a flat tire

●

Do not touch the disc wheels or the area around the brakes immedi-

ately after the vehicle has been driven.

After the vehicle has been driven the disc wheels and the area around

the brakes will be extremely hot. Touching these areas with hands, feet

or other body parts while changing a tire, etc. may result in burns.

●

Failure  to  follow  these  precautions  could  cause  the  wheel  nuts  to

loosen and the tire to fall off, resulting in death or serious injury.
• Have the wheel nuts tightened with a torque wrench to 76 ft•lbf (103

N•m, 10.5 kgf•m) as soon as possible after changing wheels.

• Do not attach a heavily damaged wheel ornament, as it may fly off

the wheel while the vehicle is moving.

• When installing a tire, only use wheel nuts that have been specifi-

cally designed for that wheel.

• If  there  are  any  cracks  or  deformations  in  the  bolt  screws,  nut

threads  or  bolt  holes  of  the  wheel,  have  the  vehicle  inspected  by

your Toyota dealer.

• When  installing  the  wheel  nuts,  be  sure  to  install  them  with  the

tapered ends facing inward.

524

7-2. Steps to take in an emergency

CAMRY_U

Remove any dirt or foreign mat-
ter from the wheel contact sur-
face.

If  foreign  matter  is  on  the  wheel

contact  surface,  the  wheel  nuts

may loosen while the vehicle is in

motion,  causing  the  tire  to  come

off.

Install  the  tire  and  loosely  tighten  each  wheel  nut  by  hand  by
approximately the same amount.
When  replacing  a  steel  wheel
with  a  steel  wheel,  tighten  the
wheel  nuts  until  the  tapered
portion  comes  into  loose  con-
tact with the disc wheel seat.

When  replacing  an  aluminum
wheel  with  a  steel  wheel,
tighten the wheel nuts until the
tapered  portion  comes  into
loose  contact  with  the  disc
wheel seat.

Lower the vehicle.

Installing the spare tire

1

2

Tapered portion

Disc wheel

seat

Tapered portion

Disc wheel

seat

3

525

7-2. Steps to take in an emergency

CAMRY_U

7

Wh
en tro

uble

 a

ris

es

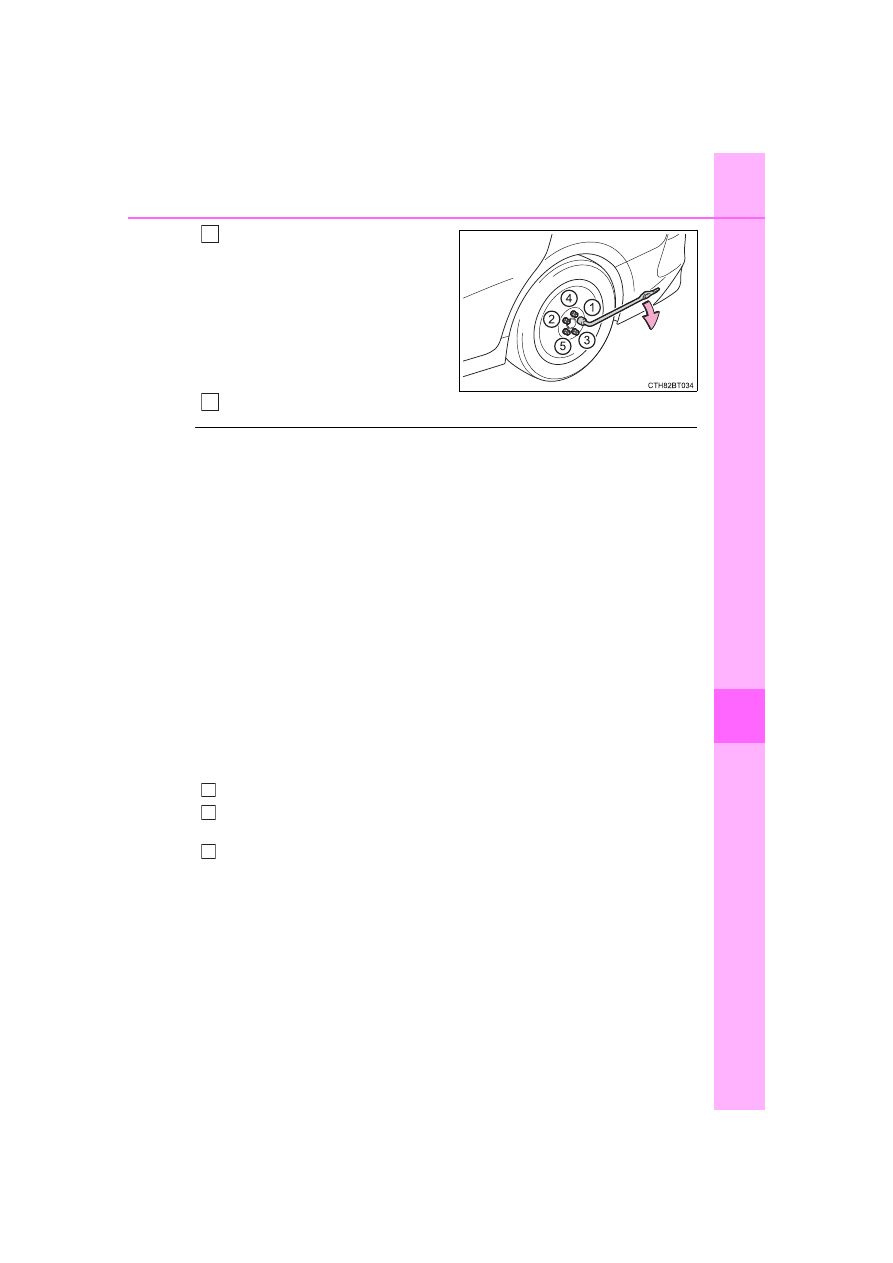

Firmly  tighten  each  wheel  nut
two  or  three  times  in  the  order
shown in the illustration.

Tightening torque:

76 ft•lbf (103 N•m, 10.5 kgf•m)

Stow the flat tire, tire jack and all tools.

■

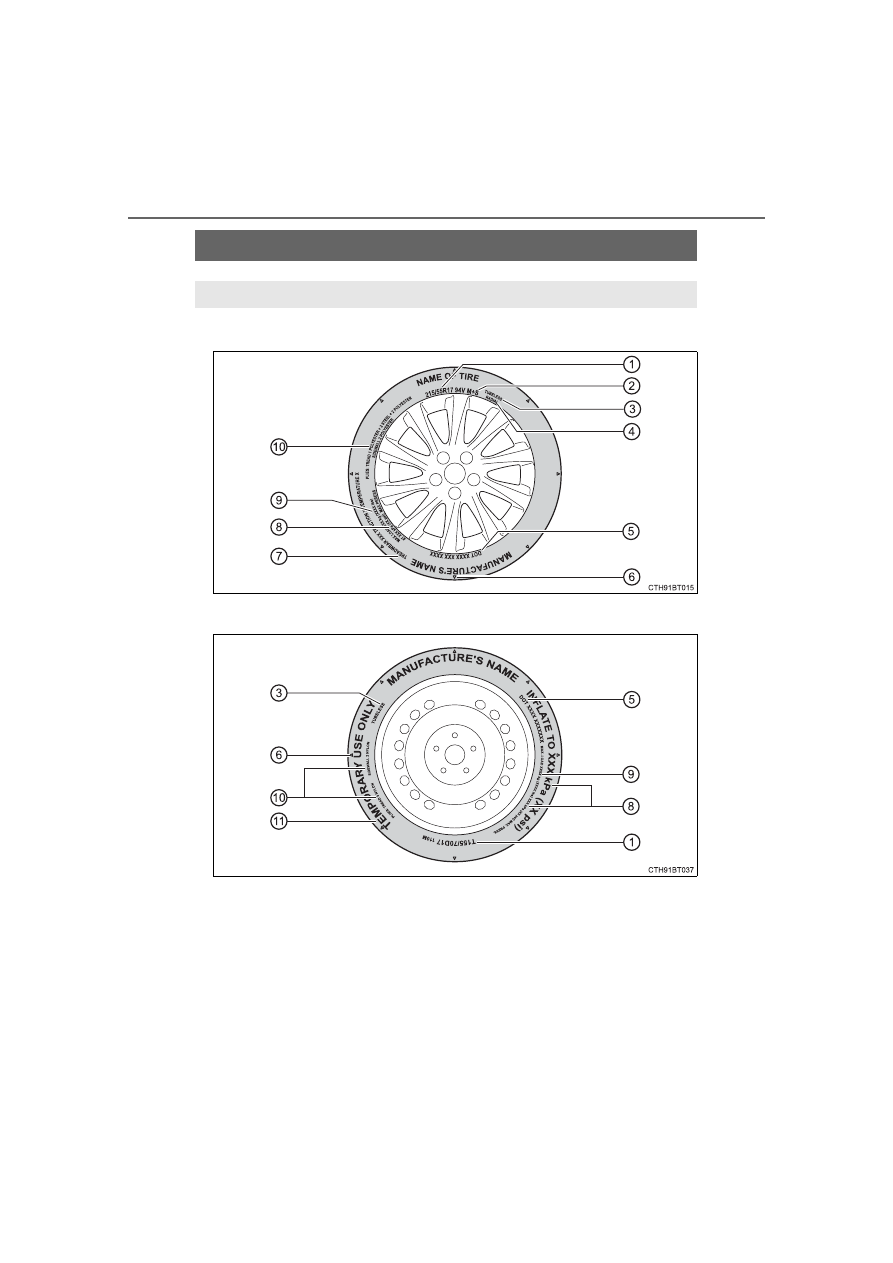

The compact spare tire

●

The  compact  spare  tire  is  identified  by  the  label  “TEMPORARY  USE

ONLY” on the tire sidewall.

Use the compact spare tire temporarily, and only in an emergency.

●

Make sure to check the tire inflation pressure of the compact spare tire.

(



P. 553)

■

When using the compact spare tire

As  the  compact  spare  tire  is  not  equipped  with  a  tire  pressure  warning

valve and transmitter, low inflation pressure of the spare tire will not be

indicated  by  the  tire  pressure  warning  system. Also,  if  you  replace  the

compact spare tire after the tire pressure warning light comes on, the light

remains on.

■

When the compact spare tire is equipped

When driving with the compact spare tire installed, the vehicle height will

be different than when driving with standard tires.

■

If you have a flat front tire on a road covered with snow or ice (vehi-

cles with 16 or 17-inch wheels)

Install  the  compact  spare  tire  on  one  of  the  rear  wheels  of  the  vehicle.

Perform the following steps and fit tire chains to the front tires:

Replace a rear tire with the compact spare tire.
Replace the flat front tire with the tire removed from the rear of the vehi-

cle.
Fit tire chains to the front tires.

4

5

1

2

3

526

7-2. Steps to take in an emergency

CAMRY_U

WARNING

■

When using the compact spare tire

●

Remember  that  the  compact  spare  tire  provided  is  specifically

designed for use with your vehicle. Do not use your compact spare tire

on another vehicle.

●

Do not use more than one compact spare tires simultaneously.

●

Replace the compact spare tire with a standard tire as soon as possi-

ble.

●

Avoid sudden acceleration, abrupt steering, sudden braking and shift-

ing operations that cause sudden engine braking.

■

When the compact spare tire is attached

The vehicle speed may not be correctly detected, and the following sys-

tems may not operate correctly:

Also, not only can the following systems not be utilized fully, but they may
actually negatively affect the drive-train components:
• Dynamic Torque Control AWD system

*



*

:

If equipped

■

Speed limit when using the compact spare tire

Do not drive at speeds in excess of 50 mph (80 km/h) when a compact

spare tire is installed on the vehicle.
The compact spare tire is not designed for driving at high speeds. Fail-

ure to observe this precaution may lead to an accident causing death or

serious injury.

■

After using the tools and jack

Before driving, make sure all the tools and jack are securely in place in

their storage location to reduce the possibility of personal injury during a

collision or sudden braking.

• ABS & Brake assist

• VSC

• TRAC

• EPS

• Automatic High Beam

*

• Cruise control

*

• Dynamic radar cruise control

*

• Dynamic  radar  cruise  control

with full-speed range

*

• LDA (Lane Departure Alert with

steering control)

*

• PCS (Pre-Collision System)

*

• Tire pressure warning system

• BSM (Blind Spot Monitor)

*

• Intuitive parking assist

*

• Intelligent  Clearance  Sonar

(ICS)

*

• Rear view monitor system

*

• Toyota parking assist monitor

*

• Panoramic view monitor

*

• Navigation system

*

527

7-2. Steps to take in an emergency

CAMRY_U

7

Wh
en tro

uble

 a

ris

es

NOTICE

■

Be  careful  when  driving  over  bumps  with  the  compact  spare  tire

installed on the vehicle.

The  vehicle  becomes  lower  when  driving  with  the  compact  spare  tire

compared to when driving with standard tires. Be careful when driving

over uneven road surfaces.

■

Driving with tire chains and the compact spare tire

Do not fit tire chains to the compact spare tire.

Tire chains may damage the vehicle body and adversely affect driving

performance.

■

When replacing the tires

When removing or fitting the wheels, tires or the tire pressure warning

valve  and  transmitter,  contact  your  Toyota  dealer  as  the  tire  pressure

warning valve and transmitter may be damaged if not handled correctly.

■

To avoid damage to the tire pressure warning valve and transmit-

ters

When  a  tire  is  repaired  with  liquid  sealants,  the  tire  pressure  warning

valve  and  transmitter  may  not  operate  properly.  If  a  liquid  sealant  is

used, contact your Toyota dealer or other qualified service shop as soon

as possible. Make sure to replace the tire pressure warning valve and

transmitter when replacing the tire. (



P. 448)

528

7-2. Steps to take in an emergency

CAMRY_U

One of the following may be the cause of the problem:

●

There may not be sufficient fuel in the vehicle’s tank.
Refuel the vehicle.

●

The engine may be flooded.
Try to restart the engine again following correct starting procedures.
(



P. 205, 207)

●

There may be a malfunction in the engine immobilizer system.
(



P. 79)

One of the following may be the cause of the problem:

●

The battery may be discharged. (



P. 533)

●

The battery terminal connections may be loose or corroded.

The engine starting system may be malfunctioning due to an electrical
problem  such  as  electronic  key  battery  depletion  or  a  blown  fuse.
However, an interim measure is available to start the engine.
(



P. 529)

If the engine will not start

If  the  engine  will  not  start  even  though  correct  starting  proce-
dures are being followed (



P. 205, 207), consider each of the fol-

lowing points:

The engine will not start even though the starter motor operates
normally.

The starter motor turns over slowly, the interior lights and head-
lights  are  dim,  or  the  horn  does  not  sound  or  sounds  at  a  low
volume.

The starter motor does not turn over (vehicles with a smart key
system)

529

7-2. Steps to take in an emergency

CAMRY_U

7

Wh
en tro

uble

 a

ris

es

One of the following may be the cause of the problem:

●

One or both of the battery terminals may be disconnected.

●

The battery may be discharged. (



P. 533)

●

There may be a malfunction in the steering lock system (vehicles
with a smart key system).

Contact your Toyota dealer if the problem cannot be repaired, or if repair
procedures are unknown.

When the engine does not start, the following steps can be used as an
interim measure to start the engine if the engine switch is functioning
normally:

Set the parking brake.
Shift the shift lever to P.
Turn the engine switch to ACCESSORY mode.
Press  and  hold  the  engine  switch  for  about  15  seconds  while
depressing the brake pedal firmly.

Even if the engine can be started using the above steps, the system
may  be  malfunctioning.  Have  the  vehicle  inspected  by  your  Toyota
dealer.

The starter motor does not turn over, the interior lights and head-
lights do not turn on, or the horn does not sound.

Emergency start function (vehicles with a smart key system)

1

2

3

4

530

7-2. Steps to take in an emergency

CAMRY_U

■

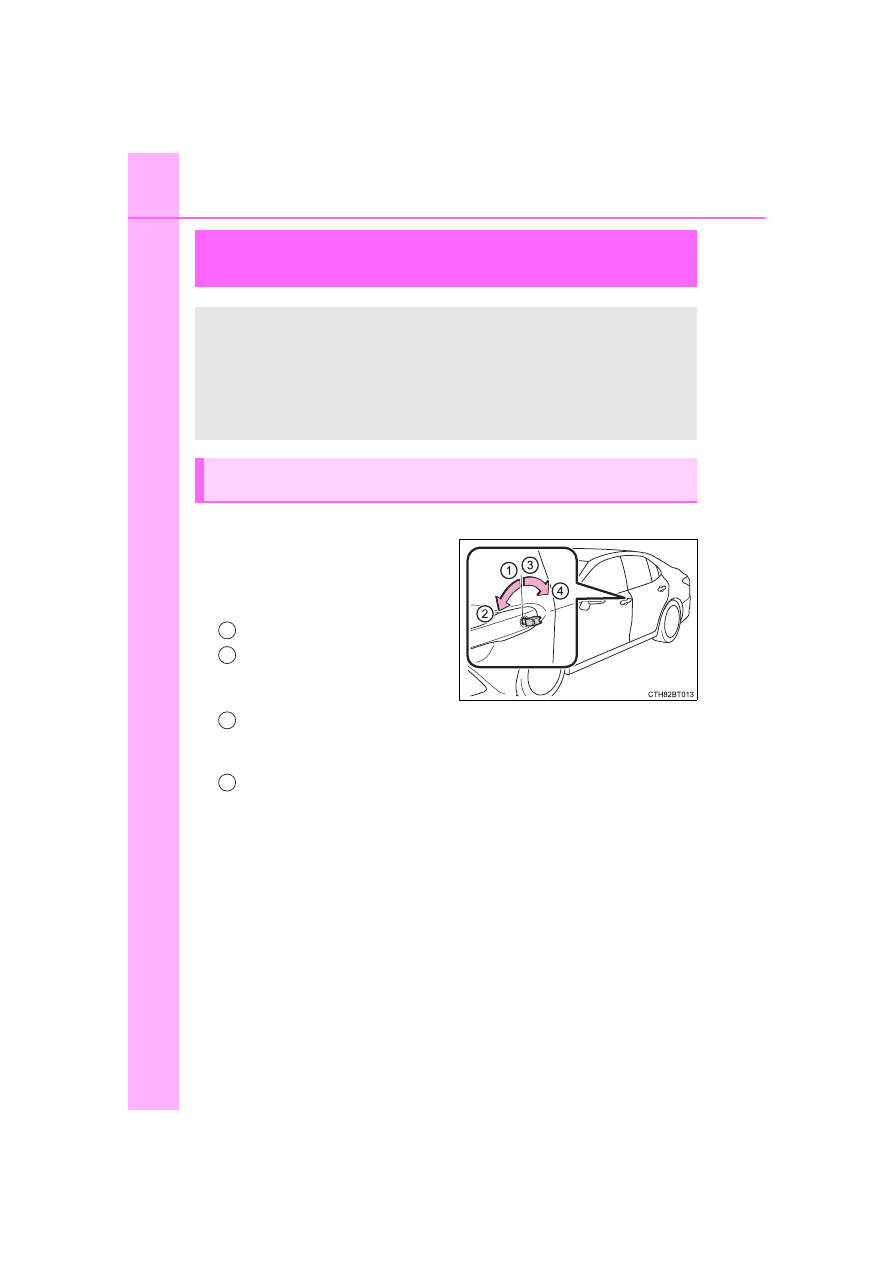

Doors

Using the mechanical key (



P.

134) in order to perform the fol-
lowing operations (driver’s door
only):

Locks all doors
Closes  the  windows  and  the
moon  roof

*

1

  or  panoramic

moon roof

*

1

 (turn and hold)

*

2

Unlocks the door

Turning the key rearward unlocks the driver's door. Turning the key once
again unlocks the other doors.

Opens  the  windows  and  the  moon  roof

*

1

  or  panoramic  moon

roof

*

1

 (turn and hold)

*

2

*

1

: If equipped

*

2

: This setting must be customized at your Toyota dealer.

If the electronic key does not operate properly

(vehicles with a smart key system)

If  communication  between  the  electronic  key  and  vehicle  is
interrupted  (



P.  156)  or  the  electronic  key  cannot  be  used

because the battery is depleted, the smart key system and wire-
less  remote  control  cannot  be  used.  In  such  cases,  the  doors
and trunk can be opened and the engine can be started by fol-
lowing the procedure below.

Locking  and  unlocking  the  doors,  unlocking  the  trunk  and  key
linked functions

1

2

3

4

531

7-2. Steps to take in an emergency

CAMRY_U

7

Wh
en tro

uble

 a

ris

es

■

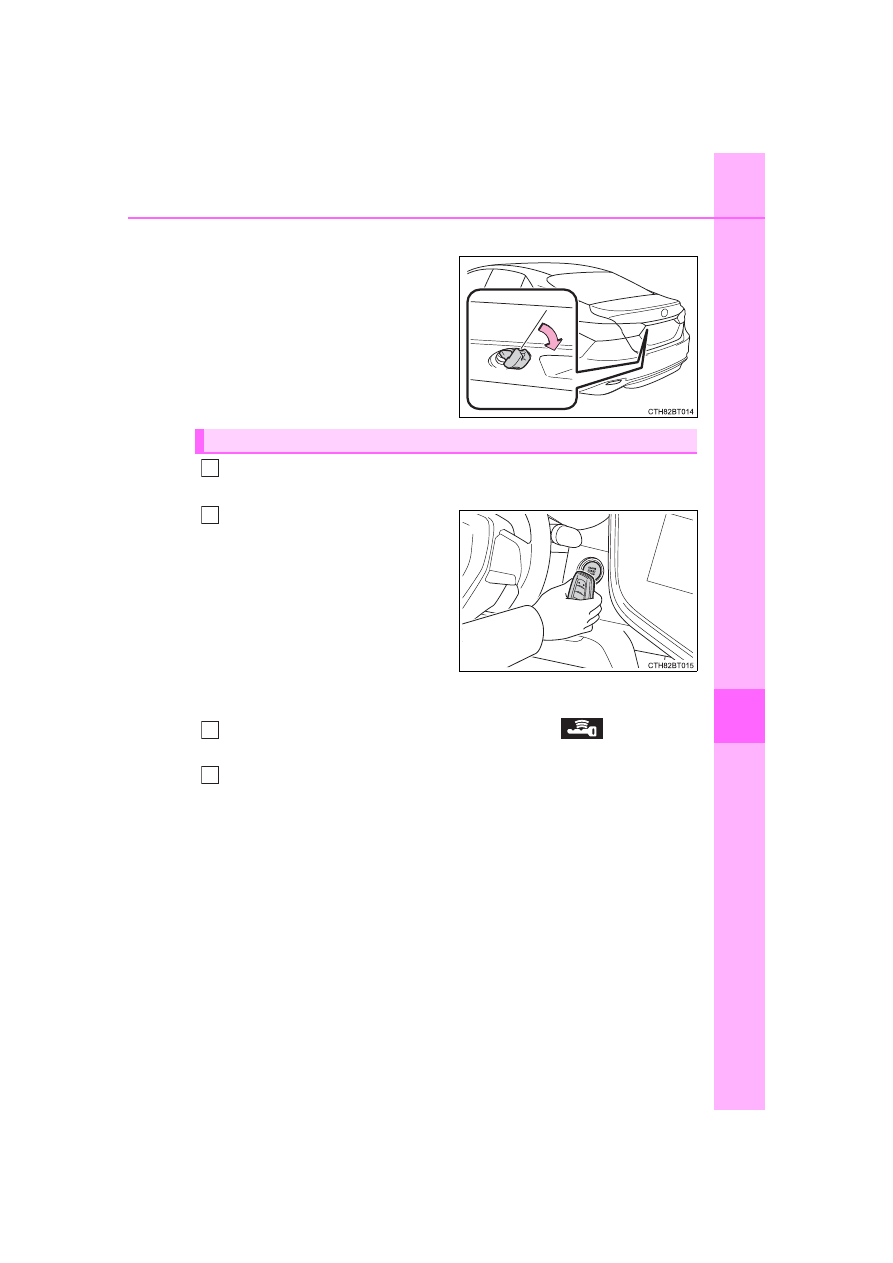

Trunk

Turn the mechanical key clock-
wise to open.

Ensure  that  the  shift  lever  is  in  P  and  firmly  depress  the  brake
pedal.
Touch  the  Toyota  emblem  side
of  the  electronic  key  to  the
engine switch.

When  the  electronic  key  is
detected, a buzzer sounds and the
engine switch will turn to IGNITION
ON mode.
When  the  smart  key  system  is
deactivated  in  customization  set-
ting,  the  engine  switch  will  turn  to
ACCESSORY mode.

Firmly depress the brake pedal and check that

 is displayed

on the multi-information display.
Press the engine switch shortly and firmly.

In the event that the engine still cannot be started, contact your Toyota
dealer.

Starting the engine

1

2

3

4

532

7-2. Steps to take in an emergency

CAMRY_U

■

Stopping the engine

Shift the shift lever to P and press the engine switch as you normally do when
stopping the engine.

■

Replacing the key battery

As the above procedure is a temporary measure, it is recommended that the
electronic key battery be replaced immediately when the battery is depleted.
(



P. 468)

■

Changing engine switch modes

Release the brake pedal and press the engine switch in step

 above.

The engine does not start and modes will be changed each time the switch is
pressed. (



P. 209)

■

When the electronic key does not work properly

●

Make sure that the smart key system has not been deactivated in the cus-
tomization setting. If it is off, turn the function on.
(Customizable features:



P. 575)

●

Check if battery-saving mode is set. If it is set, cancel the function.
(



P. 156)

WARNING

■

When using the mechanical key and operating the power windows or
the moon roof or panoramic moon roof

Operate the power window or the moon roof or panoramic moon roof after
checking to make sure that there is no possibility of any passenger having
any of their body parts caught in the window or the moon roof or panoramic
moon roof. Also, do not allow children to operate the mechanical key. It is
possible for children and other passengers to get caught in the power win-
dow or the moon roof or panoramic moon roof.

3

533

7-2. Steps to take in an emergency

CAMRY_U

7

Wh
en tro

uble

 a

ris

es

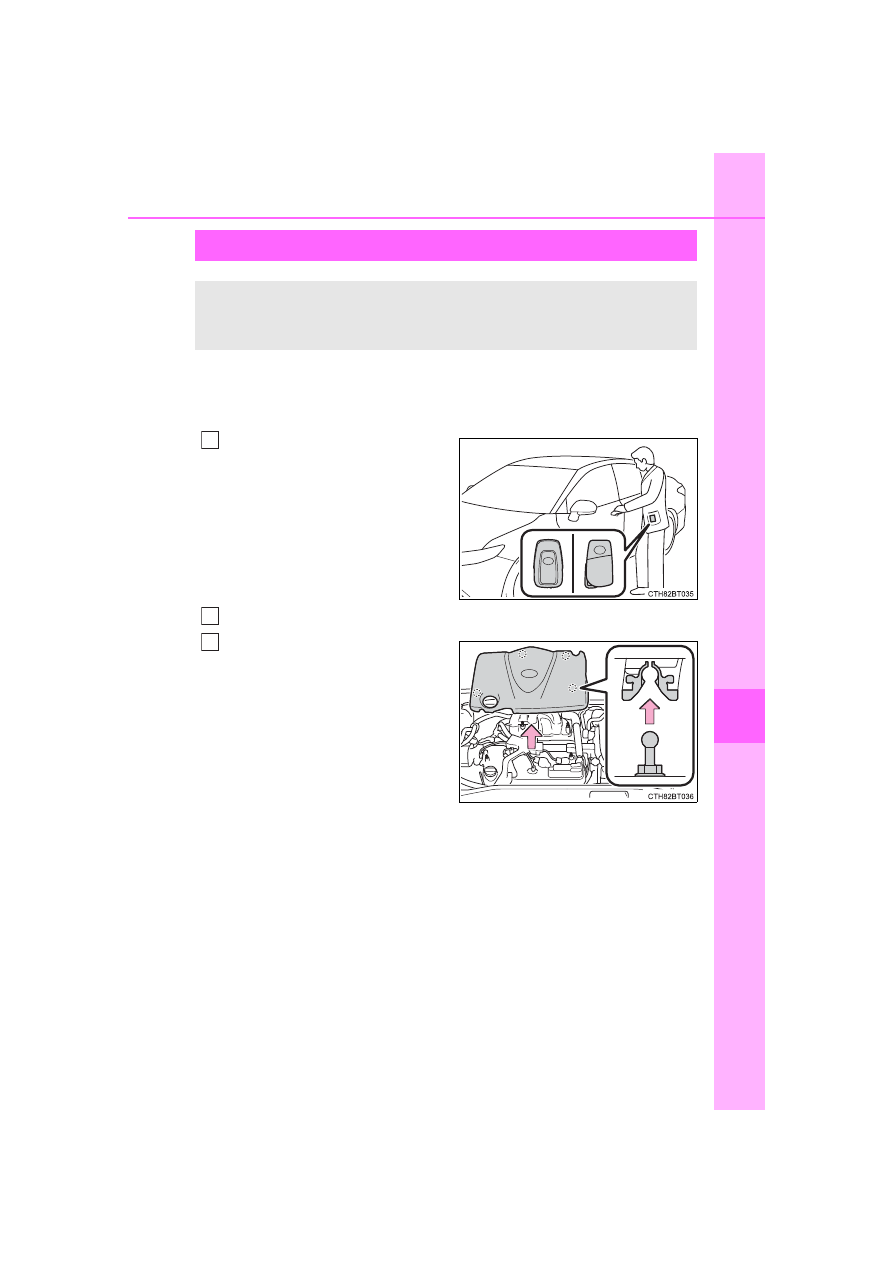

If you have a set of jumper (or booster) cables and a second vehicle
with a 12-volt battery, you can jump start your vehicle by following the
steps below.

Vehicles with an alarm: Confirm
that the electronic key (vehicles
with a smart key system) or key
(vehicles  without  a  smart  key
system) is being carried.

When  connecting  the  jumper  (or
booster) cables, depending on the
situation,  the  alarm  may  activate
and doors locked. (



P. 84)

Open the hood. (



P. 432)

Vehicles  with  3.5  L  V6  (2GR-
FKS)  engine:  Remove  the
engine cover.

Make sure to pull the engine cover
straight up when removing it.

If the vehicle battery is discharged

The following procedures may be used to start the engine if the
vehicle’s battery is discharged.
You can also call your Toyota dealer or a qualified repair shop.

1

2

3

534

7-2. Steps to take in an emergency

CAMRY_U

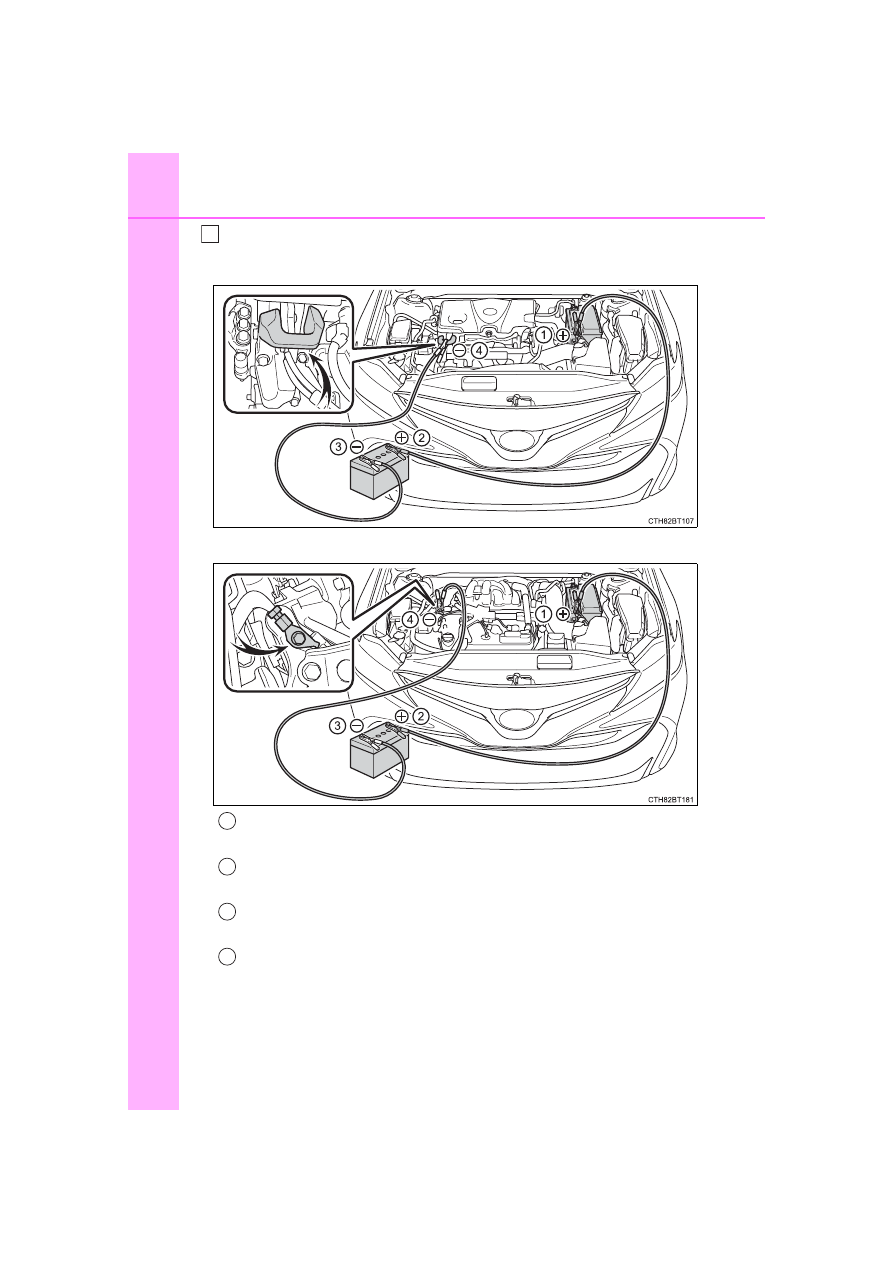

Connect the jumper cables according to the following procedure:



2.5 L 4-cylinder (A25A-FKS) engine



3.5 L V6 (2GR-FKS) engine

Connect a positive jumper cable clamp to the positive (+) battery
terminal on your vehicle.
Connect the clamp on the other end of the positive cable to the
positive (+) battery terminal on the second vehicle.
Connect a negative cable clamp to the negative (-) battery termi-
nal on the second vehicle.
Connect  the  clamp  at  the  other  end  of  the  negative  cable  to  a
solid, stationary, unpainted metallic point away from the battery
and any moving parts, as shown in the illustration.

4

1

2

3

4

535

7-2. Steps to take in an emergency

CAMRY_U

7

Wh
en tro

uble

 a

ris

es

Start the engine of the second vehicle. Increase the engine speed
slightly  and  maintain  at  that  level  for  approximately  5  minutes  to
recharge the battery of your vehicle.
Vehicles with a smart key system: Open and close any of the doors
of your vehicle with the engine switch off.
Vehicles without a smart key system:
Maintain  the  engine  speed  of  the  second  vehicle  and  turn  the
engine switch to the “ON” position, then start the vehicle's engine.
Vehicles with a smart key system:
Maintain  the  engine  speed  of  the  second  vehicle  and  turn  the
engine  switch  to  IGNITION  ON  mode,  then  start  the  vehicle's
engine.
Once the vehicle’s engine has started, remove the jumper cables in
the exact reverse order from which they were connected.

Once  the  engine  starts,  have  the  vehicle  inspected  at  your  Toyota
dealer as soon as possible.

■

Starting the engine when the battery is discharged

The engine cannot be started by push-starting.

■

To prevent battery discharge

●

Turn off the headlights and the audio system while the engine is off.

●

Turn off any unnecessary electrical components when the vehicle is running
at a low speed for an extended period, such as in heavy traffic.

■

When the battery is removed or discharged

●

Information stored in the ECU is cleared. When the battery is depleted, have
the vehicle inspected at your Toyota dealer.

●

Some systems may require initialization. (→P. 583)

■

When removing the battery terminals

When the battery terminals are removed, the information stored in the ECU is
cleared. Before removing the battery terminals, contact your Toyota dealer.

■

Charging the battery

The  electricity  stored  in  the  battery  will  discharge  gradually  even  when  the
vehicle is not in use, due to natural discharge and the draining effects of cer-
tain electrical appliances. If the vehicle is left for a long time, the battery may
discharge,  and  the  engine  may  be  unable  to  start.  (The  battery  recharges
automatically during driving.)

5

6

7

8

536

7-2. Steps to take in an emergency

CAMRY_U

■

When recharging or replacing the battery (vehicles with a smart key sys-
tem)

●

In some cases, it may not be possible to unlock the doors using the smart
key system when the battery is discharged. Use the wireless remote control
or the mechanical key to lock or unlock the doors.

●

The engine may not start on the first attempt after the battery has recharged
but will start normally after the second attempt. This is not a malfunction.

●

The engine switch mode is memorized by the vehicle. When the battery is
reconnected, the system will return to the mode it was in before the battery
was discharged. Before disconnecting the battery, turn the engine switch off.
If you are unsure what mode the engine switch was in before the battery dis-
charged, be especially careful when reconnecting the battery.

■

When replacing the battery

●

Use a battery that conforms to European regulations.

●

Use a battery with the same case size, equivalent or greater 20 hour rate
capacity (20HR), and equivalent or greater performance rating (CCA) as the
battery which is being replaced.

The  case  size,  20  hour  rate  capacity  (20HR)  and  performance  rating
(CCA) are specified on the label attached to the battery.

• If the sizes differ, the battery cannot be properly secured.
• If the 20 hour rate capacity is low, even if the time period where the vehi-

cle is not used is a short time, the battery may discharge and the engine
may not be able to start.

●

For details, consult your Toyota dealer.

Case size

20 hour rate

capacity (20HR)

Performance rating

(CCA)

Type A

LN2

60Ah

563A

Type B

LN3

70Ah

603A

537

7-2. Steps to take in an emergency

CAMRY_U

7

Wh
en tro

uble

 a

ris

es

WARNING

■

When removing the battery terminals

Always remove the negative (-) terminal first. If the positive (+) terminal con-
tacts  any  metal  in  the  surrounding  area  when  the  positive  (+)  terminal  is
removed, a spark may occur, leading to a fire in addition to electrical shocks
and death or serious injury.

■

Avoiding battery fires or explosions

Observe the following precautions to prevent accidentally igniting the flam-
mable gas that may be emitted from the battery:

●

Make sure each jumper cable is connected to the correct terminal and that
it is not unintentionally in contact with any other than the intended terminal.

●

Do not allow the other end of the jumper cable connected to the “+” termi-
nal to come into contact with any other parts or metal surfaces in the area,
such as brackets or unpainted metal.

●

Do not allow the + and - clamps of the jumper cables to come into contact
with each other.

●

Do  not smoke,  use matches, cigarette lighters  or  allow  open flame near
the battery.

■

Battery precautions

The  battery  contains  poisonous  and  corrosive  acidic  electrolyte,  while
related parts contain lead and lead compounds. Observe the following pre-
cautions when handling the battery:

●

When working with the battery, always wear safety glasses and take care
not to allow any battery fluids (acid) to come into contact with skin, clothing
or the vehicle body.

●

Do not lean over the battery.

●

In  the  event  that  battery  fluid  comes  into  contact  with  the  skin  or  eyes,
immediately wash the affected area with water and seek medical attention.
Place a wet sponge or cloth over the affected area until medical attention
can be received.

●

Always wash your hands after handling the battery support, terminals, and
other battery-related parts.

●

Do not allow children near the battery.

NOTICE

■

When handling jumper cables

When connecting the jumper cables, ensure that they do not become entan-
gled in the cooling fan or engine drive belt.

538

7-2. Steps to take in an emergency

CAMRY_U

Stop the vehicle in a safe place and turn off the air conditioning sys-
tem, and then stop the engine.
If you see steam:
Carefully lift the hood after the steam subsides.
If you do not see steam:
Carefully lift the hood.

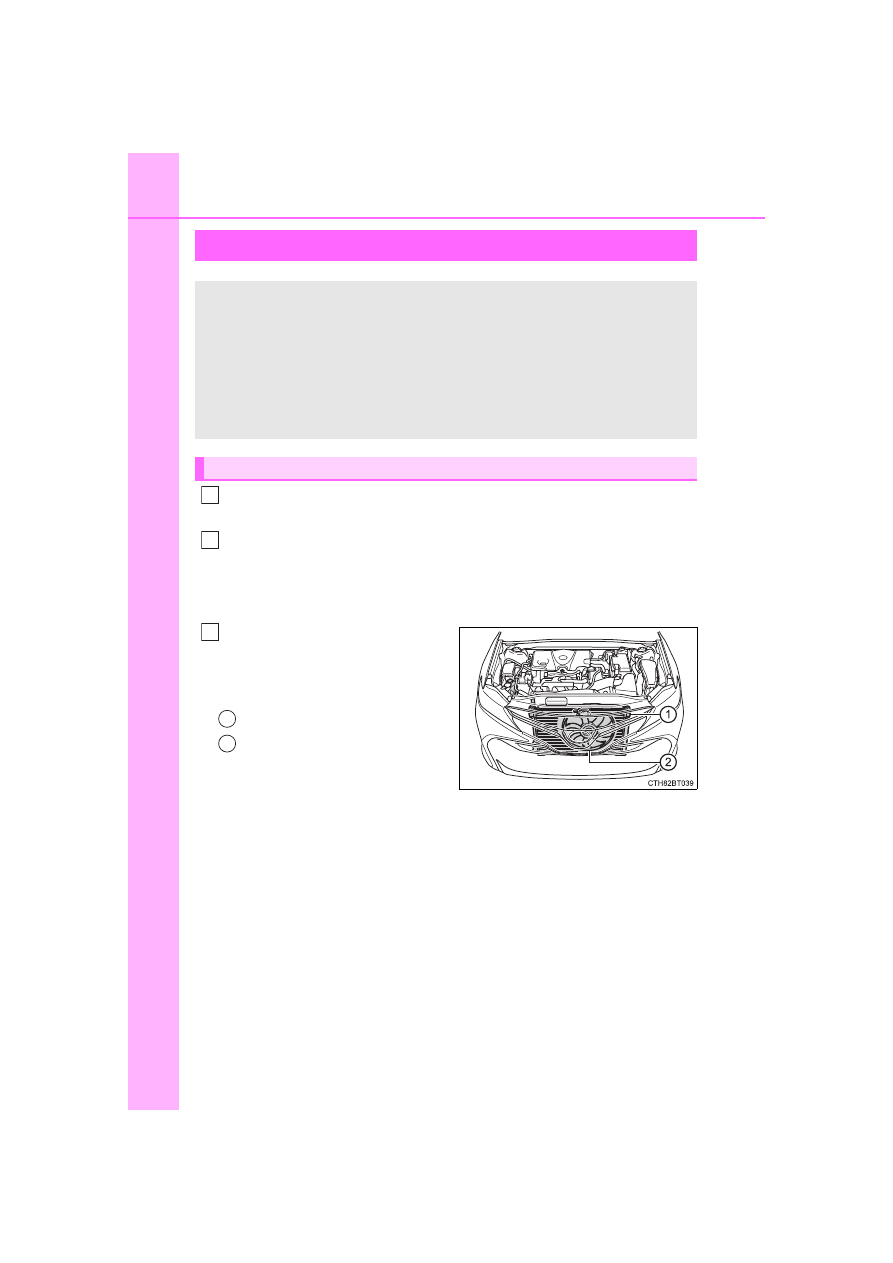

After  the  engine  has  cooled
down  sufficiently,  inspect  the
hoses and radiator core (radia-
tor) for any leaks.

Radiator
Cooling fan

If a large amount of coolant leaks,
immediately  contact  your  Toyota
dealer.

If your vehicle overheats

The following may indicate that your vehicle is overheating.

●

The  needle  of  the  engine  coolant  temperature  gauge  (



P.  92)

enters the red zone or a loss of engine power is experienced. (For
example, the vehicle speed does not increase.)

●

“Engine  Coolant Temp  High  Stop  in  a  Safe  Place  See  Owner’s
Manual” is shown on the multi-information display.

●

Steam comes out from under the hood.

Correction procedures

1

2

3

1

2

539

7-2. Steps to take in an emergency

CAMRY_U

7

Wh
en tro

uble

 a

ris

es

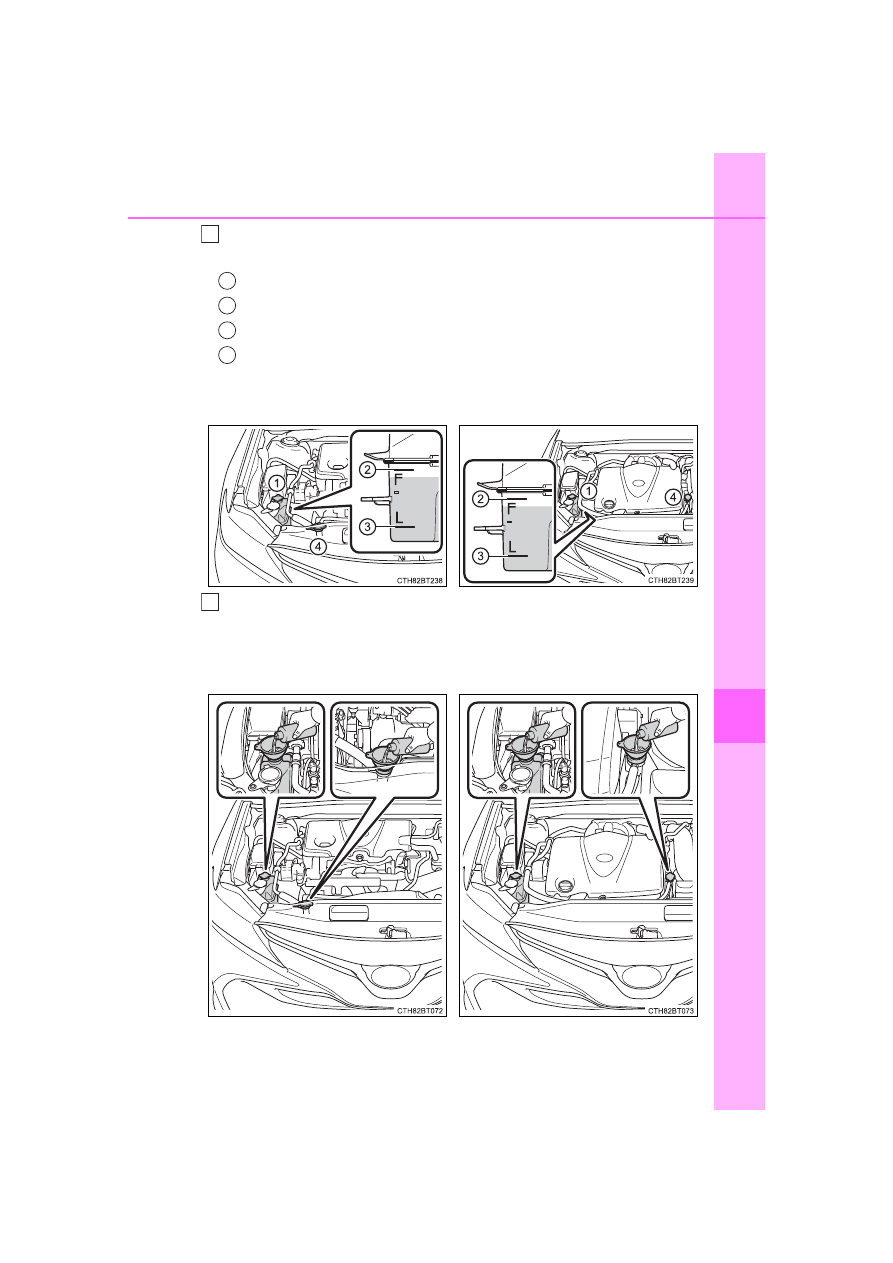

The coolant level is satisfactory if it is between the “F” and “L” lines
on the reservoir.

Reservoir
“F” line
“L” line
Radiator cap

Add coolant if necessary.

Water can be used in an emergency if coolant is unavailable.

4

1

2

3

4



2.5  L  4-cylinder  (A25A-FKS)
engine



3.5 L V6 (2GR-FKS) engine

5



2.5  L  4-cylinder  (A25A-FKS)
engine



3.5 L V6 (2GR-FKS) engine

540

7-2. Steps to take in an emergency

CAMRY_U

Start the engine and turn the air conditioning system on to check
that the radiator cooling fan operates and to check for coolant leaks
from the radiator or hoses.

The fan operates when the air conditioning system is turned on immedi-
ately after a cold start. Confirm that the fan is operating by checking the fan
sound and air flow. If it is difficult to check these, turn the air conditioning
system on and off repeatedly. (The fan may not operate in freezing tem-
peratures.)

If the fan is not operating:
Stop the engine immediately and contact your Toyota dealer.
If the fan is operating:
Have the vehicle inspected at the nearest Toyota dealer.

WARNING

■

To  prevent  an  accident  or  injury  when  inspecting  under  the  hood  of
your vehicle

Observe the following precautions.
Failure to do so may result in serious injury such as burns.

●

If steam is seen coming from under the hood, do not open the hood until
the steam has subsided. The engine compartment may be very hot.

●

Keep hands and clothing (especially a tie, a scarf or a muffler) away from
the fan and belts. Failure to do so may cause the hands or clothing to be
caught, resulting in serious injury.

●

Do  not  loosen  the  radiator  cap  and  the  coolant  reservoir  cap  while  the
engine and radiator are hot.
High temperature steam or coolant could spray out.

NOTICE

■

When adding engine coolant

Wait until the engine has cooled down before adding engine coolant.
When adding coolant, do so slowly. Adding cool coolant to a hot engine too
quickly can cause damage to the engine.

■

To prevent damage to the cooling system

Observe the following precautions:

●

Avoid contaminating the coolant with foreign matter (such as sand or dust
etc.).

●

Do not use any coolant additives.

6

7

541

7-2. Steps to take in an emergency

CAMRY_U

7

Wh
en tro

uble

 a

ris

es

Stop the engine. Set the parking brake and shift the shift lever to P.
Remove the mud, snow or sand from around the front wheels.
Place wood, stones or some other material under the front wheels
to help provide traction.
Restart the engine.
Shift the shift lever to D or R and release the parking brake. Then,
while exercising caution, depress the accelerator pedal.

If the vehicle becomes stuck

Carry out the following procedures if the tires spin or the vehicle
becomes stuck in mud, dirt or snow:

1

2

3

4

5

542

7-2. Steps to take in an emergency

CAMRY_U

■

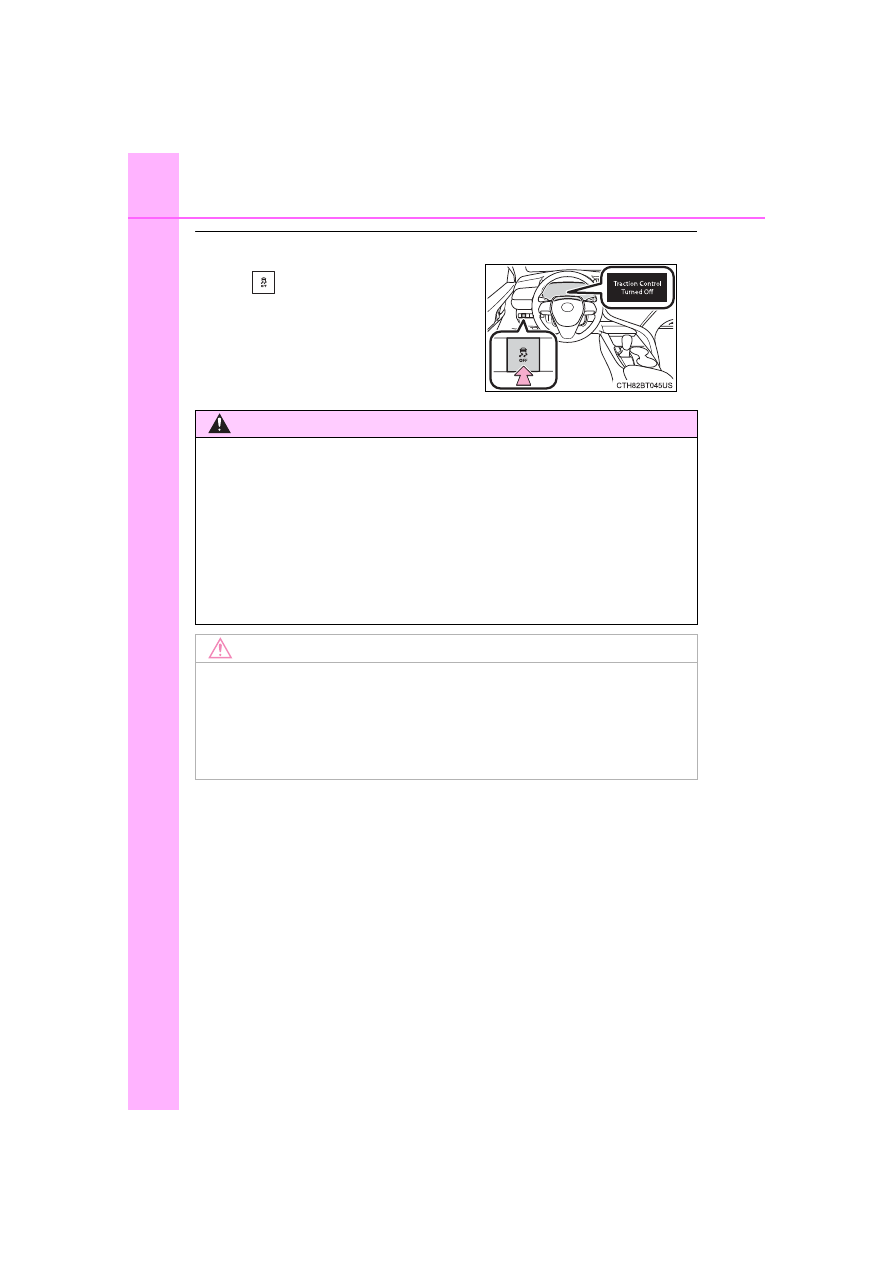

When it is difficult to free the vehicle

Press

 to turn off TRAC.

WARNING

■

When attempting to free a stuck vehicle

If you choose to push the vehicle back and forth to free it, make sure the
surrounding area is clear to avoid striking other vehicles, objects or people.
The vehicle may also lunge forward or lunge back suddenly as it becomes
free. Use extreme caution.

■

When shifting the shift lever

Be careful not to shift the shift lever with the accelerator pedal depressed.
This  may  lead  to  unexpected  rapid  acceleration  of  the  vehicle  that  may
cause an accident resulting in death or serious injury.

NOTICE

■

To avoid damaging the transmission and other components

●

Avoid  spinning  the  front  wheels  and  depressing  the  accelerator  pedal
more than necessary.

●

If  the  vehicle  remains  stuck even  after  these procedures  are  performed,
the vehicle may require towing to be freed.

543

8

Vehicle specifications

CAMRY_U

8-1.  Specifications

Maintenance data

(fuel, oil level, etc.).......... 544

Fuel information ................ 559
Tire information ................. 562

8-2.  Customization

Customizable features ...... 575

8-3.  Items to initialize

Items to initialize ............... 583

544

CAMRY_U

8-1. Specifications

*

1

: Unladen vehicles

*

2

: For L, LE or XLE grade models

*

3

: For SE or XSE grade models

*

4

: 205/65R16 tires

*

5

: 215/55R17 tires and TRD models with 235/40R19 tires

*

6

: 235/45R18 and XSE grade models with 235/40R19 tires

*

7

: For TRD models

Maintenance data (fuel, oil level, etc.)

Dimensions and weights (2WD models)

Overall length

192.1 in. (4880 mm)

*

2

192.7 in. (4895 mm)

*

3

194.6 in. (4944 mm)

*

7

Overall width

72.4 in. (1840 mm)

*

2, 3

73.1 in. (1856 mm)

*

7

Overall height

*

1

56.9 in. (1445 mm)

*

2, 3

56.3 in. (1430 mm)

*

7

Wheelbase

111.2 in. (2825 mm)

Tread

*

1

Front

63.0 in. (1600 mm)

*

4

62.6 in. (1590 mm)

*

5

62.2 in. (1580 mm)

*

6

Rear

63.2 in. (1605 mm)

*

4

62.8 in. (1595 mm)

*

5

62.6 in. (1590 mm)

*

6

Vehicle capacity weight
(occupants + luggage)

925 lb. (420 kg)

545

8-1. Specifications

8

Vehi

cl

e specificatio

ns

CAMRY_U

*

1

: Unladen vehicles

*

2

: For LE or XLE grade models

*

3

: For SE or XSE grade models

*

4

: 215/55R17 tires

*

5

: 235/45R18 and 235/40R19 tires

Dimensions and weights (AWD models)

Overall length

192.1 in. (4880 mm)

*

2

192.7 in. (4895 mm)

*

3

Overall width

72.4 in. (1840 mm)

Overall height

*

1

57.1 in. (1450 mm)

Wheelbase

111.2 in. (2825 mm)

Tread

*

1

Front

62.6 in. (1590 mm)

*

4

62.2 in. (1580 mm)

*

5

Rear

63.0 in. (1600 mm)

*

4

62.8 in. (1595 mm)

*

5

Vehicle capacity weight
(occupants + luggage)

925 lb. (420 kg)

Seating capacity

Seating capacity

5 (Front 2, Rear 3)

546

8-1. Specifications

CAMRY_U

■

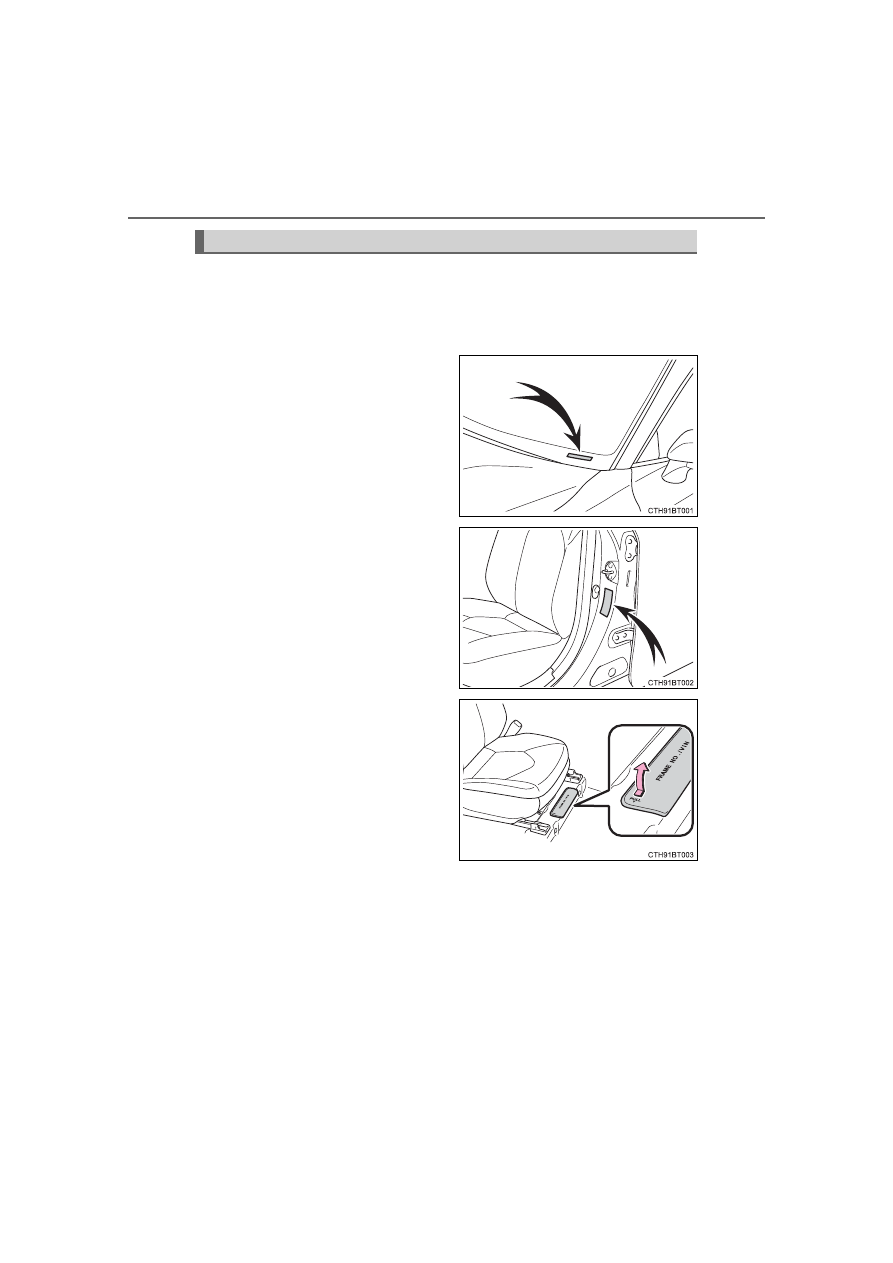

Vehicle identification number

The  vehicle  identification  number  (VIN)  is  the  legal  identifier  for
your  vehicle.  This  is  the  primary  identification  number  for  your
Toyota. It is used in registering the ownership of your vehicle.
This number is stamped on the
top left of the instrument panel.

This number is also on the Cer-
tification Label.

On  some  models,  this  number
is also stamped under the right-
hand front seat.

Vehicle identification

547

8-1. Specifications

8

Vehi

cl

e specificatio

ns

CAMRY_U

■

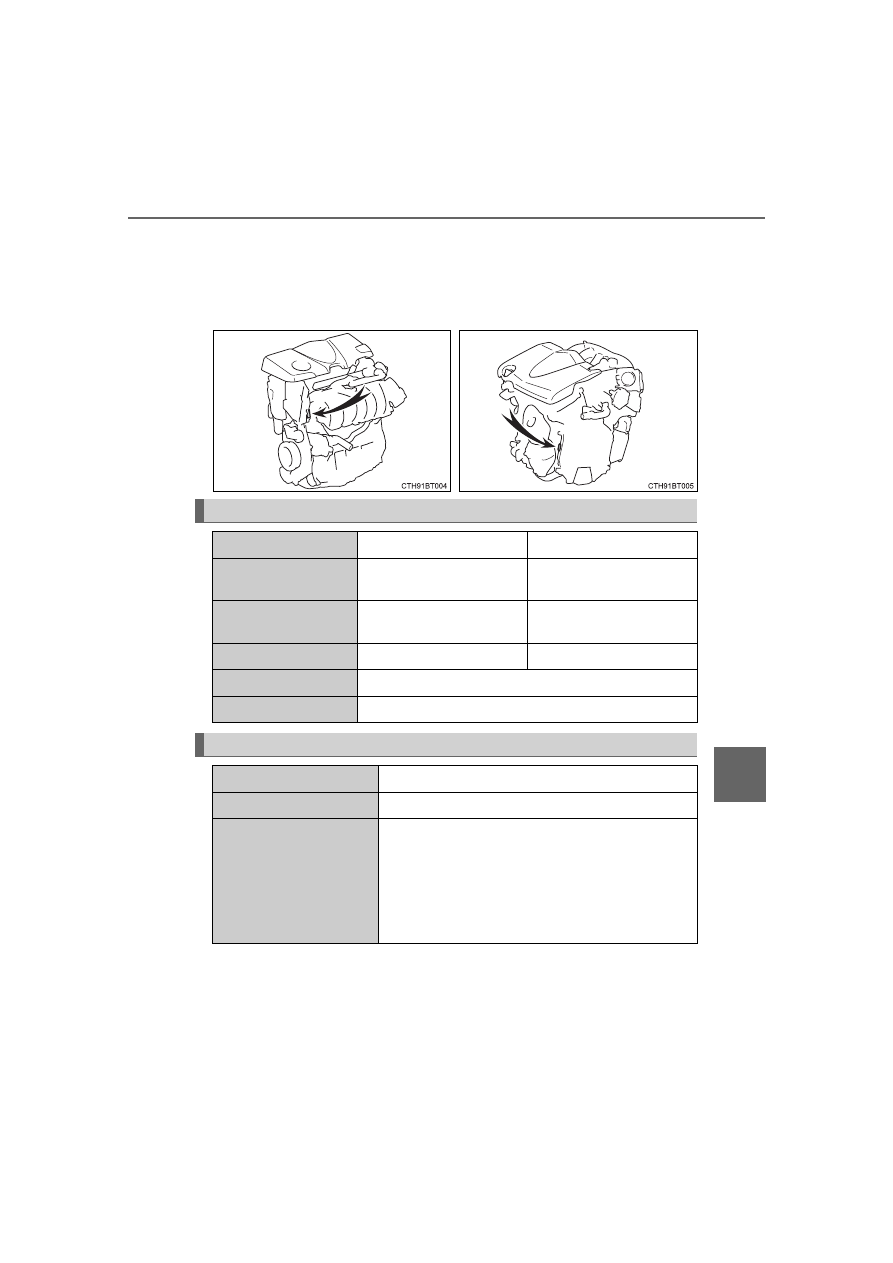

Engine number

The engine number is stamped on the engine block as shown.



2.5  L  4-cylinder  (A25A-FKS)
engine



3.5 L V6 (2GR-FKS) engine

Engine

Model

A25A-FKS

2GR-FKS

Type

4-cylinder in line,
4-cycle, gasoline

6-cylinder V type,
4-cycle, gasoline

Bore and stroke

3.44



 4.07 in.

(87.5



 103.4 mm)

3.70



 3.27 in.

(94.0



 83.0 mm)

Displacement

151.8 cu. in. (2487 cm

3

)

210.9 cu. in. (3456 cm

3

)

Valve clearance

Automatic adjustment

Drive belt tension

Automatic adjustment

Fuel

Fuel type

Unleaded gasoline only

Octane rating

87 (Research Octane Number 91) or higher

Fuel tank capacity
(Reference)



For L grade models

14.5 gal. (55 L, 12.0 Imp. gal.)



For AWD models

14.4 gal. (54.5 L, 11.9 Imp. gal.)



Except for L grade models and AWD models

16.0 gal. (60.6 L, 13.3 Imp. gal.)

548

8-1. Specifications

CAMRY_U

■

Oil capacity (Drain and refill [Reference

*

])

*

: The engine oil capacity is a reference quantity to be used when changing

the engine oil. Warm up and turn off the engine, wait more than 5 minutes,
and check the oil level on the dipstick.

■

Engine oil selection



2.5 L 4-cylinder (A25A-FKS) engine

“Toyota  Genuine  Motor  Oil”  is  used  in  your  Toyota  vehicle.  Use
Toyota approved “Toyota Genuine Motor Oil” or equivalent to sat-
isfy the following grade and viscosity.
Oil grade: API SN/RC multigrade engine oil
Recommended viscosity: SAE 0W-16

SAE  0W-16  is  the  best  choice  for
good fuel economy and good start-
ing in cold weather.
If SAE 0W-16 is not available, SAE
0W-20  oil  may  be  used.  However,
it  must  be  replaced  with SAE 0W-
16 at the next oil change.

Oil viscosity (0W-16 is explained here as an example):

• The 0W in 0W-16 indicates the characteristic of the oil which allows cold

startability. Oils with a lower value before the W allow for easier starting of
the engine in cold weather.

• The 16 in 0W-16 indicates the viscosity characteristic of the oil when the

oil is at high temperature. An oil with a higher viscosity (one with a higher
value) may be better suited if the vehicle is operated at high speeds, or
under extreme load conditions.

Lubrication system

With filter

Without filter

2.5

L

4-cylinder

(A25A-FKS) engine

4.8 qt.
(4.5 L, 4.0 Imp. qt.)

4.4 qt.
(4.2 L, 3.7 Imp. qt.)

3.5  L  V6  (2GR-FKS)
engine

5.7 qt.
(5.4 L, 4.8 Imp. qt.)

5.6 qt.
(5.3 L, 4.7 Imp. qt.)

Outside temperature

549

8-1. Specifications

8

Vehi

cl

e specificatio

ns

CAMRY_U

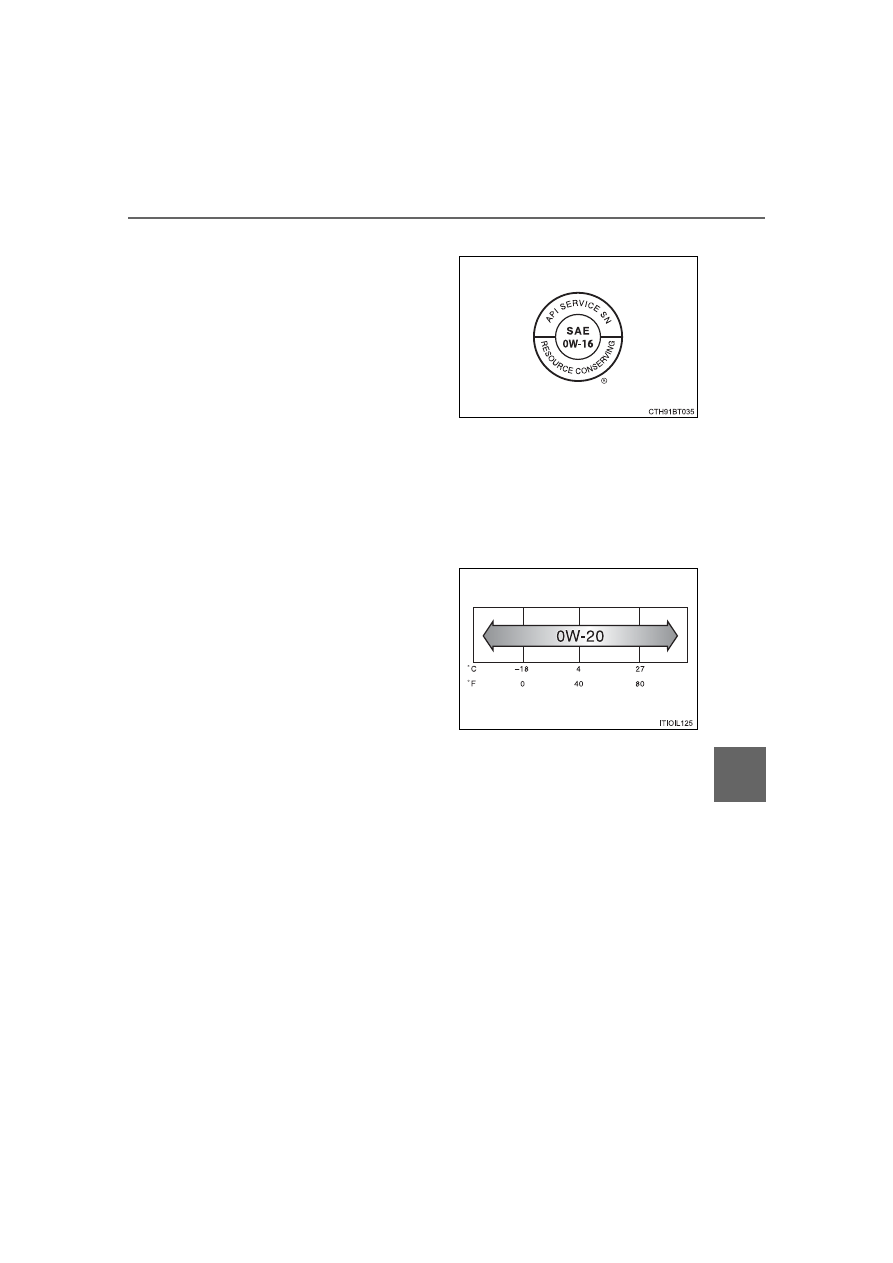

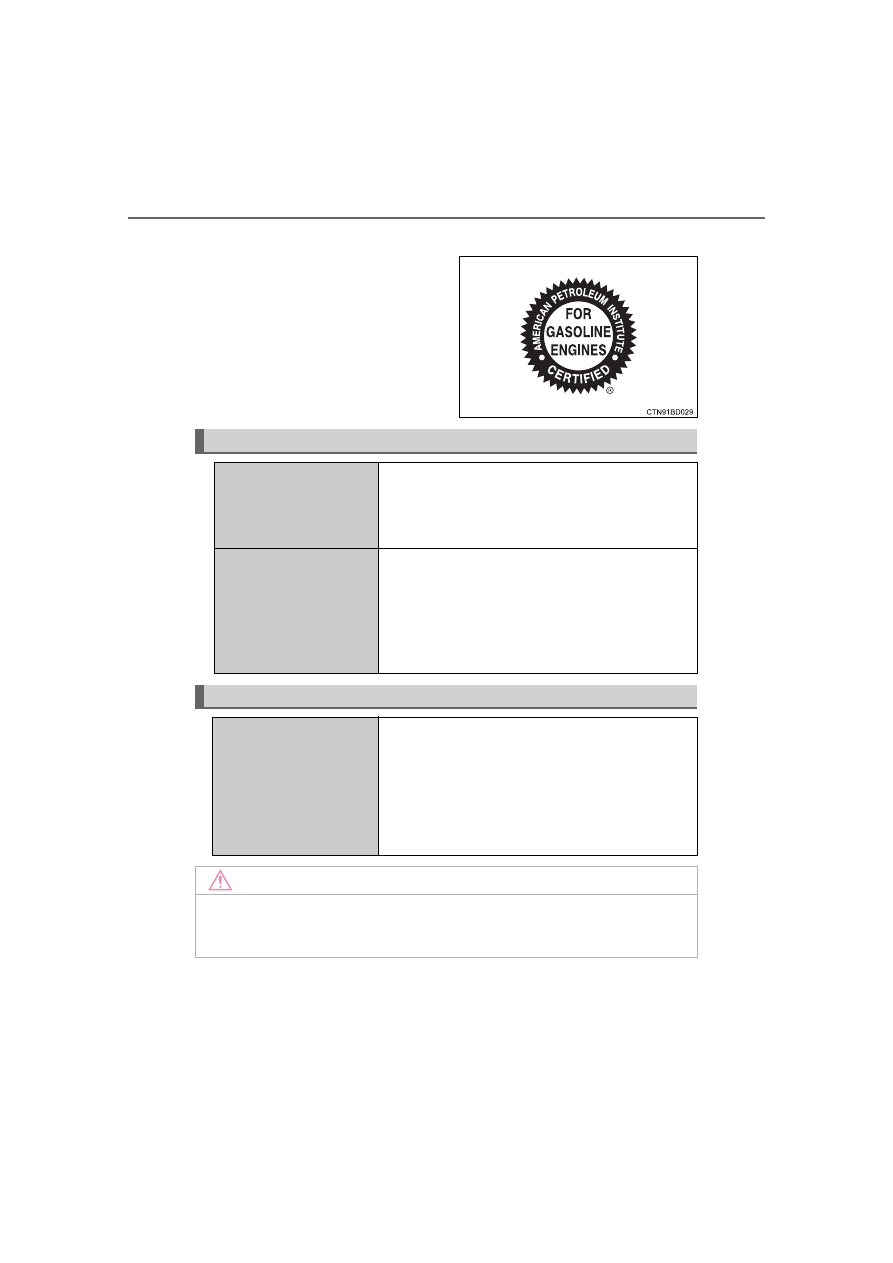

How to read oil container label:
API registered mark is added to
some oil containers to help you
select the oil you should use.



3.5 L V6 (2GR-FKS) engine

“Toyota  Genuine  Motor  Oil”  is  used  in  your  Toyota  vehicle.  Use
Toyota approved “Toyota Genuine Motor Oil” or equivalent to sat-
isfy the following grade and viscosity.
Oil grade: ILSAC GF-5 multigrade engine oil
Recommended viscosity: SAE 0W-20

SAE  0W-20  is  the  best  choice  for
good fuel economy and good start-
ing in cold weather.
If SAE 0W-20 is not available, SAE
5W-20  oil  may  be  used.  However,
it  must  be  replaced  with SAE 0W-
20 at the next oil change.

Oil viscosity (0W-20 is explained here as an example):

• The 0W in 0W-20 indicates the characteristic of the oil which allows cold

startability. Oils with a lower value before the W allow for easier starting of
the engine in cold weather.

• The 20 in 0W-20 indicates the viscosity characteristic of the oil when the

oil is at high temperature. An oil with a higher viscosity (one with a higher
value) may be better suited if the vehicle is operated at high speeds, or
under extreme load conditions.

Outside temperature

550

8-1. Specifications

CAMRY_U

How to read oil container label:
The  International  Lubricant
Specification Advisory  Commit-
tee  (ILSAC)  Certification  Mark
is added to some oil containers
to  help  you  select  the  oil  you
should use.

Cooling system

Capacity
(Reference)



2.5 L 4-cylinder (A25A-FKS) engine

7.3 qt. (6.9 L, 6.1 Imp. qt.)



3.5 L V6 (2GR-FKS) engine

9.1 qt. (8.6 L, 7.6 Imp. qt.)

Coolant type

Use either of the following:

• “Toyota Super Long Life Coolant”
• Similar  high-quality  ethylene  glycol-based

non-silicate,  non-amine,  non-nitrite,  and
non-borate  coolant  with  long-life  hybrid
organic acid technology

Do not use plain water alone.

Ignition system

Spark plug

Make



2.5 L 4-cylinder (A25A-FKS) engine

DENSO FC16HR-Q8



3.5 L V6 (2GR-FKS) engine

DENSO FK20HBR8

Gap

0.031 in. (0.8 mm)

NOTICE

■

Iridium-tipped spark plugs

Use only iridium-tipped spark plugs. Do not adjust spark plug gap.

551

8-1. Specifications

8

Vehi

cl

e specificatio

ns

CAMRY_U

*

: The fluid capacity is a reference quantity.

If replacement is necessary, contact your Toyota dealer.

Electrical system

Battery

Specific  voltage  reading  at
68



F (20



C):

12.3 V or higher
If  the  voltage  is  lower  than  the  standard
value, charge the battery.
(When  checking  the  voltage,  after  turning
the engine switch off, wait for 30 seconds
with the high beam headlights illuminated,
then turn the high beam headlights off and
check the voltage.)

Charging rates

5 A max.

Automatic transaxle

Fluid capacity

*



2.5 L 4-cylinder (A25A-FKS) engine

7.7 qt. (7.3 L, 6.4 Imp. qt.)



3.5 L V6 (2GR-FKS) engine

7.9 qt. (7.5 L, 6.6 Imp. qt.)

Fluid type

Toyota Genuine ATF WS

NOTICE

■

Transmission fluid type

Using  transmission  fluid  other  than  the  above  type  may  cause  abnormal
noise or vibration, or damage the transmission of your vehicle.

552

8-1. Specifications

CAMRY_U

Your Toyota vehicle is filled with “Toyota Genuine Differential Gear Oil” at the
factory.
Use Toyota approved “Toyota Genuine Differential Gear Oil” or an equivalent
of  matching  quality  to  satisfy  the  above  specification.  Please  contact  your
Toyota dealer for further details.

Your Toyota vehicle is filled with “Toyota Genuine Differential Gear Oil” at the
factory.
Use Toyota approved “Toyota Genuine Differential Gear Oil” or an equivalent
of  matching  quality  to  satisfy  the  above  specification.  Please  contact  your
Toyota dealer for further details.

Transfer (AWD models)

Oil capacity

0.47 qt. (0.45 L, 0.39 Imp. qt.)

Oil type and viscosity

Toyota Genuine Differential Gear Oil LT
75W-85 GL-5 or equivalent

NOTICE

■

Transfer oil type precaution

Using transfer oil other than the specified oil may cause abnormal noise or
vibration, or damage the transfer of your vehicle.

Rear differential (AWD models)

Oil capacity

0.52 qt. (0.50 L, 0.43 Imp. qt.)

Oil type and viscosity

Toyota Genuine Differential Gear Oil LT
75W-85 GL-5 or equivalent

NOTICE

■

Differential gear oil type precaution

Using differential gear oil other than the specified oil may cause abnormal
noise or vibration, or damage the differential gear of your vehicle.

553

8-1. Specifications

8

Vehi

cl

e specificatio

ns

CAMRY_U

*

1

: Minimum pedal clearance when depressed with a force of 67 lbf (300 N, 31

kgf) while the engine is running.

*

2

: Parking brake pedal travel when depressed with a force of 67 lbf (300 N,

31 kgf).



Type A

Brakes

Pedal clearance

*

1

3.2 in. (81 mm)

Pedal free play

0.04



 0.24 in. (1



 6 mm)

Brake pad wear limit

0.04 in. (1.0 mm)

Parking brake lining wear limit
(pedal type)

0.04 in. (1.0 mm)

Parking  brake  pedal  travel
(pedal type)

*

2

7



 12 clicks

Fluid type

FMVSS No.116 DOT 3 or SAE J1703
FMVSS No.116 DOT 4 or SAE J1704

Steering

Free play

Less than 1.2 in. (30 mm)

Tires and wheels (2WD models)

Tire size

205/65R16 95H, T155/70D17 110M

Tire inflation pressure

(Recommended  cold  tire

inflation pressure)

Driving under normal conditions

Front:

35 psi (240 kPa, 2.4 kgf/cm

2

 or bar)

Rear:

35 psi (240 kPa, 2.4 kgf/cm

2

 or bar)

Spare:

60 psi (420 kPa, 4.2 kgf/cm

2

 or bar)

Driving  at  high  speeds  (above  100  mph

[160  km/h])  (in  countries  where  such

speeds are permitted by law)

Add 5 psi (30 kPa, 0.3 kgf/cm

2

 or bar) to

the  front  tires  and  rear  tires.  Never

exceed  the  maximum  cold  tire  inflation

pressure indicated on the tire sidewall.

Wheel size

16



 6 1/2 J, 17



 4 T (compact spare)

Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

554

8-1. Specifications

CAMRY_U



Type B



Type C

Tire size

215/55R17 94V, T155/70D17 110M

Tire inflation pressure

(Recommended  cold  tire

inflation pressure)

Driving under normal conditions

Front:

35 psi (240 kPa, 2.4 kgf/cm

2

 or bar)

Rear:

35 psi (240 kPa, 2.4 kgf/cm

2

 or bar)

Spare:

60 psi (420 kPa, 4.2 kgf/cm

2

 or bar)

Driving  at  high  speeds  (above  100  mph

[160  km/h])  (in  countries  where  such

speeds are permitted by law)

Add 5 psi (30 kPa, 0.3 kgf/cm

2

 or bar) to

the  front  tires  and  rear  tires.  Never

exceed  the  maximum  cold  tire  inflation

pressure indicated on the tire sidewall.

Wheel size

17



 7 1/2 J, 17



 4 T (compact spare)

Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

Tire size

235/45R18 94V, T155/70D17 110M

Tire inflation pressure

(Recommended  cold  tire

inflation pressure)

Driving under normal conditions

Front:

35 psi (240 kPa, 2.4 kgf/cm

2

 or bar)

Rear:

35 psi (240 kPa, 2.4 kgf/cm

2

 or bar)

Spare:

60 psi (420 kPa, 4.2 kgf/cm

2

 or bar)

Driving  at  high  speeds  (above  100  mph

[160  km/h])  (in  countries  where  such

speeds are permitted by law)

Add 5 psi (30 kPa, 0.3 kgf/cm

2

 or bar) to

the  front  tires  and  rear  tires.  Never

exceed  the  maximum  cold  tire  inflation

pressure indicated on the tire sidewall.

Wheel size

18



 8 J, 17



 4 T (compact spare)

Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

555

8-1. Specifications

8

Vehi

cl

e specificatio

ns

CAMRY_U



Type D



Type E

Tire size

235/40R19 92V, T155/70D17 110M

Tire inflation pressure

(Recommended  cold  tire

inflation pressure)

Driving under normal conditions

Front:

35 psi (240 kPa, 2.4 kgf/cm

2

 or bar)

Rear:

35 psi (240 kPa, 2.4 kgf/cm

2

 or bar)

Spare:

60 psi (420 kPa, 4.2 kgf/cm

2

 or bar)

Driving  at  high  speeds  (above  100  mph

[160  km/h])  (in  countries  where  such

speeds are permitted by law)

Add 5 psi (30 kPa, 0.3 kgf/cm

2

 or bar) to

the  front  tires  and  rear  tires.  Never

exceed  the  maximum  cold  tire  inflation

pressure indicated on the tire sidewall.

Wheel size

19



 8 J, 17



 4 T (compact spare)

Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

Tire size

235/40R19 96Y, T155/70D17 110M

Tire inflation pressure

(Recommended  cold  tire

inflation pressure)

Driving under normal conditions

Front:

33 psi (230 kPa, 2.3 kgf/cm

2

 or bar)

Rear:

33 psi (230 kPa, 2.3 kgf/cm

2

 or bar)

Spare:

60 psi (420 kPa, 4.2 kgf/cm

2

 or bar)

Driving  at  high  speeds  (above  100  mph

[160  km/h])  (in  countries  where  such

speeds are permitted by law)

Add 5 psi (30 kPa, 0.3 kgf/cm

2

 or bar) to

the  front  tires  and  rear  tires.  Never

exceed  the  maximum  cold  tire  inflation

pressure indicated on the tire sidewall.

Wheel size

19



 8 1/2 J, 17



 4 T (compact spare)

Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

556

8-1. Specifications

CAMRY_U



Type A



Type B

Tires and wheels (AWD models)

Tire size

215/55R17 94V, T155/70D17 110M

Tire inflation pressure

(Recommended  cold  tire

inflation pressure)

Driving under normal conditions

Front:

36 psi (250 kPa, 2.5 kgf/cm

2

 or bar)

Rear:

36 psi (250 kPa, 2.5 kgf/cm

2

 or bar)

Spare:

60 psi (420 kPa, 4.2 kgf/cm

2

 or bar)

Driving  at  high  speeds  (above  100  mph

[160  km/h])  (in  countries  where  such

speeds are permitted by law)

Add 5 psi (30 kPa, 0.3 kgf/cm

2

 or bar) to

the  front  tires  and  rear  tires.  Never

exceed  the  maximum  cold  tire  inflation

pressure indicated on the tire sidewall.

Wheel size

17



 7 1/2 J, 17



 4 T (compact spare)

Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

Tire size

235/45R18 94V, T155/70D17 110M

Tire inflation pressure

(Recommended  cold  tire

inflation pressure)

Driving under normal conditions

Front:

36 psi (250 kPa, 2.5 kgf/cm

2

 or bar)

Rear:

36 psi (250 kPa, 2.5 kgf/cm

2

 or bar)

Spare:

60 psi (420 kPa, 4.2 kgf/cm

2

 or bar)

Driving  at  high  speeds  (above  100  mph

[160  km/h])  (in  countries  where  such

speeds are permitted by law)

Add 5 psi (30 kPa, 0.3 kgf/cm

2

 or bar) to

the  front  tires  and  rear  tires.  Never

exceed  the  maximum  cold  tire  inflation

pressure indicated on the tire sidewall.

Wheel size

18



 8 J, 17



 4 T (compact spare)

Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

557

8-1. Specifications

8

Vehi

cl

e specificatio

ns

CAMRY_U



Type C

Tire size

235/40R19 92V, T155/70D17 110M

Tire inflation pressure

(Recommended  cold  tire

inflation pressure)

Driving under normal conditions

Front:

36 psi (250 kPa, 2.5 kgf/cm

2

 or bar)

Rear:

36 psi (250 kPa, 2.5 kgf/cm

2

 or bar)

Spare:

60 psi (420 kPa, 4.2 kgf/cm

2

 or bar)

Driving  at  high  speeds  (above  100  mph

[160  km/h])  (in  countries  where  such

speeds are permitted by law)

Add 5 psi (30 kPa, 0.3 kgf/cm

2

 or bar) to

the  front  tires  and  rear  tires.  Never

exceed  the  maximum  cold  tire  inflation

pressure indicated on the tire sidewall.

Wheel size

19



 8 J, 17



 4 T (compact spare)

Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

558

8-1. Specifications

CAMRY_U

*

1

: Light bulbs not listed in this table are LED bulbs.

*

2

: If equipped

Light bulbs

*

1

Light bulbs

Bulb No.

W

Type

Exterior

Front  side  marker
lights (bulb type)

W5W

5

A

Front turn signal/
parking lights
(bulb type)

7444NA

28/8

B

Rear turn signal lights
(bulb type)

WY21W

21

B

Rear side maker lights
(bulb type)

W5W

5

A

Back-up lights
(bulb type)

921

16

A

Interior

Rear interior light

*

2



8

C

Door courtesy lights

*

2



5

A

Vanity lights

*

2



8

A

Trunk light



5

A

A: Wedge base bulbs (clear)

C: Double end bulbs

B: Wedge base bulbs (amber)

559

8-1. Specifications

8

Vehi

cl

e specificatio

ns

CAMRY_U

■

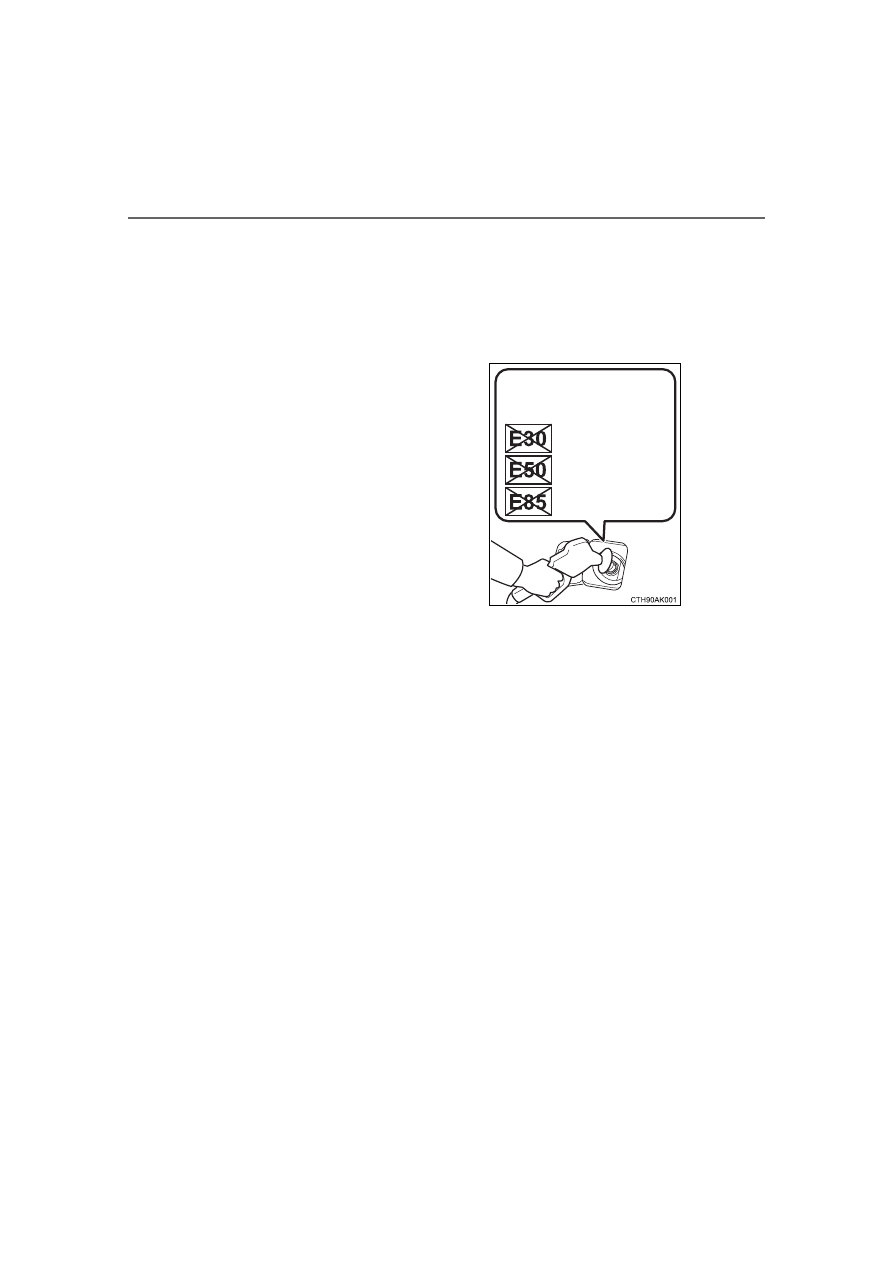

Gasoline quality

In very few cases, driveability problems may be caused by the brand of gaso-
line you are using. If driveability problems persist, try changing the brand of
gasoline. If this does not correct the problem, consult your Toyota dealer.

■

Recommendation of the use of gasoline containing detergent additives

●

Toyota recommends the use of gasoline that contains detergent additives to
avoid the build-up of engine deposits.

●

All  gasoline  sold  in  the  U.S.A.  contains  minimum  detergent  additives  to
clean and/or keep clean intake systems, per EPA’s lowest additives concen-
tration program.

●

Toyota  strongly  recommends  the  use  of Top Tier  Detergent  Gasoline.  For
more  information  on Top Tier  Detergent  Gasoline  and  a  list  of  marketers,
please go to the official website www.toptiergas.com.

Fuel information

You must only use unleaded gasoline.
Select octane rating 87 (Research Octane Number 91) or higher.
Use  of  unleaded  gasoline  with  an  octane  rating  lower  than  87
may result in engine knocking. Persistent knocking can lead to
engine damage.

At minimum, the gasoline you use should meet the specifications of
ASTM D4814 in the U.S.A..

560

8-1. Specifications

CAMRY_U

■

Recommendation of the use of low emissions gasoline

Gasolines  containing  oxygenates  such  as  ethers  and  ethanol,  as  well  as
reformulated gasolines, are available in some cities. These fuels are typically
acceptable for use, providing they meet other fuel requirements.
Toyota  recommends  these  fuels,  since  the  formulations  allow  for  reduced
vehicle emissions.

■

Non-recommendation of the use of blended gasoline

●

If you use gasohol in your vehicle, be sure that it has an octane rating no
lower than 87.

●

Toyota does not recommend the use of gasoline containing methanol.

■

Non-recommendation of the use of gasoline containing MMT

Some gasoline contains an octane enhancing additive called MMT (Methylcy-
clopentadienyl Manganese Tricarbonyl).
Toyota  does  not  recommend  the  use  of  gasoline  that  contains  MMT.  If  fuel
containing  MMT  is  used,  your  emission  control  system  may  be  adversely
affected.
The malfunction indicator lamp on the instrument cluster may come on. If this
happens, contact your Toyota dealer for service.

■

If your engine knocks

●

Consult your Toyota dealer.

●

You may occasionally notice light knocking for a short time while accelerat-
ing or driving uphill. This is normal and there is no need for concern.

●

Use only gasoline containing up to 15%
ethanol.
DO  NOT  use  any  flex-fuel  or  gasoline
that could contain more than 15% etha-
nol,  including  from  any  pump  labeled
E30,  E50,  E85  (which  are  only  some
examples  of  fuel  containing  more  than
15% ethanol).

DO NOT use gasoline contain-
ing more than 15% ethanol.

(30% ethanol)

(50% ethanol)

(85% ethanol)

561

8-1. Specifications

8

Vehi

cl

e specificatio

ns

CAMRY_U

NOTICE

■

Notice on fuel quality

●

Do not use improper fuels. If improper fuels are used, the engine will be
damaged.

●

Do not use leaded gasoline.
Leaded gasoline can cause damage to your vehicle’s three-way catalytic
converters causing the emission control system to malfunction.

●

Do not use gasohol other than the type previously stated.
Other  gasohol  may  cause  fuel  system  damage  or  vehicle  performance
problems.

●

Using unleaded gasoline with an octane number or rating lower than the
level previously stated will cause persistent heavy knocking.
At worst, this will lead to engine damage.

■

Fuel-related poor driveability

If poor driveability (poor hot starting, vaporization, engine knocking, etc.) is
encountered after using a different type of fuel, discontinue the use of that
type of fuel.

■

When refueling with gasohol

Take care not to spill gasohol. It can damage your vehicle’s paint.

562

8-1. Specifications

CAMRY_U



Full-size tire



Compact spare tire

Tire information

Typical tire symbols

563

8-1. Specifications

8

Vehi

cl

e specificatio

ns

CAMRY_U

Tire size (



P. 565)

Summer tires or all season tires (



P. 453)

An all season tire has “M+S” on the sidewall. A tire not marked “M+S”

is a summer tire.

TUBELESS or TUBE TYPE

A tubeless tire does not have a tube and air is directly put into the tire.

A tube type tire has a tube inside the tire and the tube maintains the air

pressure.

Radial tires or bias-ply tires

A radial tire has “RADIAL” on the sidewall. A tire not marked “RADIAL”

is a bias-ply tire.

DOT and Tire Identification Number (TIN) (



P. 564)

Location of treadwear indicators (



P. 446)

Uniform tire quality grading

For details, see “Uniform Tire Quality Grading” that follows.

Maximum cold tire inflation pressure (



P. 553)

This means the pressure to which a tire may be inflated.

Load limit at maximum cold tire inflation pressure (



P. 452)

Tire ply composition and materials

Plies are layers of rubber-coated parallel cords. Cords are the strands

which form the plies in a tire.

“TEMPORARY USE ONLY”

A  compact  spare  tire  is  identified  by  the  phrase  “TEMPORARY  USE

ONLY”  molded  on  its  sidewall.  This  tire  is  designed  for  temporary

emergency use only.

1

2

3

4

5

6

7

8

9

10

11

564

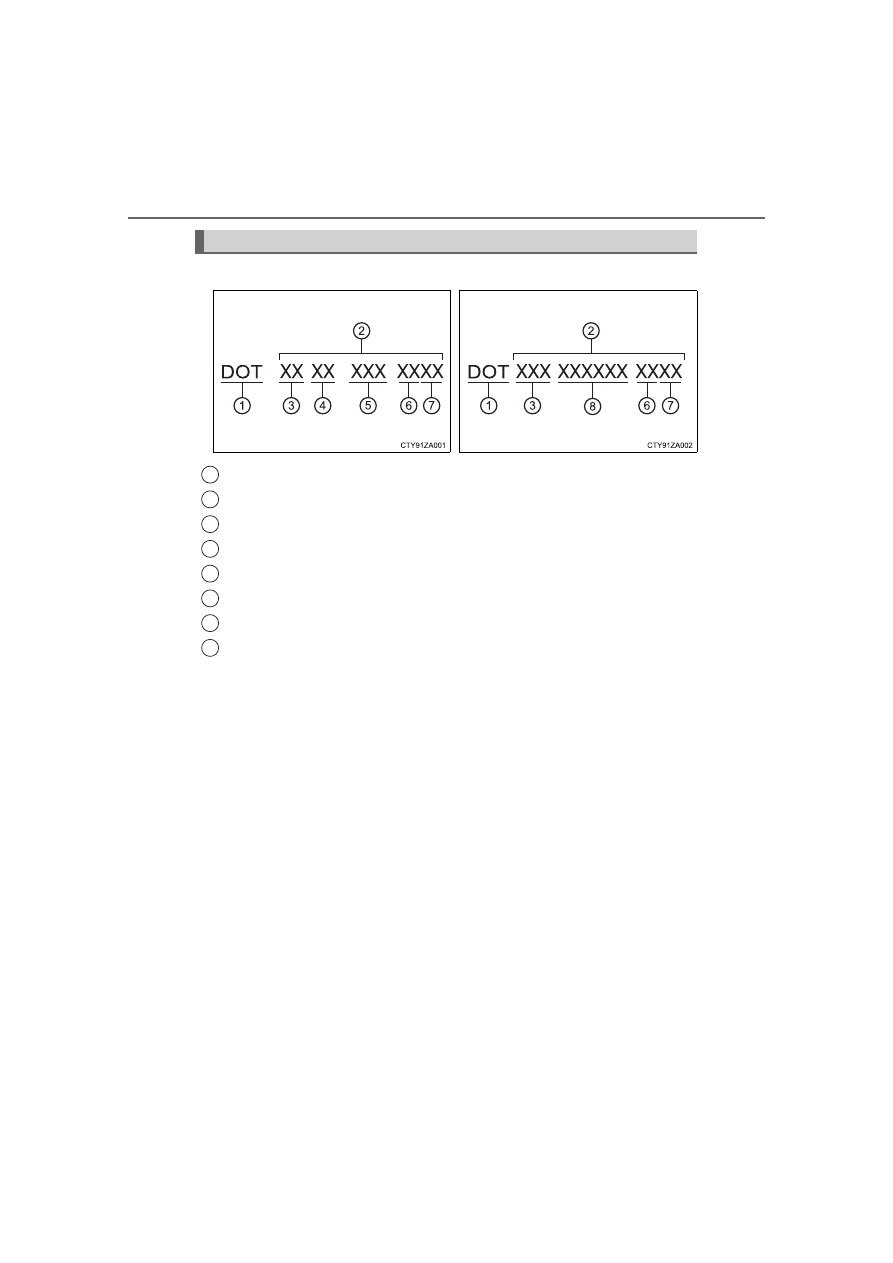

8-1. Specifications

CAMRY_U

DOT symbol

*

Tire Identification Number (TIN)
Tire manufacturer’s identification mark
Tire size code
Manufacturer’s optional tire type code (3 or 4 letters)
Manufacturing week
Manufacturing year
Manufacturer’s code

*

: The DOT symbol certifies that the tire conforms to applicable Federal

Motor Vehicle Safety Standards.

Typical DOT and Tire Identification Number (TIN)



Type A



Type B

1

2

3

4

5

6

7

8

565

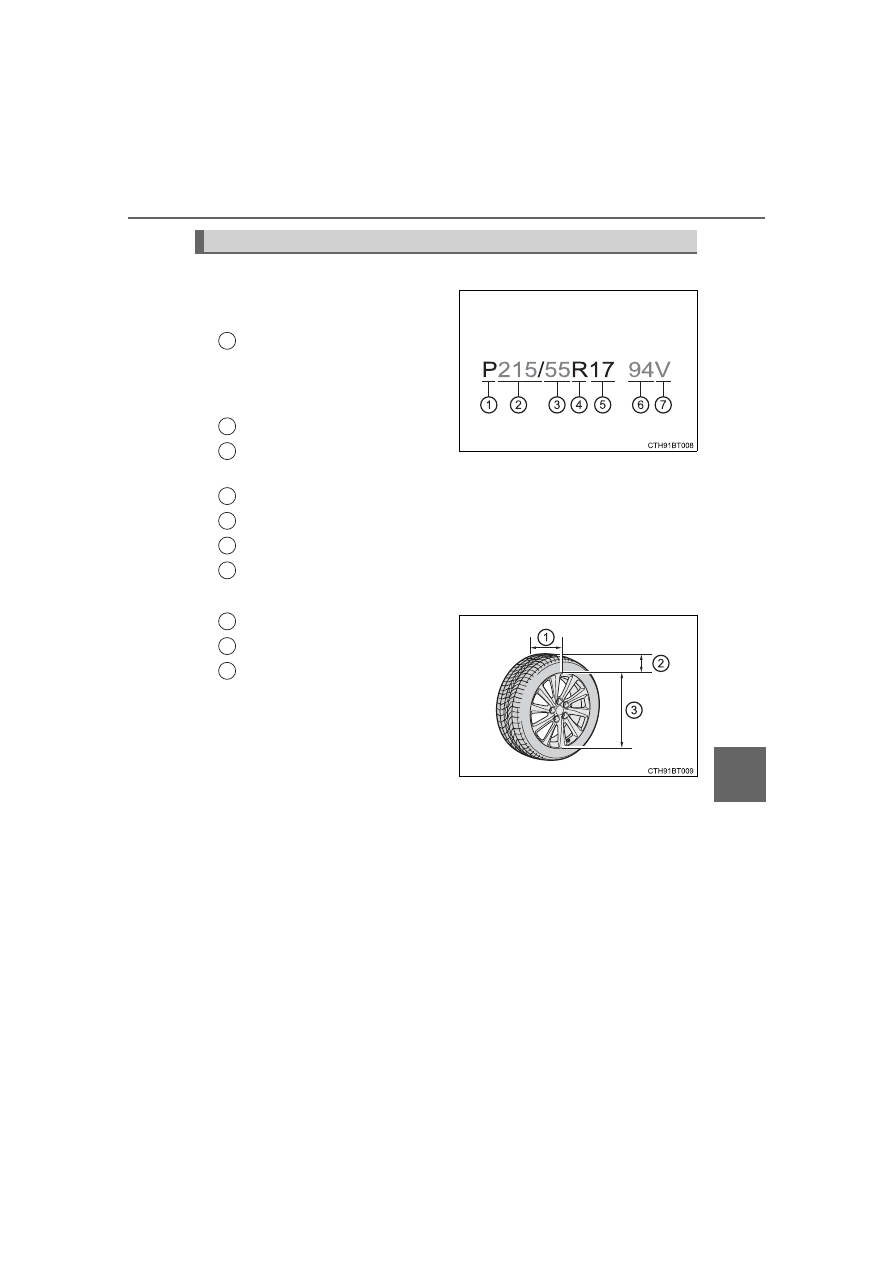

8-1. Specifications

8

Vehi

cl

e specificatio

ns

CAMRY_U

■

Typical tire size information

The illustration indicates typical
tire size.

Tire use
(P  =  Passenger  car  [some-
times omitted],
T = Temporary use)
Section width (millimeters)
Aspect ratio
(tire height to section width)
Tire construction code (R = Radial, D = Diagonal)
Wheel diameter (inches)
Load index (2 digits or 3 digits)
Speed symbol (alphabet with one letter)

■

Tire dimensions

Section width
Tire height
Wheel diameter

Tire size

1

2

3

4

5

6

7

1

2

3

566

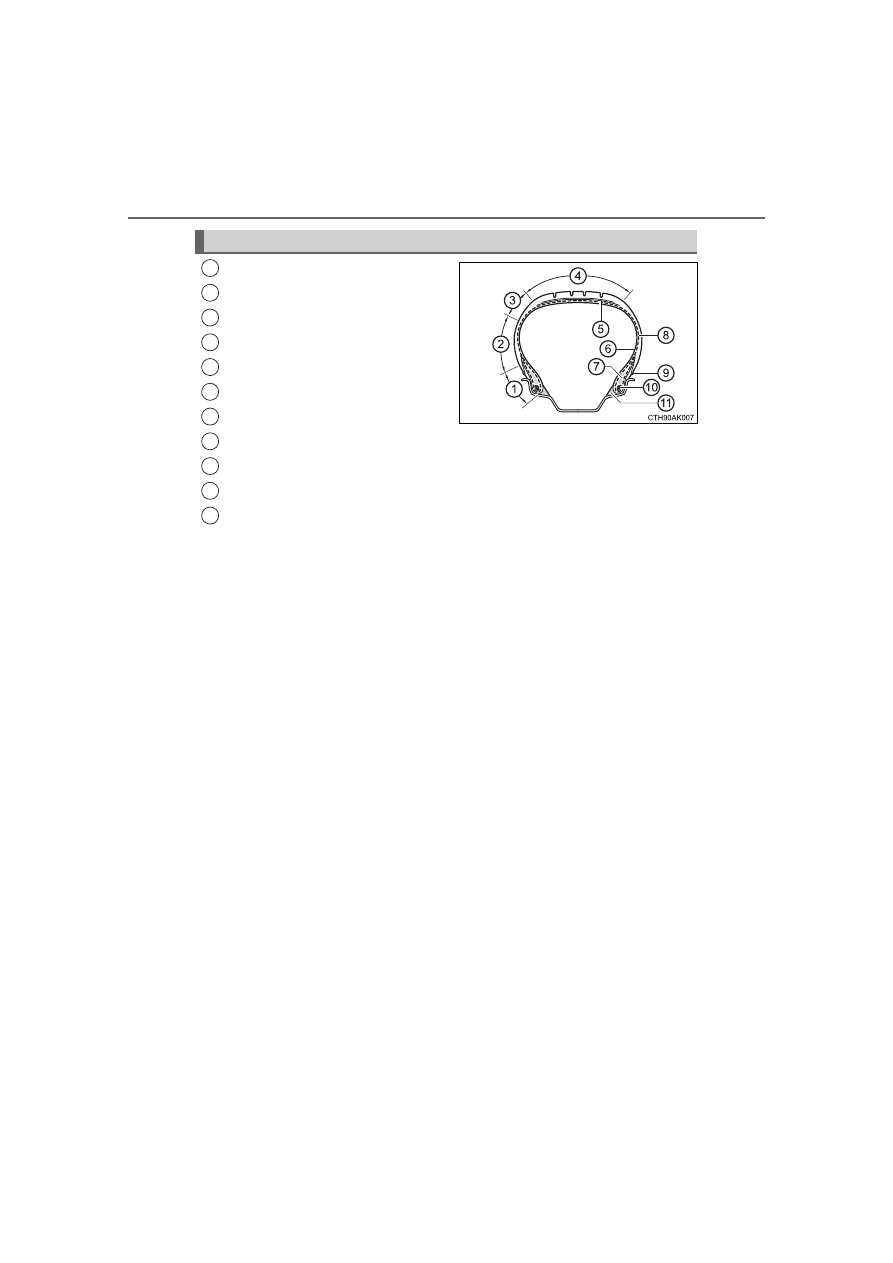

8-1. Specifications

CAMRY_U

Bead
Sidewall
Shoulder
Tread
Belt
Inner liner
Reinforcing rubber
Carcass
Rim lines
Bead wires
Chafer

Tire section names

1

2

3

4

5

6

7

8

9

10

11

567

8-1. Specifications

8

Vehi

cl

e specificatio

ns

CAMRY_U

This  information  has  been  prepared  in  accordance  with  regulations
issued  by  the  National  Highway  Traffic  Safety Administration  of  the
U.S. Department of Transportation.
It  provides  the  purchasers  and/or  prospective  purchasers  of  Toyota
vehicles with information on uniform tire quality grading.

Your Toyota  dealer  will  help  answer  any  questions  you  may  have  as

you read this information.

■

DOT quality grades

All passenger vehicle tires must conform to Federal Safety Require-
ments  in  addition  to  these  grades.  Quality  grades  can  be  found
where applicable on the tire sidewall between tread shoulder and
maximum section width.

For example: Treadwear 200 Traction AA Temperature A

■

Treadwear

The  treadwear  grade  is  a  comparative  rating  based  on  the  wear
rate of the tire when tested under controlled conditions on a speci-
fied government test course.

For example, a tire graded 150 would wear one and a half (1 - 1/2)

times as well on the government course as a tire graded 100.

The  relative  performance  of  tires  depends  upon  the  actual  condi-

tions of their use. Performance may differ significantly from the norm

due to variations in driving habits, service practices and differences

in road characteristics and climate.

■

Traction AA, A, B, C

The  traction  grades,  from  highest  to  lowest,  are AA, A,  B  and  C,
and  they  represent  the  tire’s  ability  to  stop  on  wet  pavement  as
measured under controlled conditions on specified government test
surfaces of asphalt and concrete.

A tire marked C may have poor traction performance.
Warning: The traction grade assigned to this tire is based on braking

(straight ahead) traction tests and does not include cornering (turn-

ing) traction.

Uniform Tire Quality Grading

568

8-1. Specifications

CAMRY_U

■

Temperature A, B, C

The temperature grades are A (the highest), B, and C, representing
the tire’s resistance to the generation of heat and its ability to dissi-
pate  heat  when  tested  under  controlled  conditions  on  a  specified
indoor laboratory test wheel.

Sustained  high  temperature  can  cause  the  material  of  the  tire  to

degenerate and reduce tire life, and excessive temperature can lead

to sudden tire failure.
Grade C corresponds to a level of performance which all passenger

car  tires  must  meet  under  the  Federal  Motor  Vehicle  Safety  Stan-

dard No. 109.
Grades B and A represent higher levels of performance on the labo-

ratory test wheel than the minimum required by law.
Warning: The temperature grades of a tire assume that it is properly

inflated and not overloaded.

Excessive speed, underinflation, or excessive loading, either sepa-

rately  or  in  combination,  can  cause  heat  buildup  and  possible  tire

failure.

569

8-1. Specifications

8

Vehi

cl

e specificatio

ns

CAMRY_U

Glossary of tire terminology

Tire related term

Meaning

Cold tire inflation pres-

sure

Tire  pressure  when  the  vehicle  has  been

parked  for  three  hours  or  more,  or  has  not

been driven more than 1 mile or 1.5 km under

that condition

Maximum

inflation

pressure

The maximum cold inflated pressure to which

a tire may be inflated, shown on the sidewall

of the tire

Recommended  infla-

tion pressure

Cold tire inflation pressure recommended by a

manufacturer

Accessory weight

The combined weight (in excess of those stan-

dard  items  which  may  be  replaced)  of  auto-

matic  transmission,  power  steering,  power

brakes,  power  windows,  power  seats,  radio

and heater, to the extent that these items are

available  as  factory-installed  equipment

(whether installed or not)

Curb weight

The  weight  of  a  motor  vehicle  with  standard

equipment, including the maximum capacity of

fuel,  oil  and  coolant,  and  if  so  equipped,  air

conditioning  and  additional  weight  optional

engine

Maximum loaded vehi-

cle weight

The sum of:

(a) Curb weight

(b) Accessory weight

(c) Vehicle capacity weight

(d) Production options weight

Normal

occupant

weight

150 lb. (68 kg) times the number of occupants

specified  in  the  second  column  of  Table  1

*

that follows

Occupant distribution

Distribution of occupants in a vehicle as speci-

fied in the third column of Table 1

*

 below

570

8-1. Specifications

CAMRY_U

Production

options

weight

The combined weight of installed regular pro-

duction options weighing over 5 lb. (2.3 kg) in

excess  of  the  standard  items  which  they

replace,  not  previously  considered  in  curb

weight  or  accessory  weight,  including  heavy

duty  brakes,  ride  levelers,  roof  rack,  heavy

duty battery, and special trim

Rim

A  metal  support  for  a  tire  or  a  tire  and  tube

assembly  upon  which  the  tire  beads  are

seated

Rim diameter

(Wheel diameter)

Nominal diameter of the bead seat

Rim size designation

Rim diameter and width

Rim type designation

The industry manufacturer’s designation for a

rim by style or code

Rim width

Nominal distance between rim flanges

Vehicle

capacity

weight

(Total

load

capacity)

The rated cargo and luggage load plus 150 lb.

(68 kg) times the vehicle’s designated seating

capacity

Vehicle maximum load

on the tire

The  load  on  an  individual  tire  that  is  deter-

mined by distributing to each axle its share of

the  maximum  loaded  vehicle  weight,  and

dividing by two

Vehicle normal load on

the tire

The  load  on  an  individual  tire  that  is  deter-

mined by distributing to each axle its share of

curb  weight,  accessory  weight,  and  normal

occupant  weight  (distributed  in  accordance

with Table 1

*

 below), and dividing by two

Weather side

The surface area of the rim not covered by the

inflated tire

Bead

The part of the tire that is made of steel wires,

wrapped or reinforced by ply cords and that is

shaped to fit the rim

Bead separation

A  breakdown  of  the  bond  between  compo-

nents in the bead

Tire related term

Meaning

571

8-1. Specifications

8

Vehi

cl

e specificatio

ns

CAMRY_U

Bias ply tire

A  pneumatic  tire  in  which  the  ply  cords  that

extend  to  the  beads  are  laid  at  alternate

angles  substantially  less  than  90  degrees  to

the centerline of the tread

Carcass

The  tire  structure,  except  tread  and  sidewall

rubber which, when inflated, bears the load

Chunking

The  breaking  away  of  pieces  of  the  tread  or

sidewall

Cord

The strands forming the plies in the tire

Cord separation

The  parting  of  cords  from  adjacent  rubber

compounds

Cracking

Any parting within the tread, sidewall, or inner-

liner of the tire extending to cord material

CT

A  pneumatic  tire  with  an  inverted  flange  tire

and  rim  system  in  which  the  rim  is  designed

with  rim  flanges  pointed  radially  inward  and

the  tire  is  designed  to  fit  on  the  underside  of

the  rim  in  a  manner  that  encloses  the  rim

flanges inside the air cavity of the tire

Extra load tire

A tire designed to operate at higher loads and

at  higher  inflation  pressures  than  the  corre-

sponding standard tire

Groove

The space between two adjacent tread ribs

Innerliner

The  layer(s)  forming  the  inside  surface  of  a

tubeless tire that contains the inflating medium

within the tire

Innerliner separation

The parting of the innerliner from cord material

in the carcass

Intended

outboard

sidewall

(a) The  sidewall  that  contains  a  whitewall,

bears  white  lettering,  or  bears  manufac-

turer,  brand,  and/or  model  name  molding

that  is  higher  or  deeper  than  the  same

molding on the other sidewall of the tire, or

(b) The  outward  facing  sidewall  of  an  asym-

metrical tire that has a particular side that

must always face outward when mounted

on a vehicle

Tire related term

Meaning

572

8-1. Specifications

CAMRY_U

Light truck (LT) tire

A  tire  designated  by  its  manufacturer  as  pri-

marily  intended  for  use  on  lightweight  trucks

or multipurpose passenger vehicles

Load rating

The maximum load that a tire is rated to carry

for a given inflation pressure

Maximum load rating

The load rating for a tire at the maximum per-

missible inflation pressure for that tire

Maximum  permissible

inflation pressure

The maximum cold inflation pressure to which

a tire may be inflated

Measuring rim

The  rim  on  which  a  tire  is  fitted  for  physical

dimension requirements

Open splice

Any parting at any junction of tread, sidewall,

or innerliner that extends to cord material

Outer diameter

The overall diameter of an inflated new tire

Overall width

The  linear  distance  between  the  exteriors  of

the sidewalls of an inflated tire, including ele-

vations due to labeling, decorations, or protec-

tive bands or ribs

Passenger car tire

A  tire  intended  for  use  on  passenger  cars,

multipurpose passenger vehicles, and trucks,

that  have  a  gross  vehicle  weight  rating

(GVWR) of 10,000 lb. or less.

Ply

A layer of rubber-coated parallel cords

Ply separation

A  parting  of  rubber  compound  between  adja-

cent plies

Pneumatic tire

A  mechanical  device  made  of  rubber,  chemi-

cals, fabric and steel or other materials, that,

when  mounted  on  an  automotive  wheel,  pro-

vides the traction and contains the gas or fluid

that sustains the load

Radial ply tire

A  pneumatic  tire  in  which  the  ply  cords  that

extend to the beads are laid at substantially 90

degrees to the centerline of the tread

Reinforced tire

A tire designed to operate at higher loads and

at  higher  inflation  pressures  than  the  corre-

sponding standard tire

Tire related term

Meaning

573

8-1. Specifications

8

Vehi

cl

e specificatio

ns

CAMRY_U

*

: Table 1



 Occupant loading and distribution for vehicle normal load for

various designated seating capacities

Section width

The  linear  distance  between  the  exteriors  of

the sidewalls of an inflated tire, excluding ele-

vations due to labeling, decoration, or protec-

tive bands

Sidewall

That  portion  of  a  tire  between  the  tread  and

bead

Sidewall separation

The parting of the rubber compound from the

cord material in the sidewall

Snow tire

A tire that attains a traction index equal to or

greater  than  110,  compared  to  the ASTM  E-

1136  Standard  Reference  Test  Tire,  when

using  the  snow  traction  test  as  described  in

ASTM  F-1805-00,  Standard  Test  Method  for

Single  Wheel  Driving  Traction  in  a  Straight

Line on Snow-and Ice-Covered Surfaces, and
which is marked with an Alpine Symbol (

 )

on at least one sidewall

Test rim

The rim on which a tire is fitted for testing, and

may  be  any  rim  listed  as  appropriate  for  use

with that tire

Tread

That  portion  of  a  tire  that  comes  into  contact

with the road

Tread rib

A  tread  section  running  circumferentially

around a tire

Tread separation

Pulling away of the tread from the tire carcass

Treadwear  indicators

(TWI)

The  projections  within  the  principal  grooves

designed  to  give  a  visual  indication  of  the

degrees of wear of the tread

Wheel-holding fixture

The  fixture  used  to  hold  the  wheel  and  tire

assembly securely during testing

Tire related term

Meaning

574

8-1. Specifications

CAMRY_U

Designated seating

capacity, Number of

occupants

Vehicle normal load,

Number of occupants

Occupant distribution

in a normally loaded

vehicle

2 through 4

2

2 in front

5 through 10

3

2 in front, 1 in second

seat

11 through 15

5

2 in front, 1 in second

seat, 1 in third seat, 1

in fourth seat

16 through 20

7

2 in front, 2 in second

seat, 2 in third seat, 1

in fourth seat

575

CAMRY_U

8

Vehi

cl

e specificatio

ns

8-2. Customization

When customizing vehicle features, ensure that the vehicle is parked
in a safe place with the shift lever in P and the parking brake set.

■

Changing on the audio system screen

Press the “MENU” button.
Select “Setup” on the “Menu” screen.
Select “General” or “Vehicle” on the “Setup” screen.

Various setting can be changed. Refer to the list of settings that can
be changed for details.

■

Changing using the multi-information display



P. 100, 112

Customizable features

Your vehicle includes a variety of electronic features that can be
personalized to suit your preferences. The settings of these fea-
tures can be changed using the multi-information display, on the
audio system screen, or at your Toyota dealer.

Customizing vehicle features

1

2

3

576

8-2. Customization

CAMRY_U

Some function settings are changed simultaneously with other func-
tions being customized. Contact your Toyota dealer for further details.

Settings that can be changed on the audio system screen
Settings that can be changed by your Toyota dealer

Definition of symbols: O = Available, — = Not available

■

Gauges, meters and multi-information display (



P. 92



95, 107)

*

: The default setting varies according to country.

Customizable features

1

2

Function

Default setting

Customized setting

Language

English

French

O —

Spanish

Units

*

miles (MPG US)

miles (MPG Imperial)

O —

km (L/100 km)

km (km/L)

Convenience services
(Suggestion function)

On

On

(when the vehicle is

stopped)

O O

Off

1

2

577

8-2. Customization

CAMRY_U

8

Vehi

cl

e specificatio

ns

■

Door lock (



P. 141, 149, 530)

*

: Vehicles with a smart key system

■

Smart key system

*

 and wireless remote control

(



P. 141, 149, 154)

*

: If equipped

Function

Default setting

Customized setting

Unlocking using a key

Driver’s door

unlocked in one

step, all doors

unlocked in two

steps

All doors unlocked in

one step.

— O

Automatic door lock

Shift position

linked door lock-

ing operation

Off

O O

Speed linked door

locking operation

Automatic door unlock

Shift position

linked door

unlocking opera-

tion

Off

O O

Driver’s door linked

door unlocking oper-

ation

Locking/unlocking  of  the
trunk when all doors are
locked/unlocked

*

On

Off

— O

1

2

Function

Default setting

Customized setting

Operation  buzzer  vol-
ume

5

Off to 7

O O

Operation signal
(Emergency flashers)

On

Off

O O

Time  elapsed  before
automatic

door

lock

function  is  activated  if
door  is  not  opened  after
being unlocked

60 seconds

Off

O O

30 seconds

120 seconds

Open

door

warning

buzzer

On

Off

— O

1

2

578

8-2. Customization

CAMRY_U

■

Smart key system

*

 (



P. 141, 149, 154)

*

: If equipped

■

Wireless remote control (



P. 132, 141, 149)

Function

Default setting

Customized setting

Smart key system

On

Off

O —

Smart door unlocking

Driver’s door

All the doors

O O

Time  elapsed  before
unlocking  all  the  door
when  gripping  and  hold-
ing the driver’s door han-
dle

2 seconds

Off

— O

Number  of  consecutive
door lock operations

2 times

As many as desired — O

1

2

Function

Default setting

Customized setting

Wireless remote control

On

Off

— O

Unlocking operation

Driver’s door

unlocked in one

step, all doors

unlocked in two

steps

All doors unlocked in

one step

O O

Trunk  unlocking  opera-
tion

Press and hold

(short)

One short press

— O

Push twice

Press and hold (long)

Off

Panic function

On

Off

— O

Reservation lock

On

Off

O O

1

2

579

8-2. Customization

CAMRY_U

8

Vehi

cl

e specificatio

ns

■

Power  windows,  and  moon  roof

*

  or  panoramic  moon  roof

*

(



P. 175, 179, 183)

*

: If equipped

■

Moon roof

*

 (



P. 179)

*

: If equipped

■

Automatic light control system (



P. 227)

Function

Default setting

Customized setting

Key linked operation

Off

On

— O

Wireless  remote  control
linked operation

Off

On (open only)

— O

Wireless  remote  control
linked  operation  signal
(buzzer)

On

Off

— O

1

2

Function

Default setting

Customized setting

Linked operation of com-
ponents  when  key  is
used (open only)

Slide only

Tilt only

— O

Linked operation of com-
ponents  when  wireless
remote control is used

Slide only

Tilt only

— O

1

2

Function

Default setting

Customized setting

Light sensor sensitivity

Standard

-2 to 2

O O

Time  elapsed  before
headlights  automatically
turn  off  after  doors  are
closed

30 seconds

Off

O O

60 seconds

90 seconds

1

2

580

8-2. Customization

CAMRY_U

■

Lights (



P. 227)

■

Intuitive parking assist

*

 (



P. 324)

*

: If equipped

■

BSM (Blind Spot Monitor)

*

 (



P. 310)

*

:

If equipped

■

RCTA (Rear Cross Traffic Alert)

*

 (



P. 310)

*

:

If equipped

Function

Default setting

Customized setting

Daytime  running  light
system (except Canada)

On

Off

O O

Windshield  wiper  linked
headlight illumination

On

Off

— O

1

2

Function

Default setting

Customized setting

Detection distance of the
front center sensor

Far

Near

— O

Detection distance of the
rear center sensor

Far

Near

— O

Buzzer volume

2

1 to 3

— O

1

2

Function

Default setting

Customized setting

Outside  rear  view  mirror
indicator brightness

Bright

Dim

— O

1

2

Function

Default setting

Customized setting

Buzzer volume

2

1 to 3

— O

1

2

581

8-2. Customization

CAMRY_U

8

Vehi

cl

e specificatio

ns

■

Automatic air conditioning system

*

 (



P. 365, 371)

*

: If equipped

■

Illumination (



P. 382)

*

1

: Vehicles with a smart key system

*

2

: If equipped

Function

Default setting

Customized setting

A/C  auto  switch  opera-
tion

Auto

Manual

O O

1

2

Function

Default setting

Customized setting

Time  elapsed  before
lights turn off

15 seconds

Off

O O

7.5 seconds

30 seconds

Vehicles  without  smart
key  system:  Operation
after  the  engine  switch
turned  to  the  “LOCK”
position
Vehicles  with  smart  key
system:  Operation  after
the engine switch turned
off

On

Off

— O

Operation

when

the

doors are unlocked

On

Off

— O

Operation  when  you
approach  the  vehicle
with  the  electronic  key
on your person

*

1

On

Off

— O

Footwell lights

*

2

On

Off

— O

Instrument  panel  orna-
ment  light

*

2

  and  inside

door handle lights

*

2

On

Off

— O

1

2

582

8-2. Customization

CAMRY_U

WARNING

■

During customization

As  the  engine  needs  to  be  running  during  customization,  ensure  that  the
vehicle is parked in a place with adequate ventilation. In a closed area such
as a garage, exhaust gases including harmful carbon monoxide (CO) may
collect  and  enter  the  vehicle. This  may  lead  to  death  or  a  serious  health
hazard.

NOTICE

■

During customization

To prevent battery discharge, ensure that the engine is running while cus-
tomizing features.

583

CAMRY_U

8

Vehi

cl

e specificatio

ns

8-3. Items to initialize

*

:

If equipped

Items to initialize

The following items must be initialized for normal system opera-
tion after such cases as the battery being reconnected, or main-
tenance being performed on the vehicle:

Item

When to initialize

Reference

Message  indicating  mainte-
nance is required
(on some models)

• After the maintenance is per-

formed

P. 423

Tire pressure warning sys-

tem

• When the tire inflation pres-

sure  is  changed  such  as

when  changing  traveling

speed or load weight

• When the tire inflation pres-

sure  is  changed  such  as

when  the  tire  size  is

changed

• When rotating the tires

• After  performing  the  trans-

mitter  ID  code  registration

procedure

P. 448

Intelligent Clearance Sonar
(ICS)

*

• After reconnecting or chang-

ing the battery

P. 343
