1-2. Emergency assistance

■

Services

Subscribers have the following Safety Connect services available:

●

Automatic Collision Notification

*

Helps drivers receive necessary response from emergency ser-
vice providers. (



P. 72)

*

: U.S. Patent No. 7,508,298 B2

●

Stolen Vehicle Location
Helps drivers in the event of vehicle theft. (



P. 72)

●

Emergency Assistance Button (“SOS”)
Connects drivers to response-center support. (



P. 72)

●

Enhanced Roadside Assistance
Provides drivers various on-road assistance. (



P. 72)

■

Subscription

After you have signed the Telematics Subscription Service Agree-
ment and are enrolled, you can begin receiving services.
A variety of subscription terms are available for purchase. Contact
your  Toyota  dealer,  call  the  following  appropriate  Safety  Connect
response center or push the “SOS” button in your vehicle for further
subscription details.

• The United States

1-855-405-6500

• Canada

1-888-869-6828

• Puerto Rico

1-877-855-8377

71

1-2. Emergency assistance

1

For safet

y and s

ecurity

■

Safety Connect Services Information

●

Phone calls using the vehicle’s Bluetooth

®

 technology will not be possible

during Safety Connect.

●

Safety Connect is available beginning Fall 2009 on select Toyota models (in
the  contiguous  United  States  only).  Contact  with  the  Safety  Connect
response center is dependent upon the telematics device being in operative
condition, cellular connection availability, and GPS satellite signal reception,
which  can  limit  the  ability  to  reach  the  response  center  or  receive  emer-
gency  service  support.  Enrollment  and  Telematics  Subscription  Service
Agreement  are  required.  A  variety  of  subscription  terms  are  available;
charges vary by subscription term selected and location.

●

Automatic Collision Notification, Emergency Assistance and Stolen Vehicle
Location  are  available  in  the  United  States,  including  Hawaii  and Alaska,
Puerto Rico and Canada, and Enhanced Roadside Assistance are available
in the United States, Puerto Rico and Canada.

●

Automatic Collision Notification, Emergency Assistance, Stolen Vehicle and
Enhanced Road Assistance are not available in the U.S. Virgin Islands.
For vehicles first sold in the U.S. Virgin Islands, no Safety Connect services
will function in or outside the U.S. Virgin Islands.

●

Safety Connect services are not subject to section 255 of the Telecommuni-
cations Act and the device is not TTY compatible.

■

Languages

The Safety Connect response center will offer support in multiple languages.
The Safety Connect system will offer voice prompts in English, Spanish, and
French. Please indicate your language of choice when enrolling.

■

When contacting the response center

You may be unable to contact the response center if the network is busy.

When the power switch is turned to ON mode, the red indicator light
comes on for 2 seconds then turns off. Afterward, the green indicator
light comes on, indicating that the service is active.
The  following  indicator  light  patterns  indicate  specific  system  usage
conditions:

●

Green indicator light on = Active service

●

Green indicator light flashing = Safety Connect call in process

●

Red indicator light (except at vehicle start-up) = System malfunction
(contact your Toyota dealer)

●

No indicator light (off) = Safety Connect service not active

Safety Connect LED light Indicators

72

1-2. Emergency assistance

■

Automatic Collision Notification

In case of either airbag deployment or severe rear-end collision, the
system is designed to automatically call the response center. The
responding  agent  receives  the  vehicle’s  location  and  attempts  to
speak with the vehicle occupants to assess the level of emergency.
If  the  occupants  are  unable  to  communicate,  the  agent  automati-
cally  treats the call  as  an  emergency,  contacts  the  nearest emer-
gency services provider to describe the situation, and requests that
assistance be sent to the location.

■

Stolen Vehicle Location

If your vehicle is stolen, Safety Connect can work with local author-
ities to assist them in locating and recovering the vehicle. After filing
a police report, call the Safety Connect response center at 1-855-
405-6500 in the United States, 1-877-855-8377 in Puerto Rico or 1-
888-869-6828 in  Canada,  and  follow  the prompts  for  Safety Con-
nect to initiate this service.
In  addition  to assisting law enforcement with  recovery of  a stolen
vehicle, Safety-Connect-equipped vehicle location data may, under
certain  circumstances,  be  shared  with  third  parties  to  locate  your
vehicle. Further information is available at Toyota.com in the United
States, Toyotapr.com in Puerto Rico and Toyota.ca in Canada.

■

Emergency Assistance Button (“SOS”)

In the event of an emergency on the road, push the “SOS” button to
reach  the  Safety  Connect  response  center.  The  answering  agent
will determine your vehicle’s location, assess the emergency, and
dispatch the necessary assistance required.

If  you  accidentally  press  the  “SOS”  button,  tell  the  response-center
agent that you are not experiencing an emergency.

■

Enhanced Roadside Assistance

Enhanced  Roadside  Assistance  adds  GPS  data  to  the  already
included warranty-based Toyota roadside service.
Subscribers can press the “SOS” button to reach a Safety Connect
response-center agent, who can help with a wide range of needs,
such as: towing, flat tire, fuel delivery, etc. For a description of the
Enhanced  Roadside  Assistance  services  and  their  limitations,
please  see  the  Safety  Connect  Terms  and  Conditions,  which  are
available  at  Toyota.com  in  the  United  States,  Toyotapr.com  in
Puerto Rico and Toyota.ca in Canada.

Safety Connect services

73

1-2. Emergency assistance

1

For safet

y and s

ecurity

Important! Read this information before using Safety Connect.

■

Exposure to radio frequency signals

The Safety Connect system installed in your vehicle is a low-power
radio transmitter and receiver. It receives and also sends out radio
frequency (RF) signals.
In August  1996,  the  Federal  Communications  Commission  (FCC)
adopted RF exposure guidelines with safety levels for mobile wire-
less phones. Those guidelines are consistent with the safety stan-
dards  previously  set  by  the  following  U.S.  and  international
standards bodies.

●

ANSI (American National Standards Institute) C95.1 [1992]

●

NCRP (National  Council  on  Radiation  Protection  and Measure-
ment) Report 86 [1986]

●

ICNIRP  (International  Commission  on  Non-Ionizing  Radiation
Protection) [1996]

Those standards were based on comprehensive and periodic eval-
uations of the relevant scientific literature. Over 120 scientists, engi-
neers,  and  physicians  from  universities,  and  government  health
agencies and industries reviewed the available body of research to
develop the ANSI Standard (C95.1).
The design of Safety Connect complies with the FCC guidelines in
addition to those standards.

Safety information for Safety Connect

74

1-2. Emergency assistance

■

Certification for Safety Connect

FCC ID: LHJ-TVN
IC: 2807E-TVN

75

1

For safet

y and s

ecurity

1-3. Hybrid system

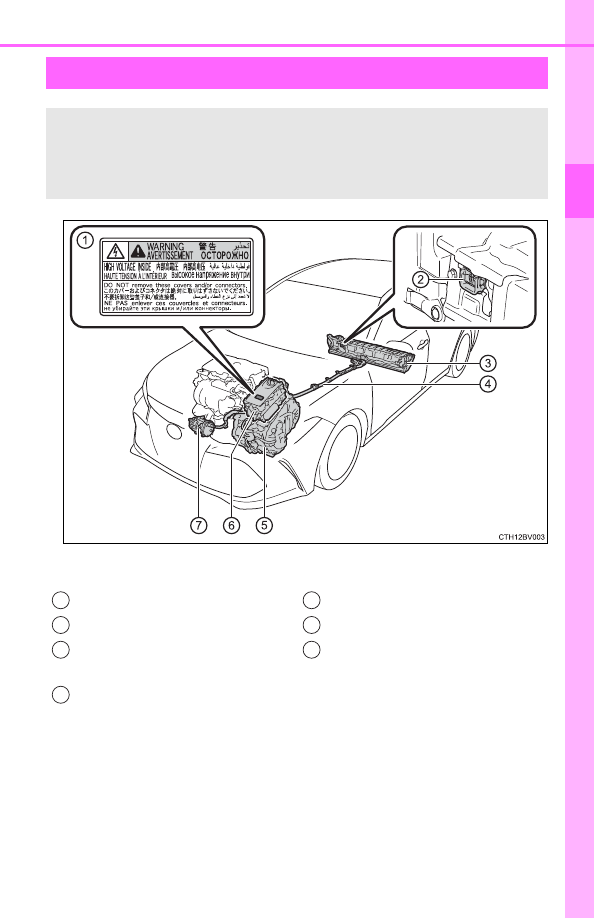

The illustration is an example for explanation and may differ from the
actual item.

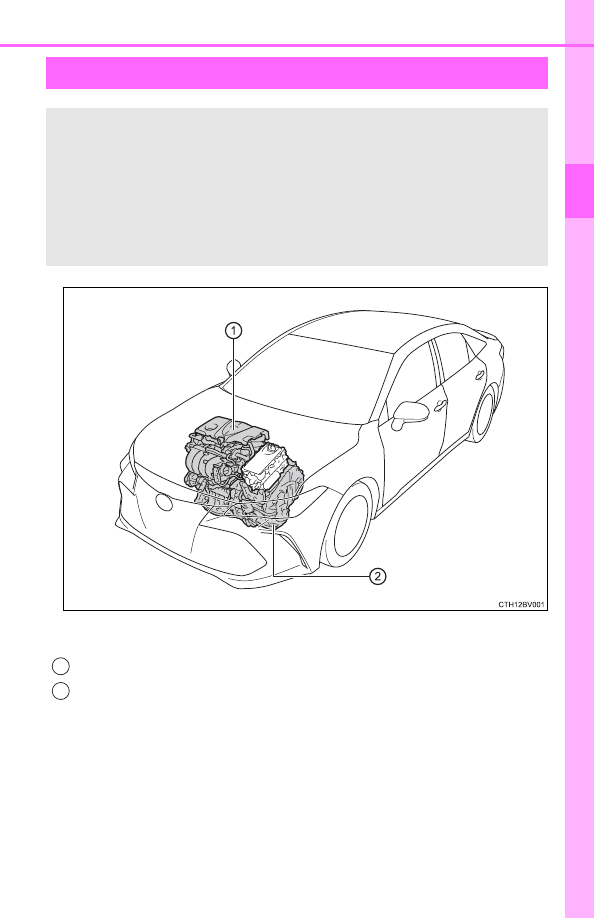

Gasoline engine
Electric motor (traction motor)

Hybrid system features

Your vehicle is a hybrid vehicle. It has characteristics different
from conventional vehicles. Be sure you are closely familiar with
the characteristics of your vehicle, and operate it with care.
The hybrid system combines the use of a gasoline engine and
an  electric  motor  (traction  motor)  according  to  driving  condi-
tions,  improving  fuel  efficiency  and  reducing  exhaust  emis-
sions.

1

2

76

1-3. Hybrid system

◆

When stopped/during start off

The  gasoline  engine  stops

*

,  when  the  vehicle  is  stopped.  During

start  off,  the  electric  motor  (traction  motor)  drives  the  vehicle. At
slow speeds or when traveling down a gentle slope, the engine is
stopped

*

 and the electric motor (traction motor) is used.

When the shift lever is in N, the hybrid battery (traction battery) is
not being charged.

*

: When  the  hybrid  battery  (traction  battery)  requires  charging  or  the

engine  is  warming  up,  etc.,  the  gasoline  engine  will  not  automatically
stop. (



P. 77)

◆

During normal driving

The  gasoline  engine  is  predominantly  used.  The  electric  motor
(traction motor) charges the hybrid battery (traction battery) as nec-
essary.

◆

When accelerating sharply

When the accelerator pedal is depressed heavily, the power of the
hybrid  battery  (traction  battery)  is  added  to  that  of  the  gasoline
engine via the electric motor (traction motor).

◆

When braking (regenerative braking)

The wheels operate the electric motor (traction motor) as a power
generator, and the hybrid battery (traction battery) is charged.

When  driving  with  the  gasoline  engine  stopped,  a  sound,  which
changes in accordance with the driving speed, will be played in order
to warn people nearby of the vehicle’s approach. The sound will stop
when the vehicle speed exceeds approximately 15 mph (25 km/h).

Vehicle proximity notification system

77

1-3. Hybrid system

1

For safet

y and s

ecurity

■

Regenerative braking

In the following situations, kinetic energy is converted to electric energy and
deceleration force can be obtained in conjunction with the recharging of the
hybrid battery (traction battery).

●

The accelerator pedal is released while driving with the shift lever in D or S.

●

The brake pedal is depressed while driving with the shift lever in D or S.

■

EV indicator

■

Conditions in which the gasoline engine may not stop

The gasoline engine starts and stops automatically. However, it may not stop
automatically in the following conditions:

●

During gasoline engine warm-up

●

During hybrid battery (traction battery) charging

●

When the temperature of the hybrid battery (traction battery) is high or low

●

When the heater is switched on

■

Charging the hybrid battery (traction battery)

As the gasoline engine charges the hybrid battery (traction battery), the bat-
tery  does  not  need  to  be  charged  from  an  outside  source.  However,  if  the
vehicle is left parked for a long time the hybrid battery (traction battery) will
slowly discharge. For this reason, be sure to drive the vehicle at least once
every few months for at least 30 minutes or 10 miles (16 km). If the hybrid
battery (traction battery) becomes fully discharged and you are unable to start
the hybrid system, contact your Toyota dealer.

■

Charging the 12-volt battery



P. 488

■

After the 12-volt battery has discharged or when the terminal has been
removed and installed during exchange, etc.

The gasoline engine may not stop even if the vehicle is being driven by the
hybrid battery (traction battery). If this continues for a few days, contact your
Toyota dealer.

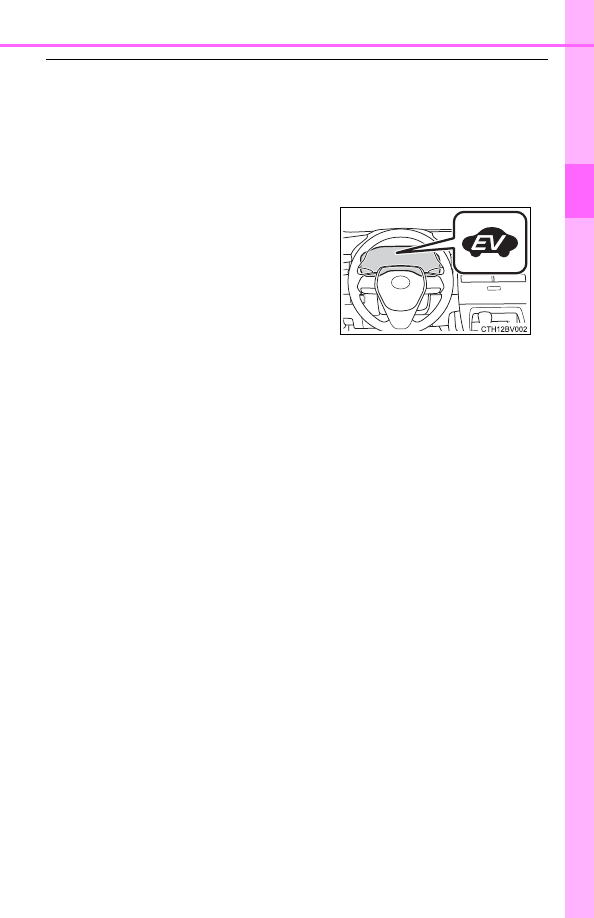

The  EV  indicator  comes  on  when  the
vehicle  is  driven  using  only  the  electric
motor  (traction  motor)  or  the  gasoline
engine is stopped.

78

1-3. Hybrid system

■

Sounds and vibrations specific to a hybrid vehicle

There may be no engine sound or vibration even though the vehicle is able to
move with the “READY” indicator is illuminated. For safety, apply the parking
brake and make sure to shift the shift lever to P when parked.
The  following  sounds  or  vibrations  may  occur  when  the  hybrid  system  is
operating and are not a malfunction:

●

Motor sounds may be heard from the engine compartment.

●

Sounds  may  be  heard  from  the  hybrid  battery  (traction  battery)  under  the
rear seats when the hybrid system starts or stops.

●

Relay operating sounds such as a snap or soft clank will be emitted from the
hybrid battery (traction battery), under the rear seats, when the hybrid sys-
tem is started or stopped.

●

Sounds from the hybrid system may be heard when the trunk lid is open.

●

Sounds  may  be  heard  from  the  transmission  when  the  gasoline  engine
starts or stops, when driving at low speeds, or during idling.

●

Engine sounds may be heard when accelerating sharply.

●

Sounds may be heard due to regenerative braking when the brake pedal is
depressed or as the accelerator pedal is released.

●

Vibration may be felt when the gasoline engine starts or stops.

●

Cooling fan sounds may be heard from the air intake vent. (



P. 80)

■

Vehicle proximity notification system

In the following cases, the vehicle proximity notification system may be diffi-
cult for surrounding people to hear.

●

In very noisy areas

●

In the wind or the rain

Also, as the vehicle proximity notification system is installed on the front of
the vehicle, it may be more difficult to hear from the rear of the vehicle com-
pared to the front.

■

Maintenance, repair, recycling, and disposal

Contact your Toyota dealer regarding maintenance, repair, recycling and dis-
posal. Do not dispose of the vehicle yourself.

■

Customization

Some functions can be customized. (



P. 524)

79

1-3. Hybrid system

1

For safet

y and s

ecurity

The illustration is an example for explanation and may differ from the
actual item.

Hybrid system precautions

Take care when handling the hybrid system, as it is a high volt-
age system (about 650 V at maximum) as well as contains parts
that become extremely hot when the hybrid system is operating.
Obey the warning labels attached to the vehicle.

Warning label
Service plug
Hybrid  battery  (traction  bat-
tery)
High voltage cables (orange)

Electric motor (traction motor)
Power control unit
Air conditioning compressor

1

2

3

4

5

6

7

80

1-3. Hybrid system

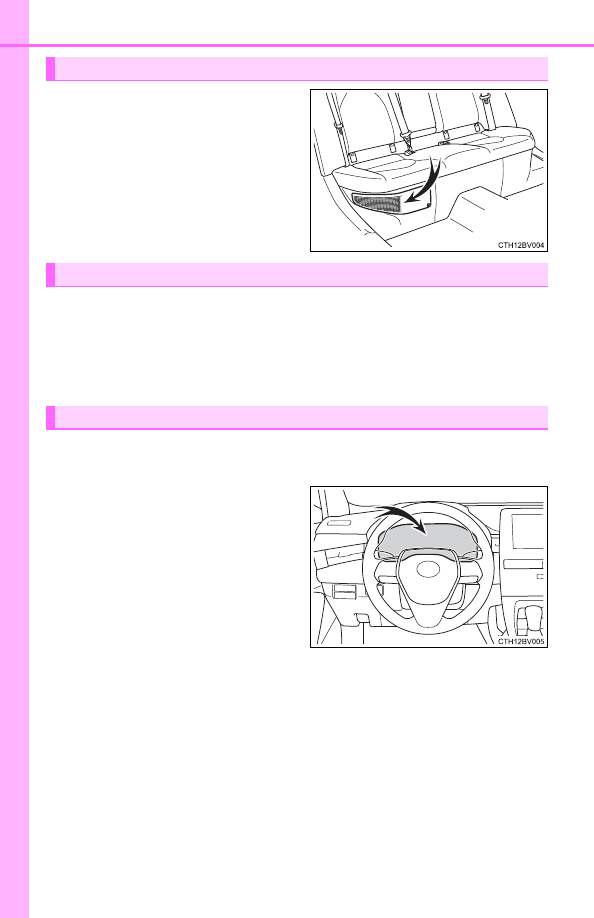

There  is  an  air  intake  vent  under
the  right  side  of  the  rear  seat  for
the  purpose  of  cooling  the  hybrid
battery  (traction  battery).  If  the
vent  becomes  blocked,  charging/
discharging  of  the  hybrid  battery
(traction battery) may become lim-
ited.

When a certain level of impact is detected by the impact sensor, the
emergency shut off system blocks the high voltage current and stops
the fuel pump to minimize the risk of electrocution and fuel leakage. If
the emergency shut off system activates, your vehicle will not restart.
To restart the hybrid system, contact your Toyota dealer.

A  message  is  automatically  displayed  when  a  malfunction  occurs  in
the hybrid system or an improper operation is attempted.
If a warning message is shown on
the multi-information display, read
the  message  and  follow  the
instructions. (



P. 463)

Hybrid battery (traction battery) air intake vent

Emergency shut off system

Hybrid warning message

81

1-3. Hybrid system

1

For safet

y and s

ecurity

■

If a warning light comes on, a warning message is displayed, or the 12-
volt battery is disconnected

The hybrid system may not start. In this case, try to start the system again. If
the “READY” indicator does not come on, contact your Toyota dealer.

■

Running out of fuel

When the vehicle has run out of fuel and the hybrid system cannot be started,
refuel  the  vehicle  with  at  least  enough  gasoline  to  make  the  low  fuel  level
warning  light  (



P.  456)  go  off.  If  there  is  only  a  small  amount  of  fuel,  the

hybrid system may not be able to start. (The standard amount of fuel is about
2.3 gal. [8.8 L, 1.9 Imp. gal.] when the vehicle is on a level surface. This value
may vary when the vehicle is on a slope. Add extra fuel when the vehicle is
inclined.)

■

Electromagnetic waves

●

High  voltage  parts  and  cables  on  hybrid  vehicles  incorporate  electromag-
netic shielding, and therefore emit approximately the same amount of elec-
tromagnetic  waves  as  conventional  gasoline  powered  vehicles  or  home
electronic appliances.

●

Your  vehicle  may  cause  sound  interference  in  some  third  party-produced
radio parts.

■

Hybrid battery (traction battery)

The hybrid battery (traction battery) has a limited service life. The lifespan of
the  hybrid  battery  (traction  battery)  can  change  in  accordance  with  driving
style and driving conditions.

82

1-3. Hybrid system

WARNING

■

High voltage precautions

This vehicle has high voltage DC and AC systems as well as a 12-volt sys-
tem.  DC  and AC  high  voltage  is  very  dangerous  and  can  cause  severe
burns and electric shock that may result in death or serious injury.

●

Never  touch,  disassemble,  remove  or  replace  the  high  voltage  parts,
cables or their connectors.

●

The hybrid system will become hot after starting as the system uses high
voltage. Be careful of both the high voltage and the high temperature, and
always obey the warning labels attached to the vehicle.

●

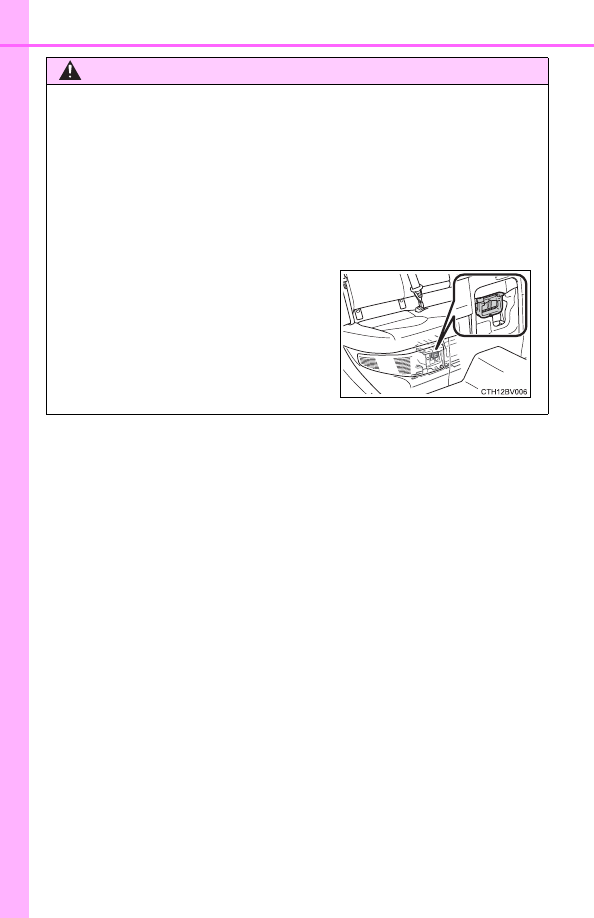

Do  not  touch  the  service  plug  located
under the right side of the rear seat. The
service plug is used only when the vehi-
cle  is  serviced  and  is  subject  to  high
voltage.

83

1-3. Hybrid system

1

For safet

y and s

ecurity

WARNING

■

Road accident cautions

Observe  the  following  precautions  to  reduce  the  risk  of  death  or  serious
injury:

●

Pull your vehicle off the road, apply the parking brake, shift the shift lever
to P, and turn the hybrid system off.

●

Do not touch the high voltage parts, cables and connectors.

●

If  electric  wires  are  exposed  inside  or  outside  your  vehicle,  an  electric
shock may occur. Never touch exposed electric wires.

●

If  a fluid  leak occurs,  do  not touch  the fluid  as it  may be strong  alkaline
electrolyte from the hybrid battery (traction battery). If it comes into contact
with your skin or eyes, wash it off immediately with a large amount of water
or, if possible, boric acid solution. Seek immediate medical attention.

●

If a fire occurs in the hybrid vehicle, leave the vehicle as soon as possible.
Never use a fire extinguisher that is not meant for electric fires. Using even
a small amount of water may be dangerous.

●

If  your  vehicle  needs  to  be  towed,  do  so  with  front  wheels  raised.  If  the
wheels connected to the electric motor (traction motor) are on the ground
when  towing,  the  motor  may  continue  to  generate  electricity.  This  may
cause a fire. (



P. 449)

●

Carefully inspect the ground under the vehicle. If you find that liquid has
leaked onto the ground, the fuel system may have been damaged. Leave
the vehicle as soon as possible.

●

If  electrolyte  is  leaking  from  the  hybrid  battery  (traction  battery),  do  not
approach the vehicle.
Even in the unlikely event that the hybrid battery (traction battery) is dam-
aged, the internal construction of the battery will prevent a large amount
of electrolyte from leaking out. However, any electrolyte that does leak out
will give off a vapor. This vapor is an irritant to skin and eyes and could
cause acute poisoning if inhaled.

84

1-3. Hybrid system

WARNING

■

Hybrid battery (traction battery)

●

Never resell, hand over or modify the hybrid battery. To prevent accidents,
hybrid batteries that have been removed from a disposed vehicle are col-
lected through Toyota dealer. Do not dispose of the battery yourself.
Unless the battery is properly collected, the following may occur, resulting
in death or serious injury:
• The hybrid battery may be illegally disposed of or dumped, and it is haz-

ardous to the environment or someone may touch a high voltage part,
resulting in an electric shock.

• The hybrid battery is intended to be used exclusively with your hybrid

vehicle. If the hybrid battery is used outside of your vehicle or modified
in any way, accidents such as electric shock, heat generation,  smoke
generation, an explosion and electrolyte leakage may occur.

When reselling or handing over your vehicle, the possibility of an accident
is  extremely  high  because  the  person  receiving  the  vehicle  may  not  be
aware of these dangers.

●

If  your  vehicle  is  disposed  of  without  the  hybrid  battery  having  been
removed, there is a danger of serious electric shock if high voltage parts,
cables  and  their  connectors  are  touched.  In  the  event  that  your  vehicle
must  be  disposed  of,  the  hybrid  battery  must  be  disposed  of  by  your
Toyota dealer or a qualified service shop. If the hybrid battery is not dis-
posed of properly, it may cause electric shock that can result in death or
serious injury.

85

1-3. Hybrid system

1

For safet

y and s

ecurity

NOTICE

■

Hybrid battery (traction battery) air intake vent

●

Make sure not to block the air intake vent with anything, such as a seat
cover, plastic cover, or luggage. The hybrid battery (traction battery) may
overheat and be damaged.

●

When dust etc. has accumulated in the air intake vent, clean it with a vac-
uum cleaner to prevent the vent from clogging.

●

Do  not  get  water  or  foreign  materials  in  the  air  intake  vent  as  this  may
cause a short circuit and damage the hybrid battery (traction battery).

●

Do  not carry large amounts of  water such  as water  cooler  bottles in  the
vehicle. If water spills onto the hybrid battery (traction battery), the battery
may be damaged. Have the vehicle inspected by your Toyota dealer.

●

There  is  a  filter  installed  to  the  air  intake  vent.  When  the  filter  remains
noticeably  dirty  even  after  cleaning  the  air  intake  vent,  filter  cleaning  or
replacement is recommended. When cleaning the filter, refer to P. 434.

86

1-4. Theft deterrent system

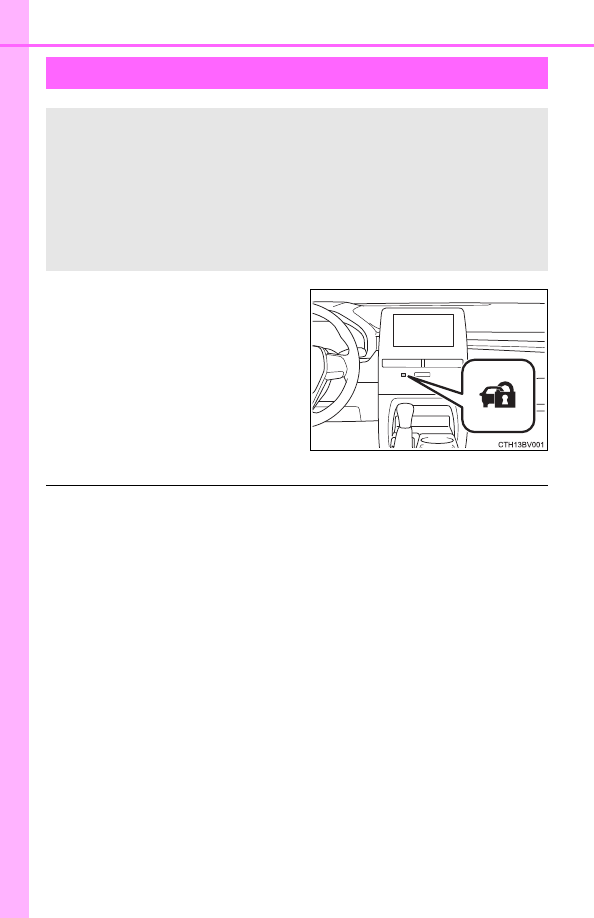

The  indicator  light  flashes  after
the power switch has been turned
off  to  indicate  that  the  system  is
operating.
The  indicator  light  stops  flashing
after  the  power  switch  has  been
turned  to  ACCESSORY  or  ON
mode  to  indicate  that  the  system
has been canceled.

■

System maintenance

The vehicle has a maintenance-free type immobilizer system.

■

Conditions that may cause the system to malfunction

●

If the grip portion of the key is in contact with a metallic object

●

If the key is in close proximity to or touching a key to the security system
(key with a built-in transponder chip) of another vehicle

Immobilizer system

The vehicle’s keys have built-in transponder chips that prevent
the hybrid system from starting if a key has not been previously
registered in the vehicle’s on-board computer.
Never leave the keys inside the vehicle when you leave the vehi-
cle.
This system is designed to help prevent vehicle theft but does
not guarantee absolute security against all vehicle thefts.

87

1-4. Theft deterrent system

1

For safet

y and s

ecurity

■

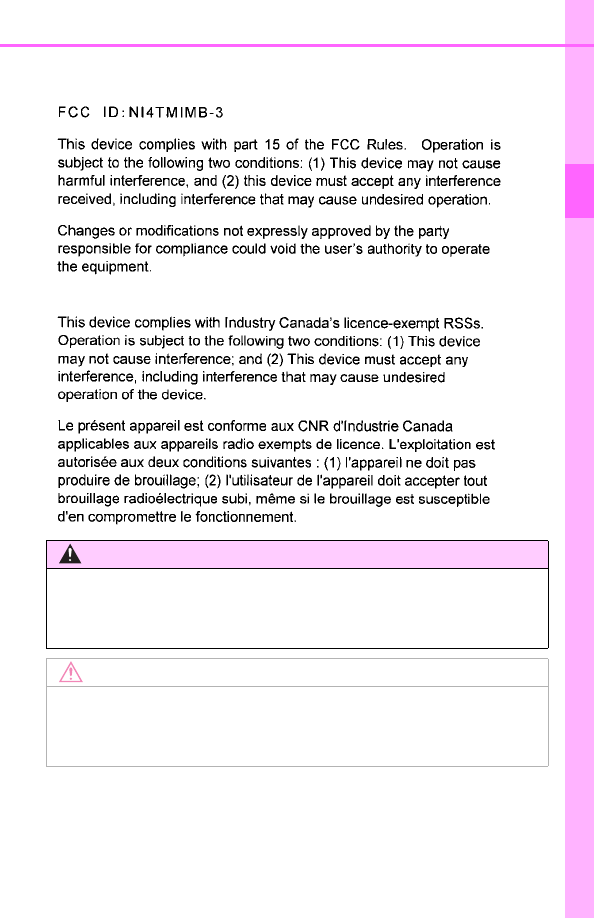

Certifications for the immobilizer system



For vehicles sold in the U.S.A.



For vehicles sold in Canada

WARNING

■

Certifications for the engine immobilizer system

Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.

NOTICE

■

To ensure the system operates correctly

Do  not  modify  or  remove  the  system.  If  modified  or  removed,  the  proper
operation of the system cannot be guaranteed.

88

1-4. Theft deterrent system

The alarm uses light and sound to give an alert when an intrusion is
detected.
The  alarm  is  triggered  in  the  following  situations  when  the  alarm  is
set:

●

A locked door is unlocked or opened in any way other than using
the entry function, wireless remote control or mechanical key.
(The doors will lock again automatically.)

●

The trunk is opened in any way other than using the entry function
or wireless remote control.

●

The hood is opened.

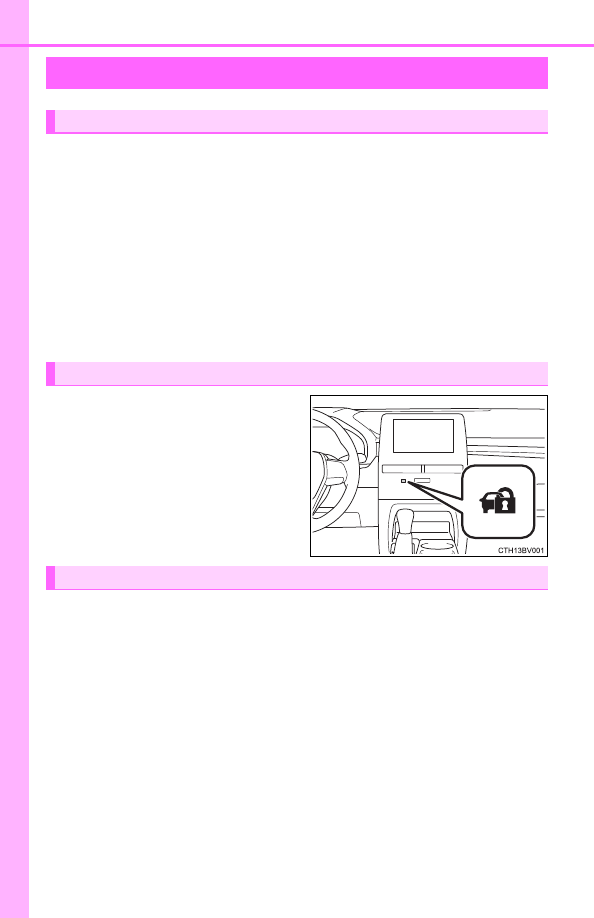

Close  the  doors,  trunk  and  hood,
and lock all the doors. The system
will  be  set  automatically  after  30
seconds.

The  indicator  light  changes  from
being on to flashing when the sys-
tem is set.

Do one of the following to deactivate or stop the alarm:

●

Unlock the doors.

●

Open the trunk using the entry function or wireless remote control.

●

Turn  the  power  switch  to ACCESSORY  or  ON  mode,  or  start  the
hybrid system. (The alarm will be deactivated or stopped after a few
seconds.)

Alarm

The alarm

Setting the alarm system

Deactivating or stopping the alarm

89

1-4. Theft deterrent system

1

For safet

y and s

ecurity

■

System maintenance

The vehicle has a maintenance-free type alarm system.

■

Items to check before locking the vehicle

To prevent unexpected triggering of the alarm and vehicle theft, make sure of
the following:

●

Nobody is in the vehicle.

●

The windows and moon roof (if equipped) are closed before the alarm is set.

●

No valuables or other personal items are left in the vehicle.

■

Triggering of the alarm

The alarm may be triggered in the following situations:
(Stopping the alarm deactivates the alarm system.)

●

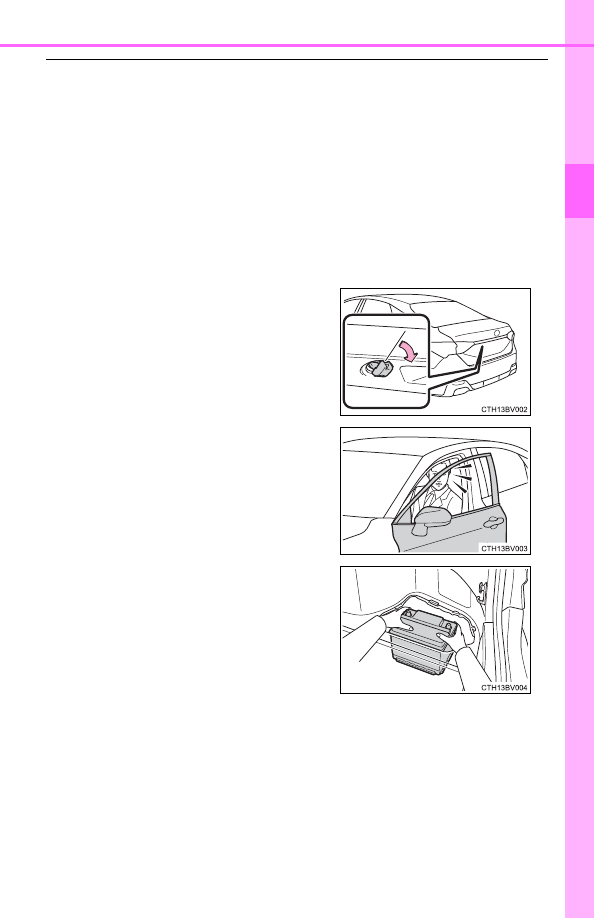

The trunk is opened using the mechani-
cal key.

●

A person inside the vehicle opens a door
or the trunk or hood, or unlocks the vehi-
cle.

●

The  12-volt  battery  is  recharged  or
replaced  when  the  vehicle  is  locked.
(



P. 488)

90

1-4. Theft deterrent system

■

Alarm-operated door lock

In the following cases, depending on the situation, the door may automatically
lock to prevent improper entry into the vehicle:

●

When a person remaining in the vehicle unlocks the door and the alarm is
activated.

●

While the alarm is activated, a person remaining in the vehicle unlocks the
door.

●

When recharging or replacing the 12-volt battery

NOTICE

■

To ensure the system operates correctly

Do  not  modify  or  remove  the  system.  If  modified  or  removed,  the  proper
operation of the system cannot be guaranteed.

91

Instrument cluster

2

2.

Instrument cluster

Warning lights and

indicators .......................... 92

Gauges and meters ............ 98
Multi-information

display............................. 102

Head-up display ................ 121
Energy monitor/

consumption screen........ 128

92

2. Instrument cluster

Warning lights and indicators

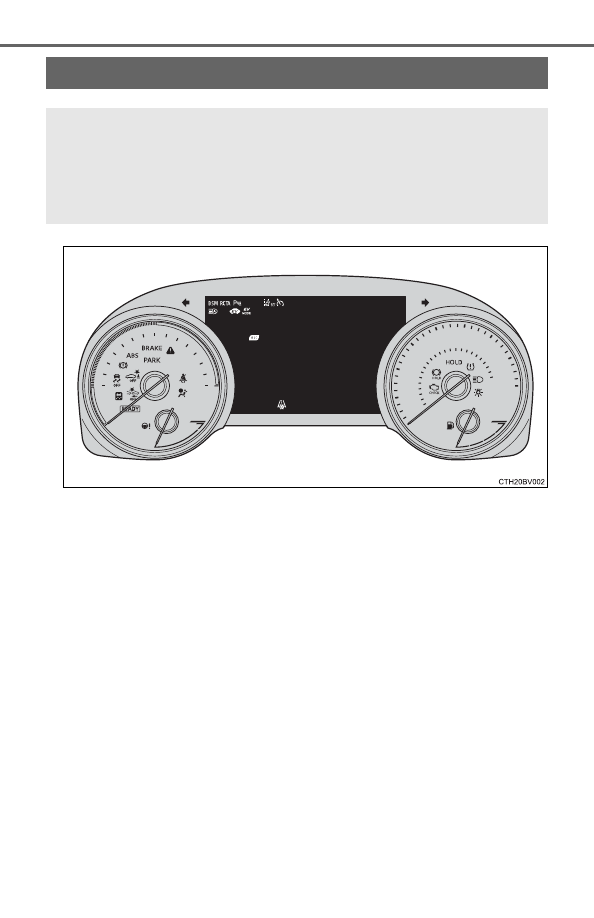

The warning lights and indicators on the instrument cluster, cen-
ter panel and outside rear view mirrors inform the driver of the
status of the vehicle’s various systems.
For  the  purpose  of  explanation,  the  following  illustrations  dis-
play all warning lights and indicators illuminated.

93

2. Instrument cluster

2

Instrument cluster

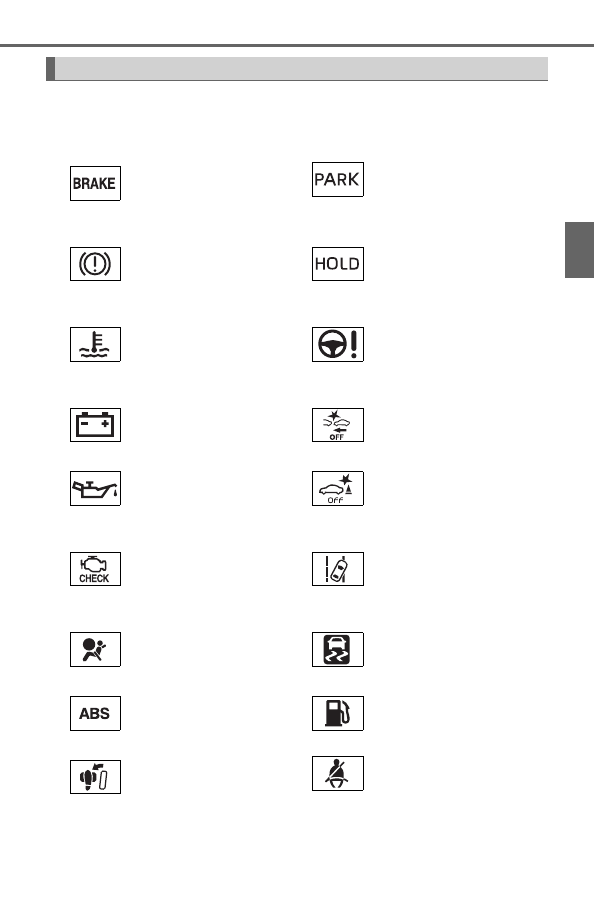

Warning lights inform the driver of malfunctions in any of the vehicle’s
systems.

Warning lights

*

1

(Red)

Brake system warning
light (



P. 453)

Parking brake indicator
(



P. 454)

*

1

(Yellow)

Brake  system  warning
light (



P. 453)

*

1, 3

Brake hold operated
indicator (



P. 455)

*

2

High  coolant  tempera-
ture warning light
(



P. 453)

*

1

(Red/yellow)

Electric power steering
system warning light
(



P. 455)

*

2

Charging system
warning light (



P. 453)

*

1, 4

PCS warning light
(



P. 455)

*

2

Low engine oil pressure
warning light (



P. 453)

*

1, 3

(if equipped)

ICS OFF indicator
(



P. 455)

*

1

Malfunction indicator
lamp (



P. 454)

*

2

(Amber)

LDA indicator (



P. 455)

*

1

SRS warning light
(



P. 454)

*

1

Slip indicator (



P. 456)

*

1

ABS warning light
(



P. 454)

Low fuel level warning
light (



P. 456)

*

2

Brake  Override  System/
Drive-Start  Control/Intel-
ligent  Clearance  Sonar
(if  equipped)  warning
light (



P. 454)

Driver’s and front
passenger’s seat belt
reminder light
(



P. 456)

94

2. Instrument cluster

*

1

: These lights turn on when the power switch is turned to ON mode to indi-

cate  that  a  system  check  is  being  performed. They  will  turn  off  after  the
hybrid system is on, or after a few seconds. There may be a malfunction in
a  system  if  a  light  does  not  come  on,  or  turn  off.  Have  the  vehicle
inspected by your Toyota dealer.

*

2

: This light illuminates on the multi-information display.

*

3

: This light flashes to indicate a malfunction.

*

4

: This light flashes or illuminates to indicate a malfunction.

*

5

: This light illuminates on the center panel.

*

5

Rear passengers’ seat
belt reminder lights
(



P. 456)

*

1

Tire pressure warning

light (



P. 456)

*

1

Master warning light
(



P. 456)

95

2. Instrument cluster

2

Instrument cluster

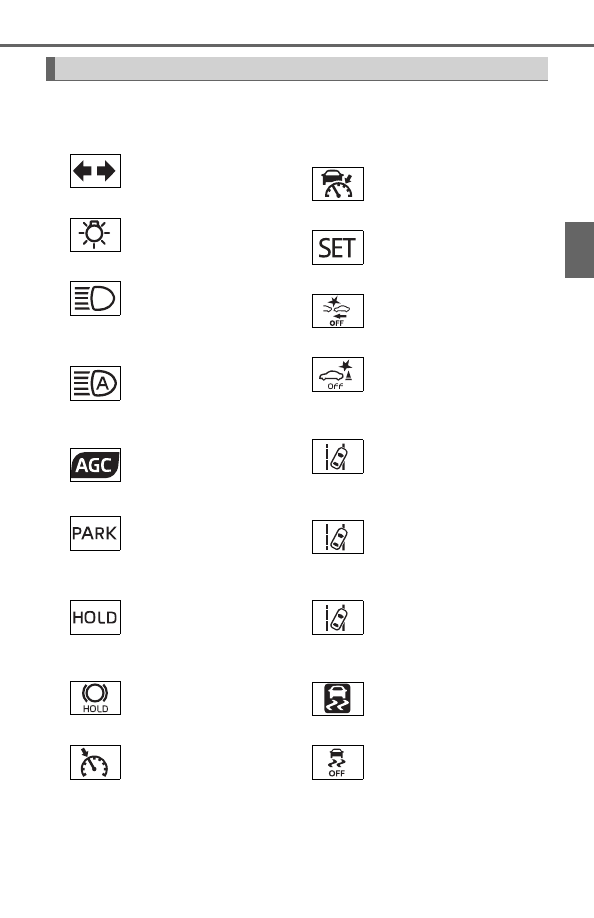

The indicators inform the driver of the operating state of the vehicle’s
various systems.

Indicators

Turn signal indicator
(



P. 211)

*

2

Dynamic radar cruise
control indicator
(



P. 264)

Headlight indicator
(



P. 218)

*

2

Cruise control “SET”
indicator
(



P. 264)

Headlight high beam
indicator (



P. 218)

*

1, 3

PCS warning light
(



P. 245)

*

2

Automatic High Beam
indicator (



P. 222)

*

1, 3

(if equipped)

ICS OFF indicator
(



P. 303)

*

2

AGC  (Auto  Glide  Con-
trol) indicator (



P. 322)

*

2

(White)

LDA indicator (



P. 253)

Parking brake indicator
(



P. 212)

*

2

(Green)

LDA indicator (



P. 253)

*

1

Brake hold operated
indicator (



P. 216)

*

2, 4

(Amber)

LDA indicator (



P. 253)

*

1

Brake hold standby
indicator (



P. 216)

*

1, 4

Slip indicator (



P. 324)

*

2

Cruise control indicator
(



P. 264)

*

1, 3

VSC OFF indicator
(



P. 325)

96

2. Instrument cluster

*

2

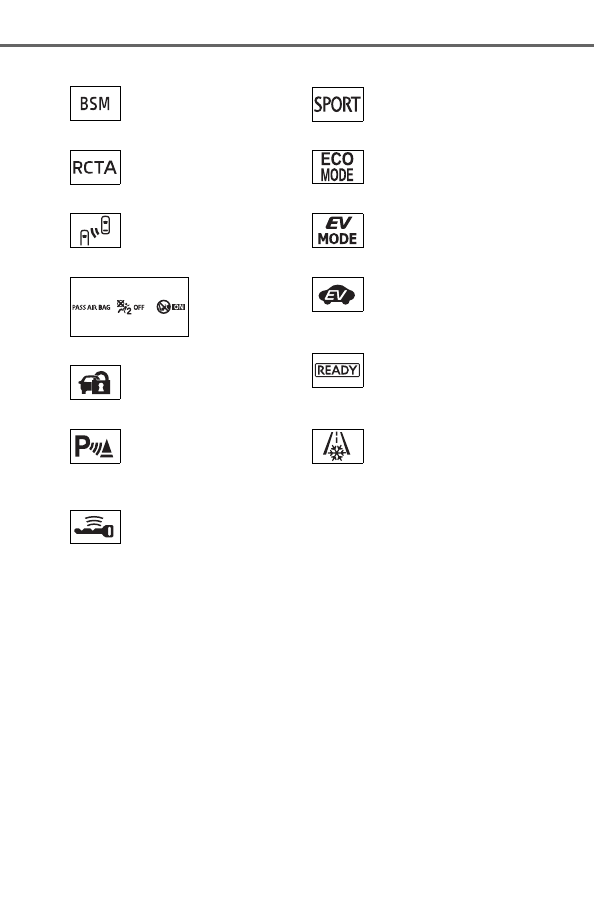

“BSM” indicator
(



P. 277)

*

2

“SPORT” indicator
(



P. 321)

*

2

“RCTA” indicator
(



P. 277)

*

2

“ECO MODE” indicator
(



P. 321)

*

5, 6

BSM  (Blind  Spot  Moni-
tor)  outside  rear  view
mirror indicators
(



P. 277)

*

2

EV drive mode indicator
(



P. 202)

*

1, 7

“AIR BAG
ON/OFF”
indicator
(



P. 48)

*

2

EV indicator (



P. 77)

*

7

Security indicator
(



P. 86, 88)

“READY” indicator
(



P. 196)

*

2

(if equipped)

Intuitive  parking  assist
indicator (



P. 292)

*

2, 8

Low  outside  tempera-
ture indicator (



P. 98)

*

2

Smart  key  system  indi-
cator (



P. 196)

97

2. Instrument cluster

2

Instrument cluster

*

1

: These lights turn on when the power switch is turned to ON mode to indi-

cate  that  a  system  check  is  being  performed. They  will  turn  off  after  the
hybrid system is on, or after a few seconds. There may be a malfunction in
a  system  if  a  light  does  not  come  on,  or  turn  off.  Have  the  vehicle
inspected by your Toyota dealer.

*

2

: This light illuminates on the multi-information display.

*

3

: This light turns on when the system is off.

*

4

: This light flashes to indicate that the system is operating.

*

5

: These  indicators  will  illuminate  in  the  following  situations  to  indicate  that

the system initial check is being performed:

• When  the  BSM  function  or  RCTA  function  is  enabled  and  the  power

switch is turned to ON mode.

• When the power switch is ON mode and the BSM function is enabled.
• When the power switch is ON mode and the RCTA function is enabled.

(At this time, a buzzer will also sound).
The indicators will turn off after a few seconds. If the indicators do not
illuminate or turn off, or if a buzzer does not sound when the RCTA func-
tion  is  enabled,  the  system  may  be  malfunctioning.  Have  the  vehicle
inspected by your Toyota dealer.

*

6

: This light illuminates on the outside rear view mirrors.

*

7

: This light illuminates on the center panel.

*

8

: When the outside temperature is approximately 37°F (3°C) or lower, this

indicator will flash for approximately 10 seconds, then stay on.

WARNING

■

If a safety system warning light does not come on

Should a safety system light such as the ABS and SRS warning lights not
come on when you start the hybrid system, this could mean that these sys-
tems are not available to help protect you in an accident, which could result
in death or serious injury. Have the vehicle inspected by your Toyota dealer
immediately if this occurs.

98

2. Instrument cluster

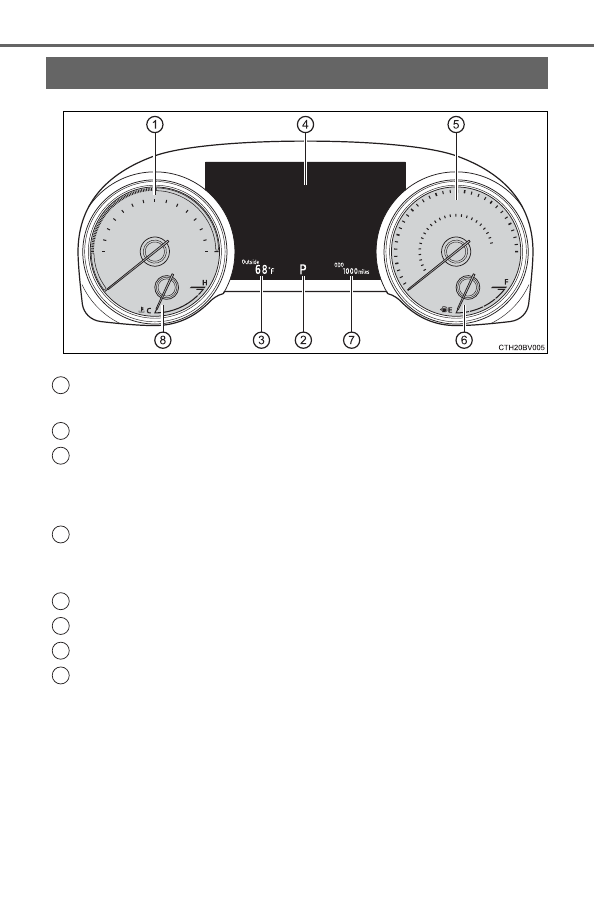

The units used on the meters may differ depending on the target region.

Hybrid System Indicator

Displays hybrid system output or regeneration level (



P. 100)

Shift position (



P. 205)

Outside temperature

Displays  the  outside  temperature  within  the  range  of  -40°F  (-40°C)  to
122°F  (50°C).  Low  outside  temperature  indicator  comes  on  when  the
ambient temperature is 37°F (3°C) or lower.

Multi-information display

Presents the driver with a variety of vehicle data (



P. 102)

Displays warning messages in case of a malfunction (



P. 463)

Speedometer
Fuel gauge
Odometer and trip meter



P. 117)

Engine coolant temperature gauge

Displays the engine coolant temperature

Gauges and meters

1

2

3

4

5

6

7

8

99

2. Instrument cluster

2

Instrument cluster

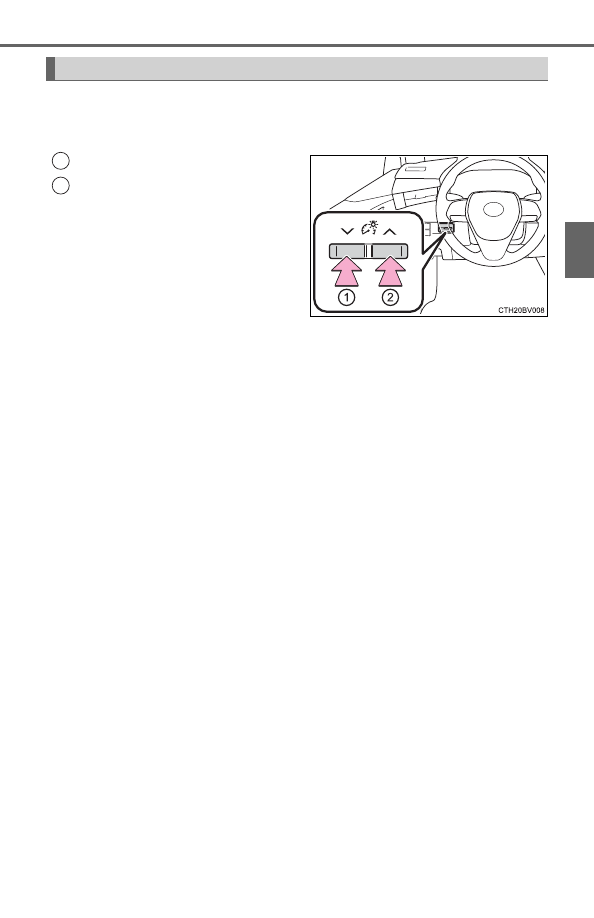

The brightness of the instrument panel lights can be adjusted.

The  brightness  of  some  of  the  interior  lights  will  be  changed  when  the
brightness of the instrument panel lights is adjusted. (→P. 352)

Darker
Brighter

• The brightness of the instrument

panel  lights  can  be  adjusted
individually  for  day  mode  and
night mode

*

.

• If  the  brightness  is  adjusted

when  the  surroundings  are
bright  and  the  tail  lights  are  on
(day  mode  brightness  adjust-
ment),  the  brightness  level  of
night  mode  will  be  adjusted  at
the same time.

*

: Day mode and night mode:



P. 100

Instrument panel light control

1

2

100

2. Instrument cluster

■

The meters and display illuminate when

The power switch is in ON mode.

■

Brightness of the meters (day mode and night mode)

●

The  brightness  of  the  meters  is  changed  between  day  mode  and  night
mode.
• Day mode: When the tail lights are off or when the tail lights are on but

the surrounding area is bright

• Night mode: When the tail lights are on and the surrounding area is dark

●

When  in  night  mode,  the  brightness  will  be  reduced  slightly  unless  the
meters are set to the maximum brightness level.

■

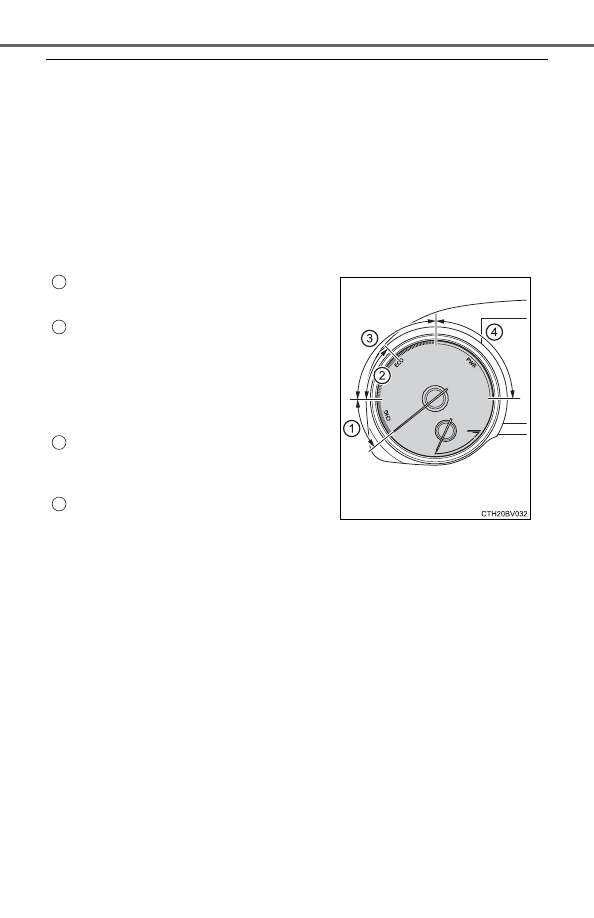

Hybrid System Indicator

Shows  that  an  Eco-friendly  driving  range  is  being  exceeded  (during  full
power driving etc.)

●

By keeping the indicator needle within Eco area, more Eco-friendly driving
can be achieved.

●

Charge area  indicates  “regeneration”

*

 status.  Regenerated  energy  will  be

used to charge the battery.

*

: When  used  in  this  manual,  “regeneration”  refers  to  the  conversion  of

energy created by the movement of the vehicle into electrical energy.

The Hybrid System Indicator will not operate in the following situations:

●

The “READY” indicator is not illuminated.

●

The shift lever is in any position other than D.

Charge area
Shows regenerative charging.
Hybrid Eco area
Shows  that  gasoline  engine  power  is
not being used very often.
The  gasoline  engine  will  automatically
stop  and  restart  under  various  condi-
tions.
Eco area
Shows that the vehicle is being driven in
an Eco-friendly manner.
Power area

1

2

3

4

101

2. Instrument cluster

2

Instrument cluster

■

Engine speed

On  hybrid  vehicles,  engine  speed  is  precisely  controlled  in  order  to  help
improve fuel efficiency and reduce exhaust emissions etc.
There  are  times  when  the  engine  speed  that  is  displayed  may  differ  even
when vehicle operation and driving conditions are the same.

■

Outside temperature display

In  the  following  situations,  the  correct  outside  temperature  may  not  be  dis-
played, or the display may take longer than normal to change:

●

When stopped, or driving at low speeds (less than 16 mph [25 km/h])

●

When the outside temperature has changed suddenly (at the entrance/exit
of a garage, tunnel, etc.)

●

When “



” or “E” is displayed, the system may be malfunctioning.

Take your vehicle to your Toyota dealer.

NOTICE

■

To prevent damage to the engine and its components

The engine may be overheating if the engine coolant temperature gauge is
in  the  red  zone  (H).  In  this  case,  immediately  stop  the  vehicle  in  a  safe
place, and check the engine after it has cooled completely. (



P. 492)

102

2. Instrument cluster

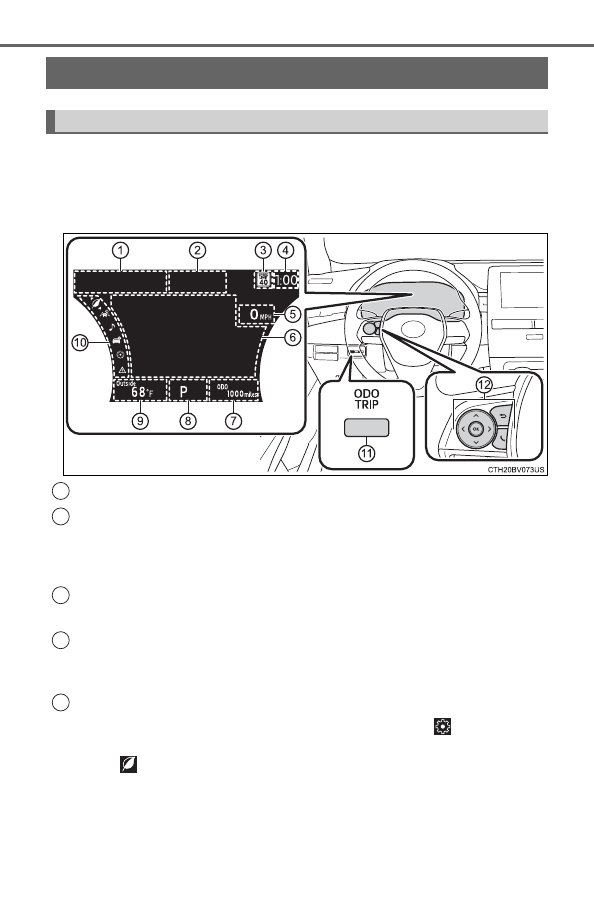

The multi-information display presents the driver with a variety of driv-
ing-related data, such as the current outside temperature. The multi-
information display  can  also  be  used  to  change  the  display  settings
and other settings.

Indicators (



P. 92)

Driving assist system status display area

Displays the operational status of the following systems:

• Dynamic radar cruise control with full-speed range (



P. 264)

• LDA (Lane Departure Alert with steering control) (



P. 253)

Speed  limit  display  (vehicles  with  a  navigation  system)  (U.S.A.
only)
Clock

For  clock  settings,  refer  to  “NAVIGATION  AND  MULTIMEDIA  SYSTEM
OWNER’S MANUAL”.

Speedometer

The  speedometer  display  can  be  enabled/disabled  in

  on  the  multi-

information display. (



P. 111)

When

 is selected, the speedometer may be displayed in the content

display area.

Multi-information display

Summary of functions

1

2

3

4

5

103

2. Instrument cluster

2

Instrument cluster

Content display area

A variety of information can be displayed by selecting a menu icon. Addi-
tionally, warning or suggestion/advice pop-up displays will be displayed in
some situations.

• Menu icon content (



P. 104)

• Suggestion function (



P. 118)

• Warning message (



P. 463)

Odometer/trip meter (



P. 117)

Shift position (



P. 205)

Outside temperature (



P. 98)

Menu icons (



P. 104)

“ODO/TRIP” switch (



P. 104)

Meter control switches (



P. 103)

◆

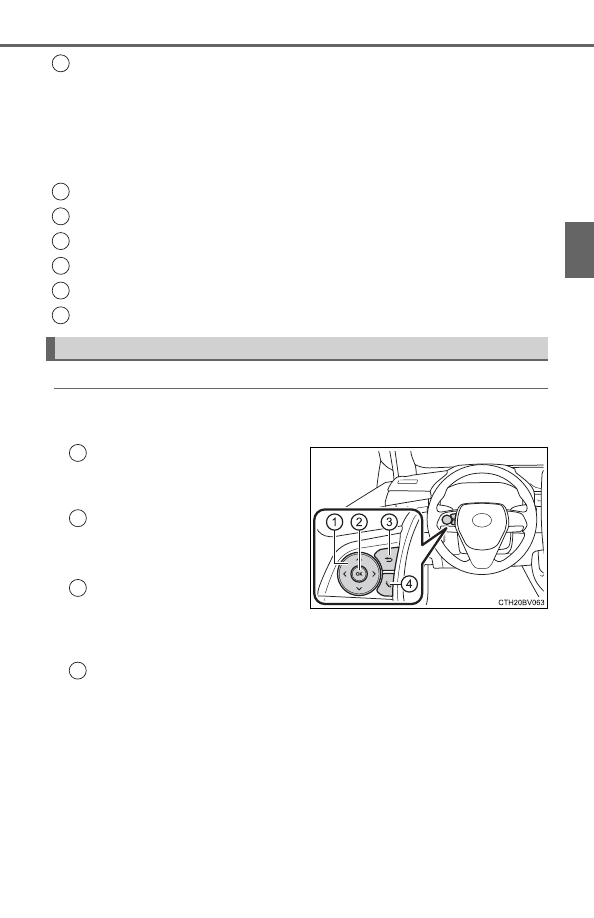

Using the content display area

The  content  display  area  is  operated  using  the  meter  control
switches.

Scroll  screens

*

,  change  the

displayed content

*

 and move

the cursor
Press: Enter/Set
Press  and  hold:  Reset/Dis-
play the next screen
Return  to  the  previous
screen

Pressing  and  holding  the  switch  will  display  the  first  screen  of  the
selected menu icon.

Call sending/receiving display

Linked  with  the  hands-free  system,  sending  or  receiving  call  is  dis-
played. For details regarding the hands-free system, refer to the “NAVI-
GATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.

*

: When the screen can be scrolled or different content can be displayed,

a mark, such as an arrow, will be displayed to suggest which switch to
operate.

Using the multi-information display

6

7

8

9

10

11

12

1

2

3

4

104

2. Instrument cluster

◆

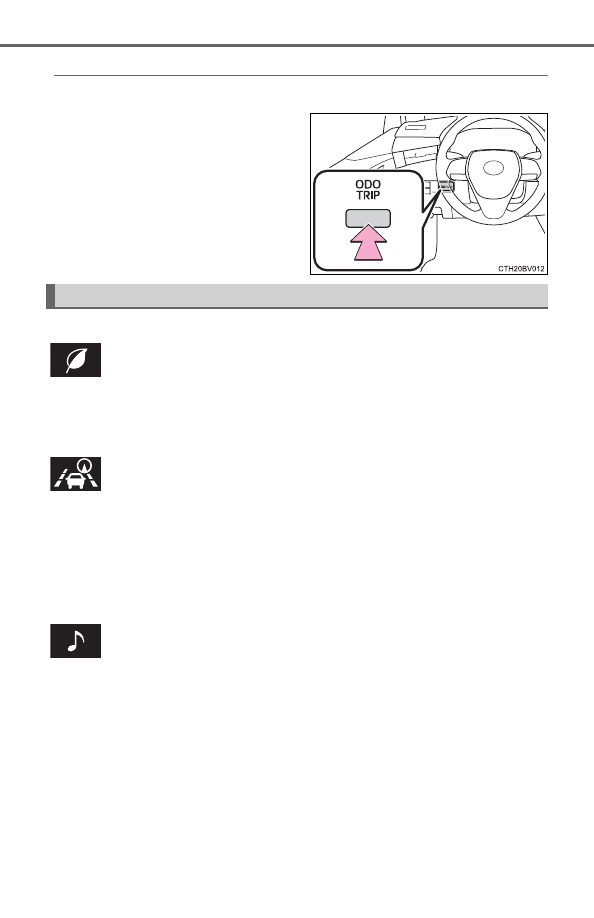

Using the odometer/trip meter

Items in this area are operated using the “ODO/TRIP” switch.
Press: Change displayed item

Each time the switch is pressed,
the  displayed  item  will  be
changed.

Press and hold: Reset

Display  the  desired  trip  meter
and press and hold the switch to
reset the trip meter.

Select a menu icon to display its content.

Driving information (



P. 106)

Select to display the following:

• Speedometer/driving range
• Fuel consumption
• Eco guide

Driving assist system information

Select to perform the following:
Display the operational status of the following systems:

• Dynamic radar cruise control with full-speed range (



P. 264)

• LDA (Lane Departure Alert with steering control) (



P. 253)

Display the following navigation system-linked information (if equipped):

• Route guidance
• Compass display (heading-up display)

Audio system-linked display

Select to enable selection of an audio source or track on the multi-infor-
mation display using the meter control switches.

Menu icons

105

2. Instrument cluster

2

Instrument cluster

Vehicle information

Select to perform the following:
Display the following information:

• Energy monitor (



P. 128)

• Tire inflation pressure (



P. 416)

Enable/Disable the following systems:

• Parking assist (Intuitive parking assist) (if equipped) (



P. 292)

• BSM (Blind Spot Monitor) function (



P. 277)

• RCTA (Rear Cross Traffic Alert) function (



P. 277)

These functions can also be enabled/disabled on

.

Display the following information:

• Tachometer

Settings display (



P. 111)

Select to change the meter display settings and other settings.

Warning message display (



P. 463)

Select to display warning messages and measures to be taken if a mal-
function is detected.

106

2. Instrument cluster

■

Speedometer/driving range

• Speedometer
• Driving range

Displays the driving range with remaining fuel.

When only a small amount of fuel is added to the tank, the display may
not be updated.
When refueling, turn the power switch off. If the vehicle is refueled with-
out turning the power switch off, the display may not be updated.
This distance is computed based on your average fuel consumption. As
a result, the actual distance that can be driven may differ from that dis-
played.

■

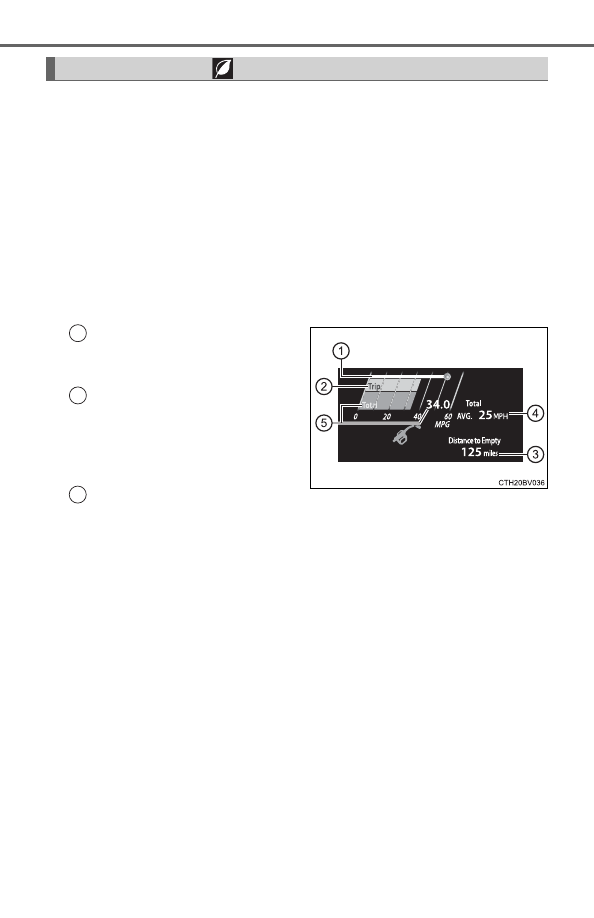

Fuel consumption

Current fuel consumption

Displays  the  instantaneous  cur-
rent fuel consumption.

Average  fuel  economy  (after
start)

Displays  the  average  fuel  con-
sumption  since  hybrid  system
start.

*

1

Driving range

Displays the driving range with remaining fuel.

*

2, 3

Driving information (

)

1

2

3

107

2. Instrument cluster

2

Instrument cluster

Gadget

*

4

The following items can be displayed by changing the settings for gad-
get content and fuel economy type on

. (



P. 111)

Average fuel economy

Displayed item (listed below) can be changed on the fuel economy type
screen of

. (



P. 111)

●

Total (after reset)

Displays the average fuel consumption since the display was reset.

*

1, 5

●

Tank (after refuel)

Displays  the  average  fuel  consumption  since  the  vehicle  was  refu-
eled.

*

1, 2

4

Displayable item

Content

Gadget
content

Fuel economy

type

Average
vehicle
speed

Trip
(after start)

Displays  the  average  vehicle  speed  since
hybrid system start.

Total
(after reset)

Displays the average vehicle speed since the
display was reset.

*

5

Distance

Trip
(after start)

Displays  the  distance  driven  since  vehicle
start.

Total
(after reset)

Displays the distance driven since the display
was reset.

*

5

Elapsed
time

Trip
(after start)

Displays the elapsed time since hybrid system
start.

Total
(after reset)

Displays  the  elapsed  time  since  the  display
was reset.

*

5

5

108

2. Instrument cluster

*

1

: Use the displayed fuel consumption as a reference only.

*

2

: When only a small amount of fuel is added to the tank, the display may

not be updated.
When refueling, turn the power switch off. If the vehicle is refueled with-
out turning the power switch off, the display may not be updated.

*

3

: This distance is computed based on your average fuel consumption. As

a result, the actual distance that can be driven may differ from that dis-
played.

*

4

: The default setting is no display.

*

5

: This display can be reset by pressing and holding

 while it is dis-

played.

109

2. Instrument cluster

2

Instrument cluster

■

Eco guide

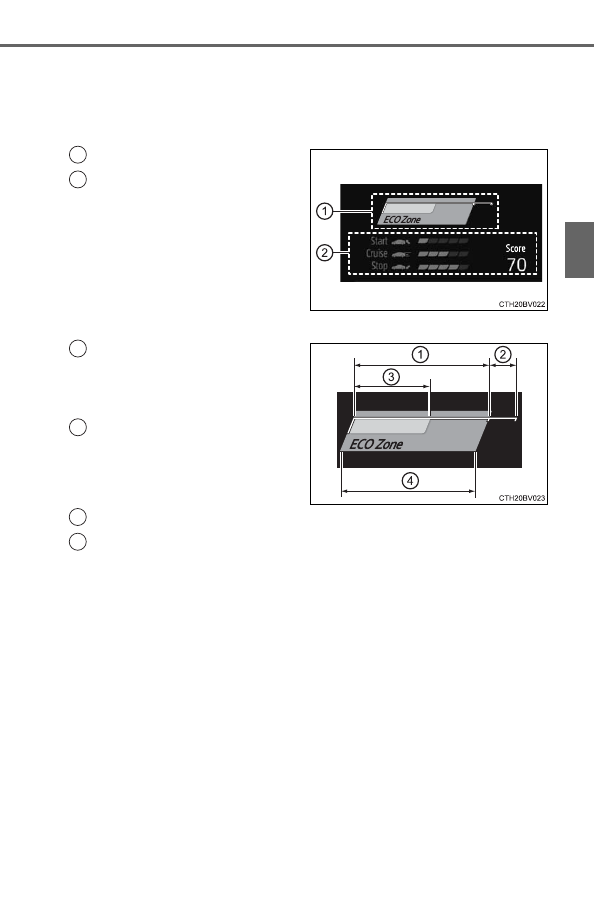

The  Eco  guide  displays  a  guide  for  eco-friendly  acceleration  and
scores which represent an evaluation of how the vehicle has been
driven ecologically in different states.

ECO Accelerator Guidance
Eco score

●

ECO Accelerator Guidance
Eco area

Indicates  that  the  vehicle  is
being  driven  in  an  Eco-friendly
manner.

Power area

Indicates  that  the  Eco-friendly
driving range is being exceeded
(during full power driving, etc.)

Eco driving ratio based on acceleration
Zone of Eco acceleration

Suggests a range in which Eco-friendly acceleration can be performed.
The zone of Eco acceleration changes according to situations, such as
starting off or cruising.
Eco-friendly  acceleration  can  be  achieved  by  keeping  the  Eco  driving
ratio  based  on  acceleration  bar  within  the  zone  of  Eco  acceleration.
(



P. 183)

1

2

1

2

3

4

110

2. Instrument cluster

●

Eco score

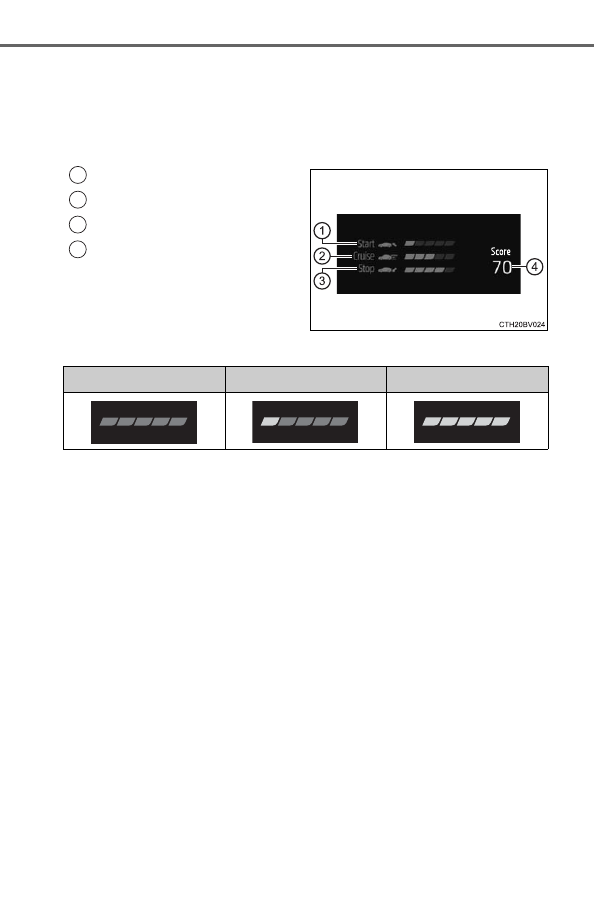

The  following  3  Eco  driving  methods  are  evaluated  in  5  levels:
Smooth start-off acceleration, driving without sudden acceleration,
and smooth stopping. When the vehicle is stopped, an Eco score
out of 100 points will be displayed.

Eco start status
Eco cruise status
Eco stop status
Score result

 How to read the bar display:

• After the hybrid system is started, the Eco score will not be dis-

played  until  the  vehicle  speed  exceeds  approximately  12  mph
(20 km/h).

• The  Eco  score  will  be  reset  each  time  the  hybrid  system  is

started.

• When the hybrid system is stopped, the total score of the current

trip will be displayed.

1

2

3

4

Not yet evaluated

Low

High

111

2. Instrument cluster

2

Instrument cluster

◆

Changing settings

Use  the  meter  control  switches  on  the  steering  wheel  to  change
settings.

Press

 or

 to select

.

Operate the switches to select a desired item.
Press or press and hold

.

The  available  settings  will  differ  depending  on  if

  is  pressed  or

pressed and held. Follow the instructions on the display.

◆

Setting items

■

 LDA (Lane Departure Alert with steering control) (



P. 253)

Press and hold

 to change the settings of the following items:

Settings display (

)

1

2

3

Item

Settings

Details

Steering assist

On

Select to enable/disable steering
wheel assistance.

Off

Alert sensitivity

 (High)

Select  to  set  the  warning  sensi-
tivity.

 (Normal)

Sway warning

On

Select to enable/disable the vehi-
cle sway warning.

Off

Sway sensitivity

 (High)

Select  to  set  the  vehicle  sway
warning sensitivity.

 (Medium)

 (Low)

112

2. Instrument cluster

■

 PCS (Pre-Collision System) (



P. 242)

Press

 to enable/disable the pre-collision system.

Press and hold

 to change the settings of the following item:

■

 BSM (Blind Spot Monitor) (



P. 277)

Press

 to enable/disable the Blind Spot Monitor function.

Press and hold

 to change the settings of the following item:

Item

Settings

Details

PCS

On

Select to enable/disable the pre-
collision system.

Off

Item

Settings

Details

Warning  sensitivity
(Warning timing)

 (Far)

Select  to  change  the  warning
timing.

 (Middle)

 (Near)

Item

Settings

Details

BSM

On

Select  to  enable/disable  the
Blind Spot Monitor function.

Off

Item

Settings

Details

Outside  rear  view
mirror

indicator

brightness

 (Bright)

Select  to  change  the  brightness
of  the  outside  rear  view  mirror
indicators.

 (Dim)

113

2. Instrument cluster

2

Instrument cluster

■

 RCTA (Rear Cross Traffic Alert) (



P. 277)

Press

 to enable/disable the Rear Cross Traffic Alert function.

Press and hold

 to change the settings of the following item:

■

 ICS (Intelligent Clearance Sonar) (if equipped) (



P. 300)

Press

 to enable/disable the Intelligent Clearance Sonar.

■

 Parking assist (Intuitive parking assist) (if equipped)

(



P. 292)

Press

 to enable/disable the Intuitive parking assist.

Press and hold

 to change the settings of the following item:

Item

Settings

Details

RCTA

On

Select to enable/disable the Rear
Cross Traffic Alert function.

Off

Item

Settings

Details

RCTA  buzzer  vol-
ume

 (Low)

Select  to  change  the  volume  of
the RCTA buzzer.

 (Medium)

 (Loud)

Item

Settings

Details

ICS

On

Select  to  enable/disable  the
Intelligent  Clearance  Sonar  sys-
tem.

Off

Item

Settings

Details

Intuitive

parking

assist

On

Select to enable/disable the intui-
tive parking assist.

Off

Item

Settings

Details

Volume

 (Low)

Select  to  change  the  volume  of
the  intuitive  parking  assist
buzzer.

 (Medium)

 (Loud)

114

2. Instrument cluster

■

 HUD (Head-up display) (if equipped) (



P. 121)

Press

 to enable/disable the head-up display.

Press and hold

 to change the settings of the following items:

Item

Settings

Details

HUD

On

Select  to  enable/disable  the
head-up display.

Off

Item

Settings

Details

HUD Brightness/Position

Select  to  adjust  the  brightness/
position of the head-up display.
• Press  the

/

  switch  to

adjust the display brightness.

• Press  the

/

  switch  to

adjust the display position.

HUD  Driving  sup-
port

Tachometer  set-
tings

Select  to  change  the  display
between the following:
• Hybrid System Indicator
• Tachometer
• No content

Navigation

sys-

tem

Select to enable/disable head-up
display content.

Driving Assist

Compass

Rotation

Select to adjust the angle of the
head-up display.
Press  the

/

  switch  to

adjust the display angle.

115

2. Instrument cluster

2

Instrument cluster

■

 Vehicle settings

Press and hold

 to change the settings of the following items:

Item

Settings

Details

TPWS (Tire pressure warning system) (



P. 416)

Set pressure (tire pressure warning sys-
tem initialization)

Select  to  initialize  the  tire  pres-
sure  warning  system.  To  per-
form initialization, press and hold
the

 switch.

Before  performing  initialization,
make sure to adjust the inflation
pressure of each tire to the spec-
ified level. (



P. 417)

Change  wheel  (register  tire  pressure
warning system sensor ID codes)

Select to register the ID codes of
the  tire  pressure  sensors  to  the
tire pressure warning system. To
register the ID codes, press and
hold the

 switch.

(



P. 419)

Scheduled maintenance display

Maintenance data reset

Select to reset the message indi-
cating  maintenance  is  required,
after the required maintenance is
performed. (



P. 393)

116

2. Instrument cluster

■

 Meter settings

Press and hold

 to change the settings of the following items:

*

1

: Selecting this item will only change the gadget.

*

2

: Selecting this item will turn the display of the gadget off.

Item

Settings

Details

Language

Select  to  change  the  language
displayed.

Units

Select  to  change  the  units  of
measure displayed.

 (EV indicator)

On

Select  to  enable/disable  the  EV
indicator. (



P. 77)

Off

Speedometer

On

Select  to  enable/disable  the
speedometer display.

Off

Gadget content

Off

No display

Average  vehicle
speed

Select  to  turn  the  display  of  a
gadget.

Distance

Elapsed time

Fuel economy type

Trip (after start)

*

1

Select  to  change  the  average
fuel consumption display and an
item to be displayed as gadget.

Total (after reset)

Tank
(after refuel)

*

2

Multi-information display off

Select  to  turn  the  multi-informa-
tion display off.
To turn the multi-information dis-
play  on  again,  press  any  direc-
tion switch (

/

/

/

).

Pop-up display

Intersection  guid-
ance (if equipped)

Select to enable/disable the pop-
up display.

Incoming calls

Brightness adjust-
ment

Default setting

Select to reset the meter display
settings to the default setting.

117

2. Instrument cluster

2

Instrument cluster

■

Odometer

Displays the total distance the vehicle has been driven.

■

Trip meter A/trip meter B

Displays the distance the vehicle has been driven since the meter
was last reset. Trip meters A and B can be used to record and dis-
play different distances independently.

To reset, display the desired trip meter and press and hold the “ODO/
TRIP” switch.

Odometer/trip meter

118

2. Instrument cluster

Displays suggestions to the driver in the following situations. To select
a response to a displayed suggestion, use the meter control switches.

The suggestion function can be turned on/off.
(Customizable features:



P. 524)

■

Suggestion to turn off the headlights

If  the  headlights  are  left  on  for  a  certain  amount  of  time  after  the
power switch has been turned off, if the headlight switch is in the
“AUTO” position, a suggestion message will be displayed asking if
you wish to turn the headlights off. To turn the headlights off, select
“Yes”.

If a front door is opened after the power switch is turned off, this sugges-
tion message will not be displayed.

Suggestion function

119

2. Instrument cluster

2

Instrument cluster

■

The Eco guide will not operate when

The Eco guide will not operate in the following situations:

●

The Hybrid System Indicator is not operating.

●

The vehicle is being driven using the dynamic radar cruise control with full-
speed range.

■

Suspension of the settings display

●

Some  settings  cannot  be  changed  while  driving.  When  changing  settings,
park the vehicle in a safe place.

●

If a warning message is displayed, operation of the settings display will be
suspended.

■

Tire pressure

●

It  may  take  a  few  minutes  to  display  the  tire  inflation  pressure  after  the
power switch is turned to ON mode. It may also take a few minutes to dis-
play the tire inflation pressure after inflation pressure has been adjusted.

●

“---” may be displayed if the tire position information cannot be determined
due to unfavorable radio wave conditions.

●

Tire inflation pressure changes with temperature. The displayed values may
also be different from the values measured using a tire pressure gauge.

■

Liquid crystal display

Small  spots  or  light  spots  may  appear  on  the  display. This  phenomenon  is
characteristic of liquid crystal displays, and there is no problem continuing to
use the display.

■

Customization

Some functions can be customized. (



P. 111, 524)

120

2. Instrument cluster

WARNING

■

Caution for use while driving

●

When  operating  the  multi-information  display  while  driving,  pay  extra
attention to the safety of the area around the vehicle.

●

Do not look continuously at the multi-information display while driving as
you  may  fail  to  see  pedestrians,  objects  on  the  road,  etc.  ahead  of  the
vehicle.

■

The information display at low temperatures

Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information display
monitor may respond slowly, and display changes may be delayed.
For example, there is a lag between the driver’s shifting and the new gear
number appearing on the display. This lag could cause the driver to down-
shift  again,  causing  rapid  and  excessive  engine  braking  and  possibly  an
accident resulting in death or injury.

■

Cautions during setting up the display

As  the  hybrid  system  needs  to  be  running  during  setting  up  the  display,
ensure that the vehicle is parked in a place with adequate ventilation. In a
closed  area  such  as  a  garage,  exhaust  gases  including  harmful  carbon
monoxide (CO) may collect and enter the vehicle. This may lead to death or
a serious health hazard.

NOTICE

■

While setting up the display

To prevent 12-volt battery discharge, ensure that the hybrid system is oper-
ating while setting up the display features.

121

2. Instrument cluster

2

Instrument cluster

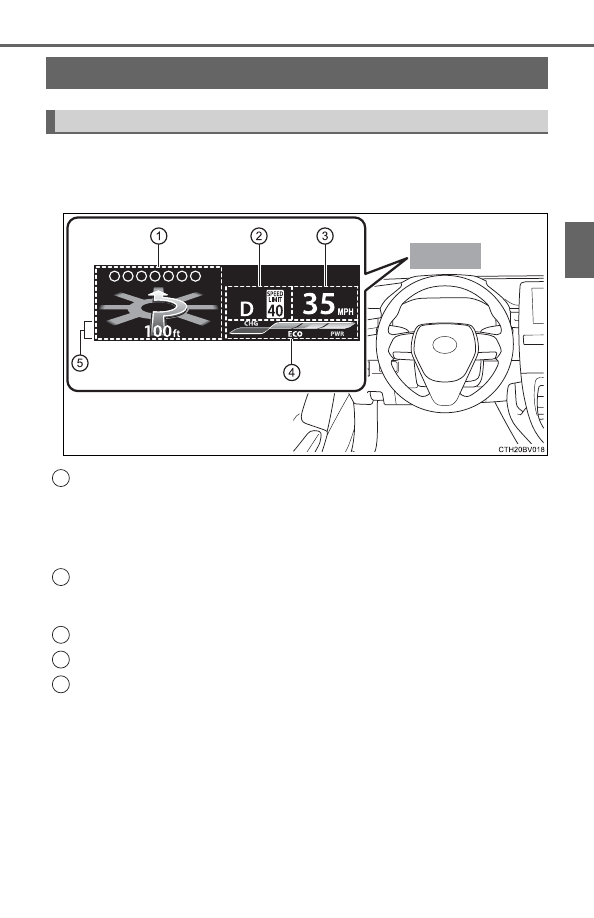

The  head-up  display  is  linked  to  the  meters  and  navigation  system
and projects a variety of information in front of the driver, such as the
current vehicle speed.

Driving assist system status/navigation system-linked display area
(



P. 123)

The following pop-up displays will be displayed in certain situations:

• Pre-collision warning (pre-collision system)
• Alert from the Intelligent Clearance Sonar system (if equipped)

Shift position/speed limit display area

• Shift position (



P. 205)

• Speed limit (vehicles with a navigation system) (U.S.A. only)

Vehicle speed display
Hybrid System Indicator/Tachometer (



P. 124)

Information display area (



P. 125)

The following pop-up displays will be displayed in certain situations:

• Warning/message
• Hands-free system status
• Audio system operation status

Head-up display





: If equipped

Summary of functions

1

2

3

4

5

122

2. Instrument cluster

Select

 on the multi-information display (



P. 111) and then

.

◆

Enabling/disabling the head-up display

Press

 to enable/disable the head-up display.

◆

Changing the head-up display settings

Press and hold

 to change the following settings:

■

Display brightness/position

Select to adjust the brightness and position of the head-up display.

■

Display content

Select to enable/disable the following items:

• Route guidance to destination
• Driving assist system status
• Compass

Select to change the display between the following:

• Hybrid system Indicator
• Tachometer
• No content

■

Display angle

Select to adjust the angle of the head-up display.

Using the head-up display

123

2. Instrument cluster

2

Instrument cluster

◆

Driving assist system status display

Displays the operational status of the following systems:

• Dynamic radar cruise control with full-speed range (



P. 264)

• LDA (Lane Departure Alert with steering control) (



P. 253)

• Intuitive parking assist (if equipped) (



P. 292)

◆

Navigation system-linked display area

Displays the following items, which are linked to the navigation sys-
tem:

■

Street name

When  the  navigation  system  is  performing  route  guidance,  the
name of the next street will be displayed on the top of the display
area.

■

Route guidance to destination

Displayed  when  the  navigation  system  is  performing  route  guid-
ance. When approaching an intersection, an arrow will be displayed
to indicate the suggested direction of travel.

■

Compass

Displays the direction of travel.

Driving  assist  system  status/navigation  system-linked  display
area

124

2. Instrument cluster

■

Hybrid System Indicator

Charge area
Hybrid Eco area
Eco area
Power area

Displayed  content  is  the  same
as  that  displayed  on  the  meter
(Hybrid  System  Indicator).  For
details, refer to P. 100.

■

Tachometer

Displays the engine speed in revolutions per minute.

Hybrid System Indicator/Tachometer

1

2

3

4

125

2. Instrument cluster

2

Instrument cluster

Displays the following items in the appropriate situation:

■

Warning/Message

●

Alert from the LDA (Lane Departure Alert with steering control)

●

Dynamic radar cruise control with full-speed range

●

 message

Displayed when a suggestion/advice pop-up display is displayed on the
multi-information display. (



P. 118)

●

 message

Displayed when a warning message is displayed on the multi-informa-
tion display. (



P. 463)

●

Outside temperature

Displayed in the following situations:

• When the power switch is turned to ON mode
• When the low outside temperature indicator is flashing

Displayed content is the same as that displayed on the multi-information
display. For details, refer to the explanation of the outside temperature
display on the multi-information display. (



P. 98)

■

Hands-free system status

Displayed when the hands-free system is operated.

■

Audio system operation status

Displayed when the audio system is operated.

Information display area

126

2. Instrument cluster

■

Head-up display

The  head-up  display  may  seem  dark  or  hard  to  see  when  viewed  through
sunglasses, especially polarized sunglasses.
Adjust the brightness of the head-up display or remove your sunglasses.

■

Display brightness

The brightness of the head-up display can  be adjusted on

 of the  multi-

information display. Also, it is automatically adjusted according to the ambient
brightness.

■

Enabling/disabling of the head-up display

If  the  head-up  display  is  disabled,  it  will  remain  disabled  when  the  power
switch is turned off then back to ON mode.

■

Street name display

Only street names which are included in the map data will be displayed.

WARNING

■

Before using the head-up display

●

Check that the position and brightness of the head-up display image does
not interfere with safe driving. Incorrect adjustment of the image’s position
or  brightness  may  obstruct  the  driver’s  view  and  lead  to  an  accident,
resulting in death or serious injury.

●

Do not continuously look at the head-up display while driving as you may
fail to see pedestrians, objects on the road, etc. ahead of the vehicle.

■

Caution for changing settings of the head-up display

As the hybrid system needs to be running while changing the settings of the
head-up display, ensure that the vehicle is parked in a place with adequate
ventilation.  In  a  closed  area  such  as  a  garage,  exhaust  gases  including
harmful carbon monoxide (CO) may collect and enter the vehicle. This may
lead to death or a serious health hazard.

127

2. Instrument cluster

2

Instrument cluster

NOTICE

■

To prevent damage to components

■

When changing the settings of the head-up display

To prevent 12-volt battery discharge, ensure that the hybrid system is oper-
ating while the changing the settings of the head-up display.

●

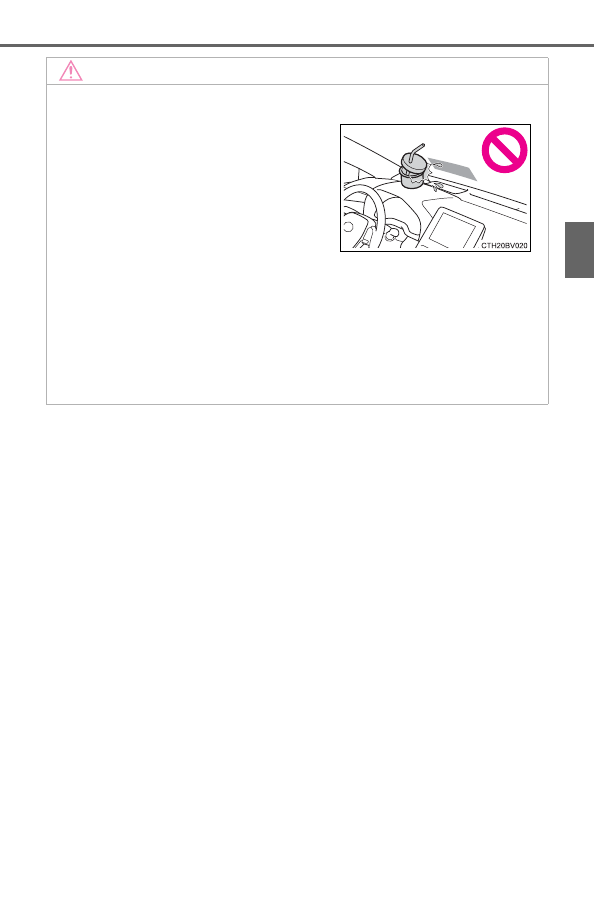

Do not place any drinks near the head-
up display projector. If the projector gets
wet, electrical malfunctions may result.

●

Do not place anything on or put stickers
onto the head-up display projector.
Doing  so  could  interrupt  head-up  dis-
play indications.

●

Do not touch the inside of the head-up
display  projector  or  thrust  sharp  edges
or the like into the projector.
Doing so could cause mechanical mal-
functions.

128

2. Instrument cluster

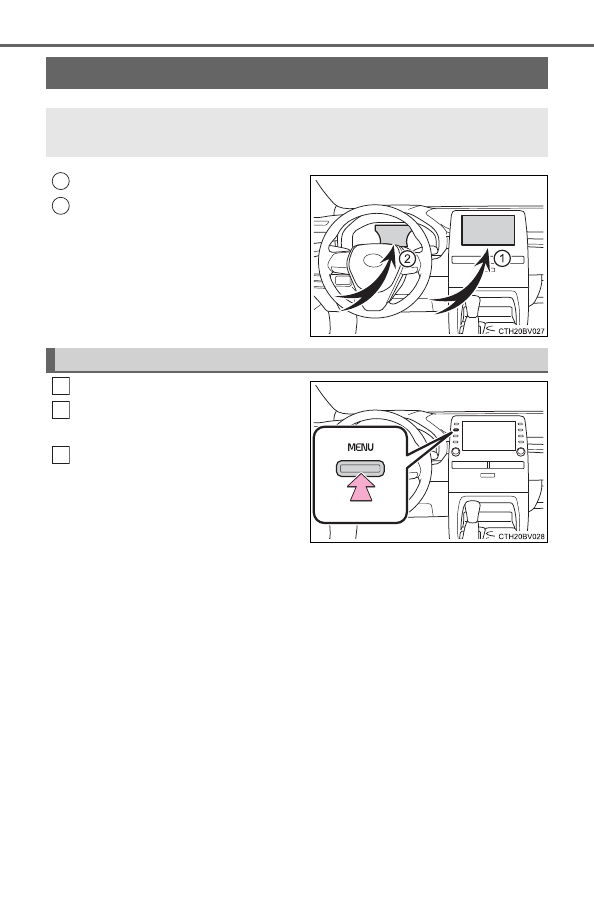

Audio system screen
Multi-information display

Press the “MENU” button.
Select  “Info”  on  the  “Menu”
screen.
Select  “ECO”  on  the  “Informa-
tion” screen.

If the “Trip Information” or “History”
screen

is

displayed,

select

“Energy”.

Energy monitor/consumption screen

You can view the status of your hybrid system on the multi-infor-
mation display, the audio system screen.

1

2

Energy monitor

1

2

3

129

2. Instrument cluster

2

Instrument cluster

■

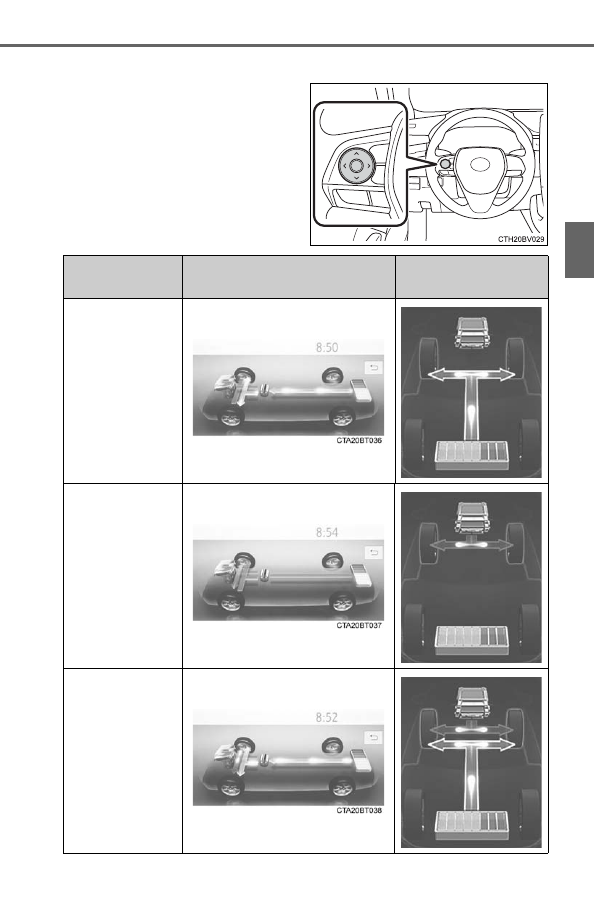

Multi-information display

Press

the

meter

control

switches on the steering wheel
several  times  to  select  the
energy monitor display.

Audio system screen

Multi-information

display

When  the  vehi-
cle  is  powered
by  the  electric
motor  (traction
motor)

When  the  vehi-
cle  is  powered
by  the  gasoline
engine

When  the  vehi-
cle  is  powered
by both the gas-
oline engine and
the

electric

motor  (traction
motor)

130

2. Instrument cluster

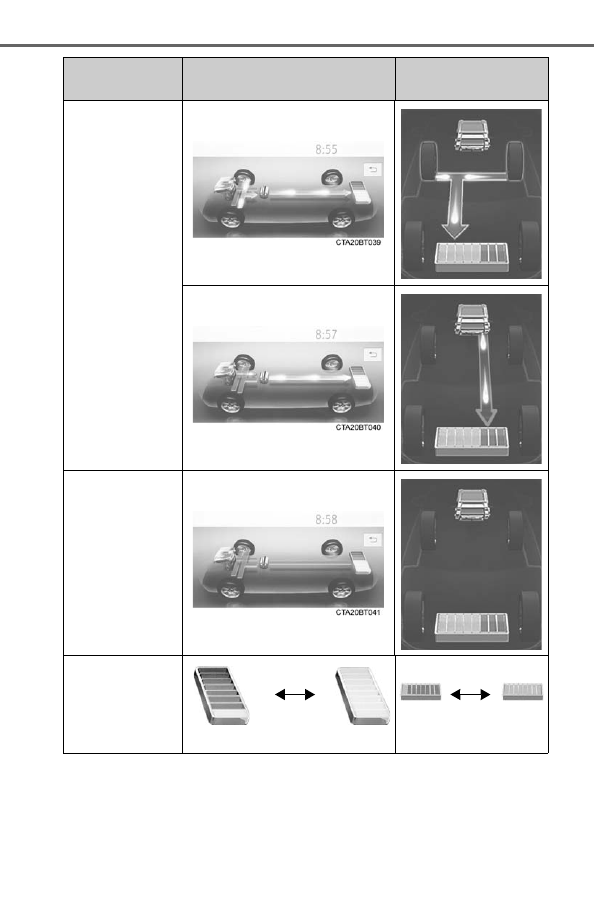

When  the  vehi-
cle  is  charging
the  hybrid  bat-
tery

(traction

battery)

When  there  is
no energy flow

Hybrid

battery

(traction

bat-

tery) status

Low

Full

Low

Full

Audio system screen

Multi-information

display

131

2. Instrument cluster

2

Instrument cluster

■

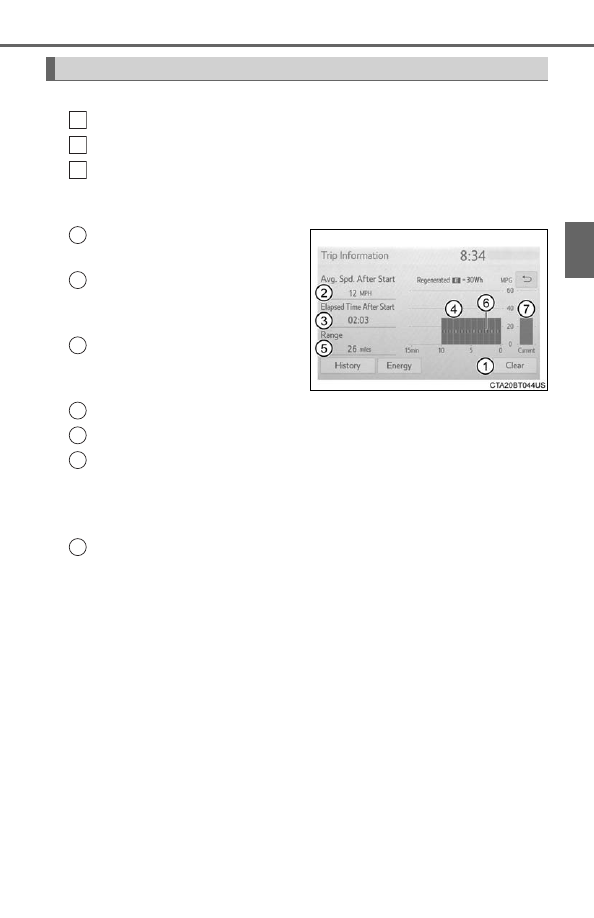

Trip information

Press the “MENU” button. (



P. 128)

Select “Info” on the “Menu” screen.
Select “ECO” on the “Information” screen.

If “Energy Monitor” or “History” screen is displayed, select “Trip Informa-
tion”.

Resetting  the  consumption
data
Displays the average vehicle
speed  since  the  hybrid  sys-
tem was started
Displays  the  elapsed  time
since the  hybrid  system  was
started
Fuel consumption in the past 15 minutes
Cruising range
Regenerated energy in the past 15 minutes
One symbol indicates 30 Wh. Up to 5 symbols are shown.

The  image  is  example  only,  and  may  vary  slightly  from  actual  condi-
tions.

Current fuel consumption

Fuel consumption screen

1

2

3

1

2

3

4

5

6

7

132

2. Instrument cluster

■

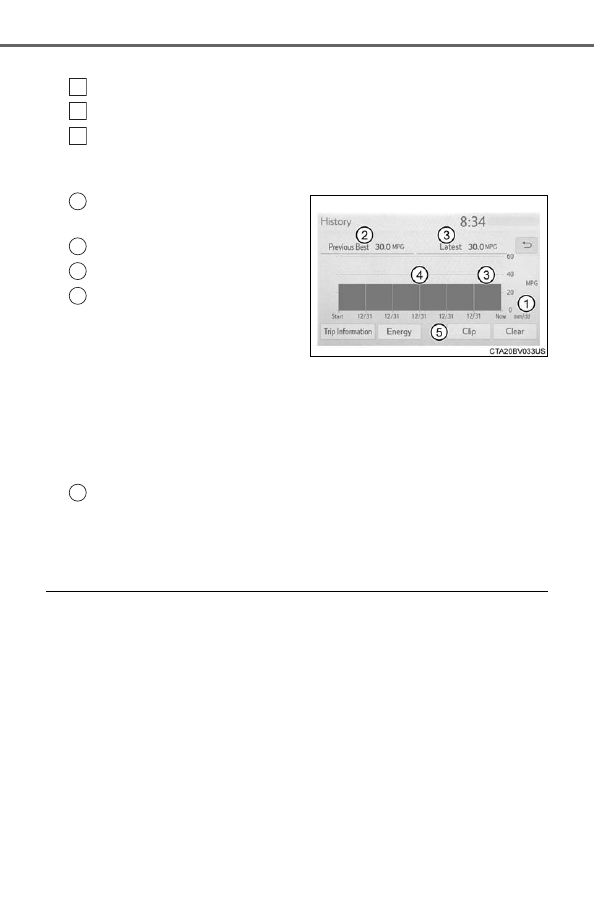

History

Press the “MENU” button. (



P. 128)

Select “Info” on the “Menu” screen.
Select “ECO” on the “Information” screen.

If “Energy Monitor” or “Trip Information” screen is displayed, select “His-
tory”.

Resetting  the  past  record
data
Best past fuel consumption
Current fuel economy
Previous  fuel  consumption
record



Entune Audio Plus

Displays the daily average fuel consumption. (Instead of the date,
“Trip 1” through “Trip 5” will be displayed.)



Entune Premium Audio

Displays the daily average fuel consumption.

Updating the average fuel consumption data

Displays a maximum of five past record of the average fuel consump-
tion.
The  image  is  example  only,  and  may  vary  slightly  from  actual  condi-
tions.

■

Resetting the consumption data

Selecting “Clear” on the “Trip Information” screen will reset the fuel consump-
tion and the regenerated energy for the past 15 minutes. Selecting “Clear” on
the “History” screen will reset the past records and best past fuel consump-
tion. Selecting “Yes” on the following  screen will confirm resetting of all the
data.

1

2

3

1

2

3

4

5

133

3

Operation of

each component

3-1.  Key information

Keys .................................. 134

3-2.  Opening, closing and

locking the doors

Doors ................................ 138
Trunk................................. 144
Smart key system ............. 148

3-3.  Adjusting the seats

Front seats ........................ 155
Rear seats......................... 157
Driving position

memory........................... 159

Head restraints.................. 164

3-4.  Adjusting the steering

wheel and mirrors

Steering wheel .................. 166
Inside rear view mirror ...... 168
Outside rear view

mirrors............................. 170

3-5.  Opening and closing

the windows

Power windows ................. 173
Moon roof.......................... 177
