Toyota Avalon (2020 year). Manual in english - part 2

72

1-2. Emergency assistance

■

Services

Subscribers have the following Safety Connect services available:

●

Automatic Collision Notification

*

Helps drivers receive necessary response from emergency ser-
vice providers. (



P. 74)

*

: U.S. Patent No. 7,508,298 B2

●

Stolen Vehicle Location
Helps drivers in the event of vehicle theft. (



P. 74)

●

Emergency Assistance Button (“SOS”)
Connects drivers to response-center support. (



P. 74)

●

Enhanced Roadside Assistance
Provides drivers various on-road assistance. (



P. 75)

■

Subscription

After you have signed the Telematics Subscription Service Agree-
ment and are enrolled, you can begin receiving services.
A variety of subscription terms are available for purchase. Contact
your  Toyota  dealer,  call  the  following  appropriate  Safety  Connect
response center or push the “SOS” button in your vehicle for further
subscription details.

• The United States

1-855-405-6500

• Canada

1-888-869-6828

• Puerto Rico

1-877-855-8377

73

1-2. Emergency assistance

1

For safet

y and s

ecurity

■

Safety Connect Services Information

●

Phone calls using the vehicle’s Bluetooth

®

 technology will not be possible

during Safety Connect.

●

Safety Connect is available beginning Fall 2009 on select Toyota models (in
the  contiguous  United  States  only).  Contact  with  the  Safety  Connect
response center is dependent upon the telematics device being in operative
condition, cellular connection availability, and GPS satellite signal reception,
which  can  limit  the  ability  to  reach  the  response  center  or  receive  emer-
gency  service  support.  Enrollment  and  Telematics  Subscription  Service
Agreement  are  required.  A  variety  of  subscription  terms  are  available;
charges vary by subscription term selected and location.

●

Automatic Collision Notification, Emergency Assistance and Stolen Vehicle
Location  are  available  in  the  United  States,  including  Hawaii  and Alaska,
Puerto Rico and Canada, and Enhanced Roadside Assistance are available
in the United States, Puerto Rico and Canada.

●

Automatic Collision Notification, Emergency Assistance, Stolen Vehicle and
Enhanced Road Assistance are not available in the U.S. Virgin Islands.
For vehicles first sold in the U.S. Virgin Islands, no Safety Connect services
will function in or outside the U.S. Virgin Islands.

●

Safety Connect services are not subject to section 255 of the Telecommuni-
cations Act and the device is not TTY compatible.

■

Languages

The Safety Connect response center will offer support in multiple languages.
The Safety Connect system will offer voice prompts in English, Spanish, and
French. Please indicate your language of choice when enrolling.

■

When contacting the response center

You may be unable to contact the response center if the network is busy.

When the engine switch is turned to IGNITION ON mode, the red indi-
cator light comes on for 2 seconds then turns off. Afterward, the green
indicator light comes on, indicating that the service is active.
The  following  indicator  light  patterns  indicate  specific  system  usage
conditions:

●

Green indicator light on = Active service

●

Green indicator light flashing = Safety Connect call in process

●

Red indicator light (except at vehicle start-up) = System malfunction
(contact your Toyota dealer)

●

No indicator light (off) = Safety Connect service not active

Safety Connect LED light Indicators

74

1-2. Emergency assistance

■

Automatic Collision Notification

In case of either airbag deployment or severe rear-end collision, the
system is designed to automatically call the response center. The
responding  agent  receives  the  vehicle’s  location  and  attempts  to
speak with the vehicle occupants to assess the level of emergency.
If  the  occupants  are  unable  to  communicate,  the  agent  automati-
cally  treats the call  as  an  emergency,  contacts  the  nearest emer-
gency services provider to describe the situation, and requests that
assistance be sent to the location.

■

Stolen Vehicle Location

If your vehicle is stolen, Safety Connect can work with local author-
ities to assist them in locating and recovering the vehicle. After filing
a police report, call the Safety Connect response center at 1-855-
405-6500 in the United States, 1-877-855-8377 in Puerto Rico or 1-
888-869-6828 in  Canada,  and  follow  the prompts  for  Safety Con-
nect to initiate this service.
In  addition  to assisting law enforcement with  recovery of  a stolen
vehicle, Safety-Connect-equipped vehicle location data may, under
certain  circumstances,  be  shared  with  third  parties  to  locate  your
vehicle. Further information is available at Toyota.com in the United
States, Toyotapr.com in Puerto Rico and Toyota.ca in Canada.

■

Emergency Assistance Button (“SOS”)

In the event of an emergency on the road, push the “SOS” button to
reach  the  Safety  Connect  response  center.  The  answering  agent
will determine your vehicle’s location, assess the emergency, and
dispatch the necessary assistance required.

If  you  accidentally  press  the  “SOS”  button,  tell  the  response-center
agent that you are not experiencing an emergency.

Safety Connect services

75

1-2. Emergency assistance

1

For safet

y and s

ecurity

■

Enhanced Roadside Assistance

Enhanced  Roadside  Assistance  adds  GPS  data  to  the  already
included warranty-based Toyota roadside service.
Subscribers can press the “SOS” button to reach a Safety Connect
response-center agent, who can help with a wide range of needs,
such as: towing, flat tire, fuel delivery, etc. For a description of the
Enhanced  Roadside  Assistance  services  and  their  limitations,
please  see  the  Safety  Connect  Terms  and  Conditions,  which  are
available  at  Toyota.com  in  the  United  States,  Toyotapr.com  in
Puerto Rico and Toyota.ca in Canada.

Important! Read this information before using Safety Connect.

■

Exposure to radio frequency signals

The Safety Connect system installed in your vehicle is a low-power
radio transmitter and receiver. It receives and also sends out radio
frequency (RF) signals.
In August  1996,  the  Federal  Communications  Commission  (FCC)
adopted RF exposure guidelines with safety levels for mobile wire-
less phones. Those guidelines are consistent with the safety stan-
dards  previously  set  by  the  following  U.S.  and  international
standards bodies.

●

ANSI (American National Standards Institute) C95.1 [1992]

●

NCRP (National  Council  on  Radiation  Protection  and Measure-
ment) Report 86 [1986]

●

ICNIRP  (International  Commission  on  Non-Ionizing  Radiation
Protection) [1996]

Those standards were based on comprehensive and periodic eval-
uations of the relevant scientific literature. Over 120 scientists, engi-
neers,  and  physicians  from  universities,  and  government  health
agencies and industries reviewed the available body of research to
develop the ANSI Standard (C95.1).
The design of Safety Connect complies with the FCC guidelines in
addition to those standards.

Safety information for Safety Connect

76

1-2. Emergency assistance

■

Certification for Safety Connect

FCC ID: LHJ-TVN
IC: 2807E-TVN

77

1

For safet

y and s

ecurity

1-3. Theft deterrent system

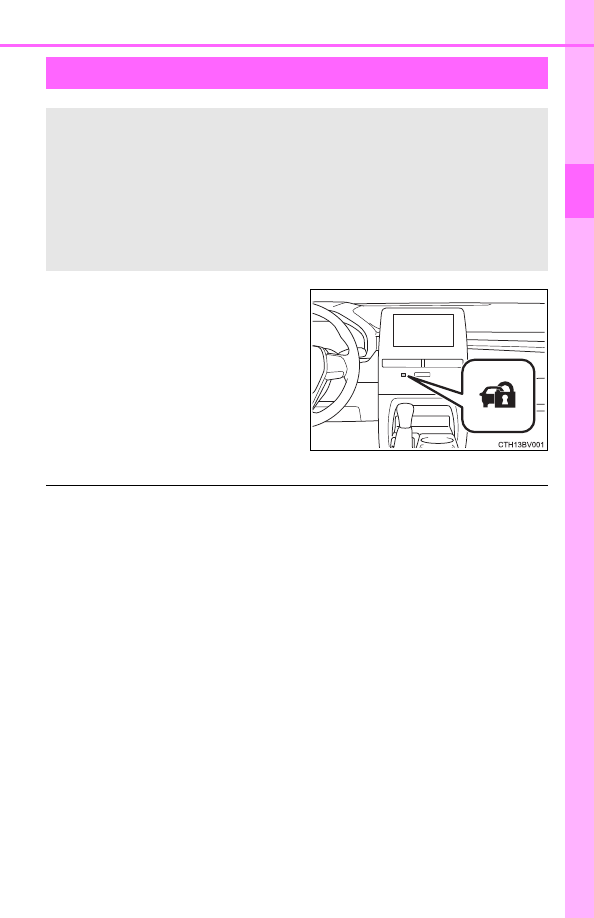

The  indicator  light  flashes  after
the engine switch has been turned
off  to  indicate  that  the  system  is
operating.
The  indicator  light  stops  flashing
after  the  engine  switch  has  been
turned  to  ACCESSORY  or  IGNI-
TION  ON  mode  to  indicate  that
the system has been canceled.

■

System maintenance

The vehicle has a maintenance-free type engine immobilizer system.

■

Conditions that may cause the system to malfunction

●

If the grip portion of the key is in contact with a metallic object

●

If the key is in close proximity to or touching a key to the security system
(key with a built-in transponder chip) of another vehicle

Engine immobilizer system

The vehicle’s keys have built-in transponder chips that prevent
the engine from starting if a key has not been previously regis-
tered in the vehicle’s on-board computer.
Never leave the keys inside the vehicle when you leave the vehi-
cle.
This system is designed to help prevent vehicle theft but does
not guarantee absolute security against all vehicle thefts.

78

1-3. Theft deterrent system

■

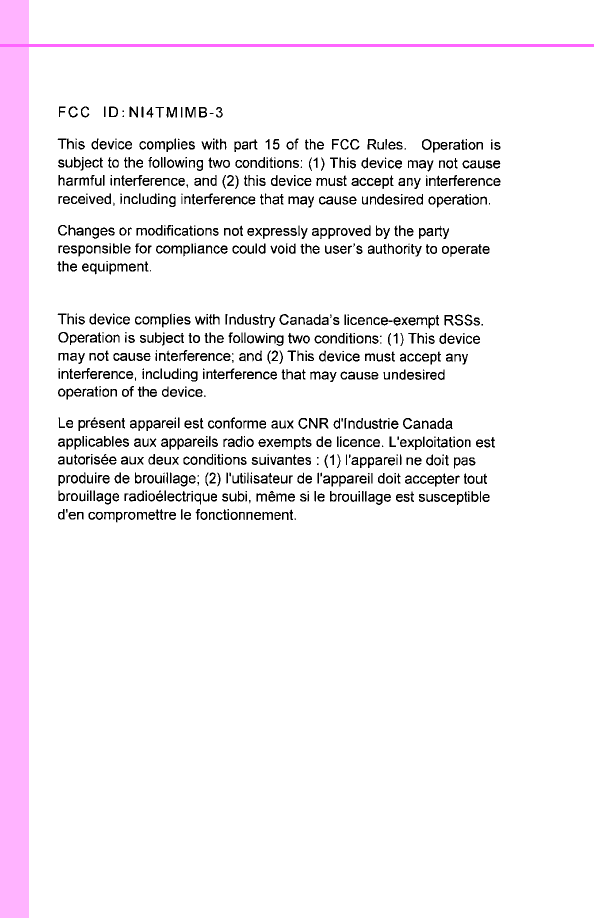

Certifications for the engine immobilizer system



For vehicles sold in the U.S.A.



For vehicles sold in Canada

79

1-3. Theft deterrent system

1

For safet

y and s

ecurity

WARNING

■

Certifications for the engine immobilizer system

Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.

NOTICE

■

To ensure the system operates correctly

Do  not  modify  or  remove  the  system.  If  modified  or  removed,  the  proper
operation of the system cannot be guaranteed.

80

1-3. Theft deterrent system

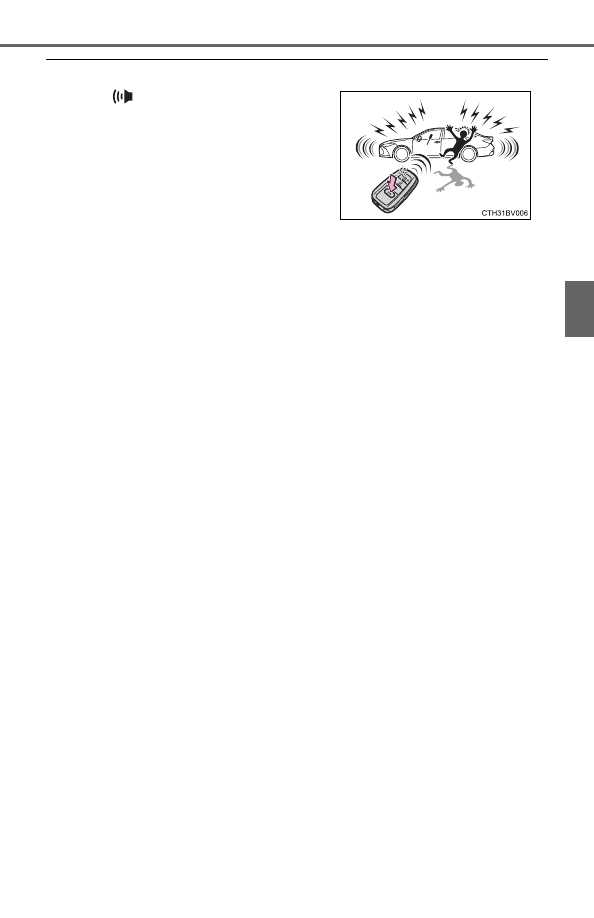

The alarm uses light and sound to give an alert when an intrusion is
detected.
The  alarm  is  triggered  in  the  following  situations  when  the  alarm  is
set:

●

A locked door is unlocked or opened in any way other than using
the entry function, wireless remote control or mechanical key. (The
doors will lock again automatically.)

●

The trunk is opened in any way other than using the entry function
or wireless remote control.

●

The hood is opened.

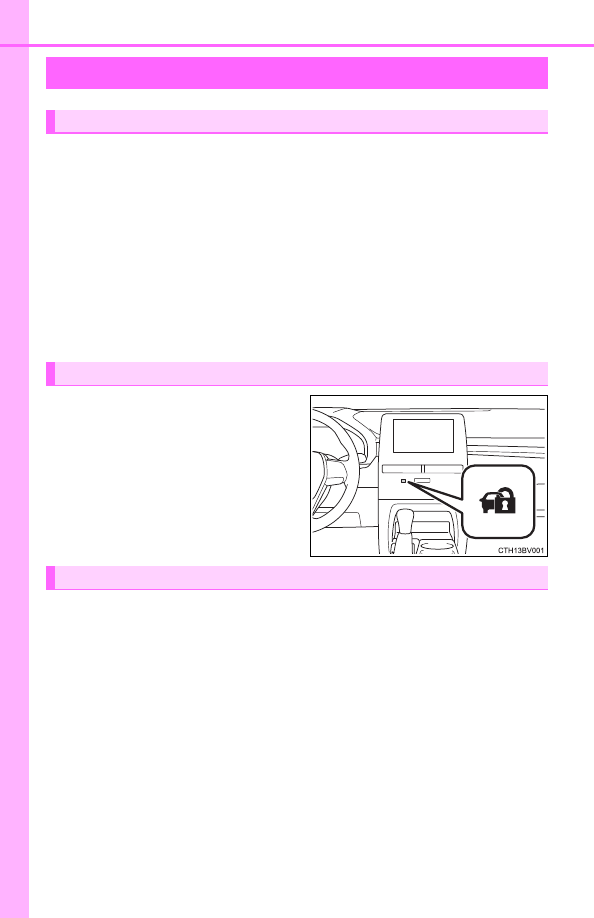

Close  the  doors,  trunk  and  hood,
and lock all the doors. The system
will  be  set  automatically  after  30
seconds.

The  indicator  light  changes  from
being on to flashing when the sys-
tem is set.

Do one of the following to deactivate or stop the alarm:

●

Unlock the doors.

●

Open the trunk using the entry function or wireless remote control.

●

Turn the engine switch to ACCESSORY or IGNITION ON mode, or
start the engine. (The alarm will be deactivated or stopped after a
few seconds.)

Alarm

The alarm

Setting the alarm system

Deactivating or stopping the alarm

81

1-3. Theft deterrent system

1

For safet

y and s

ecurity

■

System maintenance

The vehicle has a maintenance-free type alarm system.

■

Items to check before locking the vehicle

To prevent unexpected triggering of the alarm and vehicle theft, make sure of
the following:

●

Nobody is in the vehicle.

●

The windows and moon roof (if equipped) are closed before the alarm is set.

●

No valuables or other personal items are left in the vehicle.

■

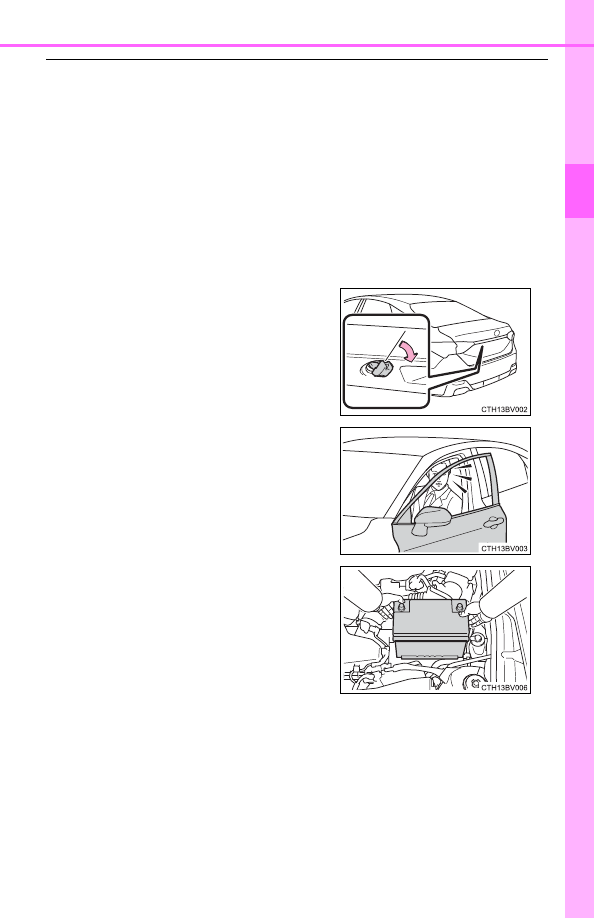

Triggering of the alarm

The alarm may be triggered in the following situations:
(Stopping the alarm deactivates the alarm system.)

●

The trunk is opened using the mechani-
cal key.

●

A person inside the vehicle opens a door
or the trunk or hood, or unlocks the vehi-
cle.

●

The  battery  is  recharged  or  replaced
when the vehicle is locked. (



P. 464)

82

1-3. Theft deterrent system

■

Alarm-operated door lock

In the following cases, depending on the situation, the door may automatically
lock to prevent improper entry into the vehicle:

●

When a person remaining in the vehicle unlocks the door and the alarm is
activated.

●

While the alarm is activated, a person remaining in the vehicle unlocks the
door.

●

When recharging or replacing the battery

NOTICE

■

To ensure the system operates correctly

Do  not  modify  or  remove  the  system.  If  modified  or  removed,  the  proper
operation of the system cannot be guaranteed.

83

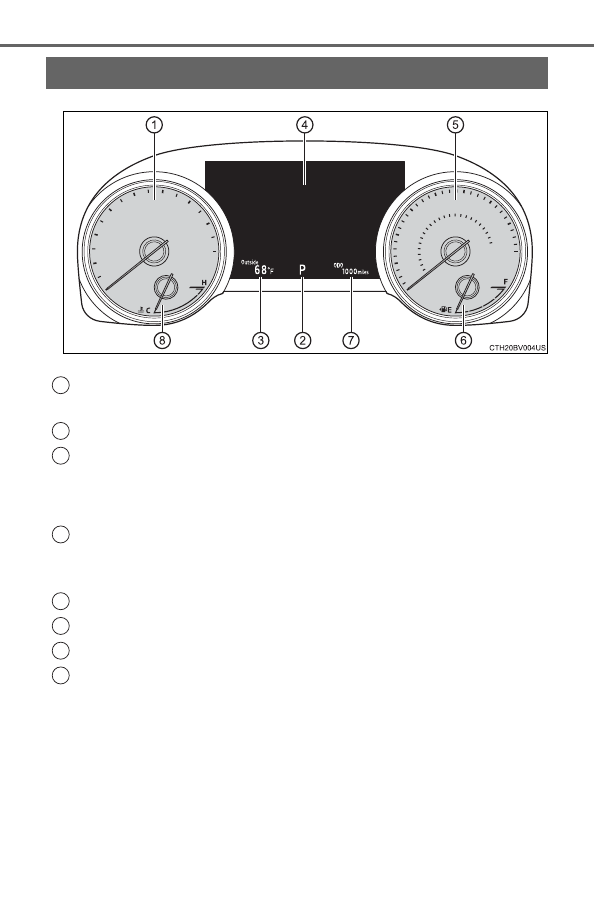

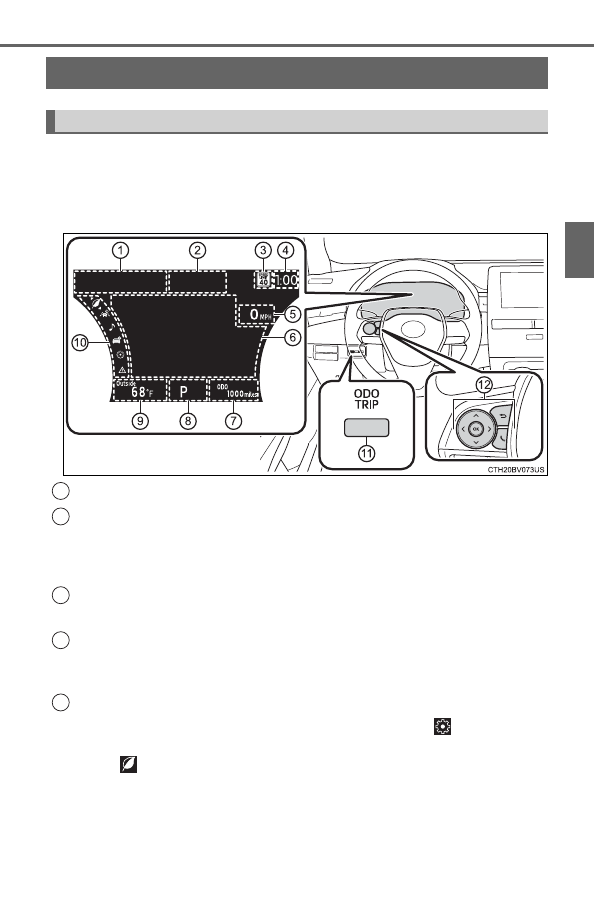

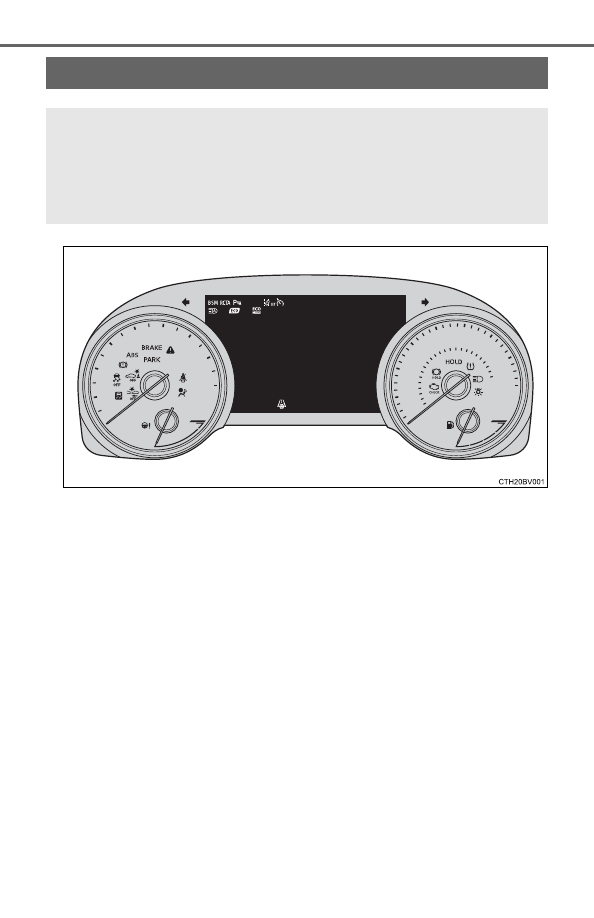

Instrument cluster

2

2.

Instrument cluster

Warning lights and

indicators .......................... 84

Gauges and meters ............ 90
Multi-information display ..... 93

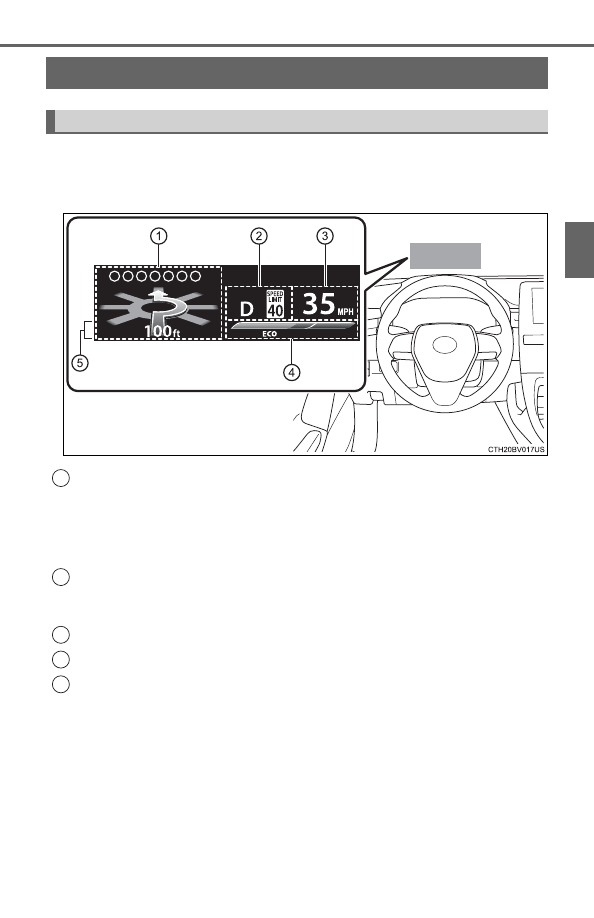

Head-up display ................ 109

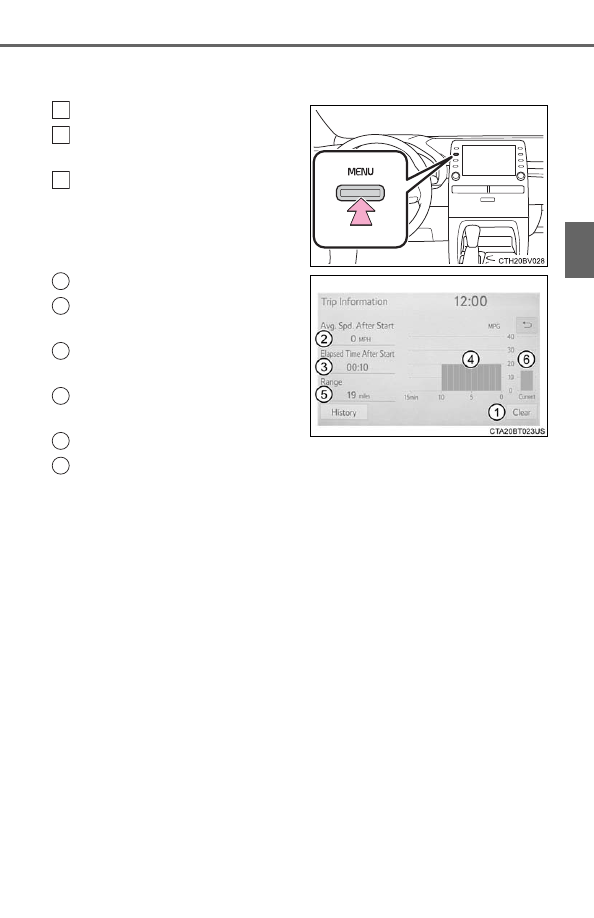

Fuel consumption

information ...................... 116

84

2. Instrument cluster

The units used on the meters and some indicators may differ depending on
the target region.

Warning lights and indicators

The warning lights and indicators on the instrument cluster, cen-
ter panel and outside rear view mirrors inform the driver of the
status of the vehicle’s various systems.
For  the  purpose  of  explanation,  the  following  illustrations  dis-
play all warning lights and indicators illuminated.

85

2. Instrument cluster

2

Instrument cluster

Warning lights inform the driver of malfunctions in the indicated vehi-
cle’s systems.

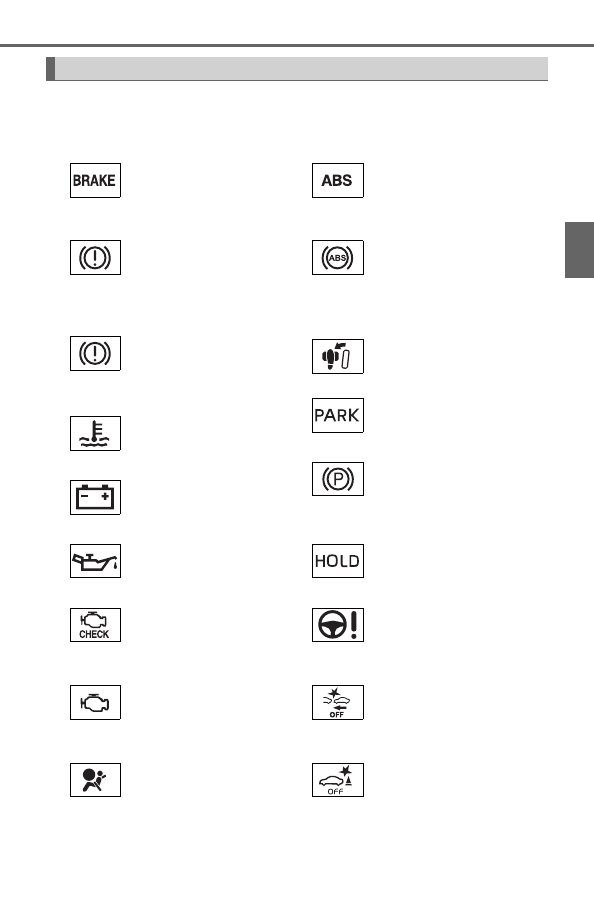

Warning lights

*

1

(U.S.A.)

Brake system warning
light (



P. 430)

*

1

(U.S.A.)

ABS warning light
(



P. 431)

*

1

(Canada)

(Red)

Brake system warning
light (



P. 430)

*

1

(Canada)

ABS warning light
(



P. 431)

*

1

(Yellow)

Brake  system  warning
light (



P. 430)

*

2

Brake  Override  System/
Drive-Start  Control/Intel-
ligent  Clearance  Sonar
(if  equipped)  warning
light (



P. 431)

*

2

High  coolant  tempera-
ture warning light
(



P. 430)

(U.S.A.)

Parking brake indicator
(



P. 432)

*

2

Charging system
warning light (



P. 430)

(Canada)

Parking brake indicator
(



P. 432)

*

2

Low engine oil pressure
warning light (



P. 430)

*

1, 3

Brake hold operated
indicator (



P. 432)

*

1

(U.S.A.)

Malfunction indicator
lamp (



P. 431)

*

1

(Red/yellow)

Electric power steering
system warning light
(



P. 432)

*

1

(Canada)

Malfunction indicator
lamp (



P. 431)

*

1, 4

PCS warning light
(



P. 432)

*

1

SRS warning light
(



P. 431)

*

1, 3

(if equipped)

ICS OFF indicator
(



P. 433)

86

2. Instrument cluster

*

1

: These  lights  turn  on  when  the  engine  switch  is  turned  to  IGNITION  ON

mode to indicate that a system check is being performed. They will turn off
after the engine is started, or after a few seconds. There may be a mal-
function in a system if a light does not come on, or turn off. Have the vehi-
cle inspected by your Toyota dealer.

*

2

: This light illuminates on the multi-information display.

*

3

: This light flashes to indicate a malfunction.

*

4

: This light flashes or illuminates to indicate a malfunction.

*

5

: This light illuminates on the center panel.

*

2

(Amber)

LDA indicator (



P. 432)

*

5

Rear passengers’ seat
belt reminder lights
(



P. 433)

*

1

Slip indicator (



P. 433)

*

1

Master warning light
(



P. 433)

Low fuel level warning
light (



P. 433)

*

1

Tire pressure warning

light (



P. 434)

Driver’s and front
passenger’s seat belt
reminder light (



P. 433)

87

2. Instrument cluster

2

Instrument cluster

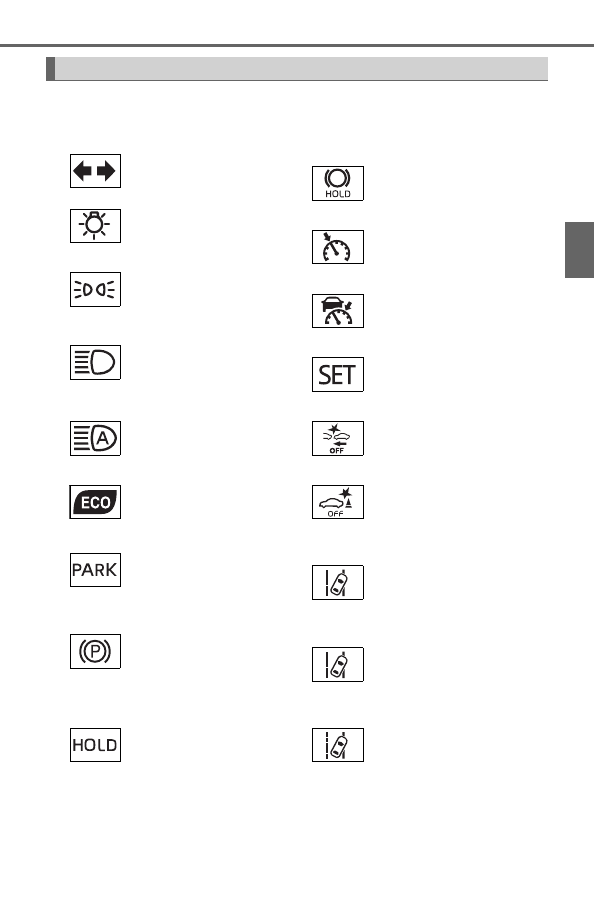

The indicators inform the driver of the operating state of the vehicle’s
various systems.

Indicators

Turn signal indicator
(



P. 195)

*

1

Brake hold standby
indicator (



P. 200)

(U.S.A.)

Headlight indicator
(



P. 202)

*

2

Cruise control indicator
(



P. 248)

(Canada)

Tail light indicator
(



P. 202)

*

2

Dynamic radar cruise
control indicator
 (



P. 248)

Headlight high beam
indicator (



P. 203)

*

2

Cruise control “SET”
indicator (



P. 248)

*

2

Automatic High Beam
indicator (



P. 206)

*

1, 4

PCS warning light
(



P. 230)

*

1, 2, 3

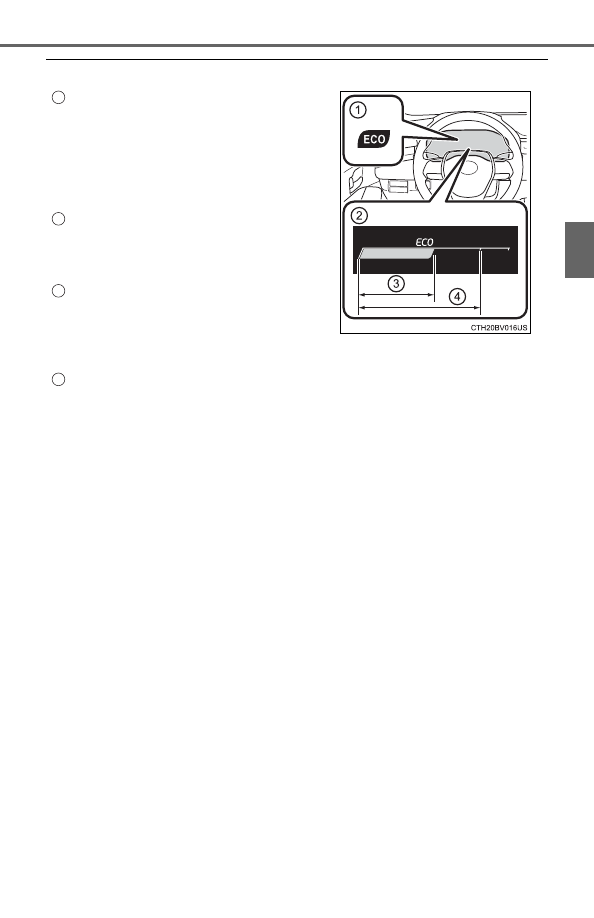

Eco driving indicator
(



P. 107)

*

1, 4

(if equipped)

ICS OFF indicator
(



P. 287)

(U.S.A.)

Parking brake indicator
(



P. 196)

*

2

(White)

LDA indicator (



P. 238)

(Canada)

Parking brake indicator
(



P. 196)

*

2

(Green)

LDA indicator (



P. 238)

*

1

Brake hold operated
indicator (



P. 200)

*

2, 5

(Amber)

LDA indicator (



P. 238)

88

2. Instrument cluster

*

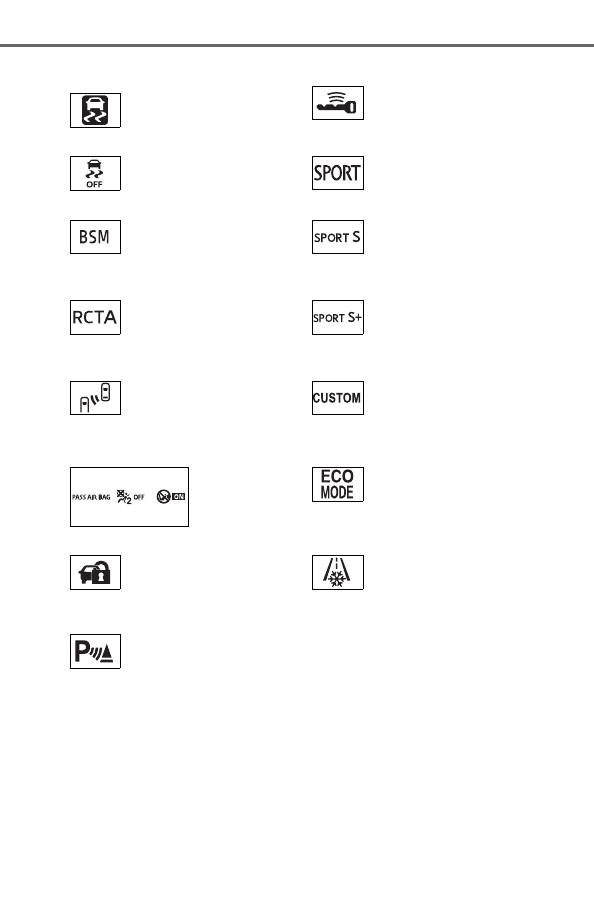

1, 5

Slip indicator (



P. 310)

*

2

Smart  key  system  indi-
cator (



P. 184)

*

1, 4

VSC OFF indicator
(



P. 312)

*

2

“SPORT” indicator
(



P. 305)

*

2

“BSM” indicator
(



P. 261)

*

2

(if equipped)

“SPORT S” indicator
(



P. 305)

*

2

“RCTA” indicator
(



P. 261)

*

2

(if equipped)

“SPORT S+” indicator
(



P. 305)

*

6, 7

BSM  (Blind  Spot  Moni-
tor)  outside  rear  view
mirror indicators
(



P. 261)

*

2

(if equipped)

“CUSTOM” indicator
(



P. 305)

*

1, 8

“AIR BAG
ON/OFF”
indicator
(



P. 50)

*

2

“ECO MODE” indicator
(



P. 305)

*

8

Security indicator
(



P. 77, 80)

*

2, 9

Low  outside  tempera-
ture indicator (



P. 90)

*

2

(if equipped)

Intuitive  parking  assist
indicator (



P. 276)

89

2. Instrument cluster

2

Instrument cluster

*

1

: These  lights  turn  on  when  the  engine  switch  is  turned  to  IGNITION  ON

mode to indicate that a system check is being performed. They will turn off
after the engine is started, or after a few seconds. There may be a mal-
function in a system if a light does not come on, or turn off. Have the vehi-
cle inspected by your Toyota dealer.

*

2

: This light illuminates on the multi-information display.

*

3

: This light does not turn on when the system is disabled.

*

4

: This light turns on when the system is off.

*

5

: This light flashes to indicate that the system is operating.

*

6

: These  indicators  will  illuminate  in  the  following  situations  to  indicate  that

the system initial check is being performed:

• When  the  BSM  function  or  RCTA  function  is  enabled  and  the  engine

switch is turned to IGNITION ON mode.

• When the engine switch is in IGNITION ON mode and the BSM function

is enabled.

• When the engine switch is in IGNITION ON mode and the RCTA func-

tion is enabled. (At this time, a buzzer will also sound.)
The indicators will turn off after a few seconds. If the indicators do not
illuminate or turn off, or if a buzzer does not sound when the RCTA func-
tion  is  enabled,  the  system  may  be  malfunctioning.  Have  the  vehicle
inspected by your Toyota dealer.

*

7

: This light illuminates on the outside rear view mirrors.

*

8

: This light illuminates on the center panel.

*

9

: When the outside temperature is approximately 37°F (3°C) or lower, this

indicator will flash for approximately 10 seconds, then stay on.

WARNING

■

If a safety system warning light does not come on

Should a safety system light such as the ABS and SRS warning lights not
come on when you start the engine, this could mean that these systems are
not available to help protect you in an accident, which could result in death
or serious injury. Have the vehicle inspected by your Toyota dealer immedi-
ately if this occurs.

90

2. Instrument cluster

The units used on the meters may differ depending on the target region.

Tachometer

Displays the engine speed in revolutions per minute

Shift position (



P. 189)

Outside temperature

Displays  the  outside  temperature  within  the  range  of  -40°F  (-40°C)  to
122°F  (50°C).  Low  outside  temperature  indicator  comes  on  when  the
ambient temperature is 37°F (3°C) or lower.

Multi-information display

Presents the driver with a variety of vehicle data (



P. 93)

Displays warning messages in case of a malfunction (



P. 440)

Speedometer
Fuel gauge
Odometer and trip meter



P. 106)

Engine coolant temperature gauge

Displays the engine coolant temperature

Gauges and meters

1

2

3

4

5

6

7

8

91

2. Instrument cluster

2

Instrument cluster

The brightness of the instrument panel lights can be adjusted.

The  brightness  of  some  of  the  interior  lights  will  be  changed  when  the
brightness of the instrument panel lights is adjusted. (



P. 332)

Darker
Brighter

• The brightness of the instrument

panel  lights  can  be  adjusted
individually  for  day  mode  and
night mode

*

.

• If  the  brightness  is  adjusted

when  the  surroundings  are
bright  and  the  tail  lights  are  on
(day  mode  brightness  adjust-
ment),  the  brightness  level  of
night  mode  will  be  adjusted  at
the same time.

*

: Day mode and night mode:



P. 92

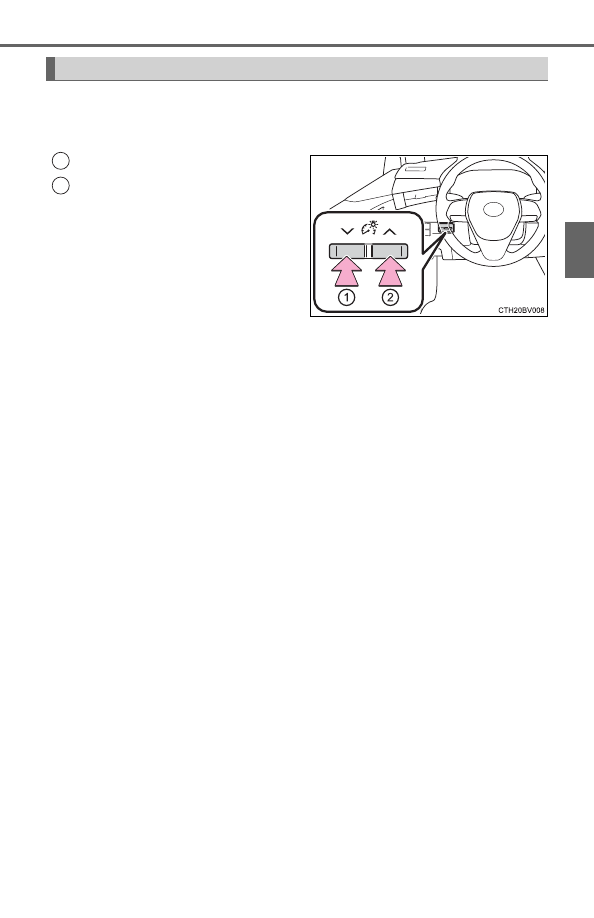

Instrument panel light control

1

2

92

2. Instrument cluster

■

The meters and display illuminate when

The engine switch is in IGNITION ON mode.

■

Brightness of the meters (day mode and night mode)

●

The  brightness  of  the  meters  is  changed  between  day  mode  and  night
mode.
• Day mode: When the tail lights are off or when the tail lights are on but

the surrounding area is bright

• Night mode: When the tail lights are on and the surrounding area is dark

●

When  in  night  mode,  the  brightness  will  be  reduced  slightly  unless  the
meters are set to the maximum brightness level.

■

Outside temperature display

In  the  following  situations,  the  correct  outside  temperature  may  not  be  dis-
played, or the display may take longer than normal to change:

●

When stopped, or driving at low speeds (less than 16 mph [25 km/h])

●

When the outside temperature has changed suddenly (at the entrance/exit
of a garage, tunnel, etc.)

●

When “



” or “E” is displayed, the system may be malfunctioning.

Take your vehicle to your Toyota dealer.

NOTICE

■

To prevent damage to the engine and its components

●

Do not let the indicator needle of the tachometer enter the red zone, which
indicates the maximum engine speed.

●

The engine may be overheating if the engine coolant temperature gauge is
in  the  red  zone  (H).  In  this  case,  immediately  stop  the  vehicle  in  a  safe
place, and check the engine after it has cooled completely. (



P. 466)

93

2. Instrument cluster

2

Instrument cluster

The multi-information display presents the driver with a variety of driv-
ing-related data, such as the current outside temperature. The multi-
information display  can  also  be  used  to  change  the  display  settings
and other settings.

Indicators (



P. 84)

Driving assist system status display area

Displays the operational status of the following systems:

• Dynamic radar cruise control with full-speed range (



P. 248)

• LDA (Lane Departure Alert with steering control) (



P. 238)

Speed  limit  display  (vehicles  with  a  navigation  system)  (U.S.A.
only)
Clock

For  clock  settings,  refer  to  “NAVIGATION  AND  MULTIMEDIA  SYSTEM
OWNER’S MANUAL”.

Speedometer

The  speedometer  display  can  be  enabled/disabled  in

  on  the  multi-

information display. (



P. 100)

When

 is selected, the speedometer may be displayed in the content

display area.

Multi-information display

Summary of functions

1

2

3

4

5

94

2. Instrument cluster

Content display area

A variety of information can be displayed by selecting a menu icon. Addi-
tionally, warning or suggestion/advice pop-up displays will be displayed in
some situations.

• Menu icon content (



P. 96)

• Suggestion function (



P. 106)

• Warning message (



P. 440)

Odometer/trip meter (



P. 106)

Shift position (



P. 189)

Outside temperature (



P. 90)

Menu icons (



P. 96)

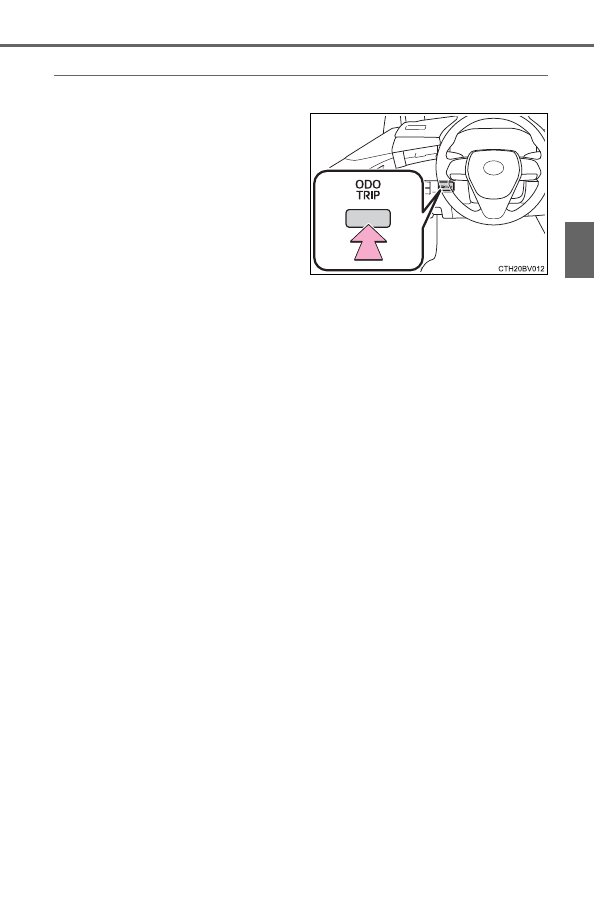

“ODO/TRIP” switch (



P. 95)

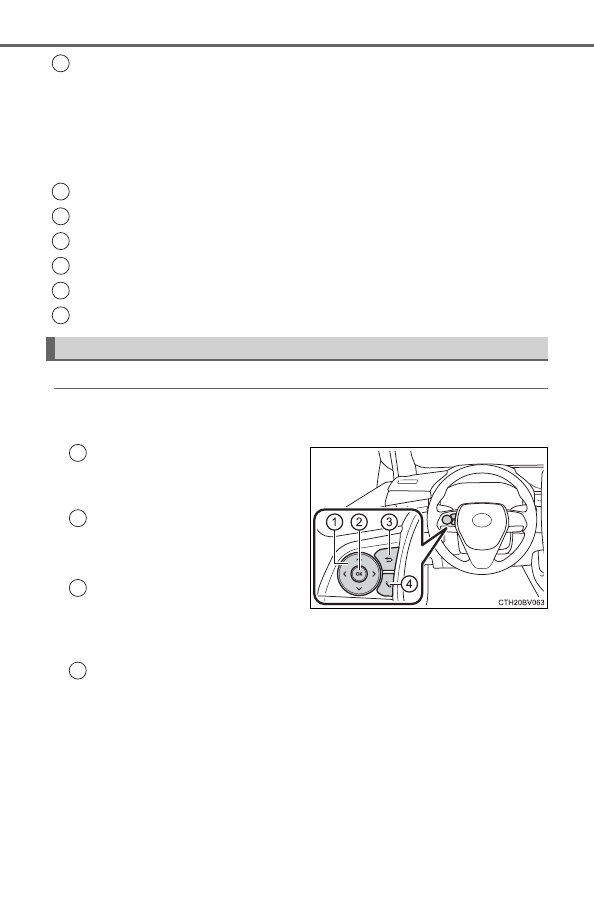

Meter control switches (



P. 94)

◆

Using the content display area

The  content  display  area  is  operated  using  the  meter  control
switches.

Scroll  screens

*

,  change  the

displayed content

*

 and move

the cursor
Press: Enter/Set
Press  and  hold:  Reset/Dis-
play the next screen
Return  to  the  previous
screen

Pressing  and  holding  the  switch  will  display  the  first  screen  of  the
selected menu icon.

Call sending/receiving display

Linked  with  the  hands-free  system,  sending  or  receiving  call  is  dis-
played. For details regarding the hands-free system, refer to the “NAVI-
GATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.

*

: When the screen can be scrolled or different content can be displayed,

a mark, such as an arrow, will be displayed to suggest which switch to
operate.

Using the multi-information display

6

7

8

9

10

11

12

1

2

3

4

95

2. Instrument cluster

2

Instrument cluster

◆

Using the odometer/trip meter

Items in this area are operated using the “ODO/TRIP” switch.
Press: Change displayed item

Each time the switch is pressed,
the  displayed  item  will  be
changed.

Press and hold: Reset

Display  the  desired  trip  meter
and press and hold the switch to
reset the trip meter.

96

2. Instrument cluster

Select a menu icon to display its content.

Driving information (



P. 97)

Select to display the following:

• Speedometer/driving range
• Fuel consumption
• Eco Driving Indicator/driving range

Driving assist system information

Select to perform the following:
Display the operational status of the following systems:

• Dynamic radar cruise control with full-speed range (



P. 248)

• LDA (Lane Departure Alert with steering control) (



P. 238)

Display the following navigation system-linked information (if equipped):

• Route guidance
• Compass display (heading-up display)

Audio system-linked display

Select to enable selection of an audio source or track on the multi-infor-
mation display using the meter control switches.

Vehicle information

Select to perform the following:
Display the following information:

• Tire inflation pressure (



P. 394)

Enable/Disable the following systems:

• Parking assist (Intuitive parking assist) (if equipped) (



P. 276)

• BSM (Blind Spot Monitor) function (



P. 261)

• RCTA (Rear Cross Traffic Alert) function (



P. 261)

These functions can also be enabled/disabled on

.

Settings display (



P. 100)

Select to change the meter display settings and other settings.

Warning message display (



P. 440)

Select to display warning messages and measures to be taken if a mal-
function is detected.

Menu icons

97

2. Instrument cluster

2

Instrument cluster

■

Speedometer/driving range

• Speedometer
• Driving range

Displays the driving range with remaining fuel.

When only a small amount of fuel is added to the tank, the display may
not be updated.
When refueling, turn the engine switch off. If the vehicle is refueled with-
out turning the engine switch off, the display may not be updated.
This distance is computed based on your average fuel consumption. As
a result, the actual distance that can be driven may differ from that dis-
played.

■

Fuel consumption

Current fuel consumption

Displays  the  instantaneous  cur-
rent fuel consumption.

Average  fuel  economy  (after
start)

Displays  the  average  fuel  con-
sumption since engine start.

*

1

Driving range

Displays the driving range with remaining fuel.

*

2, 3

Driving information (

)

1

2

3

98

2. Instrument cluster

Gadget

*

4

The following items can be displayed by changing the settings for gad-
get content and fuel economy type on

. (



P. 100)

Average fuel economy

Displayed item (listed below) can be changed on the fuel economy type
screen of



. (



P. 100)

●

Total (after reset)

Displays the average fuel consumption since the display was reset.

*

1, 5

●

Tank (after refuel)

Displays  the  average  fuel  consumption  since  the  vehicle  was  refu-
eled.

*

1, 2

4

Displayable item

Content

Gadget
content

Fuel economy

type

Average
vehicle
speed

Trip
(after start)

Displays  the  average  vehicle  speed  since
engine start.

Total
(after reset)

Displays the average vehicle speed since the
display was reset.

*

5

Distance

Trip
(after start)

Displays  the  distance  driven  since  vehicle
start.

Total
(after reset)

Displays the distance driven since the display
was reset.

*

5

Elapsed
time

Trip
(after start)

Displays the elapsed time since engine start.

Total
(after reset)

Displays  the  elapsed  time  since  the  display
was reset.

*

5

5

99

2. Instrument cluster

2

Instrument cluster

*

1

: Use the displayed fuel consumption as a reference only.

*

2

: When only a small amount of fuel is added to the tank, the display may

not be updated.
When refueling, turn the engine switch off. If the vehicle is refueled with-
out turning the engine switch off, the display may not be updated.

*

3

: This distance is computed based on your average fuel consumption. As

a result, the actual distance that can be driven may differ from that dis-
played.

*

4

: The default setting is no display.

*

5

: This display can be reset by pressing and holding

 while it is dis-

played.

■

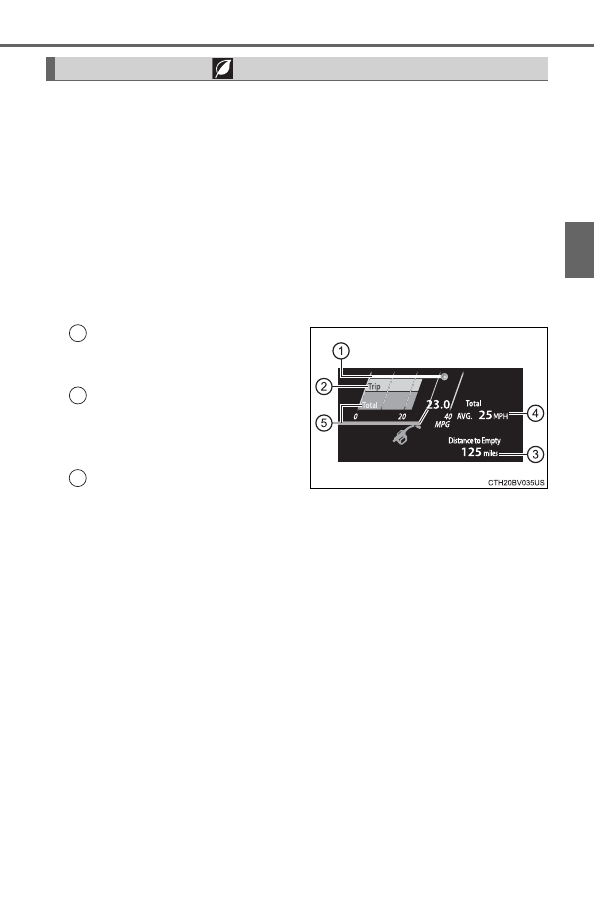

Eco Driving Indicator/driving range

• Eco Driving Indicator



P. 107

• Driving range

Displays the driving range with remaining fuel.

When only a small amount of fuel is added to the tank, the display may
not be updated.
When refueling, turn the engine switch off. If the vehicle is refueled with-
out turning the engine switch off, the display may not be updated.
This distance is computed based on your average fuel consumption. As
a result, the actual distance that can be driven may differ from that dis-
played.

100

2. Instrument cluster

◆

Changing settings

Use  the  meter  control  switches  on  the  steering  wheel  to  change
settings.

Press

 or

 to select

.

Operate the switches to select a desired item.
Press or press and hold

.

The  available  settings  will  differ  depending  on  if

  is  pressed  or

pressed and held. Follow the instructions on the display.

◆

Setting items

■

 LDA (Lane Departure Alert with steering control) (



P. 238)

Press and hold

 to change the settings of the following items:

Settings display (

)

1

2

3

Item

Settings

Details

Steering assist

On

Select to enable/disable steering
wheel assistance.

Off

Alert sensitivity

 (High)

Select  to  set  the  warning  sensi-
tivity.

 (Normal)

Sway warning

On

Select to enable/disable the vehi-
cle sway warning.

Off

Sway sensitivity

 (High)

Select  to  set  the  vehicle  sway
warning sensitivity.

 (Medium)

 (Low)

101

2. Instrument cluster

2

Instrument cluster

■

 PCS (Pre-Collision System) (



P. 226)

Press

 to enable/disable the pre-collision system.

Press and hold

 to change the settings of the following item:

■

 BSM (Blind Spot Monitor) (



P. 261)

Press

 to enable/disable the Blind Spot Monitor function.

Press and hold

 to change the settings of the following item:

Item

Settings

Details

PCS

On

Select to enable/disable the pre-
collision system.

Off

Item

Settings

Details

Warning sensitivity
(Warning timing)

 (Far)

Select  to  change  the  warning
timing.

 (Middle)

 (Near)

Item

Settings

Details

BSM

On

Select  to  enable/disable  the
Blind Spot Monitor function.

Off

Item

Settings

Details

Outside  rear  view
mirror

indicator

brightness

 (Bright)

Select  to  change  the  brightness
of  the  outside  rear  view  mirror
indicators.

 (Dim)

102

2. Instrument cluster

■

 RCTA (Rear Cross Traffic Alert) (



P. 261)

Press

 to enable/disable the Rear Cross Traffic Alert function.

Press and hold

 to change the settings of the following item:

■

 ICS (Intelligent Clearance Sonar) (if equipped) (



P. 284)

Press

 to enable/disable the Intelligent Clearance Sonar.

■

 Parking assist (Intuitive parking assist) (if equipped)

(



P. 276)

Press

 to enable/disable the Intuitive parking assist.

Press and hold

 to change the settings of the following item:

Item

Settings

Details

RCTA

On

Select to enable/disable the Rear
Cross Traffic Alert function.

Off

Item

Settings

Details

RCTA  buzzer  vol-
ume

 (Low)

Select  to  change  the  volume  of
the RCTA buzzer.

 (Medium)

 (Loud)

Item

Settings

Details

ICS

On

Select  to  enable/disable  the
Intelligent  Clearance  Sonar  sys-
tem.

Off

Item

Settings

Details

Intuitive

parking

assist

On

Select to enable/disable the intui-
tive parking assist.

Off

Item

Settings

Details

Volume

 (Low)

Select  to  change  the  volume  of
the  intuitive  parking  assist
buzzer.

 (Medium)

 (Loud)

103

2. Instrument cluster

2

Instrument cluster

■

 HUD (Head-up display) (if equipped) (



P. 109)

Press

 to enable/disable the head-up display.

Press and hold

 to change the settings of the following items:

Item

Settings

Details

HUD

On

Select  to  enable/disable  the
head-up display.

Off

Item

Settings

Details

HUD Brightness/Position

Select  to  adjust  the  brightness/
position of the head-up display.
• Press  the

/

  switch  to

adjust the display brightness.

• Press  the

/

  switch  to

adjust the display position.

HUD Driving
support

Tachometer
settings

Select  to  change  the  display
between the following:
• Eco Driving Indicator
• Tachometer
• No content

Navigation
system

Select to enable/disable head-up
display content.

Driving Assist

Compass

Rotation

Select to adjust the angle of the
head-up display.
Press  the

/

  switch  to

adjust the display angle.

104

2. Instrument cluster

■

 Vehicle settings

Press and hold

 to change the settings of the following items:

Item

Settings

Details

TPWS (Tire pressure warning system) (



P. 394)

Set pressure (tire pressure warning sys-
tem initialization)

Select  to  initialize  the  tire  pres-
sure  warning  system.  To  per-
form initialization, press and hold
the

 switch.

Before  performing  initialization,
make sure to adjust the inflation
pressure of each tire to the spec-
ified level. (



P. 395)

Change  wheel  (register  tire  pressure
warning system sensor ID codes)

Select to register the ID codes of
the  tire  pressure  sensors  to  the
tire pressure warning system. To
register the ID codes, press and
hold the

 switch.

(



P. 396)

Scheduled maintenance display

Maintenance data reset

Select to reset the message indi-
cating  maintenance  is  required,
after the required maintenance is
performed. (



P. 373)

105

2. Instrument cluster

2

Instrument cluster

■

 Meter settings

Press and hold

 to change the settings of the following items:

*

1

: Selecting this item will only change the gadget.

*

2

: Selecting this item will turn the display of the gadget off.

Item

Settings

Details

Language

Select  to  change  the  language
displayed.

Units

Select  to  change  the  units  of
measure displayed.

  (Eco  Driving

Indicator Light)

On

Select to enable/disable the Eco
Driving Indicator Light. (



P. 107)

Off

Speedometer

On

Select  to  enable/disable  the
speedometer display.

Off

Gadget content

Off

No display

Average  vehicle
speed

Select  to  turn  the  display  of  a
gadget.

Distance

Elapsed time

Fuel economy type

Trip (after start)

*

1

Select  to  change  the  average
fuel consumption display and an
item to be displayed as gadget.

Total (after reset)

Tank
(after refuel)

*

2

Multi-information display off

Select  to  turn  the  multi-informa-
tion display off.
To turn the multi-information dis-
play  on  again,  press  any  direc-
tion switch (

/

/

/

).

Pop-up display

Intersection  guid-
ance (if equipped)

Select to enable/disable the pop-
up display.

Incoming calls

Brightness adjust-
ment

Default setting

Select to reset the meter display
settings to the default setting.

106

2. Instrument cluster

■

Odometer

Displays the total distance the vehicle has been driven.

■

Trip meter A/trip meter B

Displays the distance the vehicle has been driven since the meter
was last reset. Trip meters A and B can be used to record and dis-
play different distances independently.

To reset, display the desired trip meter and press and hold the “ODO/
TRIP” switch.

Displays suggestions to the driver in the following situations. To select
a response to a displayed suggestion, use the meter control switches.

The suggestion function can be turned on/off.
(Customizable features:



P. 497)

■

Suggestion to turn off the headlights

If  the  headlights  are  left  on  for  a  certain  amount  of  time  after  the
engine switch has been turned off, if the headlight switch is in the
“AUTO” position, a suggestion message will be displayed asking if
you wish to turn the headlights off. To turn the headlights off, select
“Yes”.

If a front door is opened after the engine switch is turned off, this sug-
gestion message will not be displayed.

Odometer/trip meter

Suggestion function

107

2. Instrument cluster

2

Instrument cluster

■

Eco Driving Indicator

Eco Driving Indicator will not operate under the following conditions:

●

The shift lever is in any position other than D.

●

A paddle shift switch (if equipped) is operated.

●

Neither normal mode nor Eco drive mode is selected. (



P. 305)

●

The vehicle speed is approximately 80 mph (130 km/h) or higher.

■

Suspension of the settings display

●

Some  settings  cannot  be  changed  while  driving.  When  changing  settings,
park the vehicle in a safe place.

●

If a warning message is displayed, operation of the settings display will be
suspended.

■

Tire pressure

●

It  may  take  a  few  minutes  to  display  the  tire  inflation  pressure  after  the
engine switch is turned to IGNITION ON mode. It may also take a few min-
utes  to  display  the  tire  inflation  pressure  after  inflation  pressure  has  been
adjusted.

●

“---” may be displayed if the tire position information cannot be determined
due to unfavorable radio wave conditions.

●

Tire inflation pressure changes with temperature. The displayed values may
also be different from the values measured using a tire pressure gauge.

■

Liquid crystal display

Small  spots  or  light  spots  may  appear  on  the  display. This  phenomenon  is
characteristic of liquid crystal displays, and there is no problem continuing to
use the display.

■

Customization

Some functions can be customized. (



P. 100, 497)

Eco Driving Indicator Light
During  Eco-friendly  acceleration  (Eco
driving), the Eco Driving Indicator Light
will  turn  on.  When  the  acceleration
exceeds  the  Zone  of  Eco  driving,  or
when  the  vehicle  is  stopped,  the  light
turns off.
Eco Driving Indicator Zone Display
Suggests  the  Zone  of  Eco  driving  with
current  Eco  driving  ratio  based  on
acceleration.
Eco driving ratio based on acceleration
If the acceleration exceeds the Zone of
Eco  driving,  the  right  side  of  the  Eco
Driving  Indicator  Zone  Display  will  illu-
minate.
Zone of Eco driving

1

2

3

4

108

2. Instrument cluster

WARNING

■

Caution for use while driving

●

When  operating  the  multi-information  display  while  driving,  pay  extra
attention to the safety of the area around the vehicle.

●

Do not look continuously at the multi-information display while driving as
you  may  fail  to  see  pedestrians,  objects  on  the  road,  etc.  ahead  of  the
vehicle.

■

The information display at low temperatures

Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information display
monitor may respond slowly, and display changes may be delayed.
For example, there is a lag between the driver’s shifting and the new gear
number appearing on the display. This lag could cause the driver to down-
shift  again,  causing  rapid  and  excessive  engine  braking  and  possibly  an
accident resulting in death or injury.

■

Cautions during setting up the display

As the engine needs to be running during setting up the display, ensure that
the vehicle is parked in a place with adequate ventilation. In a closed area
such as a garage, exhaust gases including harmful carbon monoxide (CO)
may  collect  and  enter  the  vehicle.  This  may  lead  to  death  or  a  serious
health hazard.

NOTICE

■

While setting up the display

To prevent battery discharge, ensure that the engine is running while setting
up the display features.

109

2. Instrument cluster

2

Instrument cluster

The  head-up  display  is  linked  to  the  meters  and  navigation  system
and projects a variety of information in front of the driver, such as the
current vehicle speed.

Driving assist system status/navigation system-linked display area
(



P. 111)

The following pop-up displays will be displayed in certain situations:

• Pre-collision warning (pre-collision system)
• Alert from the Intelligent Clearance Sonar system (if equipped)

Shift position/speed limit display area

• Shift position (



P. 189)

• Speed limit (vehicles with a navigation system) (U.S.A. only)

Vehicle speed display
Eco Driving Indicator/Tachometer (



P. 112)

Information display area (



P. 113)

The following pop-up displays will be displayed in certain situations:

• Warning/message
• Hands-free system status
• Audio system operation status

Head-up display





: If equipped

Summary of functions

1

2

3

4

5

110

2. Instrument cluster

Select

 on the multi-information display (



P. 100) and then

.

◆

Enabling/disabling the head-up display

Press

 to enable/disable the head-up display.

◆

Changing the head-up display settings

Press and hold

 to change the following settings:

■

Display brightness/position

Select to adjust the brightness and position of the head-up display.

■

Display content

Select to enable/disable the following items:

• Route guidance to destination
• Driving assist system status
• Compass

Select to change the display between the following:

• Eco Driving Indicator
• Tachometer
• No content

■

Display angle

Select to adjust the angle of the head-up display.

Using the head-up display

111

2. Instrument cluster

2

Instrument cluster

◆

Driving assist system status display

Displays the operational status of the following systems:

• Dynamic radar cruise control with full-speed range (



P. 248)

• LDA (Lane Departure Alert with steering control) (



P. 238)

• Intuitive parking assist (if equipped) (



P. 276)

◆

Navigation system-linked display area

Displays the following items, which are linked to the navigation sys-
tem:

■

Street name

When  the  navigation  system  is  performing  route  guidance,  the
name of the next street will be displayed on the top of the display
area.

■

Route guidance to destination

Displayed  when  the  navigation  system  is  performing  route  guid-
ance. When approaching an intersection, an arrow will be displayed
to indicate the suggested direction of travel.

■

Compass

Displays the direction of travel.

Driving  assist  system  status/navigation  system-linked  display
area

112

2. Instrument cluster

■

Eco Driving Indicator

Eco  Driving  Indicator  Zone
Display
Eco  driving  ratio  based  on
acceleration
Zone of Eco driving

Displayed  content  is  the  same
as  that  displayed  on  the  multi-
information display (Eco Driving
Indicator). For details, refer to P.
107.

■

Tachometer

Displays the engine speed in revolutions per minute.

Eco Driving Indicator/Tachometer

1

2

3

113

2. Instrument cluster

2

Instrument cluster

Displays the following items in the appropriate situation:

■

Warning/Message

●

Alert from the LDA (Lane Departure Alert with steering control)

●

Dynamic radar cruise control with full-speed range

●

 message

Displayed when a suggestion/advice pop-up display is displayed on the
multi-information display. (



P. 106)

●

 message

Displayed when a warning message is displayed on the multi-informa-
tion display. (



P. 440)

●

Outside temperature

Displayed in the following situations:

• When the engine switch is turned to IGNITION ON mode
• When the low outside temperature indicator is flashing

Displayed content is the same as that displayed on the multi-information
display. For details, refer to the explanation of the outside temperature
display on the multi-information display. (



P. 90)

■

Hands-free system status

Displayed when the hands-free system is operated.

■

Audio system operation status

Displayed when the audio system is operated.

Information display area

114

2. Instrument cluster

■

Head-up display

The  head-up  display  may  seem  dark  or  hard  to  see  when  viewed  through
sunglasses, especially polarized sunglasses.
Adjust the brightness of the head-up display or remove your sunglasses.

■

Display brightness

The brightness of the head-up display can  be adjusted on

 of the  multi-

information display. Also, it is automatically adjusted according to the ambient
brightness.

■

Enabling/disabling of the head-up display

If  the  head-up  display  is  disabled,  it  will  remain  disabled  when  the  engine
switch is turned off then back to IGNITION ON mode.

■

Street name display

Only street names which are included in the map data will be displayed.

WARNING

■

Before using the head-up display

●

Check that the position and brightness of the head-up display image does
not interfere with safe driving. Incorrect adjustment of the image’s position
or  brightness  may  obstruct  the  driver’s  view  and  lead  to  an  accident,
resulting in death or serious injury.

●

Do not continuously look at the head-up display while driving as you may
fail to see pedestrians, objects on the road, etc. ahead of the vehicle.

■

Caution for changing settings of the head-up display

As the engine needs to be running while changing the settings of the head-
up display, ensure that the vehicle is parked in a place with adequate venti-
lation. In a closed area such as a garage, exhaust gases including harmful
carbon monoxide (CO) may collect and enter the vehicle. This may lead to
death or a serious health hazard.

115

2. Instrument cluster

2

Instrument cluster

NOTICE

■

To prevent damage to components

■

When changing the settings of the head-up display

To  prevent  battery  discharge,  ensure  that  the  engine  is  running  while  the
changing the settings of the head-up display.

●

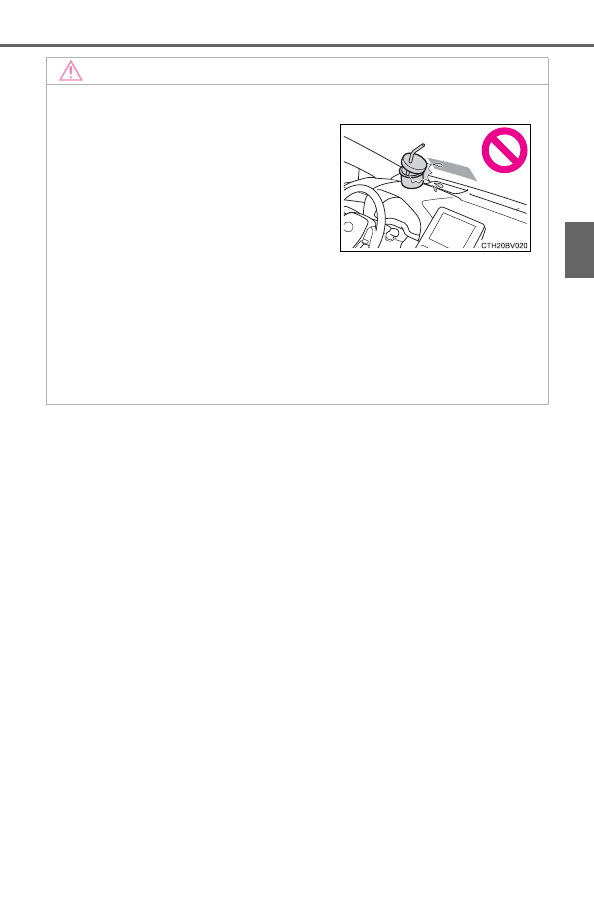

Do not place any drinks near the head-
up display projector. If the projector gets
wet, electrical malfunctions may result.

●

Do not place anything on or put stickers
onto the head-up display projector.
Doing  so  could  interrupt  head-up  dis-
play indications.

●

Do not touch the inside of the head-up
display  projector  or  thrust  sharp  edges
or the like into the projector.
Doing so could cause mechanical mal-
functions.

116

2. Instrument cluster



Entune Audio Plus (vehicles without Data Communication Module)

Press the “MENU” button.
Select  “Info”  on  the  “Menu”
screen.

If the “History” screen is displayed,
select “Trip Information”.

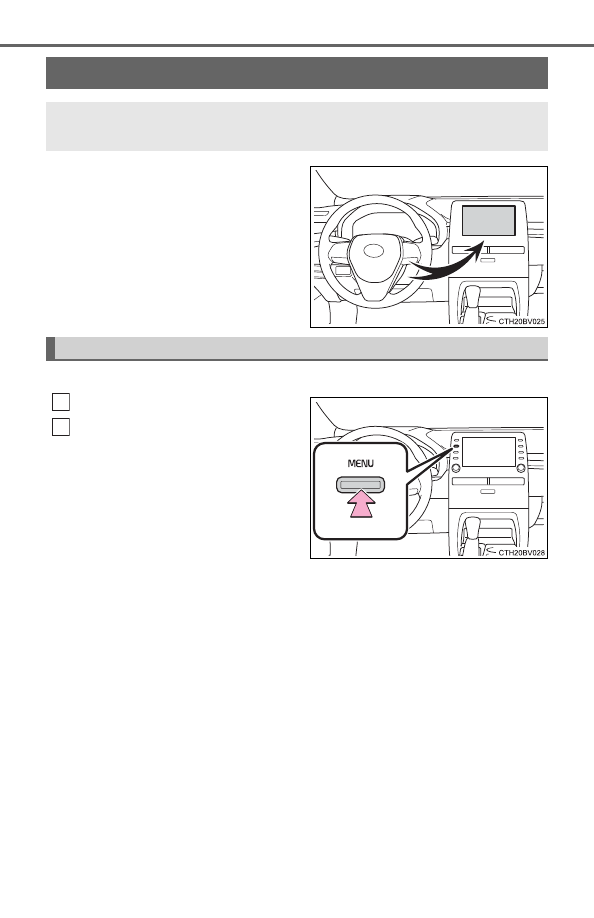

Fuel consumption information

Fuel  consumption  information  can  be  displayed  on  the  audio
system screen.

Trip information

1

2

117

2. Instrument cluster

2

Instrument cluster



Entune Audio Plus (vehicles with Data Communication Module) or
Entune Premium Audio

Press the “MENU” button.
Select  “Info”  on  the  “Menu”
screen.
Select  “ECO”  on  the  “Informa-
tion” screen.

If the “History” screen is displayed,
select “Trip Information”.

Resetting the consumption data
Average  vehicle  speed  since
the engine was started
Elapsed  time  since  the  engine
was started
Fuel consumption in the past 15
minutes
Cruising range (



P. 119)

Current fuel consumption

Average fuel consumption for the past 15 minutes is divided by color
into past averages and averages attained since the engine switch was
last  turned  to  IGNITION  ON  mode.  Use  the  displayed  average  fuel
consumption as a reference.

This image is an example only.

1

2

3

1

2

3

4

5

6

118

2. Instrument cluster



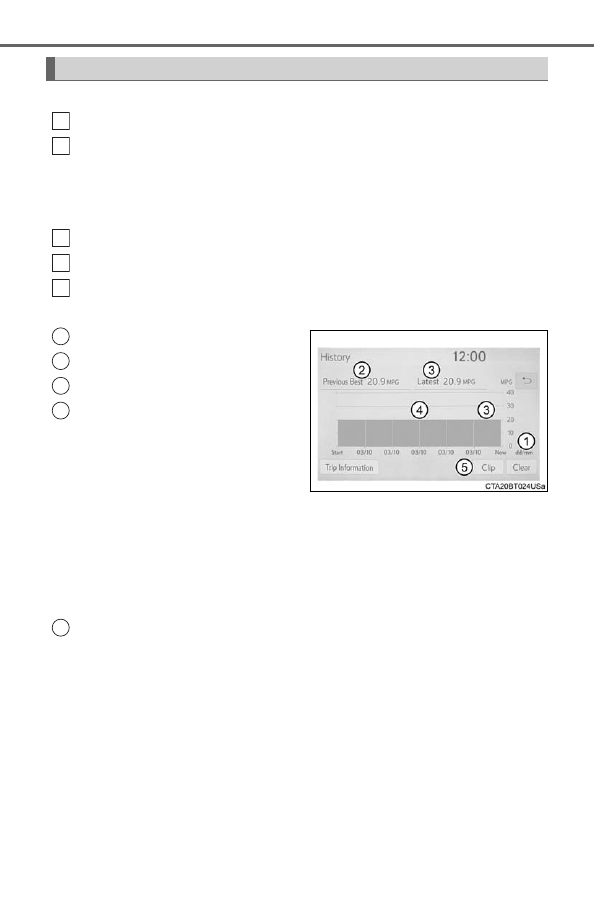

Entune Audio Plus (vehicles without Data Communication Module)
Press the “MENU” button.
Select “Info” on the “Menu” screen.

If the “Trip Information” screen is displayed, select “History”.



Entune Audio Plus (vehicles with Data Communication Module) or
Entune Premium Audio
Press the “MENU” button.
Select “Info” on the “Menu” screen.
Select “ECO” on the “Information” screen.

If the “Trip Information” screen is displayed, select “History”.

Resetting the past record data
Best recorded fuel consumption
Current fuel economy
Previous

fuel

consumption

record



Entune Audio Plus

Displays  the  daily  average  fuel  consumption.  (Instead  of  the  date,
“Trip 1” through “Trip 5” will be displayed.)



Entune Premium Audio

Displays the daily average fuel consumption.

Updating the average fuel consumption data

The  average  fuel  consumption  history  is  divided  by  color  into  past
averages  and  the  average  fuel  consumption  since  the  last  updated.
Use the displayed average fuel consumption as a reference.

This image is an example only.

History

1

2

1

2

3

1

2

3

4

5

119

2. Instrument cluster

2

Instrument cluster

■

Updating the past record data

Update the average fuel consumption by selecting “Clip” to measure the cur-
rent fuel consumption again.

■

Resetting the data

The fuel consumption data can be deleted by selecting “Clear”.

■

Cruising range

Displays the estimated maximum distance that can be driven with the quan-
tity of fuel remaining.
This distance is computed based on your average fuel consumption.
As a result, the actual distance that can be driven may differ from that dis-
played.

120

2. Instrument cluster

121

3

Operation of

each component

3-1.  Key information

Keys .................................. 122

3-2.  Opening, closing and

locking the doors

Doors ................................ 125
Trunk................................. 131
Smart key system ............. 135

3-3.  Adjusting the seats

Front seats ........................ 142
Rear seats......................... 144
Driving position

memory........................... 146

Head restraints.................. 151

3-4.  Adjusting the steering

wheel and mirrors

Steering wheel .................. 153
Inside rear view mirror ...... 155
Outside rear view

mirrors............................. 157

3-5.  Opening and closing

the windows

Power windows ................. 160
Moon roof.......................... 164

122

3-1. Key information

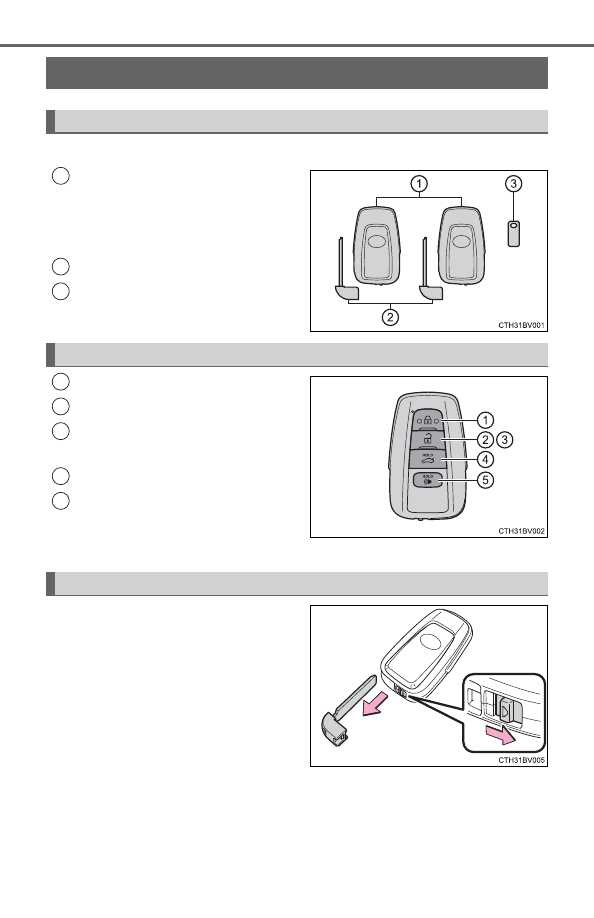

The following keys are provided with the vehicle.

Electronic keys

• Operating the smart key system

(



P. 135)

• Operating  the  wireless  remote

control function (



P. 122)

Mechanical keys
Key number plate

Locks all the doors (



P. 125)

Unlocks all the doors (



P. 125)

Opens  the  windows

*

2

  and

moon roof

*

1, 2

 (



P. 125)

Opens the trunk (



P. 131)

Sounds the alarm (



P. 123)

*

1

: If equipped

*

2

: This setting must be customized at your Toyota dealer.

To  take  out  the  mechanical  key,
slide  the  release  lever  and  take
the key out.

The  mechanical  key  can  only  be
inserted  in  one  direction,  as  the
key only has grooves on one side.
If  the  key  cannot  be  inserted  in  a
lock  cylinder,  turn  it  over  and  re-
attempt to insert it.
After  using  the  mechanical  key,  store  it  in  the  electronic  key.  Carry  the
mechanical key together with the electronic key. If the electronic key bat-
tery  is  depleted  or  the  entry  function  does  not  operate  properly,  you  will
need the mechanical key. (



P. 459)

Keys

The keys

1

2

3

Wireless remote control

1

2

3

4

5

Using the mechanical key

123

3-1. Key information

3

Opera

tion of e

ach compon

ent

■

Panic mode

■

If you lose your mechanical keys

New genuine mechanical keys can be made by your Toyota dealer using the
other  mechanical  key  and  the  key  number  stamped  on  your  key  number
plate. Keep the plate in a safe place such as your wallet, not in the vehicle.

■

When riding in an aircraft

When bringing an electronic key onto an aircraft, make sure you do not press
any button on the electronic key while inside the aircraft cabin. If you are car-
rying an electronic key in your bag etc., ensure that the buttons are not likely
to be pressed accidentally. Pressing a button may cause the electronic key to
emit radio waves that could interfere with the operation of the aircraft.

■

Conditions affecting operation



P. 137

■

Key battery depletion

●

The standard battery life is 1 to 2 years.

●

If the battery becomes low, an alarm will sound in the cabin when the engine
stops.

●

As the electronic key always receives radio waves, the battery will become
depleted even if the electronic key is not used. The following symptoms indi-
cate  that  the  electronic  key  battery  may  be  depleted.  Replace  the  battery
when necessary. (



P. 414)

• The smart key system or the wireless remote control does not operate.
• The detection area becomes smaller.
• The LED indicator on the key surface does not turn on.

●

To reduce key battery depletion when the electronic key is to not be used for
long periods of time, set the electronic key to the battery-saving mode.
(



P. 137)

●

To avoid serious deterioration, do not leave the electronic key within 3 ft. (1
m) of the following electrical appliances that produce a magnetic field:
• TVs
• Personal computers
• Cellular phones, cordless phones and battery chargers
• Recharging cellular phones or cordless phones
• Table lamps
• Induction cookers

When

  is  pressed  for  longer  than

about  one  second,  an  alarm  will  sound
intermittently  and  the  vehicle  lights  will
flash  to  deter  any  person  from  trying  to
break into or damage your vehicle.
To stop the alarm, press any button on the
electronic key.

124

3-1. Key information

■

Replacing the battery



P. 414

■

Confirmation of the registered key number

The number of keys already registered to the vehicle can be confirmed. Ask
your Toyota dealer for details.

■

If a wrong key is used

The key cylinder rotates freely to isolate inside mechanism.

■

Certification for wireless remote control



P. 140

NOTICE

■

To prevent key damage

●

Do not drop the keys, subject them to strong shocks or bend them.

●

Do not expose the keys to high temperatures for long periods of time.

●

Do not get the keys wet or wash them in an ultrasonic washer etc.

●

Do not attach metallic or magnetic materials to the keys or place the keys
close to such materials.

●

Do not disassemble the keys.

●

Do not attach a sticker or anything else to the surface of the electronic key.

●

Do not place the keys near objects that produce magnetic fields, such as
TVs,  audio  systems  and  induction  cookers,  or  medical  electrical  equip-
ment, such as low-frequency therapy equipment.

■

Carrying the electronic key on your person

Carry the electronic key 3.9 in. (10 cm) or more away from electric appli-
ances  that  are  turned  on.  Radio  waves  emitted  from  electric  appliances
within 3.9 in. (10 cm) of the electronic key may interfere with the key, caus-
ing the key to not function properly.

■

In case of a smart key system malfunction or other key-related prob-
lems

Take your vehicle with all the electronic keys provided with your vehicle to
your Toyota dealer.

■

When an electronic key is lost

If the electronic key remains lost, the risk of vehicle theft increases signifi-
cantly.  Visit  your  Toyota  dealer  immediately  with  all  remaining  electronic
keys that were provided with your vehicle.

125

3

Opera

tion of e

ach compon

ent

3-2. Opening, closing and locking the doors

◆

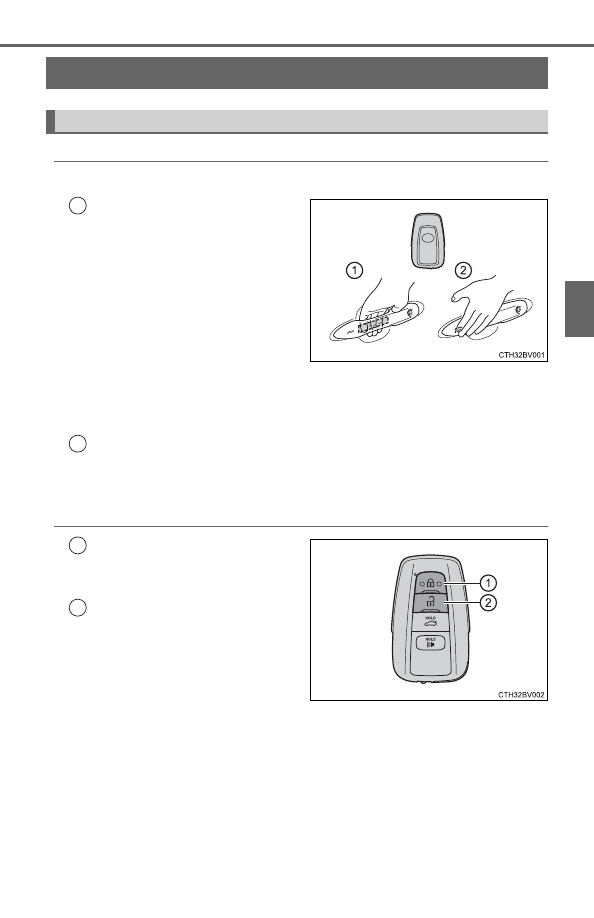

Smart key system

Carry the electronic key to enable this function.

Grip the driver’s door handle
to  unlock  the  door.  Holding
the  driver’s  door  handle  for
approximately  2  seconds
unlocks  all  the  doors.  Grip
the  front  passenger’s  door
handle  to  unlock  all  the
doors.

*

Make sure to touch the sensor on the back of the handle.
The doors cannot be unlocked for 3 seconds after the doors are locked.

*

: The door unlock settings can be changed. (



P. 129)

Touch  the  lock  sensor  (the  indentation  on  the  side  of  the  door
handle) to lock the doors.

Check that the door is securely locked.

◆

Wireless remote control

Locks all the doors

Check  that  the  door  is  securely
locked.

Unlocks all the doors

Pressing the button unlocks the
driver’s  door.  Pressing  the  but-
ton  again  within  3  seconds
unlocks the other doors.
Press and hold to open the win-
dows

*

2

  and  moon  roof.

*

1,  2

(



P. 160, 165)

*

1

: If equipped

*

2

: This setting must be customized at your Toyota dealer.

Doors

Unlocking and locking the doors from the outside

1

2

1

2

126

3-2. Opening, closing and locking the doors

■

Operation signals

Doors:
A buzzer sounds and the emergency flashers flash to indicate that the doors
have been locked/unlocked. (Locked: Once; Unlocked: Twice)
Windows and moon roof:
A buzzer sounds to indicate that the windows and moon roof are operating.

■

Security feature

If a door is not opened within approximately 60 seconds after the vehicle is
unlocked, the security feature automatically locks the vehicle again.

■

When the door cannot be locked by the lock sensor on the surface of the
door handle

■

Door lock buzzer

If  an  attempt  to  lock  the  doors  is  made  when  a  door  is  not  fully  closed,  a
buzzer sounds continuously. Fully close the door to stop the buzzer, and lock
the vehicle once more.

■

Setting the alarm

Locking the doors will set the alarm system. (



P. 80)

■

If the smart key system or the wireless remote control does not operate
properly

Use the mechanical key to lock and unlock the doors. (



P. 459)

Replace the key battery with a new one if it is depleted. (



P. 414)

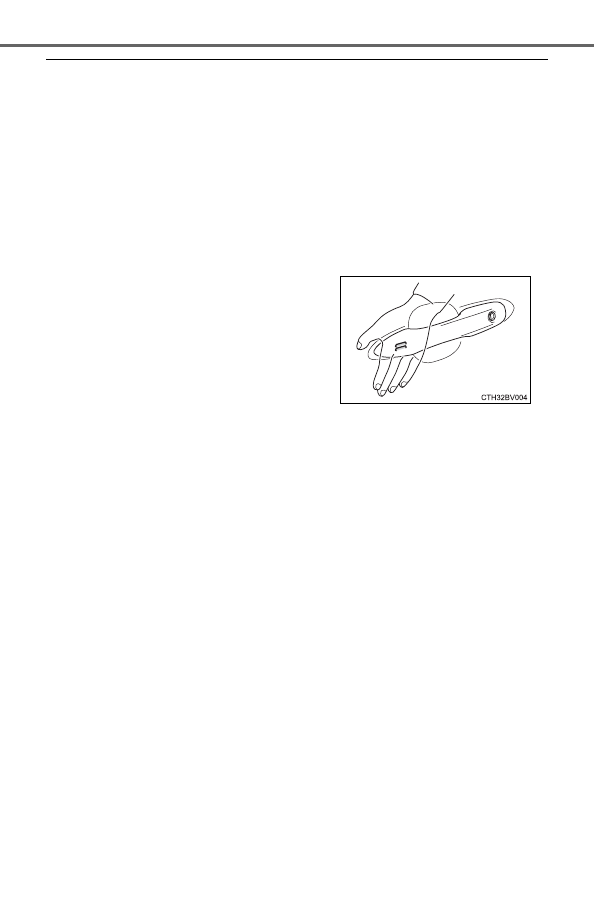

When  the  door  cannot  be  locked  even  if
the lock sensor on the surface of the door
handle  is  touched  by  a  finger,  touch  the
lock sensor with the palm.
When gloves are being worn, remove the
gloves.

127

3-2. Opening, closing and locking the doors

3

Opera

tion of e

ach compon

ent

◆

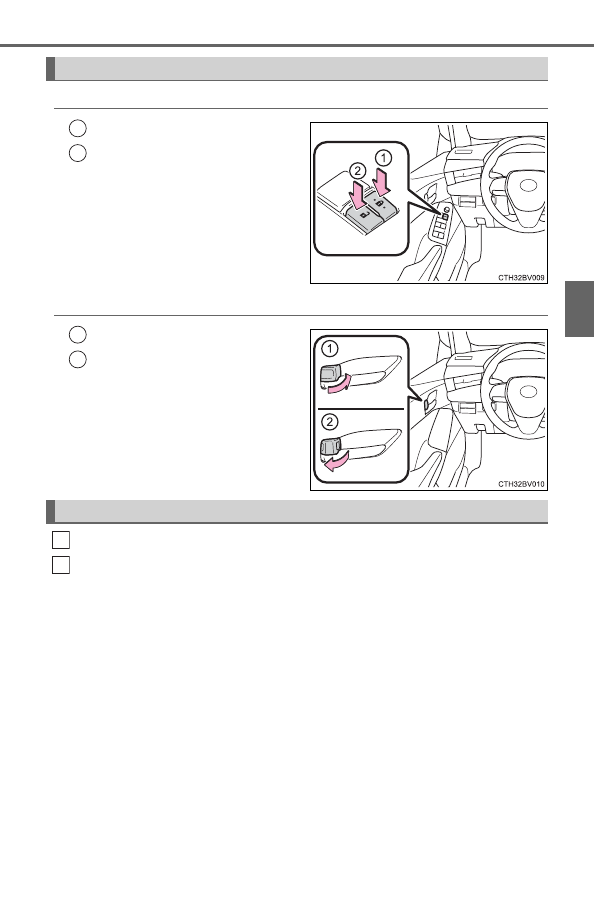

Door lock switches

Locks all the doors
Unlocks all the doors

◆

Inside lock buttons

Locks the door
Unlocks the door

The  front  doors  can  be  opened
by  pulling  the  inside  handle
even  if  the  lock  buttons  are  in
the lock position.

Move the inside lock button to the lock position.
Close the door.
The door cannot be locked if the engine switch is in ACCESSORY
or IGNITION ON mode, or the electronic key is left inside the vehi-
cle.

The key may not be detected correctly and the door may be locked.

Unlocking and locking the doors from the inside

1

2

1

2

Locking the front doors from the outside without a key

1

2

128

3-2. Opening, closing and locking the doors

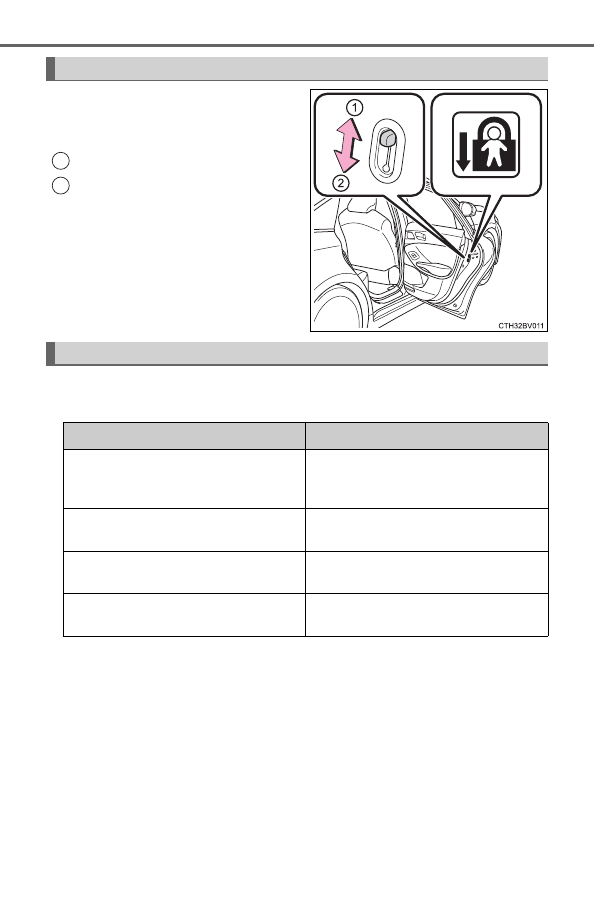

The door cannot be opened from
inside the vehicle when the lock is
set.

Unlock
Lock

These locks can be set to prevent
children  from  opening  the  rear
doors.  Push  down  on  each  rear
door switch to lock both rear doors.

The following functions can be set or cancelled:

For instructions on customizing, refer to P. 499.

Rear door child-protector lock

1

2

Automatic door locking and unlocking systems

Function

Operation

Speed linked door locking function

All  doors  are  automatically  locked
when  vehicle  speed  is  approxi-
mately 12 mph (20 km/h) or higher.

Shift position linked door locking
function

All  doors  are  automatically  locked
when shifting the shift lever out of P.

Shift position linked door unlocking
function

All doors are automatically unlocked
when shifting the shift lever to P.

Driver’s door linked door unlocking
function

All doors are automatically unlocked
when driver’s door is opened.

129

3-2. Opening, closing and locking the doors

3

Opera

tion of e

ach compon

ent

■

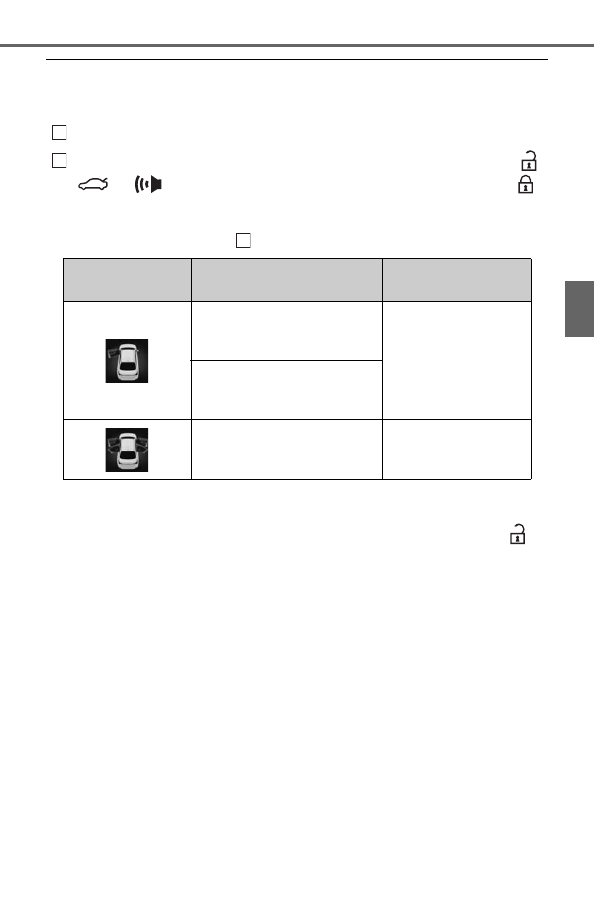

Switching the door unlock function

It is possible to set which doors the entry function unlocks using the wireless
remote control.

Turn the engine switch off.

When the indicator light on the key surface is not on, press and hold

,

 or

 for approximately 5 seconds while pressing and holding

.

The setting changes each time an operation is performed, as shown below.
(When changing the setting continuously, release the buttons, wait for at least
5 seconds, and repeat step

.)

To  prevent  unintended  triggering  of  the  alarm,  unlock  the  doors  using  the
wireless  remote  control  and  open  and  close  a  door  once  after  the  settings
have been changed. (If a door is not opened within 60 seconds after

 is

pressed, the doors will be locked again and the alarm will automatically be
set.)
In case that the alarm is triggered, immediately stop the alarm. (



P. 80)

■

Impact detection door lock release system

In the event that the vehicle is subject to a strong impact, all the doors are
unlocked. Depending on the force of the impact or the type of accident, how-
ever, the system may not operate.

■

Open door warning buzzer

If the vehicle reaches a speed of 3 mph (5 km/h), the master warning light
flashes  and  a  buzzer  sounds  to  indicate  that  the  door(s)  are  not  yet  fully
closed.
The open door(s) is displayed on the multi-information display.

1

2

2

Multi-information

display

Unlocking function

Beep



Holding  the  driver’s  door
handle  unlocks  only  the
driver’s door.

Exterior:  Beeps  3
times
Interior: Pings once

Holding  the  front  passen-
ger’s  door  handle  unlocks
all the doors.



Holding  either  front  door
handle  unlocks  all  the
doors.

Exterior:

Beeps

twice
Interior: Pings once

130

3-2. Opening, closing and locking the doors

■

Using the mechanical key

The doors can also be locked and unlocked with the mechanical key.
(



P. 459)

■

Conditions affecting the operation of the smart key system or wireless
remote control



P. 137

■

Customization

Some functions can be customized. (



P. 497)

WARNING

■

To prevent an accident

Observe the following precautions while driving the vehicle.
Failure to do so may result in a door opening and an occupant falling out,
resulting in death or serious injury.

●

Ensure that all doors are properly closed.

●

Do not pull the inside handle of the doors while driving.
Be  especially  careful  for  the  front  doors,  as  the  doors  may  be  opened
even if the inside lock buttons are in locked position.

●

Set the rear door child-protector locks when children are seated in the rear
seats.

■

When opening or closing a door

Check the surroundings of the vehicle such as whether the vehicle is on an
incline,  whether  there  is  enough  space  for  a  door  to  open  and  whether  a
strong wind is blowing.
When opening or closing the door, hold the door handle tightly to prepare
for any unpredictable movement.

131

3-2. Opening, closing and locking the doors

3

Opera

tion of e

ach compon

ent

Press the trunk opener switch.

◆

Smart key system

While  carrying  the  electronic
key,  press  the  button  on  the
trunk lid.

When all the doors are unlocked
using one of the following meth-
ods,  the  trunk  can  be  opened
without the electronic key:

• Entry function
• Wireless remote control
• Door lock switches
• Automatic door unlocking system
• Mechanical key

◆

Wireless remote control

Press and hold the switch.

A buzzer sounds.

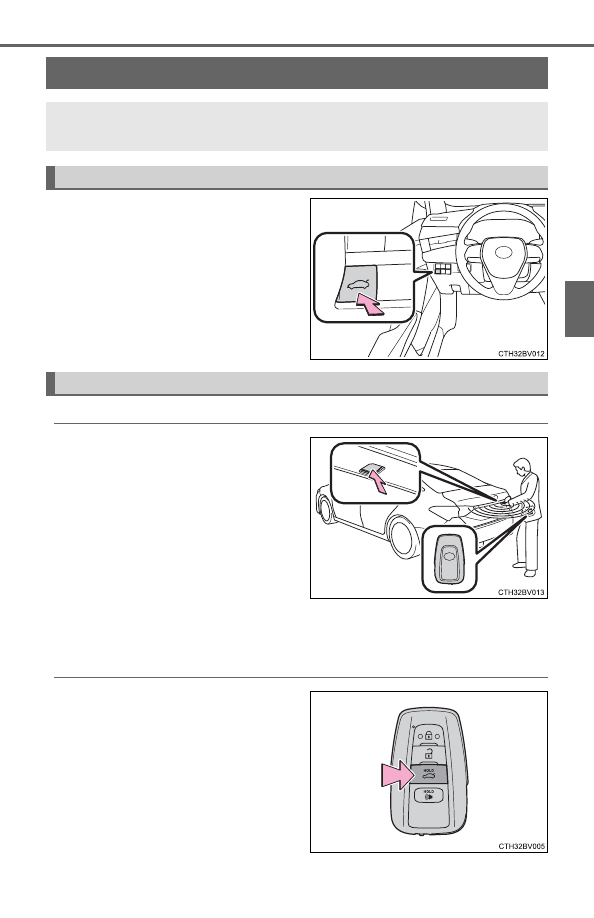

Trunk

The  trunk  can  be  opened  using  the  trunk  opener  switch,  entry
function or wireless remote control.

Opening the trunk from inside the vehicle

Opening the trunk from outside the vehicle

132

3-2. Opening, closing and locking the doors

■

Trunk light

The trunk light turns on when the trunk is opened.

■

Function to prevent the trunk being locked with the electronic key inside

●

When all doors are locked, closing the trunk lid with the electronic key left
inside the trunk will sound an alarm.
In this case, the trunk lid can be opened by pressing the trunk release but-
ton on the trunk lid.

●

If the spare electronic key is put in the trunk with all the doors locked, the
key  confinement  prevention  function  is  activated  so  the  trunk  can  be
opened.  In  order  to  prevent  theft,  take  all  electronic  keys  with  you  when
leaving the vehicle.

●

If the electronic key is put in the trunk with all the doors locked, the key may
not be detected depending on the location of the key and the surrounding
radio wave conditions. In this case, the key confinement prevention function
cannot  be  activated,  causing  the  doors  to  lock  when  the  trunk  is  closed.
Make sure to check where the key is before closing the trunk.

●

The key confinement prevention function cannot be activated if any one of
the doors is unlocked. In this case, open the trunk using the trunk opener.

■

Open trunk warning buzzer

If the vehicle reaches a speed of 3 mph (5 km/h), the master warning light
flashes and a buzzer sounds to indicate that the trunk is not yet fully closed.

■

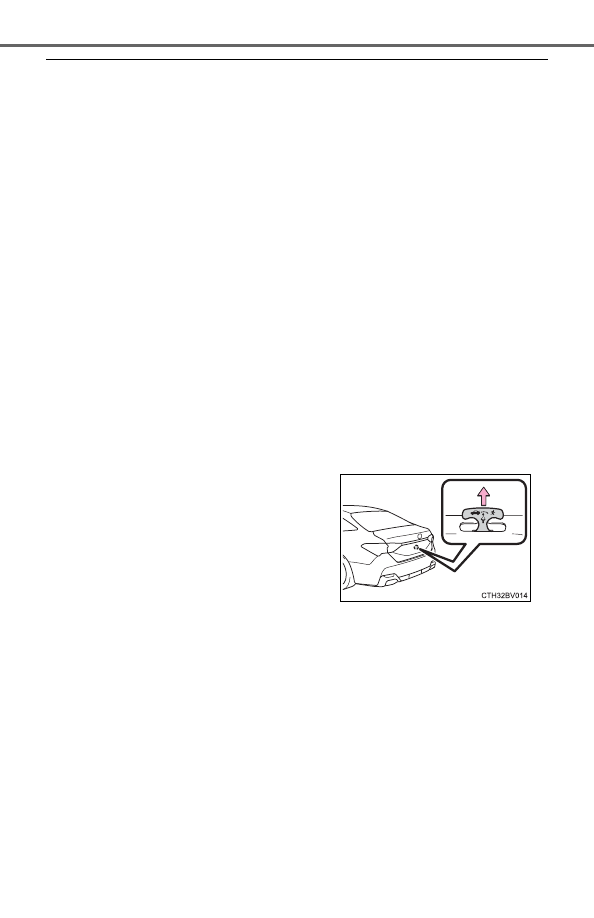

Internal trunk release lever

■

Using the mechanical key

The trunk can be also opened using the mechanical key. (



P. 460)

■

If the smart key system or the wireless remote control does not operate
properly

Use the mechanical key to unlock the trunk. (



P. 460)

Replace the key battery with a new one if it is depleted. (



P. 414)

■

Customization

Some functions can be customized. (



P. 497)

The trunk lid can be opened by pulling up
the  glow-in-the-dark  lever  located  on  the
inside of the trunk lid.
The  lever  will  continue  to  glow  for  some
time after the trunk lid is closed.

133

3-2. Opening, closing and locking the doors

3

Opera

tion of e

ach compon

ent

WARNING

Observe the following precautions.
Failure to do so may result in death or serious injury.

■

Before driving

●

Make sure that the trunk lid is fully closed. If the trunk lid is not fully closed,
it may open unexpectedly while driving and hit near-by objects or luggage
in the trunk may be thrown out, causing an accident.

●

Do not allow children to play in the trunk.
If  a  child  is  accidentally  locked  in  the  trunk,  they  could  suffer  from  heat
exhaustion, suffocation or other injuries.

●

Do not allow a child to open or close the trunk lid.
Doing  so  may  cause  the  trunk  lid  to  open  unexpectedly,  or  cause  the
child’s hands, head, or neck to be caught by the closing trunk lid.

■

Important points while driving

Never let anyone sit in the trunk. In the event of sudden braking or a colli-
sion, they are susceptible to death or serious injury.

134

3-2. Opening, closing and locking the doors

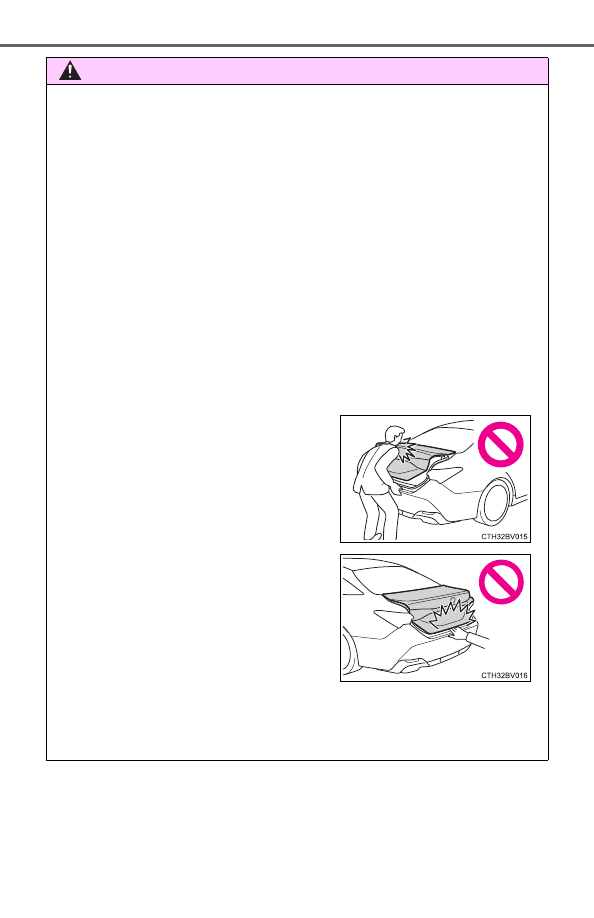

WARNING

■

Using the trunk

Observe the following precautions.
Failure to do so may cause parts of the body to be caught, resulting in seri-
ous injury.

●

Remove any heavy loads, such as snow and ice, from the trunk lid before
opening it. Failure to do so may cause the trunk lid to suddenly shut again
after it is opened.

●

When opening or closing the trunk lid, thoroughly check to make sure the
surrounding area is safe.

●

If anyone is in the vicinity, make sure they are safe and let them know that
the trunk is about to open or close.

●

Use caution when opening or closing the trunk lid in windy weather as it
may move abruptly in strong wind.

●

On an incline it is more difficult to open or close the trunk lid than on a level
surface,  so  beware  of  the  trunk  lid  unexpectedly  opening  or  closing  by
itself. Make sure that the trunk lid is fully open and secure before using the
trunk.

●

Do not attach any accessories other than genuine Toyota parts to the trunk
lid. Such additional weight on the trunk lid may cause the lid to suddenly
shut again after it is opened.

●

When  opening  the  trunk  lid,  take  care
so that it does not hit anyone in the face
or any other part of the body.

●

When  closing  the  trunk  lid,  take  extra
care  to  prevent  your  fingers  etc.  from
being caught.

●

When closing the trunk lid, make sure to
press it lightly on its outer surface.

135

3-2. Opening, closing and locking the doors

3

Opera

tion of e

ach compon

ent

●

Locks and unlocks the doors (



P. 125)

●

Opens the trunk (



P. 131)

●

Starts the engine (



P. 184)

■

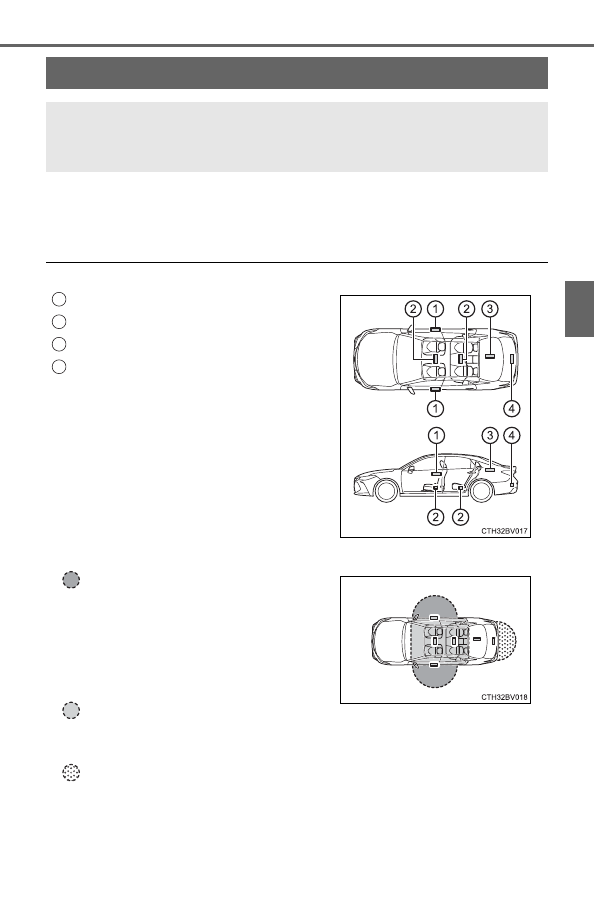

Antenna location

■

Effective range (areas within which the electronic key is detected)

Smart key system

The  following  operations  can  be  performed  simply  by  carrying
the electronic key on your person, for example in your pocket.
The driver should always carry the electronic key.

Antennas outside the cabin
Antennas inside the cabin
Antenna inside the trunk
Antenna outside the trunk

When  locking  or  unlocking  the
doors

The  system  can  be  operated  when
the electronic key is within about 2.3
ft.  (0.7  m) of  either of  the  front  out-
side  door  handles.  (Only  the  doors
detecting the key can be operated.)

When starting the engine or changing engine switch modes

The  system  can  be  operated  when  the  electronic  key  is  inside  the
vehicle.

When opening the trunk

The system can be operated when the electronic key is within about
2.3 ft. (0.7 m) of the trunk release button.

1

2

3

4
