Toyota 86 (2020 year). Manual in english - part 1

Pictorial index

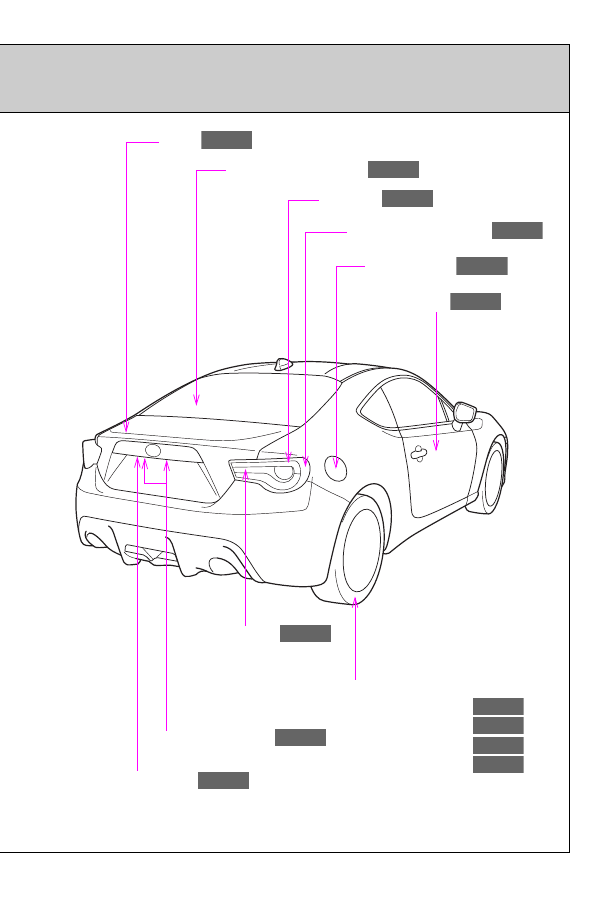

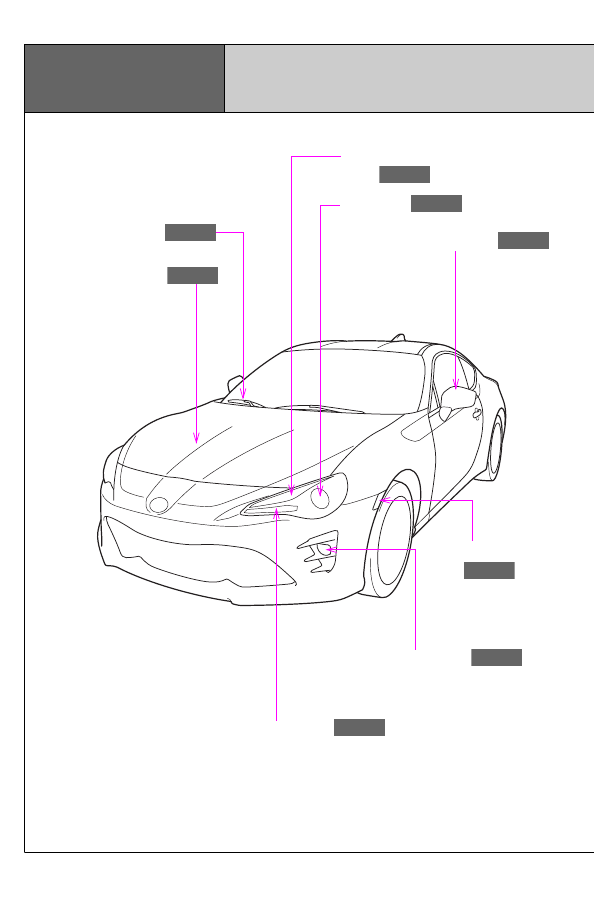

Exterior

Outside rear view mirrors

P. 69

Front turn signal lights

Hood

Windshield wipers

Headlights

Front side marker
lights

Front fog lights



P. 228

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Tires

●

Rotation

●

Replacement

●

Inflation pressure

●

Information

P. 345
P. 425
P. 353
P. 474

Rear window defogger

Trunk

Doors

Fuel filler door

Tail lights

Rear side marker lights

Turn signal lights

P. 188



: If equipped

License plate lights

Rear view camera

P. 237

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Pictorial index

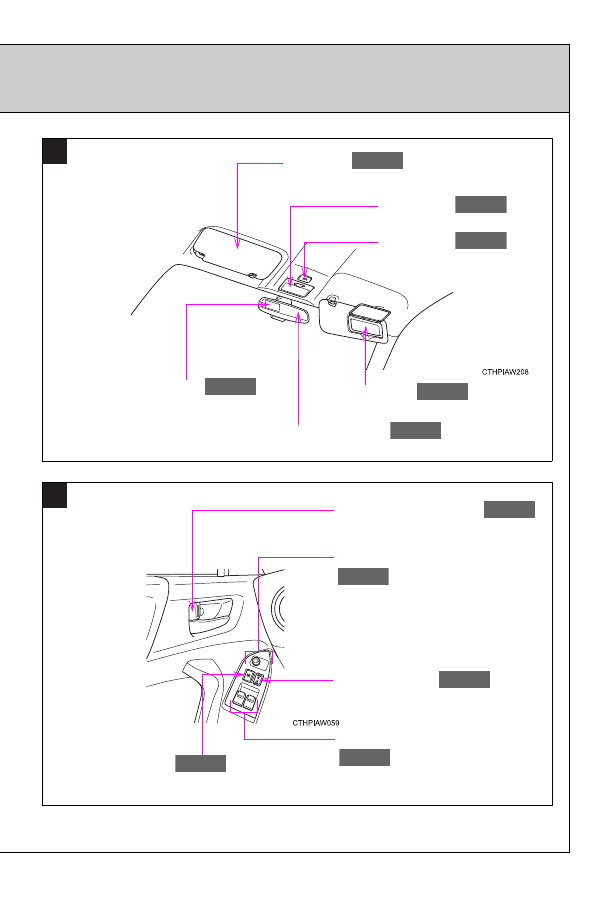

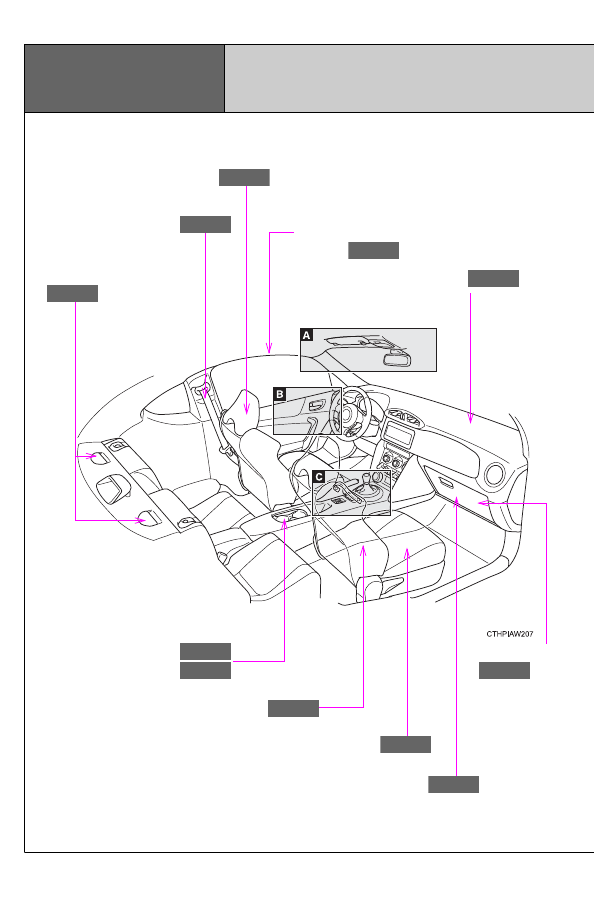

Interior

Power outlet

P. 299

Head restraints

P. 58

Seat belts

P. 60

SRS front passenger
airbag

P. 89

Cup holders

Console tray

SRS side airbags

Front seats

Glove box

SRS curtain shield
airbags

P. 89

Child restraint
anchor brackets

P. 141

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Anti-glare inside rear view mirror

Interior light

Vanity mirrors

Sun visors

Inside door lock buttons

P. 44

Outside rear view mirror switch

P. 69

Window lock switch

P. 72

Power window switches

Door lock switch

Microphone

Rear view monitor

-------------------------------------------------------------------------------------------------------------------------------------------------------------



: If equipped

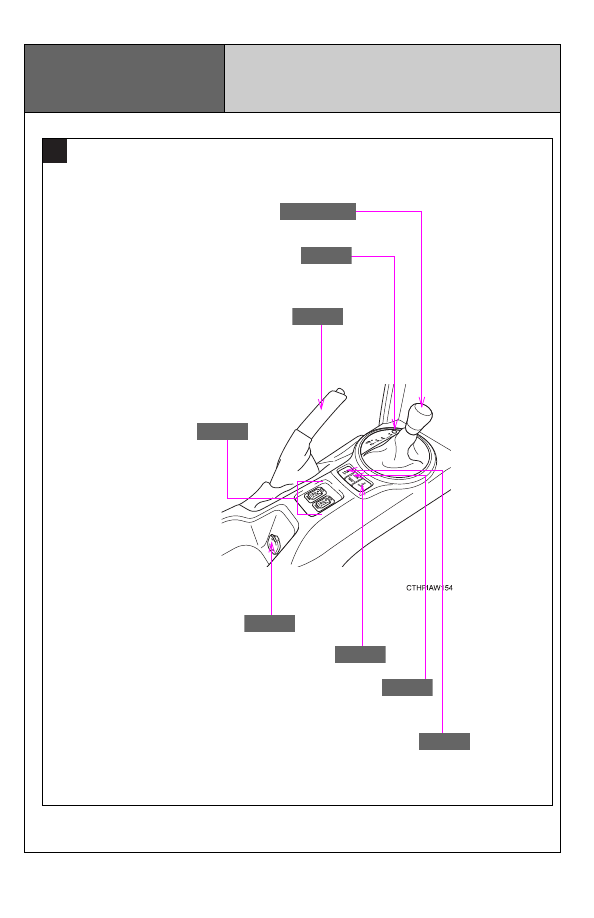

Shift lever

Parking brake lever

VSC/TRAC off switch

“TRACK” switch

Power outlet

Shift lock override button



P. 439

Driving pattern selector switch



P. 180

Pictorial index

Interior

Seat heater switches



P. 301

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Headlight switch

Turn signal lever

Fog light switch



P. 222
P. 188
P. 228

Gauges and meters

Multi-information display

P. 191

P. 200, 207

Clock

P. 298

Windshield wiper and washer switch

P. 229

Emergency flasher
switch

P. 384

Tilt and telescopic steering
lock release lever

P. 67

Floor mat

P. 303

Hood lock release lever

P. 327

Fuel filler door opener

P. 75

AUX port
USB port

P. 286
P. 286

Pictorial index

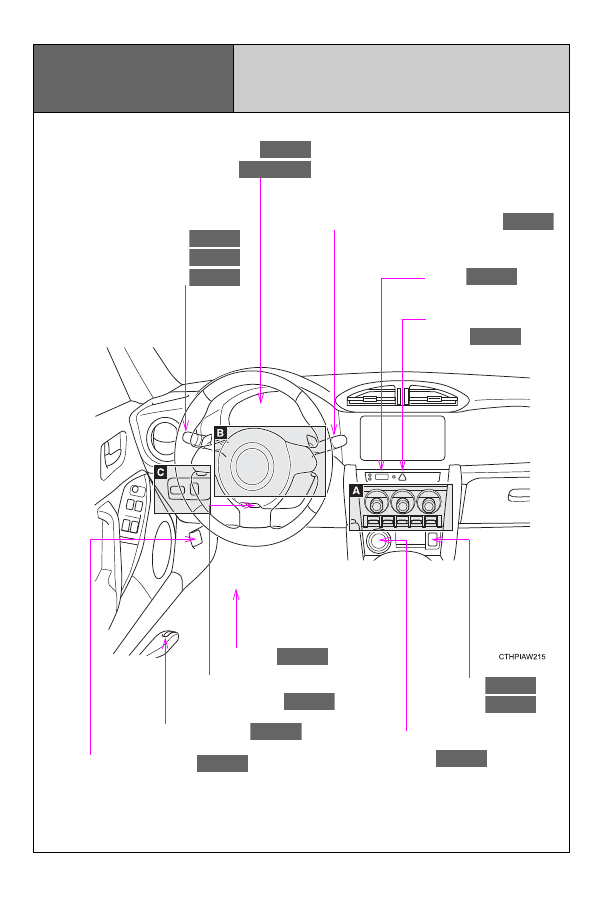

Instrument panel

Engine (ignition) switch (vehicles with a
smart key system)

P. 166



: If equipped

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Air conditioning
system

P. 268

Rear window and outside rear view mirror defoggers
switch



/rear window defogger switch



P. 284

Pictorial index

Instrument panel

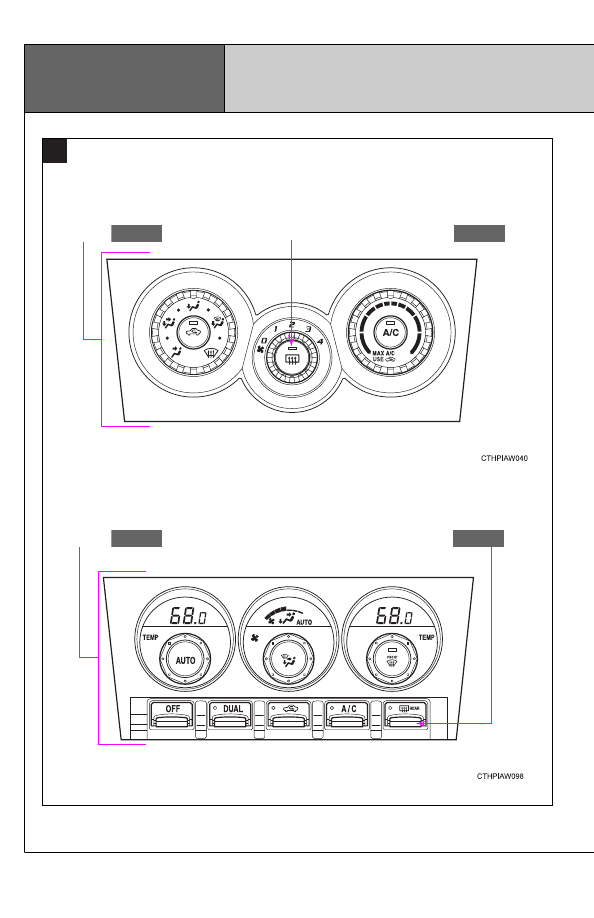

Vehicles with a manual air conditioning system

Vehicles with an automatic air conditioning system

Air conditioning
system

P. 275

Rear window and outside rear view mirror defoggers
switch



/rear window defogger switch



P. 284

-------------------------------------------------------------------------------------------------------------------------------------------------------------

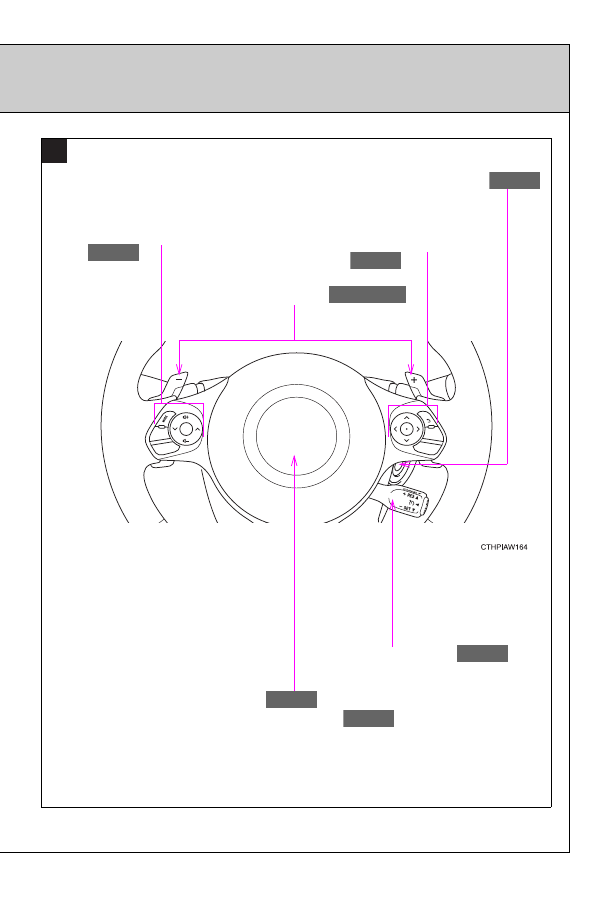

Paddle shift switches



P. 181, 183

Cruise control switch

P. 232

Horn
SRS driver airbag

P. 190

P. 89



: If equipped

Audio remote control switches

P. 287

Meter control switches



P. 208

Engine (ignition) switch (vehicles
without a smart key system)

P. 175

-------------------------------------------------------------------------------------------------------------------------------------------------------------

For your information

Main Owner’s Manual

Please note that this manual applies to all models and explains all equip-
ment, including options. Therefore, you may find some explanations for
equipment not installed on your vehicle.

All specifications provided in this manual are current at the time of printing.
However, because of the Toyota policy of continual product improvement, we
reserve the right to make changes at any time without notice.

Depending on specifications, the vehicle shown in the illustration may differ
from your vehicle in terms of color and equipment.

Noise from under vehicle after turning off the engine

Approximately five to ten hours after the engine is turned off, you may hear
sound coming from under the vehicle for several minutes. This is the sound
of a fuel evaporation leakage check and, it does not indicate a malfunction.

Accessories, spare parts and modification of your Toyota

A wide variety of non-genuine spare parts and accessories for Toyota vehi-
cles are currently available in the market. You should know that Toyota does
not warrant these products and is not responsible for their performance,
repair, or replacement, or for any damage they may cause to, or adverse
effect they may have on, your Toyota vehicle.

This vehicle should not be modified with non-genuine Toyota products. Mod-
ification with non-genuine Toyota products could affect its performance,
safety or durability, and may even violate governmental regulations. In addi-
tion, damage or performance problems resulting from the modification may
not be covered under warranty.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Installation of a mobile two-way radio system

The installation of a mobile two-way radio system in your vehicle could affect
electronic systems such as:

●

Multiport fuel injection system/sequential multiport fuel injection system

●

Cruise control system

●

Anti-lock brake system

●

SRS airbag system

●

Seat belt pretensioner system

Be sure to check with your Toyota dealer for precautionary measures or spe-
cial instructions regarding installation of a mobile two-way radio system.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vehicle data recordings

Your Toyota is equipped with several sophisticated computers that will record
certain data, such as:

• Accelerator status
• Brake status
• Vehicle speed
The recorded data varies according to the vehicle grade level and options
with which it is equipped. These computers do not record conversations or
sounds, and only record images outside of the vehicle in certain situations.

●

Data Transmission

Your vehicle may transmit the data recorded in these computers to Toyota
without notification to you.

●

Data usage

Toyota may use the data recorded in these computers to diagnose malfunc-
tions, conduct research and development, and improve quality.

Toyota will not disclose the recorded data to a third party except:

• With the consent of the vehicle owner or with the consent of the lessee if

the vehicle is leased

• In response to an official request by the police, a court of law or a govern-

ment agency

• For use by Toyota in a lawsuit
• For research purposes where the data is not tied to a specific vehicle or

vehicle owner

●

To learn more about the vehicle data collected, used and shared by
Toyota, please visit www.toyota.com/privacyvts/.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Event data recorder

This vehicle is equipped with an event data recorder (EDR). The main pur-
pose of an EDR is to record, in certain crash or near crash-like situations,
such as an air bag deployment or hitting a road obstacle, data that will assist
in understanding how a vehicle’s systems performed. The EDR is designed
to record data related to vehicle dynamics and safety systems for a short
period of time, typically 30 seconds or less.

The EDR in this vehicle is designed to record such data as:

• How various systems in your vehicle were operating;
• Whether or not the driver and passenger safety belts were buckled/fas-

tened;

• How far (if at all) the driver was depressing the accelerator and/or brake

pedal; and,

• How fast the vehicle was traveling.
These data can help provide a better understanding of the circumstances in
which crashes and injuries occur.

NOTE: EDR data are recorded by your vehicle only if a non-trivial crash situ-
ation occurs; no data are recorded by the EDR under normal driving condi-
tions and no personal data (e.g., name, gender, age, and crash location) are
recorded. However, other parties, such as law enforcement, could combine
the EDR data with the type of personally identifying data routinely acquired
during a crash investigation.
To read data recorded by an EDR, special equipment is required, and access
to the vehicle or the EDR is needed. In addition to the vehicle manufacturer,
other parties, such as law enforcement, that have the special equipment, can
read the information if they have access to the vehicle or the EDR.

●

Disclosure of the EDR data

Toyota will not disclose the data recorded in an EDR to a third party except
when:
• An agreement from the vehicle’s owner (or the lessee for a leased vehicle)

is obtained

• In response to an official request by the police, a court of law or a govern-

ment agency

• For use by Toyota in a lawsuit
However, if necessary, Toyota may:
• Use the data for research on vehicle safety performance
• Disclose the data to a third party for research purposes without disclosing

information about the specific vehicle or vehicle owner

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Scrapping of your Toyota

The SRS airbag and seat belt pretensioner devices in your Toyota contain
explosive chemicals. If the vehicle is scrapped with the airbags and seat belt
pretensioners left as they are, this may cause an accident such as fire. Be
sure to have the systems of the SRS airbag and seat belt pretensioner
removed and disposed of by a qualified service shop or by your Toyota
dealer before you scrap your vehicle.

Perchlorate Material

Special handling may apply, See www.dtsc.ca.gov/hazardouswaste/perchlorate.

Your vehicle has components that may contain perchlorate. These
components may include airbag, seat belt pretensioners, and wireless
remote control batteries.

WARNING

■

General precautions while driving

Driving under the influence: Never drive your vehicle when under the influ-
ence of alcohol or drugs that have impaired your ability to operate your vehi-
cle. Alcohol and certain drugs delay reaction time, impair judgment and
reduce coordination, which could lead to an accident that could result in
death or serious injury.

Defensive driving: Always drive defensively. Anticipate mistakes that other
drivers or pedestrians might make and be ready to avoid accidents.

Driver distraction: Always give your full attention to driving. Anything that dis-
tracts the driver, such as adjusting controls, talking on a cellular phone or
reading can result in a collision with resulting death or serious injury to you,
your occupants or others.

■

General precaution regarding children’s safety

Never leave children unattended in the vehicle, and never allow children to
have or use the key.

Children may be able to start the vehicle or shift the vehicle into neutral.
There is also a danger that children may injure themselves by playing with
the windows or other features of the vehicle. In addition, heat build-up or
extremely cold temperatures inside the vehicle can be fatal to children.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

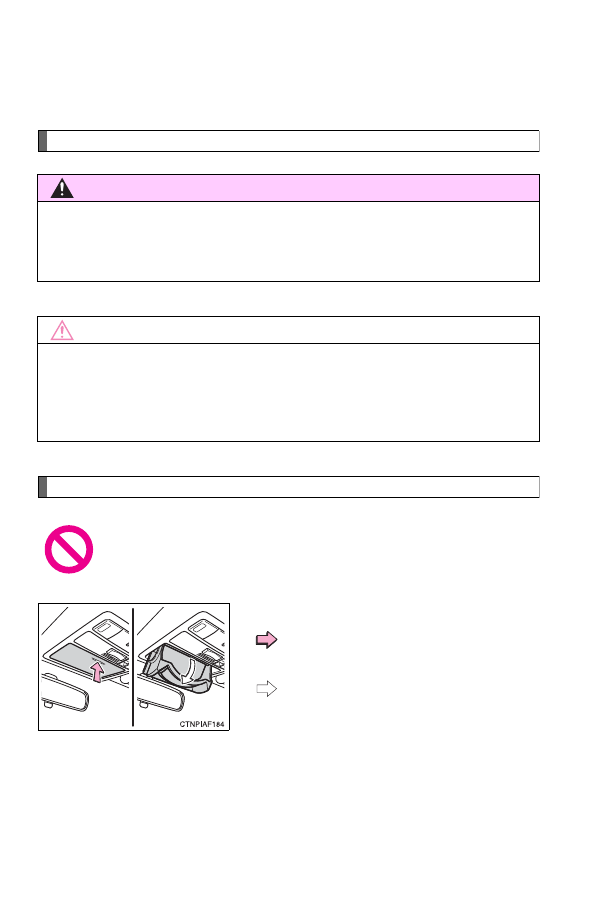

Symbols used throughout this manual

Cautions & Notices

Symbols used in illustrations

WARNING

This is a warning against something which, if ignored, may cause death or
serious injury to people. You are informed about what you must or must not do
in order to reduce the risk of death or serious injury to yourself and others.

NOTICE

This is a warning against something which, if ignored, may cause damage to
the vehicle or its equipment. You are informed about what you must or must
not do in order to avoid or reduce the risk of damage to your Toyota and its
equipment.

Safety symbol

The symbol of a circle with a slash through it means “Do not”, “Do
not do this”, or “Do not let this happen.”

Arrows indicating operations

Indicates the action (pushing, turning,

etc.) used to operate switches and

other devices.
Indicates the outcome of an operation

(e.g. a lid opens).

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-1. Key information

Keys

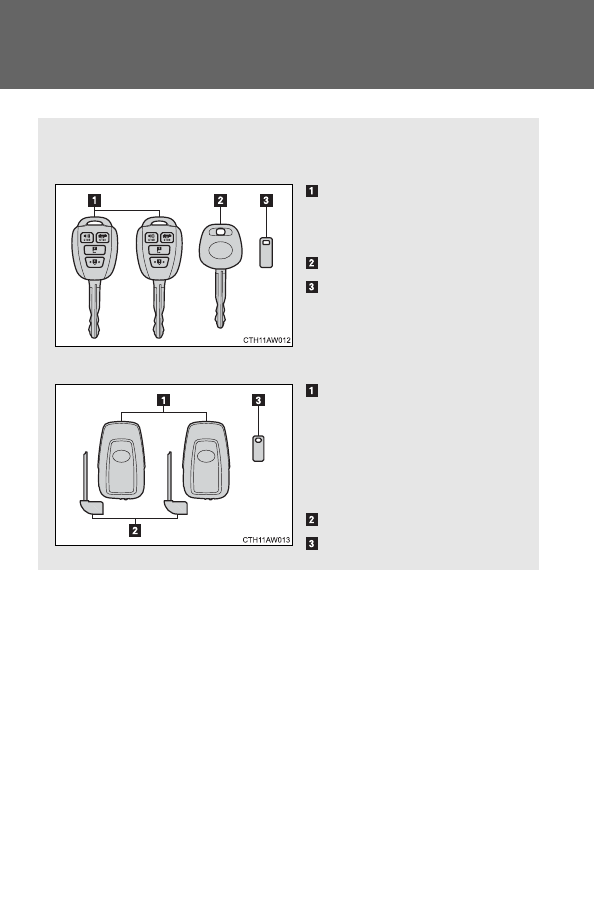

The following keys are provided with the vehicle.

Vehicles without a smart key system

Master keys

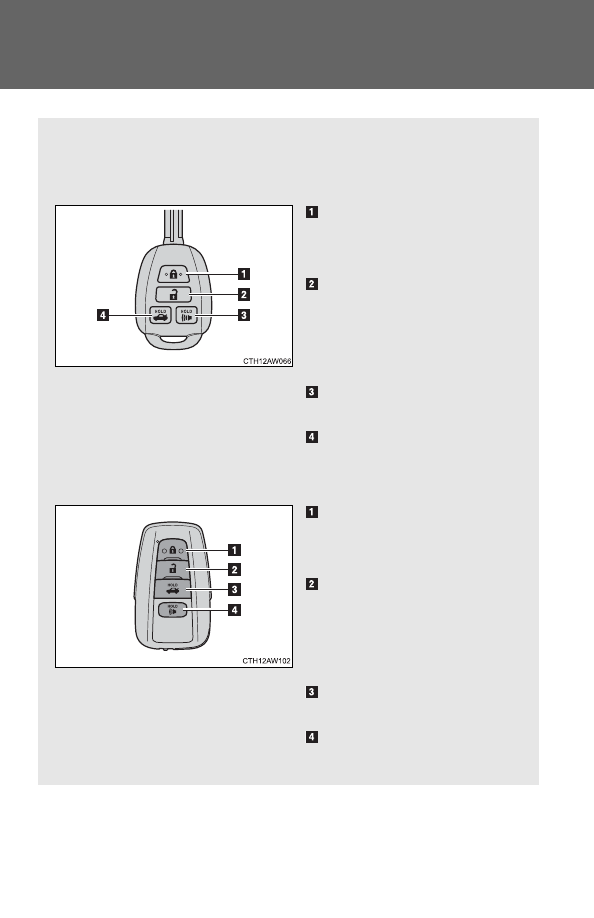

Operating the wireless remote
control function (



P. 38)

Valet key
Key number plate

Vehicles with a smart key system

Electronic keys

• Operating the smart key

system (



P. 25)

• Operating

the

wireless

remote control function
(

P. 38)

Mechanical keys
Key number plate

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-1. Key information

Before driving

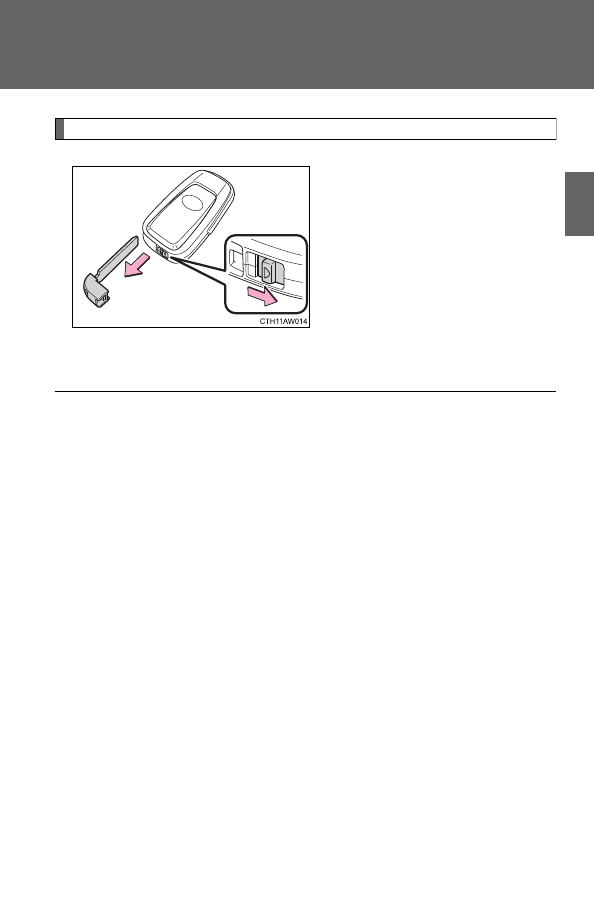

Using the mechanical key (vehicles with a smart key system)

To take out the mechanical key,
slide the release lever and take
the key out.

After  using  the  mechanical  key,
store it in the electronic key. Carry
the mechanical key together with
the electronic key. If the electronic
key  battery  is  depleted  or  entry
function  does  not  operate  prop-
erly, you will need the mechanical
key. (

■

When required to leave the vehicle’s key with a parking attendant

Turn the trunk opener main switch off as circumstances demand. (



P. 47)

On vehicles without a smart key system, provide the attendant with the valet
key.
On vehicles with a smart key system, remove the mechanical key for your
own use and provide the attendant with the electronic key only.

■

Key number plate

Keep the plate in a safe place, not in the vehicle. In the event that a key
(without a smart key system) or mechanical key (with a smart key system) is
lost, a new key can be made at your Toyota dealer using the key number
plate. (

P. 440)

■

When riding in an aircraft

When bringing a key with wireless remote control function onto an aircraft,
make sure you do not press any buttons on the key while inside the aircraft
cabin. If you are carrying the key in your bag etc., ensure that the buttons
are not likely to be pressed accidentally. Pressing a button may cause the
key to emit radio waves that could interfere with the operation of the aircraft.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-1. Key information

NOTICE

■

To prevent key damage

Observe the following:

●

Do not drop the keys, subject them to strong shocks or bend them.

●

Do not expose the keys to high temperatures for a long period of time.

●

Do not get the keys wet or wash them in an ultrasonic washer etc.

●

Do not attach metallic or magnetic materials to the keys or place the keys
close to such materials.

●

Do not disassemble the keys.

●

Do not attach a sticker or anything else to the surface of the key.

●

Vehicles with a smart key system: Do not place the keys near objects that
produce magnetic fields, such as TVs, audio systems, induction cookers,
or medical electrical equipment, such as low-frequency therapy equip-
ment.

■

Carrying the electronic key on your person (vehicles with a smart key
system)

Carry the electronic key 3.9 in. (10 cm) or more away from electric appli-
ances that are turned on. Radio waves emitted from electric appliances
within 3.9 in. (10 cm) of the electronic key may interfere with the key, causing
the key to not function properly.

■

In case of a smart key system malfunction or other key-related prob-
lems (vehicles with a smart key system)

Take your vehicle with all the electronic keys provided with your vehicle to
your Toyota dealer.

■

When a vehicle key is lost

If the key remains lost, the risk of vehicle theft increases significantly. Visit
your Toyota dealer immediately with all remaining keys that were provided
with your vehicle.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Before driving

1-2. Opening, closing and locking the doors and trunk

Smart key system (vehicles with a smart key system)

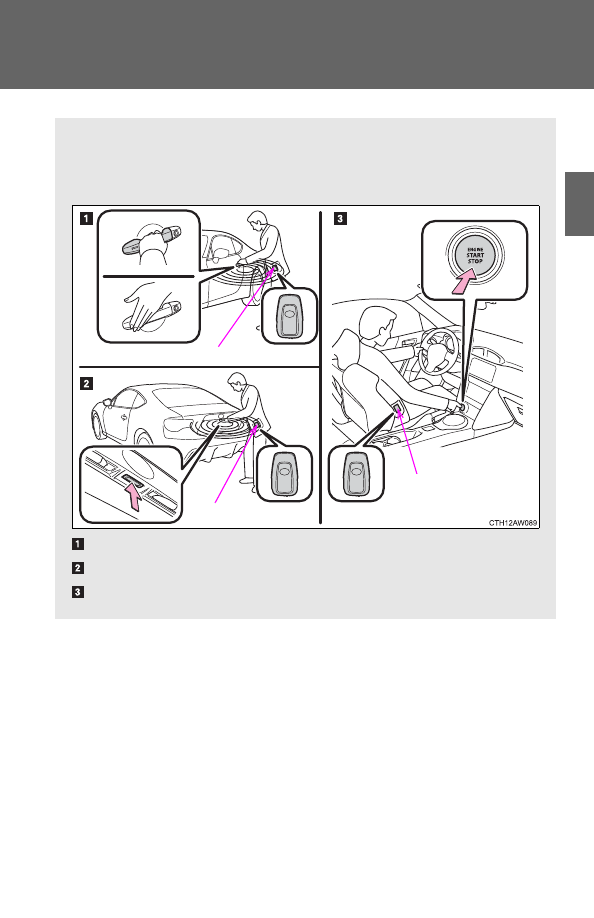

The following operations can be performed simply by carrying the
electronic key on your person, for example in your pocket.
(The driver should always carry the electronic key.)

Unlocks and locks the doors (



P. 26)

Unlocks the trunk (



P. 27)

Starts the engine (

P. 166)

Electronic key

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-2. Opening, closing and locking the doors and trunk

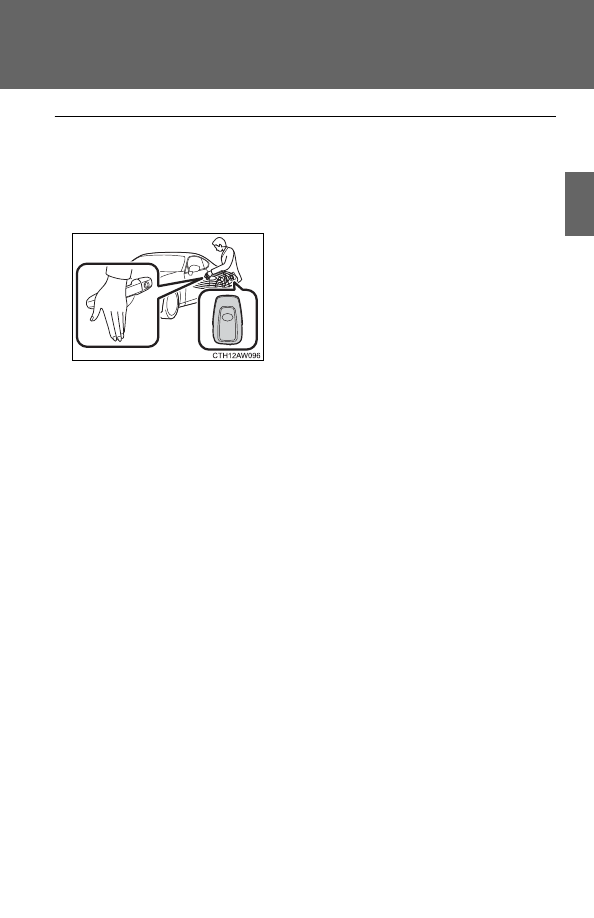

Unlocking and locking the doors

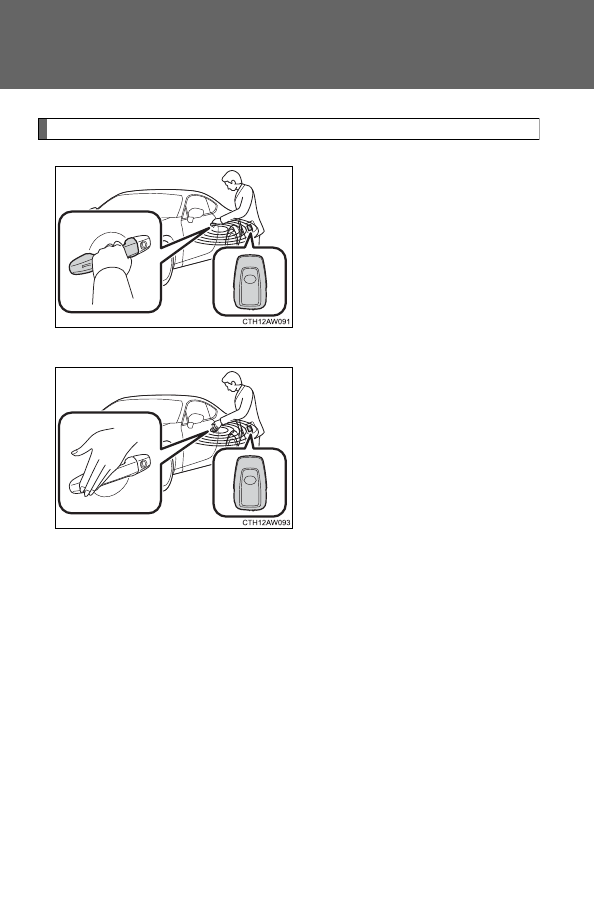

Grip the driver’s door handle to
unlock the door. Grip the passen-
ger’s door handle to unlock all
the doors.

Make sure to touch the sensor on
the back of the handle.

The door cannot be unlocked for
3 seconds after the door is
locked.

Touch the lock sensor (the
indentation on the side of the
door handle) to lock the doors.

Check that the door is securely
locked.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-2. Opening, closing and locking the doors and trunk

Before driving

Unlocking the trunk

Press the button to unlock the
trunk.

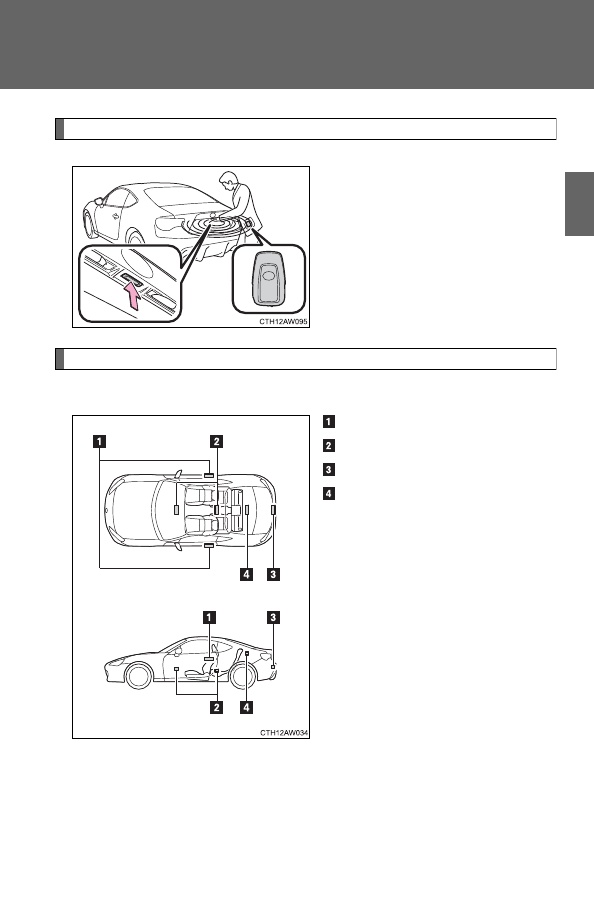

Antenna location and effective range

■

Antenna location

Antennas outside the cabin
Antennas inside the cabin
Antenna outside the trunk
Antenna inside the trunk

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-2. Opening, closing and locking the doors and trunk

■

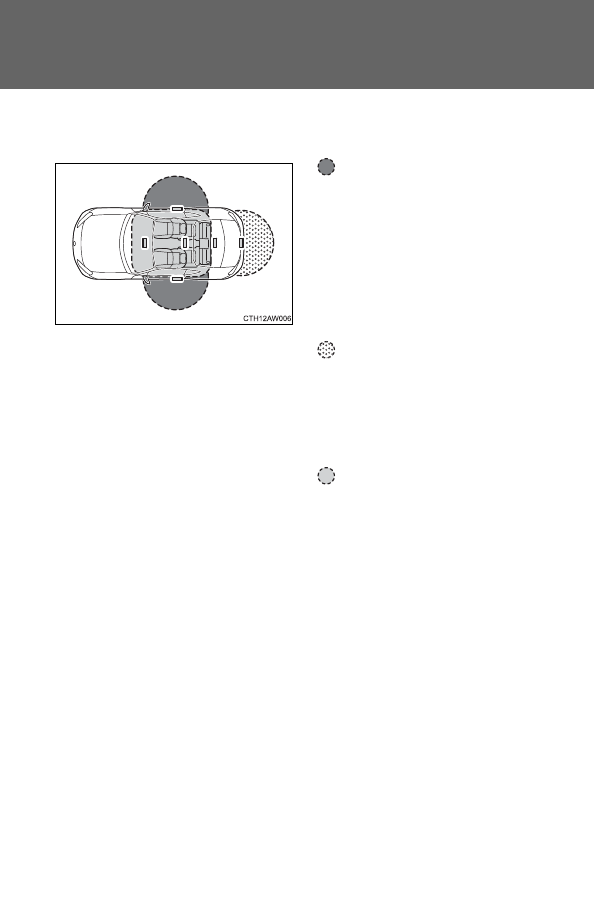

Effective range (areas within which the electronic key is
detected)

When locking or unlocking
the doors

The system can be operated
when  the  electronic  key  is
within about 1.3 - 2.6 ft. (0.4 -
0.8 m) of either of the outside
door  handles.  (Only  the
doors  detecting  the  key  can
be operated.)

When unlocking the trunk

The system can be operated
when the electronic key is
within about 1.3 - 2.6 ft. (0.4 -
0.8 m) of the trunk release
button.

When  starting  the  engine
or  changing  “ENGINE
START  STOP”  switch
modes

The system can be operated
when the electronic key is
inside the vehicle.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-2. Opening, closing and locking the doors and trunk

Before driving

■

Operation signals

A buzzer sounds and the emergency flashers flash to indicate that the doors
have been locked/unlocked. (Locked: once; Unlocked: twice)

■

When the door cannot be locked by the lock sensor

■

Door lock buzzer

If an attempt to lock the doors is made when a door is not fully closed, a
buzzer sounds continuously. Fully close the door to stop the buzzer, and lock
the vehicle once more.

■

Alarms and warning indicators

A combination of exterior and interior alarms as well as warning messages
shown on the multi-information display are used to prevent theft of the vehi-
cle and accidents resulting from erroneous operation. Take appropriate mea-
sures in response to any warning message on the multi-information display.
(

P. 410, 414)

The following table describes circumstances and correction procedures
when only alarms are sounded.

Use your palm to touch the lock sensor.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-2. Opening, closing and locking the doors and trunk

■

Security feature

If a door is not opened within approximately 60 seconds after the vehicle is
unlocked, the security feature automatically locks the vehicle again. (How-
ever, depending on the location of the electronic key, the key may be
detected as being in the vehicle. In this case, the vehicle may be unlocked.)

■

Battery-saving function

The battery-saving function will be activated in order to prevent the elec-
tronic key battery and the vehicle battery from being discharged while the
vehicle is not in operation for a long time.

●

In the following situations, the smart key system may take some time to
unlock the doors.

• The electronic key has been left in an area of approximately 6 ft. (2 m)

of the outside of the vehicle for 10 minutes or longer.

• The smart key system has not been used for 5 days or longer.

●

If the smart key system has not been used for 14 days or longer, the
doors cannot be unlocked at any door except the driver’s door.
In this case, take hold of the driver’s door handle, or use the wireless
remote control or the mechanical key, to unlock the doors.

Alarm

Situation

Correction procedure

Exterior alarm
sounds once for
5 seconds

An attempt was made to
lock the vehicle while a
door was open.

Close all of the doors
and lock the doors
again.

Interior alarm
sounds continu-
ously

The “ENGINE START
STOP” switch was turned
to ACCESSORY mode
while the driver’s door was
open (or the driver’s door
was opened while the
“ENGINE START STOP”
switch was in ACCES-
SORY mode).

Turn the “ENGINE
START STOP” switch
off and close the
driver’s door.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-2. Opening, closing and locking the doors and trunk

Before driving

■

Conditions affecting operation

The  smart key  system uses weak  radio waves. In  the following situations,
the  communication  between  the  electronic  key  and  the  vehicle  may  be
affected,  preventing  the  smart  key  system,  wireless  remote  control  and
engine immobilizer system from operating properly.
(Way of coping

●

When the electronic key battery is depleted

●

Near a TV tower, electric power plant, gas station, radio station, large dis-
play, airport or other facility that generates strong radio waves or electri-
cal noise

●

When the electronic key is in contact with, or is covered by the following
metallic objects

• Cards to which aluminum foil is attached
• Cigarette boxes that have aluminum foil inside
• Metallic wallets or bags
• Coins
• Hand warmers made of metal
• Media such as CDs and DVDs

●

When other wireless keys (that emit radio waves) are being used nearby

●

When carrying the electronic key together with the following devices that
emit radio waves

• A portable radio, cellular phone, cordless phone or other wireless com-

munication device

• Another vehicle's electronic key or a wireless key that emits radio

waves

• Personal computers or personal digital assistants (PDAs)
• Digital audio players
• Portable game systems

●

If window tint with a metallic content or metallic objects are attached to
the rear window

●

When the electronic key is placed near a battery charger or electronic
devices

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-2. Opening, closing and locking the doors and trunk

■

Notes for the entry function

●

Even when the electronic key is within the effective range (detection
areas), the system may not operate properly in the following cases:

• The electronic key is too close to the window or outside door handle,

near the ground, or in a high place when the doors are locked or
unlocked.

• The electronic key is near the ground or in a high place, or too close to

the rear bumper center when the trunk is unlocked.

• The electronic key is on the instrument panel, rear shelf or floor, in the

door pockets or glove box, auxiliary box when the engine is started or
“ENGINE START STOP” switch modes are changed.

●

Do not leave the electronic key on top of the instrument panel or near the
door pockets when exiting the vehicle. Depending on the radio wave
reception conditions, it may be detected by the antenna outside the cabin
and the door will become lockable from the outside, possibly trapping the
electronic key inside the vehicle.

●

As long as the electronic key is within the effective range, the doors may
be locked or unlocked by anyone.

●

Even if the electronic key is not inside the vehicle, it may be possible to
start the engine if the electronic key is near the window.

●

The doors may unlock if a large amount of water splashes on the door
handle, such as in the rain or in a car wash when the electronic key is
within the effective range. (The door will automatically be locked after
approximately 60 seconds if the doors are not opened and closed.)

●

Gripping the door handle when wearing a glove may not unlock the door.

●

If the wireless remote control is used to lock the doors when the elec-
tronic key is near the vehicle, there is a possibility that the door may not
be unlocked by the entry function. (Use the wireless remote control to
unlock the doors.)

●

A sudden approach to the effective range or door handle may prevent the
doors from being unlocked. In this case, return the door handle to the
original position and check that the doors unlock before pulling the door
handle again.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-2. Opening, closing and locking the doors and trunk

Before driving

■

Notes for locking the doors

●

Touching the door lock sensor while wearing gloves may delay or prevent
lock operation. Remove the gloves and touch the lock sensor again.

●

When the lock operation is performed using the lock sensor, recognition
signals will be shown up to two consecutive times. After this, no recogni-
tion signals will be given.

●

If the door handle becomes wet when washing the vehicle while the elec-
tronic key is within the effective range, the door may lock and unlock
repeatedly. In this case, place the electronic key in a location 6 ft. (2 m) or
more away from the vehicle (take care to ensure that the key is not sto-
len), and continue to wash the vehicle.

●

If the electronic key is inside the vehicle and a door handle becomes wet
during a car wash, a buzzer will sound outside the vehicle. To turn off the
alarm, lock all the doors.

●

The lock sensor may not work properly if it comes into contact with ice,
snow, mud, etc. Clean the lock sensor and attempt to operate it again.

■

Notes for the unlocking function

●

Gripping the door handle when wearing a glove may not unlock the door.
Remove the gloves and touch the sensor on the back of the handle
again.

●

If there is another electronic key in the detection area, it may take slightly
longer to unlock the doors after the door handle is gripped.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-2. Opening, closing and locking the doors and trunk

■

When the vehicle is not driven for extended periods

●

To prevent theft of the vehicle, do not leave the electronic key within 6 ft.
(2 m) of the vehicle.

●

The smart key system can be deactivated in advance. (



P. 487)

■

Alarm

Using the smart key system to lock the doors will set the alarm system.
(

P. 82)

■

To operate the system properly

●

Make sure to carry the electronic key when operating the system. Do not
get the electronic key too close to the vehicle when operating the system
from the outside of the vehicle.

Depending on the position and holding condition of the electronic key, the
key may not be detected correctly and the system may not operate prop-
erly. (The alarm may go off accidentally, or the door lock prevention func-
tion may not operate.)

●

Do not leave the electronic key inside the trunk.
The key confinement prevention function may not operate, depending on
the location of the key (close to a spare tire, the inside edge of the trunk),
conditions (inside a metal bag, close to metallic objects) and the radio
waves in the surrounding area. (



P. 48)

■

If the smart key system does not operate properly

●

Locking and unlocking the doors, unlocking the trunk: Use the mechani-
cal key. (

●

Starting the engine:



P. 442

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-2. Opening, closing and locking the doors and trunk

Before driving

■

Electronic key battery depletion

●

The standard battery life is 1 to 2 years.

●

If the battery charge becomes low, a buzzer will sound in the cabin and a
message will be displayed on the multi-information display when the
engine is stopped. (



P. 414)

●

As  the  electronic  key  always  receives  radio  waves,  the  battery  will
become  depleted  even  if  the  electronic  key  is  not  used.  The  following
symptoms  indicate  that  the  electronic  key  battery  may  be  depleted.
Replace the battery when necessary. (

P. 363)

• The smart key system or the wireless remote control does not operate.
• The detection area becomes smaller.
• The LED indicator on the key surface does not turn on.

●

To avoid serious deterioration, do not leave the electronic key close to
any of the following electrical appliances that produce a magnetic field:

• TVs
• Personal computers
• Cellular phones, cordless phones and battery chargers
• Recharging cellular phones or cordless phones
• Induction cookers
• Table lamps

■

When the electronic key battery is fully depleted



P. 363

■

If the smart key system has been deactivated in a customized setting

●

Locking and unlocking the doors, unlocking the trunk: Use the wireless
remote control or mechanical key. (



P. 38, 441)

●

Starting the engine and changing “ENGINE START STOP” switch
modes:

P. 442

●

Stopping the engine:

P. 444

■

Customization that can be configured at Toyota dealer

Settings (e.g. smart key system) can be changed.
(Customizable features:

P. 487)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-2. Opening, closing and locking the doors and trunk

■

Certification for smart key system

For vehicles sold in the U.S.A.

FCC ID: HYQ23AAE

FCC ID: HYQ14AHP

FCC ID: Y8PSSPLF03

NOTE:
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful interfer-
ence, and (2) this device must accept any interference received, including
interference that may cause undesired operation.

FCC WARNING:
Changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.

For vehicles sold in Canada

NOTE:
This device complies with Industry Canada’s licence-exempt RSSs. Opera-
tion is subject to the following two conditions: (1) This device may not cause
interference; and (2) This device must accept any interference, including
interference that may cause undesired operation of the device.

NOTE:
Le présent appareil est conforme aux CNR d’Industrie Canada applicables
aux appareils radio exempts de licence. L’exploitation est autorisée aux
deux conditions suivantes: (1) l’appareil ne doit pas produire de brouillage;
(2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi,
même si le brouillage est susceptible d’en compromettre le fonctionnement.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-2. Opening, closing and locking the doors and trunk

Before driving

WARNING

■

Caution regarding interference with electronic devices

●

People with implantable cardiac pacemakers, cardiac resynchronization
therapy-pacemakers or implantable cardioverter defibrillators should main-
tain a reasonable distance between themselves and the smart key system
antennas. (



P. 27)

The radio waves may affect the operation of such devices. If necessary,
the entry function can be disabled. Ask your Toyota dealer for details, such
as the frequency of radio waves and timing of the emitted radio waves.
Then, consult your doctor to see if you should disable the entry function.

●

User of any electrical medical device other than implantable cardiac pace-
makers, cardiac resynchronization therapy-pacemakers or implantable
cardioverter defibrillators should consult the manufacturer of the device for
information about its operation under the influence of radio waves.
Radio waves could have unexpected effects on the operation of such
medical devices.

Ask your Toyota dealer for details for disabling the entry function.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-2. Opening, closing and locking the doors and trunk

Wireless remote control

The wireless remote control can be used to lock and unlock the vehi-
cle.

Vehicles without a smart key system

Locks both side doors

Check that the door is securely
locked.

Unlocks both side doors

Pressing  the  button  unlocks
the  driver’s  door.  Pressing  the
button  again  within  3  seconds
unlocks the other doors.

Sounds the alarm
(press and hold)
Unlocks the trunk
(press and hold)

Vehicles with a smart key system

Locks both side doors

Check that the door is securely
locked.

Unlocks both side doors

Pressing  the  button  unlocks
the  driver’s  door.  Pressing  the
button  again  within  3  seconds
unlocks the other doors.

Unlocks the trunk
(press and hold)
Sounds the alarm
(press and hold)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-2. Opening, closing and locking the doors and trunk

Before driving

■

Operation signals

Doors:

A buzzer sounds and the emergency flashers flash to indicate that
the doors have been locked/unlocked. (Locked: once; Unlocked:
twice)

Trunk:

A buzzer sounds to indicate that the trunk has been unlocked.

■

Door lock buzzer (vehicles with a smart key system)

If an attempt to lock the doors is made when a door is not fully closed, a
buzzer sounds continuously. Fully close the door to stop the buzzer, and lock
the vehicle once more.

■

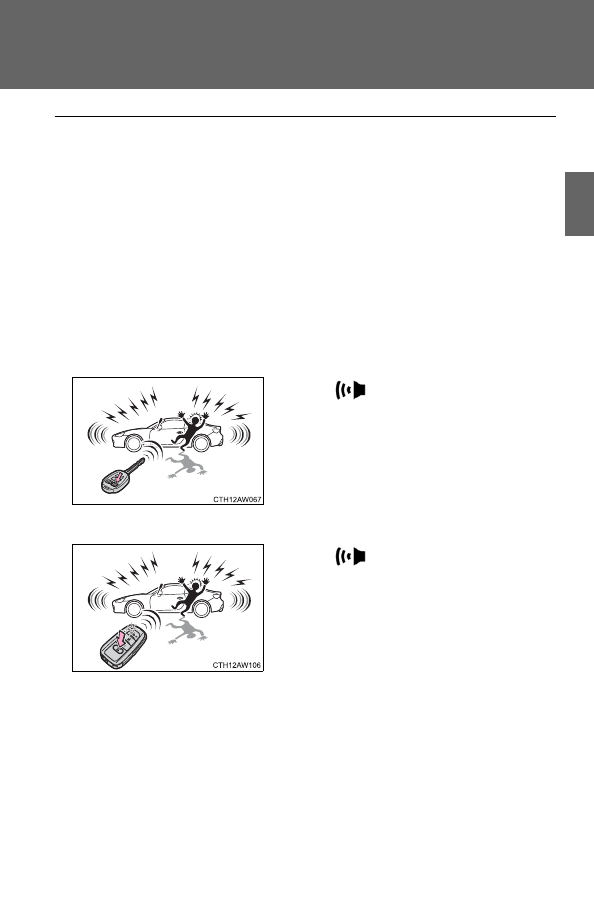

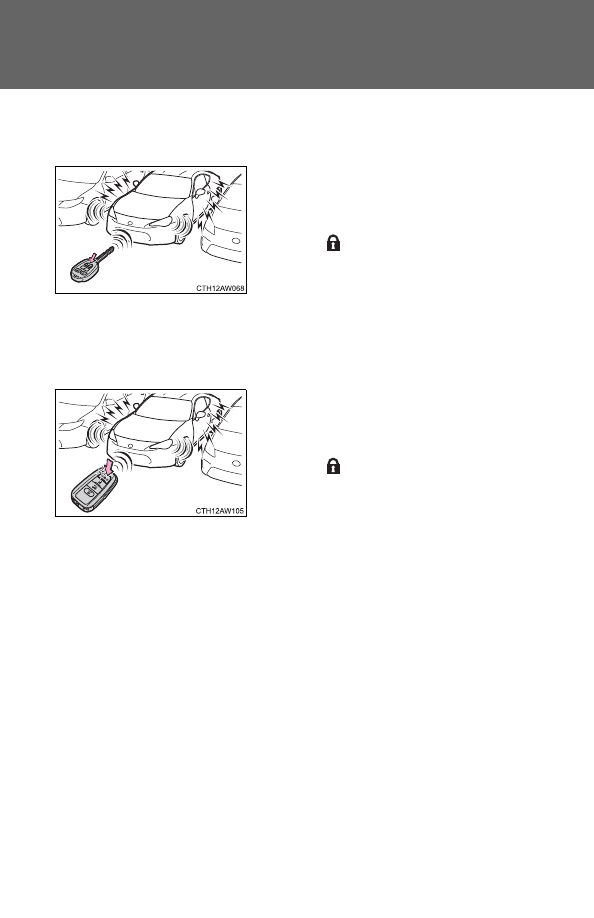

Panic mode

Vehicles without a smart key system

Vehicles with a smart key system

When

is pressed for longer than

about  one  second,  an  alarm  will  sound
intermittently  and  the  vehicle  lights  will
flash  to  deter  any  person  from  trying  to
break into or damage your vehicle.

To stop the alarm, press any button on
the wireless remote control.

When

is pressed for longer than

about  one  second,  an  alarm  will  sound
intermittently  and  the  vehicle  lights  will
flash  to  deter  any  person  from  trying  to
break into or damage your vehicle.

To stop the alarm, press any button on
the electronic key.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-2. Opening, closing and locking the doors and trunk

■

Vehicle finder function

Vehicles without a smart key system

Vehicles with a smart key system

When the function is set, a buzzer
(sounds once) and the emergency flash-
ers (flash 3 times) are used to inform the
driver of the vehicle’s location.
Press

3 times within 5 seconds

while  within  a  circumference  of  approxi-
mately 30 ft. (10 m) from of the vehicle.
However,  if  the  interval  between  the  3
presses is short, the  system may  not  be
activated.  This  setting  must  be  custom-
ized at your Toyota dealer.

When the function is set, a buzzer
(sounds once) and the emergency flash-
ers (flash 3 times) are used to inform the
driver of the vehicle’s location.
Press

3 times within 5 seconds

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-2. Opening, closing and locking the doors and trunk

Before driving

■

Security feature

If a door is not opened within approximately 60 seconds after the vehicle is
unlocked, the security feature automatically locks the vehicle again.

■

Alarm (vehicles with a smart key system)

Using the wireless remote control to lock the doors will set the alarm system.
(

P. 82)

■

Conditions affecting operation

Vehicles without a smart key system

The wireless remote control function may not operate normally in the follow-
ing situations:

●

When the wireless key battery is depleted

●

Near a TV tower, electric power plant, gas station, radio station, large dis-
play, airport or other facility that generates strong radio waves or electri-
cal noise

●

When carrying a portable radio, cellular phone or other wireless commu-
nication devices

●

When the wireless key is in contact with, or is covered by a metallic
object

●

When other wireless key (that emit radio waves) is being used nearby

●

If window tint with a metallic content or metallic objects are attached to
the rear window

Vehicles with a smart key system



P. 31

■

If the wireless remote control does not operate properly (vehicles with
a smart key system)

Locking and unlocking the doors, unlocking the trunk: Use the mechanical
key. (

■

Key battery depletion

Vehicles without a smart key system

If the wireless remote control function does not operate, the battery may be
depleted. Replace the battery when necessary. (

P. 363)

Vehicles with a smart key system



P. 35

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-2. Opening, closing and locking the doors and trunk

■

When the electronic key battery is fully depleted



P. 363

■

Confirmation of the registered key number (vehicles with a smart key
system)

The number of keys already registered to the vehicle can be confirmed. Ask
your Toyota dealer for details.

■

Customization that can be configured at your Toyota dealer

Settings (e.g. wireless remote control system) can be changed.
(Customizable features



P. 487)

■

Certification for wireless remote control

For vehicles sold in the U.S.A.

FCC ID: HYQ23AAC

FCC ID: HYQ12BEL

FCC WARNING:
Changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.

For vehicles sold in Canada

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-2. Opening, closing and locking the doors and trunk

Before driving

Doors

The vehicle can be locked and unlocked using the entry function,
wireless remote control, key or door lock switch.

■

Entry function (vehicles with a smart key system)

P. 26

■

Wireless remote control

P. 38

■

Key

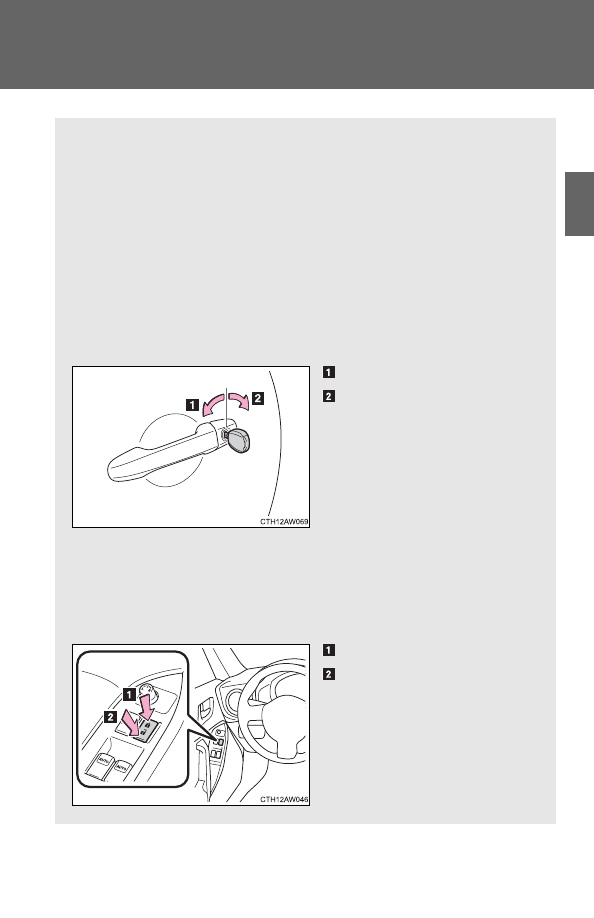

Turning the key operates the doors as follows:

Vehicles without a smart key system

Locks driver’s side door
Unlocks driver’s side door

Vehicles with a smart key system

The doors can also be locked and unlocked with the mechanical
key. (



■

Door lock switch

Locks both side doors
Unlocks both side doors

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-2. Opening, closing and locking the doors and trunk

Locking the doors from the outside without a key

Move the inside lock button to the lock position.
Close the door.

Vehicles with a smart key system

The door cannot be locked if the electronic key is left inside the vehi-
cle.

The key may not be detected correctly and the door may be locked.

■

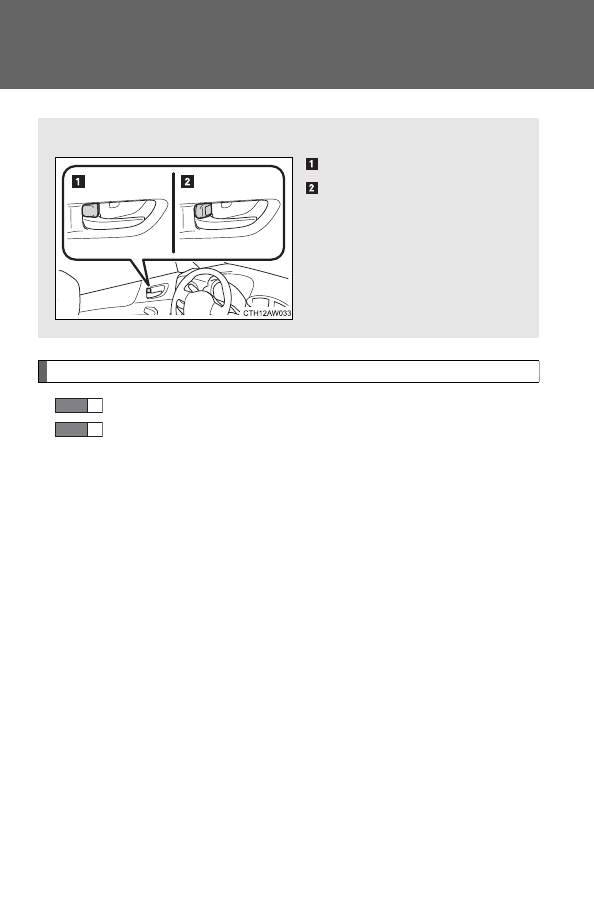

Inside lock button

Locks the door
Unlocks the door

STEP

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-2. Opening, closing and locking the doors and trunk

Before driving

■

Window open/close function linked to door operation

In order to make opening and closing the doors easier, completely closed
windows are linked to door operations. Therefore, when a door is opened, its
window opens slightly. When a door is closed, its window closes completely.

However, if the battery has discharged or is disconnected, this function will
not operate. (

P. 449)

■

If the smart key system has been deactivated in a customized setting
(vehicles with a smart key system)

Use the wireless remote control or mechanical key. (

P. 38, 441)

WARNING

■

To prevent an accident

Observe the following precautions while driving the vehicle.
Failure to do so may result in a door opening and an occupant falling out,
resulting in death or serious injury.

●

Always use a seat belt.

●

Always lock both side doors.

●

Ensure that both side doors are properly closed.

●

Do not pull the inside handle of the doors while driving.
The doors may be opened and the passengers are thrown out of the vehi-
cle and it may result in serious injury or death.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-2. Opening, closing and locking the doors and trunk

Trunk

The trunk can be opened using the key, trunk opener, entry function
or wireless remote control.

■

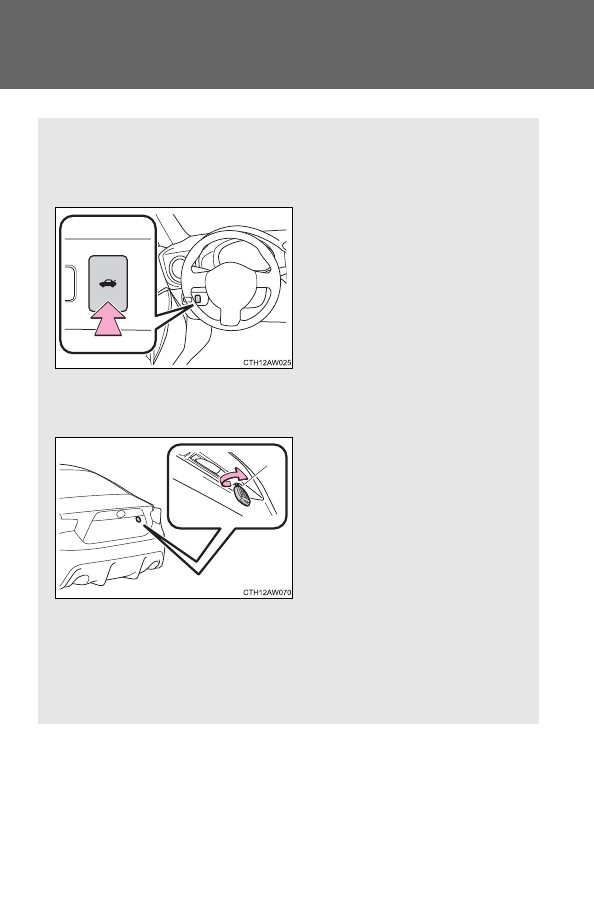

Opening the trunk from inside the vehicle

Press and hold the opener
switch to release the trunk lid.

■

Opening the trunk from outside the vehicle

Key (vehicles without a smart key system)

Turn the master key clockwise
to release the trunk lid.

Entry function (vehicles with a smart key system)

P. 27

Wireless remote control

P. 38

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-2. Opening, closing and locking the doors and trunk

Before driving

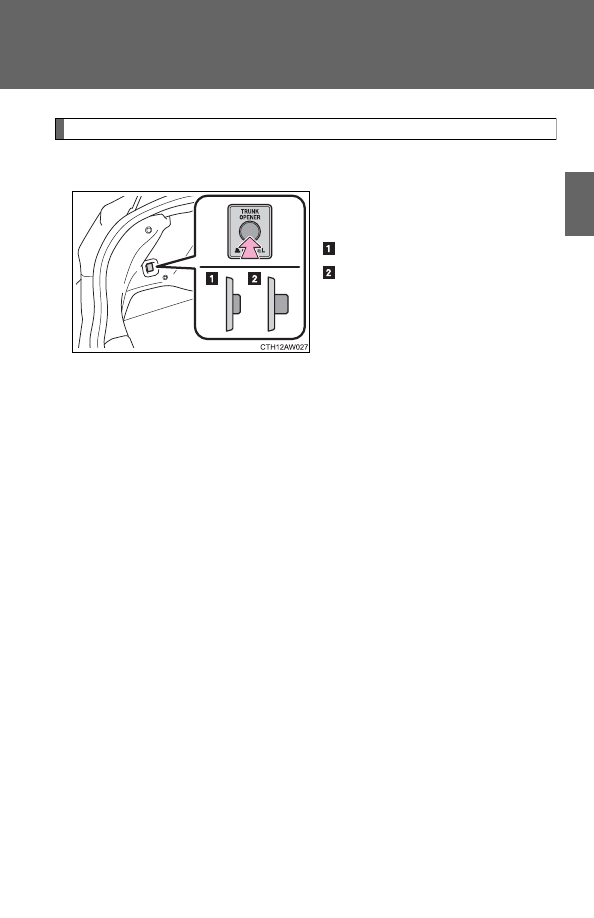

Canceling the trunk opener feature

To protect luggage stored in the trunk against theft, do the following:

Turn the main switch in the trunk
off to disable the trunk opener.

On
Off

Vehicles without a smart key sys-
tem:
The trunk lid can only be opened
with the master key.

Vehicles with a smart key system:
The trunk lid can only be opened
with the mechanical key.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-2. Opening, closing and locking the doors and trunk

■

Trunk light

The trunk light turns on when the trunk is opened.

■

Function to prevent the trunk being locked with the electronic key
inside (vehicles with a smart key system)

●

When all doors are being locked, closing the trunk lid with the electronic
key left inside the trunk will sound an alarm.
In this case, the trunk lid can be opened using the entry function.

●

Even when the spare electronic key is put in the trunk with all the doors
locked, the key confinement prevention function can be activated so the
trunk can be opened. In order to prevent theft, take all electronic keys
with you when leaving the vehicle.

●

Even when the electronic key is put in the trunk with all the doors are
locked, the key may not be detected depending on the places and the
surrounding radio wave conditions. In this case, the key confinement pre-
vention function cannot be activated, causing the doors to lock when the
trunk is closed. Make sure to check where the key is before closing the
trunk.

●

The key confinement prevention function cannot be activated if any one
of the doors is unlocked. In this case, open the trunk using the trunk
opener.

■

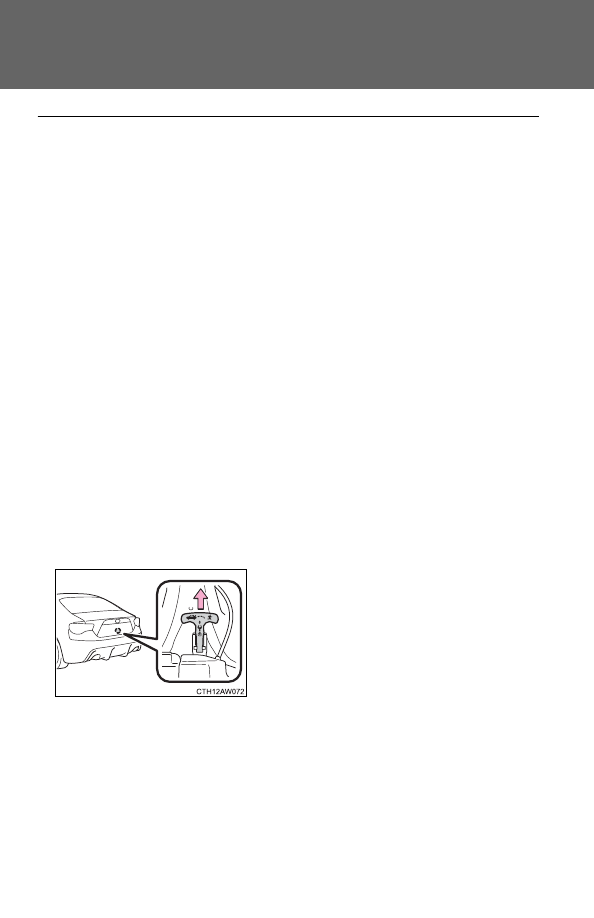

Internal trunk release lever

■

Using the mechanical key (vehicles with a smart key system)

The trunk can be also opened using the mechanical key. (

■

Which key to the vehicle is to leave with a parking attendant after dis-
abling the trunk opener main switch



P. 23

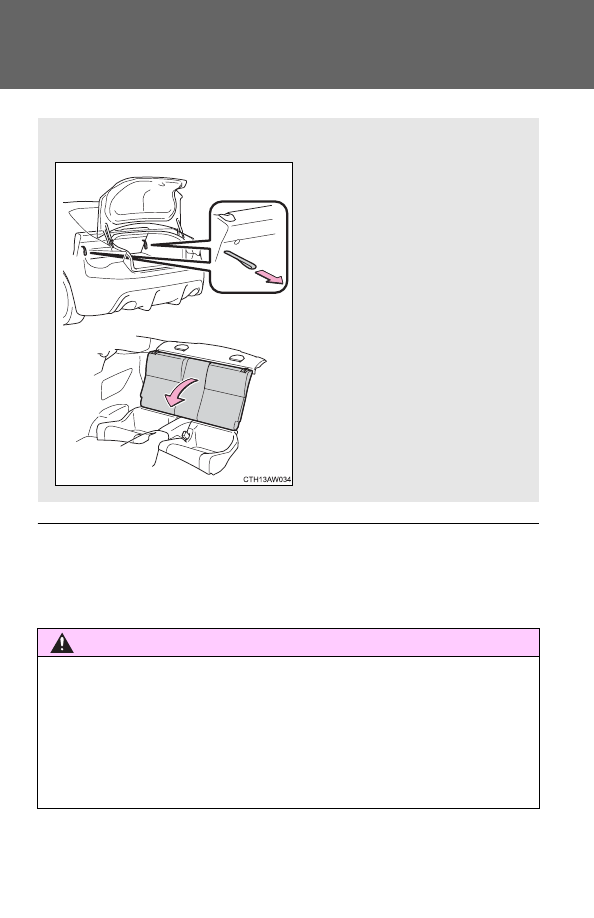

The trunk lid can be opened by pulling on
the glow-in-the-dark lever located on the
inside of the trunk lid.

The lever will continue to glow for some
time after the trunk lid is closed.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-2. Opening, closing and locking the doors and trunk

Before driving

WARNING

■

Caution while driving

●

Keep the trunk lid closed while driving.
If the trunk lid is left open, it may hit near-by objects while driving or lug-
gage in the trunk may be unexpectedly thrown out, causing an accident.
In addition, exhaust gases may enter the vehicle, causing death or a seri-
ous health hazard. Make sure to close the trunk lid before driving.

●

Before driving the vehicle, make sure that the trunk lid is fully closed. If the
trunk lid is not fully closed, it may open unexpectedly while driving, caus-
ing an accident.

●

Never let anyone sit in the trunk. In the event of sudden braking or a colli-
sion, they are susceptible to death or serious injury.

■

When children are in the vehicle

Observe the following precautions.
Failure to do so may result in death or serious injury.

●

Do not allow children to play in the trunk.
If a child is accidentally locked in the trunk, they could suffer from heat
exhaustion, suffocation or other injuries.

●

Do not allow a child to open or close the trunk lid.
Doing so may cause the trunk lid to operate unexpectedly, or cause the
child’s hands, head, or neck to be caught by the closing trunk lid.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-2. Opening, closing and locking the doors and trunk

WARNING

■

Using the trunk

Observe the following precautions.
Failure to do so may cause parts of the body to be caught, resulting in seri-
ous injury.

●

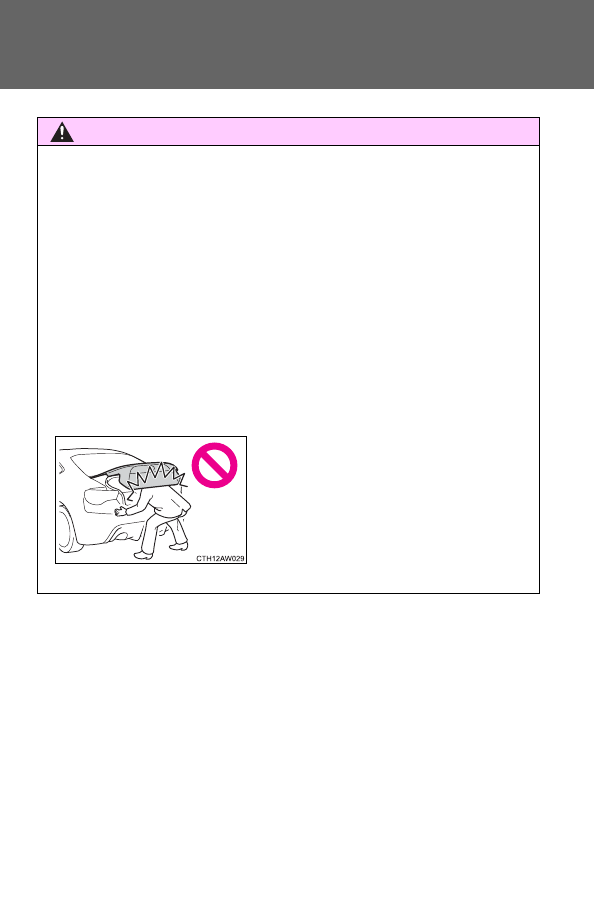

Remove any heavy loads, such as snow and ice, from the trunk lid before
opening it. Failure to do so may cause the trunk lid to suddenly shut again
after it is opened.

●

When opening or closing the trunk lid, thoroughly check to make sure the
surrounding area is safe.

●

If anyone is in the vicinity, make sure they are safe and let them know that
the trunk is about to open or close.

●

Use caution when opening or closing the trunk lid in windy weather as it
may move abruptly in strong wind.

●

The trunk lid may suddenly shut if it is
not opened fully. It is more difficult to
open  or  close  the  trunk  lid  on  an
incline  than  on  a  level  surface,  so
beware  of  the  trunk  lid  unexpectedly
opening  or  closing  by  itself.  Make
sure  that  the  trunk  lid  is  fully  open
and secure before using the trunk.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-2. Opening, closing and locking the doors and trunk

Before driving

WARNING

●

Do not attach any accessories other than genuine Toyota parts to the trunk
lid. Such additional weight on the trunk lid may cause the lid to suddenly
shut again after it is opened.

■

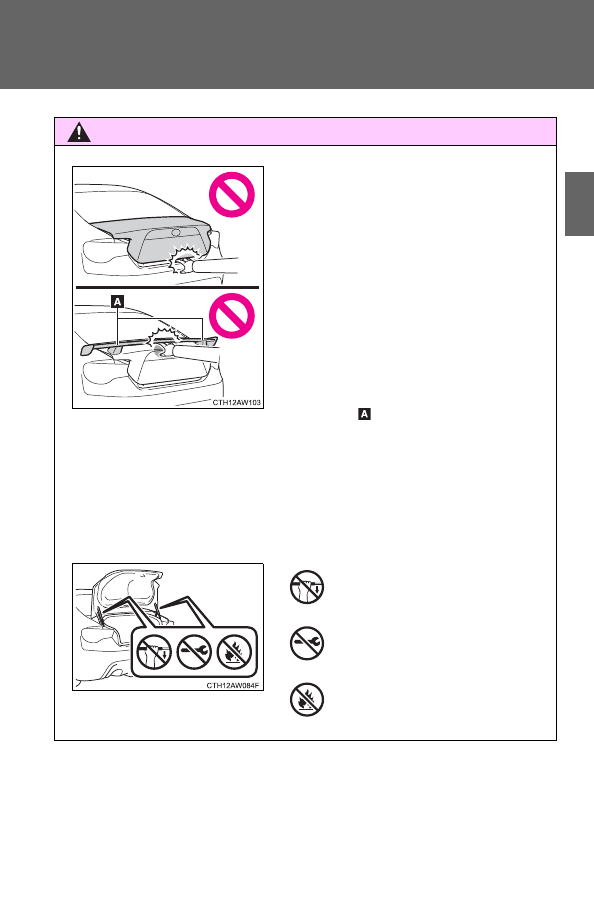

Trunk lid damper stays

Do not pull on or disassemble the trunk lid damper stays, or dispose of them
in a fire. Illustrations on the trunk lid damper stays indicate the following:

●

When closing the trunk lid, observe
the following precautions:

• Take extra care to prevent your

fingers etc. from being caught.

Vehicles without a rear spoiler

• Make sure to press the trunk lid

lightly on its outer surface.

Vehicles with a rear spoiler

• Do not place your hand(s)

between the rear spoiler and trunk
lid when closing the trunk lid.

• To close the trunk lid, press the

rear spoiler on either of the por-
tions

: Do not pull

: Do not disassemble

: Do not dispose of in fire

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-2. Opening, closing and locking the doors and trunk

NOTICE

■

Trunk damper stays

The trunk lid is equipped with damper stays that hold the trunk lid in place.
Observe the following precautions.
Failure to do so may cause damage to trunk damper stays, resulting in a
malfunction.

●

Do not attach any foreign objects such as stickers, plastic sheets and
adhesives to damper stay rods.

●

Do not touch damper stay rods with gloves or other fabric items.

●

Do not attach any accessories other than genuine Toyota parts to the trunk
lid.

●

Do not apply lateral force to damper stays or place your hand on it.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-3. Adjustable components (seats, mirrors, steering wheel)

Getting in and out of the rear seats

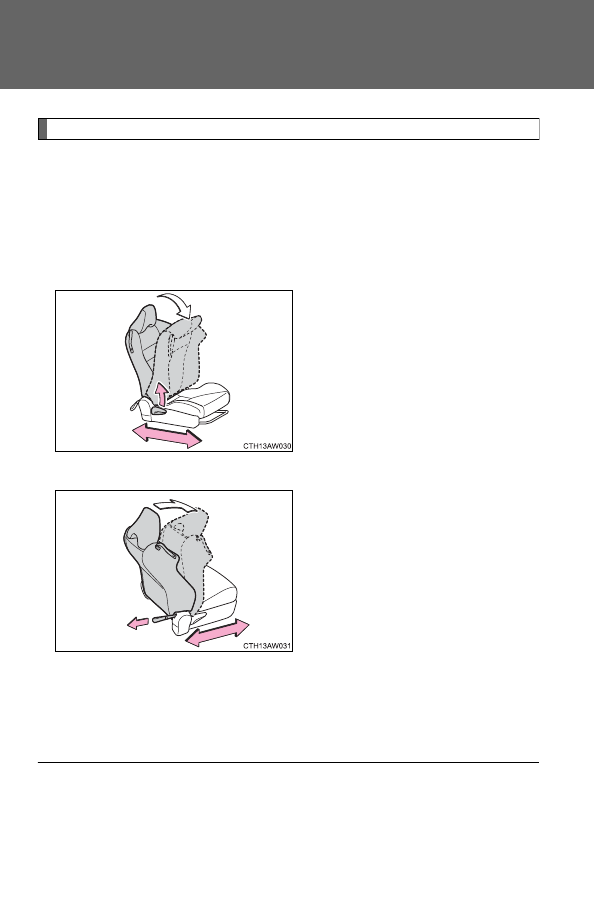

To get in and out of the rear seats, use the seatback angle adjust-
ment lever or seatback fold strap.

■

Before getting in or out of the rear seats

Release the seat belt from the seat belt guide. (

P. 61)

■

Getting in the rear seats

Lift the seatback angle adjust-
ment lever.

The seatback will fold forward.

Front passenger seat only: The
seat can be slid forward and
backward.

■

Getting out of the rear seats

Pull the seatback fold strap.

The seatback will fold forward.

Front passenger seat only: The
seat can be slid forward and
backward.

■

After getting in or out of the rear seats

Return the seatback to the upright position until the seat locks.

Front passenger seat only: The seat will lock in position at the point where
the seatback reaches the upright position.

■

Seat dust cover

Always remove the seat dust cover that may be attached at the time of pur-
chase before using the seat.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-3. Adjustable components (seats, mirrors, steering wheel)

Before driving

WARNING

■

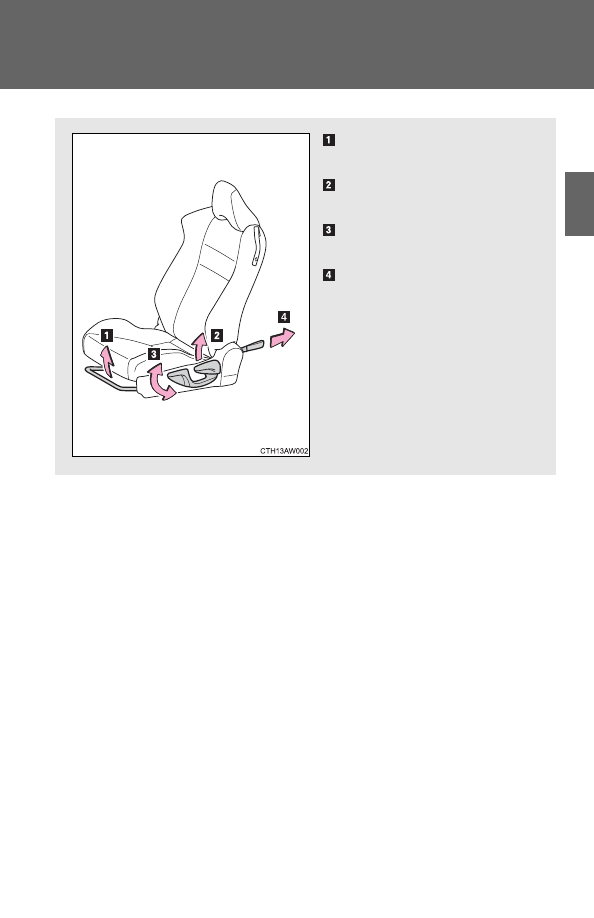

Seat adjustment

●

To reduce the risk of sliding under the lap belt during a collision, do not
recline the seat more than necessary.
If the seat is too reclined, the lap belt may slide past the hips and apply
restraint forces directly to the abdomen, or your neck may contact the
shoulder belt, increasing the risk of death or serious injury in the event of
an accident.
Adjustments should not be made while driving as the seat may unexpect-
edly move and cause the driver to lose control of the vehicle.

●

After adjusting the seat, make sure that the seat is locked in position.

●

Take care not to hit passengers with the seat.
When sliding the seat rearward, make sure not to squash the legs of the
rear passengers.

●

When returning the seatback upright, perform seatback angle adjustment
while holding down the seatback.

●

Do not pull on or use the seat belt guide to adjust or fold the front seat.

●

Do not put your hands under the seat or near the moving parts to avoid
injury. Fingers or hands may become jammed in the seat mechanism.

■

When driving the vehicle

Never operate the seatback angle adjustment lever or seatback fold strap.
Doing so could cause an accident resulting in death or serious injury.

■

Getting in and out of the rear seats

●

When getting in or out of the rear seats, make sure not to get your hands,
legs, etc. squashed in the movable or connecting parts.

●

When getting in or out of the rear seats, make sure not to trip on the seat
rails.

●

After getting in or out of the rear seats, always make sure the front seat is
locked in position.

■

When operating the front seat from the rear seat

Make sure that no passenger is seated in the front seat.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-3. Adjustable components (seats, mirrors, steering wheel)

Rear seats

■

Seat dust cover

Always remove the seat dust cover that may be attached at the time of pur-
chase before using the seat.

WARNING

■

When folding the rear seatbacks down

Observe the following precautions. Failure to do so may result in death or
serious injury.

●

Do not fold the seatbacks down while driving.

●

Stop the vehicle on level ground, set the parking brake and shift the shift
lever to P (automatic transmission) or N (manual transmission).

The seatbacks of the rear seats can be folded down.

Pull the seatback lock release
straps in the trunk for the seat-
back you wish to fold down.

To return the seatbacks to its
original position, lift it up until it
locks.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-3. Adjustable components (seats, mirrors, steering wheel)

Before driving

WARNING

●

Do not allow anyone to sit on a folded seatback or in the trunk while driv-
ing.

●

Do not allow children to enter the trunk.

■

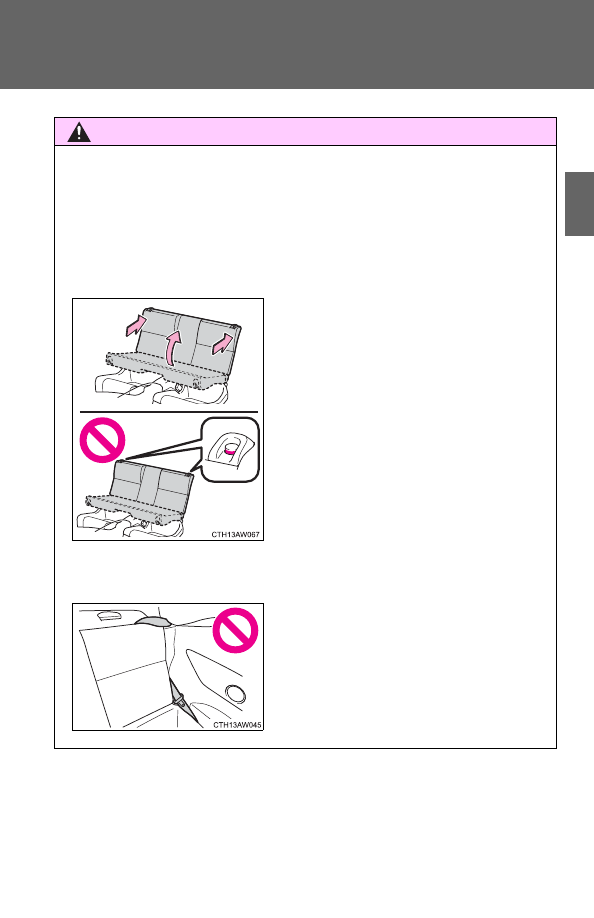

After returning the rear seatback to the upright position

Observe the following precautions. Failure to do so may result in death or
serious injury.

●

Check that the seat belts are not twisted or caught in the seatback.

■

Before using the rear seat belts

●

Push the rear seatback and then check
that it is securely locked in position  by
lightly pushing it back and forth.
If  the  seatback  is  not  securely  locked,
the  red  portion  of  the  seatback  lock
indicator will be visible. Make sure that
the red portion is not visible.

Always make sure that the seat belt is not
caught in the seatback or twisted in one
of the hooks that secure the seatback.
Failure to do so may cause the seat belt
to not be fastened correctly or to become
ineffective in a collision, resulting in death
or serious injury.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-3. Adjustable components (seats, mirrors, steering wheel)

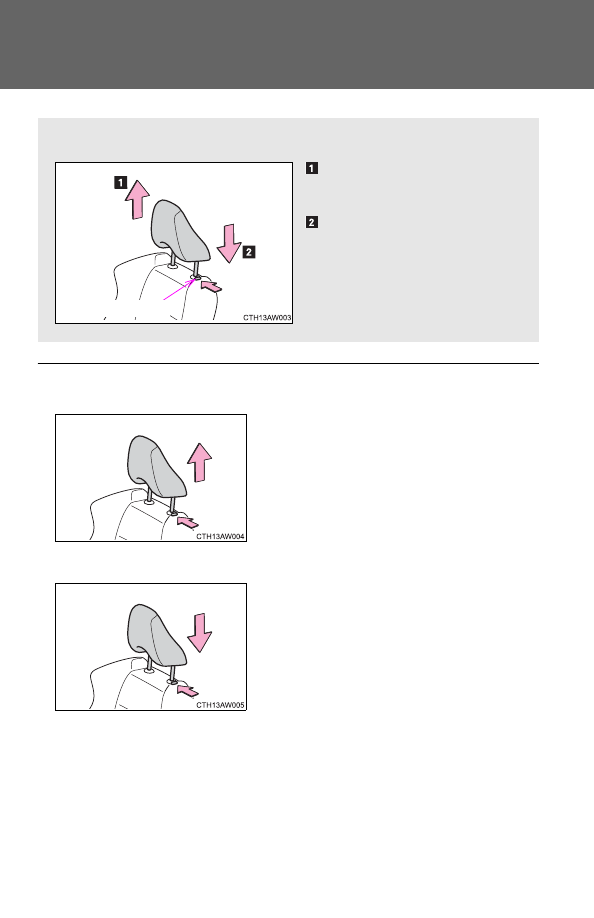

Head restraints

■

Removing the head restraints

■

Installing the head restraints

Head restraints are provided for front seats.

Pull the head restraints up.

Down

Push the head restraint down
while pushing the lock release
button.

Lock release button

Pull the head restraint up while pressing
the lock release button.

Align the head restraint with the installa-
tion holes and push it down to the lock
position.

Press and hold the lock release button
when lowering the head restraint.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-3. Adjustable components (seats, mirrors, steering wheel)

Before driving

■

Adjusting the height of the head restraints

WARNING

■

Head restraint precautions

Observe the following precautions regarding the head restraints. Failure to
do so may result in death or serious injury.

●

Use the head restraints designed for each respective seat.

●

Adjust the head restraints to the correct position at all times.

●

After adjusting the head restraints, push down on them and make sure
they are locked in position.

●

Do not drive with the head restraints removed.

Make sure that the head restraints are
adjusted so that the center of the head
restraint is closest to the top of your ears.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-3. Adjustable components (seats, mirrors, steering wheel)

Seat belts

Make sure that all occupants are wearing their seat belts before driv-
ing the vehicle.

■

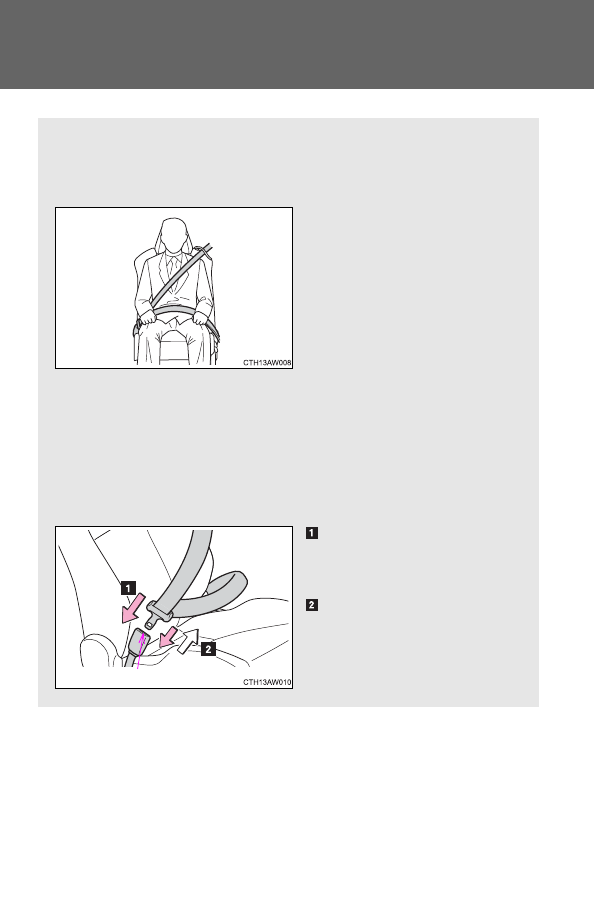

Correct use of the seat belts

●

Extend the shoulder belt so
that  it  comes  fully  over  the
shoulder,  but  does  not
come  into  contact  with  the
neck  or  slide  off  the  shoul-
der.

●

Position the lap belt as low
as possible over the hips.

●

Adjust the position of the
seatback. Sit up straight
and well back in the seat.

●

Do not twist the seat belt.

■

Fastening and releasing the seat belt

Fasten the seat belt

Push the plate into the buckle
until a click sound is heard.

Release the seat belt

Press the release button.

Release button

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-3. Adjustable components (seats, mirrors, steering wheel)

Before driving

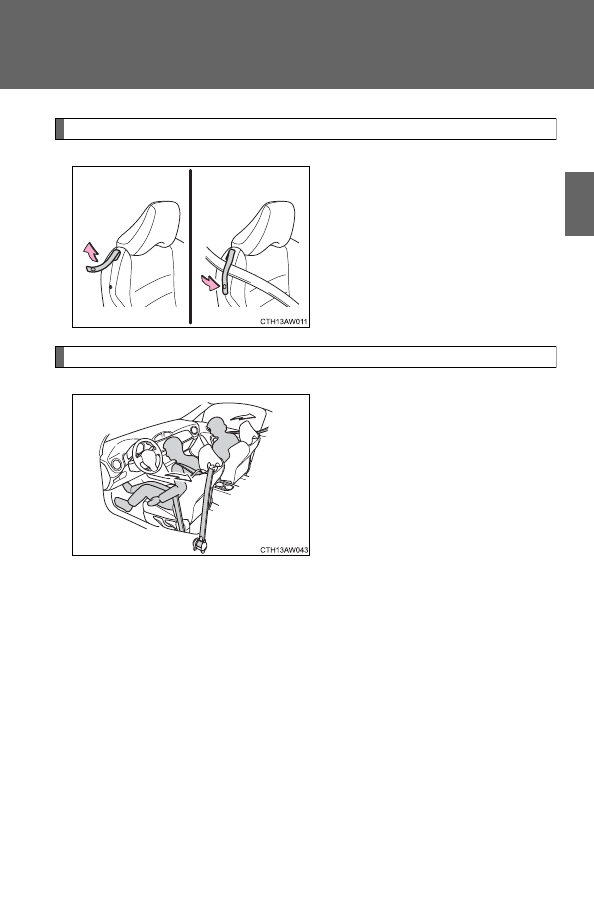

Front seat belt guide

To enable the seat belt to be
easily extended, pass the seat
belt through the guide.

When getting in or out of the rear
seats, release the seat belt from
the guide.

Seat belt pretensioners (front seats)

The  pretensioner  helps  the  seat
belt to quickly restrain the occu-
pant  by  retracting  the  seat  belt
when the vehicle is subjected to
certain types of severe frontal or
side  collision  or  a  vehicle  roll-
over.

The pretensioner may not acti-
vate in the event of a minor frontal
or side impact or a rear impact.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-3. Adjustable components (seats, mirrors, steering wheel)

■

Emergency locking retractor (ELR)

The retractor will lock the belt during a sudden stop or on impact. It may also
lock if you lean forward too quickly. A slow, easy motion will allow the belt to
extend so that you can move around fully.

■

Automatic locking retractor (ALR)

When a passenger's shoulder belt is completely extended and then
retracted even slightly, the belt is locked in that position and cannot be
extended. This feature is used to hold the child restraint system (CRS) firmly.
To free the belt again, fully retract the belt and then pull the belt out once
more. (



P. 141)

■

Child seat belt usage

The seat belts of your vehicle are principally designed for persons of adult
size.

●

Use a child restraint system appropriate for the child, until the child
becomes large enough to properly wear the vehicle's seat belt.
(

P. 137)

●

When the child becomes large enough to properly wear the vehicle's seat
belt, follow the instructions on P. 60 regarding seat belt usage.

■

Seat belt pretensioners

●

Seatbelt pretensioners are not designed to activate in a rear impact or
minor frontal or side impact.

●

The following four components operate simultaneously when the vehicle
is involved in a rollover accident.

• Seat belt pretensioner for driver
• Seat belt pretensioner for front passenger
• SRS curtain shield airbag for driver’s seat side
• SRS curtain shield airbag for front passenger’s seat side

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-3. Adjustable components (seats, mirrors, steering wheel)

Before driving

●

The following four components operate simultaneously when the vehicle
is subjected to a severe frontal collision.

• Seat belt pretensioner for driver
• Seat belt pretensioner for front passenger
• SRS front airbag for driver
• SRS front airbag for front passenger*

*: This does not operate while the occupant classification system deter-

mines to deactivate the airbag operation. For details, refer to “Front pas-
senger’s SRS frontal airbag” (
