7-2. Steps to take in an emergency

4RUNNER (U)

The warning lights and warning buzzers operate as follows depending
on the content of the message. If a message indicates the need for
inspection  by  a  dealer,  have  the  vehicle  inspected  by  your  Toyota
dealer immediately.

The  operation  of  the  warning  lights  and  warning  buzzers  may  differ
from  those  stated.  in  this  case,  perform  the  correction  procedure
according to the displayed message.

*

: A buzzer sounds the first time a message is shown on the multi-informa-

tion display.

Messages and warnings

System

warning

light

Warning

buzzer

*

Warning

Comes on Comes on

Sounds

Indicates  an  important  situation,  such
as when a system related to driving is
malfunctioning  or  that  danger  may
result if the correction procedure is not
performed

Comes on



Sounds



Comes on

or flashes

Sounds

Indicates  an  important  situation,  such
as  when  the  systems  shown  on  the
multi-information  display  may  be  mal-
functioning

Flashes



Sounds

Indicates  a  situation,  such  as  when
damage to the vehicle or danger may
result

Comes on



Does not

sound

Indicates  a  condition,  such  as  mal-
function of electrical components, their
condition,  or  indicates  the  need  for
maintenance

Flashes



Does not

sound

Indicates a situation, such as when an
operation  has  been  performed  incor-
rectly,  or  indicates  how  to  perform  an
operation correctly

489

7-2. Steps to take in an emergency

7

Wh
en tro

uble

 a

ris

es

4RUNNER (U)

■

Warning messages

The warning messages explained below may differ from the actual messages
according to operation conditions and vehicle specifications.

■

System warning lights

The master warning light does not come on or flash in the following cases.
Instead, a separate system warning light will come on along with a message
or image shown on the multi-information display.

●

Malfunction in the ABS
The ABS warning light comes on. (



P. 478)

●

Indicates that the PCS (Pre-Collision System) is not currently functional
The PCS warning light comes on or flashes. (



P. 480)

●

Malfunction in the tire pressure warning system
The tire pressure warning light comes on. (



P. 481)

■

If a message instructing to refer to the Owner’s Manual is displayed

●

If the following message is shown, there may be a malfunction.
Immediately stop the vehicle in a safe place and contact your Toyota dealer.
Continuing to drive the vehicle may be dangerous.
• “Braking Power Low Stop in a Safe Place See Owner’s Manual”
• “Oil Pressure Low Stop in a Safe Place See Owner’s Manual”

●

If “Engine Coolant Temp High Stop in a Safe Place See Owner’s Manual” is
displayed, follow the instructions accordingly. (



P. 517)

●

If “Front Camera Unavailable See Owner’s Manual” is displayed, follow the
instructions accordingly. (



P. 264, 487)

●

If the following message is shown, there may be a malfunction.
Immediately have the vehicle inspected by your Toyota dealer.
• “Smart Key System Malfunction See Owner’s Manual”

■

If “High transmission fluid temperature” is shown, it indicates that the
automatic transmission fluid temperature is too high.

Immediately stop the vehicle in a safe place, shift the shift lever to P and wait
until the warning message and light go off. If the warning message and light
go off, you may start the vehicle again. If the warning message and light do
not go off, contact your Toyota dealer.

490

7-2. Steps to take in an emergency

4RUNNER (U)

■

If “Auto power off to conserve battery” is shown

Power was turned off due to the automatic power off function.
Next time when starting the engine, increase the engine speed slightly and
maintain that level for approximately 5 minutes to recharge the battery.

■

When a message that indicates the need for the shift lever operation is
shown

To prevent the shift lever from being operated incorrectly or the vehicle from
moving unexpectedly, a message that requires shifting the shift lever may be
shown on the multi-information display. In that case, follow the instruction of
the message and shift the shift lever.

■

When “Headlight System Malfunction Visit Your Dealer” is displayed on
the multi-information display

The following system may be malfunctioning. Have the vehicle inspected by
your Toyota dealer.

●

Automatic High Beam

■

If  “Front  Camera  Unavailable”  or  “Front  Camera  Unavailable  See
Owner’s Manual” is displayed

The  following  systems  may  be  suspended  until  the  problem  shown  in  the
message is resolved. (



P. 264, 487)

●

PCS (Pre-Collision System)

●

LDA (Lane Departure Alert)

●

Dynamic radar cruise control

●

Automatic High Beam

■

If  a  following  message  is  shown,  take  appropriate  action  and  confirm
that the message has disappeared.

*

●

“Crawl Not Available Select L4 and Shift to [D] or [R] Position”

●

“Crawl Not Available Check System Operation Conditions”

*

: Refer to the “Off-road Driving Owner’s Manual”.

■

If “Oil Maintenance Required Soon” is displayed (U.S.A. only)

Indicates that all maintenance according to the driven distance on the mainte-
nance schedule* should be performed soon.
Comes on approximately 4500 miles (7200 km) after the message has been
reset.
If necessary, perform maintenance. Please reset the message after the main-
tenance is performed. (



P. 397)

*

: Refer to the separate “Scheduled Maintenance Guide” or “Owner’s Manual

Supplement” for the maintenance interval applicable to your vehicle.

491

7-2. Steps to take in an emergency

7

Wh
en tro

uble

 a

ris

es

4RUNNER (U)

■

If “Oil Maintenance Required” is displayed (U.S.A. only)

Indicates that all maintenance is required to correspond to the driven distance
on the maintenance schedule*.
Comes on approximately 5000 miles (8000 km) after the message has been
reset.
(The indicator will not work properly unless the message has been reset.)
Perform  the  necessary  maintenance.  Please  reset  the  message  after  the
maintenance is performed. (



P. 397)

*

: Refer to the separate “Scheduled Maintenance Guide” or “Owner’s Manual

Supplement” for the maintenance interval applicable to your vehicle.

■

If “Visit Your Dealer” is shown

The system or part shown on the multi-information display is malfunctioning.
Have the vehicle inspected by your Toyota dealer immediately.

■

Warning buzzer

In some cases, the buzzer may not be heard due to being in a noisy location
or audio sound.

NOTICE

■

While the engine oil level warning is displayed

Continued engine operation with low engine oil will damage the engine.

492

7-2. Steps to take in an emergency

4RUNNER (U)

●

Phillips screwdriver

●

Stop the vehicle in a safe place on a hard, flat surface.

●

Set the parking brake.

●

Shift the shift lever to P.

●

Stop the engine.

●

Turn on the emergency flashers. (



P. 464)

If you have a flat tire

Your  vehicle  is  equipped  with  a  spare  tire.  The  flat  tire  can  be
replaced with the spare tire.
For details about tires:



P. 420

WARNING

■

If you have a flat tire

Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the

wheel beyond repair, which could result in an accident.

You will need the following item:

Before jacking up the vehicle

493

7-2. Steps to take in an emergency

7

Wh
en tro

uble

 a

ris

es

4RUNNER (U)

Spare tire
Jack
Tool bag

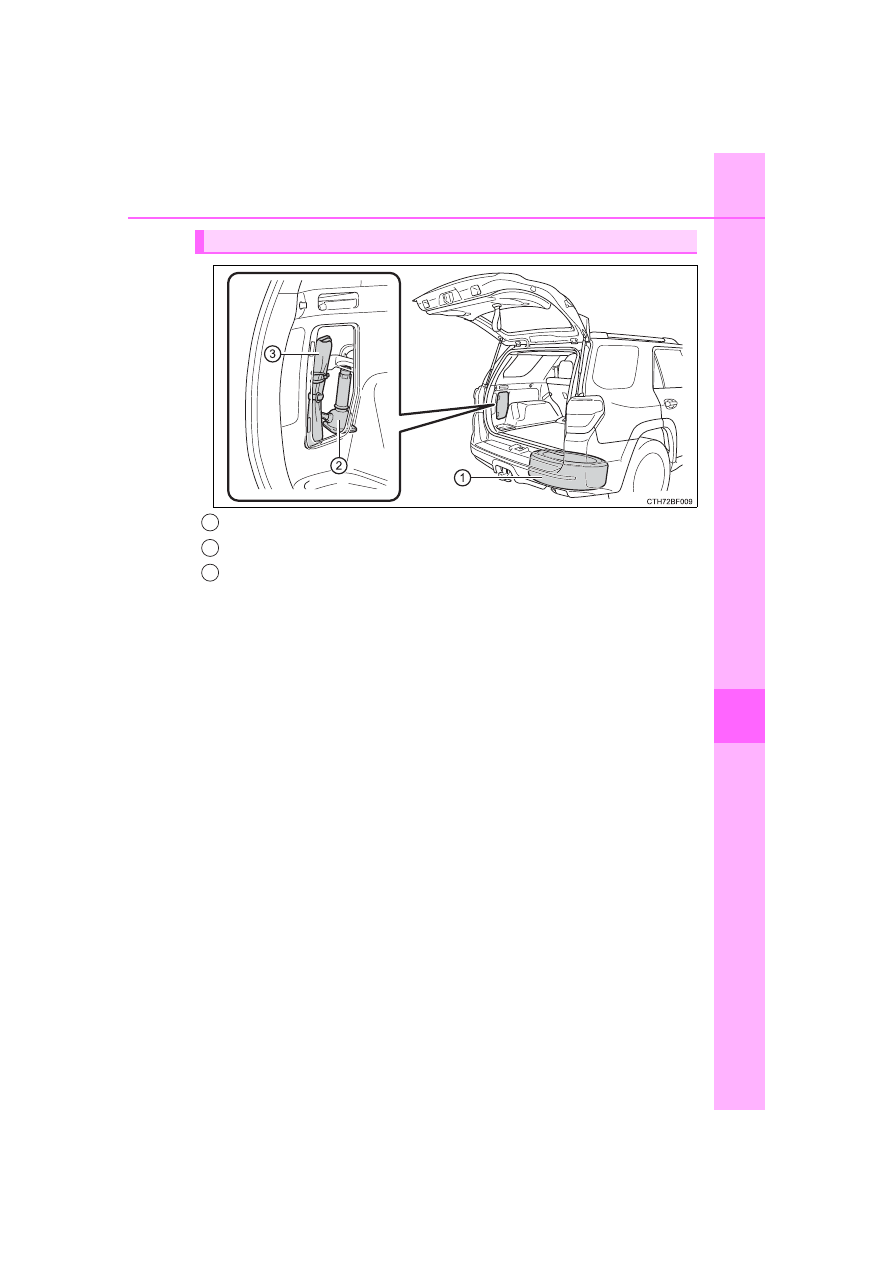

Location of the spare tire, jack and tools

1

2

3

494

7-2. Steps to take in an emergency

4RUNNER (U)

WARNING

■

Using the tire jack

Improper use of the tire jack may cause the vehicle to suddenly fall off

the jack, leading to death or serious injury.

●

Do not use the tire jack for any purpose other than replacing tires or

installing and removing tire chains.

●

Only use the tire jack that comes with this vehicle for replacing a flat

tire.

Do  not  use  it  on  other  vehicles,  and  do  not  use  other  tire  jacks  for

replacing tires on this vehicle.

●

Always check that the tire jack is securely set to the jack point.

●

Do not put any part of your body under the vehicle while it is supported

by the jack.

●

Do not start or run the engine while your vehicle is supported by the

jack.

●

Do not raise the vehicle while someone is inside.

●

When raising the vehicle, do not put an object on or under the jack.

●

Do  not  raise  the  vehicle  to  a  height  greater  than  that  required  to

replace the tire.

●

Use a jack stand if it is necessary to get under the vehicle.



Vehicles with Automatic running boards

●

Observe the following precautions. Failure to do so may result in seri-

ous injury:
• When  jacking  up  the  vehicle,  always  turn  the  Automatic  running

boards switch off.

• When jacking up the vehicle, do not use an Automatic running board

as  a  jack  point. The Automatic  running  board  may  break,  causing

injuries.

Take  particular  care  when  lowering  the  vehicle  to  ensure  that  no  one

working on or near the vehicle may be injured.

■

Using the jack handle

Tighten all the jack handle bolts securely using a Phillips-head screw-

driver, to prevent the extension parts from coming apart unexpectedly.

495

7-2. Steps to take in an emergency

7

Wh
en tro

uble

 a

ris

es

4RUNNER (U)

Remove the cover.

Unhook  and  take  out  the  tool
bag.

Take out the jack.

For loosening
For tightening

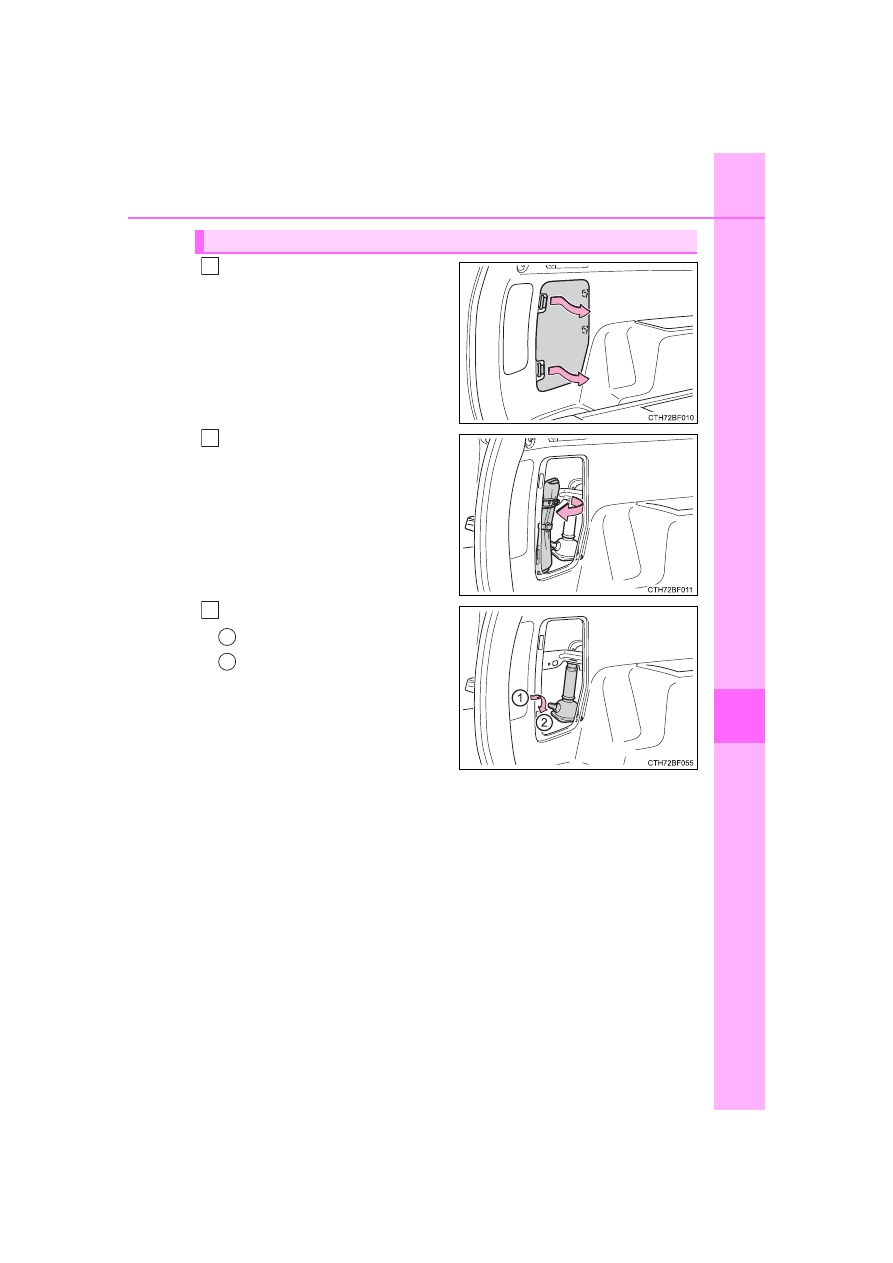

Taking out the jack and tool bag

1

2

3

1

2

496

7-2. Steps to take in an emergency

4RUNNER (U)

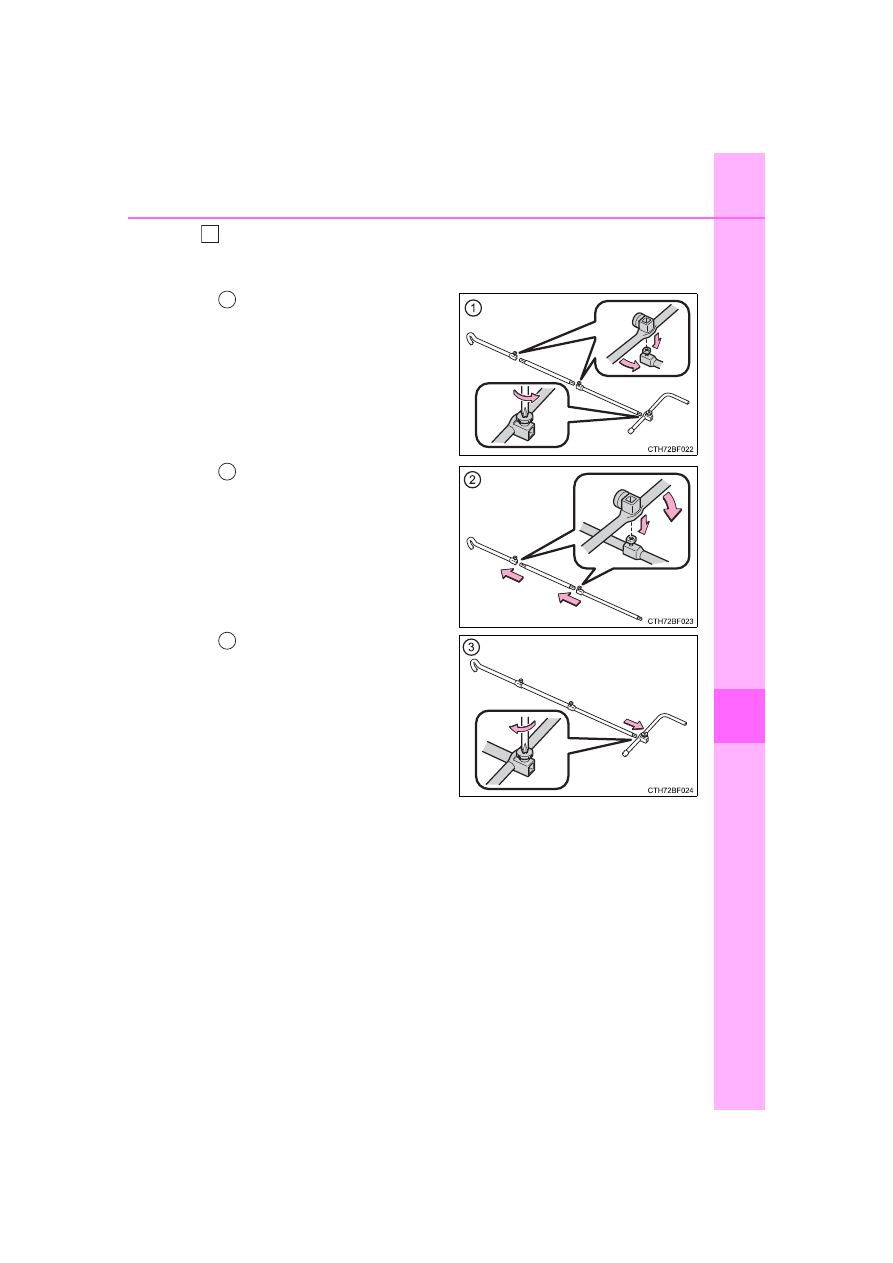

Assembling the jack handle.

Remove  the  jack  handle  and  the  jack  handle  extension  bar  from  the

tool bag and assembly by following these steps.

Loosen  the  bolt  and  the
screw  using  either  the  jack
handle or a screwdriver.

Assemble  the  jack  handle
extension  bars  and  tighten
the bolt.

Check  that  the  bolt  is  firmly

tightened.

Assemble  the  jack  handle
and  the  jack  handle  exten-
sion  bar  and  tighten  the
screw.

Check  that  the  screw  is  firmly

tightened.

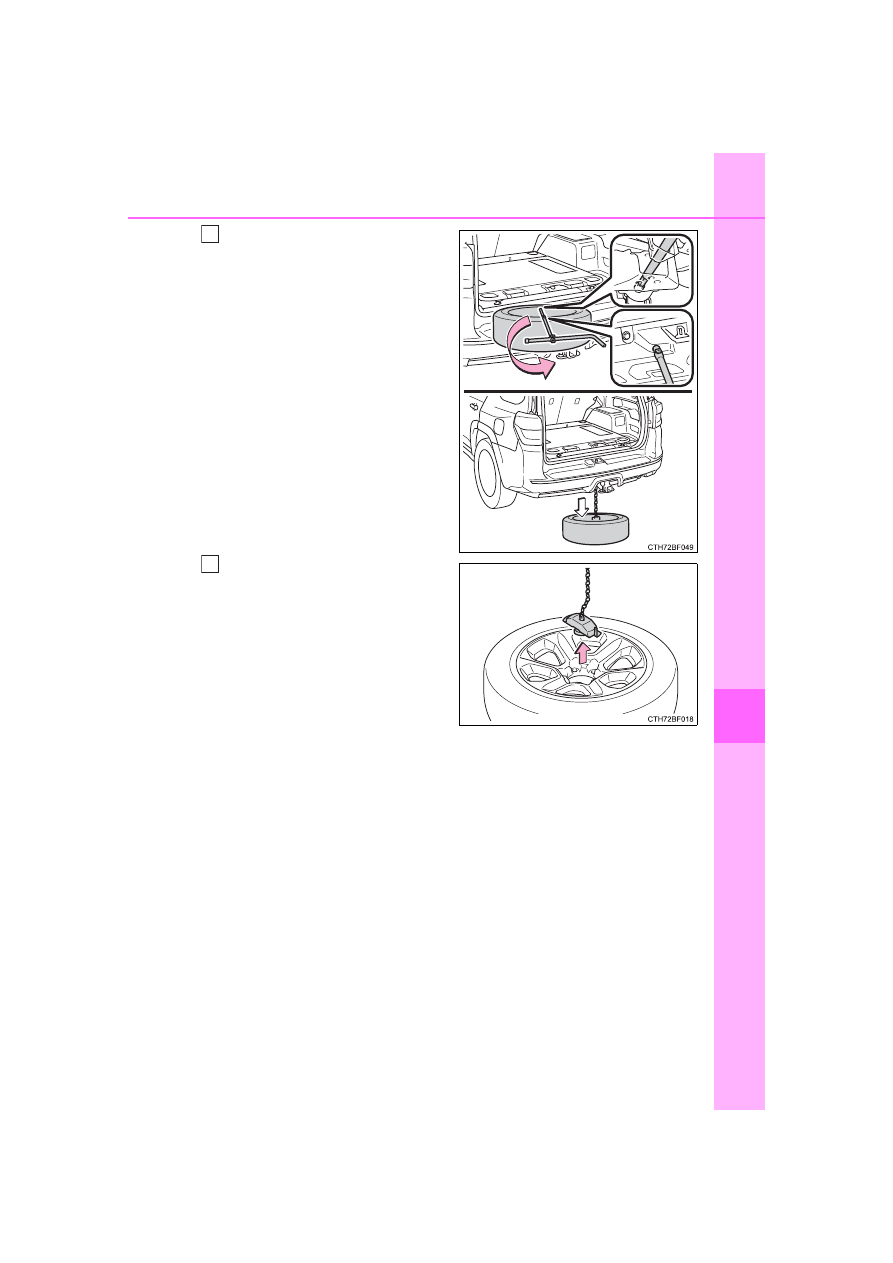

Taking out the spare tire

1

1

2

3

497

7-2. Steps to take in an emergency

7

Wh
en tro

uble

 a

ris

es

4RUNNER (U)

Insert  the  end  of  the  jack  han-
dle  extension  into  the  lowering
screw  and  turn  it  counterclock-
wise.

Lower  the  spare  tire  completely

to the ground.

Pull  out  the  spare  tire  and
remove the holding bracket.

2

3

498

7-2. Steps to take in an emergency

4RUNNER (U)

Chock the tires.

Remove  the  wheel  ornament
using  the  wheel  ornament
remover.

To  protect  the  wheel  ornament,

place  a  rag  between  the  wheel

ornament remover and the wheel

ornament,  as  shown  in  the  illus-

tration.

Slightly  loosen  the  wheel  nuts
(one turn).

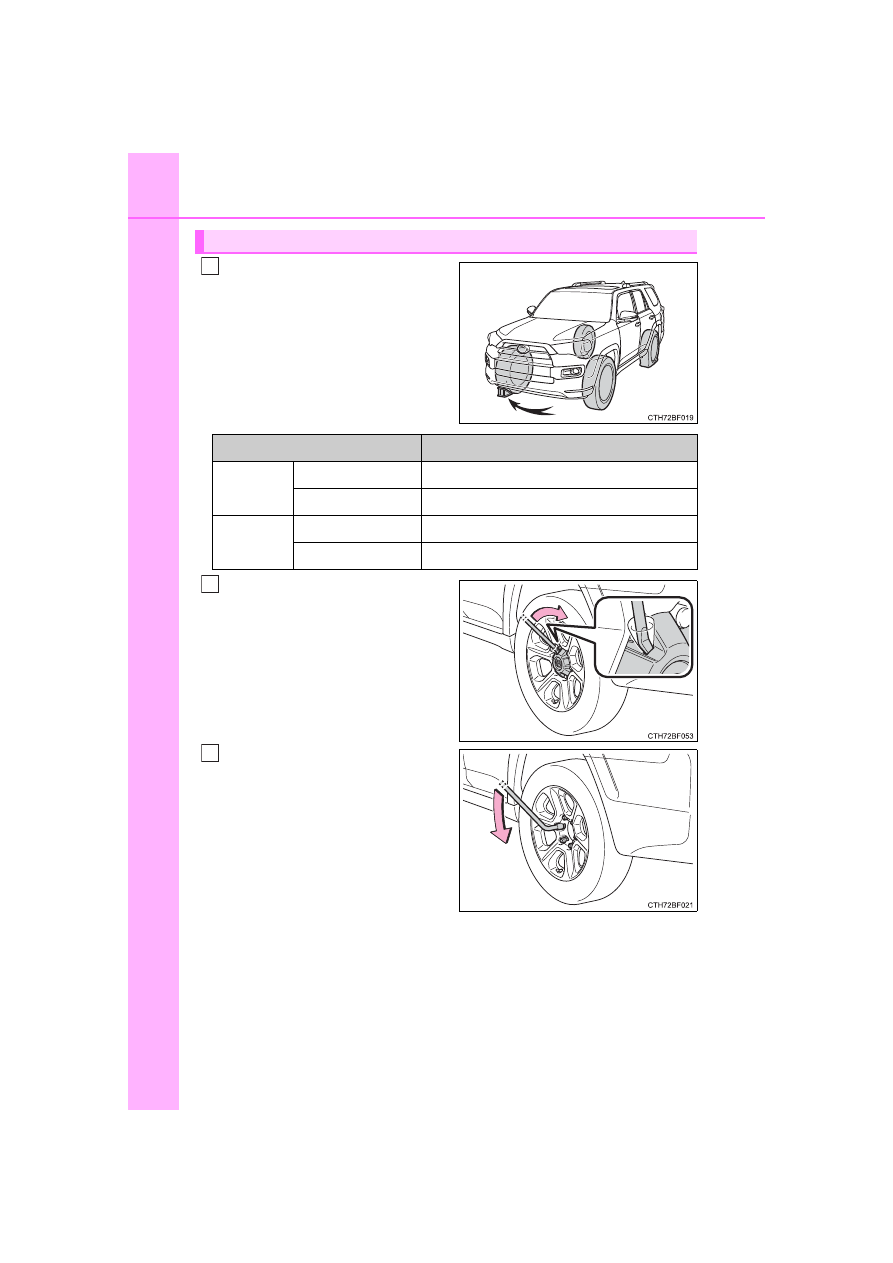

Replacing a flat tire

1

Flat tire

Wheel chock positions

Front

Left-hand side

Behind the rear right-hand side tire

Right-hand side

Behind the rear left-hand side tire

Rear

Left-hand side

In front of the front right-hand side tire

Right-hand side

In front of the front left-hand side tire

2

3

499

7-2. Steps to take in an emergency

7

Wh
en tro

uble

 a

ris

es

4RUNNER (U)

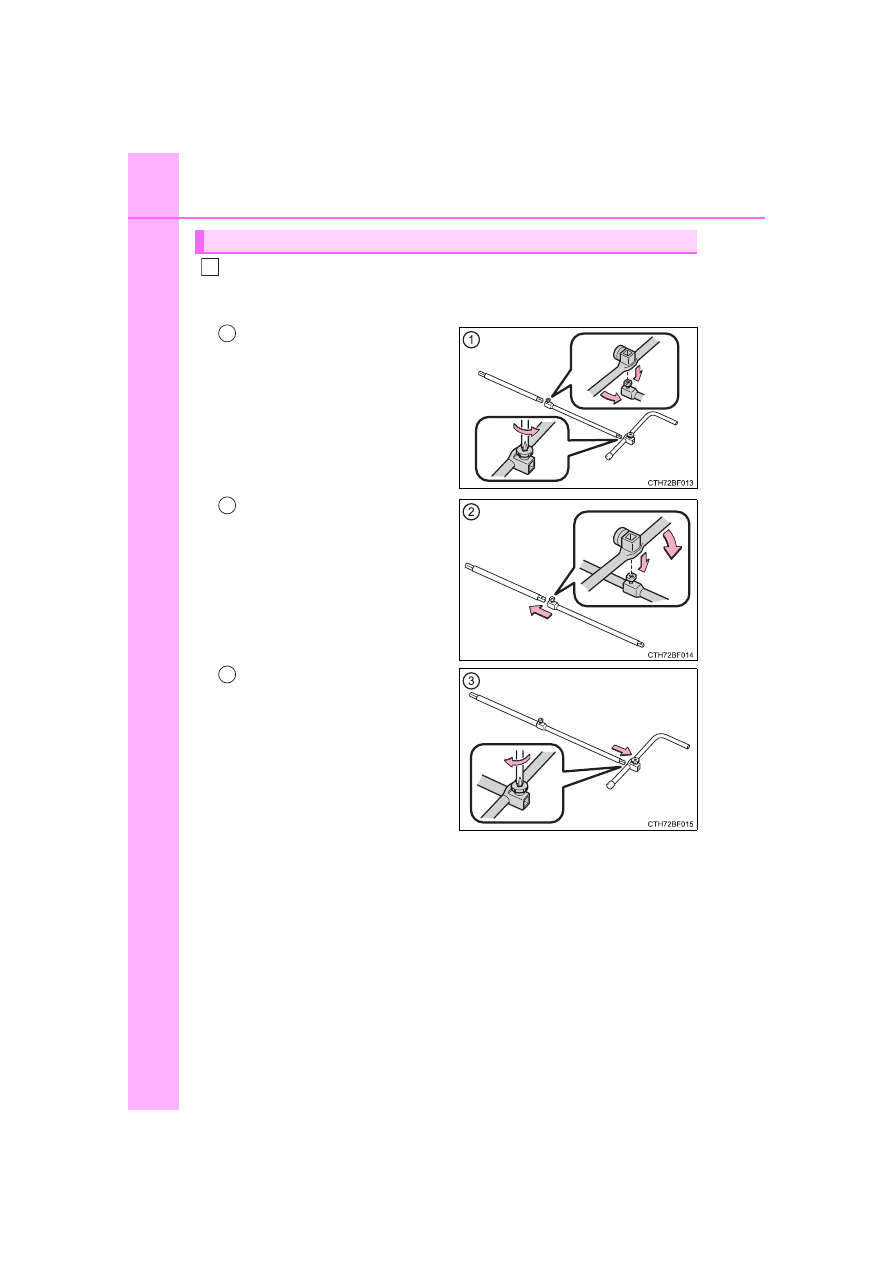

Assembling the jack handle.

Remove  the  jack  handle,  jack  handle  extension  bar  and  jack  handle

bar from the tool bag and assemble by following these steps.

Loosen  the  bolts  and  the
screw  using  either  the  jack
handle or a screwdriver.

Assemble  the  jack  handle
extension  bars  and  the  jack
handle  bar  and  tighten  the
bolts.

Check that the bolts are firmly

tightened.

Assemble  the  jack  handle
extension  bar  and  the  jack
handle and tighten the screw.

Check  that  the  screw  is  firmly

tightened.

4

1

2

3

500

7-2. Steps to take in an emergency

4RUNNER (U)

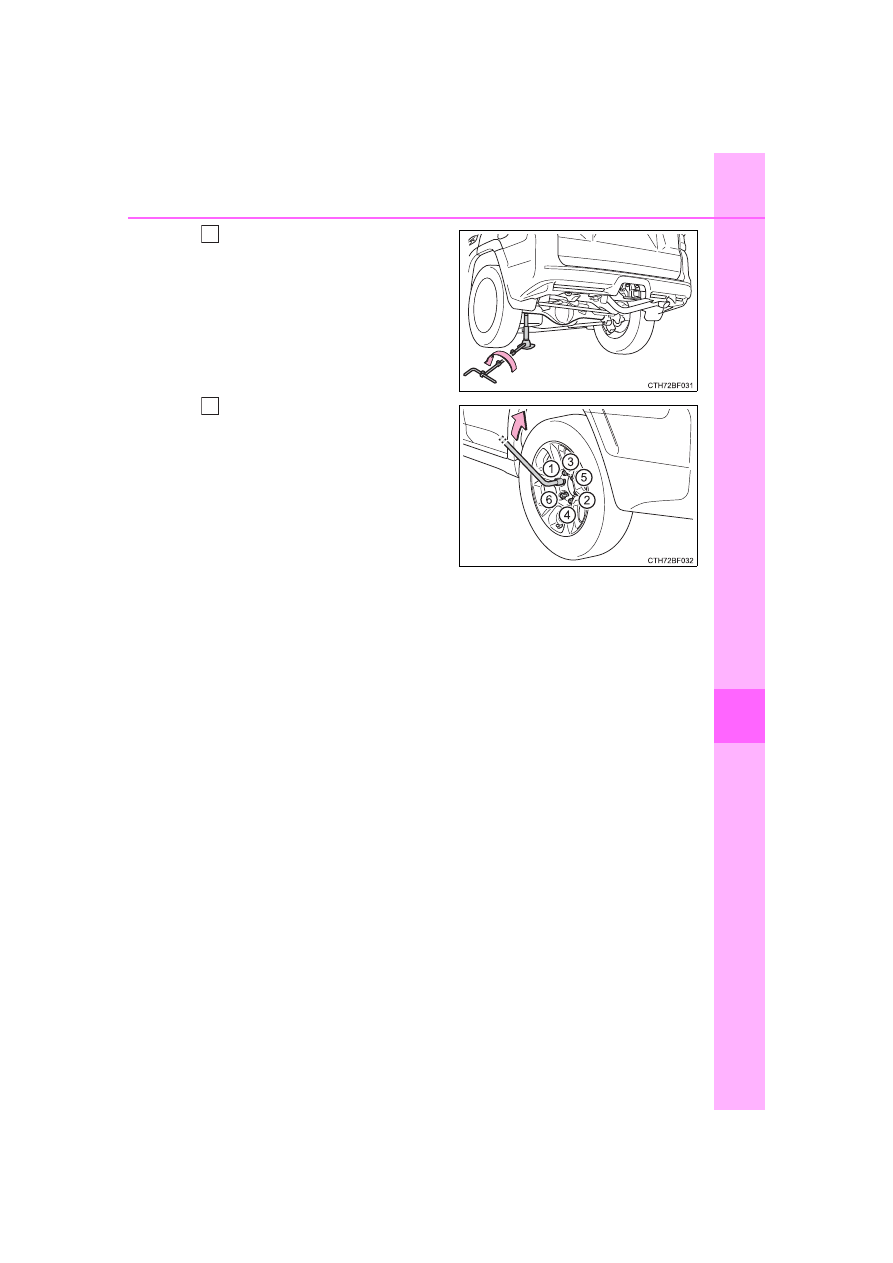

Position  the  jack  at  the  jack
points as shown.
Front - Under the chassis frame
side rail
Rear  -  Under  the  rear  axle
housing

Raise the vehicle until the tire is
slightly raised off the ground.

When  positioning  the  jack  under

the rear axle housing, make sure

the groove on the top of the jack

fits with the rear axle housing.

Remove all the wheel nuts and
the tire.

When  resting  the  tire  on  the

ground, place the tire so that the

wheel  design  faces  up  to  avoid

scratching the wheel surface.

5

6

7

501

7-2. Steps to take in an emergency

7

Wh
en tro

uble

 a

ris

es

4RUNNER (U)

WARNING

■

Replacing a flat tire

●

Observe the following precautions.

Failure to do so may result in serious injury:
• Lower  the  spare  tire  completely  to  the  ground  before  removing  it

from under the vehicle.

• Do not try to remove the wheel ornament by hand. Take due care in

handling the ornament to avoid unexpected personal injury.

• Do not attach a heavily damaged wheel ornament, as it may fly off

the wheel while the vehicle is moving.

• Do not touch the disc wheels or the area around the brakes immedi-

ately after the vehicle has been driven.

After  the  vehicle  has  been  driven  the  disc  wheels  and  the  area

around the brakes will be extremely hot. Touching these areas with

hands, feet or other body parts while changing a tire, etc. may result

in burns.

●

Failure  to  follow  these  precautions  could  cause  the  wheel  nuts  to

loosen and the tire to fall off, resulting in death or serious injury.
• Have the wheel nuts tightened with a torque wrench to 83 ft•lbf (112

N•m, 11.4 kgf•m) steel wheels, 76 ft•lbf (103 N•m, 10.5 kgf•m) alumi-

num wheels, as soon as possible after changing wheels.

• When installing a tire, only use wheel nuts that have been specifi-

cally designed for that wheel.

• If  there  are  any  cracks  or  deformations  in  the  bolt  screws,  nut

threads  or  bolt  holes  of  the  wheel,  have  the  vehicle  inspected  by

your Toyota dealer.

• When  installing  the  wheel  nuts,  be  sure  to  install  them  with  the

tapered ends facing inward. (



P. 438)

502

7-2. Steps to take in an emergency

4RUNNER (U)

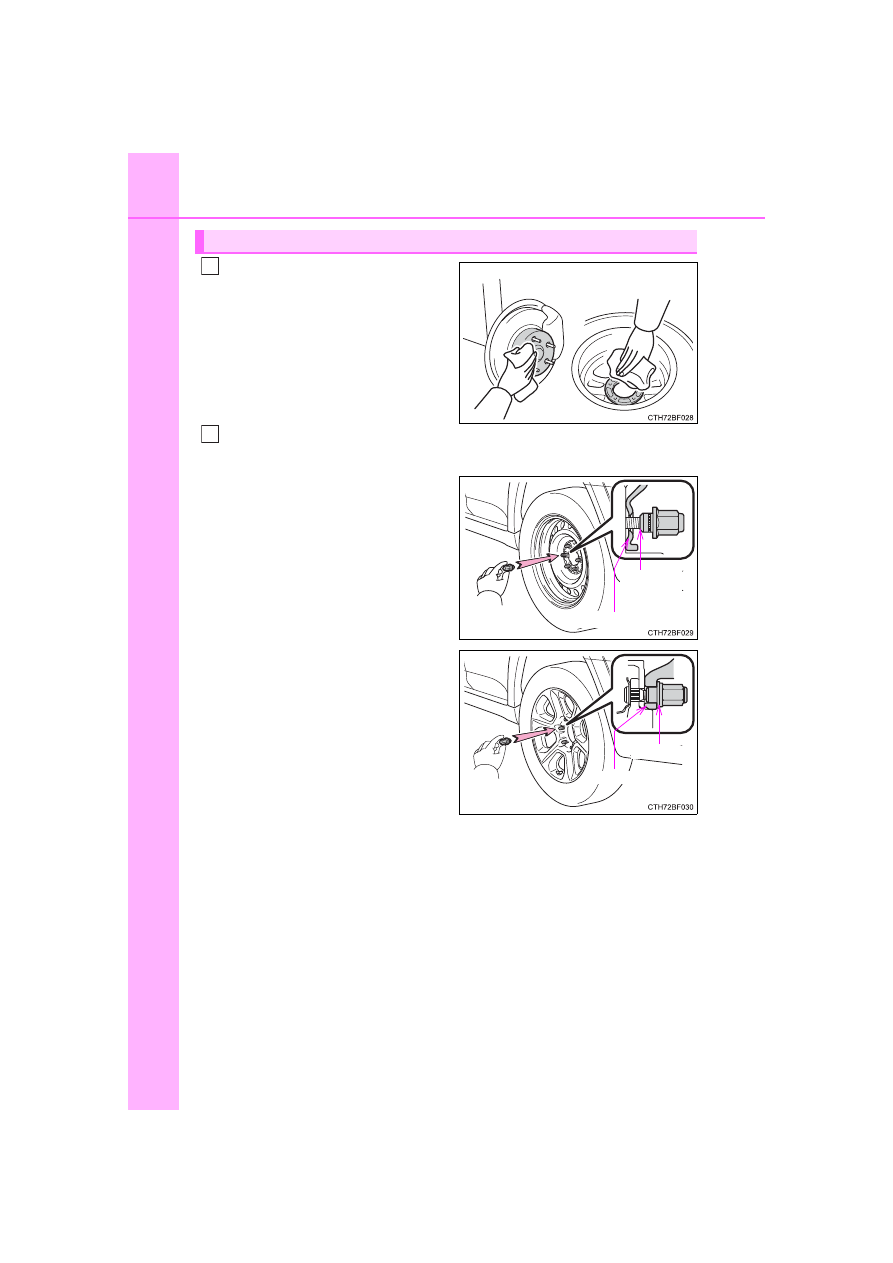

Remove any dirt or foreign mat-
ter from the wheel contact sur-
face.

If  foreign  matter  is  on  the  wheel

contact  surface,  the  wheel  nuts

may loosen while the vehicle is in

motion,  causing  the  tire  to  come

off.

Install the spare tire and loosely tighten each wheel nut by hand by
approximately the same amount.
When  replacing  an  aluminum
wheel  with  a  steel  wheel,
tighten the wheel nuts until the
tapered  portion  comes  into
loose  contact  with  the  disc
wheel seat.

When  replacing  an  aluminum
wheel with an aluminum wheel,
tighten the wheel nuts until the
washers  comes  into  contact
with the disc wheel.

Installing the spare tire

1

2

Tapered
portion

Disc wheel seat

Washer

Disc wheel

503

7-2. Steps to take in an emergency

7

Wh
en tro

uble

 a

ris

es

4RUNNER (U)

Lower the vehicle.

Firmly  tighten  each  wheel  nut
two  or  three  times  in  the  order
shown in the illustration.

Tightening torque

Steel wheels:

83 ft•lbf (112 N•m, 11.4 kgf•m)

Aluminum wheels:

76 ft•lbf (103 N•m, 10.5 kgf•m)

3

4
