4-3. Operating the lights and wipers

4RUNNER (U)

Switching to low beam

Pull  the  lever  to  the  original
position.

The Automatic  High  Beam  indi-
cator will turn off.
Push the lever away from you to
activate  the  Automatic  High
Beam system again.

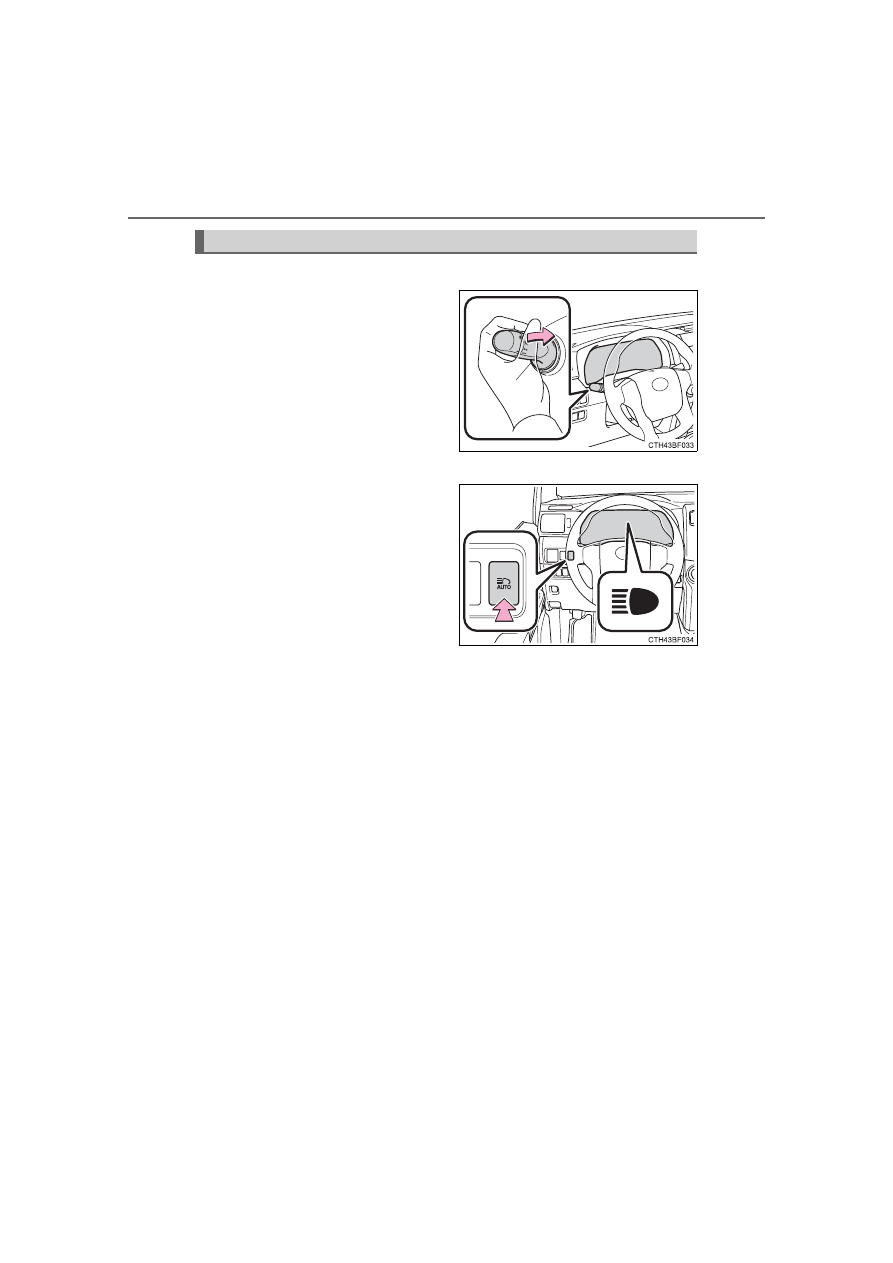

Switching to high beam

Press  the  Automatic  High
Beam switch.

The Automatic  High  Beam  indi-
cator  will  turn  off  and  the  high
beam indicator will turn on.
Press  the switch to  activate the
Automatic  High  Beam  system
again.

Turning the high beam on/off manually

-------------------------------------------------------------------------------------------------------------------------------------------------------------

233

4-3. Operating the lights and wipers

4

Drivin

g

4RUNNER (U)

Conditions to turn the high beams on/off automatically

When all of the following conditions are met, the high beams will be turned
on automatically (after approximately 1 second):
• The vehicle speed is approximately 21 mph (34 km/h) or more.
• The area ahead of the vehicle is dark.
• There are no vehicles ahead with headlights or tail lights turned on.
• There are few streetlights on the road ahead.

If any of the following conditions is met, the high beams will turn off automat-
ically:
• The vehicle speed is below approximately 17 mph (27 km/h).
• The area ahead of the vehicle is not dark.
• Vehicles ahead have their headlights or tail lights turned on.
• There are many streetlights on the road ahead.

Camera sensor detection information

The high beams may not be automatically turned off in the following situa-
tions:
• When a vehicle suddenly appears from around a curve
• When the vehicle is cut in front of by another vehicle
• When vehicles ahead cannot be detected due to repeated curves, road

dividers or roadside trees

• When vehicles ahead appear in a faraway lane on a wide road
• When the lights of vehicles ahead are not on

The high beams may be turned off if a vehicle ahead that is using fog lights
without its headlights turned on is detected.

House lights, street lights, traffic signals, and illuminated billboards or signs
and other reflective objects may cause the high beams to change to the low
beams, or the low beams to remain on.

The  following  factors  may  affect  the  amount  of  time  taken  for  the  high
beams to turn on or off:
• The  brightness  of  the  headlights,  fog  lights,  and  tail  lights  of  vehicles

ahead

• The movement and direction of vehicles ahead
• When a vehicle ahead only has operational lights on one side
• When a vehicle ahead is a two-wheeled vehicle
• The condition of the road (gradient, curve, condition of the road surface,

etc.)

• The number of passengers and amount of luggage in the vehicle

The high beams may turn on or off unexpectedly.

Bicycles or similar vehicles may not be detected.

In the following situations the system may not be able to correctly detect the
surrounding brightness level. This may cause the low beams to remain on
or the high beams to flash or dazzle pedestrians or vehicles ahead. In such
a case, it is necessary to manually switch between the high and low beams.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

234

4-3. Operating the lights and wipers

4RUNNER (U)

• When driving in inclement weather (heavy rain, snow, fog, sandstorms,

etc.)

• When the windshield is obscured by fog, mist, ice, dirt, etc.
• When the windshield is cracked or damaged
• When the camera sensor is deformed or dirty
• When the temperature of the camera sensor is extremely high
• When the surrounding brightness level is equal to that of headlights, tail

lights or fog lights

• When  headlights  or  tail  lights  of  vehicles  ahead  are  turned  off,  dirty,

changing color, or not aimed properly

• When the vehicle is hit by water, snow, dust, etc. from a preceding vehi-

cle

• When driving through an area of intermittently changing brightness and

darkness

• When frequently and repeatedly driving ascending/descending roads, or

roads  with  rough,  bumpy  or  uneven  surfaces  (such  as  stone-paved
roads, gravel roads, etc.)

• When  frequently  and  repeatedly  taking  curves  or  driving  on  a  winding

road

• When there is a highly reflective object ahead of the vehicle, such as a

sign or mirror

• When the back of a preceding vehicle is highly reflective, such as a con-

tainer on a truck

• When  the  vehicle's  headlights  are  damaged  or  dirty,  or  are  not  aimed

properly

• When the vehicle is listing or titling due to a flat tire, a trailer being towed,

etc.

• When  the  headlights  are  changed  between  the  high  beams  and  low

beams repeatedly in an abnormal manner

• When the driver believes that the high beams may be flashing or dazzling

pedestrians or other drivers

Temporarily lowering sensor sensitivity

The sensitivity of the sensor can be temporarily lowered.

Turn the engine switch off while the following conditions are met.

• The headlight switch is in

 or

.

• The headlight switch lever is in the high beam position.
• Automatic High Beam switch is on.
Turn the engine switch to the “ON” position (vehicles without a smart key
system) or IGNITION ON mode (vehicles with a smart key system).
Within 60 seconds after  , repeat pulling the headlight switch lever to the
original position then pushing it to the high beam position quickly 10 times,
then leave the lever in the high beam position.
If the sensitivity is changed, the Automatic High Beam indicator will turn on
and off 3 times.

Automatic  High  Beam  (headlights)  may  turn  on  even  when  the  vehicle  is
stopped.

1

2

3

2

4

-------------------------------------------------------------------------------------------------------------------------------------------------------------

235

4-3. Operating the lights and wipers

4

Drivin

g

4RUNNER (U)

Type A

Turns  the  front  fog  lights
off

Turns  the  front  fog  lights
on

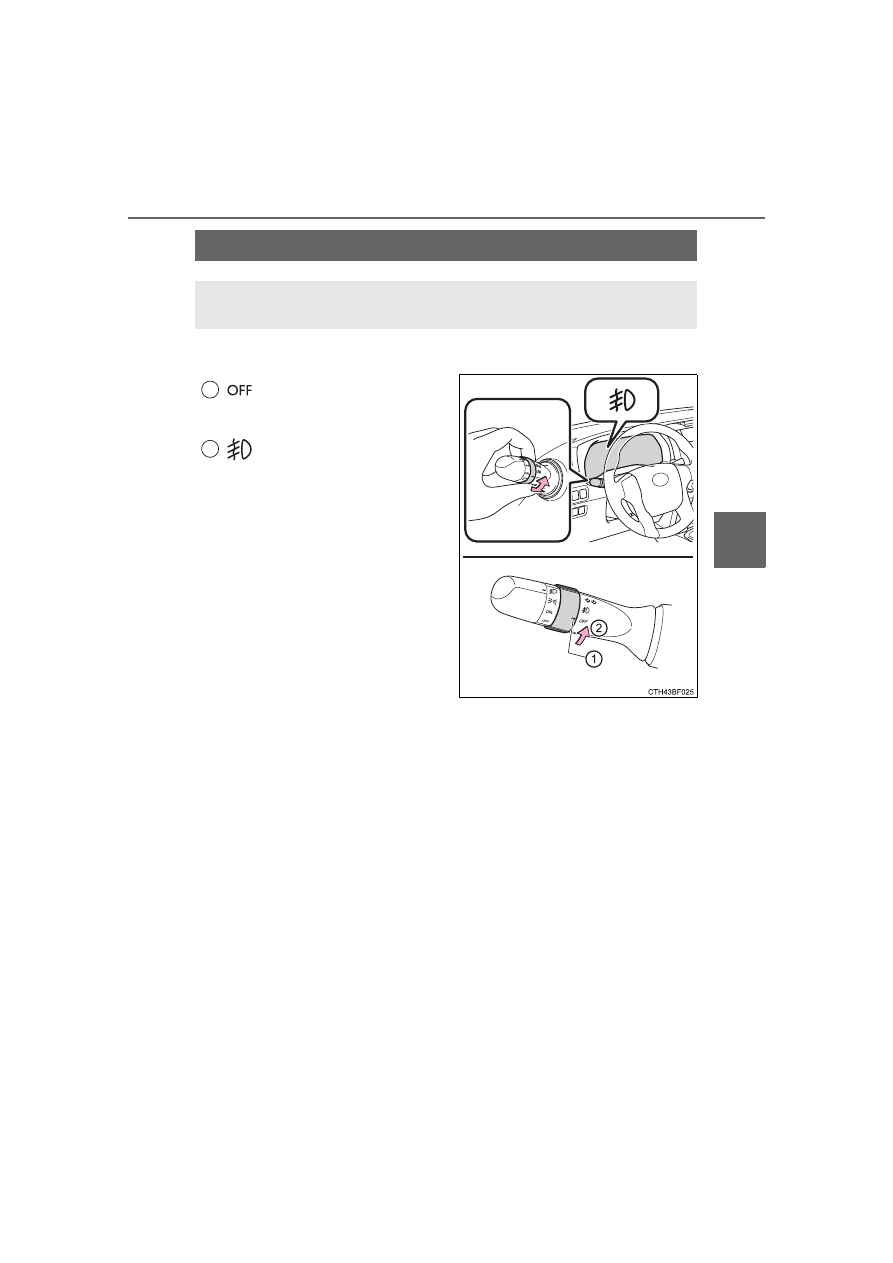

Fog light switch

The fog lights secure excellent visibility in difficult driving con-
ditions, such as in rain and fog.

1

2

-------------------------------------------------------------------------------------------------------------------------------------------------------------

236

4-3. Operating the lights and wipers

4RUNNER (U)

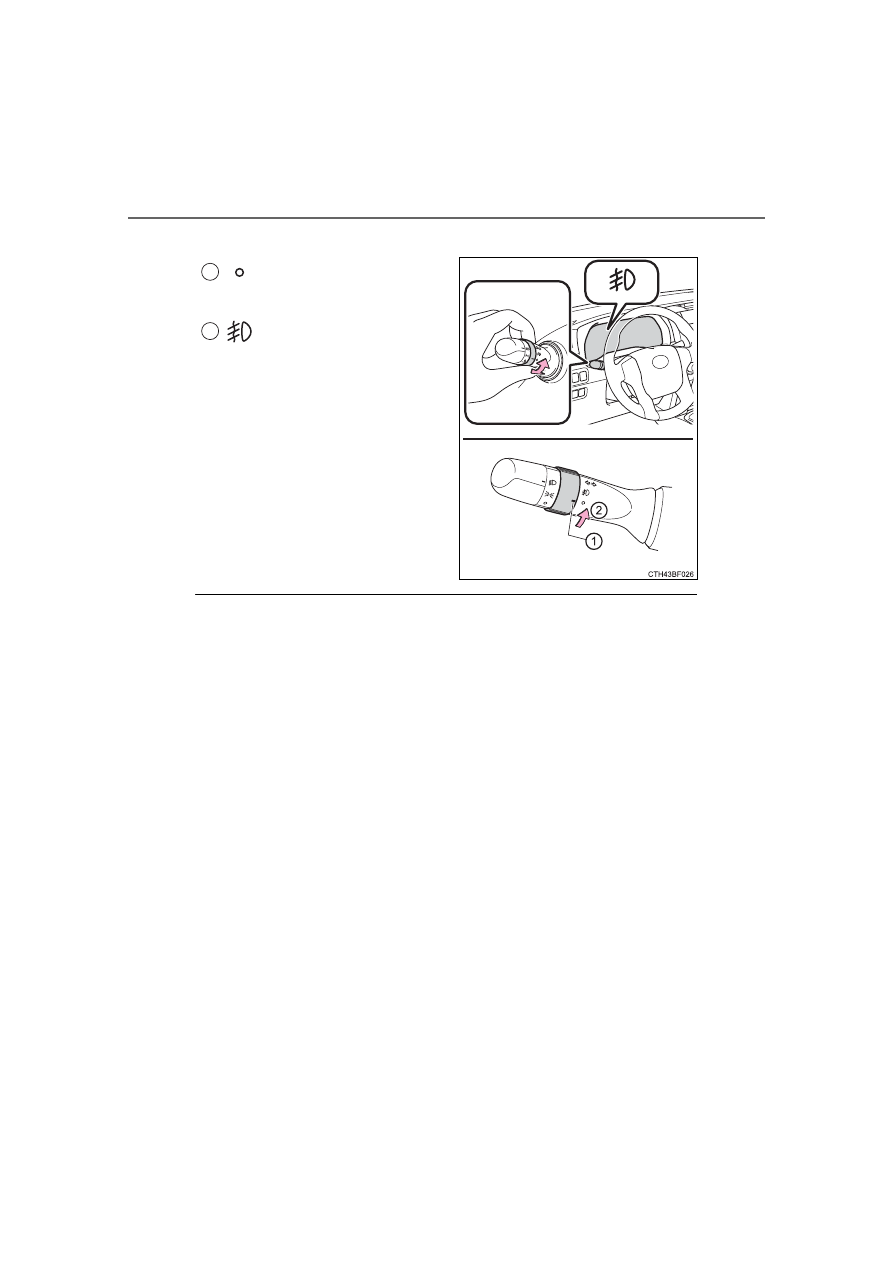

Type B

Turns  the  front  fog  lights
off

Turns  the  front  fog  lights
on

Fog lights can be used when

The headlights are on in low beam.

1

2

-------------------------------------------------------------------------------------------------------------------------------------------------------------

237

4-3. Operating the lights and wipers

4

Drivin

g

4RUNNER (U)

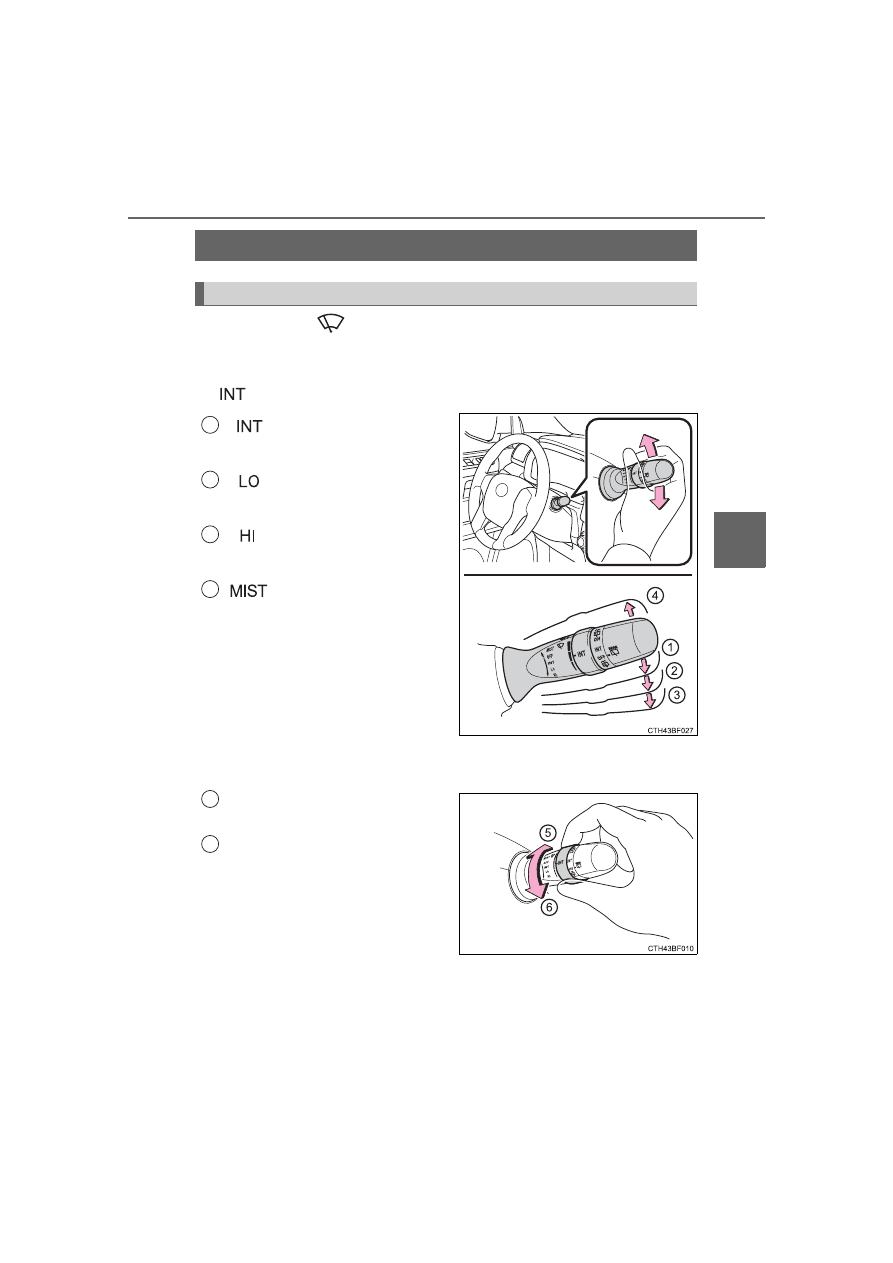

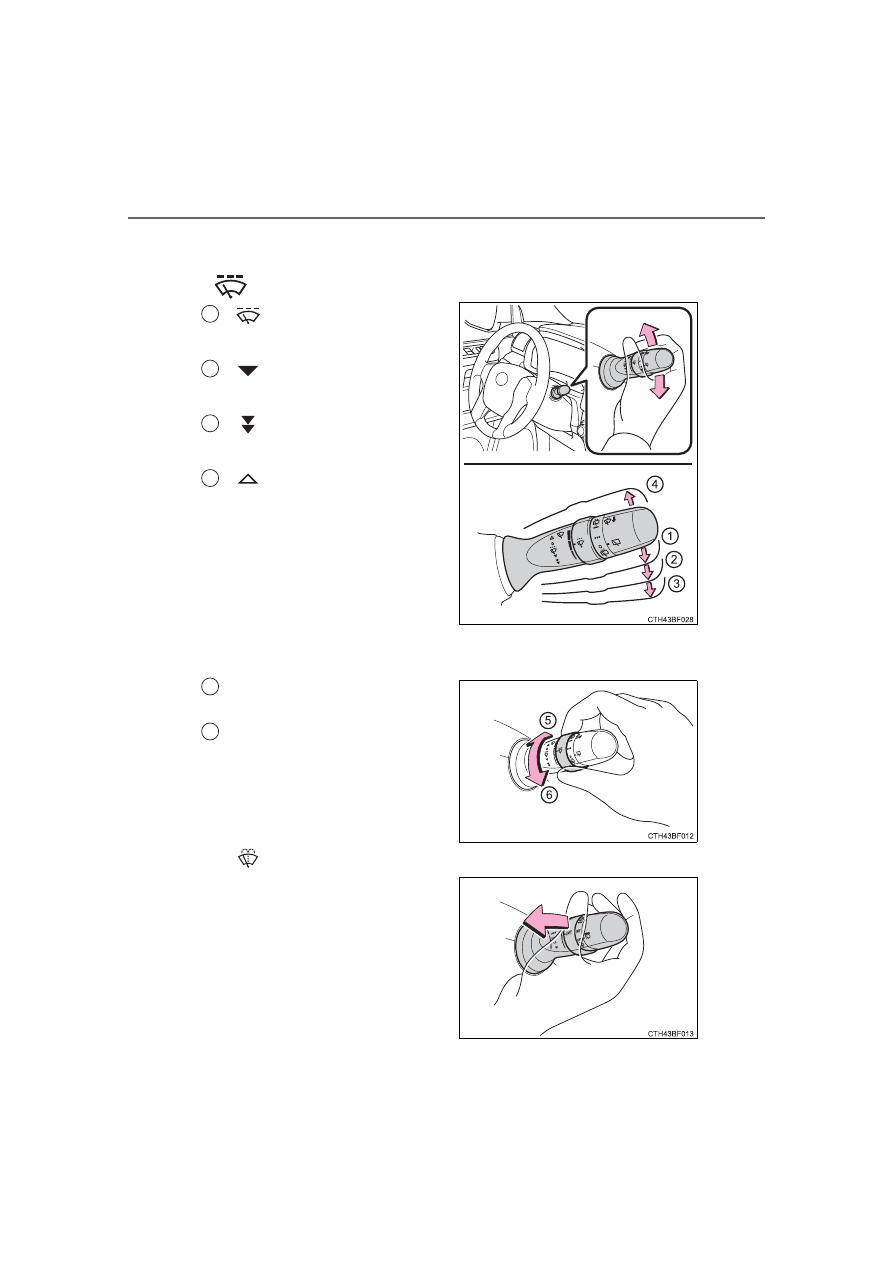

Operating the

 lever operates the wipers or washer as follows:

Type A

Wiper  intervals  can  be  adjusted  for  intermittent  operation  (when

 is selected).

Intermittent windshield
wiper operation

Low speed windshield
wiper operation

High speed windshield
wiper operation

Temporary operation

Wiper  intervals  can  be  adjusted  when  intermittent  operation  is
selected.

Increases the intermittent wind-
shield wiper frequency
Decreases

the

intermittent

windshield wiper frequency

Windshield wipers and washer

Operating the wiper lever

1

2

3

4

5

6

-------------------------------------------------------------------------------------------------------------------------------------------------------------

238

4-3. Operating the lights and wipers

4RUNNER (U)

Type B

Wiper  intervals  can  be  adjusted  for  intermittent  operation  (when

 is selected).

Intermittent windshield
wiper operation

Low speed windshield
wiper operation

High speed windshield
wiper operation

Temporary operation

Wiper  intervals  can  be  adjusted  when  intermittent  operation  is
selected.

Increases the intermittent wind-
shield wiper frequency
Decreases

the

intermittent

windshield wiper frequency



Washer/wiper dual operation

Pulling  the  lever  operates  the
wipers and washer.
Wipers  will  automatically  oper-
ate  a  couple  of  times  after  the
washer squirts.

1

2

3

4

5

6

-------------------------------------------------------------------------------------------------------------------------------------------------------------

239

4-3. Operating the lights and wipers

4

Drivin

g

4RUNNER (U)

The windshield wiper and washer can be operated when

Vehicles without a smart key system

The engine switch is in the “ON” position.

Vehicles with a smart key system

The engine switch is in IGNITION ON mode.

If no windshield washer fluid sprays

Check that the washer nozzles are not blocked if there is washer fluid in the
washer fluid reservoir.

WARNING

Caution regarding the use of washer fluid

When it is cold, do not use the washer fluid until the windshield becomes
warm. The fluid may freeze on the windshield and cause low visibility. This
may lead to an accident, resulting in death or serious injury.

NOTICE

When the windshield is dry

Do not use the wipers, as they may damage the windshield.

When the washer fluid tank is empty

Do not operate the switch continually as the washer fluid pump may over-
heat.

When a nozzle becomes blocked

In this case, contact your Toyota dealer.
Do not try to clear it with a pin or other object. The nozzle will be damaged.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

240

4-3. Operating the lights and wipers

4RUNNER (U)

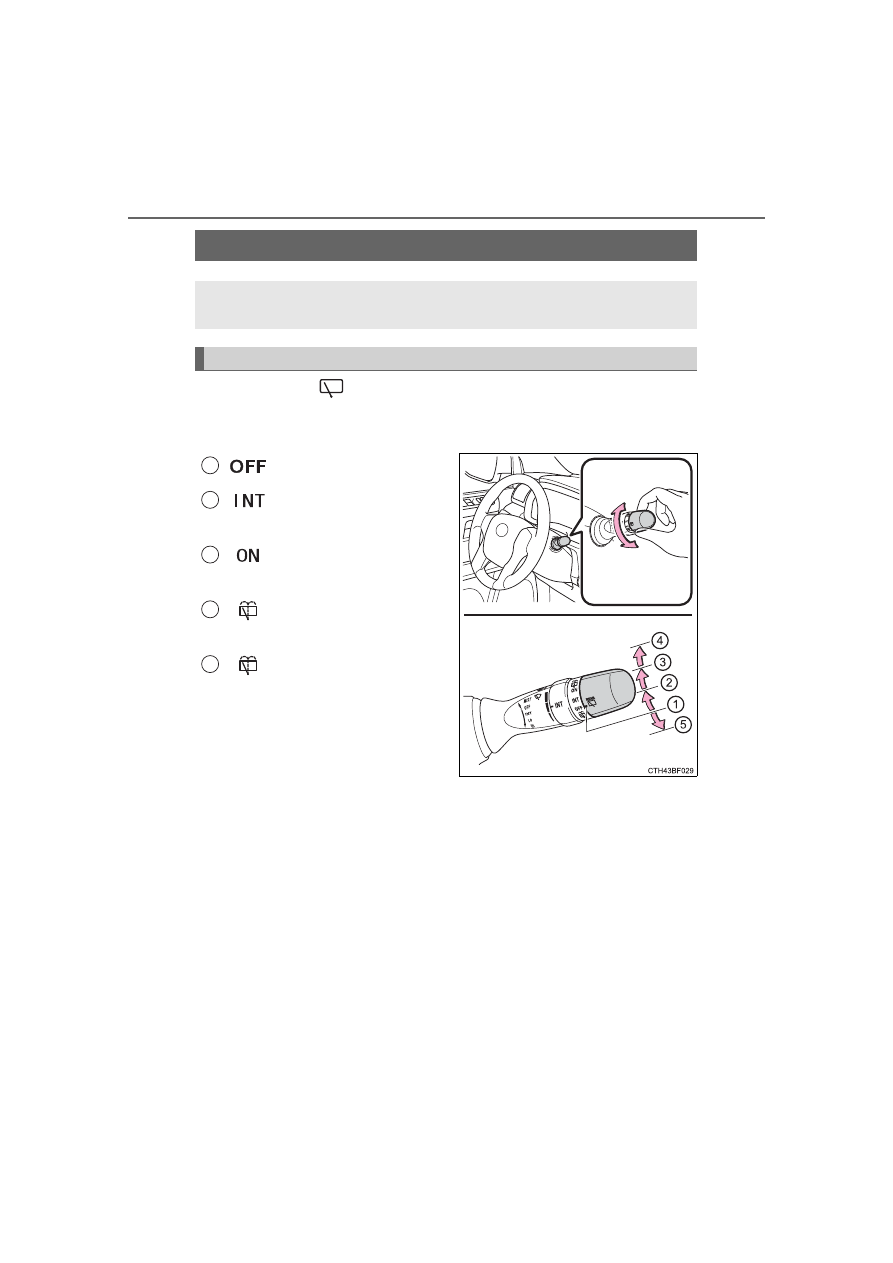

Operating the

 switch operates the rear wiper or washer as fol-

lows:

Type A

Off

Intermittent

window

wiper operation

Normal  window  wiper
operation

Washer/wiper dual oper-
ation

Washer/wiper dual oper-
ation

The  wiper  will  automatically
operate  a  couple  of  times  after
the washer squirts.
(After  operating  several  times,
the  wiper  operates  one  more
time  after  a  short  delay  to  pre-
vent dripping.)

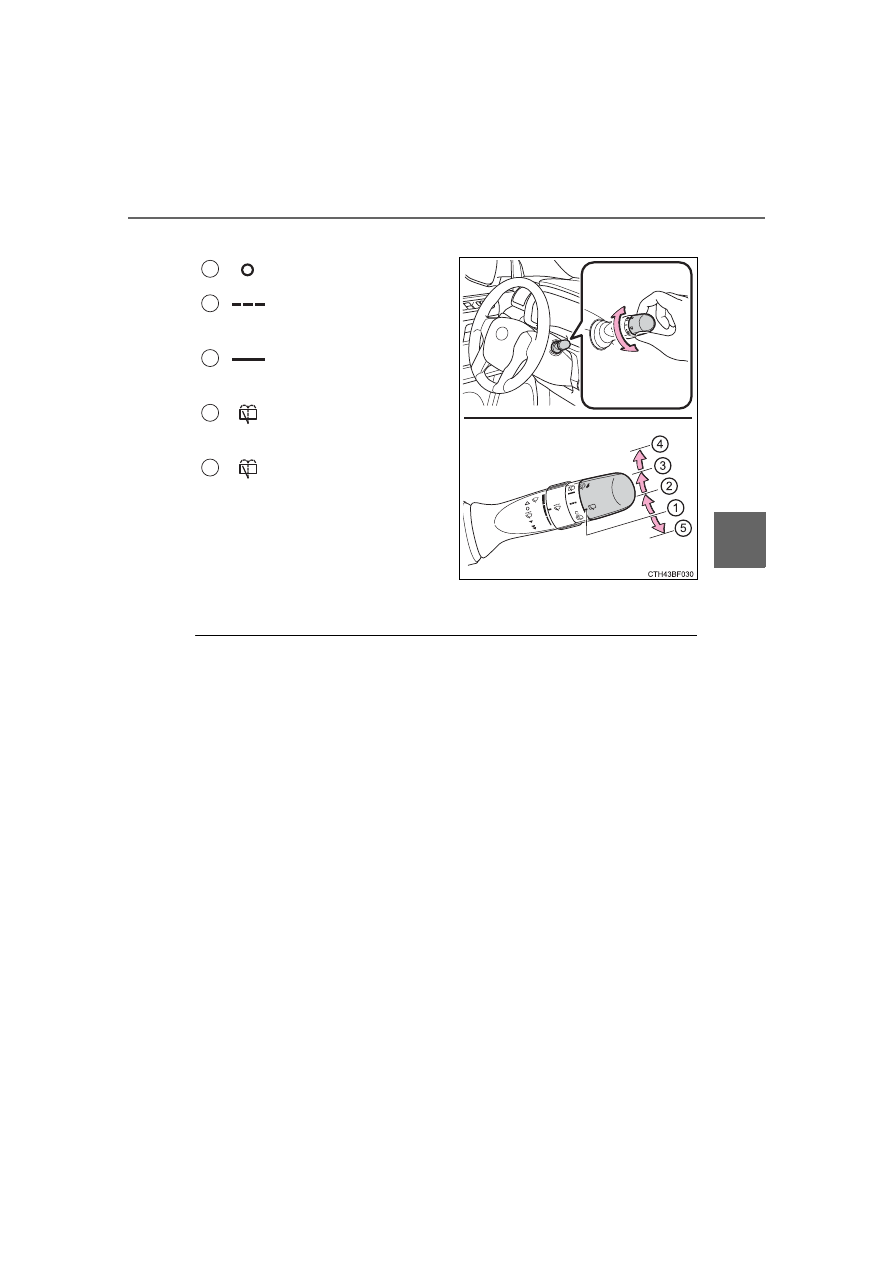

Rear window wiper and washer

Before  operating  the  rear  window  wiper  and  washer  switch,
make sure the back window is completely closed. (

P. 166)

Operating instructions

1

2

3

4

5

-------------------------------------------------------------------------------------------------------------------------------------------------------------

241

4-3. Operating the lights and wipers

4

Drivin

g

4RUNNER (U)

Type B

Off

Intermittent

window

wiper operation

Normal  window  wiper
operation

Washer/wiper dual oper-
ation

Washer/wiper dual oper-
ation

The  wiper  will  automatically
operate  a  couple  of  times  after
the washer squirts.
(After  operating  several  times,
the  wiper  operates  one  more
time  after  a  short  delay  to  pre-
vent dripping.)

The rear window wiper and washer can be operated when

Vehicles without a smart key system: The engine switch is in the “ON” posi-
tion.
Vehicles  with a  smart  key  system: The engine  switch  is  in IGNITION  ON
mode.

The back window is completely closed.

Intermittent window wiper operation

When intermittent window wiper operation mode is selected, the wiper will
operate a couple of times and then switch to intermittent operation.

During  intermittent  operation,  the  wiper  stops  temporarily  at  the  reversing
position.

1

2

3

4

5

-------------------------------------------------------------------------------------------------------------------------------------------------------------

242

4-3. Operating the lights and wipers

4RUNNER (U)

When the rear window wiper and washer switch is turned off

The rear wiper will stop operation, and return to the retracted position after
approximately 3 seconds.
However, if the engine switch is turned to the “ACC” or “LOCK” position (vehi-
cles without a smart key system) or the engine switch is turned to ACCES-
SORY mode or turned off (vehicles with a smart key system) while the rear
wiper is operating, the rear wiper will stop at that position and will not return to
the retracted position.

If no washer fluid sprays

Check  that  the  washer  nozzle  is  not  blocked  if  there  is  washer  fluid  in  the
washer fluid reservoir.

Customization

Settings (e.g. drip prevention function) can be changed.
(Customizable features

P. 547)

NOTICE

When the rear window is dry

Do not use the wiper, as it may damage the rear window.

When the washer fluid tank is empty

Do not operate the switch continually as the washer fluid pump may over-
heat.

When a nozzle becomes blocked

In this case, contact your Toyota dealer.
Do not try to clear it with a pin or other object. The nozzle will be damaged.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

243

4

Drivin

g

4RUNNER (U)

4-4. Refueling

Turn the engine switch to the “LOCK” position and ensure that all
the doors and windows are closed.

Confirm the type of fuel.

Fuel types

P. 532

Fuel tank opening for unleaded gasoline

To  help  prevent  incorrect  fueling,  your  vehicle  has  a  fuel  tank  opening  that
only accommodates the special nozzle on unleaded fuel pumps.

If the malfunction indicator lamp illuminates

The malfunction indicator lamp may illuminate erroneously if refueling is per-
formed repeatedly when the fuel tank is nearly full.

Opening the fuel tank cap

Perform the following steps to open the fuel tank cap:

Before refueling the vehicle

-------------------------------------------------------------------------------------------------------------------------------------------------------------

244

4-4. Refueling

4RUNNER (U)

WARNING

When refueling the vehicle

Observe the following precautions while refueling the vehicle. Failure to do
so may result in death or serious injury.

After  exiting  the  vehicle  and  before  opening  the  fuel  door,  touch  an
unpainted metal surface to discharge any static electricity. It is important to
discharge static electricity before refueling because sparks resulting from
static electricity can cause fuel vapors to ignite while refueling.

Always hold the grips on the fuel tank cap and turn it slowly to remove it.
A  whooshing  sound  may  be  heard  when  the  fuel  tank  cap  is  loosened.
Wait until the sound cannot be heard before fully removing the cap. In hot
weather, pressurized fuel may spray out the filler neck and cause injury.

Do  not  allow  anyone  that  has  not  discharged  static  electricity  from  their
body to come close to an open fuel tank.

Do not inhale vaporized fuel.
Fuel contains substances that are harmful if inhaled.

Do not smoke while refueling the vehicle.
Doing so may cause the fuel to ignite and cause a fire.

Do not return to the vehicle or touch any person or object that is statically
charged.
This may cause static electricity to build up, resulting in a possible ignition
hazard.

When refueling

Observe the following precautions to prevent fuel overflowing from the fuel
tank:

Securely insert the fuel nozzle into the fuel filler neck.

Stop filling the tank after the fuel nozzle automatically clicks off.

Do not top off the fuel tank.

NOTICE

Refueling

Do not spill fuel during refueling.
Doing  so  may  damage  the  vehicle,  such  as  causing  the  emission  control
system to operate abnormally or damaging fuel system components or the
vehicle’s painted surface.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

245

4-4. Refueling

4

Drivin

g

4RUNNER (U)

Open the fuel filler door.

Turn the fuel tank cap slowly to
open. Hang the fuel tank cap on
the back of the fuel filler door.

After  refueling,  turn  the  fuel  tank
cap  until  you  hear  a  click.  Once
the  cap  is  released,  it  will  turn
slightly in the opposite direction.

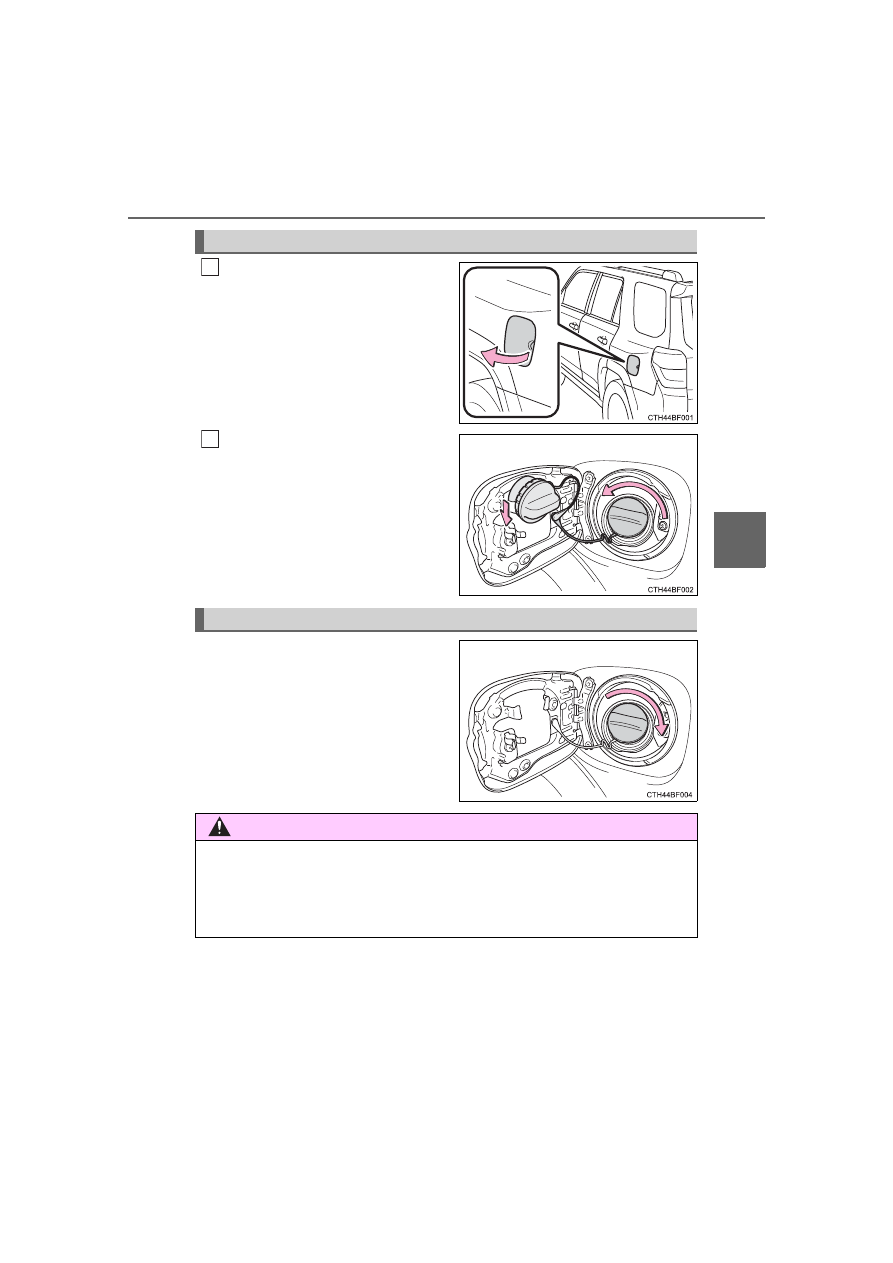

Opening the fuel tank cap

1

2

Closing the fuel tank cap

WARNING

When replacing the fuel tank cap

Do not use anything but a genuine Toyota fuel tank cap designed for your
vehicle.  Doing  so  may  cause  a  fire  or  other  incident  which  may  result  in
death or serious injury.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

246

4RUNNER (U)

4-5. Using the driving support systems

PCS (Pre-Collision System)

P. 254

LDA (Lane Departure Alert)

P. 265

Automatic High Beam

P. 231

Dynamic radar cruise control

P. 273

Toyota Safety Sense P

The Toyota Safety Sense P consists of the following drive assist
systems and contributes to a safe and comfortable driving expe-
rience:

WARNING

Toyota Safety Sense P

The Toyota  Safety  Sense  P  is  designed  to operate  under  the  assumption
that the driver will drive safely, and is designed to help reduce the impact to
the occupants and the vehicle in the case of a collision or assist the driver in
normal driving conditions.
As there is a limit to the degree of recognition accuracy and control perfor-
mance that this system can provide, do not overly rely on this system. The
driver is always responsible for paying attention to the vehicle's surround-
ings and driving safely.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

247

4-5. Using the driving support systems

4

Drivin

g

4RUNNER (U)

The  pre-collision  system  is  equipped  with  a  sophisticated  computer
that will record certain data, such as:

• Accelerator status
• Brake status
• Vehicle speed
• Operation status of the pre-collision system functions
• Information (such as the distance and relative speed between your

vehicle and the vehicle ahead or other objects)

• Images from the camera sensor (available only when the pre-colli-

sion braking function or the pre-collision brake assist function was
operating)

The  pre-collision  system  does  not  record  conversations,  sounds  or
images of the inside of the vehicle.

Data usage
Toyota  may  use  the  data  recorded  in  this  computer  to  diagnose
malfunctions,  conduct  research  and  development,  and  improve
quality.
Toyota will not disclose the recorded data to a third party except:

• With the consent of the vehicle owner or with the consent of the

lessee if the vehicle is leased

• In response to an official request by the police, a court of law or a

government agency

• For use by Toyota in a lawsuit
• For  research  purposes  where  the  data  is  not  tied  to  a  specific

vehicle or vehicle owner

Recorded images can be erased using a specialized device.
The image recording function can be disabled. However, if the func-
tion is disabled, data from when the pre-collision system operates
will not be available.

Vehicle data recording

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     13      14      15      16     ..
