Toyota Tundra (2019 year). Instruction - part 36

(If equipped)

Indicates that radar cruise control sensor is dirty
or covered with ice.

A buzzer also sounds.

 Clean the sensor.

(If equipped)

Indicates that the dynamic radar cruise control
system cannot be used temporarily due to bad
weather

A buzzer also sounds.

 Use the dynamic radar cruise control sys-

tem when it becomes available again.

(If equipped)

Indicates that the RCTA (Rear Cross Traffic Alert)
sensors or the surrounding area on the bumper is
dirty or covered with ice (if equipped)

A buzzer also sounds.

 Clean the sensor and its surrounding area

on the bumper.

(If equipped)

The operation conditions of the camera sensor
(temperature, etc.) are not met.

 When the operation conditions of the cam-

era sensor (temperature, etc.) are met, the
following systems will become available.

• PCS (Pre-Collision System)
• LDA (Lane Departure Alert) system
• Dynamic radar cruise control
• Automatic High Beam

(If equipped)

Indicates that dirt, rain, condensation, ice, snow,
etc., are present on the windshield in front of the
camera sensor. The following systems will be
temporarily unusable.
• PCS (Pre-Collision System)
• LDA (Lane Departure Alert) system
• Dynamic radar cruise control
• Automatic High Beam

 Tum the system off, remove any dirt, rain,

condensation, ice, snow, etc., from the
windshield, and then turn the system back
on.

Warning message

Details/Actions

Radar Cruise

Control

Unavailable

Clean Sensor

Radar Cruise

Control

Unavailable

Rear Cross Traffic Alert

Unavailable

Front Camera

Unavailable

(Yellow)

Front Camera

Unavailable

Remove Debris

On Windshield

(Yellow)

562

Indicates a malfunction in the Drive-start control.

A buzzer also sounds.

 Have the vehicle inspected by your Toyota

dealer immediately.

Indicates that the shift position was changed and
Drive-Start Control was operated while depress-
ing the accelerator pedal.

 Momentarily release the accelerator pedal.

(Flashes)

Indicates that the headlight switch is left on (with
the key removed and the driver’s door opened)

A buzzer also sounds.

 Turn the lights off.

Indicates a malfunction in:
• The automatic headlight leveling system; or
• The LED headlight system (if equipped).

A buzzer also sounds.

 Have the vehicle inspected by your Toyota

dealer.

(If equipped)

Indicates a malfunction in the Automatic High
Beam system.

 Have the vehicle inspected by your Toyota

dealer.

Indicates that the tire inflation pressure is low.

 Check the tire inflation pressure, and

adjust to the appropriate level.

(If equipped)

Indicates that the Automatic High Beam switch is
pressed while the headlights are in low beam.

 Turn the high beam on and press the Auto-

matic High Beam switch again.

Warning message

Details/Actions

Drive-Start

Control

Malfunction

Visit Your Dealer

Release

Accelerator

Turn Lights Off

Headlight System

Malfunction

Visit Your Dealer

Headlight System

Malfunction

Visit Your Dealer

Tire Pressure Low

Check Tire

Auto High Beam Ready

Turn ON High Beam to

Activate

563

(If equipped)

Indicates that, since the VSC (Vehicle Stability
Control) system was turned off, the pre-collision
brake system operation is stopped.

 Turn the VSC on. (P. 303)

(If equipped)

Indicates that the pre-collision system is tempo-
rarily unavailable.

 Please wait until the system returns. If the

message  does  not  disappear,  the  system
may  be  malfunctioning.  Have  the  vehicle
inspected  by  your  Toyota  dealer  immedi-
ately.

(If equipped)

Indicates that the pre-collision system sensor is
dirty, covered with ice, etc.

 Remove any dirt, ice, etc.

Indicates a malfunction in the RCTA (Rear Cross
Traffic Alert).

A buzzer also sounds.

 Have the vehicle inspected by your Toyota

dealer.

Indicates that the VSC ECU or G sensor is not
communicating with trailer brake control system.
Indicates a malfunction in the VSC system.

 Have the vehicle inspected by your Toyota

dealer immediately.

Warning message

Details/Actions

VSC Turned Off

Pre-Collision Brake

System

Unavailable

Pre-Collision System

Unavailable

Pre-Collision System

Unavailable

Clean Sensor

Rear Cross Traffic Alert

Malfunction

Visit Your Dealer

Trailer Brake Error.

If Towing,

Come to a Safe Stop

with Manual Controls.

Contact dealer.

564

: Refer to the separate “Scheduled Maintenance Guide” or “Owner’s Manual

Supplement” for the maintenance interval applicable to your vehicle.

■

Warning message in radar cruise mode (if equipped)
In the following cases, the warning message may not be displayed even if
vehicle-to-vehicle distance decreases:

●

When your vehicle and the vehicle ahead are traveling at the same speed or
the vehicle ahead is traveling more quickly than your vehicle

●

When the vehicle ahead is traveling at a very low speed

●

Immediately after cruise control speed is set

●

At the instant the accelerator pedal is depressed

■

Conditions that the tire pressure warning system may not function

properly
P. 501

Indicates that an internal switch failure of trailer
brake control system, an over current detected by
trailer brake control system.

 Have the vehicle inspected by your Toyota

dealer immediately.

Indicates that an internal microprocessor error,
output circuit to trailer brakes unintended current,
or manual brake output slider is stuck or broken

 Have the vehicle inspected by your Toyota

dealer immediately.

Indicates that the output circuit has reverse volt-
age, or the internal trailer brake control system
temperature is too high.

 Check trailer wiring issue, check trailer

connection. If there is still a problem, have
the vehicle inspected by your Toyota dealer
immediately.

Warning message

Details/Actions

Trailer Brake Error.

If Towing,

Come to a Safe Stop

Contact dealer.

Trailer Wiring,

Type, or Connection

fault.

See Owner’s manual.

565

If you have a flat tire

● Stop the vehicle in a safe place on a hard, flat surface.
● Set the parking brake.
● Shift the shift lever to P.
● Stop the engine.
● Turn on the emergency flashers. (P. 538)

Your vehicle is equipped with a spare tire. The flat tire can be
replaced with the spare tire.
For details about tires:

P. 495

WARNING

■

If you have a flat tire
Do not continue driving with a flat tire.

Driving even a short distance with a flat tire can damage the tire and the

wheel beyond repair, which could result in an accident.

Before jacking up the vehicle

566

■

Spare tire

■

Jack and tools

Jack
Tool bag

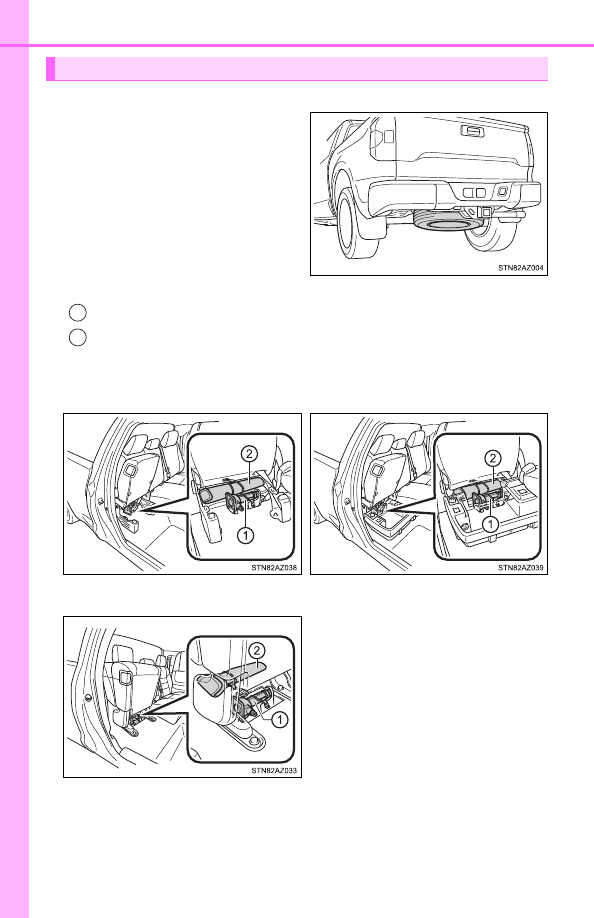

Location of the spare tire, jack and tools



Double Cab models without
storage box



Double Cab models with stor-
age box



CrewMax models

567

WARNING

■

Using the tire jack
Observe the following precautions.

Improper use of the tire jack may cause the vehicle to suddenly fall off

the jack, leading to death or serious injury.

●

Do not use the tire jack for any purpose other than replacing tires or

installing and removing tire chains.

●

Only use the tire jack that comes with this vehicle for replacing a flat

tire.

Do not use it on other vehicles, and do not use other tire jacks for

replacing tires on this vehicle.

●

Put the jack properly in its jack point.

●

Do not put any part of your body under the vehicle while it is supported

by the jack.

●

Do not start the engine or drive the vehicle while the vehicle is sup-

ported by the jack.

●

Do not raise the vehicle while someone is inside.

●

When raising the vehicle, do not put an object on or under the jack.

●

Do not raise the vehicle to a height greater than that required to

replace the tire.

●

Use a jack stand if it is necessary to get under the vehicle.

●

When lowering the vehicle, make sure that there is no-one near the

vehicle. If there are people nearby, warn them vocally before lowering.

■

Using the jack handle
Insert the square head securely until you hear a click to prevent the

extension parts from coming apart unexpectedly.

568

Pull up the lever and raise the
bottom cushion up.

On vehicles with storage box,
turn the knob to the “OPEN”
direction and remove the lid.

On vehicles with storage box,
remove the jack cover panel.

Unhook the rubber band and
take out the jack.

For loosening
For tightening

Taking out the jack and tool bag (Double Cab models)

569

Unhook the rubber band and
remove the tool bag.

Pull the lever and raise the bot-
tom cushion up.

Unhook the rubber band and
take out the jack.

For loosening
For tightening

Unhook the rubber band and
remove the tool bag.

Taking out the jack and tool bag (CrewMax models)

570

Assemble the jack handle
extension as shown.

Insert  the  end  of  the  jack  han-
dle  extension  into  the  lowering
screw  and  turn  it  counterclock-
wise.

After the tire is lowered com-
pletely to the ground, remove
the holding bracket.

Taking out the spare tire

571

Chock the tires.

On some models, remove the
wheel ornament using the
wheel nut wrench as shown.

To protect the wheel and wheel

ornament, place a rag between

the wrench and the wheel orna-

ment, as shown in the illustration.

Slightly loosen the wheel nuts
(one turn).

Replacing a flat tire

Flat tire

Wheel chock positions

Front

Left-hand side

Behind the rear right-hand side tire

Right-hand side

Behind the rear left-hand side tire

Rear

Left-hand side

In front of the front right-hand side tire

Right-hand side

In front of the front left-hand side tire

572

Assemble the jack handle
extension as shown.

Position the jack at the correct
jack point as shown.

Front
Rear

Make sure the jack is positioned

on a level and solid place.

Raise the vehicle until the tire is
slightly raised off the ground.

When positioning the jack under

the rear axle housing, make sure

the groove on the top of the jack

fits with the rear axle housing.

Remove all the wheel nuts and
the tire.

When resting the tire on the

ground, place the tire so that the

wheel design faces up to avoid

scratching the wheel surface.

Front

573

WARNING

■

Replacing a flat tire

●

Observe the following precautions.

Failure to do so may result in serious injury:
• Lower the spare tire completely to the ground before removing it

from under the vehicle.

• Do not try to remove the wheel ornament by hand. Take due care in

handling the ornament to avoid unexpected personal injury.

• Do not touch the disc wheels or the area around the brakes immedi-

ately after the vehicle has been driven.

After the vehicle has been driven the disc wheels and the area

around the brakes will be extremely hot. Touching these areas with

hands, feet or other body parts while changing a tire, etc., may

result in burns.

●

Failure to follow these precautions could cause the wheel nuts to

loosen and the tire to fall off, resulting in death or serious injury.
• Have the wheel nuts tightened with a torque wrench as soon as pos-

sible after changing wheels.

Steel wheel: 154 ft·lbf (209 N·m, 21.3 kgf·m)

Aluminum wheel: 97 ft·lbf (131 N·m, 13.4 kgf·m)

• When installing a tire, only use wheel nuts that have been specifi-

cally designed for that wheel.

• Retighten the wheel nuts within 100 miles (160 km) of driving.

• If there are any cracks or deformations in the bolt screws, nut

threads or bolt holes of the wheel, have the vehicle inspected by

your Toyota dealer.

• Do not attach a heavily damaged wheel ornament, as it may fly off

the wheel while the vehicle is moving.

• When installing the wheel nuts, be sure to install them with the

tapered ends facing inward. (

P. 511)

574

Remove any dirt or foreign mat-
ter from the wheel contact sur-
face.

If foreign matter is on the wheel

contact surface, the wheel nuts

may loosen while the vehicle is in

motion, causing the tire to come

off.

Install the spare tire and loosely tighten each wheel nut by hand by
approximately the same amount.
Tighten the nuts until the tapered portion comes into loose contact
with the disc wheel seat.

Installing the spare tire



Replacing a steel wheel with a
steel wheel



Replacing an aluminum wheel
with a steel wheel

Tapered portion

Disc wheel

Tapered portion

Disc wheel

575

Lower the vehicle.

Firmly tighten each nut two or
three times in the order shown
in the illustration.

Tightening torque:

154 ft·lbf (209 N·m, 21.3 kgf·m)

WARNING

■

Stowing the flat tire
Failure to follow steps listed under stowing the tire may result in damage

to the spare tire carrier and loss of the tire, which could result in serious

injury or death.

576
