For safet

While  pushing  the  child
restraint  system  down  into
the  rear  seat,  allow  the
shoulder  belt  to  retract  until
the  child  restraint  system  is
securely in place.

After  the  shoulder  belt  has
retracted to a point where there
is  no  slack  in  the  belt,  pull  the
belt  to  check  that  it  cannot  be
extended.

■

Forward-facing

Convertible seat

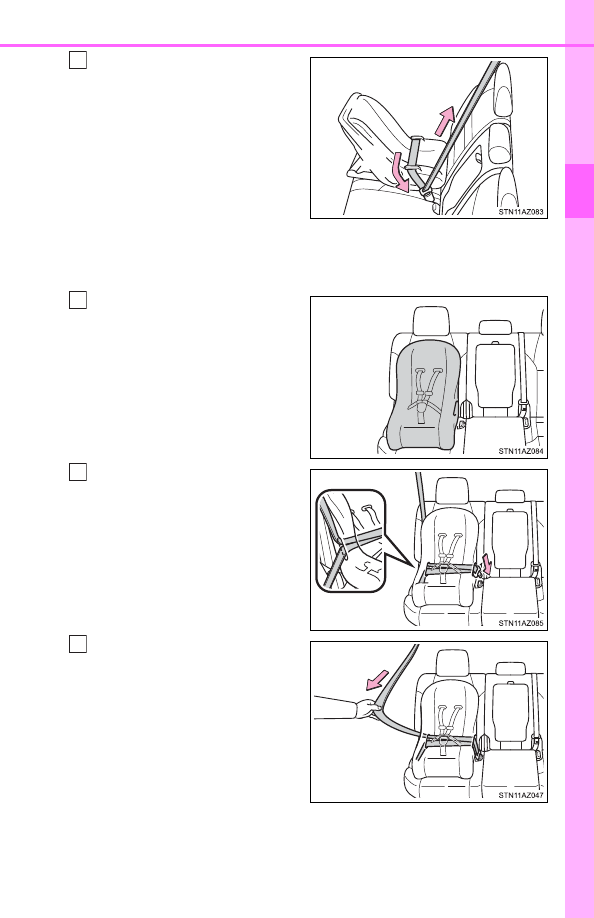

Place the child restraint sys-
tem on the seat facing the
front of the vehicle.

Run the seat belt through the
child  restraint  system  and
insert  the  plate  into  the
buckle.  Make  sure  that  the
belt is not twisted.

Fully extend the shoulder belt
and allow it to retract to put it
in lock mode. In lock mode,
the belt cannot be extended.

1-1. For safe use

While  pushing  the  child
restraint system into the rear
seat,  allow  the  shoulder  belt
to  retract  until  the  child
restraint  system  is  securely
in place.

After  the  shoulder  belt  has
retracted to a point where there
is  no  slack  in  the  belt,  pull  the
belt  to  check  that  it  cannot  be
extended.

If the child restraint has a top tether strap, the top tether strap
should be latched onto the top tether strap anchor.
(

P. 67, 7 0)

■

Booster seat

Place the child restraint sys-
tem on the seat facing the
front of the vehicle.

Sit  the  child  in  the  child
restraint system. Fit the seat
belt to the child restraint sys-
tem  according  to  the  manu-
facturer’s  instructions  and
insert  the  plate  into  the
buckle.  Make  sure  that  the
belt is not twisted.

Check that the shoulder belt is correctly positioned over the child’s
shoulder and that the lap belt is as low as possible. (

P. 32)

1-1. For safe use

For safet

y and s

ecurity

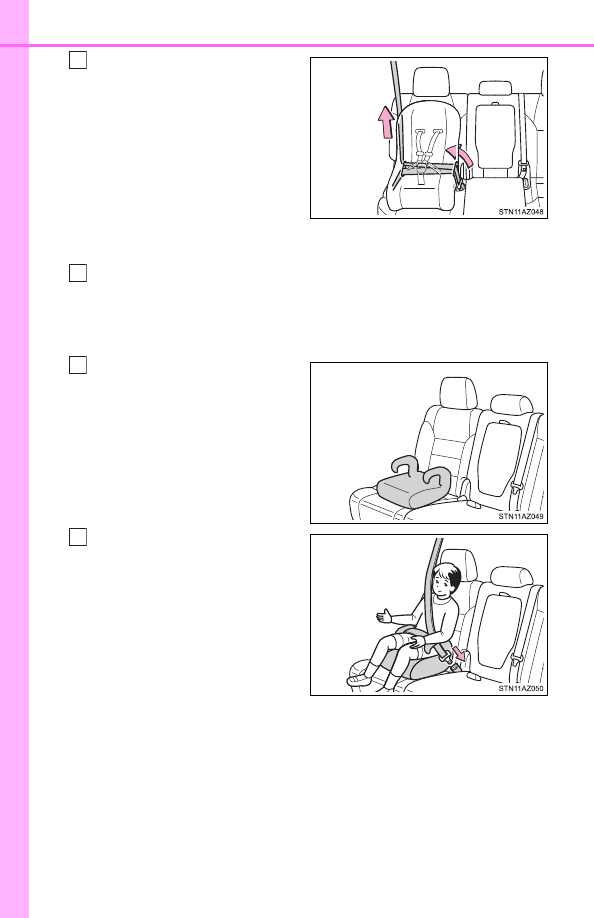

Push the buckle release button
and fully retract the seat belt.

■

Right rear seat or center rear seat
Secure  the  child  restraint  system  using  a  seat  belt  or  the  lower
anchors.

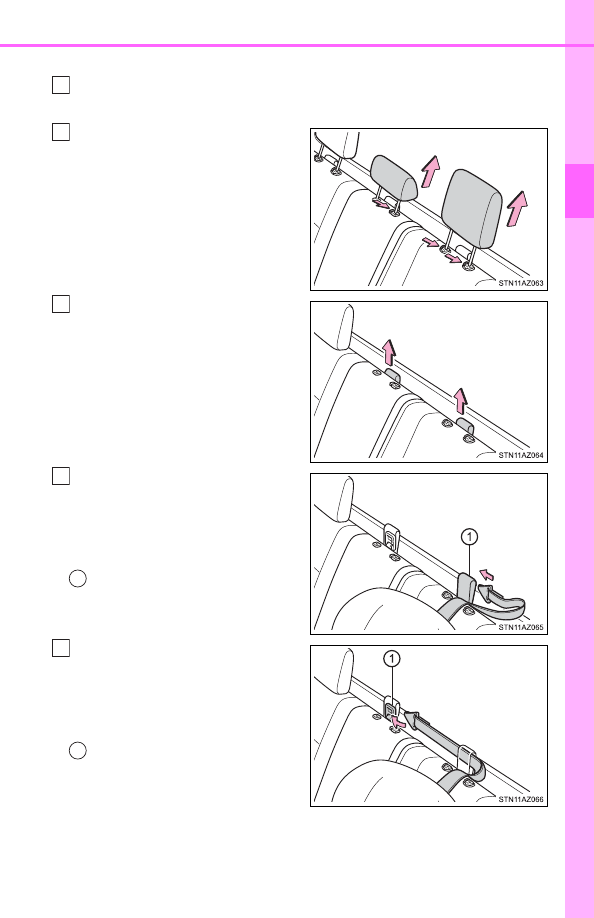

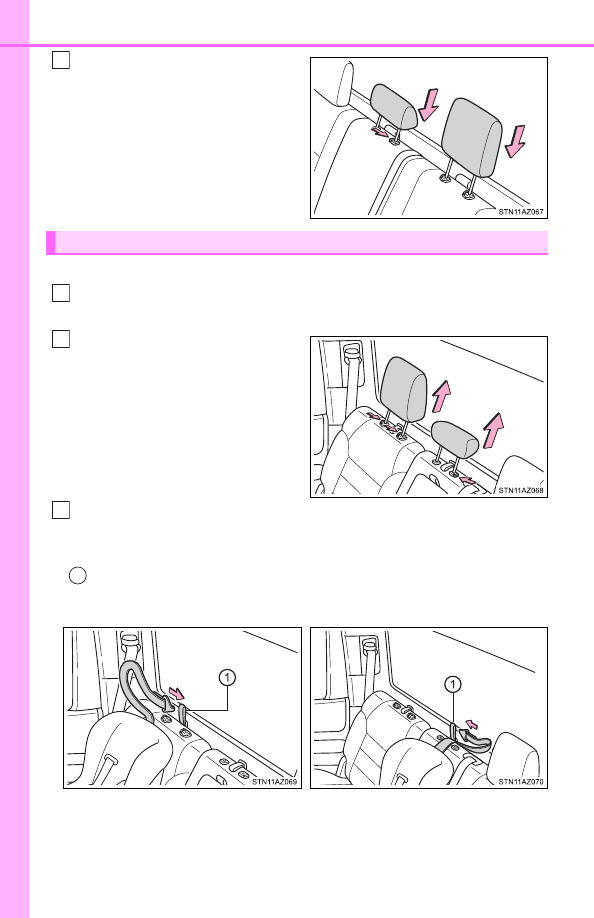

Remove  the  head  restraints  of
right  and  center  rear  seats.
(

P. 133)

Pull up the straps of right and
center seats.

Removing a child restraint installed with a seat belt

Child restraint systems with a top tether strap (Double Cab mod-
els)

1-1. For safe use

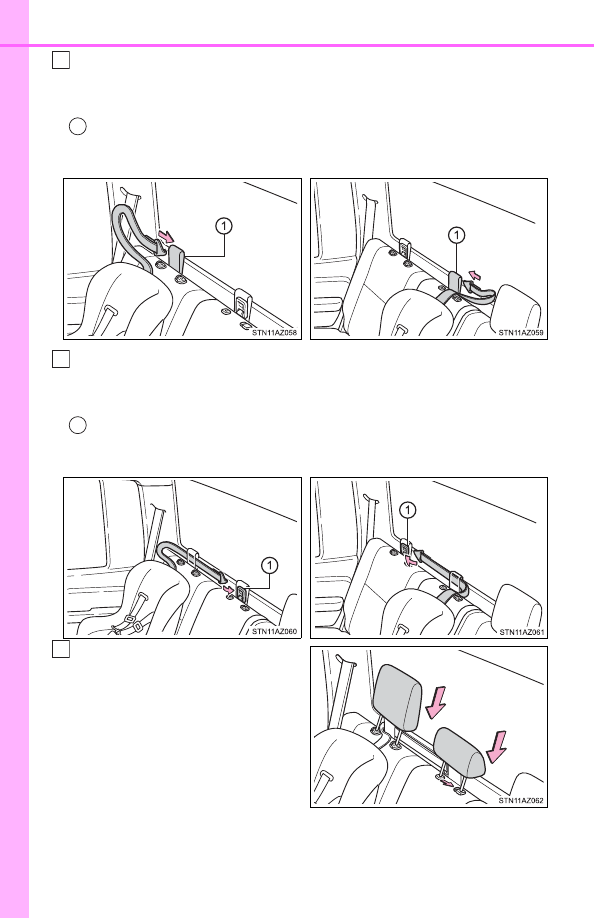

Route the top tether strap through the anchor strap router as shown
in the illustration.

Make sure the top tether strap is not twisted.

Anchor strap router

Latch the hook onto the anchor strap ring and tighten the top tether
strap.

Make sure the top tether strap is securely latched.

Anchor strap ring

Replace the head restraints of
right and center rear seats.
(

P. 134)



Right rear seat



Center rear seat



Right rear seat



Center rear seat

1-1. For safe use

For safet

y and s

ecurity

■

Left rear seat
Secure the child restraint system using a seat belt or the lower
anchors.

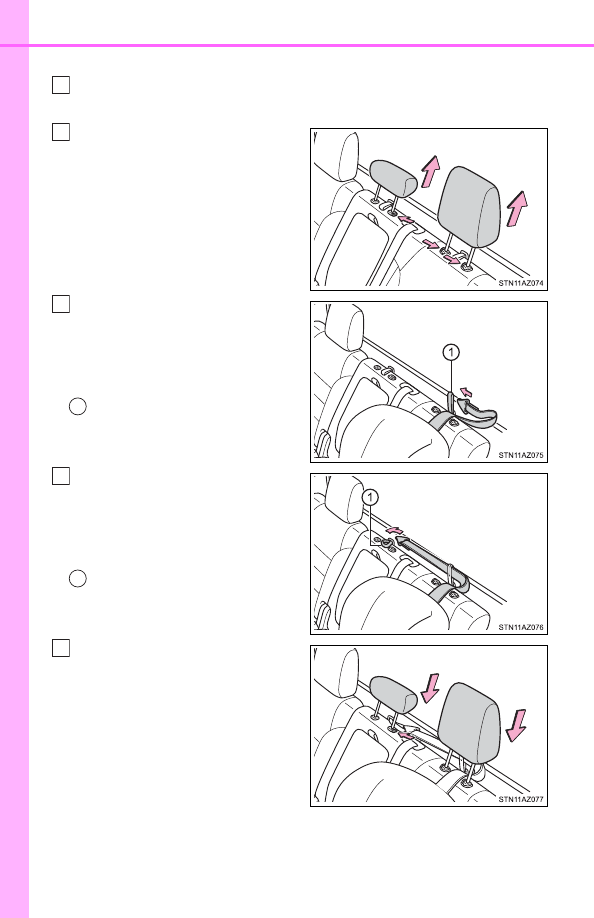

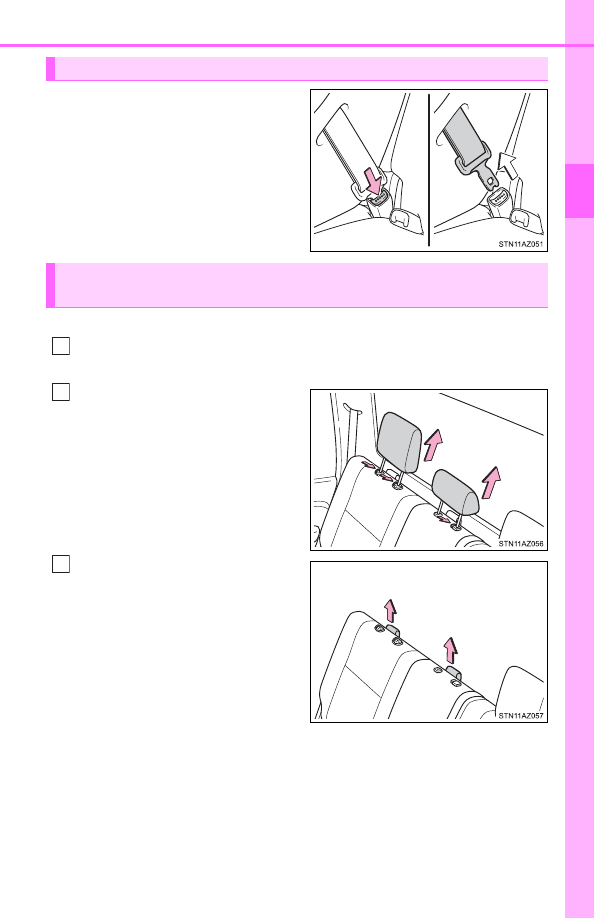

Remove the head restraints of
center and left rear seats.
(

P. 133)

Pull up the straps of center and
left seats.

Route the top tether strap
through the anchor strap router
as shown in the illustration.

Make sure the top tether strap is
not twisted.

Anchor strap router

Latch the hook onto the anchor
strap ring and tighten the top
tether strap.

Make sure the top tether strap is
securely latched.

Anchor strap ring

1-1. For safe use

Replace the head restraints of
center and left seats. (

P. 134)

■

Right rear seat or center rear seat
Secure the child restraint system using a seat belt or the lower
anchors.
Remove the head restraints of
the right and center rear seats.
(

P. 133)

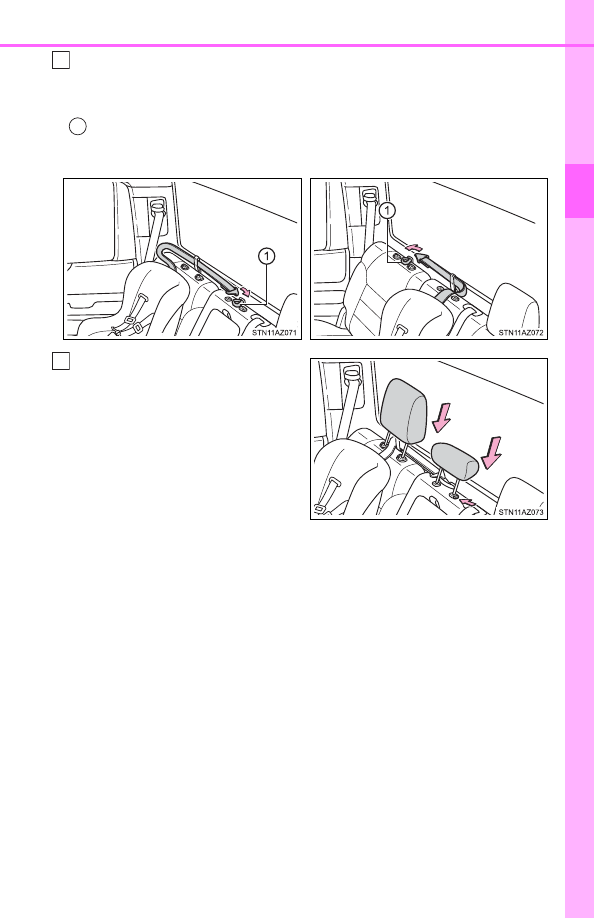

Route the top tether strap through the anchor strap belt as shown in
the illustration.

Make sure the top tether strap is not twisted.

Anchor strap belt

Child restraint systems with a top tether strap (CrewMax models)



Right rear seat



Center rear seat

1-1. For safe use

For safet

y and s

ecurity

Latch the hook onto the anchor strap belt and tighten the top tether
strap.

Make sure the top tether strap is securely latched.

Anchor strap belt

Replace the head restraints of
right and center rear seats.
(

P. 134)



Right rear seat



Center rear seat

1-1. For safe use

■

Left seat
Secure  the  child  restraint  system  using  a  seat  belt  or  the  lower
anchors.
Remove  the  head  restraints  of
the  center  and  left  rear  seats.
(

P. 133)

Route the top tether strap
through the anchor strap belt as
shown in the illustration.

Make sure the top tether strap is
not twisted.

Anchor strap belt

Latch the hook onto the anchor
strap belt and tighten the top
tether strap.

Make sure the top tether strap is
securely latched.

Anchor strap belt

Replace the head restraints of
center and left rear seats.
(

P. 134)

1-1. For safe use

For safet

y and s

ecurity

■

Laws and regulations pertaining to anchorages
The LATCH system conforms to FMVSS225 or CMVSS210.2.
Child restraint systems conforming to FMVSS213 or CMVSS213 specifica-
tions can be used.
This vehicle is designed to conform to the SAE J1819.

WARNING

■

When installing a booster seat
To prevent the belt from going into ALR lock mode, do not fully extend the
shoulder belt. ALR mode causes the belt to tighten only. This could cause
injury or discomfort to the child. (

P. 34)

■

When installing a child restraint system
Follow the directions given in the child restraint system installation manual
and fix the child restraint system securely in place.
If the child restraint system is not correctly fixed in place, the child or other
passengers may be seriously injured or even killed in the event of a sudden
braking or an accident.

●

If  the  driver’s  seat  interferes  with  the
child  restraint  system  and  prevents  it
from being attached correctly, attach the
child  restraint  system  to  the  right-hand
rear seat.

●

Adjust the front passenger seat so that
it does not interfere with the child
restraint system.

●

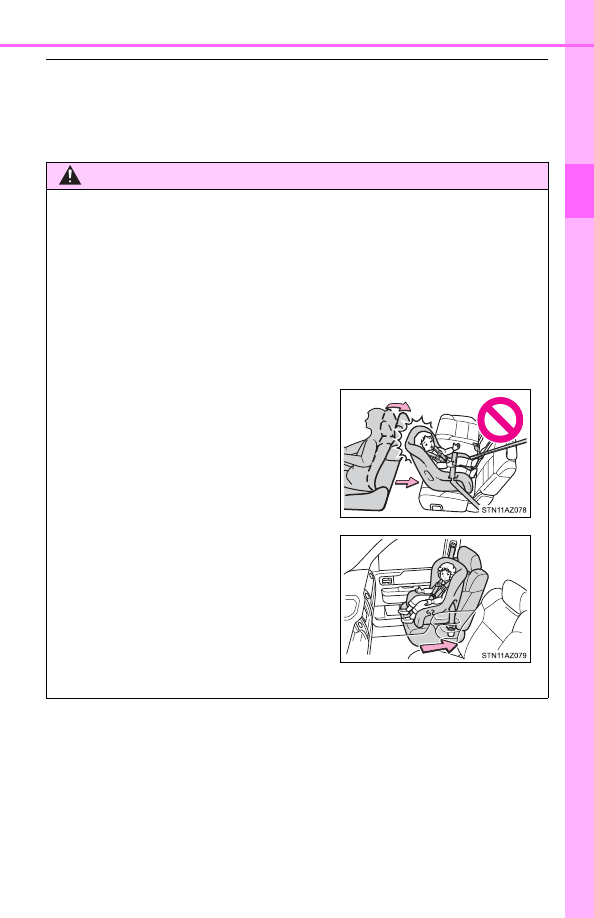

Only put a forward-facing child restraint
system on the front seat when unavoid-
able.  When  installing  a  forward-facing
child  restraint  system  on the  front  pas-
senger seat, move the seat as far back
as possible even if the “AIR BAG OFF”
indicator  light  is  illuminated.  Failure  to
do  so  may  result  in  death  or  serious
injury if the airbags deploy (inflate).

1-1. For safe use

WARNING

■

When installing a child restraint system

●

When a booster seat is installed, always ensure that the shoulder belt is
positioned across the center of the child’s shoulder. The belt should be
kept away from the child’s neck, but not so that it could fall off the child’s
shoulder. Failure to do so may result in death or serious injury in the event
of an accident or a sudden braking.

●

Ensure that the belt and plate are securely locked and the seat belt is not
twisted.

●

Shake the child restraint system left and right, and forward and backward
to ensure that it has been securely installed.

●

After securing a child restraint system, never adjust the seat.

●

Follow all installation instructions provided by the child restraint system
manufacturer.

●

When securing some types of child restraint systems in rear seats, it may
not be possible to properly use the seat belts in positions next to the child
restraint without interfering with it or affecting seat belt effectiveness. Be
sure your seat belt fits snugly across your shoulder and low on your hips. If
it does not, or if it interferes with the child restraint, move to a different
position. Failure to do so may result in death or serious injury.

■

Do not use a seat belt extender
If a seat belt extender is used when installing a child restraint system, the
seat belt will not securely hold the child restraint system, which could cause
death or serious injury to the child or other passengers in the event of a sud-
den braking, sudden swerving or an accident.

■

To correctly attach a child restraint system to the anchors
When using the LATCH anchors, be sure that there are no foreign objects
around the anchors and that the seat belt is not caught behind the child
restraint system. Make sure the child restraint system is securely attached,
or it may cause death or serious injury to the child or other passengers in
the event of a sudden braking or an accident.

1-1. For safe use

For safet

y and s

ecurity

Exhaust gas precautions

Harmful substance to the human body is included in exhaust
gases if inhale.

WARNING

Exhaust gases include harmful carbon monoxide (CO), which is colorless and
odorless. Observe the following precautions.
Failure to do so may cause exhaust gases to enter the vehicle and may lead
to an accident caused by light-headedness, or may lead to death or a serious
health hazard.

■

Important points while driving

●

Double Cab and CrewMax models: Keep the back window closed.

●

Double Cab and CrewMax models: If you smell exhaust gases in the vehi-
cle even when the back window is closed, open the windows and have the
vehicle inspected at your Toyota dealer as soon as possible.

●

Toyota does not recommend occupying the rear cargo area when it is fitted
with a slide-in camper, camper shell or other type cover while the engine is
running. This caution applies to both driving and stopped or parked situa-
tions with the engine running. Particular care should be taken to prevent
exhaust gases from entering camper bodies, trailers or other enclosures
on or around your vehicle. If exhaust fumes are detected, open all win-
dows and thoroughly ventilate the area.

■

When parking

●

If the vehicle is in a poorly ventilated area or a closed area, such as a
garage, stop the engine.

●

Do not leave the vehicle with the engine on for a long time.
If such a situation cannot be avoided, park the vehicle in an open space
and ensure that exhaust fumes do not enter the vehicle interior.

●

Do not leave the engine running in an area with snow build-up, or where it
is snowing. If snowbanks build up around the vehicle while the engine is
running, exhaust gases may collect and enter the vehicle.

■

Exhaust pipe
The exhaust system needs to be checked periodically. If there is a hole or
crack caused by corrosion, damage to a joint or abnormal exhaust noise, be
sure to have the vehicle inspected and repaired by your Toyota dealer.

1-2. Theft deterrent system

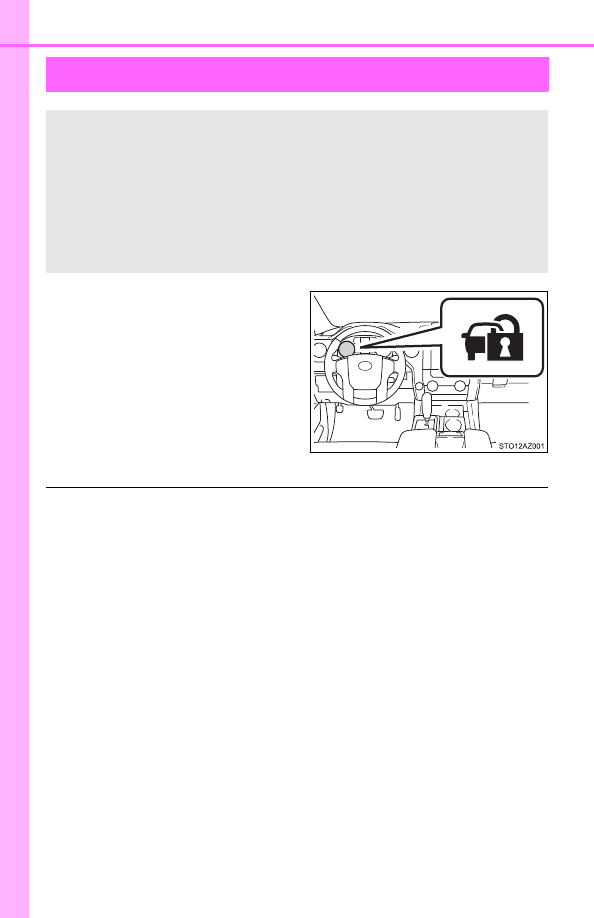

Engine immobilizer system

The  indicator  light  flashes  after
the  key  has  been  removed  from
the  engine  switch  to  indicate  that
the system is operating.
The  indicator  light  stops  flashing
after the registered key has been
inserted into the engine switch to
indicate that the system has been
canceled.

■

System maintenance
The vehicle has a maintenance-free type engine immobilizer system.

■

Conditions that may cause the system to malfunction

●

If the grip portion of the key is in contact with a metallic object

●

If the key is in close proximity to or touching a key to the security system
(key with a built-in transponder chip) of another vehicle

■

Certifications for the engine immobilizer system



For vehicles sold in the U.S.A.

FCC ID: MOZRI-42BTY
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) this device may not cause harmful interfer-
ence, and (2) this device must accept any interference received, including
interference that may cause undesired operation.



For vehicles sold in Canada

This device complied with RSS-210 of Industry Canada.
Operation is subject to the following two conditions: (1) this device may not
cause interference, and (2) this device must accept any interference, includ-
ing interference that may cause undesired operation of the device.

The vehicle’s keys have built-in transponder chips that prevent
the engine from starting if a key has not been previously regis-
tered in the vehicle’s on-board computer.
Never leave the keys inside the vehicle when you leave the vehi-
cle.
This system is designed to help prevent vehicle theft but does
not guarantee absolute security against all vehicle thefts.

1-2. Theft deterrent system

For safet

y and s

ecurity



For vehicles sold in New Caledonia

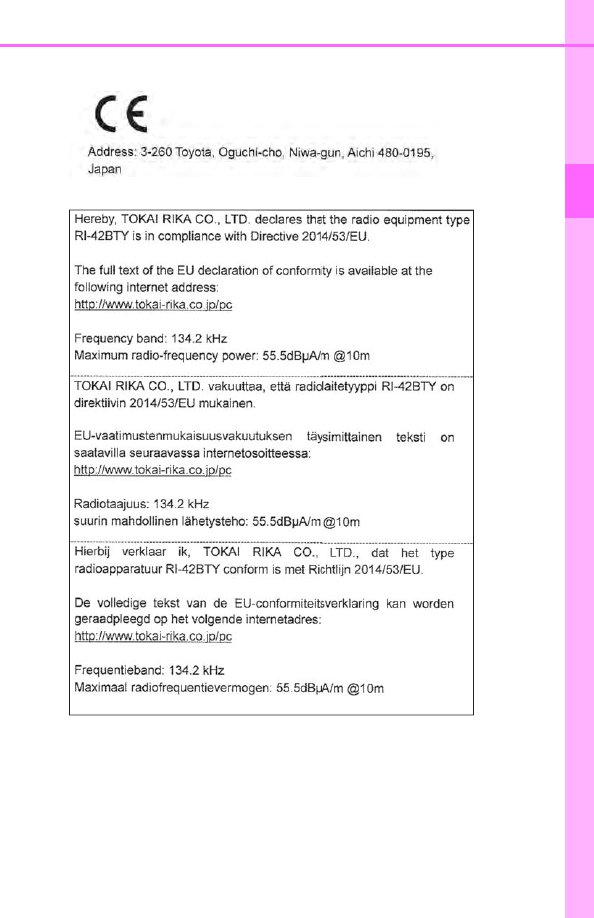

1-2. Theft deterrent system

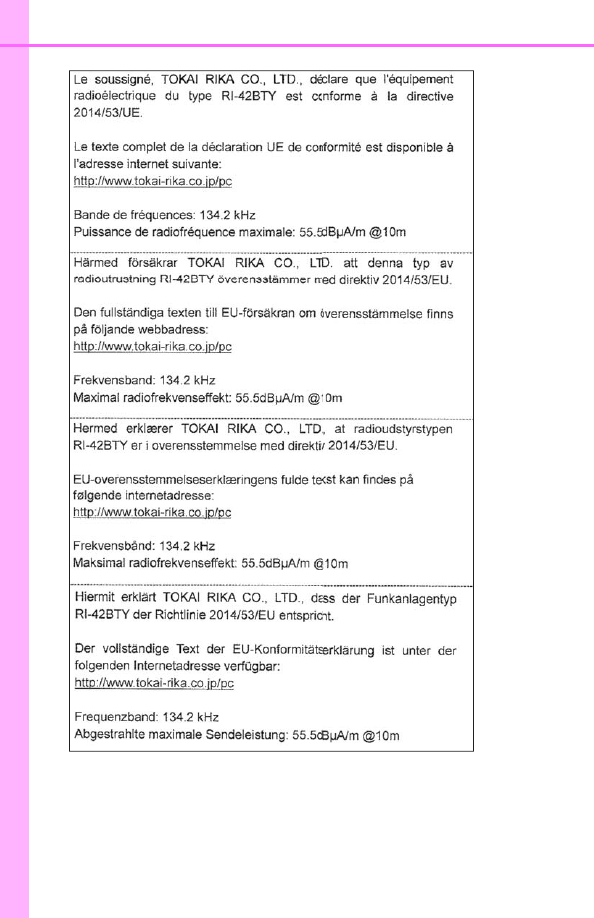

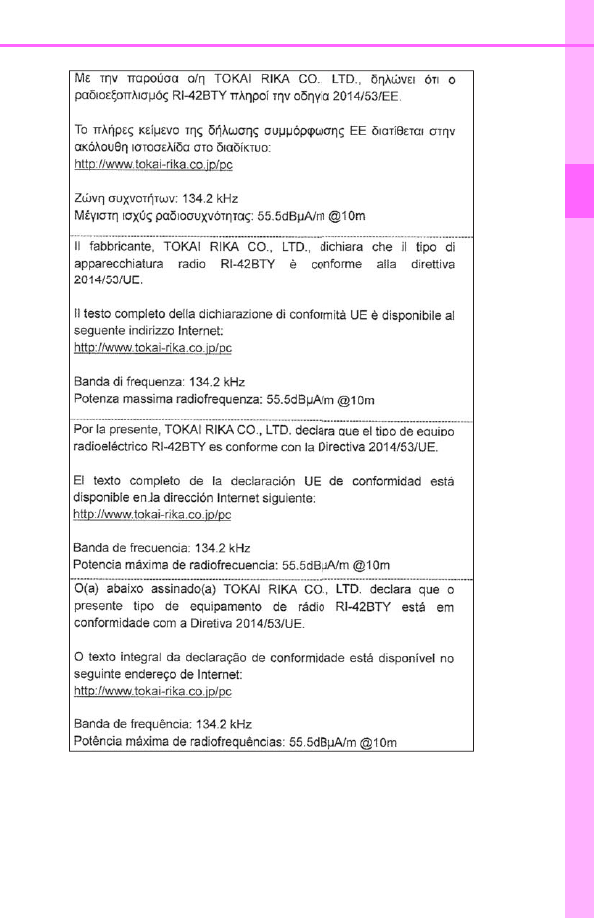

1-2. Theft deterrent system

For safet

y and s

ecurity

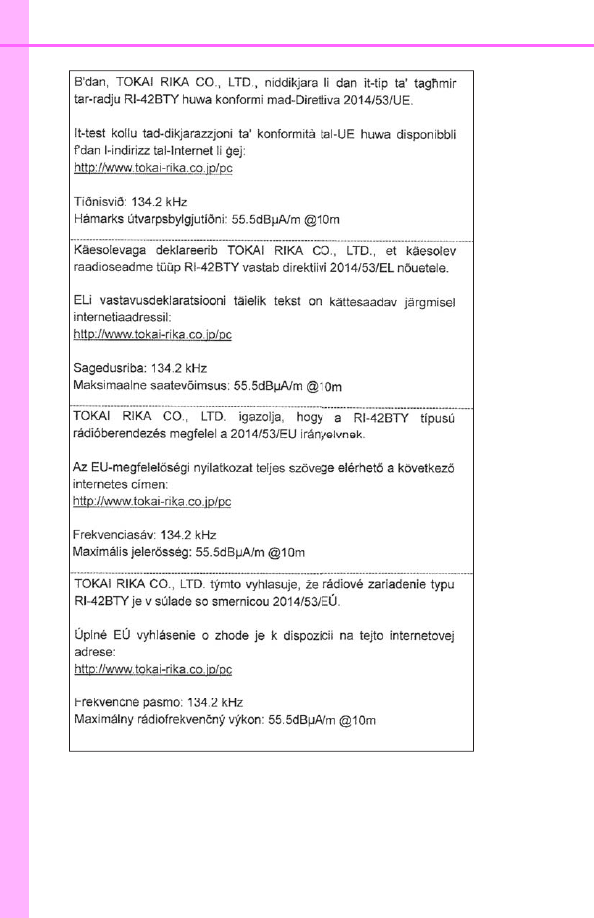

1-2. Theft deterrent system

Content .. 3 4 5 6 ..
