Toyota Camry (2019 year). Instruction - part 11

161

3-2. Opening, closing and locking the doors

3

Op
eration

 o

f each

 compo

nen
t

CAMRY_U

●

If the wireless remote control is used to lock the doors when the electronic
key  is  near  the  vehicle,  there  is  a  possibility  that  the  door  may  not  be
unlocked by the entry function. (Use the wireless remote control to unlock
the doors.)

●

Touching the door lock sensor while wearing gloves may delay or prevent
lock operation. Remove the gloves and touch the lock sensor again.

●

When the lock operation is performed using the lock sensor, recognition sig-
nals  will  be  shown  up  to  two  consecutive  times. After  this,  no  recognition
signals will be given.

*

●

If the door handle becomes wet while the electronic key is within the effec-
tive range, the door may lock and unlock repeatedly. In this case, follow the
following correction procedures to wash the vehicle:
• Place the electronic key in a location 6 ft. (2 m) or more away from the

vehicle. (Take care to ensure that the key is not stolen.)

• Set  the  electronic  key  to  battery-saving  mode  to  disable  the  smart  key

system. (

P. 159)

●

If the electronic key is inside the vehicle and a door handle becomes wet
during a car wash, a message may be shown on the multi-information dis-
play and a buzzer will sound outside the vehicle. To turn off the alarm, lock
all the doors.

●

The  lock  sensor  may  not  work  properly  if  it  comes  into  contact  with  ice,
snow, mud, etc. Clean the lock sensor and attempt to operate it again.

●

A sudden approach to the effective range or door handle may prevent the
doors from being unlocked. In this case, return the door handle to the origi-
nal position and check that the doors unlock before pulling the door handle
again.

●

If there is another electronic key in the detection area, it may take slightly
longer to unlock the doors after the door handle is gripped.

●

Fingernails may scrape against the door during operation of the door han-
dle. Be careful not to injure fingernails or damage the surface of the door.

*

: This setting can be customized at your Toyota dealer.

162

3-2. Opening, closing and locking the doors

CAMRY_U

■

When the vehicle is not driven for extended periods

●

To prevent theft of the vehicle, do not leave the electronic key within 6 ft. (2
m) of the vehicle.

●

The smart key system can be deactivated in advance. (

P. 567)

●

Setting the electronic key to battery-saving mode helps to reduce key bat-
tery depletion. (

P. 159)

■

To operate the system properly
Make sure to carry the electronic key when operating the system. Do not get
the electronic key too close to the vehicle when operating the system from the
outside of the vehicle.
Depending on the position and holding condition of the electronic key, the key
may not be detected correctly and the system may not operate properly. (The
alarm may go off accidentally, or the door lock prevention function may not
operate.)

■

If the smart key system does not operate properly

●

Locking and unlocking the doors and trunk: Use the mechanical key.
(

P. 526)

●

Starting the engine:

P. 527

■

Customization
Some functions can be customized. (

P. 567)

■

If the smart key system has been deactivated in a customized setting

●

Locking and unlocking the doors and opening the trunk:
Use the wireless remote control or mechanical key. (

P. 144, 153, 526)

●

Starting the engine and changing engine switch modes:

P. 527

●

Stopping the engine:

P. 208

163

3-2. Opening, closing and locking the doors

3

Op
eration

 o

f each

 compo

nen
t

CAMRY_U

■

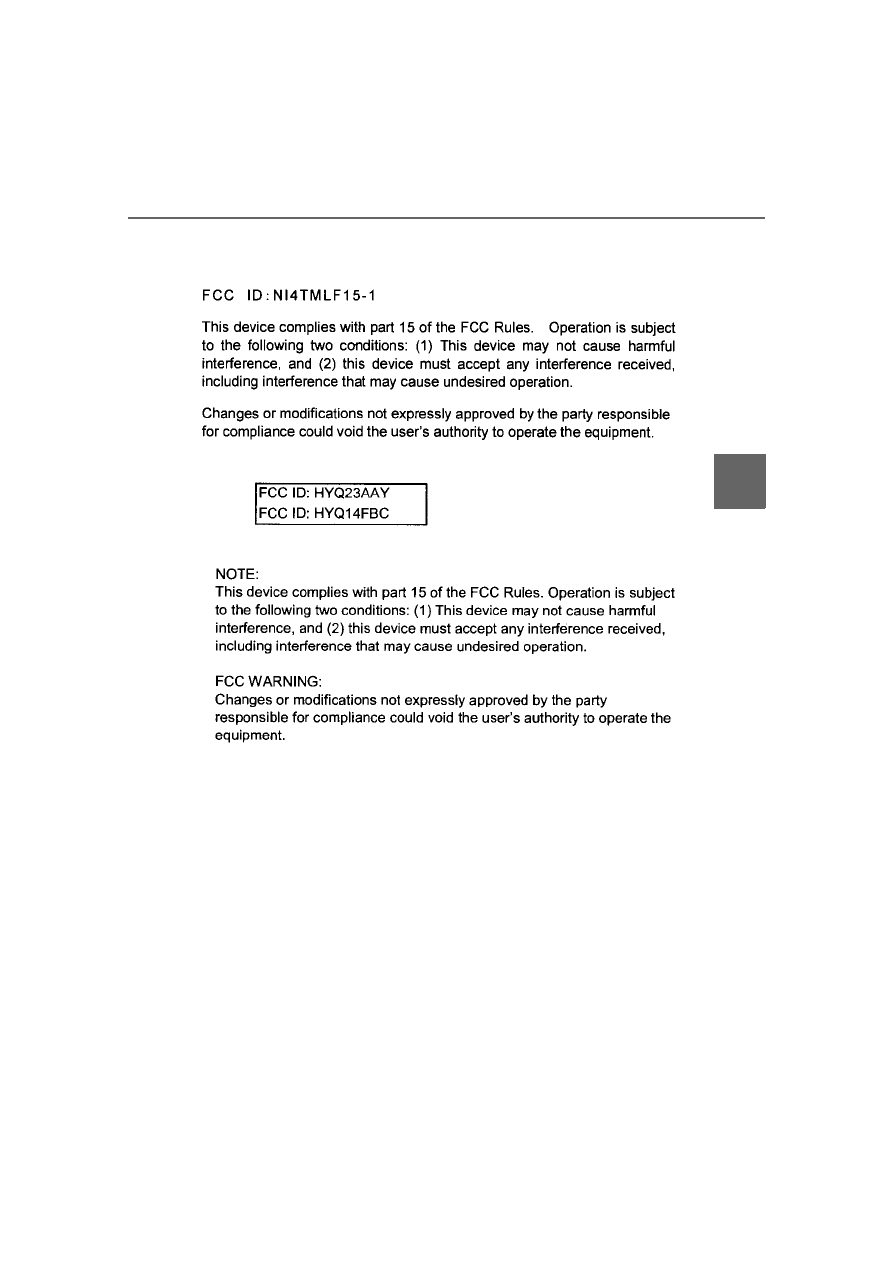

Certification for the smart key system



For vehicles sold in the U.S.A.

164

3-2. Opening, closing and locking the doors

CAMRY_U



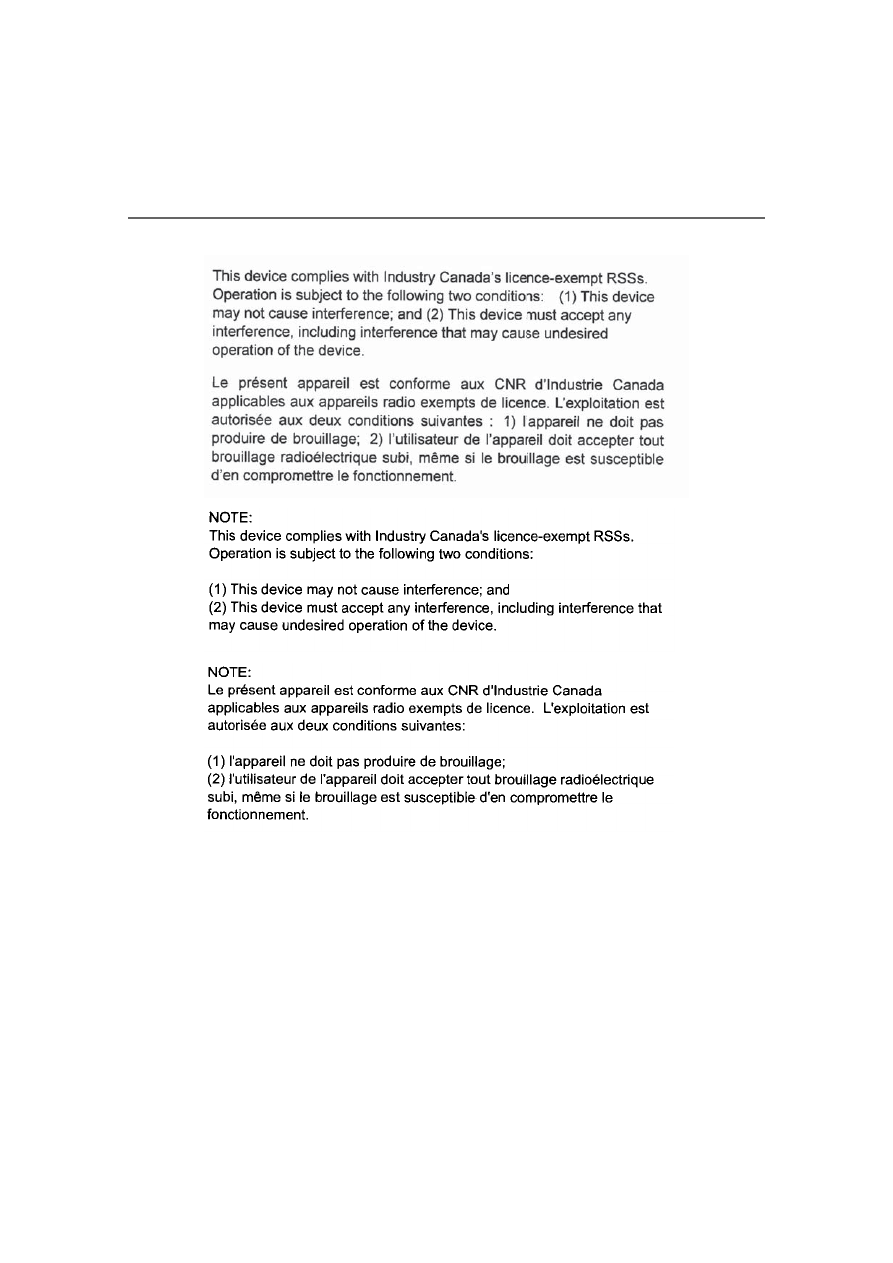

For vehicles sold in Canada

165

3-2. Opening, closing and locking the doors

3

Op
eration

 o

f each

 compo

nen
t

CAMRY_U

WARNING

■

Caution regarding interference with electronic devices

●

People  with  implantable  cardiac  pacemakers,  cardiac  resynchronization
therapy-pacemakers or implantable cardioverter defibrillators should keep
away from the smart key system antennas. (

P. 157)

The radio waves may affect the operation of such devices. If necessary,
the entry function can be disabled. Ask your Toyota dealer for details, such
as  the  frequency  of  radio  waves  and  timing  of  the  emitted  radio  waves.
Then, consult your doctor to see if you should disable the entry function.

●

Users  of  any  electrical  medical  device  other  than  implantable  cardiac
pacemakers,  cardiac  resynchronization  therapy-pacemakers  or  implant-
able  cardioverter  defibrillators  should  consult  the  manufacturer  of  the
device  for  information  about  its  operation  under  the  influence  of  radio
waves.
Radio  waves  could  have  unexpected  effects  on  the  operation  of  such
medical devices.

Ask your Toyota dealer for details for disabling the entry function.

166

CAMRY_U

3-3. Adjusting the seats



Manual seat

Seat position adjustment lever
Seatback  angle  adjustment
lever
Vertical height adjustment lever



Power seat

Seat position adjustment switch
Seatback  angle  adjustment
switch
Seat  cushion  (front)  angle
adjustment switch
Vertical

height

adjustment

switch
Lumbar  support  adjustment
switch (driver’s side only)

Front seats

Adjustment procedure

1

2

3

1

2

3

4

5

167

3-3. Adjusting the seats

3

Op
eration

 o

f each

 compo

nen
t

CAMRY_U

WARNING

■

When adjusting the seat position

●

Take care when adjusting the seat position to ensure that other passen-
gers are not injured by the moving seat.

●

Do not put your hands under the seat or near the moving parts to avoid
injury.
Fingers or hands may become jammed in the seat mechanism.

●

Make sure to leave enough space around the feet so they do not get stuck.

■

Seat adjustment

●

Be careful that the seat does not hit passengers or luggage.

●

To  reduce  the risk  of sliding  under  the lap  belt during a  collision,  do  not
recline the seat more than necessary.
If the seat is too reclined, the lap belt may slide past the hips and apply
restraint  forces  directly  to  the  abdomen,  or  your  neck  may  contact  the
shoulder belt, increasing the risk of death or serious injury in the event of
an accident.
Adjustments should not be made while driving as the seat may unexpect-
edly move and cause the driver to lose control of the vehicle.

●

Manual  seat  only:  After  adjusting  the  seat,  make  sure  that  the  seat  is
locked in position.

NOTICE

■

When adjusting a front seat
When  adjusting  a  front  seat,  make  sure  that  the  head  restraint  does  not
contact the headliner. Otherwise, the head restraint and headliner may be
damaged.

168

3-3. Adjusting the seats

CAMRY_U

Pull the seatback lever in the trunk
for  the  seatback  you  wish  to  fold
down  and  then  fold  the  seatback
down.

Rear seats (folding type)





: If equipped

The seatbacks of the rear seats can be folded down.

Folding down the rear seatbacks

169

3-3. Adjusting the seats

3

Op
eration

 o

f each

 compo

nen
t

CAMRY_U

WARNING

■

When folding the seatbacks down
Observe the following precautions. Failure to do so may result in death or
serious injury.

●

Do not fold the seatbacks down while driving.

●

Stop the vehicle on level ground, set the parking brake and shift the shift
lever to P.

●

Do not allow anyone to sit on a folded seatback or in the trunk while driv-
ing.

●

Do not allow children to enter the trunk.

■

When returning the seat to its original position

●

Ensure that the seat belt does not get caught between or behind the seats.

●

If the seat belt has been released from its guide, pass the seat belt through
its guide. (

P. 30)

■

Seat adjustment
Be careful not to get hands or feet pinched between the rear console box
and the rear seat when folding down the rear seatback.

■

After returning the seatback to the upright position
Observe the following precautions. Failure to do so may result in death or
serious injury.

●

Make sure the seatback is securely locked by pressing it forward and rear-
ward on the top.

●

Check that the seat belts are not twisted or caught in the seatback.

●

Make sure that the seat belt is passed through its guide.

NOTICE

■

When the right seatback is folded down
Make  sure  the  luggage  loaded  in  the  enlarged  trunk  will  not  damage  the
webbing of the rear center seat belt.

170

3-3. Adjusting the seats

CAMRY_U



Adjustable type

Up

Pull the head restraint up.

Down

Push the head restraint down while
pressing the lock release button.



Integrated type

Head restraints cannot be adjusted or removed.

■

Removing the head restraints

Head restraints

Head restraints are provided for all seats.

Lock release button

1

2

Pull  the  head  restraint  up  while  pressing
the lock release button.
Front seats: If the head restraint touches
the  ceiling,  making  the  removal  difficult,
change the seat height or angle.
(

P. 166)

Lock
release
button

171

3-3. Adjusting the seats

3

Op
eration

 o

f each

 compo

nen
t

CAMRY_U

■

Installing the head restraints



Front seats



Rear seats

■

Adjusting the height of the head restraints

Align  the  head  restraint  with  the  installa-
tion  holes  and  push  it  down  to  the  lock
position.
Press  and  hold  the  lock  release  button
when lowering the head restraint.

Align  the  head  restraint  with  the  installa-
tion holes and push it down to the lowest
lock  position  while  pressing  the  lock
release button.

Make  sure  that  the  head  restraints  are
adjusted  so  that  the  center  of  the  head
restraint is closest to the top of your ears.

WARNING

■

Head restraint precautions
Observe the following precautions regarding the head restraints. Failure to
do so may result in death or serious injury.

●

Use the head restraints designed for each respective seat.

●

Adjust the head restraints to the correct position at all times.

●

After  adjusting  the  head  restraints,  push  down  on  them  and  make  sure
they are locked in position.

●

Do not drive with the head restraints removed.
(However, if a head restraint interferes with installation of a child restraint
system,  the  head  restraint  can  be  removed  to  accommodate  the  child
restraint system: →P. 54)

Lock release
button

Lock release
button

172

CAMRY_U

3-4. Adjusting the steering wheel and mirrors

Hold  the  steering  wheel  and
push the lever down.

Adjust  to  the  ideal  position  by
moving the steering wheel hori-
zontally and vertically.

After  adjustment,  pull  the  lever  up
to secure the steering wheel.

To  sound  the  horn,  press  on  or
close to the

 mark.

Steering wheel

Adjustment procedure

1

2

Horn

173

3-4. Adjusting the steering wheel and mirrors

3

Op
eration

 o

f each

 compo

nen
t

CAMRY_U

WARNING

■

Caution while driving
Do not adjust the steering wheel while driving.
Doing so may cause the driver to mishandle the vehicle and cause an acci-
dent, resulting in death or serious injury.

■

After adjusting the steering wheel
Make sure that the steering wheel is securely locked.
Otherwise,  the  steering  wheel  may  move  suddenly,  possibly  causing  an
accident,  and  resulting  in  death  or  serious  injury. Also,  the  horn  may  not
sound if the steering wheel is not securely locked.

174

3-4. Adjusting the steering wheel and mirrors

CAMRY_U

The height of the rear view mirror can be adjusted to suit your driving
posture.
Adjust the height of the rear view
mirror by moving it up and down.



Manual anti-glare inside rear view mirror

Reflected light from the headlights of vehicles behind can be reduced
by operating the lever.

Normal position
Anti-glare position

Inside rear view mirror

The rear view mirror’s position can be adjusted to enable suffi-
cient confirmation of the rear view.

Adjusting the height of rear view mirror

Anti-glare function

1

2

175

3-4. Adjusting the steering wheel and mirrors

3

Op
eration

 o

f each

 compo

nen
t

CAMRY_U



Auto anti-glare inside rear view mirror

Responding  to  the  level  of  brightness  of  the  headlights  of  vehicles
behind, the reflected light is automatically reduced.
Changing  automatic  anti-glare
function mode
On/off

When  the  automatic  anti-glare
function is in ON mode, the indica-
tor illuminates.
The  function  will  set  to  ON  mode
each  time  the  engine  switch  is
turned to IGNITION ON mode.
Pressing the button turns the func-
tion  to  OFF  mode.  (The  indicator
also turns off.)

■

To prevent sensor error (vehicles with an auto anti-glare inside rear view
mirror)

Indicator

To ensure that the sensors operate prop-
erly, do not touch or cover them.

WARNING

Do not adjust the position of the mirror while driving.
Doing  so  may  lead  to  mishandling  of  the  vehicle  and  cause  an  accident,
resulting in death or serious injury.

176

3-4. Adjusting the steering wheel and mirrors

CAMRY_U

To select a mirror to adjust, turn
the switch.

Left
Right

To adjust the mirror, operate the
switch.

Up
Right
Down
Left

Push the mirror back in the direc-
tion of the vehicle’s rear.

Outside rear view mirrors

Adjustment procedure

1

1

2

2

1

2

3

4

Folding the mirrors
