498

8-1.Specifications

: Unladen vehicles

: Vehicles with 215/55R17 tires

Maintenance data (fuel, oil level, etc.)

Dimensions and weights

Overall length

195.9 in. (4975 mm)

Overall width

72.8 in. (1850 mm)

Overall height

56.5 in. (1435 mm)

Wheelbase

113.0 in. (2870 mm)

Tread

Front

62.6 in. (1590 mm)
63.0 in. (1600 mm)

Rear

63.2 in. (1605 mm)
63.6 in. (1615 mm)

Vehicle capacity weight
(occupants + luggage)

940 lb. (425 kg)

499

8-1. Specifications

Ve
hicle

spe
cifi

cations

■

Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primary identification number for your
Toyota. It is used in registering the ownership of your vehicle.

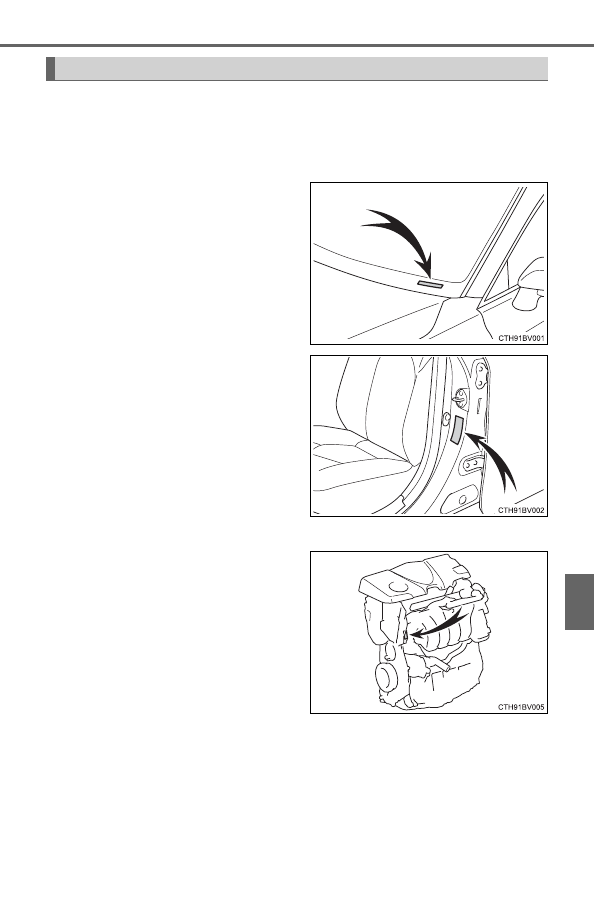

This number is stamped on the
top left of the instrument panel.

This number is also on the Cer-
tification Label.

■

Engine number
The engine number is stamped
on the engine block as shown.

Vehicle identification

500

8-1. Specifications

Engine

Model

A25A-FXS

Type

4-cylinder in line, 4-cycle, gasoline

Bore and stroke

3.44

 4.07 in. (87.5  103.4 mm)

Displacement

151.8 cu. in. (2487 cm

)

Valve clearance

Automatic adjustment

Fuel

Fuel type

Unleaded gasoline only

Octane rating

87 (Research Octane Number 91) or higher

Fuel tank capacity
(Reference)

13 gal. (49.3 L, 10.8 Imp. gal.)

Electric motor (Traction motor)

Type

Permanent magnet synchronous motor

Maximum output

88 kW

Maximum torque

149 ft

•lbf (202 N•m, 20.6 kgf•m)

Hybrid battery (Traction battery)

Type

Nickel-metal hydride battery

Voltage

7.2 V/module

Capacity

6.5 Ah (3HR)

Quantity

34 modules

Overall voltage

244.8 V

501

8-1. Specifications

Ve
hicle

spe
cifi

cations

: The engine oil capacity is a reference quantity to be used when changing

the engine oil. Warm up the engine and turn off the hybrid system, wait
more than 5 minutes, and check the oil level on the dipstick.

■

Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Use
Toyota approved “Toyota Genuine Motor Oil” or equivalent to sat-
isfy the following grade and viscosity.
Oil grade: API SN/RC multigrade engine oil
Recommended viscosity: SAE 0W-16

SAE  0W-16  is  the  best  choice  for
good fuel economy and good start-
ing in cold weather.
If SAE 0W-16 is not available, SAE
0W-20  oil  may  be  used.  However,
it  must  be  replaced  with SAE 0W-
16 at the next oil change.

Oil viscosity (0W-16 is explained here as an example):

• The 0W in 0W-16 indicates the characteristic of the oil which allows cold

startability. Oils with a lower value before the W allow for easier starting of
the engine in cold weather.

• The 16 in 0W-16 indicates the viscosity characteristic of the oil when the

oil is at high temperature. An oil with a higher viscosity (one with a higher
value) may be better suited if the vehicle is operated at high speeds, or
under extreme load conditions.

Lubrication system

Oil capacity
(Drain and refill ―
reference

)

With filter
Without filter

4.8 qt. (4.5 L, 4.0 Imp. qt.)
4.4 qt. (4.2 L, 3.7 Imp. qt.)

Outside temperature

502

8-1. Specifications

How to read oil container label:
API  registered  marks  is  added
to  some  oil  containers  to  help
you  select  the  oil  you  should
use.

Cooling system

Capacity
(Reference)



Gasoline engine

6.4 qt. (6.1 L, 5.4 Imp. qt.)



Power control unit

1.9 qt. (1.8 L, 1.6 Imp. qt.)

Coolant type

Use either of the following:

• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based

non-silicate, non-amine, non-nitrite, and
non-borate coolant with long-life hybrid
organic acid technology

Do not use plain water alone.

Ignition system

Spark plug

Make

DENSO FC16HR-Q8

Gap

0.031 in. (0.8 mm)

NOTICE

■

Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust spark plug gap.

503

8-1. Specifications

Ve
hicle

spe
cifi

cations

: The fluid capacity is a reference quantity.

If replacement is necessary, contact your Toyota dealer.

: Minimum pedal clearance when depressed with a force of 67 lbf (300 N, 31

kgf) while the hybrid system is operating.

Electrical system

12-volt battery

Open voltage at
68

F (20C):

12.0 V or higher
If  the  voltage  is  lower  than  the  standard  value,
charge the battery.
(When  checking  the  voltage,  after  turning  the
power  switch  off,  wait  for  30  seconds  with  the
high  beam  headlights  illuminated,  then  turn  the
high beam headlights off and check the voltage.)

Charging rates

5 A max.

Transmission

Fluid capacity

4.1 qt. (3.9 L, 3.4 Imp. qt.)

Fluid type

Toyota Genuine ATF WS

NOTICE

■

Transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may ulti-
mately damage the transmission of your vehicle.

Brakes

Pedal clearance

3.3 in. (85 mm)

Pedal free play

0.04

 0.24 in. (1  6 mm)

Brake pad wear limit

0.04 in. (1.0 mm)

Fluid type

SAE J1703 or FMVSS No.116 DOT 3
SAE J1704 or FMVSS No.116 DOT 4

Steering

Free play

Less than 1.2 in. (30 mm)

504

8-1. Specifications



17-inch tires



18-inch tires

Tires and wheels

Tire size

215/55R17 94V, T155/70D17 110M

Tire inflation pressure

(Recommended cold tire

inflation pressure)

Driving under normal conditions

Front:

35 psi (240 kPa, 2.4 kgf/cm

or bar)

Rear:

35 psi (240 kPa, 2.4 kgf/cm

or bar)

Spare:

60 psi (420 kPa, 4.2 kgf/cm

or bar)

Driving at high speeds (above 100 mph

[160 km/h]) (in countries where such

speeds are permitted by law)

Add 5 psi (30 kPa, 0.3 kgf/cm

or bar) to

the front tires and rear tires. Never

exceed the maximum cold tire inflation

pressure indicated on the tire sidewall.

Wheel size

 7 1/2 J, 17  4 T (compact spare)

Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

Tire size

235/45R18 94V, T155/70D17 110M

Tire inflation pressure

(Recommended cold tire

inflation pressure)

Driving under normal conditions

Front:

35 psi (240 kPa, 2.4 kgf/cm

or bar)

Rear:

35 psi (240 kPa, 2.4 kgf/cm

or bar)

Spare:

60 psi (420 kPa, 4.2 kgf/cm

or bar)

Driving at high speeds (above 100 mph

[160 km/h]) (in countries where such

speeds are permitted by law)

Add 5 psi (30 kPa, 0.3 kgf/cm

or bar) to

the front tires and rear tires. Never

exceed the maximum cold tire inflation

pressure indicated on the tire sidewall.

Wheel size

 8 J, 17  4 T (compact spare)

Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

505

8-1. Specifications

Ve
hicle

spe
cifi

cations



19-inch tires

A: Wedge base bulbs

B: Double end bulbs

: Light bulbs not listed in this table are LED bulbs.

Tire size

235/40R19 92V, T155/70D17 110M

Tire inflation pressure

(Recommended cold tire

inflation pressure)

Driving under normal conditions

Front:

35 psi (240 kPa, 2.4 kgf/cm

or bar)

Rear:

35 psi (240 kPa, 2.4 kgf/cm

or bar)

Spare:

60 psi (420 kPa, 4.2 kgf/cm

or bar)

Driving at high speeds (above 100 mph

[160 km/h]) (in countries where such

speeds are permitted by law)

Add 5 psi (30 kPa, 0.3 kgf/cm

or bar) to

the front tires and rear tires. Never

exceed the maximum cold tire inflation

pressure indicated on the tire sidewall.

Wheel size

 8 J, 17  4 T (compact spare)

Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

Light bulbs

Light bulbs

Bulb No.

Type

Interior

Door courtesy lights

168

Vanity lights

7065

1.4

Trunk light



506

8-1. Specifications

■

Gasoline quality
In very few cases, driveability problems may be caused by the brand of gaso-
line you are using. If driveability problems persist, try changing the brand of
gasoline. If this does not correct the problem, consult your Toyota dealer.

■

Recommendation of the use of gasoline containing detergent additives

●

Toyota recommends the use of gasoline that contains detergent additives to
avoid the build-up of engine deposits.

●

All gasoline sold in the U.S.A. contains minimum detergent additives to
clean and/or keep clean intake systems, per EPA’s lowest additives concen-
tration program.

●

Toyota strongly recommends the use of Top Tier Detergent Gasoline. For
more information on Top Tier Detergent Gasoline and a list of marketers,
please go to the official website www.toptiergas.com.

Fuel information

You must only use unleaded gasoline.
Select octane rating 87 (Research Octane Number 91) or higher.
Use of unleaded gasoline with an octane rating lower than 87
may result in engine knocking. Persistent knocking can lead to
engine damage.

At minimum, the gasoline you use should meet the specifications of
ASTM D4814 in the U.S.A..

507

8-1. Specifications

Ve
hicle

spe
cifi

cations

■

Recommendation of the use of low emissions gasoline
Gasolines containing oxygenates such as ethers and ethanol, as well as
reformulated gasolines, are available in some cities. These fuels are typically
acceptable for use, providing they meet other fuel requirements.
Toyota recommends these fuels, since the formulations allow for reduced
vehicle emissions.

■

Non-recommendation of the use of blended gasoline

●

If you use gasohol in your vehicle, be sure that it has an octane rating no
lower than 87.

●

Toyota does not recommend the use of gasoline containing methanol.

■

Non-recommendation of the use of gasoline containing MMT
Some gasoline contains an octane enhancing additive called MMT (Methylcy-
clopentadienyl Manganese Tricarbonyl).
Toyota does not recommend the use of gasoline that contains MMT. If fuel
containing MMT is used, your emission control system may be adversely
affected.
The malfunction indicator lamp on the instrument cluster may come on. If this
happens, contact your Toyota dealer for service.

■

If your engine knocks

●

Consult your Toyota dealer.

●

You may occasionally notice light knocking for a short time while accelerat-
ing or driving uphill. This is normal and there is no need for concern.

●

Use only gasoline containing up to 15%
ethanol.
DO  NOT  use  any  flex-fuel  or  gasoline
that could contain more than 15% etha-
nol,  including  from  any  pump  labeled
E30,  E50,  E85  (which  are  only  some
examples  of  fuel  containing  more  than
15% ethanol).

DO NOT use gasoline contain-
ing more than 15% ethanol.

(30% ethanol)

(50% ethanol)

(85% ethanol)

508

8-1. Specifications

NOTICE

■

Notice on fuel quality

●

Do not use improper fuels. If improper fuels are used, the engine will be
damaged.

●

Do not use leaded gasoline.
Leaded gasoline can cause damage to your vehicle’s three-way catalytic
converters causing the emission control system to malfunction.

●

Do not use gasohol other than the type previously stated.
Other gasohol may cause fuel system damage or vehicle performance
problems.

●

Using unleaded gasoline with an octane number or rating lower than the
level previously stated will cause persistent heavy knocking.
At worst, this will lead to engine damage.

■

Fuel-related poor driveability
If poor driveability (poor hot starting, vaporization, engine knocking, etc.) is
encountered after using a different type of fuel, discontinue the use of that
type of fuel.

■

When refueling with gasohol
Take care not to spill gasohol. It can damage your vehicle’s paint.

509

8-1. Specifications

Ve
hicle

spe
cifi

cations



Full-size tire



Compact spare tire

Tire information

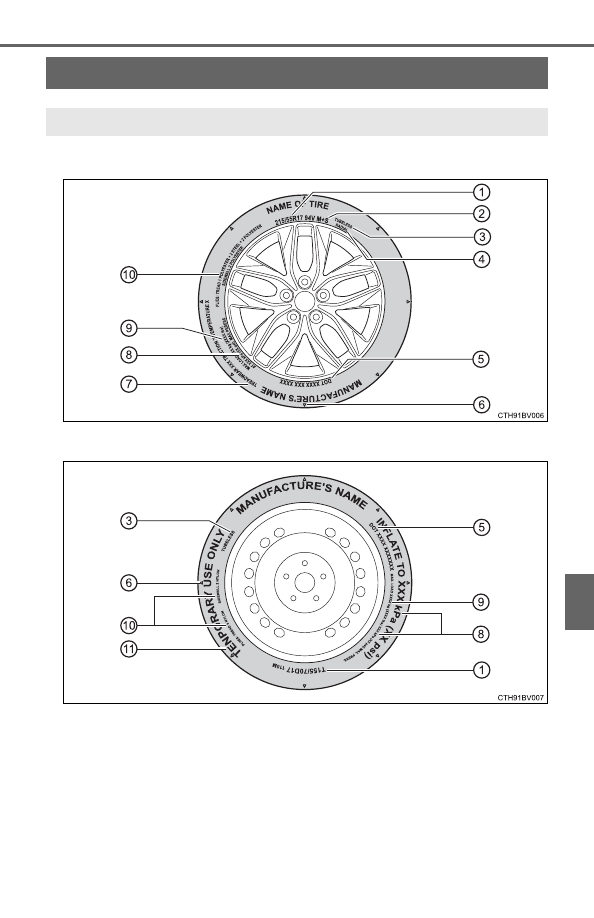

Typical tire symbols

510

8-1. Specifications

Tire size (

P. 512)

Summer tires or all season tires (

P. 421)

An all season tire has “M+S” on the sidewall. A tire not marked “M+S”

is a summer tire.

TUBELESS or TUBE TYPE

A tubeless tire does not have a tube and air is directly put into the tire.

A tube type tire has a tube inside the tire and the tube maintains the air

pressure.

Radial tires or bias-ply tires

A radial tire has “RADIAL” on the sidewall. A tire not marked “RADIAL”

is a bias-ply tire.

DOT and Tire Identification Number (TIN) (

P. 511)

Location of treadwear indicators (

P. 415)

Uniform tire quality grading

For details, see “Uniform Tire Quality Grading” that follows.

Maximum cold tire inflation pressure (

P. 504)

This means the pressure to which a tire may be inflated.

Load limit at maximum cold tire inflation pressure (

P. 420)

Tire ply composition and materials

Plies are layers of rubber-coated parallel cords. Cords are the strands

which form the plies in a tire.

“TEMPORARY USE ONLY”

A compact spare tire is identified by the phrase “TEMPORARY USE

ONLY” molded on its sidewall. This tire is designed for temporary

emergency use only.

1
2

5
6
7

511

8-1. Specifications

Ve
hicle

spe
cifi

cations

DOT symbol

Tire Identification Number (TIN)
Tire manufacturer’s identification mark
Tire size code
Manufacturer’s optional tire type code (3 or 4 letters)
Manufacturing week
Manufacturing year
Manufacturer’s code

: The DOT symbol certifies that the tire conforms to applicable Federal

Motor Vehicle Safety Standards.

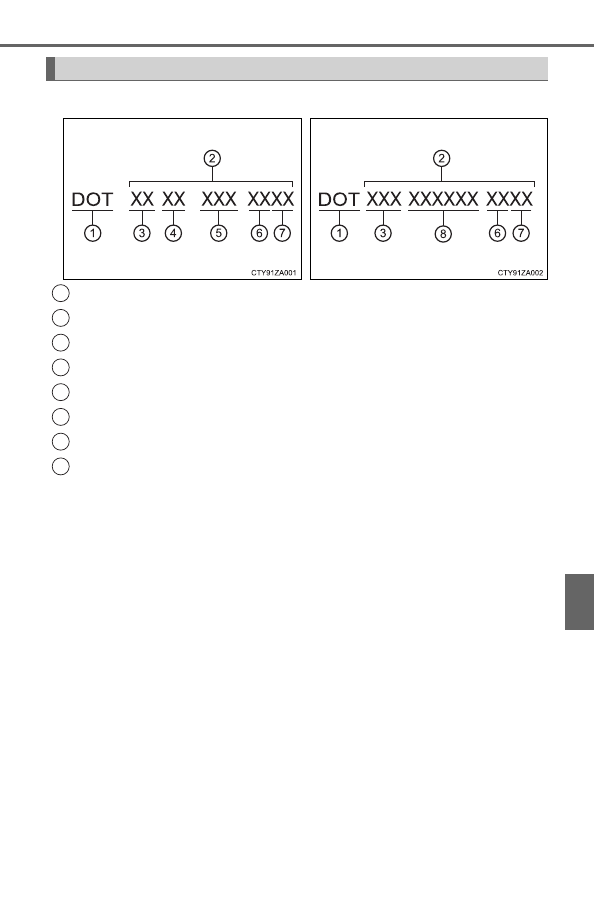

Typical DOT and Tire Identification Number (TIN)



Type A



Type B

1
2
3
4
5
6
7
8

512

8-1. Specifications

■

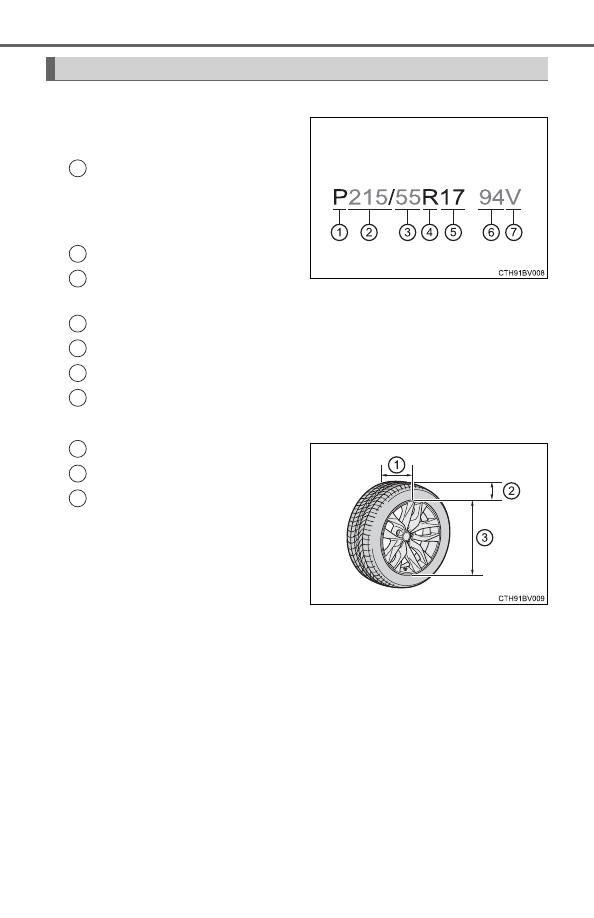

Typical tire size information
The illustration indicates typical
tire size.

Tire use
(P = Passenger car [some-
times omitted],
T = Temporary use)
Section width (millimeters)
Aspect ratio
(tire height to section width)
Tire construction code (R = Radial, D = Diagonal)
Wheel diameter (inches)
Load index (2 digits or 3 digits)
Speed symbol (alphabet with one letter)

■

Tire dimensions

Section width
Tire height
Wheel diameter

Tire size

2
3

4
5
6
7

1
2
3

Content .. 30 31 32 33 ..
