Toyota Avalon Hybrid (2019 year). Instruction

433

6-3. Do-it-yourself maintenance

Mai
ntenan

ce and care

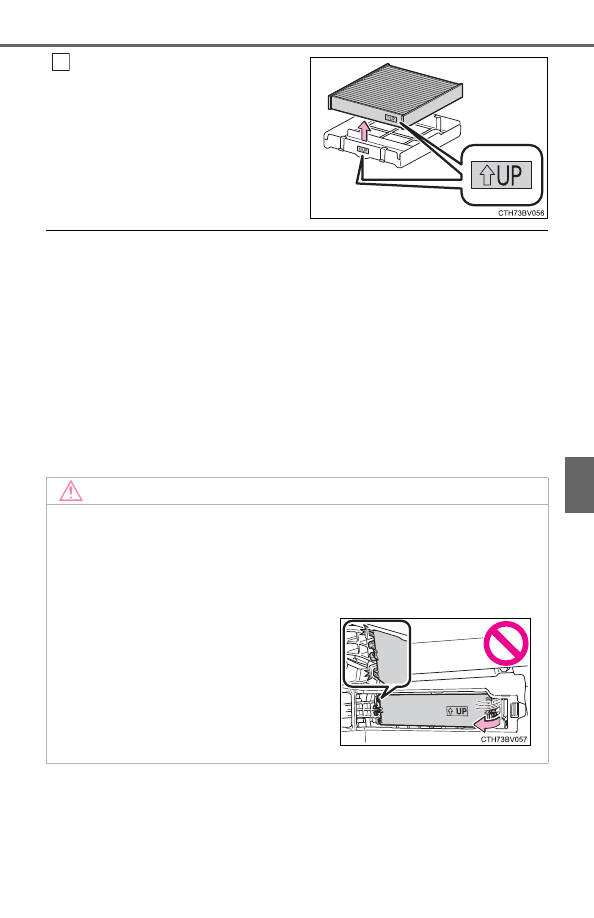

Remove the air conditioning fil-
ter from the filter case and
replace it with a new one.

The “

UP” marks shown on the fil-

ter and the filter case should be
pointing up.

■

Checking interval
Inspect and replace the air conditioning filter according to the maintenance
schedule. In dusty areas or areas with heavy traffic flow, early replacement
may be required. (For scheduled maintenance information, please refer to the
“Schedule maintenance guide” or “Owner’s Manual Supplement”.)

■

If air flow from the vents decreases dramatically
The filter may be clogged. Check the filter and replace if necessary.

■

Air conditioning filter with deodorizing function
When fragrances are placed in your vehicle, the deodorizing effect may
become significantly weakened in a short period.
When an air conditioning odor comes out continuously, replace the air condi-
tioning filter.

NOTICE

■

When using the air conditioning system
Make sure that a filter is always installed.
Using the air conditioning system without a filter may cause damage to the
system.

■

To prevent damage to the filter cover

When moving the filter cover in the direc-
tion  of  arrow  to  release  the  fitting,  pay
attention  not  to apply excessive  force  to
the  claws.  Otherwise,  the  claws  may  be
damaged.

434

6-3. Do-it-yourself maintenance

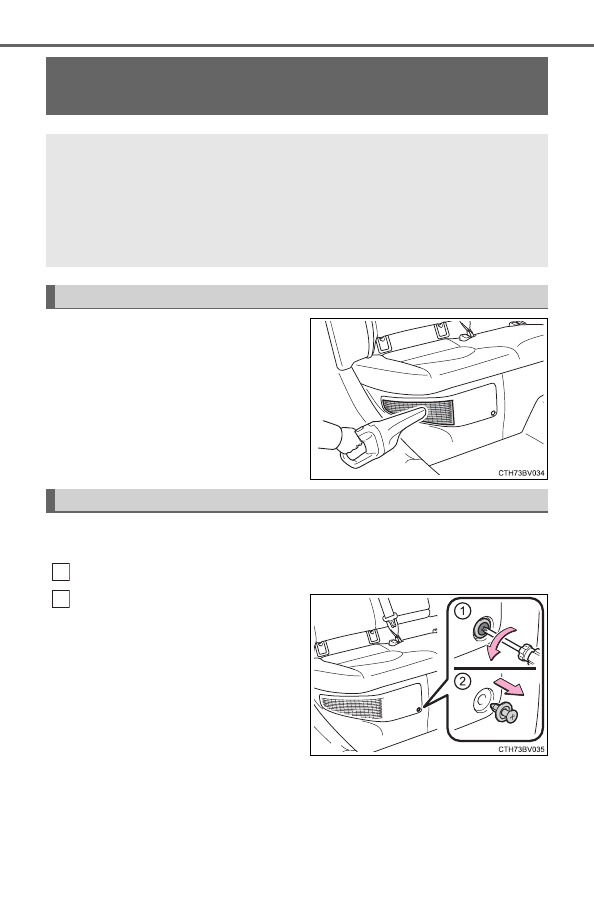

Remove the dust from the air
intake vent with a vacuum
cleaner, etc.

Make sure to only use a vacuum to
suck  out  dust  and  clogs. Attempt-
ing  to  blow  out  dust  and  clogs
using  an  airgun,  etc.  may  push  it
into the air intake vent. (

P. 438)

If dust and clogs cannot be completely removed with the air intake
vent cover installed, remove the cover and clean the filter.

Turn the power switch off.
Using a Phillips screwdriver,
remove the clip.

Cleaning the hybrid battery (traction bat-

tery) air intake vent and filter

To prevent an increase in fuel consumption, visually inspect the
hybrid  battery  (traction  battery)  air  intake  vent  periodically  for
dust  and  clogs.  If  it  is  dusty  or  clogged  or  if  “Maintenance
Required  for  Traction  Battery  Cooling  Parts  See  Owner’s  Man-
ual” is displayed on the multi-information display, clean the air
intake vent using the following procedures:

Cleaning the air intake vent

If dust and clogs cannot be completely removed

1
2

435

6-3. Do-it-yourself maintenance

Mai
ntenan

ce and care

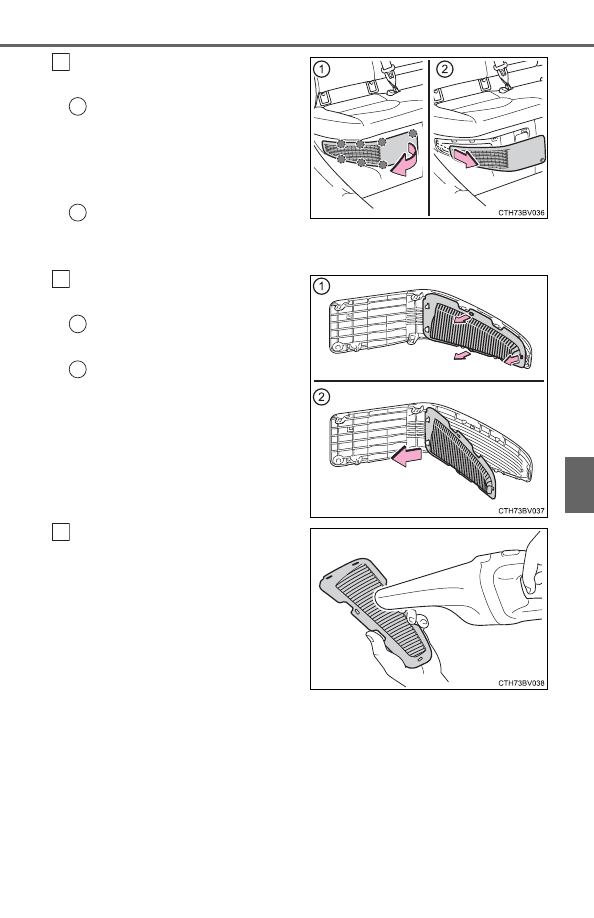

Remove the air intake vent
cover.

Pull  the  cover  as  shown  in
the  illustration  to  disengage
the 7 claws, starting from the
claw  in  the  upper  right  cor-
ner.
Pull  the  cover  toward  the
front of the vehicle to remove
it.

Remove the air intake vent fil-
ter.

Disengage the 3 claws as
shown in the illustration.
Remove the filter from the
cover.

Remove the dust and clogs
from the filter using a vacuum
cleaner, etc.

Make sure to also remove the dust
and clogs from the inside of the air
intake vent cover.

436

6-3. Do-it-yourself maintenance

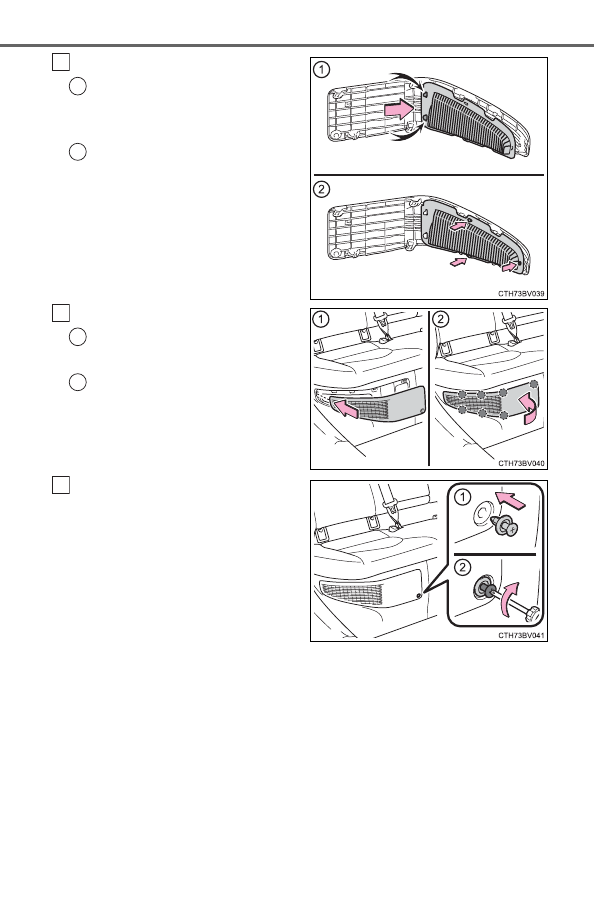

Reinstall the filter to the cover.

Engage the filter to the 2
claws as shown in the illus-
tration.
Engage the 3 claws to install
the filter.

Make sure that the filter is not
crooked or deformed when install-
ing it.

Install the air intake vent cover.

Insert the tab of the cover as
shown in the illustration.
Push the cover to engage the
7 claws.

Using a Phillips screwdriver,
install the clip.

437

6-3. Do-it-yourself maintenance

Mai
ntenan

ce and care

■

Scheduled maintenance of the air intake vent is necessary when
In some situations such as when the vehicle is used frequently or in heavy
traffic or dusty areas, the air intake vent may need to be cleaned more regu-
larly. For details, refer to “Schedule maintenance guide” or “Owner’s Manual
Supplement”.

■

Cleaning the air intake vent

●

Dust in the air intake vent may interfere with the cooling of the hybrid battery
(traction battery). If the hybrid battery (traction battery) overheats, the dis-
tance that the vehicle can be driven using the electric motor (traction motor)
may be reduced and the fuel consumption may increase.
Inspect and clean the air intake vent periodically.

●

Improper handling of the air intake vent cover and filter may result in dam-
age to them. If you have any concerns about cleaning the filter, contact your
Toyota dealer.

■

If “Maintenance Required for Traction Battery Cooling Parts See Owner’s
Manual” is displayed on the multi-information display

●

If this warning message is displayed on the multi-information display,
remove the air intake vent cover and clean the filter. (

P. 434)

●

After cleaning the air intake vent, start the hybrid system and check that the
warning message is no longer displayed.
It may take approximately 20 minutes after the hybrid system is started until
the warning message disappears. If the warning message does not disap-
pear, have the vehicle inspected by your Toyota dealer.

WARNING

■

When cleaning the air intake vent
Do not use water or other liquids to clean the air intake vent. If water is
applied to the hybrid battery (traction battery) or other components, a mal-
function or fire may occur.

■

When removing the air intake vent cover
Do not touch the service plug located near the air intake vent. (

P. 76)

438

6-3. Do-it-yourself maintenance

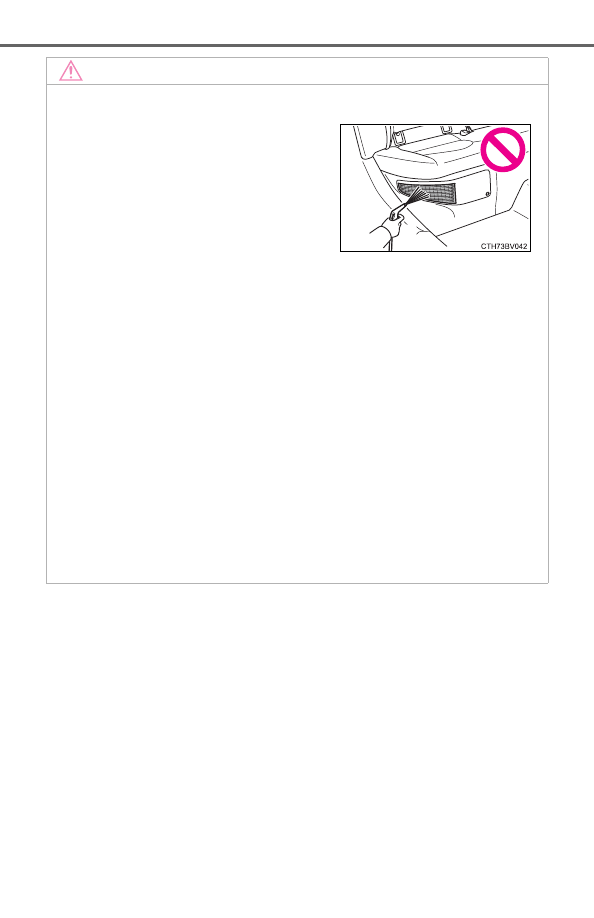

NOTICE

■

When cleaning the air intake vent

■

To prevent damage to the vehicle

●

Do not allow water or foreign matter to enter the air intake vent when the
cover is removed.

●

Carefully handle the removed filter so that it will not be damaged.
If the filter is damaged, have it replaced with a new filter by your Toyota
dealer.

●

Make sure to reinstall the filter and cover to their original positions after
cleaning.

●

Do not install anything to the air intake vent other than the exclusive filter
for this vehicle or use the vehicle without the filter installed.

■

If “Maintenance Required for Traction Battery Cooling Parts See
Owner’s Manual” is displayed on the multi-information display
If the vehicle is continuously driven with the warning message displayed,
the hybrid battery (traction battery) may overheat, possibly causing a mal-
function. If a warning message is displayed, clean the air intake vent imme-
diately.

When cleaning the air intake vent, make
sure  to  only  use  a  vacuum  to  suck  out
dust and clogs. If a compressed air blow
gun,  etc.  is  used  to  blow  out  dust  and
clogs,  the  dust  or  clogs  may  be  pushed
into the air intake vent, which may affect
the  performance  of  the  hybrid  battery
(traction  battery)  and  cause  a  malfunc-
tion.

439

6-3. Do-it-yourself maintenance

Mai
ntenan

ce and care

● Flathead screwdriver
● Small flathead screwdriver
● Lithium battery CR2032

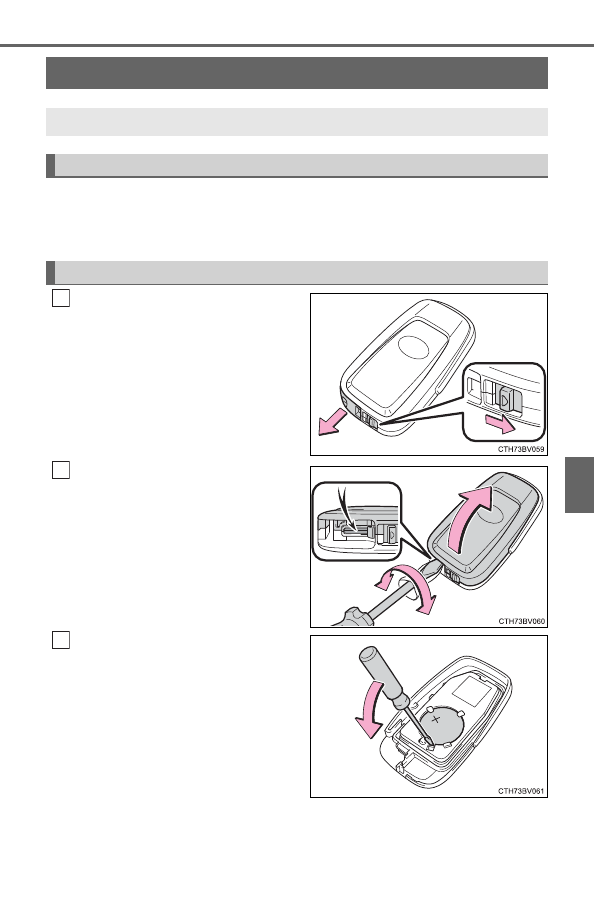

Release the lock and remove
the mechanical key.

Remove the key cover.

To prevent damage to the key,
cover the tip of the flathead screw-
driver with a rag.

Remove the depleted battery
using a small flathead screw-
driver.

When removing the cover, the
electronic key module may stick to
the cover and the battery may not
be visible. In this case, remove the
electronic key module in order to
remove the battery.
Insert a new battery with the “+” terminal facing up.

Electronic key battery

Replace the battery with a new one if it is depleted.

You will need the following items:

Replacing the battery

440

6-3. Do-it-yourself maintenance

When installing the key cover and mechanical key, install by con-
ducting

and

with the directions reversed.

Operate the

switch and check that the doors can

be locked/unlocked.

■

When replacing the key battery
Be careful not to lose the battery or any other small parts.

■

Use a CR2032 lithium battery

●

Batteries can be purchased at your Toyota dealer, local electrical appliance
shops or camera stores.

●

Replace only with the same or equivalent type recommended by the manu-
facturer.

●

Dispose of used batteries according to local laws.

■

If the key battery is depleted
The following symptoms may occur:

●

The smart key system and wireless remote control will not function properly.

●

The operational range will be reduced.

WARNING

■

Removed battery and other parts
These parts are small and if swallowed by a child, they can cause choking.
Keep away from children. Failure to do so could result in death or serious
injury.

NOTICE

■

For normal operation after replacing the battery
Observe the following precautions to prevent accidents:

●

Always work with dry hands.
Moisture may cause the battery to rust.

●

Do not touch or move any other component inside the remote control.

●

Do not bend either of the battery terminals.

441

6-3. Do-it-yourself maintenance

Mai
ntenan

ce and care

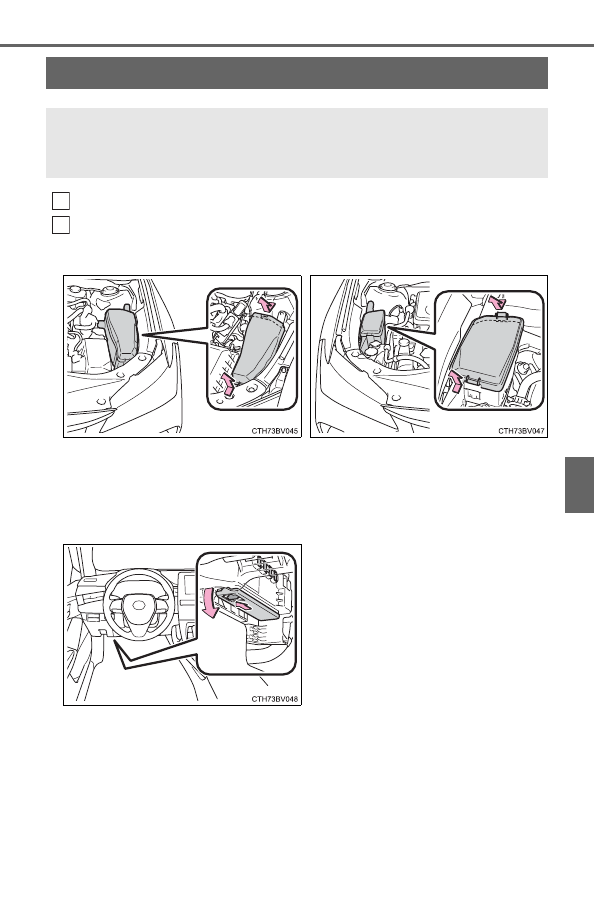

Turn the power switch off.
Open the fuse box cover.

Checking and replacing fuses

If any of the electrical components do not operate, a fuse may
have blown. If this happens, check and replace the fuses as nec-
essary.

1
2



Engine compartment (type A)



Engine compartment (type B)

Push the tabs in and lift the lid off.

Push the tabs in and lift the lid
off.



Under the driver’s side instru-
ment panel

Remove the lid.

Make sure to push the claw when
removing/installing the lid.

442

6-3. Do-it-yourself maintenance

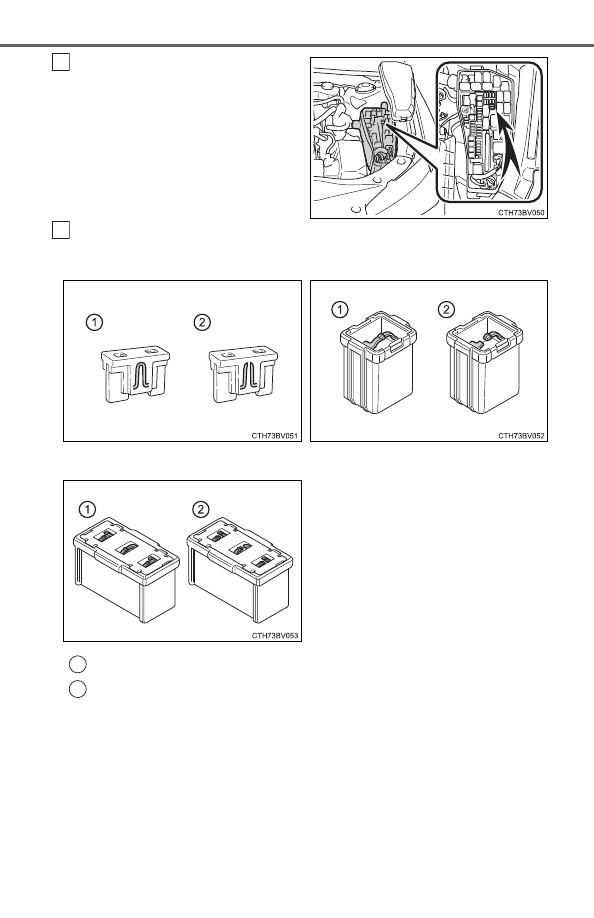

Remove the fuse with the pull-
out tool.

Only type A fuses can be removed
using the pullout tool.

Check if the fuse is blown.

Normal fuse
Blown fuse

Replace the blown fuse with a new fuse of an appropriate amperage rat-
ing. The amperage rating can be found on the fuse box lid.



Type A



Type B



Type C

1
2

443

6-3. Do-it-yourself maintenance

Mai
ntenan

ce and care

■

After a fuse is replaced

●

If the lights do not turn on even after the fuse has been replaced, a bulb may
need replacement. (

P. 444)

●

If the replaced fuse blows again, have the vehicle inspected by your Toyota
dealer.

■

If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness from damage.

WARNING

■

To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage to the vehicle, and possibly a fire or
injury.

●

Never use a fuse of a higher amperage rating than that indicated, or use
any other object in place of a fuse.

●

Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.

●

Do not modify the fuses or fuse boxes.

NOTICE

■

Before replacing fuses
Have the cause of electrical overload determined and repaired by your
Toyota dealer as soon as possible.

444

6-3. Do-it-yourself maintenance

■

LED lights
The lights consist of a number of LEDs. If any of the LEDs burn out, take your
vehicle to your Toyota dealer to have the light replaced.

■

Condensation build-up on the inside of the lens
Temporary condensation build-up on the inside of the headlight lens does not
indicate a malfunction.
Contact your Toyota dealer for more information in the following situations:

●

Large drops of water have built up on the inside of the lens.

●

Water has built up inside the headlight.

Light bulbs

If any lights burn out, have it replaced by your Toyota dealer.

446

7-1. Essential information

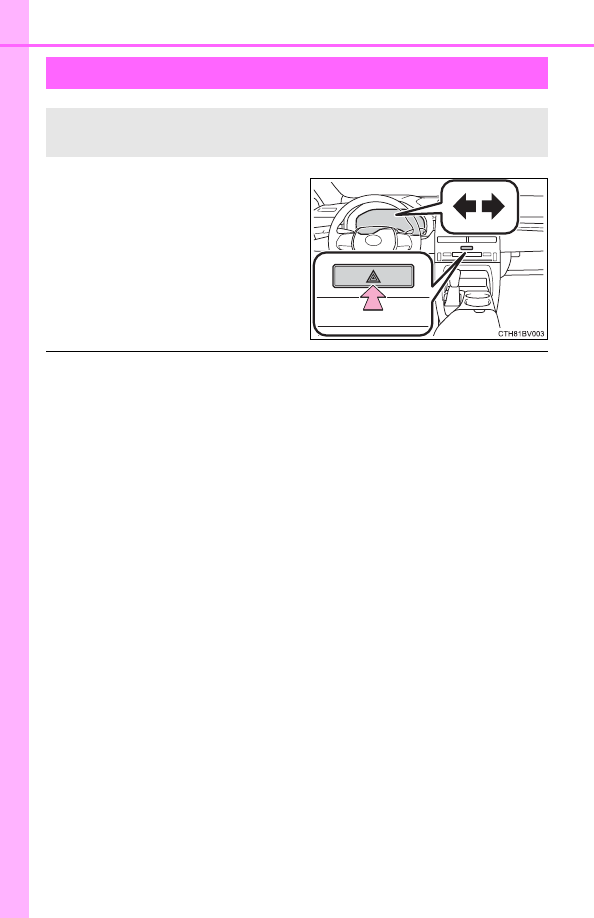

Press the switch.

All the turn signal lights will flash.
To turn them off, press the switch
once again.

■

Emergency flashers

●

If the emergency flashers are used for a long time while the hybrid system is
not operating (while the “READY” indicator is not illuminated), the 12-volt
battery may discharge.

●

If any of the SRS airbags deploy (inflate) or in the event of a strong rear
impact, the emergency flashers will turn on automatically.
The emergency flashers will turn off automatically after operating for approx-
imately 20 minutes. To manually turn the emergency flashers off, press the
switch twice.
(The emergency flashers may not turn on automatically depending on the
force of the impact and conditions of the collision.)

Emergency flashers

The emergency flashers are used to warn other drivers when the
vehicle has to be stopped on the road due to a breakdown, etc.

447

7-1. Essential information

hen
troub

le arises

Steadily step on the brake pedal with both feet and firmly depress it.

Do not pump the brake pedal repeatedly as this will increase the effort
required to slow the vehicle.

Shift the shift lever to N.



If the shift lever is shifted to N
After slowing down, stop the vehicle in a safe place by the road.
Stop the hybrid system.



If the shift lever cannot be shifted to N
Keep depressing the brake pedal with both feet to reduce vehicle
speed as much as possible.
To  stop  the  hybrid  system,
press  and  hold  the  power
switch  for  2  consecutive  sec-
onds or more, or press it briefly
3 times or more in succession.

Stop the vehicle in a safe place by the road.

If your vehicle has to be stopped in an

emergency

Only in an emergency, such as if it becomes impossible to stop
the vehicle in the normal way, stop the vehicle using the follow-
ing procedure:

3
4

Press and hold for 2 seconds or
more, or press briefly 3 times or more

WARNING

■

If the hybrid system has to be turned off while driving
Power assist for the steering wheel will be lost, making the steering wheel
heavier to turn. Decelerate as much as possible before turning off the hybrid
system.

448

7-2. Steps to take in an emergency

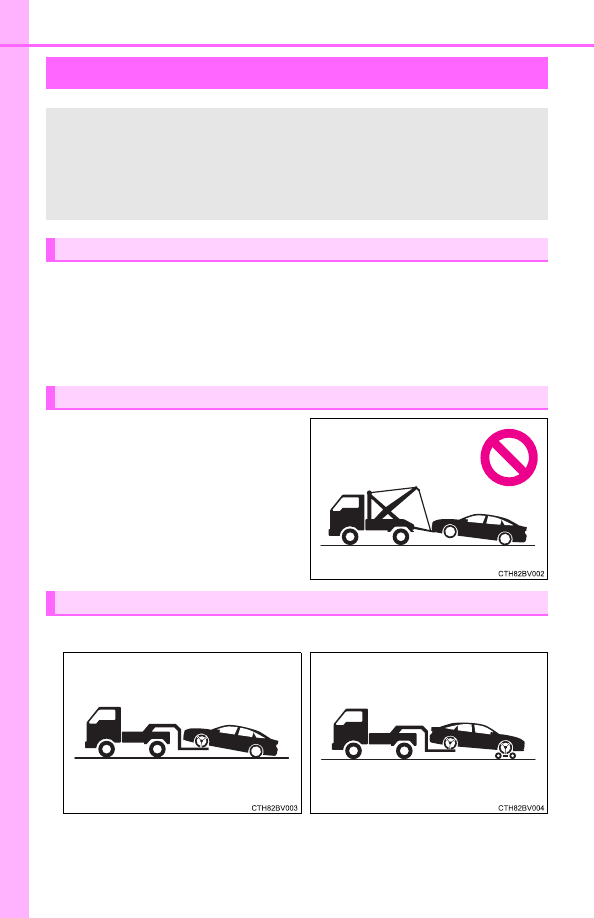

The following may indicate a problem with your transmission. Contact
your Toyota dealer or commercial towing service before towing.
● A warning message for the hybrid system is shown on the multi-

information display and the vehicle does not move.

● The vehicle makes an abnormal sound.

Do not tow with a sling-type truck
to prevent body damage.

If your vehicle needs to be towed

If towing is necessary, we recommend having your vehicle
towed by your Toyota dealer or a commercial towing service,
using a wheel-lift type truck or flatbed truck.
Use a safety chain system for all towing, and abide by all state/
provincial and local laws.

Situations when it is necessary to contact dealers before towing

Towing with a sling-type truck

Towing with a wheel-lift type truck



From the front



From the rear

Release the parking brake.

Use a towing dolly under the
front wheels.

Toyota Avalon Hybrid (2019 year). Instruction - part 28
