5-3. Using the storage features

Interio

r features

■

When small items are placed on top of the tray (type C)

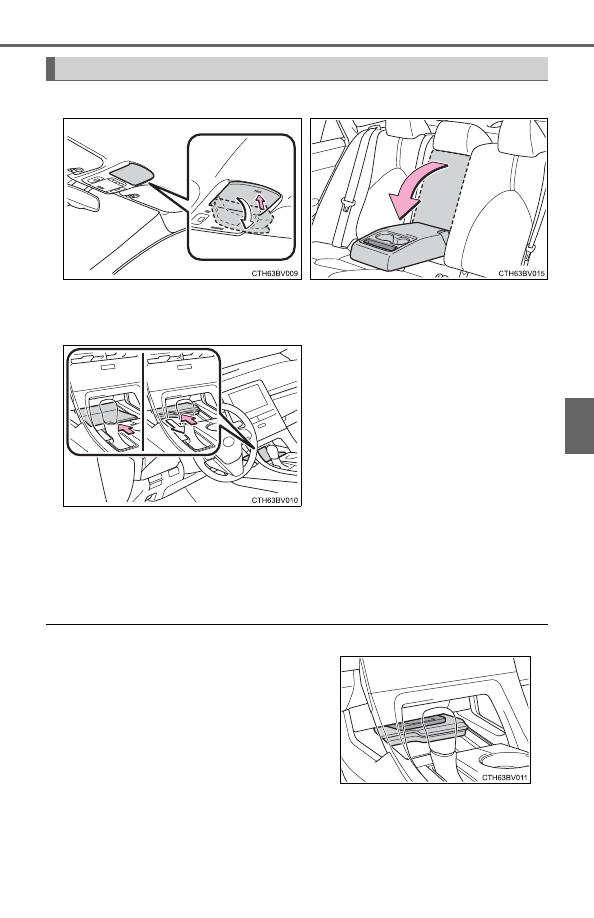

Auxiliary boxes



Type A (if equipped)



Type B

Push the lid.

Pull the armrest down.



Type C

Opening:
Push the tray forward until it locks.
Closing:
Push the tray forward to release the lock and the tray will automati-
cally close.

The tray can be opened while small items
are placed on it.

354

5-3. Using the storage features

■

When using wireless charger (if equipped)
P. 360

WARNING

■

Items unsuitable for storing (type A)
Do not store items heavier than 0.4 lb. (0.2 kg).
Doing so may cause the auxiliary box to open and the items inside may fall
out, resulting in an accident.

NOTICE

■

When opening or closing the tray (type C)

●

To prevent damaging small items, when opening the tray while small items
are placed on it, make sure the items will not get caught.

●

To prevent damaging the tray, do not pull the tray to close it. Doing so may
damage the tray.

●

When on a steep downward incline, the tray may be slow to close auto-
matically. In this case, the tray can be pulled closed after pushing it to
release the lock.

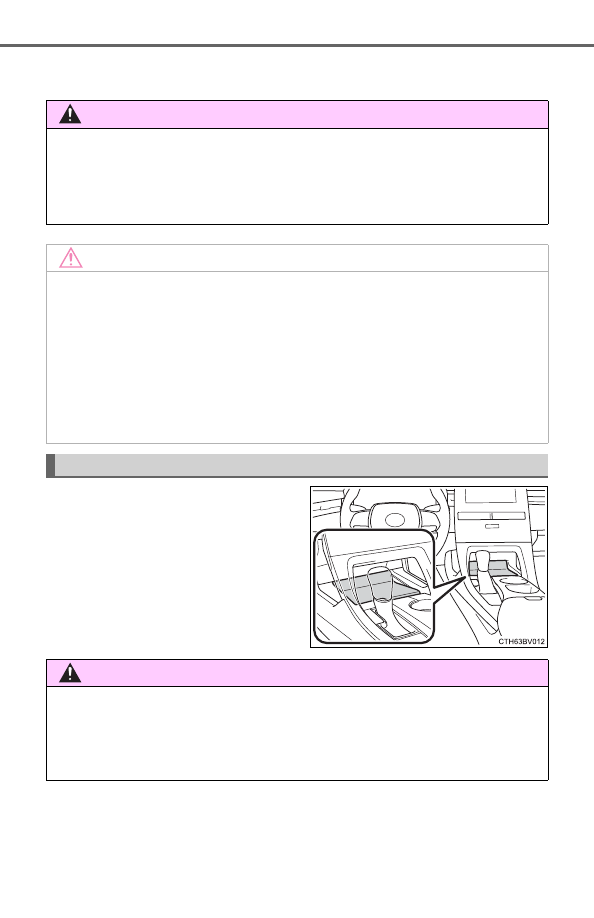

Open tray

WARNING

Do not store items in the tray that can easily shift or roll out.
Failure to do so may cause items to be thrown out of the tray in the event of
sudden braking or steering. In these cases, the items may interfere with
pedal operation or cause driver distraction, resulting in an accident.

355

5-3. Using the storage features

Interio

r features

Trunk features

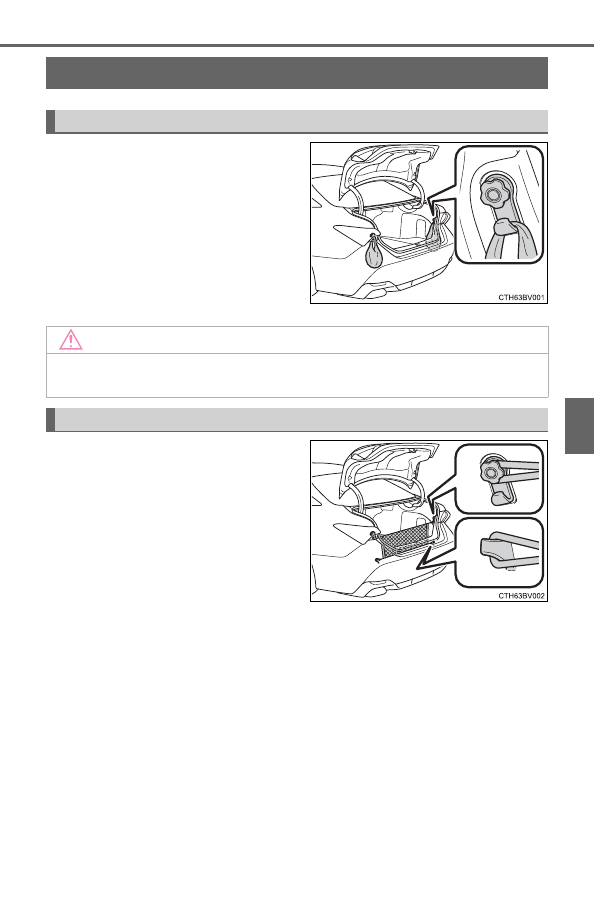

Grocery bag hooks

NOTICE

To prevent damage to the hooks, do not apply too much load to the hooks.

Cargo net

356

5-4. Other interior features

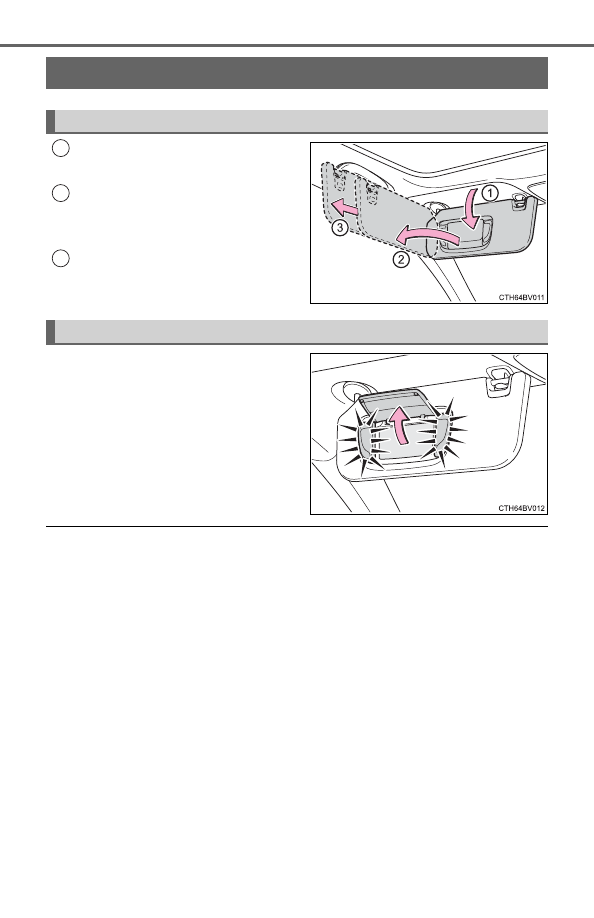

To  set  the  visor  in  the  forward
position, flip it down.
To set the visor in the side posi-
tion,  flip  down,  unhook,  and
swing it to the side.
To use the side extender, place
the  visor  in  the  side  position,
then slide it backward.

Open the cover to use.

The light turns on when the cover
is opened.

If the vanity lights remain on for 20 minutes while the hybrid system is off, the
lights will turn off automatically.

Other interior features

Sun visors

Vanity mirrors

357

5-4. Other interior features

Interio

r features

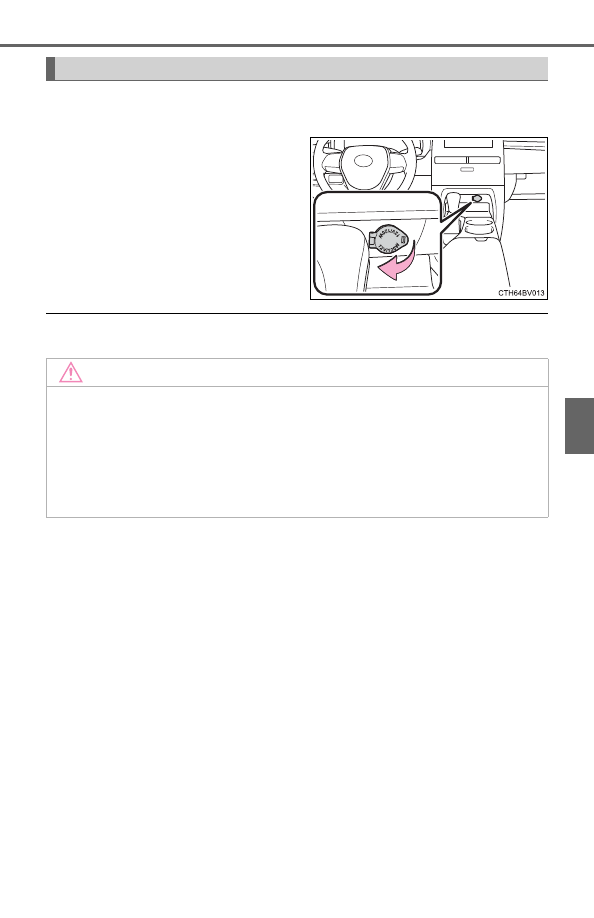

Please use as a power supply for electronic goods that use less than
12 VDC/10 A (power consumption of 120 W).
Open the lid.

The power outlet can be used when the power switch is in ACCESSORY or
ON mode.

Power outlet

NOTICE

●

To avoid damaging the power outlet, close the power outlet lid when it is
not in use.
Foreign objects or liquids that enter the power outlet may cause a short
circuit.

●

To prevent 12-volt battery discharge, do not use the power outlet longer
than necessary when the hybrid system is off.

358

5-4. Other interior features

The USB charging ports are used to supply 2.1 A of electricity at 5 V
to external devices (power consumption of 10.5 W).
The USB charging ports are for charging only. They are not designed
for data transfer or other purposes.
Depending on the external device, it may not charge properly. Refer to
the manual included with the device before using a USB charging
port.

■

Using the USB charging ports

■

The USB charging ports can be used when
The power switch is in ACCESSORY or ON mode.

■

Situations in which the USB charging ports may not operate correctly

●

If a device which consumes more than 2.1 A at 5 V (10.5 W) is connected

●

If a device designed to communicate with a personal computer, such as a
USB memory device, is connected

●

If the connected external device is turned off (depending on device)

●

If the temperature inside the vehicle is high, such as after the vehicle has
been parked in the sun

■

About connected external devices
Depending on the connected external device, charging may occasionally be
suspended and then start again. This is not a malfunction.

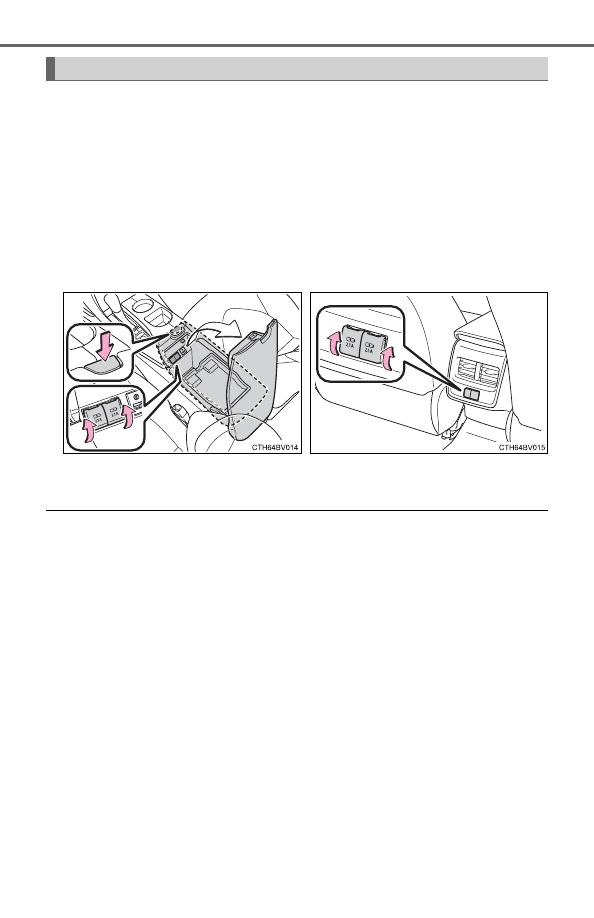

USB charging ports



Front



Rear

Open the console box lid and
open the lid.

Open the lid.

359

5-4. Other interior features

Interio

r features

■

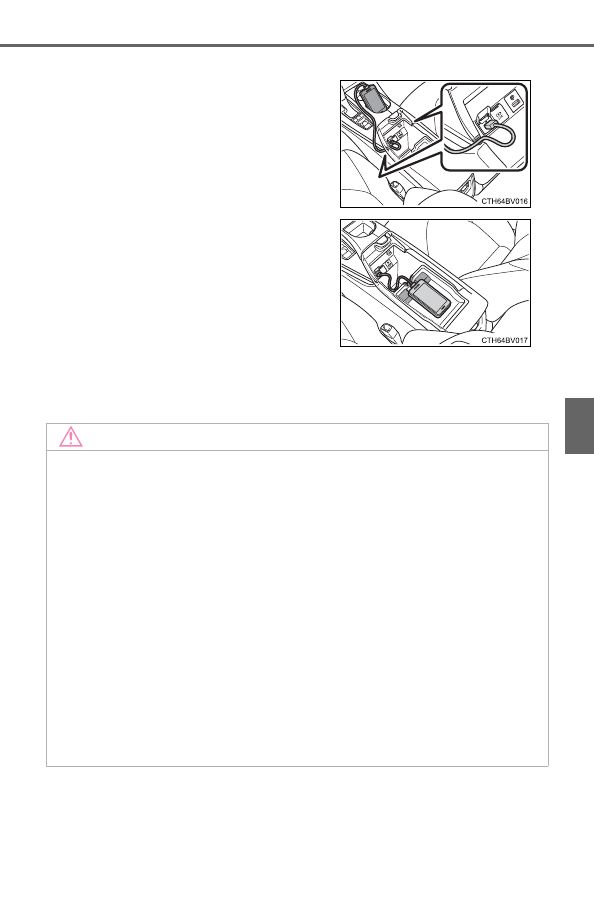

Cable pass through

●

The cutouts on the console box rim allow
power cables to be passed through
when the console box lid is closed.

●

An electronic device on the console box
tray can be recharged by running power
cables through the clearance of the tray
and connecting it to the USB charging
ports underneath the tray.

To  prevent  damage  to  the  charging
port of an electronic device when it is
placed  on  the  tray  while  it  is  being
charged,  place  the  connector  side  of
the device on the raised portions near
the cutout.

NOTICE

■

To prevent damage to the USB charging ports

●

Do not insert foreign objects into the ports.

●

Do not spill water or other liquids into the ports.

●

When the USB charging ports are not in use, close the lids. If a foreign
object or liquid enters a port may cause a short circuit.

●

Do not apply excessive force to or impact the USB charging ports.

●

Do not disassemble or modify the USB charging ports.

■

To prevent damage to external devices

●

Do not leave external devices in the vehicle. The temperature inside the
vehicle may become high, resulting in damage to an external device.

●

Do not push down on or apply unnecessary force to an external device or
the cable of an external device while it is connected.

■

To prevent 12-volt battery discharge
Do not use the USB charging ports for a long period of time with the hybrid
system stopped.

360

5-4. Other interior features

A  portable  device,  such  as  a  smartphone  or  mobile  battery,  can  be
charged by just placing it on the charging area, provided the device is
compatible  with  the  Qi  wireless  charging  standard  created  by  the
Wireless Power Consortium.
The  wireless  charger  cannot  be  used  with  a  portable  device  that  is
larger than the charging area. Additionally, depending on the portable
device,  the  wireless  charger  may  not  operate  properly.  Refer  to  the
operation manual of the portable device.

■

The “Qi” symbol
The “Qi” symbol is a trademark of the Wireless Power Consortium.

■

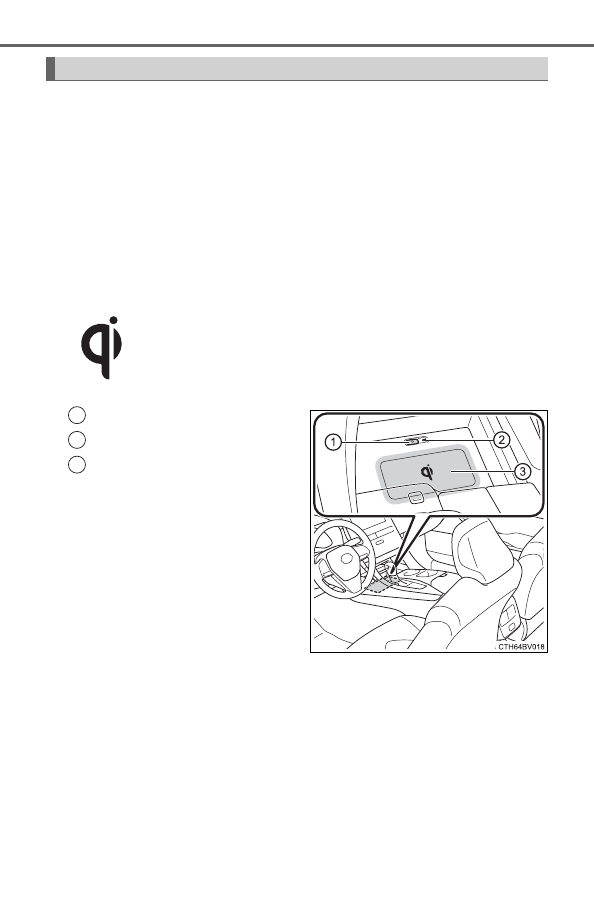

Name for all parts

Power supply switch
Operation indicator light
Charge area

Wireless charger (if equipped)

1
2
3

361

5-4. Other interior features

Interio

r features

■

Using the wireless charger

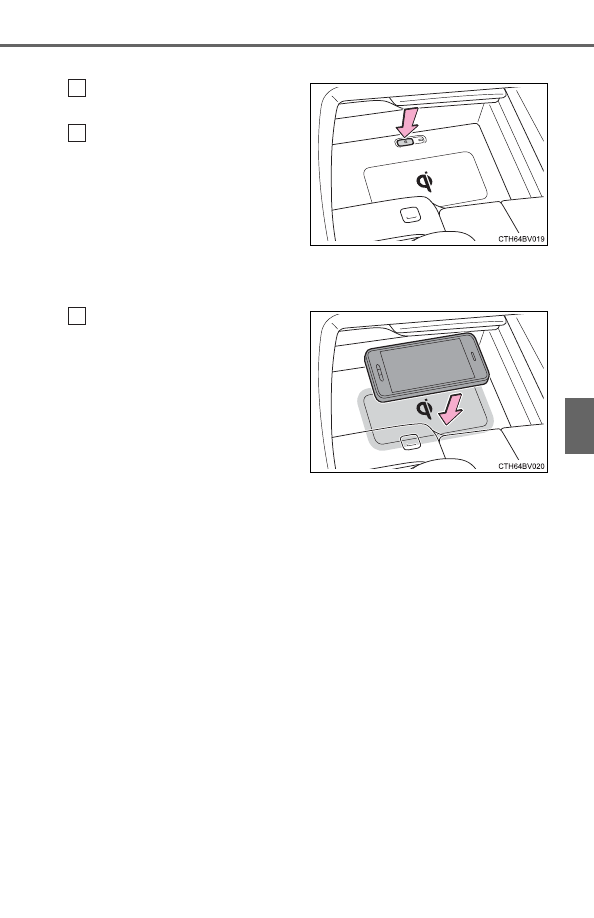

Push the open tray forward
until it locks. (

P. 353)

Press the power supply
switch of the wireless char-
ger.

Pressing  the  switch  again  turns
the wireless charger off.
When  turned  on,  the  operation
indicator light (green) comes on.
When  the  power  switch  is  turned  off,  the  on/off  state  of  the  wireless
charger will be memorized.

Place a portable device on
the charging area with its
charging

surface

facing

down.

While  charging,  the  operation
indicator  light  (orange)  will  be
illuminated.
If  charging  does  not  begin,
move  the  portable  device  as
close  to  the  center  of  the
charging area as possible.
When charging is complete, the operation indicator light (green) will illu-
minate.

● Recharging function

• If a certain amount of time has elapsed since charging com-

pleted and the portable device has not been moved, the wire-
less charger will restart charging.

• If the portable device is moved within the charging area,

charging will stop temporarily then restart.

362

5-4. Other interior features

■

Operation indicator light status

: Depending on the portable device, the operation indicator light may stay

illuminated (orange) after charging has completed.

● If the operation indicator light blinks

If an error is detected, the operation indicator light will blink
(orange). Take the appropriate measures according to the table
below.

Operation indicator light

State

Off

The Wireless charger is off

Green (illuminated)

Standby (charging is possible)

Charging is complete

Orange (illuminated)

A portable device has been placed on the
charging area (identifying the portable
device)

Charging in progress

Operation indicator light

Suspected causes

Measure

Blinks (orange) at a
one second interval
continuously

Vehicle to charger com-
munication failure.

Contact your Toyota
dealer.

Blinks (orange) 3 times
repeatedly

A  foreign  object  exists
between  the  portable
device  and  charging
area.

Remove the foreign
object.

Portable device is not
positioned properly on
the charging area.

Move

the

portable

device toward the cen-
ter of the charging
area.

Blinks (orange) 4 times
repeatedly

The temperature of the
wireless charger is
excessively high.

Stop charging immedi-
ately

and

continue

charging after a while.

363

5-4. Other interior features

Interio

r features

■

The wireless charger can be operated when
The power switch is in ACCESSORY or ON mode.

■

Portable devices that can be charged

●

Portable devices compatible with the Qi wireless charging standard can be
charged by the wireless charger. However, compatibility with all devices
which meet the Qi wireless charging standard is not guaranteed.

●

The wireless charger is designed to supply low power electricity (5 W or
less) to a cellular phone, smartphone, or other portable device.

■

If a cover or accessory is attached to the portable device
Do not charge a portable device if a cover or accessory which is not Qi com-
patible is attached. Depending on the type of cover and/or accessory
attached, it may not be possible to charge the portable device. If the portable
device is placed on the charging area and does not charge, remove the cover
and/or accessories.

■

If interference is heard in AM radio broadcasts while charging
Turn off the wireless charger and check if the noise is reduced. If noise is
reduced, press and hold the power supply switch of the wireless charger for 2
seconds. The frequency of the wireless charger is changed and noise may be
reduced. When the frequency is changed, the operation indicator light will
blink (orange) 2 times.

■

Charging precautions

●

If the electronic key cannot be detected in the cabin, charging cannot be
performed. When a door is opened and closed, charging may be temporarily
suspended.

●

While charging, the wireless charger and the portable device will become
warm. This is not a malfunction.
If a portable device becomes warm while charging and charging stops due
to the protection function of the portable device, wait until the portable
device cools down and charge it again.

■

Sound generated during operation
When the power supply switch is turned on or while a portable device is being
identified, operation sounds may be heard. This is not a malfunction.

■

Cleaning the wireless charger
P. 390

364

5-4. Other interior features

■

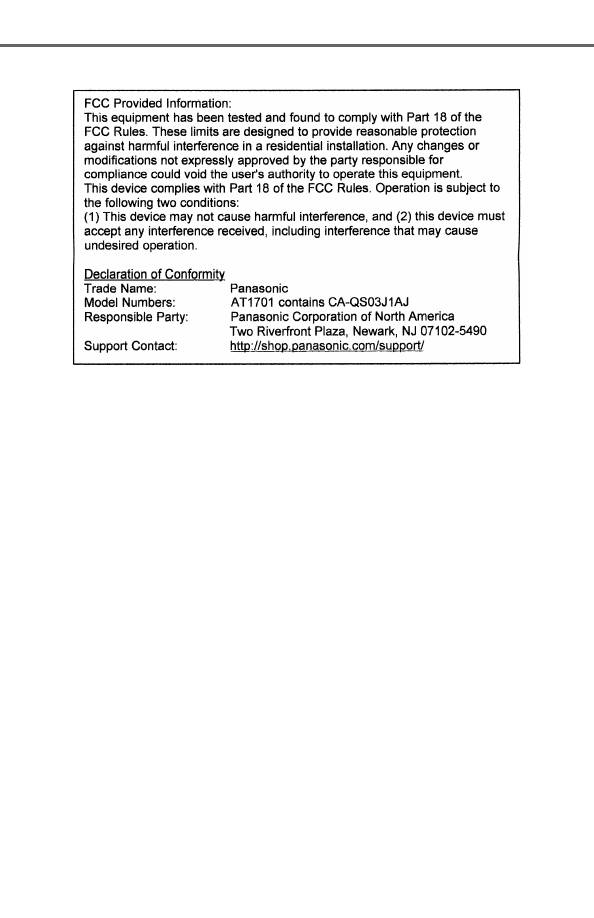

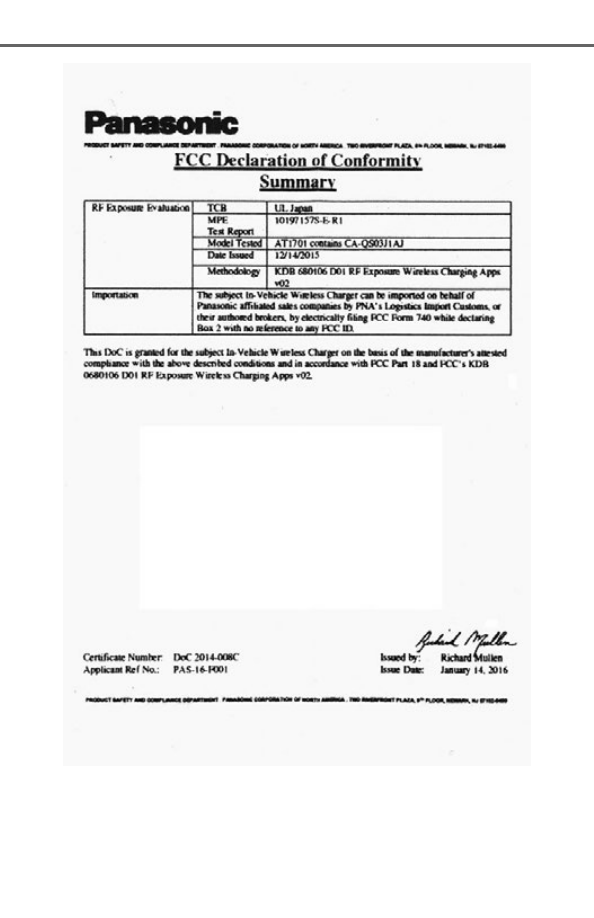

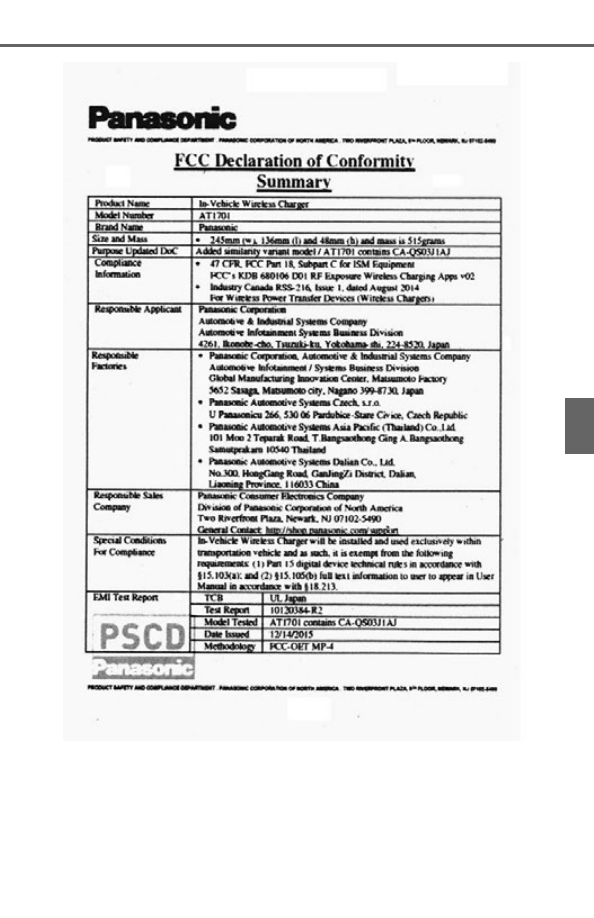

Certification for the wireless charger

365

5-4. Other interior features

Interio

r features

366

5-4. Other interior features

367

5-4. Other interior features

Interio

r features

WARNING

■

Caution while driving
When charging a portable device while driving, for safety reasons, the driver
should not operate the portable device.

■

Caution regarding interference with electronic devices
People with implantable cardiac pacemakers, cardiac resynchronization
therapy pacemakers or implantable cardioverter defibrillators, as well as
any other electrical medical device, should consult their physician about the
usage of the wireless charger.
Operations of the wireless charger may have an affect on medical devices.

■

To prevent damage or burns
Observe the following precautions.
Failure to do so may result in the possibility of fire, equipment failure or
damage, or burns due to heat.

●

Do not put any metallic objects between the charging area and the porta-
ble device while charging.

●

Do not attach metallic objects, such as aluminum stickers, to the charging
area.

●

Do not cover the wireless charger with a cloth or other object while
charging.

●

Do not attempt to charge portable devices which are not compatible with
the Qi wireless charging standard.

●

Do not disassemble, modify or remove the wireless charger.

●

Do not apply force or impact to the wireless charger.

368

5-4. Other interior features

NOTICE

■

Conditions in which the wireless charger may not operate correctly
In the following situations, the wireless charger may not operate correctly:

●

When a portable device is fully charged

●

When there is a foreign object between the charging area and portable
device

●

When a portable device becomes hot while charging

●

When a portable device is placed on the wireless area with its charging
surface facing up

●

When a portable device is not centered on the charging area

●

When the vehicle is near a TV tower, electric power plant, gas station,
radio station, large display, airport or other facility that generates strong
radio waves or electrical noise

●

When the portable device is in contact with, or is covered by any of the fol-
lowing metallic objects:
• Cards to which aluminum foil is attached
• Cigarette boxes that have aluminum foil inside
• Metallic wallets or bags
• Coins
• Metal hand warmers
• Media such as CDs and DVDs

●

When wireless keys (that emit radio waves) other than those of your vehi-
cle are being used nearby.

If in situations other than above the wireless charger does not operate prop-
erly or the operation indicator light is blinking, the wireless charger may be
malfunctioning. Contact your Toyota dealer.

■

To prevent failure or damage to data

●

Do not bring magnetic cards, such as a credit card, or magnetic recording
media, close to the wireless charger while charging. Otherwise, data may
be erased due to the influence of magnetism.
Additionally, do not bring precision instruments such as wrist watches,
close to the wireless charger, as such objects may malfunction.

●

Do not leave portable devices in the cabin. The temperature inside the
cabin may become high when parked in the sun, and cause damage to the
device.

■

To prevent 12-volt battery discharge
Do not use the wireless charger for a long period of time with the hybrid sys-
tem stopped.

Content .. 21 22 23 24 ..
