Toyota Avalon Hybrid (2019 year). Instruction

113

2. Instrument cluster

Instrument cluster

■

The Eco guide will not operate when
The Eco guide will not operate in the following situations:

●

The Hybrid System Indicator is not operating.

●

The vehicle is being driven using the dynamic radar cruise control with full-
speed range.

■

Suspension of the settings display

●

Some settings cannot be changed while driving. When changing settings,
park the vehicle in a safe place.

●

If a warning message is displayed, operation of the settings display will be
suspended.

■

Tire pressure

●

It may take a few minutes to display the tire inflation pressure after the
power switch is turned to ON mode. It may also take a few minutes to dis-
play the tire inflation pressure after inflation pressure has been adjusted.

●

“---” may be displayed if the tire position information cannot be determined
due to unfavorable radio wave conditions.

●

Tire inflation pressure changes with temperature. The displayed values may
also be different from the values measured using a tire pressure gauge.

■

Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is
characteristic of liquid crystal displays, and there is no problem continuing to
use the display.

■

Customization
Some functions can be customized. (

P. 105, 522)

114

2. Instrument cluster

WARNING

■

Caution for use while driving

●

When operating the multi-information display while driving, pay extra
attention to the safety of the area around the vehicle.

●

Do not look continuously at the multi-information display while driving as
you may fail to see pedestrians, objects on the road, etc. ahead of the
vehicle.

■

The information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information display
monitor may respond slowly, and display changes may be delayed.
For example, there is a lag between the driver’s shifting and the new gear
number appearing on the display. This lag could cause the driver to down-
shift again, causing rapid and excessive engine braking and possibly an
accident resulting in death or injury.

■

Cautions during setting up the display
As the hybrid system needs to be running during setting up the display,
ensure that the vehicle is parked in a place with adequate ventilation. In a
closed area such as a garage, exhaust gases including harmful carbon
monoxide (CO) may collect and enter the vehicle. This may lead to death or
a serious health hazard.

NOTICE

■

While setting up the display
To prevent 12-volt battery discharge, ensure that the hybrid system is oper-
ating while setting up the display features.

115

2. Instrument cluster

Instrument cluster

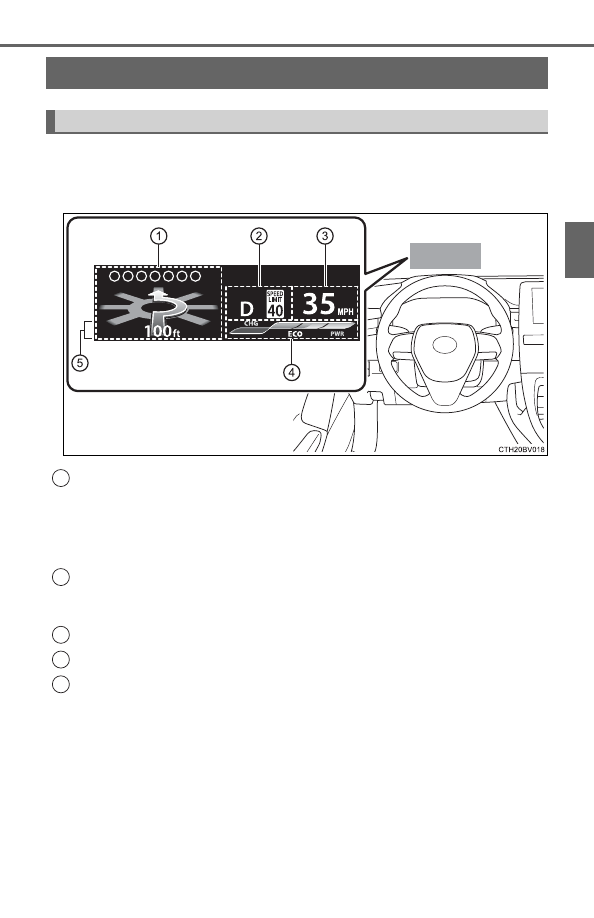

The head-up display is linked to the meters and navigation system
and projects a variety of information in front of the driver, such as the
current vehicle speed.

Driving assist system status/navigation system-linked display area
(

P. 117)

The following pop-up displays will be displayed in certain situations:

• Pre-collision warning (pre-collision system)
• Alert from the Intelligent Clearance Sonar system (if equipped)

Shift position/speed limit display area

• Shift position (

P. 199)

• Speed limit (vehicles with a navigation system) (U.S.A. only)

Vehicle speed display
Hybrid System Indicator/Tachometer (

P. 118)

Information display area (

P. 119)

The following pop-up displays will be displayed in certain situations:

• Warning/message
• Hands-free system status
• Audio system operation status

Head-up display



: If equipped

Summary of functions

3
4
5

116

2. Instrument cluster

Select

on the multi-information display (

P. 105) and then

◆

Enabling/disabling the head-up display

Press

to enable/disable the head-up display.

◆

Changing the head-up display settings

Press and hold

to change the following settings:

■

Display brightness/position
Select to adjust the brightness and position of the head-up display.

■

Display content
Select to enable/disable the following items:

• Route guidance to destination
• Driving assist system status
• Compass

Select to change the display between the following:

• Hybrid system Indicator
• Tachometer
• No content

■

Display angle
Select to adjust the angle of the head-up display.

Using the head-up display

117

2. Instrument cluster

Instrument cluster

◆

Driving assist system status display

Displays the operational status of the following systems:

• Dynamic radar cruise control with full-speed range (

P. 258)

• LDA (Lane Departure Alert with steering control) (

P. 247)

• Intuitive parking assist (if equipped) (

P. 286)

◆

Navigation system-linked display area

Displays the following items, which are linked to the navigation sys-
tem:

■

Street name
When the navigation system is performing route guidance, the
name of the next street will be displayed on the top of the display
area.

■

Route guidance to destination
Displayed when the navigation system is performing route guid-
ance. When approaching an intersection, an arrow will be displayed
to indicate the suggested direction of travel.

■

Compass
Displays the direction of travel.

Driving assist system status/navigation system-linked display
area

118

2. Instrument cluster

■

Hybrid System Indicator

Charge area
Hybrid Eco area
Eco area
Power area

Displayed  content  is  the  same
as  that  displayed  on  the  meter
(Hybrid  System  Indicator).  For
details, refer to P. 94.

■

Tachometer
Displays the engine speed in revolutions per minute.

Hybrid System Indicator/Tachometer

1
2
3
4

119

2. Instrument cluster

Instrument cluster

Displays the following items in the appropriate situation:

■

Warning/Message
● Alert from the LDA (Lane Departure Alert with steering control)
● Dynamic radar cruise control with full-speed range
●

message

Displayed when a suggestion/advice pop-up display is displayed on the
multi-information display. (

P. 112)

●

message

Displayed when a warning message is displayed on the multi-informa-
tion display. (

P. 462)

● Outside temperature

Displayed in the following situations:

• When the power switch is turned to ON mode
• When the low outside temperature indicator is flashing

Displayed content is the same as that displayed on the multi-information
display. For details, refer to the explanation of the outside temperature
display on the multi-information display. (

P. 92)

■

Hands-free system status

Displayed when the hands-free system is operated.

■

Audio system operation status

Displayed when the audio system is operated.

Information display area

120

2. Instrument cluster

■

Head-up display
The head-up display may seem dark or hard to see when viewed through
sunglasses, especially polarized sunglasses.
Adjust the brightness of the head-up display or remove your sunglasses.

■

Display brightness

The brightness of the head-up display can be adjusted on

of the multi-

information display. Also, it is automatically adjusted according to the ambient
brightness.

■

Enabling/disabling of the head-up display
If the head-up display is disabled, it will remain disabled when the power
switch is turned off then back to ON mode.

■

Street name display
Only street names which are included in the map data will be displayed.

WARNING

■

Before using the head-up display

●

Check that the position and brightness of the head-up display image does
not interfere with safe driving. Incorrect adjustment of the image’s position
or brightness may obstruct the driver’s view and lead to an accident,
resulting in death or serious injury.

●

Do not continuously look at the head-up display while driving as you may
fail to see pedestrians, objects on the road, etc. ahead of the vehicle.

■

Caution for changing settings of the head-up display
As the hybrid system needs to be running while changing the settings of the
head-up display, ensure that the vehicle is parked in a place with adequate
ventilation. In a closed area such as a garage, exhaust gases including
harmful carbon monoxide (CO) may collect and enter the vehicle. This may
lead to death or a serious health hazard.

121

2. Instrument cluster

Instrument cluster

NOTICE

■

To prevent damage to components

■

When changing the settings of the head-up display
To prevent 12-volt battery discharge, ensure that the hybrid system is oper-
ating while the changing the settings of the head-up display.

●

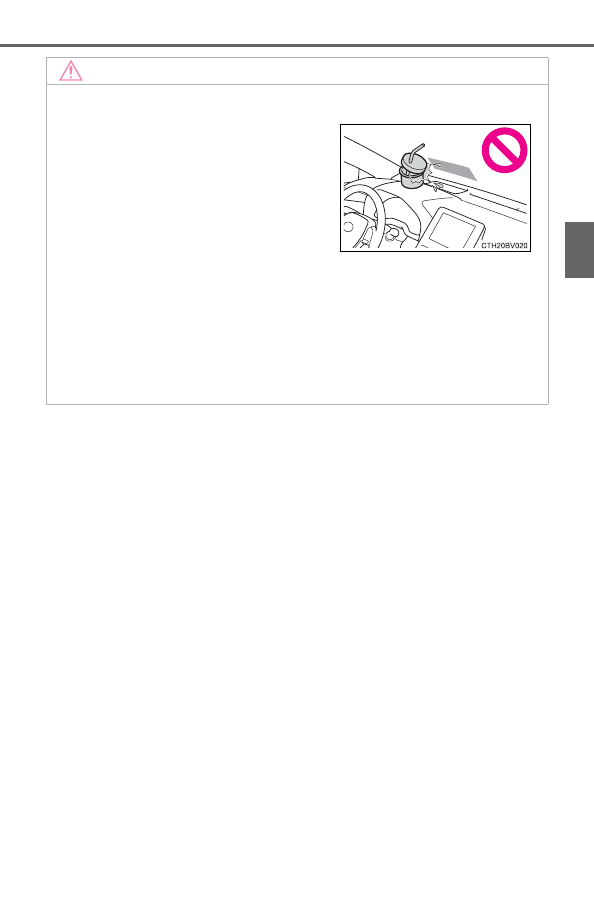

Do not place any drinks near the head-
up display projector. If the projector gets
wet, electrical malfunctions may result.

●

Do not place anything on or put stickers
onto the head-up display projector.
Doing so could interrupt head-up dis-
play indications.

●

Do not touch the inside of the head-up
display projector or thrust sharp edges
or the like into the projector.
Doing so could cause mechanical mal-
functions.

122

2. Instrument cluster

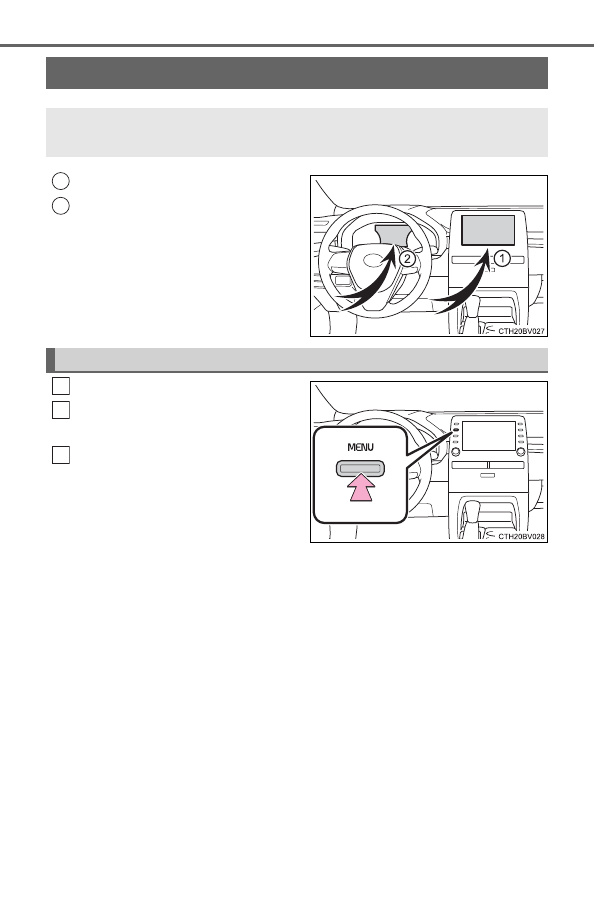

Audio system screen
Multi-information display

Press the “MENU” button.
Select “Info” on the “Menu”
screen.
Select “ECO” on the “Informa-
tion” screen.

If the “Trip Information” or “History”
screen

displayed,

select

“Energy”.

Energy monitor/consumption screen

You can view the status of your hybrid system on the multi-infor-
mation display, the audio system screen.

1
2

Energy monitor

1
2

123

2. Instrument cluster

Instrument cluster

■

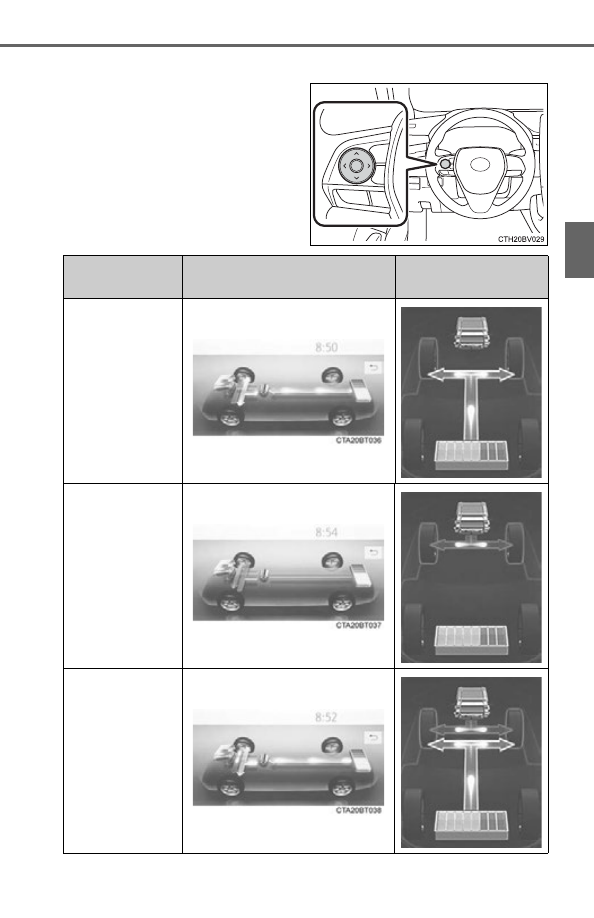

Multi-information display
Press

the

meter

control

switches on the steering wheel
several times to select the
energy monitor display.

Audio system screen

Multi-information

display

When  the  vehi-
cle  is  powered
by  the  electric
motor  (traction
motor)

When  the  vehi-
cle  is  powered
by  the  gasoline
engine

When the vehi-
cle is powered
by both the gas-
oline engine and
the

electric

motor (traction
motor)

124

2. Instrument cluster

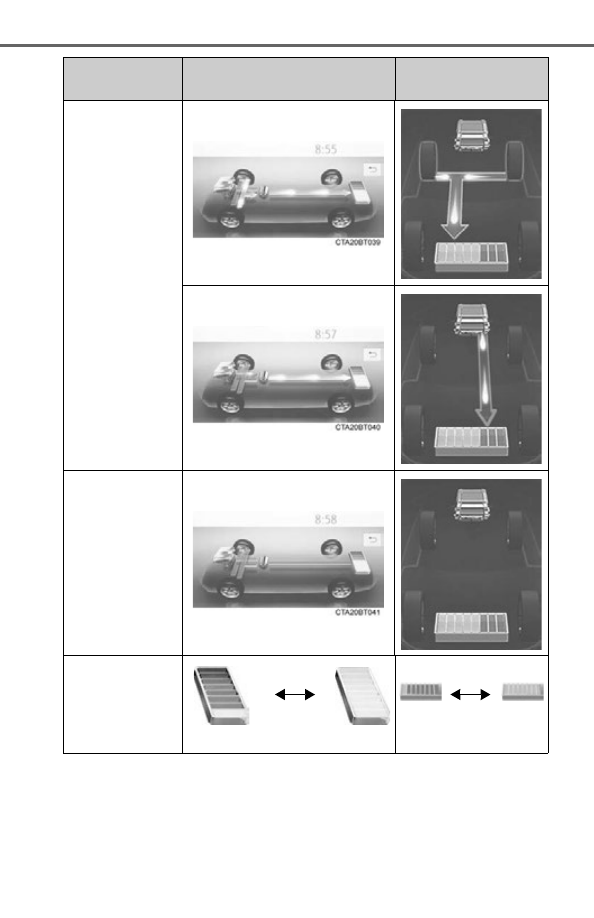

When  the  vehi-
cle  is  charging
the  hybrid  bat-
tery

(traction

battery)

When there is
no energy flow

Hybrid

battery

(traction

bat-

tery) status

Low

Full

Low

Full

Audio system screen

Multi-information

display

125

2. Instrument cluster

Instrument cluster

■

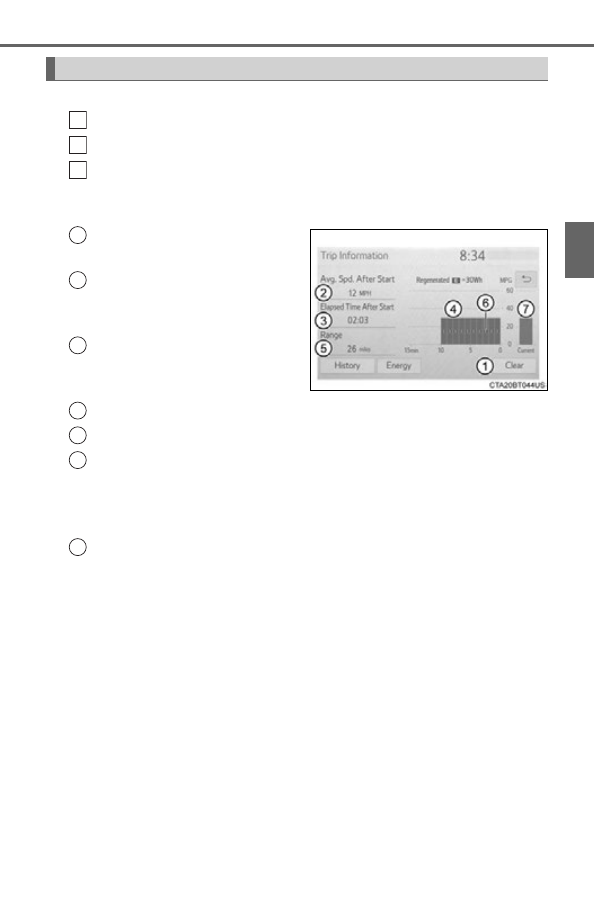

Trip information

Press the “MENU” button. (

P. 122)

Select “Info” on the “Menu” screen.
Select “ECO” on the “Information” screen.

If “Energy Monitor” or “History” screen is displayed, select “Trip Informa-
tion”.

Resetting  the  consumption
data
Displays the average vehicle
speed  since  the  hybrid  sys-
tem was started
Displays  the  elapsed  time
since the  hybrid  system  was
started
Fuel consumption in the past 15 minutes
Cruising range
Regenerated energy in the past 15 minutes
One symbol indicates 30 Wh. Up to 5 symbols are shown.

The image is example only, and may vary slightly from actual condi-
tions.

Current fuel consumption

Fuel consumption screen

1
2
3

4
5
6

126

2. Instrument cluster

■

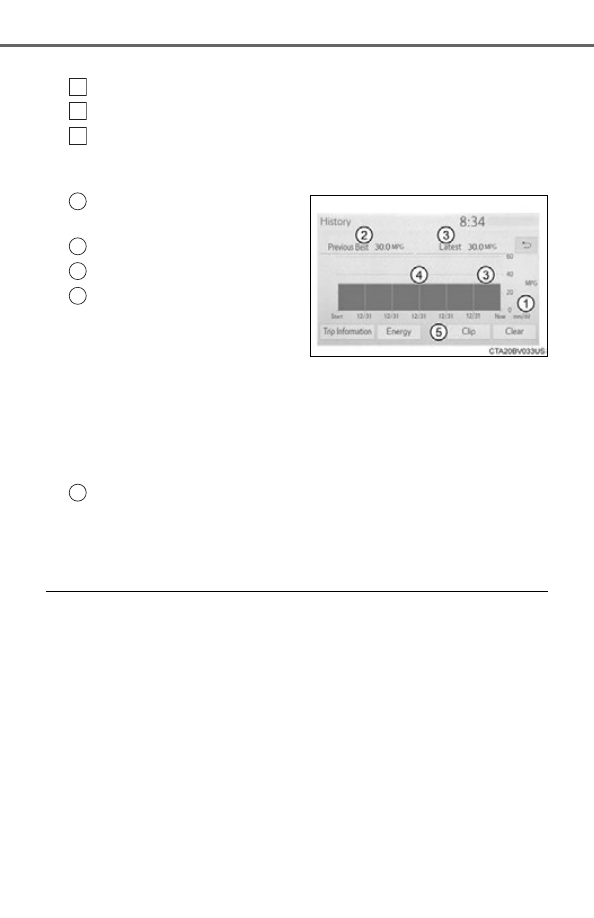

History

Press the “MENU” button. (

P. 122)

Select “Info” on the “Menu” screen.
Select “ECO” on the “Information” screen.

If “Energy Monitor” or “Trip Information” screen is displayed, select “His-
tory”.

Resetting the past record
data
Best past fuel consumption
Current fuel economy
Previous fuel consumption
record



Entune Audio Plus

Displays the daily average fuel consumption. (Instead of the date,
“Trip 1” through “Trip 5” will be displayed.)



Entune Premium Audio

Displays the daily average fuel consumption.

Updating the average fuel consumption data

Displays a maximum of five past record of the average fuel consump-
tion.
The image is example only, and may vary slightly from actual condi-
tions.

■

Resetting the consumption data
Selecting “Clear” on the “Trip Information” screen will reset the fuel consump-
tion and the regenerated energy for the past 15 minutes. Selecting “Clear” on
the “History” screen will reset the past records and best past fuel consump-
tion. Selecting “Yes” on the following screen will confirm resetting of all the
data.

1
2
3

2
3
4
