8-2. Steps to take in an emergency

595

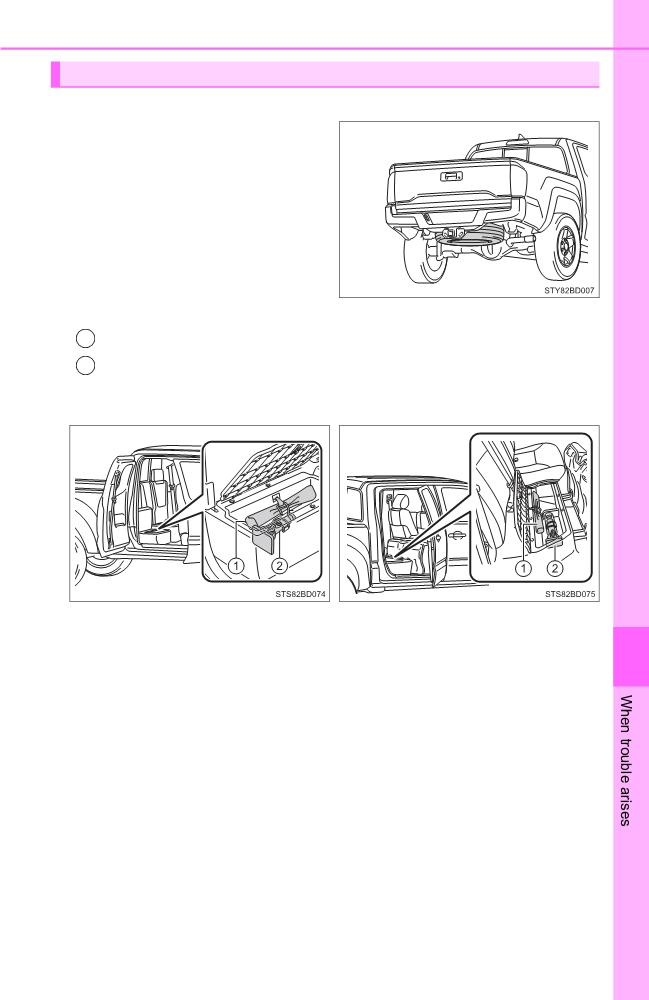

Location of the spare tire, jack and tools

■ Spare tire

■ Jack and tools

1

Tool bag

2

Jack

 Access Cab models

 Double Cab models

8

596

8-2. Steps to take in an emergency

WARNING

■Using the tire jack

Observe the following precautions.

Improper use of the tire jack may cause the vehicle to suddenly fall off

the jack, leading to death or serious injury.

●Do not use the tire jack for any purpose other than replacing tires or

installing and removing tire chains.

●Only use the tire jack that comes with this vehicle for replacing a flat

tire.

Do not use it on other vehicles, and do not use other tire jacks for

replacing tires on this vehicle.

● Put the jack properly in its jack point.

●Do not put any part of your body under the vehicle while it is supported

by the jack.

● Do not start the engine or drive the vehicle while the vehicle is sup-

ported by the jack.

● Do not raise the vehicle while someone is inside.

●When raising the vehicle, do not put an object on or under the jack.

●Do not raise the vehicle to a height greater than that required to

replace the tire.

●Use a jack stand if it is necessary to get under the vehicle.

●When lowering the vehicle, make sure that there is no-one near the

vehicle. If there are people nearby, warn them vocally before lowering.

■Using the jack handle

Insert the square head securely until you hear a click to prevent the

extension parts from coming apart unexpectedly.

8-2. Steps to take in an emergency

597

Taking out the jack and tool bag (Access Cab models)

1

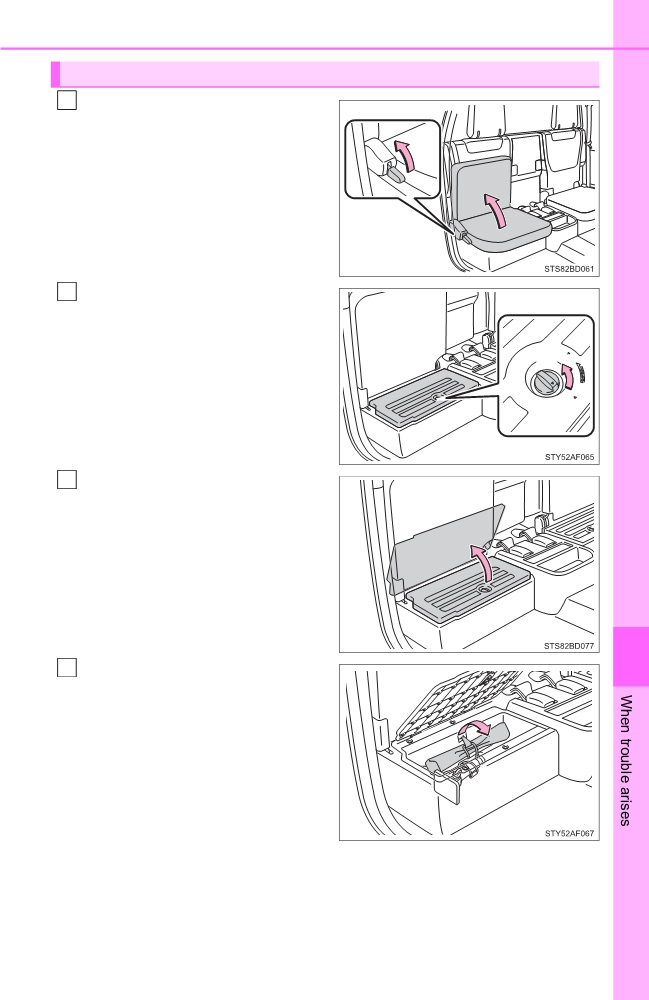

Vehicles with rear seats:

Pull up the lever and raise the

bottom cushion up.

2

Turn the knob counterclock-

wise.

3

Open the lid.

8

Unhook the rubber band and

4

remove the tool bag.

598

8-2. Steps to take in an emergency

5

Unhook the rubber band and

take out the jack.

1

For loosening

2

For tightening

Taking out the jack and tool bag (Double Cab models)

1

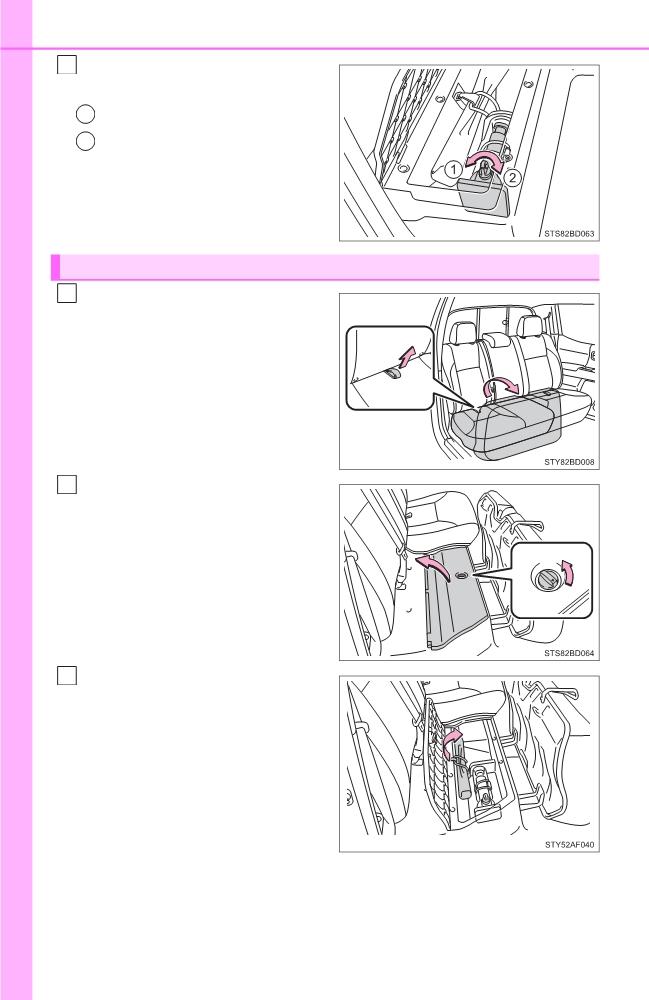

Swing the bottom cushion up by

pulling the lock release strap.

2

Turn the knob counterclockwise

and open the lid.

Unhook the rubber band and

3

remove the tool bag.

8-2. Steps to take in an emergency

599

4

Unhook the rubber band and

take out the jack.

1

For loosening

2

For tightening

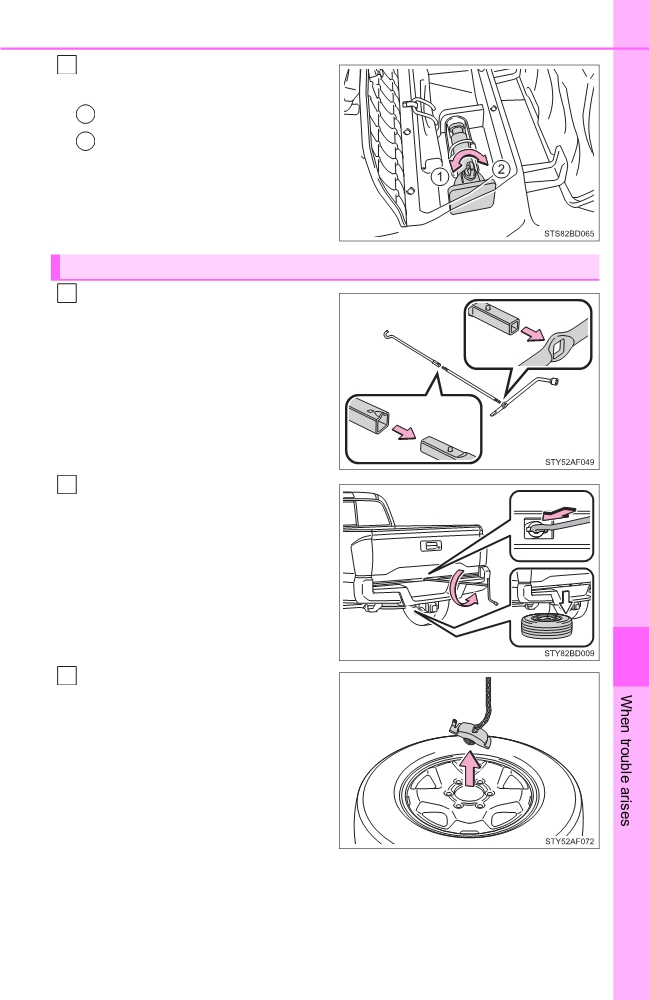

Taking out the spare tire

Assemble the jack handle

1

extension as shown.

Insert the end of the jack han-

2

dle extension into the lowering

screw and turn it counterclock-

wise.

8

After the tire is lowered com-

3

pletely to the ground, remove

the holding bracket.

600

8-2. Steps to take in an emergency

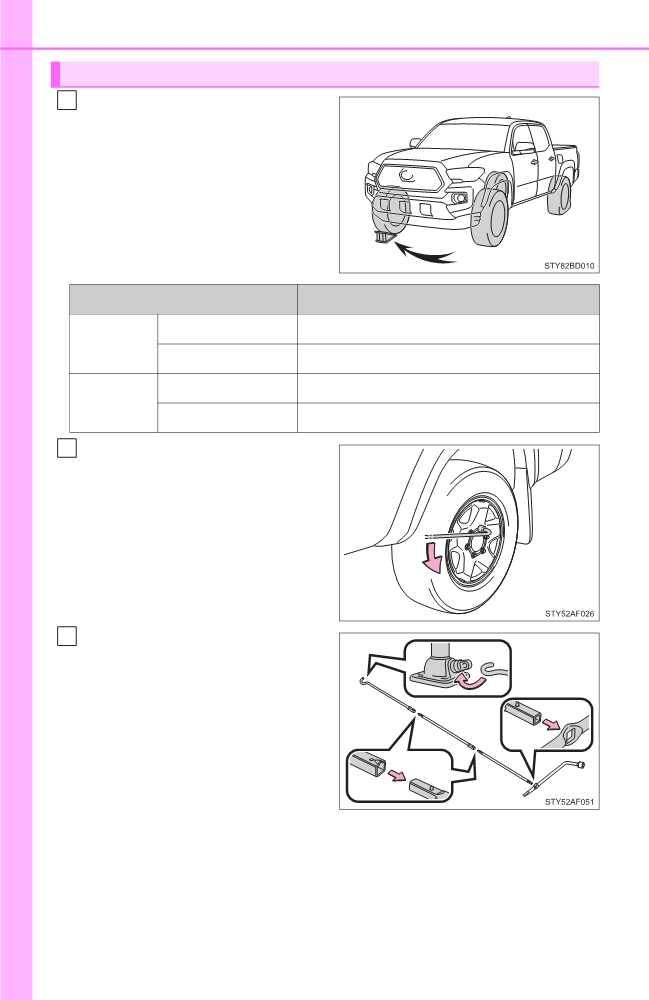

Replacing a flat tire

1

Chock the tires.

Flat tire

Wheel chock positions

Left-hand side

Behind the rear right-hand side tire

Front

Right-hand side

Behind the rear left-hand side tire

Left-hand side

In front of the front right-hand side tire

Rear

Right-hand side

In front of the front left-hand side tire

2

Slightly loosen the wheel nuts

(one turn).

Assemble the jack handle

3

extension as shown.

8-2. Steps to take in an emergency

601

4

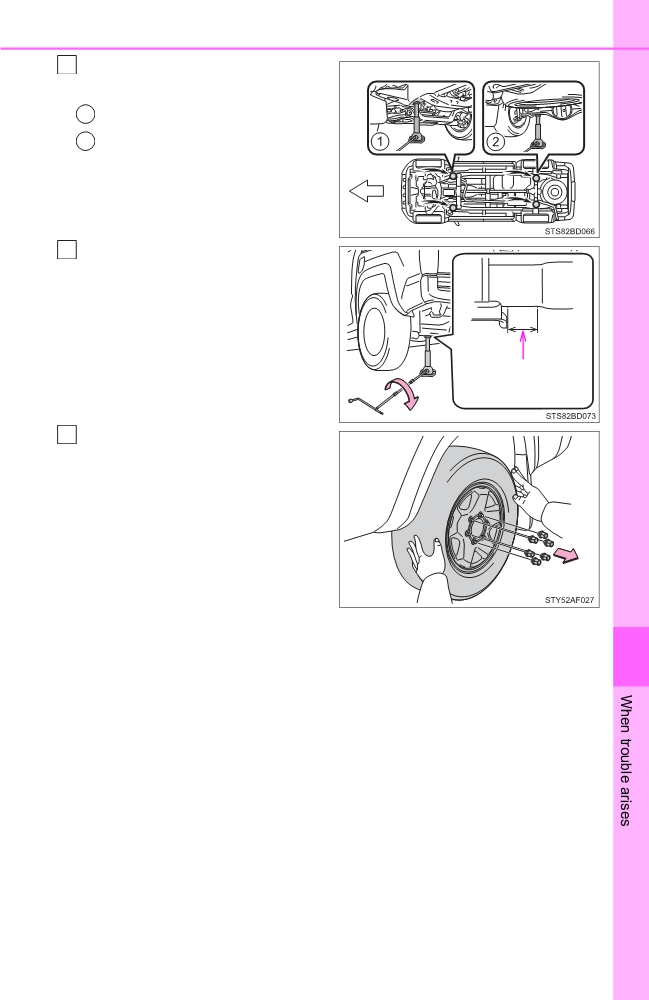

Position the jack at the correct

jack point as shown.

1

Front

2

Rear

Make sure the jack is positioned

on a level and solid place.

Front

Raise the vehicle until the tire is

5

slightly raised off the ground.

When positioning the jack under

the rear axle housing, make sure

the groove on the top of the jack

fits with the rear axle housing.

Use only this area

Make sure to use only the jack

as jack point.

point indicated.

6

Remove all the wheel nuts and

the tire.

When resting the tire on the

ground, place the tire so that the

wheel design faces up to avoid

scratching the wheel surface.

8

602

8-2. Steps to take in an emergency

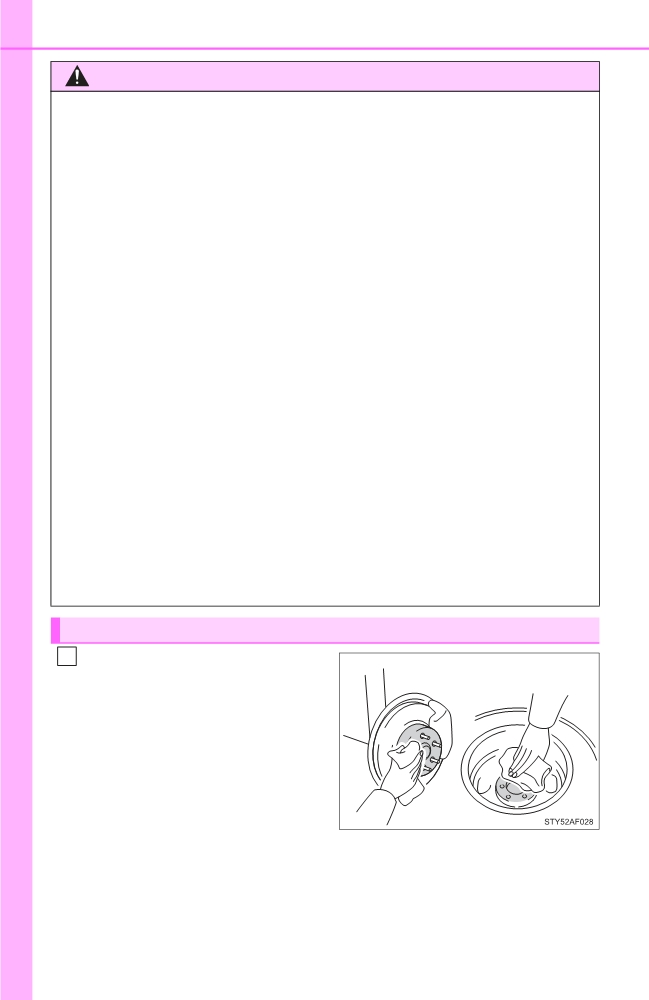

WARNING

■Replacing a flat tire

●Observe the following precautions.

Failure to do so may result in serious injury:

• Lower the spare tire completely to the ground before removing it

from under the vehicle.

• Do not try to remove the wheel ornament by hand. Take due care in

handling the ornament to avoid unexpected personal injury.

• Do not touch the disc wheels or the area around the brakes immedi-

ately after the vehicle has been driven.

After the vehicle has been driven the disc wheels and the area

around the brakes will be extremely hot. Touching these areas with

hands, feet or other body parts while changing a tire, etc., may

result in burns.

●Failure to follow these precautions could cause the wheel nuts to

loosen and the tire to fall off, resulting in death or serious injury.

• Have the wheel nuts tightened with a torque wrench to 83 ft·lbf

(113 N·m, 11.5 kgf·m) as soon as possible after changing wheels.

• When installing a tire, only use wheel nuts that have been specifi-

cally designed for that wheel.

• If there are any cracks or deformations in the bolt screws, nut

threads or bolt holes of the wheel, have the vehicle inspected by

your Toyota dealer.

• Do not attach a heavily damaged wheel ornament, as it may fly off

the wheel while the vehicle is moving.

• When installing the wheel nuts, be sure to install them with the

tapered ends facing inward. (P. 532)

Installing the spare tire

Remove any dirt or foreign mat-

1

ter from the wheel contact sur-

face.

If foreign matter is on the wheel

contact surface, the wheel nuts

may loosen while the vehicle is in

motion, causing the tire to come

off.

8-2. Steps to take in an emergency

603

2

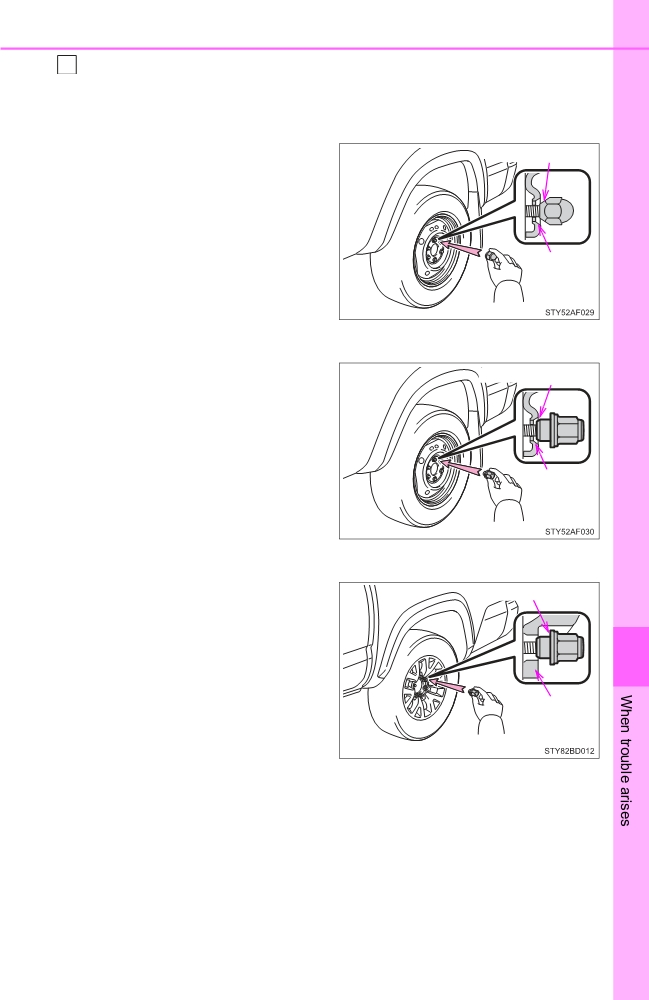

Install the spare tire and loosely tighten each wheel nut by hand by

approximately the same amount.

 Replacing a steel wheel with a spare steel wheel

Tighten the nuts until the tapered

Tapered portion

portion comes into loose contact

with the disc wheel sheet.

Disc

wheel

sheet

 Replacing an aluminum wheel with a spare steel wheel

Tighten the nuts until the tapered

Tapered portion

portion comes into loose contact

with the disc wheel sheet.

Disc

wheel

sheet

 Replacing an aluminum wheel with a spare aluminum wheel

Tighten the nuts until the washer

Washer

of the nut comes into loose con-

tact with the disc wheel.

8

Disc

wheel

604

8-2. Steps to take in an emergency

3

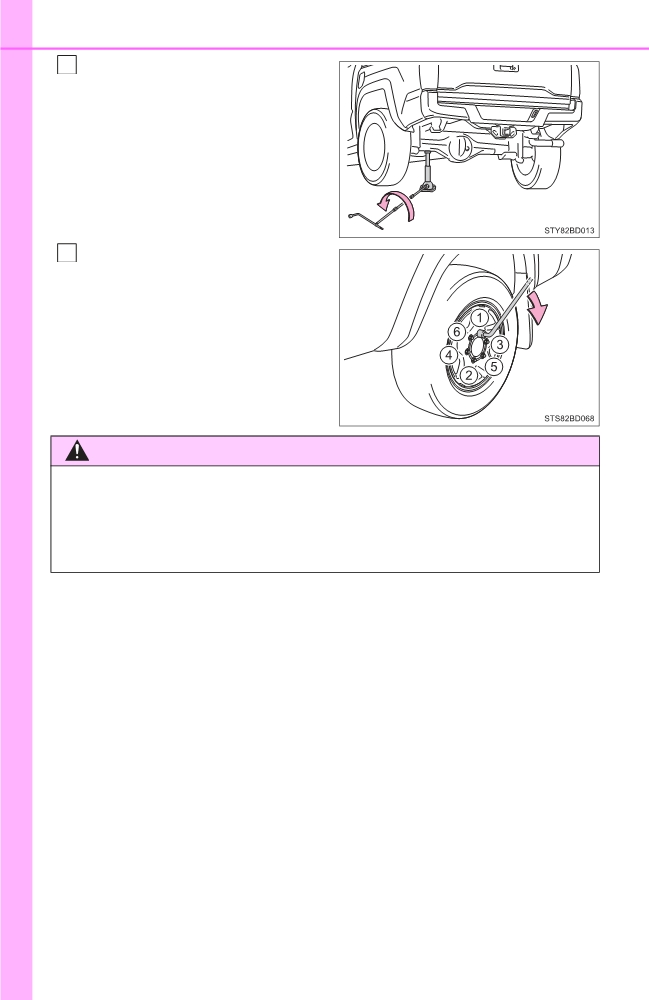

Lower the vehicle.

Firmly tighten each nut two or

4

three times in the order shown

in the illustration.

Tightening torque:

83 ft·lbf (113 N·m, 11.5 kgf·m)

WARNING

■Stowing the flat tire

Failure to follow steps listed under stowing the tire may result in damage

to the spare tire carrier and loss of the tire, which could result in death or

serious injury.

8-2. Steps to take in an emergency

605

Stowing the flat tire, jack and all tools

1

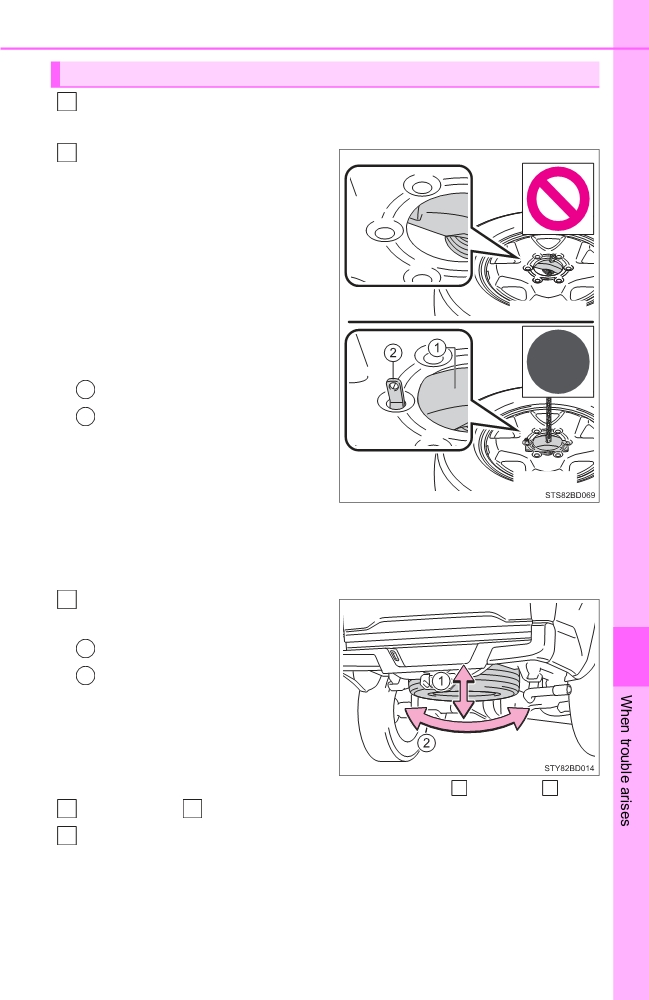

Remove the center wheel ornament by pushing from the reverse

side.

Lay down the tire with the valve

2

stem facing up and install the

holding bracket, inserting the

claw into the wheel lug nut hole.

Turn the jack handle extension

clockwise to take up slack in

the chain.

incorrect

Then, check to ensure the claw is

in the wheel lug nut hole and the

holding bracket is centered in the

wheel hub.

1

Holding bracket

2

Claw

While raising, secure the tire, tak-

ing care that the tire goes straight

up without catching on any sur-

correct

rounding parts, to prevent it from

flying forward during a collision or

sudden braking.

Tightening torque:

27.6 ft·lbf (37.4 N·m, 3.8 kgf·m)

3

Confirm it is not loose after

tightening:

1

Push and pull the tire

8

2

Try rotating

Visually check to ensure tire is

not hung on surrounding parts.

If looseness or misassembly exists, repeat step

2

and step

3

4

Repeat step

3

, any time the tire is lowered or disturbed.

5

Stow the tools and jack securely.

606

8-2. Steps to take in an emergency

■The temporary spare tire

●The temporary spare tire is identified by the label “TEMPORARY USE

ONLY” on the disc wheel.

Use the temporary spare tire temporarily, and only in an emergency.

●Make sure to check the tire inflation pressure of the temporary spare

tire. (P. 633)

■After completing the tire change (vehicles with the tire pressure

warning system)

The tire pressure warning system must be reset. (P. 521)

■When using the temporary spare tire (vehicles with the tire pressure

warning system)

As the temporary spare tire is not equipped with the tire pressure warning

valve and transmitter, low inflation pressure of the spare tire will not be

indicated by the tire pressure warning system. Also, if you replace the

temporary spare tire after the tire pressure warning light comes on, the

light remains on.

■If you have a flat rear tire on a road covered with snow or ice

Install the temporary spare tire on one of the front wheels of the vehicle.

Perform the following steps and fit tire chains to the rear tires:

1

Replace a front tire with the temporary spare tire.

2

Replace the flat rear tire with the tire removed from the front of the

vehicle.

3

Fit tire chains to the rear tires.

608

8-2. Steps to take in an emergency

NOTICE

■Do not drive the vehicle with a flat tire

Do not continue driving with a flat tire.

Driving even a short distance with a flat tire can damage the tire and the

wheel beyond repair.

■Driving with tire chains and the temporary spare tire

Do not fit tire chains to the temporary spare tire.

Tire chains may damage the vehicle body and adversely affect driving

performance.

■When replacing the tires (vehicles with the tire pressure warning

system)

When removing or fitting the wheels, tires or the tire pressure warning

valve and transmitter, contact your Toyota dealer as the tire pressure

warning valve and transmitter may be damaged if not handled correctly.

■ To avoid damage to the tire pressure warning valves and transmit-

ters (if equipped)

When a tire is repaired with liquid sealants, the tire pressure warning

valve and transmitter may not operate properly. If a liquid sealant is

used, contact your Toyota dealer or other qualified service shop as soon

as possible. Make sure to replace the tire pressure warning valve and

transmitter when replacing the tire. (P. 520)

8-2. Steps to take in an emergency

609

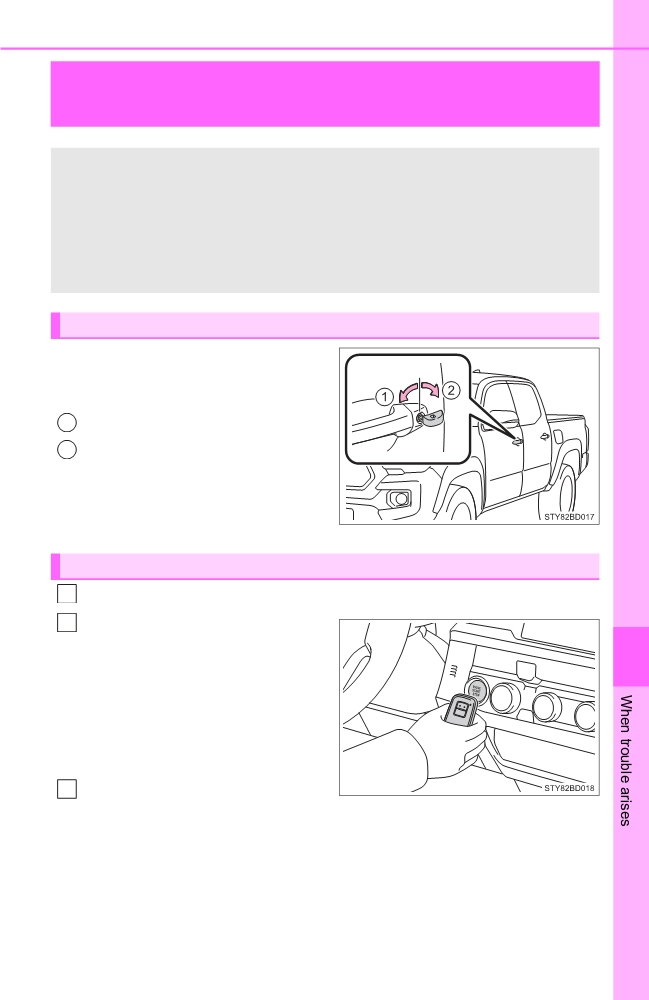

If the engine will not start

If the engine will not start even though correct starting proce-

dures are being followed (P. 193, 196), consider each of the fol-

lowing points.

The engine will not start even though the starter motor operates

normally.

One of the following may be the cause of the problem:

● There may not be sufficient fuel in the vehicle’s tank.

Refuel the vehicle.

● The engine may be flooded.

Try to restart the engine again following correct starting procedures.

(P. 193, 196)

● There may be a malfunction in the engine immobilizer system.

(if equipped) (P. 69)

The starter motor turns over slowly, the interior lights and head-

lights are dim, or the horn does not sound or sounds at a low

volume.

One of the following may be the cause of the problem:

● The battery may be discharged. (P. 613)

● The battery terminal connections may be loose or corroded.

The starter motor does not turn over (vehicles with a smart key

8

system)

The engine starting system may be malfunctioning due to an electrical

problem such as an open circuit or a blown fuse. However, an interim

measure is available to start the engine. (P. 610)

610

8-2. Steps to take in an emergency

The starter motor does not turn over, the interior lights and head-

lights do not turn on, or the horn does not sound.

One of the following may be the cause of the problem:

● One or both of the battery terminals may be disconnected.

● The battery may be discharged. (P. 613)

● There may be a malfunction in the steering lock system (vehicles

with a smart key system).

Contact your Toyota dealer if the problem cannot be repaired, or if repair

procedures are unknown.

Emergency start function (vehicles with a smart key system)

When the engine does not start, the following steps can be used as an

interim measure to start the engine if the engine switch is functioning

normally:

1

Set the parking brake.

2

Shift the shift lever to P.

3

Turn the engine switch to ACCESSORY mode.

4

Press and hold the engine switch for about 15 seconds while

depressing the brake pedal firmly.

Even if the engine can be started using the above steps, the system

may be malfunctioning. Have the vehicle inspected by your Toyota

dealer.

8-2. Steps to take in an emergency

611

If the electronic key does not operate

properly (vehicles with a smart key system)

If communication between the electronic key and vehicle is

interrupted

(P. 126) or the electronic key cannot be used

because the battery is depleted, the smart key system and wire-

less remote control cannot be used. In such cases, the doors

can be opened and the engine can be started by following the

procedure below.

Locking and unlocking the doors

Use the mechanical key (P. 106)

in order to perform the following

operations:

1

Locks all the doors

2

Unlocks all the doors

Turning the key rearward unlocks

the driver’s door. Turning the key

once again unlocks the other

doors.

Starting the engine

1

Ensure that the shift lever is in P and depress the brake pedal.

2

Touch the Toyota emblem side

of the electronic key to the

8

engine switch.

If any of the doors is opened or

closed while the key is being

touched to the switch, an alarm will

sound to indicate that the start

function cannot detect the key.

Press the engine switch.

3

In the event that the engine still cannot be started, contact your Toyota

dealer.

Content   ..  34  35  36  37   ..
