5-5. Playing an audio CD and MP3/WMA/AAC discs

357

CD player operation

Insert disc or select “CD” on the audio source selection screen

with a disc inserted to begin listening to a CD.

Audio control screen

Pressing the “AUDIO” button displays the audio control screen from

any screens of the selected source.

1

Audio source selection screen

appears

2

Displaying the track/file list

 MP3/WMA/AAC

Displaying the folder list

3

Random playback

4

Repeat play

5

Pause

5

Select

to resume play

6

Setting the sound (P. 354)

■ Displaying the title and artist name

If a CD-TEXT disc is inserted, the title of the disc and track will be displayed.

■Error messages

If an error message is displayed, refer to the following table and take the

appropriate measures. If the problem is not rectified, take the vehicle to your

Toyota dealer.

Message

Cause

Correction procedures

• The disc is dirty or

• Clean the disc.

damaged.

• Insert the disc cor-

• The disc is inserted

rectly.

“Check DISC”

upside down.

• Confirm the disc is

• The disc is not play-

playable with the

able with the player.

player.

There is a malfunction

“Disc Error”

Eject the disc.

within the system.

No playable data is

“No music files found.”

Eject the disc.

included on the disc.

358

5-5. Playing an audio CD and MP3/WMA/AAC discs

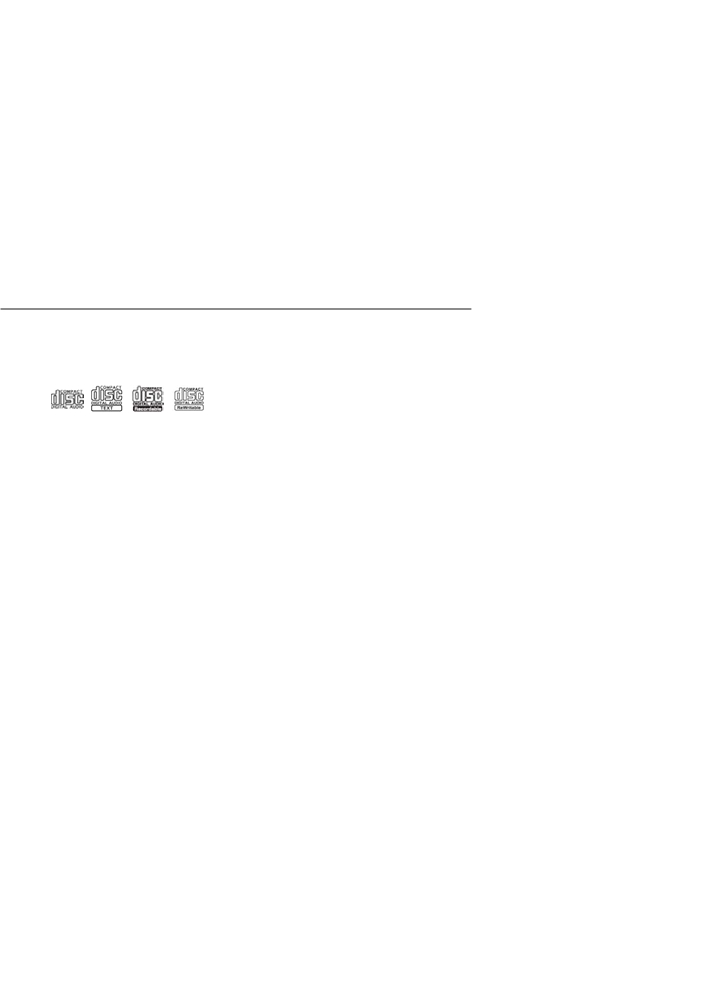

■ Discs that can be used

Discs with the marks shown below can be used.

Playback may not be possible depending on recording format or disc fea-

tures, or due to scratches, dirt or deterioration.

CDs with copy-protection features may not play correctly.

■ CD player protection feature

To protect the internal components, playback is automatically stopped when a

problem is detected.

■ If a disc is left inside the CD player or in the ejected position for

extended periods

Disc may be damaged and may not play properly.

■ Lens cleaners

Do not use lens cleaners. Doing so may damage the CD player.

■ MP3, WMA and AAC files

MP3 (MPEG Audio LAYER3) is a standard audio compression format.

Files can be compressed to approximately 1/10 of their original size by using

MP3 compression.

WMA (Windows Media Audio) is a Microsoft audio compression format.

This product is protected by certain intellectual property rights of Microsoft

Corporation and third parties. Use or distribution of such technology outside

of this product is prohibited without a license from Microsoft or an authorized

Microsoft subsidiary and third parties.

This format compresses audio data to a size smaller than that of the MP3 for-

mat.

AAC is short for Advanced Audio Coding and refers to an audio compression

technology standard used with MPEG2 and MPEG4.

MP3, WMA and AAC file and media/formats compatibility are limited.

● MP3 file compatibility

• Compatible standards

MP3 (MPEG1 LAYER3, MPEG2 LSF LAYER3)

• Compatible sampling frequencies

MPEG1 LAYER3: 32, 44.1, 48 (kHz)

MPEG2 LSF LAYER3: 16, 22.05, 24 (kHz)

• Compatible bit rates (compatible with VBR)

MPEG1 LAYER3: 32-320 (kbps)

MPEG2 LSF LAYER3: 8-160 (kbps)

• Compatible channel modes: stereo, joint stereo, dual channel and mon-

aural

5-5. Playing an audio CD and MP3/WMA/AAC discs

361

NOTICE

■ Discs and adapters that cannot be used

Do not use the following types of CDs.

Also, do not use 3 in. (8 cm) CD adapters, Dual Discs or printable discs.

Doing so may damage the CD player and/or the CD insert/eject function.

5

● Discs that have a diameter that is not 4.7 in. (12 cm).

● Low-quality or deformed discs.

● Discs with a transparent or translucent recording area.

● Discs that have tape, stickers or CD-R labels attached to them, or that

have had the label peeled off.

■ Player precautions

Failure to follow the precautions below may result in damage to the discs or

the player itself.

● Do not insert anything other than discs into the disc slot.

● Do not apply oil to the player.

● Store discs away from direct sunlight.

● Never try to disassemble any part of the player.

362

5-6. Using an external device

Listening to an iPod

Connecting an iPod enables you to enjoy music from the vehicle

speakers.

Select “iPod” on the audio source selection screen.

When the iPod connected to the system includes iPod video, the

system can only output the sound by selecting the browse

screen.

Connecting an iPod

P. 341

Audio control screen

Pressing the “AUDIO” button displays the audio control screen from

any screens of the selected source.

1

Audio source selection screen

appears

2

Displays cover art

3

Selecting the play mode

4

Shuffle play

5

Repeat play

6

Pause

Select

to resume playback

7

Setting the sound (P. 354)

Selecting a play mode

1

Select “Browse” on the screen.

2

Select the desired play mode. Then select a song to begin using

the selected play mode.

5-6. Using an external device

363

■About iPod

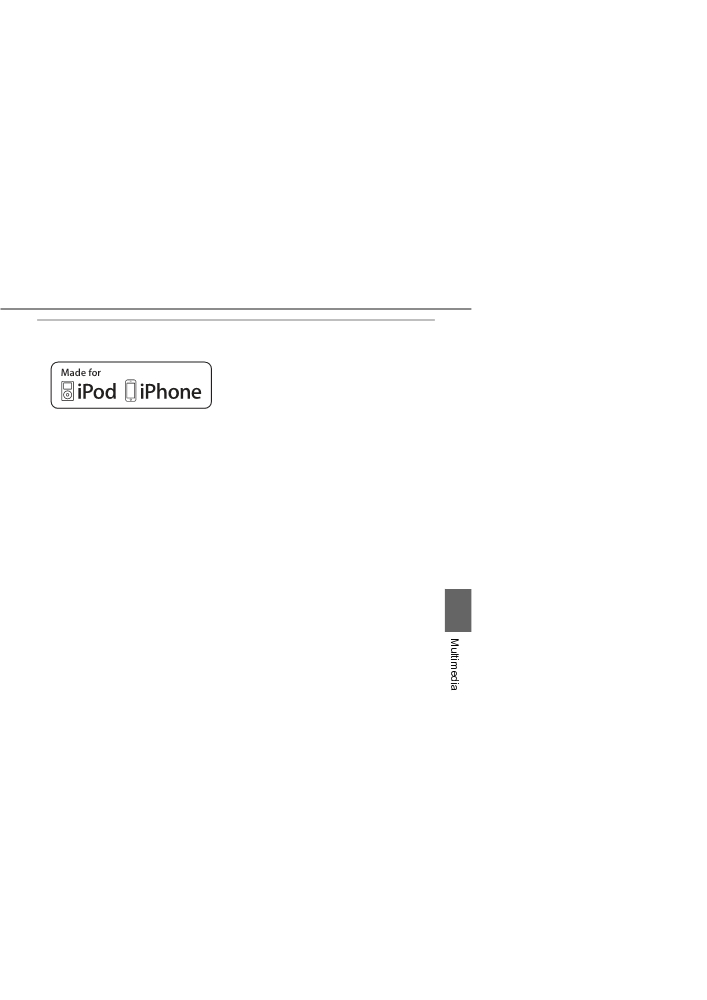

● “Made for iPod” and “Made for iPhone” mean that an electronic accessory

has been designed to connect specifically to iPod or iPhone respectively,

and has been certified by the developer to meet Apple performance stan-

dards.

● Apple is not responsible for the operation of this device or its compliance

with safety and regulatory standards. Please note that the use of this acces-

sory with iPod and iPhone may affect wireless performance.

● iPhone, iPod, iPod classic, iPod nano, and iPod touch are trademarks of

Apple Inc., registered in the U.S. and other countries. Lightning is a trade-

mark of Apple Inc.

■ iPod cover art

5

● Depending on the iPod and songs in the iPod, iPod cover art may be dis-

played.

● This function can be changed to on/off. (P. 348)

● It may take time to display iPod cover art, and the iPod may not be operated

while the cover art display is in process.

● Only iPod cover art that is saved in JPEG format can be displayed.

■ iPod functions

● When an iPod is connected and the audio source is changed to iPod mode,

the iPod will resume play from the same point in which it was last used.

● Depending on the iPod that is connected to the system, certain functions

may not be available. If a function is unavailable due to a malfunction (as

opposed to a system specification), disconnecting the device and recon-

necting it may resolve the problem.

● While connected to the system, the iPod cannot be operated with its own

controls. It is necessary to use the controls of the vehicle’s multimedia sys-

tem instead.

● When the battery level of an iPod is very low, the iPod may not operate. If

so, charge the iPod before use.

● Compatible models (P. 365)

364

5-6. Using an external device

■ iPod problems

To resolve most problems encountered when using your iPod, disconnect

your iPod from the vehicle iPod connection and reset it. For instructions on

how to reset your iPod, refer to your iPod Owner’s Manual.

■Error messages

Message

Cause/Correction procedures

“Connection error. Please

consult your Owner’s Man-

This indicates a problem in the iPod or its con-

ual for instructions on how

nection.

to connect the iPod.”

This indicates that there is no music data in

“No music files found.”

the iPod.

This indicates that no video files are included

“No videos found.”

in the iPod.

“There are no songs avail-

able for playback. Please

This indicates that songs are not found in a

add compatible files to

selected playlist.

your iPod.”

This indicates that the display multimedia sys-

“iPod authorization unsuc-

tem failed to authorize the iPod.

cessful.”

Please check your iPod.

5-6. Using an external device

365

■ Compatible models

The following iPod®, iPod nano®, iPod classic®, iPod touch® and iPhone®

devices can be used with this system.

● Made for

• iPod touch (5th generation)

• iPod touch (4th generation)

• iPod touch (3rd generation)

• iPod touch (2nd generation)

• iPod touch (1st generation)

• iPod classic

• iPod with video

• iPod nano (7th generation)

• iPod nano (6th generation)

• iPod nano (5th generation)

• iPod nano (4th generation)

• iPod nano (3rd generation)

• iPhone 6 Plus

• iPhone 6

• iPhone 5s

• iPhone 5c

• iPhone 5

• iPhone 4S

5

• iPhone 4

• iPhone 3GS

• iPhone 3G

• iPhone

This system only supports audio playback.

Depending on differences between models or software versions etc., some

models might be incompatible with this system.

WARNING

■ While driving

Do not connect an iPod or operate the controls.

NOTICE

■ To prevent damage to the iPod or its terminals

● Do not leave the iPod in the vehicle. The temperature inside the vehicle

may become high, resulting in damage to the iPod.

● Do not push down on or apply unnecessary pressure to the iPod while it is

connected.

● Do not insert foreign objects into the port.

366

5-6. Using an external device

Listening to a USB memory device

Connecting a USB memory device enables you to enjoy music

from the vehicle speakers.

Select “USB” on the audio source selection screen.

Connecting a USB memory device

P. 341

Audio control screen

Pressing the “AUDIO” button displays the audio control screen from

any screens of the selected source.

1

Audio source selection screen

appears

2

Displays cover art

3

Displaying the folder list

4

Random playback

5

Repeat play

6

Pause

Select

to resume playback

7

Setting the sound (P. 354)

Selecting a play mode

1

Select “Browse” on the screen.

2

Select the desired play mode. Then select a song to begin using

the selected play mode.

■ Displaying the now playing list

Select the cover art display.

■ USB memory functions

● Depending on the USB memory device that is connected to the system, the

device itself may not be operable and certain functions may not be avail-

able. If the device is inoperable or a function is unavailable due to a mal-

function (as opposed to a system specification), disconnecting the device

and reconnecting it may resolve the problem.

● If the USB memory device still does not begin operation after being discon-

nected and reconnected, format the memory.

5-6. Using an external device

367

■Error messages for USB memory

Message

Cause/Correction procedures

“Connection error. Please

consult your Owner’s Man-

This indicates a problem with the USB mem-

ual for instruction on how to

ory device or its connection.

connect the USB device.”

“There are no files available

for playback. Please add

This indicates that no MP3/WMA/AAC files

compatible files to your USB

are included on the USB memory device.

device.”

■USB memory

● Compatible devices

USB memory device that can be used for MP3, WMA and AAC playback.

● Compatible device formats

The following device format can be used:

• USB communication format: USB2.0 HS (480 Mbps) and FS (12 Mbps)

• File system format: FAT16/32 (Windows)

• Correspondence class: Mass storage class

5

MP3, WMA and AAC files written to a device with any format other than

those listed above may not play correctly, and their file names and folder

names may not be displayed correctly.

Items related to standards and limitations are as follows:

• Maximum directory hierarchy: 8 levels

• Maximum number of folders in a device: 3000 (including the root)

• Maximum number of files in a device: 9999

• Maximum number of files per folder: 255

● MP3, WMA and AAC files

MP3 (MPEG Audio LAYER 3) is a standard audio compression format.

Files can be compressed to approximately 1/10 of their original size using

MP3 compression.

WMA (Windows Media Audio) is a Microsoft audio compression format.

This format compresses audio data to a size smaller than that of the MP3

format.

AAC is short for Advanced Audio Coding and refers to an audio compres-

sion technology standard used with MPEG2 and MPEG4.

MP3, WMA and AAC file and media/formats compatibility are limited.

5-6. Using an external device

369

● MP3, WMA and AAC playback

• When a device containing MP3, WMA and AAC files is connected, all

files in the USB memory device are checked. Once the file check is fin-

ished, the first MP3, WMA and AAC file is played. To make the file check

finish more quickly, we recommend that you do not include any files other

than MP3, WMA and AAC files or create any unnecessary folders.

• When a USB memory device is connected and the audio source is

changed to USB memory mode, the USB memory device will start play-

ing the first file in the first folder. If the same device is removed and

reconnected (and the contents have not been changed), the USB mem-

ory device will resume play from the same point in which it was last used.

● Extensions

If the file extensions .mp3, .wma and .m4a are used for files other than

MP3, WMA and AAC files, they will be skipped (not played).

● Playback

• To play MP3 files with steady sound quality, we recommend a fixed bit

rate of at least 128 kbps and a sampling frequency of 44.1 kHz.

• There is a wide variety of freeware and other encoding software for MP3,

WMA and AAC files on the market, and depending on the status of the

encoding and the file format, poor sound quality or noise at the start of

playback may result. In some cases, playback may not be possible at all.

5

• Microsoft, Windows, and Windows Media are the registered trademarks

of Microsoft Corporation in the U.S.A. and other countries.

WARNING

■ While driving

Do not connect a USB memory device or operate the device controls.

NOTICE

■ To prevent damage to the USB memory device or its terminals

● Do not leave the USB memory device in the vehicle. The temperature

inside the vehicle may become high, resulting in damage to the USB

memory device.

● Do not push down on or apply unnecessary pressure to the USB memory

device while it is connected.

● Do not insert foreign objects into the port.

®

5-7. Connecting Bluetooth

371

Preparations to use wireless communica-

tion

The following can be performed using Bluetooth® wireless com-

munication:

■ A portable audio player can be operated and listened to via

multimedia system

■ Hands-free phone calls can be made via a cellular phone

In order to use wireless communication, register and connect a

Bluetooth® device by performing the following procedures.

■About Bluetooth®

The Bluetooth® word mark and logos are

registered trademarks owned Bluetooth

SIG, Inc. and any use of such marks by

Panasonic Corporation is under license.

Other trademarks and trade names are

5

those of their respective owners.

■ Certifications for the Bluetooth®

 For vehicles sold in U.S.A.

FCC ID: ACJ932YEAP01A727

NOTE:

This device complies with part 15 of the FCC Rules. Operation is subject to

the following two conditions: (1) This device may not cause harmful interfer-

ence, and (2) this device must accept any interference received, including

interference that may cause undesired operation.

FCC WARNING:

Changes or modifications not expressly approved by the party responsible for

compliance could void the user’ authority to operate the equipment.

CAUTION:

Radio frequency radiation exposure information:

This equipment complies with FCC radiation exposure limits set forth for an

uncontrolled environment.

This equipment should be installed and operated with minimum distance of

7.9 in. (20 cm) between the radiator and your body. This transmitter must not

be co-located or operating in conjunction with any other antenna or transmit-

ter.

®

5-7. Connecting Bluetooth

373

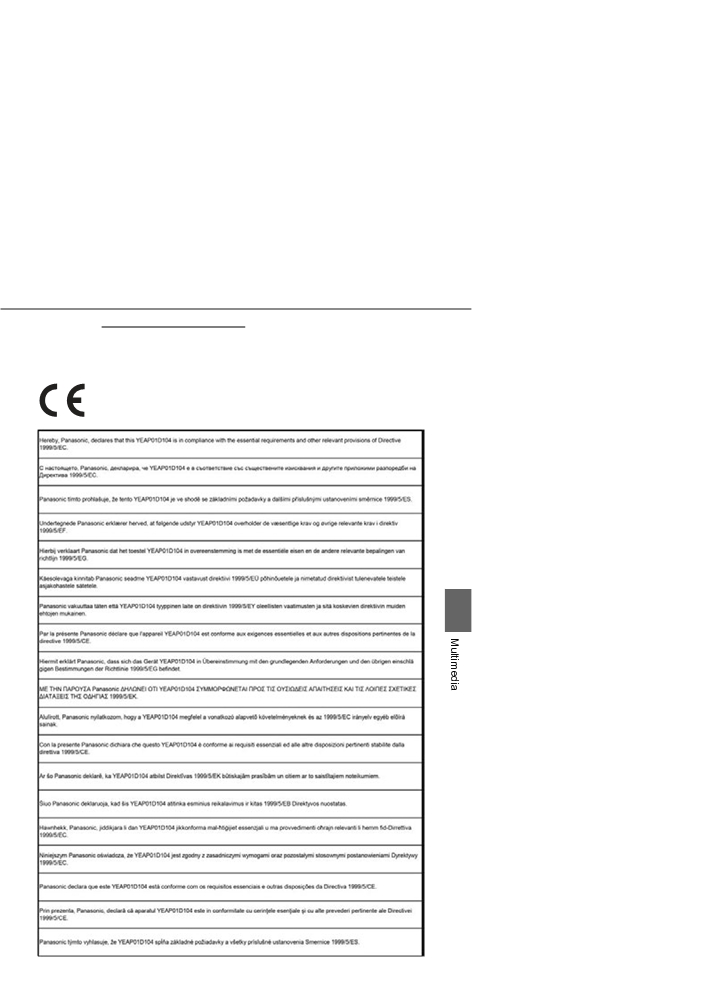

Access to http://www.ptc.panasonic.eu/, enter the below Model No. into the

keyword search box, you can download the latest “DECLARATION of CON-

FORMITY” (DoC).

Model No. YEAP01D104

5

Content   ..  20  21  22  23   ..
