Toyota Tacoma (2018 year). Instruction - part 15

238

4-5. Using the driving support systems

WARNING

■ When to disable the pre-collision system

In the following situations, disable the system, as it may not operate prop-

erly, possibly leading to an accident resulting in death or serious injury:

●When the vehicle is being towed

● When your vehicle is towing another vehicle

● When transporting the vehicle via truck, boat, train or similar means of

transportation

● When the vehicle is raised on a lift with the engine running and the tires

are allowed to rotate freely

● When inspecting the vehicle using a drum tester such as a chassis dyna-

mometer or speedometer tester, or when using an on vehicle wheel bal-

ancer

● When a strong impact is applied to the front bumper or front grille, due to

an accident or other reasons

● If the vehicle cannot be driven in a stable manner, such as when the vehi-

cle has been in an accident or is malfunctioning

● When the vehicle is driven in a sporty manner or off-road

● When the tires are not properly inflated

● When the tires are very worn

● When tires of a size other than specified are installed

● When tire chains are installed

● When a compact spare tire or an emergency tire puncture repair kit is used

● If equipment (snow plow, etc.) that may obstruct the radar sensor or cam-

era sensor is temporarily installed to the vehicle

4-5. Using the driving support systems

239

Changing settings of the pre-collision system

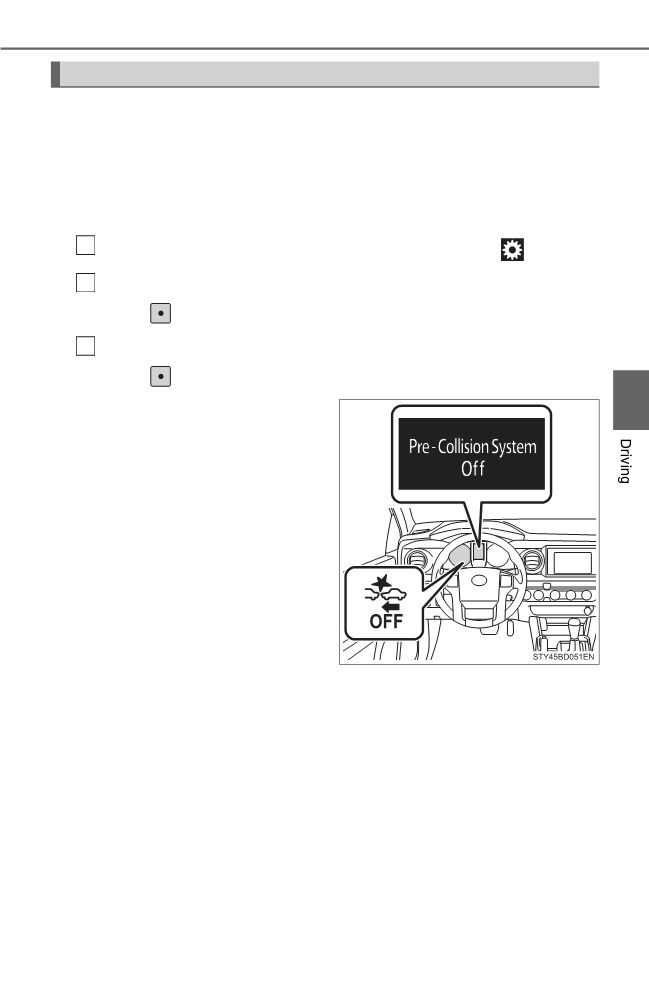

■ Enabling/disabling the pre-collision system

The pre-collision system can be enabled/disabled on the

multi-information display as following:

The system is automatically enabled each time the engine switch is

turned to the “ON” position (vehicles without a smart key system) or

IGNITION ON mode (vehicles with a smart key system).

1

Press “” or “” of meter control switches and select

2

Press “” or “” of meter control switches and select “PCS”, and

press

3

Press “” or “” of meter control switches and select “PCS”, and

press

to select the desired setting (on/off).

4

If the system is disabled, the

PCS warning light will turn on

and a message will be dis-

played on the multi-information

display.

240

4-5. Using the driving support systems

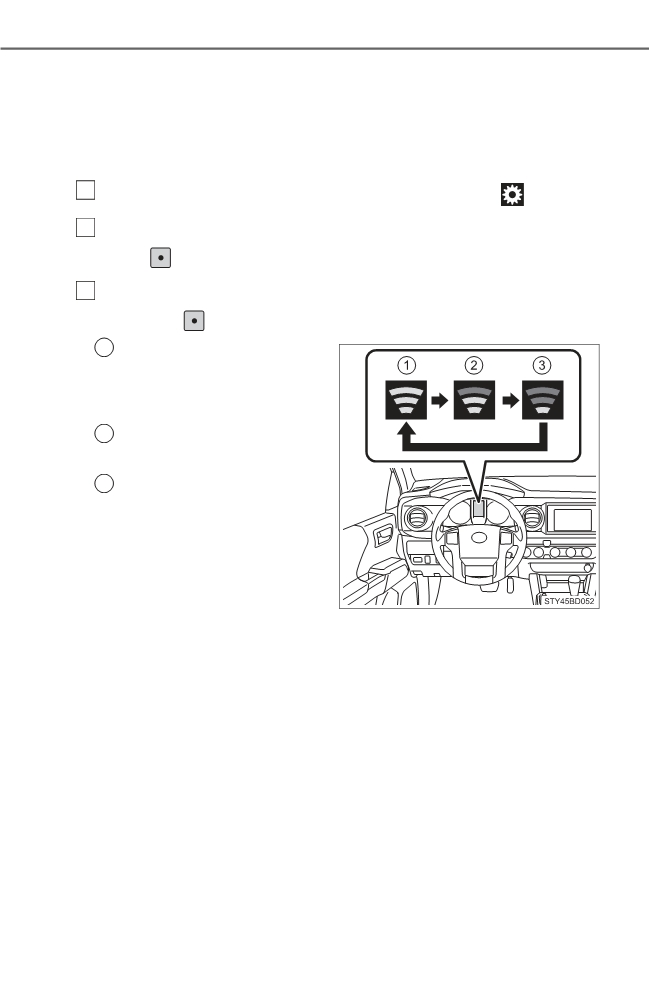

■ Changing the pre-collision warning timing

The pre-collision warning timing can be changed on the multi-infor-

mation display as following:

The operation timing setting is retained when the engine switch is

turned off.

1

Press “” or “” of meter control switches and select

2

Press “” or “” of meter control switches and select “PCS”, and

press

3

Press “” or “” of meter control switches and select “Sensitivity”,

and press

to select the desired setting.

1

Far

The warning will begin to

operate earlier than with the

default timing.

2

Middle

This is the default setting.

3

Near

The warning will begin to

operate later than with the

default timing.

242

4-5. Using the driving support systems

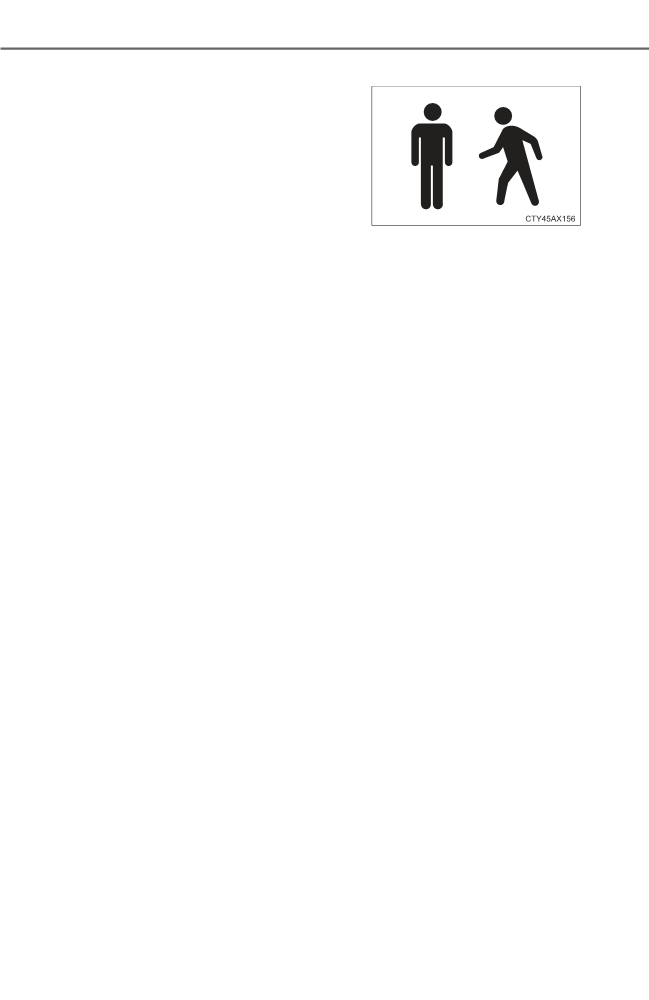

■ Pedestrian detection function

The pre-collision system detects pedestri-

ans based on the size, profile, and motion

of a detected object. However, a pedes-

trian may not be detected depending on

the surrounding brightness and the

motion, posture, and angle of the

detected object, preventing the system

from operating properly. (P. 245)

■ Cancelation of the pre-collision braking

If either of the following occur while the pre-collision braking function is oper-

ating, it will be canceled:

● The accelerator pedal is depressed strongly.

● The steering wheel is turned sharply or abruptly.

4-5. Using the driving support systems

243

■ Conditions under which the system may operate even if there is no pos-

sibility of a collision

● In some situations such as the following, the system may determine that

there is a possibility of a frontal collision and operate.

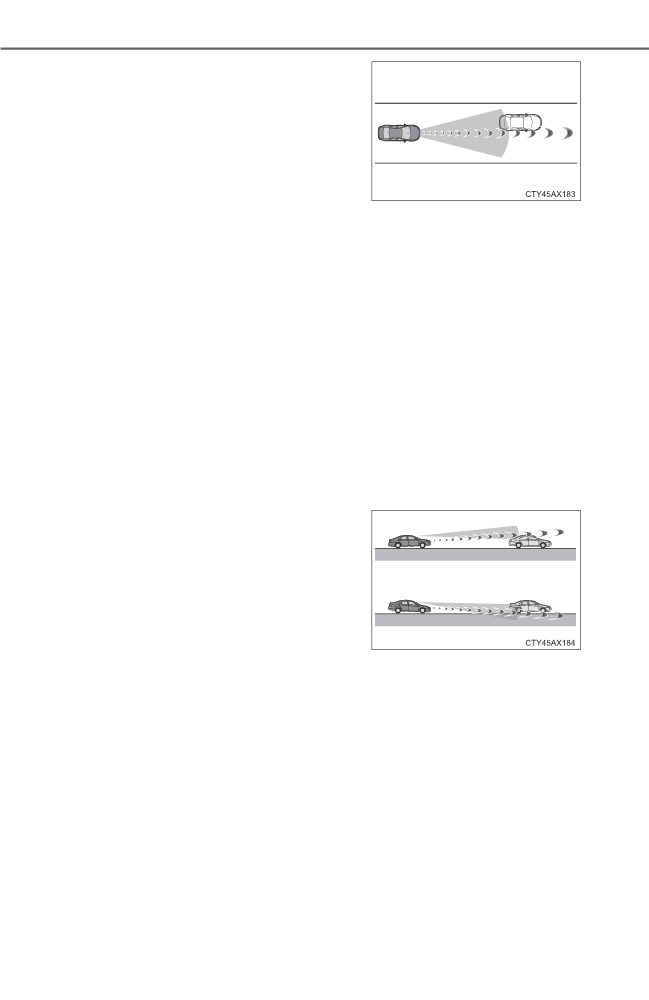

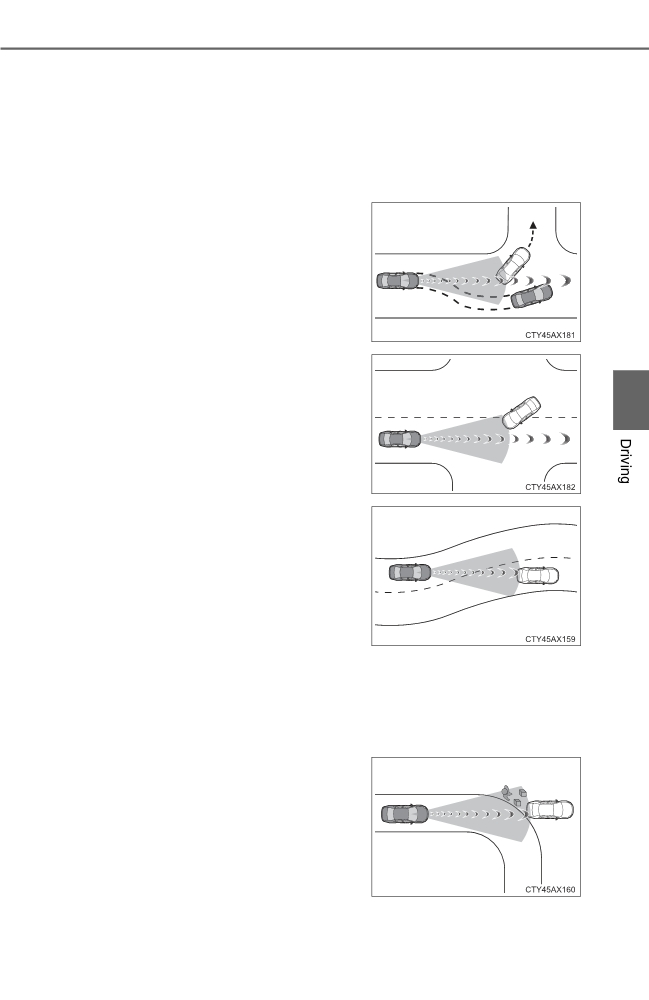

• When passing a vehicle or pedestrian

• When changing lanes while overtaking a preceding vehicle

• When overtaking a preceding vehicle that is changing lanes

• When overtaking a preceding vehicle

that is making a left/right turn

• When passing a vehicle in an oncom-

ing lane that is stopped to make a

right/left turn

4

• When driving on a road where relative

location to vehicle ahead in an adja-

cent lane may change, such as on a

winding road

• When rapidly closing on a vehicle ahead

• If the front of the vehicle is raised or lowered, such as when the road sur-

face is uneven or undulating

• When approaching objects on the roadside, such as guardrails, utility

poles, trees, or walls

• When there is a vehicle, pedestrian,

or object by the roadside at the

entrance of a curve

244

4-5. Using the driving support systems

• When driving on a narrow path surrounded by a structure, such as in a

tunnel or on an iron bridge

• When there is a metal object (manhole cover, steel plate, etc.), steps, or a

protrusion on the road surface or roadside

• When a crossing pedestrian

approaches very close to the vehicle

• When passing through a place with a

low structure above the road (low ceil-

ing, traffic sign, etc.)

• When passing under an object (bill-

board, etc.) at the top of an uphill road

• When rapidly closing on an electric toll gate barrier, parking area barrier,

or other barrier that opens and closes

• When using an automatic car wash

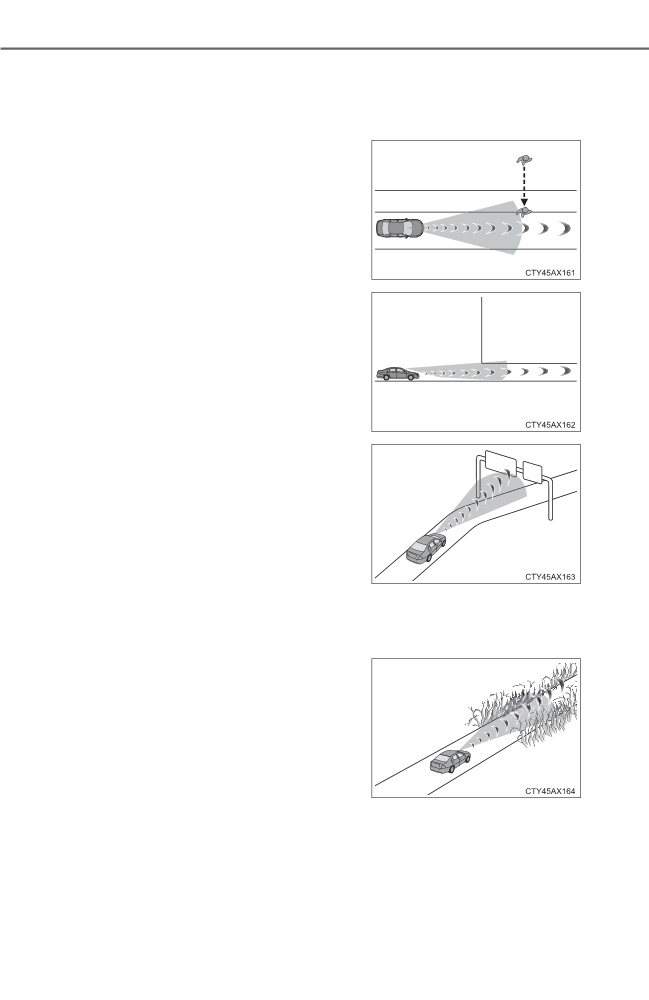

• When driving through or under

objects that may contact the vehicle,

such as thick grass, tree branches, or

a banner

• When the vehicle is hit by water, snow, dust, etc., from a vehicle ahead

• When driving through steam or smoke

4-5. Using the driving support systems

245

• When there are patterns or paint on the road or a wall that may be mis-

taken for a vehicle or pedestrian

• When driving near an object that reflects radio waves, such as a large

truck or guardrail

• When driving near a TV tower, broadcasting station, electric power plant,

or other location where strong radio waves or electrical noise may be

present

■ Situations in which the system may not operate properly

● In some situations such as the following, a vehicle may not be detected by

the radar sensor and camera sensor, preventing the system from operating

properly:

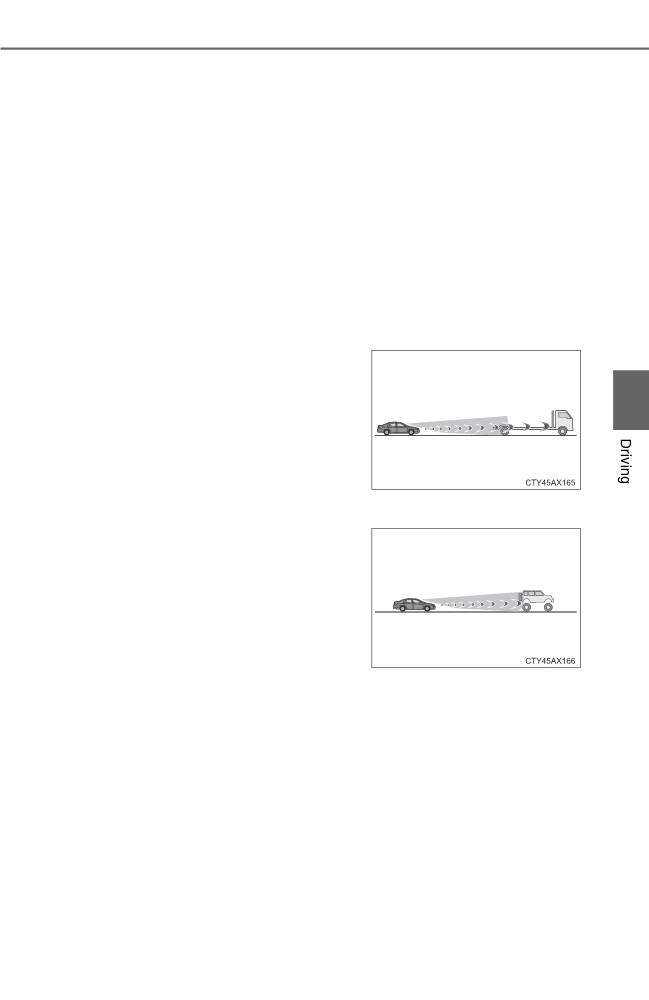

• If an oncoming vehicle is approaching your vehicle

• If a vehicle ahead is a motorcycle or bicycle

• When approaching the side or front of a vehicle

• If a preceding vehicle has a small rear end, such as an unloaded truck

• If a preceding vehicle has a low rear

end, such as a low bed trailer

4

• If a vehicle ahead is carrying a load which protrudes past its rear bumper

• If a vehicle ahead has extremely high

ground clearance

• If a vehicle ahead is irregularly shaped, such as a tractor or side car

• If the sun or other light is shining directly on a vehicle ahead

• If a vehicle cuts in front of your vehicle or emerges from beside a vehicle

• If a vehicle ahead makes an abrupt maneuver (such as sudden swerving,

acceleration or deceleration)

• When suddenly cutting behind a preceding vehicle

246

4-5. Using the driving support systems

• When a vehicle ahead is not directly

in front of your vehicle

• When driving in inclement weather such as heavy rain, fog, snow or a

sandstorm

• When the vehicle is hit by water, snow, dust, etc., from a vehicle ahead

• When driving through steam or smoke

• When driving in a place where the surrounding brightness changes sud-

denly, such as at the entrance or exit of a tunnel

• When a very bright light, such as the sun or the headlights of oncoming

traffic, shines directly into the camera sensor

• When the surrounding area is dim, such as at dawn or dusk, or while at

night or in a tunnel

• After the engine has started the vehicle has not been driven for a certain

amount of time

• While making a left/right turn and for a few seconds after making a left/

right turn

• While driving on a curve and for a few seconds after driving on a curve

• If your vehicle is skidding

• If the front of the vehicle is raised or

lowered

• If the wheels are misaligned

• If a wiper blade is blocking the camera sensor

• The vehicle is wobbling.

• The vehicle is being driven at extremely high speeds.

• When driving on a hill

• If the radar sensor or camera sensor is misaligned

4-5. Using the driving support systems

249

LDA (Lane Departure Alert)

Summary of functions

When driving on roads with white (yellow) lines, this function alerts the

driver when the vehicle might depart from its lane.

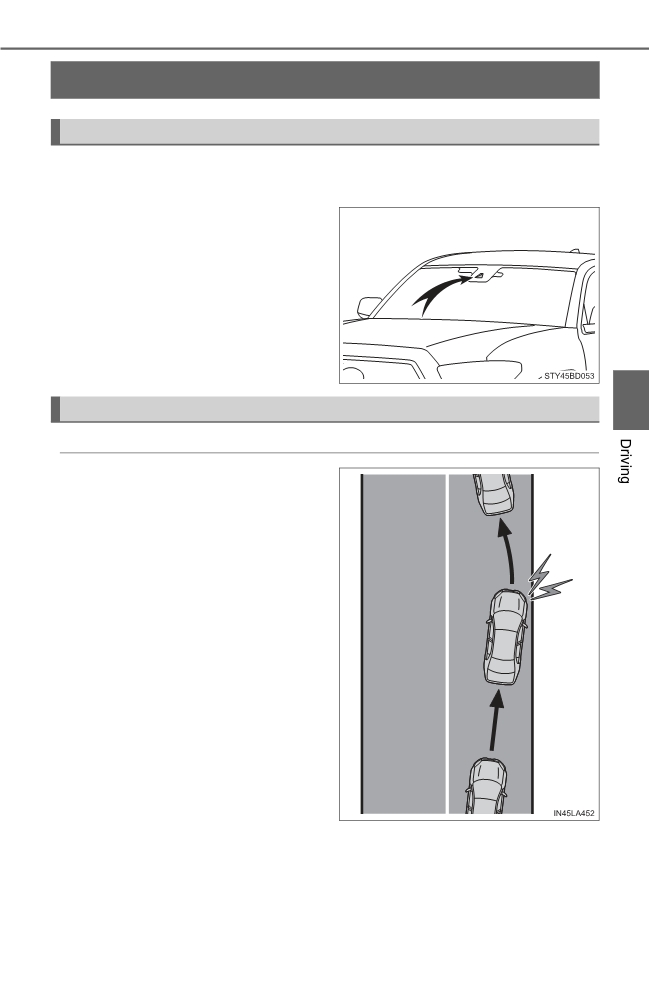

The LDA system recognizes visi-

ble white (yellow) lines with the

camera sensor on the upper por-

tion of the windshield.

4

Functions included in LDA system

◆ Lane departure alert function

When the system determines

that the vehicle might depart

from its lane, a warning is dis-

played on the multi-information

display and the warning buzzer

sounds to alert the driver.

When the warning buzzer

sounds, check the surrounding

road situation and carefully

operate the steering wheel to

move the vehicle back to the

center of the lane.

: If equipped

250

4-5. Using the driving support systems

◆ Vehicle sway warning

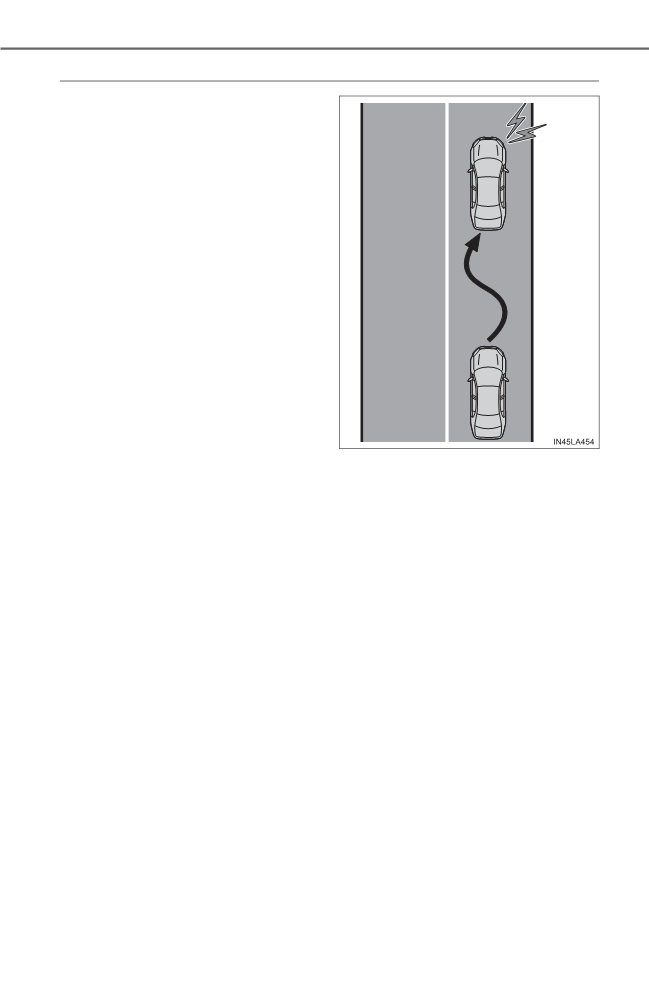

When the vehicle is swaying or

appears as if it may depart from

its lane multiple times, the

warning buzzer sounds and a

message is displayed on the

multi-information display to alert

the driver.

4-5. Using the driving support systems

251

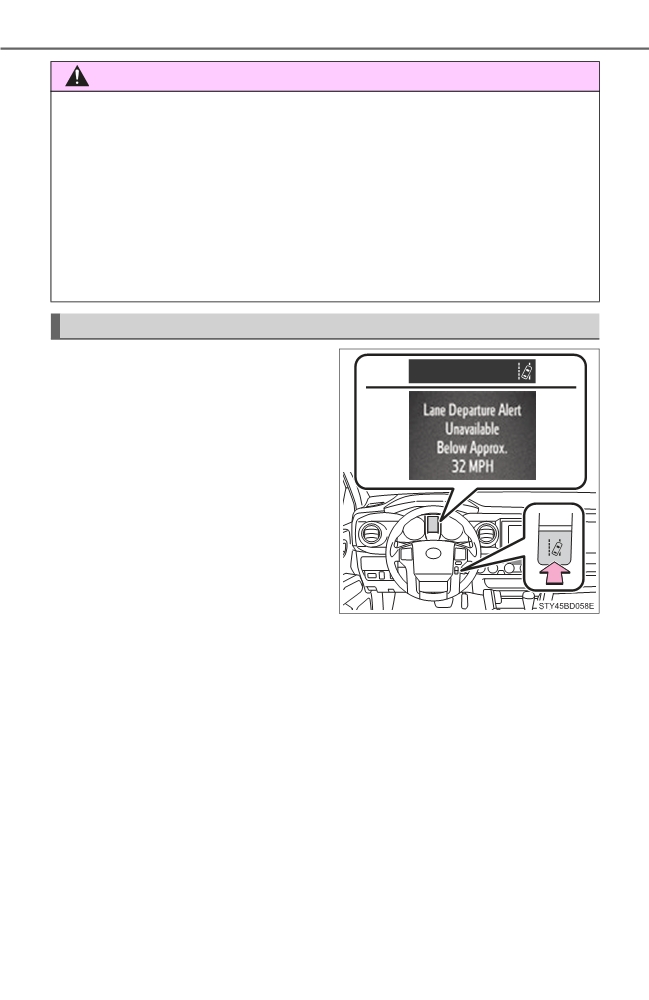

WARNING

■ Before using LDA system

Do not rely solely upon the LDA system. The LDA system does not auto-

matically drive the vehicle or reduce the amount of attention that must be

paid to the area in front of the vehicle. The driver must always assume full

responsibility for driving safely by always paying careful attention to the sur-

rounding conditions and operating the steering wheel to correct the path of

the vehicle. Also, the driver must take adequate breaks when fatigued, such

as from driving for a long period of time.

Failure to perform appropriate driving operations and pay careful attention

may lead to an accident, resulting in death or serious injury.

■ To avoid operating LDA system by mistake

When not using the LDA system, use the LDA switch to turn the system off.

■ Situations unsuitable for LDA system

Do not use the LDA system in the following situations.

The system may not operate properly and lead to an accident, resulting in

4

death or serious injury.

● A spare tire, tire chains, etc., are equipped.

● Objects or patterns that could be mistaken for white (yellow) lines are

present on the side of the road (guardrails, curbs, reflective poles, etc.).

● Vehicle is driven on a snow-covered road.

●White (yellow) lines are difficult to see due to rain, snow, fog, dust, etc.

● Asphalt repair marks, white (yellow) line marks, etc., are present due to

road repair.

● Vehicle is driven in a temporary lane or restricted lane due to construction

work.

● Vehicle is driven in a construction zone.

252

4-5. Using the driving support systems

WARNING

■ Preventing LDA system malfunctions and operations performed by

mistake

● Do not modify the headlights or place stickers, etc., on the surface of the

lights.

● Do not modify the suspension, etc. If the suspension, etc., needs to be

replaced, contact your Toyota dealer.

● Do not install or place anything on the hood or grille. Also, do not install a

grille guard (bull bars, kangaroo bar, etc.).

● If your windshield needs repairs, contact your Toyota dealer.

Turning LDA system on

Press the LDA switch to turn the

LDA system on.

The LDA indicator illuminates and

a message is displayed on the

multi-information display.

Press the LDA switch again to turn

the LDA system off.

When the LDA system is turned on

or off, operation of the LDA system

continues in the same condition

the next time the engine is started.

4-5. Using the driving support systems

253

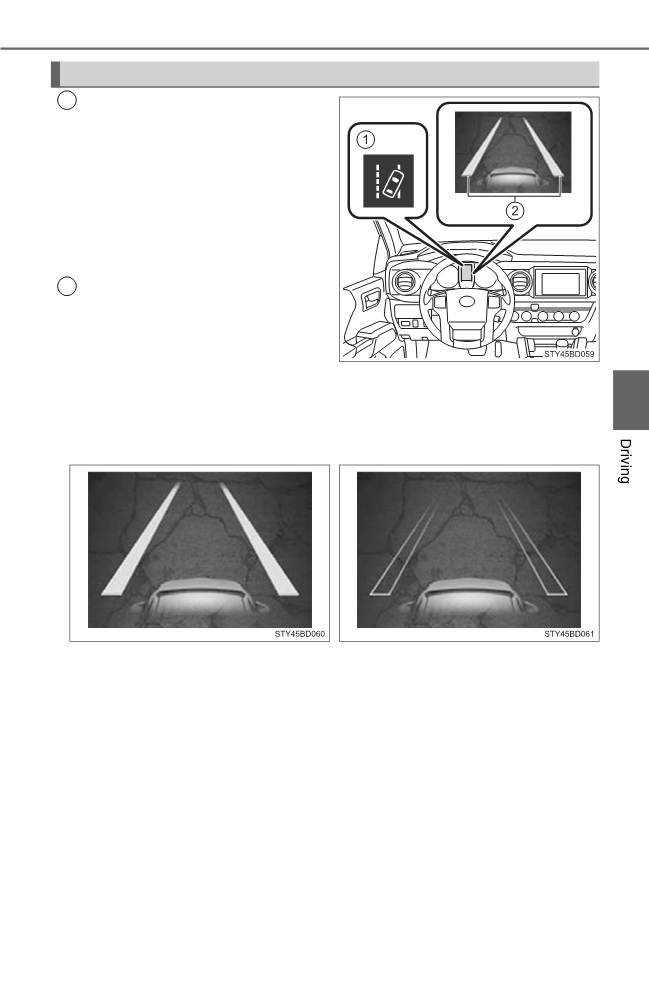

Indications on multi-information display

1

LDA indicator

The illumination condition of the

indicator informs the driver of the

system operation status.

Illuminated in green:

LDA system is operating.

Flashing in yellow:

Lane departure alert function is

operating.

2

Lane departure alert function

display

Displayed when the multi-informa-

tion display is switched to the driv-

ing assist system information

screen.

4

 Inside of displayed white lines

 Inside of displayed white lines

is white

is black

Indicates that the system is recog-

Indicates that the system is not

nizing white (yellow) lines. When

able to recognize white (yellow)

the vehicle departs from its lane,

lines or is temporarily canceled.

the white line displayed on the

side the vehicle departs from

flashes orange.

254

4-5. Using the driving support systems

■ Operation conditions of each function

● Lane departure alert function

This function operates when all of the following conditions are met.

• LDA is turned on.

• Vehicle speed is approximately 32 mph (50 km/h) or more.

• System recognizes white (yellow) lines.

• Width of traffic lane is approximately 9.8 ft. (3 m) or more.

• Turn signal lever is not operated.

• Vehicle is driven on a straight road or around a gentle curve with a radius

of more than approximately 492 ft. (150 m).

• No system malfunctions are detected. (P. 566)

● Vehicle sway warning function

This function operates when all of the following conditions are met.

• Setting for “

warning” in

screen of the multi-information display is

set to on. (P. 97)

• Vehicle speed is approximately 32 mph (50 km/h) or more.

• Width of traffic lane is approximately 9.8 ft. (3 m) or more.

• No system malfunctions are detected. (P. 566)

■ Temporary cancellation of functions

When operation conditions are no longer met, a function may be temporarily

canceled. However, when the operation conditions are met again, operation

of the function is automatically restored. (P. 254)

■ Lane departure alert function

The warning buzzer may be difficult to hear due to external noise, audio play-

back, etc.

■ White (yellow) lines are only on one side of road

The LDA system will not operate for the side on which white (yellow) lines

could not be recognized.

Content   ..  13  14  15  16   ..
