Toyota RAV4 (2018 year). Instruction - part 4
1-1. For safe use
51
■ Child*4
“AIR BAG OFF”
“AIR BAG ON” and “AIR BAG OFF”
or
indicator lights
“AIR BAG ON”*4
Indicator/
warning light
SRS warning light
Off
Off*2 or
1
Seat belt reminder light
flashing*3
Deactivated or
Front passenger airbag
activated*4
Side airbag
on the front passenger seat
Activated
Curtain shield airbag
Devices
in the front passenger side
Deactivated or
Front passenger seat cushion airbag
activated*2, 4
Front passenger’s seat belt pretensioner
Activated
and force limiter
■ Child restraint system with infant*5
“AIR BAG ON” and “AIR BAG OFF”
“AIR BAG
indicator lights
OFF”*6
Indicator/
SRS warning light
Off
warning light
Off*2 or
Seat belt reminder light
flashing*3
Front passenger airbag
Deactivated
Side airbag
on the front passenger seat
Activated
Curtain shield airbag
Devices
in the front passenger side
Front passenger seat cushion airbag
Deactivated
Front passenger’s seat belt pretensioner
Activated
and force limiter
RAV4_OM_OM0R012U_(U)
52
1-1. For safe use
■ Unoccupied
“AIR BAG ON” and “AIR BAG OFF”
“AIR BAG OFF”
indicator lights
Indicator/
SRS warning light
warning light
Off
Seat belt reminder light
Front passenger airbag
Deactivated
Side airbag
on the front passenger seat
Activated
Curtain shield airbag
Devices
in the front passenger side
Front passenger seat cushion airbag
Deactivated
Front passenger’s seat belt pretensioner
Activated
and force limiter
RAV4_OM_OM0R012U_(U)
1-1. For safe use
53
■ There is a malfunction in the system
“AIR BAG ON” and “AIR BAG OFF”
“AIR BAG OFF”
indicator lights
Indicator/
SRS warning light
warning light
On
Seat belt reminder light
1
Front passenger airbag
Deactivated
Side airbag
on the front passenger seat
Activated
Curtain shield airbag
Devices
in the front passenger side
Front passenger seat cushion airbag
Deactivated
Front passenger’s seat belt pretensioner
Activated
and force limiter
*1: The system judges a person of adult size as an adult. When a smaller
adult sits in the front passenger seat, the system may not recognize
him/her as an adult depending on his/her physique and posture.
*2: In the event the front passenger is wearing a seat belt.
*3: In the event the front passenger does not wear a seat belt.
*4: For some children, child in seat, child in booster seat or child in convert-
ible seat, the system may not recognize him/her as a child. Factors
which may affect this can be the physique or posture.
*5: Never install a rear-facing child restraint system on the front passenger
seat. A forward-facing child restraint system should only be installed on
the front passenger seat when it is unavoidable. (→P. 57)
*6: In case the indicator light is not illuminated, consult this manual on how
to install the child restraint system properly. (→P. 61)
RAV4_OM_OM0R012U_(U)
54
1-1. For safe use
WARNING
■ Front passenger occupant classification system precautions
Observe the following precautions regarding the front passenger occupant
classification system.
Failure to do so may cause death or serious injury.
● Wear the seat belt properly.
● Make sure the front passenger’s seat belt plate has not been left inserted
into the buckle before someone sits in the front passenger seat.
● Make sure the “AIR BAG OFF” indicator light is not illuminated when using
the seat belt extender for the front passenger seat. If the “AIR BAG OFF”
indicator light is illuminated, disconnect the extender tongue from the seat
belt buckle, and reconnect the seat belt. Reconnect the seat belt extender
after making sure the “AIR BAG ON” indicator light is illuminated. If you
use the seat belt extender while the “AIR BAG OFF” indicator light is illumi-
nated, the SRS airbags for the front passenger will not activate, which
could cause death or serious injury in the event of a collision.
● Do not apply a heavy load to the front passenger seat or equipment (e.g.
seatback pockets).
● Do not put weight on the front passenger seat by putting your hands or
feet on the front passenger seat seatback from the rear passenger seat.
● Do not let a rear passenger lift the front passenger seat with their feet or
press on the seatback with their legs.
● Do not put objects under the front passenger seat.
RAV4_OM_OM0R012U_(U)
1-1. For safe use
55
WARNING
■ Front passenger occupant classification system precautions
● Do not recline the front passenger seatback so far that it touches a rear
seat. This may cause the “AIR BAG OFF” indicator light to be illuminated,
which indicates that the SRS airbags for the front passenger will not acti-
vate in the event of a severe accident. If the seatback touches the rear
1
seat, return the seatback to a position where it does not touch the rear
seat. Keep the front passenger seatback as upright as possible when the
vehicle is moving. Reclining the seatback excessively may lessen the
effectiveness of the seat belt system.
● If an adult sits in the front passenger seat, the “AIR BAG ON” indicator
light is illuminated. If the “AIR BAG OFF” indicator is illuminated, ask the
passenger to sit up straight, well back in the seat, feet on the floor, and
with the seat belt worn correctly. If the “AIR BAG OFF” indicator still
remains illuminated, either ask the passenger to move to the rear seat, or
if that is not possible, move the front passenger seat fully rearward.
●When it is unavoidable to install a forward-facing child restraint system on
the front passenger seat, install the child restraint system on the front pas-
senger seat in the proper order. (→P. 61)
● Do not modify or remove the front seats.
● Do not kick the front passenger seat or subject it to severe impact. Other-
wise, the SRS warning light may come on to indicate a malfunction of the
front passenger occupant classification system. In this case, contact your
Toyota dealer immediately.
● Child restraint systems installed on the rear seat should not contact the
front seatbacks.
● Do not use a seat accessory, such as a cushion and seat cover, that cov-
ers the seat cushion surface.
● Do not modify or replace the upholstery of the front seat.
RAV4_OM_OM0R012U_(U)
56
1-1. For safe use
Safety information for children
Observe the following precautions when children are in the vehi-
cle.
Use a child restraint system appropriate for the child, until the
child becomes large enough to properly wear the vehicle’s seat
belt.
● It is recommended that children sit in the rear seats to avoid acci-
dental contact with the shift lever, wiper switch etc.
● Use the rear door child-protector lock or the window lock switch to
avoid children opening the door while driving or operating the
power window accidentally. (→P. 110, 156)
● Do not let small children operate equipment which may catch or
pinch body parts, such as the power window, hood, back door,
seats etc.
WARNING
Never leave children unattended in the vehicle, and never allow children to
have or use the key.
Children may be able to start the vehicle or shift the vehicle into neutral.
There is also a danger that children may injure themselves by playing with
the windows, the moon roof (if equipped) or other features of the vehicle. In
addition, heat build-up or extremely cold temperatures inside the vehicle
can be fatal to children.
RAV4_OM_OM0R012U_(U)
1-1. For safe use
57
Child restraint systems
A child restraint system for a small child or baby must itself be
properly restrained on the seat with the LATCH anchors or the
lap portion of the lap/shoulder belt.
The laws of all 50 states of the U.S.A. and Canada now require
1
the use of child restraint systems.
Points to remember
Studies have shown that installing a child restraint on a rear seat is
much safer than installing one on the front passenger seat.
● Choose a child restraint system that suits your vehicle and is appro-
priate to the age and size of the child.
● For installation details, follow the instructions provided with the child
restraint system.
General installation instructions are provided in this manual.
(→P. 61)
RAV4_OM_OM0R012U_(U)
58
1-1. For safe use

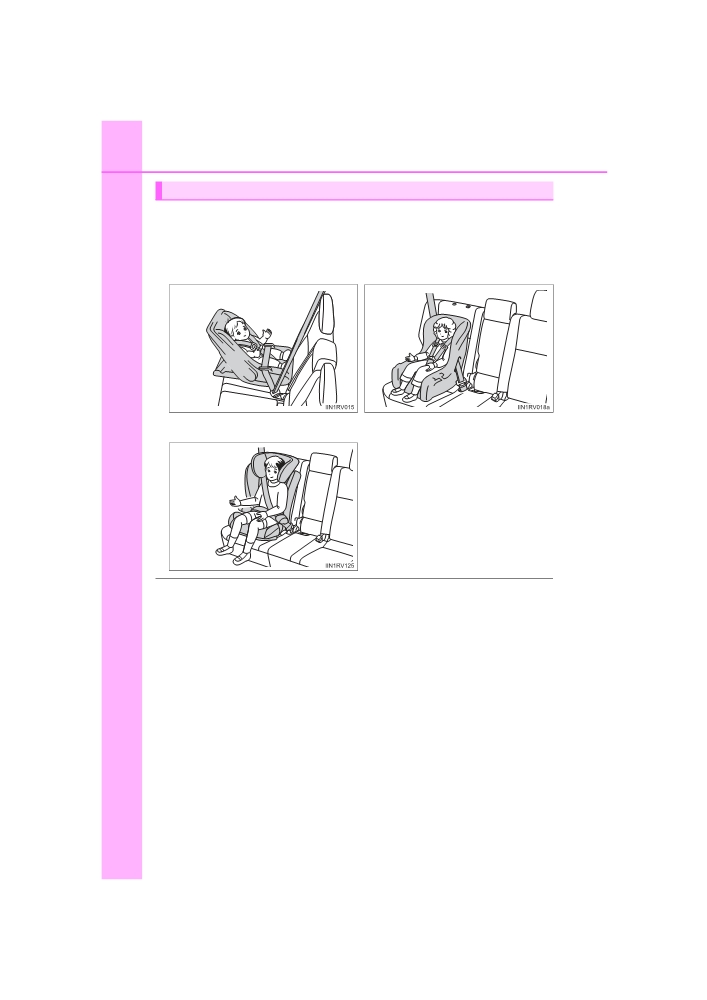

Types of child restraints
Child restraint systems are classified into the following
3 types
according to the age and size of the child:
Rear facing ⎯ Infant seat/con-
Forward facing ⎯ Convertible
vertible seat
seat
Booster seat
■ Selecting an appropriate child restraint system
● Use a child restraint system appropriate for the child until the child becomes
large enough to properly wear the vehicle’s seat belt.
● If the child is too large for a child restraint system, sit the child on a rear seat
and use the vehicle’s seat belt. (→P. 28)
RAV4_OM_OM0R012U_(U)
1-1. For safe use
59
WARNING
■ Child restraint precautions
● For effective protection in automobile accidents and sudden stops, a child
must be properly restrained, using a seat belt or child restraint system
depending on the age and size of the child. Holding a child in your arms is
not a substitute for a child restraint system. In an accident, the child can be
1
crushed against the windshield, or between you and the vehicle’s interior.
This may cause death or serious injury to the child in the event of a sud-
den stop, sudden swerve or accident.
● Toyota strongly urges the use of a proper child restraint system that con-
forms to the size of the child, installed on the rear seat. According to acci-
dent statistics, the child is safer when properly restrained in the rear seat
than in the front seat.
● Never install a rear-facing child restraint system on the front passenger
seat even if the “AIR BAG OFF” indicator light is illuminated.
In the event of an accident, the force of the rapid inflation of the front pas-
senger airbag can cause death or serious injury to the child if the rear-fac-
ing child restraint system is installed on the front passenger seat.
● A forward-facing child restraint system may be installed on the front pas-
senger seat only when it is unavoidable. A child restraint system that
requires a top tether strap should not be used in the front passenger seat
since there is no top tether strap anchor for the front passenger seat.
Always move the seat as far back as possible even if the “AIR BAG OFF”
indicator light is illuminated, because the front passenger airbag could
inflate with considerable speed and force. Otherwise, the child may be
killed or seriously injured.
● Do not use the seat belt extender when installing a child restraint system
on the front or rear passenger seat. If installing a child restraint system
with the seat belt extender connected to the seat belt, the seat belt will not
securely hold the child restraint system, which could cause death or seri-
ous injury to the child or other passengers in the event of a sudden stop,
sudden swerve or accident.
RAV4_OM_OM0R012U_(U)
60
1-1. For safe use
WARNING
■ Child restraint precautions
● Do not allow the child to lean his/her head or any part of his/her body
against the door or the area of the seat, front and rear pillars or roof side
rails from which the SRS side airbags or SRS curtain shield airbags deploy
even if the child is seated in the child restraint system. It is dangerous if
the SRS side airbags and curtain shield airbags inflate, and the impact
could cause death or serious injury to the child.
● Make sure you have complied with all installation instructions provided by
the child restraint manufacturer and that the system is properly secured. If
it is not secured properly, it may cause death or serious injury to the child
in the event of a sudden stop, sudden swerve or accident.
■ When children are in the vehicle
Do not allow children to play with the seat belt. If the seat belt becomes
twisted around a child’s neck, it may lead to choking or other serious injuries
that could result in death.
If this occurs and the buckle cannot be unfastened, scissors should be used
to cut the belt.
■ When the child restraint system is not in use
● Keep the child restraint system properly secured on the seat even if it is
not in use. Do not store the child restraint system unsecured in the pas-
senger compartment.
● If it is necessary to detach the child restraint system, remove it from the
vehicle or store it securely in the luggage compartment. This will prevent it
from injuring passengers in the event of a sudden stop, sudden swerve or
accident.
RAV4_OM_OM0R012U_(U)
1-1. For safe use
61

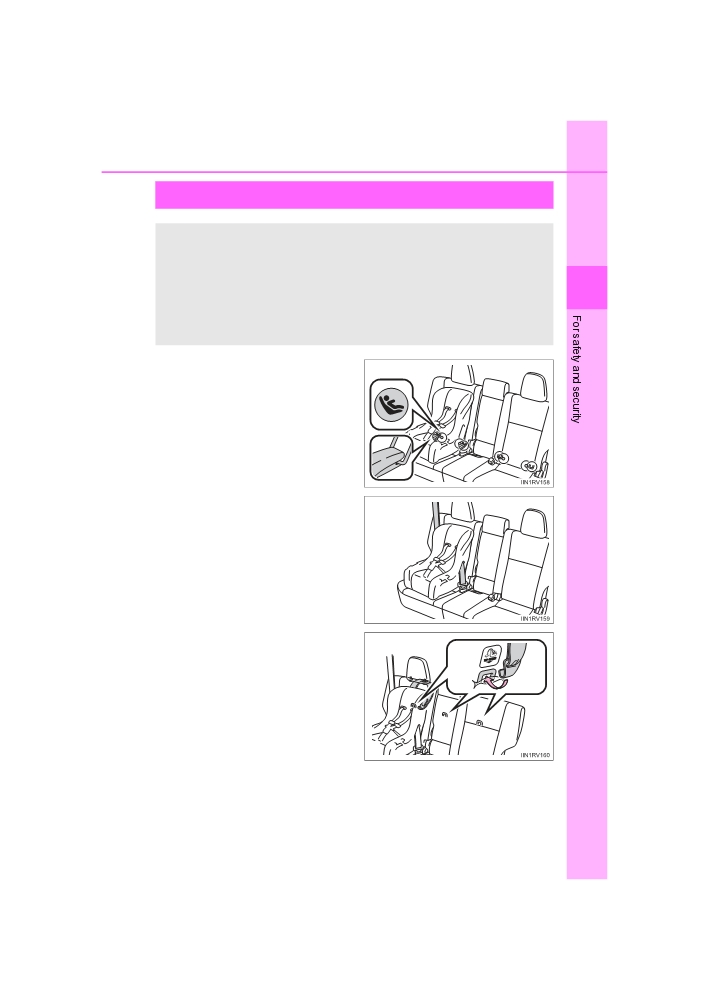

Installing child restraints
Follow the child restraint system manufacturer’s instructions.
Firmly secure child restraints to the seats using the LATCH
anchors or a seat belt. Attach the top tether strap when installing
a child restraint.
1
The lap/shoulder belt can be used if your child restraint system
is not compatible with the LATCH (Lower Anchors and Tethers
for Children) system.
Child restraint LATCH anchors
LATCH anchors are provided for
the outboard rear seats. (Buttons
displaying the location of the
anchors are attached to the seats.)
Seat belts equipped with a child
restraint
locking
mechanism
(ALR/ELR belts except driver’s
seat belt) (→P. 32)
Anchor brackets
(for top tether
strap)
An anchor bracket is provided for
each rear seat. (Labels displaying
the location of the anchor bracket.)
RAV4_OM_OM0R012U_(U)
62
1-1. For safe use

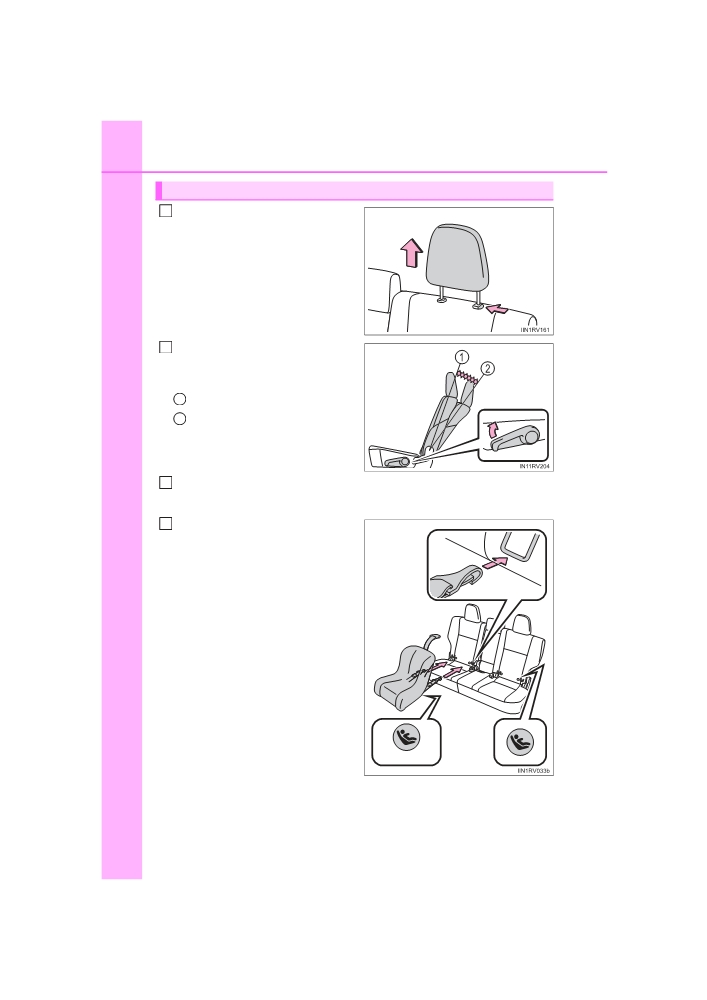

Installation with LATCH system
If the child restraint has a top
1
tether strap, adjust the head
restraint to the upmost position.
(→P. 146)
2
Adjust the seatback to the 6th
lock position from the most
upright position. (→P. 141)
1
Most upright position
2
6th lock position
3
Widen the gap between the seat cushion and seatback slightly.
Type A
4
Latch the hooks of the lower
straps
onto the LATCH
anchors.
If the child restraint has a top
tether strap, the top tether strap
should be latched onto the top
tether strap anchor.
When installing the child
restraint system with the head
restraint being raised, be sure
to have the top tether strap
pass underneath the head
restraint.
For owners in Canada:
Canada only
The symbol on a child restraint
system indicates the presence
of a lower connector system.
RAV4_OM_OM0R012U_(U)
1-1. For safe use
63

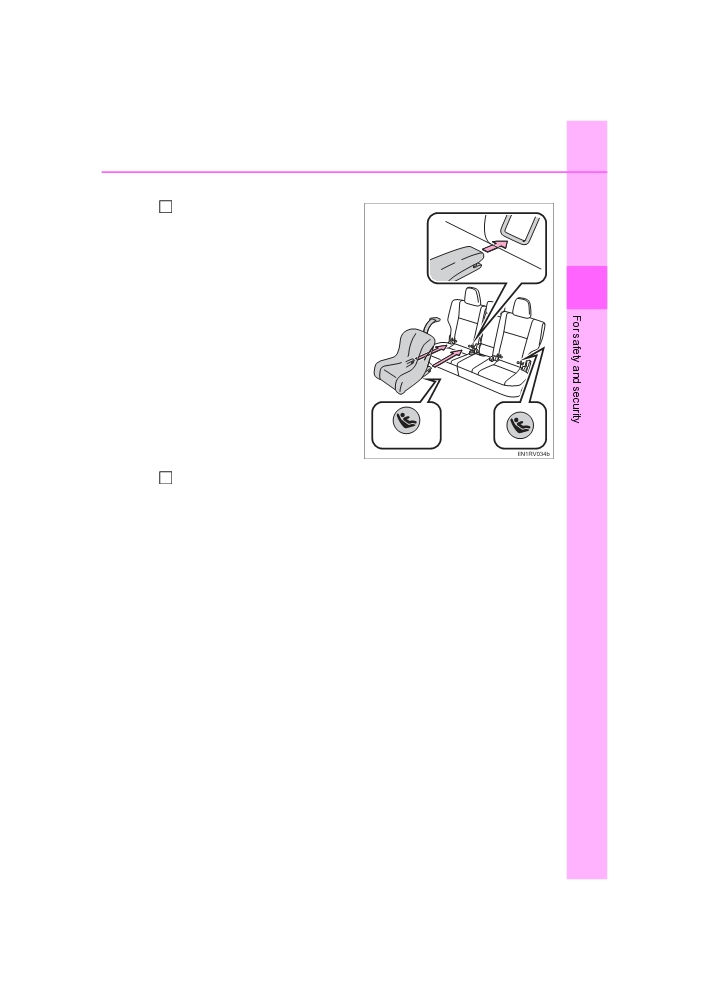

Type B
4
Latch the buckles onto the
LATCH anchors.
If the child restraint has a top
tether strap, the top tether strap
should be latched onto the top
1
tether strap anchor.
When installing the child
restraint system with the head
restraint being raised, be sure
to have the top tether strap
pass underneath the head
restraint.
For owners in Canada:
The symbol on a child restraint
Canada only
system indicates the presence
of a lower connector system.
If there is gap between the child restraint system and the seatback,
5
adjust the seatback until good contact is achieved. (→P. 141)
RAV4_OM_OM0R012U_(U)
64
1-1. For safe use

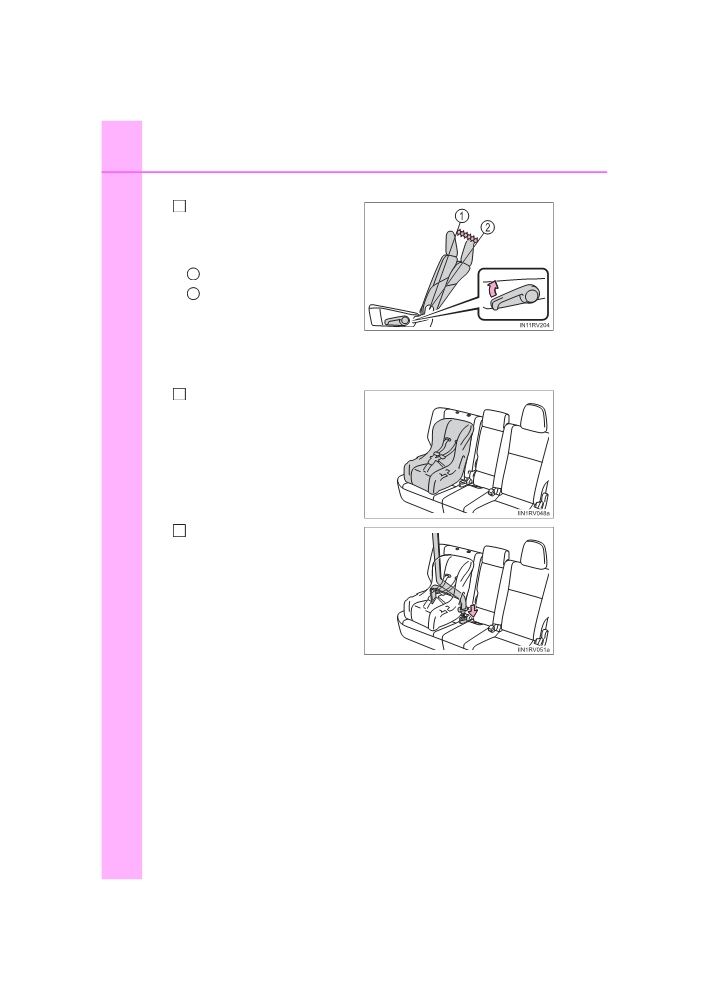

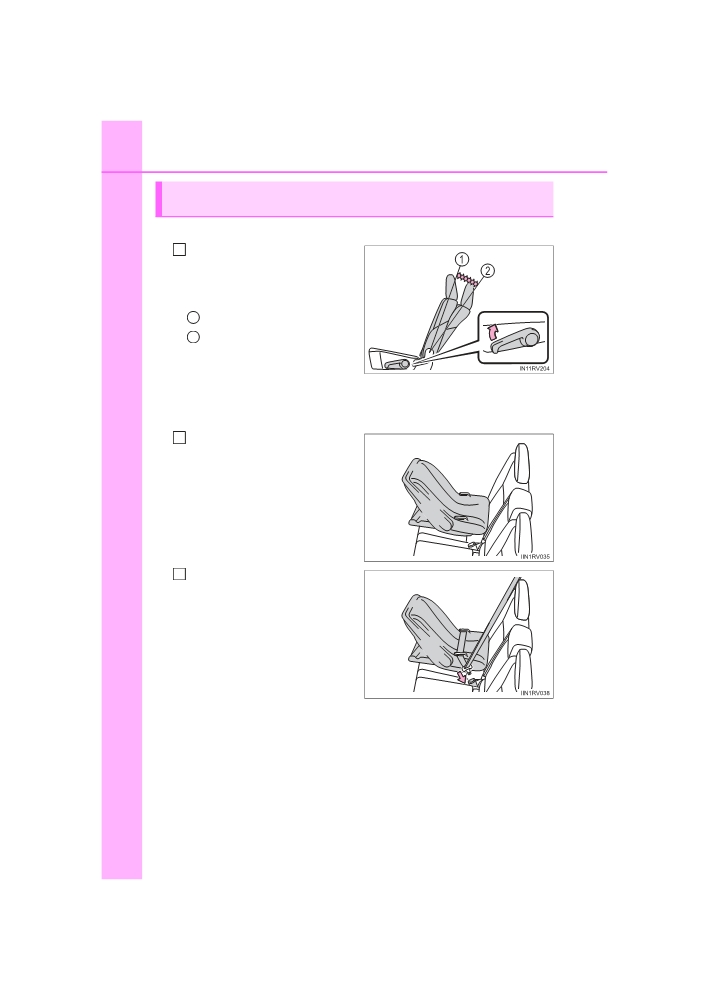

Installing child restraints using a seat belt (child restraint lock
function belt)
■ Rear-facing ⎯ Infant seat/convertible seat
1
Adjust the seatback to the
6th lock position from the
most upright position.
(→P. 141)
1
Most upright position
2
6th lock position
If your child restraint system interferes with a head restraint and
cannot be installed properly, install the child restraint system after
removing the head restraint. (→P. 146)
Place the child restraint sys-
2
tem on the rear seat facing
the rear of the vehicle.
Run the seat belt through the
3
child restraint system and
insert the plate into the
buckle. Make sure that the
belt is not twisted.
RAV4_OM_OM0R012U_(U)
1-1. For safe use
65

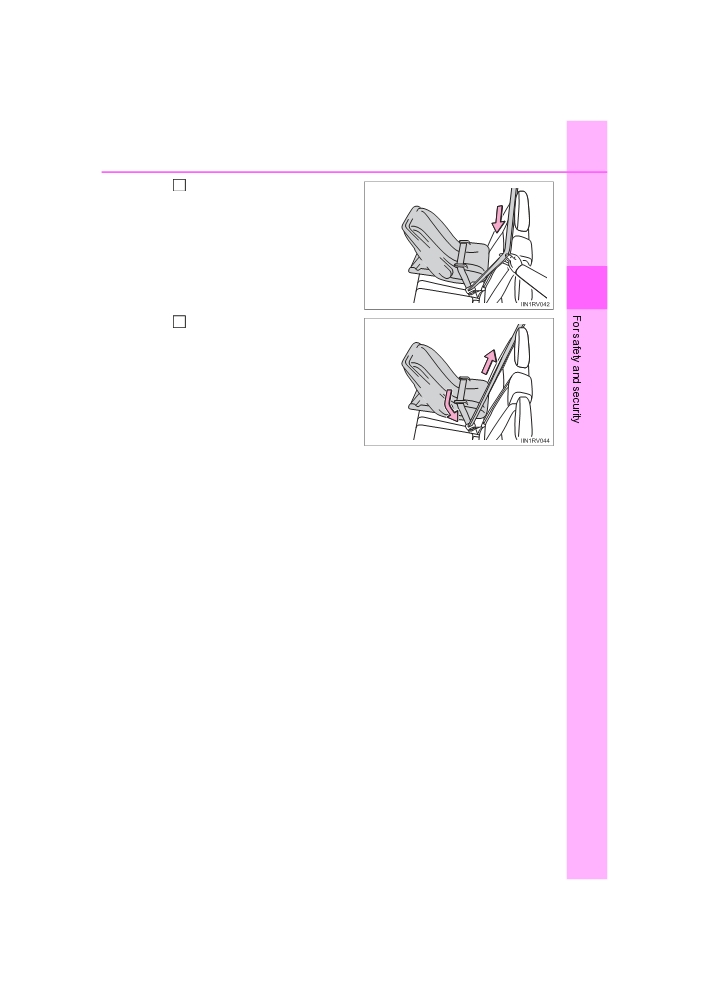

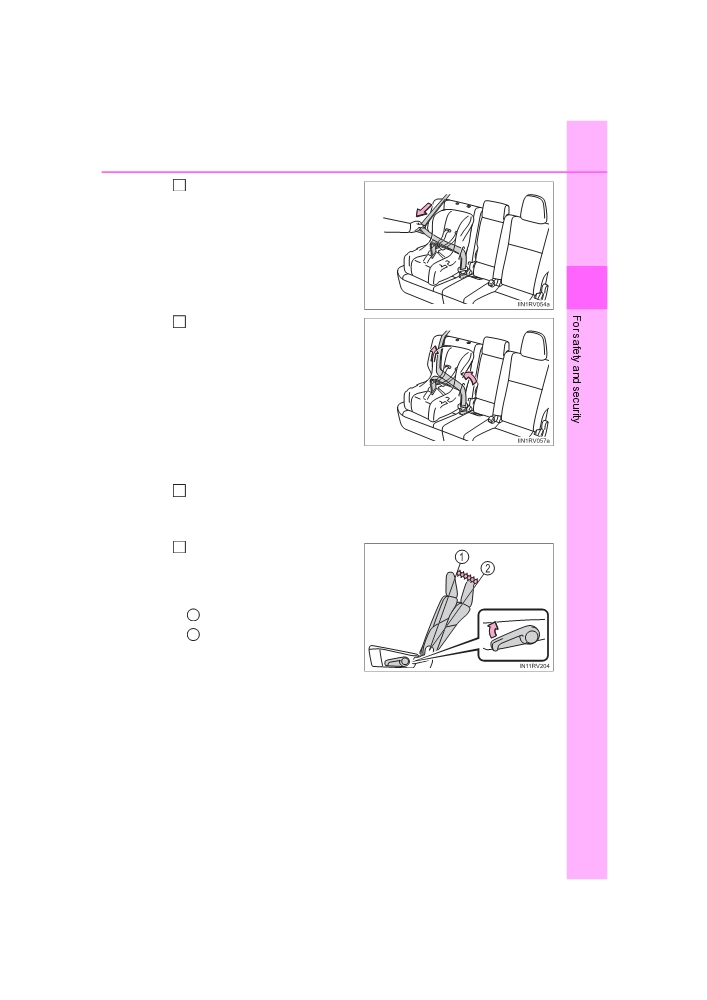

4
Fully extend the shoulder belt
and allow it to retract to put it
in lock mode. In lock mode,
the belt cannot be extended.
1
While pushing the child
5
restraint system down into
the rear seat, allow the
shoulder belt to retract until
the child restraint system is
securely in place.
After the shoulder belt has
retracted to a point where there
is no slack in the belt, pull the
belt to check that it cannot be
extended.
RAV4_OM_OM0R012U_(U)
66
1-1. For safe use
■ Forward-facing ⎯ Convertible seat
1
Adjust the seatback to the
6th lock position from the
most upright position.
(→P. 141)
1
Most upright position
2
6th lock position
If your child restraint system interferes with a head restraint and
cannot be installed properly, install the child restraint system after
removing the head restraint. (→P. 146)
Place the child restraint sys-
2
tem on the seat facing the
front of the vehicle.
Run the seat belt through the
3
child restraint system and
insert the plate into the
buckle. Make sure that the
belt is not twisted.
RAV4_OM_OM0R012U_(U)
1-1. For safe use
67
4
Fully extend the shoulder belt
and allow it to retract to put it
in lock mode. In lock mode,
the belt cannot be extended.
1
While pushing the child
5
restraint system into the rear
seat, allow the shoulder belt
to retract until the child
restraint system is securely
in place.
After the shoulder belt has
retracted to a point where there
is no slack in the belt, pull the
belt to check that it cannot be
extended.
If the child restraint has a top tether strap, the top tether strap
6
should be latched onto the top tether strap anchor. (→P. 69)
■ Booster seat
1
Adjust the seatback to the
6th lock position from the
most upright position.
(→P. 141)
1
Most upright position
2
6th lock position
If your child restraint system interferes with a head restraint and
cannot be installed properly, install the child restraint system after
removing the head restraint. (→P. 146)
RAV4_OM_OM0R012U_(U)
