8-2. Steps to take in an emergency
■ Warning messages
The warning message illustrations used are intended as examples, and may
differ from the image that is actually displayed on the multi-information dis-
play.
■ Warning message in radar cruise mode
In the following cases, the warning message may not be displayed even if
vehicle-to-vehicle distance decreases:
● When your vehicle and the vehicle ahead are traveling at the same speed or
the vehicle ahead is traveling more quickly than your vehicle
● When the vehicle ahead is traveling at a very low speed
● Immediately after cruise control speed is set
● At the instant the accelerator pedal is depressed
■ Warning buzzer
P. 483
8-2. Steps to take in an emergency
501
Interior
Exterior

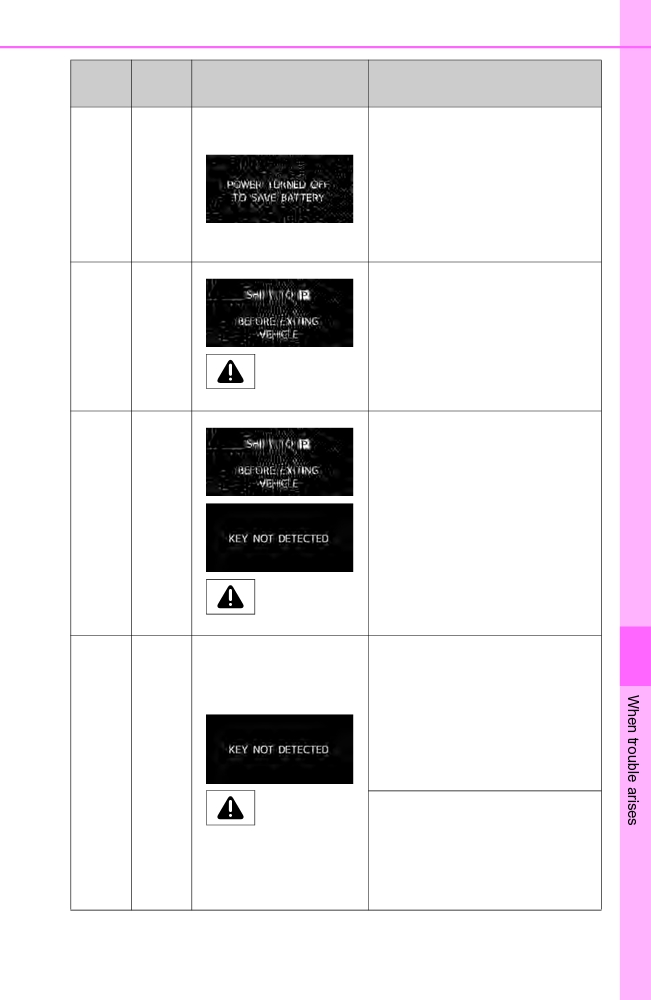

Warning message
Details/Actions
buzzer
buzzer

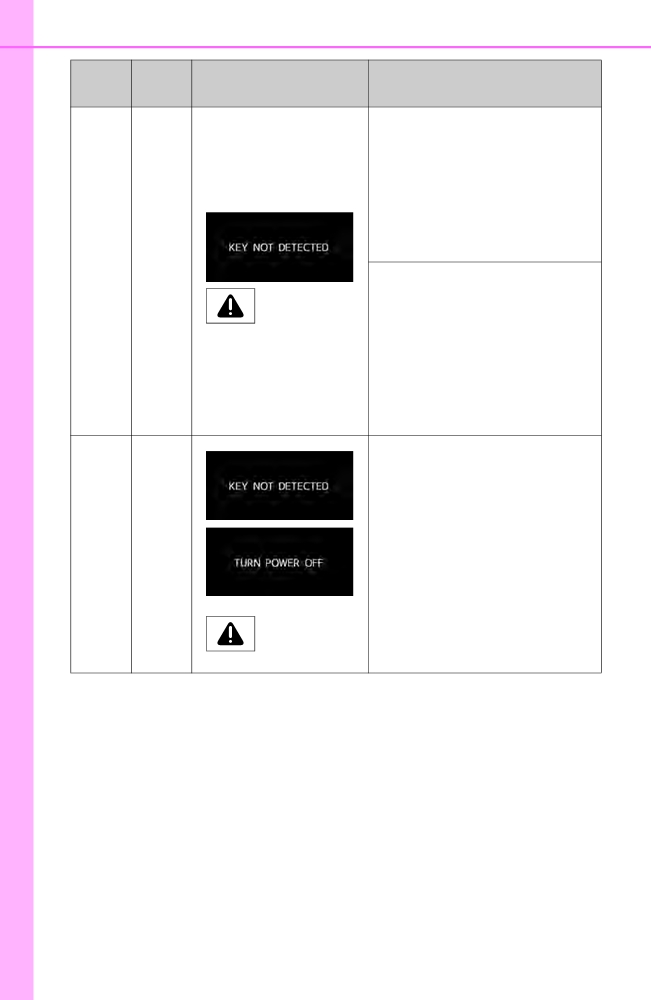

Power was turned off due to the
automatic power off function.
Next time when starting
the hybrid system, oper-
ate the hybrid system for
approximately
5 minutes
to recharge the 12-volt bat-
tery.
The driver’s door was opened
Con-
while any shift position other
tinu-
than P was selected without
ous
turning off the power switch.
Shift the shift position to P.
(Flashes)
The electronic key was carried
outside the vehicle and the
driver’s door was opened and
Con-
closed while any shift position
Contin-
tinu-
other than P was selected with-
uous
ous
out turning off the power switch.
Shift the shift position to P.
Bring the electronic key
back into the vehicle.
(Flashes)
An attempt was made to start
8
the hybrid system without the
electronic key being present, or
the electronic key was not func-
tioning normally.
Start the hybrid system
with the electronic key
Once
present.
An attempt was made to drive
when the regular key was not
(Flashes)
inside the vehicle.
Confirm that the elec-
tronic key is inside the
vehicle.
502
8-2. Steps to take in an emergency
Interior
Exterior
Warning message
Details/Actions
buzzer
buzzer
The electronic key was carried
outside the vehicle and a door
other than the driver’s door was
opened and closed while the
power switch was in a mode
other than off.
Bring the electronic key
back into the vehicle.
Once
3 times
The electronic key was carried
outside the vehicle and the
driver’s door was opened and
(Flashes)
closed while the shift position P
was selected without turning off
the power switch.
Turn the power switch off.
Bring the electronic key
back into the vehicle.
An attempt was made to exit
the vehicle with the electronic
Sounds
key and lock the doors without
once for
Once
first turning the power switch
5
off.
seconds
Turn the power switch off
(Displayed alternately)
and lock the doors again.
(Flashes)
8-2. Steps to take in an emergency
503
Interior
Exterior
Warning message
Details/Actions
buzzer
buzzer

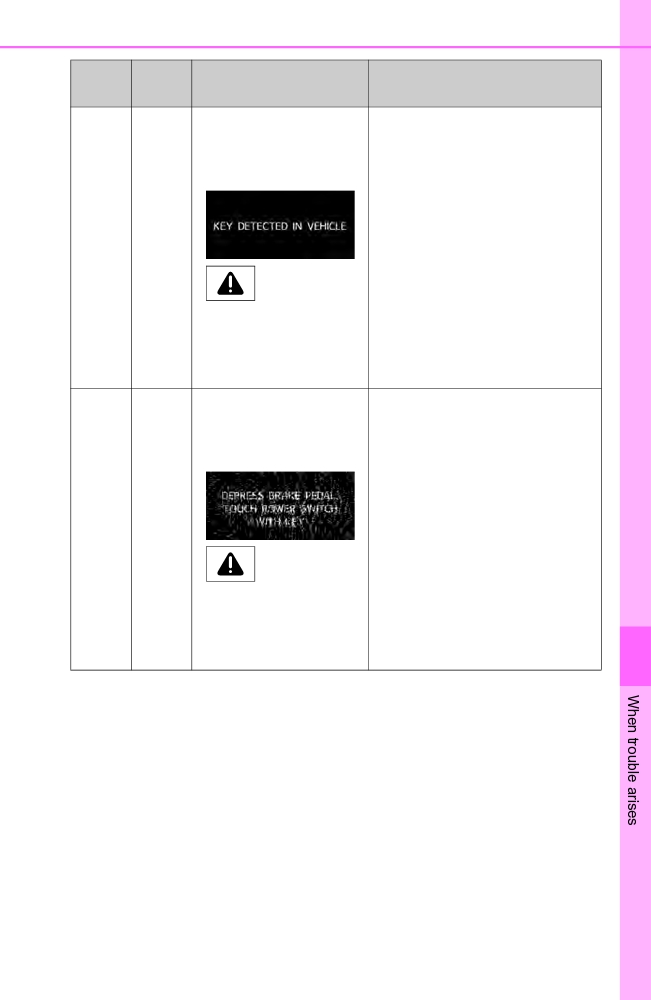

• An attempt was made to lock
the doors using the smart key
system while the electronic
key was still inside the vehi-
cle.
• An attempt was made to lock
Sounds
either front door by opening a
once for
Once
door and putting the inside
5
lock button into the lock posi-
seconds
tion, then closing the door
(Flashes)
with the electronic key still
inside the vehicle.
Retrieve the electronic key
from the vehicle and lock
the doors again.
• When the doors were
unlocked with the mechanical
key and then the power
switch was pressed, the elec-
tronic key could not be
detected in the vehicle.
• The electronic key could not
Once
be detected in the vehicle
even after the power switch
was pressed two consecu-
(Flashes)
tive times.
Touch the electronic key to
the power switch while
depressing the brake
8
pedal.
504
8-2. Steps to take in an emergency
Interior
Exterior
Warning message
Details/Actions
buzzer
buzzer

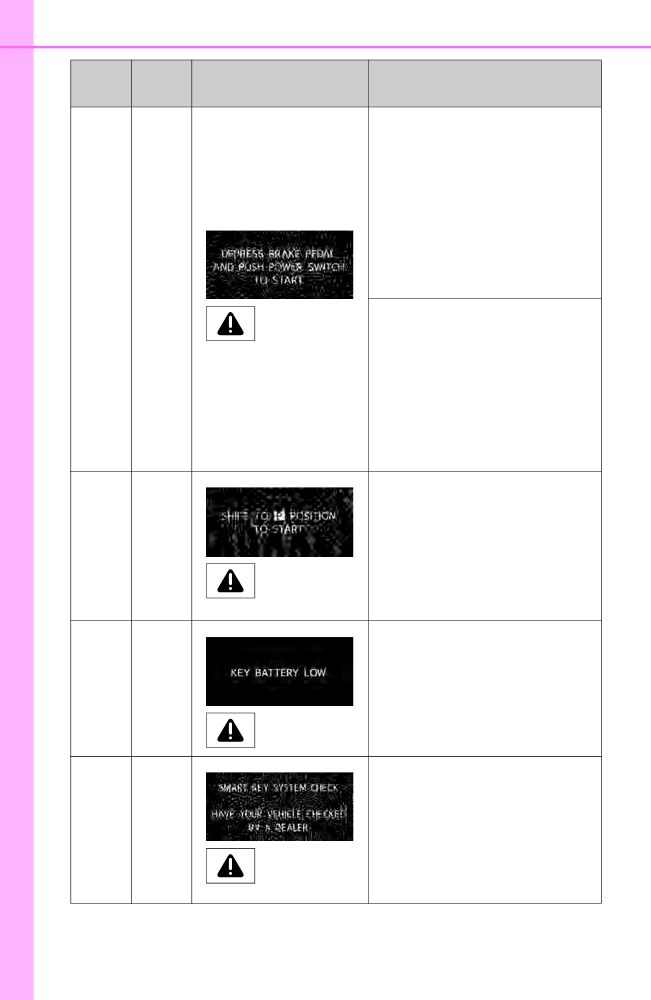

The driver’s door was opened
and closed with the power
switch turned off and then the
power switch was put in
ACCESSORY mode twice with-
out the hybrid system being
started.
Press the power switch
while depressing the brake
pedal.
Once
During a hybrid system starting
procedure in the event that the
(Flashes)
electronic key was not function-
ing properly
(P.
521), the
power switch was touched with
the electronic key.
Press the power switch
within 10 seconds of the
buzzer sounding.
An attempt was made to start
the hybrid system with the shift
position in N.
Once
Shift the shift position to P
and start the hybrid sys-
tem.
(Flashes)
The electronic key has a low
battery.
Once
Replace the electronic key
battery. (P. 449)
Indicates a malfunction in the
smart key system
Once
Have the vehicle inspected
by your Toyota dealer.
(Flashes)
8-2. Steps to take in an emergency
505
■ Warning messages
P. 500
■ Warning buzzer
P. 483
8
506
8-2. Steps to take in an emergency
If you have a flat tire
Your vehicle is equipped with a spare tire. The flat tire can be
replaced with the spare tire.
For details about tires: P. 431
WARNING
■ If you have a flat tire
Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the
wheel beyond repair, which could result in an accident.
Before jacking up the vehicle
● Stop the vehicle in a safe place on a hard, flat surface.
● Set the parking brake.
● Shift the shift position to P.
● Stop the hybrid system.
● Turn on the emergency flashers. (P. 470)
8-2. Steps to take in an emergency
507

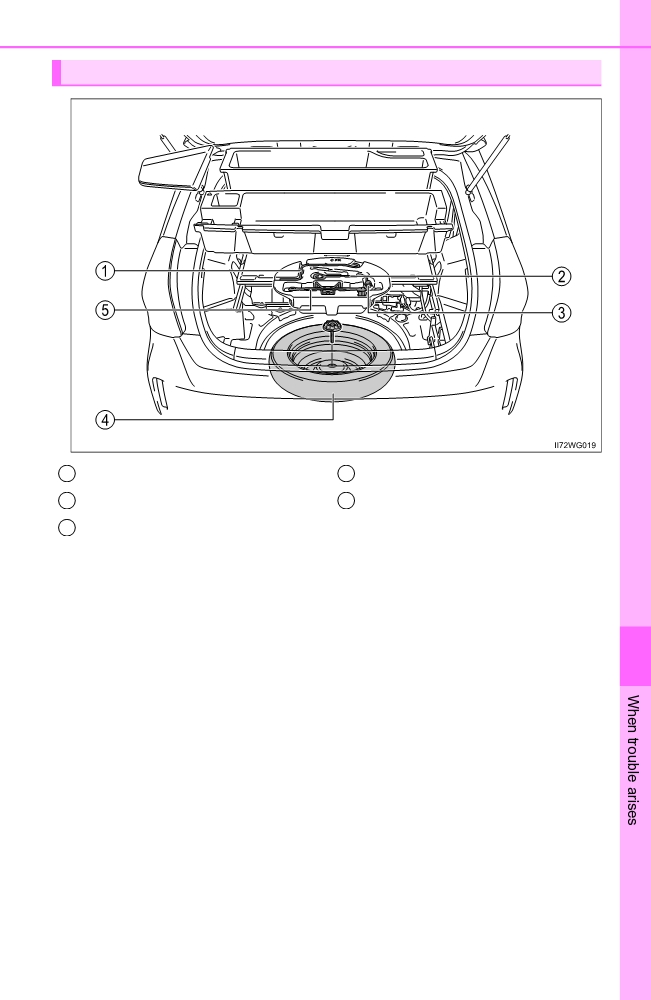

Location of the spare tire, jack and tools
1
Jack handle
4
Spare tire
2
Towing eyelet
5
Jack
3
Wheel nut wrench
8
508
8-2. Steps to take in an emergency
WARNING
■ Using the tire jack
Observe the following precautions.
Improper use of the tire jack may cause the vehicle to suddenly fall off
the jack, leading to death or serious injury.
● Do not use the tire jack for any purpose other than replacing tires or
installing and removing tire chains.
●Only use the tire jack that comes with this vehicle for replacing a flat
tire.
Do not use it on other vehicles, and do not use other tire jacks for
replacing tires on this vehicle.
●Put the jack properly in its jack point.
● Do not put any part of your body under the vehicle while it is supported
by the jack.
● Do not start the hybrid system or drive the vehicle while the vehicle is
supported by the jack.
● Do not raise the vehicle while someone is inside.
●When raising the vehicle, do not put an object on or under the jack.
● Do not raise the vehicle to a height greater than that required to
replace the tire.
● Use a jack stand if it is necessary to get under the vehicle.
●When lowering the vehicle, make sure that there is no-one near the
vehicle. If there are people nearby, warn them vocally before lowering.
8-2. Steps to take in an emergency
509

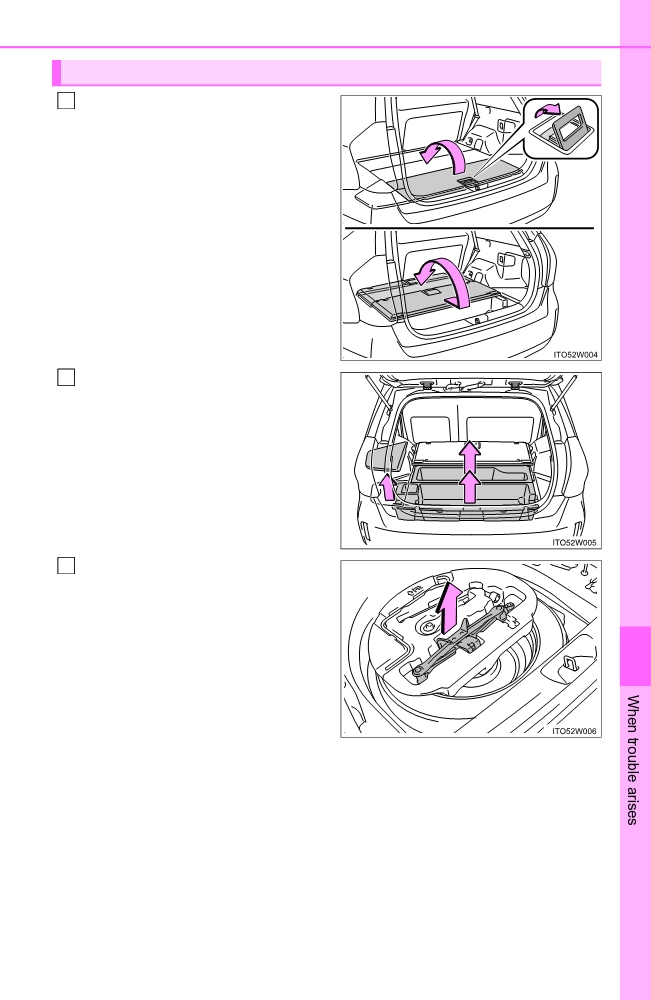

Taking out the jack
Open the deck board and move
1
it toward the front of the vehicle.
Remove the left side deck
2
board and then remove the
center auxiliary boxes.
3
Take out the jack.
8
510
8-2. Steps to take in an emergency

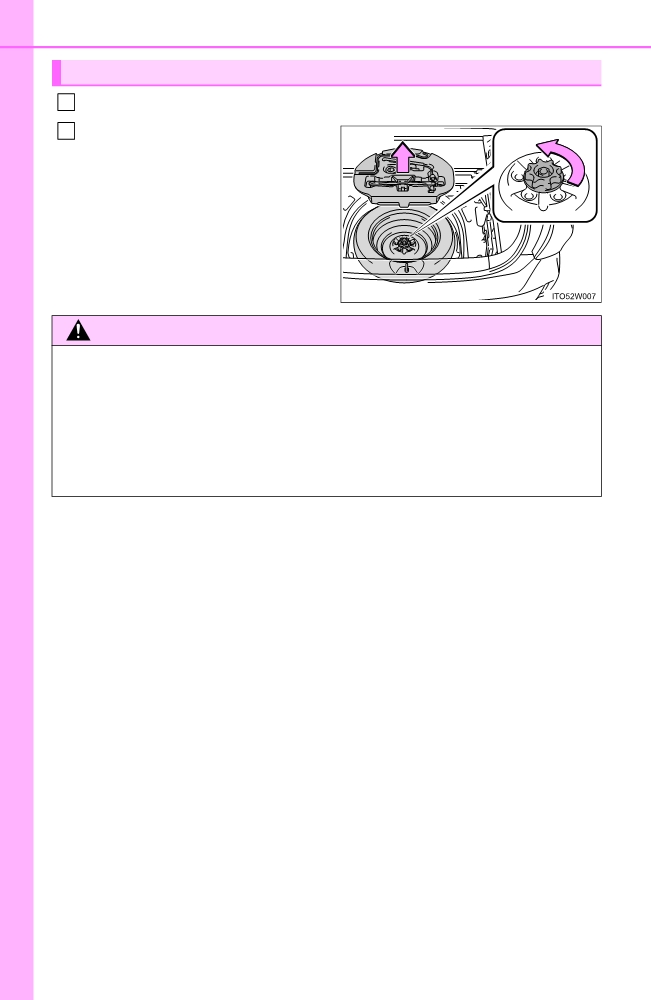

Taking out the spare tire
1
Remove the deck boards and center auxiliary boxes. (P. 509)
2
Unload the tool holder from the
vehicle and loosen the center
fastener that secures the spare
tire.
WARNING
■Service plug
Be careful not to hit the service plug when loading or unloading the tool
holder or the spare tire. (P. 78)
■When storing the spare tire
Be careful not to catch fingers or other body parts between the spare
tire and the body of the vehicle.
8-2. Steps to take in an emergency
511
Replacing a flat tire

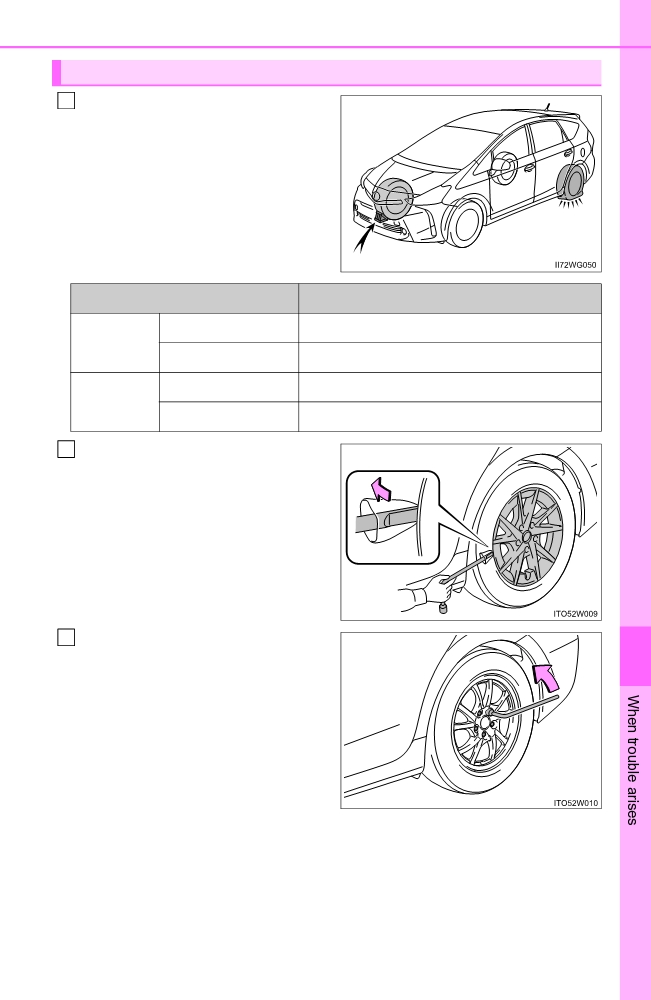

1
Chock the tires.
Flat tire
Wheel chock positions
Left-hand side
Behind the rear right-hand side tire
Front
Right-hand side
Behind the rear left-hand side tire
Left-hand side
In front of the front right-hand side tire
Rear
Right-hand side
In front of the front left-hand side tire
2
For vehicles with
16 inch
wheels, remove the wheel
ornament using the wrench.
To prevent damage, cover the tip
of the wrench with a rag.
3
Slightly loosen the wheel nuts
8
(one turn).
512
8-2. Steps to take in an emergency
4

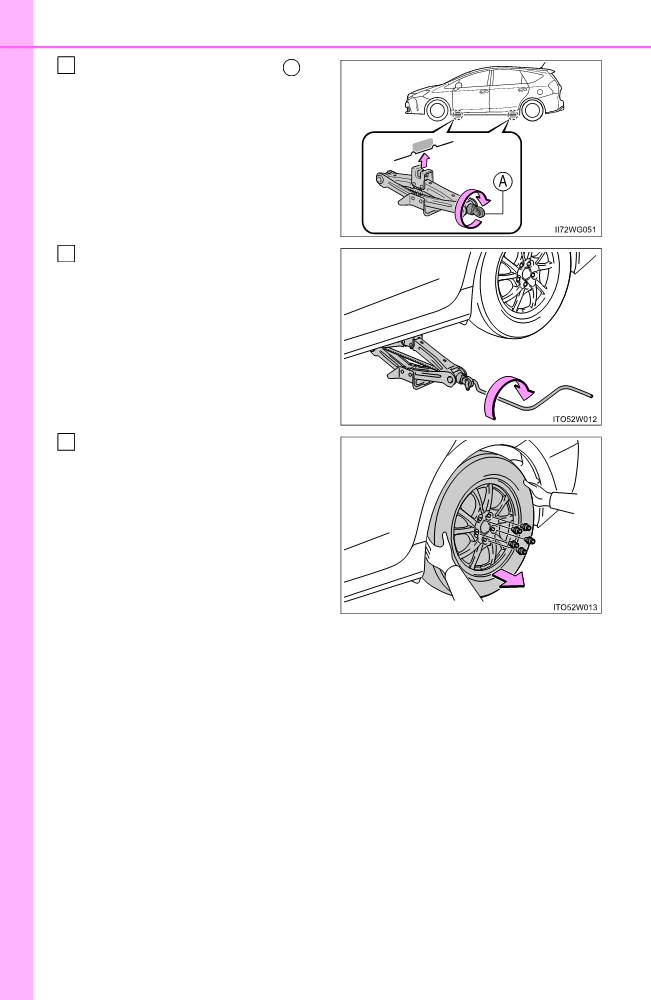

Turn the tire jack portion
A
by
hand until the notch of the jack
is in contact with the jack point.
The jack point guides are located
under the rocker panel. They
indicate the jack point positions.
Raise the vehicle until the tire is
5
slightly raised off the ground.
6
Remove all the wheel nuts and
the tire.
When resting the tire on the
ground, place the tire so that the
wheel design faces up to avoid
scratching the wheel surface.
8-2. Steps to take in an emergency
513
WARNING
■ Replacing a flat tire
● Do not touch the disc wheels or the area around the brakes immedi-
ately after the vehicle has been driven.
After the vehicle has been driven the disc wheels and the area around
the brakes will be extremely hot. Touching these areas with hands, feet
or other body parts while changing a tire, etc. may result in burns.
●Failure to follow these precautions could cause the wheel nuts to
loosen and the tire to fall off, resulting in death or serious injury.
• Have the wheel nuts tightened with a torque wrench to 76 ft•lbf (103
N•m, 10.5 kgf•m) as soon as possible after changing wheels.
• When installing a tire, only use wheel nuts that have been specifi-
cally designed for that wheel.
• If there are any cracks or deformations in the bolt screws, nut
threads or bolt holes of the wheel, have the vehicle inspected by
your Toyota dealer.
• When installing the wheel nuts, be sure to install the wheel nuts with
the tapered ends facing inward. (P. 444)
8
514
8-2. Steps to take in an emergency

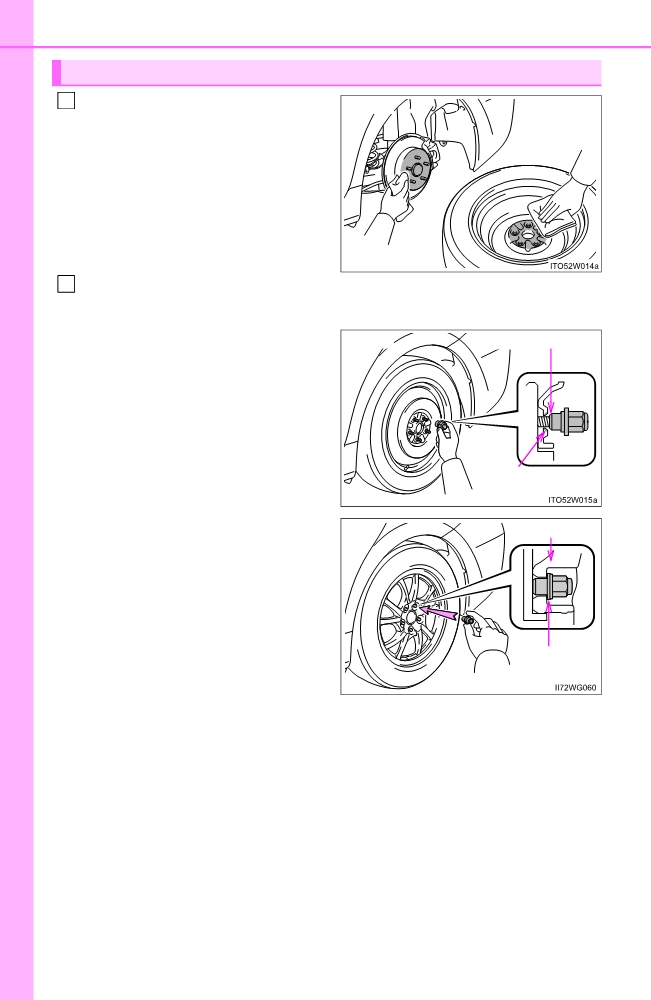

Installing the spare tire
Remove any dirt or foreign mat-
1
ter from the wheel contact sur-
face.
If foreign matter is on the wheel
contact surface, the wheel nuts
may loosen while the vehicle is in
motion, causing the tire to come
off.
2
Install the spare tire and loosely tighten each wheel nut by hand by
approximately the same amount.
When replacing an aluminum
Tapered portion
wheel with a steel wheel
(including a compact spare
tire), tighten the wheel nuts until
the tapered portion comes into
loose contact with the disc
wheel seat.
Disc wheel
seat
When replacing an aluminum
Disc wheel
wheel with an aluminum wheel,
turn the wheel nuts until the
washers come into contact with
the disc wheel.
Washer
8-2. Steps to take in an emergency
515
3
Lower the vehicle.
Firmly tighten each wheel nut
4
two or three times in the order
shown in the illustration.
Tightening torque:
76 ft•lbf (103 N•m, 10.5 kgf•m)
5
For vehicles with
16 inch
wheels, reinstall the wheel
ornament.*
Align the cutout of the wheel
ornament with the valve stem as
shown.
*: The wheel ornament cannot be
installed on the compact spare
tire.
6

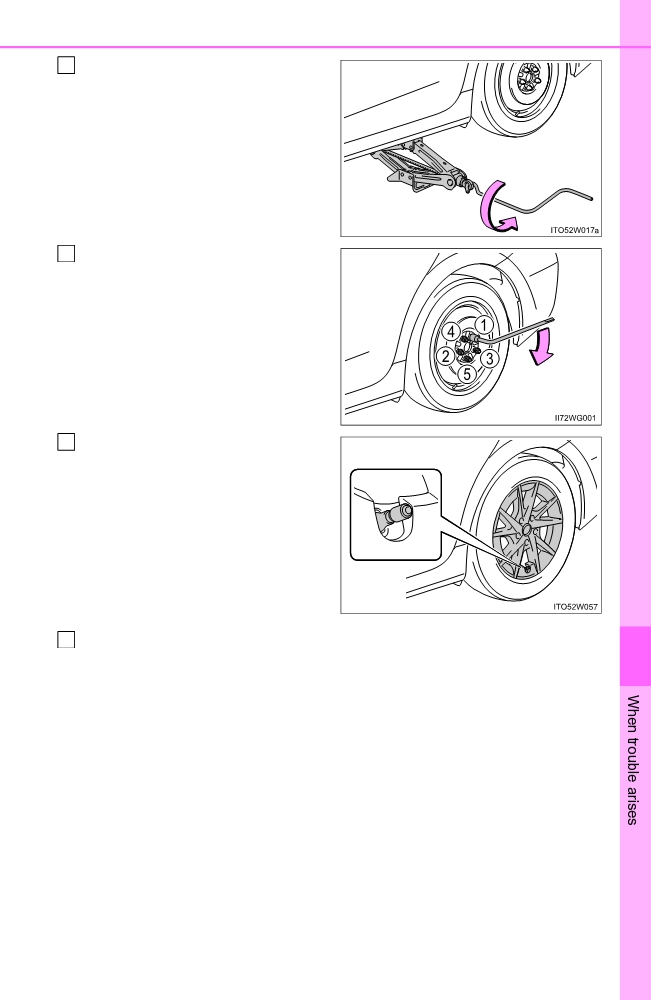

Stow the flat tire, tire jack and all tools.
8
516
8-2. Steps to take in an emergency
■The compact spare tire
●The compact spare tire is identified by the label “TEMPORARY USE
ONLY” on the tire sidewall.
Use the compact spare tire temporarily, and only in an emergency.
●Make sure to check the tire inflation pressure of the compact spare tire.
(P. 543)
■After completing the tire change
The tire pressure warning system must be reset. (P. 432)
■When using the compact spare tire
As the compact spare tire is not equipped with a tire pressure warning
valve and transmitter, low inflation pressure of the spare tire will not be
indicated by the tire pressure warning system. Also, if you replace the
compact spare tire after the tire pressure warning light comes on, the light
remains on.
■When the compact spare tire is equipped
The vehicle becomes lower when driving with the compact spare tire
compared to when driving with standard tires.
■If you have a flat front tire on a road covered with snow or ice
Install the compact spare tire on one of the rear wheels of the vehicle.
Perform the following steps and fit tire chains to the front tires:
1
Replace a rear tire with the compact spare tire.
2
Replace the flat front tire with the tire removed from the rear of the vehi-
cle.
3
Fit tire chains to the front tires.
