2. Instrument cluster
Changing the display

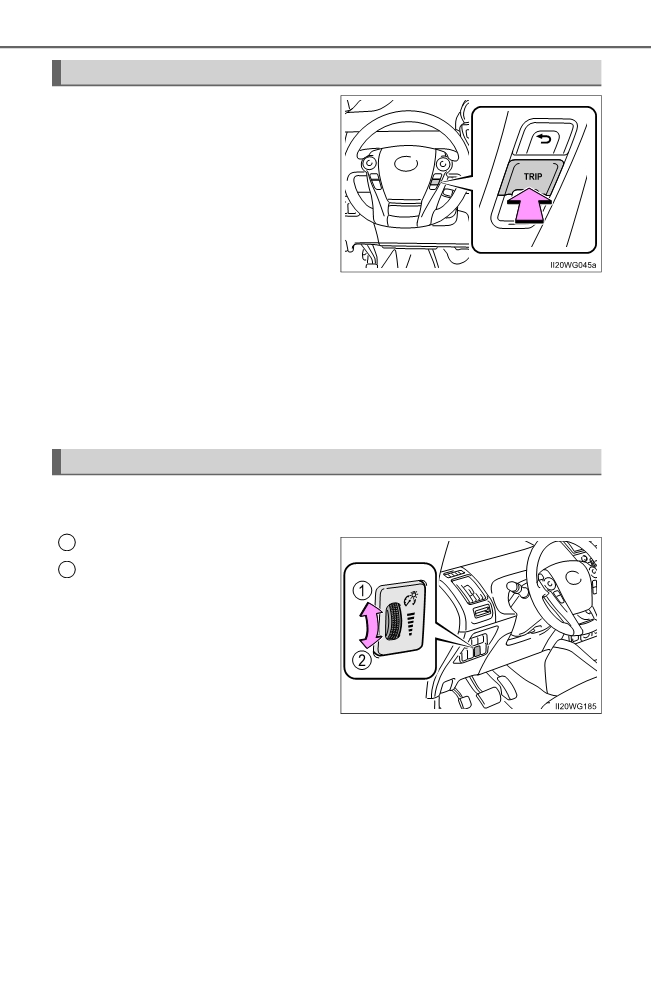

Switches between odometer and
trip meter displays. When the trip
meter is displayed, pressing and
holding the TRIP button will reset
the trip meter.
• While the odometer is being dis-
played, or when the odometer/trip
meter are not being displayed,
the average fuel consumption
from the last reset will be dis-
played.
• While the trip meter is being displayed, the average fuel consumption will
be displayed in accordance with the trip meter distance from the last
reset.
• The function can be reset by pressing the TRIP button for longer than 1
second when the average fuel consumption is displayed on the trip
meter.
Use the displayed average fuel consumption as a reference.
Instrument panel light control
The brightness of the instrument panel lights can be adjusted by turn-
ing the dial.
1
Brighter
2
Darker
When the headlight switch is
turned to ON, the brightness will be
reduced slightly unless the control
dial is turned fully up.
2. Instrument cluster
93
■The meters and display illuminate when
The power switch is in ON mode.
■Remaining hybrid battery (traction battery) charge display
The charge amount of the hybrid battery (traction battery) is automatically
controlled by the hybrid system. For this reason, even if electricity is recov-
ered via the regenerative braking, or electricity is generated via the gasoline
engine, the displayed hybrid battery (traction battery) charge amount may not
reach the highest level (level 8). However, this does not indicate a malfunc-
tion.
■ Engine speed
2
On hybrid vehicles, engine speed is precisely controlled in order to help
improve fuel efficiency and reduce exhaust emissions etc.
■Brightness of the instrument panel light
If the headlight switch is turned to ON while the surrounding area is dark, the
instrument panel lights will dim.
■ When disconnecting and reconnecting 12-volt battery terminals
The fuel consumption display and average vehicle speed will be reset.
NOTICE
■ To prevent damage to the engine and its components
The engine may be overheating if the high coolant temperature warning
light comes on or flashes. In this case, immediately stop the vehicle in a
safe place, and check the engine after it has cooled completely. (P. 528)
■ The information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information display
monitor may respond slowly, and display changes may be delayed.
94
2. Instrument cluster
Multi-information display
Display contents

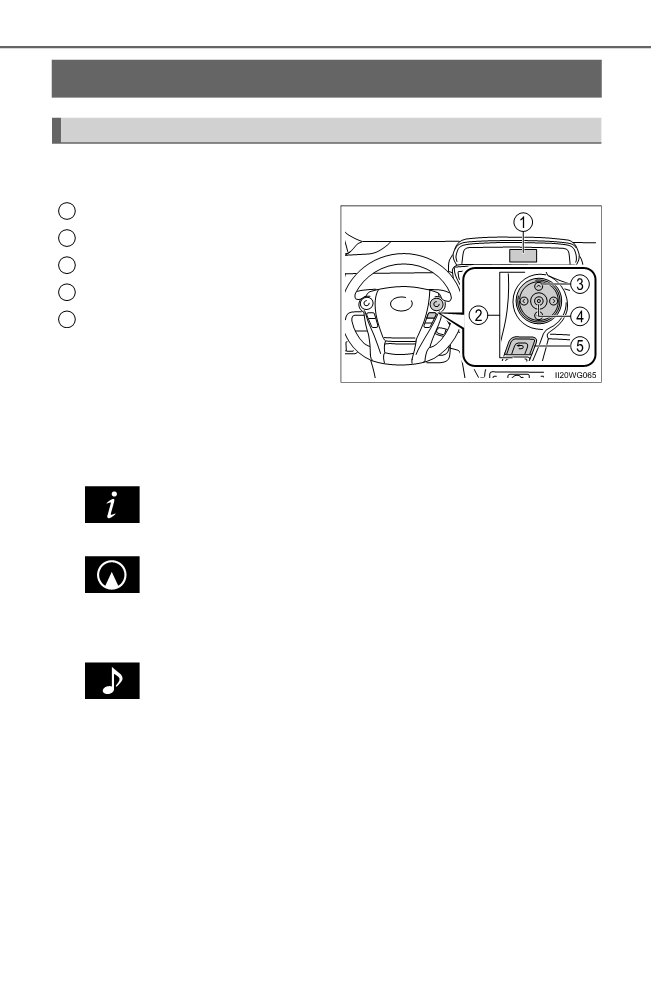

The multi-information display presents the driver with a variety of vehi-
cle data.
1
Multi-information display
2
Meter control switches
3
Select an item/change pages
4
Enter/Set
5
Return to the previous screen
● Menu icons
Displays the following information when an icon is selected.
Some of the information may be displayed automatically depending
on the situation.
Drive information
Select to display various drive data. (P. 96)
Navigation system-linked display (if equipped)
Select to display the following navigation system-linked information.
• Route guidance
• Compass display (north-up display/heading-up display)
Audio system-linked display (if equipped)
Select to enable selection of an audio source or track on the display
using the meter control switches.
2. Instrument cluster
95
Clock
Show the current time on the display.
Driving assist system information
The information related to driving assist systems such as the LDA
(Lane Departure Alert with steering control) and dynamic radar cruise
control is displayed. (P. 217, 227)
Warning message display
2
Select to display warning messages and measures to be taken if a
malfunction is detected. (P. 487)
Settings display
Select to change the meter display settings. (P. 559)
96
2. Instrument cluster
Drive information
Items displayed can be switched by pressing
or
of the meter
control switches to select
and pressing
or
■ Energy monitor
The current vehicle hybrid system condition is displayed. (P. 97)
■ Hybrid System Indicator
The hybrid system power output and regenerative charging condi-
tions are displayed. (P. 99)
■ Eco score/Hybrid System Indicator
The eco-driving total count is displayed. (P. 99)
■ Fuel consumption and instantaneous fuel consumption per
minute
The fuel consumption and instantaneous fuel consumption per min-
ute is displayed. (P. 99)
■ Distance to empty/Average vehicle speed after hybrid system
started/Average fuel consumption after hybrid system started
The possible driving range estimated from the remaining fuel
amount, average vehicle speed after the hybrid system is started,
and average fuel consumption are displayed. (P. 100)
■ LDA (Lane Departure Alert with steering control) vehicle sway
warning
Detects the sway of the vehicle within a lane, which is often associ-
ated with a decrease in the driver’s attention level, and displays the
decrease in attention using a bar display.
The shorter the bar length, the more the driver may need to rest.
This display is a part of the LDA (Lane Departure Alert with steering
control) system. The display is enabled when the operating conditions
of the vehicle sway warning function are met. (P. 217)
■ OFF display
The OFF display is displayed.
2. Instrument cluster
97

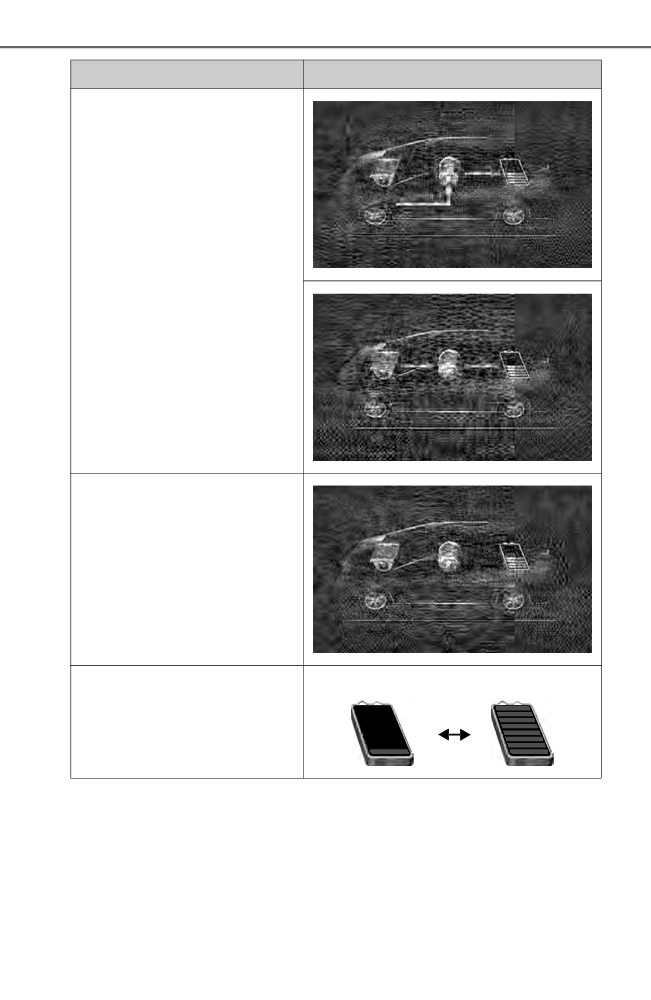

How to read the energy monitor
Energy monitor

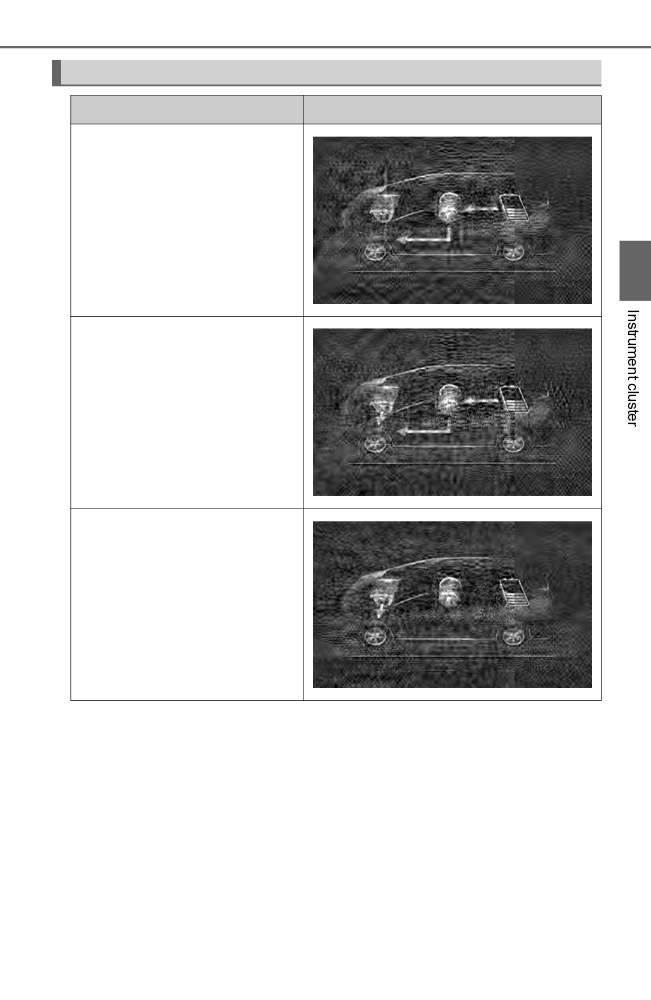

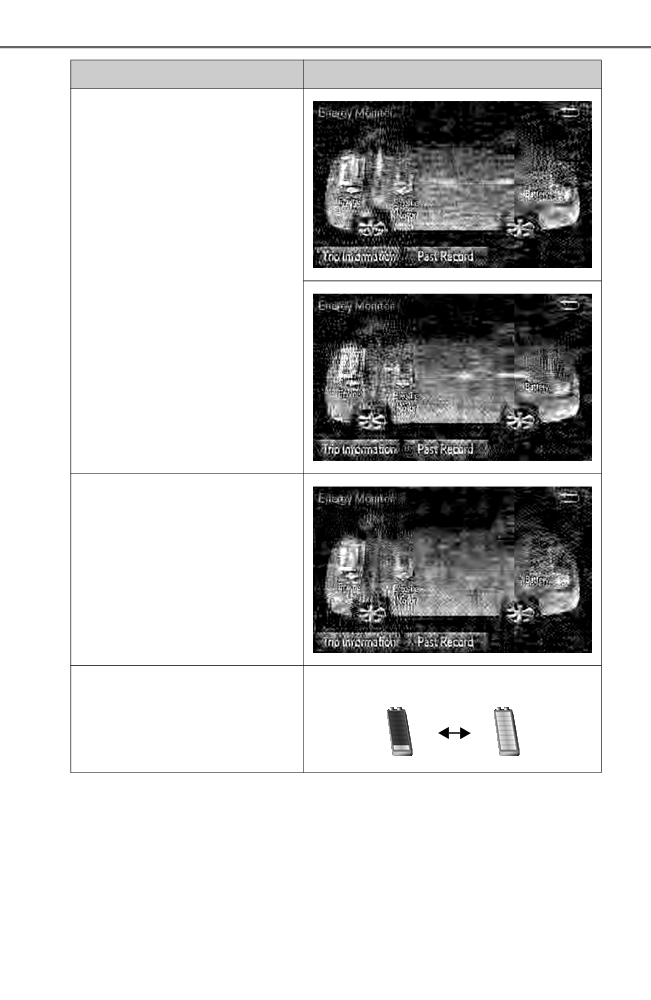

When the vehicle is powered by
the electric motor
(traction
motor)
2
When the vehicle is powered by
both the gasoline engine and
the electric motor
(traction
motor)
When the vehicle is powered by
the gasoline engine
98
2. Instrument cluster
Energy monitor

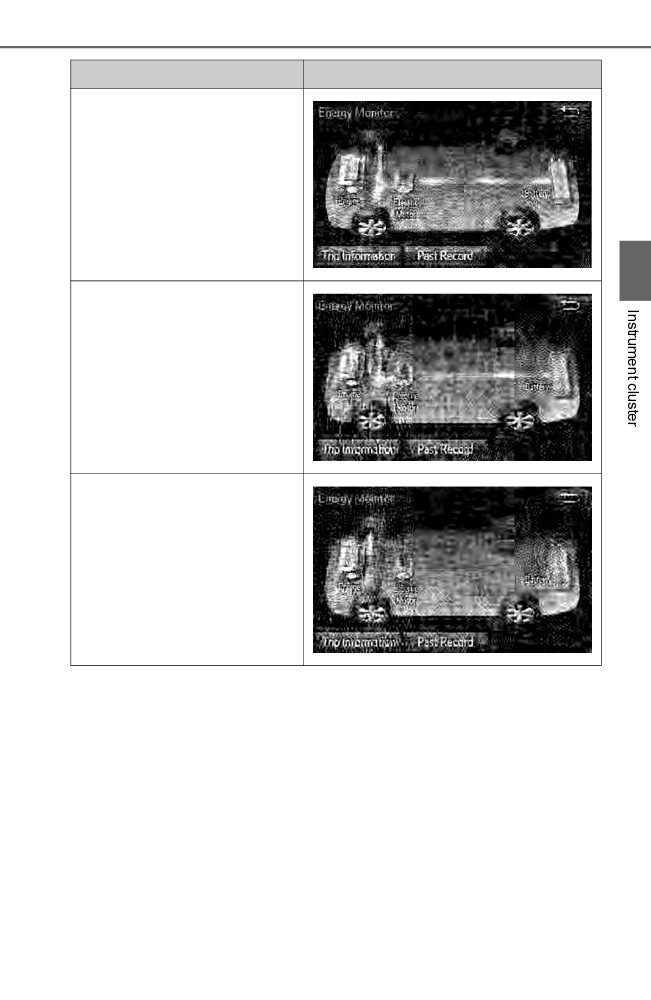

When the vehicle is charging
the hybrid battery (traction bat-
tery)
When there is no energy flow
Low
Full
Hybrid battery (traction battery)
status
These images are examples only, and may vary slightly from actual
conditions.
2. Instrument cluster
99
How to read the Hybrid System Indicator
Hybrid System Indicator displays the hybrid system power output and
regenerative charging and provides Eco-friendly driving assistance in
accordance with the driving conditions and the acceleration.
■ Names and meaning of each icons
1
EV indicator
The EV indicator comes on
when the vehicle is driven using
only the electric motor (traction
2
motor) or the gasoline engine is
stopped.
2
Hybrid System Indicator
P. 101

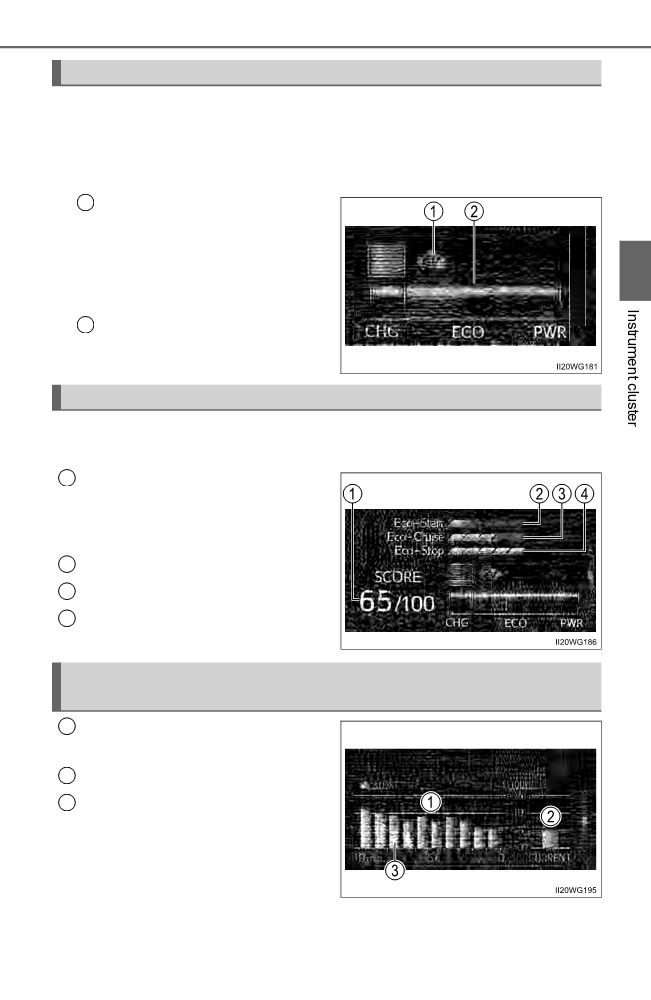

How to read the Eco score
Displays the eco-driving total count to help improve the customer’s
eco-driving techniques and the vehicle’s fuel economy.
1
Score
Totals the counts of Eco-Start, Eco-
Cruise and Eco-Stop and displays
the result.
2
Eco-Start
3
Eco-Cruise
4
Eco-Stop
How to read the fuel consumption and instantaneous fuel con-
sumption per minute
1
Fuel consumption in the past 10
minutes
2
Current fuel consumption
3
Regenerated energy in the past
10 minutes
One symbol indicates 30 Wh.
Up to 10 symbols are shown.
100
2. Instrument cluster

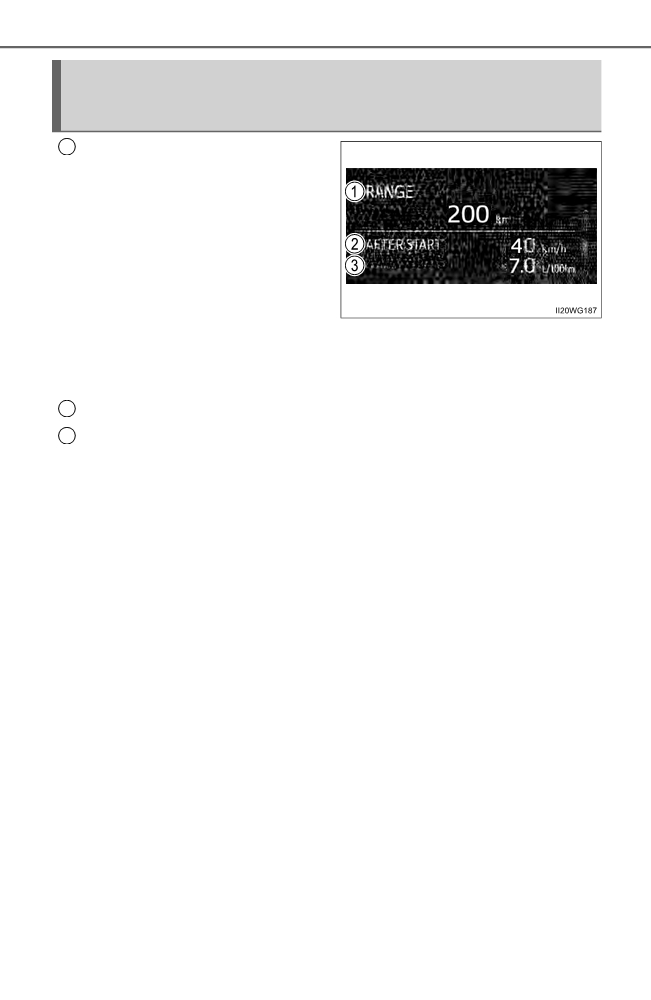

How to read the distance to empty/Average vehicle speed after
hybrid system started/Average fuel consumption after hybrid
system started
1
Distance to empty
• Since it is calculated based on
the average fuel consumption in
the past, it may not be the actual
distance that can be driven to be
displayed.
• When only a small amount of
fuel is added to the tank, the dis-
play may not be updated. When
refueling, turn the power switch
off. If the vehicle is refueled
without turning the power switch
off, the display may not be
updated.
2
Average vehicle speed after hybrid system started
3
Average fuel consumption after hybrid system started
• Use the displayed average fuel consumption as a reference.
• These images are examples only, and may vary slightly from actual con-
ditions.
2. Instrument cluster
101
■ System check display
After turning the power switch to ON mode, opening image is displayed while
system operation is checked. When the system check is complete, the nor-
mal screen will return.
■Pop-up display
When a system that supports pop-up displays, such as the air conditioning
system, is operated, a pop-up display will be temporarily displayed.
■ When disconnecting and reconnecting 12-volt battery terminals
The fuel consumption display and average vehicle speed will be reset.
■Liquid crystal display
2
Small spots or light spots may appear on the display. This phenomenon is
characteristic of liquid crystal displays, and there is no problem continuing to
use the display.

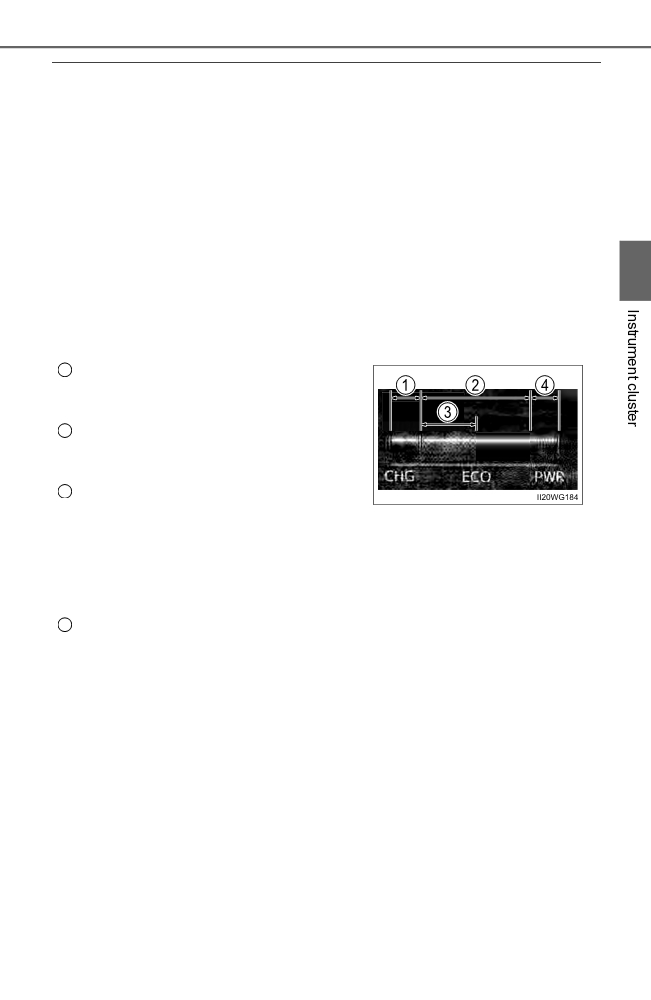

■Hybrid System Indicator
1
Charge area
Shows that energy is being recovered
via the regenerative brake.
2
Eco area
Shows that the vehicle is being driven in
an Eco-friendly manner.
3
Hybrid Eco area
Shows that gasoline engine power is
not being used very often.
The gasoline engine will automatically
stop and restart under various condi-
tions.
4
Power area
Shows that an Eco-friendly driving range is being exceeded (during full
power driving etc.)
● By keeping the indicator within Eco area, more Eco-friendly driving can be
achieved.
● Charge area indicates regeneration* status. Regenerated energy will be
used to charge the hybrid battery (traction battery).
*: When used in this manual, “regeneration” refers to the conversion of
energy created by the movement of the vehicle into electrical energy.
102
2. Instrument cluster
■ Meter display setting initialization
1
Press
or
on the meter control switch to select
, and then
press
2
Press
or
to select meter setting initialization, press
, and then
select “YES”.
■Customization
The meter settings can be changed. (Customizable features: P. 559)
WARNING
■ Caution for use while driving
●When operating the multi-information display while driving, pay extra
attention to the safety of the area around the vehicle.
●Do not look continuously at the multi-information display while driving as
you may fail to see pedestrians, objects on the road, etc. ahead of the
vehicle.
NOTICE
■ The multi-information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information display
monitor may respond slowly, and display changes may be delayed.
2. Instrument cluster
103
Energy monitor/consumption screen

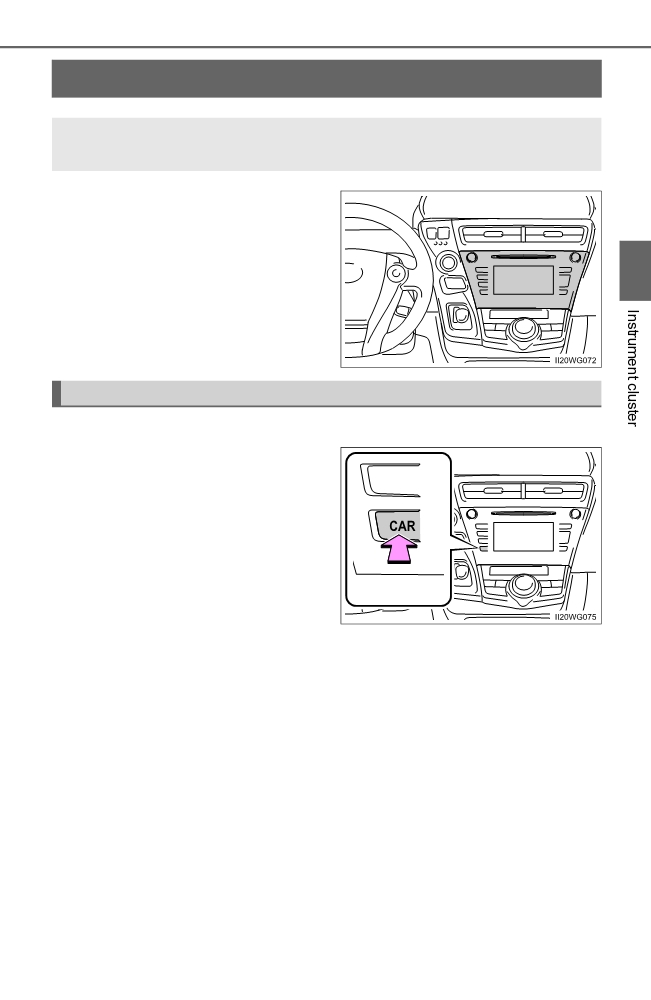

You can view the status of your hybrid system on the audio sys-
tem screen.
Audio system
2
Energy monitor
Audio system with “CAR” button
Press the “CAR”.
If the
“Trip Information” or
“Past
Record” screen is displayed, select
“Energy”.
104
2. Instrument cluster
Audio system with “APPS” button

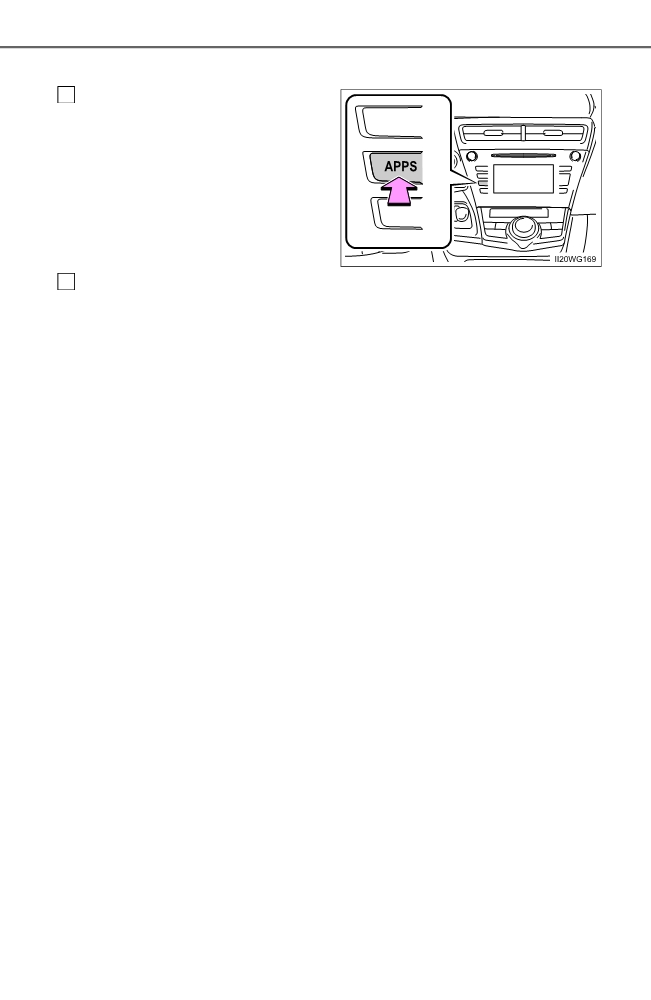

1
Press the “APPS”.
2
Select “Eco” on the “APPS” screen.
If the
“Trip Information” or
“Past Record” screen is displayed, select
“Energy”.
2. Instrument cluster
105
Audio system screen
When the vehicle is powered by
the electric motor
(traction
motor)
2
When the vehicle is powered by
both the gasoline engine and
the electric motor
(traction
motor)
When the vehicle is powered by
the gasoline engine
106
2. Instrument cluster
Audio system screen
When the vehicle is charging
the hybrid battery (traction bat-
tery)
When there is no energy flow
Low
Full
Hybrid battery (traction battery)
status
These images are examples only, and may vary slightly from actual
conditions.
2. Instrument cluster
107
Trip information
Audio system with “CAR” button
1
Press the “CAR” button. (P. 103)
Audio system with “APPS” button
1
Press the “APPS” button. (P. 104)
2
Select “ECO” on the “APPS” screen
If “Energy Monitor” screen is displayed, select “Trip Information”.
If “Past Record” screen is displayed, select “Trip Information”.
2
1
Resetting the consumption
data
2

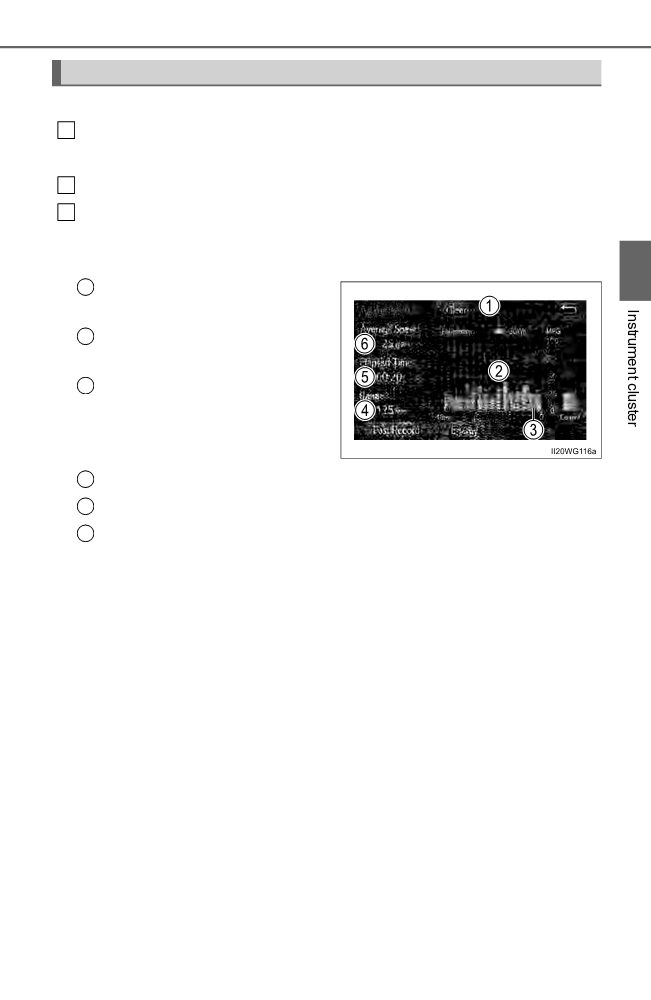

Fuel consumption in the past
15 minutes
3
Regenerated energy in the
past 15 minutes
One symbol indicates 30 Wh.
Up to 5 symbols are shown.
4
Cruising range (P. 108)
5
Elapsed time since the hybrid system was started.
6
Average vehicle speed since the hybrid system was started.
Average fuel consumption for the past 15 minutes is divided by
color into past averages and averages attained since the power
switch was last turned to ON mode. Use the displayed average fuel
consumption as a reference.
The image is an example only.
108
2. Instrument cluster
Past record
Audio system with “CAR” button
1
Press the “CAR” button. (P. 103)
Audio system with “APPS” button
1
Press the “APPS” button. (P. 104)
2
Select “ECO” on the “APPS” screen.
If “Energy Monitor” screen is displayed, select “Past Record”.
If “Trip Information” screen is displayed, select “Past Record”.

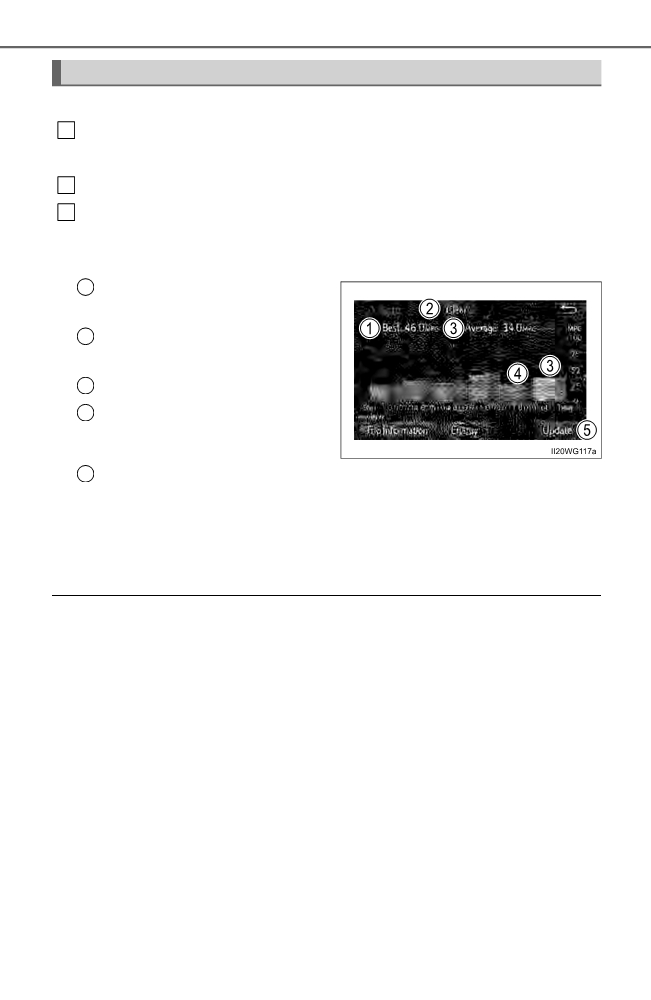

Best recorded fuel consump-
1
tion
2
Resetting the past record
data
3
Average fuel consumption
4
Previous fuel consumption
record
Updating the average fuel consumption data
5
The average fuel consumption history is divided by color into past
averages and the average fuel consumption since the last updated.
Use the displayed average fuel consumption as a reference.
The image is an example only.
■Updating the past record data
Update the average fuel consumption by selecting “Update” to measure the
current fuel consumption again.
■Resetting the data
The fuel consumption data can be deleted by selecting “Clear”.
■Cruising range
Displays the estimated maximum distance that can be driven with the quan-
tity of fuel remaining.
This distance is computed based on your average fuel consumption.
As a result, the actual distance that can be driven may differ from that dis-
played.
