OVERVIEW

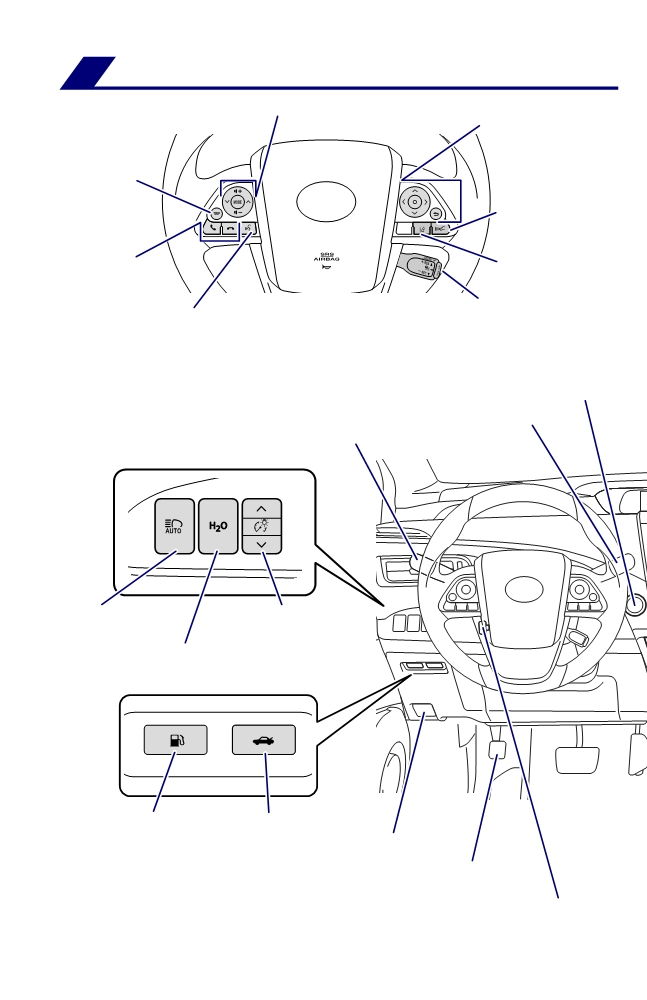

Instrument panel
Audio switches1
Multi-Information Display
(MID) control switches
Odometer/
Dynamic Radar Cruise
trip meter and
Control (DRCC)
tripmeter reset
vehicle-to-vehicle
button
distance switch
Lane Departure Alert
Telephone switches1
(LDA) switch
Dynamic Radar Cruise
Voice command switch1
Control (DRCC)/Cruise
Steering wheel controls
control switch
Power switch
Windshield wiper and washer switch
Turn signal lever and headlight switch
Automatic High
Instrument panel light
Beam (AHB) switch
control switches
Water release switch
Fuel door opener
Trunk opener
switch
switch
Hood lock release lever
Parking brake lever
Tilt and telescopic steering
lock release lever
2
1
For details, refer to the “Navigation System Owner’s Manual” or “2018 Entune™ 3.0 Audio Quick
Reference Guide.”

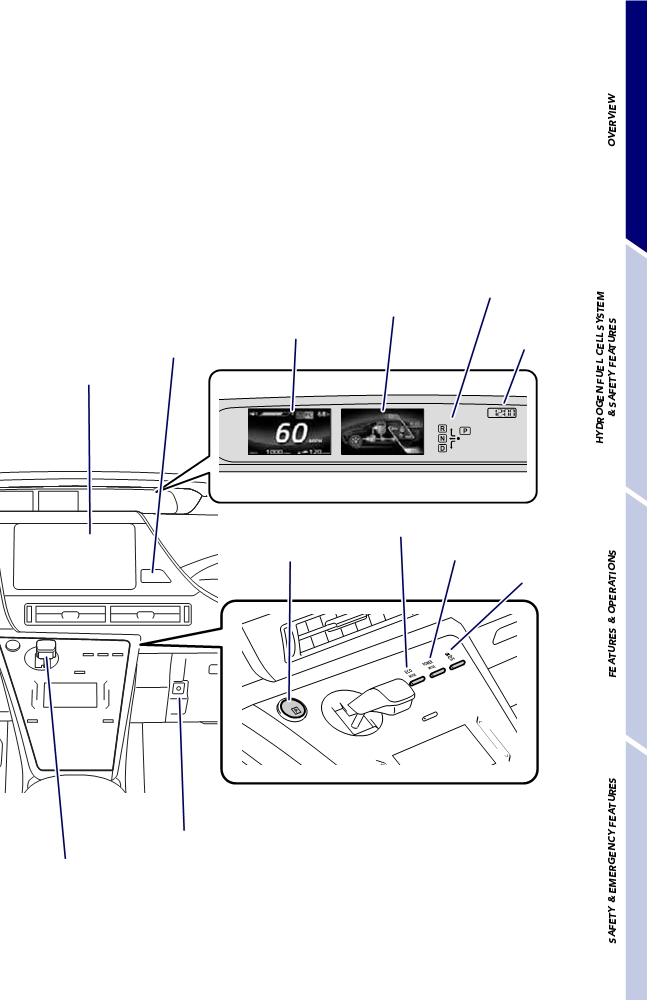

Shift position indicator
Multi-Information Display (MID)
Main display
Emergency flasher switch
Clock
Audio/Navigation system1
“ECO MODE” switch
“P” position switch
“POWER MODE” switch
VSC OFF switch
Luggage security system
(disable trunk opener) switch
Shift lever
3
OVERVIEW

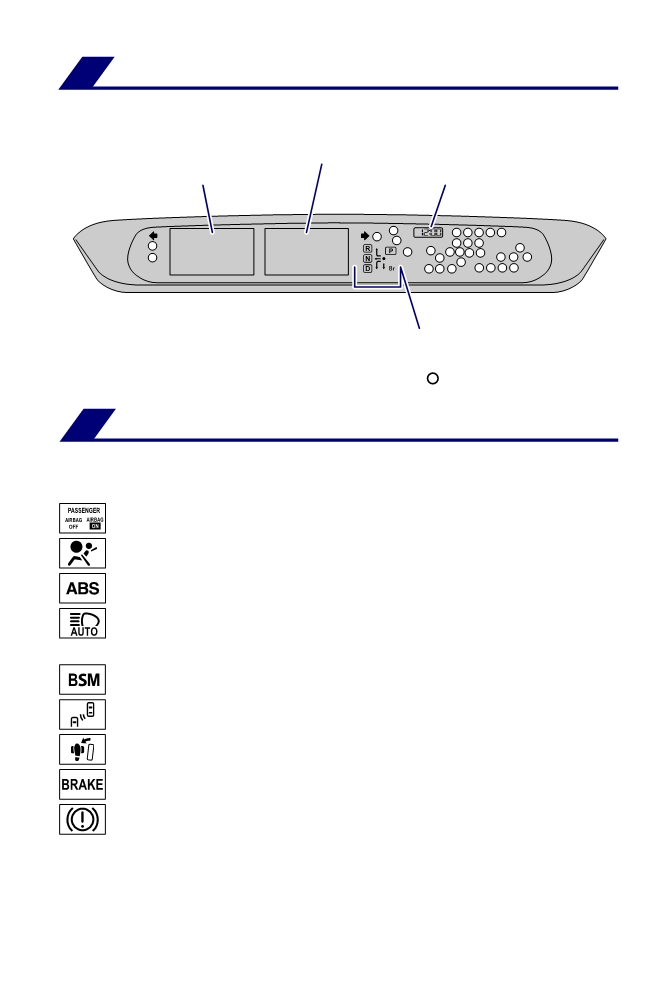

Instrument cluster
Multi-Information Display (MID)
Main display
Clock
Transmission shift position indicator
Service indicators and reminders
Indicator symbols
For details, refer to “Indicators and warning lights,” Section 3, 2018 Owner’s
Manual.
Airbag ON/OFF indicator
Airbag SRS warning1
Anti-lock Brake System (ABS) warning1
Automatic high beam (AHB) indicator
Blind Spot Monitor (BSM) indicator
Blind Spot Monitor (BSM) outside
rearview mirror indicator
Brake Override System/
Drive-Start Control warning light
Brake system warning1
Brake system warning
(yellow indicator)1
4
Charging system warning1
Parking brake warning1
Constant speed cruise control
POWER mode indicator
indicator2/Constant speed cruise
control SET indicator2
Power restriction indicator
Driver’s and passenger’s seat belt reminder
Pre-Collision System (PCS) warning1
(alarm will sound if speed is over 12 mph)
Dynamic Radar Cruise Control
(DRCC) indicator2/DRCC SET
indicator2
READY indicator
ECO mode indicator
Security indicator
Electric power steering system warning1
Shift position indicator
Engine brake (Br) mode indicator
Slip indicator1
Headlight low/high beam indicator
Turn signal indicator
High coolant temperature warning1
Vehicle Stability Control OFF indicator
Hydrogen leak warning1
H2O indicator
Intuitive parking assist indicator
Lane Departure Alert (LDA) indicator
Low fuel level warning
Low tire pressure warning1
Master warning1
Open door warning
1 If
indicator does not turn off within a few seconds of starting Hydrogen Fuel Cell System, there
may be malfunction. Have vehicle inspected by your Toyota dealer.
2 If this light flashes, refer to “Dynamic Radar Cruise Control,” Section 5-5, 2018 Owner’s Manual.
5
OVERVIEW
Keyless entry

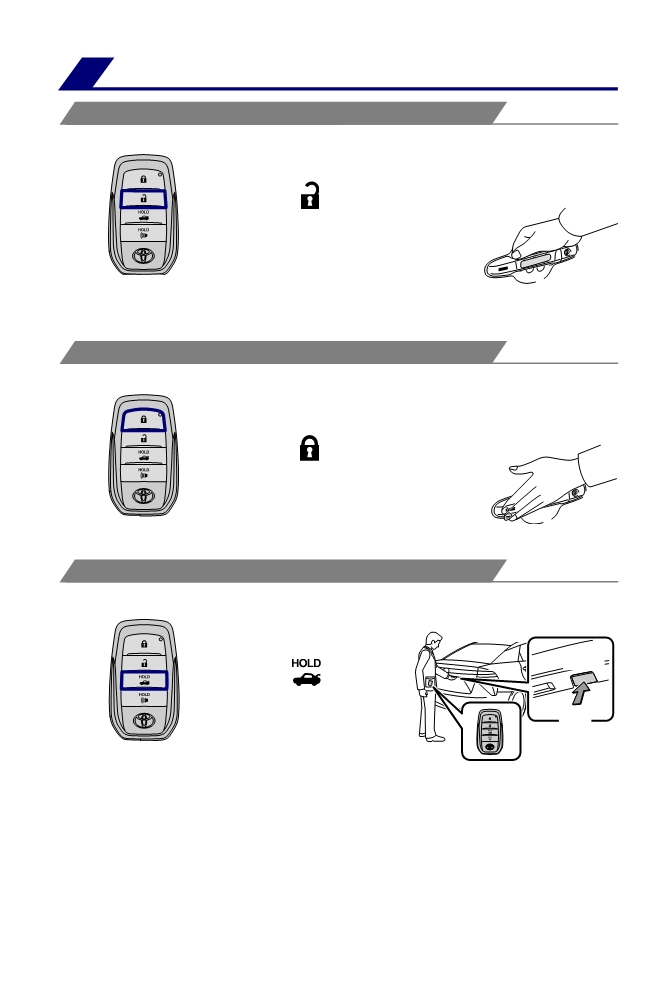

UNLOCKING
Carry remote
Smart key feature
Driver door unlock*
Grasp
Push
ONCE: Driver door
TWICE: All doors
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will relock for
safety.
LOCKING
Carry remote
Smart key feature
All-door lock
Touch
Push
TRUNK LID
Carry remote
Smart key feature
Unlock
Push and hold
Push
* Driver door unlocking function can be programmed to unlock driver door only, or
all doors. Grasping passenger door handle will unlock all doors.
NOTE: Doors may also be locked/unlocked using remote.
6

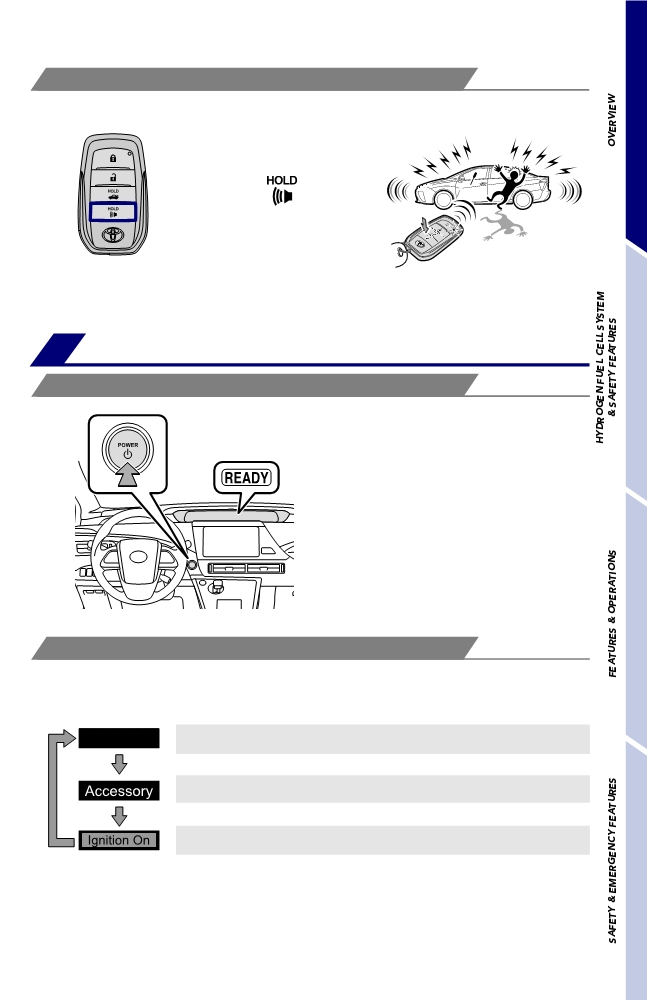

PANIC BUTTON
Push and hold
Smart Key system
START FUNCTION
(1) Depress the brake pedal, and press
the “POWER” switch briefly and firmly.
(2) The “READY” light will blink. After
a few seconds, when the light remains
steady and a beep sounds, you may
begin driving.
POWER (WITHOUT STARTING THE FUEL CELL SYSTEM)
Without depressing the brake pedal, pressing the “POWER” switch will change the
operation mode in succession from:
All systems OFF.
Accessories such as the radio will operate.
Power ON; Fuel Cell System is not engaged.
7
OVERVIEW
Instrument panel light control
+
-
Brightness
control

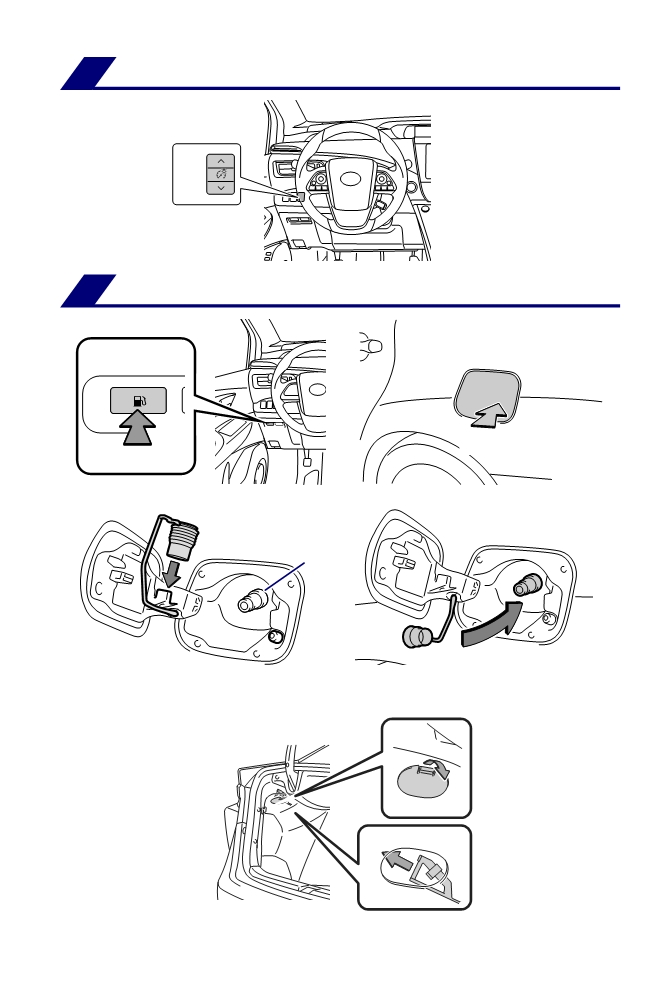

Fuel door release button and cap
Push
Push
Store cap
Receptacle
Replace cap
Alternate fuel door release (located in left rear of trunk)
(1)
Remove cap
Pull to left
(2)
When the fuel door is open, the fuel cell system will not start. When the “READY”
indicator is on, the fuel door will not open.
8
HYDROGEN FUEL CELL
SYSTEM & SAFETY FEATURES
Hydrogen Fuel Cell System
Fuel cell vehicles efficiently use electricity, which is generated by a chemical
reaction between hydrogen and oxygen in a fuel cell stack. Excess electricity is
stored in a traction battery that is used to power high voltage systems and assist on
initial acceleration.
The fuel is H2 (compressed hydrogen gas), so the exhaust, when running, is
only water and water vapor. As they do not emit CO2 (Carbon Dioxide) and NOx
(Nitrogen Oxides) at the tailpipe, fuel cell vehicles are considered zero emission
vehicles.
NOTE: Fuel consumption and energy information of the Hydrogen Fuel Cell
System are shown on the Multi-Information Display.
TIPS FOR IMPROVED FUEL ECONOMY
- Ensure tire pressures are maintained at levels specified in the Owner’s Manual.
- Drive vehicle smoothly. Avoid abrupt acceleration and deceleration.
- Avoid driving at speeds that are higher than necessary, especially on the
highway.
- When possible, avoid sudden stops to maximize regenerative braking energy.
- Minimize use of the air conditioning.
Fill with fuel at hydrogen stations compliant with SAE J2601.
If you have questions about hydrogen station compliance, consult your Authorized
Mirai Fuel Cell Toyota Dealer.
Observe the notices and cautions shown at the hydrogen station.
The filling time and amount may differ depending on the equipment of the hydrogen
station. It may make the possible driving distance shorter.
BEFORE FUELING
When you arrive at the station, prepare for fueling:
1) Ensure vehicle is OFF and in Park with parking brake set.
2) Press the fuel door release button and refer to instructions in ‘Fuel door release
button and cap section’ to prepare the vehicle to accept hydrogen fuel.
Note: Fuel door will not release the lock if power switch is ON or if READY
indicator is on. The fuel door will automatically re-lock if you don’t open within
30 seconds.
3) Now you are ready to refuel. Outside the vehicle at the pump, use the station’s
best practice guidelines and instructions on how to refuel using their nozzle.
For assistance, call Customer Support toll free at 1-800-331-4331.
9
HYDROGEN FUEL CELL
SYSTEM & SAFETY FEATURES

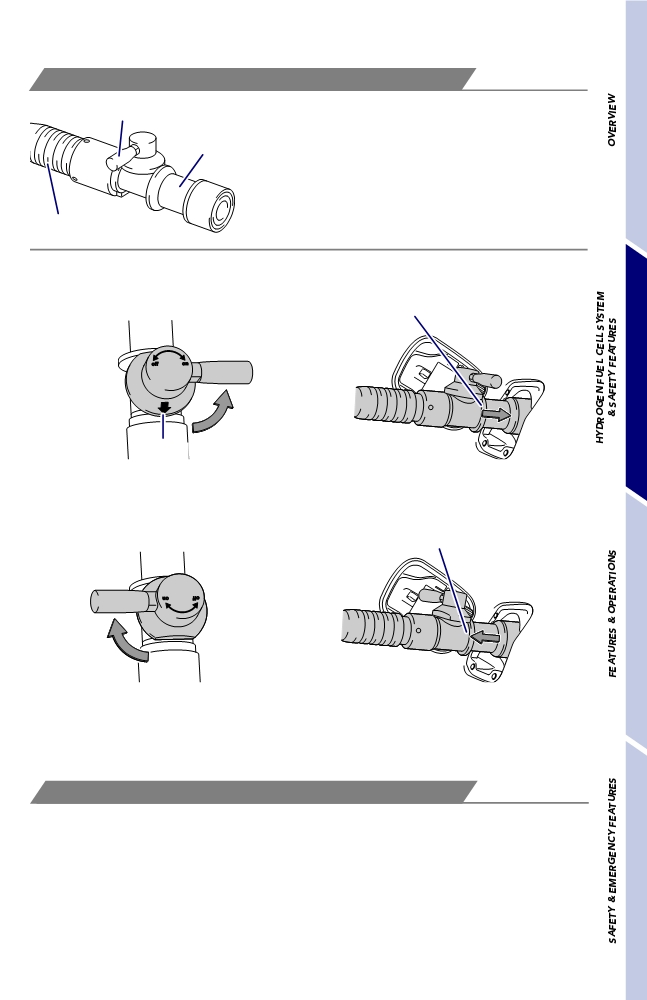

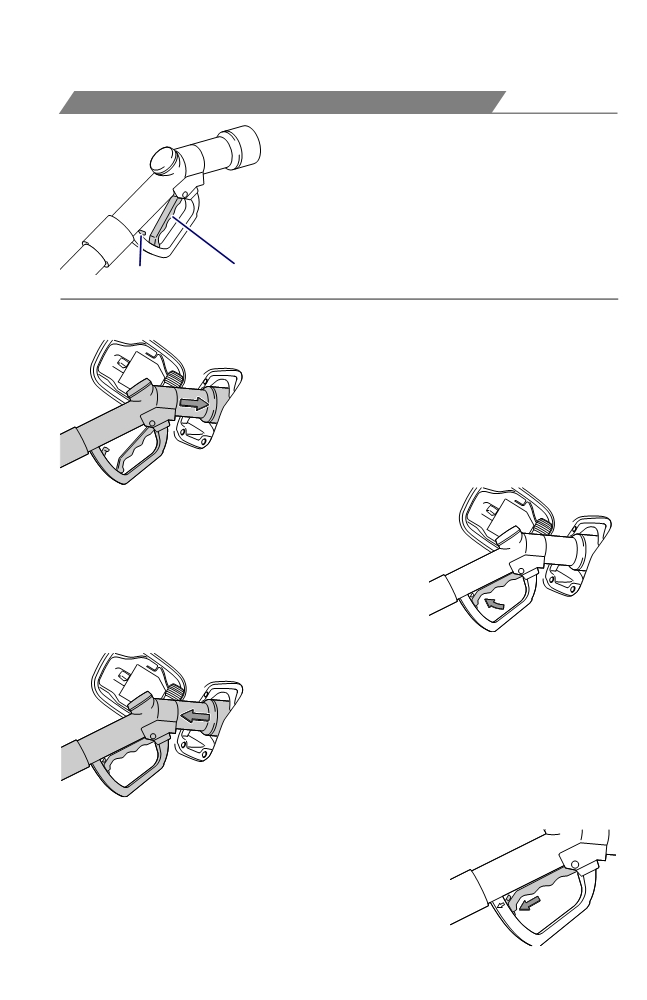

WEH H70 HYDROGEN GAS NOZZLE
*The integrated hand grip locks and
unlocks the nozzle, creating a secure
connection for safe fueling.
*Latch
Handle lever
Seat nozzle on receptacle
Seat nozzle onto receptacle fully.
(1)
(2)
Squeeze handle lever to lock. (To unlock nozzle, release
latch on hand grip when you are finished dispensing fuel.)
(3)
Gently pull back on nozzle to ensure it is locked onto
receptacle.
Once nozzle is secure, you can follow station’s instructions to
begin dispensing fuel.
CAUTION: It is important to ensure that the nozzle lock is
properly engaged to the vehicle. Failure to do this may result in
the nozzle coming off when the flow of hydrogen begins. This
may result in damage to the nozzle, station, vehicle, your own
person or people near the fueling station.
After fueling is complete, pull the latch to unlock the hand grip
(4)
and remove the hydrogen gas nozzle.
10
WEH H35 HYDROGEN GAS NOZZLE
Cam Lock Handle
*Integrated collar snaps into place
*Collar
with a ‘click.’ Rotate cam lock
clockwise to secure connection for
safe fueling.
Grip section
Seat nozzle on receptacle
(1)
Make sure handle is in the OFF position.
(2)
Holding grip section and collar, seat nozzle onto
receptacle.
OFF
Reference
arrow
(3)
Rotate handle clockwise to ON position to
(4)
Holding grip section, pull back on collar to make
lock nozzle.
sure nozzle is securely locked. Once nozzle is
secure, you can follow station’s instructions to
begin dispensing fuel.
ON
Remove nozzle
(5)
After filling is complete, rotate handle
(6)
Holding grip section, pull back on collar to
back to the OFF position.
unlock and remove the fuel nozzle.
TIP-AFTER REFUELING
NOTE: If the nozzle cannot be removed after fueling, it may be frozen to the
vehicle. Wait for the hydrogen nozzle to thaw before attempting to remove.
Do not pull or rotate the hydrogen nozzle forcibly. Failure to follow these
precautions may cause damage.
Refer to the Refueling section in the Owner’s Manual for additional warnings/notices.
11
HYDROGEN FUEL CELL
SYSTEM & SAFETY FEATURES

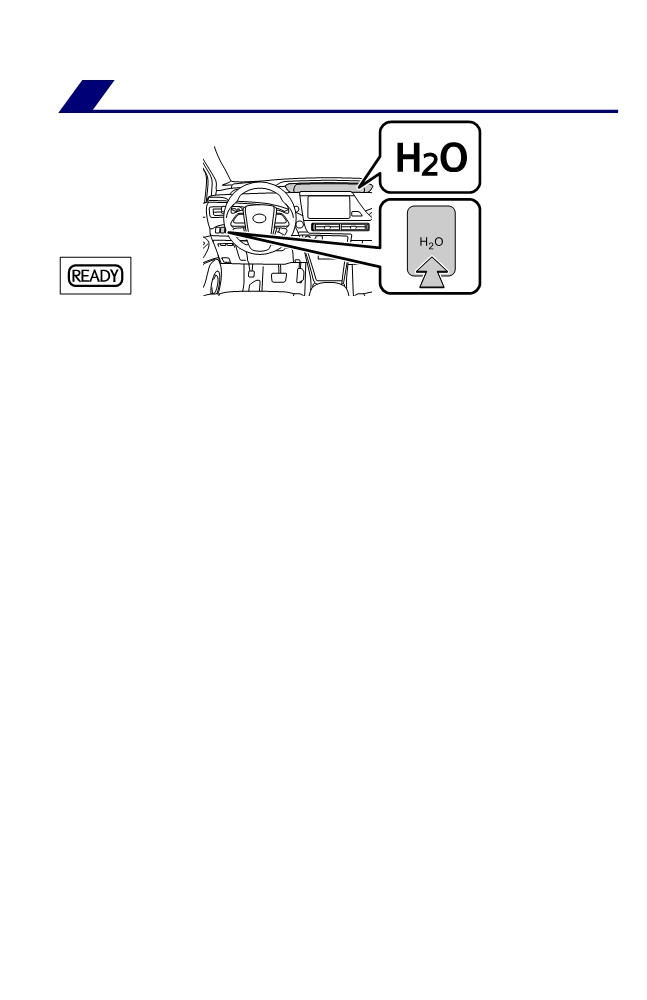

Water release (H20) switch
Water is a natural by-product of the fuel cell
process. The system is designed to
automatically purge water from the drain pipe at the rear of the vehicle while driving
and sometimes while it is shut off.
Water can be maually purged before parking in certain situations by pressing the
“H20” switch with the vehicle in “READY” mode. The system will regulate water
levels automatically. Drivers should typically let the vehicle handle this as opposed
to using this switch.
Refer to the Owner‘s Manual for more details on this system before attempting to
use it.
12
FEATURES & OPERATIONS
Auto lock/unlock
Automatic door lock functions can be set, or turned OFF.
-Doors lock when shifting to any positions other than P.
-Doors lock when the vehicle speed is approximately 12 mph or higher.
-Doors unlock when shifting into P.
-Doors unlock when the driver’s door is opened.
Refer to the Owner’s Manual for more details.

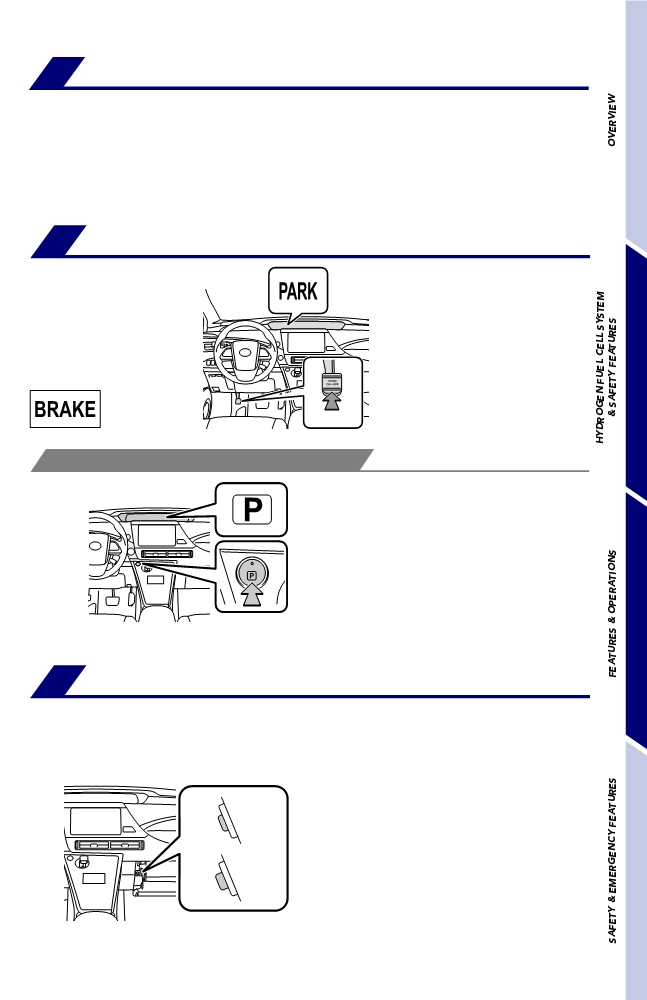

Parking brake
Set: Depress
Release: Depress again
Push
P POSITION SWITCH
(1) Fully stop the vehicle
(2) Keep depressing the brake pedal
(3) Press the P position switch.
The shift position can be changed to P through the use of the P position switch.
Luggage security system
To protect luggage stored in the trunk against theft, the luggage security system
can be set to on.
Trunk opener main switch (in the glove box)
To disable the trunk opener switch,
On
turn the main switch.
Off
When the main switch is off, the trunk lid cannot be opened even with the wireless
remote control or the entry function.
13
FEATURES & OPERATIONS

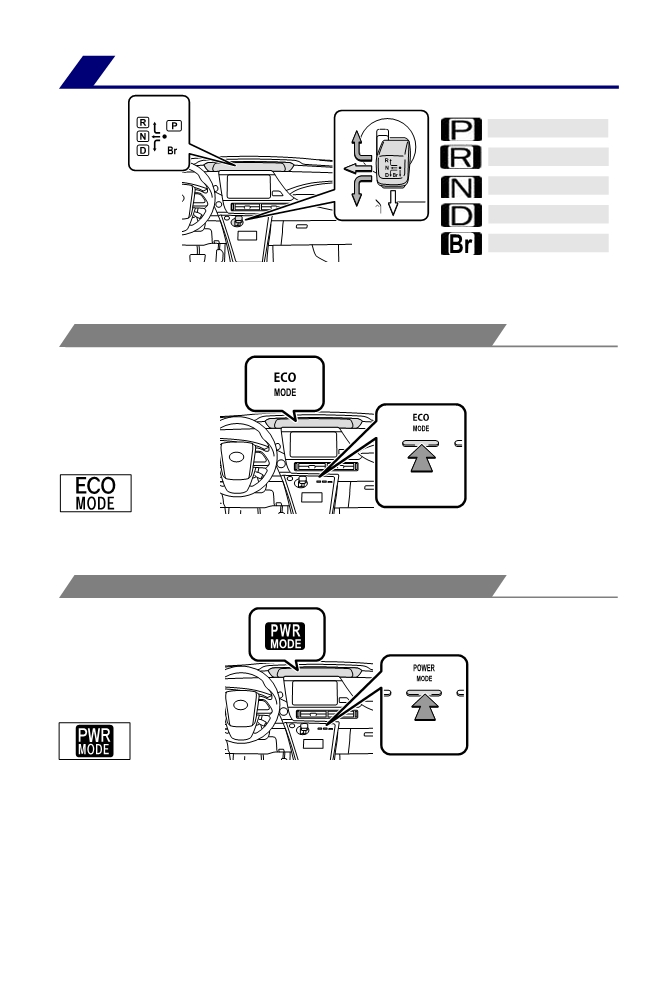

Automatic transmission
Park
Reverse
Neutral
Drive
Engine brake*
* The engine brake is the equivalent of downshifting. Shift to “Br” when strong
regenerative braking is desired (i.e. downhill driving, coasting to a stop, etc.).
ECO MODE
Push
ECO Mode helps achieve low fuel consumption during trips that involve frequent
accelerating and braking.
POWER MODE
Push
Use when a higher level of response is desired, such as when driving in
mountainous regions or overtaking.
14

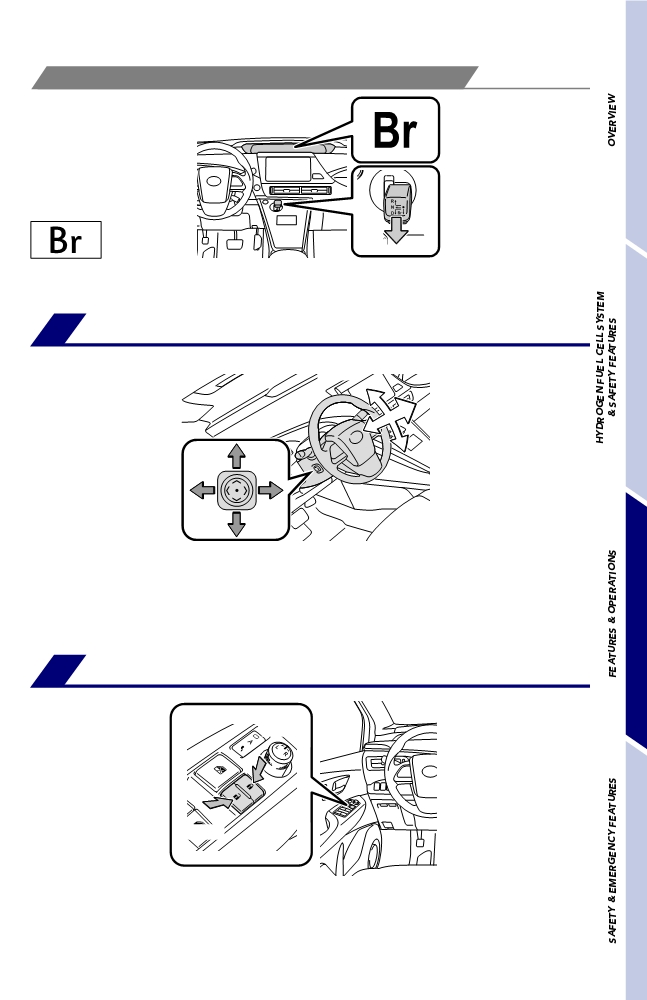

BR (ENGINE BRAKE) MODE
Pull
Suitable for driving that requires strong regenerative braking, such as down-hill
driving, etc. To select Br mode, shift the shift lever down.
Tilt & telescopic steering wheel
Angle
Length
Push lever to move steering wheel:
- up, down to adjust angle,
- left, right to adjust length (toward driver and away from driver.)
NOTE: Do not attempt to adjust while the vehicle is in motion.
Door locks
Lock
Unlock
15
FEATURES & OPERATIONS

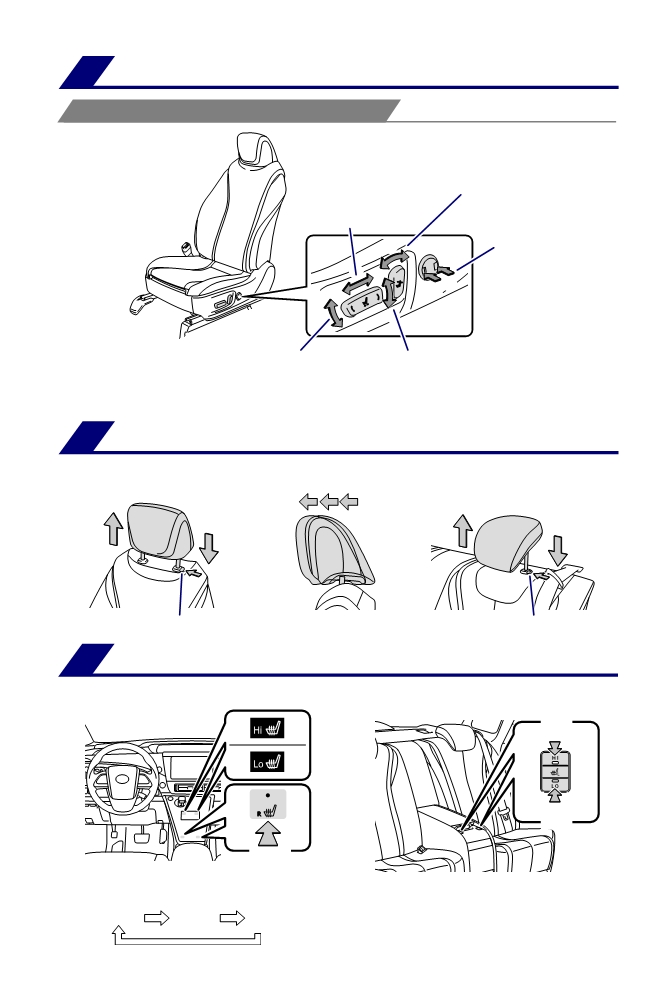

Seat adjustments-Front
DRIVER’S SIDE
Seatback angle
Seat position
(forward/backward)
Lumbar support
Vertical height
Seat cushion (front) angle
Note: Be careful to not allow the head rest to touch the ceiling.
Seats-Head restraints
Front vertical adjust
Front horizontal adjust
Rear vertical adjust
Lock release button
Lock release button
Seat heaters
Front seat
Rear passenger seat
Push
Push
Touch
Touch switch to change temperature intensity.
Push button to change temperature
intensity. Depress again and light indicates
High
Low
Off
heater is off.
16
Lane Departure Alert (LDA)
Camera sensor
While driving on a road that has visible lane markers, this system is designed to
recognize lane markers using a camera sensor and alerts the driver when the
vehicle deviates from its lane.
Refer to the Owner‘s Manual for more details on this system before attempting to
use it.
TURNING THE LDA SYSTEM ON
Press to ON
Multi-Information Display
Press the LDA switch (in steering wheel) to turn the LDA system ON, the indicator
will illuminate. Press again to turn OFF.
INDICATION ON THE MULTI-INFORMATION DISPLAY (MID)
When the inside of both lane lines turn white:
- Indicates that both right and left lane markers are recognized.
When the inside of either lane line turns white:
- Indicates that the lane marker on the white-marked side is recognized.
When the inside of both lane lines are black:
- Indicates that no lane markers are recognized or the LDA system is temporarily
canceled.
17
|
|
|
