CAUTION
D After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.
D Do not insert coins, clips, etc. in
the buckle as this may prevent your
child from properly latching the tab
and buckle.
D If the seat belt does not function
normally, it cannot protect your
child from death or serious injury.
2. Fully extend the shoulder belt to put it
3. While pressing the infant seat firmly
Contact your Toyota dealer immedi-
in the lock mode. When the belt is
against the seat cushion and seatback,
ately. Do not install the child re-
then retracted even slightly, it cannot
let the shoulder belt retract as far as
straint system on the seat until the
be extended.
it will go to hold the infant seat secure-
seat belt is fixed.
ly.
To hold the infant seat securely, make
sure the belt is in the lock mode before
letting the belt retract.
60
2005 ECHO from Aug. ’04 Prod. (OM52636U)
4. To remove the infant seat, press the
(B) CONVERTIBLE SEAT INSTALLATION
CAUTION
buckle release button and allow the
A convertible seat must be used in for-
belt to retract completely. The belt will
ward−facing or rear−facing position de-
Push and pull the child restraint sys-
move freely again and be ready to
pending on the age and size of the
tem in different directions to be sure
work for an adult or older child passen-
child. When installing, follow the
it is secure. Follow all the installation
ger.
manufacturer’s instructions about the
instructions provided by its manufac-
applicable age and size of the child as
turer.
well as directions for installing the
child restraint system.
61
2005 ECHO from Aug. ’04 Prod. (OM52636U)
D On vehicles with side airbags, do
not allow the child to lean his/her
head or any part of his/her body
against the front door or the area
of the seat from which the side air-
bags deploy even if the child is
seated in the child restraint system.
It is dangerous if the side airbag
inflates, and the impact could cause
death or serious injury to the child.
Move seat
fully back
CAUTION
D A forward−facing child restraint sys-
tem should be allowed to be put on
D Never install a rear−facing child re-
the front passenger seat only when
straint system on the front passen-
it is unavoidable. Always move the
ger seat. In the event of an acci-
seat as far back as possible, be-
dent, the force of the rapid inflation
cause the front passenger airbag
of the front passenger airbag can
could inflate with considerable
cause death or serious injury to the
speed and force. Otherwise, the
child if the rear−facing child re-
child may be killed or seriously in-
straint system is installed on the
jured.
front passenger seat.
62
2005 ECHO from Aug. ’04 Prod. (OM52636U)
CAUTION
D After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.
D Do not insert coins, clips, etc. in
the buckle as this may prevent your
child from properly latching the tab
and buckle.
D If the seat belt does not function
normally, it cannot protect your
child from death or serious injury.
1.
Run the lap and shoulder belt through
Contact your Toyota dealer immedi-
D Do not install a child restraint sys-
or around the convertible seat following
ately. Do not install the child re-
tem on the rear seat if it interferes
the instructions
provided by its
straint system on the seat until the
with the lock mechanism of the
manufacturer and insert the tab into
seat belt is fixed.
front seats. Otherwise, the child or
the buckle taking care not to twist the
front seat occupant(s) may be killed
belt. Keep the lap portion of the belt
or seriously injured in case of sud-
tight.
den braking or a collision.
D If the driver’s seat position does
not allow sufficient space for safe
installation, install the child re-
straint system on the rear right
seat.
63
2005 ECHO from Aug. ’04 Prod. (OM52636U)
2. Fully extend the shoulder belt to put it
3. While pressing the convertible seat
in the lock mode. When the belt is
firmly against the seat cushion and
CAUTION
then retracted even slightly, it cannot
seatback, let the shoulder belt retract
Push and pull the child restraint sys-
be extended.
as far as it will go to hold the convert-
ible seat securely.
tem in different directions to be sure
To hold the convertible seat securely,
it is secure. Follow all the installation
make sure the belt is in the lock mode
instructions provided by its manufac-
before letting the belt retract.
turer.
64
2005 ECHO from Aug. ’04 Prod. (OM52636U)
Move seat
fully back
4. To remove the convertible seat, press
(C) BOOSTER SEAT INSTALLATION
the buckle release button and allow the
CAUTION
A booster seat must be used in for-
belt to retract completely. The belt will
ward−facing position only.
D A forward−facing child restraint sys-
move freely again and be ready to
work for an adult or older child passen-
tem should be allowed to be
ger.
installed on the front passenger
seat only when it is unavoidable.
Always move the seat as far back
as possible, because the front pas-
senger airbag could inflate with
considerable speed and force.
Otherwise, the child may be killed
or seriously injured.
65
2005 ECHO from Aug. ’04 Prod. (OM52636U)
D On vehicles with side airbags, do
CAUTION
not allow the child to lean his/her
head or any part of his/her body
D Always make sure the shoulder belt
against the front door or the area
is positioned across the center of
of the seat from which the side air-
child’s shoulder. The belt should be
bags deploy even if the child is
kept away from child’s neck, but
seated in the child restraint system.
not falling off child’s shoulder.
It is dangerous if the side airbag
Otherwise, the child may be killed
inflates, and the impact could cause
or seriously injured in case of sud-
death or serious injury to the child.
den braking or a collision.
D Both high−positioned lap belts and
loose−fitting belts could cause
death or serious injuries due to
1. Sit the child on a booster seat. Run
sliding under the lap belt during a
the lap and shoulder belt through or
collision or other unintended event.
around the booster seat and across the
Keep the lap belt positioned as low
child following the instructions provided
on a child’s hips as possible.
by its manufacturer and insert the tab
D For child’s safety, do not place the
into the buckle taking care not to twist
shoulder belt under child’s arm.
the belt.
D After inserting the tab, make sure
Make sure the shoulder belt is correctly
the tab and buckle are locked and
across the child’s shoulder and that the
that the lap and shoulder portions
lap belt is positioned as low as possible
of the belt are not twisted.
on the child’s hips. See
“Seat belts” on
D Do not insert coins, clips, etc. in
page 35 for details.
the buckle as this may prevent your
child from properly latching the tab
and buckle.
66
2005 ECHO from Aug. ’04 Prod. (OM52636U)
—Using a top strap
D If the seat belt does not function
normally, it cannot protect your
child from death or serious injury.
Contact your Toyota dealer immedi-
ately. Do not install the child re-
straint system on the seat until the
seat belt is fixed.
2. To remove the child restraint system,
Follow the procedure below for a child
press the buckle release button and
restraint system that use of a top strap
allow the belt to retract.
to secure the system. Follow all the
installation instructions provided by its
manufacturer.
67
2005 ECHO from Aug. ’04 Prod. (OM52636U)

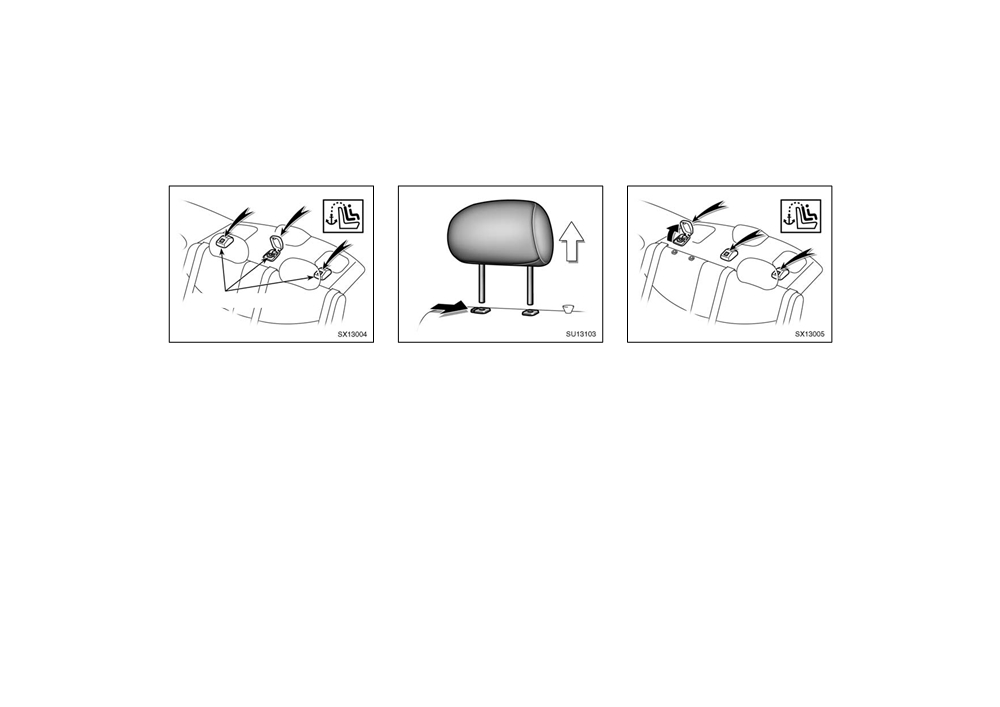

Symbol
Anchor brackets
Use the anchor bracket on the back
TO USE THE ANCHOR BRACKET:
2. Open the anchor bracket cover with
panel to attach the top strap.
the mark shown in the illustration.
1. Remove the head restraint.
Anchor brackets are installed for each
rear seating position.
This symbol indicates the location of user
ready anchor brackets.
68
2005 ECHO from Aug. ’04 Prod. (OM52636U)
CAUTION
Make sure the top strap is securely
latched, and check that the child re-
straint system is secure by pushing
and pulling it in different directions.
Follow all the installation instructions
provided by its manufacturer.
3. Securely fasten the child restraint
4. Replace the head restraint.
system with the seat belt.
Be sure to replace all covers when the
Latch the hook onto the anchor
anchor bracket is not in use.
bracket and tighten the top strap.
For instructions to install the child re-
straint system, see
“Child restraint” on
page 56.
69
2005 ECHO from Aug. ’04 Prod. (OM52636U)
—Installation with child
restraint lower anchorages

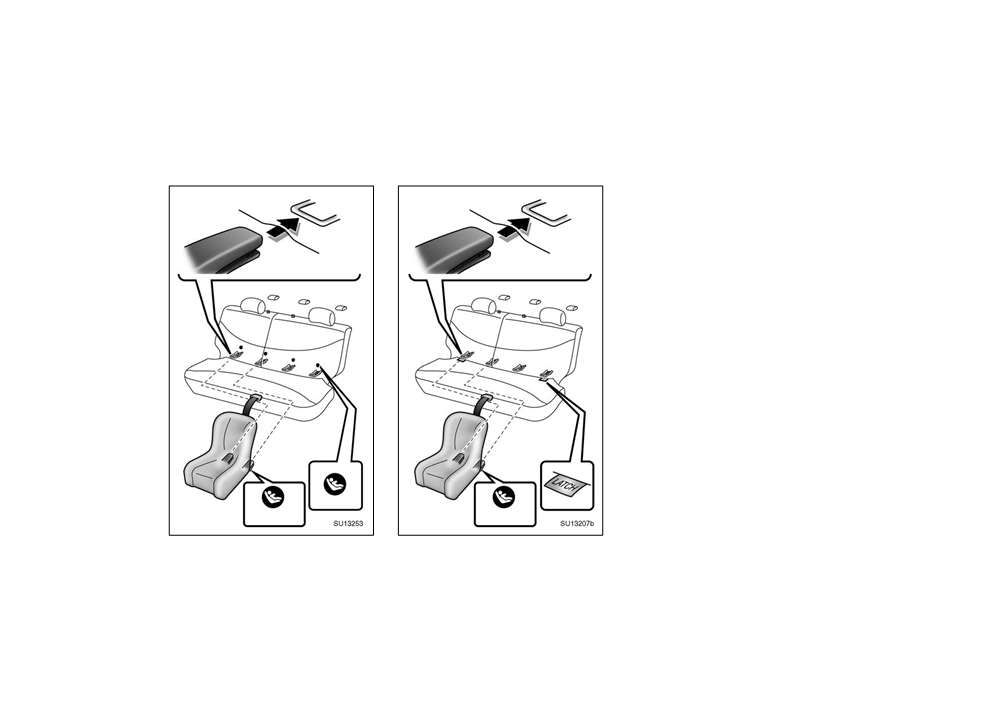

The lower anchorages for the child re-
straint system interfaced with the
FMVSS225 or CMVSS210.2 specification
are installed in the rear seat.
The anchorages are installed in the gap
between the seat cushion and seatback of
both outside rear seats.
Child restraint system interfaced with the
FMVSS213 or CMVSS213 specification
can be fixed with these anchorages. In
this case, it is not necessary to fix the
child restraint system with a seat belt on
the vehicle.
Canada only
Canada only
Type A (anchor position indicated by but-
Type A
(anchor position indicated by
tons)
tags)
70
2005 ECHO from Aug. ’04 Prod. (OM52636U)
CHILD
RESTRAINT
SYSTEM
INSTALLATION
Type A—
1. Widen the gap between the seat
cushion and seatback slightly and
confirm the position of the lower an-
chorages below the button or tag in
the seatback.
2. Latch the hooks of lower straps onto
the anchorages and tighten the lower
straps.
Type B—
1. Widen the gap between the seat
cushion and seatback slightly and
confirm the position of the lower an-
chorages below the button or tag in
the seatback.
2. Latch the buckles onto the anchor-
ages.
For owners in Canada
The symbol on a child restraint system
indicates the presence of a lower connec-
tor system.
If your child restraint system has a top
Canada only
Canada only
strap, it should be anchored.
(For the
installation of the top strap, see
“—Using
a top strap” on page 67.)
Type B (anchor position indicated by but-
Type B
(anchor position indicated by
tons)
tags)
71
2005 ECHO from Aug. ’04 Prod. (OM52636U)
For installation details, refer to the instruc-
tion manual equipped with each product.
CAUTION
When installing the child restraint
CAUTION
system, pay attention not to catch a
seat belt and other irregular objects.
D When using the lower anchorages
Otherwise, this can cause severe inju-
for the child restraint system, be
ry to the child in case of a sudden
sure that there are no irregular ob-
braking or collision.
jects around the anchorages or that
the seat belt is not caught.
D Push and pull the child restraint
system in different directions to be
sure it is secure. Follow all the
installation instructions provided by
On the vehicle with non−separate non−
its manufacturer.
foldable fixed type seatback, a seat belt
D Do not install a child restraint sys-
for the rear center seat is prepared in the
tem on the rear seat if it interferes
front of a lower anchor. Therefore, in case
with the lock mechanism of the
of fixing the child restraint system to the
front seats. Otherwise, the child or
rear left seat, slide the seat belt for the
front seat occupant(s) may be killed
rear center seat as shown in the illustra-
or seriously injured in case of sud-
tion and fix it to the lower anchor.
den braking or a collision.
72
2005 ECHO from Aug. ’04 Prod. (OM52636U)
SECTION 1− 4
OPERATION OF INSTRUMENTS AND
CONTROLS
Steering wheel and Mirrors
Tilt steering wheel
74
Outside rear view mirrors
74
Anti−glare inside rear view mirror
77
Vanity mirrors
77
73
2005 ECHO from Aug. ’04 Prod. (OM52636U)
Tilt steering wheel
Outside rear view mirrors—
CAUTION
D Do not adjust the steering wheel
while the vehicle is moving. Doing
so may cause the driver to mishan-
dle the vehicle and an accident may
occur resulting in death or serious
injuries.
D After adjusting the steering wheel,
try moving it up and down to make
sure it is locked in position.
To change the steering wheel angle,
Adjust the mirror so that you can just
hold the steering wheel, push down the
see the side of your vehicle in the mir-
lock release lever, tilt the steering
ror.
wheel to the desired angle and return
Be careful when judging the size or dis-
the lever to its original position.
tance of any object seen in the outside
rear view mirror on the passenger’s side
because it is a convex mirror. Any object
seen in a convex mirror will look smaller
and farther away than when seen in a flat
mirror.
74
2005 ECHO from Aug. ’04 Prod. (OM52636U)
—Power rear view mirror
control
CAUTION
NOTICE
If ice should jam the mirror, do not
Do not adjust the mirror while the
operate the control or scrape the mir-
vehicle is moving. Doing so may
ror face. Use a spray de−icer to free
cause the driver to mishandle the ve-
the mirror.
hicle and an accident may occur re-
sulting in death or serious injuries.
To adjust mirror, use the switches.
1. Master switch—To select the mirror to
be adjusted
Push the switch to
“L”
(left) or
“R”
(right).
2. Control switch—To move the mirror
Push the switch in the desired direc-
tion.
Mirrors can be adjusted when the key is
in the
“ACC” or “ON” position.
75
2005 ECHO from Aug. ’04 Prod. (OM52636U)
—Rear view mirror remote
control
—Folding rear view mirrors
NOTICE
Do not push backward more than the
click. It may damage the mirror or
vehicle.
To adjust the rear view mirror, simply
The rear view mirrors can be folded
operate the control lever.
backward for parking in compact areas.
To fold the rear view mirror, push back-
NOTICE
ward.
If ice should jam the mirror, do not
operate the control or scrape the mir-
CAUTION
ror face. Use a spray de−icer to free
the mirror.
Do not drive with the mirrors folded
backward. Both the driver and pas-
senger side rear view mirrors must
be extended and properly adjusted
before driving.
76
2005 ECHO from Aug. ’04 Prod. (OM52636U)
