Toyota Corolla iM (2018 year). Instruction - part 2

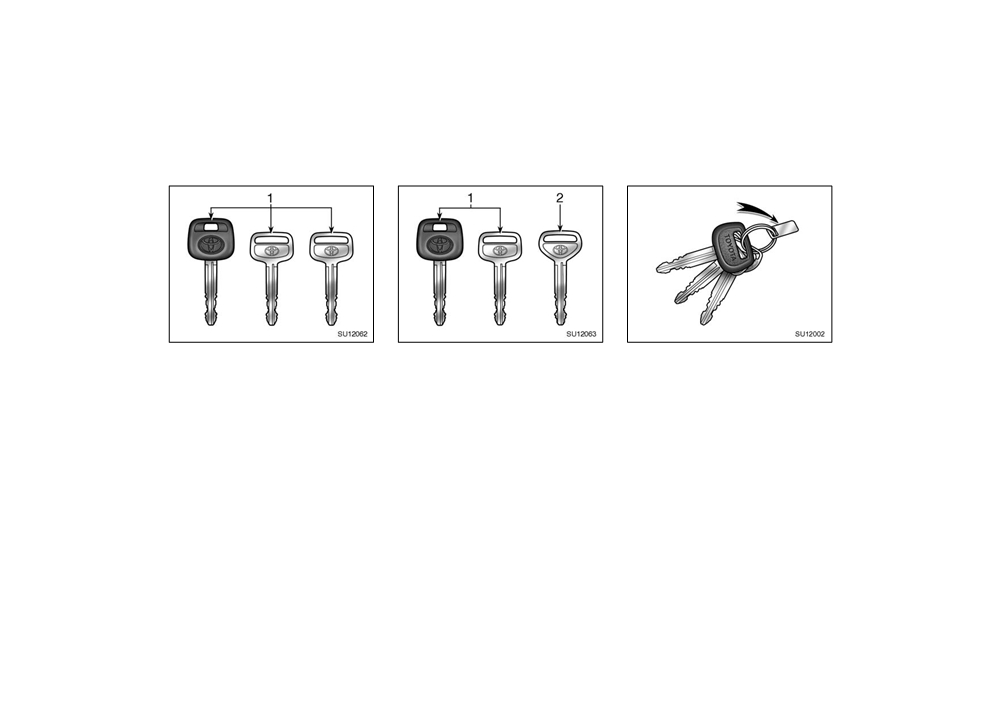

Keys (type A)

Keys (type B)

These keys work in every lock.

Your vehicle is supplied with two kinds

KEY NUMBER PLATE

of key.

1. Master keys—These keys work in ev-

Your key number is shown on the plate.

ery lock.

1. Master keys—These keys work in ev-

Keep the plate in a safe place such as

ery lock.

your wallet, not in the vehicle.

Since the doors and trunk lid can be

locked without a key, you should always

2. Sub key—This key will not work in the

If you should lose your keys or if you

carry a spare key in case you accidentally

trunk.

need additional keys, duplicates can be

lock your keys inside the vehicle.

made by a Toyota dealer using the key

To protect items locked in the trunk when

number.

using valet parking, leave the sub key

with the attendant.

We recommend writing down the key num-

ber and storing it in a safe place.

Since the doors and trunk lid can be

locked without a key, you should always

carry a spare master key in case you

accidentally lock your keys inside the ve-

hicle.

10

2005 ECHO from Aug. ’04 Prod. (OM52636U)

Wireless remote control—

—Locking and unlocking doors

D Do not leave the transmitter in places

where the temperature becomes high

such as on the dashboard.

D Do not disassemble it.

D Avoid knocking it hard against other

objects or dropping it.

D Avoid putting it in water.

You can use up to 2 wireless remote con-

trol transmitters for the same vehicle.

Contact your Toyota dealer for detailed

information.

If the wireless remote control transmitter

does not actuate the doors or alarm, or

Locking operation

1. “LOCK” switch

operate from a normal distance:

2. “UNLOCK” switch

D Check for closeness to a radio trans-

3. “PANIC” switch

mitter such as a radio station or an

The wireless remote control system is

airport which can interfere with normal

designed to lock or unlock all the

operation of the transmitter.

doors, or activate the

“PANIC” mode

D The battery may have been consumed.

from a distance within approximately 1

Check the battery in the transmitter. To

m (3 ft.) of the vehicle.

replace the battery, see

“—Replacing

When you operate any switch, push it

transmitter battery” on page 13.

slowly and securely.

If you lose your wireless remote control

The wireless remote control transmitter is

transmitter, contact your Toyota dealer as

an electronic component. Observe the fol-

soon as possible to avoid the possibility

lowing instructions in order not to cause

of theft, or an accident.

(See “If you lose

damage to the transmitter.

your wireless remote control transmitter”

Unlocking operation

on page 200 in Section 4.)

11

2005 ECHO from Aug. ’04 Prod. (OM52636U)

—Activating panic mode

To lock and unlock all the doors, push

The

“PANIC” mode does not work when

the switches of the transmitter slowly

the key is inserted in the ignition switch.

and securely.

To lock: Push the

“LOCK” switch. All the

doors are locked simultaneously. At this

time, parking lights, side marker lights and

tail lights flash.

Check to see that the doors are securely

locked.

If any of the doors is not securely closed,

or if the key is in the ignition switch,

locking cannot be performed by the

“LOCK” switch.

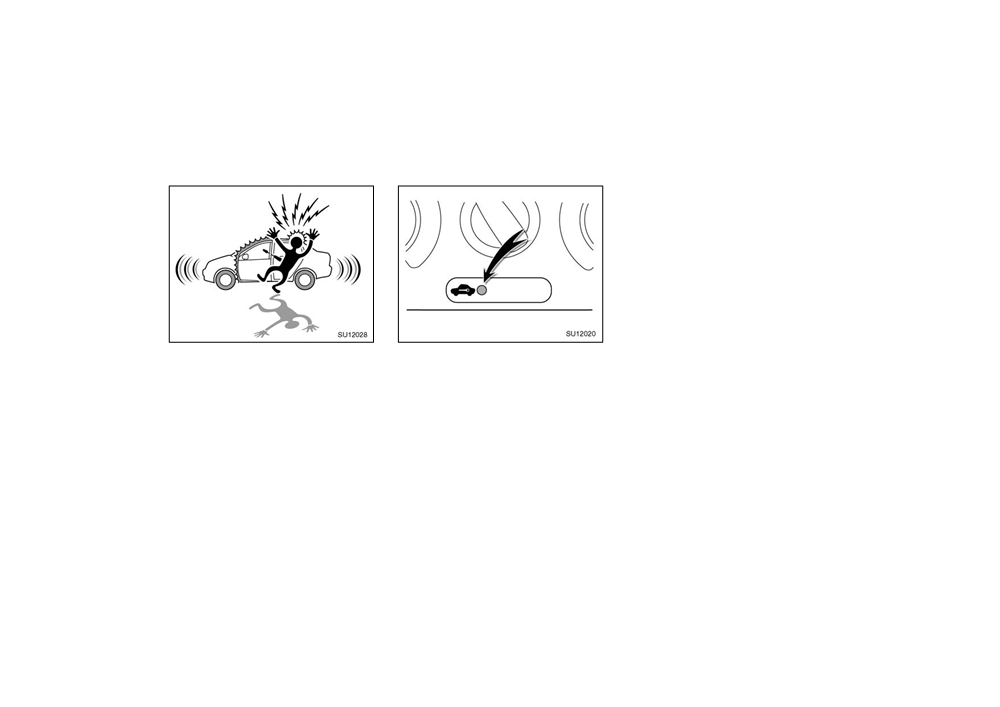

Pushing the “PANIC” switch blows the

To unlock: Push the

“UNLOCK” switch

horn intermittently and flashes the

once to unlock the driver’s door alone.

Pushing the switch twice within 3 seconds

headlights and tail lights.

unlocks all the doors simultaneously. At

The “PANIC” switch is used to deter ve-

this time, parking lights, side marker lights

hicle theft when you witness anyone at-

and tail lights flash twice.

tempting to break into or damage your

You have 30 seconds to open a door after

vehicle.

using the wireless remote unlock feature.

The alarm will last for one minute. To stop

If a door is not opened by then, all the

this midway, push the

“PANIC” switch

doors will be automatically locked again.

once again, unlock any door with the key

If the

“LOCK” or “UNLOCK” switch is kept

or transmitter, open the trunk with the key

or turn the ignition key from the

“LOCK”

pressed in, the locking or unlocking opera-

to

“ON” position.

tion is not repeated. Release the switch

and then push again.

To cancel the

“PANIC” mode, unlock any

door with the key or wireless remote con-

trol transmitter, or open the trunk with the

key from the “LOCK” to “ON” position.

12

2005 ECHO from Aug. ’04 Prod. (OM52636U)

—Replacing transmitter battery

For replacement, use a CR2016 lithium

battery or equivalent.

CAUTION

Special care should be taken to pre-

vent small children from swallowing

the removed transmitter battery or

components.

NOTICE

z When replacing the transmitter bat-

tery, be careful not to lose the com-

1. Using a coin or equivalent, open the

2. Remove the discharged transmitter bat-

ponents.

transmitter case.

tery by ballpoint pen. Insert the tip of

z Replace only with the same or

ballpoint pen at the guide groove and

equivalent type recommended by a

lift as shown in the above illustration.

Toyota dealer.

NOTICE

z Dispose of used battery according

to the local laws.

Do not bend the terminals.

Replace the transmitter battery by follow-

ing these procedures:

13

2005 ECHO from Aug. ’04 Prod. (OM52636U)

z Be careful not to bend the electrode

NOTICE:

when inserting the transmitter bat-

This equipment has been tested and

tery and that dust or oils do not

found to comply with the limits for a

adhere to the transmitter case.

Class B digital device, pursuant to Part

z Close the transmitter case securely.

15 of the FCC Rules. These limits are

designed to provide reasonable protec-

tion against harmful interference in a

After replacing the battery, check that the

residential installation. This equipment

transmitter operates properly. if the trans-

generates, uses and can radiate radio

mitter still does not operate properly, con-

frequency energy and, if not installed

tact your Toyota dealer.

and used in accordance with the instruc-

If you lose your transmitter, contact your

tions, may cause harmful interference to

Toyota dealer as soon as possible to

radio communications. However, there is

no guarantee that interference will not

avoid the possibility of theft, or an acci-

3. Put in a new transmitter battery with

occur in a particular installation. If this

dent.

(See

“If you lose your wireless re-

positive

(+) side up.

equipment does cause harmful interfer-

mote control transmitter” in Section

4.)

Close the transmitter case securely.

ence to radio or television reception,

For vehicles sold in U.S.A.

which can be determined by turning the

NOTICE

equipment off and on, the user is en-

This device complies with Part 15 of the

couraged to try to correct the interfer-

z Make sure the positive side and

FCC Rules. Operation is subject to the

ence by one or more of the following

negative side of the transmitter bat-

following two conditions:

(1) This device

measures:

tery are faced correctly.

may not cause harmful interference, and

D Reorient or relocate the receiving an-

(2) this device must accept any interfer-

z Do not replace the battery with wet

tenna.

ence received, including interference

hands. Water may cause unexpected

that may cause undesired operation.

D Increase the separation between the

rust.

equipment and receiver.

z Do not touch or move any compo-

D Connect the equipment into an outlet

nents inside the transmitter, or it

on a circuit different from that to

may interfere with proper operation.

which the receiver is connected.

14

2005 ECHO from Aug. ’04 Prod. (OM52636U)

Side doors

D Consult the dealer or an experienced

radio

/ TV technician for help.

FCC WARNING:

Changes or modifications not ex-

pressly approved by the party respon-

sible for compliance could void the

user’s authority to operate the equip-

ment.

For vehicles sold in Canada

Operation is subject to the following two

conditions:

(1) this device may not

LOCKING AND UNLOCKING WITH KEY

LOCKING AND UNLOCKING WITH

cause interference, and

(2) this device

INSIDE LOCK BUTTON

Insert the key into the keyhole and turn

must accept any interference, including

interference that may cause undesired

it.

Move the lock button.

operation of the device.

To lock: Turn the key forward.

To lock: Push the knob down.

To unlock: Turn the key backward.

To unlock: Pull the knob up.

Vehicles with power door lock system—All

Closing the door with the lock knob in the

the doors lock and unlock simultaneously

lock position will also lock the door. Be

with either front door. In the driver’s door

careful not to lock your keys in the ve-

lock, turning the key once will unlock the

hicle.

driver’s door and twice in succession will

Vehicles with power door lock sys-

unlock all the doors simultaneously.

tem—Doors cannot be locked when either

front door is open and the key is in the

ignition.

15

2005 ECHO from Aug. ’04 Prod. (OM52636U)

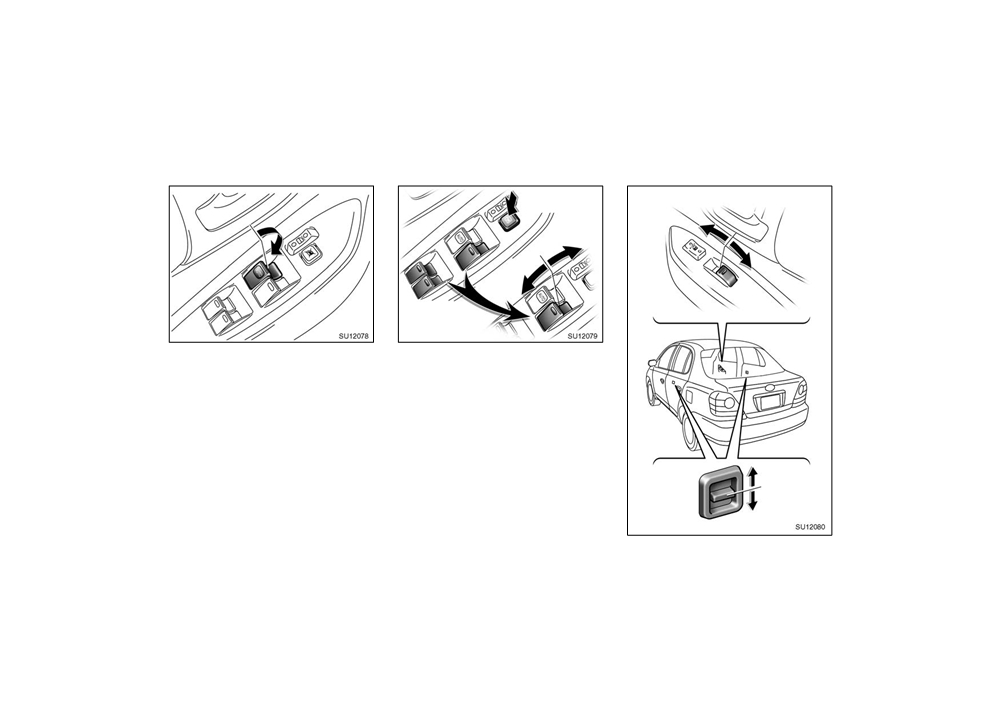

Vehicles without power windows—

To lock: Push the switch down on the

“LOCK” side.

To unlock: Push the switch down on the

“UNLOCK” side.

All the doors lock or unlock simultaneous-

ly.

Vehicles with power windows

(driver’s

Vehicles without power windows

side)

LOCKING AND UNLOCKING WITH

POWER DOOR LOCK SWITCH

Push the switch.

Vehicles with power windows—

To lock: Push the switch down on the

front side.

To unlock: Push the switch down on the

rear side.

Vehicles with power windows

(passen-

ger’s side)

16

2005 ECHO from Aug. ’04 Prod. (OM52636U)

Power windows

CAUTION

Before driving, be sure that the doors

are closed and locked, especially

when small children are in the ve-

hicle. Along with the proper use of

seat belts, locking the doors helps

prevent the driver and passengers

from being thrown out from the ve-

hicle during an accident. It also helps

prevent the doors from being opened

unintentionally.

REAR DOOR CHILD−PROTECTORS

The windows can be operated with the

(4−door models only)

switch on each door.

Move the lock lever to the

“LOCK”

The power windows work when the ignition

position as shown on the label.

switch is in the

“ON” position.

When the child−protector is locked, you

OPERATING THE DRIVER’S WINDOW

cannot open the rear door by the inside

Use the switch on the driver’s door.

door handle. We recommend using this

Normal operation: The window moves as

feature whenever small children are in the

long as you hold the switch.

vehicle.

To open: Lightly push down the switch.

To close: Pull up the switch.

17

2005 ECHO from Aug. ’04 Prod. (OM52636U)

Window lock

switch

Automatic operation

(to open only):

OPERATING

THE

PASSENGERS’

Push the switch completely down and then

WINDOWS

release it. The window will fully open. To

Use the switches on the passengers’

stop the window partway, lightly pull the

doors. The driver’s door also has

switch up and then release it.

switches that control the passengers’

windows.

The window moves as long as you hold

the switch.

To open: Push down the switch.

To close: Pull up the switch.

If you push in the window lock switch on

the driver’s door, the passengers’ windows

cannot be operated.

18

2005 ECHO from Aug. ’04 Prod. (OM52636U)

Trunk lid—

CAUTION

D Be sure to remove the ignition key

or turn the ignition switch to the

To avoid serious personal injury, you

“LOCK” position when you leave

must do the following.

your vehicle.

D Before you close the power win-

D Never leave anyone

(particularly a

dows, always make sure there is

small child) alone in your vehicle,

nobody around the power windows.

especially with the ignition key still

You must also make sure the

inserted. Otherwise, he/she could

heads, hands and other parts of the

use the power window switches and

bodies of all occupants are kept

get trapped in a window. Unat-

completely inside the vehicle. If

tended person

(particularly a small

someone’s neck, head or hands get

child) can be involved in a serious

caught in a closing window, it

accident.

could result in a serious injury.

To open the trunk lid from the outside,

When anyone closes the power win-

insert the master key and turn it clock-

dows, make sure he or she oper-

wise.

ates the windows safely.

See “Cargo and luggage” on page 167 in

D When small children are in the ve-

Section 2 for precautions to observe when

hicle, never let them use the power

loading luggage.

window switches without supervi-

To close the trunk lid, lower it and press

sion. Use the window lock switch to

down on it. After closing the trunk lid, try

prevent them from making unex-

pulling it up to make sure it is securely

pected use of the switches.

closed.

19

2005 ECHO from Aug. ’04 Prod. (OM52636U)

—Lock release lever

—Internal trunk release handle

CAUTION

D Keep the trunk lid closed while

driving. This not only keeps the

luggage from being thrown out but

also prevents exhaust gases from

entering the vehicle.

D Always lock the trunk lid and all

doors, and keep away the vehicle

keys out of children’s reach.

D Never leave children unattended in

the vehicle. Unsupervised children

may lock themselves in the vehicle

To open the trunk lid from the driver’s

If a person is locked in the trunk, he/

or trunk and suffer serious injuries

seat, pull up on the lock release lever.

she can pull down the phosphorescent

or death.

handle on the inside of trunk lid to

open the trunk lid.

The phosphorescent

(glow−in−the−dark)

handle will continue to glow for a time

after the trunk lid is closed. Exposing the

handle to stronger light will cause it to

glow longer.

20

2005 ECHO from Aug. ’04 Prod. (OM52636U)

—Luggage security system

Hood

This system deactivates the lock re-

2. After closing the trunk lid, insert the

To open the hood:

lease lever so that things locked in the

master key and turn it counterclock-

1. Pull the hood lock release lever. The

trunk can be protected.

wise to deactivate the lock release

hood will spring up slightly.

lever.

1. Push down the security lock levers

to lock the rear seatbacks.

After closing the trunk lid, try pulling it up

CAUTION

to make sure it is securely locked.

On vehicles with built−in child restraint,

only the left seatback has a lock lever

Before driving, be sure that the hood

and can be lowered. The right seatback

is closed and securely locked. Other-

cannot be folded down.

wise, the hood may open unexpected-

ly while driving and an accident may

After locking the rear seatbacks, try fold-

occur.

ing them down to make sure they are

securely locked, otherwise someone could

get into the trunk by folding down a rear

seat.

21

2005 ECHO from Aug. ’04 Prod. (OM52636U)

CAUTION

After inserting the support rod into

the slot, make sure the rod supports

the hood security from falling down

on to your head or body.

NOTICE

Be sure to return the support rod to

its clip before closing the hood. Clos-

ing the hood with the support rod up

could cause the hood to bend.

2.

In front of the vehicle, pull up the

3. Hold the hood open by inserting the

auxiliary catch lever and lift the

support rod into the slot.

hood.

To insert the support rod into the slot,

move it straight up. If it is moved to the

side or toward the inside of the vehicle,

it may become detached.

Before closing the hood, check to see that

you have not forgotten any tools, rags,

etc. and return the support rod to its clip−

this prevents rattles. Then lower the hood

and make sure it locks into place. If nec-

essary, press down gently on the front

edge to lock it.

22

2005 ECHO from Aug. ’04 Prod. (OM52636U)

Theft deterrent system

The system will automatically be set after

30 seconds. When the system is set, the

indicator light will start flashing again.

4. After making sure the indicator light

starts flashing, you may leave the ve-

hicle.

Never leave anyone in the vehicle when

you set the system, because unlocking

from the inside will activate the system.

WHEN THE SYSTEM IS SET

Activating the system

The system will sound the alarm under

the following conditions:

To deter vehicle theft, the system is

SETTING THE SYSTEM

designed to sound an alarm if any of

D If any of the doors is unlocked or if

1. Turn the ignition key to the

“LOCK”

the doors, trunk or hood is forcibly un-

the trunk or hood is forcibly opened

position and remove it.

locked or the battery terminal is discon-

without the key

The indicator light will start flashing when

nected and then reconnected when the

D If the battery terminal is disconnected

the key is removed from the ignition

vehicle is locked.

and then reconnected

switch.

The alarm blows the horn intermittently

The indicator light will come on when the

2. Have all passengers get out of the

and flashes the headlights and tail lights.

system is activated.

vehicle.

3. Close and lock all the doors, trunk and

hood.

The indicator light will come on when all

the doors, trunk and hood are closed and

locked.

23

2005 ECHO from Aug. ’04 Prod. (OM52636U)

Fuel tank cap

If any of the doors are unlocked without

CANCELLING THE SYSTEM

the key and the key is not in the ignition

The system will be cancelled by the

switch, all the doors will be automatically

above mentioned 3 ways.

locked again.

If the tail lights come on for

2 seconds,

After one minute, the alarm will automati-

the theft deterrent system has been

cally stop and the indicator light will starts

alarmed. Check to see if there is any

flashing again.

abnormality with your vehicle.

Reactivating the alarm

TESTING THE SYSTEM

Once set, the system automatically resets

1. Open all the windows.

the alarm after the alarm stops.

2. Set the system as described above.

The alarm will activate again under the

The doors should be locked with the

same circumstances

described

in

key. Be sure to wait until the indicator

“Activating the system”.

Type A

light goes off or starts flashing.

Stopping the alarm

3. Unlock any door from the inside. The

The alarm will be stopped by the following

system should activate the alarm.

three ways:

4. Stop the alarm as described above.

D Turn the ignition key from the

“LOCK”

5. Repeat this operation for the other

to

“ON” position.

doors, trunk and hood. When testing

D Unlock any of the doors with the key.

the hood, also check that the system

is activated when the battery terminal

D Open the trunk with the key.

is disconnected and then reconnected.

If the system does not work properly,

have it checked by your Toyota dealer.

Type B

24

2005 ECHO from Aug. ’04 Prod. (OM52636U)

This indicates that the fuel filler door

is on the left side of your vehicle.

1. To open the fuel filler door, pull the

2. To remove the fuel tank cap, turn

lever up.

the cap slowly counterclockwise,

then pause slightly before removing

When refueling, turn off the engine.

it. After removing the cap, hang it

on the cap hanger.

CAUTION

It is not unusual to hear a slight swoosh

D Do not smoke, cause sparks or al-

when the cap is opened. When installing,

low open flames when refueling.

turn the cap clockwise till you hear a

The fumes are flammable.

click.

D When opening the cap, do not re-

If the cap is not tightened securely, the

move the cap quickly. In hot weath-

malfunction indicator lamp comes on.

er, fuel under pressure could cause

Make sure the cap is tightened securely.

injury by spraying out of the filler

neck if the cap is suddenly re-

moved.

25

2005 ECHO from Aug. ’04 Prod. (OM52636U)

Content   ..   1  2  3   ..
