Toyota C-HR (2018 year). Instruction - part 8

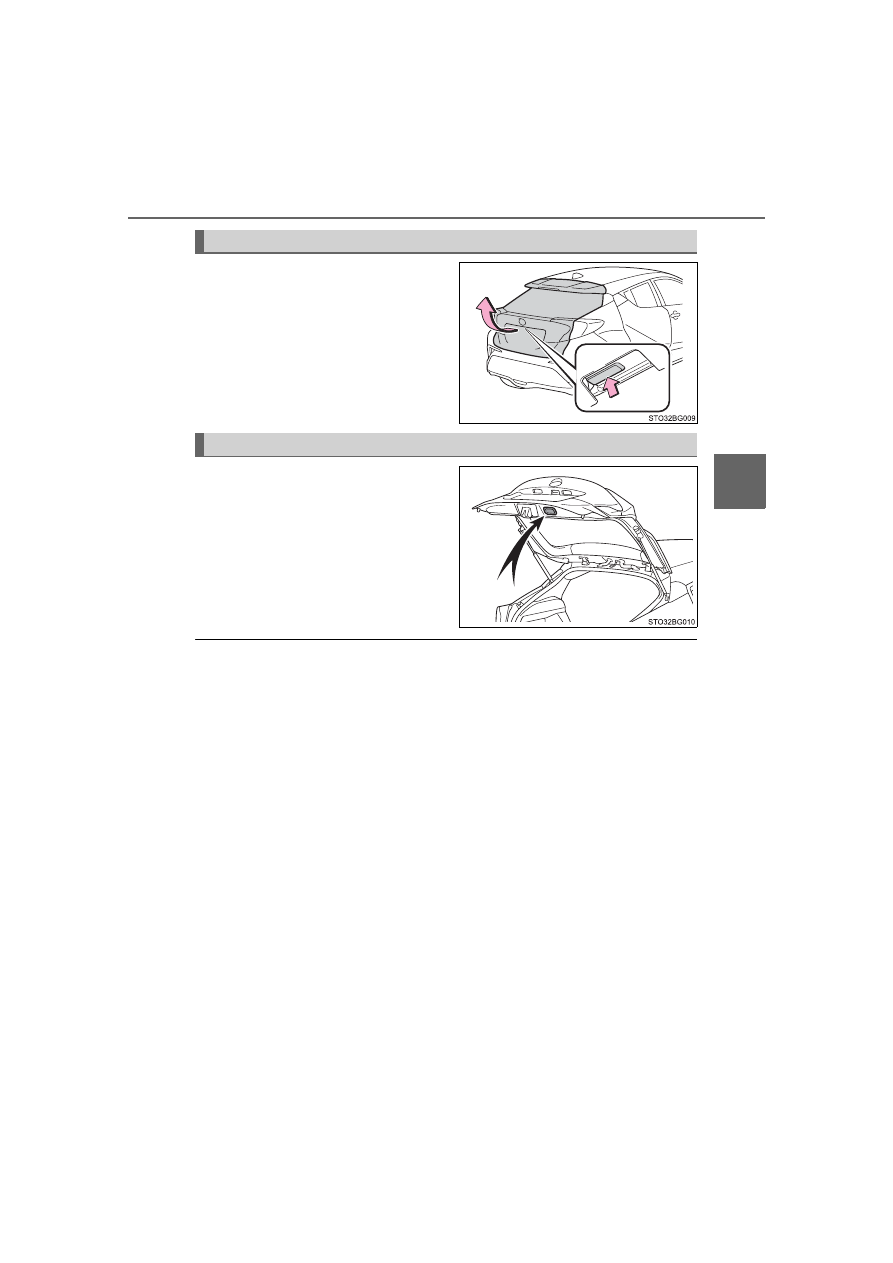

Raise the back door while pushing
up the back door opener switch.

The back door cannot be closed
immediately after the back door
opener switch is pushed.

Lower the back door using the
back door handle, and make sure
to push the back door down from
the outside to close it.

Be careful not to pull the back door
sideways when closing the back
door with the handle.

■

Operation signals
A buzzer sounds and the emergency flashers flash to indicate that the doors
have been locked/unlocked using the entry function or wireless remote con-
trol. (Locked: Once; Unlocked: Twice)

■

Open door warning buzzer
If a door or the back door is not fully closed, a buzzer will sound when the
vehicle speed reaches 3 mph (5 km/h).
The open door(s) or back door is indicated on the multi-information display.

■

Luggage compartment light
The luggage compartment light turns on when the back door is opened.

Opening the back door

When closing the back door

114

■

If the back door opener is inoperative
The back door can be operated from the inside.

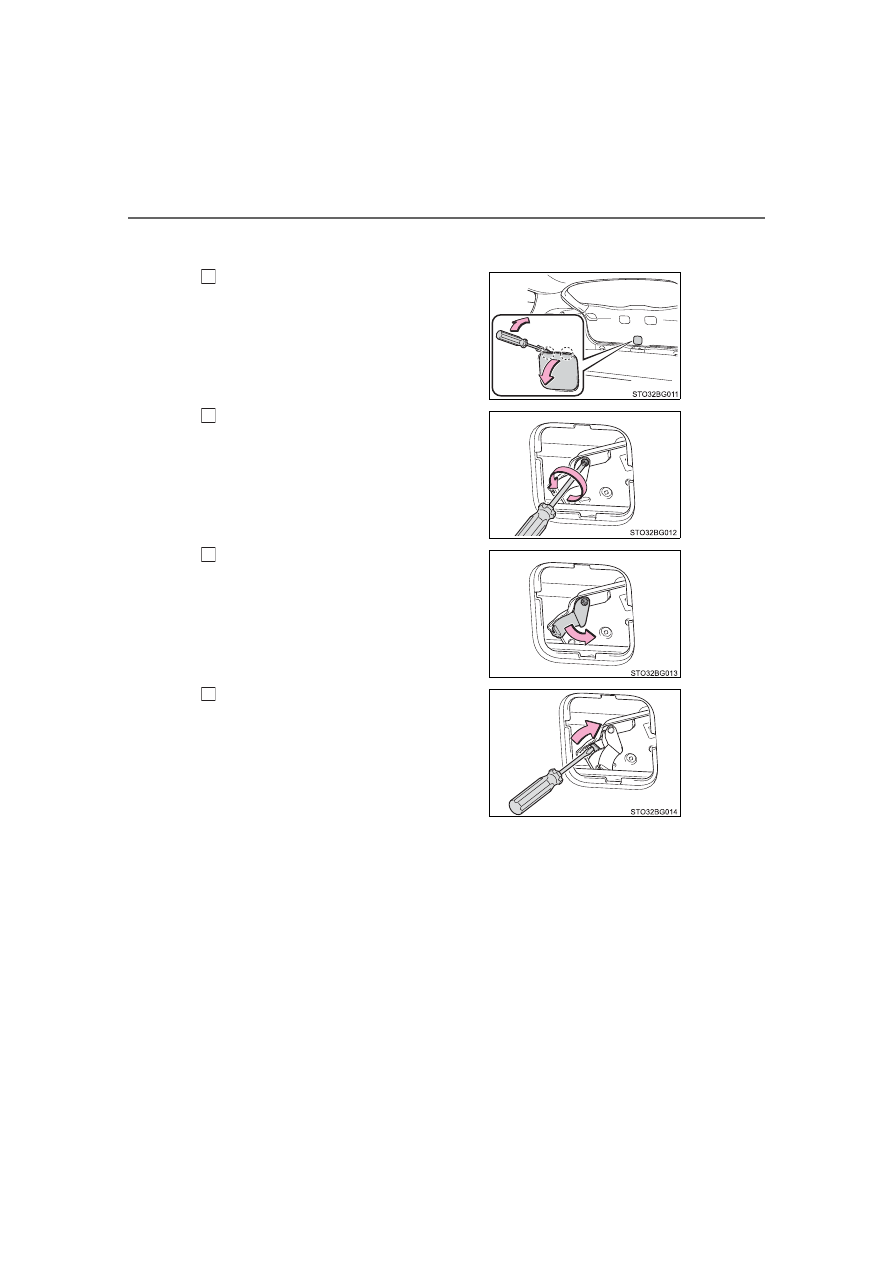

Using a screwdriver, remove the cover.
To protect the cover, place a rag
between the flathead screwdriver and
the cover as shown in the illustration.

Loosen the screw.

Turn the cover.

Move the lever.

115

WARNING

■

Caution while driving

●

Keep the back door closed while driving.
If the back door is left open, it may hit near-by objects while driving or lug-
gage may be unexpectedly thrown out, causing an accident.
In addition, exhaust gases may enter the vehicle, causing death or a seri-
ous health hazard. Make sure to close the back door before driving.

●

Before driving the vehicle, make sure that the back door is fully closed. If
the back door is not fully closed, it may open unexpectedly while driving,
causing an accident.

●

Never let anyone sit in the luggage compartment. In the event of sudden
braking or a collision, they are susceptible to death or serious injury.

■

When children are in the vehicle
Observe the following precautions.
Failure to do so may result in death or serious injury.

●

Do not allow children to play in the luggage compartment.
If a child is accidentally locked in the luggage compartment, they could
have heat exhaustion or other injuries.

●

Do not allow a child to open or close the back door.
Doing so may cause the back door to move unexpectedly, or cause the
child’s hands, head, or neck to be caught by the closing back door.

116

WARNING

■

Operating the back door
Observe the following precautions.
Failure to do so may cause parts of the body to be caught, resulting in death
or serious injury.

●

Remove any heavy loads, such as snow and ice, from the back door
before opening it. Failure to do so may cause the back door to suddenly
shut again after it is opened.

●

When opening or closing the back door, thoroughly check to make sure
the surrounding area is safe.

●

If anyone is in the vicinity, make sure they are safe and let them know that
the back door is about to open or close.

●

Use caution when opening or closing the back door in windy weather as it
may move abruptly in strong wind.

●

The back door may suddenly shut if it is
not opened fully. It is more difficult to
open or close the back door on an
incline than on a level surface, so
beware of the back door unexpectedly
opening or closing by itself. Make sure
that the back door is fully open and
secure before using the luggage com-
partment.

●

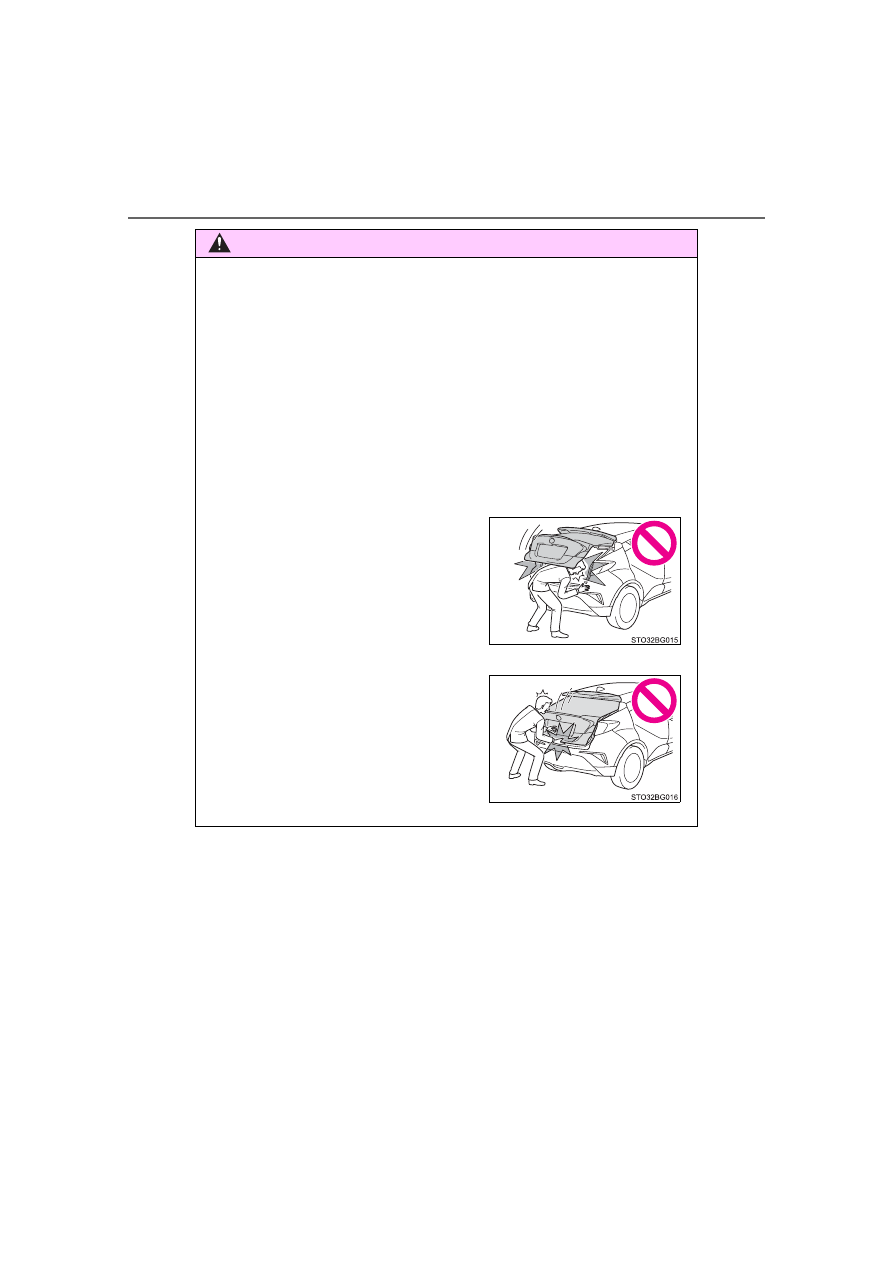

When closing the back door, take extra
care to prevent your fingers, etc., from
being caught.

●

When closing the back door, make sure
to press it lightly on its outer surface. If
the back door handle is used to fully
close the back door, it may result in
hands or arms being caught.

117

WARNING

■

Operating the back door
Observe the following precautions.
Failure to do so may cause parts of the body to be caught, resulting in death
or serious injury.

●

Do not pull on the back door damper stay to close the back door, and do
not hang on the back door damper stay.
Doing so may cause hands to be caught or the back door damper stay to
break, causing an accident.

●

If a bicycle carrier or similar heavy object is attached to the back door, it
may suddenly shut again after being opened, causing someone’s hands,
head or neck to be caught and injured. When installing an accessory part
to the back door, using a genuine Toyota part is recommended.

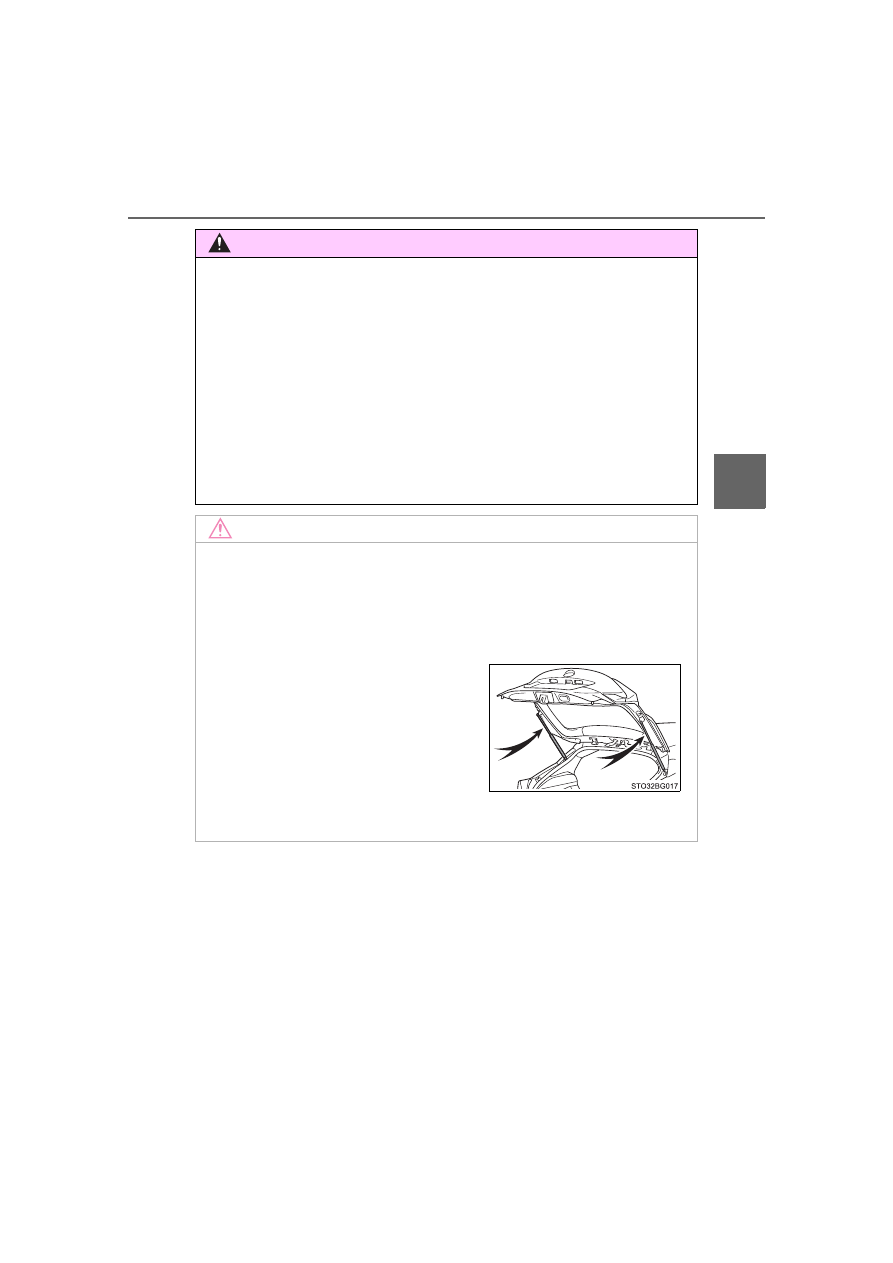

NOTICE

■

Back door damper stays
The back door is equipped with damper stays that hold the back door in
place.
Observe the following precautions.
Failure to do so may cause damage to the back door damper stay, resulting
in malfunction.

●

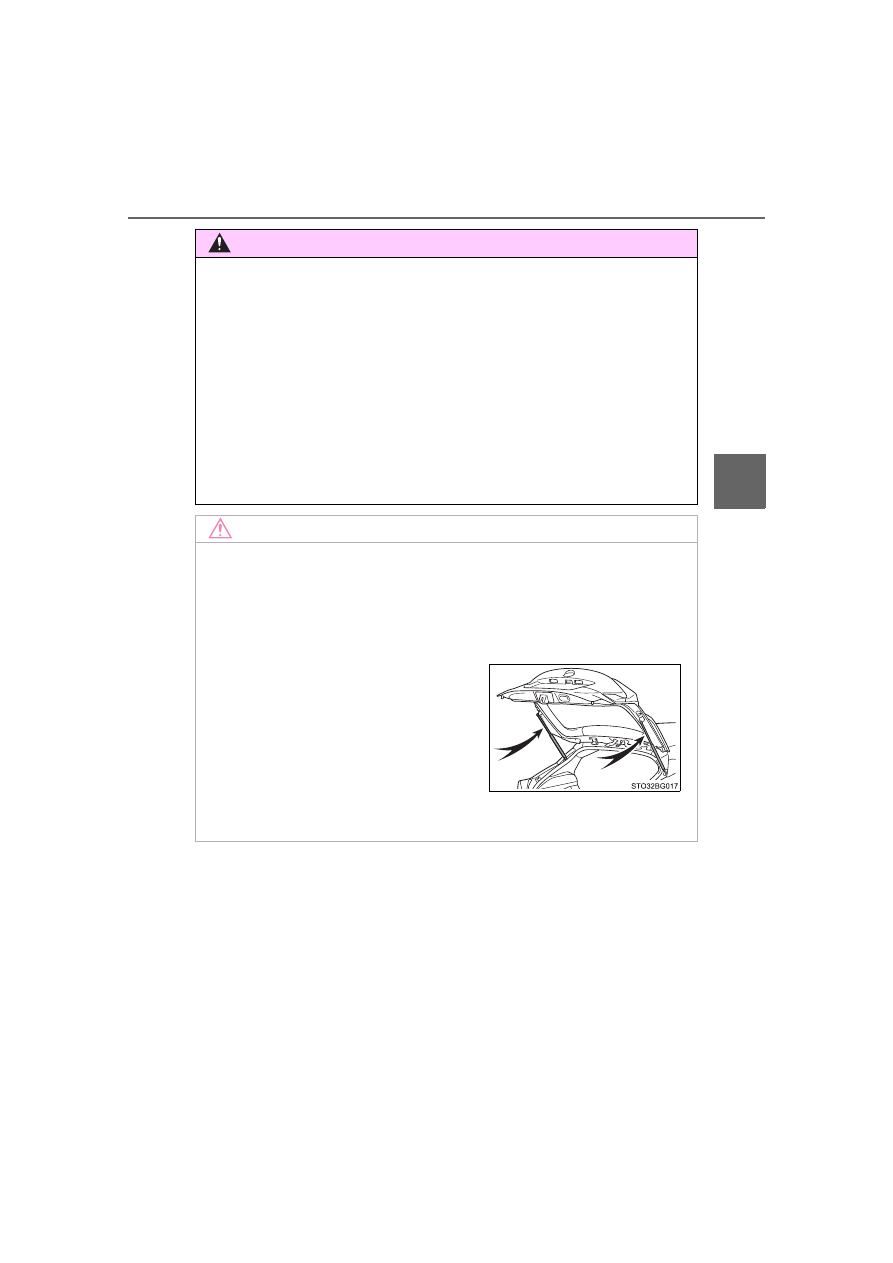

Do not place your hand on the damper stay or apply lateral forces to it.

●

Do not attach any foreign objects, such
as stickers, plastic sheets, or adhesives
to the damper stay rod.

●

Do not touch the damper stay rod with
gloves or other fabric items.

●

Do not attach any accessories other
than genuine Toyota parts to the back
door.

118

Smart key system

∗

● Unlocks and locks the doors (→P. 105)
● Unlocks and locks the back door (→P. 112)
● Starts the engine (→P. 165)

■

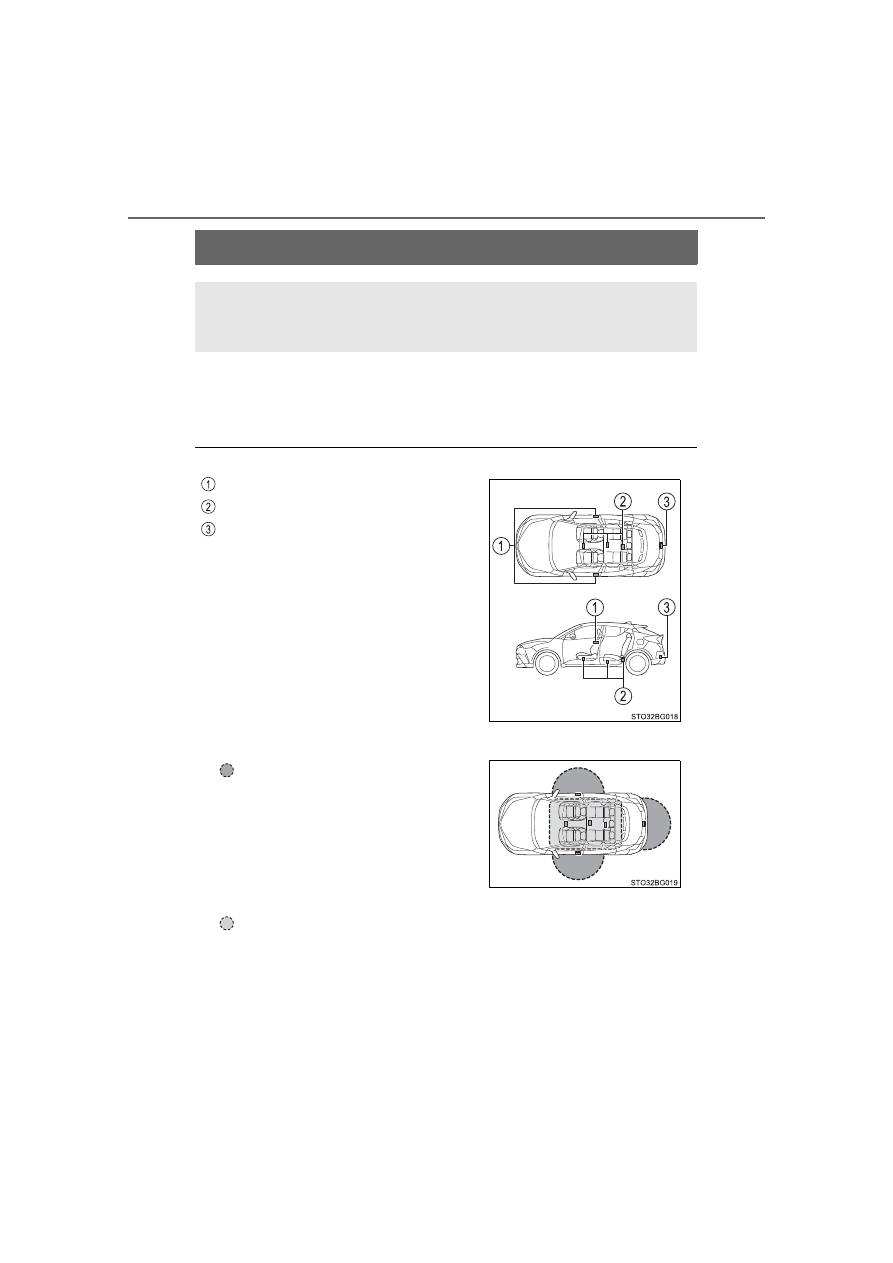

Antenna location

■

Effective range (areas within which the electronic key is detected)

When starting the engine or changing engine switch modes
The system can be operated when the electronic key is inside the vehi-
cle.

∗

: If equipped

The following operations can be performed simply by carrying
the electronic key on your person, for example in your pocket.
The driver should always carry the electronic key.

Antenna outside the cabin
Antennas inside the cabin
Antenna outside the luggage compart-
ment

When locking or unlocking the
doors
The system can be operated when
the electronic key is within about
2.3 ft. (0.7 m) of an outside front
door handle and the back door.
(Only the doors detecting the key
can be operated.)

119

■

Alarms and warning messages
A combination of exterior and interior buzzers as well as warning messages
shown on the multi-information display are used to prevent theft of the vehicle
and accidents resulting from erroneous operation. Take appropriate mea-
sures based on the displayed message. (

→P. 418)

When only an alarm sounds, circumstances and correction procedures are as
follows.

■

When “Smart Key System malfunction. See owner’s manual” is dis-
played on the multi-information display
The system may be malfunctioning. Have the vehicle inspected by your
Toyota dealer immediately.

Alarm

Situation

Correction procedure

Exterior buzzer sounds
once for 5 seconds

An attempt was made
to lock the vehicle while
a door was open.

Close all of the doors
and lock the doors
again.

Interior buzzer sounds
continuously

The engine switch was
turned to ACCESSORY
mode while the driver’s
door was open (or the
driver’s door was
opened while the
engine switch was in
ACCESSORY mode).

Turn the engine switch
off and close the
driver’s door.

120

■

Battery-saving function
The battery-saving function will be activated in order to prevent the electronic
key battery and the vehicle battery from being discharged while the vehicle is
not in operation for a long time.

●

In the following situations, the smart key system may take some time to
unlock the doors.
• The electronic key has been left in an area of approximately 6 ft. (2 m) of

the outside of the vehicle for 10 minutes or longer.

• The smart key system has not been used for 5 days or longer.

●

If the smart key system has not been used for 14 days or longer, the doors
cannot be unlocked at any doors except the driver’s door. In this case, take
hold of the driver’s door handle, or use the wireless remote control or the
mechanical key, to unlock the doors.

■

Electronic key battery-saving function
When battery-saving mode is set, battery depletion is minimized by stopping
the electronic key from receiving radio waves.

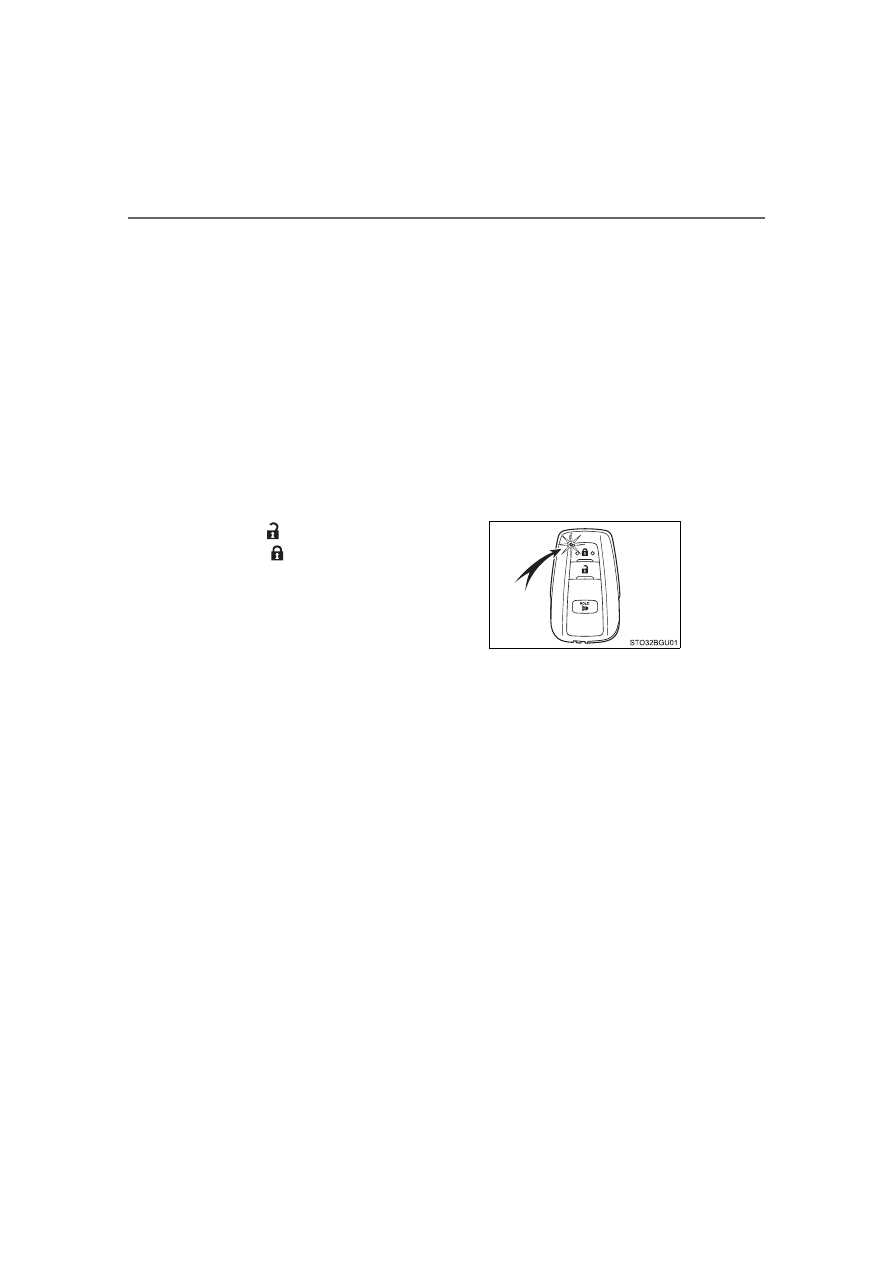

Press

twice while pressing and

holding

. Confirm that the electronic

key indicator flashes 4 times.
While the battery-saving mode is set, the
smart key system cannot be used. To
cancel the function, press any of the elec-
tronic key buttons.

121

■

Conditions affecting operation
The smart key system uses weak radio waves. In the following situations, the
communication between the electronic key and the vehicle may be affected,
preventing the smart key system, wireless remote control and engine immobi-
lizer system from operating properly. (Ways of coping:

→P. 436)

●

When the electronic key battery is depleted

●

Near a TV tower, electric power plant, gas station, radio station, large dis-
play, airport or other facility that generates strong radio waves or electrical
noise

●

When carrying a portable radio, cellular phone, cordless phone or other
wireless communication device

●

When the electronic key is in contact with, or is covered by the following
metallic objects
• Cards to which aluminum foil is attached
• Cigarette boxes that have aluminum foil inside
• Metallic wallets or bags
• Coins
• Hand warmers made of metal
• Media such as CDs and DVDs

●

When other wireless keys (that emit radio waves) are being used nearby

●

When carrying the electronic key together with the following devices that
emit radio waves
• Portable radio, cellular phone, cordless phone or other wireless commu-

nication devices

• Another electronic key or a wireless key that emits radio waves
• Personal computers or personal digital assistants (PDAs)
• Digital audio players
• Portable game systems

●

If window tint with a metallic content or metallic objects are attached to the
rear window

●

When the electronic key is placed near a battery charger or electronic
devices

●

When parking at a meter

122

■

Note for the entry function

●

Even when the electronic key is within the effective range (detection areas),
the system may not operate properly in the following cases:
• The electronic key is too close to the window or outside door handle, near

the ground, or in a high place when the doors are locked or unlocked.

• The electronic key is near the ground or in a high place, or too close to

the rear bumper center when the back door is opened.

• The electronic key is on the instrument panel, luggage cover or floor, or in

the door pockets or glove box when the engine is started or engine switch
modes are changed.

●

Do not leave the electronic key on top of the instrument panel or near the
door pockets when exiting the vehicle. Depending on the radio wave recep-
tion conditions, it may be detected by the antenna outside the cabin and the
door will become lockable from the outside, possibly trapping the electronic
key inside the vehicle.

●

As long as the electronic key is within the effective range, the doors may be
unlocked or locked by anyone.

●

Even if the electronic key is not inside the vehicle, it may be possible to start
the engine if the electronic key is near the window.

●

The doors may unlock if a large amount of water splashes on the door han-
dle, such as in the rain or in a car wash when the electronic key is within the
effective range. (The door will automatically be locked after approximately
60 seconds if the doors are not opened and closed.)

●

If the wireless remote control is used to lock the doors when the electronic
key is near the vehicle, there is a possibility that the door may not be
unlocked by the entry function. (Use the wireless remote control to unlock
the doors.)

123

●

Touching the door lock sensor while wearing gloves may delay or prevent
lock operation. Remove the gloves and touch the lock sensor again.

●

If the door handle becomes wet while the electronic key is within the effec-
tive range, the door may lock and unlock repeatedly. In this case, follow the
following correction procedures to wash the vehicle.
• Place the electronic key in a location 6 ft. (2 m) or more away from the

vehicle. (Take care to ensure that the key is not stolen.)

• Set electronic key to battery-saving mode to disable the smart key sys-

tem. (

→P. 120)

●

If the electronic key is inside the vehicle and a door handle becomes wet
during a car wash, a message may be shown on the multi-information dis-
play and a buzzer will sound outside the vehicle. To turn off the alarm, lock
all the doors.

●

The lock sensor may not work properly if it comes into contact with ice,
snow, mud, etc. Clean the lock sensor and attempt to operate it again.

●

A sudden approach to the effective range or door handle may prevent the
doors from being unlocked. In this case, return the door handle to the origi-
nal position and check that the doors unlock before pulling the door handle
again.

●

If there is another electronic key in the detection area, it may take slightly
longer to unlock the doors after the door handle is gripped.

●

Fingernails may scrape against the door during operation of the door han-
dle. Be careful not to injure fingernails or damage the surface of the door.

124

■

When the vehicle is not driven for extended periods

●

To prevent theft of the vehicle, do not leave the electronic key within 6 ft.
(2 m) of the vehicle.

●

The smart key system can be deactivated in advance. (

→P. 474)

■

To operate the system properly
Make sure to carry the electronic key when operating the system. Do not get
the electronic key too close to the vehicle when operating the system from the
outside of the vehicle.
Depending on the position and holding condition of the electronic key, the key
may not be detected correctly and the system may not operate properly. (The
alarm may go off accidentally, or the door lock prevention may not operate.)

■

If the smart key system does not operate properly

●

Locking and unlocking the doors: Use the mechanical key. (

→P. 436)

●

Starting the engine system:

→P. 437

■

Customization
Settings (e.g. smart key system) can be changed.
(Customizable features:

→P. 474

■

If the smart key system has been deactivated in a customized setting

●

Unlocking and locking the doors:
Use the wireless remote control or mechanical key. (

→P. 105, 436)

●

Starting the engine and changing engine switch modes:

→P. 437

●

Stopping the engine:

→P. 166

125

■

Certification for the smart key system



For vehicles sold in the U.S.A.

FCC ID: MOZBG3KW
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful interfer-
ence; and (2) This device must accept any interference received, including
interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.



For vehicles sold in the U.S.A.

FCC ID: MOZBR1ET
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful interfer-
ence; and (2) This device must accept any interference received, including
interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.



For vehicles sold in Canada

This device complies with Industry Canada’s licence-exempt RSSs. Opera-
tion is subject to the following two conditions: (1) This device may not cause
interference; and (2) This device must accept any interference, including
interference that may cause undesired operation of the device.



For vehicles sold in the U.S.A.

FCC ID: NI4TMLF15-3
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful interfer-
ence; and (2) This device must accept any interference received, including
interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.



For vehicles sold in Canada

This device complies with Industry Canada licence-exempt RSSs. Operation
is subject to the following two conditions: (1) This device may not cause inter-
ference; and (2) This device must accept any interference, including interfer-
ence that may cause undesired operation of the device.

126

WARNING

■

Caution regarding interference with electronic devices

●

People with implantable cardiac pacemakers, cardiac resynchronization
therapy-pacemakers or implantable cardioverter defibrillators should keep
away from the smart key system antennas. (

→P. 118)

The radio waves may affect the operation of such devices. If necessary,
the entry function can be disabled. Ask your Toyota dealer for details, such
as the frequency of radio waves and timing of the emitted radio waves.
Then, consult your doctor to see if you should disable the entry function.

●

Users of any electrical medical device other than implantable cardiac
pacemakers, cardiac resynchronization therapy-pacemakers or implant-
able cardioverter defibrillators should consult the manufacturer of the
device for information about its operation under the influence of radio
waves.
Radio waves could have unexpected effects on the operation of such
medical devices.

Ask your Toyota dealer for details on disabling the entry function.

127

3-3. Adjusting the seats
