Toyota Camry Hybrid (2018 year). Instruction - part 25





385

5-4. Other interior features

5

Interio

r features

■

When support is necessary
Visit on the web at www.homelink.com/toyota or call 1-800-355-3515.

WARNING

■

When programming a garage door or other remote control device
The garage door or other device may operate, so ensure people and
objects are out of danger to prevent potential harm.

■

Conforming to federal safety standards
Do not use the HomeLink

®

 compatible transceiver with any garage door

opener or device that lacks safety stop and reverse features as required by
federal safety standards. This includes any garage door that cannot detect
an interfering object. A door or device without these features increases the
risk of death or serious injury.

■

When operating or programming HomeLink

®

Never allow a child to operate or play with the HomeLink

®

 buttons.

386

5-4. Other interior features

■

System components

Microphone

LED light indicators

“SOS” button

Safety Connect

∗

∗

: If equipped

Safety Connect is a subscription-based telematics service that
uses Global Positioning System (GPS) data and embedded cel-
lular technology to provide safety and security features to sub-
scribers. Safety Connect is supported by Toyota’s designated
response center, which operates 24 hours per day, 7 days per
week.

Safety Connect service is available by subscription on select,
telematics hardware-equipped vehicles.

By using the Safety Connect service, you are agreeing to be
bound by the Telematics Subscription Service Agreement and
its Terms and Conditions, as in effect and amended from time to
time, a current copy of which is available at Toyota.com. All use
of the Safety Connect service is subject to such then-applicable
Terms and Conditions.

1
2
3

387

5-4. Other interior features

5

Interio

r features

■

Services

Subscribers have the following Safety Connect services available:
● Automatic Collision Notification

*

Helps drivers receive necessary response from emergency ser-
vice providers. (

→P. 388)

*

: U.S. Patent No. 7,508,298 B2

● Stolen Vehicle Location

Helps drivers in the event of vehicle theft. (

→P. 389)

● Emergency Assistance Button (“SOS”)

Connects drivers to response-center support. (

→P. 389)

● Enhanced Roadside Assistance

Provides drivers various on-road assistance. (

→P. 389)

■

Subscription

After you have signed the Telematics Subscription Service Agree-
ment and are enrolled, you can begin receiving services.
A variety of subscription terms are available for purchase. Contact
your Toyota dealer, call the Safety Connect response center at 1-
855-405-6500, or push the “SOS” button in your vehicle for further
subscription details.

■

Safety Connect Services Information

●

Phone calls using the vehicle’s Bluetooth

®

 technology will not be possible

during Safety Connect.

●

Safety Connect is available beginning Fall 2009 on select Toyota models.
Contact with the Safety Connect response center is dependent upon the
telematics device being in operative condition, cellular connection availabil-
ity, and GPS satellite signal reception, which can limit the ability to reach the
response center or receive emergency service support. Enrollment and
Telematics Subscription Service Agreement are required. A variety of sub-
scription terms are available; charges vary by subscription term selected.

●

Automatic Collision Notification, Emergency Assistance, Stolen Vehicle
Location, and Enhanced Roadside Assistance will function in the United
States, including Hawaii and Alaska, and in Canada. No Safety Connect
services will function outside of the United States in countries other than
Canada.

●

Safety Connect services are not subject to section 255 of the Telecommuni-
cations Act and the device is not TTY compatible.

388

5-4. Other interior features

■

Languages
The Safety Connect response center will offer support in multiple languages.
The Safety Connect system will offer voice prompts in English and Spanish.
Please indicate your language of choice when enrolling.

■

When contacting the response center
You may be unable to contact the response center if the network is busy.

When the power switch is turned to ON mode, the red indicator light
comes on for 2 seconds then turns off. Afterward, the green indicator
light comes on, indicating that the service is active.
The following indicator light patterns indicate specific system usage
conditions:
● Green indicator light on = Active service
● Green indicator light flashing = Safety Connect call in process
● Red indicator light (except at vehicle start-up) = System malfunction

(contact your Toyota dealer)

● No indicator light (off) = Safety Connect service not active

■

Automatic Collision Notification

In case of either airbag deployment or severe rear-end collision, the
system is designed to automatically call the response center. The
responding agent receives the vehicle’s location and attempts to
speak with the vehicle occupants to assess the level of emergency.
If the occupants are unable to communicate, the agent automati-
cally treats the call as an emergency, contacts the nearest emer-
gency services provider to describe the situation, and requests that
assistance be sent to the location.

Safety Connect LED light Indicators

Safety Connect services

389

5-4. Other interior features

5

Interio

r features

■

Stolen Vehicle Location

If your vehicle is stolen, Safety Connect can work with local author-
ities to assist them in locating and recovering the vehicle. After filing
a police report, call the Safety Connect response center at 1-855-
405-6500 and follow the prompts for Safety Connect to initiate this
service.
In addition to assisting law enforcement with recovery of a stolen
vehicle, Safety-Connect-equipped vehicle location data may, under
certain circumstances, be shared with third parties to locate your
vehicle. Further information is available at Toyota.com.

■

Emergency Assistance Button (“SOS”)

In the event of an emergency on the road, push the “SOS” button to
reach the Safety Connect response center. The answering agent
will determine your vehicle’s location, assess the emergency, and
dispatch the necessary assistance required.

If you accidentally press the “SOS” button, tell the response-center
agent that you are not experiencing an emergency.

■

Enhanced Roadside Assistance

Enhanced Roadside Assistance adds GPS data to the already
included warranty-based Toyota roadside service.

Subscribers can press the “SOS” button to reach a Safety Connect
response-center agent, who can help with a wide range of needs,
such as: towing, flat tire, fuel delivery, etc. For a description of the
Enhanced Roadside Assistance services and their limitations,
please see the Safety Connect Terms and Conditions, which are
available at Toyota.com.

390

5-4. Other interior features

Important! Read this information before using Safety Connect.

■

Exposure to radio frequency signals

The Safety Connect system installed in your vehicle is a low-power
radio transmitter and receiver. It receives and also sends out radio
frequency (RF) signals.

In August 1996, the Federal Communications Commission (FCC)
adopted RF exposure guidelines with safety levels for mobile wire-
less phones. Those guidelines are consistent with the safety stan-
dards previously set by the following U.S. and international
standards bodies.
● ANSI (American National Standards Institute) C95.1 [1992]
● NCRP (National Council on Radiation Protection and Measure-

ment) Report 86 [1986]

● ICNIRP (International Commission on Non-Ionizing Radiation

Protection) [1996]

Those standards were based on comprehensive and periodic eval-
uations of the relevant scientific literature. Over 120 scientists, engi-
neers, and physicians from universities, and government health
agencies and industries reviewed the available body of research to
develop the ANSI Standard (C95.1).

The design of Safety Connect complies with the FCC guidelines in
addition to those standards.

Safety information for Safety Connect

391

5-4. Other interior features

5

Interio

r features

■

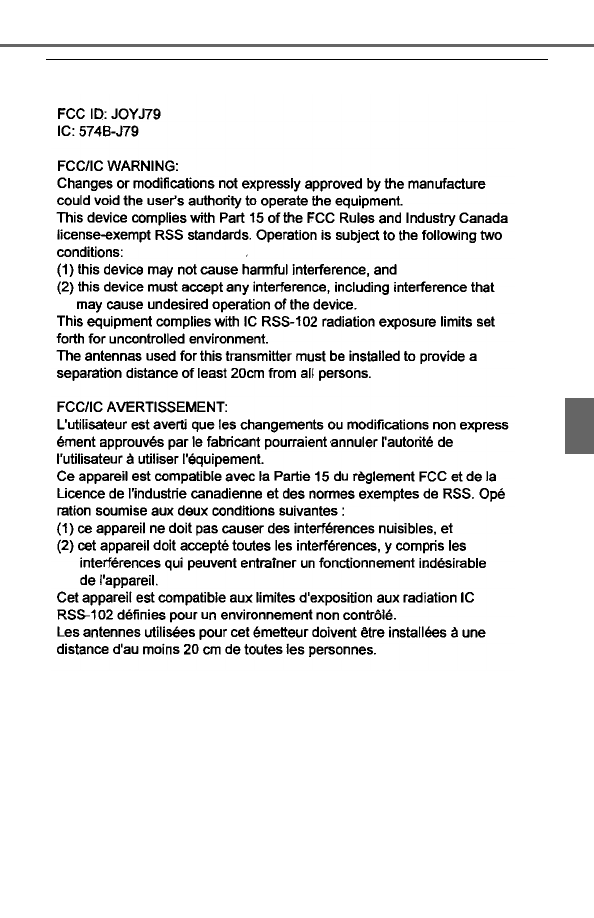

Certification for Safety Connect

392

5-4. Other interior features

To turn the compass on or off,
press and hold the button for 3
seconds.

Compass

∗

∗

: If equipped

The compass on the inside rear view mirror indicates the direc-
tion in which the vehicle is heading.

Operation

Displays and directions

Display

Direction

N

North

NE

Northeast

E

East

SE

Southeast

S

South

SW

Southwest

W

West

NW

Northwest

393

5-4. Other interior features

5

Interio

r features

The direction display deviates from the true direction determined by
the earth’s magnetic field. The amount of deviation varies according to
the geographic position of the vehicle.

If you cross over a map boundary shown in illustration, the compass will
deviate.
To obtain higher precision or perfect calibration, refer to the following.

■

Deviation calibration

Stop the vehicle.

Press and hold the button for
6 seconds.

A number (1 to 15) appears on
the compass display.

Press the button and referring to the map above, select the num-
ber of the zone where you are.

If the direction is displayed several seconds after adjustment, the cali-
bration is complete.

Calibrating the compass

1
2

3

394

5-4. Other interior features

■

Circling calibration

Stop the vehicle in a place where it is safe to drive in a circle.

Press and hold the button for
9 seconds.

“C” appears on the compass
display.

Drive the vehicle at 5 mph (8
km/h) or less in a circle until
a direction is displayed.

If there is not enough space to
drive in a circle, drive around the
block until the direction is dis-
played.

■

Conditions unfavorable to correct operation
The compass may not show the correct direction in the following conditions:

●

The vehicle is stopped immediately after turning.

●

The vehicle is on an inclined surface.

●

The vehicle is in a place where the earth's magnetic field is subject to inter-
ference by artificial magnetic fields (underground car park/parking lot, under
a steel tower, between buildings, roof car park/parking lot, near an intersec-
tion, near a large vehicle, etc.).

●

The vehicle has become magnetized.
(There is a magnet or metal object near the inside rear view mirror.)

●

The 12-volt battery has been disconnected.

●

A door is open.

1
2

3

395

5-4. Other interior features

5

Interio

r features

WARNING

■

While driving the vehicle
Do not adjust the display. Adjust the display only when the vehicle is
stopped.

■

When doing the circling calibration
Secure a wide space, and watch out for people and vehicles in the neigh-
borhood. Do not violate any local traffic rules while performing circling cali-
bration.

NOTICE

■

To avoid compass malfunctions
Do not place magnets or any metal objects near the inside rear view mirror.
Doing this may cause the compass sensor to malfunction.

■

To ensure normal operation of the compass

●

Do not perform circling calibration of the compass in a place where the
earth's magnetic field is subject to interference by artificial magnetic fields.

●

During calibration, do not operate electric systems (moon roof, power win-
dows, etc.) as they may interfere with the calibration.

396

5-4. Other interior features

398

6-1. Maintenance and care

● Working from top to bottom, liberally apply water to the vehicle

body, wheel wells and underside of the vehicle to remove any dirt
and dust.

● Wash the vehicle body using a sponge or soft cloth, such as a

chamois.

● For hard-to-remove marks, use car wash soap and rinse thoroughly

with water.

● Wipe away any water.
● Wax the vehicle when the waterproof coating deteriorates.

If water does not bead on a clean surface, apply wax when the vehicle
body is cool.

■

Automatic car washes

●

Fold the mirrors before washing the vehicle. Start washing from the front of
the vehicle. Make sure to extend the mirrors before driving.

●

Brushes used in automatic car washes may scratch the vehicle surface and
harm your vehicle's paint.

●

Vehicles with a rear spoiler: In certain automatic car washes, the rear spoiler
may interfere with machine operation. This may prevent the vehicle from
being cleaned properly or result in damage to the rear spoiler.

■

High pressure car washes

●

Do not allow the nozzles of the car wash to come within close proximity of
the windows.

●

Before using the car wash, check that the fuel filler door on your vehicle is
closed properly.

Cleaning and protecting the vehicle

exterior

Perform the following to protect the vehicle and maintain it in
prime condition:

399

6-1. Maintenance and care

6

Mai

n

tenan

ce and care

■

When using a car wash
If the door handle becomes wet while the electronic key is within the effective
range, the door may lock and unlock repeatedly. In that case, follow the fol-
lowing correction procedures to wash the vehicle:

●

Place the key in a position 6 ft. (2 m) or more separate from the vehicle
while the vehicle is being washed. (Take care to ensure that the key is not
stolen.)

●

Set the electronic key to battery-saving mode to disable the smart key sys-
tem. (

→P. 162)

■

Aluminum wheels (if equipped)

●

Remove any dirt immediately by using a neutral detergent.

●

Wash detergent off with water immediately after use.

●

To protect the paint from damage, make sure to observe the following pre-
cautions.

• Do not use acidic, alkaline or abrasive detergent
• Do not use hard brushes
• Do not use detergent on the wheels when they are hot, such as after driv-

ing or parking in hot weather

■

Bumpers
Do not scrub with abrasive cleaners.

WARNING

■

When washing the vehicle
Do not apply water to the inside of the engine compartment. Doing so may
cause the electrical components, etc. to catch fire.

■

Precautions regarding the exhaust pipes
Exhaust gasses cause the exhaust pipes to become quite hot.

When washing the vehicle, be careful not to touch the pipes until it has
cooled sufficiently, as touching a hot exhaust pipes can cause burns.

■

Precaution regarding the rear bumper with Blind Spot Monitor (if
equipped)
If the paint of the rear bumper is chipped or scratched, the system may mal-
function. If this occurs, avoid using the system and consult your Toyota
dealer.

400

6-1. Maintenance and care

NOTICE

■

To prevent paint deterioration and corrosion on the body and compo-
nents (aluminum wheels, etc.)

●

Wash the vehicle immediately in the following cases:

• After driving near the sea coast
• After driving on salted roads
• If coal tar or tree sap is present on the paint surface
• If dead insects, insect droppings or bird droppings are present on the

paint surface

• After driving in an area contaminated with soot, oily smoke, mine dust,

iron powder or chemical substances

• If the vehicle becomes heavily soiled with dust or mud
• If liquids such as benzene and gasoline are spilled on the paint surface

●

If the paint is chipped or scratched, have it repaired immediately.

●

To prevent the wheels from corroding, remove any dirt and store in a place
with low humidity when storing the wheels.

■

Cleaning the exterior lights

●

Wash carefully. Do not use organic substances or scrub with a hard brush.
This may damage the surfaces of the lights.

●

Do not apply wax to the surfaces of the lights.
Wax may cause damage to the lenses.

■

When using a high pressure car wash

●

Do not bring the nozzle tip close to boots (rubber or resin manufactured
cover), connectors or the following parts. The parts may be damaged if
they come into contact with high-pressure water.

• Traction related parts
• Steering parts
• Suspension parts
• Brake parts

●

Do not wash the underside of the vehicle using a high-pressure car
washer.















Content   ..  23  24  25  26   ..
