2. Instrument cluster

Instrument cluster

Odometer/trip meter (

→P. 125)

Shift position (

→P. 213)

Outside temperature (

→P. 96)

Menu icons (

→P. 114)

“ODO/TRIP” switch (

→P. 113)

Meter control switches (

→P. 113)

◆

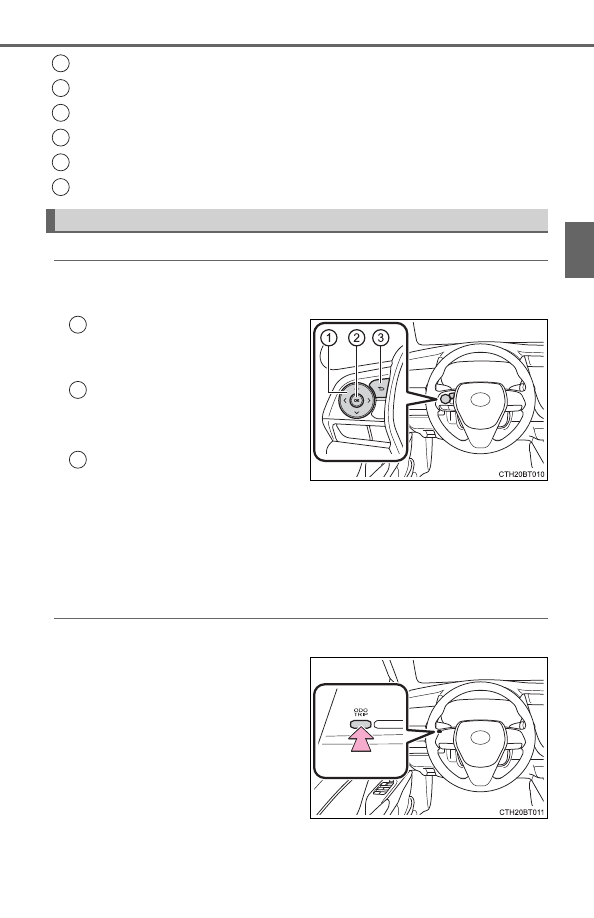

Using the content display area

The content display area is operated using the meter control
switches.

Scroll screens

, change the

displayed content

and move

the cursor

Press: Enter/Set

Press and hold: Reset/Dis-
play the next screen

Return to the previous
screen

Pressing and holding the switch will display the first screen of the
selected menu icon.

: When the screen can be scrolled or different content can be displayed,

a mark, such as an arrow, will be displayed to suggest which switch to
operate.

◆

Using the odometer/trip meter

Items in this area are operated using the “ODO/TRIP” switch.

Press: Change displayed item

Each time the switch is pressed,
the displayed item will be
changed.

Press and hold: Reset

Display the desired trip meter
and press and hold the switch to
reset the trip meter.

Using the multi-information display

6
7
8
9

114

2. Instrument cluster

Select a menu icon to display its content.

Warning message display (

→P. 490)

This menu icon will be displayed only when a warning message can be
displayed.
Select to display warning messages and measures to be taken if a mal-
function is detected.

Eco-friendly driving information (

→P. 115)

Select to display fuel consumption data in various forms.

Driving assist system information

Select to perform the following:
Display the operational status of the following systems:

• Dynamic radar cruise control with full-speed range (

→P. 270)

• LDA (Lane Departure Alert with steering control) (

→P. 260)

Display the following navigation system-linked information (if equipped):

• Route guidance
• Compass display (heading-up display)

Audio system-linked display

Select to enable selection of an audio source or track on the meter
using the meter control switches.

Vehicle information

Select to perform the following:
Display the following information:

• Energy monitor (

→P. 135)

• Tire inflation pressure (

→P. 429)

Enable/Disable the following systems:

• Intuitive parking assist (if equipped) (

→P. 304)

• BSM (Blind Spot Monitor) function (if equipped) (

→P. 290)

• RCTA (Rear Cross Traffic Alert) function (if equipped) (

→P. 290)

This function can also be enabled/disabled on

Settings display (

→P. 119)

Select to change the meter display settings and other settings.

Menu icons

115

2. Instrument cluster

Instrument cluster

■

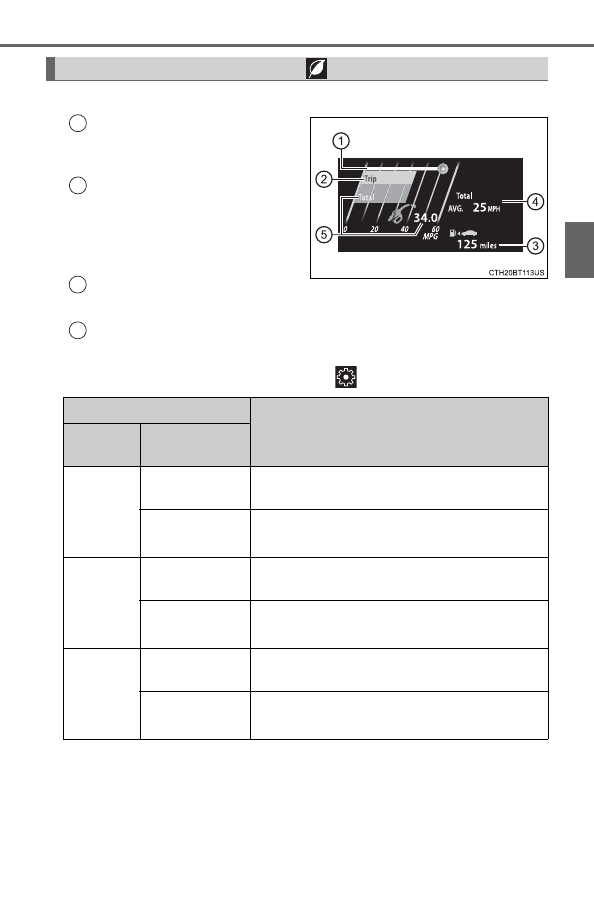

Fuel consumption

Current fuel consumption

Displays the instantaneous cur-
rent fuel consumption.

Average fuel economy (after
start)

Displays the average fuel con-
sumption since hybrid system
start.

Driving range

Displays the driving range with remaining fuel.

2, 3

Gadget

The following items can be displayed by changing the settings for gad-

get content and fuel economy type on

. (

→P. 119)

Eco-friendly driving information (

)

Displayable item

Content

Gadget
content

Fuel economy

type

Average
vehicle
speed

Trip
(after start)

Displays the average vehicle speed since
hybrid system start.

Total
(after reset)

Displays the average vehicle speed since the

display was reset.

Distance

Trip
(after start)

Displays the distance driven since vehicle
start.

Total
(after reset)

Displays the distance driven since the display

was reset.

Elapsed
time

Trip
(after start)

Displays the elapsed time since hybrid system
start.

Total
(after reset)

Displays the elapsed time since the display

was reset.

116

2. Instrument cluster

Average fuel economy

Displayed item (listed below) can be changed on the fuel economy type

screen of

. (

→P. 119)

● Total (after reset)

Displays the average fuel consumption since the display was reset.

1, 5

● Tank (after refuel)

Displays the average fuel consumption since the vehicle was refu-
eled.

1, 2

: Use the displayed fuel consumption as a reference only.

: When only a small amount of fuel is added to the tank, the display may

not be updated.
When refueling, turn the power switch off. If the vehicle is refueled with-
out turning the power switch off, the display may not be updated.

: This distance is computed based on your average fuel consumption. As

a result, the actual distance that can be driven may differ from that dis-
played.

: The default setting is no display.

: This display can be reset by pressing and holding

while it is dis-

played.

117

2. Instrument cluster

Instrument cluster

■

Eco guide

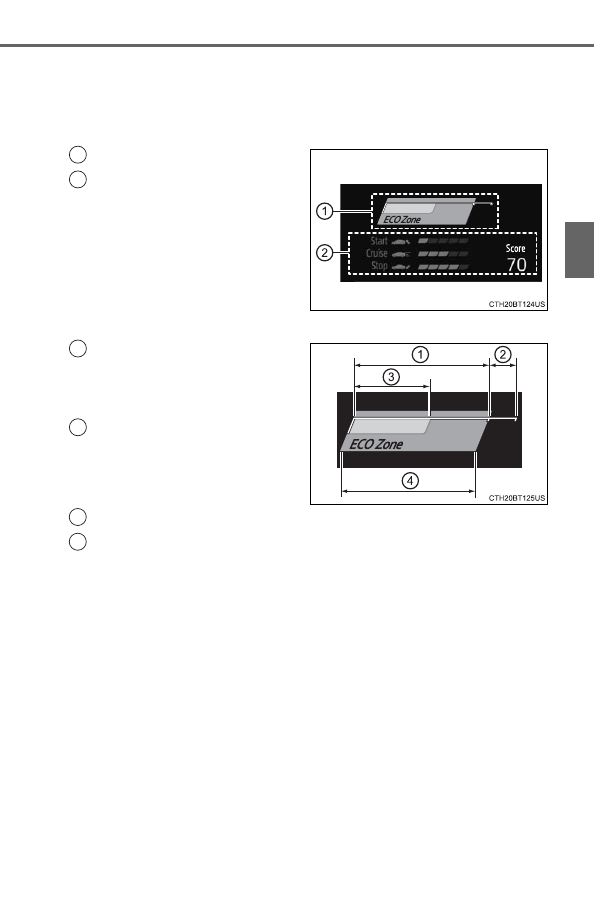

The Eco guide displays a guide for eco-friendly acceleration and
scores which represent an evaluation of how the vehicle has been
driven ecologically in different states.

ECO Accelerator Guidance

Eco score

● ECO Accelerator Guidance

Eco area

Indicates that the vehicle is
being driven in an Eco-friendly
manner.

Power area

Indicates that the Eco-friendly
driving range is being exceeded
(during full power driving, etc.)

Eco driving ratio based on acceleration

Zone of Eco acceleration

Suggests a range in which Eco-friendly acceleration can be performed.

The zone of Eco acceleration changes according to situations, such as
starting off or cruising.

Eco-friendly acceleration can be achieved by keeping the Eco driving
ratio based on acceleration bar within the zone of Eco acceleration.
(

→P. 191)

1
2

3
4

118

2. Instrument cluster

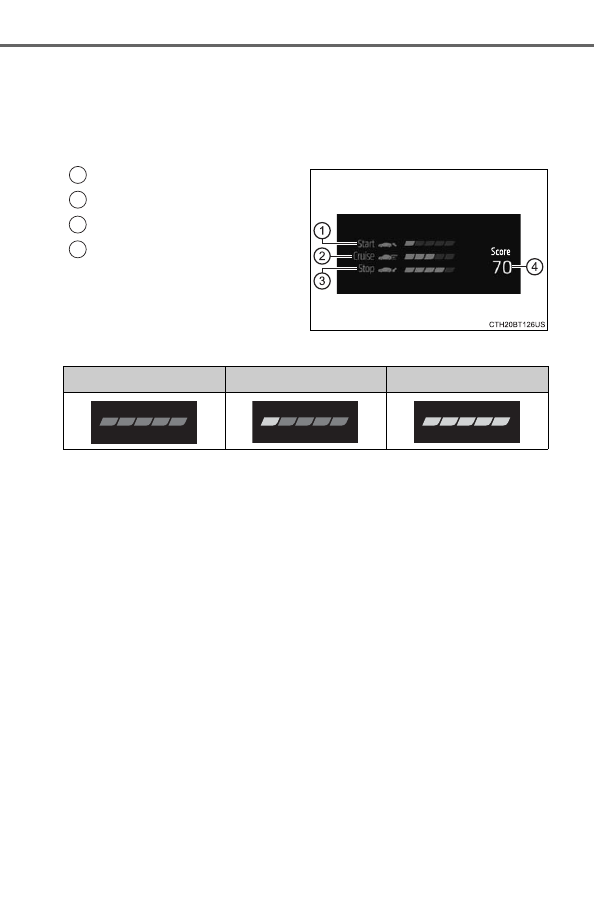

● Eco score
The following 3 Eco driving methods are evaluated in 5 levels:
Smooth start-off acceleration, driving without sudden acceleration,
and smooth stopping. When the vehicle is stopped, an Eco score
out of 100 points will be displayed.

Eco start status

Eco cruise status

Eco stop status

Score result

How to read the bar display:

• After the hybrid system is started, the Eco score will not be dis-

played until the vehicle speed exceeds approximately 12 mph
(20 km/h).

• The Eco score will be reset each time the hybrid system is

started.

• When the hybrid system is stopped, the total score of the current

trip will be displayed.

1
2
3
4

Not yet evaluated

Low

High

119

2. Instrument cluster

Instrument cluster

◆

Changing settings

Use the meter control switches on the steering wheel to change
settings.

Press

to select

Operate the switches to select a desired item.

Press or press and hold

The available settings will differ depending on if

is pressed or

pressed and held. Follow the instructions on the display.

◆

Setting items

■

LDA (Lane Departure Alert with steering control) (

→P. 260)

Press and hold

to change the settings of the following items:

Settings display (

)

1
2
3

Item

Settings

Details

Steering assist

Select to enable/disable steering

wheel assistance.

Off

Alert sensitivity

High

Select to set the warning sensi-
tivity.

Normal

Sway warning

Select to enable/disable the vehi-
cle sway warning.

Off

Sway sensitivity

High

Select to set the vehicle sway
warning sensitivity.

Medium

Low

120

2. Instrument cluster

■

PCS (Pre-Collision System) (

→P. 249)

Press and hold

to change the settings of the following items:

■

BSM (Blind Spot Monitor) (if equipped) (

→P. 290)

Press

to enable/disable the Blind Spot Monitor function.

Press and hold

to change the settings of the following item:

Item

Settings

Details

PCS

Select to enable/disable the pre-
collision system.

Off

Warning sensitivity

Select to change the warning
timing.

Item

Settings

Details

BSM

Select to enable/disable the
Blind Spot Monitor function.

Off

Item

Settings

Details

Outside rear view
mirror indicator
brightness

Bright

Select to change the brightness
of the outside rear view mirror
indicators.

Dim

121

2. Instrument cluster

Instrument cluster

■

RCTA (Rear Cross Traffic Alert) (if equipped) (

→P. 290)

Press

to enable/disable the Rear Cross Traffic Alert function.

Press and hold

to change the settings of the following item:

■

ICS (Intelligent Clearance Sonar) (if equipped) (

→P. 312)

Press

to enable/disable the Intelligent Clearance Sonar.

■

Intuitive parking assist (if equipped) (

→P. 304)

Press

to enable/disable the Intuitive parking assist.

Press and hold

to change the settings of the following item:

Item

Settings

Details

RCTA

Select to enable/disable the Rear
Cross Traffic Alert function.

Off

Item

Settings

Details

RCTA buzzer vol-
ume

1 (Low)

Select to change the volume of
the RCTA buzzer.

2 (Medium)

3 (Loud)

Item

Settings

Details

ICS

Select to enable/disable the
Intelligent Clearance Sonar sys-
tem.

Off

Item

Settings

Details

Intuitive parking
assist

Select to enable/disable the intui-
tive parking assist.

Off

Item

Settings

Details

Volume

1 (Low)

Select to change the volume of
the intuitive parking assist
buzzer.

2 (Medium)

3 (Loud)

122

2. Instrument cluster

■

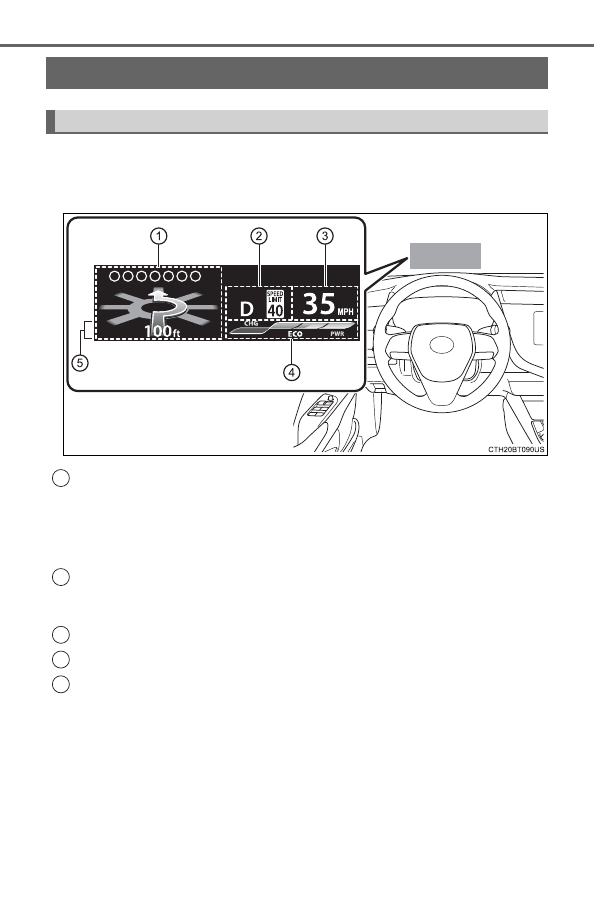

HUD (Head-up display) (

→P. 128)

Press

to enable/disable the head-up display.

Press and hold

to change the settings of the following items:

Item

Settings

Details

HUD

Select to enable/disable the
head-up display.

Off

Item

Settings

Details

HUD Brightness/Position

Select to adjust the brightness/
position of the head-up display.

• Press the

switch to

adjust the display brightness.

• Press the

switch to

adjust the display position.

HUD Driving sup-
port

Tachometer set-
tings

Select to change the display
between the following:
• Hybrid System Indicator
• Tachometer
• No content

Navigation sys-
tem (if equipped)

Select to enable/disable head-up
display content.

Driving Assist

Compass
(if equipped)

Audio system

Rotation

Select to adjust the angle of the
head-up display.

Press the

switch to

adjust the display angle.

123

2. Instrument cluster

Instrument cluster

■

Vehicle settings

Press and hold

to change the settings of the following items:

Item

Settings

Details

TPWS (Tire pressure warning system) (

→P. 429)

Set pressure (tire pressure warning sys-
tem initialization)

Select to initialize the tire pres-
sure warning system. To per-
form initialization, press and hold

the

switch.

Before performing initialization,
make sure to adjust the inflation
pressure of each tire to the spec-
ified level. (

→P. 430)

Change wheel (register tire pressure
warning system sensor ID codes)

Select to register the ID codes of
the tire pressure sensors to the
tire pressure warning system. To
register the ID codes, press and

hold the

switch.

(

→P. 432)

Scheduled maintenance display

Maintenance data reset

Select to reset the message indi-
cating maintenance is required,
after the required maintenance is
performed. (

→P. 405)

124

2. Instrument cluster

■

Meter settings

Press and hold

to change the settings of the following items:

: Selecting this item will only change the gadget.

: Selecting this item will turn the display of the gadget off.

Item

Settings

Details

Language

Select to change the language
displayed.

Units

Select to change the units of
measure displayed.

(EV indicator)

Select to enable/disable the EV
indicator. (

→P. 75)

Off

Speedometer

Select to enable/disable the
speedometer display.

Off

Gadget content

Off

No display

Average vehicle
speed

Select to turn the display of a
gadget.

Distance

Elapsed time

Fuel economy type

Trip (after start)

Select to change the average
fuel consumption display and an
item to be displayed as gadget.

Total (after reset)

Tank
(after refuel)

Multi-information display off

Select to turn the multi-informa-
tion display off.
To turn the multi-information dis-
play on again, press any direc-

tion switch (

Pop-up display

Intersection guid-
ance (if equipped)

Select to enable/disable the pop-
up display.

Incoming calls

Brightness adjust-
ment

Default setting

Select to reset the meter display
settings to the default setting.

125

2. Instrument cluster

Instrument cluster

■

Odometer

Displays the total distance the vehicle has been driven.

■

Trip meter A/trip meter B

Displays the distance the vehicle has been driven since the meter
was last reset. Trip meters A and B can be used to record and dis-
play different distances independently.

To reset, display the desired trip meter and press and hold the “ODO/
TRIP” switch.

Displays suggestions to the driver in the following situations. To select
a response to a displayed suggestion, use the meter control switches.

The suggestion function can be turned on/off.
(Customizable features:

→P. 551)

■

Suggestion to turn off the headlights

If the headlights are left on for a certain amount of time after the
power switch has been turned off, if the headlight switch is in the
“AUTO” position, a suggestion message will be displayed asking if
you wish to turn the headlights off. To turn the headlights off, select
“Yes”.

If a front door is opened after the power switch is turned off, this sugges-
tion message will not be displayed.

Odometer/trip meter

Suggestion function

126

2. Instrument cluster

■

The Eco guide will not operate when
The Eco guide will not operate in the following situations:

●

The Hybrid System Indicator is not operating.

●

The vehicle is being driven using the dynamic radar cruise control with full-
speed range.

■

Suspension of the settings display

●

Some settings cannot be changed while driving. When changing settings,
park the vehicle in a safe place.

●

If a warning message is displayed, operation of the settings display will be
suspended.

■

Tire pressure

●

It may take a few minutes to display the tire inflation pressure after the
power switch is turned to ON mode. It may also take a few minutes to dis-
play the tire inflation pressure after inflation pressure has been adjusted.

●

“---” may be displayed if the tire position information cannot be determined
due to unfavorable radio wave conditions.

●

Tire inflation pressure changes with temperature. The displayed values may
also be different from the values measured using a tire pressure gauge.

■

Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is
characteristic of liquid crystal displays, and there is no problem continuing to
use the display.

■

Customization
Some functions can be customized. (

→P. 119, 551)

127

2. Instrument cluster

Instrument cluster

WARNING

■

Caution for use while driving

●

When operating the multi-information display while driving, pay extra
attention to the safety of the area around the vehicle.

●

Do not look continuously at the multi-information display while driving as
you may fail to see pedestrians, objects on the road, etc. ahead of the
vehicle.

■

The information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information display
monitor may respond slowly, and display changes may be delayed.
For example, there is a lag between the driver’s shifting and the new gear
number appearing on the display. This lag could cause the driver to down-
shift again, causing rapid and excessive engine braking and possibly an
accident resulting in death or injury.

■

Cautions during setting up the display
As the hybrid system needs to be running during setting up the display,
ensure that the vehicle is parked in a place with adequate ventilation. In a
closed area such as a garage, exhaust gases including harmful carbon
monoxide (CO) may collect and enter the vehicle. This may lead to death or
a serious health hazard.

NOTICE

■

While setting up the display
To prevent 12-volt battery discharge, ensure that the hybrid system is oper-
ating while setting up the display features.

128

2. Instrument cluster

The head-up display is linked to the meters and navigation system (if
equipped) and projects a variety of information in front of the driver,
such as the current vehicle speed.

Driving assist system status/navigation system-linked display area
(if equipped) (

→P. 130)

The following pop-up displays will be displayed in certain situations:

• Pre-collision warning (pre-collision system)
• Alert from the Intelligent Clearance Sonar system (if equipped)

Shift position/speed limit display area

• Shift position (

→P. 213)

• Speed limit (vehicles with a navigation system)

Vehicle speed display

Hybrid System Indicator/Tachometer (

→P. 131)

Information display area (
