Toyota Avalon (2018 year). Instruction - part 5





65

1-1. For safe use

1

Fo

safety and securi

ty

WARNING

When installing a booster seat
To prevent the belt from going into ALR lock mode, do not fully extend the
shoulder belt. ALR mode causes the belt to tighten only. This could cause
injury or discomfort to the child. (

P. 30)

When installing a child restraint system
Follow the directions given in the child restraint system installation manual
and fix the child restraint system securely in place.
If the child restraint system is not correctly fixed in place, the child or other
passengers may be seriously injured or even killed in the event of a sudden
braking or an accident.

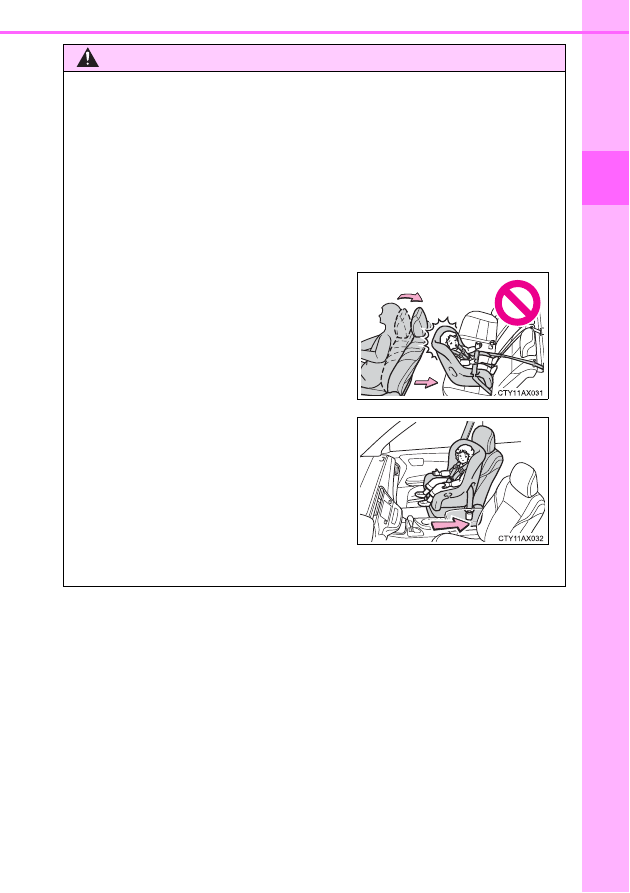

If the driver’s seat interferes with the
child restraint system and prevents it
from being attached correctly, attach the
child restraint system to the right-hand
rear seat.

Adjust the front passenger seat so that
it does not interfere with the child
restraint system.

Only put a forward-facing child restraint
system on the front seat when unavoid-
able. When installing a forward-facing
child restraint system on the front pas-
senger seat, move the seat as far back
as possible even if the “AIR BAG OFF”
indicator light is illuminated. Failure to
do so may result in death or serious
injury if the airbags deploy (inflate).

66

1-1. For safe use

WARNING

When installing a child restraint system

When a booster seat is installed, always ensure that the shoulder belt is
positioned across the center of the child’s shoulder. The belt should be
kept away from the child’s neck, but not so that it could fall off the child’s
shoulder. Failing to do so may result in death or serious injury in the event
of an accident or a sudden braking.

Ensure that the belt and plate are securely locked and the seat belt is not
twisted.

Shake the child restraint system left and right, and forward and backward
to ensure that it has been securely installed.

After securing a child restraint system, never adjust the seat.

Follow all installation instructions provided by the child restraint system
manufacturer.

When securing some types of child restraint systems in rear seats, it may
not be possible to properly use the seat belts in positions next to the child
restraint without interfering with it or affecting seat belt effectiveness. Be
sure your seat belt fits snugly across your shoulder and low on your hips. If
it does not, or if it interferes with the child restraint, move to a different
position. Failure to do so may result in death or serious injury.

Do not use a seat belt extender
If a seat belt extender is used when installing a child restraint system, the
seat belt will not securely hold the child restraint system, which could cause
death or serious injury to the child or other passengers in the event of a sud-
den braking, sudden swerving or an accident.

To correctly attach a child restraint system to the anchors
When using the LATCH anchors, be sure that there are no foreign objects
around the anchors and that the seat belt is not caught behind the child
restraint system. Make sure the child restraint system is securely attached,
or it may cause death or serious injury to the child or other passengers in
the event of a sudden braking or an accident.

67

1-1. For safe use

1

Fo

safety and securi

ty

Exhaust gas precautions

Harmful substance to the human body is included in exhaust
gases if inhaled.

WARNING

Exhaust gases include harmful carbon monoxide (CO), which is colorless and
odorless. Observe the following precautions.
Failure to do so may cause exhaust gases to enter the vehicle and may lead
to an accident caused by light-headedness, or may lead to death or a serious
health hazard.

Important points while driving

Keep the trunk lid closed.

If you smell exhaust gases in the vehicle even when the trunk lid is closed,
open the windows and have the vehicle inspected at your Toyota dealer as
soon as possible.

When parking

If the vehicle is in a poorly ventilated area or a closed area, such as a
garage, stop the engine.

Do not leave the vehicle with the engine on for a long time.
If such a situation cannot be avoided, park the vehicle in an open space
and ensure that exhaust fumes do not enter the vehicle interior.

Do not leave the engine running in an area with snow build-up, or where it
is snowing. If snowbanks build up around the vehicle while the engine is
running, exhaust gases may collect and enter the vehicle.

Exhaust pipe
The exhaust system needs to be checked periodically. If there is a hole or
crack caused by corrosion, damage to a joint or abnormal exhaust noise, be
sure to have the vehicle inspected and repaired by your Toyota dealer.

68

1-2. Theft deterrent system

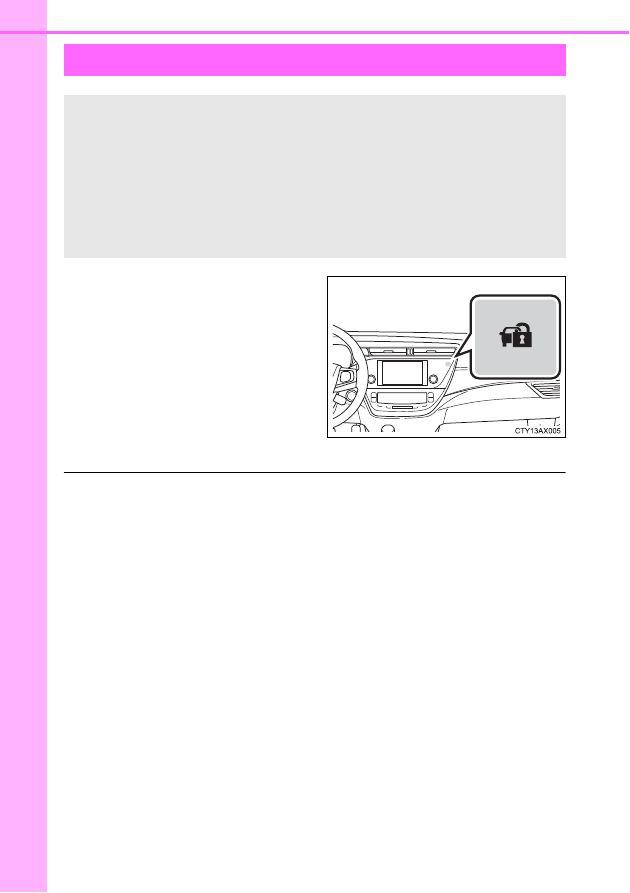

The indicator light flashes after
the engine switch has been turned
off to indicate that the system is
operating.

The indicator light stops flashing
after the engine switch has been
turned to ACCESSORY or IGNI-
TION ON mode to indicate that
the system has been canceled.

System maintenance
The vehicle has a maintenance-free type engine immobilizer system.

Conditions that may cause the system to malfunction

If the grip portion of the key is in contact with a metallic object

If the key is in close proximity to or touching a key to the security system
(key with a built-in transponder chip) of another vehicle

Engine immobilizer system

The vehicle’s keys have built-in transponder chips that prevent
the engine from starting if a key has not been previously regis-
tered in the vehicle’s on-board computer.

Never leave the keys inside the vehicle when you leave the vehi-
cle.

This system is designed to help prevent vehicle theft but does
not guarantee absolute security against all vehicle thefts.

69

1-2. Theft deterrent system

1

Fo

safety and securi

ty

Certifications for the engine immobilizer system

For vehicles sold in the U.S.A.

FCC ID: NI4TMIMB-3
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful interfer-
ence, and (2) this device must accept any interference received, including
interference that may cause undesired operation.

For vehicles sold in Canada

This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not
cause interference, and (2) this device must accept any interference, includ-
ing interference that may cause undesired operation of the device.

WARNING

Certifications for the engine immobilizer system
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.

NOTICE

To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be guaranteed.

70

1-2. Theft deterrent system

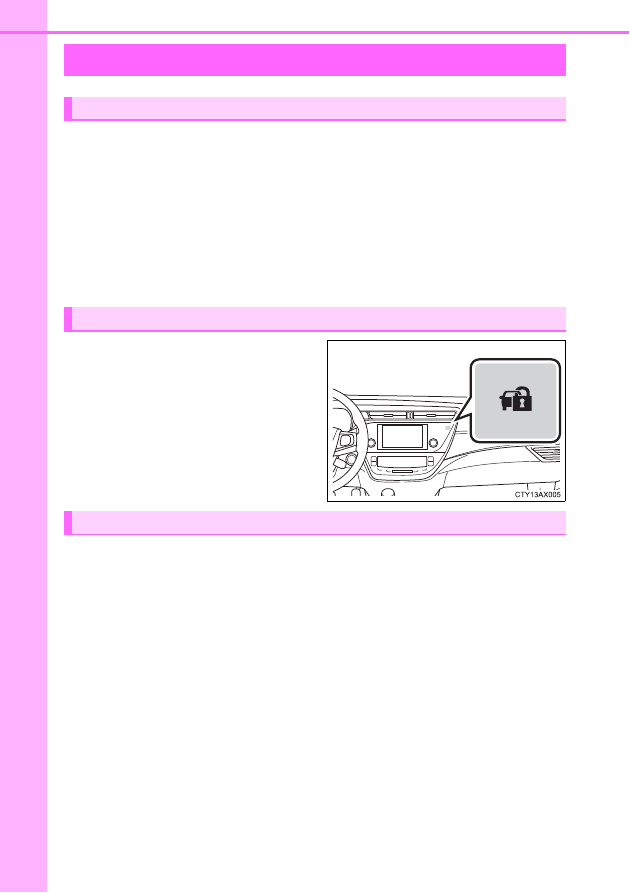

The alarm uses light and sound to give an alert when an intrusion is
detected.
The alarm is triggered in the following situations when the alarm is
set:
● A locked door or trunk is unlocked or opened in any way other than

using the entry function, wireless remote control or mechanical key.

● The hood is opened.
● Some models: The window is tapped or broken.

Close the doors, trunk and hood,
and lock all the doors. The system
will be set automatically after 30
seconds.

The indicator light changes from
being on to flashing when the sys-
tem is set.

Do one of the following to deactivate or stop the alarms:
● Unlock the doors or open the trunk.
● Turn the engine switch to ACCESSORY or IGNITION ON mode, or

start the engine. (The alarm will be deactivated or stopped after a
few seconds.)

Alarm

The alarm

Setting the alarm system

Deactivating or stopping the alarm

71

1-2. Theft deterrent system

1

Fo

safety and securi

ty

System maintenance
The vehicle has a maintenance-free type alarm system.

Items to check before locking the vehicle
To prevent unexpected triggering of the alarm and vehicle theft, make sure of
the following:

Nobody is in the vehicle.

The windows and moon roof are closed before the alarm is set.

No valuables or other personal items are left in the vehicle.

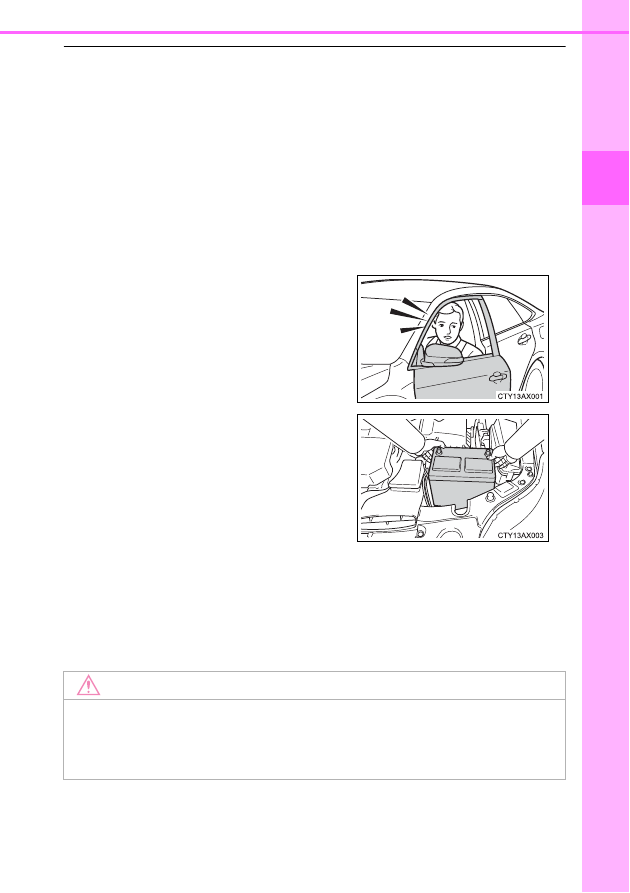

Triggering of the alarm
The alarm may be triggered in the following situations:
(Stopping the alarm deactivates the alarm system.)

Alarm-operated door lock

When the alarm is operating, the doors are locked automatically to prevent
intruders.

Do not leave the key inside the vehicle when the alarm is operating, and
make sure the key is not inside the vehicle when recharging or replacing the
battery.

A person inside the vehicle opens a
door, the trunk or hood.

The battery is recharged or replaced
when the vehicle is locked.

NOTICE

To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be guaranteed.

72

1-2. Theft deterrent system

These labels are attached to the
vehicle to reduce vehicle theft by
facilitating the tracing and recov-
ery of parts from stolen vehicles.
Do not remove under penalty of
law.

Theft prevention labels (U.S.A.)

74

2. Instrument cluster

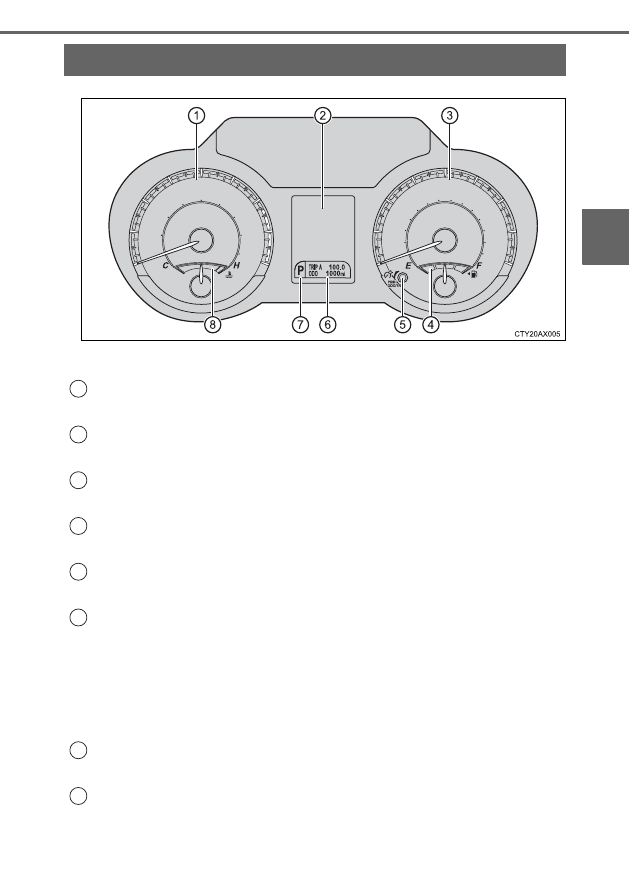

The units used on the speedometer and some indicators may differ
depending on where the vehicle is sold.

Warning lights and indicators

The warning lights and indicators on the instrument cluster and
center panel inform the driver of the status of the vehicle’s vari-
ous systems.

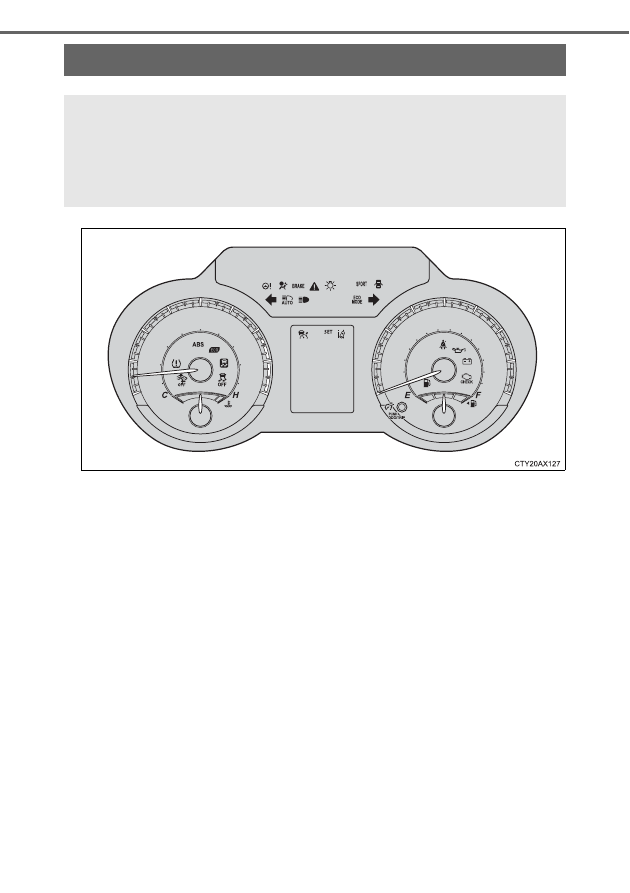

For the purpose of explanation, the following illustration dis-
plays all warning lights and indicators illuminated.

75

2. Instrument cluster

2

Instrum

e

nt clus

ter

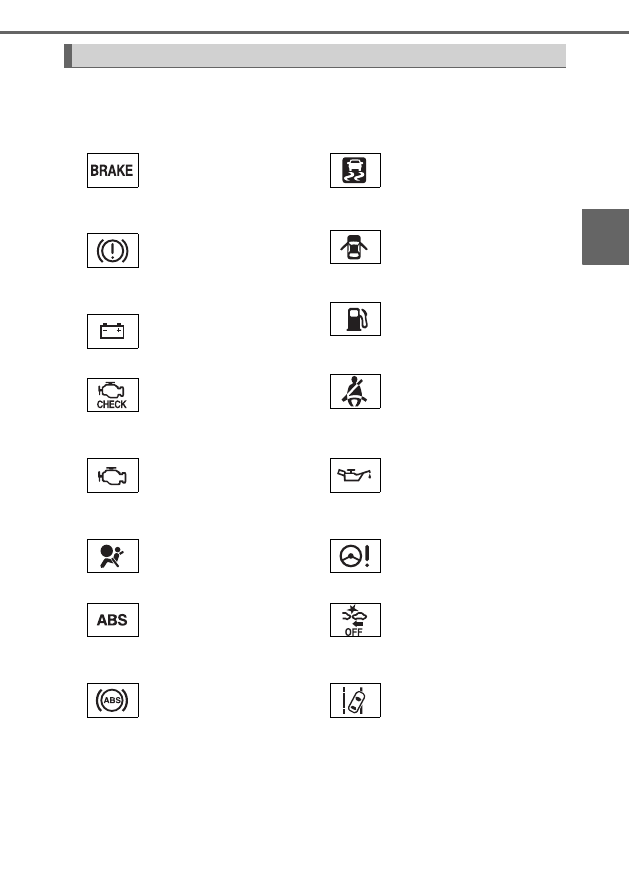

Warning lights inform the driver of malfunctions in the indicated vehi-
cle’s systems.

Warning lights

*

1

(U.S.A.)

Brake system warning
light (

→P. 388)

*

1

Slip indicator (

P. 390)

*

1

(Canada)

Brake system warning
light (

→P. 388)

Open door warning light
(

P. 390)

*

1

Charging system warn-
ing light (

→P. 388)

Low fuel level warning
light (

P. 390)

*

1

(U.S.A.)

Malfunction indicator
lamp (

P. 388)

Seat belt reminder light
(

P. 390)

*

1

(Canada)

Malfunction indicator
lamp (

P. 388)

*

1

Low engine oil pressure
warning light (

→P. 388)

*

1

SRS warning light
(

→P. 389)

*

1

Electric power steering
system warning light
(

P. 389)

*

1

(U.S.A.)

ABS warning light
(

→P. 389)

*

1, 2, 3

PCS warning light
(

P. 389)

*

1

(Canada)

ABS warning light
(

→P. 389)

*

2, 4

LDA (Lane Departure
Alert with steering con-
trol) indicator (

P. 390)

76

2. Instrument cluster

*

1

: These lights turn on when the engine switch is turned to IGNITION ON

mode to indicate that a system check is being performed. They will turn off
after the engine is started, or after a few seconds. There may be a mal-
function in a system if a light does not come on, or turn off. Have the vehi-
cle inspected by your Toyota dealer.

*

2

: If equipped

*

3

: The light flashes to indicate a malfunction.

*

4

: This light illuminates on the multi-information display.

*

1

Tire pressure warning
light (

→P. 391)

*

1

Master warning light
(

P. 391)

77

2. Instrument cluster

2

Instrum

e

nt clus

ter

The indicators inform the driver of the operating state of the vehicle’s
various systems.

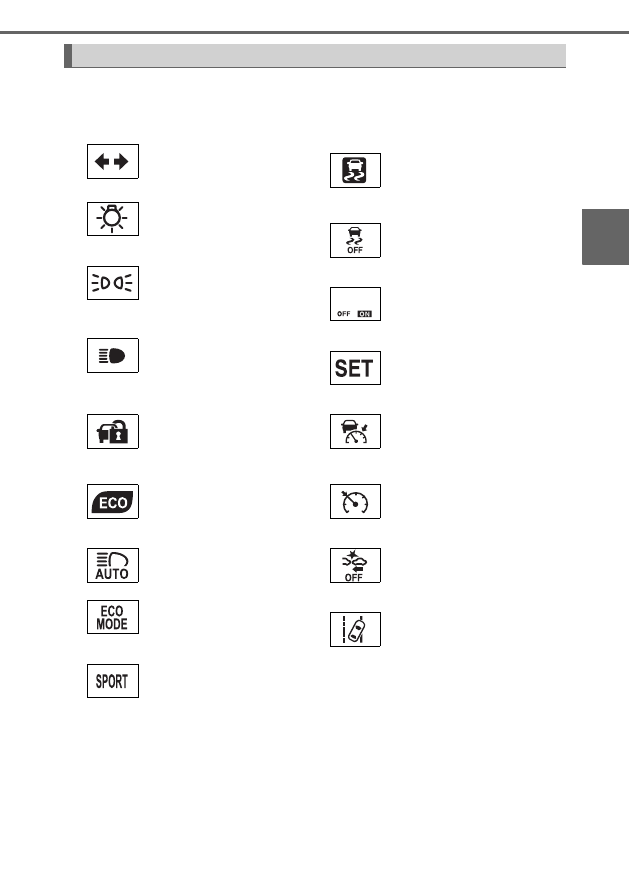

Indicators

Turn signal indicator
(

→P. 171)

*

1, 2



Slip indicator (

P. 251)

(U.S.A.)

Headlight indicator
(

→P. 173)

*

1

VSC OFF indicator
(

P. 252)

(Canada)

Tail light indicator
(

→P. 173)

*

1, 3

“AIR BAG ON/OFF” indi-
cator (

→P. 46)

Headlight high beam
indicator (

P. 173)

*

5

Cruise control “SET”
indicator (

→P. 222, 235)

*

3

Security indicator
(

→P. 68, 70)

*

4, 5

Dynamic radar cruise
control indicator
(

P. 222)

*

1

Eco Driving Indicator
Light (

P. 81)

*

4, 5

Cruise control indicator
(

P. 235)

*

4

Automatic high beam
indicator (

P. 176)

*

1, 4, 6

PCS warning light
(

P. 202)

Eco drive mode indicator
(

→P. 248)

*

4, 5

LDA (Lane Departure
Alert with steering con-
trol) indicator (

P. 211)

Sport mode indicator
(

→P. 248)

AIR BAG

78

2. Instrument cluster

*

1

: These lights turn on when the engine switch is turned to IGNITION ON

mode to indicate that a system check is being performed. They will turn off
after the engine is started, or after a few seconds. There may be a mal-
function in a system if a light does not come on, or turn off. Have the vehi-
cle inspected by your Toyota dealer.

*

2

: The light flashes to indicate that the system is operating.

*

3

: This light illuminates on the center panel.

*

4

: If equipped

*

5

: This light illuminates on the multi-information display.

*

6

: The light turns on when the system is off.

WARNING

If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning light not
come on when you start the engine, this could mean that these systems are
not available to help protect you in an accident, which could result in death
or serious injury. Have the vehicle inspected by your Toyota dealer immedi-
ately if this occurs.

79

2. Instrument cluster

2

Instrum

e

nt clus

ter

The units used on the speedometer may differ depending on where the
vehicle is sold.

Tachometer

Displays the engine speed in revolutions per minute

Multi-information display

Presents the driver with a variety of driving-related data (

→P. 82)

Speedometer

Displays the vehicle speed

Fuel gauge

Displays the quantity of fuel remaining in the tank

Trip meter reset knob/instrument panel light control knob

P. 80

Odometer and trip meter display

Odometer:
Displays the total distance the vehicle has been driven

Trip meter:
Displays the distance the vehicle has been driven since the meter was last
reset. Trip meters “A” and “B” can be used to record and display different
distances independently.

Shift position and shift range

Displays the selected shift position or selected shift range (

P. 165)

Engine coolant temperature gauge

Displays the engine coolant temperature

Gauges and meters

1

2

3

4

5

6

7

8

80

2. Instrument cluster

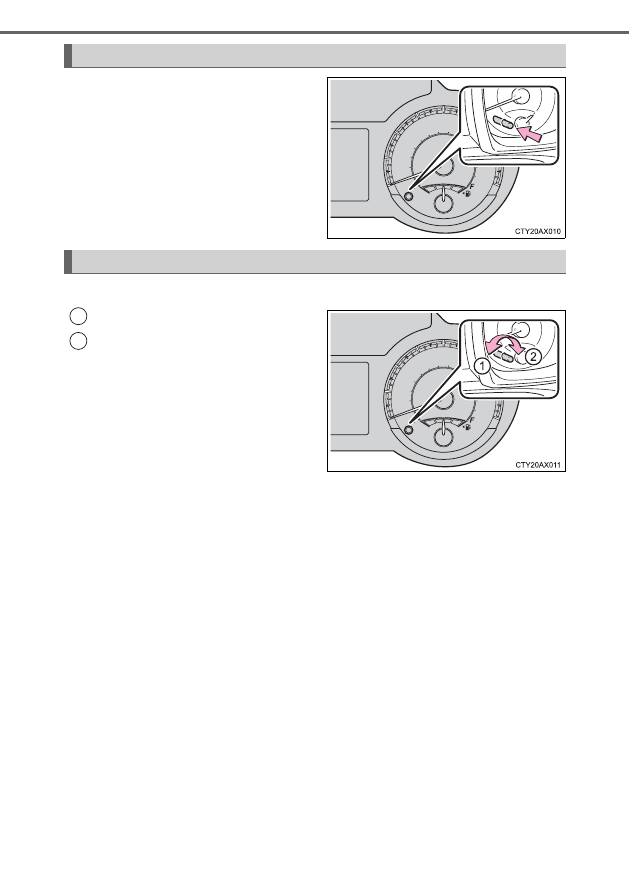

Switches between trip meter “A”
and “B” displays. When the trip
meter is displayed, pressing and
holding the knob will reset the trip
meter.

The brightness of the instrument panel lights can be adjusted.

Darker

Brighter

Changing the trip meter display

Instrument panel light control

1
2















Content   ..  3  4  5  6   ..
