Driving
Using the rear camera, the system records the
180° rear vision
vehicle's surroundings during a manoeuvre.
An image from above your vehicle in its close
surroundings is reconstructed (represented
between the blue brackets) in real time and as
the manoeuvre progresses.
This representation facilitates the alignment of
your vehicle when parking and allows you to
see all of the obstacles close to the vehicle.
This reconstructed view is automatically erased
The system displays the contextual view (left-
if the vehicle remains stationary for too long.
hand part) as well as the view from above the
vehicle in its close surroundings.
By default, automatic mode is activated.
This system is a visual aid and cannot
In this mode, the system chooses the best view
in any circumstances replace the need
This system allows the near surroundings of the
to display (standard or zoom) according to the
for vigilance on the part of the driver.
vehicle to be viewed in the display screen using
information received from the parking sensors.
The images provided by the cameras
cameras located at the rear of the vehicle. The
The 180° view is only available through the
may appear distorted by the
parking sensors in the rear and/or front bumper
menus.
surroundings (exterior conditions,
6
complete the information on the view from
driving mode, ...).
above the vehicle (right-hand part).
The presence of areas in shadow, bright
In addition to the view from above the vehicle
(right-hand part) several types of view can be
Principle of image
sunlight, or poor lighting conditions
may make the image dark and reduce
displayed (left-hand part):
reconstruction
contrast.
-
standard rear view,
-
180° rear view,
-
reconstructed zoom rear view.
The display disappears above
approximately 6 mph (10 km/h).
The system is automatically deactivated
about 7 seconds after coming out of
reverse or on opening a door or the
boot.
255
Driving
Rear views
"180° view"
"Zoom view" (reconstructed)
Engage reverse gear to activate the camera,
located on the rear tailgate or rear door.
"Standard view"
180° view makes it possible to reverse out of
The camera records the surroundings during a
a parking space while being able to see the
manoeuvre in order to create a reconstruction
arrival of vehicles, pedestrians or cyclists.
of the view from above the rear of the vehicle in
This view is not recommended for carrying out
its close surroundings, allowing the vehicle to
a complete manoeuvre.
be manoeuvred among the obstacles nearby.
It is made up of the following:
This view is available with AUTO view or by
selecting of the view in the change view menu.
The area to the rear of your vehicle is displayed
in the screen.
The blue outline represents the width of your
vehicle (with mirrors): its orientation depends
The rear parking sensors also
on the position of the steering wheel.
provide information on the vehicle's
The red line represents a distance of 30 cm
surroundings.
from the rear bumper and the two blue lines,
Obstacles may appear further away
1 m and 2 m respectively.
than they are in reality.
It is important to check the side views
using the mirrors during the manoeuvre.
256
Driving
"AUTO mode"
A message is displayed advising you to check
On display of the sub-menu, select one of the
your vehicle's surroundings before starting the
four views:
manoeuvre.
"Standard view".
Activation
Activation is automatic on engaging reverse.
"180° view".
The function is displayed in the touch screen.
To close the window displayed, press on the
"Zoom view".
red cross at the top left of the screen.
This mode is activated by default.
"AUTO mode".
Using sensors in the rear bumper, the
automatic view allows a change from the rear
Check the cleanliness of the camera
view to the view from above as an obstacle is
lenses regularly.
approached during a manoeuvre.
Periodically clean the reversing camera
with a soft dry cloth.
Quick start mode
6
High pressure jet wash (if muddy, for
example)
When washing your vehicle, do not
place the tip of the lance within 30 cm of
You can choose the display mode at any time
the camera lenses, as otherwise there
by pressing on this area.
is a risk of damaging them.
The system is automatically deactivated
when towing a trailer or carrying a
bicycle on the towbar (vehicle fitted with
a towbar installed as recommended by
This mode displays, as quickly as possible, the
the manufacturer).
contextual view (left-hand part) and the view
from above the vehicle.
257
Driving
Tyre Pressure Warning System (TPWS)
System which automatically checks the pressures of the tyres while driving.
The system monitors the pressures in the four
The Tyre Pressure Warning System
The tyre pressures defined for your
tyres, once the vehicle is moving.
(TPWS) does not replace the need for
vehicle can be found on the tyre
It compares the information given by the four
vigilance on the part of the driver.
pressure label.
wheel speed sensors with reference values,
This system does not avoid the need to
For more information on the
which must be reinitialised every time the
check the tyre pressures (including the
Identification markings, refer to the
tyre pressures are adjusted or a wheel
spare wheel) every month as well as
corresponding section.
changed.
before a long journey.
Tyre pressures should be checked
The system triggers an alert as soon as it
Driving with under-inflated tyres impairs
when the tyres are "cold" (vehicle
detects a drop in the inflation pressure of one
road holding, extends braking distances
stopped for 1 hour or after a journey of
or more tyres.
and causes premature tyre wear,
less than 6 miles (10 km) at moderate
particularly under arduous conditions
speeds).
(high loading, high speed, long journey).
Otherwise (when hot), add 0.3 bar to
the pressures shown on the label.
Driving with under-inflated tyres
Snow chains
increases fuel consumption.
The system does not have to be
reinitialised after fitting or removing
snow chains.
Spare wheel
The steel spare wheel does not have an
tyre pressure warning sensor.
258
Driving
Tyre Pressure Warning
Reinitialisation
It is necessary to reinitialise the system every
This is given by fixed illumination of
F
In the event of a puncture, use the
time one or more tyre pressures are adjusted,
this warning lamp, accompanied by
temporary puncture repair kit or the spare
and after changing one or more wheels.
an audible signal and, depending on
wheel (depending on equipment),
equipment, the display of a message.
or
F
if you have a compressor, such as the one
F
Reduce speed immediately, avoid
in the temporary puncture repair kit, check
Before reinitialising the system, ensure
excessive steering movements and sudden
the pressures of the four tyres when cold,
that the pressures of the four tyres are
braking.
or
correct for the use of the vehicle and in
F
Stop the vehicle as soon as it is safe to do
F
if it is not possible to make this check
line with the recommendations on the
so.
immediately, drive carefully at reduced
tyre pressure label.
speed.
The tyre pressure warning alert can
only be relied on if the reinitialisation
The loss of pressure detected does not
of the system has been done with the
always cause visible bulging of the tyre.
pressures in the four tyres correctly
Do not satisfy yourself with just a visual
The alert is maintained until the system
adjusted.
check.
is reinitialised.
The tyre pressure warning system
6
does not give a warning if a pressure is
incorrect at the time of reinitialisation.
Initialisation of the system is done with the
ignition on and the vehicle stationary.
The new pressure settings registered
are considered to be reference values
by the system.
259
Driving
With the audio system
Operating fault
In the "Personalisation-configuration" menu,
select "Under-inflation initialisation".
The flashing and then fixed illumination of
the tyre pressure warning lamp accompanied
by illumination of the Service warning lamp
indicates a fault with the system.
In this case, tyre pressure monitoring of the
tyres is no longer assured.
With the touch screen
Have the system checked by an authorized
Toyota dealer or repairer, or another duly
qualified and equipped professional.
Before doing anything to the system,
the pressures of the four tyres must be
In the Driving menu, select "Under-inflation
checked and the system reinitialised.
initialisation".
Press on "Yes" to Confirm the command,
initialisation is confirmed by an audible signal
and a message.
260
Practical information
Fuel tank
Capacity of the tank: approximately 69 litres.
Opening
Refuelling
Additions of fuel must be of at least 8 litres to
be registered by the fuel gauge.
Opening the filler cap may result in an inrush of
air. This vacuum is entirely normal and results
from the sealing of the fuel system.
F
Remove the filler cap, then place it on the
carrier located on the filler flap.
F Take care to select the pump that delivers
F
Introduce the nozzle and push it in fully
the correct fuel type for your vehicle's
(pushing on the metal non-return valve A).
engine (reminder on a label on the inside of
F
Fill the tank. Do not continue past the third
the filler flap).
cut-off of the nozzle, as this may cause
-
You must switch off the engine.
malfunctions.
-
If your vehicle has Smart Entry & Start
F
Refit the filler cap turning it to the right.
System, unlock the vehicle.
F
Push the filler flap to close it (your vehicle
-
Open the filler flap.
must be unlocked).
7
If your vehicle is fitted with Stop & Start,
never refuel with the engine in STOP
mode; you must switch off the ignition
using the key, or the START/STOP
F If your vehicle has a conventional key,
button if your vehicle has Smart Entry &
introduce the key into the filler cap, then
Start System.
turn it to the left.
261
Practical information
Diesel misfuel
Your vehicle is fitted with a catalytic converter,
prevention
a device which helps to reduce the level of
harmful emissions in the exhaust gases.
Mechanical device which prevents filling the
tank of a Diesel vehicle with petrol. It avoids
the risk of engine damage that can result from
If you have put in the wrong fuel for
filling with the wrong fuel.
your vehicle, you must have have
Located in the filler neck, the misfuel
the tank drained and refilled with
prevention device appears when the filler cap
If your vehicle has sliding side doors, do
the correct fuel before you start the
is removed.
not open the left hand sliding door as
engine.
there is a risk of damaging the fuel filler
flap when refuelling.
Low fuel level
When the low fuel level in the tank is
reached, this warning lamp comes on
in the instrument panel, accompanied
by an audible warning and a message.
When it first comes on, less than 8 litres of fuel
remain in the tank.
You must refuel as soon as possible to avoid
running out.
When a petrol filler nozzle is introduced into the
fuel filler neck of your Diesel vehicle, it comes
Fuel supply cut-off
into contact with the flap. The system remains
closed and prevents filling.
Your vehicle is equipped with a safety device
Do not persist but introduce a Diesel filler
which cuts off the fuel supply in the event of a
nozzle.
collision.
262
Practical information
It is still possible to use a fuel can to fill
Fuel used for Diesel
the tank but this must be done slowly.
engines
In order to ensure a good flow of fuel,
do not place the nozzle of the fuel can
in direct contact with the flap of the
misfuel prevention device.
Travelling abroad
The Diesel engines are compatible with
The use of B20 or B30 fuel meeting standard
As Diesel fuel pump nozzles may be different
biofuels available at the pumps which meet
EN16709 is possible in your Diesel engines.
in other countries, the presence of the misfuel
current and future European standards:
However, this use, even occasional, requires
prevention device may make refuelling
-
Diesel fuel that meets standard EN 590
strict application of the special servicing
impossible.
mixed with a biofuel that meets standard
conditions referred to as "Arduous conditions".
Before travelling abroad, we recommend that
EN 14214,
For more information, contact an authorized
you check with the Toyota dealer network,
-
Diesel fuel that meets standard EN16734
Toyota dealer or repairer, or another duly
whether your vehicle is suitable for the fuel
mixed with a biofuel that meets standard
qualified and equipped professional.
pumps in the country in which you want to
EN14214 (possibly containing up to
The use of any other type of (bio)fuel
travel.
10 % Fatty Acid Methyl Ester),
(vegetable or animal oils, pure or diluted,
-
Paraffinic Diesel fuel that meets standard
domestic fuel...) is strictly prohibited (risk of
EN15940 mixed with a biofuel that meets
damage to the engine and fuel system).
standard EN14214 (possibly containing up
Only the use of Diesel fuel additives that meet
to 7 % Fatty Acid Methyl Ester).
the standard B715000 is authorised.
7
263
Practical information
Use only the chains designed to be fitted to the
Advice on installation
Snow chains
type of wheel fitted to your vehicle:
F
If you have to fit the chains during a
In wintry conditions, snow chains improve
journey, stop the vehicle on a flat surface
traction as well as the behaviour of the vehicle
on the side of the road.
when braking.
F
Apply the parking brake and position any
wheel chocks to prevent movement of your
Original tyre size
Type of chain.
vehicle.
The snow chains must be fitted only to
F
Fit the chains following the instructions
the front wheels.
provided by the manufacturer.
215/65 R16
12 mm links
F
Move off gently and drive for a few
moments, without exceeding 30 mph
215/60 R17
(50 km/h).
-
F
Stop your vehicle and check that the snow
225/55 R17
chains are correctly tightened.
You can also use snow socks.
For more information on snow chains, contact
Avoid driving with snow chains on roads
an authorized Toyota dealer or repairer,
that have been cleared of snow, to
or another duly qualified and equipped
avoid damaging your vehicle's tyres and
professional.
the road surface. If your vehicle is fitted
with alloy wheels, check that no part of
Take account of the legislation in force
the chain or its fixings is in contact with
in your country on the use of snow
the wheel rim.
chains and the maximum running speed
authorised.
It is strongly recommended that before
you leave, you practise fitting the snow
chains on a level and dry surface.
264
Practical information
Towing a trailer
We recommend the use of genuine
Toyota towbars and their harnesses that
have been tested and approved from
the design stage of your vehicle, and
that the fitting of the towbar is entrusted
to an authorized Toyota dealer or
repairer, or another duly qualified and
equipped professional.
If the towbar is not fitted by a
Toyota dealer, it must still be fitted
in accordance with the vehicle
manufacturer's instructions.
Your vehicle is primarily designed for
transporting people and luggage, but it may
Driving with a trailer places greater
also be used for towing a trailer.
demands on the towing vehicle and the
driver must take particular care.
For more information on Driving
advice, particularly when towing, refer
7
to the corresponding section.
265
Practical information
Energy economy mode
Load reduction mode
System which manages the duration of use of certain functions to conserve a sufficient level of
System which manages the use of certain
charge in the battery.
functions according to the level of charge
After the engine has stopped, you can still use functions such as the audio and telematics
remaining in the battery.
system, windscreen wipers, dipped beam headlamps, courtesy lamps, etc. for a maximum
When the vehicle is being driven, the load
combined duration of about forty minutes.
reduction function temporarily deactivates
certain functions, such as the air conditioning,
the heated rear screen...
Switching to economy
Exiting economy mode
The deactivated functions are reactivated
mode
These functions are reactivated automatically
automatically as soon as conditions permit.
A message appears in the instrument panel
next time the vehicle is driven.
screen indicating that the vehicle has switched
In order to restore the use of these functions
to economy mode and the active functions are
immediately, start the engine and let it run:
put on standby.
-
for less than ten minutes, to use the
If a telephone call is being made at this time, it
equipment for approximately five minutes,
will be maintained for around 10 minutes with
-
for more than ten minutes, to use the
the Bluetooth hands-free system of your audio
equipment for up to approximately
system.
thirty minutes.
Let the engine run for the duration specified to
ensure that the battery charge is sufficient.
Do not repeatedly and continuously restart the
engine in order to charge the battery.
A flat battery prevents the engine from starting.
For more information on the 12 V battery, refer
to the corresponding section.
266
Practical information
"Styling"
Accessories
Wheel trims, wheel caps, door sills, gear lever
A wide range of accessories and genuine parts is available from the Toyota dealer network.
knobs, ...
These accessories and parts are all suitable for your vehicle and benefit from Toyota's
recommendation and warranty.
The fitting of electrical equipment or
"Security and safety"
Installation of radio
communication
accessories which are not recommended
Anti-theft alarm, window engraving, wheel
transmitters
by Toyota may result in a failure of your
security bolts, child seats, breathalyzer, first aid
vehicle's electronic system and excessive
kit, warning triangle, high visibility jacket, stolen
Before installing any after-market
electrical consumption.
vehicle tracking system, fleet management unit,
radio communication transmitter, you
Contact a Toyota dealer for information
snow chains, tyre snow socks, front foglamps
can contact a Toyota dealer for the
on the range of recommended equipment
kit, ...
specification of transmitters which can
and accessories.
be fitted (frequency, maximum power,
aerial position, specific installation
requirements), in line with the Vehicle
"Protection"
Electromagnetic Compatibility
Mats*, seat covers compatible with lateral
Directive (2004/104/EC).
"Comfort"
airbags, mud flaps, side protection rubbing
strips, bumper protectors, loading area
Door deflectors, cigarette lighter, boot dividers,
protection (on wood or plastic), rear sill
coat hanger fixed to head restraint, front and
finishers, rear mat, ...
rear parking sensors, styling mudflaps, boot
7
management system, ...
Depending on the legislation in force in
the country, certain safety equipment
"Transport solutions"
may be compulsory: high visibility
safety vests, warning triangles,
Boot liners, roof bars, bicycle carrier on roof
breathalyzers, spare bulbs, spare fuses,
bars, ski carrier, roof box, towbar harness, ...
fire extinguisher, first aid kit, mud flaps
Tow bar, which must be fitted by an authorized
*
To avoid any risk of jamming of the pedals:
at the rear of the vehicle.
Toyota dealer or repairer, or another duly
- ensure that the mat is positioned and
qualified and equipped professional.
secured correctly,
- never fit one mat on top of another.
267
Practical information
"Multimedia"
Roof bars / Roof rack
Smartphone support, table support or semi-
integral navigation support, range of audio
systems and portable navigation systems,
driving recorder, Bluetooth hands-free kit, DVD
player, multimedia support, driving aids, vehicle
tracking system, ...
By visiting a Toyota dealer, you can
also obtain products for cleaning and
maintenance (exterior and interior) -
including ecological products in the
To fit the transverse roof bars, use the fixing
To fit a roof rack, use the fixing points provided
"TECHNATURE" range, topping-up
points provided for this purpose:
for this purpose:
products (screenwash...), touch-up pens
F open the fixing covers on each bar,
F
place the roof rack on the roof aligned with
and paint aerosols for the exact colour
F put each fixing in place and lock them on
the fixing points and secure each one in
of your vehicle, refills (cartridge for the
the roof one by one,
turn,
temporary puncture repair kit...), ...
F ensure that roof bars are correctly fitted (by
F
ensure that roof rack is correctly fitted (by
shaking them),
shaking it).
F close the fixing covers on each bar.
Maximum authorised weight on each
The bars can be interchanged and are
fixing point, for a loading height not
adaptable to each pair of fixing points.
exceeding 40 cm: 25 kg.
Maximum weight by vehicle size:
-
compact (L1) with 8 fixing points:
For any work on your vehicle, use
200 kg
a qualified workshop that has the
-
standard (L2) and long (L3) with
technical information, skills and
10 fixing points: 250 kg
equipment required, all of which a
Be sure to refer to national legislation in
If the height exceeds 40 cm, adapt the
Toyota dealer is able to provide.
order to comply with the regulations for
speed of the vehicle to the profile of the
transporting objects that are longer than
road to avoid damaging the roof rack
the vehicle.
or roof bars and the fixing points on the
roof.
268
Practical information

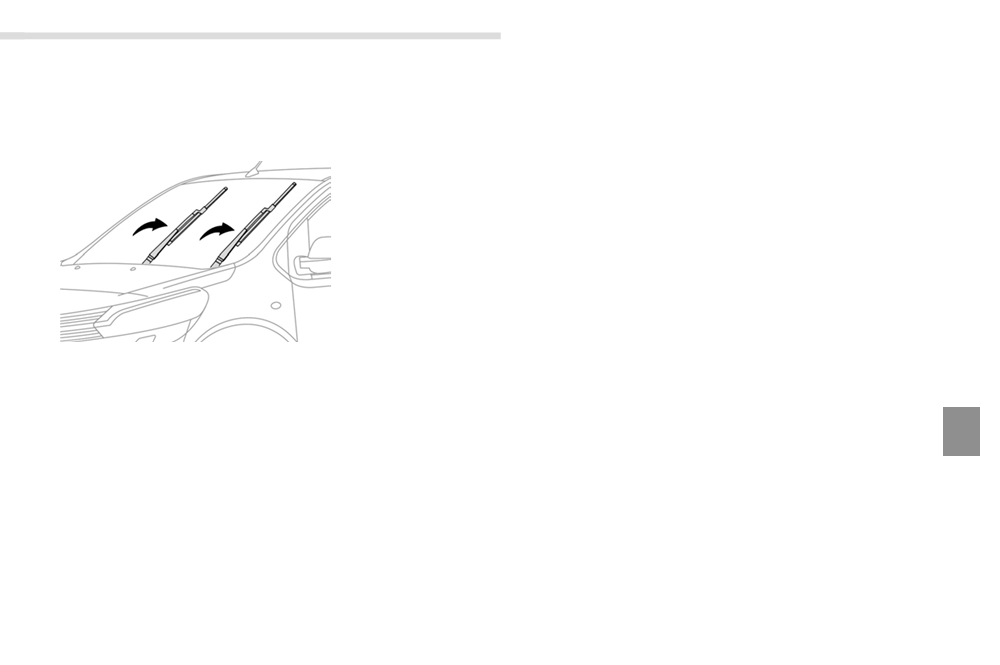

Changing a wiper blade
Before removing a front
Fitting
wiper blade
F Put the corresponding new wiper blade in
place and clip it.
F Fold down the wiper arm carefully.
After fitting a front wiper
blade
F Switch on the ignition.
F Operate the wiper stalk again to park the
wiper blades.
F Within one minute after switching off
the ignition, operate the wiper stalk to
position the wiper blades vertically on the
windscreen.
7
Removing
F Raise the corresponding wiper arm.
F Unclip the wiper blade and remove it.
269
Practical information
Made for each other.
Toyota Genutine Motor Oil. In perfect
harmony with your engine
Some things go together naturally, like Toyota
engines and Toyota Genuine Motor Oil.
Because it's the only oil specifically developed,
tested and approved for use in Toyota engines,
it's the only oil you can trust to provide premium
protection and performance, journey after journey.
The Toyota Genuine Motor Oil range includes
engine and gear lubricants perfect for new and
older Toyota petrol and diesel vehicles. As well
as enhanced performance and fuel economy,
our oils help to reduce emissions, improve reliability
and extend engine life, thanks to their high
quality formulation.
Toyota Genuine Motor Oil. It's what your car
would choose.
270
Practical information
Opening
Bonnet
F Open the door.
Before doing anything under the
bonnet, deactivate the Stop & Start
system to avoid any risk of injury
resulting from an automatic change to
START mode.
F
Pull the release lever, located at the bottom
of the door aperture, towards you.
F
Lift the safety catch, then raise the bonnet.
Do not open the bonnet under very
windy conditions.
When the engine is hot, handle the
F Unclip the stay from its housing and place
exterior safety catch and the stay with
it in the support slot to hold the bonnet
care (risk of burns).
The cooling fan may start after
open.
7
To avoid damaging electrical units,
switching off the engine: take care
Closing
it is strictly forbidden to use a high
with articles and clothing that might
pressure jet wash under the bonnet.
be caught by the fan blades.
F Take the stay out of its support slot.
F Clip the stay back into its housing.
F Lower the bonnet and release it at the end
of its travel.
F Pull on the bonnet to check that it has
latched correctly.
271
