Toyota Prius Plug-in Hybrid (2017 year). Instruction - part 42

9-1. Specifications

697

Vehicle identification

■ Vehicle identification number

The vehicle identification number (VIN) is the legal identifier for

your vehicle. This is the primary identification number for your

Toyota. It is used in registering the ownership of your vehicle.

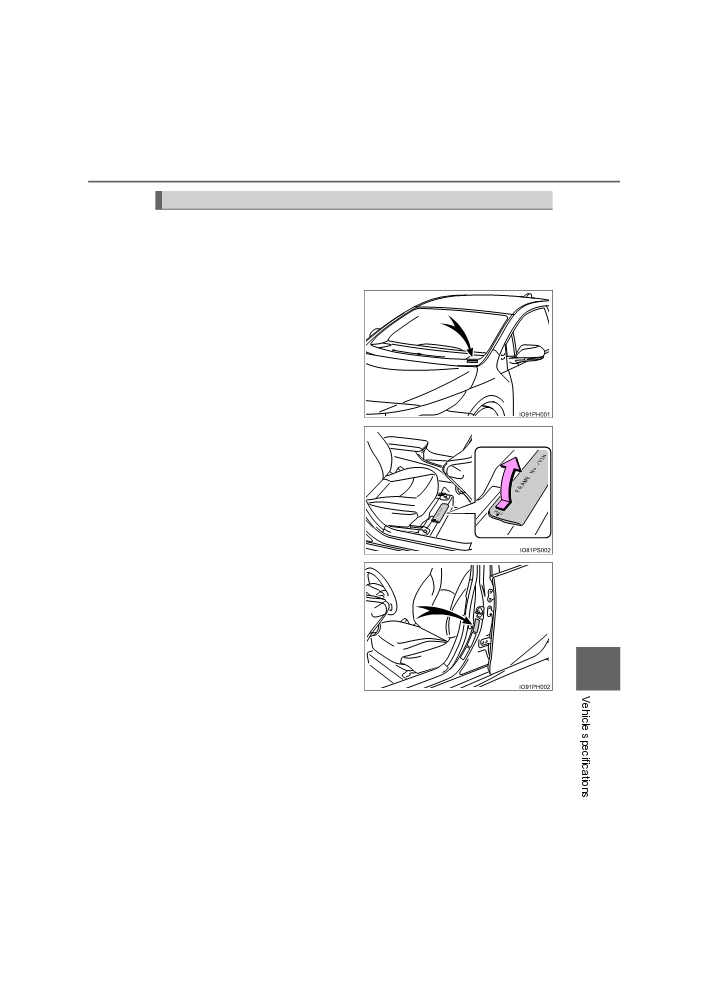

This number is stamped on the

top left of the instrument panel.

This number is also stamped

under the right-hand front seat.

This number is also on the

manufacturer’s label.

9

PRIUS PHV_OM_OM47A89E_(EE)

698

9-1. Specifications

■ Engine number

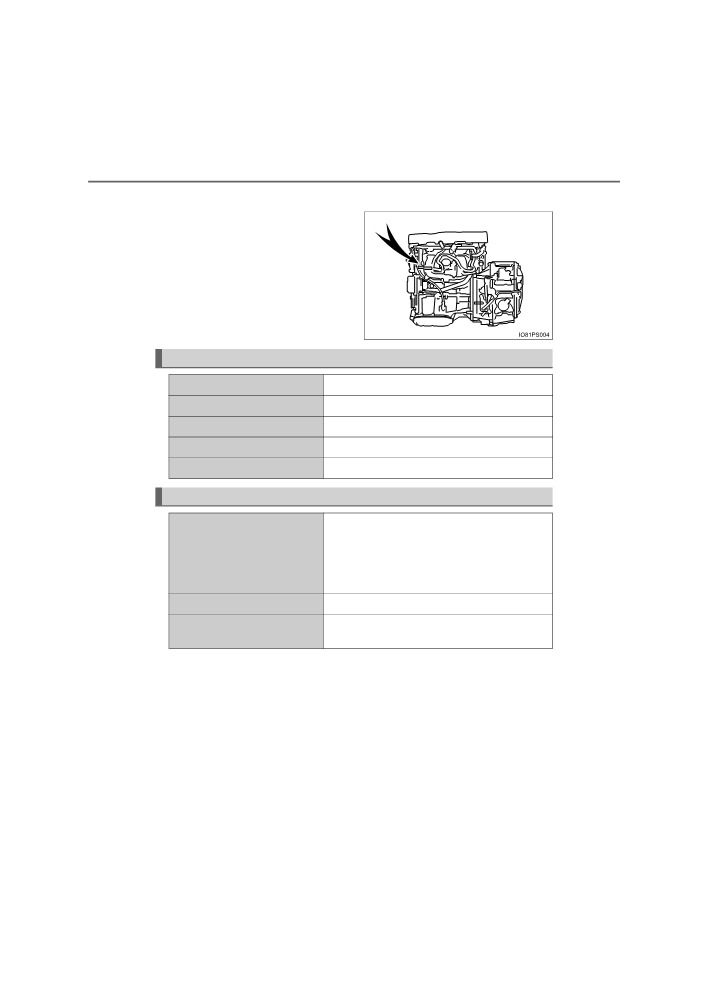

The engine number is stamped

on the engine block as shown.

Engine

Model

2ZR-FXE

Type

4-cylinder in line, 4-cycle, gasoline

Bore and stroke

80.5  88.3 mm (3.17  3.48 in.)

Displacement

1798 cm3 (109.7 cu.in.)

Valve clearance

Automatic adjustment

Fuel

EU area:

Unleaded gasoline conforming to European

standard EN228 only

Fuel type

Except EU area:

Unleaded gasoline only

Research Octane Number

95 or higher

Fuel tank capacity

43 L (11.4 gal., 9.5 lmp.gal.)

(Reference)

PRIUS PHV_OM_OM47A89E_(EE)

9-1. Specifications

699

Electric motor (generation motor/traction motor)

 Generation/traction motor

Type

Permanent magnet synchronous motor

Maximum output

22.5 kW

Maximum torque

40 N•m (4.1 kgf•m, 29.5 ft•lbf)

 Traction motor

Type

Permanent magnet synchronous motor

Maximum output

53 kW

Maximum torque

163 N•m (16.6 kgf•m, 120.2 ft•lbf)

Hybrid battery (traction battery)

Type

Lithium-ion battery

Voltage

3.7 V/cell

Capacity

25 Ah

Quantity

95 cells

Overall voltage

351.5 V

9

PRIUS PHV_OM_OM47A89E_(EE)

700

9-1. Specifications

Lubrication system

■ Oil capacity (Drain and refill [Reference*])

With filter

4.2 L (4.4 qt., 3.7 Imp.qt.)

Without filter

3.9 L (4.1 qt., 3.4 Imp.qt.)

*: The engine oil capacity is a reference quantity to be used when changing

the engine oil. Park the vehicle on level ground. After warming up the

engine and turning off the hybrid system, wait more than 5 minutes, and

check the oil level on the dipstick.

■ Engine oil selection

“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Toyota

recommends the use of approved “Toyota Genuine Motor Oil”.

Another motor oil of matching quality can also be used.

Oil grade:

0W-20, 5W-30 and 10W-30:

API grade SL “Energy-Conserving”, SM “Energy-Conserving” or SN

“Resource-Conserving”; or ILSAC multigrade engine oil

15W-40:

API grade SL, SM or SN multigrade engine oil

Recommended viscosity (SAE):

SAE 0W-20 is filled into your

Toyota vehicle at manufactur-

Preferred

ing, and the best choice for

good fuel economy and good

starting in cold weather.

If SAE 0W-20 oil is not avail-

able, SAE 5W-30 oil may be

used. However, it should be

replaced with SAE 0W-20 at the

next oil change.

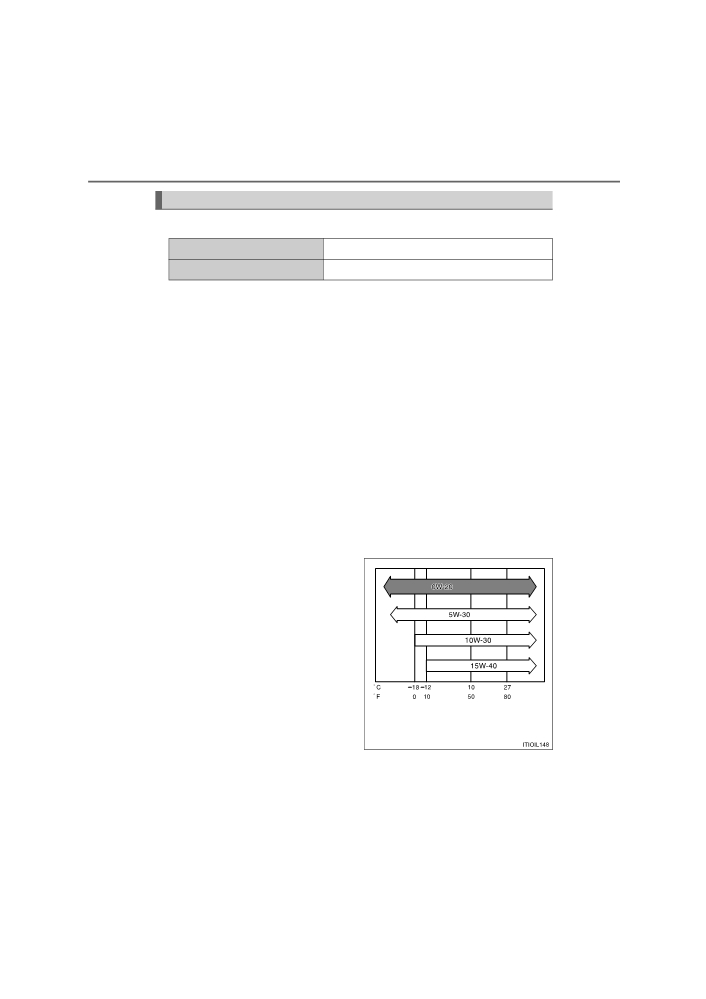

Temperature range anticipated

If you use SAE 10W-30 or a

before next oil change

higher viscosity engine oil in

extremely low temperatures,

the engine may become difficult

to start, so SAE 0W-20 or 5W-

30 engine oil is recommended.

PRIUS PHV_OM_OM47A89E_(EE)

9-1. Specifications

701

Oil viscosity (0W-20 is explained here as an example):

• The 0W in 0W-20 indicates the characteristic of the oil which

allows cold startability. Oils with a lower value before the W allow

for easier starting of the engine in cold weather.

• The 20 in 0W-20 indicates the viscosity characteristic of the oil

when the oil is at high temperature. An oil with a higher viscosity

(one with a higher value) may be better suited if the vehicle is

operated at high speeds, or under extreme load conditions.

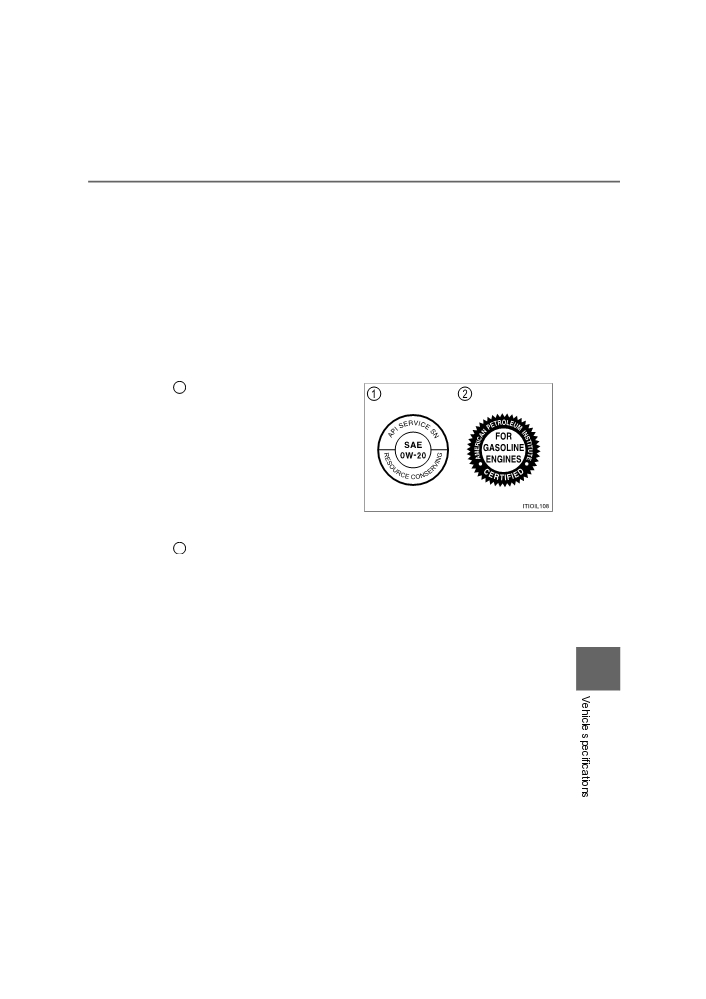

How to read oil container labels:

Either or both API registered marks are added to some oil contain-

ers to help you select the oil you should use.

API Service Symbol

1

Top portion: “API SERVICE SN”

means the oil quality designa-

tion by American Petroleum Ins-

titute (API).

Center portion:

“SAE

0W-20”

means the SAE viscosity grade.

Lower portion:

“Resource-

Conserving” means that the oil

has fuel-saving and environ-

mental protection capabilities.

ILSAC Certification Mark

2

The International Lubricant Specification Advisory Committee (ILSAC)

Certification Mark is displayed on the front of the container.

9

PRIUS PHV_OM_OM47A89E_(EE)

702

9-1. Specifications

Cooling system

Gasoline

6.0 L (6.3 qt., 5.3 Imp.qt.)

engine

Capacity*

Power

1.5 L (1.6 qt., 1.3 Imp.qt.)

control unit

Use either of the following:

•

“Toyota Super Long Life Coolant”

• Similar high-quality ethylene glycol-based

Coolant type

non-silicate, non-amine, non-nitrite, and

non-borate coolant with long-life hybrid

organic acid technology

Do not use plain water alone.

*: The fluid capacity is the quantity of reference.

If replacement is necessary, contact any authorized Toyota dealer or

repairer, or another duly qualified and equipped professional.

Ignition system (spark plug)

Make

DENSO FC16HR-C9

Gap

0.9 mm (0.035 in.)

NOTICE

■ Iridium-tipped spark plugs

Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.

PRIUS PHV_OM_OM47A89E_(EE)

9-1. Specifications

703

Electrical system (12-volt battery)

1.25 or higher

Specific gravity

If the specific gravity is lower then the

reading at 20C (68F):

standard value, charge the 12-volt bat-

tery.

Quick charge

15 A max.

Charging rates

Slow charge

5 A max.

Transmission

Fluid capacity*

3.7 L (3.9 qt., 3.3 Imp.qt.)

Fluid type

Toyota Genuine ATF WS

*: The fluid capacity is the quantity of reference.

If replacement is necessary, contact any authorized Toyota dealer or

repairer, or another duly qualified and equipped professional.

NOTICE

■ Transmission fluid type

Using transmission fluid other than “Toyota Genuine ATF WS” may cause

deterioration in shift quality, locking up of your transmission accompanied

by vibration, and ultimately damage the transmission of your vehicle.

9

PRIUS PHV_OM_OM47A89E_(EE)

704

9-1. Specifications

Brakes

 Left-hand drive vehicles

115 mm (4.53 in.) Min.

Pedal clearance*1

 Right-hand drive vehicles

112 mm (4.41 in.) Min.

Pedal free play

1.0 — 6.0 mm (0.04 — 0.24 in.)

Parking brake pedal travel*2

8 —11 clicks

SAE J1703, FMVSS No.116 DOT 3 or

Fluid type

FMVSS No.116 DOT 4

*1: Minimum pedal clearance when depressed with a force of 300 N (30.6 kgf,

67.4 lbf) while the hybrid system is operating.

*2: Parking brake pedal travel when depressed with a force of 300 N (30.6 kgf,

67.4 lbf).

Steering

Free play

Less than 30 mm (1.2 in.)

Tires and wheels

Tire size

195/65R15 91H

Tire inflation pressure

Front

250 kPa (2.5 kgf/cm2 or bar, 36 psi)

(Recommended cold tire

inflation pressure)

Rear

240 kPa (2.4 kgf/cm2 or bar, 35 psi)

Wheel size

15  6 1/2J

Wheel nut torque

103 N•m (10.5 kgf•m, 76 ft•lbf)

PRIUS PHV_OM_OM47A89E_(EE)

9-1. Specifications

705

Light bulbs

Light bulbs

W

Type

Exterior

Back-up lights

16

A

Vanity lights

8

A

Front interior/personal lights

5

A

Interior

Rear interior light

8

B

Door courtesy lights

5

A

Luggage compartment light

5

A

A: Wedge base bulbs (clear)

B: Double end bulbs

9

PRIUS PHV_OM_OM47A89E_(EE)

708

9-2. Customization

Customizable features

Your vehicle includes a variety of electronic features that can be

personalized to suit your preferences. The settings of these fea-

tures can be changed using the multi-information display, the

navigation system, or at any authorized Toyota dealer or

repairer, or another duly qualified and equipped professional.

Some function settings are changed simultaneously with other func-

tions being customized. Contact any authorized Toyota dealer or

repairer, or another duly qualified and equipped professional for fur-

ther details.

Customizing vehicle features

When customizing vehicle features, ensure that the vehicle is parked

in a safe place with the parking brake set and the shift position in P.

■ Changing using the multi-information display

1

Press

or

of the meter control switches, select

2

Press

or

of the meter control switches, select “

(Vehicle Settings)”, and then press

3

Press

or

of the meter control switches, select the item,

and then press

4

Press

or

of the meter control switches, select the desired

setting, and then press

To go back to the previous screen or exit the customize mode,

press

PRIUS PHV_OM_OM47A89E_(EE)

9-2. Customization

709

■ Changing using the navigation system

1

Press

on the navigation system.

2

Select “Vehicle” on the “Setup” screen and select “Vehicle cus-

tomization”.

Various settings can be changed. Refer to the list of settings that

can be changed for details.

Customizable features

1

Settings that can be changed using the multi-information display

2

Settings that can be changed using the navigation system

3

Settings that can be changed by any authorized Toyota dealer or

repairer, or another duly qualified and equipped professional

Definition of symbols: O = Available, - = Not available

■ Instrument cluster (P. 190)

Default

Customized

Function

1

2

3

setting

setting

Sensor sensitivity for darken-

ing the brightness of the

Standard

-2 to 2

-

-

O

instrument cluster depending

on the outside brightness

Sensor sensitivity for returning

the brightness of the instru-

ment cluster to the original

Standard

-2 to 2

-

-

O

level depending on the outside

brightness

9

PRIUS PHV_OM_OM47A89E_(EE)

710

9-2. Customization

■ Smart entry & start system and wireless remote control

(P. 269, 279)

Default

Customized

Function

1

2

3

setting

setting

Operation signal

On

Off

-

O

O

(emergency flashers)

Open door reminder buzzer

On

Off

-

-

O

(When locking the vehicle)

Time elapsed before the auto-

60 seconds

matic door lock function is

30 seconds

-

-

O

activated if a door is not

opened after being unlocked

120 seconds

■ Smart entry & start system (P. 279)

Default

Customized

Function

1

2

3

setting

setting

Smart entry & start system

On

Off

-

O

O

Number of consecutive door

As many as

2 times

-

-

O

lock operations*

desired

*: If equipped

■ Wireless remote control (P. 269)

Default

Customized

Function

1

2

3

setting

setting

Wireless remote control

On

Off

-

-

O

■ Outside rear view mirrors (P. 305)

Default

Customized

Function

1

2

3

setting

setting

Off

Linked to the

Automatic mirror folding and

locking/

Linked to

-

-

O

extending operation

unlocking of

operation of

the doors

the power

switch

PRIUS PHV_OM_OM47A89E_(EE)

9-2. Customization

711

■ Power windows (P. 307)

Default

Customized

Function

1

2

3

setting

setting

Mechanical key linked opera-

Off

On

-

-

O

tion (open)

Mechanical key linked opera-

Off

On

-

-

O

tion (close)

Wireless remote control linked

Off

On

-

-

O

operation (open)

Wireless remote control linked

Off

On

-

-

O

operation (close)

Mechanical key, wireless

remote control linked opera-

On

Off

-

-

O

tion signal (buzzer)

■ Reverse warning buzzer (P. 336)

Default

Customized

Function

1

2

3

setting

setting

Signal (buzzer) when the shift

Single

Intermittent

-

-

O

position is in R

■ Turn signal lever (P. 339)

Default

Customized

Function

1

2

3

setting

setting

Off

Times of flashing of the lane

3

5

-

-

O

change signal flashers

7

9

PRIUS PHV_OM_OM47A89E_(EE)

712

9-2. Customization

■ Automatic light control system (P. 341)

Default

Customized

Function

1

2

3

setting

setting

Light sensor sensitivity

Level 0

Level -2 to 2

-

O

O

60 seconds

Time elapsed before head-

lights turn off (follow me home

30 seconds

90 seconds

-

-

O

system)

120 seconds

■ AHS (Adaptive High-beam System) (P. 345)

Customized

Function

Default setting

1

2

3

setting

Adaptive

High-beam

On

Off*

—

—

O

System

Clearance between a

Narrow

vehicle ahead and the

Standard

—

—

O

shaded high beams

Wide

Approximately

100 km/h

Vehicle speed at which

(63 mph) or

Approximately

the brightness and illu-

more

120 km/h

minated area adjust-

—

—

O

(75 mph) or

Approximately

ment of the high beams

more

80 km/h

changes mode

(50 mph) or

more

Intensity adjustment of

the high beams when

driving around a curve

On

Off

—

—

O

(illuminates the area in

the direction vehicle is

turning more brightly)

Projection

distance

adjustment of the low

beams according to the

On

Off

—

—

O

distance to a preceding

vehicle

*: Only high beam will be turned on or off.

PRIUS PHV_OM_OM47A89E_(EE)

9-2. Customization

713

■ Rain-sensing windshield wipers (P. 352)

Default

Customized

Function

1

2

3

setting

setting

Intermittent

operation

Wiper operation when the

Rain-sensing

linked to vehi-

wiper switch is in the “AUTO”

-

-

O

operation

cle speed

position

(with interval

adjuster)

■ RSA (Road Sign Assist) (P. 392)

Default

Customized

Function

1

2

3

setting

setting

No notification

Excess speed

Only visual

O

-

O

Visual and

audible

Notification

method

No notification

Others

Only visual

O

-

O

Visual and

audible

5 km/h

(3 mph)

Excess speed notification

2 km/h

O

-

O

level

(1 mph)

10 km/h

(5 mph)

■ Toyota parking assist-sensor* (P. 432)

Default

Customized

Function

1

2

3

setting

setting

Detection distance of the front

Far

Near

-

-

O

center sensors

9

Detection distance of the rear

Far

Near

-

-

O

center sensors

Buzzer volume

3

1 to 5

-

-

O

*: If equipped

PRIUS PHV_OM_OM47A89E_(EE)

Content   ..  40  41  42  43   ..
