Toyota C-HR Hybrid (2017 year). Instruction - part 8

2. Instrument cluster

119

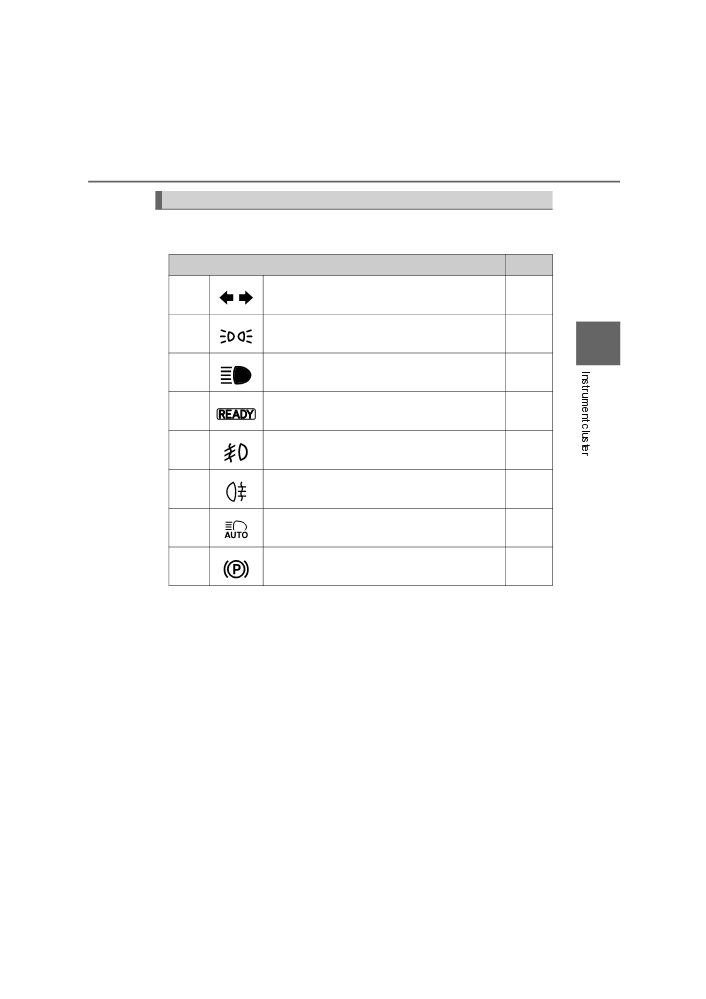

Indicators

The indicators inform the driver of the operating state of the vehicle’s

various systems.

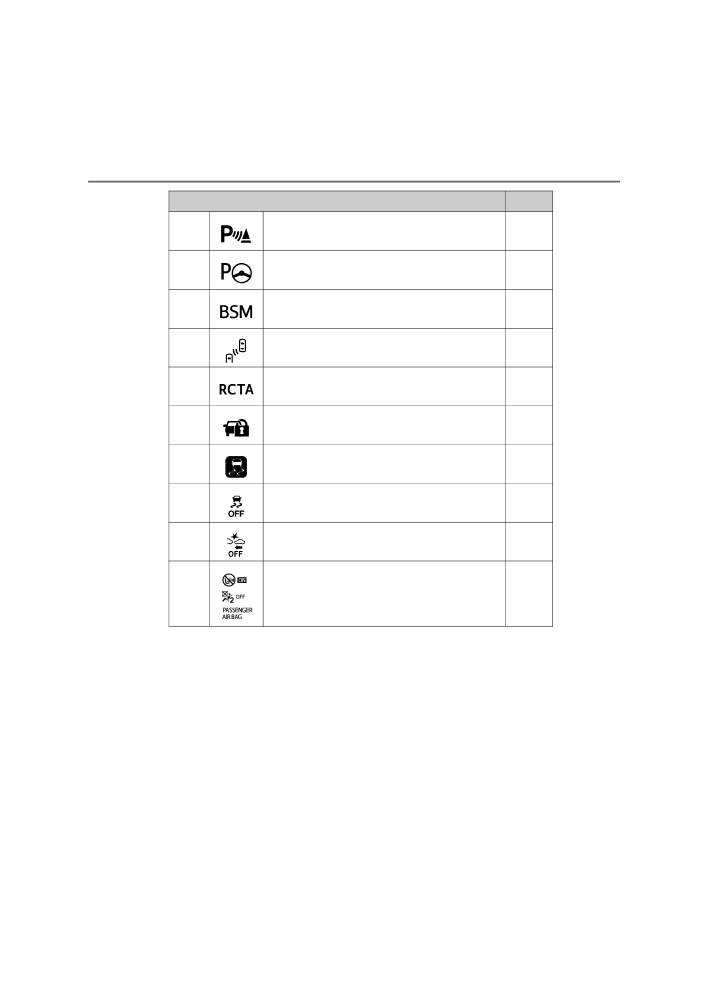

Indicators

Pages

Turn signal indicator

P. 235

Tail light indicator

P. 244

2

Headlight high beam indicator

P. 245

“READY” indicator

P. 221

Front fog light indicator (if equipped)

P. 254

Rear fog light indicator

P. 254

Automatic High Beam indicator (if equipped)

P. 249

Parking brake indicator

P. 236

C-HR_HV_OM_Europe_OM10538E

120

2. Instrument cluster

Indicators

Pages

Toyota parking assist-sensor indicator

(if

P. 352

equipped)

S-IPA indicator (if equipped)

P. 365

*1

“BSM” indicator (if equipped)

P. 335

BSM outside rear view mirror indicator

*2

P. 335

(on the outside rear view mirrors) (if equipped)

“RCTA” indicator (if equipped)

P. 335

P. 99,

Security indicator (on the center panel)

106

*1, 3

Slip indicator light

P. 404

*1

VSC off indicator

P. 405

*1, 4

PCS warning light (if equipped)

P. 278

“PASSENGER AIR BAG” indicator (on the

*1

P. 57

center panel) (if equipped)

*1: These lights turn on when the power switch is turned to ON mode to indi-

cate that a system check is being performed. They will turn off after the

hybrid system is on, or after a few seconds. There may be a malfunction in

a system if a light does not come on, or if the lights do not turn off. Have

the vehicle inspected by any authorized Toyota retailer or Toyota autho-

rized repairer, or any reliable repairer.

C-HR_HV_OM_Europe_OM10538E

2. Instrument cluster

121

*2: In order to confirm operation, the BSM outside rear view mirror indicators

illuminate in the following situations:

• When the power switch is turned to ON mode, the BSM function is

enabled on the

screen of the multi-information display.

• When the BSM function is enabled on the

screen of the multi-

information display, the power switch is in ON mode.

If the system is functioning correctly, the BSM outside rear view mirror indi-

cators will turn off after a few seconds.

If the BSM outside rear view mirror indicators do not illuminate or do not

2

turn off, there may be a malfunction in the system.

If this occurs, have the vehicle inspected by any authorized Toyota retailer

or Toyota authorized repairer, or any reliable repairer.

*3: The light flashes to indicate that the system is operating.

*4: The light turns on when the system is off.

C-HR_HV_OM_Europe_OM10538E

122

2. Instrument cluster

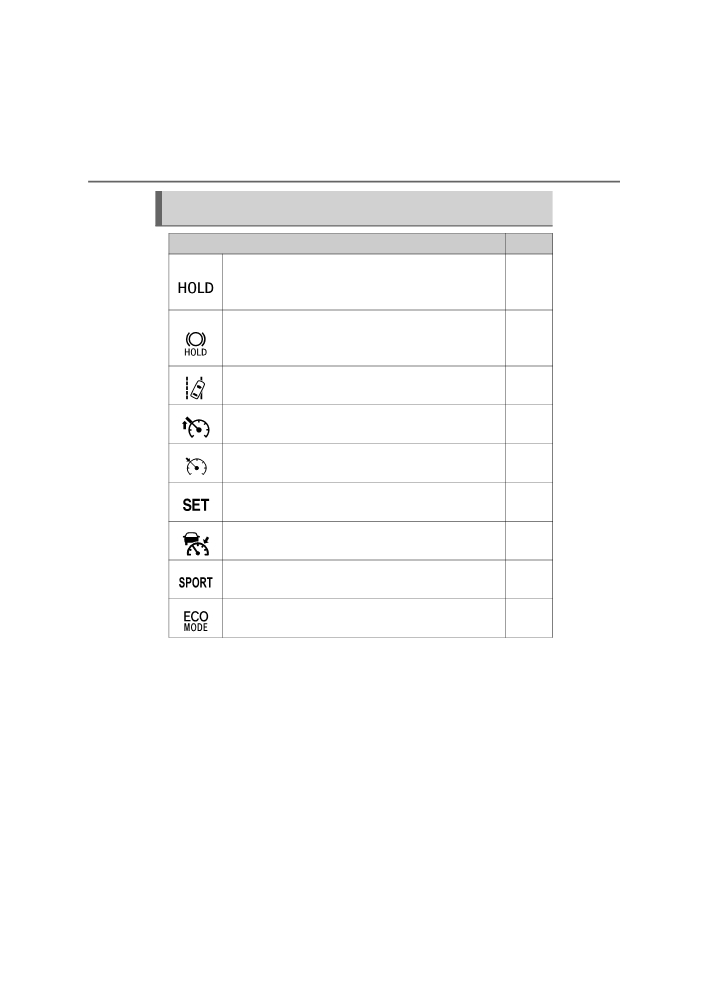

Indicators and symbols displayed on the multi-information dis-

play

Indicators

Pages

*

Brake hold operated indicator

P. 241

*

Brake hold standby indicator

P. 241

LDA indicator (if equipped)

P. 289

Speed limiter indicator (if equipped)

P. 330

P. 317,

Cruise control indicator (if equipped)

322

P. 317,

Cruise control “SET” indicator (if equipped)

322

Radar cruise control indicator (if equipped)

P. 307

“SPORT” indicator

P. 328

“ECO MODE” indicator

P. 328

C-HR_HV_OM_Europe_OM10538E

2. Instrument cluster

123

Indicators

Pages

EV Indicator

P. 89

EV drive mode indicator

P. 228

Speed limit sign (if equipped)

P. 301

2

Low outside temperature indicator

P. 125

*: These lights turn on when the power switch is turned to ON mode to indi-

cate that a system check is being performed. They will turn off after the

hybrid system is on, or after a few seconds. There may be a malfunction in

a system if a light does not come on, or if the lights do not turn off. Have

the vehicle inspected by any authorized Toyota retailer or Toyota autho-

rized repairer, or any reliable repairer.

C-HR_HV_OM_Europe_OM10538E

124

2. Instrument cluster

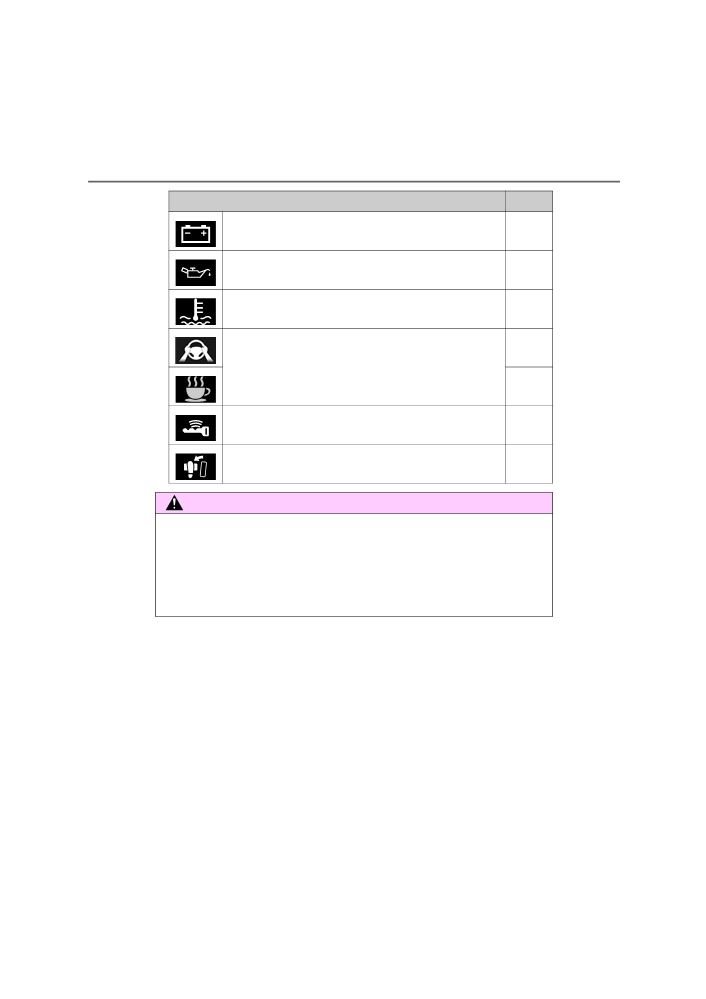

Symbols on multi-information display

Pages

Charging system warning light

P. 595

Low engine oil pressure warning light

P. 595

High engine coolant temperature warning light

P. 600

P. 600

LDA (Lane Departure Alert with steering control) (if

equipped)

P. 289

Smart entry & start system

P. 221

Brake Override System/Drive-Start Control

P. 600

WARNING

■ If a safety system warning light does not come on

Should a safety system light such as ABS and SRS airbag warning light not

come on when you start the hybrid system, this could mean that these sys-

tems are not available to help protect you in an accident, which could result

in death or serious injury. Have the vehicle inspected by any authorized

Toyota retailer or Toyota authorized repairer, or any reliable repairer.

C-HR_HV_OM_Europe_OM10538E

2. Instrument cluster

125

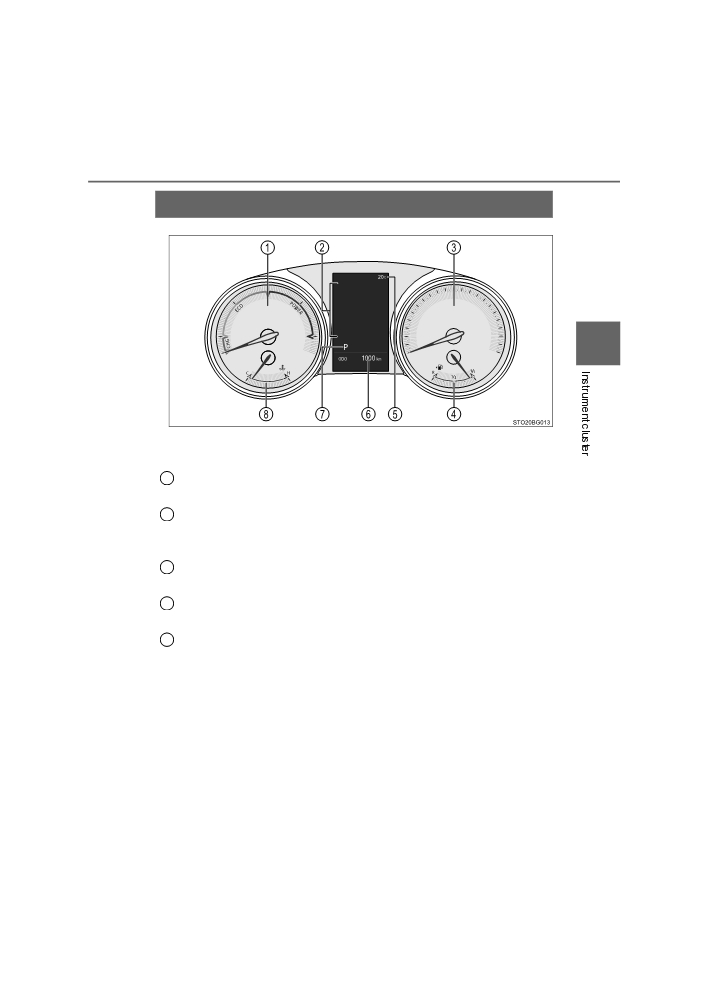

Gauges and meters

2

The units used on the speedometer may differ depending on the tar-

get region.

1

Hybrid System Indicator

Displays hybrid system output or regeneration level.

2

Multi-information display

Presents the driver with a variety of driving-related data. (P. 129)

Displays warning messages in case of a malfunction. (P. 606)

3

Speedometer

Displays the vehicle speed.

4

Fuel gauge

Displays the quantity of fuel remaining in the tank.

Outside temperature display

5

Displays the outside temperature within the range of -40°C (-40°F) to 50°C

(122°F). Low outside temperature indicator comes on when the ambient

temperature is 3°C (37°F) or lower.

C-HR_HV_OM_Europe_OM10538E

126

2. Instrument cluster

6

Odometer and trip meter display:

Displays the following items.

Odometer:

Displays the total distance the vehicle has been driven.

Trip meter:

Displays the distance the vehicle has been driven since the meter was last

reset. Trip meters A and B can be used to record and display different dis-

tances independently.

Shift position and shift range display

7

Displays the selected shift position or selected shift range. (P. 231)

Engine coolant temperature gauge

8

Displays the engine coolant temperature.

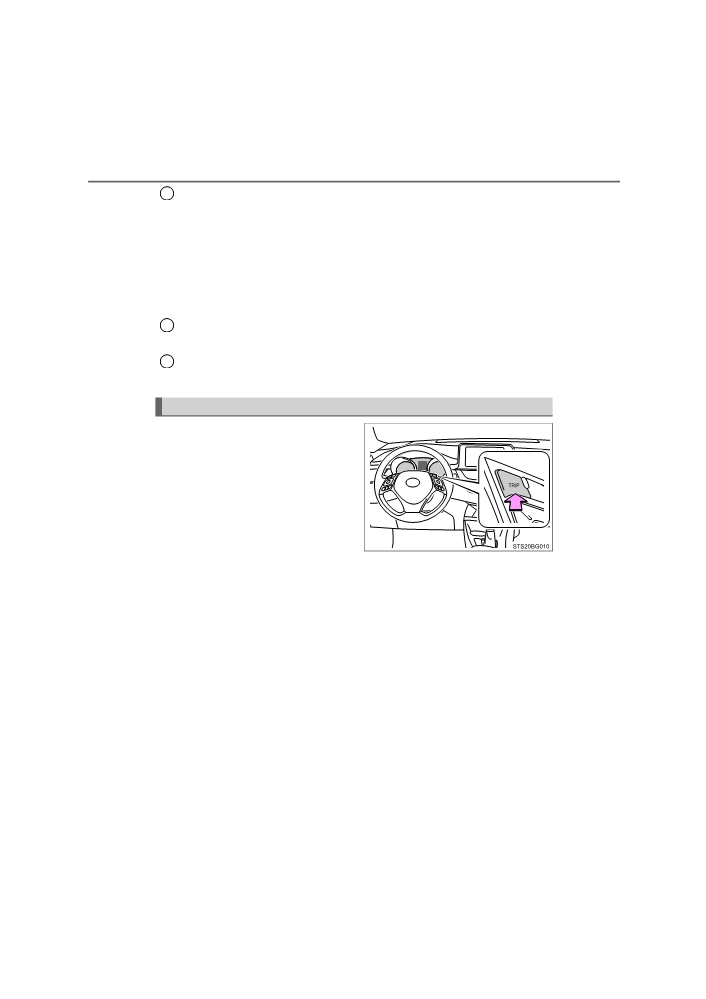

Changing the display

Switches the items of the odome-

ter and trip meter display by

pressing the “TRIP” switch.

When the trip meter is displayed,

pressing and holding the

“TRIP”

switch will reset the trip meter.

C-HR_HV_OM_Europe_OM10538E

2. Instrument cluster

127

■ The meters and display illuminate when

The power switch is turned to ON mode.

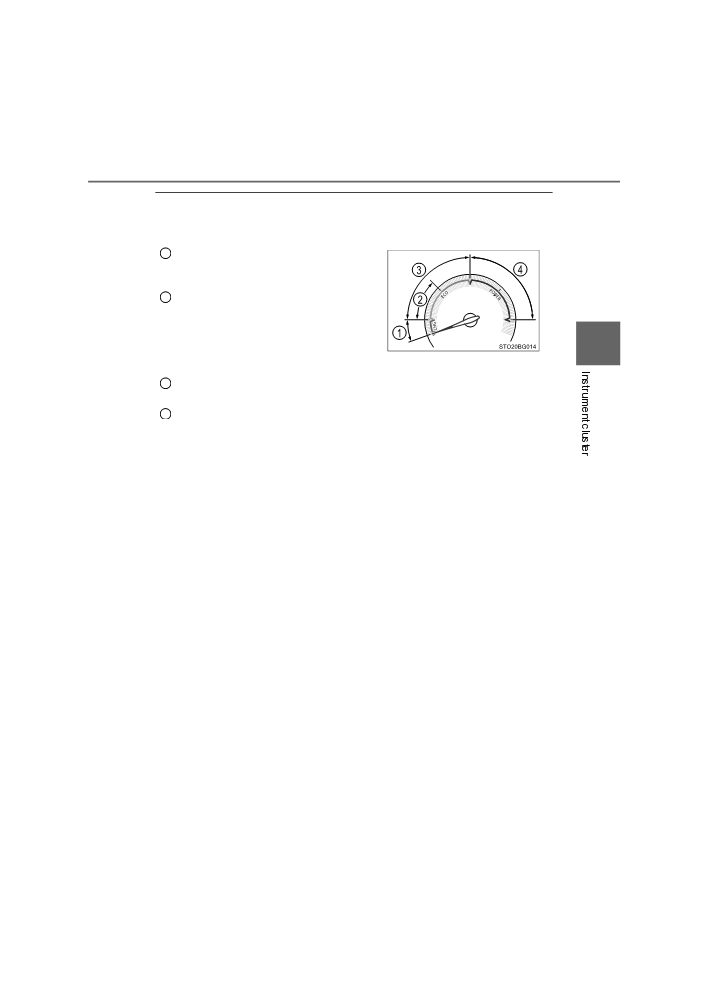

■ Hybrid System Indicator

1

Charge area

Shows that energy is being recovered

via the regenerative brake.

Hybrid Eco area

2

Shows that gasoline engine power is

not being used very often.

The gasoline engine will automatically

2

stop and restart under various condi-

tions.

3

Eco area

Shows that the vehicle is being driven in an Eco-friendly manner.

4

Power area

Shows that an Eco-friendly driving range is being exceeded (during full

power driving, etc.)

●By keeping the indicator needle within Eco area, more Eco-friendly driving

can be achieved.

● Charge area indicates regeneration* status. Regenerated energy will be

used to charge the hybrid battery (traction battery).

*: When used in this manual, “regeneration” refers to the conversion of

energy created by the movement of the vehicle into electrical energy.

C-HR_HV_OM_Europe_OM10538E

128

2. Instrument cluster

■ Engine speed

On hybrid vehicles, engine speed is precisely controlled in order to help

improve fuel efficiency and reduce exhaust emissions, etc.

There are times when the engine speed that is displayed may differ even

when vehicle operation and driving conditions are the same.

■ Outside temperature display

● In the following situations, the correct outside temperature may not be dis-

played, or the display may take longer than normal to change.

• When stopped, or driving at low speeds (less than 25 km/h [16 mph])

• When the outside temperature has changed suddenly (at the entrance/

exit of a garage, tunnel, etc.)

● When “--” is displayed, the system may be malfunctioning.

Take your vehicle to any authorized Toyota retailer or Toyota authorized

repairer, or any reliable repairer.

NOTICE

■ To prevent damage to the engine and its components

The engine may be overheating if the engine coolant temperature gauge is

in the red zone (“H”). In this case, immediately stop the vehicle in a safe

place, and check the engine after it has cooled completely. (P. 657)

C-HR_HV_OM_Europe_OM10538E

2. Instrument cluster

129

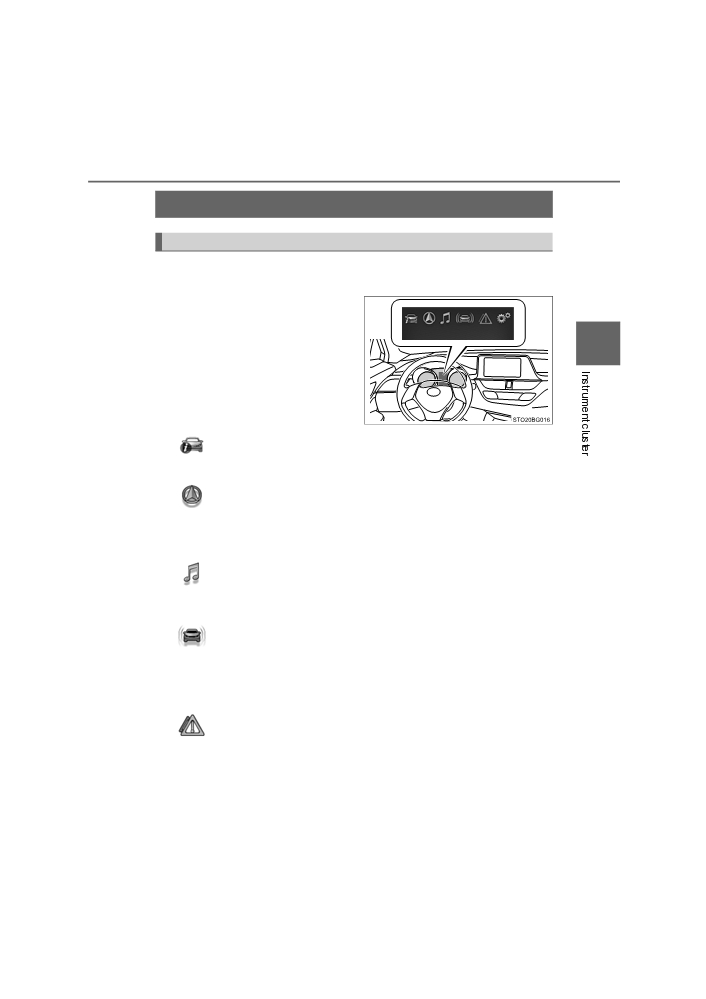

Multi-information display

Display contents

The multi-information display presents the driver with a variety of vehi-

cle data.

● Menu icons

Displays the following informa-

tion when an icon is selected.

2

(P. 130)

Some of the information may be

displayed

automatically

depending on the situation.

Drive information

Select to display various drive data. (P. 130)

Navigation system-linked display (if equipped)

Select to display the following navigation system-linked information.

• Route guidance

• Compass display (north-up display/heading-up display)

Audio system-linked display (if equipped)

Select to enable selection of an audio source or track on the meter

using the meter control switches.

Driving assist system information (if equipped)

Select to display the operational status of the following systems:

• LDA (Lane Departure Alert) (P. 289)

• Dynamic radar cruise control with full-speed range (P. 307)

• RSA (Road Sign Assist) (P. 301)

Warning message display

Select to display warning messages and measures to be taken if a

malfunction is detected. (P. 606)

C-HR_HV_OM_Europe_OM10538E

130

2. Instrument cluster

Settings display

Select to change the meter display settings and the operation set-

tings of some vehicle functions. (P. 132)

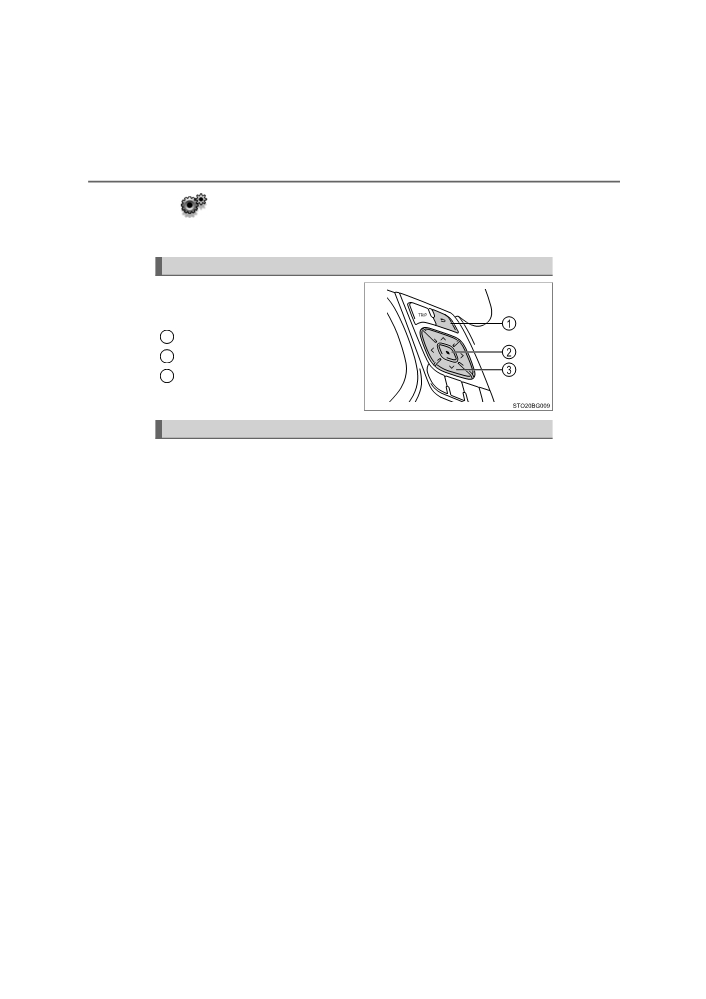

Operating the meter control switches

The multi-information display is

operated using the meter control

switches.

1

Return to the previous screen

2

Enter/set

3

Select an item/change pages

Drive information

● Current fuel consumption (zone display/numerical display)*1

Displays the current rate of fuel consumption.

● Average fuel consumption (after reset*2/after start/after refuel)*1

Displays the average fuel consumption since the function was reset, the

hybrid system was on, and the vehicle was refueled, respectively

Use the displayed average fuel consumption as a reference.

● Average vehicle speed (after reset*2/after start)*1

Displays the average vehicle speed since the function was reset and the

hybrid system was on, respectively

● Elapsed time (after reset*2/after start)*1

Displays the elapsed time since the function was reset and the hybrid sys-

tem was on, respectively

C-HR_HV_OM_Europe_OM10538E

2. Instrument cluster

131

● Distance (driving range/after start)*1

Displays the estimated maximum distance that can be driven with the

quantity of fuel remaining and the distance driven after the hybrid system

was on, respectively

• This distance is computed based on your average fuel consumption. As

a result, the actual distance that can be driven may differ from that dis-

played.

• When only a small amount of fuel is added to the tank, the display may

not be updated.

When refueling, turn the power switch off. If the vehicle is refueled with-

out turning the power switch off, the display may not be updated.

2

● Energy monitor

P. 138

● Speedometer

Displays the vehicle speed.

C-HR_HV_OM_Europe_OM10538E

132

2. Instrument cluster

● Sway warning (if equipped)

Detects the sway of the vehicle within a lane, which is often associated

with a decrease in the driver's attention level, and displays the decrease in

attention using a bar display.

The shorter the bar length, the more the driver may need to rest.

This display is a part of the LDA (Lane Departure Alert with steering con-

trol). The display is enabled when the operating conditions of the vehicle

sway warning are met. (P. 292)

● Display off

A blank screen is displayed.

*1: Can be registered to Drive information 1 and 2. (P. 132)

*2: Resetting procedures:

• Select a function to be reset using the meter control switches and then

press and hold

to reset.

• If there is more than one function that can be reset, check boxes will be

displayed next to those functions.

Settings display

The settings of the following items can be changed, refer to P. 679.

For functions that can be enabled or disabled, the function switches

between on and off each time

is pressed.

● LDA (Lane Departure Alert) (P. 289)*1

Select to set up the following items.

• Steering Assist on/off

• Alert sensitivity

• Sway Alert on/off

• Sway sensitivity

● PCS (Pre-Collision System) (P. 274)*1

Select to set up the following items.

• PCS on/off

• PCS sensitivity

C-HR_HV_OM_Europe_OM10538E

2. Instrument cluster

133

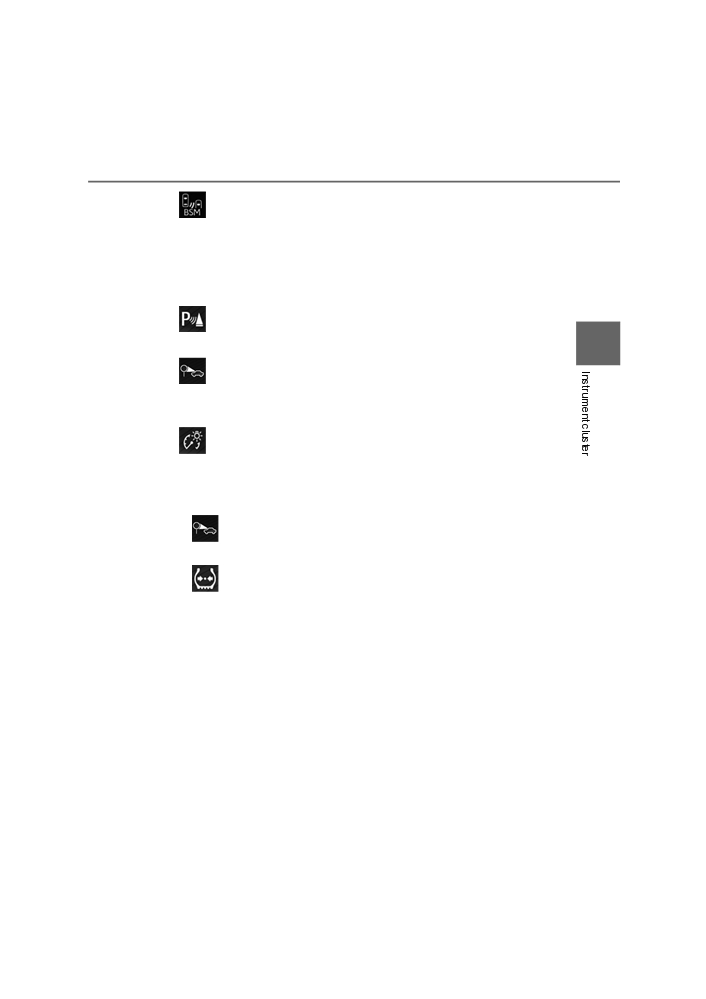

● BSM (Blind Spot Monitor) (P. 335)*1

Select to set up the following items.

• BSM function on/off

• RCTA function on/off*

*: The RCTA function can be enabled/disabled only when the BSM func-

tion is enabled.

● Toyota parking assist-sensor (P. 351)*1

2

Select to enable/disable the Toyota parking assist-sensor.

● RSA (Road Sign Assist) (P. 301)*1

Select to set up RSA (Road Sign Assist).

● Driving mode select (P. 328)

● Instrument cluster light

Select to adjust brightness of the instrument cluster light.

● Vehicle Settings

Select the menu to set up the following items.

•

RSA (Road Sign Assist) setup (P. 306)*1

Select to set up RSA (Road Sign Assist).

•

(Tire pressure warning system) setup (P. 544)

Select to initialize the tire pressure warning system.

C-HR_HV_OM_Europe_OM10538E

2. Instrument cluster

135

■Pop-up display

In some situations, such as when a switch operation is performed, a pop-up

display will be temporarily displayed on the multi-information display.

The pop-up display function can be set on/off.

■ Setting display automatic cancelation

In the following situations, setting display in which the settings can be

changed through the meter control switch will automatically be turned off.

●If a warning message appears while the setting display is displayed

● When the vehicle begins to move while the setting display is displayed

■ Liquid crystal display

2

Small spots or light spots may appear on the display. This phenomenon is

characteristic of liquid crystal displays, and there is no problem continuing to

use the display.

■ When disconnecting and reconnecting 12-volt battery terminals

The drive information will be reset.

C-HR_HV_OM_Europe_OM10538E

Content   ..  6  7  8  9   ..
