4-3. Operating the lights and wipers

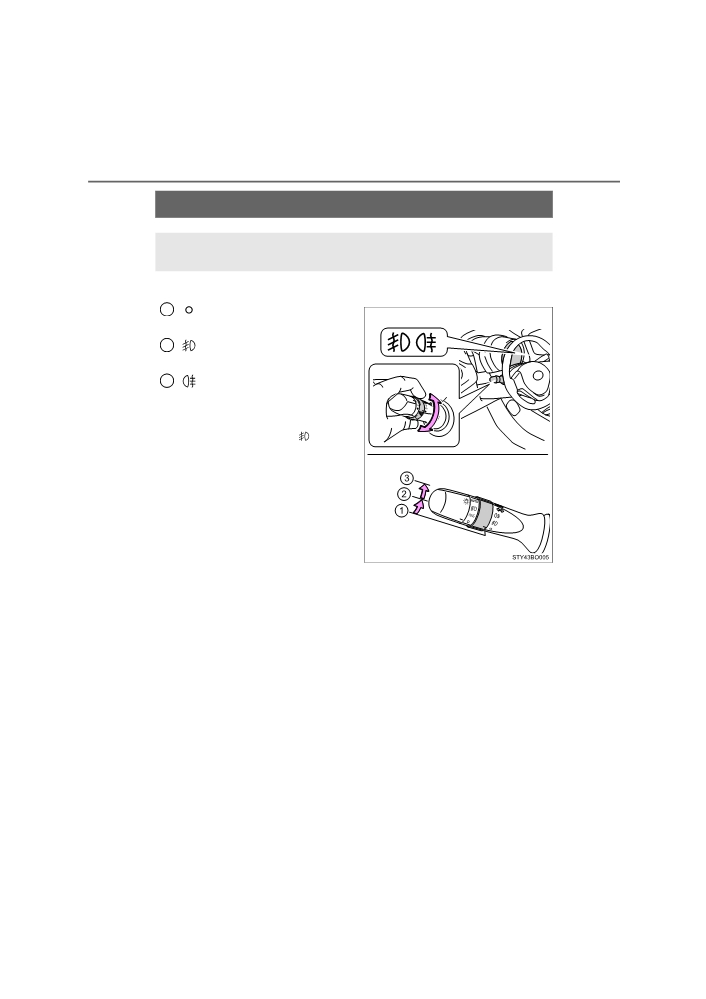

Fog light switch

The fog lights secure excellent visibility in difficult driving con-

ditions, such as in rain and fog.

 Front and rear fog light switch

1

Turns the front and rear

fog lights off

2

Turns the front fog lights

on

3

Turns both front and rear

fog lights on

On some models: Releasing the

switch ring returns it to

Operating the switch ring again

turns only the rear fog lights off.

AYGO_OM_Europe_OM99P46E

4-3. Operating the lights and wipers

171

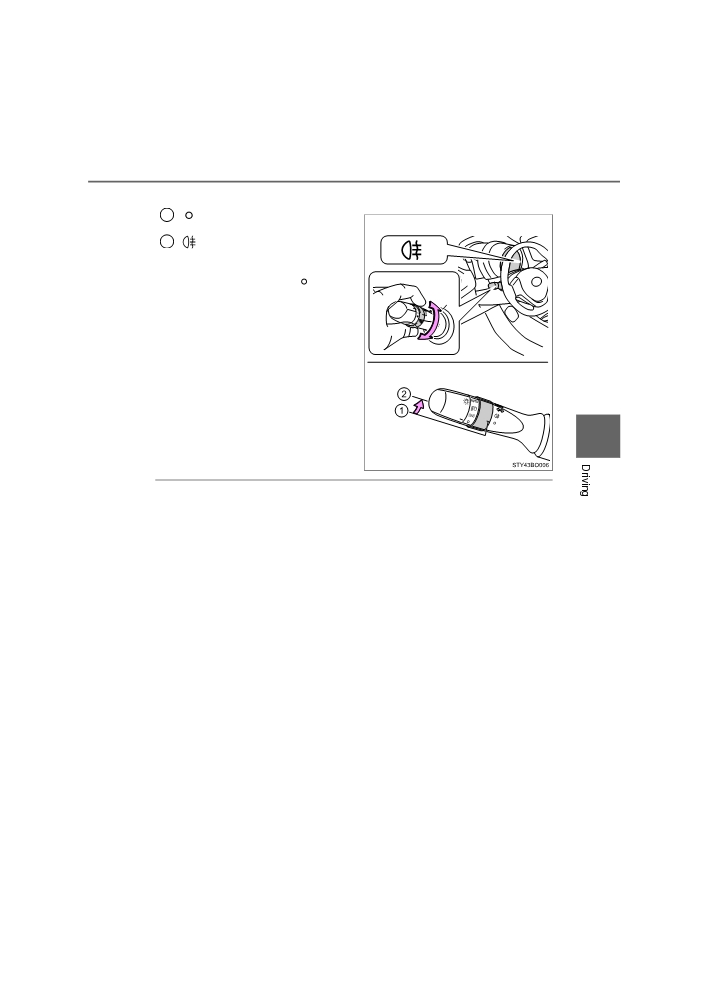

 Rear fog light switch

1

Turns the rear fog lights off

2

Turns the rear fog lights on

On some models: Releasing the

switch ring returns it to

Operating the switch ring again

turns only the rear fog lights off.

4

■ Fog lights can be used when

 Vehicles with a front and rear fog light switch

Front fog lights: The headlights or the front position lights are turned on.

Rear fog lights: The front fog lights are turned on.

 Vehicles with a rear fog light switch

The headlights are turned on.

AYGO_OM_Europe_OM99P46E

172

4-3. Operating the lights and wipers

Windshield wiper and washer

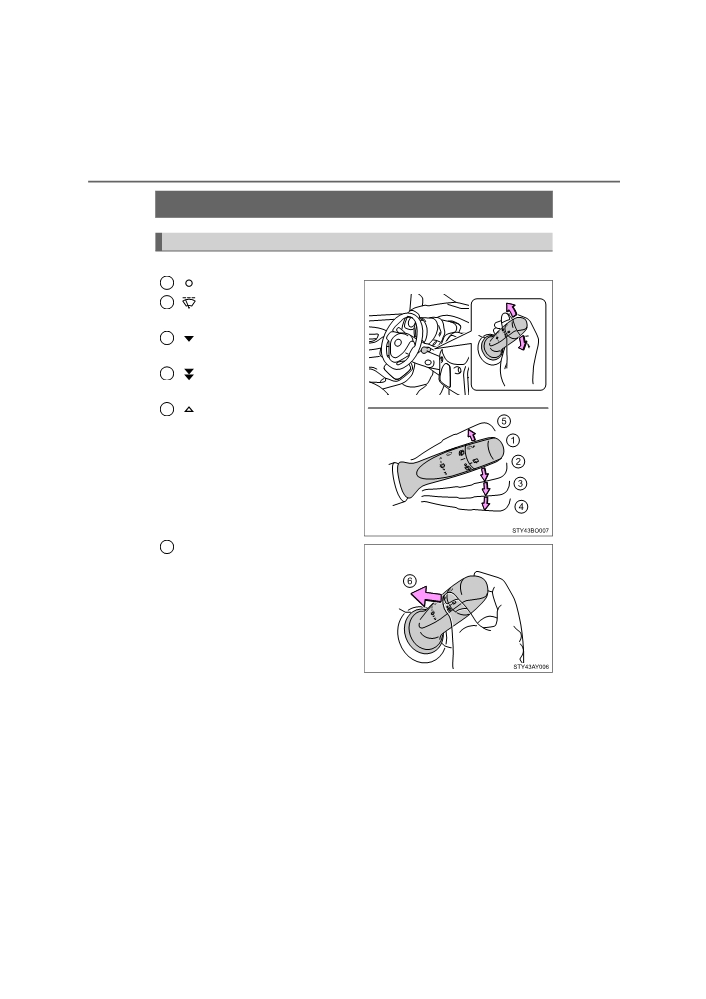

Operating the wiper lever

Operate the lever as follows to operate the wiper.

1

Off

2

Intermittent

windshield

wiper operation

3

Low speed windshield

wiper operation

4

High speed windshield

wiper operation

5

Temporary operation

Washer/wiper dual operation

6

Wiper will automatically operate a

couple of times after the washer

squirts.

AYGO_OM_Europe_OM99P46E

4-3. Operating the lights and wipers

173

■ The windshield wiper and washer can be operated when

 Vehicles without a smart entry & start system

The engine switch is in the “ON” position.

 Vehicles with a smart entry & start system

The engine switch is in IGNITION ON mode.

■ If no windshield washer fluid sprays

Check that the washer nozzles are not blocked, if there is washer fluid in the

windshield washer fluid reservoir.

WARNING

■ Caution regarding the use of washer fluid

When it is cold, do not use the washer fluid until the windshield becomes

warm. The fluid may freeze on the windshield and cause low visibility. This

may lead to an accident, resulting in death or serious injury.

4

NOTICE

■ When the windshield is dry

Do not use the wiper, as they may damage the windshield.

■ When the washer fluid tank is empty

Do not operate the switch continually as the washer fluid pump may over-

heat.

■ To prevent battery discharge

Do not leave the wiper on longer than necessary when the engine is off.

AYGO_OM_Europe_OM99P46E

174

4-3. Operating the lights and wipers

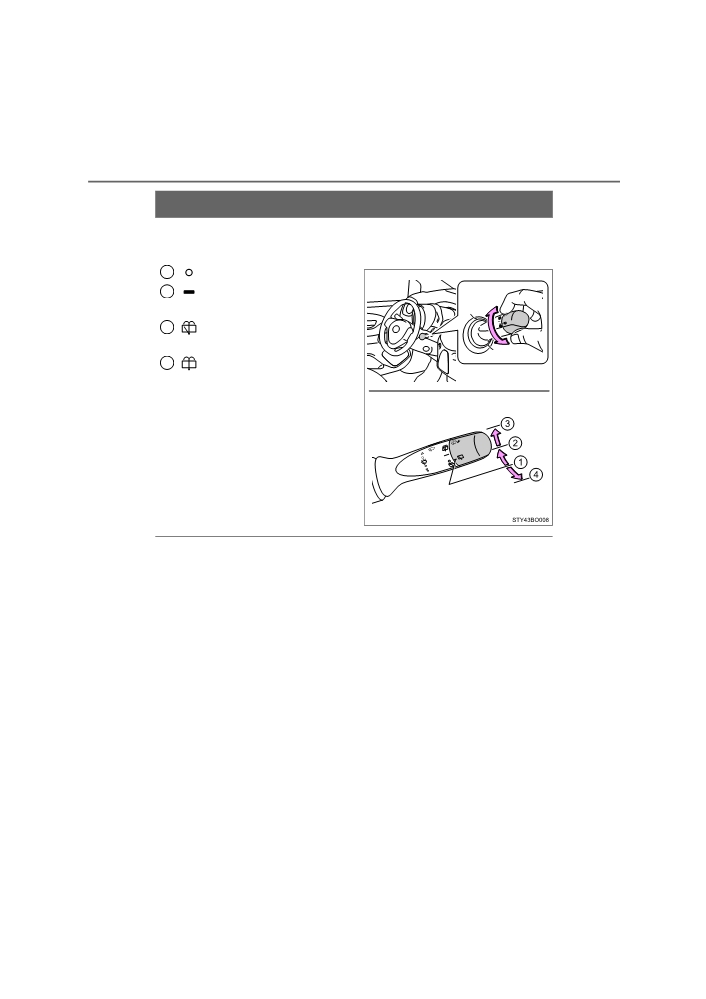

Rear window wiper and washer

Turning the end of the lever turns on the rear window wiper and

washer.

1

Off

2

Normal window wiper

operation

3

Washer/wiper dual opera-

tion

4

Washer operation

■ The rear window wiper and washer can be operated when

 Vehicles without a smart entry & start system

The engine switch is in the “ON” position.

 Vehicles with a smart entry & start system

The engine switch is in IGNITION ON mode.

■ If no washer fluid sprays

Check that the washer nozzle is not blocked, if there is washer fluid in the

washer fluid reservoir.

AYGO_OM_Europe_OM99P46E

4-3. Operating the lights and wipers

175

NOTICE

■ When the rear window is dry

Do not use the wiper, as it may damage the rear window.

■ When the washer fluid tank is empty

Do not operate the switch continually as the washer fluid pump may over-

heat.

■ To prevent battery discharge

Do not leave the wiper on longer than necessary when the engine is off.

4

AYGO_OM_Europe_OM99P46E

176

4-4. Refueling

Opening the fuel tank cap

Perform the following steps to open the fuel tank cap:

Before refueling the vehicle

● Close all the doors and windows, and turn the engine switch to the

“LOCK” position (vehicles without a smart entry & start system) or

off (vehicles with a smart entry & start system).

● Confirm the type of fuel.

■ Fuel types

EU area:

Unleaded gasoline conforming to European standard EN228, Research

Octane Number of 95 or higher.

Except EU area:

Unleaded gasoline, Research Octane Number of 95 or higher.

■ Use of ethanol blended gasoline in a gasoline engine

Toyota allows the use of ethanol blended gasoline where the ethanol content

is up to 10%. Make sure that the ethanol blended gasoline to be used has a

Research Octane Number that follows the above.

AYGO_OM_Europe_OM99P46E

4-4. Refueling

177

WARNING

■ When refueling the vehicle

Observe the following precautions while refueling the vehicle. Failure to do

so may result in death or serious injury.

● After exiting the vehicle and before opening the fuel door, touch an

unpainted metal surface to discharge any static electricity. It is important to

discharge static electricity before refueling because sparks resulting from

static electricity can cause fuel vapors to ignite while refueling.

● Always hold the grips on the fuel tank cap and turn it slowly to remove it.

A whooshing sound may be heard when the fuel tank cap is loosened.

Wait until the sound cannot be heard before fully removing the cap. In hot

weather, pressurized fuel may spray out the filler neck and cause injury.

●Do not allow anyone that has not discharged static electricity from their

body to come close to an open fuel tank.

●Do not inhale vaporized fuel.

Fuel contains substances that are harmful if inhaled.

4

●Do not smoke while refueling the vehicle.

Doing so may cause the fuel to ignite and cause a fire.

●Do not return to the vehicle or touch any person or object that is statically

charged.

This may cause static electricity to build up, resulting in a possible ignition

hazard.

■ When refueling

Observe the following precautions to prevent fuel overflowing from the fuel

tank:

●Securely insert the fuel nozzle into the fuel filler neck.

● Stop filling the tank after the fuel nozzle automatically clicks off.

●Do not top off the fuel tank.

NOTICE

■ Refueling

Do not spill fuel during refueling.

Doing so may damage the vehicle, such as causing the emission control

system to operate abnormally or damaging fuel system components or the

vehicle’s painted surface.

AYGO_OM_Europe_OM99P46E

178

4-4. Refueling

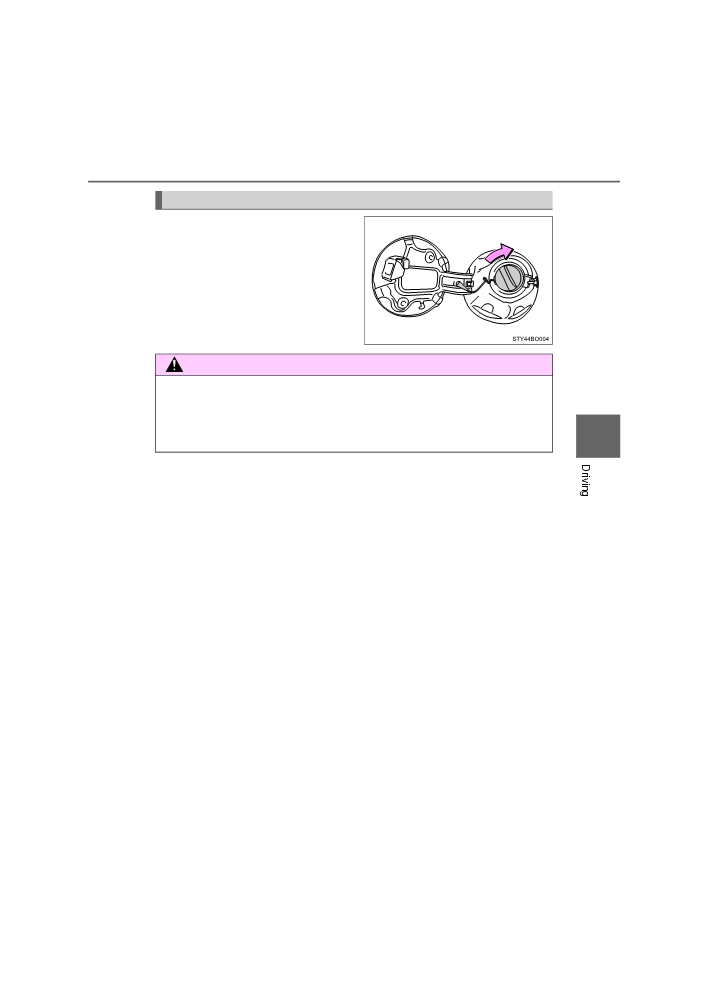

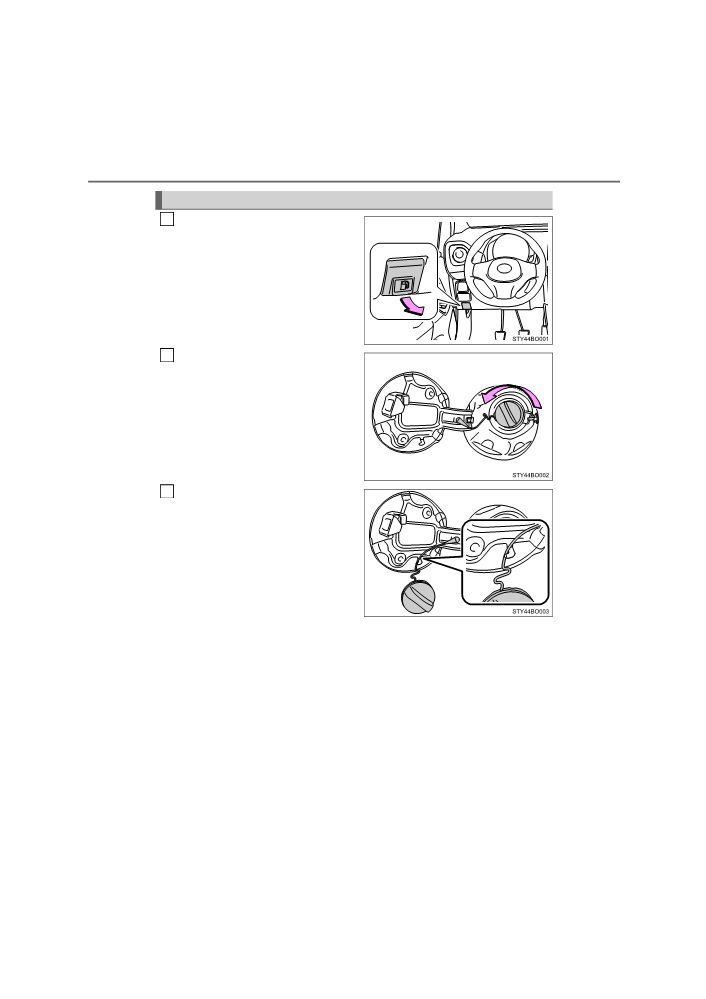

Opening the fuel tank cap

1

Pull up the opener to open the

fuel filler door.

2

Turn the fuel tank cap slowly to

open.

Hang the fuel tank cap on the

3

back of the fuel filler door.

AYGO_OM_Europe_OM99P46E

4-4. Refueling

179

Closing the fuel tank cap

After refueling, turn the fuel tank

cap until you hear a click. Once

the cap is released, it will turn

slightly in the opposite direction.

WARNING

■ When replacing the fuel tank cap

Do not use anything but a genuine Toyota fuel tank cap designed for your

vehicle. Doing so may cause a fire or other incident which may result in

death or serious injury.

4

AYGO_OM_Europe_OM99P46E

180

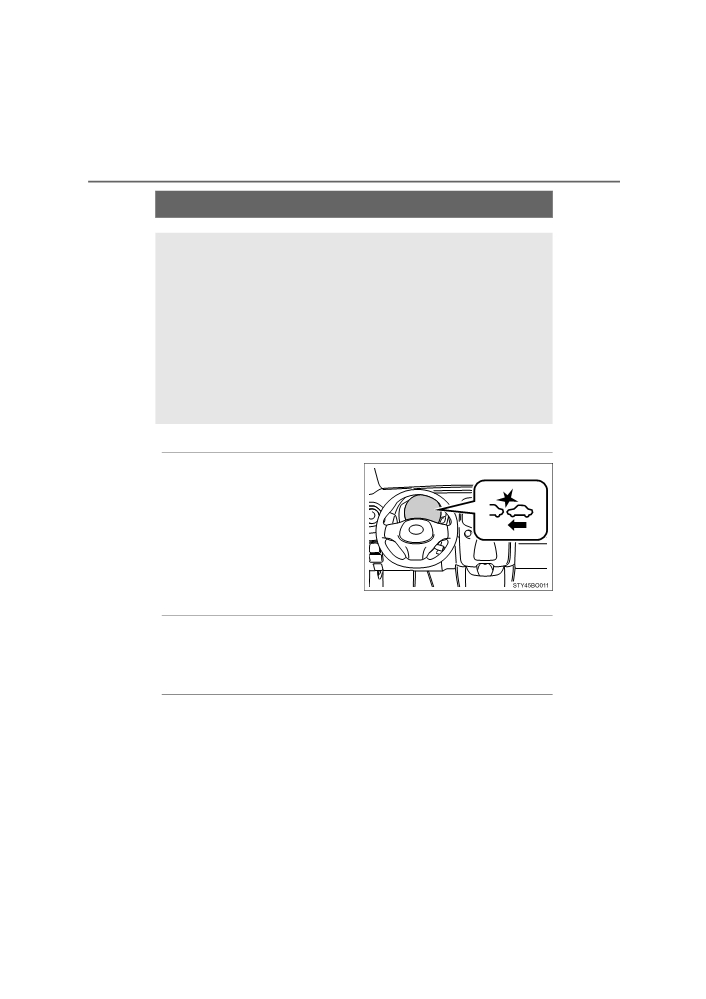

4-5. Toyota Safety Sense

Toyota Safety Sense

The Toyota Safety Sense consists of the following drive assist

systems and contributes to a safe and comfortable driving expe-

rience:

◆ PCS (Pre-Crash Safety system)

P. 186

◆ LDA (Lane Departure Alert)

P. 200

WARNING

■ Toyota Safety Sense

The Toyota Safety Sense is designed to operate under the assumption that

the driver will drive safely, and is designed to help reduce the impact to the

occupants and the vehicle in the case of a collision or assist the driver in

normal driving conditions.

As there is a limit to the degree of recognition accuracy and control perfor-

mance that this system can provide, do not overly rely on this system. The

driver is always responsible for paying attention to the vehicle’s surround-

ings and driving safely.

: If equipped

AYGO_OM_Europe_OM99P46E

4-5. Toyota Safety Sense

181

Vehicle data recording

The pre-crash safety system is equipped with a sophisticated com-

puter that will record certain data, such as:

• Accelerator status

• Brake status

• Vehicle speed

• Operation status of the pre-crash safety system functions

• Information (such as the distance and relative speed between your

vehicle and the vehicle ahead or other objects)

● Data usage

Toyota may use the data recorded in this computer to diagnose

malfunctions, conduct research and development, and improve

quality.

Toyota will not disclose the recorded data to a third party except:

4

• With the consent of the vehicle owner or with the consent of the

lessee if the vehicle is leased

• In response to an official request by the police, a court of law or a

government agency

• For use by Toyota in a lawsuit

• For research purposes where the data is not tied to a specific

vehicle or vehicle owner

AYGO_OM_Europe_OM99P46E

182

4-5. Toyota Safety Sense

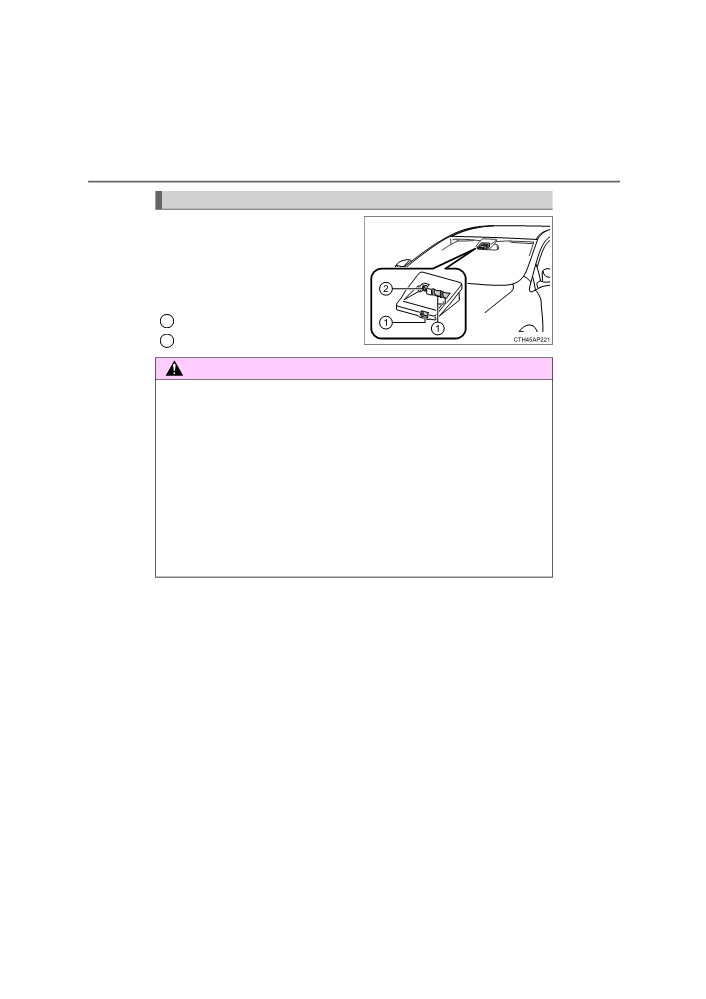

Front sensor

The front sensor is located on the

upper side of the windshield. It

consists of

2 types of sensors,

each of which detects information

necessary to operate the drive

assist systems.

1

Laser sensors

2

Monocular camera sensor

WARNING

■ Front sensor

The front sensor uses lasers to detect vehicles ahead of your vehicle. The

front sensor is classified as class 1M laser product according to the IEC

60825-1 standard. Under normal usage conditions, these lasers are not

harmful to the naked eye. However, it is necessary to observe the following

precautions.

Failure to do so may result in the loss of eyesight or severe visual impair-

ment.

● To avoid hazardous laser radiation exposure, never attempt to disassem-

ble the front sensor (e.g. remove the lenses). When disassembled, the

front sensor is classified as a class 3B laser product according to the IEC

60825-1 standard. Class 3B lasers are hazardous and pose a risk of eye

injury under direct exposure.

AYGO_OM_Europe_OM99P46E

4-5. Toyota Safety Sense

183

WARNING

●Do not attempt to look into the front sensor with a magnifying glass, micro-

scope or other optical instrument within a distance of less than 100 mm

(3.9 in.).

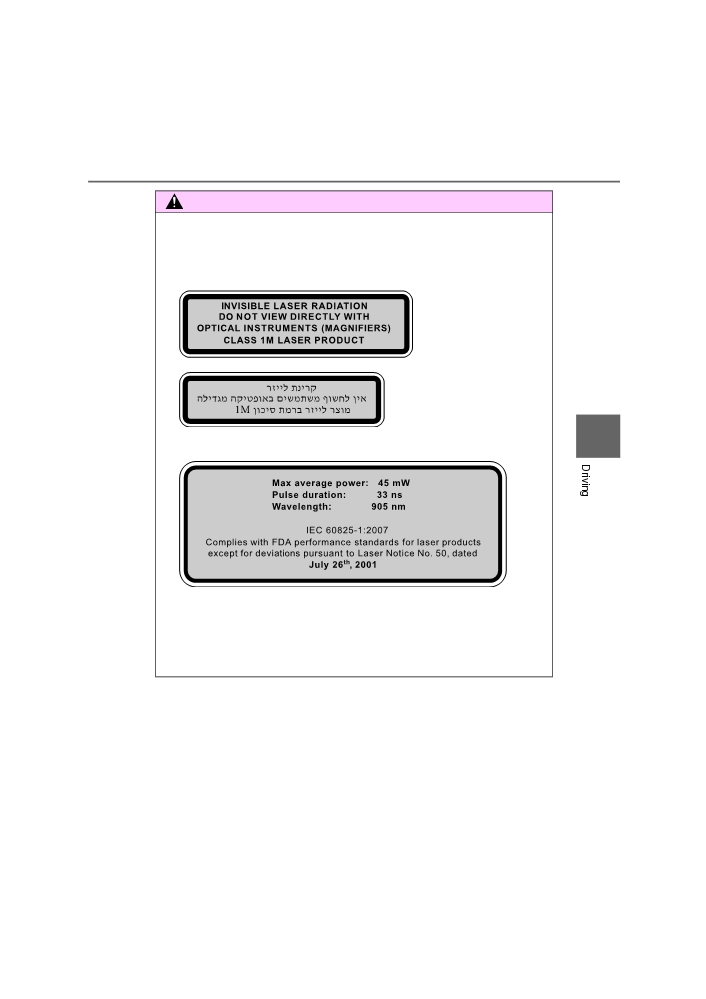

Laser classification label

4

Laser explanatory label

Laser emission data

Maximum average power: 45 mW

Pulse duration: 33 ns

Wave length: 905 nm

Divergence (horizontal  vertical): 28°  12°

AYGO_OM_Europe_OM99P46E

184

4-5. Toyota Safety Sense

WARNING

■ To avoid malfunction of the front sensor

Observe the following precautions.

Otherwise, the front sensor may not operate properly, possibly leading to an

accident resulting in death or serious injury.

●Keep the windshield clean at all times. If the windshield is dirty or covered

with an oily film, water droplets, snow, etc., clear the windshield. If the

inner side of the windshield in front of the front sensor is dirty, contact any

authorized Toyota dealer or repairer, or another duly qualified and

equipped professional for details.

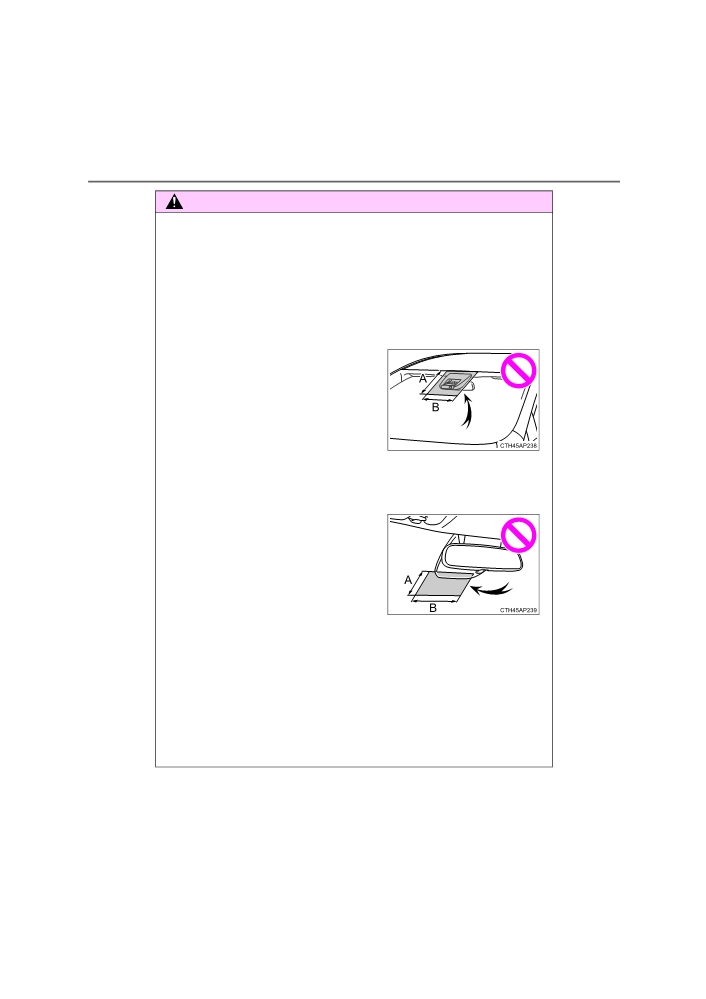

●Do not attach objects, such as stickers,

transparent stickers, etc., and so forth,

to the outer side of the windshield in

front of the front sensor (shaded area in

the illustration).

A: From the top of the windshield to

approximately 10 cm (4.0 in.) below

the bottom of the front sensor

B: Approximately

20 cm

(7.9 in.)

(Approximately 10 cm [4.0 in.] to

the right and left from the center of

the front sensor)

●Do not install or attach anything to the

inner side of the windshield under the

front sensor (shaded area in the illustra-

tion).

A: Approximately 10 cm (4.0 in.) (Start-

ing from the bottom of the front sen-

sor)

B: Approximately

20 cm

(7.9 in.)

(Approximately 10 cm [4.0 in.] to

the right and left from the center of

the front sensor)

● If there is a large difference in temperature between the inside and outside

of the vehicle, such as in winter, the windshield is likely to fog up easily. If

the part of the windshield in front of the front sensor is fogged up or cov-

ered with condensation or ice, the PCS warning light may illuminate and

the system may be temporarily disabled. In this case, use the windshield

defogger to remove the fog, etc. (P. 286, 292)

AYGO_OM_Europe_OM99P46E

186

4-5. Toyota Safety Sense

PCS (Pre-Crash Safety system)

The pre-crash safety system uses the front sensor to detect

vehicles in front of your vehicle. When the system determines

that the possibility of a frontal collision with a vehicle is high, a

warning operates to urge the driver to take evasive action and

the potential brake pressure is increased to help the driver avoid

the collision. If the system determines that the possibility of a

frontal collision with a vehicle is extremely high, the brakes are

automatically applied to help avoid the collision or help reduce

the impact of the collision.

The pre-crash safety system can be disabled/enabled and the warn-

ing timing can be changed. (P. 189)

◆ Pre-crash warning

When the system determines

that the possibility of a frontal

collision is high, a buzzer will

sound and the PCS activation

indicator will flash to urge the

driver to take evasive action.

◆ Pre-crash brake assist

When the system determines that the possibility of a frontal colli-

sion with a vehicle is high, the system applies greater braking force

in relation to how strongly the brake pedal is depressed.

◆ Pre-crash braking

When the system determines that the possibility of a frontal colli-

sion with a vehicle is high, the system warns the driver. If the sys-

tem determines that the possibility of a collision is extremely high,

the brakes are automatically applied to help avoid the collision or

reduce the collision speed.

: If equipped

AYGO_OM_Europe_OM99P46E

Content   ..  9  10  11  12   ..
