1-1. For safe use

51

Child restraint systems

Toyota strongly urges the use of child restraint systems.

Points to remember

1

Studies have shown that installing a child restraint on a rear seat is

much safer than installing one on the front passenger seat.

● Choose a child restraint system that suits your vehicle and is appro-

priate to the age and size of the child.

● For installation details, follow the instructions provided with the child

restraint system.

General installation instructions are provided in this manual.

(P. 60)

● If child restraint system regulations exist in the country where you

reside, please contact any authorized Toyota dealer or repairer, or

another duly qualified and equipped professional for the child

restraint system installation.

● Toyota recommends that you use a child restraint system which

conforms to the regulation ECE No.44.

AURIS HV Touring

Sports_EE

(OM12L18E)

52

1-1. For safe use

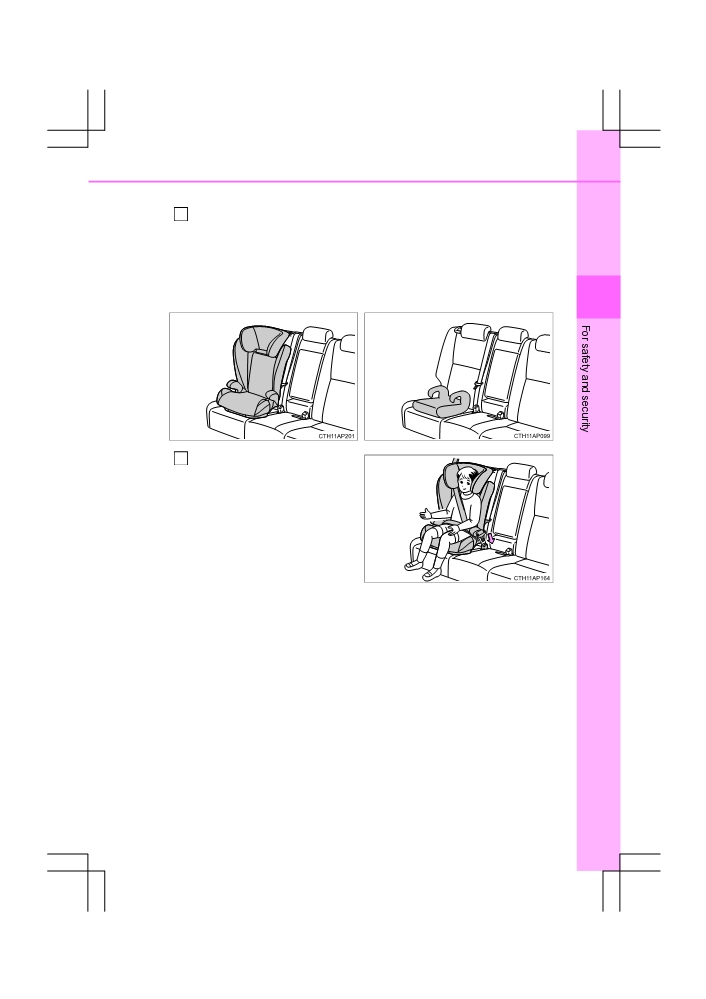

Types of child restraints

Child restraint systems are classified into the following

5 groups

according to the regulation ECE No.44:

Group 0: Up to 10 kg (22 lb.) (0 - 9 months)

Group 0+: Up to 13 kg (28 lb.) (0 - 2 years)

Group I: 9 to 18 kg (20 to 39 lb.) (9 months - 4 years)

Group II: 15 to 25 kg (34 to 55 lb.) (4 years - 7 years)

Group III: 22 to 36 kg (49 to 79 lb.) (6 years - 12 years)

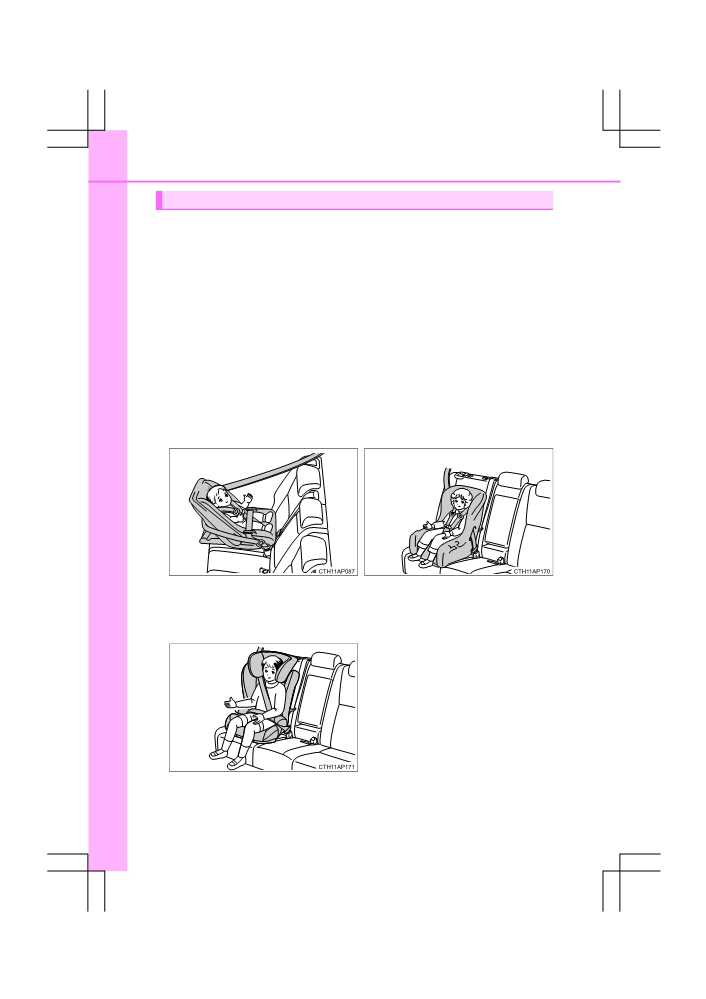

In this owner’s manual, the following 3 types of popular child restraint

systems that can be secured with the seat belts are explained:

 Baby seat

 Child seat

Equal to Group 0 and 0+ of ECE

Equal to Group 0+ and I of ECE

No.44

No.44

 Junior seat

Equal to Group II and III of ECE

No.44

AURIS HV Touring

Sports_EE

(OM12L18E)

1-1. For safe use

53

Child restraint system suitability for various seating positions

Information provided in the table shows your child restraint system

suitability for various seating positions.

Seating

Front passenger seat

position

Rear seat

Airbag manual on-off

1

switch

Mass groups

ON

OFF

Outboard

Center

0

X

U*1

U

Up to 10 kg (22 lb.)

X

Never put

L1*1

L1

(0 - 9 months)

0+

X

U*1

U

Up to 13 kg (28 lb.)

X

Never put

L1*1

L1

(0 - 2 years)

Rear-

facing —

I

X

9 to 18 kg

Never put

U*1

U*2

X

(20 to 39 lb.)

Forward-

(9 months - 4 years)

facing —

UF*1

II, III

15 to 36 kg

U*2

UF*1

U*1

X

(34 to 79 lb.)

L2*2

(4 - 12 years)

AURIS HV Touring

Sports_EE

(OM12L18E)

1-1. For safe use

55

Child restraint system suitability for various seating positions

(with ISOFIX rigid anchors)

Information provided in the table shows your child restraint system

suitability for various seating positions.

Vehicle ISOFIX

Recommended

Size

1

positions

Mass groups

Fixture

Child Restraint

class

Systems

Rear outboard

F

ISO/L1

X

-

Carrycot

G

ISO/L2

X

-

(1)

X

-

0

“TOYOTA MINI”,

E

ISO/R1

IL

Up to 10 kg

“TOYOTA MIDI”

(22 lb.)

(0 - 9 months)

(1)

X

-

E

ISO/R1

IL

0+

“TOYOTA MINI”,

D

ISO/R2

IL

Up to 13 kg

“TOYOTA MIDI”

(28 lb.)

C

ISO/R3

IL

(0 - 2 years)

(1)

X

-

D

ISO/R2

IL

-

C

ISO/R3

IL

I

9 to 18 kg

B

ISO/F2

IUF*, IL*

(20 to 39 lb.)

“TOYOTA MIDI”,

B1

ISO/F2X

IUF*, IL*

(9 months

“TOYOTA DUO+”

- 4 years)

A

ISO/F3

IUF*, IL*

(1)

X

-

II, III

15 to 36 kg

(1)

X

-

(34 to 79 lb.)

(4 - 12 years)

AURIS HV Touring

Sports_EE

(OM12L18E)

56

1-1. For safe use

(1) For the child restraint system which do not carry the ISO/XX size

class identification (A to G), for the applicable mass group, the

car manufacturer shall indicate the vehicle specific ISOFIX child

restraint system(s) recommended for each position.

Key of letters inserted in the above table:

IUF: Suitable for ISOFIX forward-facing child restraint systems of uni-

versal category approved for use in this mass group.

IL: Suitable for ISOFIX child restraint systems of the categories for

“specific vehicles”, “restricted”, or “semi-universal”, approved for

use in this mass group.

X: ISOFIX position not suitable for ISOFIX child restraint systems in

this mass group and/or this size class.

*: Remove the head restraint if it interferes with your child restraint system.

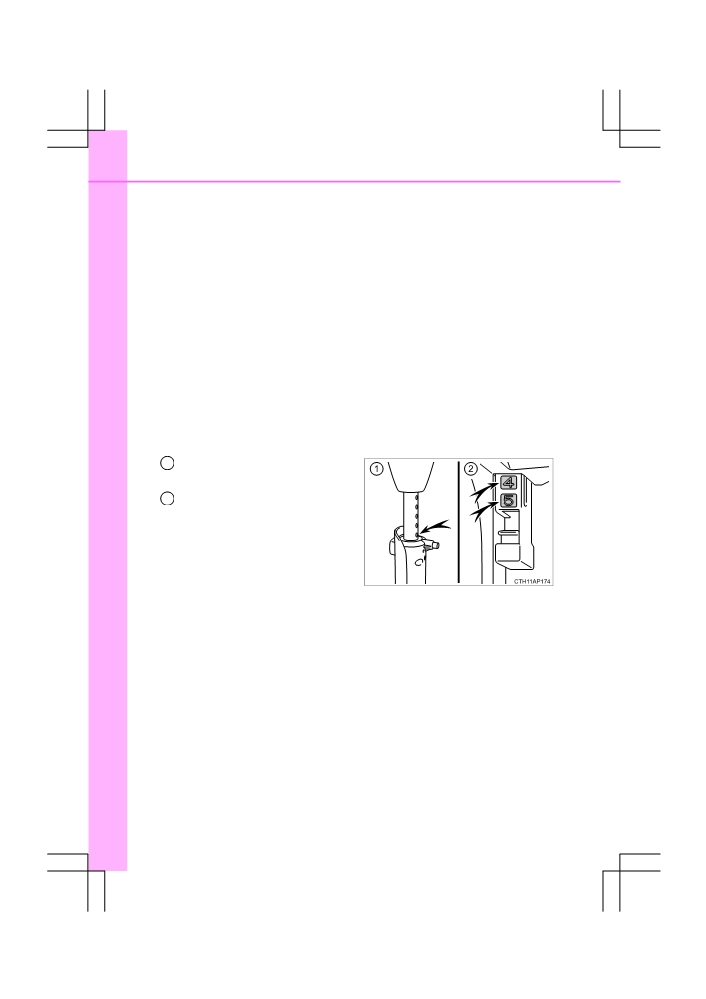

When using a “TOYOTA MINI” or “TOYOTA MIDI”, adjust the support

leg and the ISOFIX connectors as follows:

1

Lock the support leg where 5th

hole can be seen.

Lock the ISOFIX connectors

2

where numbers 4 and 5 can be

seen.

When using the right side seat for the child restraint system, do not sit

in the center seat.

The child restraint system mentioned in the table may not be available

outside of the EU area.

Other child restraint systems different from the systems mentioned in

the table can be used, but the suitability of the systems must be care-

fully checked with the child restraint system manufacturer and retailer.

AURIS HV Touring

Sports_EE

(OM12L18E)

1-1. For safe use

57

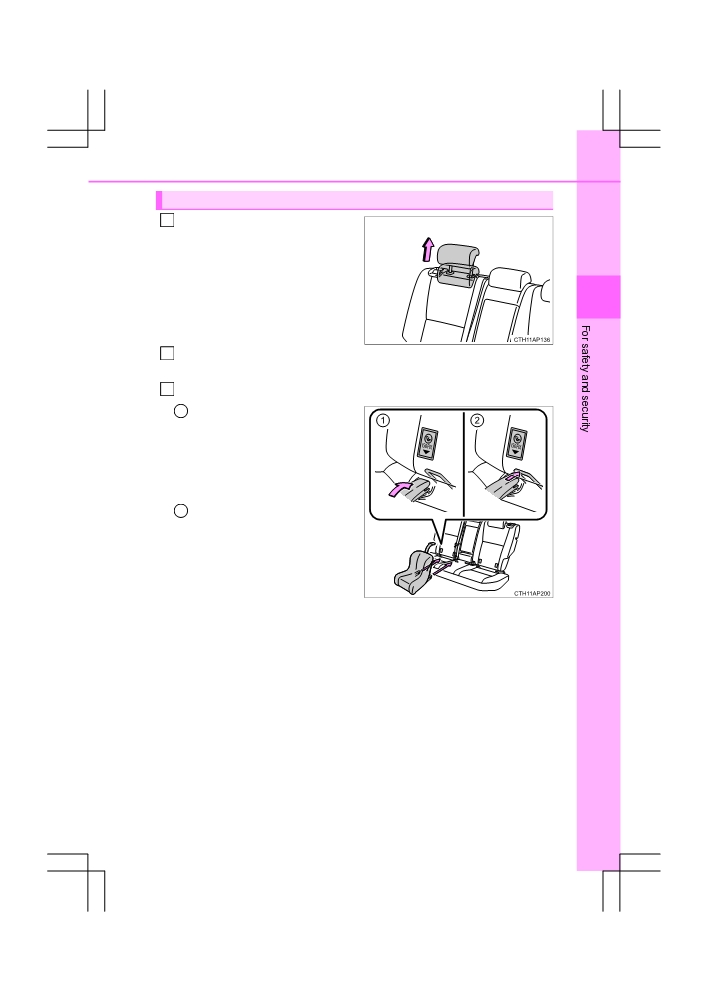

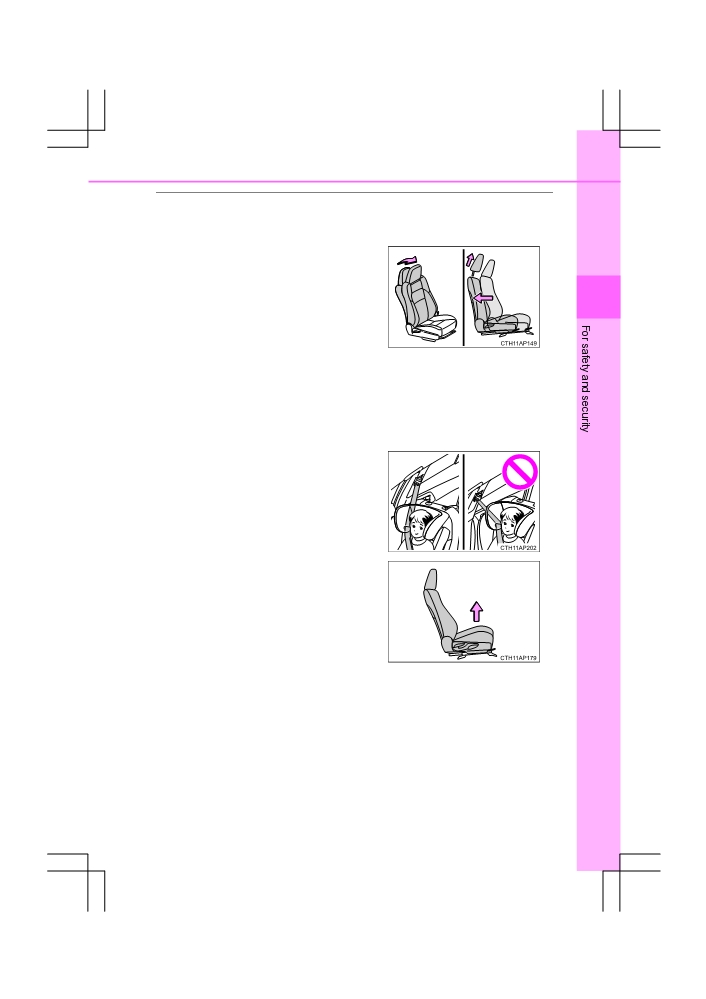

■ When installing a child restraint system on the front passenger seat

When you have to use a child restraint system on the front passenger seat,

adjust the following:

● The seatback to the most upright posi-

tion.

If the child restraint system interferes

with the seatback when latching the

1

child restraint system into the support

base, adjust the seatback rearward until

there is no interference.

● Remove the head restraint if it interferes

with your child restraint system.

● Move the seat as far back as possible.

If the CRS cannot be installed properly,

due to hitting part of the vehicle interior

and so forth, adjust the position of the

front seat and its seatback angle.

If the seat belt shoulder anchor is ahead

of the child seat belt guide, move the

seat cushion forward.

● Vehicles with a vertical height adjust-

ment lever: Adjust the seat cushion to

the highest position.

■ Selecting an appropriate child restraint system

● Use a child restraint system appropriate for the child until the child becomes

large enough to properly wear the vehicle’s seat belt.

● If the child is too large for a child restraint system, sit the child on a rear seat

and use the vehicle’s seat belt. (P. 34)

AURIS HV Touring

Sports_EE

(OM12L18E)

58

1-1. For safe use

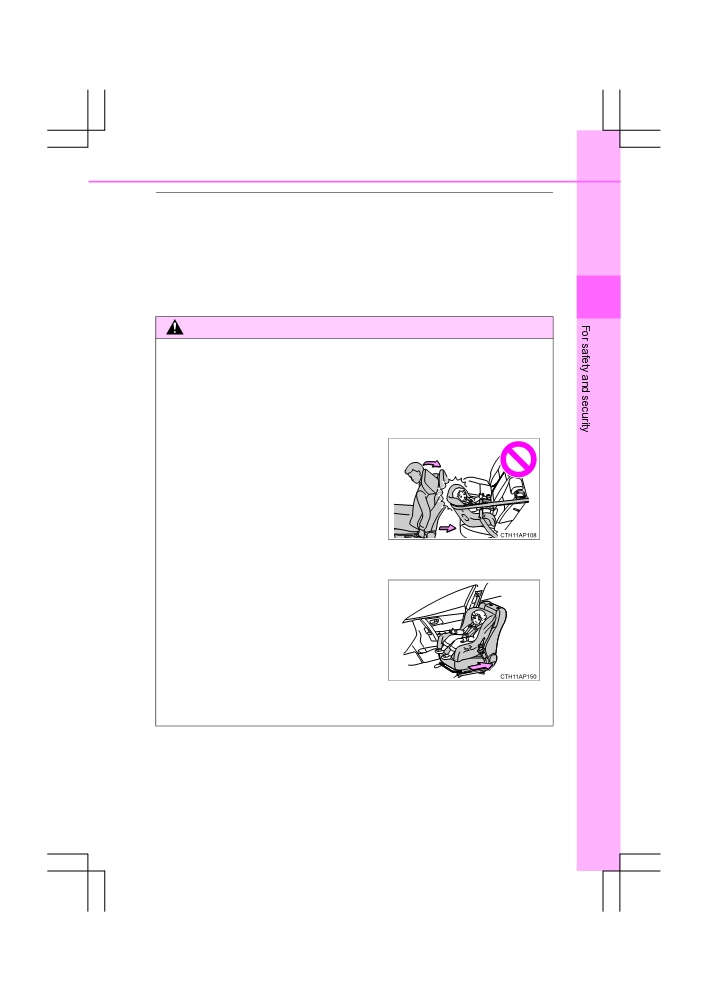

WARNING

■ Using a child restraint system

The use of a child restraint system not suitable for the vehicle may not prop-

erly secure the infant or child. It may result in death or serious injury (in the

event of sudden braking or an accident).

■ Child restraint precautions

● For effective protection in automobile accidents and sudden stops, a child

must be properly restrained, using a seat belt or child restraint system

depending on the age and size of the child. Holding a child in your arms is

not a substitute for a child restraint system. In an accident, the child can be

crushed against the windshield, or between you and the vehicle’s interior.

● Toyota strongly urges the use of a proper child restraint system that con-

forms to the size of the child, installed on the rear seat. According to acci-

dent statistics, the child is safer when properly restrained in the rear seat

than in the front seat.

● Never use a rear-facing child restraint system on the front passenger seat

when the airbag manual on-off switch is on. (P. 48)

In the event of an accident, the force of the rapid inflation of the front pas-

senger airbag can cause death or serious injury to the child.

● A forward-facing child restraint system may be installed on the front pas-

senger seat only when it is unavoidable. A child restraint system that

requires a top strap should not be used in the front passenger seat since

there is no top strap anchor for the front passenger seat. Adjust the

seatback as upright as possible and always move the seat as far back as

possible because the front passenger airbag could inflate with consider-

able speed and force. Otherwise, the child may be killed or seriously

injured.

● Do not allow the child to lean his/her head or any part of his/her body

against the door or the area of the seat, front and rear pillars or roof side

rails from which the SRS side airbags or SRS curtain shield airbags deploy

even if the child is seated in the child restraint system. It is dangerous if

the SRS side airbags and curtain shield airbags inflate, and the impact

could cause death or serious injury to the child.

● Make sure you have complied with all installation instructions provided by

the child restraint manufacturer and that the system is properly secured. If

it is not secured properly, it may cause death or serious injury to the child

in the event of a sudden stop or accident.

AURIS HV Touring

Sports_EE

(OM12L18E)

1-1. For safe use

59

WARNING

■ When children are in the vehicle

Do not allow children to play with the seat belt. If the seat belt becomes

twisted around a child’s neck, it may lead to choking or other serious injuries

that could result in death.

If this occurs and the buckle cannot be unfastened, scissors should be used

to cut the belt.

1

■ When the child restraint system is not in use

● Keep the child restraint system properly secured on the seat even if it is

not in use. Do not store the child restraint system unsecured in the pas-

senger compartment.

● If it is necessary to detach the child restraint system, remove it from the

vehicle or store it securely in the luggage compartment. If a head restraint

was removed when installing a child restraint system, always install the

head restraint before driving. This will prevent it from injuring passengers

in the event of a sudden stop or accident.

AURIS HV Touring

Sports_EE

(OM12L18E)

60

1-1. For safe use

Installing child restraints

Follow the child restraint system manufacturer’s instructions.

Firmly secure child restraints to the seats using a seat belt or

ISOFIX rigid anchors. Attach the top strap when installing a child

restraint.

Seat belts (An ELR belt requires a

locking clip)

ISOFIX rigid anchors

Lower anchors are provided for the

outboard rear seats. (Labels dis-

playing the location of the anchors

are attached to the seats.)

Anchor brackets (for top strap)

An anchor bracket is provided for

each outer rear seat.

AURIS HV Touring

Sports_EE

(OM12L18E)

1-1. For safe use

61

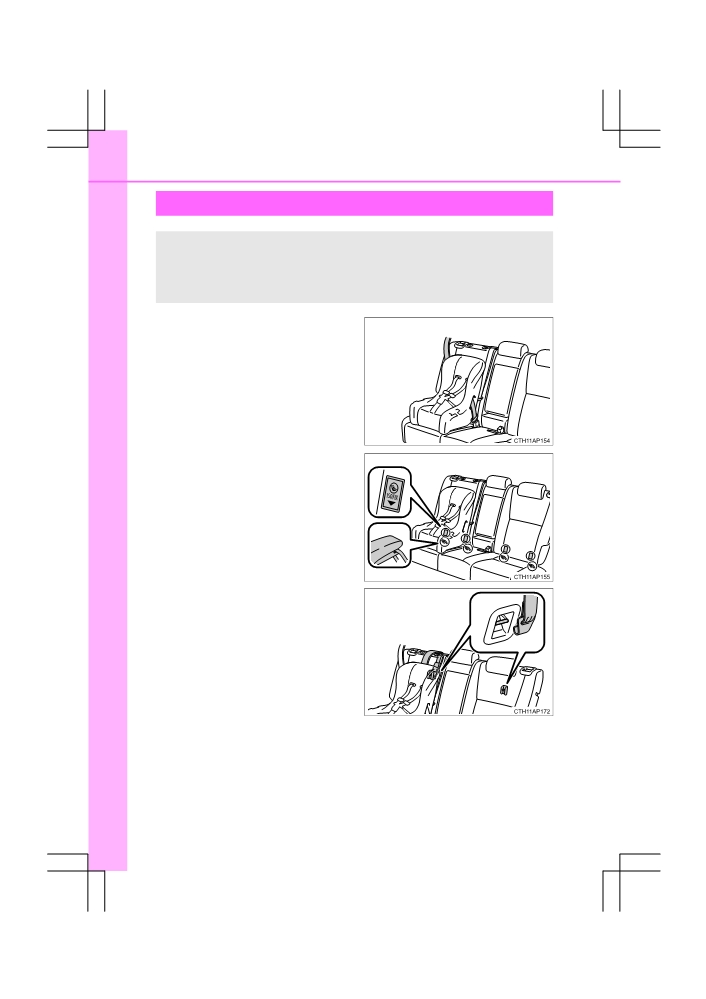

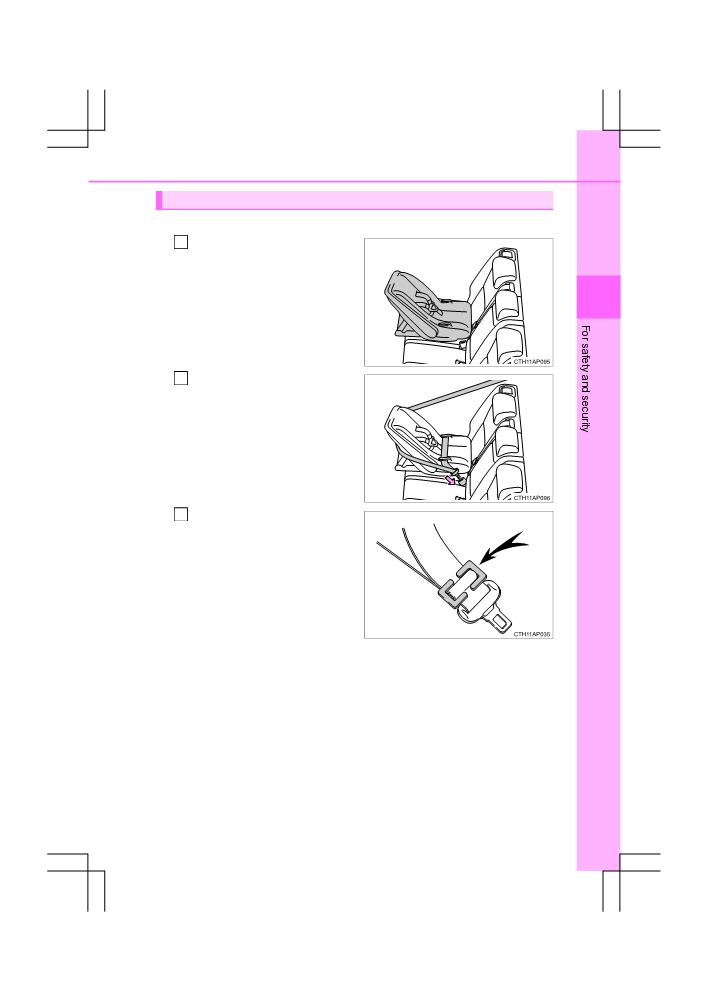

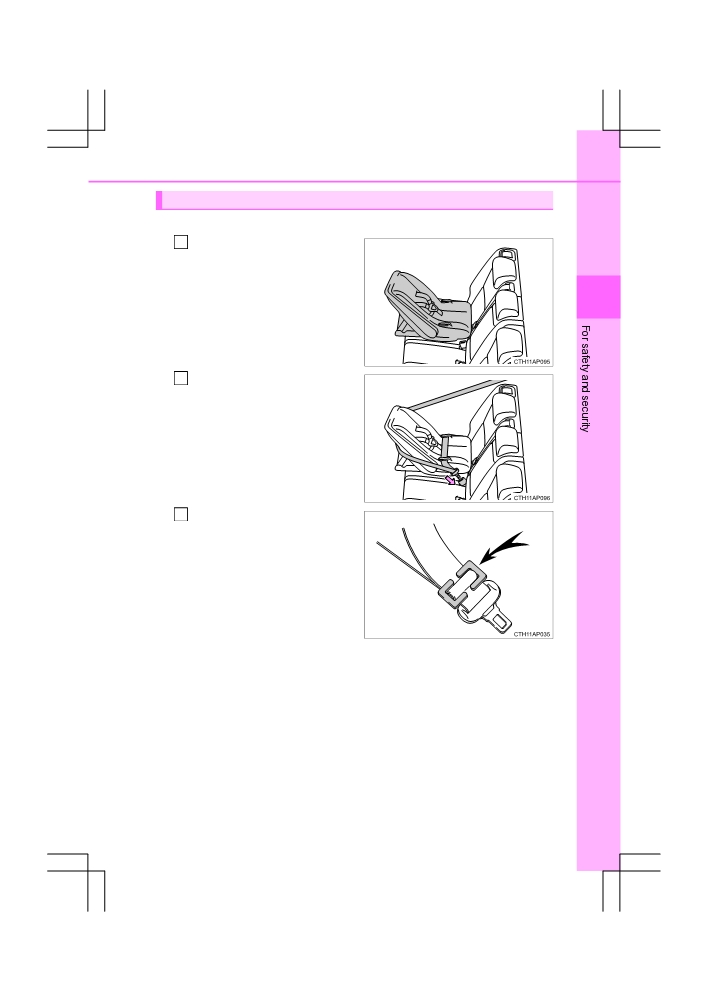

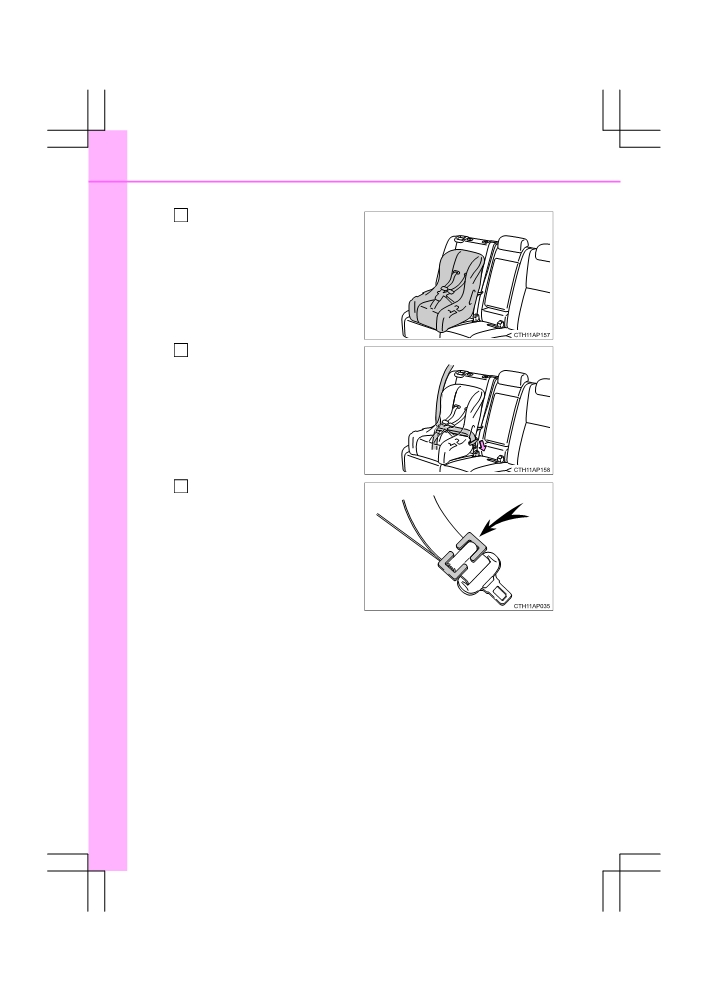

Installing child restraints using a seat belt

■ Rear-facing  Baby seat/child seat

Place the child restraint sys-

1

tem on the rear seat facing

the rear of the vehicle.

1

Run the seat belt through the

2

child restraint system and

insert the plate into the

buckle. Make sure that the

belt is not twisted.

Install a locking clip near the

3

tab of the lap and shoulder

belt by inserting the lap and

shoulder webbing through

the recesses of the locking

clip. Buckle the belt again. If

the belt has any slack,

release the buckle and rein-

stall the locking clip.

AURIS HV Touring

Sports_EE

(OM12L18E)

62

1-1. For safe use

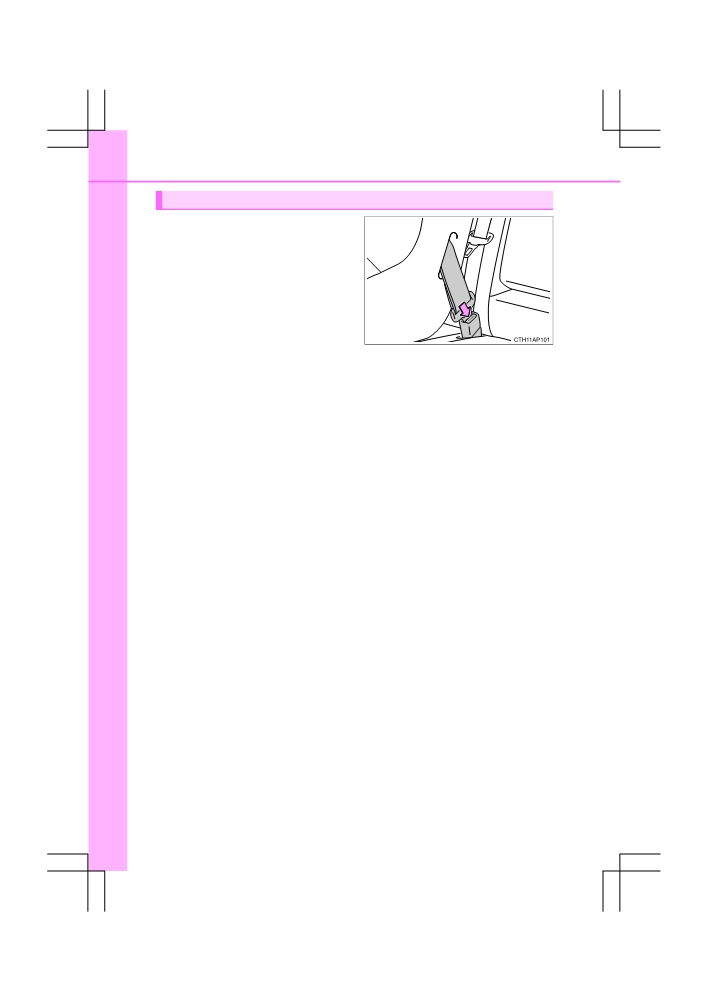

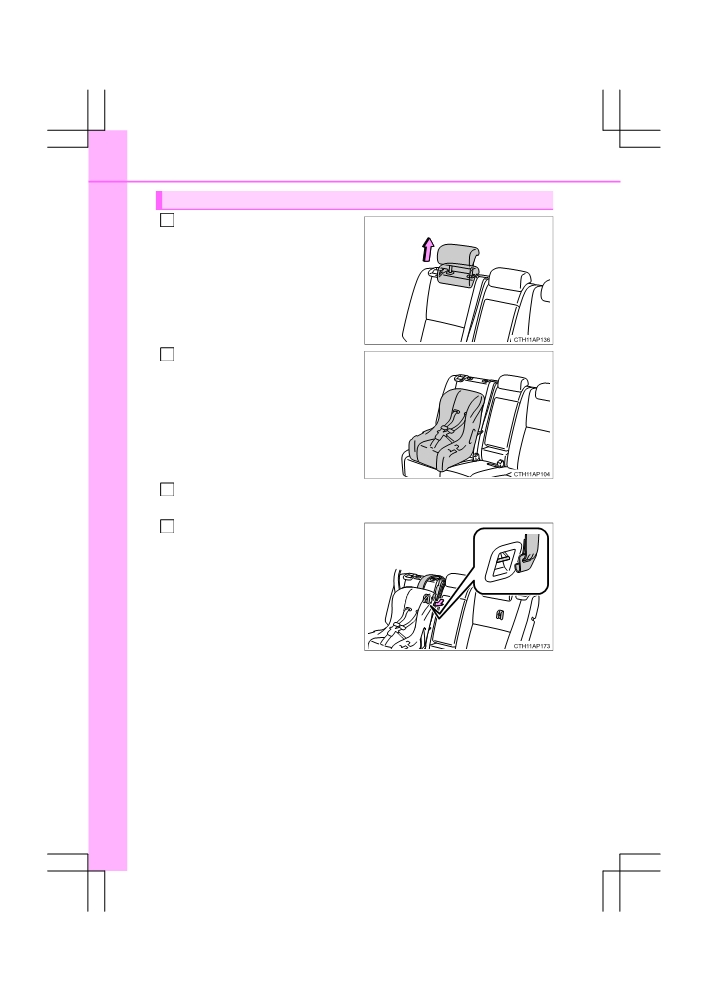

■ Forward-facing  Child seat

Place the child restraint sys-

1

tem on the seat facing the

front of the vehicle.

If your child restraint system

interferes with a head restraint

and cannot be installed properly,

install the child restraint system

after

removing the head

restraint. (P. 178)

Run the seat belt through the

2

child restraint system and

insert the plate into the

buckle. Make sure that the

belt is not twisted.

Install a locking clip near the

3

tab of the lap and shoulder

belt by inserting the lap and

shoulder webbing through

the recesses of the locking

clip. Buckle the belt again. If

the belt has any slack,

release the buckle and rein-

stall the locking clip.

AURIS HV Touring

Sports_EE

(OM12L18E)

1-1. For safe use

63

■ Junior seat

1

Place the child restraint system on the seat facing the front of the

vehicle.

If your child restraint system interferes with a head restraint and cannot

be installed properly, install the child restraint system after removing the

head restraint. (P. 178)

 High back type

 Booster type

1

Sit the child in the child

2

restraint system. Fit the seat

belt to the child restraint sys-

tem according to the manu-

facturer’s instructions and

insert the plate into the

buckle. Make sure that the

belt is not twisted.

Check that the shoulder belt is correctly positioned over the child’s

shoulder and that the lap belt is as low as possible. (P. 34)

AURIS HV Touring

Sports_EE

(OM12L18E)

64

1-1. For safe use

Removing a child restraint installed with a seat belt

Push the buckle release button

and fully retract the seat belt.

AURIS HV Touring

Sports_EE

(OM12L18E)

1-1. For safe use

65

Installation with ISOFIX rigid anchors

Adjust the head restraint to the

1

uppermost position.

If your child restraint system inter-

feres with a head restraint and can-

not be installed properly, install the

child restraint system after remov-

1

ing the head restraint. (P. 178)

2

If the child restraint has a top strap, remove the luggage cover and

the partition net (if equipped). (P. 410, 413)

3

Latch the buckles onto the exclusive fixing bars.

1

To align the ISOFIX connec-

tors with the gap between the

seat cushion and seatback,

temporarily put the connec-

tors on the edge of the seat

cushion.

Insert the ISOFIX connectors

2

into the gap until they latch

onto the exclusive fixing

bars.

If the child restraint has a top strap, the top strap should be latched onto

the anchor bracket.

Run the top strap under the head restraint.

AURIS HV Touring

Sports_EE

(OM12L18E)

66

1-1. For safe use

Child restraint systems with a top strap

Adjust the head restraint to the

1

uppermost position.

If your child restraint system inter-

feres with a head restraint and can-

not be installed properly, install the

child restraint system after remov-

ing the head restraint. (P. 178)

Secure the child restraint sys-

2

tem using the seat belt or

ISOFIX rigid anchors.

3

Remove the luggage cover and the partition net (if equipped).

(P. 410, 413)

Latch the hook onto the anchor

4

bracket and tighten the top

strap.

Run the top strap under the head

restraint.

Make sure the top strap is securely

latched.

AURIS HV Touring

Sports_EE

(OM12L18E)

1-1. For safe use

67

■ When installing a child restraint system

You need a locking clip to install the child restraint system. Follow the instruc-

tions provided by the manufacturer of the system. If your child restraint sys-

tem does not provide a locking clip, you can purchase the following item from

any authorized Toyota dealer or repairer, or another duly qualified and

equipped professional:

Locking clip for child restraint system

1

(Part No. 73119-22010)

WARNING

■ When installing a child restraint system

Follow the directions given in the child restraint system installation manual

and fix the child restraint system securely in place.

If the child restraint system is not correctly fixed in place, the child or other

passengers may be seriously injured or even killed in the event of a sudden

braking or an accident.

● If the driver's seat interferes with the

child restraint system and prevents it

from being attached correctly, attach the

child restraint system to the right-hand

rear seat (left-hand drive vehicles) or

the left-hand rear seat (right-hand drive

vehicles).

● Adjust the front passenger seat so that

it does not interfere with the child

restraint system.

● Only put a forward-facing child restraint

system on the front seat when unavoid-

able.

● When installing a forward-facing child

restraint system on the front passenger

seat, move the seat as far back as pos-

sible and remove the head restraint.

Failure to do so may result in death or

serious injury if the airbags deploy

(inflate).

AURIS HV Touring

Sports_EE

(OM12L18E)

Content   ..  2  3  4  5   ..
