7-2. Steps to take in an emergency
Warning message
Details/Actions

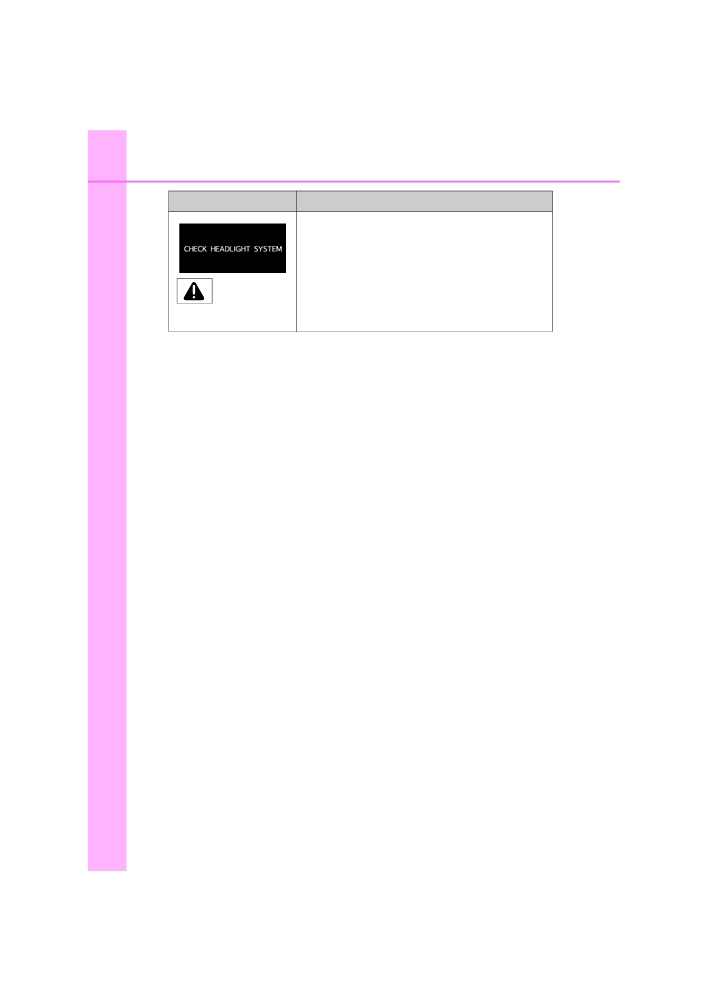

Indicates a malfunction in the LED headlight sys-
tem
A buzzer also sounds.
→ Have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another
(Turns on or
duly qualified and equipped professional.
Flashes)
PRIUS +_OM_OM47B24E_(EE)
7-2. Steps to take in an emergency
409
Other displayed messages
Carrying out the corresponding action turns the messages off.
Displayed message
Details/Actions

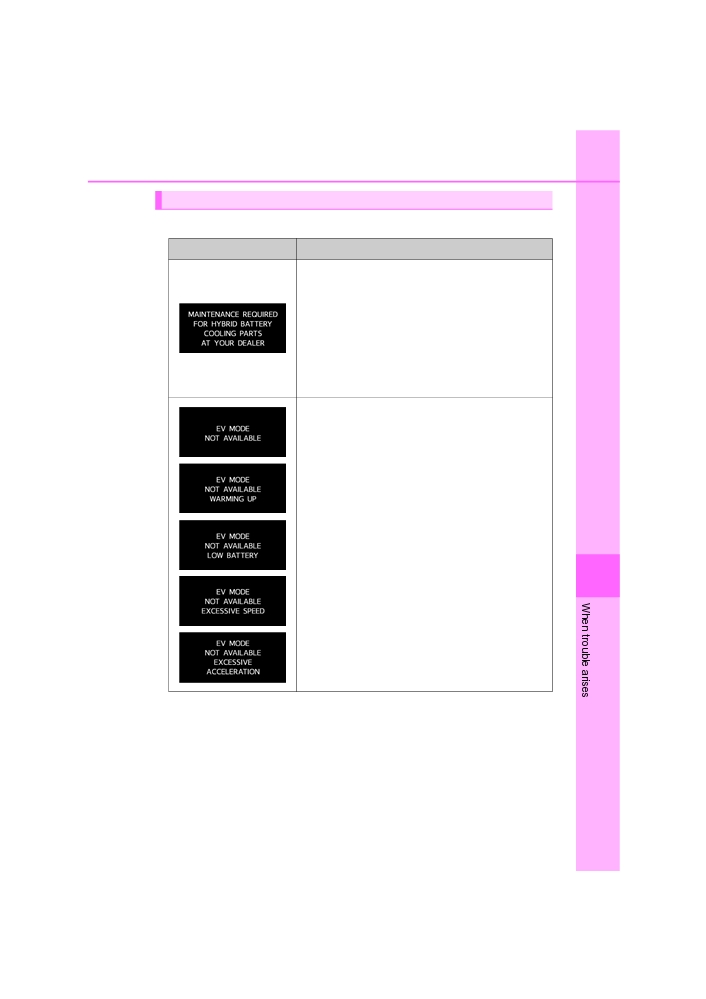

Maintenance of the hybrid battery (traction bat-
tery) cooling component is required
The filter may be clogged, the air intake vent
may be blocked or there may be a gap in the
duct.
→ Have maintenance performed on the hybrid
battery
(traction battery) cooling compo-
nent at any authorized Toyota dealer or
repairer, or another duly qualified and
equipped professional.
Indicates that the EV drive mode is not available*
The reason the EV drive mode is not available
(the vehicle is idling, battery charge is low,
speed is higher than the EV drive mode operat-
ing speed range, accelerator pedal is
depressed too much) may be displayed.
A buzzer also sounds.
7
→ Use the EV drive mode when it becomes
available.
PRIUS +_OM_OM47B24E_(EE)
410
7-2. Steps to take in an emergency
Displayed message
Details/Actions
Indicates that the EV drive mode has been auto-
matically canceled*
The reason the EV drive mode is not available
(the battery charge is low, speed is higher than
the EV drive mode operating speed range,
accelerator pedal is depressed too much) may
be displayed.
A buzzer also sounds.
→ Drive the vehicle for a while.
(Flashes
3 times)
*: For the EV drive mode operating conditions (→P. 214).
PRIUS +_OM_OM47B24E_(EE)
7-2. Steps to take in an emergency
411
■ Warning messages
The warning message illustrations used are intended as examples, and may
differ from the image that is actually displayed on the multi-information dis-
play.
■ Warning message in radar cruise mode (if equipped)
In the following situations, the warning message may not be displayed even if
vehicle-to-vehicle distance decreases:
● When your vehicle and the vehicle ahead are traveling at the same speed or
the vehicle ahead is traveling more quickly than your vehicle
● When the vehicle ahead is traveling at a very low speed
●Immediately after cruise control speed is set
●At the instant the accelerator pedal is depressed
■ Warning buzzer
→P. 395
7
PRIUS +_OM_OM47B24E_(EE)
412
7-2. Steps to take in an emergency
Interior
Exterior
Warning message
Details/Actions
buzzer
buzzer

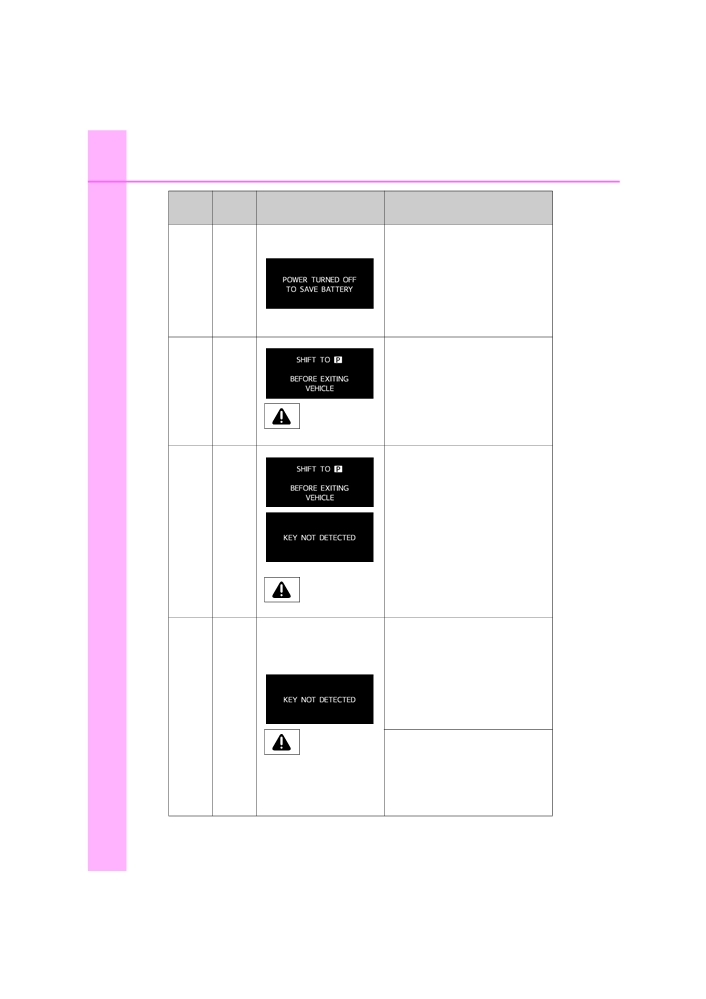

Power was turned off due to the
automatic power off function.
→ Next time when starting
the hybrid system, oper-
ate the hybrid system for
approximately
5 minutes
to recharge the 12-volt bat-
tery.
The driver’s door was opened
while any shift position other
Contin-
than P was selected without
uous
turning off the power switch.
→ Shift the shift position to P.
(Flashes)

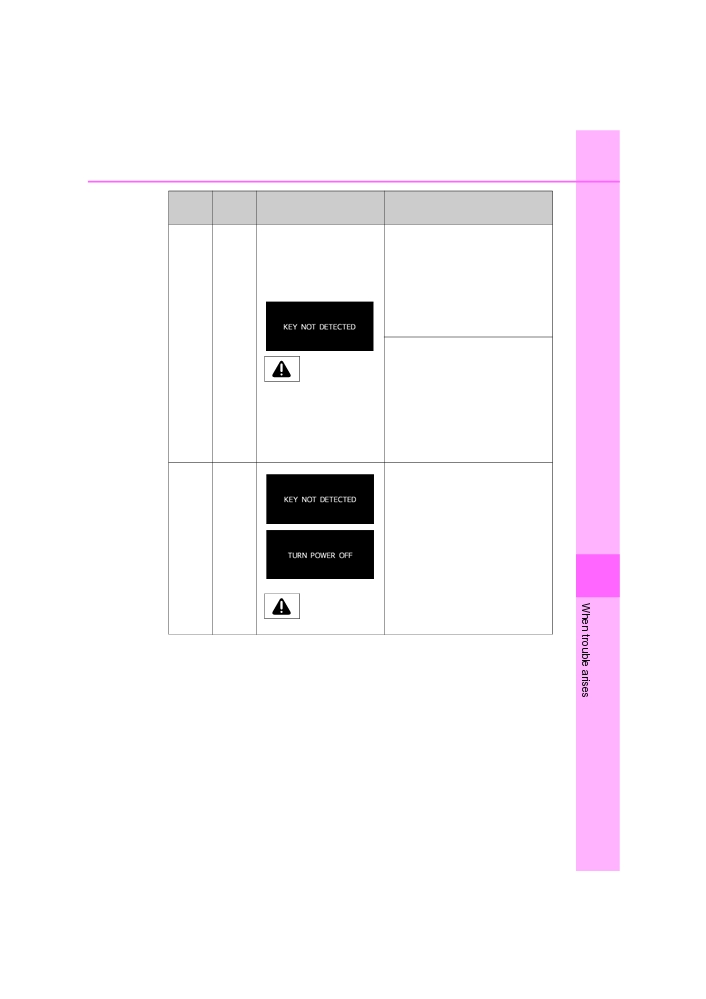

The electronic key was carried
outside the vehicle and the
driver’s door was opened and
closed while any shift position
Contin-
Contin-
other than P was selected with-
uous
uous
out turning off the power switch.
→ Shift the shift position to P.
(Displayed alternately)
→ Bring the electronic key
back into the vehicle.
(Flashes)
An attempt was made to start
the hybrid system without the
electronic key being present, or
the electronic key was not func-
tioning normally.
→ Start the hybrid system
with the electronic key
Once
present.
An attempt was made to drive
when the regular key was not
(Flashes)
inside the vehicle.
→ Confirm that the elec-
tronic key is inside the
vehicle.
PRIUS +_OM_OM47B24E_(EE)
7-2. Steps to take in an emergency
413
Interior
Exterior
Warning message
Details/Actions
buzzer
buzzer
The electronic key was carried
outside the vehicle and a door
other than the driver’s door was
opened and closed while the
power switch was in a mode
other than off.
→ Bring the electronic key
back into the vehicle.
Once
3 times
The electronic key was carried
outside the vehicle and the
driver’s door was opened and
(Flashes)
closed while the shift position P
was selected without turning off
the power switch.
→ Turn the power switch off.
→ Bring the electronic key
back into the vehicle.
An attempt was made to exit
the vehicle with the electronic
Sounds
key and lock the doors without
Once
once for 5
first turning the power switch
seconds
off.
7
→ Turn the power switch off
(Displayed alternately)
and lock the doors again.
(Flashes)
PRIUS +_OM_OM47B24E_(EE)
414
7-2. Steps to take in an emergency
Interior
Exterior
Warning message
Details/Actions
buzzer
buzzer
• An attempt was made to lock
the doors using the smart
entry & start system while the
electronic key was still inside
the vehicle.
• An attempt was made to lock
either front door by opening a
Sounds
door and putting the inside
Once
once for 5
lock button into the lock posi-
seconds
tion, then closing the door by
pulling on the outside door
(Flashes)
handle with the electronic key
still inside the vehicle.
→ Retrieve the electronic key
from the vehicle and lock
the doors again.
• When the doors were
unlocked with the mechanical
key and then the power
switch was pressed, the elec-
tronic key could not be
detected in the vehicle.
• The electronic key could not
Once
be detected in the vehicle
even after the power switch
was pressed two consecu-
(Flashes)
tive times.

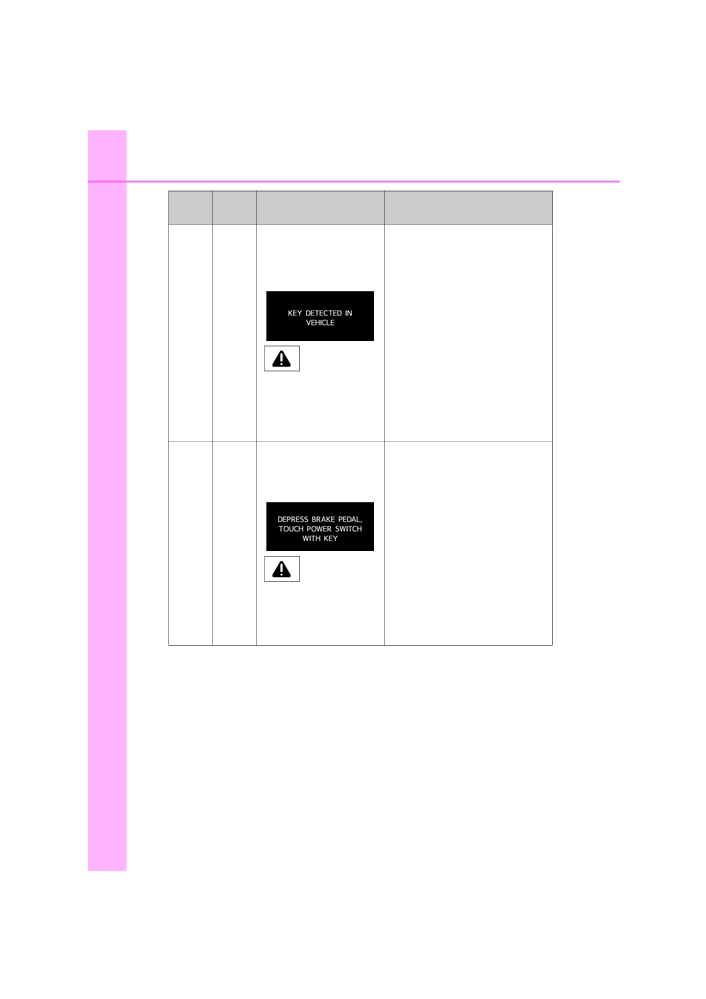

→ Touch the electronic key to
the power switch while
depressing the brake
pedal.
PRIUS +_OM_OM47B24E_(EE)
7-2. Steps to take in an emergency
415
Interior
Exterior
Warning message
Details/Actions
buzzer
buzzer
The driver’s door was opened
and closed with the power
switch turned off and then the
power switch was put in
ACCESSORY mode twice with-
out the hybrid system being
started.

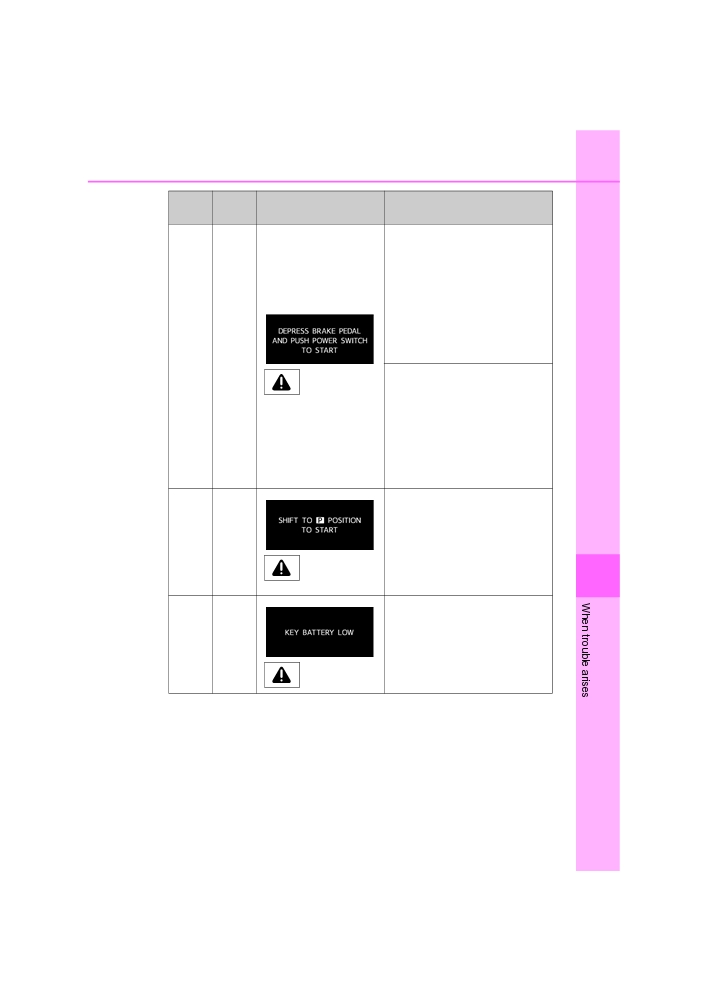

→ Press the power switch
while depressing the brake
pedal.
Once
During a hybrid system starting
procedure in the event that the
(Flashes)
electronic key was not function-
ing properly
(→P.
450), the
power switch was touched with
the electronic key.
→ Press the power switch
within 10 seconds of the
buzzer sounding.
An attempt was made to start
the hybrid system with the shift
position in N.
Once
→ Shift the shift position to P
and start the hybrid sys-
7
tem.
(Flashes)
The electronic key has a low
battery.
Once
→ Replace the electronic key
battery. (→P. 361)
PRIUS +_OM_OM47B24E_(EE)
416
7-2. Steps to take in an emergency
Interior
Exterior
Warning message
Details/Actions
buzzer
buzzer

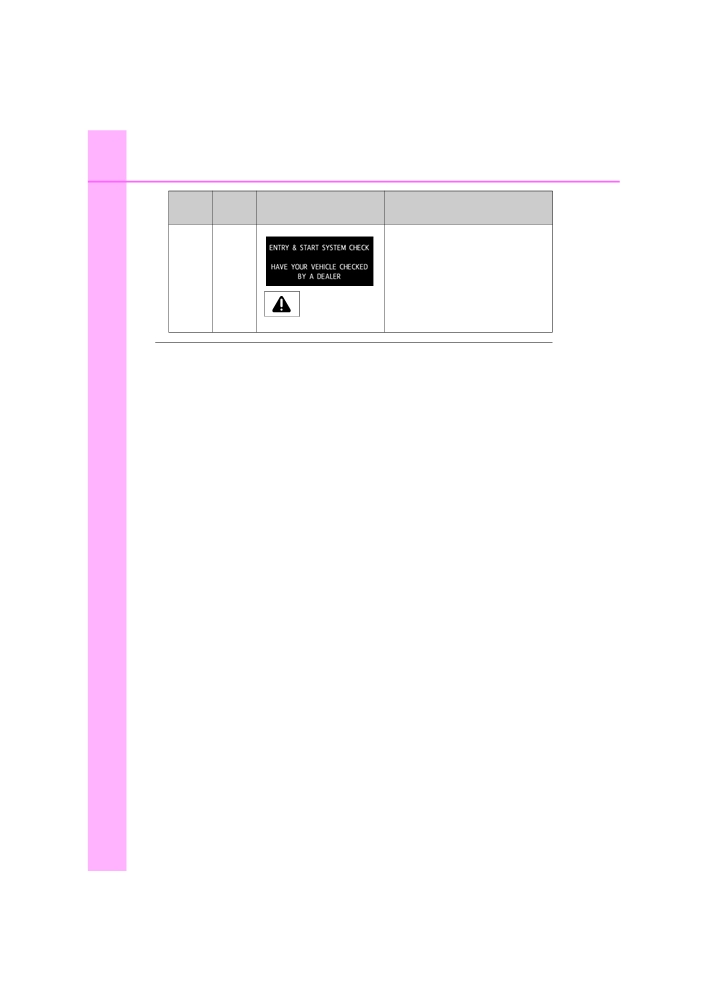

Indicates a malfunction in the
smart entry & start system
→ Have the vehicle inspected
Once
by any authorized Toyota
dealer or repairer, or
another duly qualified and
(Flashes)
equipped professional.
■ Warning messages
→P. 411
■ Warning buzzer
→P. 395
PRIUS +_OM_OM47B24E_(EE)
7-2. Steps to take in an emergency
417
If you have a flat tire (vehicles with spare
tire)
Your vehicle is equipped with a spare tire. The flat tire can be
replaced with the spare tire.
For details about tires: →P. 341
WARNING
■ If you have a flat tire
Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the
wheel beyond repair, which could result in an accident.
Before jacking up the vehicle
● Stop the vehicle in a safe place on a hard, flat surface.
● Set the parking brake.
● Shift the shift position to P.
● Stop the hybrid system.
● Turn on the emergency flashers. (→P. 378)
7
PRIUS +_OM_OM47B24E_(EE)
418
7-2. Steps to take in an emergency

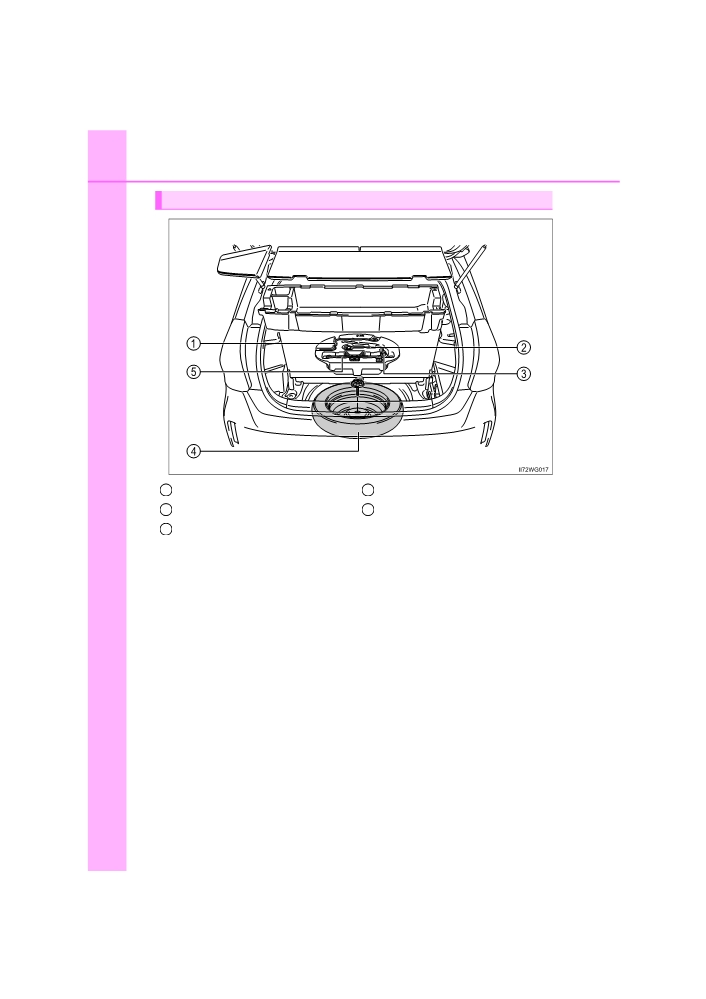

Location of the spare tire, jack and tools
1
Jack handle
4
Spare tire
2
Towing eyelet
5
Jack
3
Wheel nut wrench
PRIUS +_OM_OM47B24E_(EE)
7-2. Steps to take in an emergency
419
WARNING
■ Using the tire jack
Observe the following precautions.
Improper use of the tire jack may cause the vehicle to suddenly fall off the
jack, leading to death or serious injury.
●Do not use the tire jack for any purpose other than replacing tires or install-
ing and removing tire chains.
●Only use the tire jack that comes with this vehicle for replacing a flat tire.
Do not use it on other vehicles, and do not use other tire jacks for replac-
ing tires on this vehicle.
●Put the jack properly in its jack point.
●Do not put any part of your body under the vehicle while it is supported by
the jack.
●Do not start the hybrid system or drive the vehicle while the vehicle is sup-
ported by the jack.
●Do not raise the vehicle while someone is inside.
● When raising the vehicle, do not put an object on or under the jack.
●Do not raise the vehicle to a height greater than that required to replace
the tire.
●Use a jack stand if it is necessary to get under the vehicle.
● When lowering the vehicle, make sure that there is no-one near the vehi-
cle. If there are people nearby, warn them vocally before lowering.
7
PRIUS +_OM_OM47B24E_(EE)
420
7-2. Steps to take in an emergency

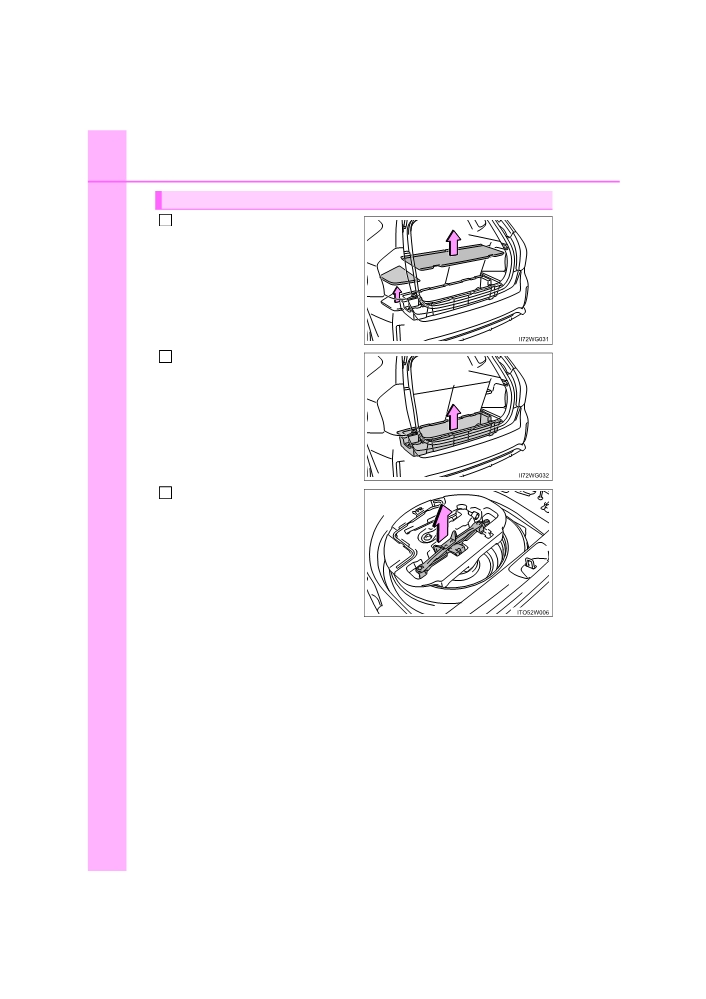

Taking out the jack
1
Remove the center and left side
deck boards.
2
Remove the center auxiliary
box.
3
Take out the jack.
PRIUS +_OM_OM47B24E_(EE)
7-2. Steps to take in an emergency
421

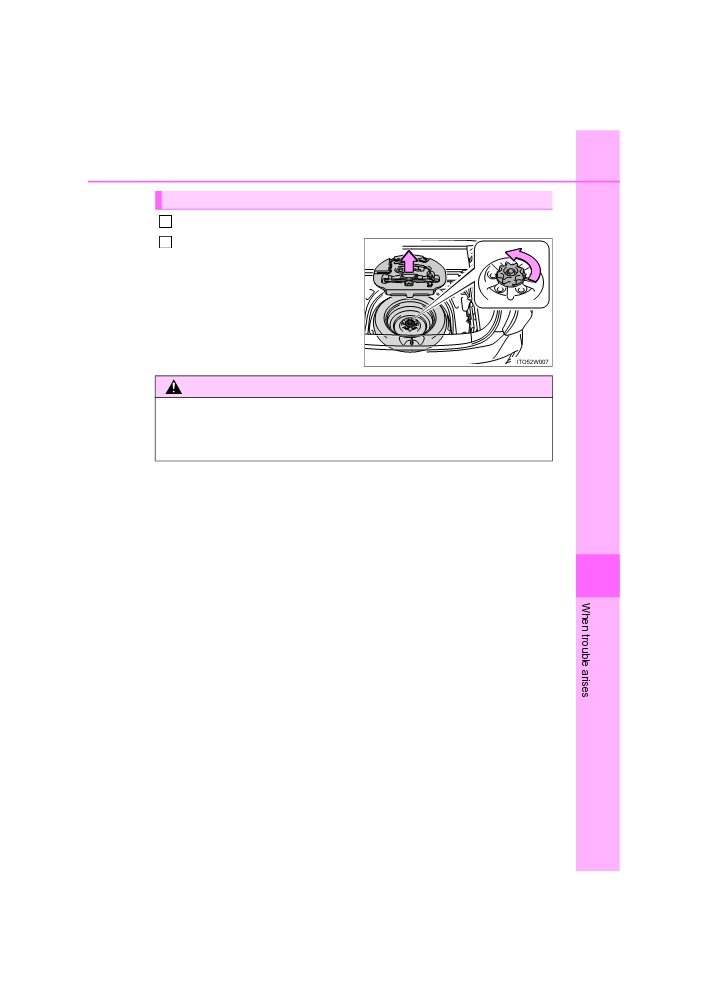

Taking out the spare tire
1
Remove the center deck board and center auxiliary box. (→P. 420)
2
Unload the tool holder from the
vehicle and loosen the center
fastener that secures the
spare
tire.
WARNING
■ When storing the spare tire
Be careful not to catch fingers or other body parts between the spare tire
and the body of the vehicle.
7
PRIUS +_OM_OM47B24E_(EE)
422
7-2. Steps to take in an emergency
Replacing a flat tire
1

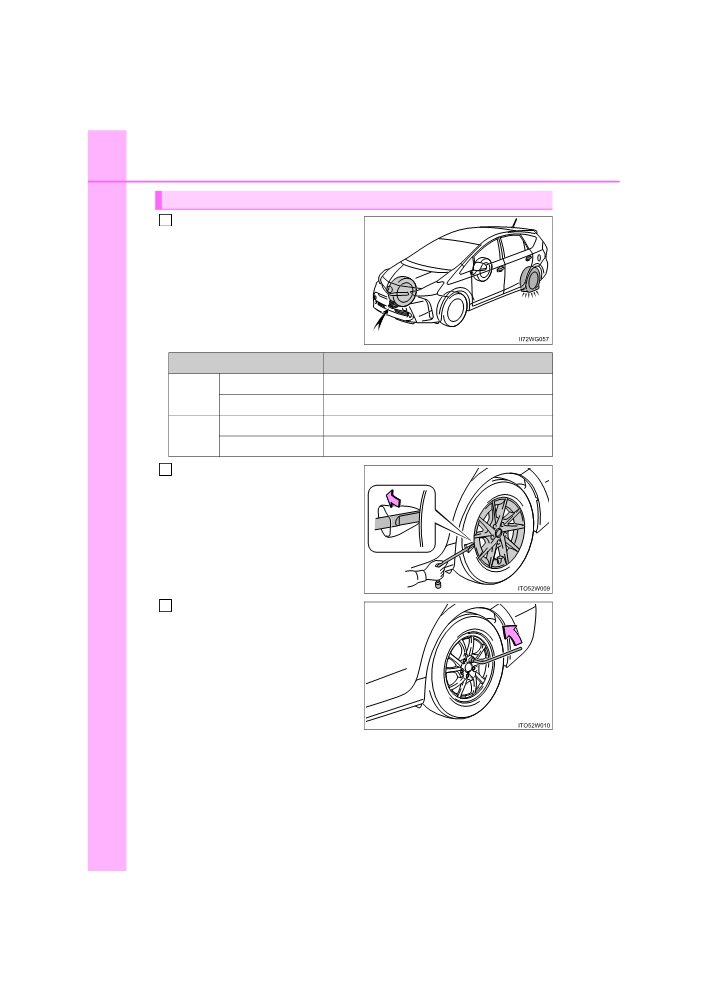

Chock the tires.
Flat tire
Wheel chock positions
Left-hand side
Behind the rear right-hand side tire
Front
Right-hand side
Behind the rear left-hand side tire
Left-hand side
In front of the front right-hand side tire
Rear
Right-hand side
In front of the front left-hand side tire
2
For vehicles with
16 inch
wheels, remove the wheel
ornament using the wrench.
To prevent damage, cover the tip of
the wrench with a rag.
3
Slightly loosen the wheel nuts
(one turn).
PRIUS +_OM_OM47B24E_(EE)
7-2. Steps to take in an emergency
423
4

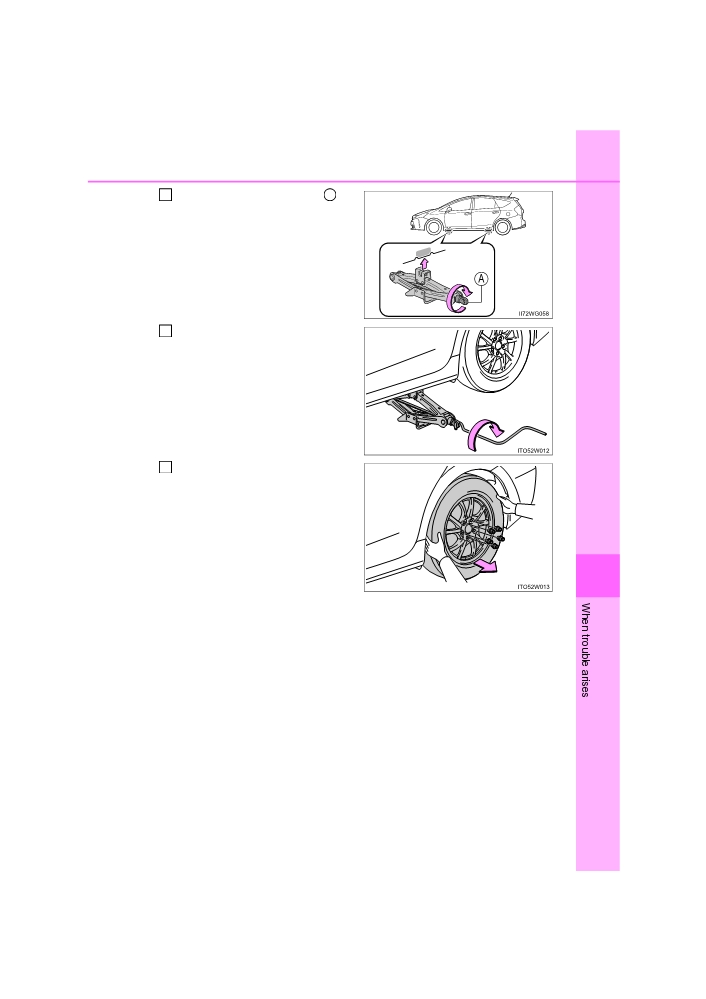

Turn the tire jack portion
A
by
hand until the notch of the jack
is in contact with the jack point.
The jack point guides are located
under the rocker panel. They indi-
cate the jack point positions.
Raise the vehicle until the tire is
5
slightly raised off the ground.
6
Remove all the wheel nuts and
the tire.
When resting the tire on the
ground, place the tire so that the
wheel design faces up to avoid
scratching the wheel surface.
7
PRIUS +_OM_OM47B24E_(EE)
424
7-2. Steps to take in an emergency
WARNING
■ Replacing a flat tire
●Do not touch the disc wheels or the area around the brakes immediately
after the vehicle has been driven.
After the vehicle has been driven the disc wheels and the area around the
brakes will be extremely hot. Touching these areas with hands, feet or
other body parts while changing a tire, etc. may result in burns.
●Failure to follow these precautions could cause the wheel nuts to loosen
and the tire to fall off, resulting in death or serious injury.
• Have the wheel nuts tightened with a torque wrench to 103 N•m
(10.5 kgf•m, 76 ft•lbf) as soon as possible after changing wheels.
• When installing a tire, only use wheel nuts that have been specifically
designed for that wheel.
• If there are any cracks or deformations in the bolt screws, nut threads or
bolt holes of the wheel, have the vehicle inspected by any authorized
Toyota dealer or repairer, or another duly qualified and equipped profes-
sional.
• When installing the wheel nuts, be sure to install the wheel nuts with the
tapered ends facing inward. (→P. 356)
PRIUS +_OM_OM47B24E_(EE)
