4-3. Do-it-yourself maintenance

STEP

4

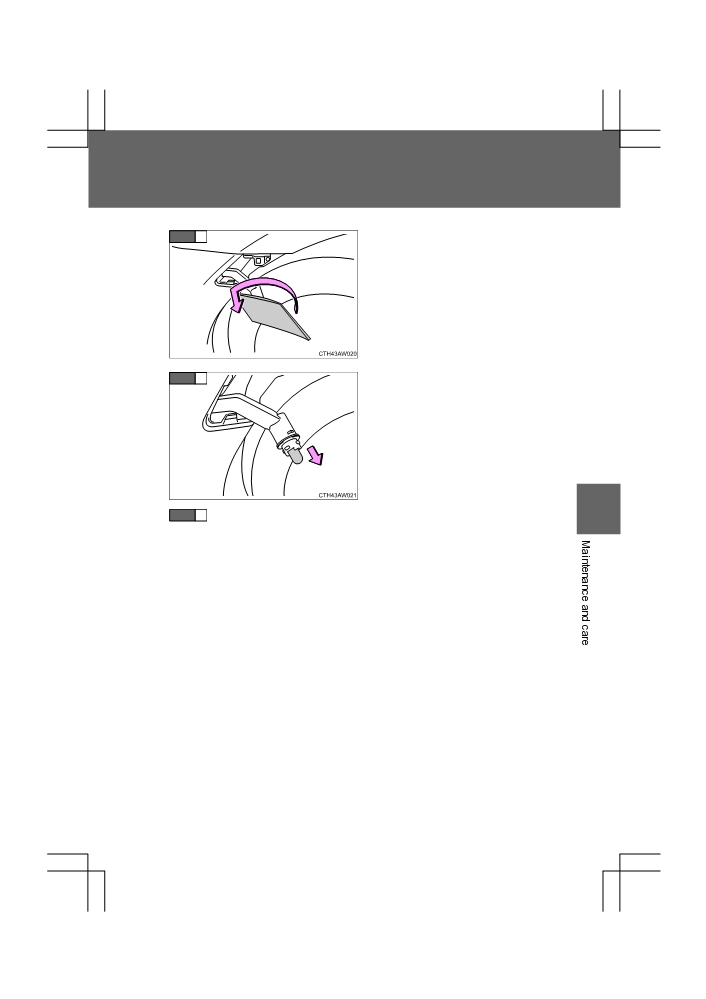

Pull out the lamp and turn the

lens counterclockwise.

STEP

5

Remove the light bulb.

4

When installing, reverse the steps listed.

STEP

6

375

86_EE (OM18071E)

4-3. Do-it-yourself maintenance

■ Back-up lights

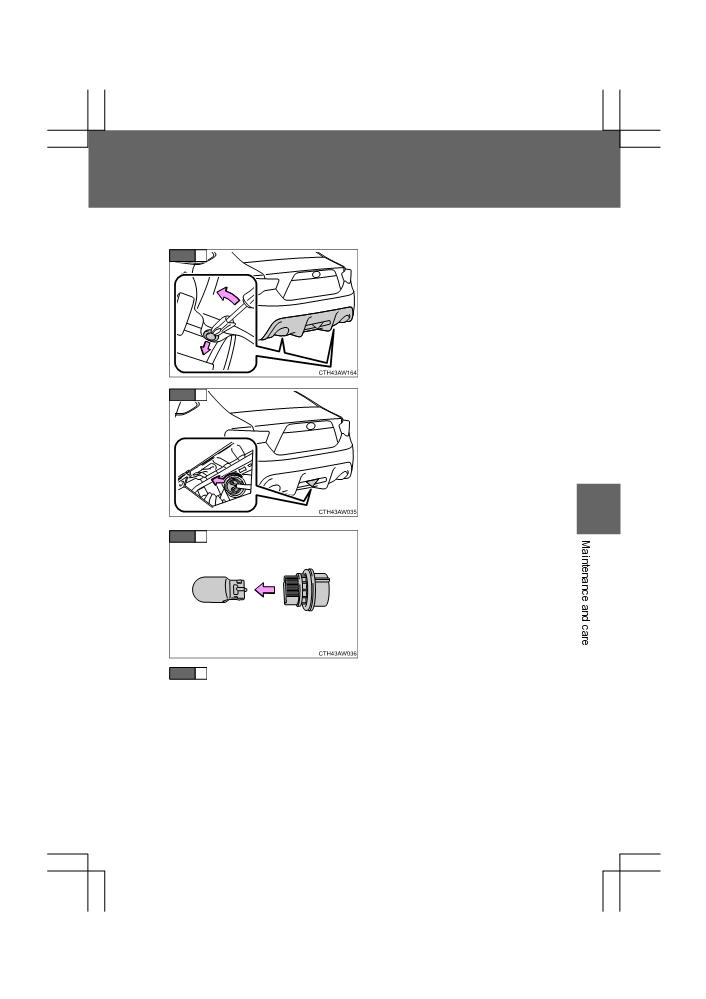

STEP

1

Remove the clips.

To prevent damage to the vehicle,

cover the tip of the screwdriver

with a rag.

STEP

2

Turn the bulb base counterclock-

wise.

STEP

3

Remove the light bulb.

STEP

4

When installing, reverse the steps listed.

376

86_EE (OM18071E)

4-3. Do-it-yourself maintenance

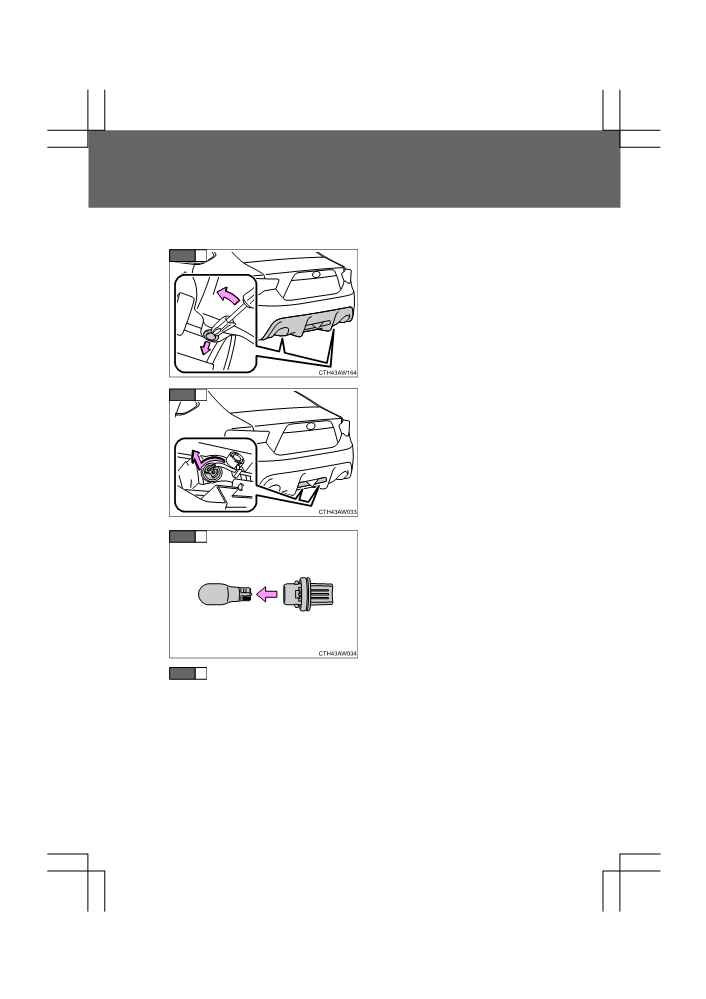

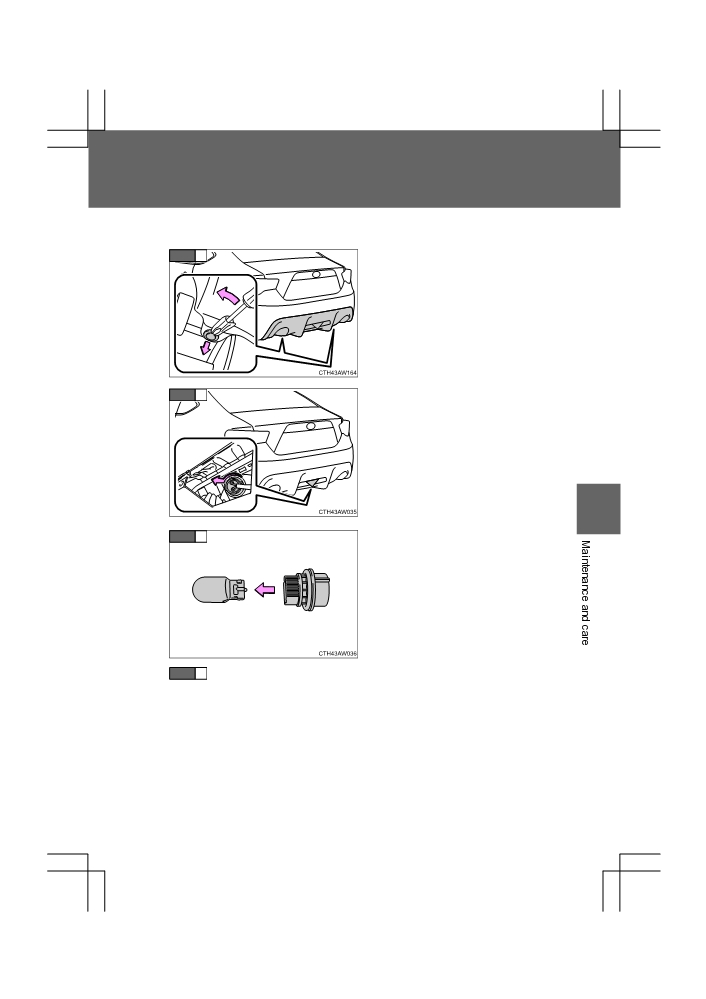

■ Rear fog light

STEP

1

Remove the clips.

To prevent damage to the vehicle,

cover the tip of the screwdriver

with a rag.

STEP

2

Turn the bulb base counterclock-

wise.

4

STEP

3

Remove the light bulb.

When installing, reverse the steps listed.

STEP

4

377

86_EE (OM18071E)

4-3. Do-it-yourself maintenance

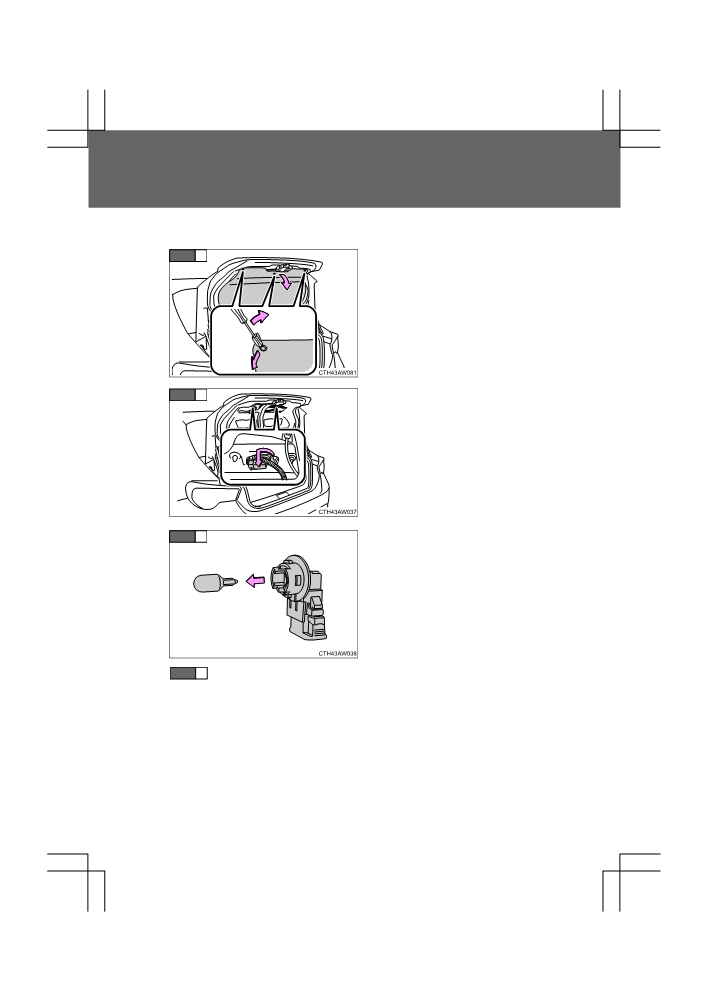

■ License plate lights

STEP

1

Vehicles with the trunk panel

cover: Remove the trunk panel

cover clips and partly remove the

trunk panel cover.

To prevent damage to the vehicle,

cover the tip of the screwdriver

with a rag.

STEP

2

Turn the bulb base counterclock-

wise.

STEP

3

Remove the light bulb.

STEP

4

When installing, reverse the steps listed.

378

86_EE (OM18071E)

4-3. Do-it-yourself maintenance

■ Replacing the following bulbs

If any of the lights listed below has burnt out, have it replaced by

any authorized Toyota dealer or repairer, or another duly qualified

and equipped professional.

● Headlights

● Front position lights/daytime running lights

● Front turn signal lights

● Front fog lights

● Stop/tail lights

● Stop lights

● Rear turn signal lights

● High mounted stoplight

● Door courtesy lights (if equipped)

4

379

86_EE (OM18071E)

4-3. Do-it-yourself maintenance

■ Condensation build-up on the inside of the lens

Temporary condensation build-up on the inside of the headlight lens does

not indicate a malfunction. Contact any authorized Toyota dealer or repairer,

or another duly qualified and equipped professional for more information in

the following situations:

● Large drops of water are built up on the inside of the lens.

● Water has built up inside the headlight.

■ LED light bulbs

The headlights, front position lights/daytime running lights, front turn signal

lights, front fog lights, stop/tail lights, stop lights, rear turn signal lights and

high mounted stoplight consist of a number of LEDs. If any of the LEDs burn

out, take your vehicle to any authorized Toyota dealer or repairer, or another

duly qualified and equipped professional to have the light replaced.

■ When replacing light bulbs

Toyota recommends that you use genuine Toyota products designed for this

vehicle.

Because certain bulbs are connected to circuits designed to prevent over-

load, non-genuine parts or parts not designed for this vehicle may be unus-

able.

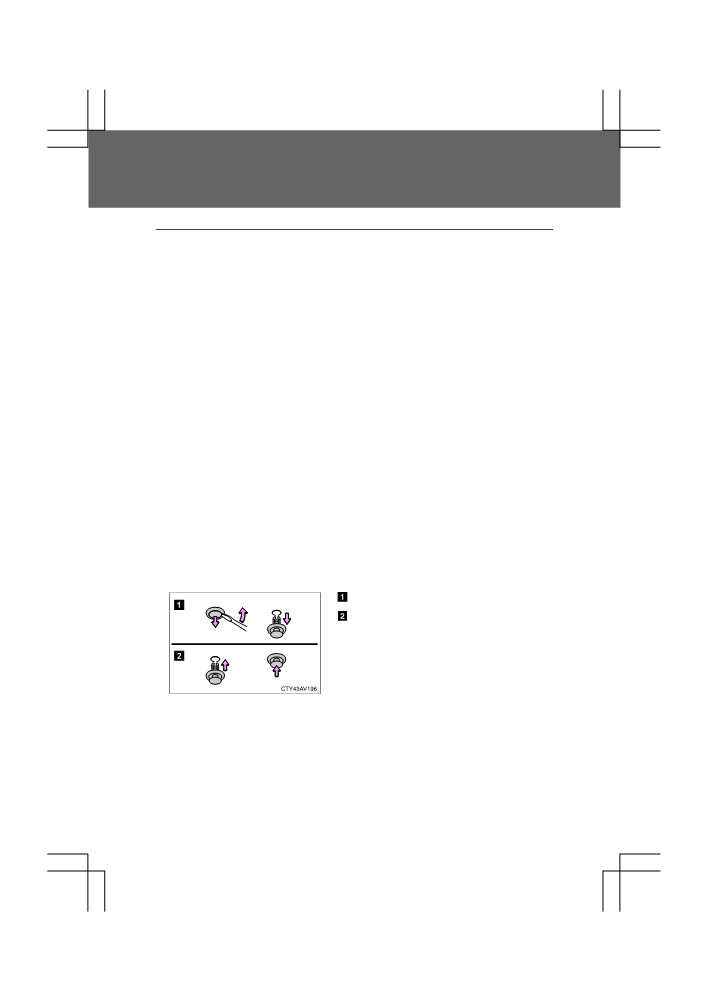

■ Removing and installing the luggage trim cover and trunk panel cover

clip

Removing

Installing

380

86_EE (OM18071E)

When trouble arises

5

5-1.

Essential information

If the shift lever cannot be

shifted from P

453

Emergency flashers

384

If you lose your keys

454

If your vehicle needs

to be towed

385

If the electronic key does not

operate properly

455

If you think something is

wrong

393

If the battery is

discharged

459

Fuel pump shut off

system

394

If your vehicle

overheats

464

5-2.

Steps to take in

If the vehicle becomes

stuck

467

an emergency

If your vehicle has to be

If a warning light turns on

stopped in an

or a warning buzzer

emergency

469

sounds

395

If a warning message is

displayed

404

If you have a flat tire

(vehicles with

an emergency tire

puncture repair kit)

422

If you have a flat tire

(vehicles with a spare

tire)

438

If the engine will not

start

450

383

86_EE (OM18071E)

5-1. Essential information

Emergency flashers

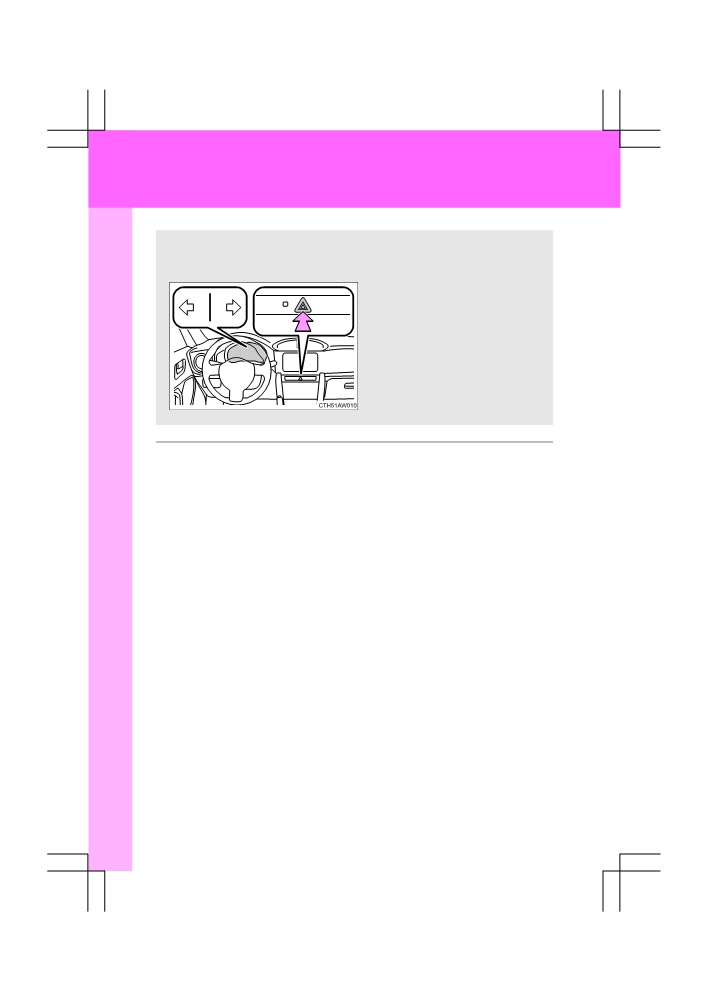

The emergency flashers are used to warn other drivers when the

vehicle has to be stopped in the road due to a breakdown, etc.

Press the switch.

All the turn signal lights will

flash. To turn them off, press

the switch once again.

■ Emergency flashers

If the emergency flashers are used for a long time while the engine is not

operating, the battery may discharge.

384

86_EE (OM18071E)

5-1. Essential information

If your vehicle needs to be towed

If towing is necessary, we recommend having your vehicle towed by

any authorized Toyota dealer or repairer, or another duly qualified

and equipped professional or a commercial towing service, using a

lift-type truck or a flat bed truck.

Use a safety chain system for all towing, and abide by all state/pro-

vincial and local laws.

If towing from the rear, the vehicle's front wheels and axles must be

in good condition. (→P. 391)

If they are damaged, use a towing dolly or flat bed truck.

Before towing

The following may indicate a problem with your transmission. Contact

any authorized Toyota dealer or repairer, or another duly qualified

and equipped professional before towing.

● The engine is running, but the vehicle will not move.

● The vehicle makes an abnormal sound.

Emergency towing

5

If a tow truck is not available in an emergency, your vehicle may be

temporarily towed using a cable or chain secured to the emergency

towing eyelet. This should only be attempted on hard surfaced roads

for short distances at low speeds.

A driver must be in the vehicle to steer and operate the brakes. The

vehicle’s wheels, drive train, axles, steering and brakes must be in

good condition.

For vehicles with an automatic transmission, only the front towing

eyelet may be used.

385

86_EE (OM18071E)

5-1. Essential information

Towing eyelet

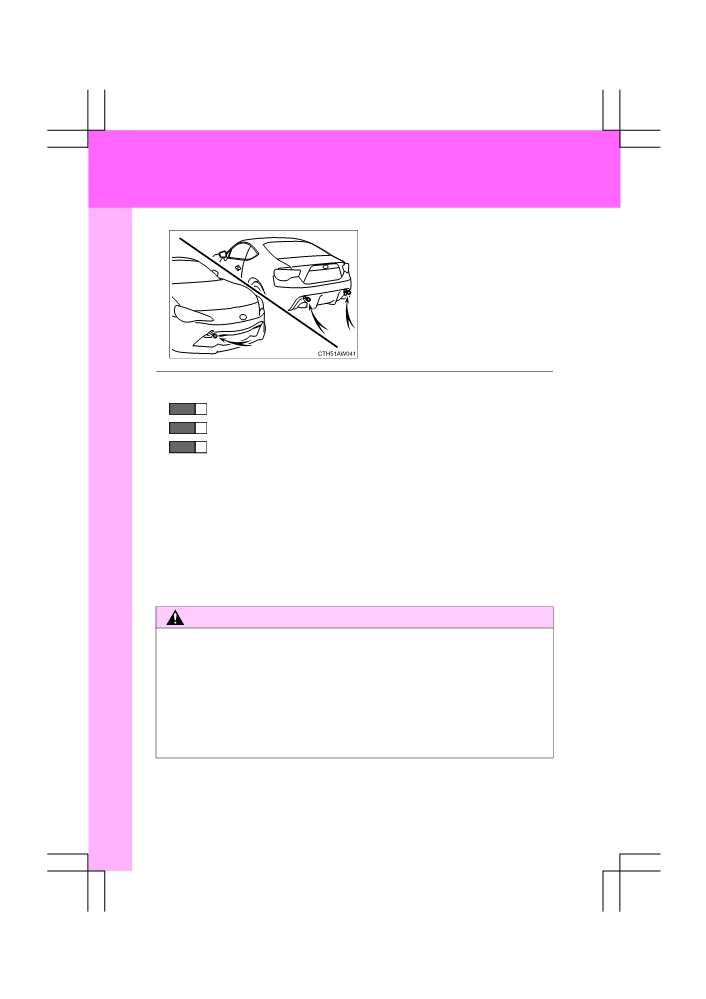

■ Before emergency towing

STEP

1

Release the parking brake.

STEP

2

Shift the shift lever to N.

STEP

3

Vehicles without a smart entry & start system: Turn the engine

switch to the “ACC” (engine off) or “ON” (engine running) position.

Vehicles with a smart entry & start system: Turn the “ENGINE

START STOP” switch to ACCESSORY (engine off) or IGNITION

ON (engine running) mode.

■ If towing a vehicle

Do not tow another vehicle. If towing a vehicle that has broken down is

unavoidable, avoid towing a vehicle that is heavier than your vehicle. Also,

do not pull out a vehicle that has fallen into a ditch.

WARNING

■ Caution while towing

●Use extreme caution when towing the vehicle.

Avoid sudden starts or erratic driving maneuvers which place excessive

stress on the emergency towing eyelets and the cables or chains. Always

be cautious of the surroundings and other vehicles while towing.

● If the engine is not running, the power assist for the brakes and steering

will not function, making steering and braking more difficult.

386

86_EE (OM18071E)

5-1. Essential information

NOTICE

■ To prevent causing serious damage to the transmission in emergency

towing (vehicles with an automatic transmission)

Never tow a vehicle from the rear with four wheels on the ground. This may

cause serious damage to the transmission.

■ To prevent damage to the vehicle

●When towing this vehicle, make sure to observe the following:

• Do not use a wire rope

• Keep vehicle speed below 30 km/h (20 mph) and do not tow for dis-

tances over 30 km (19 miles)

• Tow the vehicle in the forward direction

• Do not apply rope to the vehicle's suspension and so forth

●Do not tow another vehicle, boat (trailer) and so forth, that is heavier than

this vehicle.

■ When towing down a long slope

Use a wheel lift-type or flat bed truck. (→P. 391, 392)

If a wheel lift-type or flat bed truck is not used, the brakes may overheat,

leading to poor brake performance.

5

387

86_EE (OM18071E)

5-1. Essential information

Installing a towing eyelet

STEP

1

Remove the eyelet cover(s).

To prevent damage to the vehicle, cover the tip of the screwdriver

with a rag.

Front

Remove the upper cover using a

flathead screwdriver and then

pull the lower cover outward by

hand to remove it

Upper cover

Lower cover

Rear

388

86_EE (OM18071E)

5-1. Essential information

STEP

2

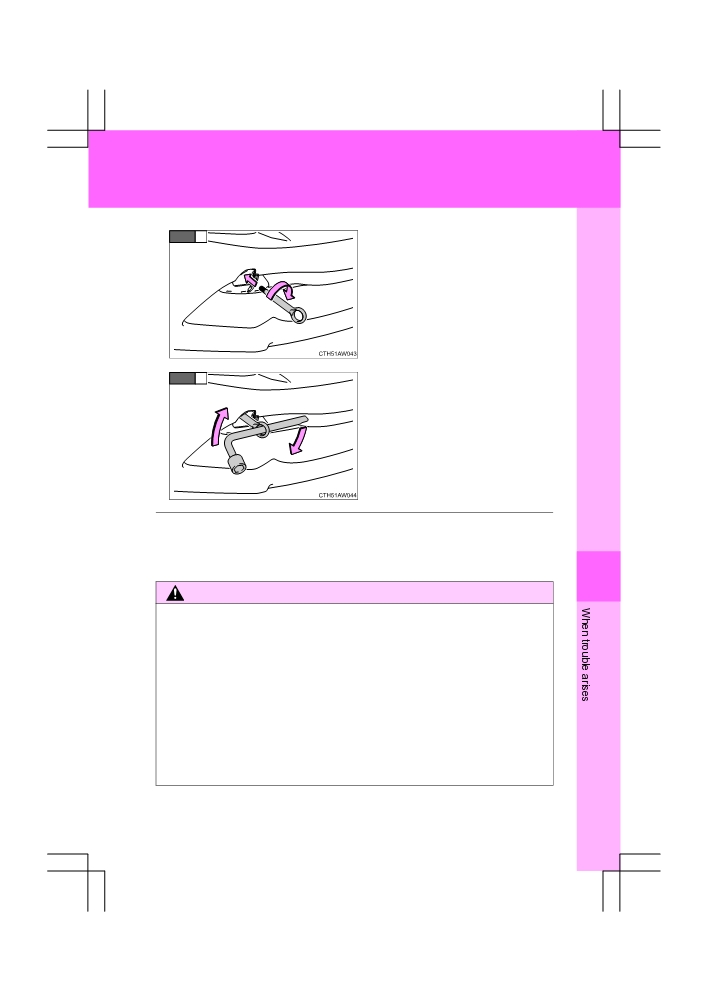

Insert the towing eyelet into the

hole and tighten partially by

hand.

STEP

3

Tighten down the towing eyelet

securely using a wheel nut

wrench.

■ Location of the emergency towing eyelet

→P. 425, 438

5

WARNING

■ Installing towing eyelets to the vehicle

Make sure that towing eyelet is installed securely.

If not securely installed, towing eyelets may come loose during towing. This

may lead to accidents that cause serious injury or even death.

■ After towing

● Always remove the towing eyelet. Failure to do so can cause the SRS air-

bags to not operate correctly in the event of a frontal collision.

●Always remove the towing eyelets. Failure to do so may prevent the fuel

pump shut off system from operating properly if the vehicle receives an

impact from the rear.

389

86_EE (OM18071E)
